The document discusses Apache HBase replication, which asynchronously copies data between HBase clusters. It uses a push-based architecture shipping write-ahead log (WAL) entries similarly to MySQL replication. Replication provides eventual consistency and preserves the atomicity of individual updates. Administrators can configure replication by setting parameters and managing peer clusters and queues stored in Zookeeper. Replicated edits flow from the replication source on a region server to the remote replication sink where they are applied.

1. @TwitterAds | Confidential
@ctrezzo
HBaseCon 2013
Apache HBase Replication

2. 2@Twitter
About me
Active contributor to Apache HBase
Software Engineer @ Twitter
Core Storage Team - Hadoop/HBase
Follow me @ctrezzo

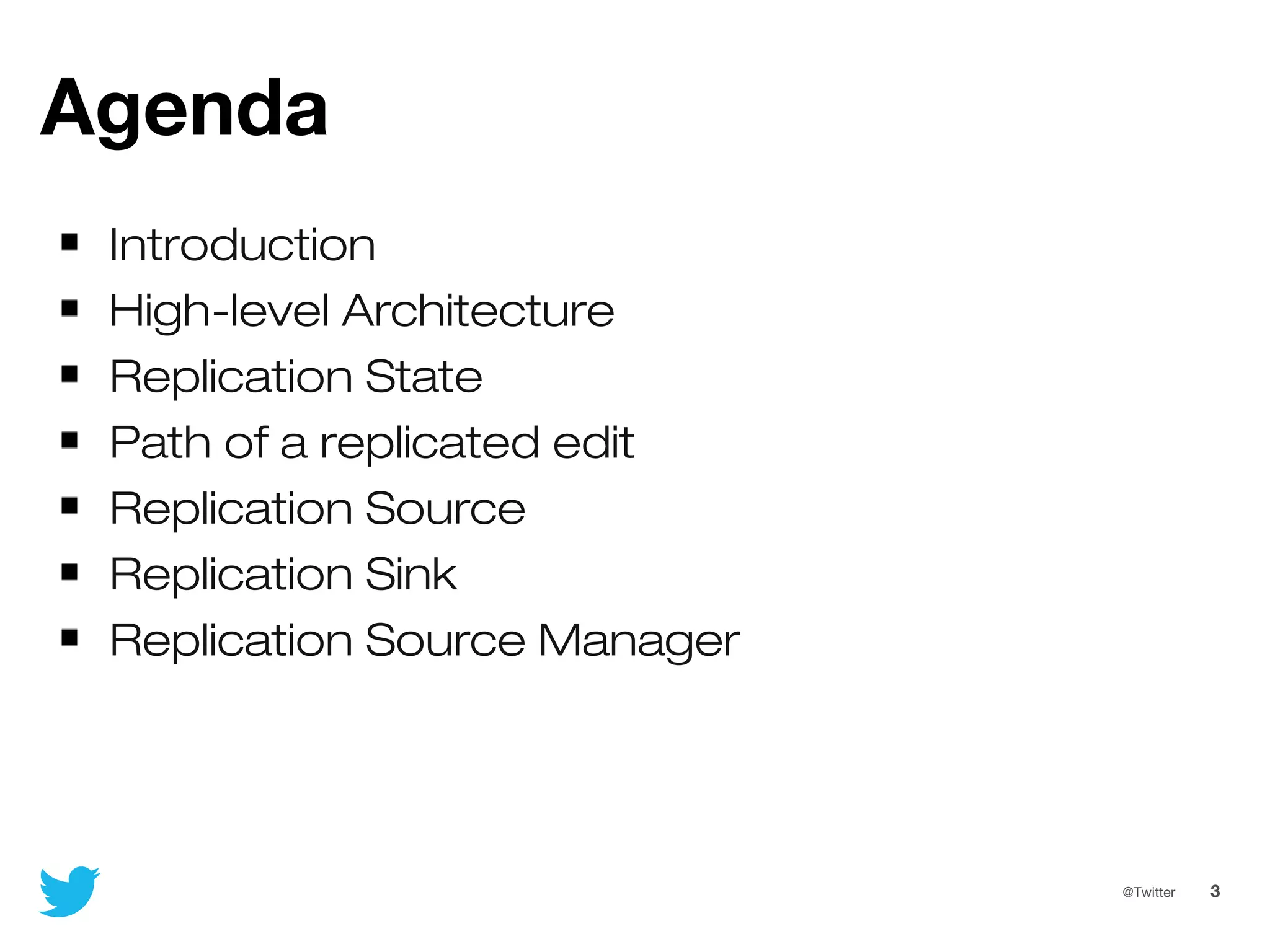

3. 3@Twitter
Agenda
Introduction
High-level Architecture
Replication State
Path of a replicated edit
Replication Source
Replication Sink
Replication Source Manager

4. 4@Twitter

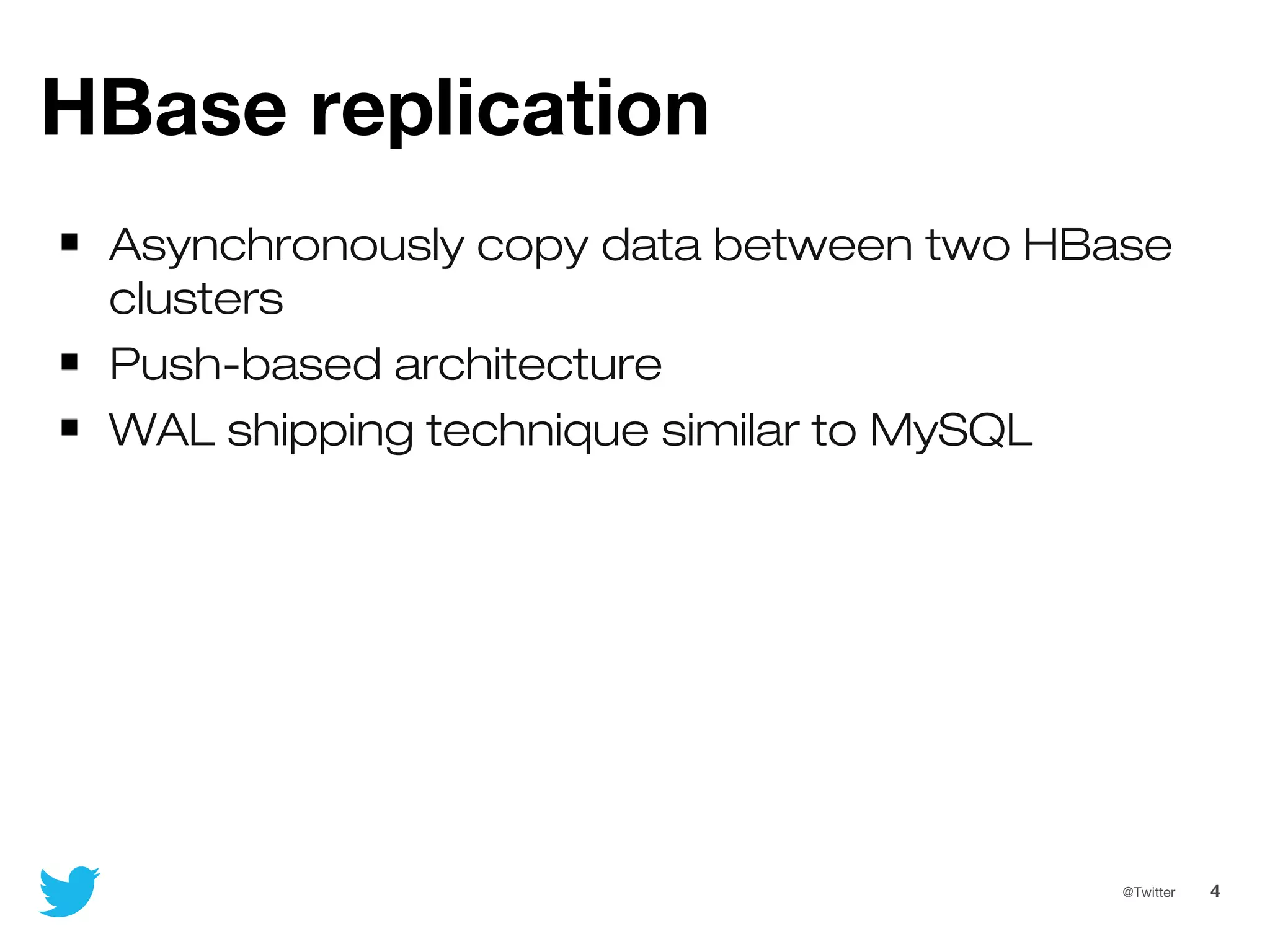

HBase replication
Asynchronously copy data between two HBase
clusters
Push-based architecture
WAL shipping technique similar to MySQL

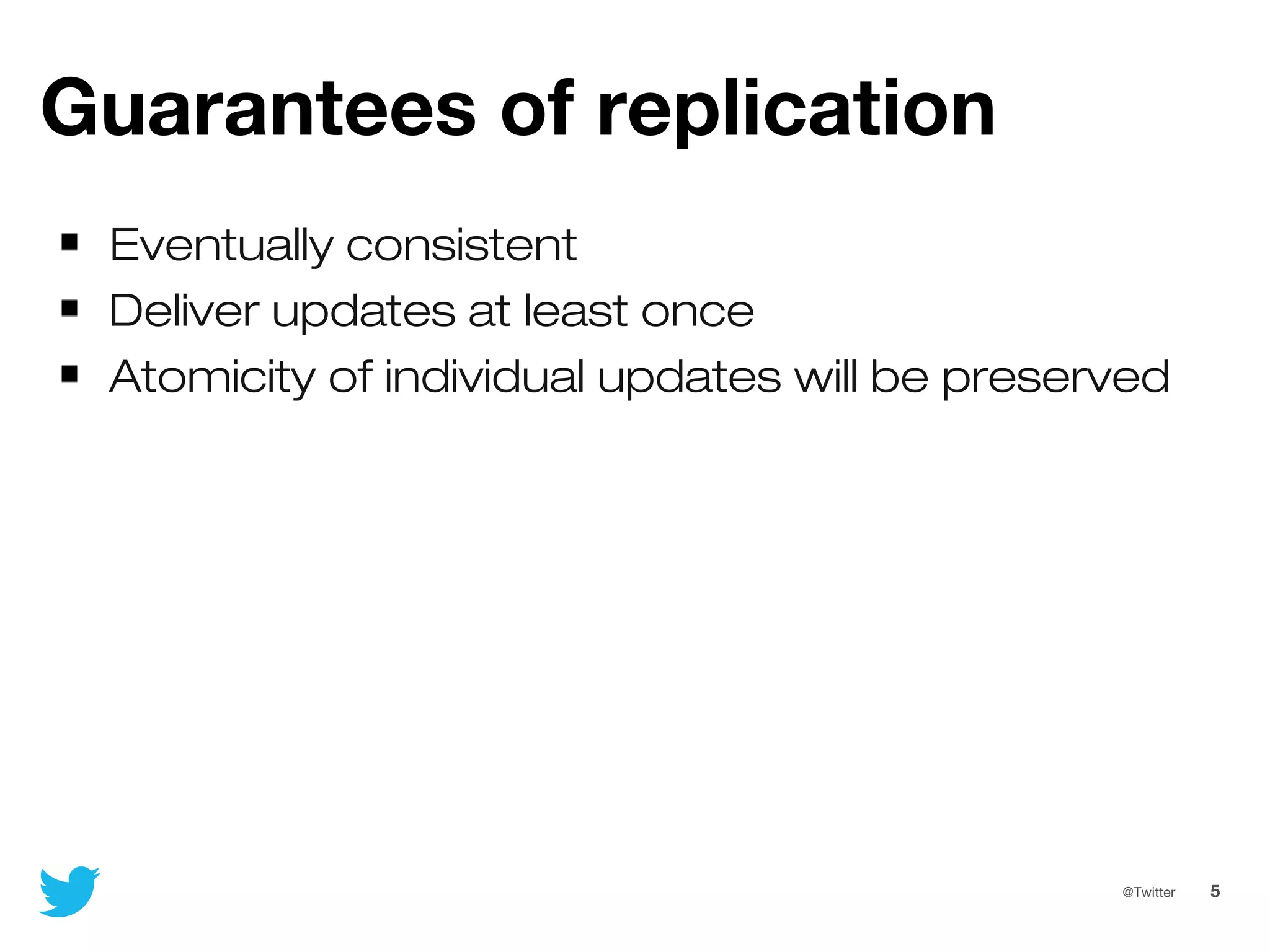

5. 5@Twitter
Guarantees of replication
Eventually consistent
Deliver updates at least once
Atomicity of individual updates will be preserved

6. 6@Twitter

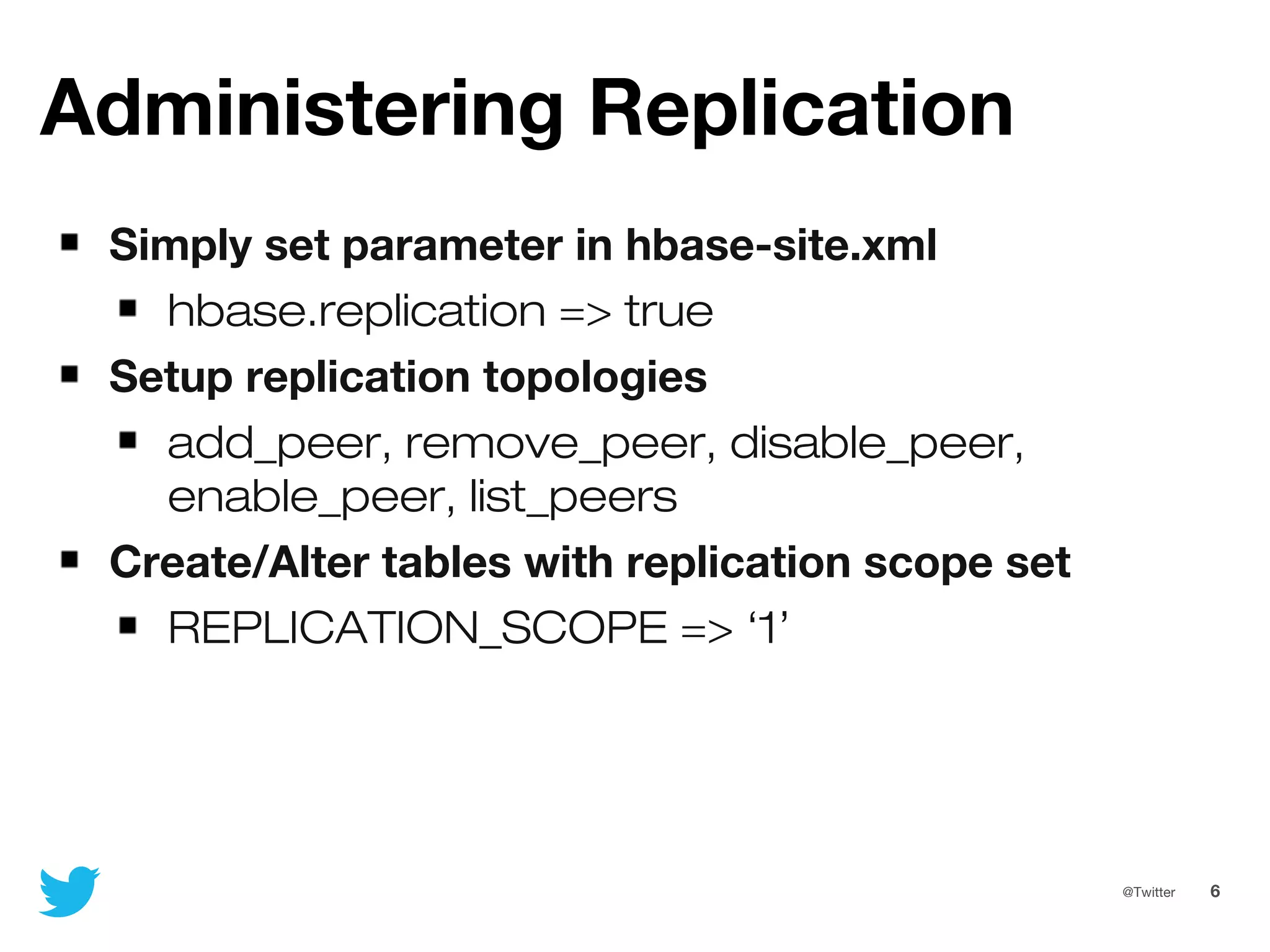

Administering Replication
Simply set parameter in hbase-site.xml
hbase.replication => true
Setup replication topologies
add_peer, remove_peer, disable_peer,
enable_peer, list_peers
Create/Alter tables with replication scope set
REPLICATION_SCOPE => ‘1’

7. 7@Twitter
High-Level Architecture

8. 8@Twitter

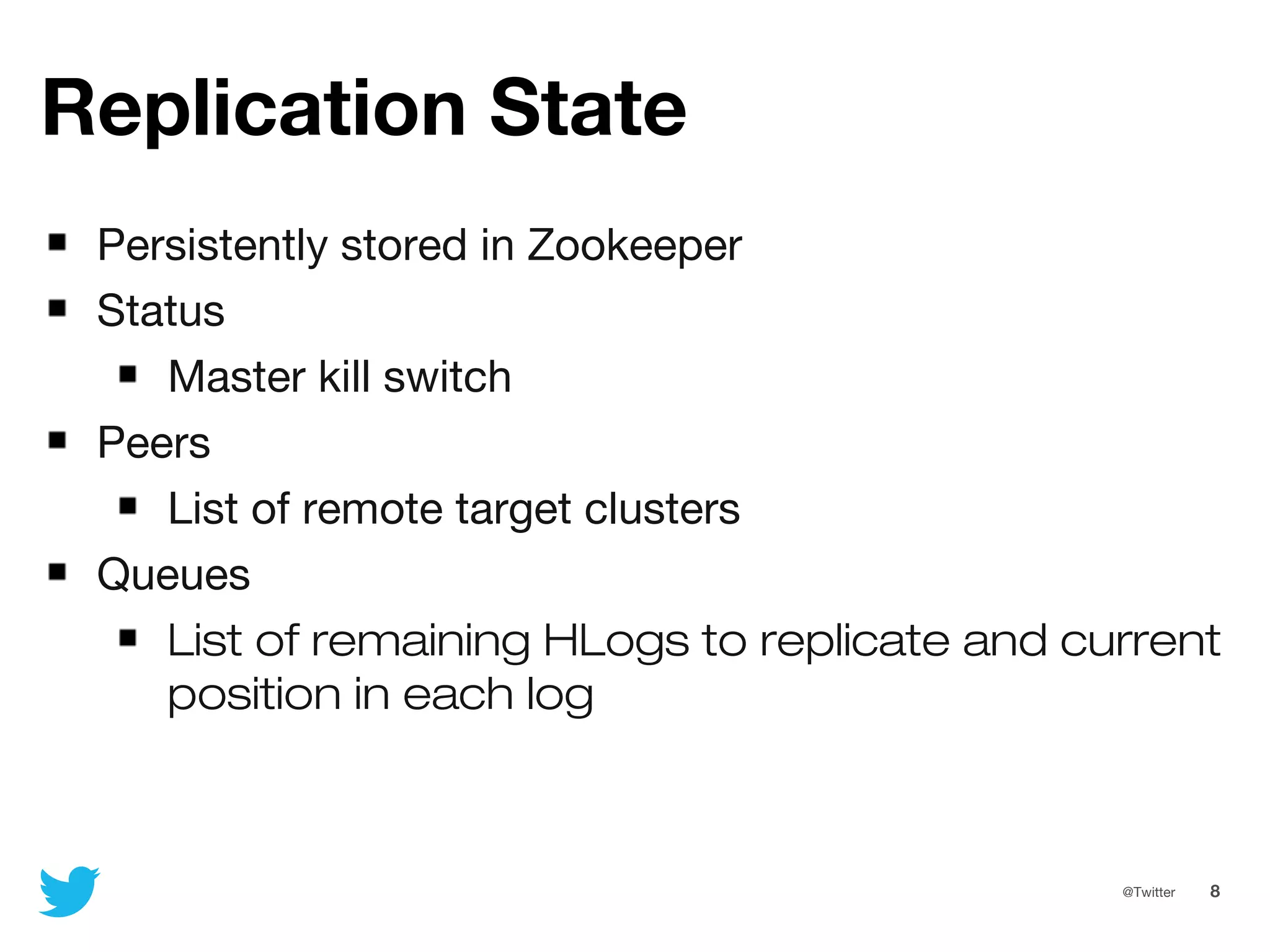

Replication State
Persistently stored in Zookeeper
Status
Master kill switch
Peers
List of remote target clusters
Queues
List of remaining HLogs to replicate and current
position in each log

9. 9@Twitter
Path of a replicated edit

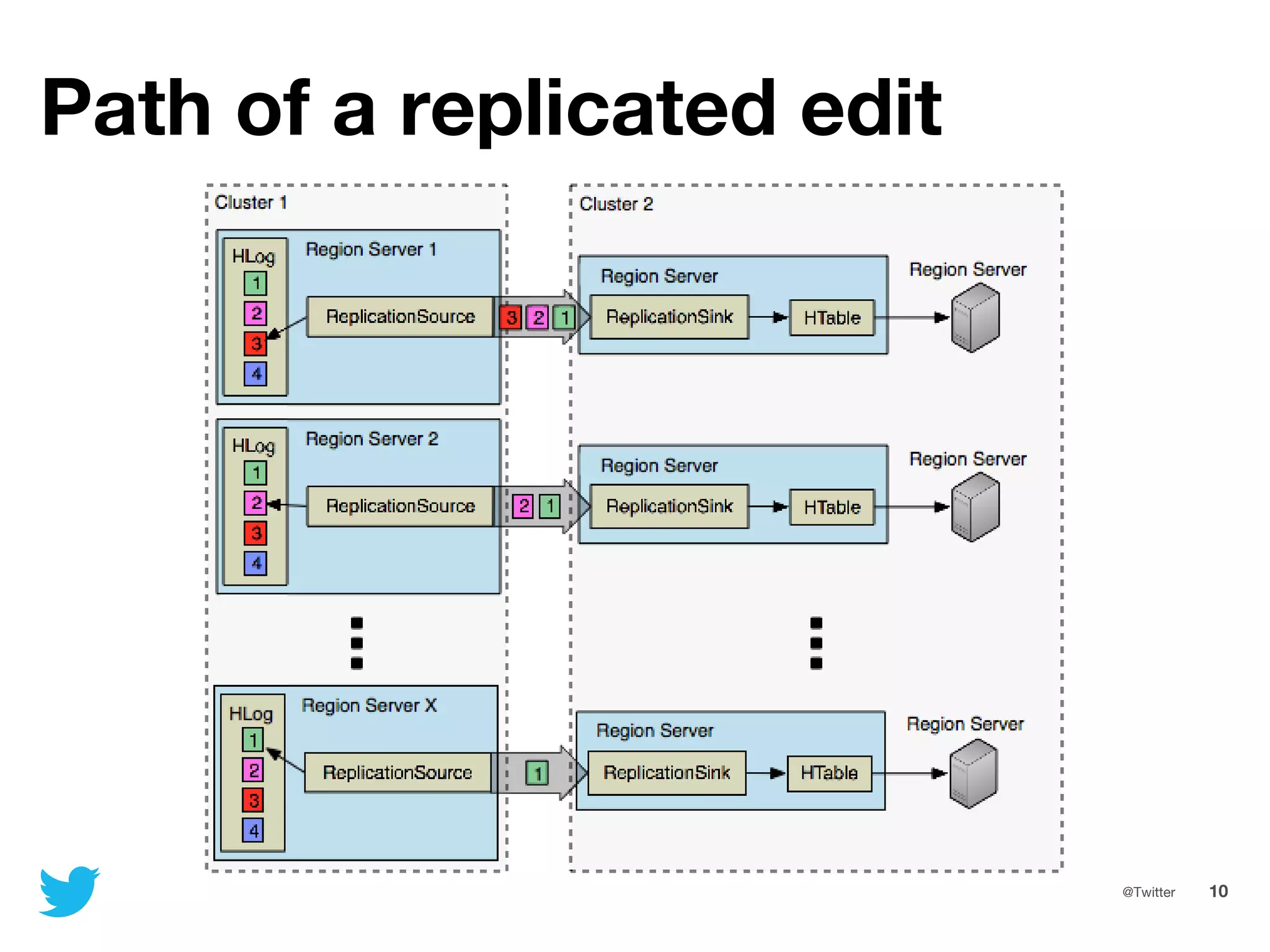

10. 10@Twitter

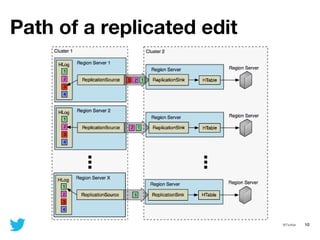

Path of a replicated edit

11. 11@Twitter

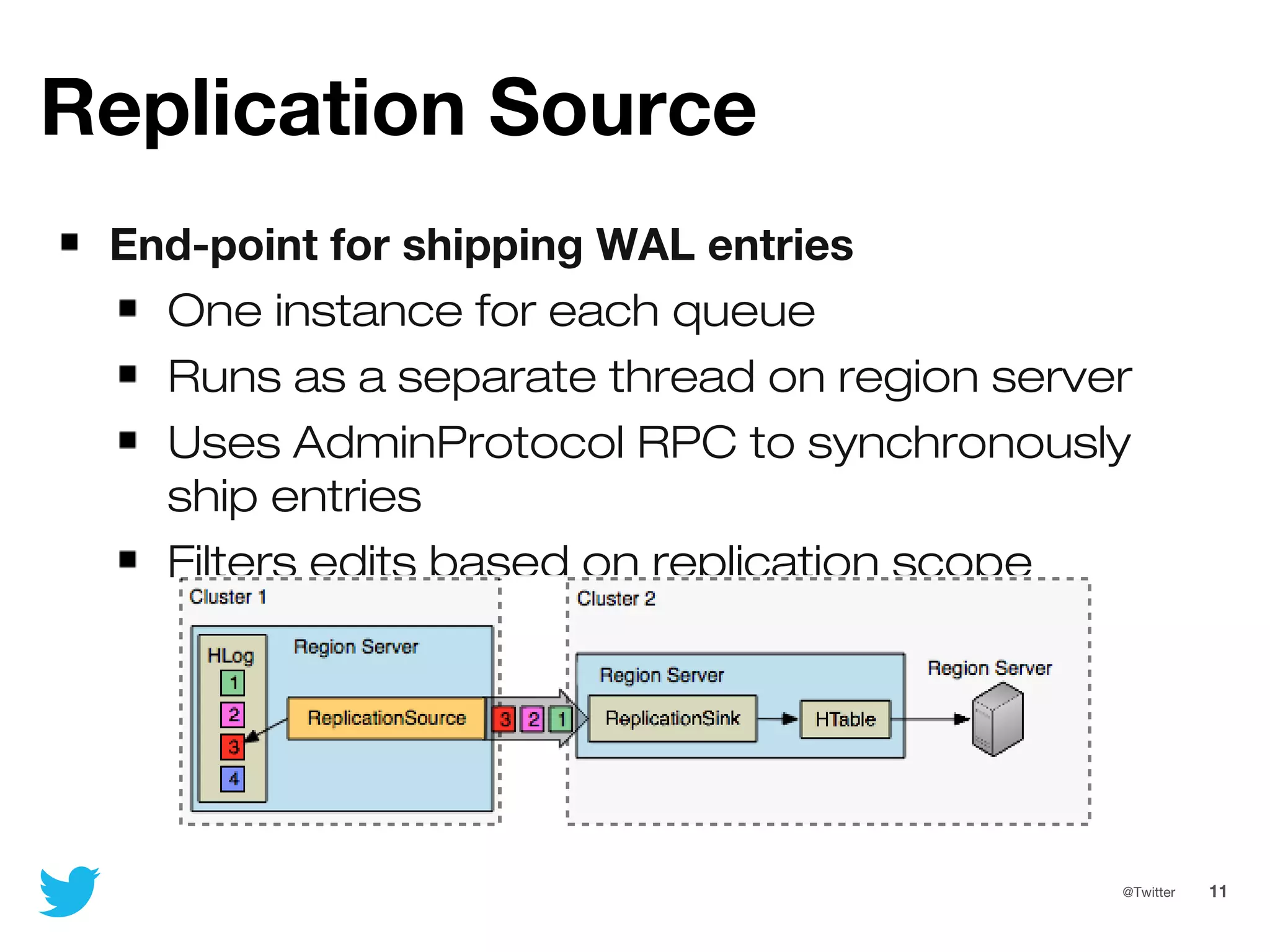

End-point for shipping WAL entries
One instance for each queue
Runs as a separate thread on region server
Uses AdminProtocol RPC to synchronously
ship entries
Filters edits based on replication scope
Replication Source

12. 12@Twitter

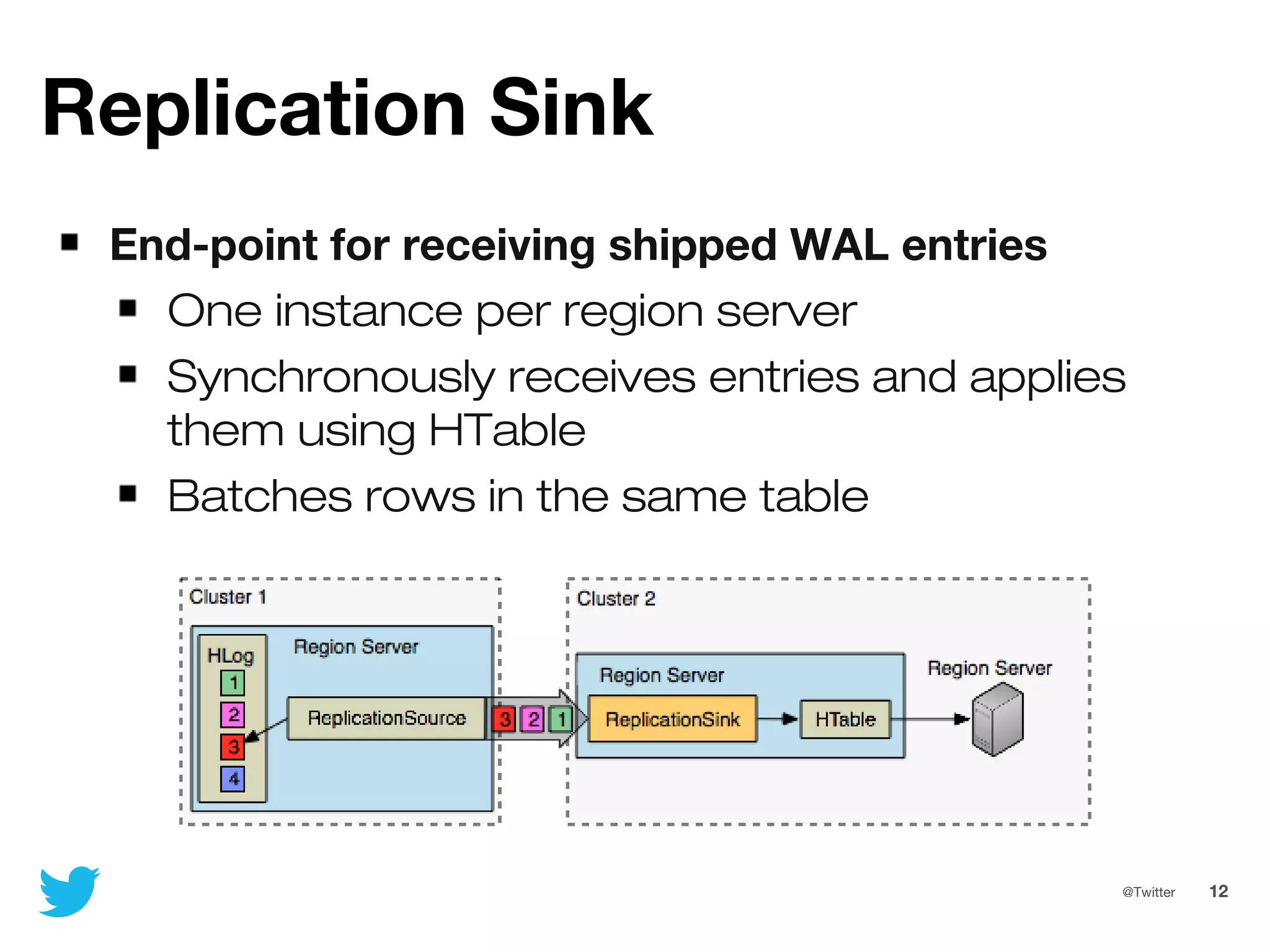

Replication Sink
End-point for receiving shipped WAL entries
One instance per region server
Synchronously receives entries and applies
them using HTable
Batches rows in the same table

13. 13@Twitter
Load balancing
Balances load on remote cluster using
randomization
Ships edits to random subset of remote region
servers
Default is 10%

14. 14@Twitter

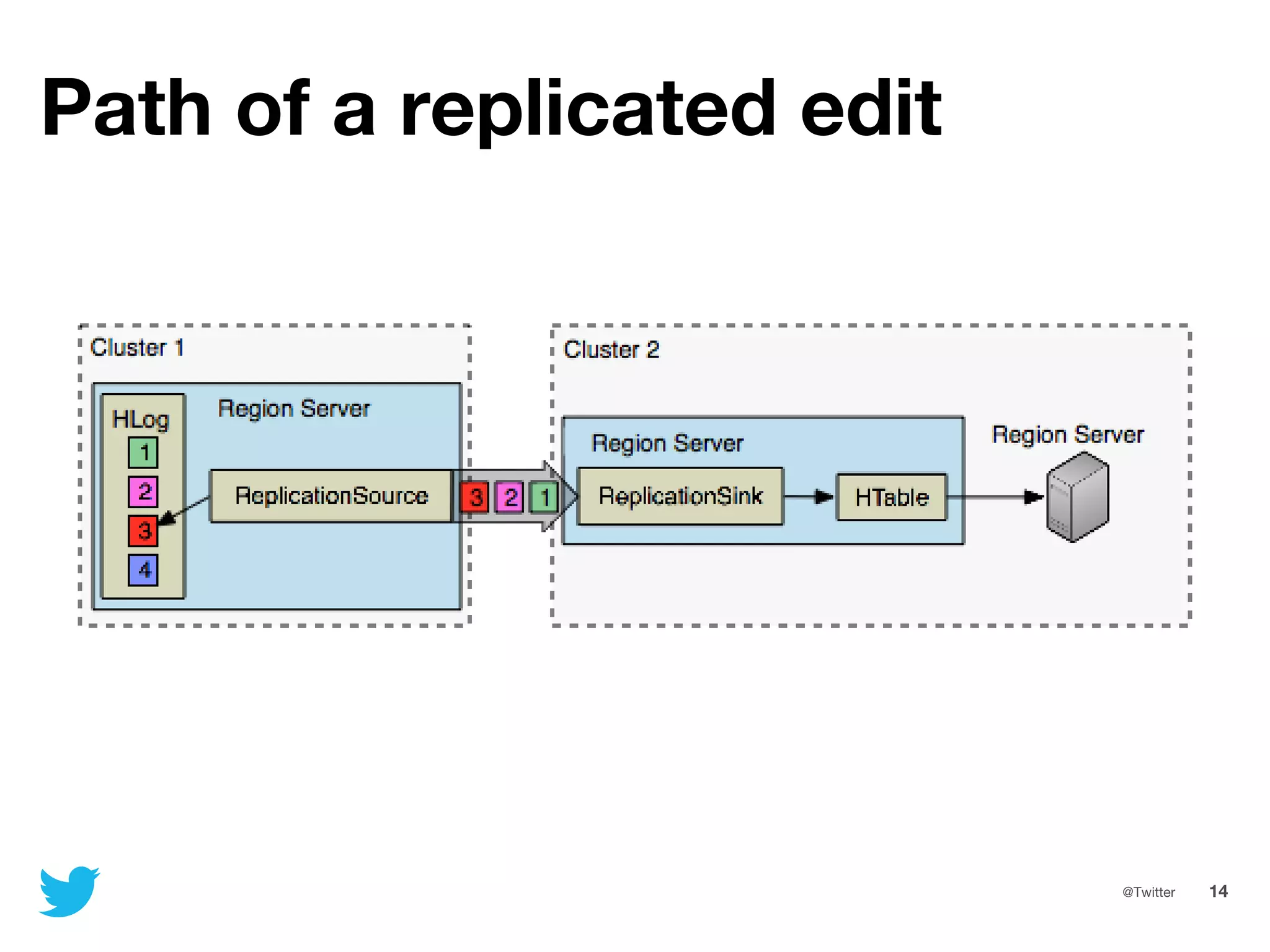

Path of a replicated edit

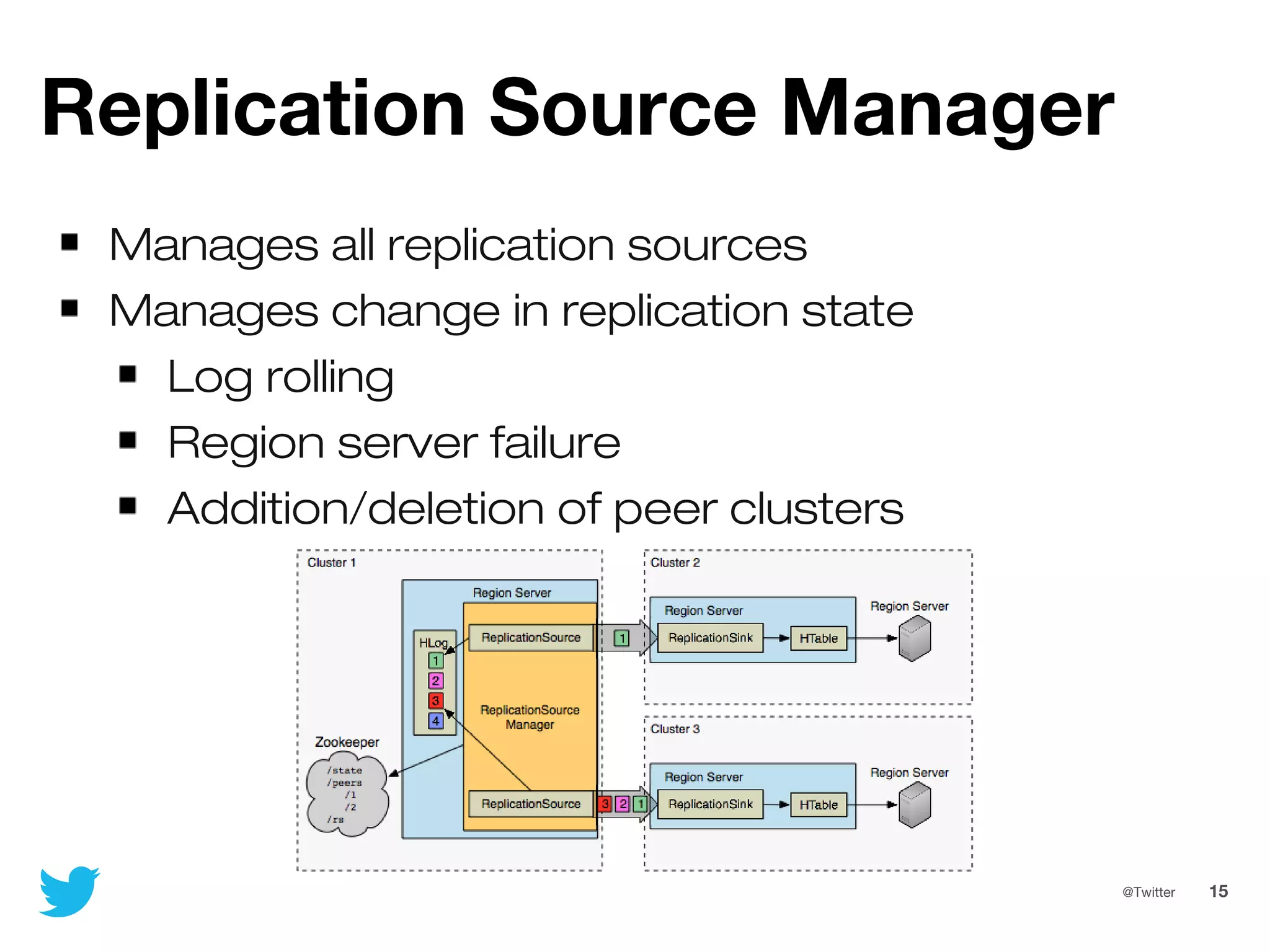

15. 15@Twitter
Replication Source Manager
Manages all replication sources
Manages change in replication state
Log rolling
Region server failure
Addition/deletion of peer clusters

16. 16@Twitter

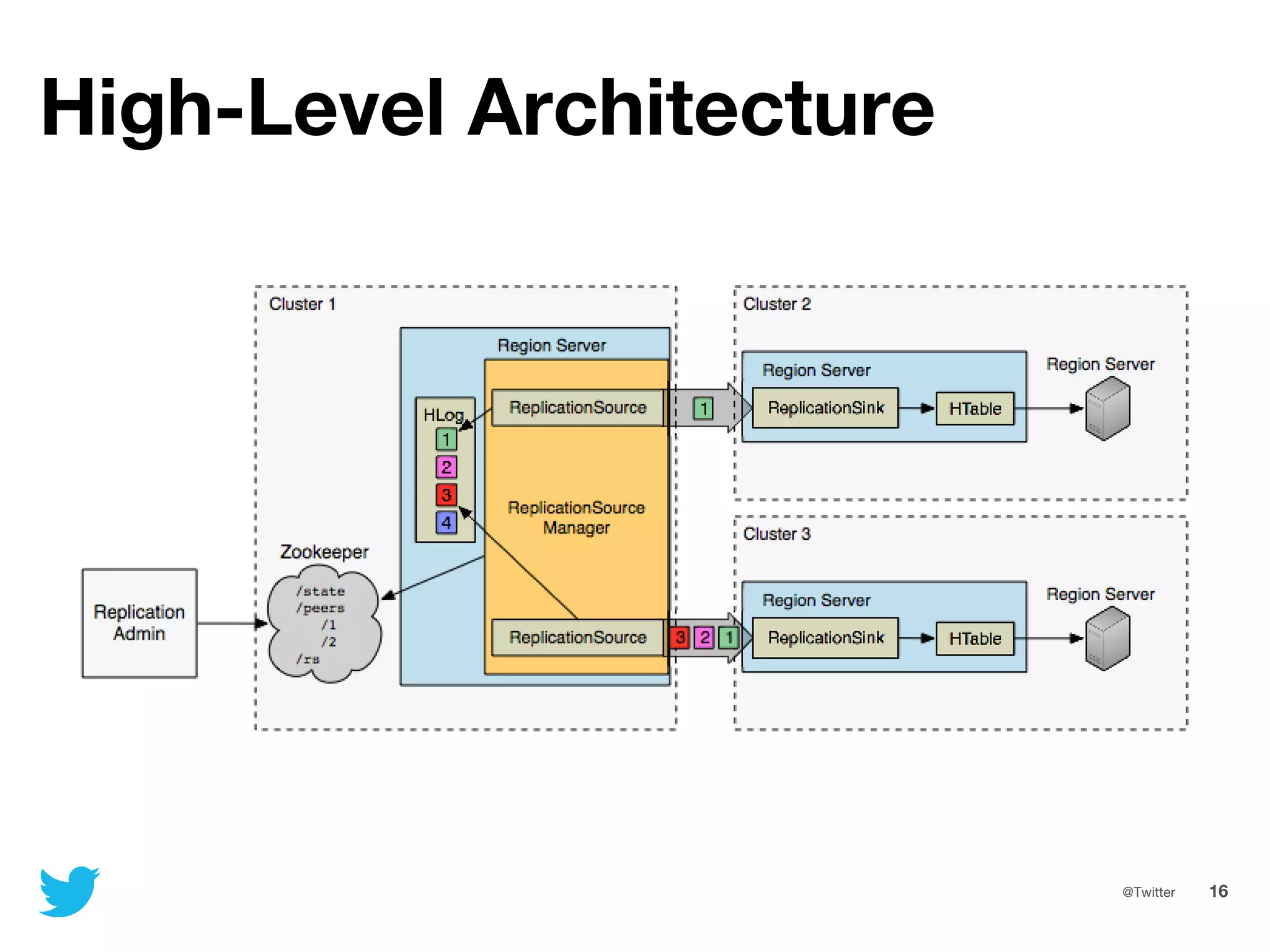

High-Level Architecture

17. 17@Twitter

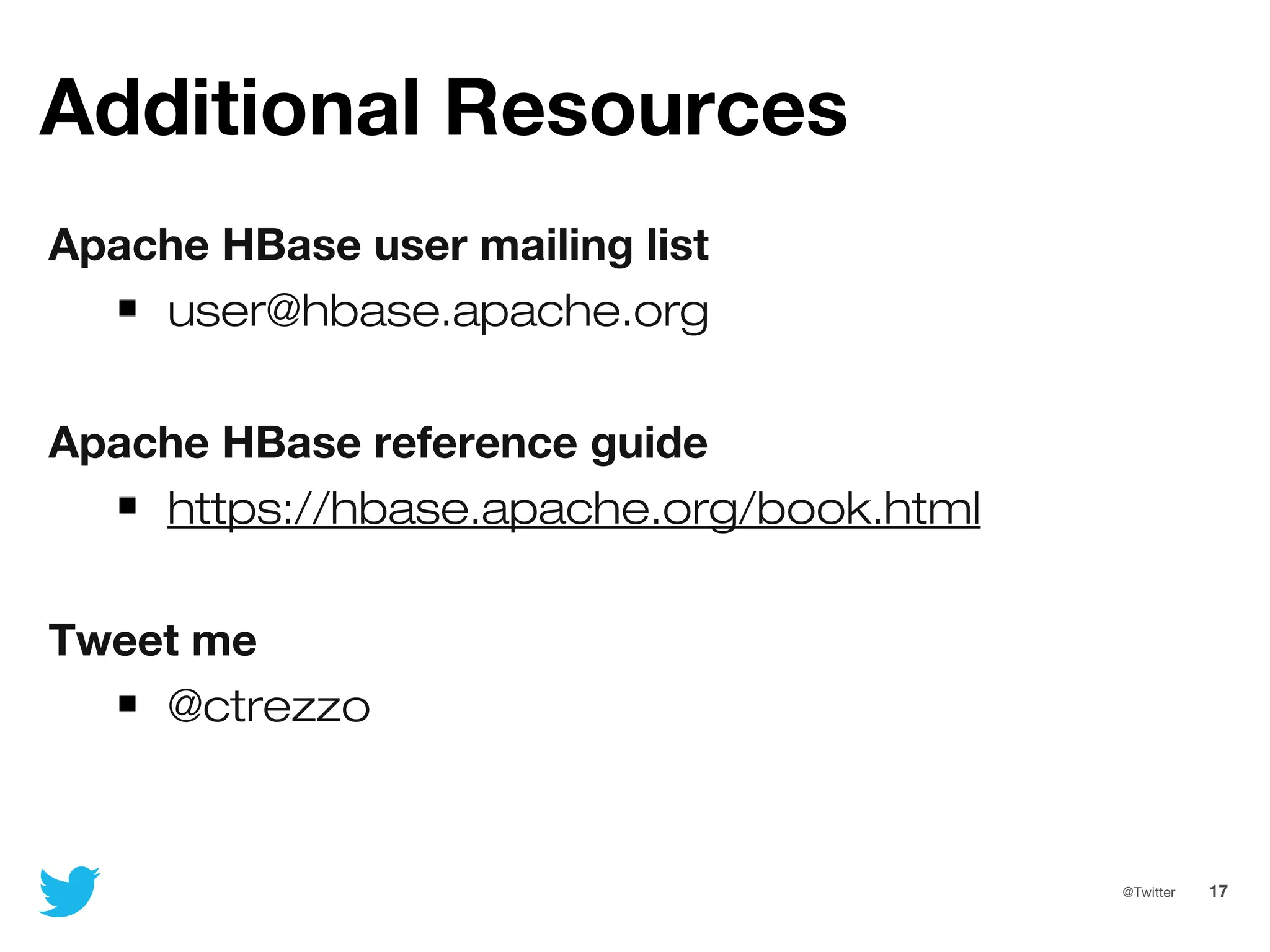

Additional Resources
Apache HBase user mailing list
user@hbase.apache.org
Apache HBase reference guide
https://hbase.apache.org/book.html
Tweet me
@ctrezzo

18. @TwitterAds | Confidential
Questions?

19. 19@Twitter

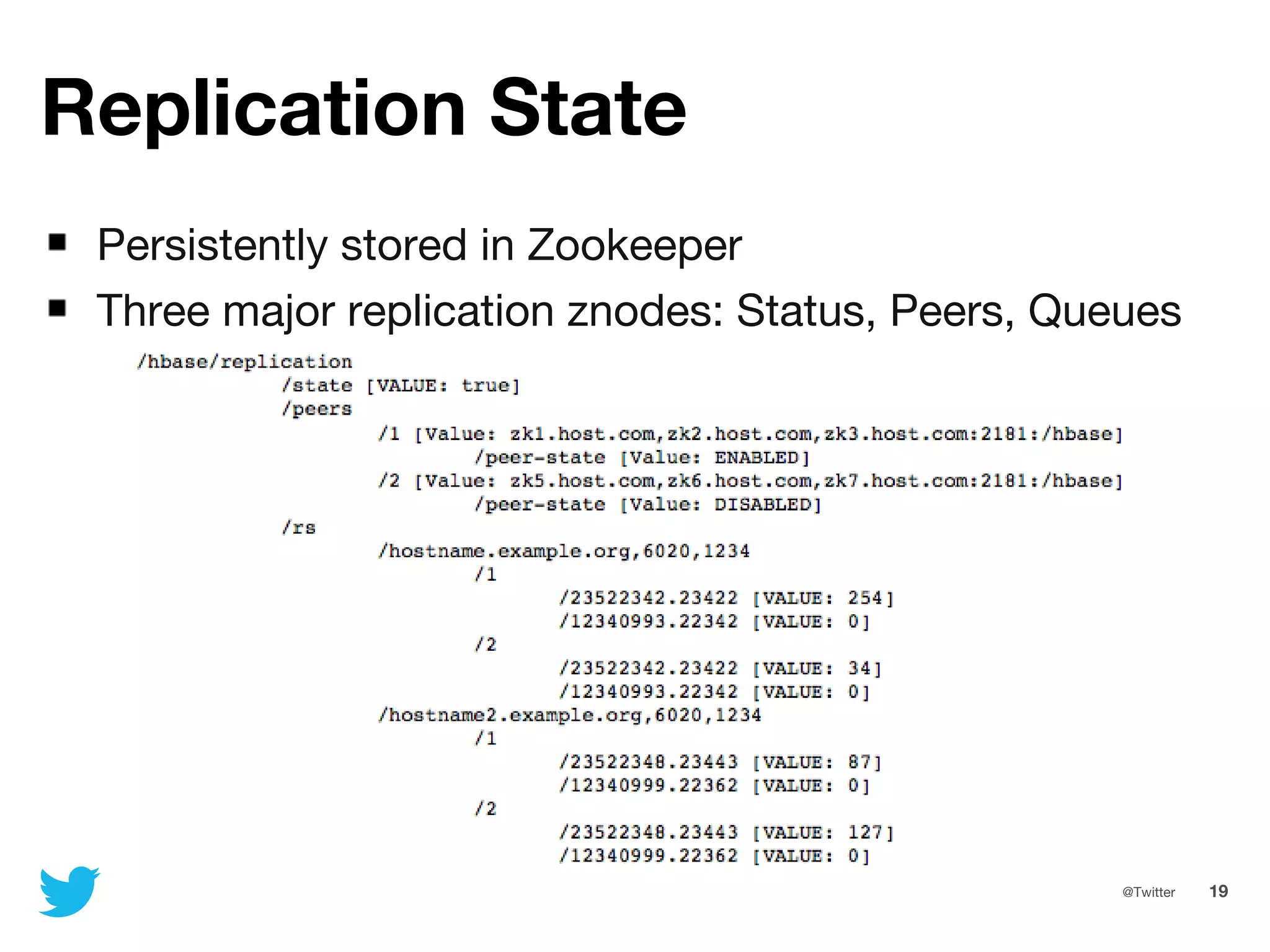

Replication State
Persistently stored in Zookeeper
Three major replication znodes: Status, Peers, Queues

20. 20@Twitter

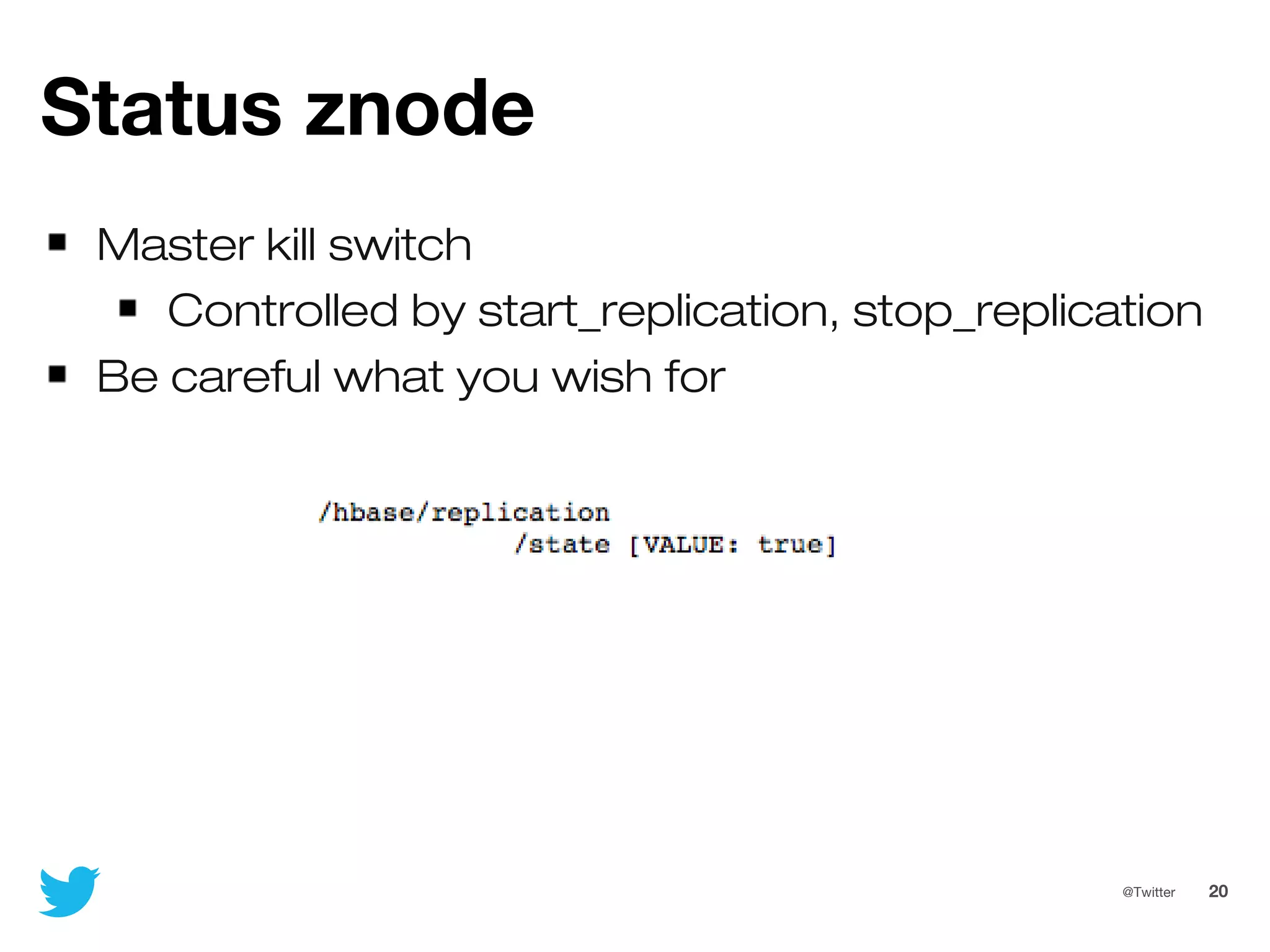

Status znode
Master kill switch
Controlled by start_replication, stop_replication
Be careful what you wish for

21. 21@Twitter

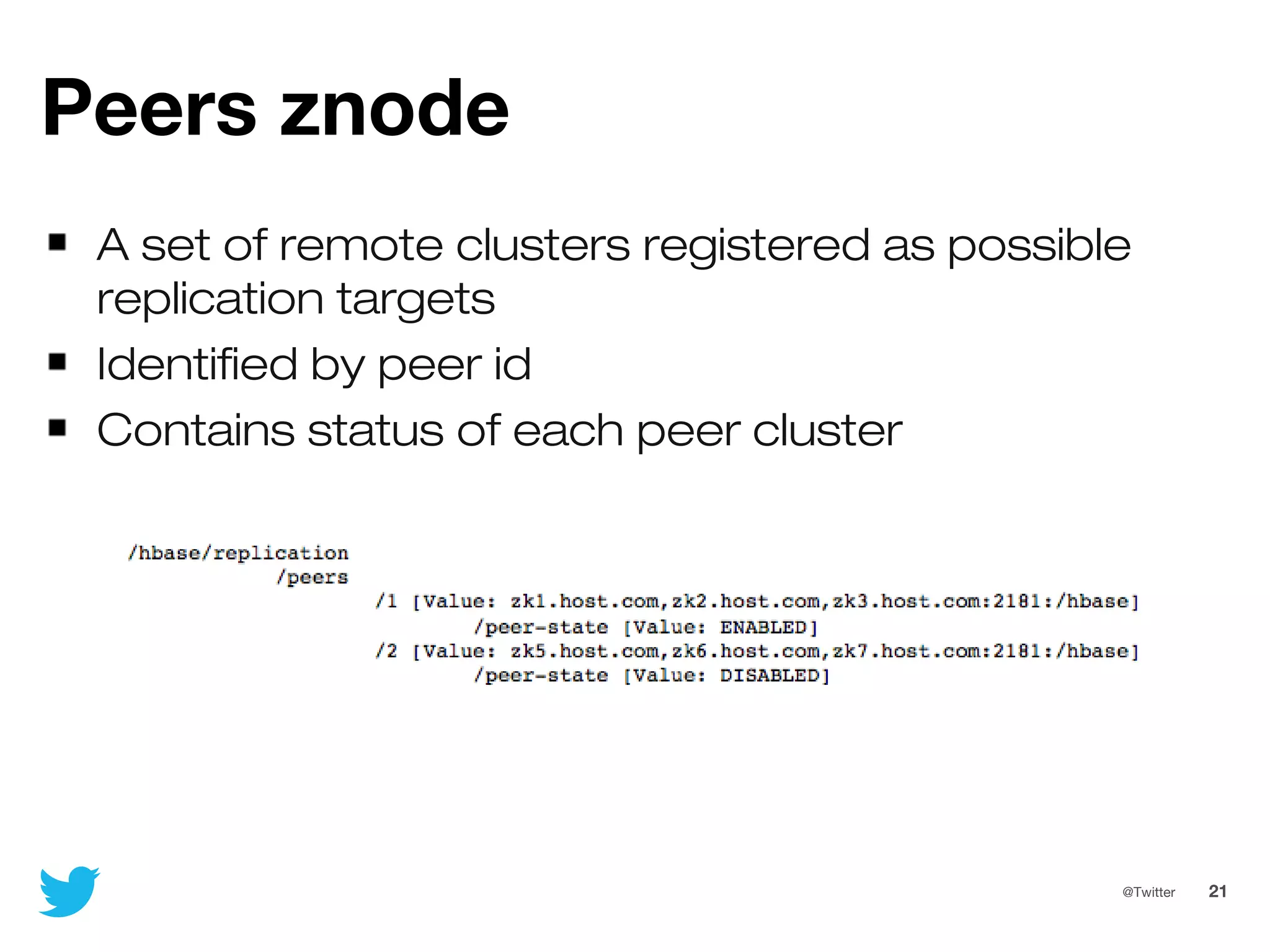

Peers znode
A set of remote clusters registered as possible
replication targets
Identified by peer id
Contains status of each peer cluster

22. 22@Twitter

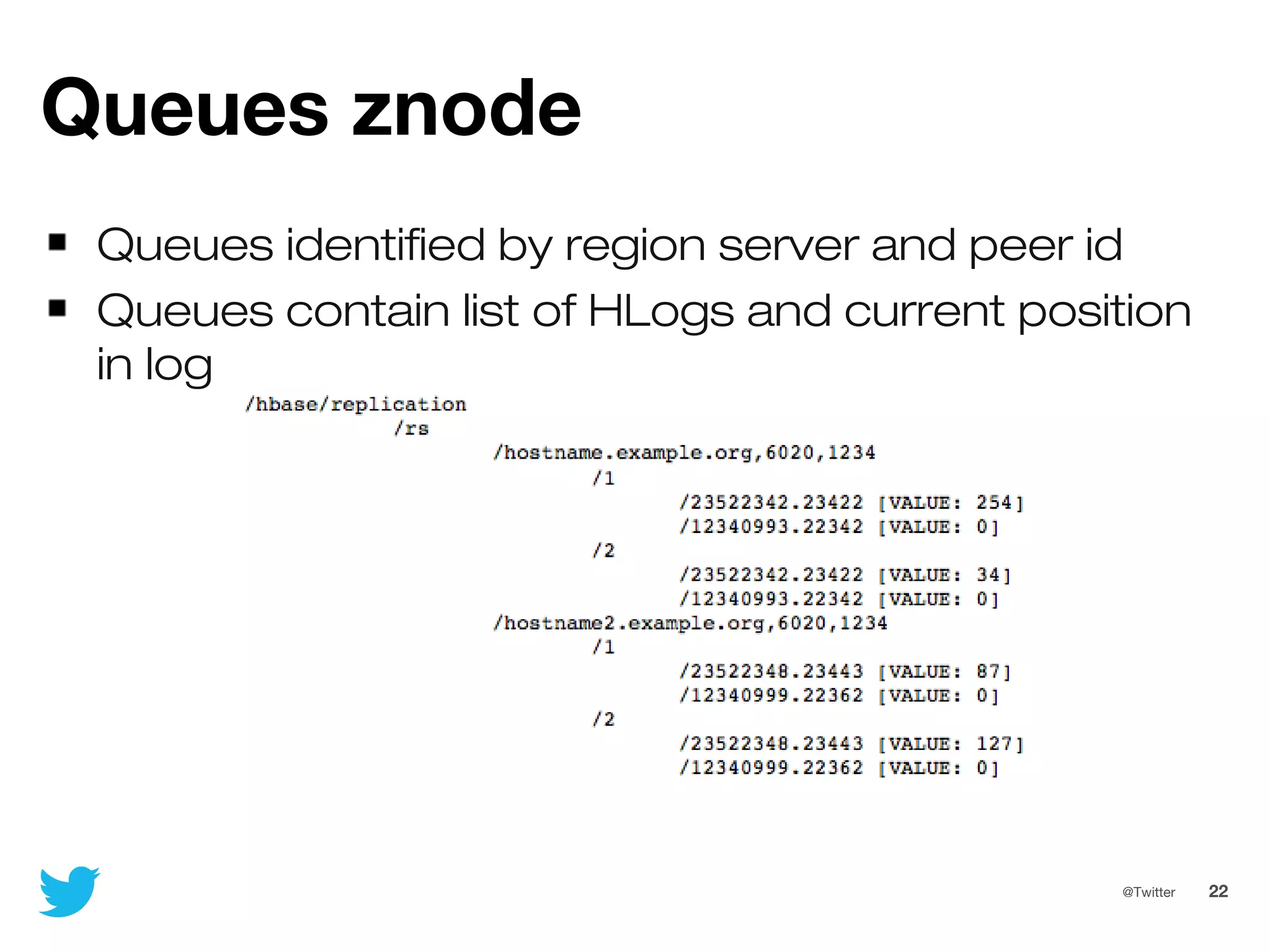

Queues znode
Queues identified by region server and peer id
Queues contain list of HLogs and current position
in log
