Design Patterns for 360º Views
using HBase and Kiji
Jonathan Natkins
Who am I?
Jon “Natty” Natkins
Field Engineer at WibiData
Formerly at Cloudera/Vertica
What is a 360º View?

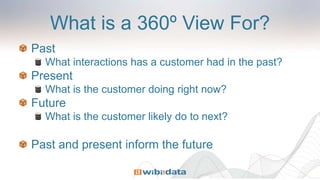

What is a 360º View For?
Past
What interactions has a customer had in the past?
Present
What is the customer doing right now?
Future
What is the customer likely do to next?
Past and present inform the future
What If I Don’t Care About
Customers?

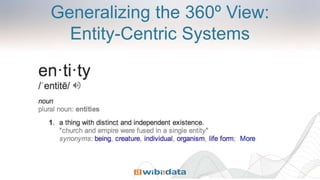

Generalizing the 360º View:
Entity-Centric Systems

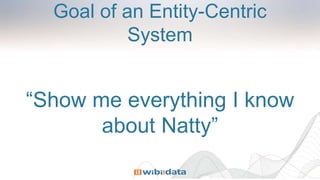

Goal of an Entity-Centric
System
“Show me everything I know
about Natty”

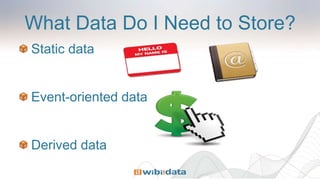

What Data Do I Need to Store?
Static data
Event-oriented data
Derived data

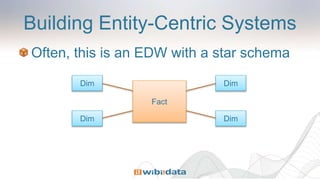

Building Entity-Centric Systems
Often, this is an EDW with a star schema
Fact
Dim
Dim
Dim
Dim

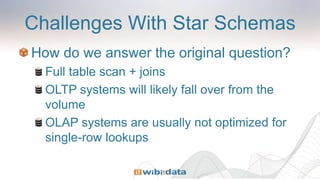

Challenges With Star Schemas
How do we answer the original question?
Full table scan + joins
OLTP systems will likely fall over from the
volume
OLAP systems are usually not optimized for
single-row lookups

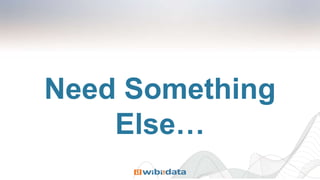

Need Something
Else…

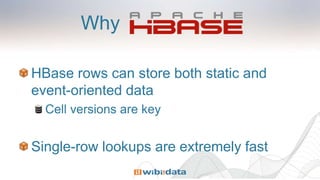

Why
HBase rows can store both static and
event-oriented data
Cell versions are key
Single-row lookups are extremely fast
is for Building
Entity-Centric Systems
Often used for:
Building recommendation systems
Personalized search
Real-time HBase applications
Underlying technologies:

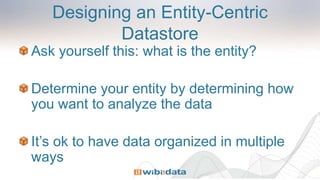

Designing an Entity-Centric
Datastore
Ask yourself this: what is the entity?
Determine your entity by determining how
you want to analyze the data
It’s ok to have data organized in multiple
ways
Schema Management with Kiji
Sometimes you actually want a schema layer
Defining a schema allows for data discoverability

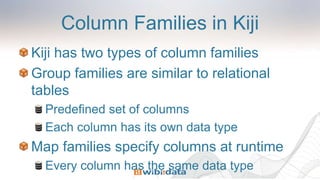

Column Families in Kiji
Kiji has two types of column families
Group families are similar to relational
tables
Predefined set of columns
Each column has its own data type
Map families specify columns at runtime
Every column has the same data type
sessions:23
45
sessions:23
45
sessions:23
45
sessions:12
34
sessions:12
34
info:purchase
s

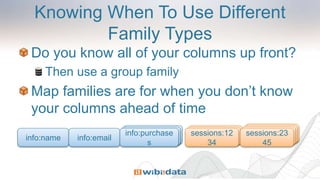

Knowing When To Use Different
Family Types
Do you know all of your columns up front?
Then use a group family
Map families are for when you don’t know
your columns ahead of time
info:name info:email
sessions:12
34
sessions:23
45
info:purchase
s
info:purchase
s

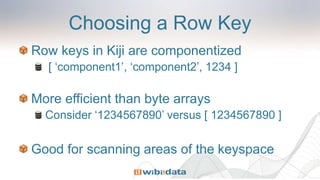

Choosing a Row Key
Row keys in Kiji are componentized
[ ‘component1’, ‘component2’, 1234 ]
More efficient than byte arrays
Consider ‘1234567890’ versus [ 1234567890 ]
Good for scanning areas of the keyspace

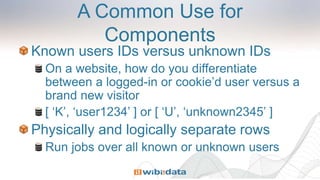

A Common Use for
Components
Known users IDs versus unknown IDs
On a website, how do you differentiate
between a logged-in or cookie’d user versus a
brand new visitor
[ ‘K’, ‘user1234’ ] or [ ‘U’, ‘unknown2345’ ]
Physically and logically separate rows
Run jobs over all known or unknown users
Identifying Known Users
Problem: Users have many cookies over
time.
Challenge: Ideally, we would have a single
row for each user. How do we ensure that
new data goes to the right row?

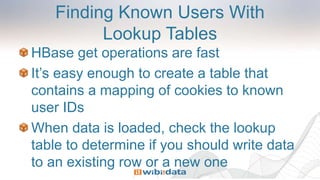

Finding Known Users With
Lookup Tables
HBase get operations are fast
It’s easy enough to create a table that
contains a mapping of cookies to known
user IDs
When data is loaded, check the lookup
table to determine if you should write data
to an existing row or a new one
Avoiding Hotspots
Unhashed Row Keys
Node 1 Node 2 Node 3
Region
A-B
Region
B-C
Region
D-E
Region
F-G
Region
H-I
Region
J-K
Hash-Prefixed Row Keys
Node 1 Node 2 Node 3
Region
00A-0fK
Region
10A-1fK
Region
20A-2fK
Region
30A-3fK
Region
40A-4fK
Region
50A-5fK

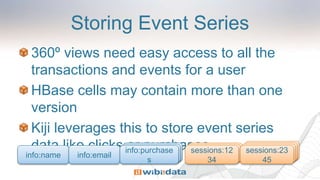

Storing Event Series
360º views need easy access to all the
transactions and events for a user
HBase cells may contain more than one
version
Kiji leverages this to store event series
data like clicks or purchases sessions:23
45
sessions:23
45
sessions:23
45
sessions:12
34
sessions:12
34
info:purchase
sinfo:name info:email
sessions:12
34
sessions:23
45
info:purchase
s
info:purchase
s

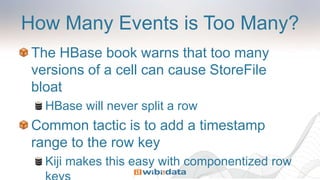

How Many Events is Too Many?
The HBase book warns that too many
versions of a cell can cause StoreFile
bloat
HBase will never split a row
Common tactic is to add a timestamp
range to the row key
Kiji makes this easy with componentized row
Beware of Timestamp Misuse
A major reason the HBase book warns
against mucking with timestamps is that
they can be dangerous
What happens if you use a sequence number
as a timestamp? Think about TTLs
Iterate and Evolve

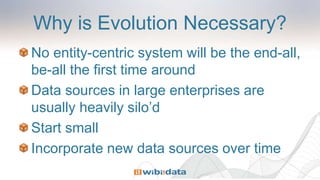

Why is Evolution Necessary?
No entity-centric system will be the end-all,
be-all the first time around
Data sources in large enterprises are
usually heavily silo’d
Start small
Incorporate new data sources over time
Putting it Together
Kiji includes a shell to use DDL to create
tables
Many of the features that have been
discussed are declarative via the DDL

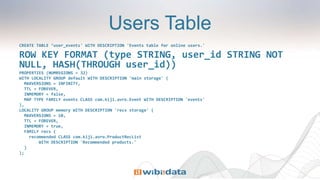

Users Table
CREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.'
ROW KEY FORMAT (type STRING, user_id STRING NOT NULL, HASH(THROUGH user_id))
PROPERTIES (NUMREGIONS = 32)
WITH LOCALITY GROUP default WITH DESCRIPTION 'main storage' (
MAXVERSIONS = INFINITY,
TTL = FOREVER,
INMEMORY = false,
MAP TYPE FAMILY events CLASS com.kiji.avro.Event WITH DESCRIPTION 'events'
),
LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' (
MAXVERSIONS = 10,
TTL = FOREVER,
INMEMORY = true,
FAMILY recs (
recommended CLASS com.kiji.avro.ProductRecList
WITH DESCRIPTION 'Recommended products.'
)
);
Users Table
CREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.'
ROW KEY FORMAT (type STRING, user_id STRING NOT
NULL, HASH(THROUGH user_id))
PROPERTIES (NUMREGIONS = 32)
WITH LOCALITY GROUP default WITH DESCRIPTION 'main storage' (
MAXVERSIONS = INFINITY,
TTL = FOREVER,
INMEMORY = false,
MAP TYPE FAMILY events CLASS com.kiji.avro.Event WITH DESCRIPTION 'events'
),
LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' (
MAXVERSIONS = 10,
TTL = FOREVER,
INMEMORY = true,
FAMILY recs (
recommended CLASS com.kiji.avro.ProductRecList
WITH DESCRIPTION 'Recommended products.'
)
);
Users TableCREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.'
ROW KEY FORMAT (type STRING, user_id STRING NOT NULL, HASH(THROUGH user_id))
PROPERTIES (NUMREGIONS = 32)
WITH LOCALITY GROUP default
WITH DESCRIPTION 'main storage' (
MAXVERSIONS = INFINITY,
TTL = FOREVER,
INMEMORY = false,
MAP TYPE FAMILY events CLASS
com.kiji.avro.Event
WITH DESCRIPTION 'events'
),
LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' (
MAXVERSIONS = 10,
TTL = FOREVER,
INMEMORY = true,
FAMILY recs (
recommended CLASS com.kiji.avro.ProductRecList
WITH DESCRIPTION 'Recommended products.'
)
);

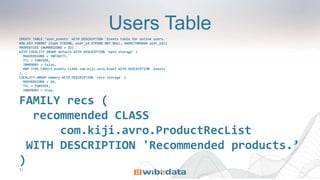

Users Table
CREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.'
ROW KEY FORMAT (type STRING, user_id STRING NOT NULL, HASH(THROUGH user_id))
PROPERTIES (NUMREGIONS = 32)
WITH LOCALITY GROUP default WITH DESCRIPTION 'main storage' (
MAXVERSIONS = INFINITY,
TTL = FOREVER,
INMEMORY = false,
MAP TYPE FAMILY events CLASS com.kiji.avro.Event WITH DESCRIPTION 'events'
),
LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' (
MAXVERSIONS = 10,
TTL = FOREVER,
INMEMORY = true,
FAMILY recs (
recommended CLASS
com.kiji.avro.ProductRecList
WITH DESCRIPTION 'Recommended products.’
)
);

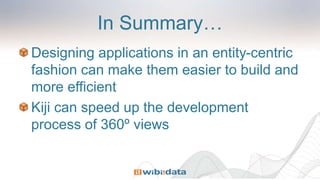

In Summary…
Designing applications in an entity-centric
fashion can make them easier to build and
more efficient
Kiji can speed up the development
process of 360º views

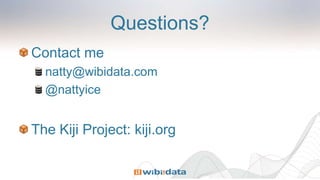

Questions?
Contact me
natty@wibidata.com
@nattyice
The Kiji Project: kiji.org

More Related Content

What's hot

Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...
Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...
Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...Big Data Spain

How to Build Modern Data Architectures Both On Premises and in the Cloud
How to Build Modern Data Architectures Both On Premises and in the CloudHow to Build Modern Data Architectures Both On Premises and in the Cloud
How to Build Modern Data Architectures Both On Premises and in the CloudVMware Tanzu

HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...
HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...
HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...Cloudera, Inc.

The Microsoft BigData Story
The Microsoft BigData StoryThe Microsoft BigData Story
The Microsoft BigData StoryLynn Langit

Introduction to DataStax Enterprise Graph Database
Introduction to DataStax Enterprise Graph DatabaseIntroduction to DataStax Enterprise Graph Database
Introduction to DataStax Enterprise Graph DatabaseDataStax Academy

Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...
Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...
Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...Data Con LA

Hadoop data access layer v4.0
Hadoop data access layer v4.0Hadoop data access layer v4.0
Hadoop data access layer v4.0SpringPeople

Treasure Data From MySQL to Redshift
Treasure Data  From MySQL to RedshiftTreasure Data  From MySQL to Redshift
Treasure Data From MySQL to RedshiftTreasure Data, Inc.

Data Privacy with Apache Spark: Defensive and Offensive Approaches
Data Privacy with Apache Spark: Defensive and Offensive ApproachesData Privacy with Apache Spark: Defensive and Offensive Approaches
Data Privacy with Apache Spark: Defensive and Offensive ApproachesDatabricks

Big Data in the Real World
Big Data in the Real WorldBig Data in the Real World
Big Data in the Real WorldMark Kromer

Hadoop Journey at Walgreens
Hadoop Journey at WalgreensHadoop Journey at Walgreens
Hadoop Journey at WalgreensDataWorks Summit

Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016
Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016
Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016DataStax

Building Data Intensive Analytic Application on Top of Delta Lakes
Building Data Intensive Analytic Application on Top of Delta LakesBuilding Data Intensive Analytic Application on Top of Delta Lakes
Building Data Intensive Analytic Application on Top of Delta LakesDatabricks

Discovery & Consumption of Analytics Data @Twitter
Discovery & Consumption of Analytics Data @TwitterDiscovery & Consumption of Analytics Data @Twitter
Discovery & Consumption of Analytics Data @TwitterKamran Munshi

GCP Data Engineer cheatsheet
GCP Data Engineer cheatsheetGCP Data Engineer cheatsheet
GCP Data Engineer cheatsheetGuang Xu

Qubole hadoop-summit-2013-europe
Qubole hadoop-summit-2013-europeQubole hadoop-summit-2013-europe
Qubole hadoop-summit-2013-europeJoydeep Sen Sarma

Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...
Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...
Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...Databricks


What's hot (20)

Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...
Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...
Real-time user profiling based on Spark streaming and HBase by Arkadiusz Jach...

Architecting a datalake
Architecting a datalakeArchitecting a datalake
Architecting a datalake

How to Build Modern Data Architectures Both On Premises and in the Cloud
How to Build Modern Data Architectures Both On Premises and in the CloudHow to Build Modern Data Architectures Both On Premises and in the Cloud
How to Build Modern Data Architectures Both On Premises and in the Cloud

HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...
HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...
HBaseCon 2012 | Developing Real Time Analytics Applications Using HBase in th...

Big data in Azure
Big data in AzureBig data in Azure
Big data in Azure

The Microsoft BigData Story
The Microsoft BigData StoryThe Microsoft BigData Story
The Microsoft BigData Story

Intuit Analytics Cloud 101
Intuit Analytics Cloud 101Intuit Analytics Cloud 101
Intuit Analytics Cloud 101

Introduction to DataStax Enterprise Graph Database
Introduction to DataStax Enterprise Graph DatabaseIntroduction to DataStax Enterprise Graph Database
Introduction to DataStax Enterprise Graph Database

Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...
Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...
Big Data Day LA 2016/ Use Case Driven track - Hydrator: Open Source, Code-Fre...

Hadoop data access layer v4.0
Hadoop data access layer v4.0Hadoop data access layer v4.0
Hadoop data access layer v4.0

Treasure Data From MySQL to Redshift
Treasure Data  From MySQL to RedshiftTreasure Data  From MySQL to Redshift
Treasure Data From MySQL to Redshift

Data Privacy with Apache Spark: Defensive and Offensive Approaches
Data Privacy with Apache Spark: Defensive and Offensive ApproachesData Privacy with Apache Spark: Defensive and Offensive Approaches
Data Privacy with Apache Spark: Defensive and Offensive Approaches

Big Data in the Real World
Big Data in the Real WorldBig Data in the Real World
Big Data in the Real World

Hadoop Journey at Walgreens
Hadoop Journey at WalgreensHadoop Journey at Walgreens
Hadoop Journey at Walgreens

Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016
Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016
Data Modeling a Scheduling App (Adam Hutson, DataScale) | Cassandra Summit 2016

Building Data Intensive Analytic Application on Top of Delta Lakes
Building Data Intensive Analytic Application on Top of Delta LakesBuilding Data Intensive Analytic Application on Top of Delta Lakes
Building Data Intensive Analytic Application on Top of Delta Lakes

Discovery & Consumption of Analytics Data @Twitter
Discovery & Consumption of Analytics Data @TwitterDiscovery & Consumption of Analytics Data @Twitter
Discovery & Consumption of Analytics Data @Twitter

GCP Data Engineer cheatsheet
GCP Data Engineer cheatsheetGCP Data Engineer cheatsheet
GCP Data Engineer cheatsheet

Qubole hadoop-summit-2013-europe
Qubole hadoop-summit-2013-europeQubole hadoop-summit-2013-europe
Qubole hadoop-summit-2013-europe

Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...
Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...
Encryption and Masking for Sensitive Apache Spark Analytics Addressing CCPA a...


Viewers also liked

HBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, Adobe
HBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, AdobeHBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, Adobe
HBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, AdobeCloudera, Inc.

Bulk Loading in the Wild: Ingesting the World's Energy Data
Bulk Loading in the Wild: Ingesting the World's Energy DataBulk Loading in the Wild: Ingesting the World's Energy Data
Bulk Loading in the Wild: Ingesting the World's Energy DataHBaseCon

HBaseCon 2012 | Storing and Manipulating Graphs in HBase
HBaseCon 2012 | Storing and Manipulating Graphs in HBaseHBaseCon 2012 | Storing and Manipulating Graphs in HBase
HBaseCon 2012 | Storing and Manipulating Graphs in HBaseCloudera, Inc.

Breaking the Sound Barrier with Persistent Memory
Breaking the Sound Barrier with Persistent Memory Breaking the Sound Barrier with Persistent Memory
Breaking the Sound Barrier with Persistent Memory HBaseCon

HBase Data Modeling and Access Patterns with Kite SDK
HBase Data Modeling and Access Patterns with Kite SDKHBase Data Modeling and Access Patterns with Kite SDK
HBase Data Modeling and Access Patterns with Kite SDKHBaseCon

Keynote: The Future of Apache HBase
Keynote: The Future of Apache HBaseKeynote: The Future of Apache HBase
Keynote: The Future of Apache HBaseHBaseCon

Apache HBase Improvements and Practices at Xiaomi
Apache HBase Improvements and Practices at XiaomiApache HBase Improvements and Practices at Xiaomi
Apache HBase Improvements and Practices at XiaomiHBaseCon

Apache HBase at Airbnb
Apache HBase at Airbnb Apache HBase at Airbnb
Apache HBase at Airbnb HBaseCon

Content Identification using HBase
Content Identification using HBaseContent Identification using HBase
Content Identification using HBaseHBaseCon

New Security Features in Apache HBase 0.98: An Operator's Guide
New Security Features in Apache HBase 0.98: An Operator's GuideNew Security Features in Apache HBase 0.98: An Operator's Guide
New Security Features in Apache HBase 0.98: An Operator's GuideHBaseCon

Apache HBase - Just the Basics
Apache HBase - Just the BasicsApache HBase - Just the Basics
Apache HBase - Just the BasicsHBaseCon

HBase: Just the Basics
HBase: Just the BasicsHBase: Just the Basics
HBase: Just the BasicsHBaseCon

Optimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsight
Optimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsightOptimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsight
Optimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsightHBaseCon

Intro to HBase Internals & Schema Design (for HBase users)
Intro to HBase Internals & Schema Design (for HBase users)Intro to HBase Internals & Schema Design (for HBase users)
Intro to HBase Internals & Schema Design (for HBase users)alexbaranau

HBaseCon 2012 | HBase powered Merchant Lookup Service at Intuit
HBaseCon 2012 | HBase powered Merchant Lookup Service at IntuitHBaseCon 2012 | HBase powered Merchant Lookup Service at Intuit
HBaseCon 2012 | HBase powered Merchant Lookup Service at IntuitCloudera, Inc.

HBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, Cloudera
HBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, ClouderaHBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, Cloudera
HBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, ClouderaCloudera, Inc.

Streaming map reduce
Streaming map reduceStreaming map reduce
Streaming map reducedanirayan

HBase In Action - Chapter 04: HBase table design
HBase In Action - Chapter 04: HBase table designHBase In Action - Chapter 04: HBase table design
HBase In Action - Chapter 04: HBase table designphanleson


Viewers also liked (20)

HBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, Adobe
HBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, AdobeHBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, Adobe
HBaseCon 2012 | Low Latency OLAP with HBase - Cosmin Lehene, Adobe

Bulk Loading in the Wild: Ingesting the World's Energy Data
Bulk Loading in the Wild: Ingesting the World's Energy DataBulk Loading in the Wild: Ingesting the World's Energy Data
Bulk Loading in the Wild: Ingesting the World's Energy Data

HBaseCon 2012 | Storing and Manipulating Graphs in HBase
HBaseCon 2012 | Storing and Manipulating Graphs in HBaseHBaseCon 2012 | Storing and Manipulating Graphs in HBase
HBaseCon 2012 | Storing and Manipulating Graphs in HBase

Breaking the Sound Barrier with Persistent Memory
Breaking the Sound Barrier with Persistent Memory Breaking the Sound Barrier with Persistent Memory
Breaking the Sound Barrier with Persistent Memory

HBase Data Modeling and Access Patterns with Kite SDK
HBase Data Modeling and Access Patterns with Kite SDKHBase Data Modeling and Access Patterns with Kite SDK
HBase Data Modeling and Access Patterns with Kite SDK

Keynote: The Future of Apache HBase
Keynote: The Future of Apache HBaseKeynote: The Future of Apache HBase
Keynote: The Future of Apache HBase

Apache HBase Improvements and Practices at Xiaomi
Apache HBase Improvements and Practices at XiaomiApache HBase Improvements and Practices at Xiaomi
Apache HBase Improvements and Practices at Xiaomi

Apache HBase at Airbnb
Apache HBase at Airbnb Apache HBase at Airbnb
Apache HBase at Airbnb

Content Identification using HBase
Content Identification using HBaseContent Identification using HBase
Content Identification using HBase

New Security Features in Apache HBase 0.98: An Operator's Guide
New Security Features in Apache HBase 0.98: An Operator's GuideNew Security Features in Apache HBase 0.98: An Operator's Guide
New Security Features in Apache HBase 0.98: An Operator's Guide

Apache HBase - Just the Basics
Apache HBase - Just the BasicsApache HBase - Just the Basics
Apache HBase - Just the Basics

HBase: Just the Basics
HBase: Just the BasicsHBase: Just the Basics
HBase: Just the Basics

Optimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsight
Optimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsightOptimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsight
Optimizing Apache HBase for Cloud Storage in Microsoft Azure HDInsight

Intro to HBase Internals & Schema Design (for HBase users)
Intro to HBase Internals & Schema Design (for HBase users)Intro to HBase Internals & Schema Design (for HBase users)
Intro to HBase Internals & Schema Design (for HBase users)

HBaseCon 2012 | HBase powered Merchant Lookup Service at Intuit
HBaseCon 2012 | HBase powered Merchant Lookup Service at IntuitHBaseCon 2012 | HBase powered Merchant Lookup Service at Intuit
HBaseCon 2012 | HBase powered Merchant Lookup Service at Intuit

HBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, Cloudera
HBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, ClouderaHBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, Cloudera
HBaseCon 2012 | HBase and HDFS: Past, Present, Future - Todd Lipcon, Cloudera

Search2012 ibm vf
Search2012 ibm vfSearch2012 ibm vf
Search2012 ibm vf

Streaming map reduce
Streaming map reduceStreaming map reduce
Streaming map reduce

HBase In Action - Chapter 04: HBase table design
HBase In Action - Chapter 04: HBase table designHBase In Action - Chapter 04: HBase table design
HBase In Action - Chapter 04: HBase table design

Apache HBase 0.98
Apache HBase 0.98Apache HBase 0.98
Apache HBase 0.98


Similar to Design Patterns for Building 360-degree Views with HBase and Kiji

Big data and machine learning / Gil Chamiel
Big data and machine learning / Gil Chamiel   Big data and machine learning / Gil Chamiel
Big data and machine learning / Gil Chamiel geektimecoil

How we evolved data pipeline at Celtra and what we learned along the way
How we evolved data pipeline at Celtra and what we learned along the wayHow we evolved data pipeline at Celtra and what we learned along the way
How we evolved data pipeline at Celtra and what we learned along the wayGrega Kespret

Big Data, Bigger Brains
Big Data, Bigger BrainsBig Data, Bigger Brains
Big Data, Bigger BrainsDenny Lee

Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...
Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...
Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...Cathrine Wilhelmsen

Microsoft Azure Big Data Analytics
Microsoft Azure Big Data AnalyticsMicrosoft Azure Big Data Analytics
Microsoft Azure Big Data AnalyticsMark Kromer

Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...
Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...
Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...GITS Indonesia

Agile Testing Days 2017 Introducing AgileBI Sustainably
Agile Testing Days 2017 Introducing AgileBI SustainablyAgile Testing Days 2017 Introducing AgileBI Sustainably
Agile Testing Days 2017 Introducing AgileBI SustainablyRaphael Branger

[WSO2Con Asia 2018] Patterns for Building Streaming Apps
[WSO2Con Asia 2018] Patterns for Building Streaming Apps[WSO2Con Asia 2018] Patterns for Building Streaming Apps
[WSO2Con Asia 2018] Patterns for Building Streaming AppsWSO2

Keynote - Speaker: Grigori Melnik
Keynote - Speaker: Grigori Melnik Keynote - Speaker: Grigori Melnik
Keynote - Speaker: Grigori Melnik MongoDB

Real-time serverless analytics at Shedd – OLX data summit, Mar 2018, Barcelona
Real-time serverless analytics at Shedd – OLX data summit, Mar 2018, BarcelonaReal-time serverless analytics at Shedd – OLX data summit, Mar 2018, Barcelona
Real-time serverless analytics at Shedd – OLX data summit, Mar 2018, BarcelonaDobo Radichkov

Presentation_BigData_NenaMarin
Presentation_BigData_NenaMarinPresentation_BigData_NenaMarin
Presentation_BigData_NenaMarinn5712036

Freeing Yourself from an RDBMS Architecture
Freeing Yourself from an RDBMS ArchitectureFreeing Yourself from an RDBMS Architecture
Freeing Yourself from an RDBMS ArchitectureDavid Hoerster

Performance By Design
Performance By DesignPerformance By Design
Performance By DesignGuy Harrison

Xomia_20220602.pptx
Xomia_20220602.pptxXomia_20220602.pptx
Xomia_20220602.pptxLonghow Lam

Telecom datascience master_public
Telecom datascience master_publicTelecom datascience master_public
Telecom datascience master_publicVincent Michel

Retail referencearchitecture productcatalog
Retail referencearchitecture productcatalogRetail referencearchitecture productcatalog
Retail referencearchitecture productcatalogMongoDB

Self-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and DatabricksSelf-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and DatabricksGrega Kespret

Indic threads pune12-nosql now and path ahead
Indic threads pune12-nosql now and path aheadIndic threads pune12-nosql now and path ahead
Indic threads pune12-nosql now and path aheadIndicThreads

Real-time big data analytics based on product recommendations case study
Real-time big data analytics based on product recommendations case studyReal-time big data analytics based on product recommendations case study
Real-time big data analytics based on product recommendations case studydeep.bi


Similar to Design Patterns for Building 360-degree Views with HBase and Kiji (20)

Big data and machine learning / Gil Chamiel
Big data and machine learning / Gil Chamiel   Big data and machine learning / Gil Chamiel
Big data and machine learning / Gil Chamiel

How we evolved data pipeline at Celtra and what we learned along the way
How we evolved data pipeline at Celtra and what we learned along the wayHow we evolved data pipeline at Celtra and what we learned along the way
How we evolved data pipeline at Celtra and what we learned along the way

Big Data, Bigger Brains
Big Data, Bigger BrainsBig Data, Bigger Brains
Big Data, Bigger Brains

Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...
Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...
Tools and Tips: From Accidental to Efficient Data Warehouse Developer (SQLSat...

Microsoft Azure Big Data Analytics
Microsoft Azure Big Data AnalyticsMicrosoft Azure Big Data Analytics
Microsoft Azure Big Data Analytics

Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...
Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...
Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...

Agile Testing Days 2017 Introducing AgileBI Sustainably
Agile Testing Days 2017 Introducing AgileBI SustainablyAgile Testing Days 2017 Introducing AgileBI Sustainably
Agile Testing Days 2017 Introducing AgileBI Sustainably

[WSO2Con Asia 2018] Patterns for Building Streaming Apps
[WSO2Con Asia 2018] Patterns for Building Streaming Apps[WSO2Con Asia 2018] Patterns for Building Streaming Apps
[WSO2Con Asia 2018] Patterns for Building Streaming Apps

Async
AsyncAsync
Async

Keynote - Speaker: Grigori Melnik
Keynote - Speaker: Grigori Melnik Keynote - Speaker: Grigori Melnik
Keynote - Speaker: Grigori Melnik

Real-time serverless analytics at Shedd – OLX data summit, Mar 2018, Barcelona
Real-time serverless analytics at Shedd – OLX data summit, Mar 2018, BarcelonaReal-time serverless analytics at Shedd – OLX data summit, Mar 2018, Barcelona
Real-time serverless analytics at Shedd – OLX data summit, Mar 2018, Barcelona

Presentation_BigData_NenaMarin
Presentation_BigData_NenaMarinPresentation_BigData_NenaMarin
Presentation_BigData_NenaMarin

Freeing Yourself from an RDBMS Architecture
Freeing Yourself from an RDBMS ArchitectureFreeing Yourself from an RDBMS Architecture
Freeing Yourself from an RDBMS Architecture

Performance By Design
Performance By DesignPerformance By Design
Performance By Design

Xomia_20220602.pptx
Xomia_20220602.pptxXomia_20220602.pptx
Xomia_20220602.pptx

Telecom datascience master_public
Telecom datascience master_publicTelecom datascience master_public
Telecom datascience master_public

Retail referencearchitecture productcatalog
Retail referencearchitecture productcatalogRetail referencearchitecture productcatalog
Retail referencearchitecture productcatalog

Self-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and DatabricksSelf-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and Databricks

Indic threads pune12-nosql now and path ahead
Indic threads pune12-nosql now and path aheadIndic threads pune12-nosql now and path ahead
Indic threads pune12-nosql now and path ahead

Real-time big data analytics based on product recommendations case study
Real-time big data analytics based on product recommendations case studyReal-time big data analytics based on product recommendations case study
Real-time big data analytics based on product recommendations case study


More from HBaseCon

hbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on Kuberneteshbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on KubernetesHBaseCon

hbaseconasia2017: HBase on Beam
hbaseconasia2017: HBase on Beamhbaseconasia2017: HBase on Beam
hbaseconasia2017: HBase on BeamHBaseCon

hbaseconasia2017: HBase Disaster Recovery Solution at Huawei
hbaseconasia2017: HBase Disaster Recovery Solution at Huaweihbaseconasia2017: HBase Disaster Recovery Solution at Huawei
hbaseconasia2017: HBase Disaster Recovery Solution at HuaweiHBaseCon

hbaseconasia2017: Removable singularity: a story of HBase upgrade in Pinterest
hbaseconasia2017: Removable singularity: a story of HBase upgrade in Pinteresthbaseconasia2017: Removable singularity: a story of HBase upgrade in Pinterest
hbaseconasia2017: Removable singularity: a story of HBase upgrade in PinterestHBaseCon

hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程
hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程
hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程HBaseCon

hbaseconasia2017: Apache HBase at Netease
hbaseconasia2017: Apache HBase at Neteasehbaseconasia2017: Apache HBase at Netease
hbaseconasia2017: Apache HBase at NeteaseHBaseCon

hbaseconasia2017: HBase在Hulu的使用和实践
hbaseconasia2017: HBase在Hulu的使用和实践hbaseconasia2017: HBase在Hulu的使用和实践
hbaseconasia2017: HBase在Hulu的使用和实践HBaseCon

hbaseconasia2017: 基于HBase的企业级大数据平台
hbaseconasia2017: 基于HBase的企业级大数据平台hbaseconasia2017: 基于HBase的企业级大数据平台
hbaseconasia2017: 基于HBase的企业级大数据平台HBaseCon

hbaseconasia2017: HBase at JD.com
hbaseconasia2017: HBase at JD.comhbaseconasia2017: HBase at JD.com
hbaseconasia2017: HBase at JD.comHBaseCon

hbaseconasia2017: Large scale data near-line loading method and architecture
hbaseconasia2017: Large scale data near-line loading method and architecturehbaseconasia2017: Large scale data near-line loading method and architecture
hbaseconasia2017: Large scale data near-line loading method and architectureHBaseCon

hbaseconasia2017: Ecosystems with HBase and CloudTable service at Huawei
hbaseconasia2017: Ecosystems with HBase and CloudTable service at Huaweihbaseconasia2017: Ecosystems with HBase and CloudTable service at Huawei
hbaseconasia2017: Ecosystems with HBase and CloudTable service at HuaweiHBaseCon

hbaseconasia2017: HBase Practice At XiaoMi
hbaseconasia2017: HBase Practice At XiaoMihbaseconasia2017: HBase Practice At XiaoMi
hbaseconasia2017: HBase Practice At XiaoMiHBaseCon

hbaseconasia2017: hbase-2.0.0
hbaseconasia2017: hbase-2.0.0hbaseconasia2017: hbase-2.0.0
hbaseconasia2017: hbase-2.0.0HBaseCon

HBaseCon2017 Democratizing HBase
HBaseCon2017 Democratizing HBaseHBaseCon2017 Democratizing HBase
HBaseCon2017 Democratizing HBaseHBaseCon

HBaseCon2017 Removable singularity: a story of HBase upgrade in Pinterest
HBaseCon2017 Removable singularity: a story of HBase upgrade in PinterestHBaseCon2017 Removable singularity: a story of HBase upgrade in Pinterest
HBaseCon2017 Removable singularity: a story of HBase upgrade in PinterestHBaseCon

HBaseCon2017 Quanta: Quora's hierarchical counting system on HBase
HBaseCon2017 Quanta: Quora's hierarchical counting system on HBaseHBaseCon2017 Quanta: Quora's hierarchical counting system on HBase
HBaseCon2017 Quanta: Quora's hierarchical counting system on HBaseHBaseCon

HBaseCon2017 Transactions in HBase
HBaseCon2017 Transactions in HBaseHBaseCon2017 Transactions in HBase
HBaseCon2017 Transactions in HBaseHBaseCon

HBaseCon2017 Highly-Available HBase
HBaseCon2017 Highly-Available HBaseHBaseCon2017 Highly-Available HBase
HBaseCon2017 Highly-Available HBaseHBaseCon

HBaseCon2017 Apache HBase at Didi
HBaseCon2017 Apache HBase at DidiHBaseCon2017 Apache HBase at Didi
HBaseCon2017 Apache HBase at DidiHBaseCon

HBaseCon2017 gohbase: Pure Go HBase Client
HBaseCon2017 gohbase: Pure Go HBase ClientHBaseCon2017 gohbase: Pure Go HBase Client
HBaseCon2017 gohbase: Pure Go HBase ClientHBaseCon


More from HBaseCon (20)

hbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on Kuberneteshbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes

hbaseconasia2017: HBase on Beam
hbaseconasia2017: HBase on Beamhbaseconasia2017: HBase on Beam
hbaseconasia2017: HBase on Beam

hbaseconasia2017: HBase Disaster Recovery Solution at Huawei
hbaseconasia2017: HBase Disaster Recovery Solution at Huaweihbaseconasia2017: HBase Disaster Recovery Solution at Huawei
hbaseconasia2017: HBase Disaster Recovery Solution at Huawei

hbaseconasia2017: Removable singularity: a story of HBase upgrade in Pinterest
hbaseconasia2017: Removable singularity: a story of HBase upgrade in Pinteresthbaseconasia2017: Removable singularity: a story of HBase upgrade in Pinterest
hbaseconasia2017: Removable singularity: a story of HBase upgrade in Pinterest

hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程
hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程
hbaseconasia2017: HareQL:快速HBase查詢工具的發展過程

hbaseconasia2017: Apache HBase at Netease
hbaseconasia2017: Apache HBase at Neteasehbaseconasia2017: Apache HBase at Netease
hbaseconasia2017: Apache HBase at Netease

hbaseconasia2017: HBase在Hulu的使用和实践
hbaseconasia2017: HBase在Hulu的使用和实践hbaseconasia2017: HBase在Hulu的使用和实践
hbaseconasia2017: HBase在Hulu的使用和实践

hbaseconasia2017: 基于HBase的企业级大数据平台
hbaseconasia2017: 基于HBase的企业级大数据平台hbaseconasia2017: 基于HBase的企业级大数据平台
hbaseconasia2017: 基于HBase的企业级大数据平台

hbaseconasia2017: HBase at JD.com
hbaseconasia2017: HBase at JD.comhbaseconasia2017: HBase at JD.com
hbaseconasia2017: HBase at JD.com

hbaseconasia2017: Large scale data near-line loading method and architecture
hbaseconasia2017: Large scale data near-line loading method and architecturehbaseconasia2017: Large scale data near-line loading method and architecture
hbaseconasia2017: Large scale data near-line loading method and architecture

hbaseconasia2017: Ecosystems with HBase and CloudTable service at Huawei
hbaseconasia2017: Ecosystems with HBase and CloudTable service at Huaweihbaseconasia2017: Ecosystems with HBase and CloudTable service at Huawei
hbaseconasia2017: Ecosystems with HBase and CloudTable service at Huawei

hbaseconasia2017: HBase Practice At XiaoMi
hbaseconasia2017: HBase Practice At XiaoMihbaseconasia2017: HBase Practice At XiaoMi
hbaseconasia2017: HBase Practice At XiaoMi

hbaseconasia2017: hbase-2.0.0
hbaseconasia2017: hbase-2.0.0hbaseconasia2017: hbase-2.0.0
hbaseconasia2017: hbase-2.0.0

HBaseCon2017 Democratizing HBase
HBaseCon2017 Democratizing HBaseHBaseCon2017 Democratizing HBase
HBaseCon2017 Democratizing HBase

HBaseCon2017 Removable singularity: a story of HBase upgrade in Pinterest
HBaseCon2017 Removable singularity: a story of HBase upgrade in PinterestHBaseCon2017 Removable singularity: a story of HBase upgrade in Pinterest
HBaseCon2017 Removable singularity: a story of HBase upgrade in Pinterest

HBaseCon2017 Quanta: Quora's hierarchical counting system on HBase
HBaseCon2017 Quanta: Quora's hierarchical counting system on HBaseHBaseCon2017 Quanta: Quora's hierarchical counting system on HBase
HBaseCon2017 Quanta: Quora's hierarchical counting system on HBase

HBaseCon2017 Transactions in HBase
HBaseCon2017 Transactions in HBaseHBaseCon2017 Transactions in HBase
HBaseCon2017 Transactions in HBase

HBaseCon2017 Highly-Available HBase
HBaseCon2017 Highly-Available HBaseHBaseCon2017 Highly-Available HBase
HBaseCon2017 Highly-Available HBase

HBaseCon2017 Apache HBase at Didi
HBaseCon2017 Apache HBase at DidiHBaseCon2017 Apache HBase at Didi
HBaseCon2017 Apache HBase at Didi

HBaseCon2017 gohbase: Pure Go HBase Client
HBaseCon2017 gohbase: Pure Go HBase ClientHBaseCon2017 gohbase: Pure Go HBase Client
HBaseCon2017 gohbase: Pure Go HBase Client


Recently uploaded

Microsoft 365 Copilot; An AI tool changing the world of work _PDF.pdf
Microsoft 365 Copilot; An AI tool changing the world of work _PDF.pdfMicrosoft 365 Copilot; An AI tool changing the world of work _PDF.pdf
Microsoft 365 Copilot; An AI tool changing the world of work _PDF.pdfQ-Advise

Agnieszka Andrzejewska - BIM School Course in Kraków
Agnieszka Andrzejewska - BIM School Course in KrakówAgnieszka Andrzejewska - BIM School Course in Kraków
Agnieszka Andrzejewska - BIM School Course in Krakówbim.edu.pl

APVP,apvp apvp High quality supplier safe spot transport, 98% purity
APVP,apvp apvp High quality supplier safe spot transport, 98% purityAPVP,apvp apvp High quality supplier safe spot transport, 98% purity
APVP,apvp apvp High quality supplier safe spot transport, 98% purityamy56318795

IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024vaibhav130304

Crafting the Perfect Measurement Sheet with PLM Integration
Crafting the Perfect Measurement Sheet with PLM IntegrationCrafting the Perfect Measurement Sheet with PLM Integration
Crafting the Perfect Measurement Sheet with PLM IntegrationWave PLM

KLARNA - Language Models and Knowledge Graphs: A Systems Approach
KLARNA -  Language Models and Knowledge Graphs: A Systems ApproachKLARNA -  Language Models and Knowledge Graphs: A Systems Approach
KLARNA - Language Models and Knowledge Graphs: A Systems ApproachNeo4j

Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...
Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...
Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...Andrea Goulet

10 Essential Software Testing Tools You Need to Know About.pdf
10 Essential Software Testing Tools You Need to Know About.pdf10 Essential Software Testing Tools You Need to Know About.pdf
10 Essential Software Testing Tools You Need to Know About.pdfkalichargn70th171

Workforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdfWorkforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdfDeskTrack

Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024Soroosh Khodami

AI/ML Infra Meetup | ML explainability in Michelangelo
AI/ML Infra Meetup | ML explainability in MichelangeloAI/ML Infra Meetup | ML explainability in Michelangelo
AI/ML Infra Meetup | ML explainability in MichelangeloAlluxio, Inc.

SQL Injection Introduction and Prevention
SQL Injection Introduction and PreventionSQL Injection Introduction and Prevention
SQL Injection Introduction and PreventionMohammed Fazuluddin

OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024Shane Coughlan

How to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabberHow to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabbereGrabber

A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1
A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1
A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1KnowledgeSeed

Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)Gáspár Nagy

INGKA DIGITAL: Linked Metadata by Design
INGKA DIGITAL: Linked Metadata by DesignINGKA DIGITAL: Linked Metadata by Design
INGKA DIGITAL: Linked Metadata by DesignNeo4j

Implementing KPIs and Right Metrics for Agile Delivery Teams.pdf
Implementing KPIs and Right Metrics for Agile Delivery Teams.pdfImplementing KPIs and Right Metrics for Agile Delivery Teams.pdf
Implementing KPIs and Right Metrics for Agile Delivery Teams.pdfVictor Lopez


Recently uploaded (20)

Microsoft 365 Copilot; An AI tool changing the world of work _PDF.pdf
Microsoft 365 Copilot; An AI tool changing the world of work _PDF.pdfMicrosoft 365 Copilot; An AI tool changing the world of work _PDF.pdf
Microsoft 365 Copilot; An AI tool changing the world of work _PDF.pdf

Agnieszka Andrzejewska - BIM School Course in Kraków
Agnieszka Andrzejewska - BIM School Course in KrakówAgnieszka Andrzejewska - BIM School Course in Kraków
Agnieszka Andrzejewska - BIM School Course in Kraków

APVP,apvp apvp High quality supplier safe spot transport, 98% purity
APVP,apvp apvp High quality supplier safe spot transport, 98% purityAPVP,apvp apvp High quality supplier safe spot transport, 98% purity
APVP,apvp apvp High quality supplier safe spot transport, 98% purity

IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024

Crafting the Perfect Measurement Sheet with PLM Integration
Crafting the Perfect Measurement Sheet with PLM IntegrationCrafting the Perfect Measurement Sheet with PLM Integration
Crafting the Perfect Measurement Sheet with PLM Integration

KLARNA - Language Models and Knowledge Graphs: A Systems Approach
KLARNA -  Language Models and Knowledge Graphs: A Systems ApproachKLARNA -  Language Models and Knowledge Graphs: A Systems Approach
KLARNA - Language Models and Knowledge Graphs: A Systems Approach

Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...
Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...
Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...

10 Essential Software Testing Tools You Need to Know About.pdf
10 Essential Software Testing Tools You Need to Know About.pdf10 Essential Software Testing Tools You Need to Know About.pdf
10 Essential Software Testing Tools You Need to Know About.pdf

Workforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdfWorkforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdf

AI Hackathon.pptx
AI                        Hackathon.pptxAI                        Hackathon.pptx
AI Hackathon.pptx

Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024

AI/ML Infra Meetup | ML explainability in Michelangelo
AI/ML Infra Meetup | ML explainability in MichelangeloAI/ML Infra Meetup | ML explainability in Michelangelo
AI/ML Infra Meetup | ML explainability in Michelangelo

SQL Injection Introduction and Prevention
SQL Injection Introduction and PreventionSQL Injection Introduction and Prevention
SQL Injection Introduction and Prevention

OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024

How to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabberHow to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabber

A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1
A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1
A Python-based approach to data loading in TM1 - Using Airflow as an ETL for TM1

Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)

INGKA DIGITAL: Linked Metadata by Design
INGKA DIGITAL: Linked Metadata by DesignINGKA DIGITAL: Linked Metadata by Design
INGKA DIGITAL: Linked Metadata by Design

Implementing KPIs and Right Metrics for Agile Delivery Teams.pdf
Implementing KPIs and Right Metrics for Agile Delivery Teams.pdfImplementing KPIs and Right Metrics for Agile Delivery Teams.pdf
Implementing KPIs and Right Metrics for Agile Delivery Teams.pdf

Top Mobile App Development Companies 2024
Top Mobile App Development Companies 2024Top Mobile App Development Companies 2024
Top Mobile App Development Companies 2024


Design Patterns for Building 360-degree Views with HBase and Kiji

  • 1. Design Patterns for 360º Views using HBase and Kiji Jonathan Natkins
  • 2. Who am I? Jon “Natty” Natkins Field Engineer at WibiData Formerly at Cloudera/Vertica
  • 3. What is a 360º View?
  • 4. What is a 360º View For? Past What interactions has a customer had in the past? Present What is the customer doing right now? Future What is the customer likely do to next? Past and present inform the future
  • 5. What If I Don’t Care About Customers?
  • 6. Generalizing the 360º View: Entity-Centric Systems
  • 7. Goal of an Entity-Centric System “Show me everything I know about Natty”
  • 8. What Data Do I Need to Store? Static data Event-oriented data Derived data
  • 9. Building Entity-Centric Systems Often, this is an EDW with a star schema Fact Dim Dim Dim Dim
  • 10. Challenges With Star Schemas How do we answer the original question? Full table scan + joins OLTP systems will likely fall over from the volume OLAP systems are usually not optimized for single-row lookups
  • 12.
  • 13. Why HBase rows can store both static and event-oriented data Cell versions are key Single-row lookups are extremely fast
  • 14. is for Building Entity-Centric Systems Often used for: Building recommendation systems Personalized search Real-time HBase applications Underlying technologies:
  • 15. Designing an Entity-Centric Datastore Ask yourself this: what is the entity? Determine your entity by determining how you want to analyze the data It’s ok to have data organized in multiple ways
  • 16. Schema Management with Kiji Sometimes you actually want a schema layer Defining a schema allows for data discoverability
  • 17. Column Families in Kiji Kiji has two types of column families Group families are similar to relational tables Predefined set of columns Each column has its own data type Map families specify columns at runtime Every column has the same data type
  • 18. sessions:23 45 sessions:23 45 sessions:23 45 sessions:12 34 sessions:12 34 info:purchase s Knowing When To Use Different Family Types Do you know all of your columns up front? Then use a group family Map families are for when you don’t know your columns ahead of time info:name info:email sessions:12 34 sessions:23 45 info:purchase s info:purchase s
  • 19. Choosing a Row Key Row keys in Kiji are componentized [ ‘component1’, ‘component2’, 1234 ] More efficient than byte arrays Consider ‘1234567890’ versus [ 1234567890 ] Good for scanning areas of the keyspace
  • 20. A Common Use for Components Known users IDs versus unknown IDs On a website, how do you differentiate between a logged-in or cookie’d user versus a brand new visitor [ ‘K’, ‘user1234’ ] or [ ‘U’, ‘unknown2345’ ] Physically and logically separate rows Run jobs over all known or unknown users
  • 21. Identifying Known Users Problem: Users have many cookies over time. Challenge: Ideally, we would have a single row for each user. How do we ensure that new data goes to the right row?
  • 22. Finding Known Users With Lookup Tables HBase get operations are fast It’s easy enough to create a table that contains a mapping of cookies to known user IDs When data is loaded, check the lookup table to determine if you should write data to an existing row or a new one
  • 24. Unhashed Row Keys Node 1 Node 2 Node 3 Region A-B Region B-C Region D-E Region F-G Region H-I Region J-K
  • 25. Hash-Prefixed Row Keys Node 1 Node 2 Node 3 Region 00A-0fK Region 10A-1fK Region 20A-2fK Region 30A-3fK Region 40A-4fK Region 50A-5fK
  • 26. Storing Event Series 360º views need easy access to all the transactions and events for a user HBase cells may contain more than one version Kiji leverages this to store event series data like clicks or purchases sessions:23 45 sessions:23 45 sessions:23 45 sessions:12 34 sessions:12 34 info:purchase sinfo:name info:email sessions:12 34 sessions:23 45 info:purchase s info:purchase s
  • 27. How Many Events is Too Many? The HBase book warns that too many versions of a cell can cause StoreFile bloat HBase will never split a row Common tactic is to add a timestamp range to the row key Kiji makes this easy with componentized row
  • 28. Beware of Timestamp Misuse A major reason the HBase book warns against mucking with timestamps is that they can be dangerous What happens if you use a sequence number as a timestamp? Think about TTLs
  • 30. Why is Evolution Necessary? No entity-centric system will be the end-all, be-all the first time around Data sources in large enterprises are usually heavily silo’d Start small Incorporate new data sources over time
  • 31. Putting it Together Kiji includes a shell to use DDL to create tables Many of the features that have been discussed are declarative via the DDL
  • 32. Users Table CREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.' ROW KEY FORMAT (type STRING, user_id STRING NOT NULL, HASH(THROUGH user_id)) PROPERTIES (NUMREGIONS = 32) WITH LOCALITY GROUP default WITH DESCRIPTION 'main storage' ( MAXVERSIONS = INFINITY, TTL = FOREVER, INMEMORY = false, MAP TYPE FAMILY events CLASS com.kiji.avro.Event WITH DESCRIPTION 'events' ), LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' ( MAXVERSIONS = 10, TTL = FOREVER, INMEMORY = true, FAMILY recs ( recommended CLASS com.kiji.avro.ProductRecList WITH DESCRIPTION 'Recommended products.' ) );
  • 33. Users Table CREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.' ROW KEY FORMAT (type STRING, user_id STRING NOT NULL, HASH(THROUGH user_id)) PROPERTIES (NUMREGIONS = 32) WITH LOCALITY GROUP default WITH DESCRIPTION 'main storage' ( MAXVERSIONS = INFINITY, TTL = FOREVER, INMEMORY = false, MAP TYPE FAMILY events CLASS com.kiji.avro.Event WITH DESCRIPTION 'events' ), LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' ( MAXVERSIONS = 10, TTL = FOREVER, INMEMORY = true, FAMILY recs ( recommended CLASS com.kiji.avro.ProductRecList WITH DESCRIPTION 'Recommended products.' ) );
  • 34. Users TableCREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.' ROW KEY FORMAT (type STRING, user_id STRING NOT NULL, HASH(THROUGH user_id)) PROPERTIES (NUMREGIONS = 32) WITH LOCALITY GROUP default WITH DESCRIPTION 'main storage' ( MAXVERSIONS = INFINITY, TTL = FOREVER, INMEMORY = false, MAP TYPE FAMILY events CLASS com.kiji.avro.Event WITH DESCRIPTION 'events' ), LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' ( MAXVERSIONS = 10, TTL = FOREVER, INMEMORY = true, FAMILY recs ( recommended CLASS com.kiji.avro.ProductRecList WITH DESCRIPTION 'Recommended products.' ) );
  • 35. Users Table CREATE TABLE ’user_events' WITH DESCRIPTION 'Events table for online users.' ROW KEY FORMAT (type STRING, user_id STRING NOT NULL, HASH(THROUGH user_id)) PROPERTIES (NUMREGIONS = 32) WITH LOCALITY GROUP default WITH DESCRIPTION 'main storage' ( MAXVERSIONS = INFINITY, TTL = FOREVER, INMEMORY = false, MAP TYPE FAMILY events CLASS com.kiji.avro.Event WITH DESCRIPTION 'events' ), LOCALITY GROUP memory WITH DESCRIPTION 'recs storage' ( MAXVERSIONS = 10, TTL = FOREVER, INMEMORY = true, FAMILY recs ( recommended CLASS com.kiji.avro.ProductRecList WITH DESCRIPTION 'Recommended products.’ ) );
  • 36. In Summary… Designing applications in an entity-centric fashion can make them easier to build and more efficient Kiji can speed up the development process of 360º views
