1) The document discusses how service provider transport networks are undergoing radical changes as traditional networks are no longer sustainable. 2) Optical network choices have long-term cost impacts, and total cost of ownership is impacted by technology and network architecture. 3) The optical network is at an inflection point, driven by innovations like flexible grid, flexible coherent modulation, multi-carrier superchannels, and photonic integrated circuits. This enables scaling of optical layer capacity to terabits.

1. 1 | © 2013 Infinera

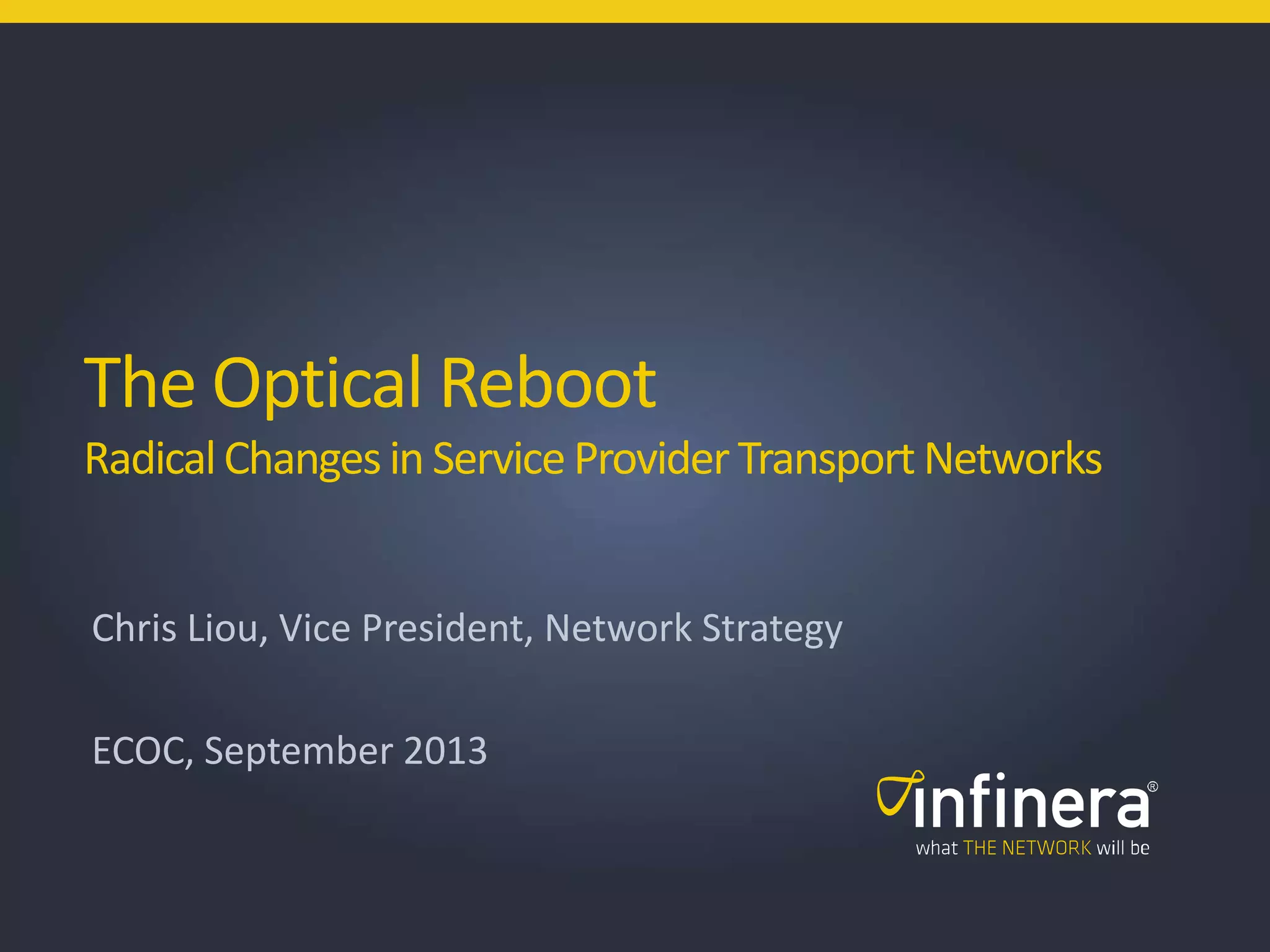

The Optical Reboot
RadicalChanges in Service Provider Transport Networks
Chris Liou, Vice President, Network Strategy
ECOC, September 2013

2. 2 | © 2013 Infinera
IP/MPLS
OTN,
SDH/
SONET
DWDM
ROADM

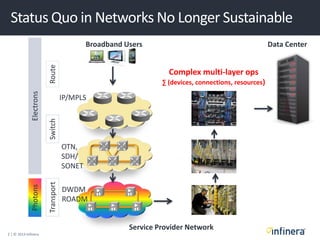

Status Quo in Networks No Longer Sustainable
RouteSwitchTransport
Service Provider Network
Broadband Users Data Center
Complex multi-layer ops
∑ (devices, connections, resources)
ElectronsPhotons

3. 3 | © 2013 Infinera

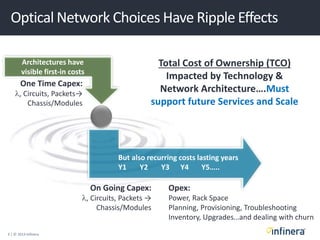

Optical Network Choices Have Ripple Effects
Architectures have
visible first-in costs
But also recurring costs lasting years
Y1 Y2 Y3 Y4 Y5…..
One Time Capex:
, Circuits, Packets→
Chassis/Modules
Opex:
Power, Rack Space
Planning, Provisioning, Troubleshooting
Inventory, Upgrades…and dealing with churn
Total Cost of Ownership (TCO)
Impacted by Technology &
Network Architecture….Must
support future Services and Scale
On Going Capex:
, Circuits, Packets →
Chassis/Modules

4. 4 | © 2013 Infinera
2007

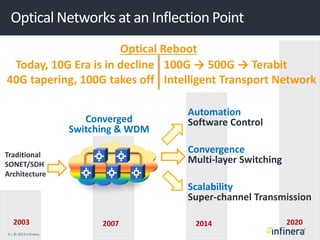

Optical Networks at an Inflection Point
2014 20202003
Traditional
SONET/SDH
Architecture
Convergence
Multi-layer Switching
Scalability
Super-channel Transmission
Automation
Software ControlConverged
Switching & WDM
100G → 500G → Terabit
Intelligent Transport Network
Today, 10G Era is in decline
40G tapering, 100G takes off
Optical Reboot

5. 5 | © 2013 Infinera
Innovations for Scalable Optics
Extended spectrum C Band
4.2 THzExtended C Band – Capacity increase
Flexible Grid Support
30-40% spectrum used for guard bandsGridless– Increase in usable amplifier spectrum
Flexible Coherent Modulation
Enhancing capacity to Tens of Terabits per fiber
16QAMQPSKBPSK
Multi-carrier Super-channels

6. 6 | © 2013 Infinera
10 Lasers
40 Modulators
32 Gbaud electronics
Photonic ICs (PICs)
Time to Market: ~2 years
375 GHz375 GHz
2 Lasers
8 modulators
160 Gbaud Electronics
~16nm Silicon
Time to Market: ~5-7 years
1 Tb/s PM-QPSK
375 GHz
1 Laser
4 modulators
320 Gbaud Electronics
~ 11 nm Silicon
Time to Market: ~8-10 years
Moving to Multi-carrier Super-channels
C Band
Must be spectrally efficient, and possible to manufacture

7. 7 | © 2013 Infinera

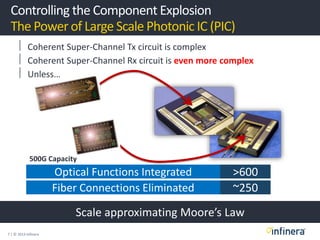

 Coherent Super-Channel Tx circuit is complex
 Coherent Super-Channel Rx circuit is even more complex
 Unless…
Controlling the Component Explosion
The Power of Large Scale Photonic IC (PIC)
Scale approximating Moore’s Law
Optical Functions Integrated >600
Fiber Connections Eliminated ~250
500G Capacity

8. 8 | © 2013 Infinera
BPSK
+ Coherent Detection
1 bit per symbol

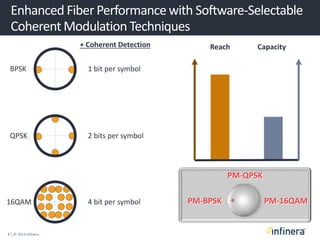

Enhanced Fiber Performancewith Software-Selectable
Coherent Modulation Techniques
QPSK 2 bits per symbol
16QAM 4 bit per symbol PM-16QAM
PM-QPSK
PM-BPSK
CapacityReach

9. 9 | © 2013 Infinera
1T PM-16QAM
5 carrier SC (200 GHz)
1T PM-QPSK
10 carrier SC (375GHz)

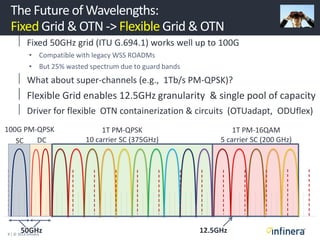

The Future of Wavelengths:
Fixed Grid & OTN -> Flexible Grid & OTN
50GHz
100G PM-QPSK
SC DC
12.5GHz
 Fixed 50GHz grid (ITU G.694.1) works well up to 100G
• Compatible with legacy WSS ROADMs
• But 25% wasted spectrum due to guard bands
 What about super-channels (e.g., 1Tb/s PM-QPSK)?
 Flexible Grid enables 12.5GHz granularity & single pool of capacity
 Driver for flexible OTN containerization & circuits (OTUadapt, ODUflex)

10. 10 | © 2013 Infinera
Integrated OTN Switching is Essential
Decoupling Services& Line Capacity
Bandwidth
Virtualization
Integrated
OTN Switching
Super-Channel
Line Card
Super-Channel
Line Card
Super-Channel
Line Card
500Gb/s PM-BPSK
1Tb/s PM-QPSK
1Tb/s 16QAM
 Super-Channels can differ in capacity
 Bandwidth services vary from 1GbE to >100GbE
 Integrated switching & Bandwidth Virtualization essential
• Manage BW services w/ switching, grooming & protection/restoration
• New capabilities warrants reassessment of IP network architecture
GbE
10GbE
100GbE
Next Gen
Clients Line

11. 11 | © 2013 Infinera
Is the industry adopting OTN switching?
Infonetics operators’ survey
Infonetics OTN, MPLS, and Control Plane Strategies: Global Service Provider Survey
May 1, 2013
~90% plan to deploy integrated
OTN/DWDM
Convergence
~95% will move to meshed
transport networks
Topology
~70% will use OTN SMP
(Shared Mesh Protection)
Protection

12. 12 | © 2013 Infinera
What’s Next?

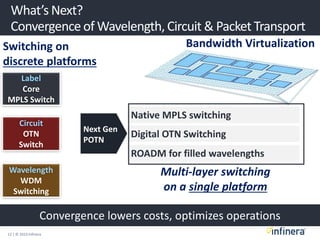

Convergenceof Wavelength,Circuit & Packet Transport
Circuit
OTN
Switch
Wavelength
WDM
Switching
Label
Core
MPLS Switch
Bandwidth Virtualization
Next Gen
POTN
Multi-layer switching
on a single platform
Native MPLS switching
Digital OTN Switching
ROADM for filled wavelengths
Switching on
discrete platforms
Convergence lowers costs, optimizes operations

13. 13 | © 2013 Infinera

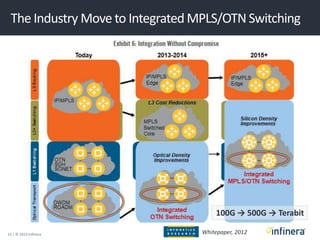

The Industry Move to Integrated MPLS/OTN Switching
Whitepaper, 2012
100G → 500G → Terabit

14. 14 | © 2013 Infinera

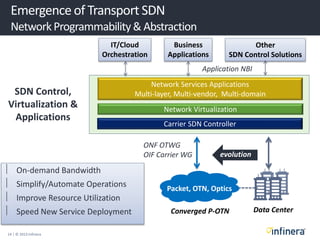

Emergenceof Transport SDN
NetworkProgrammability& Abstraction
Network Services Applications
Multi-layer, Multi-vendor, Multi-domain
Carrier SDN Controller
Network Virtualization
IT/Cloud
Orchestration
Business
Applications
Other
SDN Control Solutions
Application NBI
 On-demand Bandwidth
 Simplify/Automate Operations
 Improve Resource Utilization
 Speed New Service Deployment
SDN Control,
Virtualization &
Applications
Data CenterConverged P-OTN
Packet, OTN, Optics
evolution
ONF OTWG
OIF Carrier WG

15. 15 | © 2013 Infinera

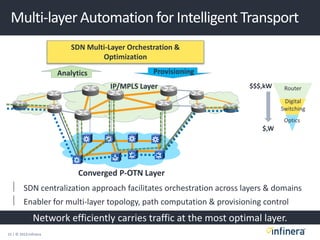

Multi-layer Automation for Intelligent Transport
 SDN centralization approach facilitates orchestration across layers & domains
 Enabler for multi-layer topology, path computation & provisioning control
SDN Multi-Layer Orchestration &
Optimization
$,W
Router
Optics
Digital
Switching
$$$,kW
Converged P-OTN Layer
IP/MPLS Layer
Analytics Provisioning
Network efficiently carries traffic at the most optimal layer.

16. 16 | © 2013 Infinera
Radical Scale, Convergence and Automation
Flexible Coherent Super-channels
Extended C-Band, Flexible Grid
Integrated Switching of label, circuit, wavelength
Multi-layer software control
The Optical Reboot needs Intelligent Transport
Networking
Rethinking the Network Core

17. 17 | © 2013 Infinera

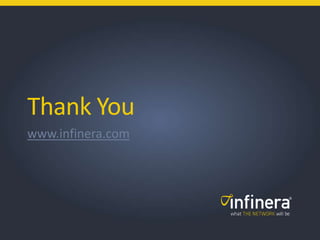

Thank You
