Strategies to architecting ultra-efficient data centers
- 1. 1 | © 2014 Infinera Strategies to architecting ultra-efficient data centers Vinay Rathore Sr. Director, Cloud & Data Center Marketing
- 2. 2 | © 2014 Infinera Why care about Cloud?

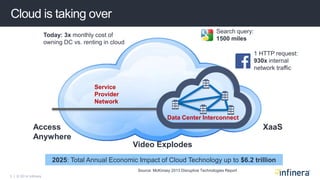

- 3. 3 | © 2014 Infinera Cloud is taking over Access Anywhere Video Explodes XaaS 2025: Total Annual Economic Impact of Cloud Technology up to $6.2 trillion Today: 3x monthly cost of owning DC vs. renting in cloud Source: McKinsey 2013 Disruptive Technologies Report Data Center Interconnect Service Provider Network 1 HTTP request: 930x internal network traffic Search query: 1500 miles

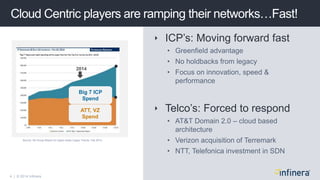

- 4. 4 | © 2014 Infinera ICP’s: Moving forward fast • Greenfield advantage • No holdbacks from legacy • Focus on innovation, speed & performance Telco’s: Forced to respond • AT&T Domain 2.0 – cloud based architecture • Verizon acquisition of Terremark • NTT, Telefonica investment in SDN Cloud Centric players are ramping their networks…Fast! Source: ISI Group Report on Hyper-scale Capex Trends, Feb 2014 Big 7 ICP Spend ATT, VZ Spend 2014

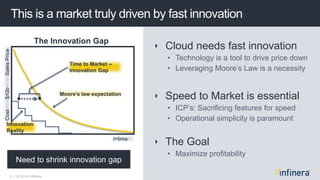

- 5. 5 | © 2014 Infinera Cloud needs fast innovation • Technology is a tool to drive price down • Leveraging Moore’s Law is a necessity Speed to Market is essential • ICP’s: Sacrificing features for speed • Operational simplicity is paramount The Goal • Maximize profitability This is a market truly driven by fast innovation Cost$/GbSalesPrice The Innovation Gap Need to shrink innovation gap Time to Market -- Innovation Gap t=time Moore’s law expectation Innovation Reality
- 6. 6 | © 2014 Infinera Market Trends Driving Technology
- 7. 7 | © 2014 Infinera The Challenges Data Center Operators will face Power/Space Bandwidth Competitive Advantage

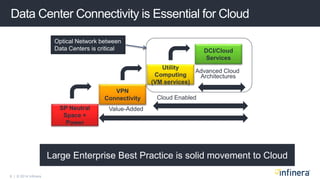

- 8. 8 | © 2014 Infinera Data Center Connectivity is Essential for Cloud SP Neutral Space + Power VPN Connectivity Value-Added Large Enterprise Best Practice is solid movement to Cloud Optical Network between Data Centers is critical Utility Computing (VM services) Cloud Enabled DCI/Cloud Services Advanced Cloud Architectures

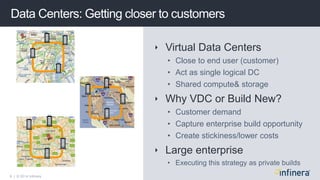

- 9. 9 | © 2014 Infinera Virtual Data Centers • Close to end user (customer) • Act as single logical DC • Shared compute& storage Why VDC or Build New? • Customer demand • Capture enterprise build opportunity • Create stickiness/lower costs Large enterprise • Executing this strategy as private builds Data Centers: Getting closer to customers

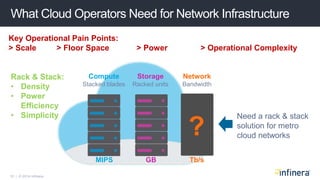

- 10. 10 | © 2014 Infinera What Cloud Operators Need for Network Infrastructure Key Operational Pain Points: > Scale > Floor Space > Power > Operational Complexity Compute Stacked blades Storage Racked units MIPS GB Need a rack & stack solution for metro cloud networks Network Bandwidth Tb/s ? Rack & Stack: • Density • Power Efficiency • Simplicity

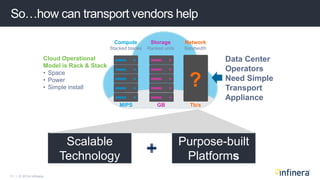

- 11. 11 | © 2014 Infinera So…how can transport vendors help Cloud Operational Model is Rack & Stack • Space • Power • Simple install Compute Stacked blades Storage Racked units MIPS GB Data Center Operators Need Simple Transport Appliance Network Bandwidth Tb/s ? Scalable Technology Purpose-built Platforms
- 12. 12 | © 2014 Infinera Future Proof Technology: Photonic IC’s (PIC’s)

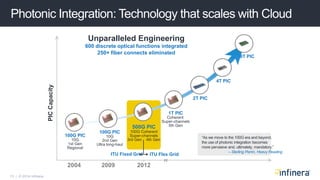

- 13. 13 | © 2014 Infinera Photonic Integration: Technology that scales with Cloud 100G PIC 10G 1st Gen Regional 100G PIC 10G 2nd Gen Ultra long-haul 500G PIC 100G Coherent Super-channels 3rd Gen 4th Gen 1T PIC Coherent Super-channels 5th Gen 2T PIC 4T PIC 8T PIC ITU Fixed Grid ITU Flex Grid Unparalleled Engineering 600 discrete optical functions integrated 250+ fiber connects eliminated 2004 2009 2012 PICCapacity “As we move to the 100G era and beyond, the use of photonic integration becomes more pervasive and, ultimately, mandatory.” – Sterling Perrin, Heavy Reading

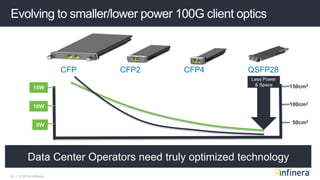

- 14. 14 | © 2014 Infinera Evolving to smaller/lower power 100G client optics 10W 15W 5W CFP CFP2 CFP4 QSFP28 50cm2 100cm2 150cm2 Less Power & Space Data Center Operators need truly optimized technology

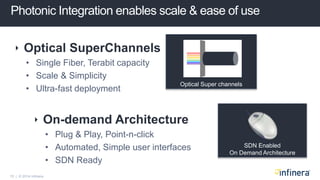

- 15. 15 | © 2014 Infinera Optical SuperChannels • Single Fiber, Terabit capacity • Scale & Simplicity • Ultra-fast deployment Photonic Integration enables scale & ease of use Optical Super channels SDN Enabled On Demand Architecture On-demand Architecture • Plug & Play, Point-n-click • Automated, Simple user interfaces • SDN Ready

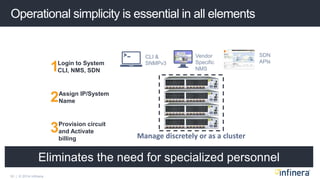

- 16. 16 | © 2014 Infinera Operational simplicity is essential in all elements CLI & SNMPv3 Vendor Specific NMS SDN APIs Manage discretely or as a cluster Login to System CLI, NMS, SDN1 Assign IP/System Name2 Provision circuit and Activate billing 3 Eliminates the need for specialized personnel

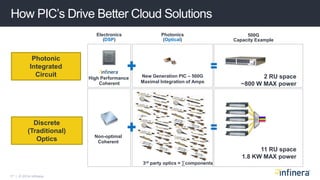

- 17. 17 | © 2014 Infinera 500G Capacity Example 2 RU space ~800 W MAX power Passiv eMux 11 RU space 1.8 KW MAX power How PIC’s Drive Better Cloud Solutions Discrete (Traditional) Optics Photonics (Optical) 3rd party optics = ∑components New Generation PIC – 500G Maximal Integration of Amps Electronics (DSP) High Performance Coherent Non-optimal Coherent Photonic Integrated Circuit

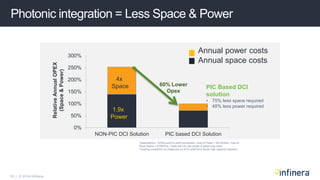

- 18. 18 | © 2014 Infinera Photonic integration = Less Space & Power 1Assumptions: 10Tb/s point to point connection, Cost of Power = $0.20/Kwh, Cost of Rack Space = $1000/mo, Costs are CA colo power & space avg costs 2Leading competitor as measured by ACG small form factor high capacity segment 0% 50% 100% 150% 200% 250% 300% NON-PIC DCI Solution PIC based DCI Solution 60% Lower Opex 4x Space 1.9x Power Annual power costs Annual space costs PIC Based DCI solution • 75% less space required • 48% less power required RelativeAnnualOPEX (Space&Power)
- 19. 19 | © 2014 Infinera Conclusions Can’t bet against cloud & Cloud PlayersThe Demand Innovation will drive market leadersThe Winners Choose the right technology & trade-offsThe Dynamics
- 20. 20 | © 2014 Infinera Thank You
Editor's Notes
