Optical Networking Trends & EvolutionChristoph GlingenerMarch 2011
Optical Networking Trends & EvolutionOutlineTechnology status and evolutionCoding & ModulationOptical LayerProtocols 	& multi-layer integrationManagement & ControlCoding&Modulation	       Optical Layer	               Protocols / Multi-Layer 	  	   Management/ControlSDOCDCFROADMH-Amp100GG.709OSSEthernetMTOSIGMPLSMulti-layerSolution requirements – system/component technologies – costs !

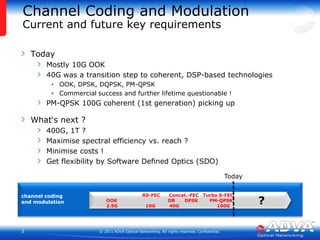

Channel Codingand ModulationCurrentandfuturekeyrequirementsTodayMostly 10G OOK40G was a transition step to coherent, DSP-based technologiesOOK, DPSK, DQPSK, PM-QPSKCommercial success and further lifetime questionable !PM-QPSK 100G coherent (1st generation) picking upWhat‘s next ?400G, 1T ?Maximise spectral efficiency vs. reach ?Minimise costs !Get flexibility by Software Defined Optics (SDO)TodayRS-FECConcat.-FECTurbo S-FECchannelcodingandmodulation?OOKDBDPSKPM-QPSK2.5G10G40G100G

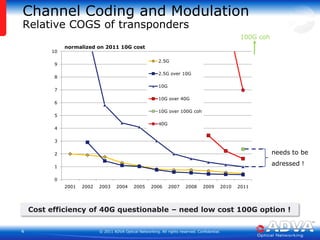

Channel Codingand ModulationRelative COGS oftransponders100G cohnormalized on 2011 10G costneedstobeadressed !Cost efficiency of 40G questionable – need low cost 100G option !

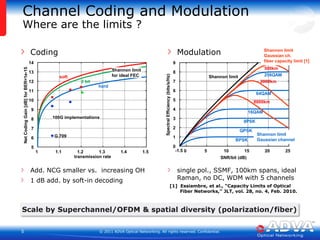

CodingAdd. NCG smaller vs.  increasing OH1 dB add. by soft-in decodingModulationsingle pol., SSMF, 100km spans, ideal Raman, no DC, WDM with 5 channelsChannel Codingand ModulationWherearethelimits ?149813712611510493827160505101511.11.21.3Shannon limitGaussianch.fibercapacitylimit [1]500kmShannon limitfor ideal FEC256QAMShannon limitsoft2000km2 bithard64QAM8000kmSpectral Efficiency (bits/s/Hz)Net CodingGain [dB] for BER=1e-1516QAM100G implementations8PSKQPSKShannon limitGaussianchannelG.709BPSK-1.520251.41.5transmission rateSNR/bit (dB)[1]  Essiambre, et al., “Capacity Limits of Optical        Fiber Networks,” JLT, vol. 28, no. 4, Feb. 2010.Scale by Superchannel/OFDM & spatial diversity (polarization/fiber)

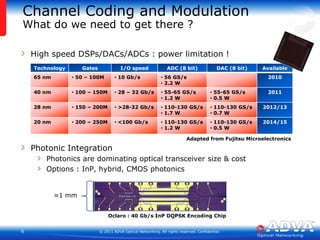

Channel Coding and ModulationWhat do we need to get there ?High speed DSPs/DACs/ADCs : power limitation !Photonic IntegrationPhotonics are dominating optical transceiver size & costOptions : InP, hybrid, CMOS photonicsAdapted from Fujitsu Microelectronics≈1 mmOclaro : 40 Gb/s InP DQPSK Encoding Chip

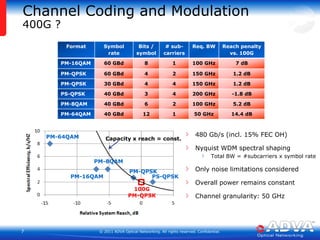

Channel Coding and Modulation400G ?480 Gb/s (incl. 15% FEC OH)Nyquist WDM spectral shapingTotal BW = #subcarriers x symbol rateOnly noise limitations consideredOverall power remains constantChannel granularity: 50 GHzPM-64QAMCapacity x reach = const.PM-8QAMPM-QPSKPM-16QAMPS-QPSK100GPM-QPSK

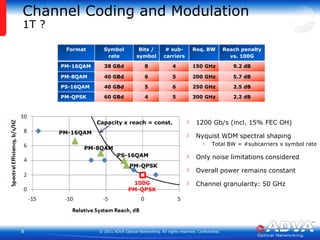

Channel Coding and Modulation1T ?1200 Gb/s (incl. 15% FEC OH)Nyquist WDM spectral shapingTotal BW = #subcarriers x symbol rateOnly noise limitations consideredOverall power remains constantChannel granularity: 50 GHzCapacity x reach = const.PM-16QAMPM-8QAMPS-16QAMPM-QPSK100GPM-QPSK

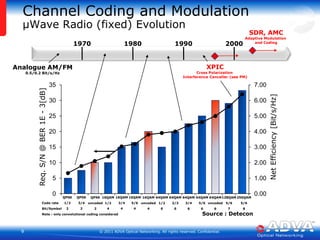

Channel Codingand ModulationµWave Radio (fixed) EvolutionSDR, AMCAdaptive Modulation andCoding1970198019902000XPICCross PolarizationInterferenceCanceller (see PM)Analogue AM/FM0.5/0.2 Bit/s/HzReq. S/N @ BER 1E - 3[dB]Net Efficiency [Bit/s/Hz]QPSK1/22QPSK3/4216QAM3/4416QAM5/64QPSKuncoded216QAM1/2416QAMuncoded464QAM1/2664QAM2/3664QAM3/4664QAM5/6664QAMuncoded6128QAM5/67256QAM5/68Code rateBit/SymbolNote : only convolutional coding consideredSource : Detecon

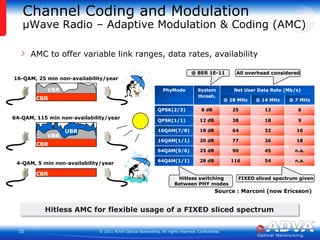

Channel Codingand ModulationµWave Radio – Adaptive Modulation & Coding (AMC)AMC to offer variable link ranges, data rates, availability @ BER 1E-11All overhead considered16-QAM, 25 min non-availability/year VBRCBR64-QAM, 115 min non-availability/year UBRVBRCBR4-QAM, 5 min non-availability/year CBRHitless switchingBetween PHY modesFIXED sliced spectrum givenSource : Marconi (now Ericsson)Hitless AMC for flexible usage of a FIXED sliced spectrum

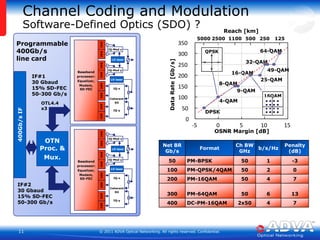

Channel Coding and ModulationSoftware-Defined Optics (SDO) ?Reach [km]110012525002505000500350Basebandprocessor:Equalizer,Modem,SD-FECBasebandprocessor:Equalizer,Modem,SD-FECDACDAC64-QAMProgrammable400Gb/slinecard300IQ-Mod xIQ-Mod x32-QAMDACDAC25049-QAM16-QAM200LO laserLO laser25-QAMDACDAC8-QAMData Rate [Gb/s]150400Gb/sIFIF#130 Gbaud15% SD-FEC50-300 Gb/s9-QAMIQ-Mod yIQ-Mod y100DACDAC4-QAMLO laserLO laser50OTL4.4x3DPSKADCADC0IQ-xCoherentRXIQ-yIQ-xCoherentRXIQ-y-5051015OSNR Margin [dB]ADCADCOTNProc. &Mux.ADCADCQPSKADCADCIF#230 Gbaud15% SD-FEC50-300 Gb/s16QAM

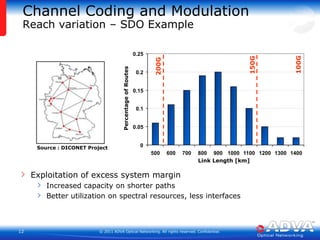

Exploitation of excess system marginIncreased capacity on shorter pathsBetter utilization on spectral resources, less interfaces0.25100G150G200G0.20.15Percentage of Routes0.10.050Source : DICONET Project50060070080090010001100120013001400Channel Coding and ModulationReach variation – SDO ExampleLink Length [km]

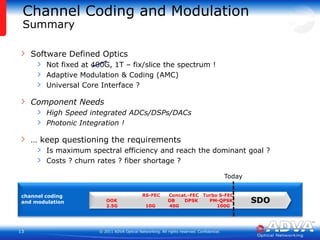

Channel Codingand ModulationSummarySoftware Defined OpticsNot fixed at 400G, 1T – fix/slice the spectrum !Adaptive Modulation & Coding (AMC)Universal Core Interface ?Component NeedsHigh Speed integrated ADCs/DSPs/DACsPhotonic Integration !… keep questioning the requirementsIs maximum spectral efficiency and reach the dominant goal ?Costs ? churn rates ? fiber shortage ?TodayRS-FECConcat.-FECTurbo S-FECchannelcodingandmodulationSDOOOKDBDPSKPM-QPSK2.5G10G40G100G
Optical Layer – Line SystemCurrentandfuturekeyrequirementsToday‘scorelinesystem design targetsC-band, 96chs, 100Gb/sPM-QPSK Coherent, 2000+ kmSupported by optical amplificationLow nonlinear fiber signal degradationRaman booster & pre-amplifierImproved OSNRHybrid Raman + EDFA pre-amplifierWhat‘snext ?Reduce lossesImprove OSNR performanceIncrease transient suppressionTodayopticallayergain/power controlvariable gaincontrol?linesystem8 ch96 ch non-DCx160 ch C+LEDFARamanhybrid

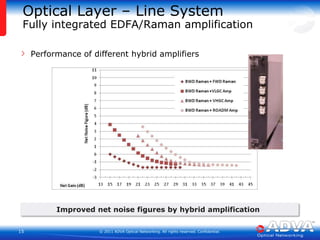

Optical Layer – Line SystemFully integrated EDFA/Raman amplificationPerformance of different hybrid amplifiersImproved net noise figures by hybrid amplification

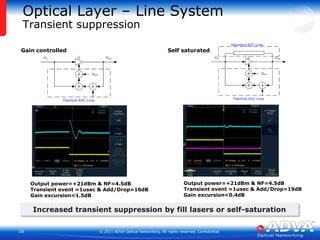

Gain controlled	Output power=+21dBm & NF=4.5dB	Transient event =1usec & Add/Drop=16dB	Gain excursion<1.5dBSelf saturated	    Output power=+21dBm & NF=4.5dB	    Transient event =1usec & Add/Drop=19dB	    Gain excursion<0.4dBOptical Layer – Line SystemTransient suppressionIncreased transient suppression by fill lasers or self-saturation

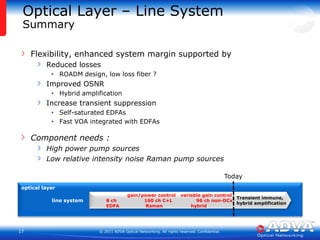

Optical Layer – Line SystemSummaryFlexibility, enhanced system margin supported byReduced lossesROADM design, low loss fiber ?Improved OSNRHybrid amplificationIncrease transient suppressionSelf-saturated EDFAsFast VOA integrated with EDFAsComponent needs :High power pump sourcesLow relative intensity noise Raman pump sourcesTodayoptical layergain/power controlvariable gain controlTransient immune,hybrid amplificationline system8 ch96 ch non-DCx160 ch C+LEDFARamanhybrid

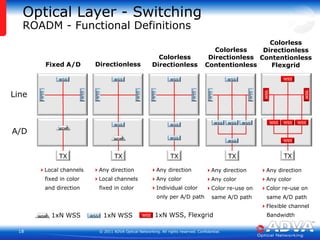

Optical Layer - SwitchingROADM - Functional DefinitionsColorlessDirectionlessContentionlessFlexgridColorlessDirectionlessContentionlessColorlessDirectionlessDirectionlessFixed A/DWSSWSSWSSWSSWSSLineWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSWSSA/DWDMWSSWDMWSSWSSTXTXTXTXTXLocal channels    fixed in color    and directionAny direction
Local channels    fixed in colorAny direction
Any color
Individual color   only per A/D path Any direction
Any color
Color re-use on   same A/D pathAny direction
Any color
Color re-use on   same A/D pathFlexible channel    Bandwidth1xN WSS, Flexgrid1xN WSS1xN WSSWSSWSSWDM

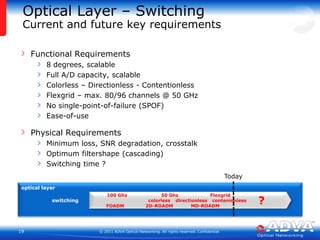

Optical Layer – SwitchingCurrentandfuturekeyrequirementsFunctional Requirements8 degrees, scalableFull A/D capacity, scalableColorless – Directionless - ContentionlessFlexgrid – max. 80/96 channels @ 50 GHzNo single-point-of-failure (SPOF)Ease-of-usePhysical RequirementsMinimum loss, SNR degradation, crosstalkOptimum filtershape (cascading)Switching time ?Todayoptical layer100 GhzFlexgrid50 Ghz?switchingcolorlesscontenionlessdirectionlessFOADM2D-ROADMMD-ROADM

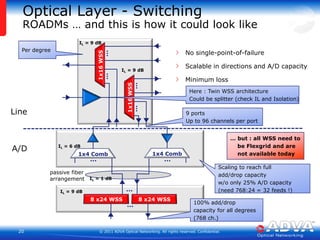

……Optical Layer - SwitchingROADMs … andthisishowitcouldlooklikeIL = 9 dBPer degreeNo single-point-of-failureScalable in directions and A/D capacityMinimum lossIL = 9 dB……Here : Twin WSS architectureCould be splitter (check IL and Isolation)1x16 WSS1x16 WSSLine9 portsUp to 96 channels per port… but : all WSS need to     beFlexgrid and are     not available todayIL = 6 dBA/D1x4 Comb1x4 Comb……Scaling to reach full add/drop capacityw/o only 25% A/D capacity(need 768:24 = 32 feeds !)passive fiberarrangementIL = 1 dB…IL = 9 dB8 x24 WSS8 x24 WSS100% add/dropcapacity for all degrees(768 ch.)…

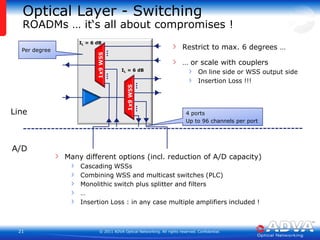

Optical Layer - SwitchingROADMs … it‘s all aboutcompromises !IL = 6 dBRestrict to max. 6 degrees …… or scale with couplersOn line side or WSS output sideInsertion Loss !!!Per degreeIL = 6 dB…………1x9 WSS1x9 WSSLine4 portsUpto 96 channels per portMany different options (incl. reduction of A/D capacity)Cascading WSSsCombining WSS and multicast switches (PLC)Monolithic switch plus splitter and filters…Insertion Loss : in any case multiple amplifiers included !A/D
Optical Layer – SwitchingExample :MD – CDCF ROADM1x9 Line moduleA/D 1st stageA/D 8-channel IFEDFA-RAMANEDFA-RAMANSHUFFLE

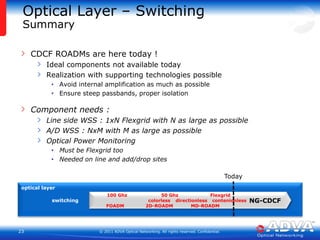

Optical Layer – SwitchingSummaryCDCF ROADMs are here today !Ideal components not available todayRealization with supporting technologies possibleAvoid internal amplification as much as possibleEnsure steep passbands, proper isolationComponent needs :Line side WSS : 1xN Flexgrid with N as large as possibleA/D WSS : NxM with M as large as possibleOptical Power MonitoringMust be Flexgrid tooNeeded on line and add/drop sitesTodayopticallayer100 GhzFlexgrid50 GhzNG-CDCFswitchingcolorlesscontenionlessdirectionlessFOADM2D-ROADMMD-ROADM

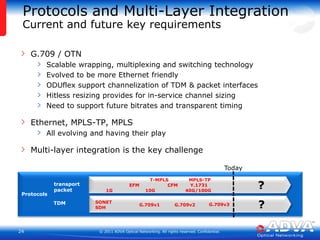

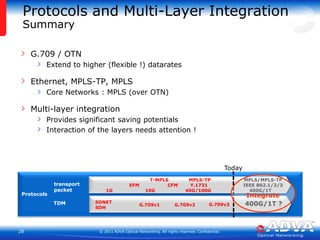

Protocols and Multi-Layer IntegrationCurrent and future key requirementsG.709 / OTNScalable wrapping, multiplexing and switching technology Evolved to be more Ethernet friendlyODUflex support channelization of TDM & packet interfacesHitless resizing provides for in-service channel sizingNeed to support future bitrates and transparent timingEthernet, MPLS-TP, MPLSAll evolving and having their playMulti-layer integration is the key challengeTodayT-MPLSMPLS-TP?transportpacketEFMCFMY.17311G10G40G/100GProtocols?SONETSDHTDMG.709v3G.709v1G.709v2

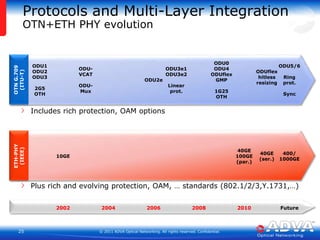

Includesrichprotection, OAM optionsPlus richandevolvingprotection, OAM, … standards (802.1/2/3,Y.1731,…)Protocolsand Multi-Layer IntegrationOTN+ETH PHY evolution

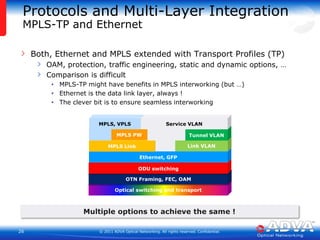

Protocols and Multi-Layer IntegrationMPLS-TP and EthernetBoth, Ethernet and MPLS extended with Transport Profiles (TP)OAM, protection, traffic engineering, static and dynamic options, …Comparison is difficultMPLS-TP might have benefits in MPLS interworking (but …)Ethernet is the data link layer, always !The clever bit is to ensure seamless interworkingMPLS, VPLSService VLANMPLS PWTunnel VLANLink VLANMPLS LinkEthernet, GFPODU switchingOTN Framing, FEC, OAMOptical switching and transportMultiple options to achieve the same !

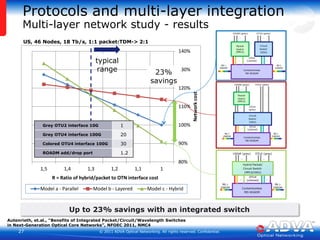

Protocolsand multi-layerintegrationMulti-layer network study - resultsUS, 46 Nodes, 18 Tb/s, 1:1 packet:TDM-> 2:110GbE (grey)…OTU2 (grey)typicalrange23%savings…PacketSwitch(MPLS)OTU2 (grey)…10GbE (grey)…10GbE (grey)…OTU2 (grey)…Hybrid Packet/Circuit Switch (MPLS/ODU)…OTU4(grey)PacketSwitch(MPLS)CircuitSwitch (ODU)CircuitSwitch (ODU)OTU4(colored)……96 lDWDM96 lDWDMContentionlessMD-ROADMOTU4(colored)OTU4(colored)…………96 lDWDM96 lDWDM96 lDWDM96 lDWDMContentionlessMD-ROADMContentionlessMD-ROADMUp to 23% savings with an integrated switchAutenrieth, et.al., “Benefits of Integrated Packet/Circuit/Wavelength Switches in Next-Generation Optical Core Networks”, NFOEC 2011, NMC4
