The document discusses Alcatel-Lucent's proposal for implementing Converged Backbone Transformation (CBT) networks using MPLS/DWDM technology. CBT networks integrate IP and optical network layers to reduce costs and complexity while improving scalability, efficiency, and service delivery. Key elements of CBT include IP/optical integration using technologies like OTN, sub-port grooming, and control/management plane integration to provide end-to-end visibility and coordination across network domains. CBT networks are presented as enabling more cost-effective scaling to support growing traffic demands like video.

1. Redes Convergentes de Transporte MPLS/DWDM Alcatel-Lucent España David Pozas Valcarce Septiembre 2010

2. Agenda 1. Introducción Transformación general de red: HLN (High Leverage Network) 3. Conclusiones Resumen de la Propuesta de Valor 2. Concepto de Red Troncal Convergente y sus habilitadores CBT (Converged Backbone Transformation) Elementos disruptivos Integración Tecnológica IP & Óptica Plano de Datos, Control y Gestión

3. Introducción Concepto de High Leverage Network 1

4. Why a High Leverage Network TM ?

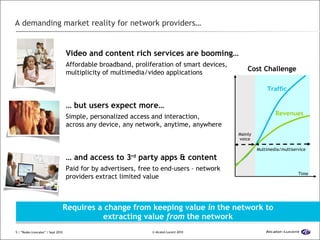

5. A demanding market reality for network providers… Cost Challenge Traffic Revenues Time Mainly voice Multimedia/multiservice Video and content rich services are booming… Affordable broadband, proliferation of smart devices, multiplicity of multimedia/video applications … but users expect more… Simple, personalized access and interaction, across any device, any network, anytime, anywhere … and access to 3 rd party apps & content Paid for by advertisers, free to end-users – network providers extract limited value Requires a change from keeping value in the network to extracting value from the network

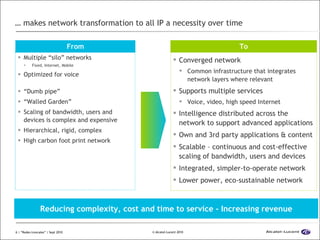

6. … makes network transformation to all IP a necessity over time Multiple “silo” networks Fixed, Internet, Mobile Optimized for voice “ Dumb pipe” “ Walled Garden” Scaling of bandwidth, users and devices is complex and expensive Hierarchical, rigid, complex High carbon foot print network From Reducing complexity, cost and time to service - Increasing revenue Converged network Common infrastructure that integrates network layers where relevant Supports multiple services Voice, video, high speed Internet Intelligence distributed across the network to support advanced applications Own and 3rd party applications & content Scalable – continuous and cost-effective scaling of bandwidth, users and devices Integrated, simpler-to-operate network Lower power, eco-sustainable network To

7. The High Leverage Network TM One converged, scalable, multi-access IP network allowing dynamic service creation and delivery … at the lowest cost per bit Converged service control VDSL/GPON/ Ethernet Mobility management Policy management Converged edge Converged service-aware network management Converged wireline access Ethernet/ MPLS/Optical Converged metro and aggregation Converged RAN Radio access Converged backbone IP/Optical Multi-screen services Web and Enterprise 2.0 Residential/ enterprise gateways Session control Converged network gateways A High Leverage Network TM

8. Converged Backbone Transformation and its enablers 2

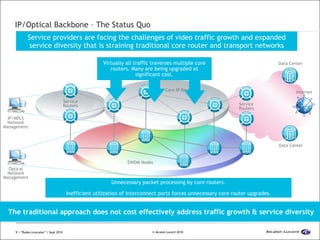

9. IP/Optical Backbone – The Status Quo The traditional approach does not cost effectively address traffic growth & service diversity IP/MPLS Network Management Optical Network Management Internet Data Center Data Center DWDM Nodes Core IP Routers Virtually all traffic traverses multiple core routers. Many are being upgraded at significant cost. Service providers are facing the challenges of video traffic growth and expanded service diversity that is straining traditional core router and transport networks Unnecessary packet processing by core routers. Inefficient utilization of interconnect ports forces unnecessary core router upgrades. Service Routers Service Routers

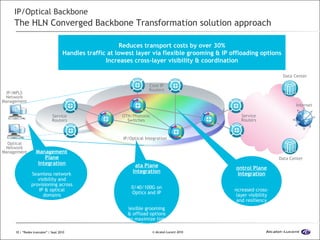

10. IP/Optical Backbone The HLN Converged Backbone Transformation solution approach Internet Data Center Data Center Reduces transport costs by over 30% Handles traffic at lowest layer via flexible grooming & IP offloading options Increases cross-layer visibility & coordination Management Plane Integration Seamless network visibility and provisioning across IP & optical domains IP/MPLS Network Management Optical Network Management IP/Optical Integration Core IP Routers Service Routers Service Routers Data Plane Integration 10/40/100G on Optics and IP Flexible grooming & offload options to maximize link utilization Control Plane Integration Increased cross-layer visibility and resiliency OTN/Photonic Switches

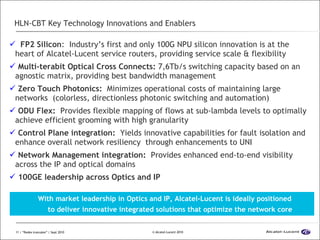

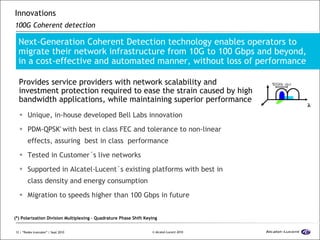

11. HLN-CBT Key Technology Innovations and Enablers FP2 Silicon : Industry’s first and only 100G NPU silicon innovation is at the heart of Alcatel-Lucent service routers, providing service scale & flexibility Multi-terabit Optical Cross Connects: 7,6Tb/s switching capacity based on an agnostic matrix, providing best bandwidth management Zero Touch Photonics: Minimizes operational costs of maintaining large networks (colorless, directionless photonic switching and automation) ODU Flex: Provides flexible mapping of flows at sub-lambda levels to optimally achieve efficient grooming with high granularity Control Plane integration: Yields innovative capabilities for fault isolation and enhance overall network resiliency through enhancements to UNI Network Management integration: Provides enhanced end-to-end visibility across the IP and optical domains 100GE leadership across Optics and IP With market leadership in Optics and IP, Alcatel-Lucent is ideally positioned to deliver innovative integrated solutions that optimize the network core

12. Innovations 100G Coherent detection Unique, in-house developed Bell Labs innovation PDM-QPSK * with best in class FEC and tolerance to non-linear effects, assuring best in class performance Tested in Customer´s live networks Supported in Alcatel-Lucent´s existing platforms with best in class density and energy consumption Migration to speeds higher than 100 Gbps in future Next-Generation Coherent Detection technology enables operators to migrate their network infrastructure from 10G to 100 Gbps and beyond, in a cost-effective and automated manner, without loss of performance Provides service providers with network scalability and investment protection required to ease the strain caused by high bandwidth applications, while maintaining superior performance (*) Polarization Division Multiplexing – Quadrature Phase Shift Keying

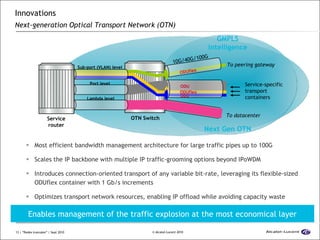

13. Innovations Next-generation Optical Transport Network (OTN) Most efficient bandwidth management architecture for large traffic pipes up to 100G Scales the IP backbone with multiple IP traffic-grooming options beyond IPoWDM Introduces connection-oriented transport of any variable bit-rate, leveraging its flexible-sized ODUflex container with 1 Gb/s increments Optimizes transport network resources, enabling IP offload while avoiding capacity waste Service-specific transport containers Service router OTN Switch Next Gen OTN 10G/40G/100G To datacenter To peering gateway GMPLS intelligence Lambda level Port level Sub-port (VLAN) level OCh ODU ODUflex ODUflex ODU Enables management of the traffic explosion at the most economical layer

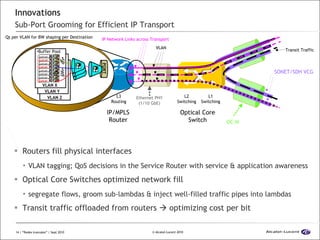

14. Innovations Sub-Port Grooming for Efficient IP Transport Routers fill physical interfaces VLAN tagging; QoS decisions in the Service Router with service & application awareness Optical Core Switches optimized network fill segregate flows, groom sub-lambdas & inject well-filled traffic pipes into lambdas Transit traffic offloaded from routers  optimizing cost per bit IP/MPLS Router IP Network Links across Transport Ethernet PHY (1/10 GbE) SONET/SDH VCG L2 Switching L1 Switching VLAN Optical Core Switch OC-N L3 Routing Transit Traffic Buffer Pool WFQ SP PORT VLAN X VLAN Y VLAN Z Qs per VLAN for BW shaping per Destination Queue 2 Queue 1 Queue 3 Queue 4 Queue 6 Queue 5 Queue 7 Queue 8

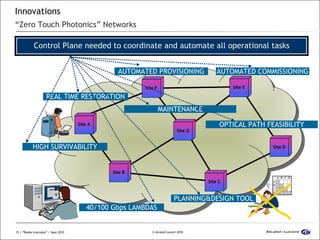

15. Innovations “Zero Touch Photonics” Networks Site D Site F Site B Site G Site E Site C Site A REAL TIME RESTORATION 40/100 Gbps LAMBDAS AUTOMATED PROVISIONING OPTICAL PATH FEASIBILITY HIGH SURVIVABILITY A B C D B C D A PLANNING&DESIGN TOOL AUTOMATED COMMISSIONING MAINTENANCE Control Plane needed to coordinate and automate all operational tasks

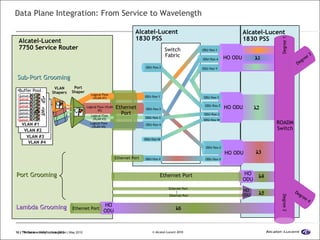

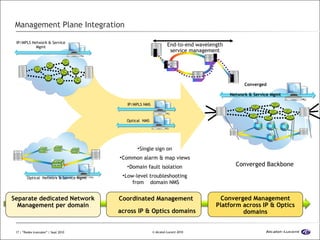

16. Data Plane Integration: From Service to Wavelength Alcatel-Lucent 7750 Service Router Alcatel-Lucent 1830 PSS Alcatel-Lucent 1830 PSS VLAN Shapers Switch Fabric λ  . . . Sub-Port Grooming Lambda Grooming | TW Cable – IP/Optics Integration | May 2010 λ  VLAN #4 VLAN #3 HO ODU HO ODU ODU-flex-3 ODU-flex-Y ODU-flex-Y ODU-flex-Z ODU-flex-W λ  Degree 3 Degree 4 λ  λ  λ  Port Grooming Degree 1 Degree 2 ROADM Switch HO ODU HO ODU HO ODU ODU-flex-X ODU-flex-2 Ethernet Port Ethernet Port Ethernet Port HO ODU Ethernet Port VLAN #2 Queue 2 Queue 1 Queue 3 Queue 4 Queue 6 Queue 5 Queue 7 Queue 8 Buffer Pool WFQ SP VLAN #1 ODU-flex-1 ODU-flex-4 ODU-flex-1 ODU-flex-4 ODU-flex-2 ODU-flex-W ODU-flex-Z ODU-flex-X Ethernet Port ODU-flex-3 Ethernet Port Logical Flow (VLAN #4) Logical Flow (VLAN #3) Logical Flow (VLAN #2) Logical Flow (VLAN #1) Port Shaper

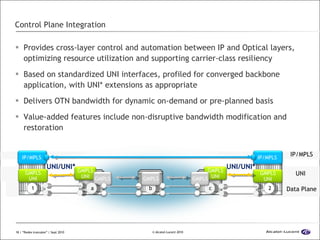

17. Management Plane Integration Single sign on Common alarm & map views Domain fault isolation Low-level troubleshooting from domain NMS Converged Backbone Optical/DWDM Network Optical Network & Service Mgmt Optical NMS IP/MPLS Network & Service Mgmt IP/MPLS NMS Separate dedicated Network Management per domain Coordinated Management across IP & Optics domains Converged Management Platform across IP & Optics domains Converged Network & Service Mgmt End-to-end wavelength service management

18. Control Plane Integration Provides cross-layer control and automation between IP and Optical layers, optimizing resource utilization and supporting carrier-class resiliency Based on standardized UNI interfaces, profiled for converged backbone application, with UNI* extensions as appropriate Delivers OTN bandwidth for dynamic on-demand or pre-planned basis Value-added features include non-disruptive bandwidth modification and restoration a 1 b 2 c UNI/UNI* UNI/UNI* IP/MPLS UNI Data Plane IP/MPLS IP/MPLS GMPLS UNI GMPLS UNI GMPLS UNI GMPLS GMPLS UNI GMPLS GMPLS

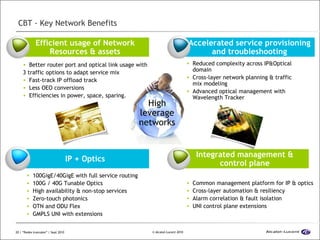

19. Conclusiones 4
