This document provides information on the structure, operation, and maintenance of an automated clinical chemistry analyzer. It describes the key components including the cleaning system, constant temperature system, measurement system, mechanic arm module, and specifications for different test methods. It also outlines the installation process, wiring connections, temperature control module, and recommended maintenance schedule.

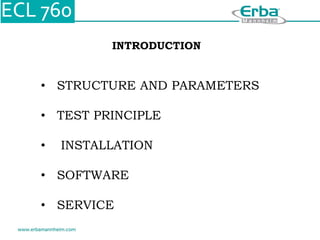

2. INTRODUCTION
• STRUCTURE AND PARAMETERS
• TEST PRINCIPLE
• INSTALLATION
• SOFTWARE
• SERVICE

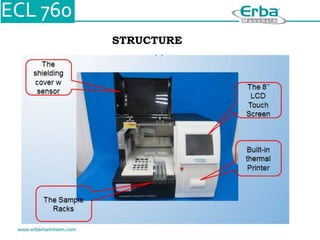

3. STRUCTURE

4. WORK STATION

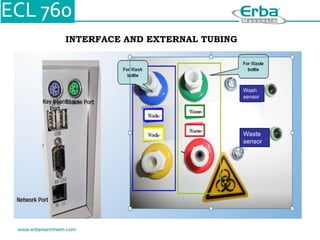

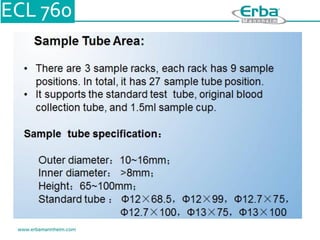

5. INTERFACE AND EXTERNAL TUBING
Wash
sensor
Waste
sensor

9. Cleaning System:
Purpose: Clean the inside and outside of sampling
probe
Cleaning trough: It’s left side is used for cleaning the
inside of sampling probe, and its right side is used for
cleaning the outside of sampling probe.
Wash bottle: it is used for holding distilled or
de-ionized water.
Waste bottle: it is used for holding waste liquid.

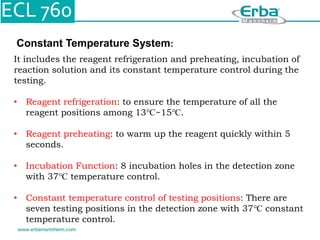

10. Constant Temperature System:
It includes the reagent refrigeration and preheating, incubation of
reaction solution and its constant temperature control during the
testing.

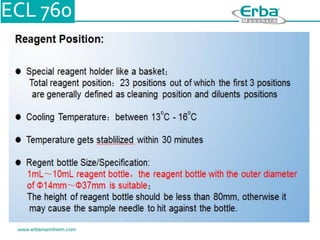

• Reagent refrigeration: to ensure the temperature of all the
reagent positions among 13℃~15℃.
• Reagent preheating: to warm up the reagent quickly within 5
seconds.
• Incubation Function: 8 incubation holes in the detection zone
with 37℃ temperature control.
• Constant temperature control of testing positions: There are
seven testing positions in the detection zone with 37℃ constant
temperature control.

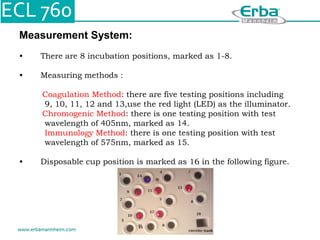

11. Measurement System:
• There are 8 incubation positions, marked as 1-8.
• Measuring methods :
Coagulation Method: there are five testing positions including
9, 10, 11, 12 and 13,use the red light (LED) as the illuminator.
Chromogenic Method: there is one testing position with test
wavelength of 405nm, marked as 14.
Immunology Method: there is one testing position with test
wavelength of 575nm, marked as 15.
• Disposable cup position is marked as 16 in the following figure.

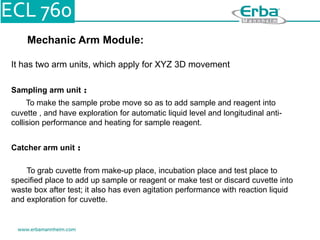

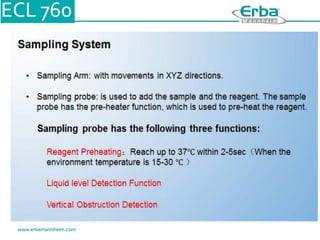

12. Mechanic Arm Module:
It has two arm units, which apply for XYZ 3D movement
Sampling arm unit ：
To make the sample probe move so as to add sample and reagent into
cuvette , and have exploration for automatic liquid level and longitudinal anti-
collision performance and heating for sample reagent.
Catcher arm unit ：
To grab cuvette from make-up place, incubation place and test place to
specified place to add up sample or reagent or make test or discard cuvette into
waste box after test; it also has even agitation performance with reaction liquid
and exploration for cuvette.

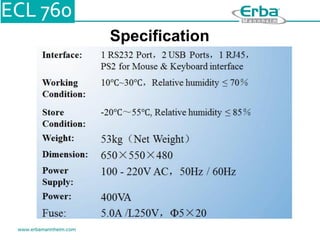

13. Specification

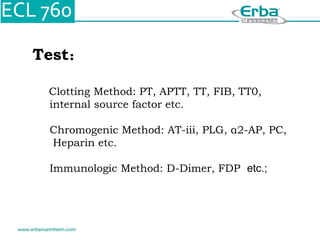

14. Test：
Clotting Method: PT, APTT, TT, FIB, TT0,
internal source factor etc.
Chromogenic Method: AT-iii, PLG, α2-AP, PC,
Heparin etc.
Immunologic Method: D-Dimer, FDP etc.;

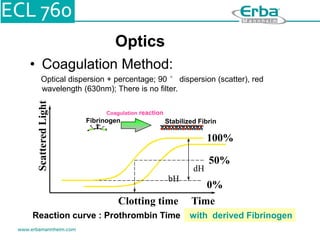

16. Optics
• Coagulation Method:
Optical dispersion + percentage; 90 ° dispersion (scatter), red
wavelength (630nm); There is no filter.
Clotting time Time
Scattered
Light
0%
100%
50%
bH
dH
Reaction curve : Prothrombin Time with derived Fibrinogen
Coagulation reaction
D D D D D D D D D D D D
D
D
D
D
D
D
D
D
D
D
D
D
E
E
E E
E E
E
E
E
E
E
E
Fibrinogen Stabilized Fibrin

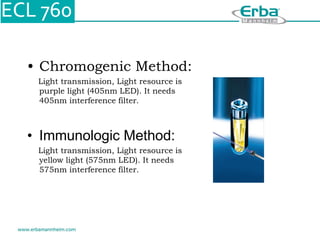

17. • Chromogenic Method:
Light transmission, Light resource is
purple light (405nm LED). It needs
405nm interference filter.
• Immunologic Method:
Light transmission, Light resource is
yellow light (575nm LED). It needs
575nm interference filter.

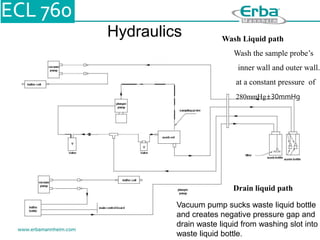

18. Hydraulics Wash Liquid path
Wash the sample probe’s
inner wall and outer wall.
at a constant pressure of
280mmHg±30mmHg
Drain liquid path
Vacuum pump sucks waste liquid bottle
and creates negative pressure gap and
drain waste liquid from washing slot into
waste liquid bottle.

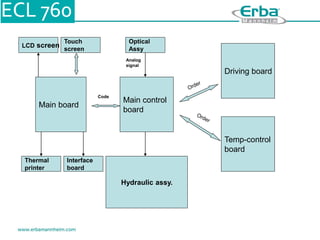

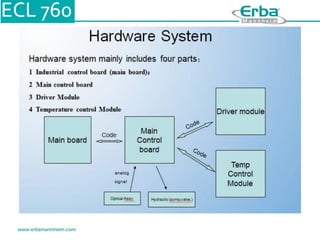

20. Main control
board
Main board
Driving board
Temp-control
board
Code
Optical
Assy
Analog
signal
Hydraulic assy.
LCD screen
Thermal
printer
Interface
board
Touch
screen

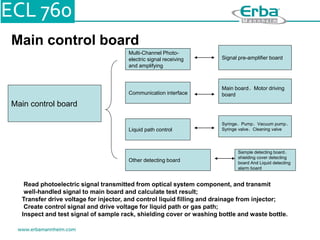

21. Main control board
Main control board
Multi-Channel Photo-
electric signal receiving
and amplifying
Communication interface
Liquid path control
Other detecting board
Signal pre-amplifier board
Main board、Motor driving
board
Syringe、Pump、Vacuum pump、
Syringe valve、Cleaning valve
Sample detecting board、
shielding cover detecting
board And Liquid detecting
alarm board
Read photoelectric signal transmitted from optical system component, and transmit
well-handled signal to main board and calculate test result;
Transfer drive voltage for injector, and control liquid filling and drainage from injector;
Create control signal and drive voltage for liquid path or gas path;
Inspect and test signal of sample rack, shielding cover or washing bottle and waste bottle.

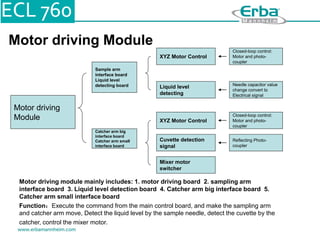

22. Motor driving Module
Motor driving
Module
Sample arm
interface board
Liquid level
detecting board
Catcher arm big
interface board
Catcher arm small
interface board
XYZ Motor Control
Liquid level
detecting
XYZ Motor Control
Cuvette detection
signal
Mixer motor
switcher
Closed-loop control:
Motor and photo-
coupler
Closed-loop control:
Motor and photo-
coupler
Needle capacitor value
change convert to
Electrical signal
Reflecting Photo-
coupler
Motor driving module mainly includes: 1. motor driving board 2. sampling arm
interface board 3. Liquid level detection board 4. Catcher arm big interface board 5.
Catcher arm small interface board
Function：Execute the command from the main control board, and make the sampling arm
and catcher arm move, Detect the liquid level by the sample needle, detect the cuvette by the
catcher, control the mixer motor.

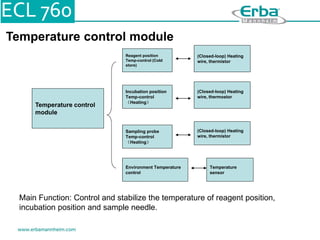

23. Temperature control module
Temperature control
module
Reagent position
Temp-control (Cold
store)
Incubation position
Temp-control
（Heating）
Sampling probe
Temp-control
（Heating）
Environment Temperature
control
(Closed-loop) Heating
wire, thermistor
(Closed-loop) Heating
wire, thermostor
(Closed-loop) Heating
wire, thermistor
Temperature
sensor
Main Function: Control and stabilize the temperature of reagent position,
incubation position and sample needle.

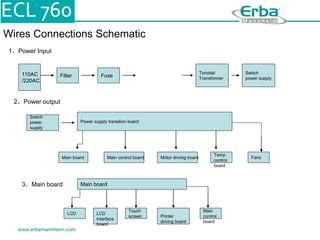

24. Wires Connections Schematic
Switch
power
supply
Power supply transition board
Main board Main control board Motor driving board
Temp
control
board
Fans
1，Power Input
110AC
/220AC
Filter Fuse
Toroidal
Transformer
Switch
power supply
2，Power output
3，Main board Main board
LCD LCD
Interface
board
Touch
screen Printer
driving board
Main
control
board

25. Wires Connections Schematic
Main control board
Main control board
sample rack detection board
liquid level
detecting alarm board
Cleaning valve
Signal pre-
amplify board
Emergency
button
Pressure pump
Vacuum
pump
injector assembly
Motor
drive
board
Injector valve

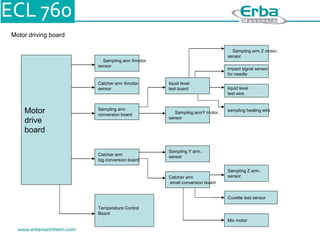

26. Motor driving board
Motor
drive
board
Sampling arm Xmotor，
sensor
Catcher arm Xmotor，
sensor
Sampling arm
conversion board
liquid level
test board
Catcher arm
big conversion board
Catcher arm
small conversion board
Sampling armY motor，
sensor
Sampling arm Z motor，
sensor
Sampling Y arm，
sensor
Sampling Z arm，
sensor
impact signal sensor
for needle
liquid level
test wire
sampling heating wire
Cuvette test sensor
Mix motor
Temperature Control
Board

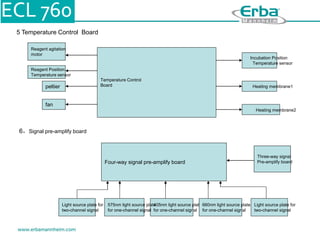

27. 5 Temperature Control Board
Temperature Control
Board
Heating membrane2
Reagent agitation
motor
Heating membrane1
peltier
fan
Incubation Position
Temperature sensor
Reagent Position
Temperature sensor
6，Signal pre-amplify board
Four-way signal pre-amplify board
Three-way signal
Pre-amplify board
405nm light source plate
for one-channel signal
575nm light source plate
for one-channel signal
Light source plate for
two-channel signal
660nm light source plate
for one-channel signal
Light source plate for
two-channel signal

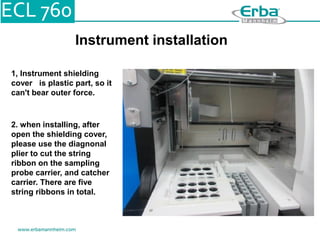

28. Instrument installation
1, Instrument shielding
cover is plastic part, so it
can't bear outer force.
2. when installing, after
open the shielding cover,
please use the diagnonal
plier to cut the string
ribbon on the sampling
probe carrier, and catcher
carrier. There are five
string ribbons in total.

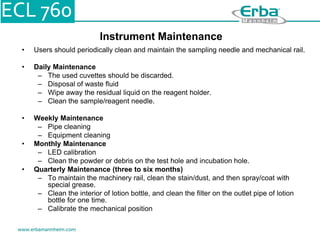

29. Instrument Maintenance
• Users should periodically clean and maintain the sampling needle and mechanical rail.
• Daily Maintenance
– The used cuvettes should be discarded.
– Disposal of waste fluid
– Wipe away the residual liquid on the reagent holder.
– Clean the sample/reagent needle.
• Weekly Maintenance
– Pipe cleaning
– Equipment cleaning
• Monthly Maintenance
– LED calibration
– Clean the powder or debris on the test hole and incubation hole.
• Quarterly Maintenance (three to six months)
– To maintain the machinery rail, clean the stain/dust, and then spray/coat with
special grease.
– Clean the interior of lotion bottle, and clean the filter on the outlet pipe of lotion
bottle for one time.
– Calibrate the mechanical position
