1. Abnormal cardiac rhythms can originate from the atria, AV node region, or ventricles. Rhythms originating above the ventricles have narrow QRS complexes, while those from the ventricles have wide complexes. 2. Abnormal rhythms can be categorized as tachycardias, extrasystoles, bradycardias, or fibrillation depending on whether they are fast/slow and sustained or isolated beats. 3. Examples of abnormal rhythms discussed include atrial escape, junctional escape, ventricular escape, sinus arrhythmia, sinus pause, SA block, and extrasystoles.

1. Dr. Abdulkadir Insi, MD

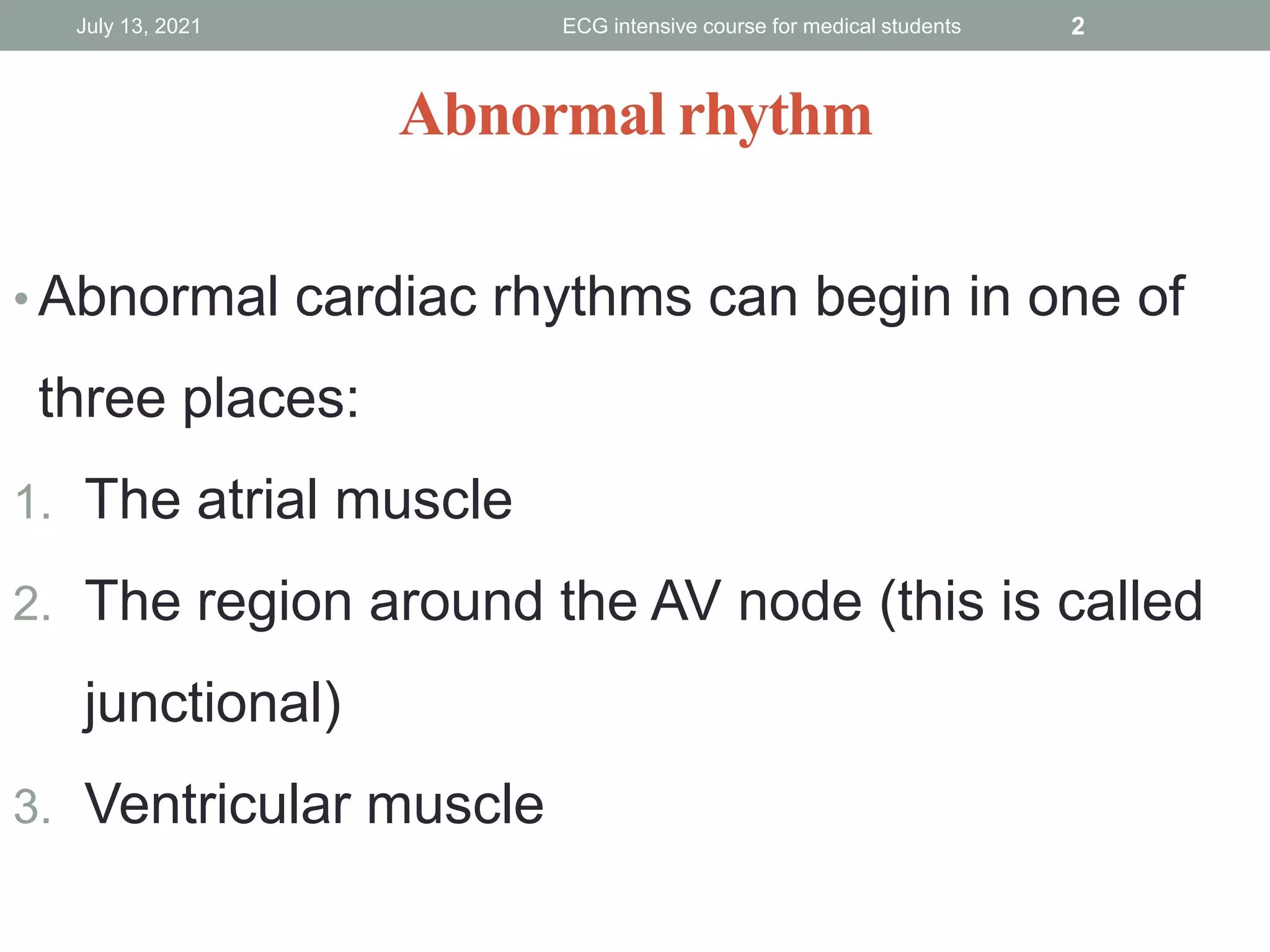

2. Abnormal rhythm
• Abnormal cardiac rhythms can begin in one of
three places:
1. The atrial muscle
2. The region around the AV node (this is called
junctional)
3. Ventricular muscle
July 13, 2021 ECG intensive course for medical students 2

3. July 13, 2021 ECG intensive course for medical students 3

4. • These regions can be divided into:
1. Supraventricular: sinus rhythm, atrial rhythm
and junctional rhythm
2. Ventricular rhythm
July 13, 2021 ECG intensive course for medical students 4

5. • In the supraventricular rhythms, the
depolarization wave spreads to the ventricles in
the normal way via the His bundle and its
branches.
• Therefore the QRS complex is normal, and is
the same whether depolarization was initiated by
the SA node, then atrial muscle, or the junctional
region.
July 13, 2021 ECG intensive course for medical students 5

6. July 13, 2021 ECG intensive course for medical students 6

7. • In the ventricular rhythms, the depolarization
wave spreads through the ventricles by an
abnormal, and therefore slower, pathway through
the purkinje fibers.
• So the QRS complex is wide and abnormal.
• Repolarization is also abnormal, so the T wave is
of abnormal shape.
July 13, 2021 ECG intensive course for medical students 7

8. July 13, 2021 ECG intensive course for medical students 8

9. Remember!
1. SV rhythms have narrow QRS complexes
2. Ventricular rhythms have wide QRS
complexes
3. The only exception to this rule occurs when
there is SVR with RT or LT BBB
July 13, 2021 ECG intensive course for medical students 9

10. oAbnormal rhythms arising in the atrial muscle,
the junctional region or the ventricular muscle
can be categorized as:
July 13, 2021 ECG intensive course for medical students 10

11. 1. Tachycardias: fast and sustained
2. Extrasystoles: occur as early single beats
3. Bradycardias: slow and sustained
4. Fibrillation: activation of the atria or ventricles
is totally disorganized.
July 13, 2021 ECG intensive course for medical students 11

12. Atrial escape
• Def.: rate of depolarization of the SA node
slows down and a focus in the atrium takes
over control of the heart.
July 13, 2021 ECG intensive course for medical students 12

13. oAfter one sinus beat the SA node fails to
depolarize
oAfter a delay, an abnormal P wave is seen
because excitation of the atrium has begun
somewhere away from the SA node
July 13, 2021 ECG intensive course for medical students 13

14. oThe abnormal P wave is followed by a normal
QRS complex, because excitation has spread
normally down the His bundle.
oThe remaining beats show a return to sinus
arrhythmia
July 13, 2021 ECG intensive course for medical students 14

15. July 13, 2021 ECG intensive course for medical students 15

16. Junctional escape
• Starts with sinus rhythm,
• Then sudden loss of P waves (indicates either
no atrial contraction or P wave lost in QRS
complex)
• Normal QRS complexes
July 13, 2021 ECG intensive course for medical students 16

17. July 13, 2021 ECG intensive course for medical students 17

18. Ventricular escape
• Most commonly seen when conduction between
the atria and ventricles is interrupted by
complete heart block.
• It can occur without complete heart block and
can be single.
July 13, 2021 ECG intensive course for medical students 18

19. Ventricular escape with complete HB
July 13, 2021 ECG intensive course for medical students 19

20. Ventricular escape without comp. HB
July 13, 2021 ECG intensive course for medical students 20

21. Sinus Arrhythmia
• The SA node discharges irregularly.
• The R-R interval is irregular.
July 13, 2021 ECG intensive course for medical students 21

22. ♥ Clinical Tip
• The pacing rate of the SA node varies with respiration,
especially in children and elderly people.
July 13, 2021 ECG intensive course for medical students 22

23. Sinus Pause (Sinus Arrest)
■ The SA node fails to discharge and then resumes.
■ Electrical activity resumes either when the SA
node resets itself or when a lower latent pacemaker
begins to discharge.
■ The pause (arrest) time interval is not a multiple
of the normal P-P interval.
July 13, 2021 ECG intensive course for medical students 23

24. July 13, 2021 ECG intensive course for medical students 24

25. ♥ Clinical Tip
• Cardiac output may decrease, causing syncope
or dizziness.
July 13, 2021 ECG intensive course for medical students 25

26. Sinoatrial (SA) Block
July 13, 2021 ECG intensive course for medical students 26
The block occurs in some multiple of the P-P
interval.
After the dropped beat, cycles continue on time.

27. ♥ Clinical Tip
• Cardiac output may decrease, causing syncope
or dizziness.
July 13, 2021 ECG intensive course for medical students 27

28. Extrasystoles
• Atrial extrasystoles have abnormal P waves.
• Junctional extrasystole either is no P wave at all, or
it appears immediately before or immediately after
the QRS complex.
• QRS complexes of atrial and junctional
extrasystoles are the same as those of sinus rhythm.
July 13, 2021 ECG intensive course for medical students 28

29. • Ventricular extrasystoles, however, have
abnormal QRS complexes, which are typically
wide but can be of almost any shape.
July 13, 2021 ECG intensive course for medical students 29

30. July 13, 2021 ECG intensive course for medical students 30

31. July 13, 2021 ECG intensive course for medical students 31

32. • The effect of SV and ventricular extrasystoles on the
following P wave are as follows:
SV extrasystole resets the P wave cycle
Ventricular extrasystole does not affect the SA node,
so the next P wave appears at the predicted time.
July 13, 2021 ECG intensive course for medical students 32

33. SV extrasystole
July 13, 2021 ECG intensive course for medical students 33

34. Ventricular extrasystole
July 13, 2021 ECG intensive course for medical students 34

35. Tachycardia
July 13, 2021 ECG intensive course for medical students 35

36. ♥ Clinical Tip
SVT may be related to caffeine intake, nicotine, stress,
or anxiety in healthy adults.
July 13, 2021 ECG intensive course for medical students 36
