Electronic-textiles (e-textiles) incorporate electronic functionality into textiles by using conductive materials. They contain conductive yarns or fibers and can be produced using textile manufacturing techniques. E-textiles allow for innovative designs and integration of sensors, displays and other electronics into fabrics and garments. They provide benefits like flexibility, comfort and low-cost production compared to rigid electronics. However, challenges remain around reliability, mass production costs and limited processing capability due to power constraints. Ongoing research aims to address these issues and further the applications of intelligent textile technologies.
According to engineering curriculum we have to choose a topic which is currently trending in the engineerig field. So, I had prepared a ppt on the topic Smart Fabrics for my seminar. You can also refer to this ppt . I hope this ppt would be informative for you. I have also uploaded the pdf of seminar report for this topic.
In this slide i am sharing introduction to E Textile and thier application in daily life .
An e-textile is a fabric developed with electronics in it to
enable conductivity and the use of various technologies.
• Electronic textiles may be embedded with sensors, batteries
LEDs and hands-free computing devices.
• The field of electronic textiles combines the worlds of
textiles and electronics, and explores techniques that
redefine construction methods .
• They usually contain conductive yarns that are either spun
or twisted and incorporate some amount of conductive
material to enable electrical conductivity.
E-Textile Applications
There are several applications of e-textiles,
ranging from healthcare to consumer goods.
Health Monitoring :
The most well-researched application of
e-textiles is medical. Specifically, the
monitoring of health conditions.
Currently, there are medical wearables
that have been invented to monitor
several aspects of a person’s health, such
as blood pressure, heart rate, and
symptoms of disease.
Worker Safety :
Occupational safety is another area where e-textiles
can provide a great deal of service. One hypothetical
use is for construction workers who are working
outdoors late at night. LED lights can be affixed to a
uniform and automatically turn on when it gets dark
outside, improving visibility.
A favorable feature among drivers is heated seats. Who
doesn’t like being blanketed in warmth while driving?
While it is often a luxury, heated seats and steering
wheels are essential for drivers in frigid temperatures.
Smart Fabrics are ones which can change automatically to their surrounding. Smart fabrics are being developed to be able to sense what is happening to the wearer or its immediated surroundings.
According to engineering curriculum we have to choose a topic which is currently trending in the engineerig field. So, I had prepared a ppt on the topic Smart Fabrics for my seminar. You can also refer to this ppt . I hope this ppt would be informative for you. I have also uploaded the pdf of seminar report for this topic.
In this slide i am sharing introduction to E Textile and thier application in daily life .
An e-textile is a fabric developed with electronics in it to
enable conductivity and the use of various technologies.
• Electronic textiles may be embedded with sensors, batteries
LEDs and hands-free computing devices.
• The field of electronic textiles combines the worlds of
textiles and electronics, and explores techniques that
redefine construction methods .
• They usually contain conductive yarns that are either spun
or twisted and incorporate some amount of conductive
material to enable electrical conductivity.
E-Textile Applications
There are several applications of e-textiles,
ranging from healthcare to consumer goods.
Health Monitoring :
The most well-researched application of
e-textiles is medical. Specifically, the
monitoring of health conditions.
Currently, there are medical wearables
that have been invented to monitor
several aspects of a person’s health, such
as blood pressure, heart rate, and
symptoms of disease.
Worker Safety :
Occupational safety is another area where e-textiles
can provide a great deal of service. One hypothetical
use is for construction workers who are working
outdoors late at night. LED lights can be affixed to a
uniform and automatically turn on when it gets dark
outside, improving visibility.
A favorable feature among drivers is heated seats. Who
doesn’t like being blanketed in warmth while driving?
While it is often a luxury, heated seats and steering
wheels are essential for drivers in frigid temperatures.
Smart Fabrics are ones which can change automatically to their surrounding. Smart fabrics are being developed to be able to sense what is happening to the wearer or its immediated surroundings.
Smart Textile
Smart textiles are defined as textiles that can sense and react via an active control mechanism to environmental conditions or stimuli, such as mechanical, thermal, magnetic, chemical, electrical, or other sources. They are able to sense and respond to external conditions (stimuli) in a predetermined way.
this presentation tells about smart textile and shows some of the example with the use
Smart textiles have been called e-textiles or intelligent textiles, electro active textiles, wearable electronics, and textronic depending on the approach.
The textile industry is about to take a giant step from being a supplier of fabrics to become a positive force in the development of society. Textile innovations improve people’s everyday lives and benefit the industry, the health care sector and the environment.
Smart textiles can be defined as textiles that are able to sense and respond to changes in their environment.
The integration of electronics in clothing promises a variety of new products and applications. . Whether for performance or aesthetic reasons, the focus within the textiles orb is on smart fabrics – from those that change their hue to those that regulate body temperature. Researchers are developing smart fabrics that do things that traditional fabrics cannot.
http://www.ualberta.ca/~jag3/smart_textiles/index.htm
Jose A. Gonzalez
Protective Clothing Research Group
Department of Human Ecology
University of Alberta
Smart Textile
Smart textiles are defined as textiles that can sense and react via an active control mechanism to environmental conditions or stimuli, such as mechanical, thermal, magnetic, chemical, electrical, or other sources. They are able to sense and respond to external conditions (stimuli) in a predetermined way.
this presentation tells about smart textile and shows some of the example with the use
Smart textiles have been called e-textiles or intelligent textiles, electro active textiles, wearable electronics, and textronic depending on the approach.
The textile industry is about to take a giant step from being a supplier of fabrics to become a positive force in the development of society. Textile innovations improve people’s everyday lives and benefit the industry, the health care sector and the environment.
Smart textiles can be defined as textiles that are able to sense and respond to changes in their environment.
The integration of electronics in clothing promises a variety of new products and applications. . Whether for performance or aesthetic reasons, the focus within the textiles orb is on smart fabrics – from those that change their hue to those that regulate body temperature. Researchers are developing smart fabrics that do things that traditional fabrics cannot.
http://www.ualberta.ca/~jag3/smart_textiles/index.htm
Jose A. Gonzalez
Protective Clothing Research Group
Department of Human Ecology
University of Alberta
Les tendances 2016 de la eSanté lors des Signaux Numériques 2016.
Les tendances 2016 dans le eTourisme lors des Signaux Numériques 2016.
La conférence annuelle d’AEC vous délivre les résultats d’une année de veille et d’analyse des tendances mondiales du numérique. Les Signaux Numériques permettent ainsi d’anticiper à court et à moyen terme les futurs enjeux technologiques, sociétaux et territoriaux impulsés par le numérique.
Webconférence Interaction Healthcare - Buzz e-santé : les grandes tendances d...Rémy TESTON
Webconférence Interaction Healthcare - Buzz e-santé : : les grandes tendances du digital santé- Objets connectés, "wearables", capteurs, m-health, big data, Google glass, réalité augmentée, gamification, simulation virtuelle, imprimante 3D ...
Les collectivités à l’heure des objets connectés - E-dealLes Interconnectés
Atelier sur les nouvelles perspectives des collectivités en matière d'objets connectés
Intervention de Nathalie Guillot, E-Deal et David Rousseau de Qowisio
La pharmacie à l'heure du digital
Pourquoi vouloir digitaliser la pharmacie?
Qu'est-ce que cela signifie ?
Quels acteurs pour accompagner le changement ?
Soutenance de ma thèse professionnelle du MBAMCI en février 2016
Pinterest - Enjeux et intérêts pour les marquesDagobert
Mars 2012 : Si Pinterest est en ce début d’année LE réseau social dont tout le monde parle, il est important cependant de prendre du recul sur l’outil et les réels enjeux qu’il soulève.
Dagobert fait le point sur la plateforme, ses avantages mais aussi ses limites.
Digital Retail - le e-commerce augmenté - conference e-com - 29.04.2014Pascal Escarment
ROPO, SOLOMO, Boutiques connectés, WebToStore, Big Data et Omnicanal bousculent l’e-commerce et dessinent les fondements du Commerce Digital. Analyse sur les tendance de l’e-commerce et les virages à prendre pour ré-enchanter l’(e-)commerce : comment faire évoluer votre site, vos points de vente et mieux connaître vos clients.
Industry 4.0: Merging Internet and FactoriesFabernovel
Industrial IoT and connected objects for factories are part of our research at FABERNOVEL OBJET, our activity dedicated to IoT.
The future of industry is at the crossroads of internet and factories. Some call it INDUSTRY 4.0 or FACTORY 4.0 in reference to the upcoming fourth industrial revolution. Governments and private companies in Germany, UK and the USA have acknowledged the importance of industrial IoT and its central role in future industrial transformation.
The adoption of Industrial Internet has both near-term and long-term impacts and will be characterized by the emergence of new models such as the “Outcome Economy” and the “Autonomous, Pull Economy”.
We believe that INDUSTRY 4.0 is a growth opportunity for industrial companies, and have decrypted this very phenomenon in the following presentation.
E-Transformation du marché de l'alcool et des spiritueux - #MBAMCIBenoit Puzin
Présentation de l'e-transformation du marché de l'alcool et des spiritueux. Réalisé par des étudiant du MBA MCI : Aymeric Bellavoine, Colin Girette, Baudouin Gabeur, Axel Peigné, Benoit Puzin et Maximilien Rufin.
Le plan de la présentation est le suivant :
Préambule, définitions et périmètre de l’étude
I. Présentation du marché (International + France)
II. E-transformation organisationnelle d’un acteur
III. La distribution
IV. La communication
A. Législation
B. Nouvelles opportunités de communication
V. Etudes de cas :
A. Ballantine’s
B. Budweiser
Prospectives : alcools et objets connectés.
A marketing action plan for Reebok’s Crossfit brand I developed with a group in my NYU Integrated Marketing program.
Elisa Tsang (http://www.slideshare.net/ElisaTsang) was a member in the group.
Objets connectés, "wearables", capteurs, m-health, big data, Google glass, réalité augmentée, gamification, simulation virtuelle, imprimante 3D ..., l'essor fulgurant de la technologie ouvre un champ applicatif en santé qui va révolutionner les usages des professionnels de santé et des patients.
Les patients y sont d'ailleurs plutôt favorables. Une étude parue en mai dernier montre que 52% d'entre eux ont utilisé au moins une fois un outil numérique de prévention en santé.
The latest LUMA Display Ad Tech Landscape is a living document. While it is impossible to categorize companies across an industry into discrete categories, this is at least an attempt to organize the landscape. If you have constructive suggestions, please email them to me at tkawaja@lumapartners.com.
Different methods used in testing of intelligent fabric.pptxAryadipDey
Textile is one of the oldest industry, business of the world. It is evolving day by day. Discover whole new dynamics of Intelligent fabric that going to change the industry.
E-Textiles for Screening Respiratory Disorders along with Temperature MonitoringIJERA Editor
This paper presents a branch of research where e-textiles is used for bio monitoring. This set-up is used for
screening sleep apnea and to alert physicians when there is a case of Hyperthermia. This proposal is to monitor
patients with respiratory disorders or diseases/disorders whose symptoms manifest as respiratory abnormalities
and abnormal temperature, and make it available to the doctor by plotting the values in MATLAB. Conventional
techniques used for screening and monitoring respiratory abnormalities include devices like cannula, nasal strips
etc., which are grueling and strenuous, adding to the patients’ suffering. The connection of this cutting edge
electronics field with textiles will ultimately enable both the study of deviations in the breathing rate and
temperature
This lecture is on fiber-optics that consist of strands of optical fibers made from pure glass and sometime plastics that are as thin as a human hair to carry digital data information over long distances.
2. What are electronic-textiles
Materials with electronic functionality and at the same
time textile characteristic
Incorporating some amount of conductive material-
enable electrical conductivity
Contains conductive yarns
Use textile manufacturing techniques

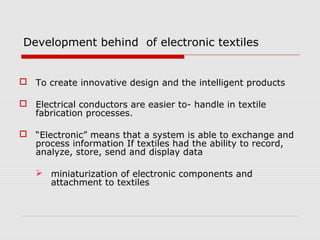

3. Development behind of electronic textiles
To create innovative design and the intelligent products
Electrical conductors are easier to- handle in textile
fabrication processes.
“Electronic” means that a system is able to exchange and
process information If textiles had the ability to record,
analyze, store, send and display data
miniaturization of electronic components and
attachment to textiles

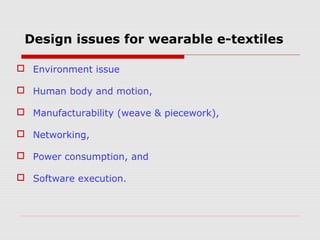

4. Design issues for wearable e-textiles
Environment issue
Human body and motion,
Manufacturability (weave & piecework),
Networking,
Power consumption, and
Software execution.
5. Advantages of using E-Textiles over
conventional electronics
Large flexible area - create new computer designs and
architectures
Elastic and extendable
Produced at low-cost
Fibre/air composite nature gives excellent
comfort
E-textiles- warmth, softness, lightweight and breathability-
sympathatic
High technology products - rigidity and asympathatic nature.

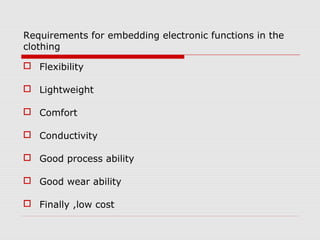

7. Requirements for embedding electronic functions in the
clothing
Flexibility
Lightweight
Comfort
Conductivity
Good process ability
Good wear ability
Finally ,low cost
8. Components of a wearable electronic textile system
Network unit: transmission of data within them
wearable computer and to external networks
Sensor unit: registration of biometric and
environmental data and of user commands
Processing unit: calculating, analysing and storing
data
Power unit: supplying energy
Action unit: adapting to situations, creating an effect
on the user, displaying data

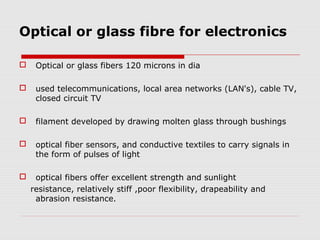

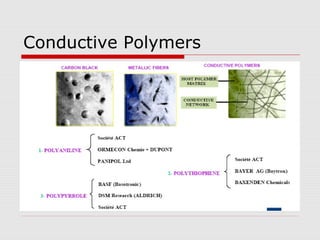

11. Optical or glass fibre for electronics
Optical or glass fibers 120 microns in dia
used telecommunications, local area networks (LAN's), cable TV,
closed circuit TV
filament developed by drawing molten glass through bushings
optical fiber sensors, and conductive textiles to carry signals in
the form of pulses of light
optical fibers offer excellent strength and sunlight
resistance, relatively stiff ,poor flexibility, drapeability and
abrasion resistance.

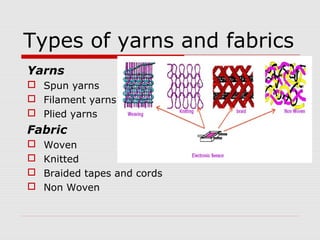

12. Types of yarns and fabrics
Yarns
Spun yarns
Filament yarns
Plied yarns
Fabric
Woven
Knitted
Braided tapes and cords
Non Woven

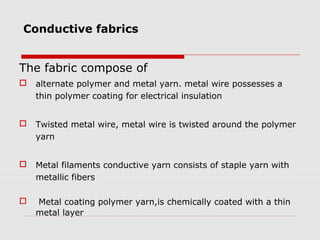

13. Conductive fabrics
The fabric compose of
alternate polymer and metal yarn. metal wire possesses a
thin polymer coating for electrical insulation
Twisted metal wire, metal wire is twisted around the polymer
yarn
Metal filaments conductive yarn consists of staple yarn with
metallic fibers
Metal coating polymer yarn,is chemically coated with a thin
metal layer

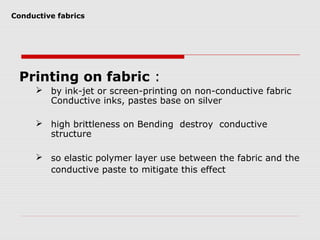

14. Conductive fabrics
Printing on fabric :
by ink-jet or screen-printing on non-conductive fabric
Conductive inks, pastes base on silver
high brittleness on Bending destroy conductive
structure
so elastic polymer layer use between the fabric and the
conductive paste to mitigate this effect

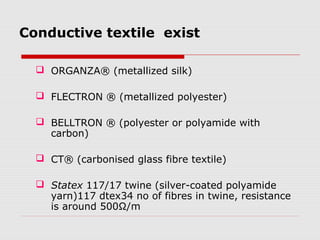

15. Conductive textile exist
ORGANZA® (metallized silk)
FLECTRON ® (metallized polyester)
BELLTRON ® (polyester or polyamide with
carbon)
CT® (carbonised glass fibre textile)
Statex 117/17 twine (silver-coated polyamide
yarn)117 dtex34 no of fibres in twine, resistance
is around 500Ω/m
16. Metallic Silk organza
created by wrapping a non-conductive yarn with
a metallic copper, silver, or gold foil
metallic organza woven silk warp yarn and silk
yarn is wrapped with copper in the weft direction
silk fiber core has a high tensile strength and
can withstand high temperatures
it allows the metallic organza to be sewen or
embroidered on industrial machinery
strip of is fabric can function like a ribbon cable
This metallic thread is prepared like cloth-core
telephone wire, highly conductive (~0.1 Ω/cm)

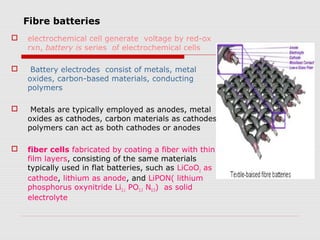

18. Fibre batteries
electrochemical cell generate voltage by red-ox
rxn, battery is series of electrochemical cells
Battery electrodes consist of metals, metal
oxides, carbon-based materials, conducting
polymers
Metals are typically employed as anodes, metal
oxides as cathodes, carbon materials as cathodes
polymers can act as both cathodes or anodes
fiber cells fabricated by coating a fiber with thin
film layers, consisting of the same materials
typically used in flat batteries, such as LiCoO2 as
cathode, lithium as anode, and LiPON( lithium
phosphorus oxynitride Li3.1 PO3.3 N0.5) as solid
electrolyte

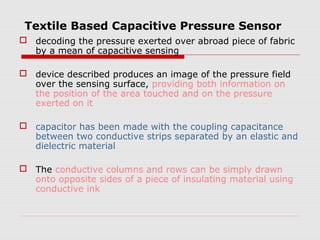

19. Textile Based Capacitive Pressure Sensor
decoding the pressure exerted over abroad piece of fabric
by a mean of capacitive sensing
device described produces an image of the pressure field
over the sensing surface, providing both information on
the position of the area touched and on the pressure
exerted on it
capacitor has been made with the coupling capacitance
between two conductive strips separated by an elastic and
dielectric material
The conductive columns and rows can be simply drawn
onto opposite sides of a piece of insulating material using
conductive ink
20. Cont….
dielectric layer between a given row and column
of electrodes is squeezed, as pressure is exerted
over the corresponding fabric area, the coupling
capacitance between is changed
21. Fabric as an acoustic array for location
determination
computational fabric
serving as an acoustic
array capable of
determining location and
direction of motion of a
enemy vehicle
Use basic technique
Global Positioning System
(GPS)

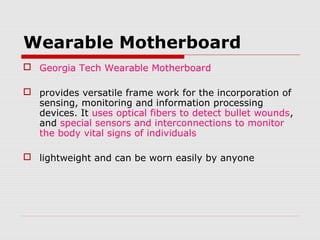

22. Wearable Motherboard
Georgia Tech Wearable Motherboard
provides versatile frame work for the incorporation of
sensing, monitoring and information processing
devices. It uses optical fibers to detect bullet wounds,
and special sensors and interconnections to monitor
the body vital signs of individuals
lightweight and can be worn easily by anyone

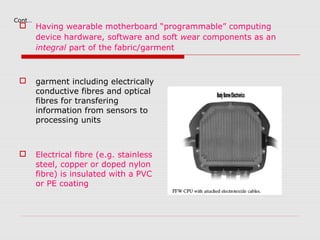

23. Cont…
Having wearable motherboard “programmable” computing
device hardware, software and soft wear components as an
integral part of the fabric/garment
garment including electrically
conductive fibres and optical
fibres for transfering
information from sensors to
processing units
Electrical fibre (e.g. stainless
steel, copper or doped nylon
fibre) is insulated with a PVC
or PE coating

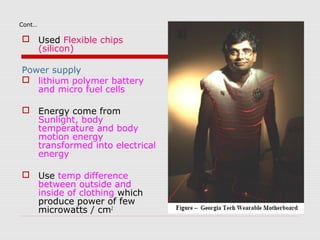

24. Cont…
Used Flexible chips
(silicon)
Power supply
lithium polymer battery
and micro fuel cells
Energy come from
Sunlight, body
temperature and body
motion energy
transformed into electrical
energy
Use temp difference
between outside and
inside of clothing which
produce power of few
microwatts / cm2

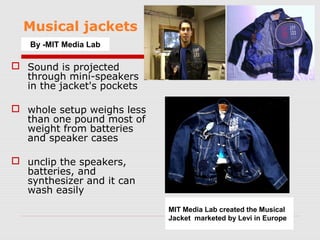

25. Musical jackets
By -MIT Media Lab
Sound is projected
through mini-speakers
in the jacket's pockets
whole setup weighs less
than one pound most of
weight from batteries
and speaker cases
unclip the speakers,
batteries, and
synthesizer and it can
wash easily
MIT Media Lab created the Musical
Jacket marketed by Levi in Europe

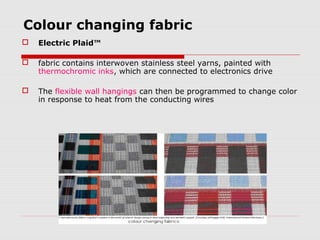

26. Colour changing fabric
Electric Plaid™
fabric contains interwoven stainless steel yarns, painted with
thermochromic inks, which are connected to electronics drive
The flexible wall hangings can then be programmed to change color
in response to heat from the conducting wires

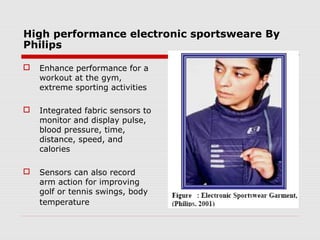

27. High performance electronic sportsweare By
Philips
Enhance performance for a
workout at the gym,
extreme sporting activities
Integrated fabric sensors to
monitor and display pulse,
blood pressure, time,
distance, speed, and
calories
Sensors can also record
arm action for improving
golf or tennis swings, body
temperature

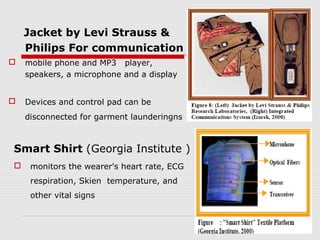

28. Jacket by Levi Strauss &
Philips For communication
mobile phone and MP3 player,
speakers, a microphone and a display
Devices and control pad can be
disconnected for garment launderingns
Smart Shirt (Georgia Institute )
monitors the wearer's heart rate, ECG
respiration, Skien temperature, and
other vital signs

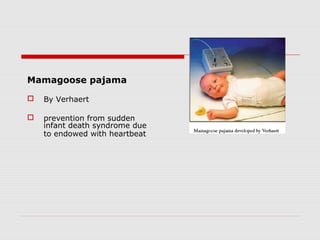

29. Mamagoose pajama
By Verhaert
prevention from sudden
infant death syndrome due
to endowed with heartbeat

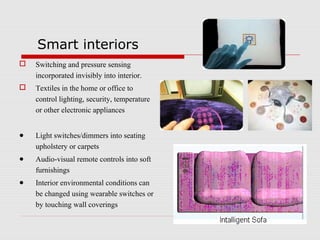

30. Smart interiors
Switching and pressure sensing
incorporated invisibly into interior.
Textiles in the home or office to
control lighting, security, temperature
or other electronic appliances
● Light switches/dimmers into seating
upholstery or carpets
● Audio-visual remote controls into soft
furnishings
● Interior environmental conditions can
be changed using wearable switches or
by touching wall coverings

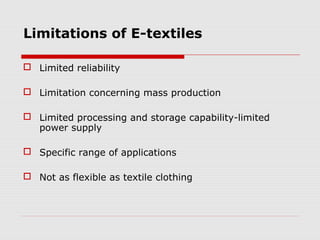

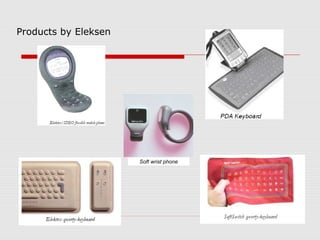

32. Limitations of E-textiles
Limited reliability
Limitation concerning mass production
Limited processing and storage capability-limited
power supply
Specific range of applications
Not as flexible as textile clothing

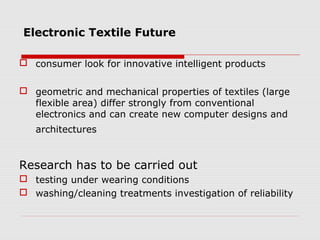

33. Electronic Textile Future
consumer look for innovative intelligent products
geometric and mechanical properties of textiles (large
flexible area) differ strongly from conventional
electronics and can create new computer designs and
architectures
Research has to be carried out
testing under wearing conditions
washing/cleaning treatments investigation of reliability

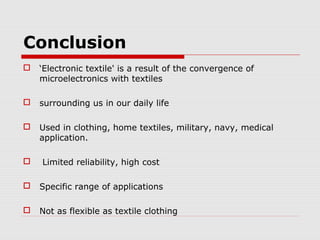

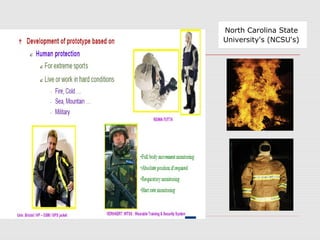

35. Conclusion
‘Electronic textile' is a result of the convergence of
microelectronics with textiles
surrounding us in our daily life
Used in clothing, home textiles, military, navy, medical
application.
Limited reliability, high cost
Specific range of applications
Not as flexible as textile clothing
