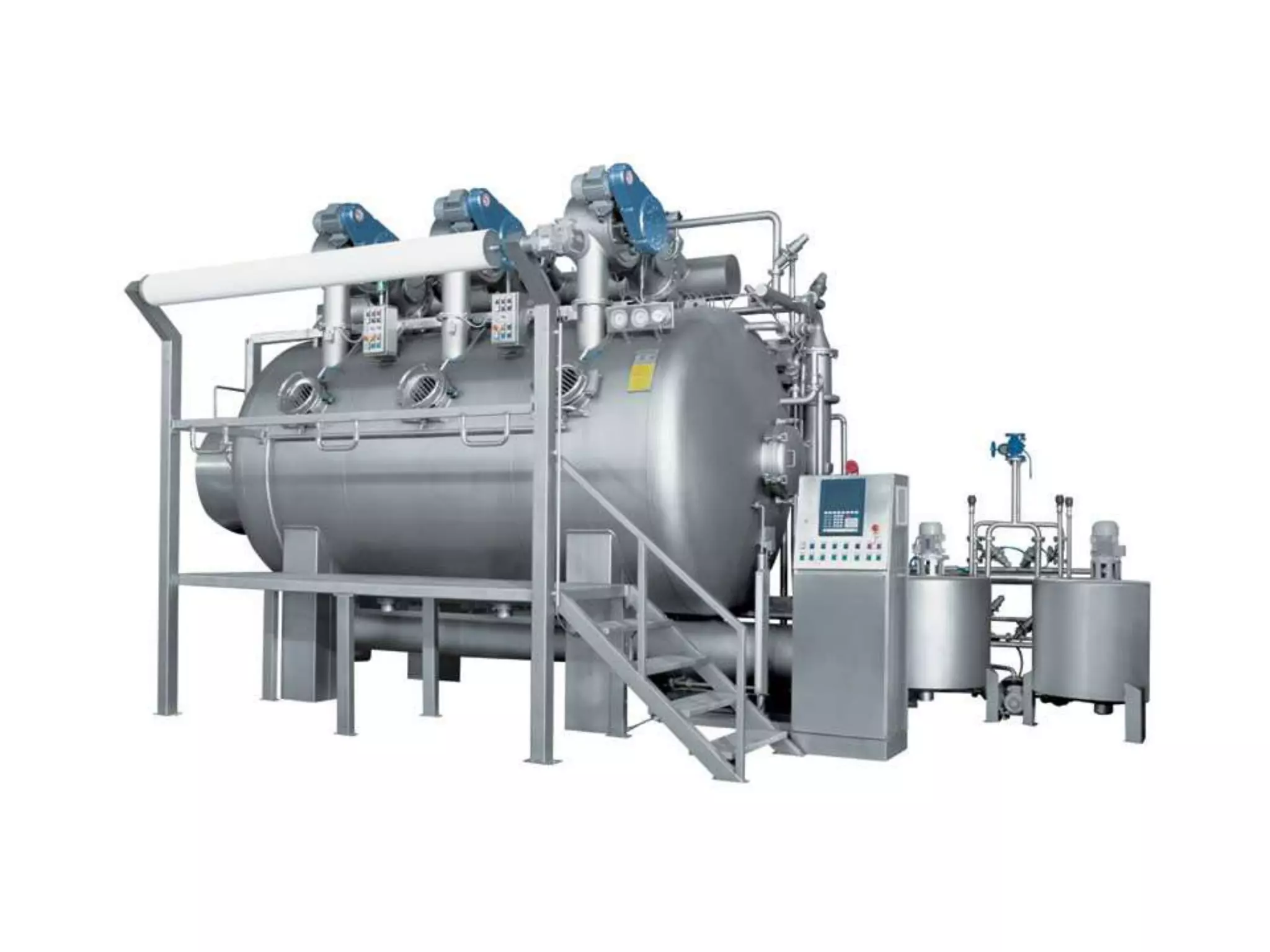

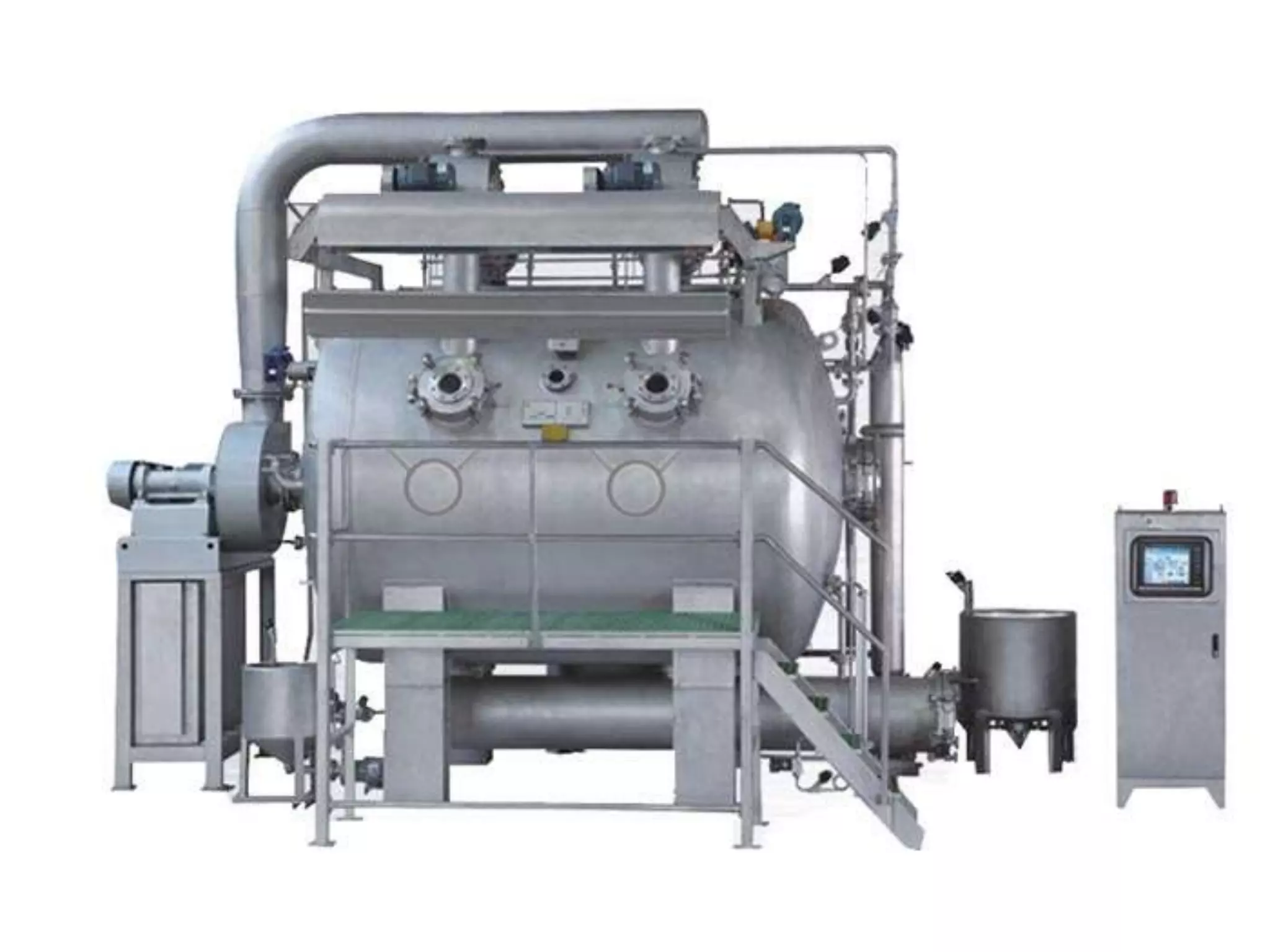

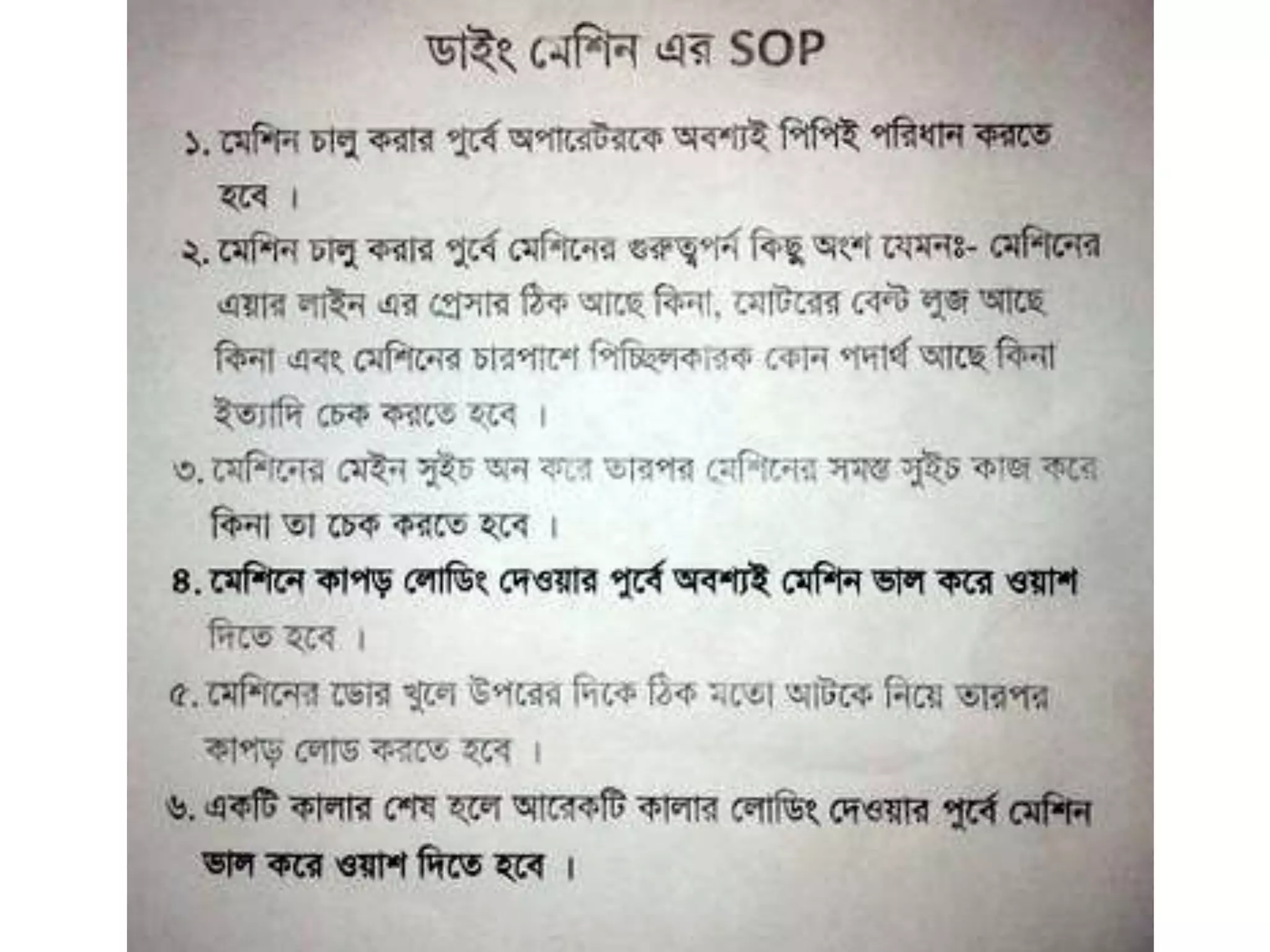

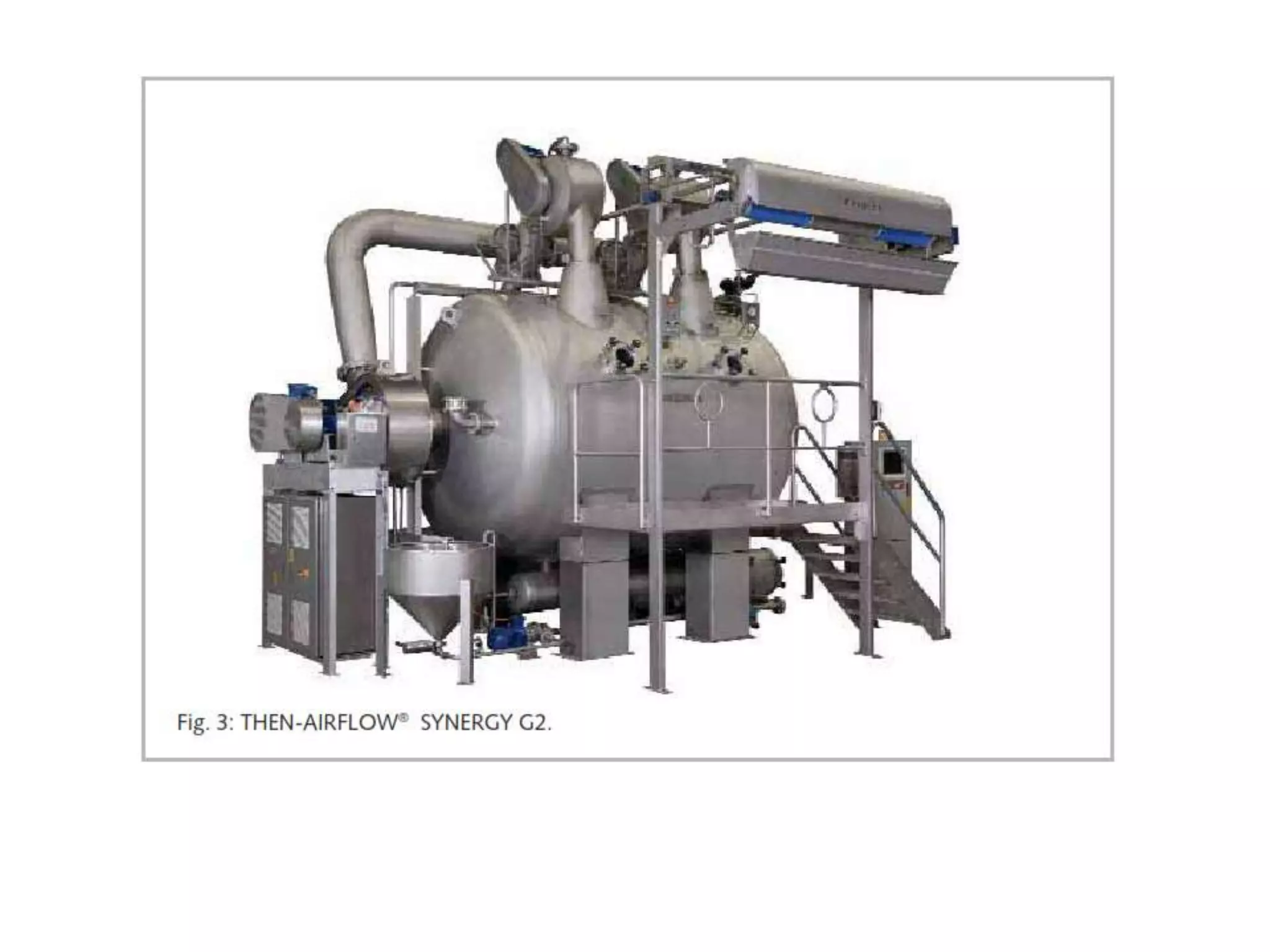

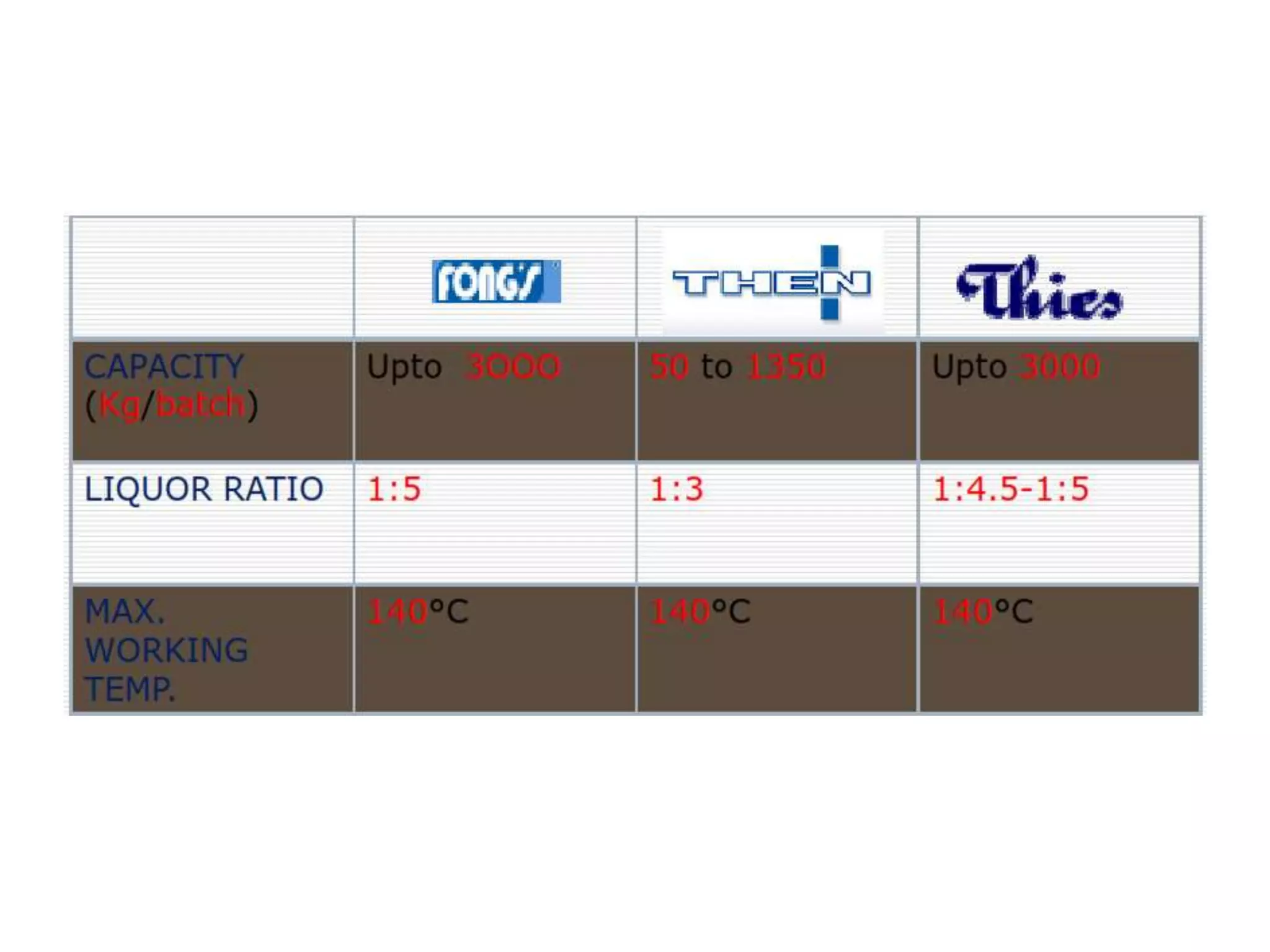

The document outlines the key components of a fabric dyeing system, including a main vessel or chamber, winch roller or reel, heat exchanger, nozzle, reserve tank, chemical dosing tank, and various utility lines and motors. It also lists the components involved in liquor circulation such as the main pump, heat exchanger, reserve tank, dosing tank, pneumatic valves, and nozzle.

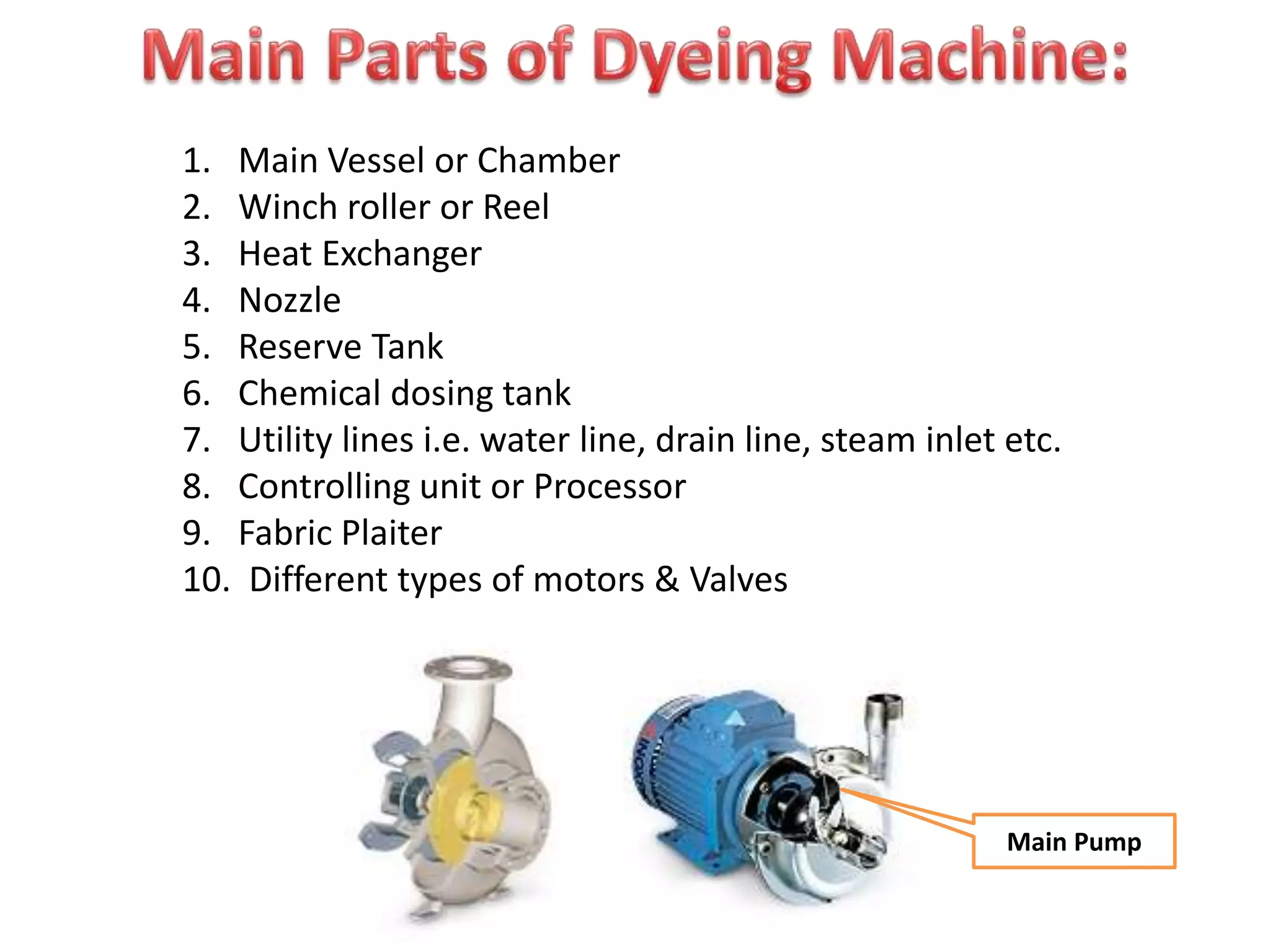

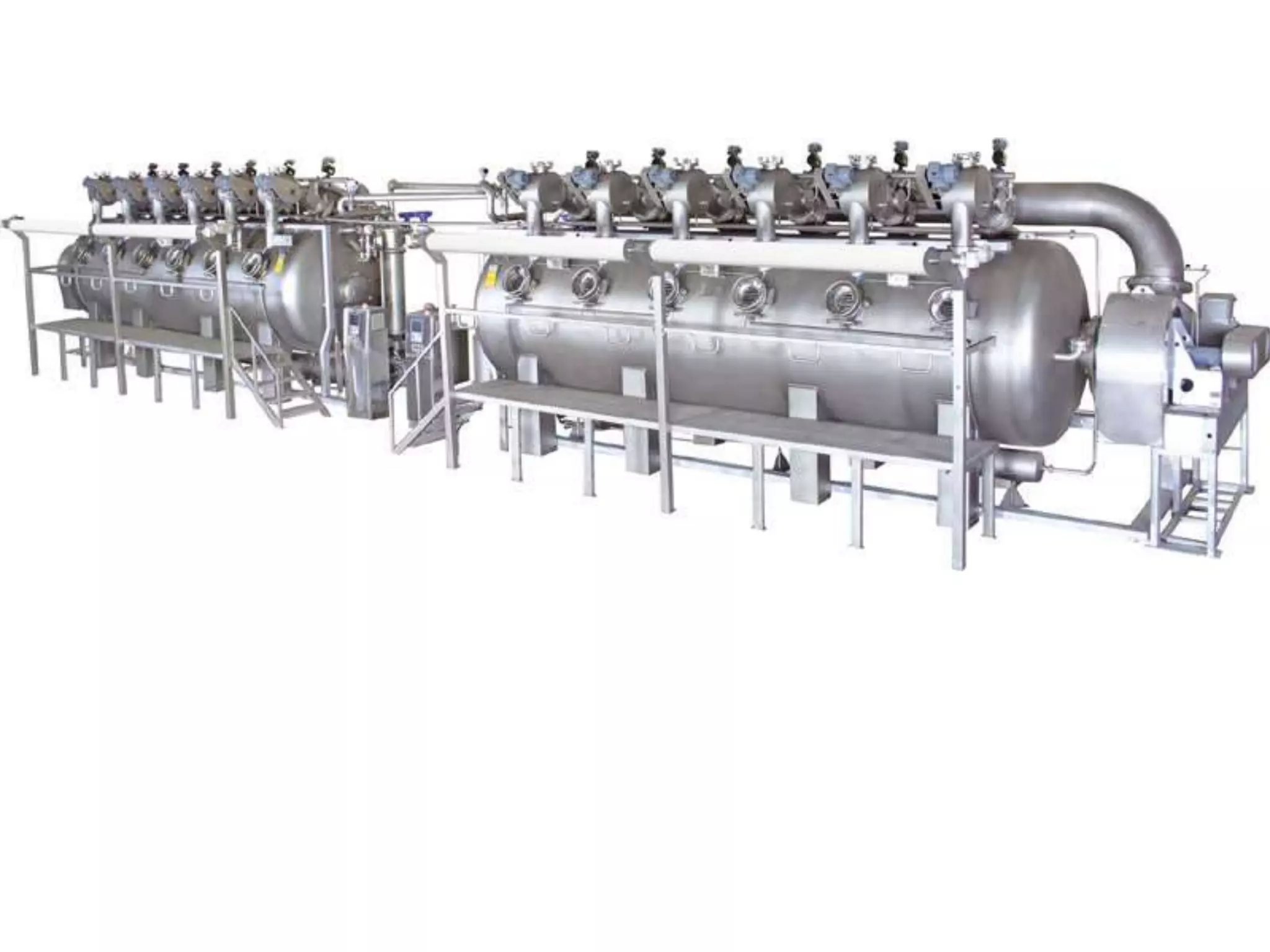

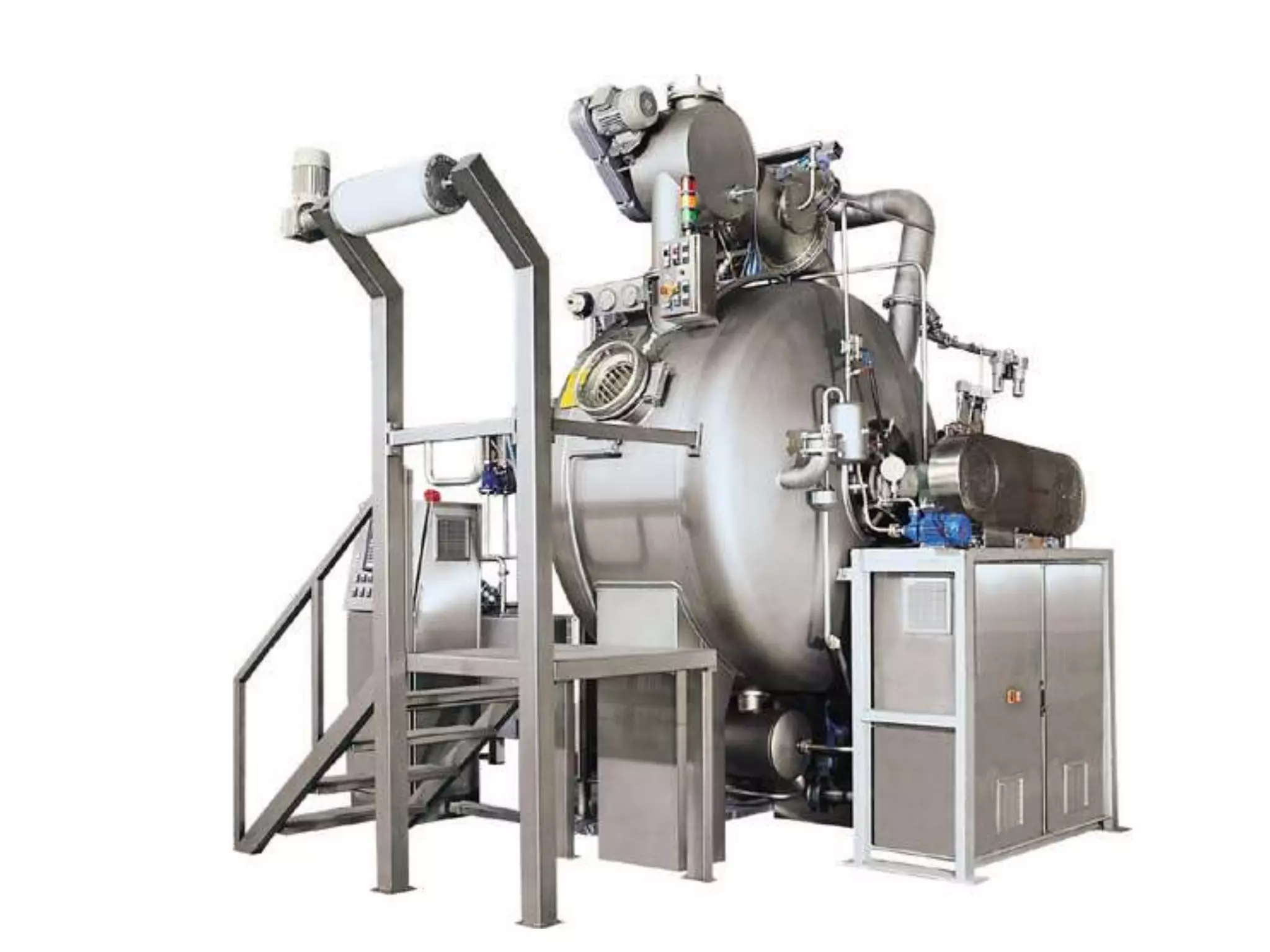

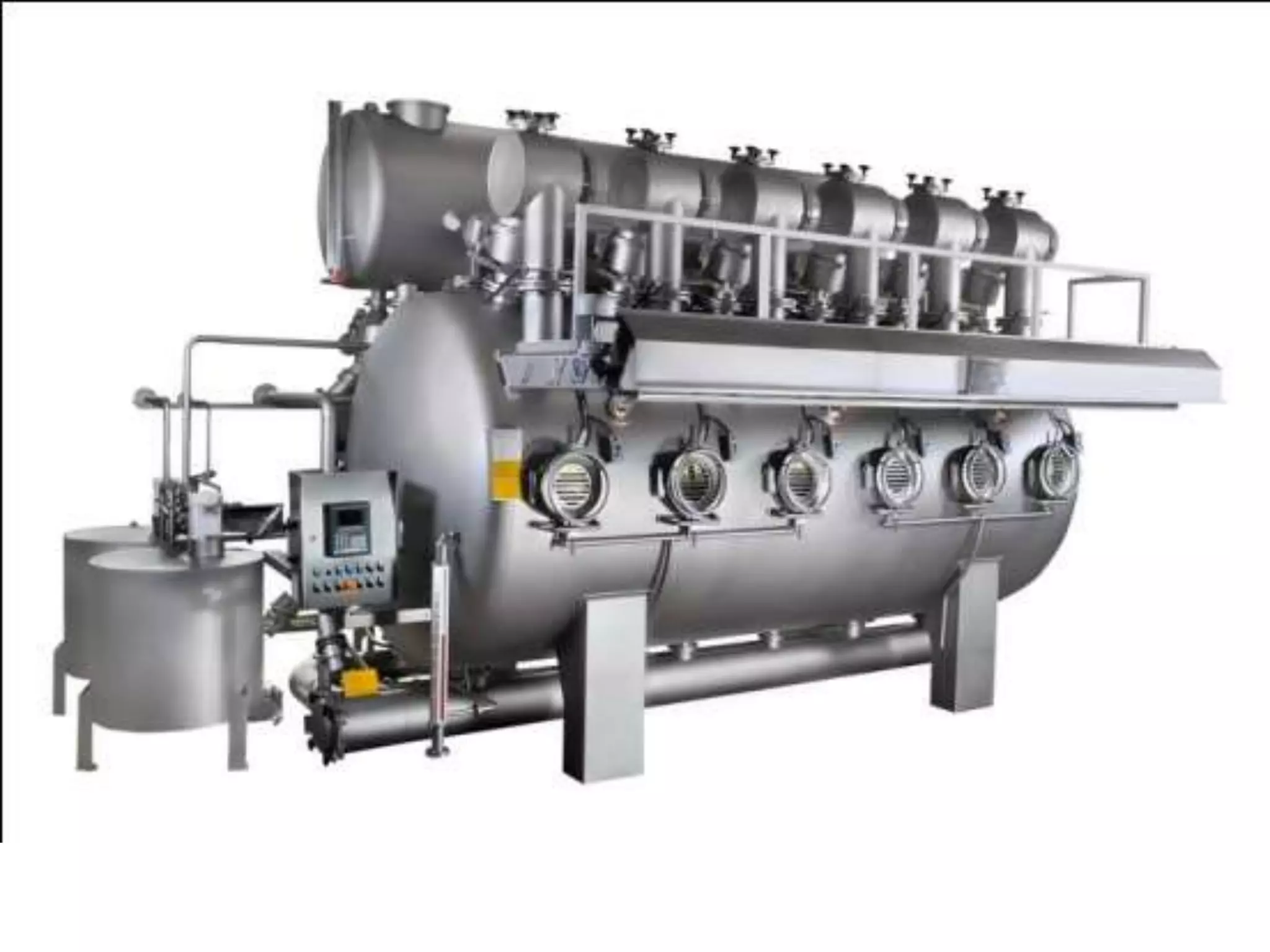

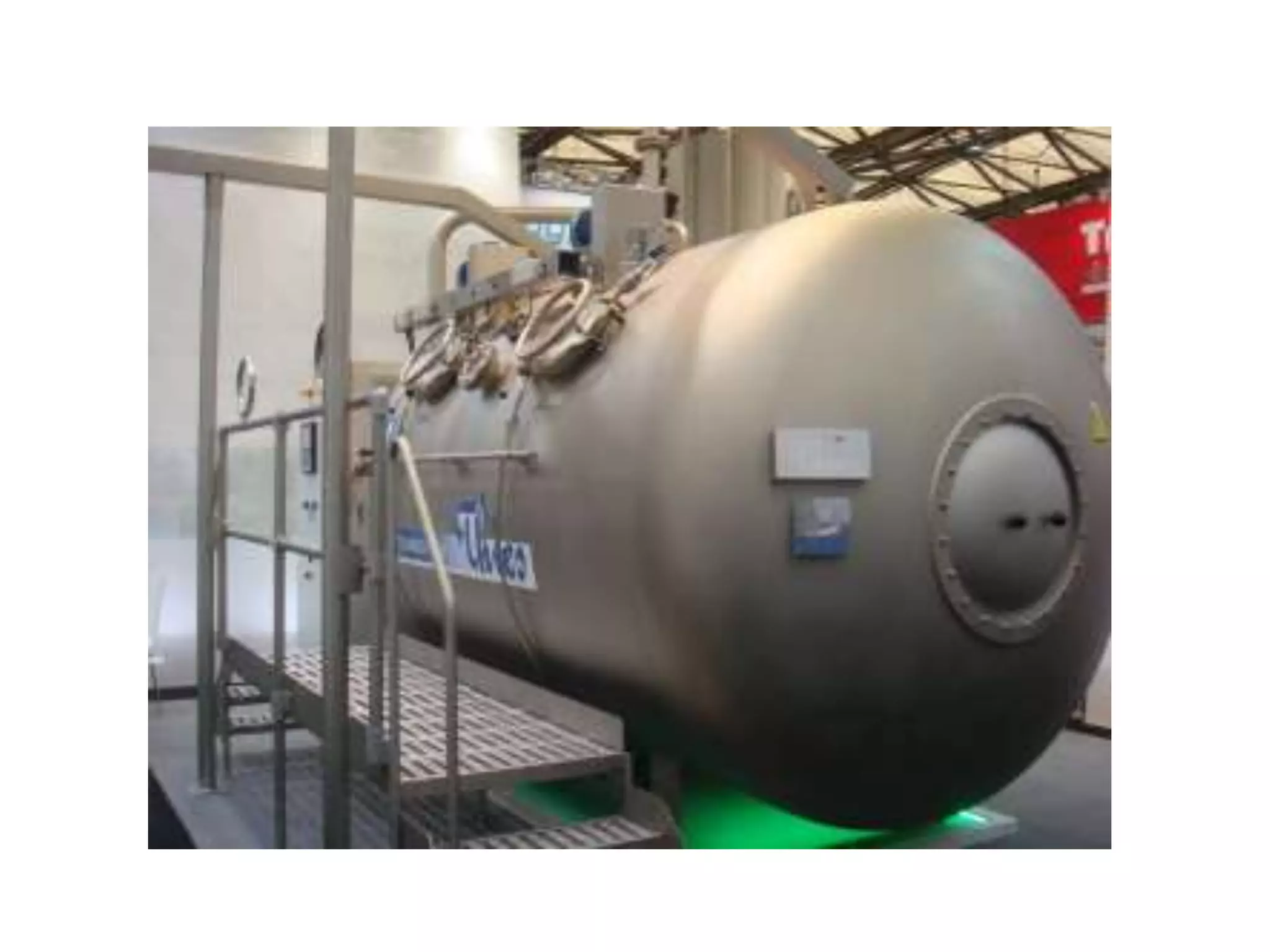

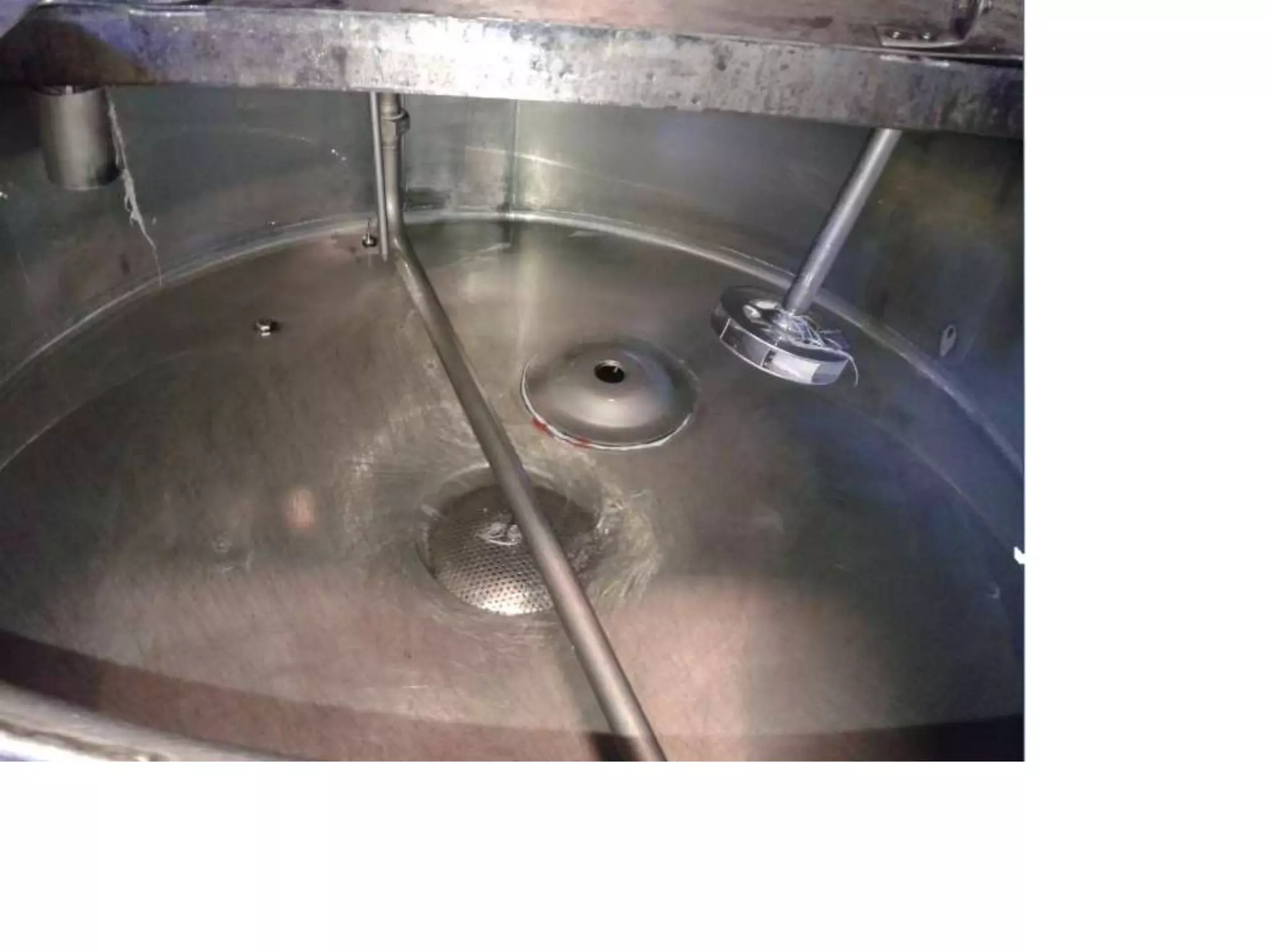

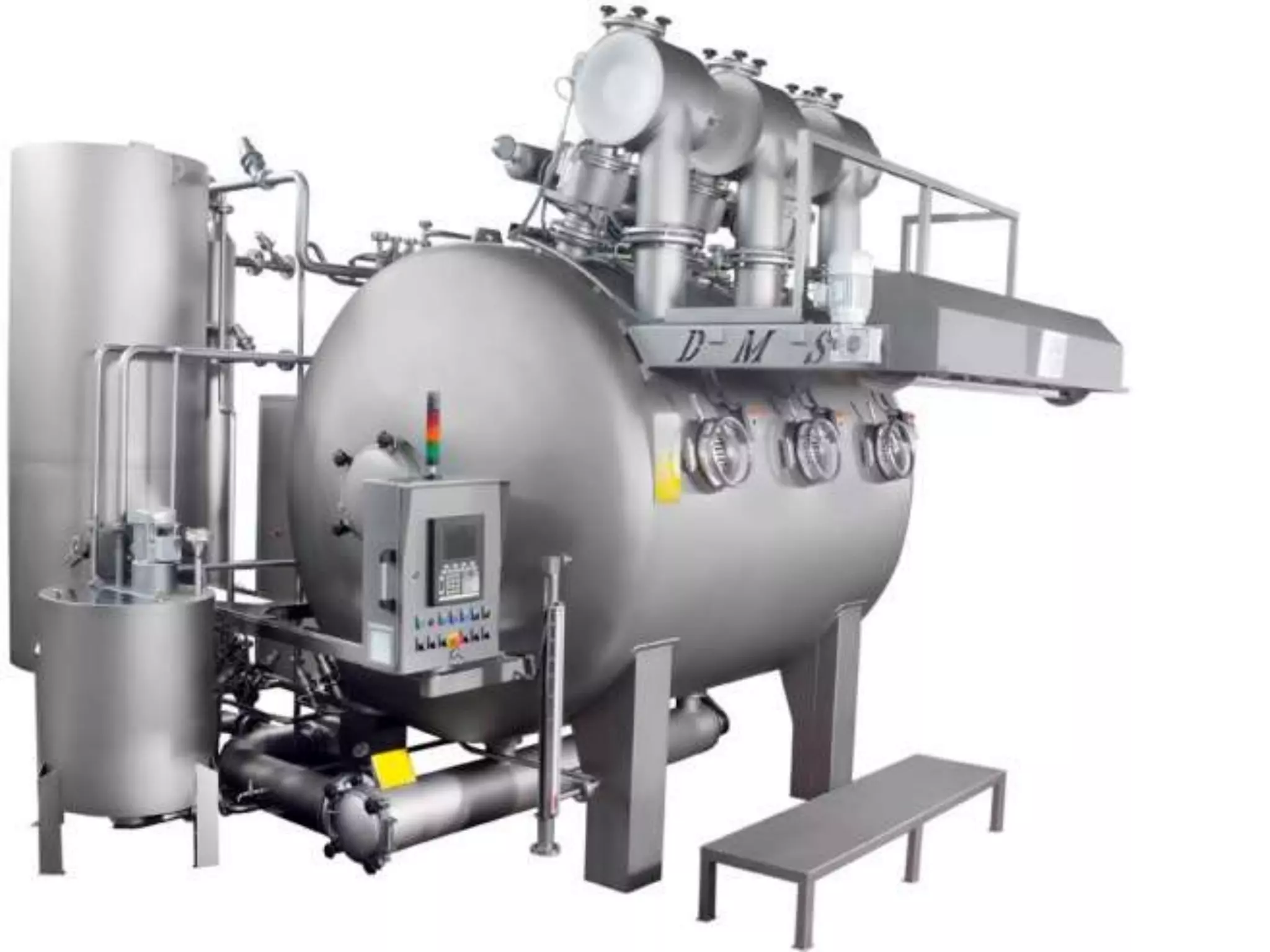

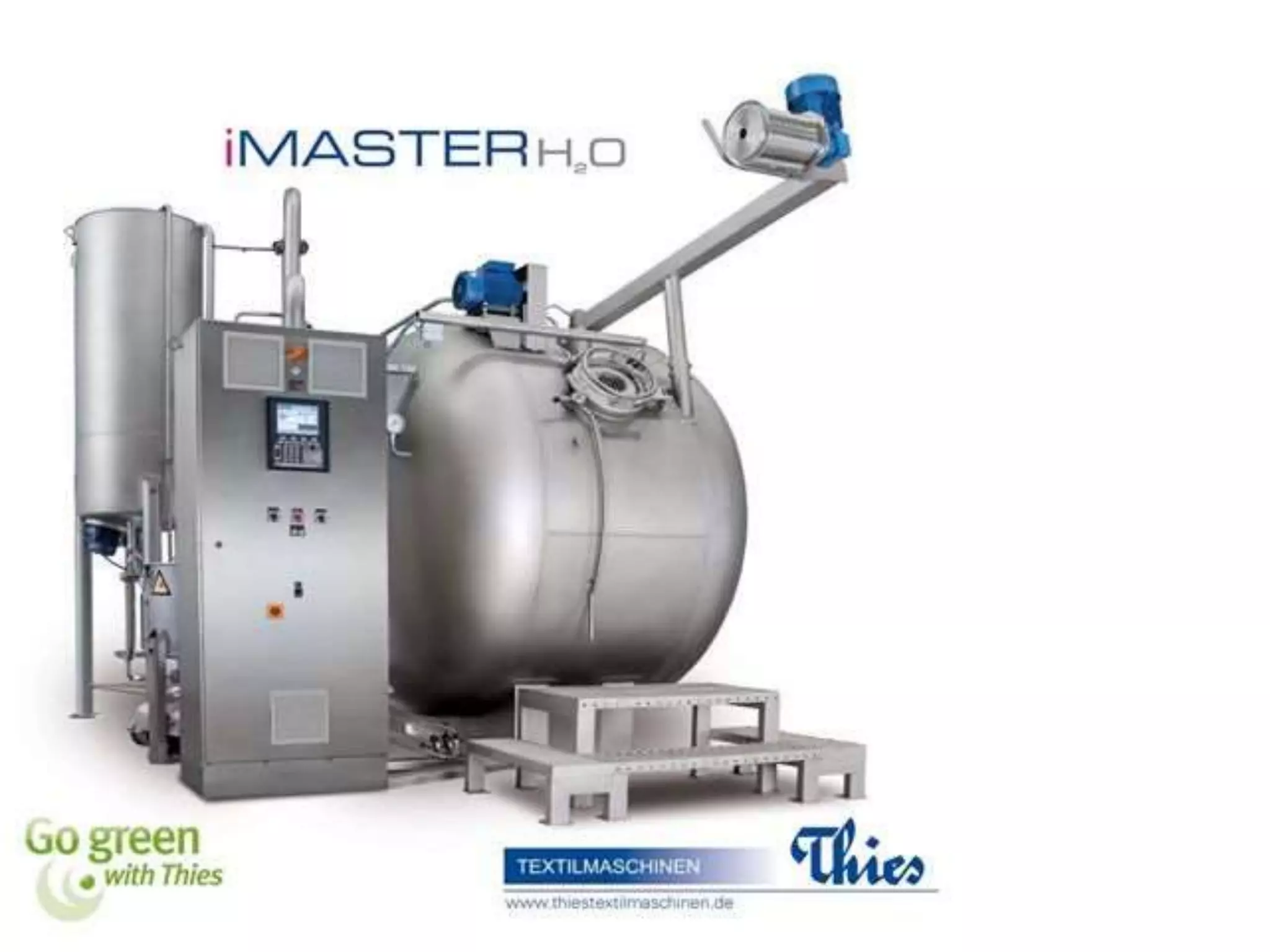

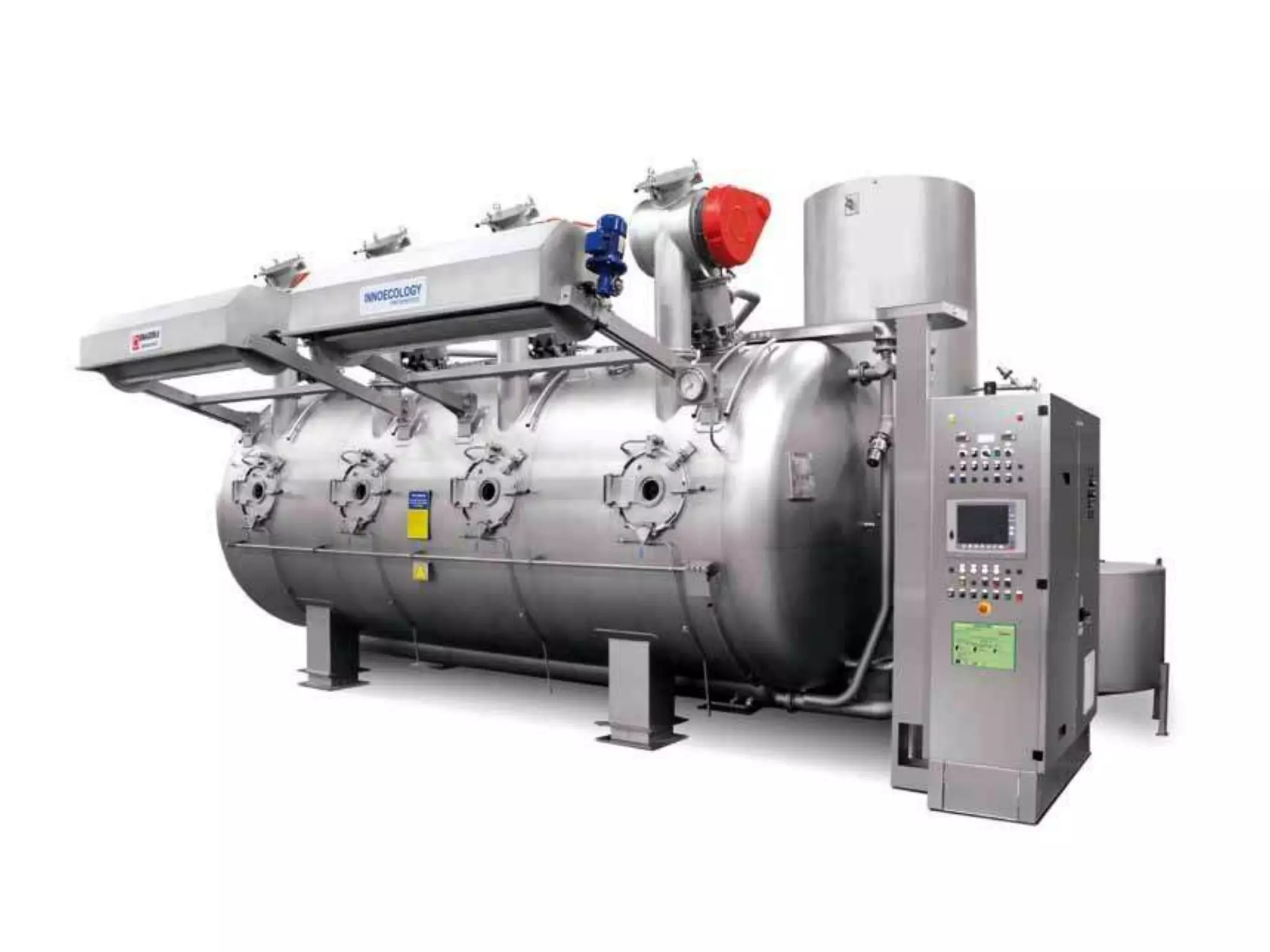

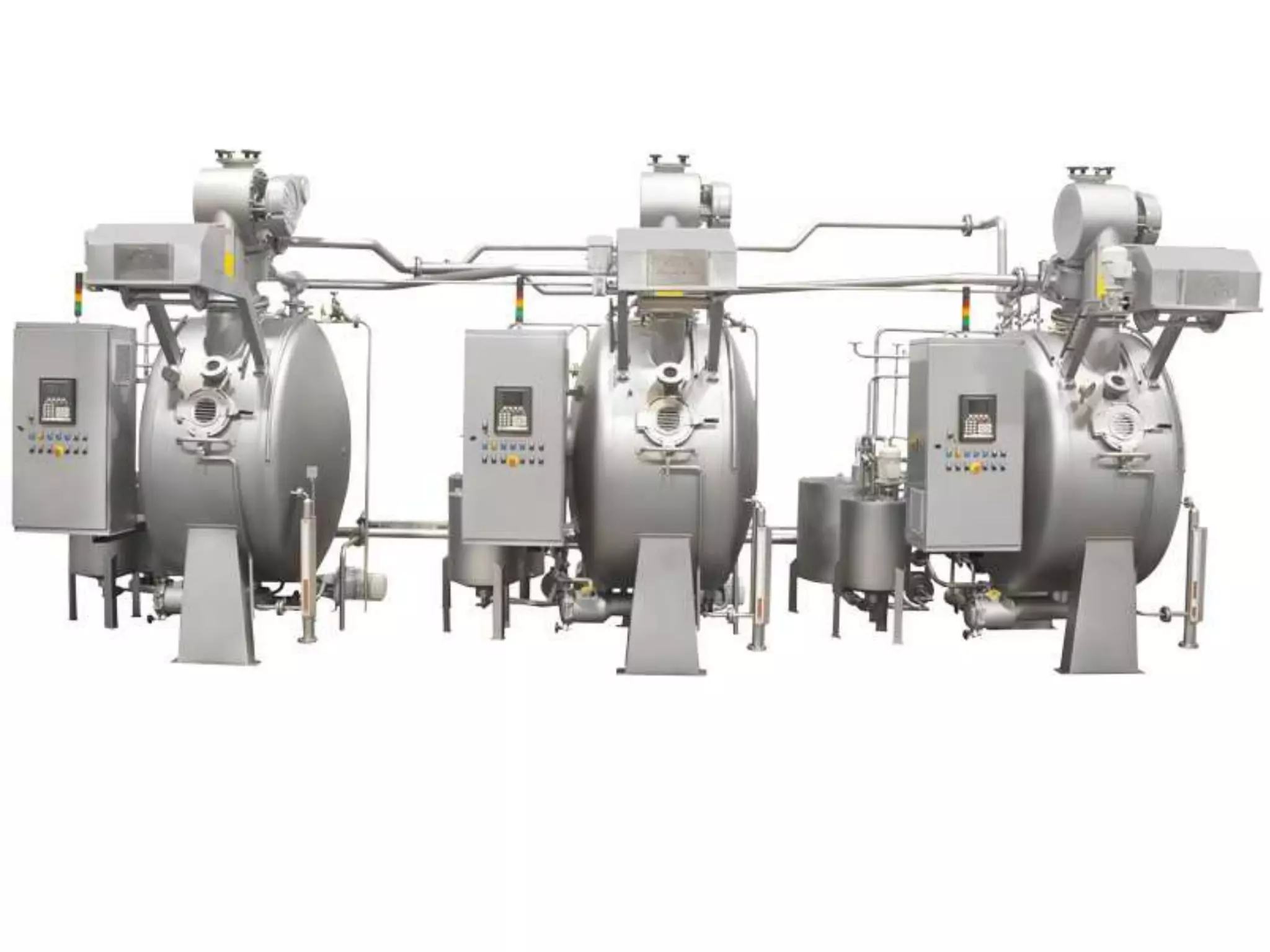

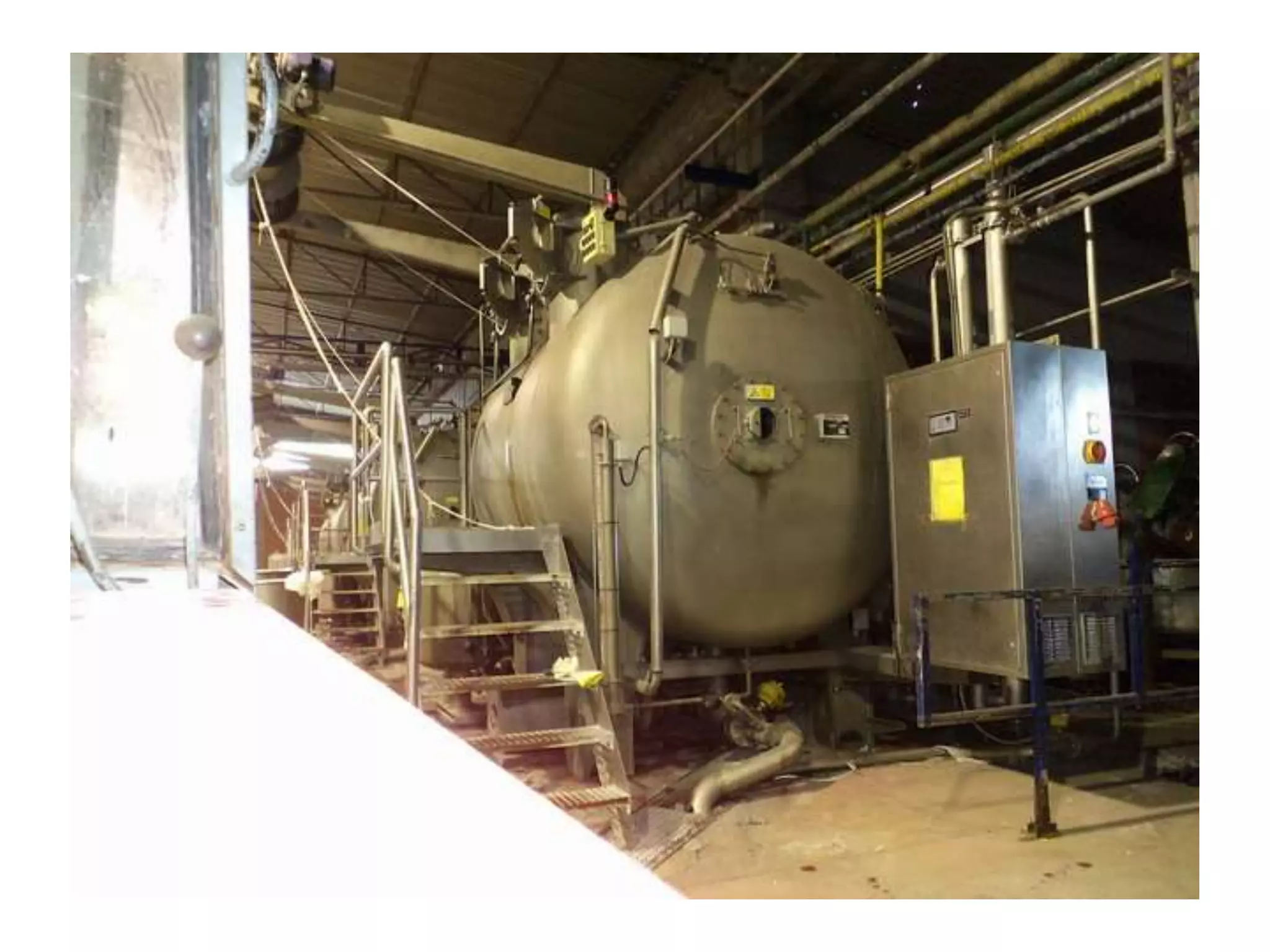

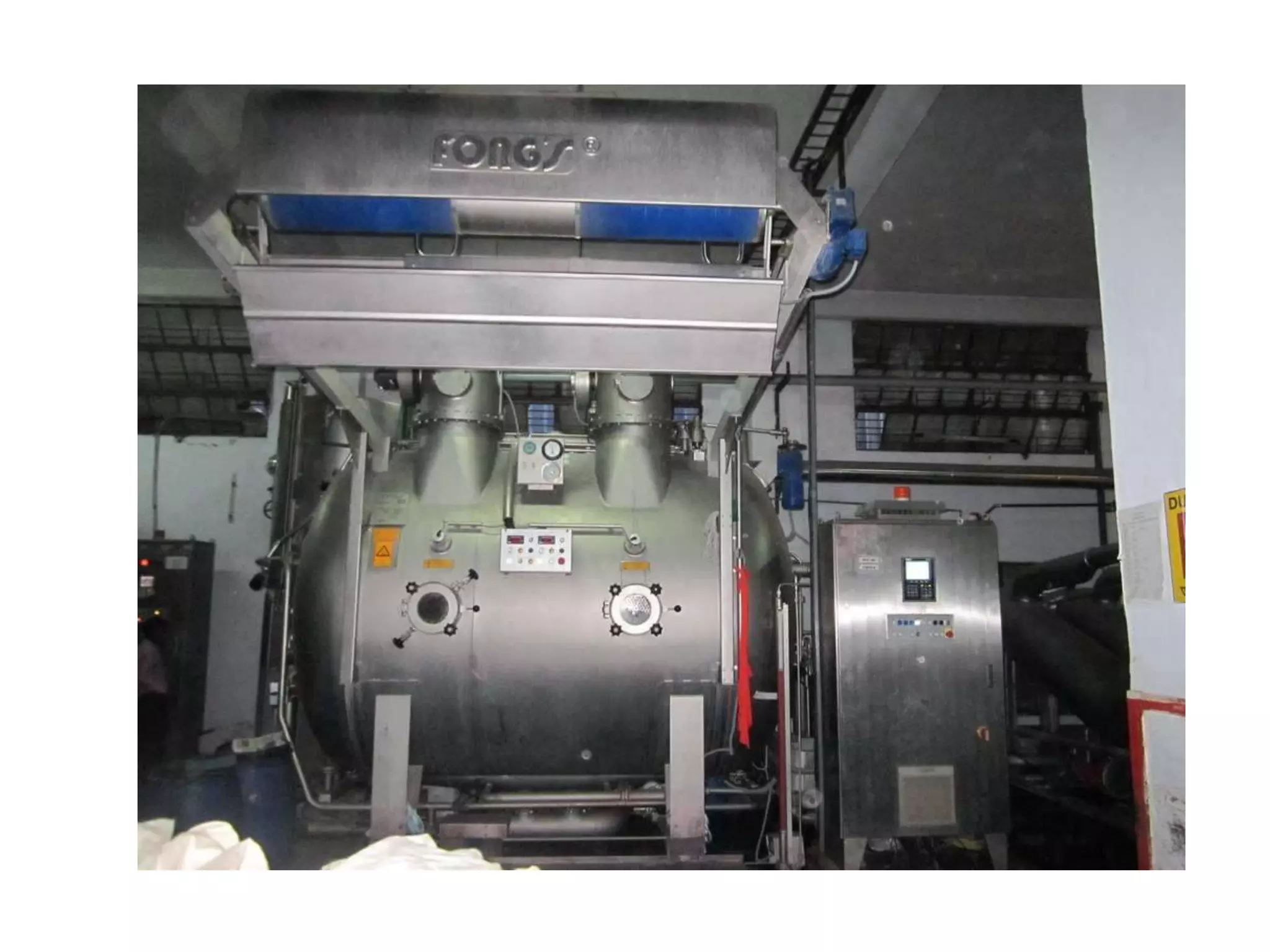

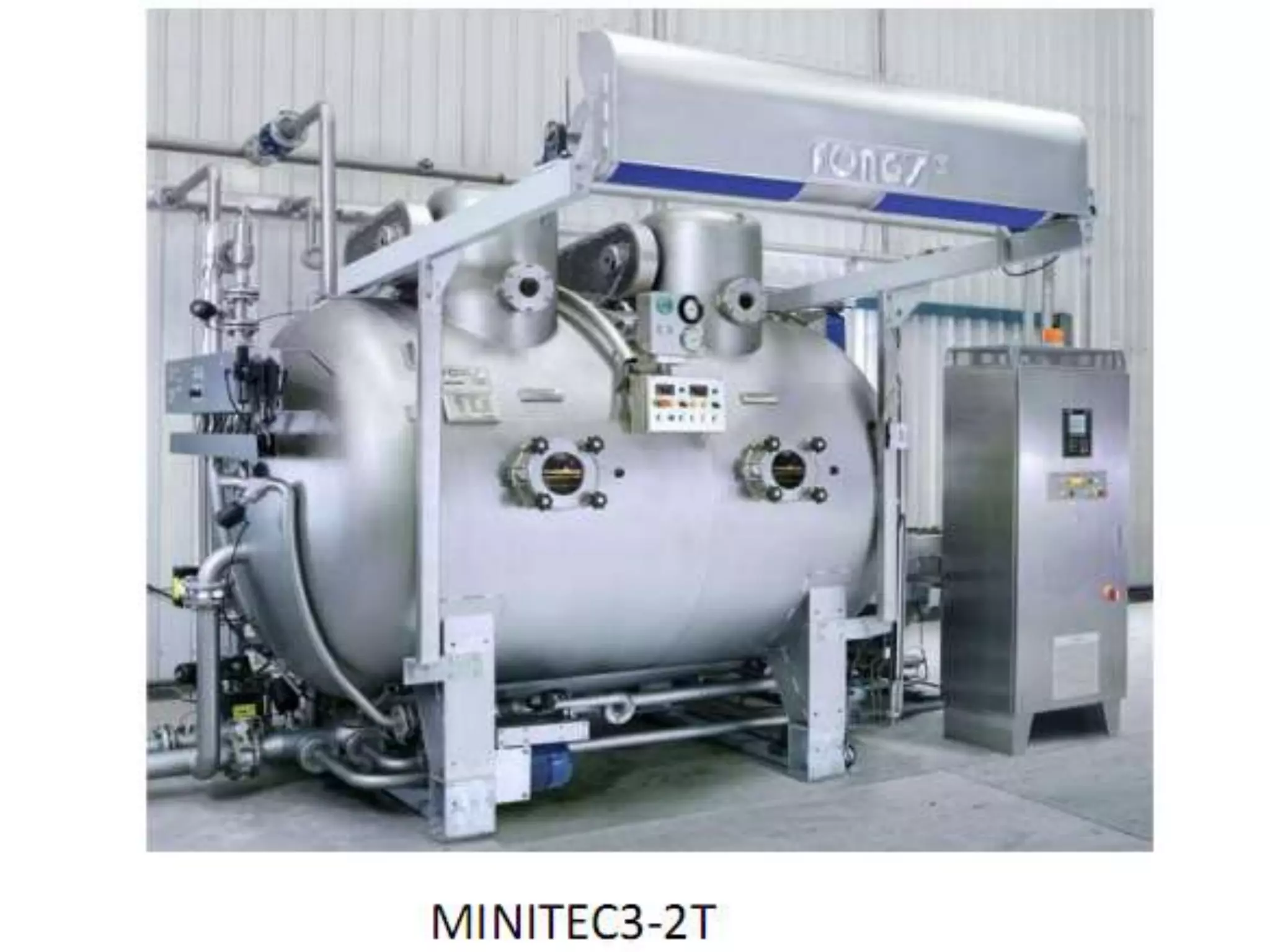

2. 1. Main Vessel or Chamber

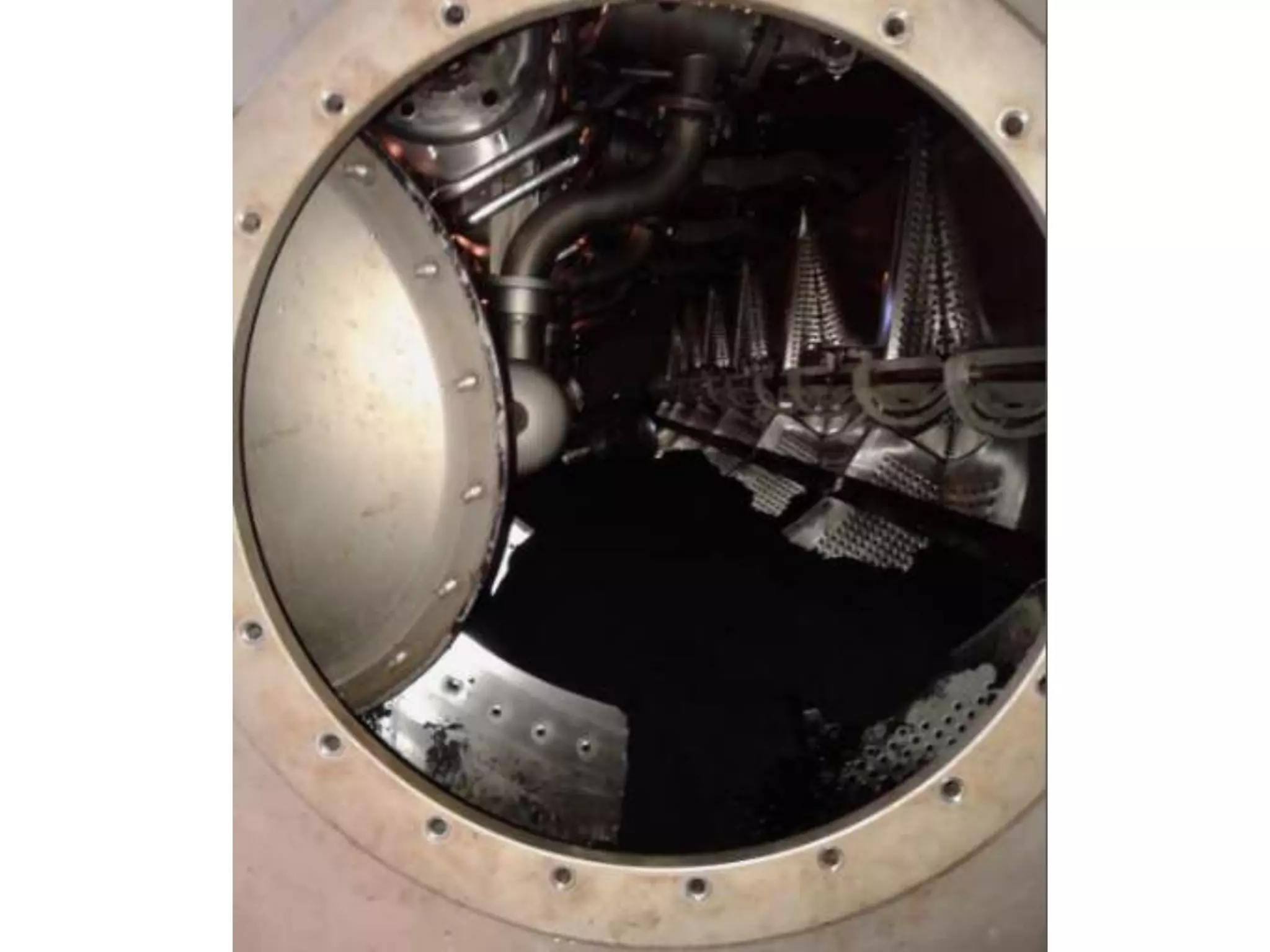

2. Winch roller or Reel
3. Heat Exchanger

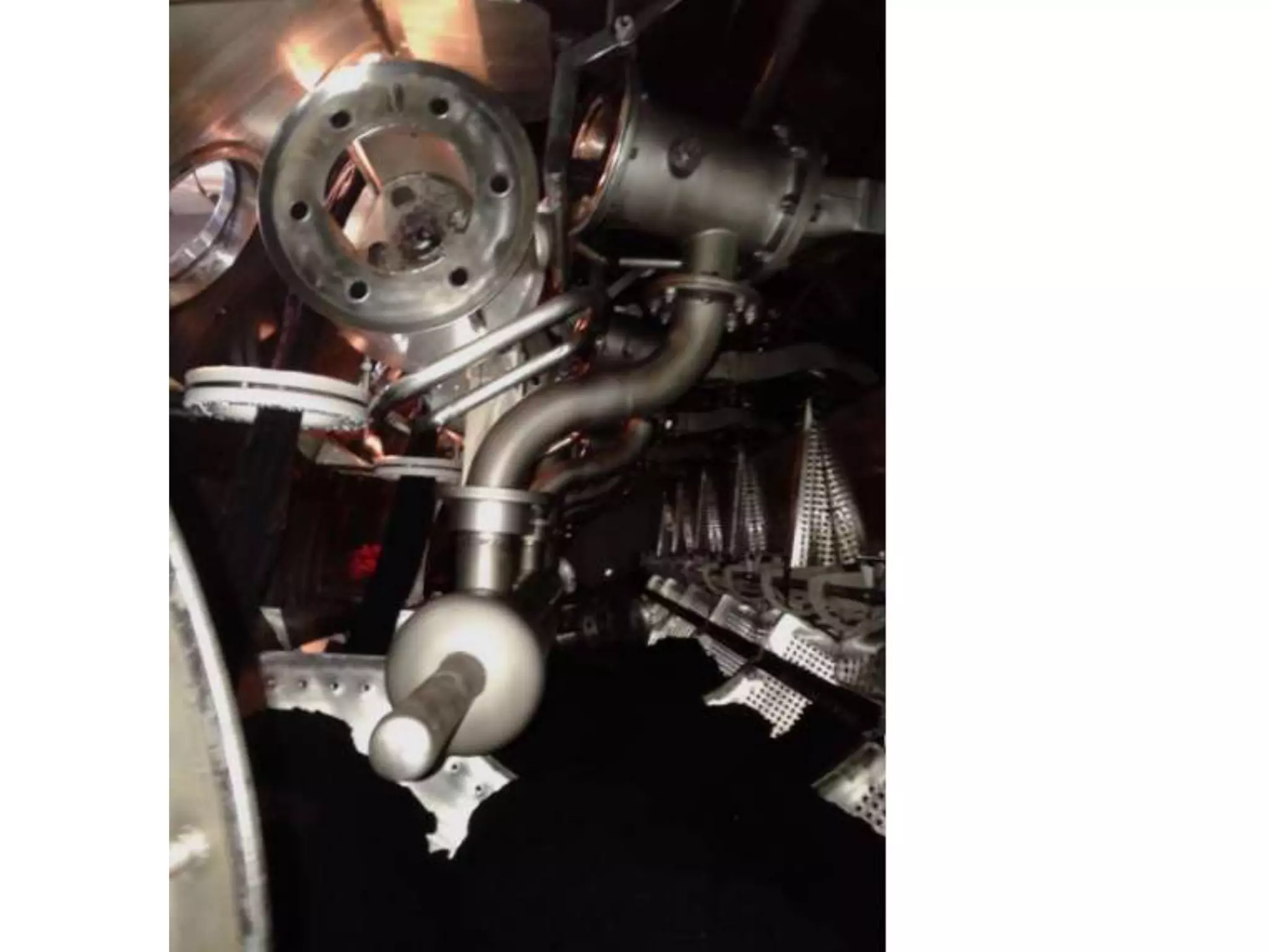

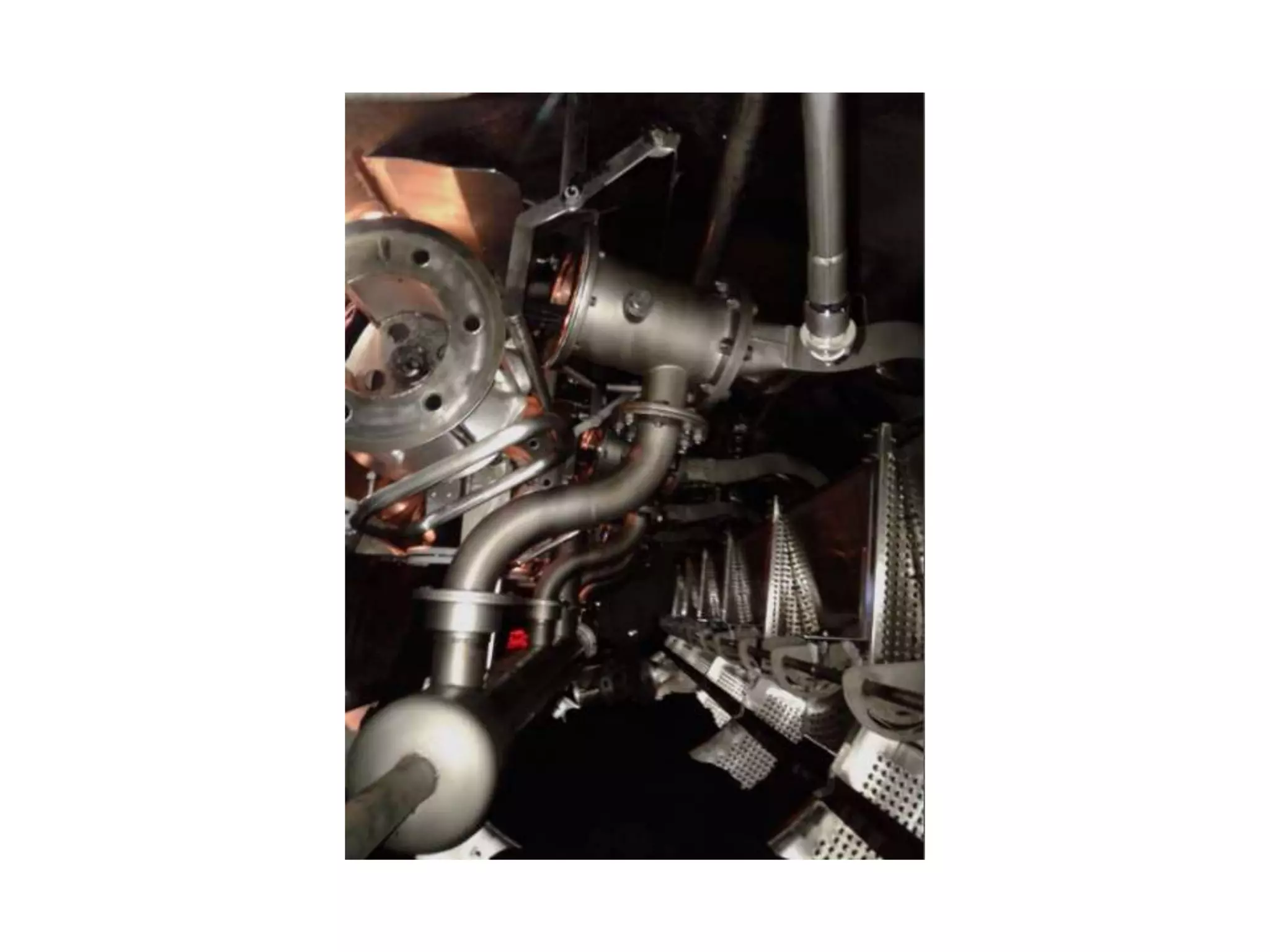

4. Nozzle

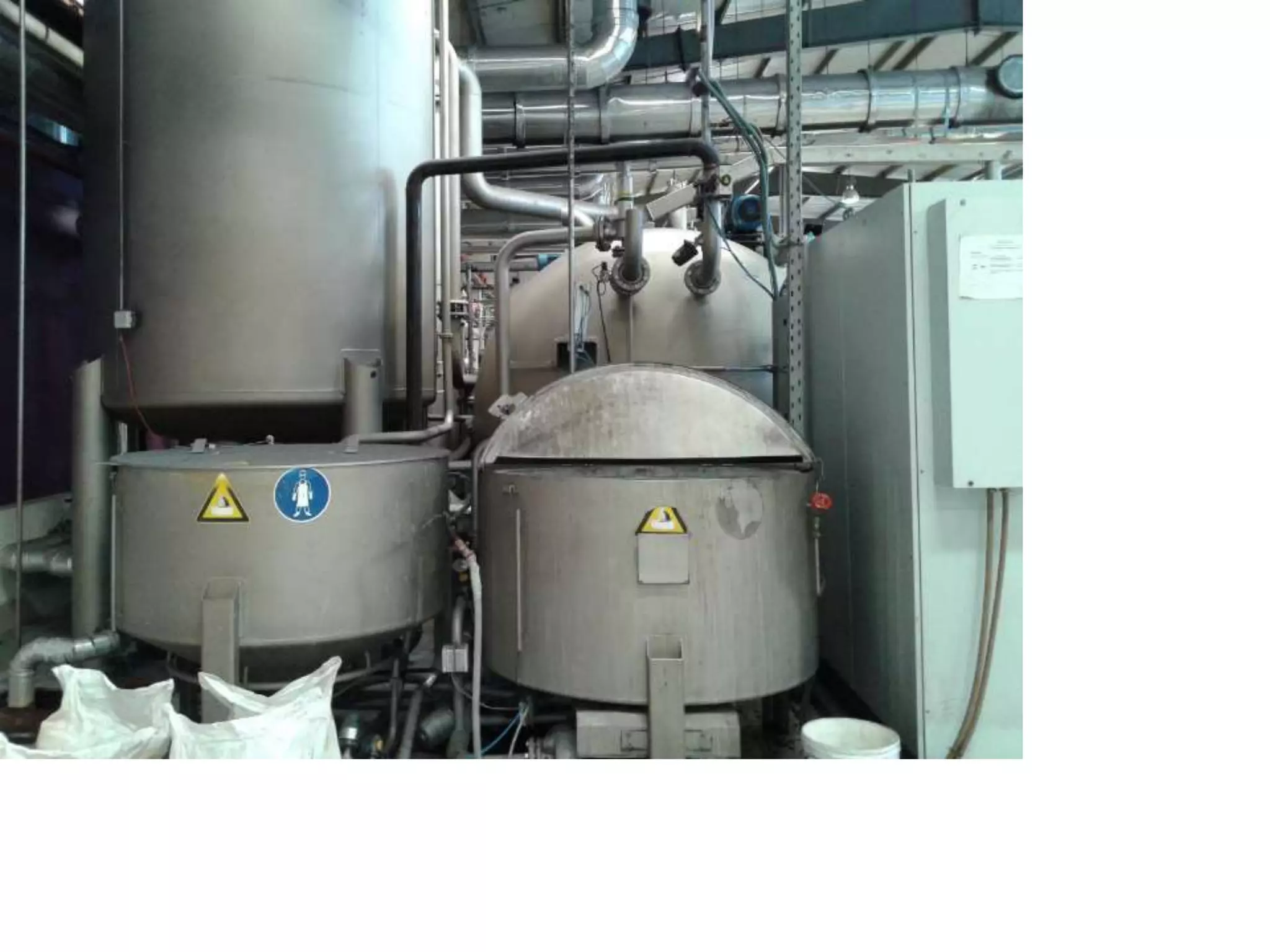

5. Reserve Tank

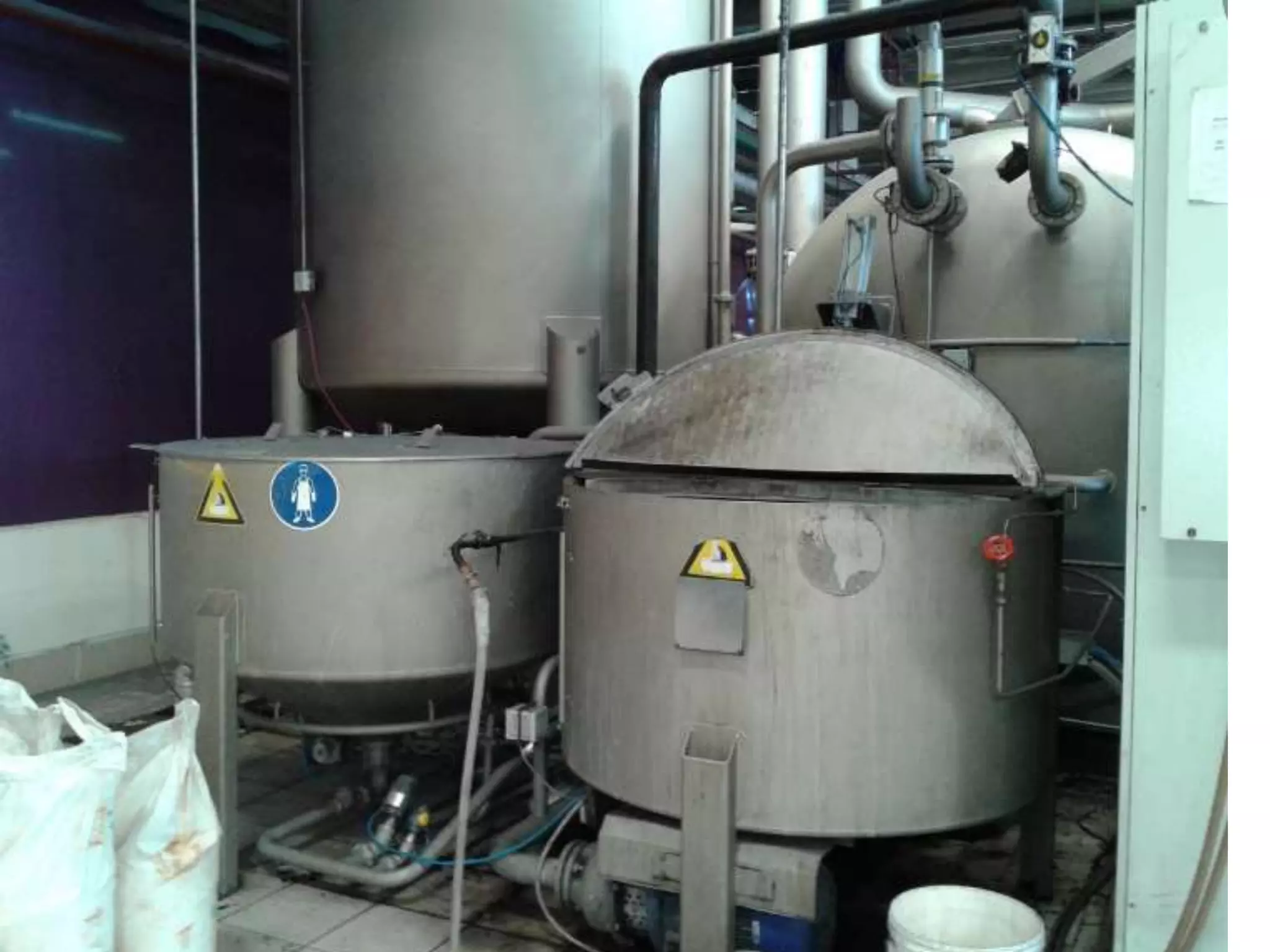

6. Chemical dosing tank
7. Utility lines i.e. water line, drain line, steam inlet etc.
8. Controlling unit or Processor
9. Fabric Plaiter
10. Different types of motors & Valves

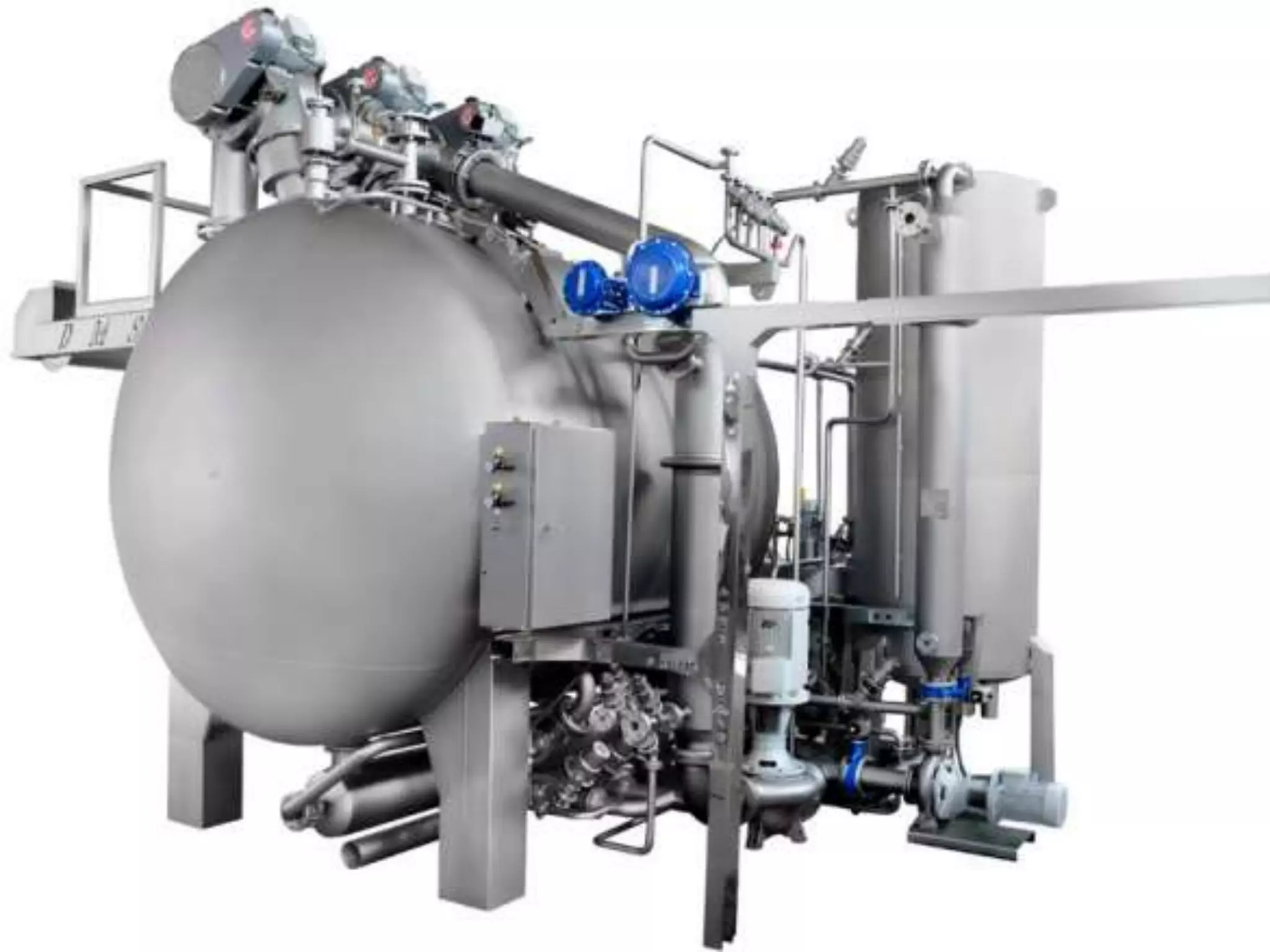

Main Pump

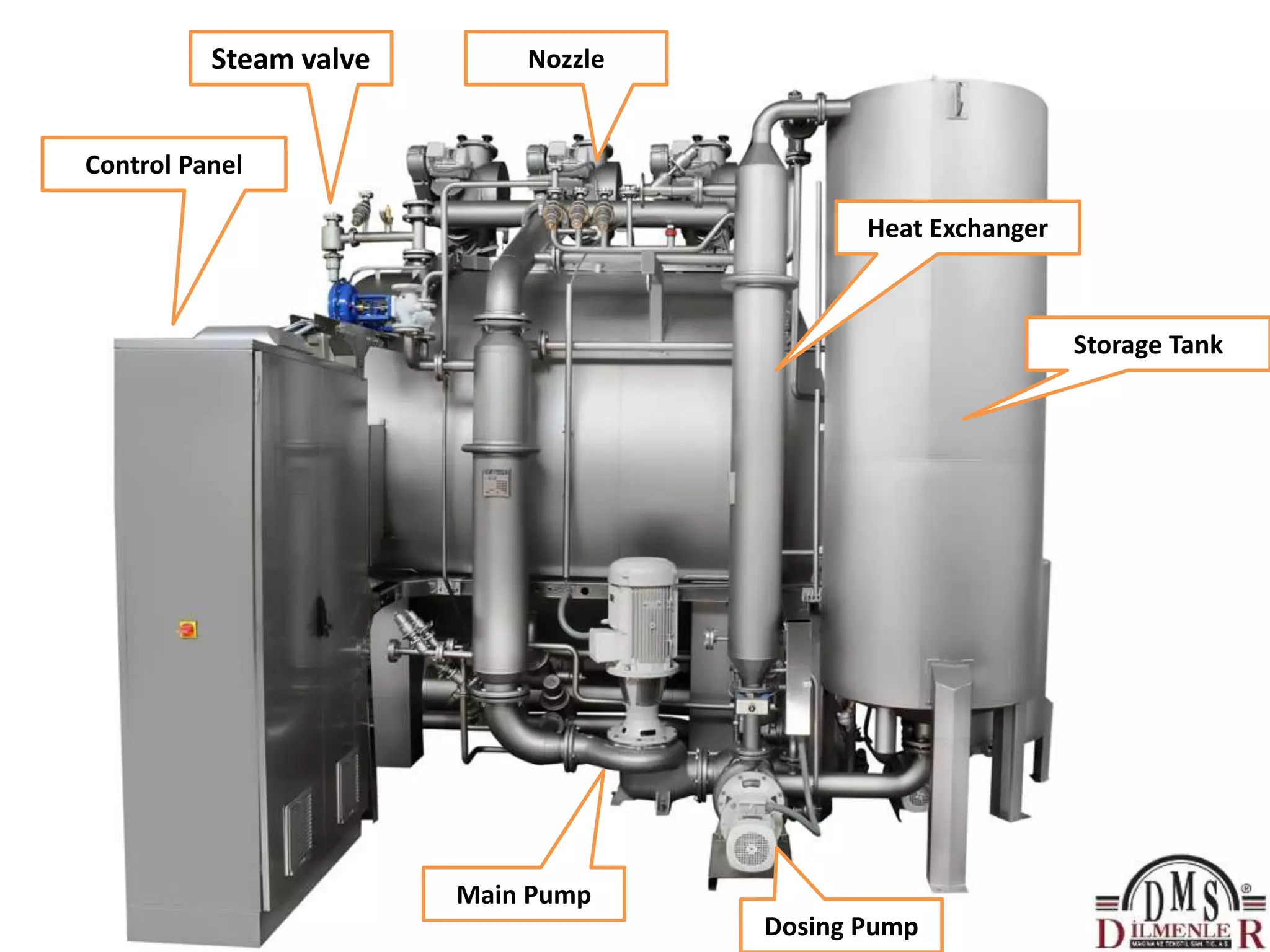

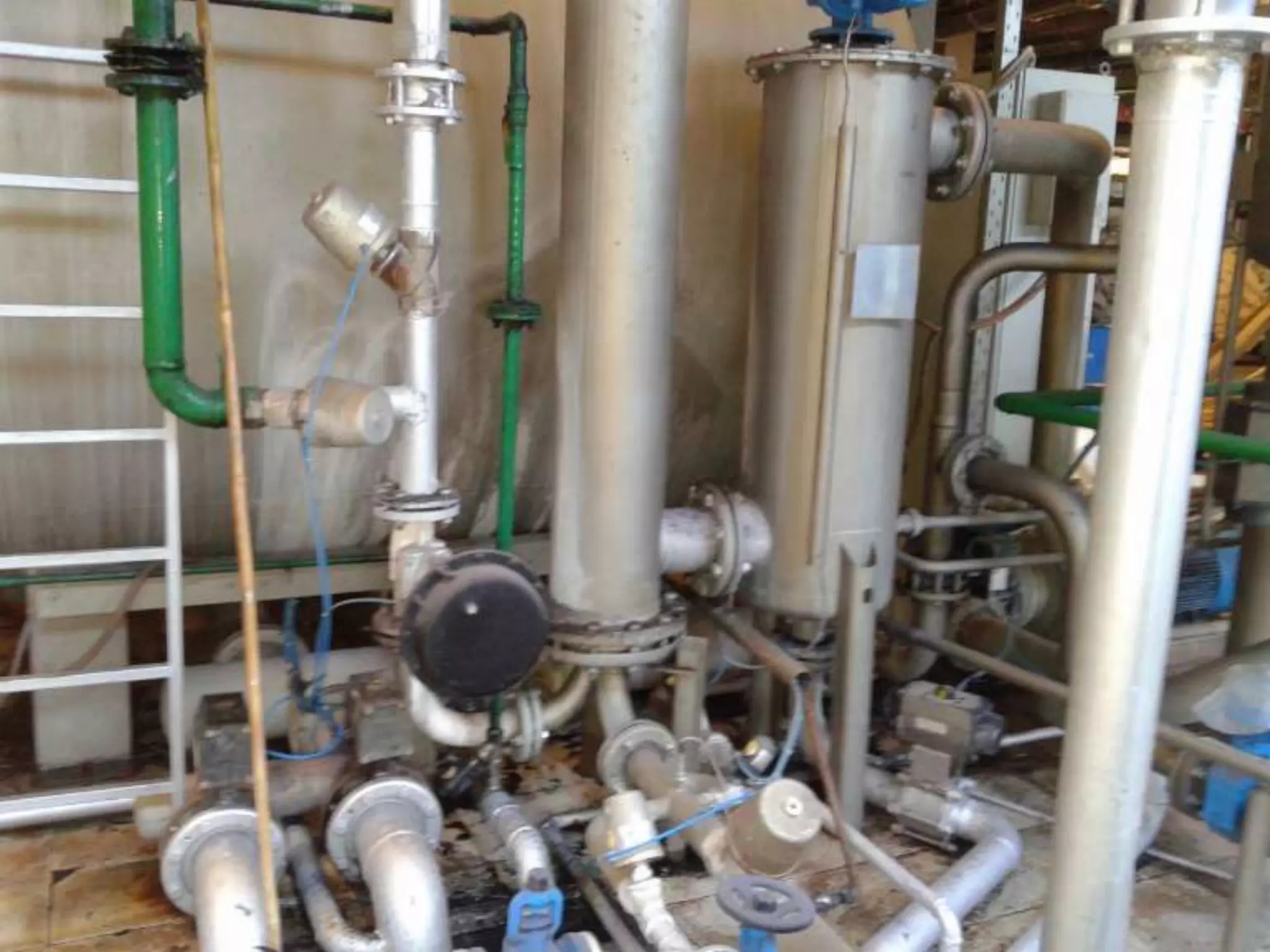

4. Heat Exchanger

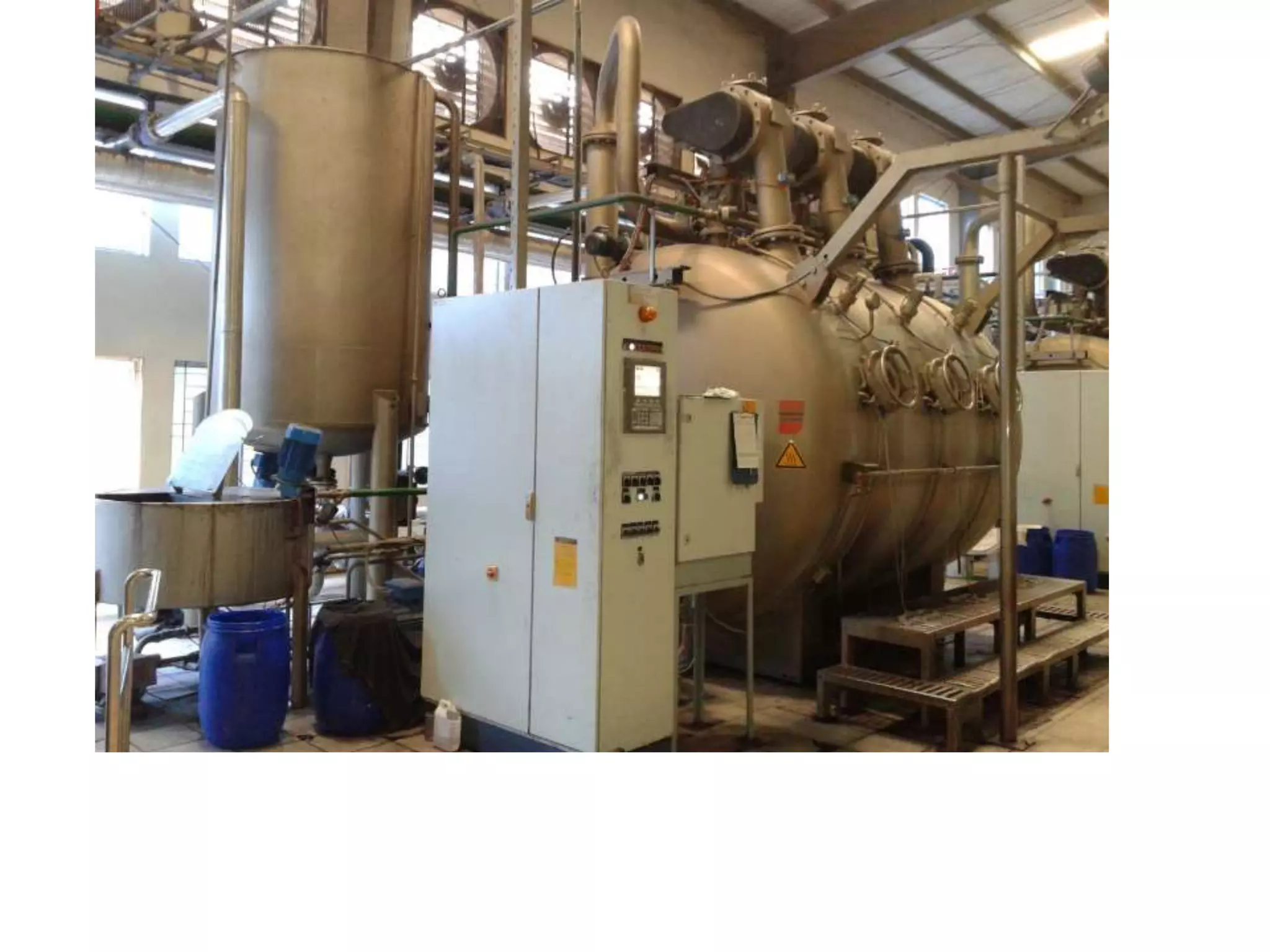

Storage Tank
Control Panel
Main Pump
Dosing Pump
Steam valve Nozzle

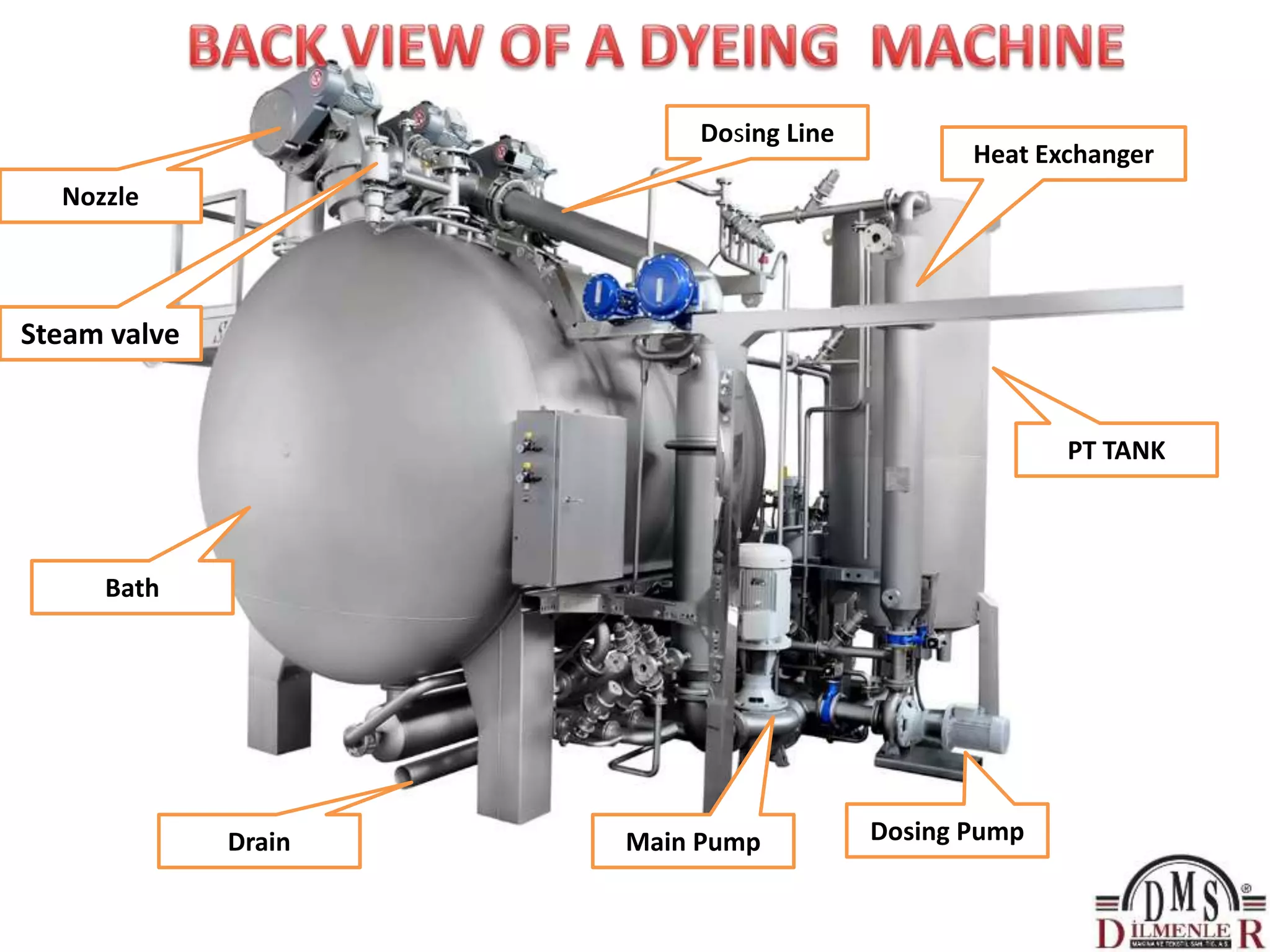

5. Dosing Pump
PT TANK
Bath
Main Pump
Heat Exchanger
Drain
Dosing Line
Nozzle
Steam valve

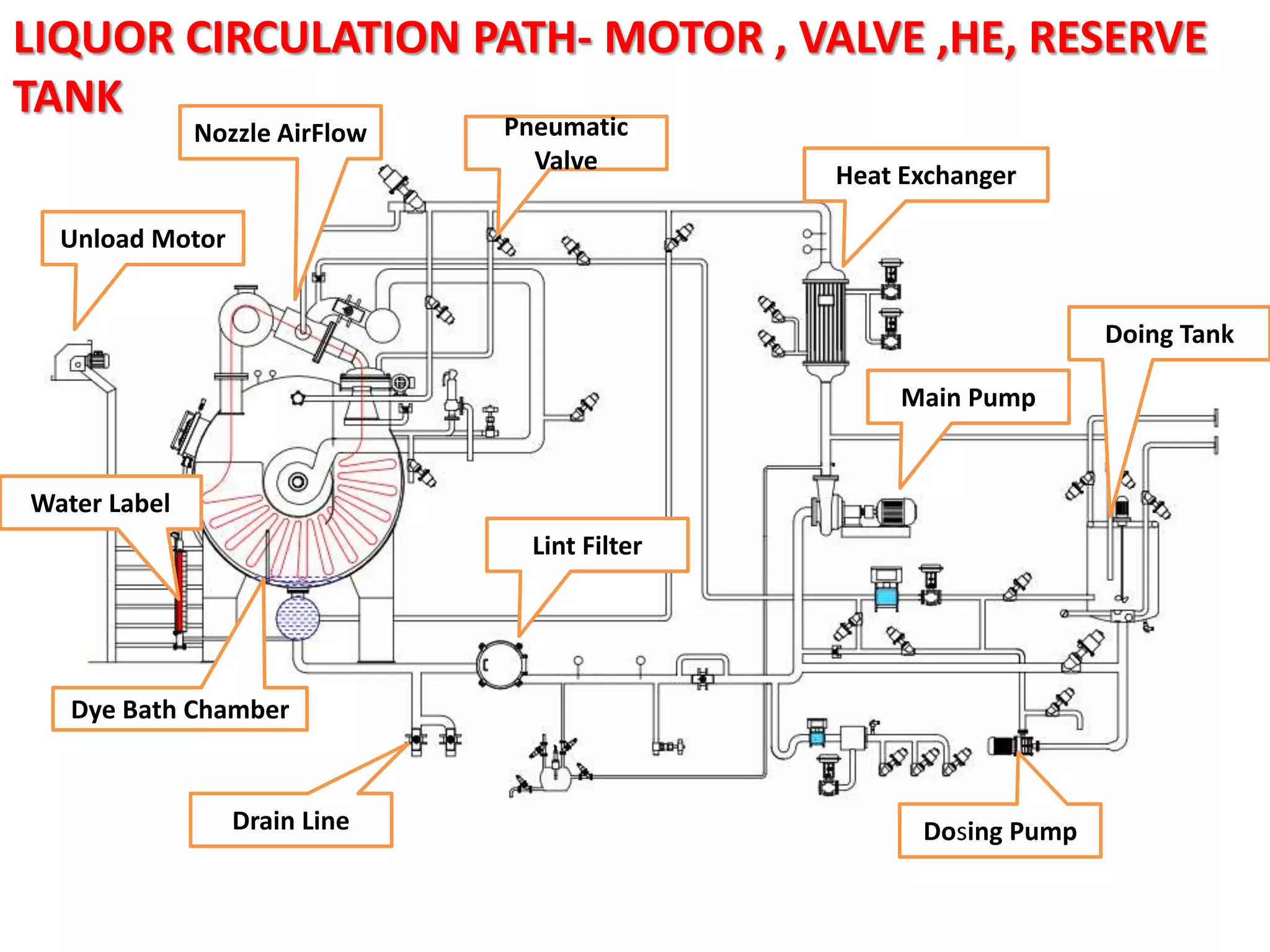

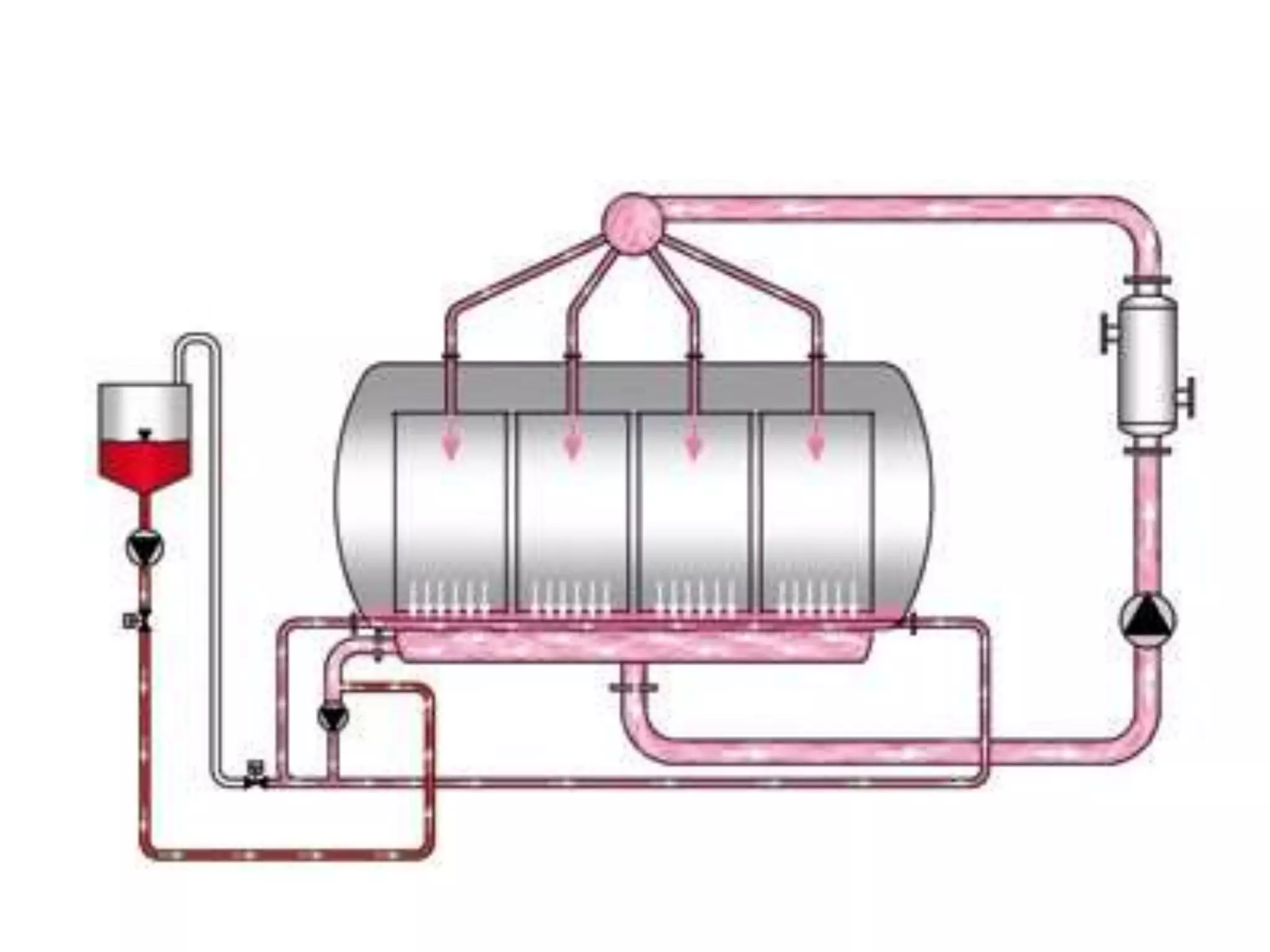

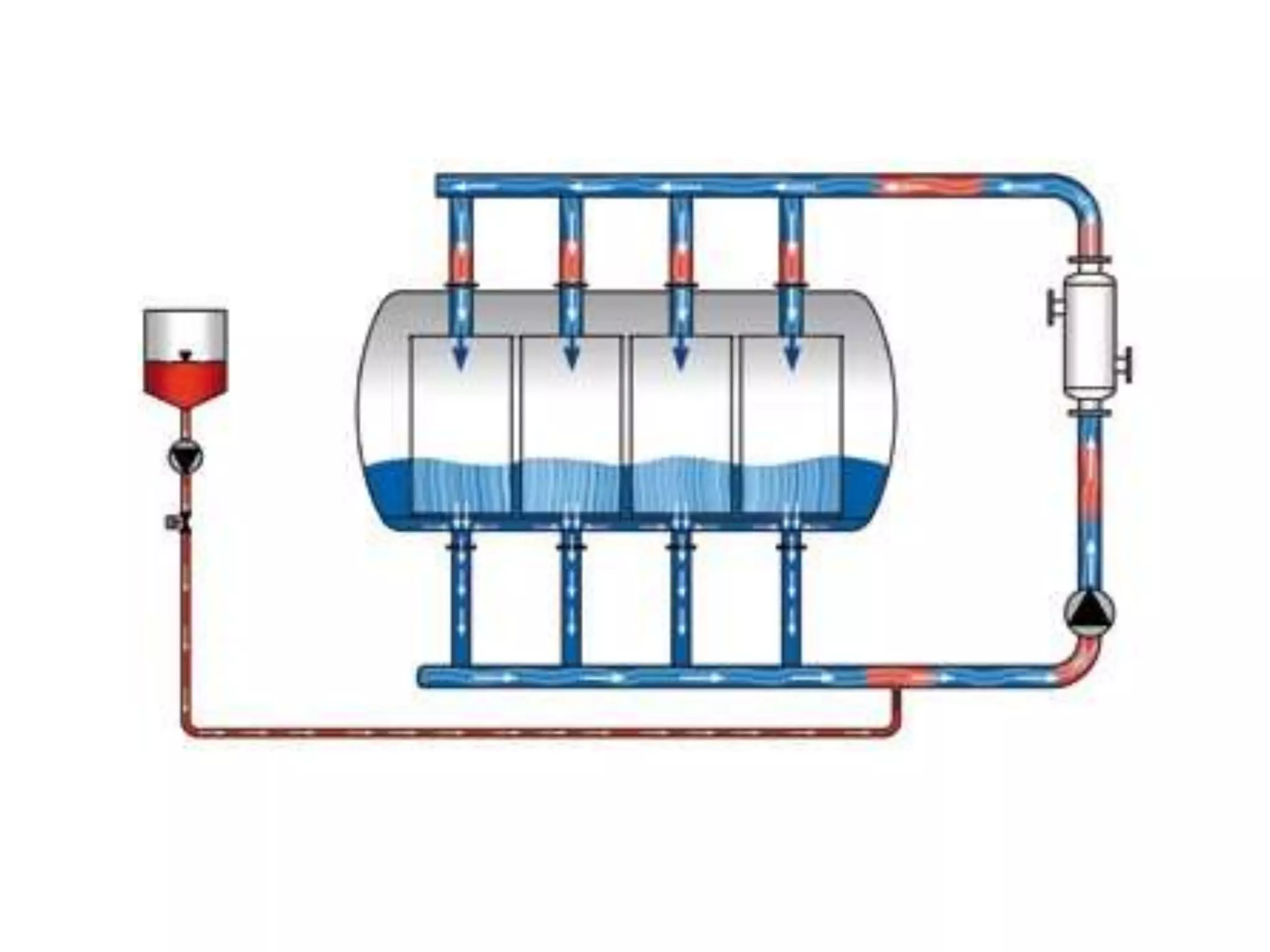

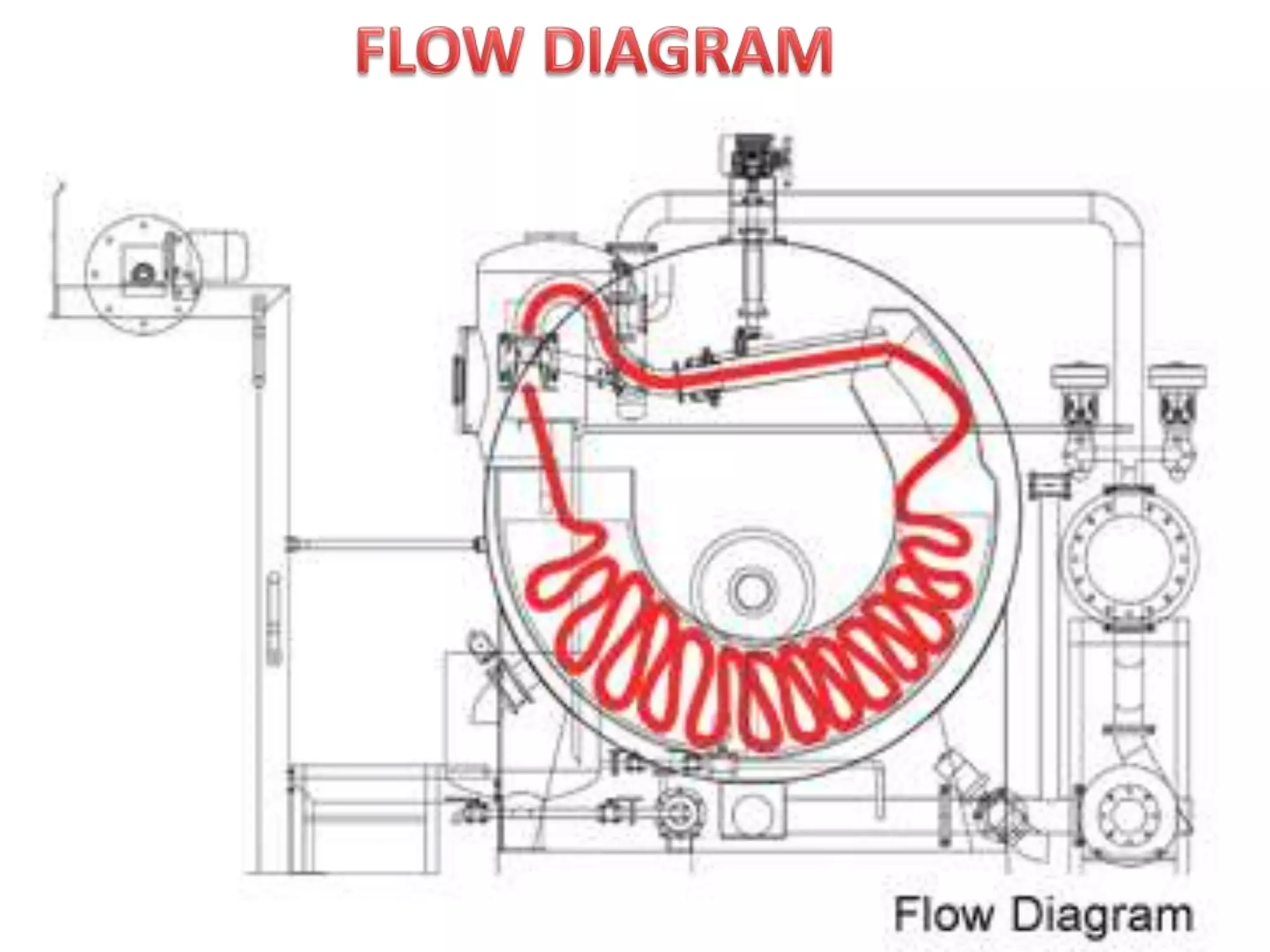

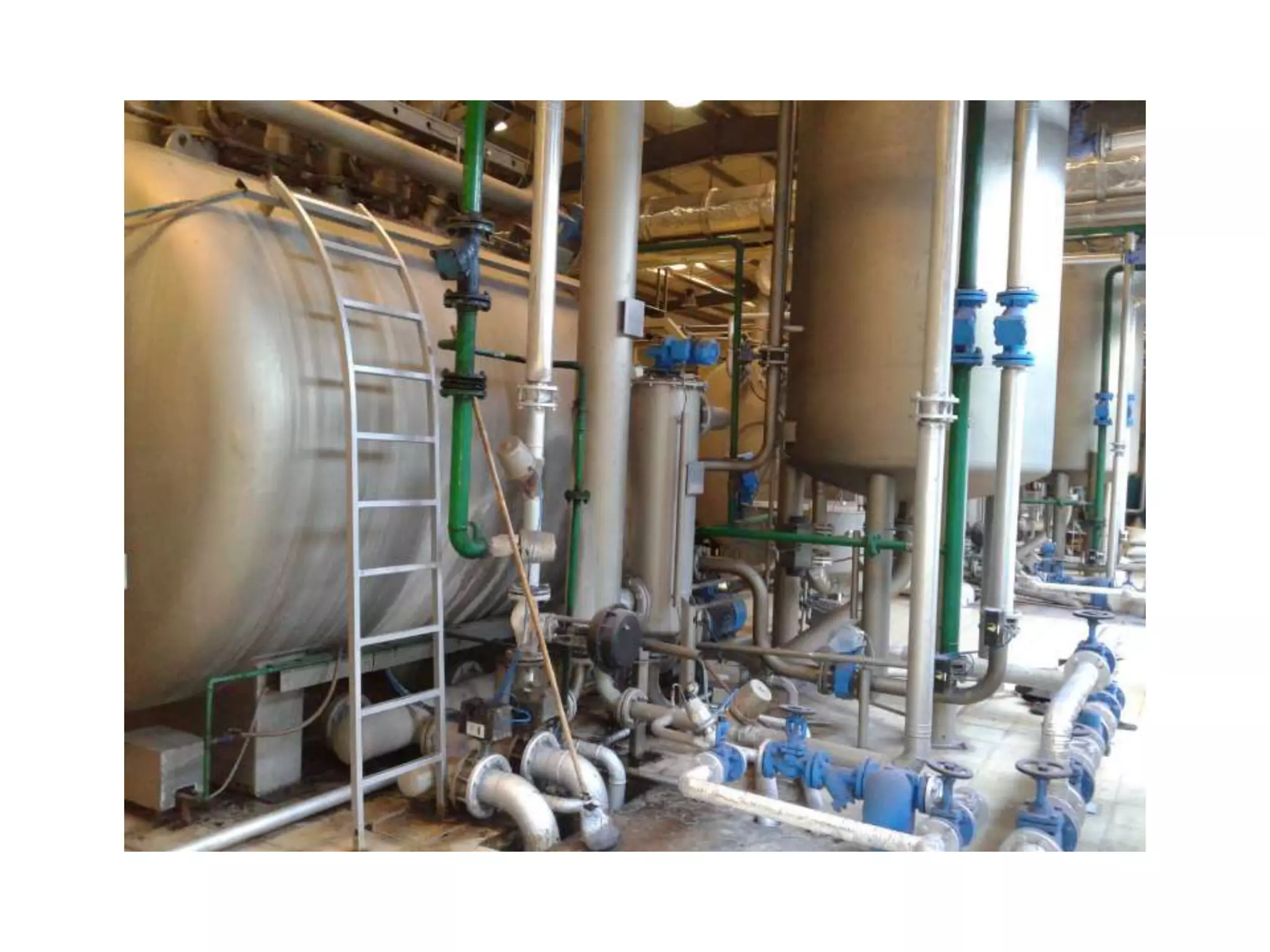

6. LIQUOR CIRCULATION PATH- MOTOR , VALVE ,HE, RESERVE
TANK
Heat Exchanger
Main Pump

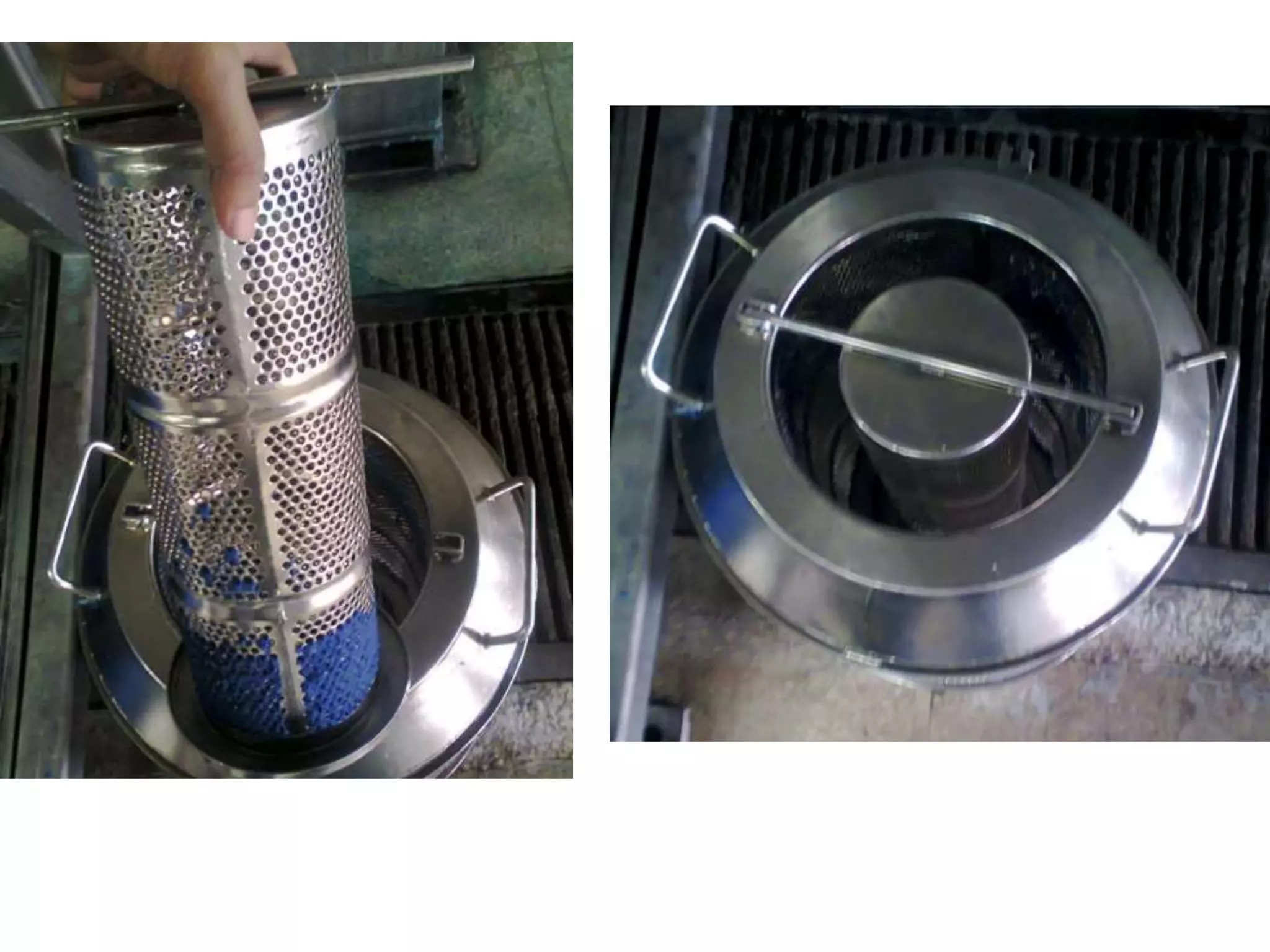

Lint Filter
Doing Tank

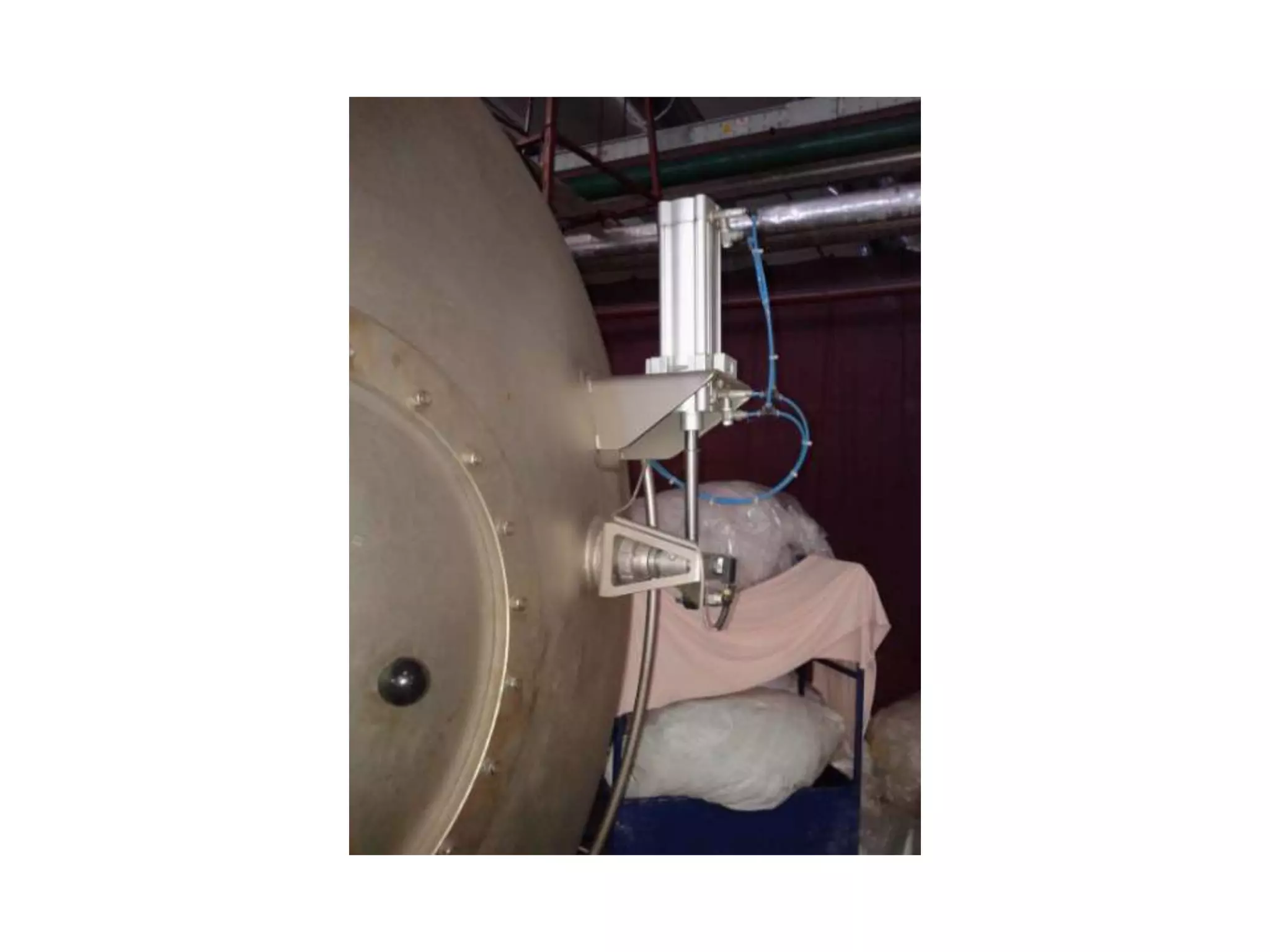

Pneumatic
Valve
Unload Motor
Drain Line
Water Label
Nozzle AirFlow
Dosing Pump
Dye Bath Chamber
