1. Josh Braegger
Docker and CoreOS What it is, and how we
brought it to production

2. Who am I?

3. https://www.apple.com/your-verse/elevating-expedition/

4. Last Year…

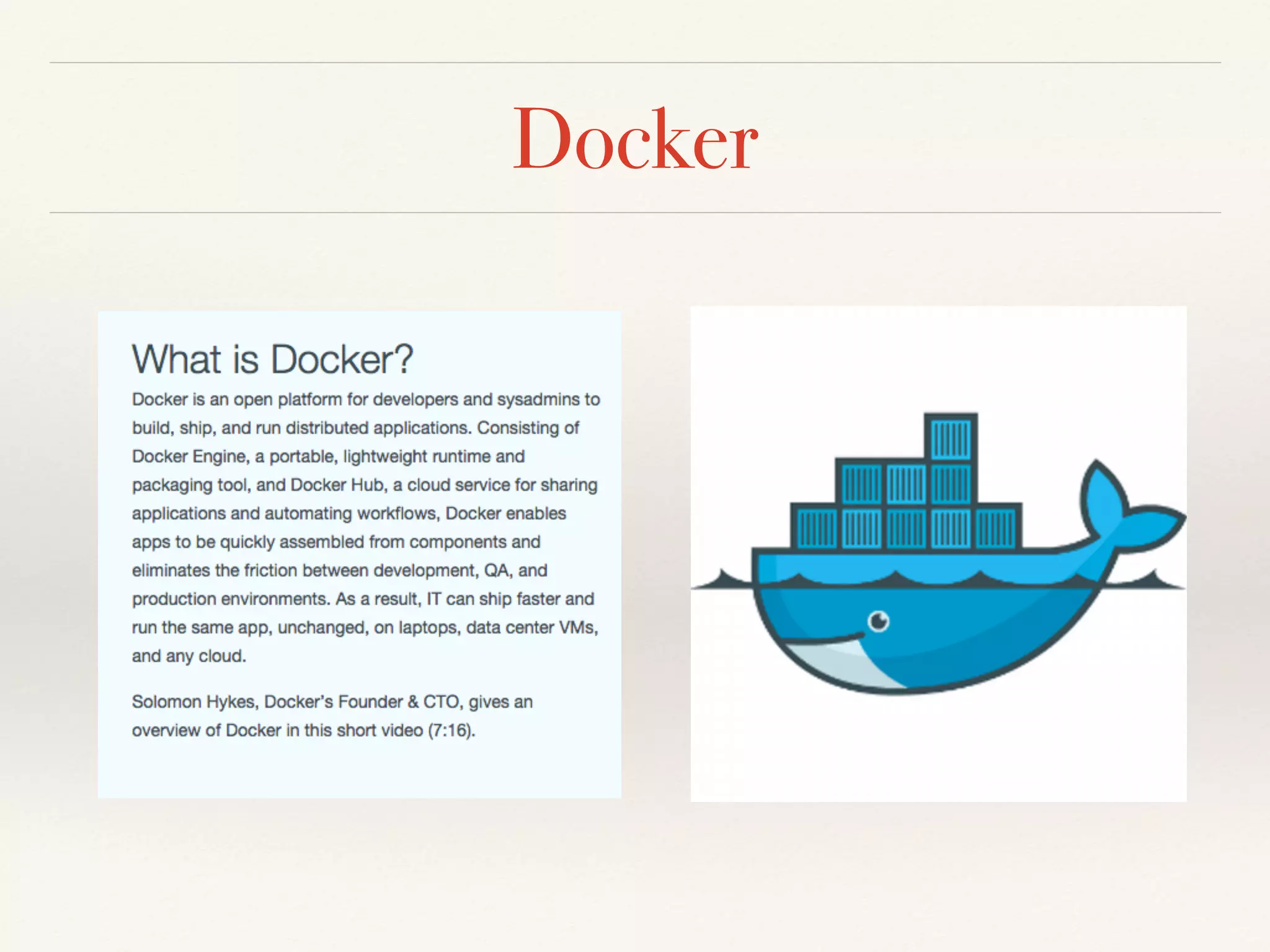

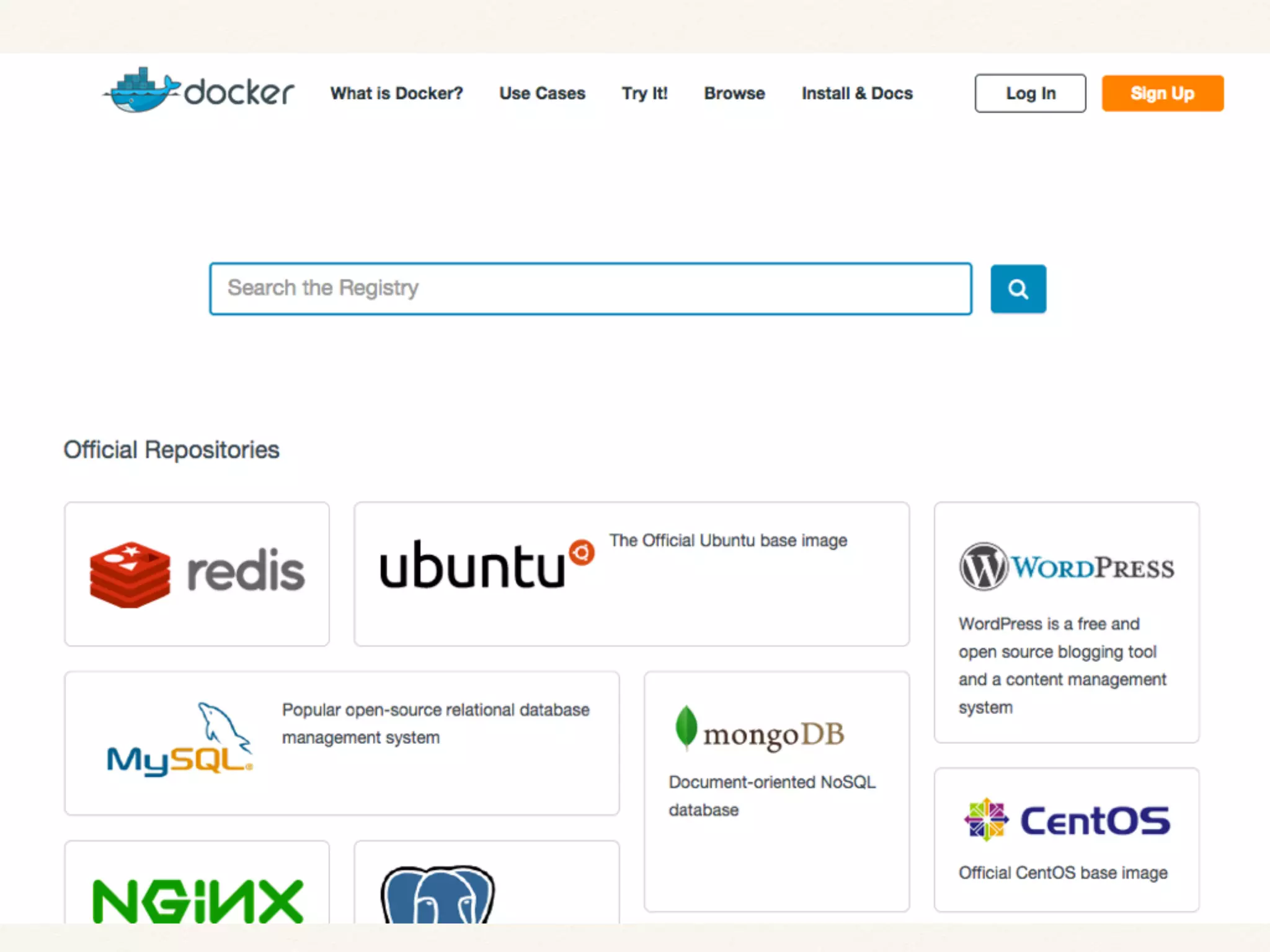

7. Docker

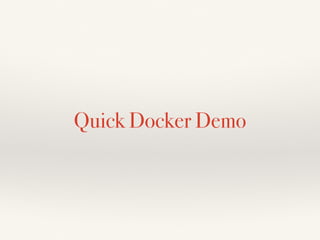

10. Quick Docker Demo

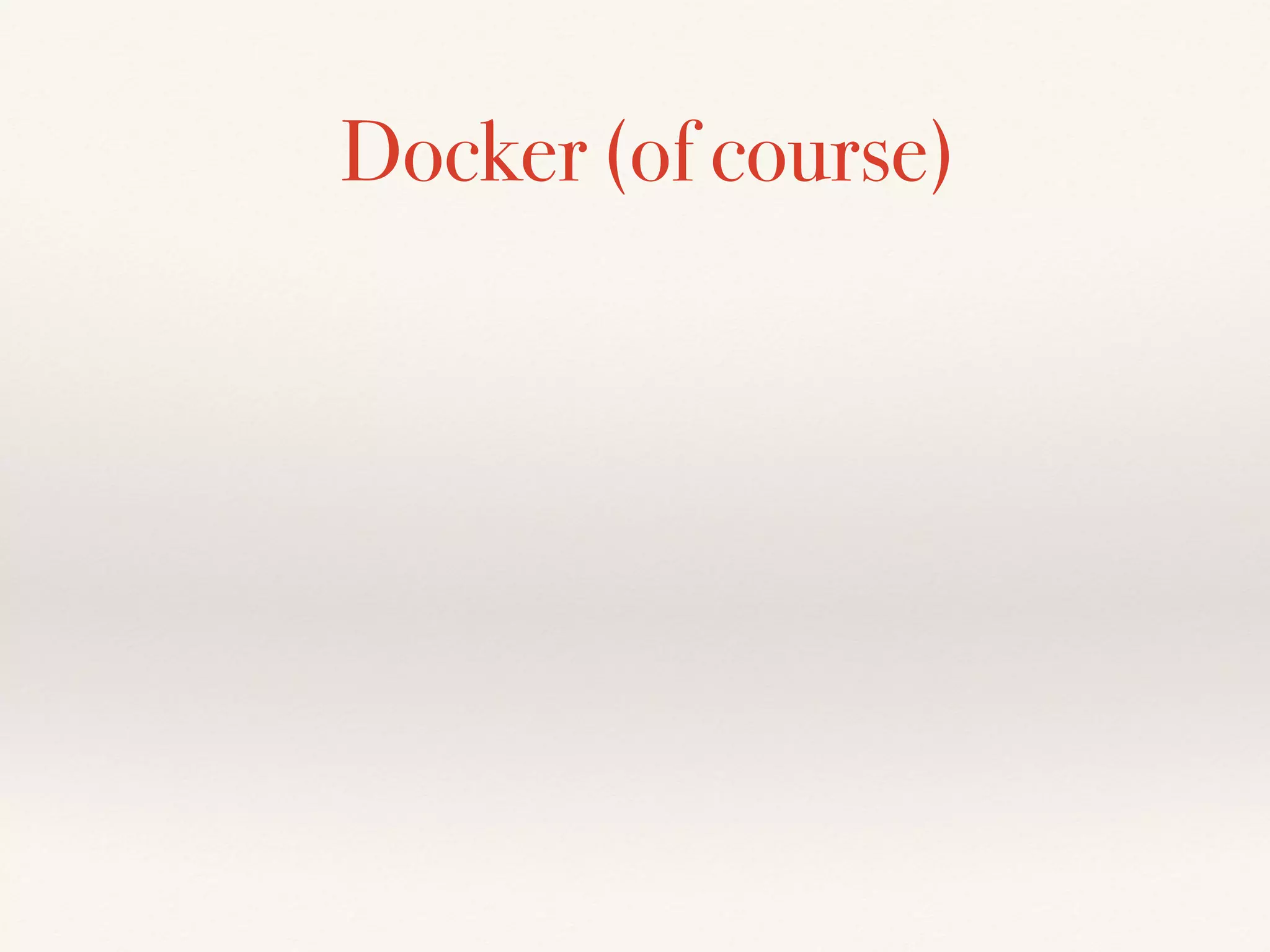

13. Docker (of course)

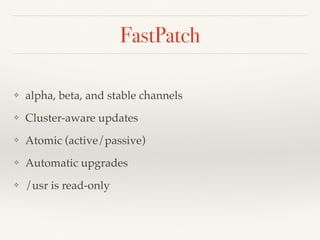

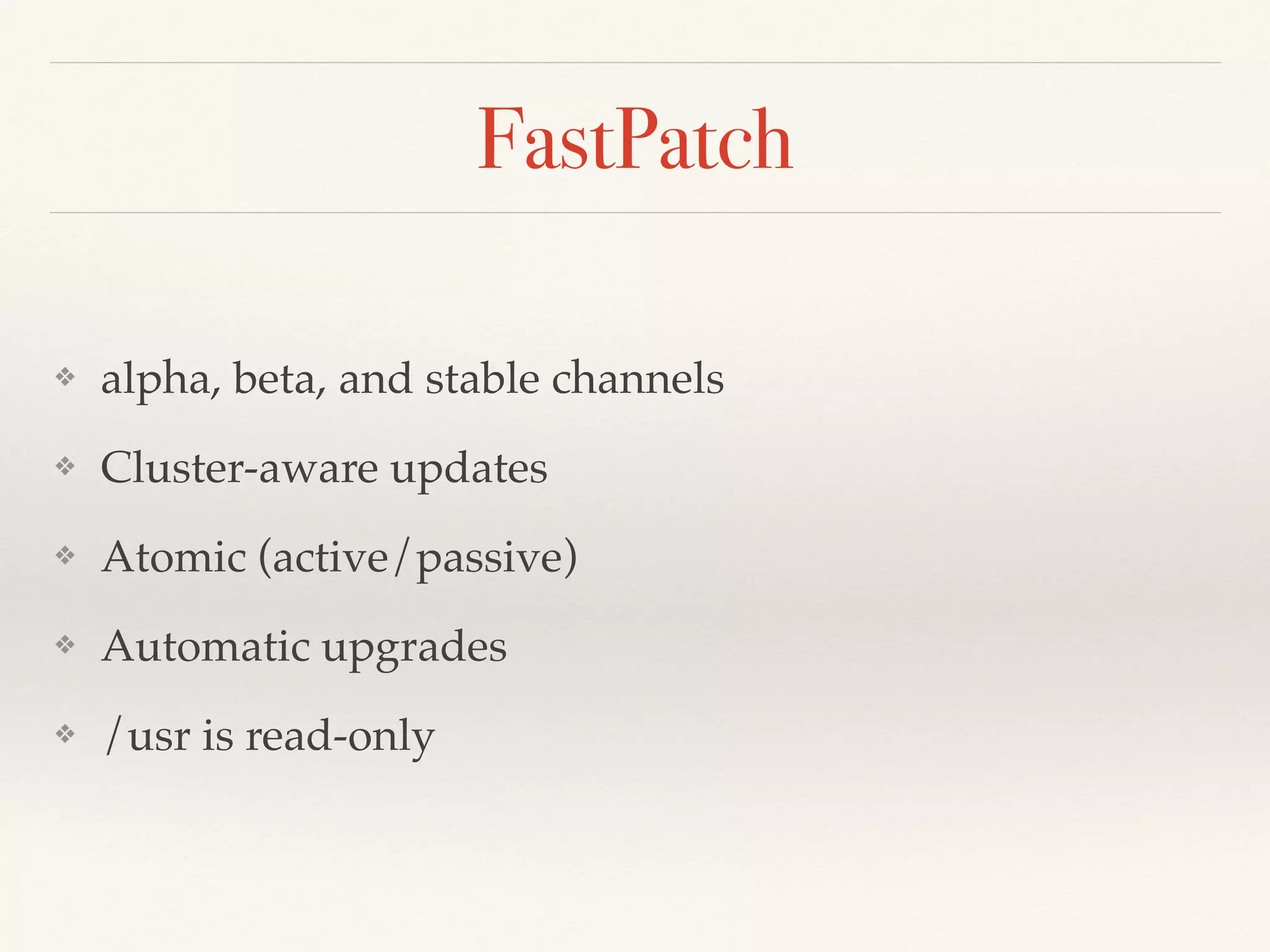

14. FastPatch
❖ alpha, beta, and stable channels
❖ Cluster-aware updates

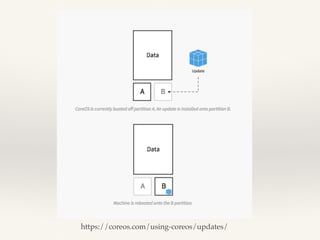

❖ Atomic (active/passive)
❖ Automatic upgrades
❖ /usr is read-only

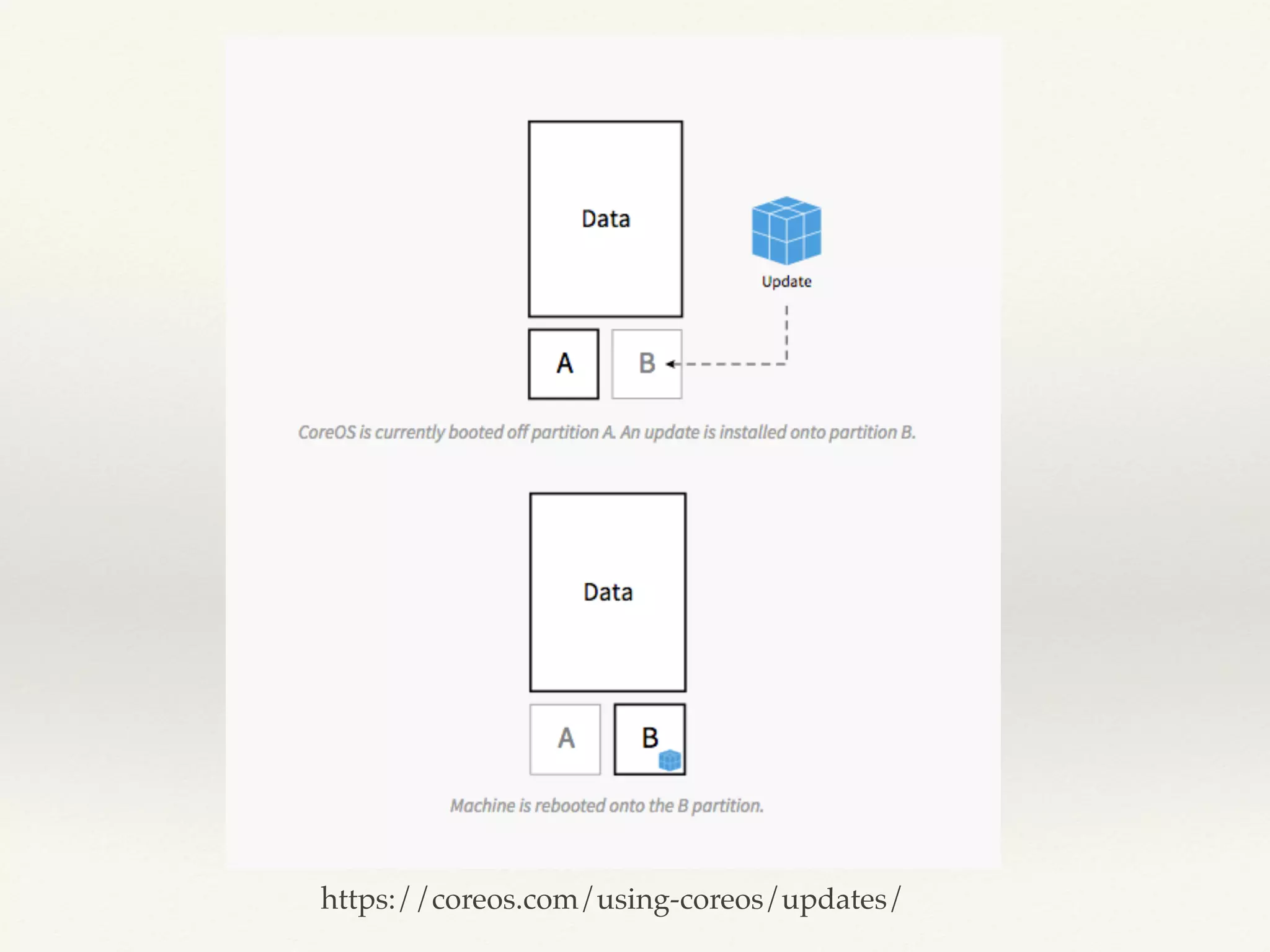

15. https://coreos.com/using-coreos/updates/

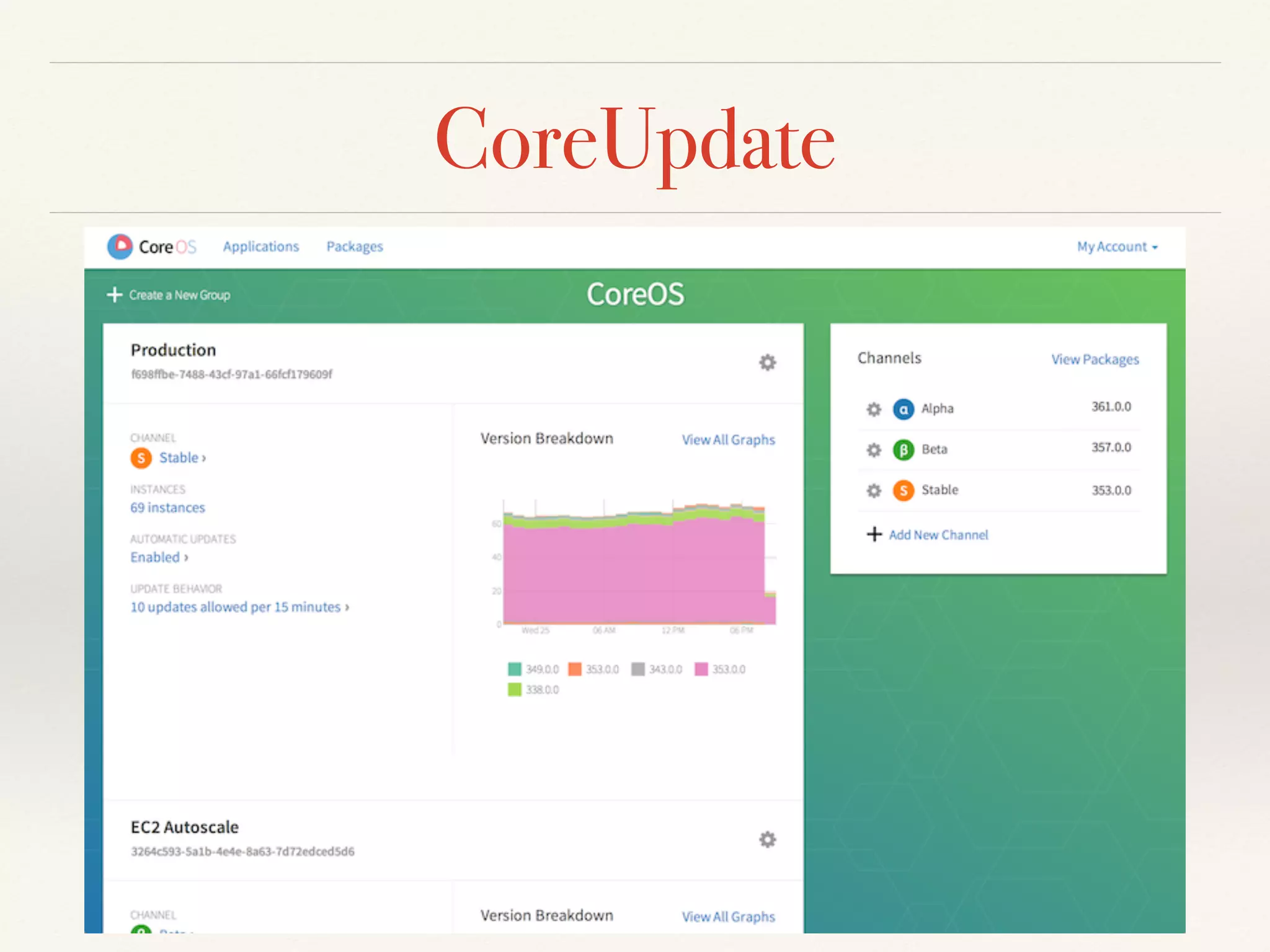

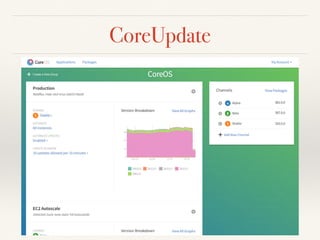

16. CoreUpdate

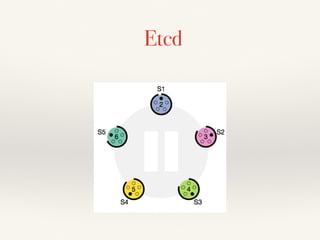

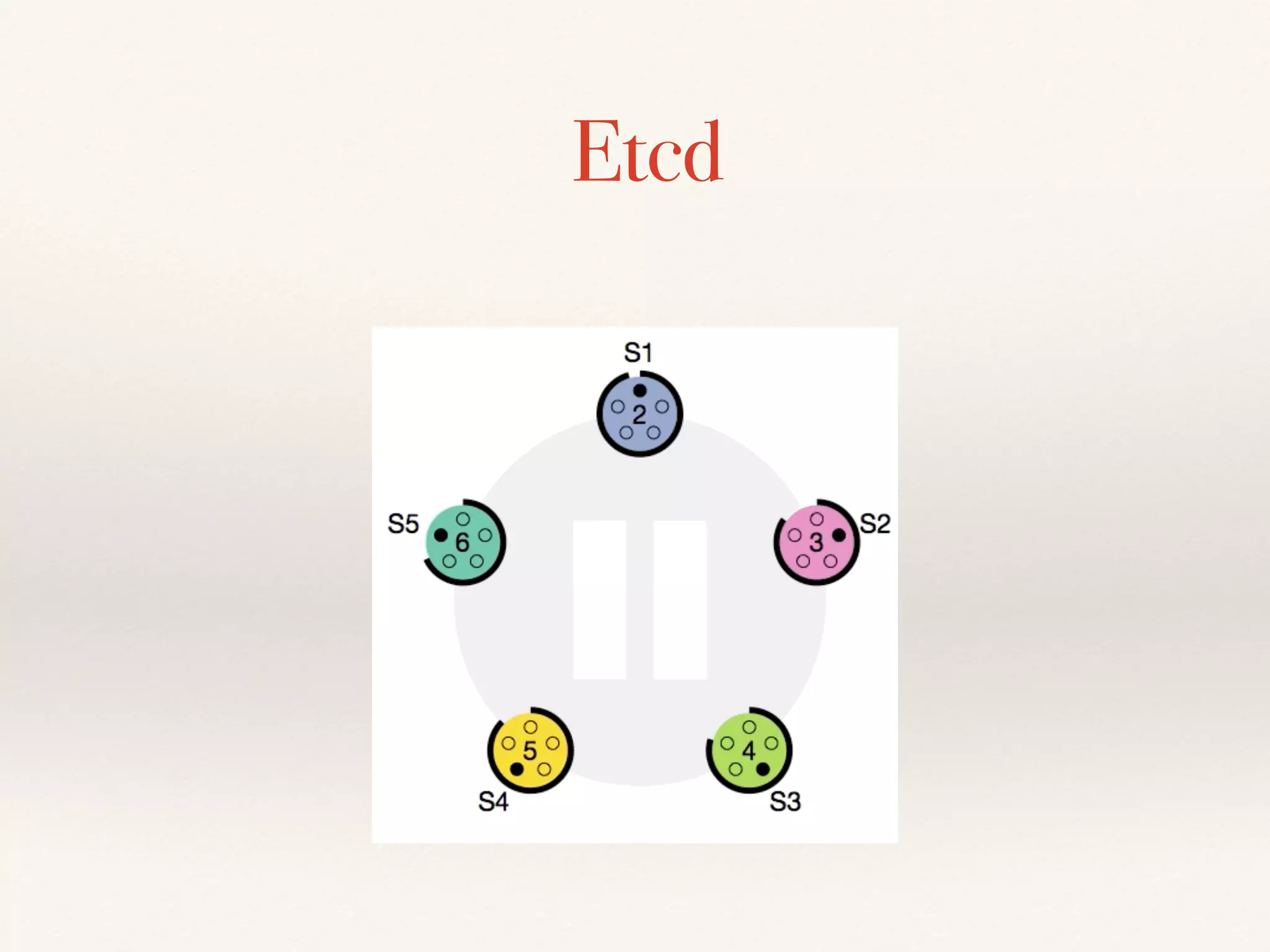

17. Etcd

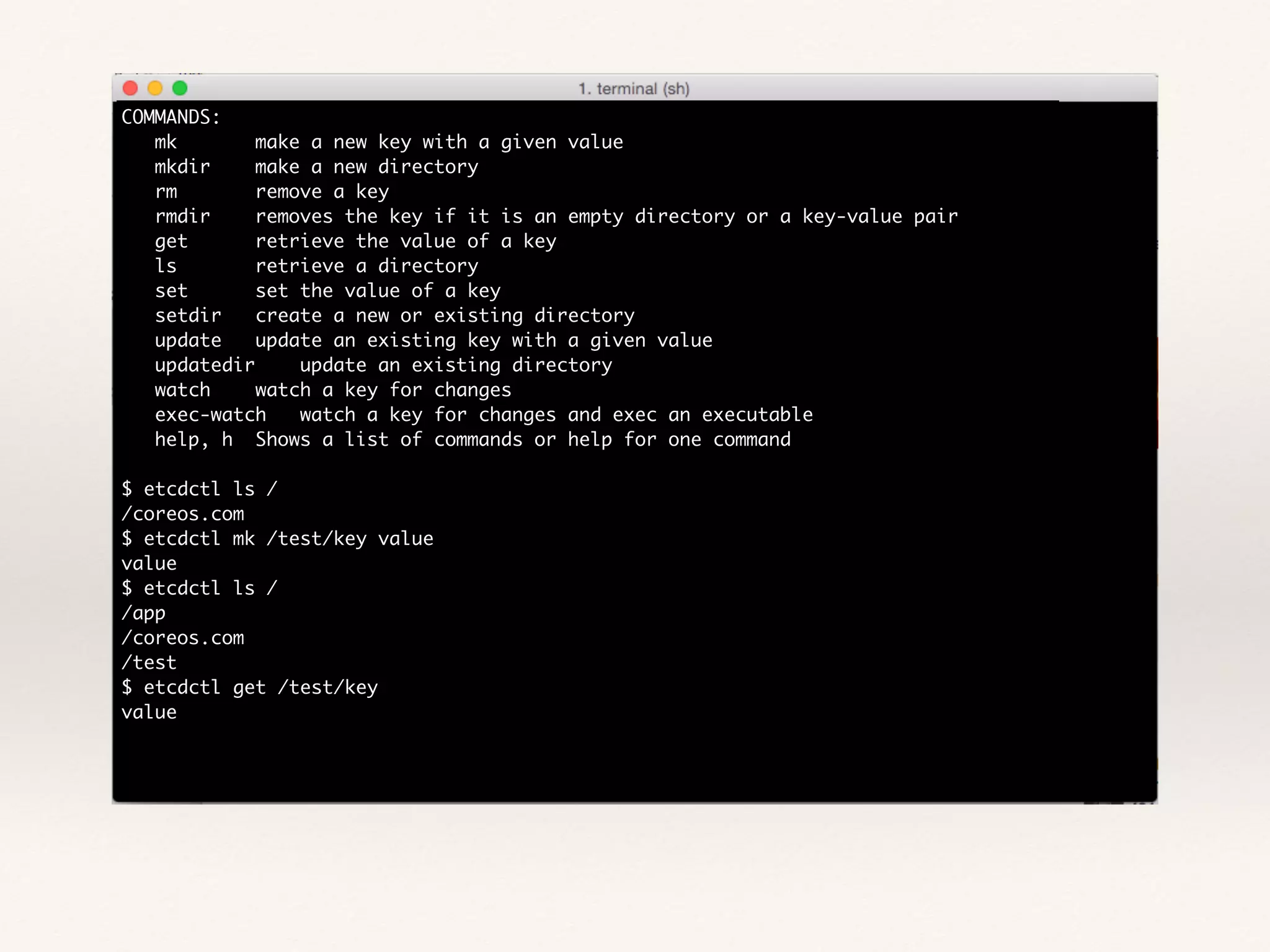

18. COMMANDS:
mk make a new key with a given value
mkdir make a new directory
rm remove a key
rmdir removes the key if it is an empty directory or a key-value pair
get retrieve the value of a key
ls retrieve a directory
set set the value of a key
setdir create a new or existing directory
update update an existing key with a given value
updatedir update an existing directory
watch watch a key for changes
exec-watch watch a key for changes and exec an executable
help, h Shows a list of commands or help for one command
$ etcdctl ls /
/coreos.com
$ etcdctl mk /test/key value
value
$ etcdctl ls /
/app
/coreos.com
/test
$ etcdctl get /test/key
value

19. Systemd

20. Systemd

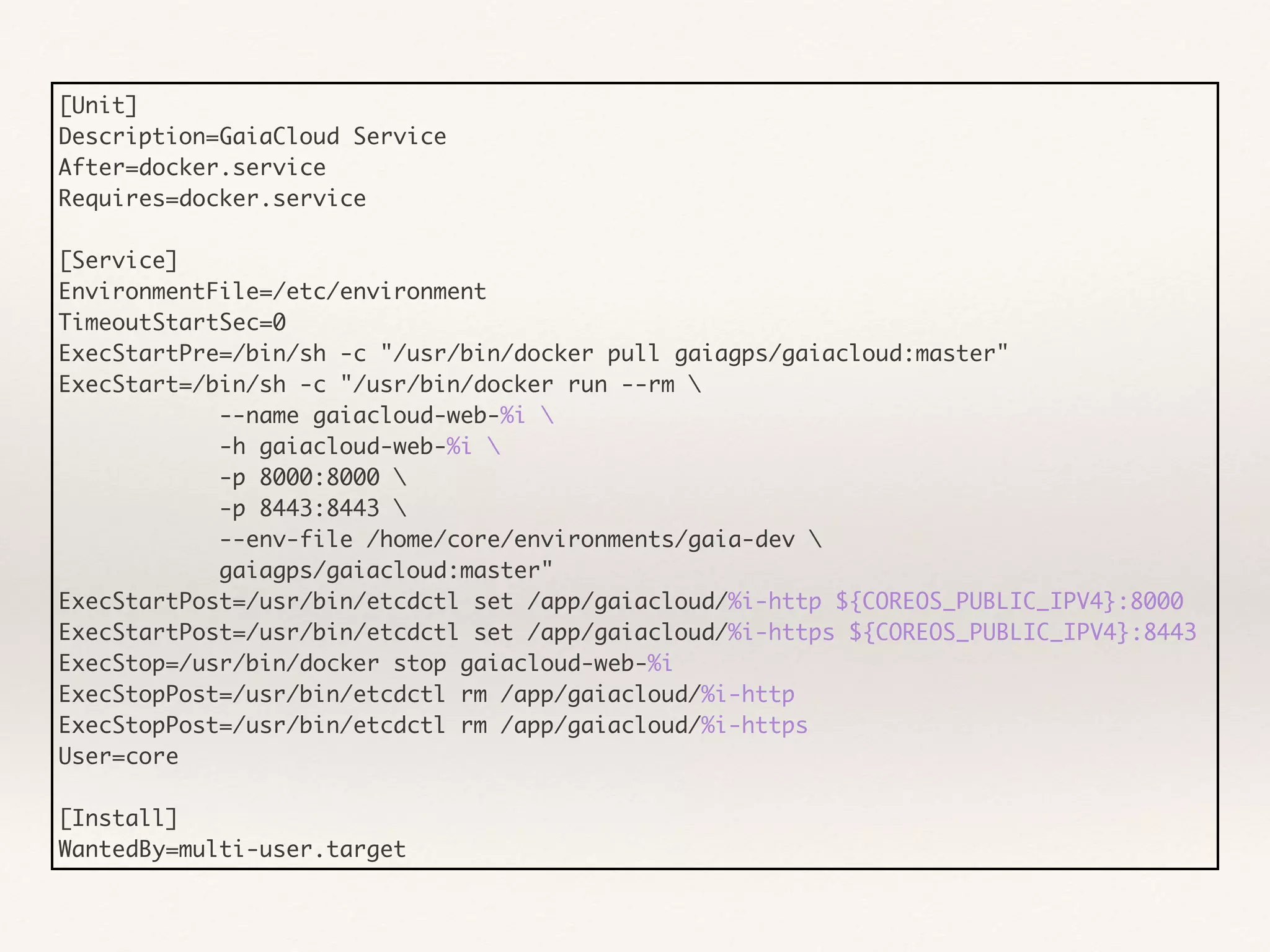

21. [Unit]
Description=GaiaCloud Service
After=docker.service
Requires=docker.service
[Service]
EnvironmentFile=/etc/environment
TimeoutStartSec=0
ExecStartPre=/bin/sh -c "/usr/bin/docker pull gaiagps/gaiacloud:master"
ExecStart=/bin/sh -c "/usr/bin/docker run --rm
--name gaiacloud-web-%i
-h gaiacloud-web-%i
-p 8000:8000
-p 8443:8443
--env-file /home/core/environments/gaia-dev
gaiagps/gaiacloud:master"
ExecStartPost=/usr/bin/etcdctl set /app/gaiacloud/%i-http ${COREOS_PUBLIC_IPV4}:8000
ExecStartPost=/usr/bin/etcdctl set /app/gaiacloud/%i-https ${COREOS_PUBLIC_IPV4}:8443
ExecStop=/usr/bin/docker stop gaiacloud-web-%i
ExecStopPost=/usr/bin/etcdctl rm /app/gaiacloud/%i-http
ExecStopPost=/usr/bin/etcdctl rm /app/gaiacloud/%i-https
User=core
[Install]
WantedBy=multi-user.target

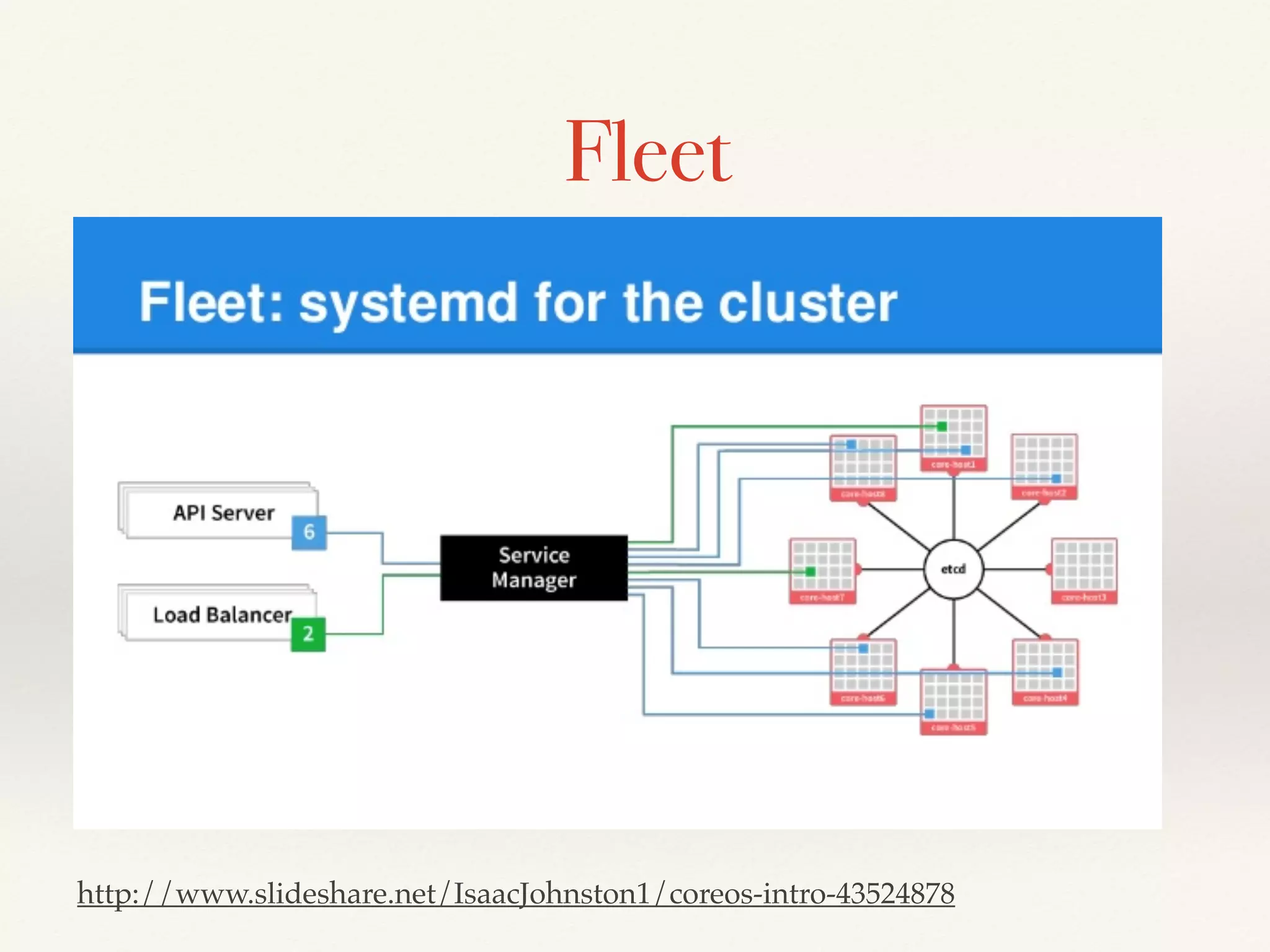

22. Fleet
http://www.slideshare.net/IsaacJohnston1/coreos-intro-43524878

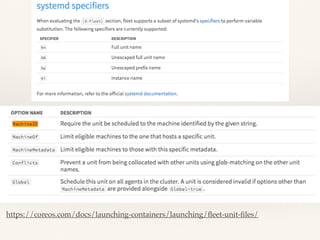

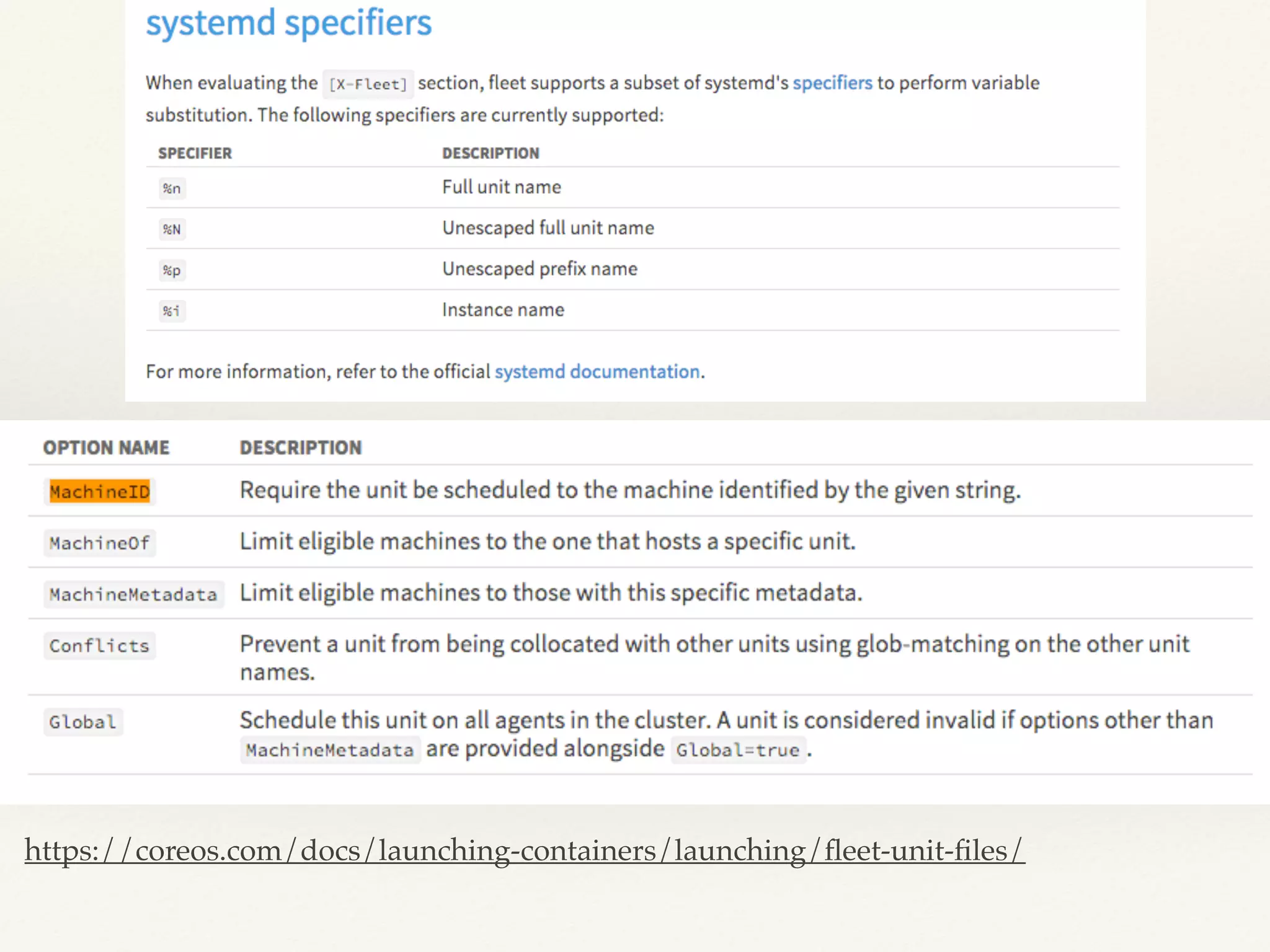

24. https://coreos.com/docs/launching-containers/launching/fleet-unit-files/

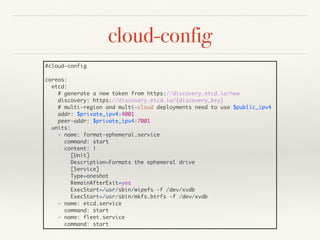

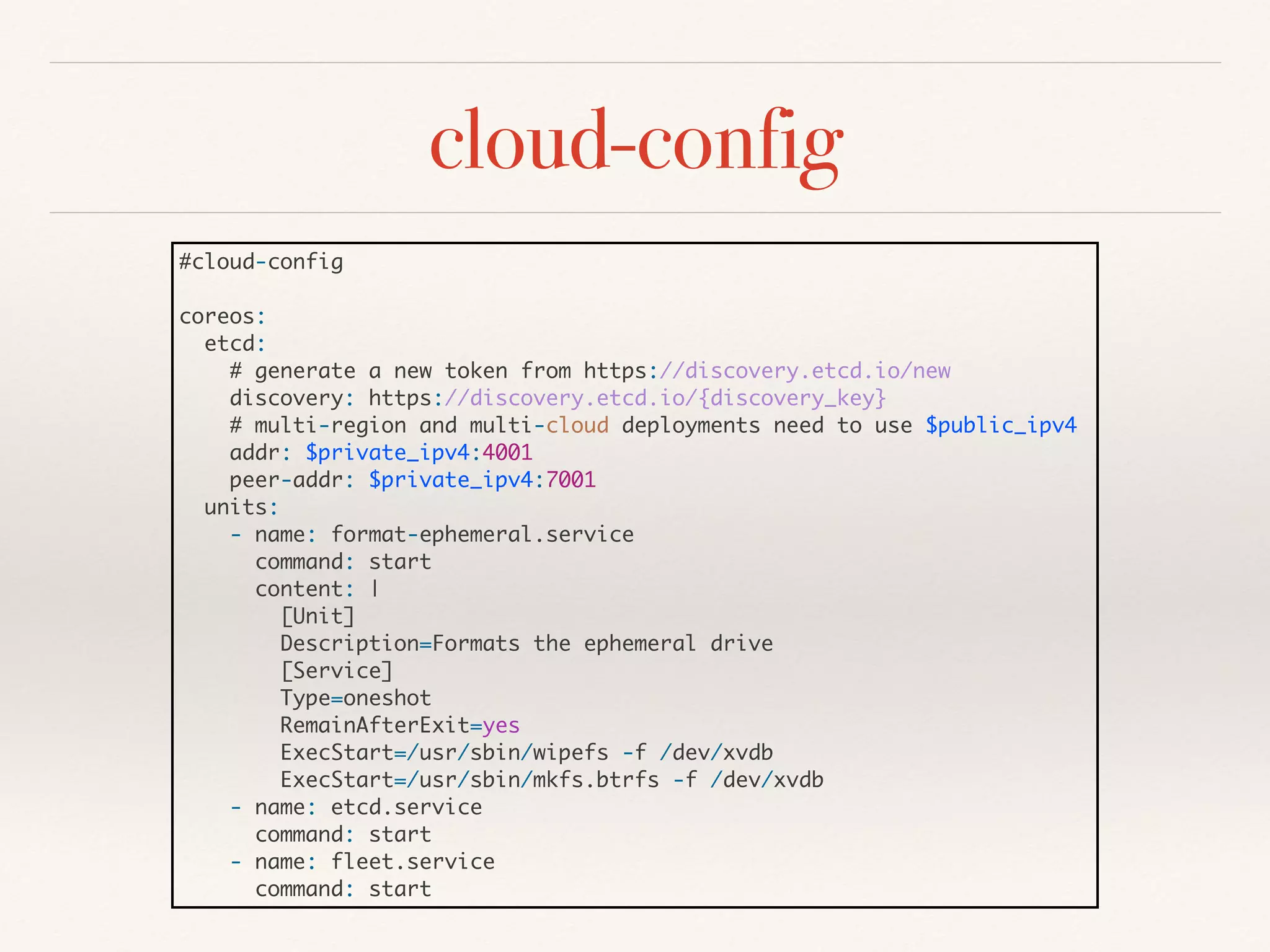

25. cloud-config
#cloud-config
coreos:
etcd:
# generate a new token from https://discovery.etcd.io/new
discovery: https://discovery.etcd.io/{discovery_key}
# multi-region and multi-cloud deployments need to use $public_ipv4
addr: $private_ipv4:4001
peer-addr: $private_ipv4:7001
units:
- name: format-ephemeral.service
command: start
content: |
[Unit]
Description=Formats the ephemeral drive
[Service]
Type=oneshot
RemainAfterExit=yes
ExecStart=/usr/sbin/wipefs -f /dev/xvdb
ExecStart=/usr/sbin/mkfs.btrfs -f /dev/xvdb
- name: etcd.service
command: start
- name: fleet.service
command: start

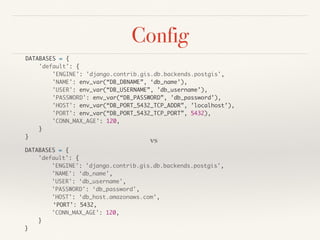

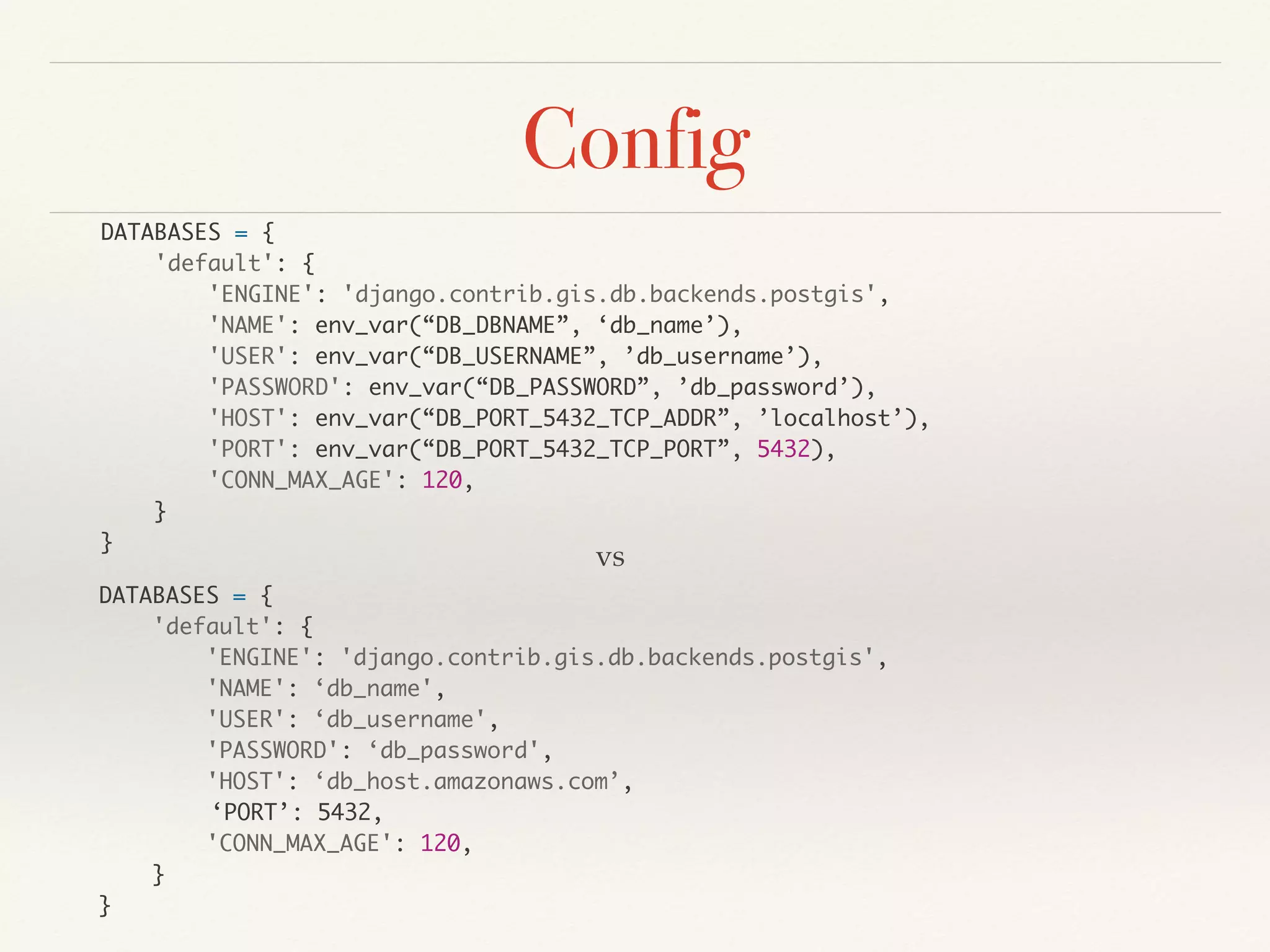

26. Config
DATABASES = {
'default': {
'ENGINE': 'django.contrib.gis.db.backends.postgis',
'NAME': env_var(“DB_DBNAME”, ‘db_name’),
'USER': env_var(“DB_USERNAME”, ’db_username’),
'PASSWORD': env_var(“DB_PASSWORD”, ’db_password’),
'HOST': env_var(“DB_PORT_5432_TCP_ADDR”, ’localhost’),
'PORT': env_var(“DB_PORT_5432_TCP_PORT”, 5432),
'CONN_MAX_AGE': 120,
}
}
DATABASES = {
'default': {
'ENGINE': 'django.contrib.gis.db.backends.postgis',
'NAME': ‘db_name',
'USER': ‘db_username',
'PASSWORD': ‘db_password',
'HOST': ‘db_host.amazonaws.com’,
‘PORT’: 5432,
'CONN_MAX_AGE': 120,
}
}
vs

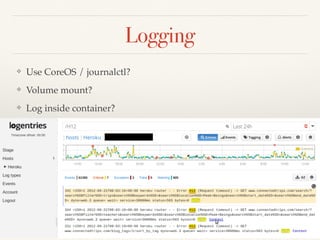

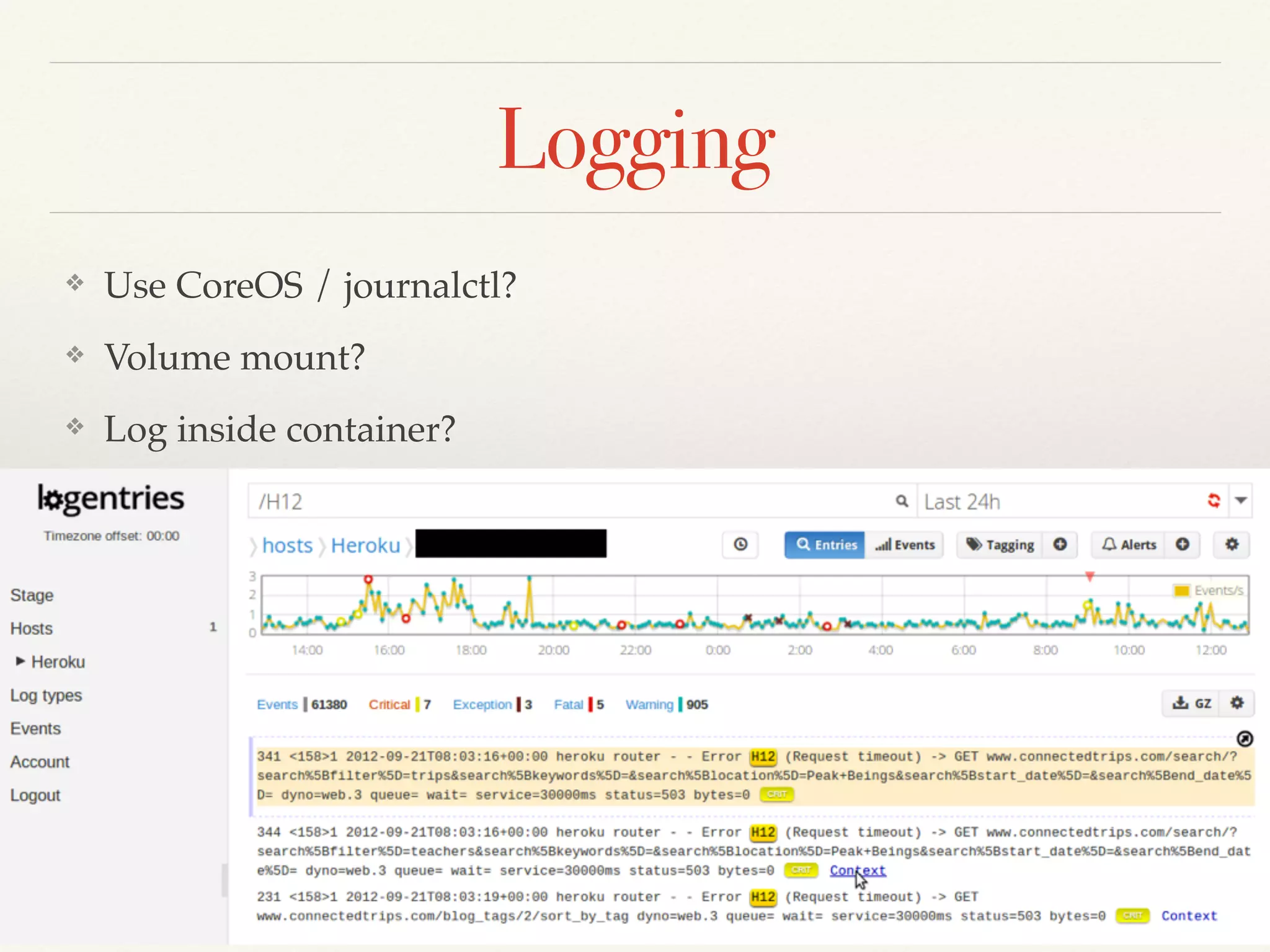

27. Logging
❖ Use CoreOS / journalctl?
❖ Volume mount?
❖ Log inside container?

28. App Demo

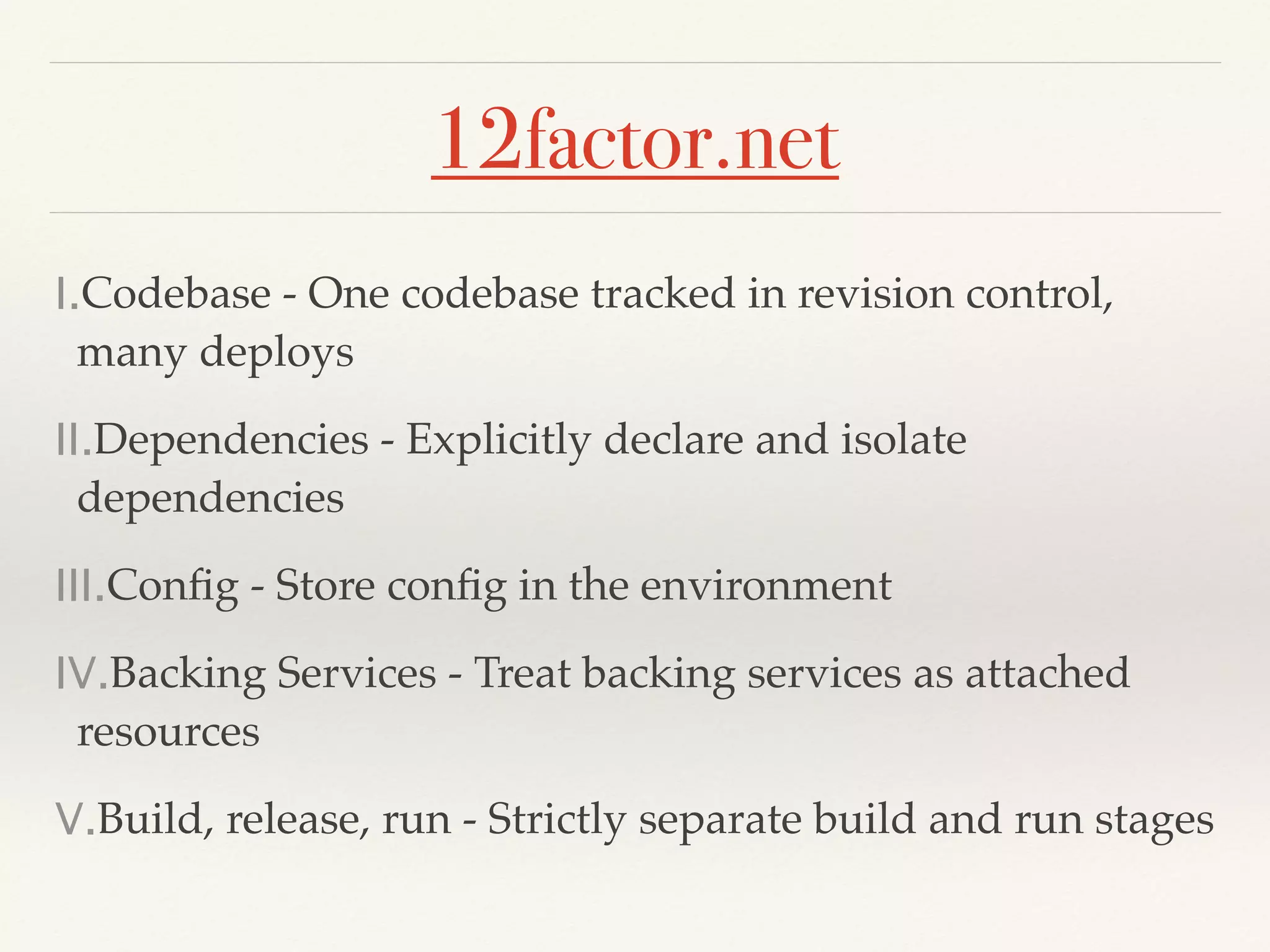

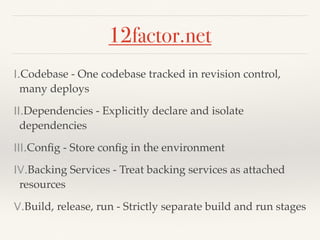

29. 12factor.net
I.Codebase - One codebase tracked in revision control,
many deploys
II.Dependencies - Explicitly declare and isolate
dependencies
III.Config - Store config in the environment
IV.Backing Services - Treat backing services as attached
resources
V.Build, release, run - Strictly separate build and run stages

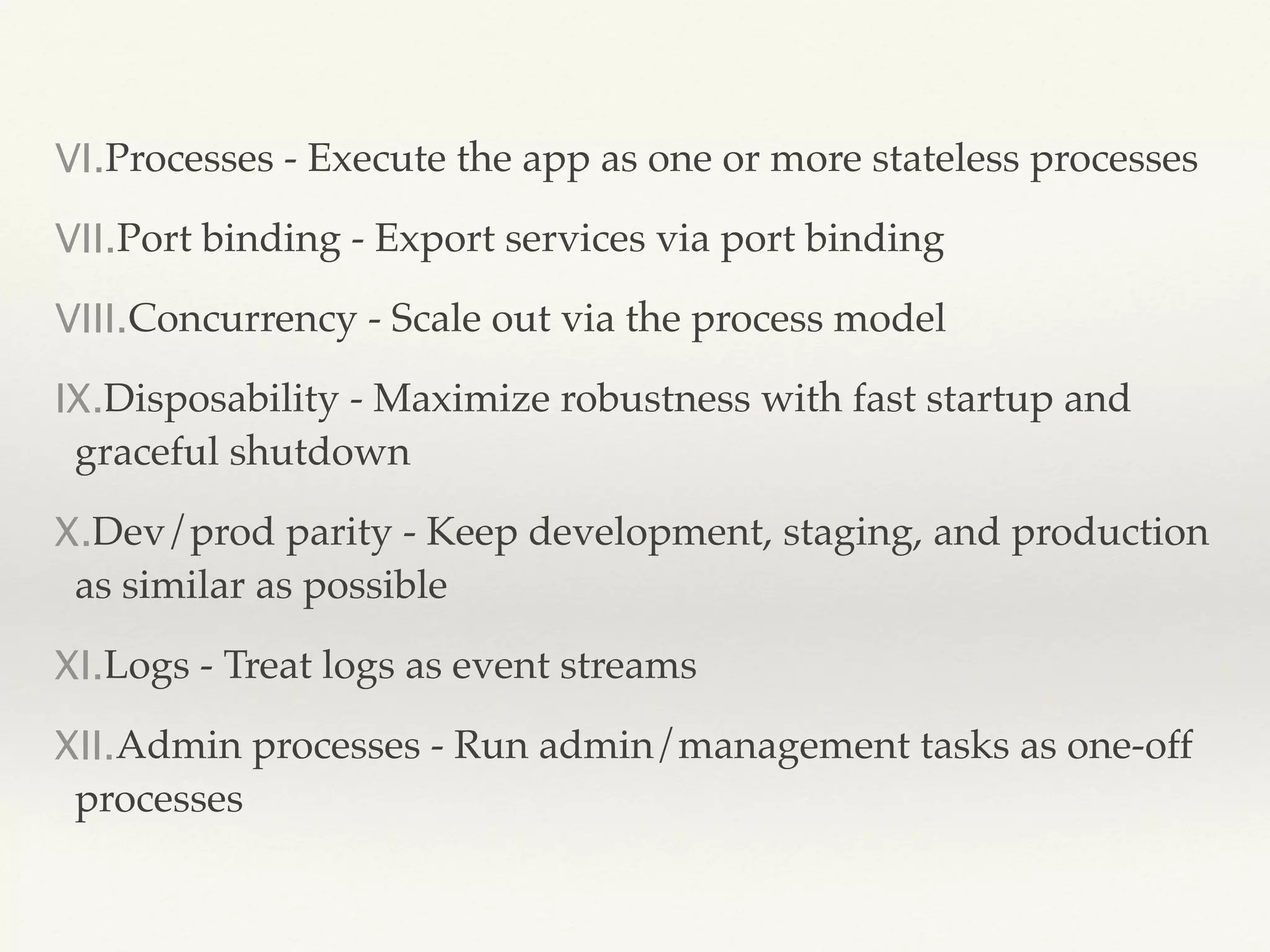

30. VI.Processes - Execute the app as one or more stateless processes
VII.Port binding - Export services via port binding
VIII.Concurrency - Scale out via the process model
IX.Disposability - Maximize robustness with fast startup and
graceful shutdown
X.Dev/prod parity - Keep development, staging, and production
as similar as possible
XI.Logs - Treat logs as event streams
XII.Admin processes - Run admin/management tasks as one-off
processes

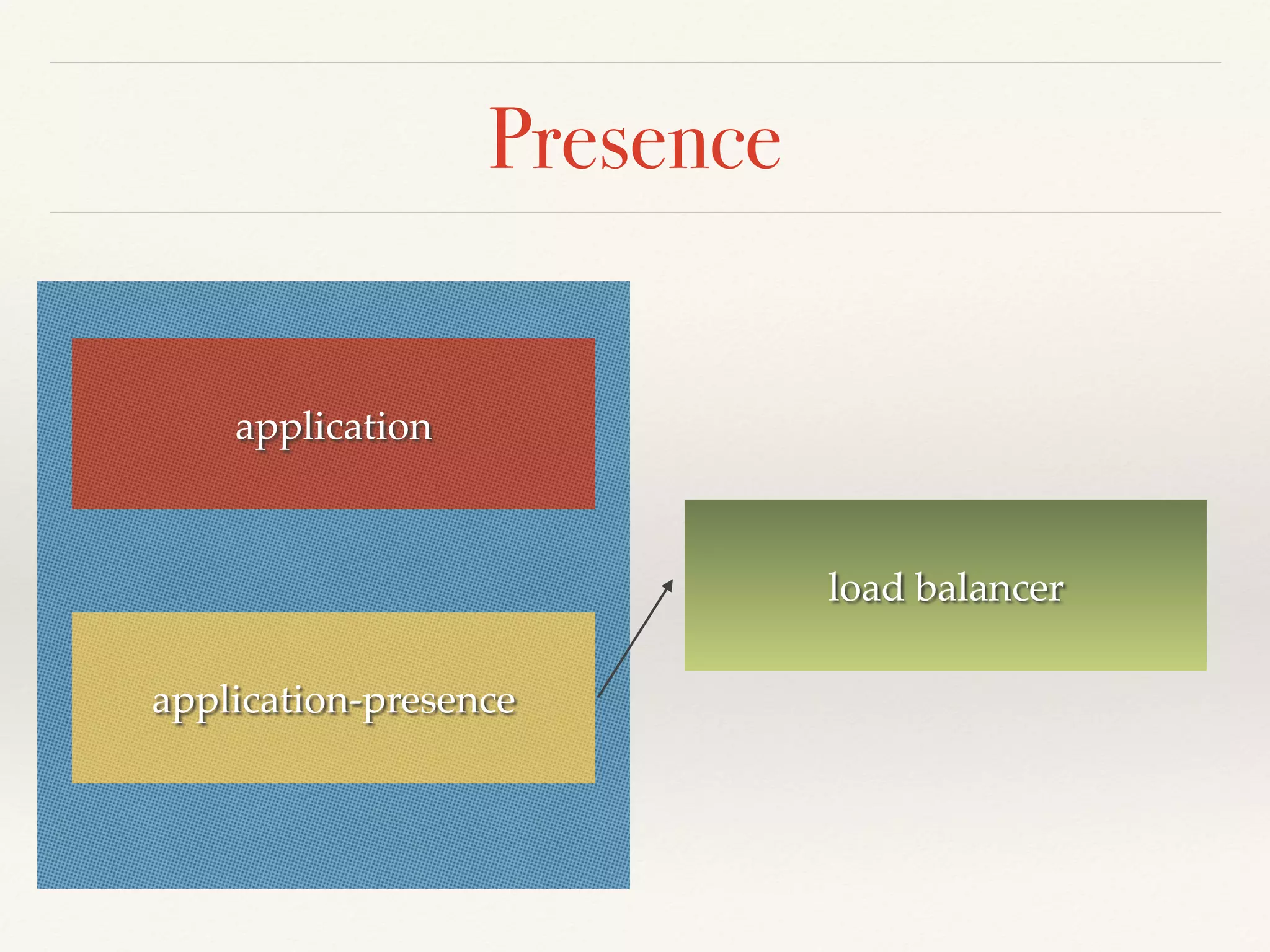

31. Presence
application
application-presence
load balancer

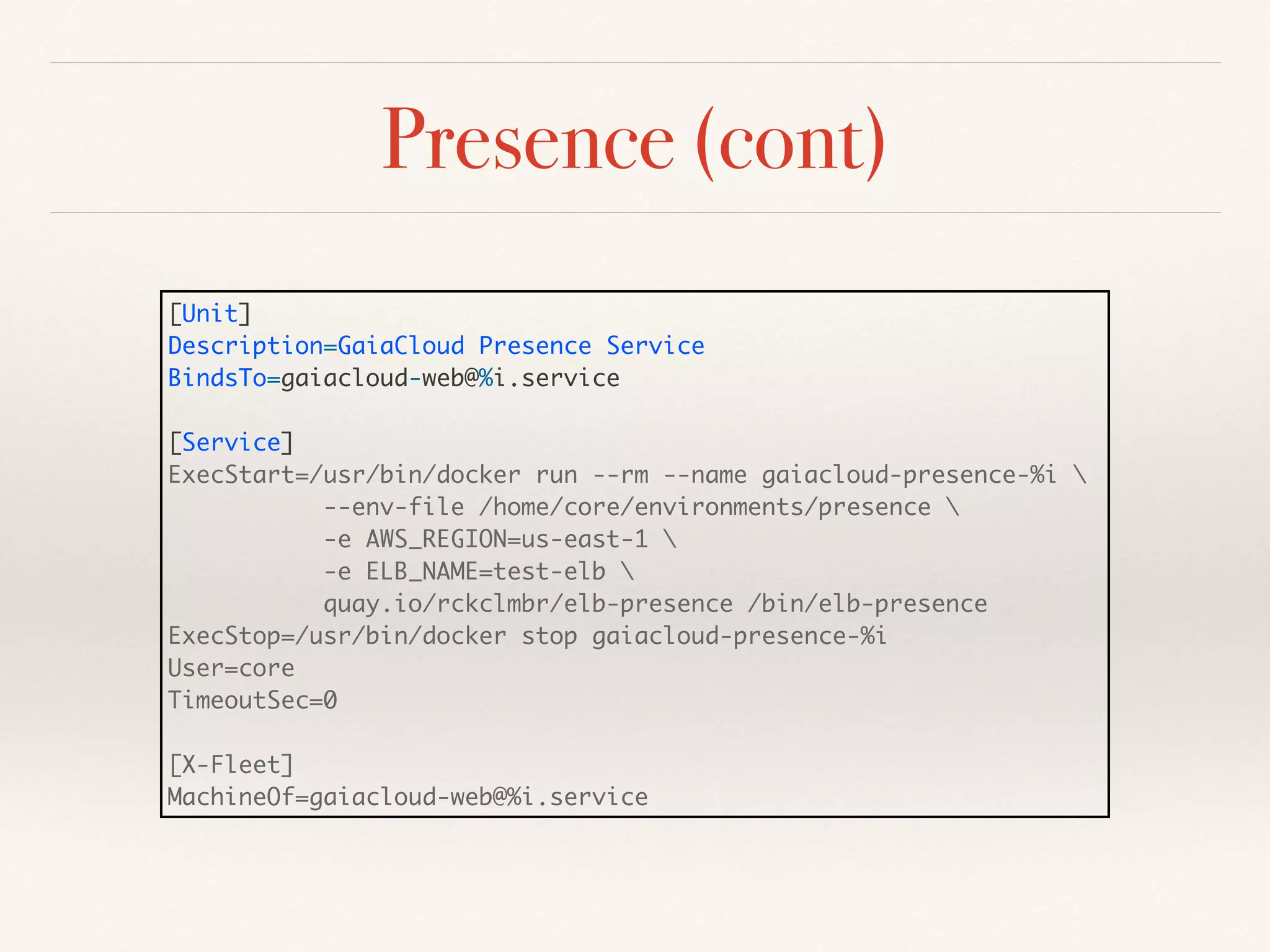

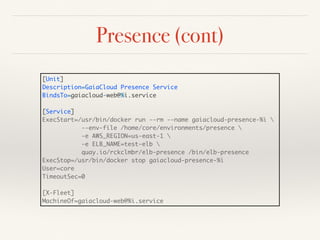

32. Presence (cont)
[Unit]
Description=GaiaCloud Presence Service
BindsTo=gaiacloud-web@%i.service
[Service]
ExecStart=/usr/bin/docker run --rm --name gaiacloud-presence-%i
--env-file /home/core/environments/presence
-e AWS_REGION=us-east-1
-e ELB_NAME=test-elb
quay.io/rckclmbr/elb-presence /bin/elb-presence
ExecStop=/usr/bin/docker stop gaiacloud-presence-%i
User=core
TimeoutSec=0
[X-Fleet]
MachineOf=gaiacloud-web@%i.service

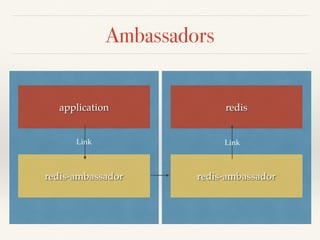

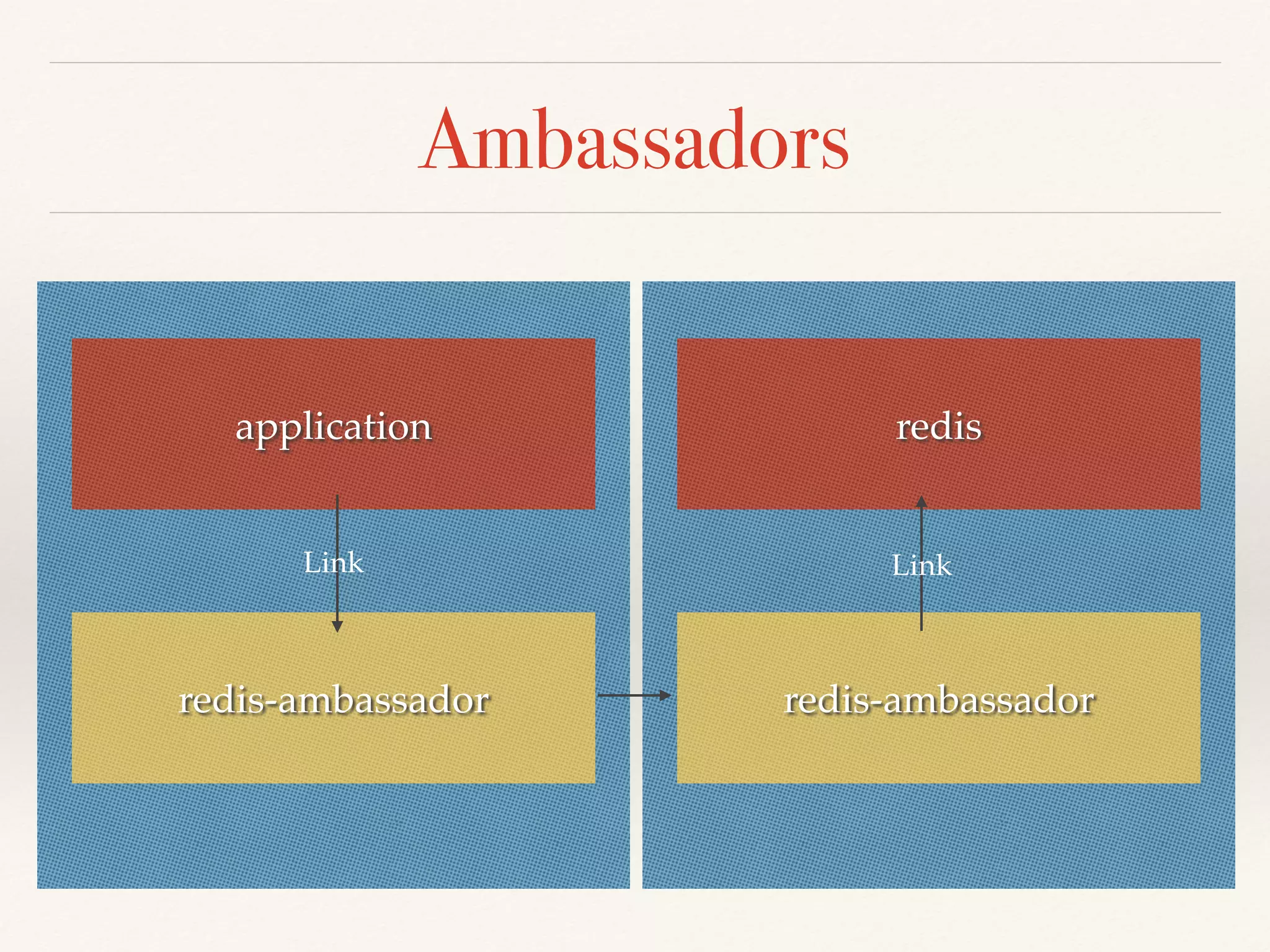

33. Ambassadors
application
redis-ambassador redis-ambassador
redis
LinkLink

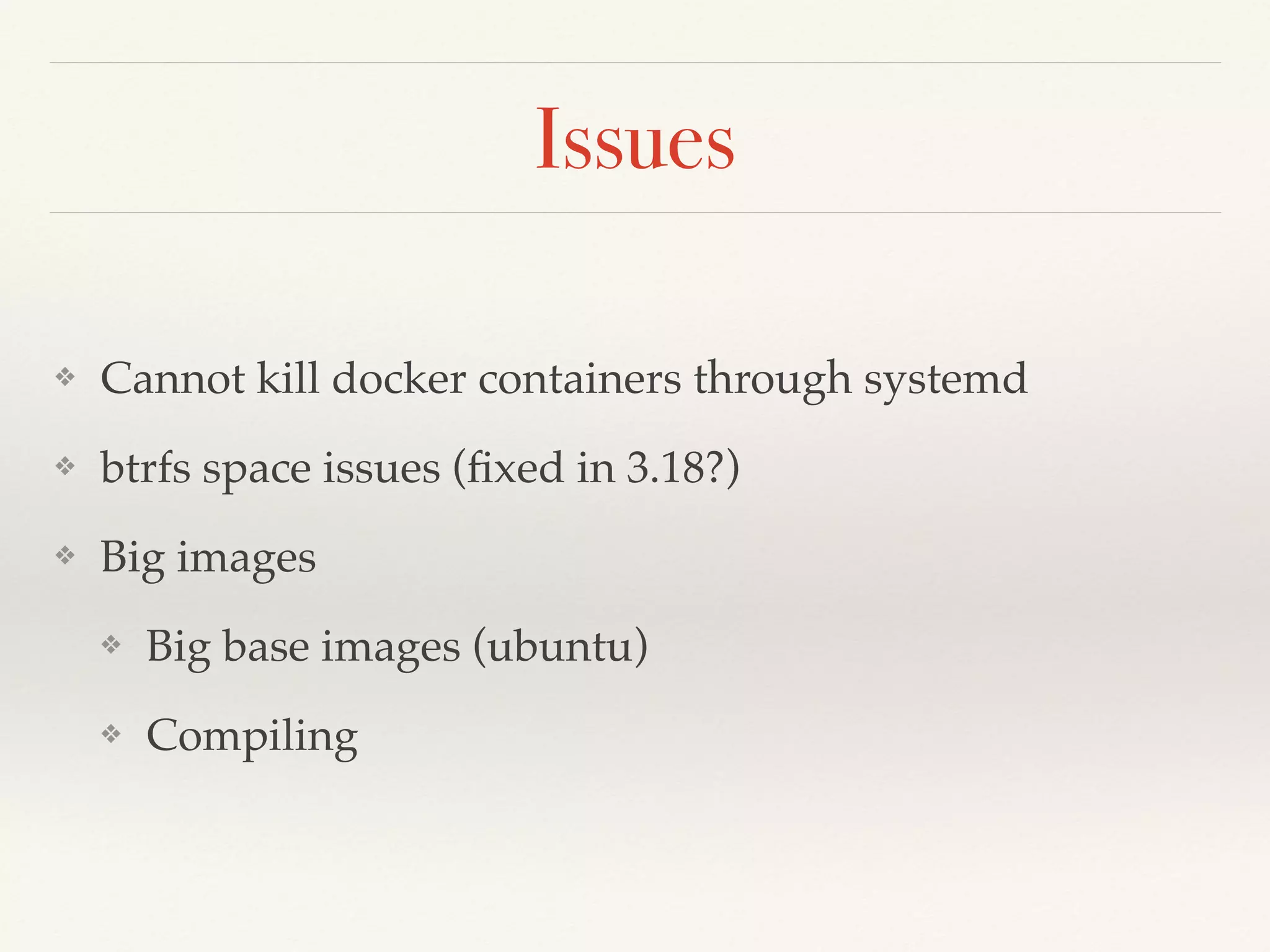

34. Issues
❖ Cannot kill docker containers through systemd

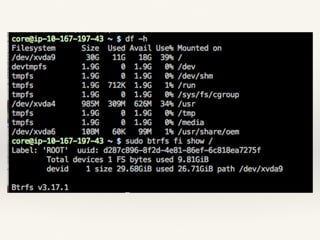

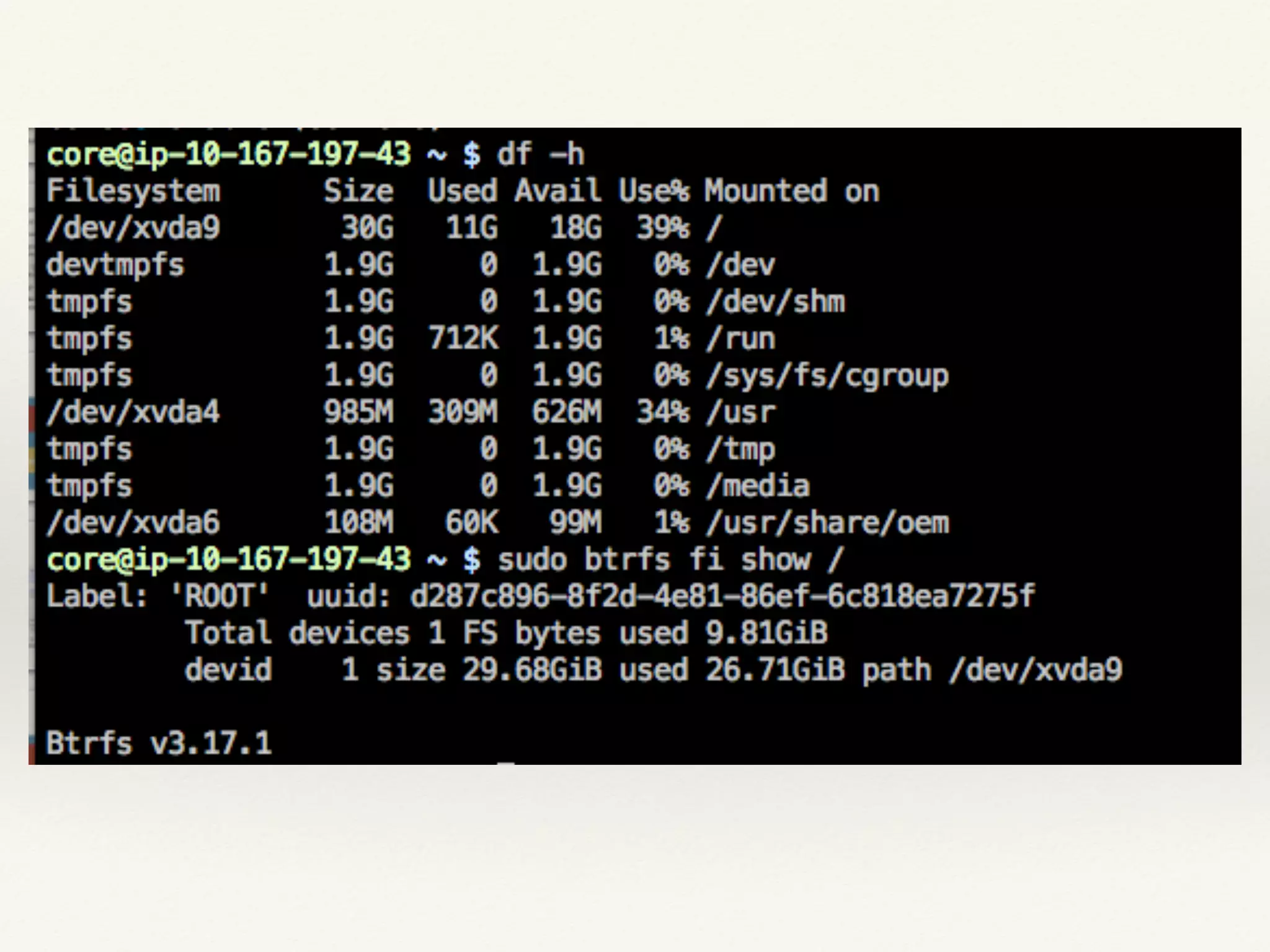

❖ btrfs space issues (fixed in 3.18?)
❖ Big images
❖ Big base images (ubuntu)
❖ Compiling

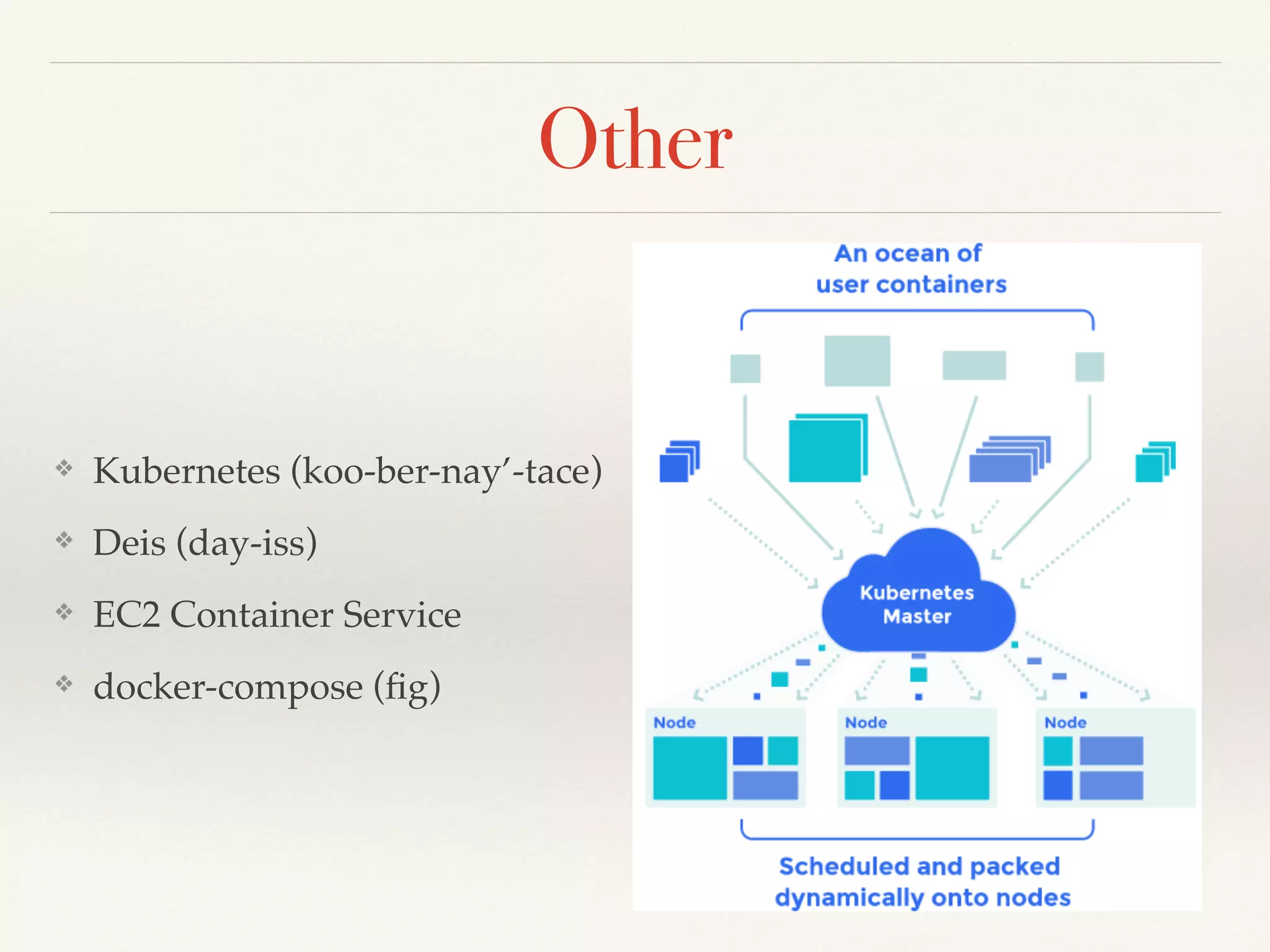

36. Other
❖ Kubernetes (koo-ber-nay’-tace)
❖ Deis (day-iss)
❖ EC2 Container Service
❖ docker-compose (fig)

37. Questions?
Twitter: @rckclmbr
Email: rckclmbr@gmail.com
Github: github.com/rckclmbr
Blargh: http://blog.braegger.pw
