1. HOW TO RIDE A WHALE
Creating a functionnal CoreOS cluster

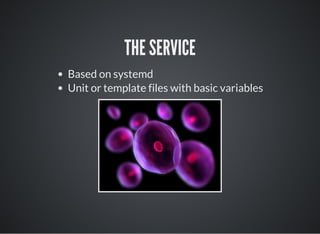

2. THE SERVICE
Based on systemd
Unit or template files with basic variables

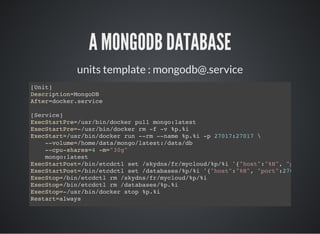

3. A MONGODB DATABASE
units template : mongodb@.service
[Unit]
Description=MongoDB
After=docker.service
[Service]
ExecStartPre=/usr/bin/docker pull mongo:latest
ExecStartPre=-/usr/bin/docker rm -f -v %p.%i
ExecStart=/usr/bin/docker run --rm --name %p.%i -p 27017:27017
--volume=/home/data/mongo/latest:/data/db
--cpu-shares=4 -m="30g"
mongo:latest
ExecStartPost=/bin/etcdctl set /skydns/fr/mycloud/%p/%i '{"host":"%H", "port"
ExecStartPost=/bin/etcdctl set /databases/%p/%i '{"host":"%H", "port":27017
ExecStop=/bin/etcdctl rm /skydns/fr/mycloud/%p/%i
ExecStop=/bin/etcdctl rm /databases/%p.%i
ExecStop=-/usr/bin/docker stop %p.%i
Restart=always

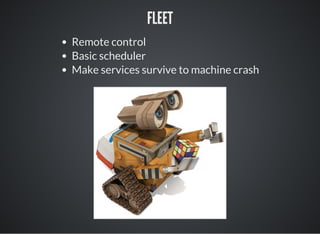

4. FLEET
Remote control
Basic scheduler
Make services survive to machine crash

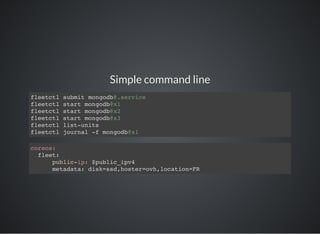

5. Simple command line
fleetctl submit mongodb@.service
fleetctl start mongodb@x1
fleetctl start mongodb@x2
fleetctl start mongodb@x3
fleetctl list-units
fleetctl journal -f mongodb@x1
coreos:
fleet:
public-ip: $public_ipv4
metadata: disk=ssd,hoster=ovh,location=FR

6. ETCD
Cluster registry
Raft consensus implementation
Use etcd2
http://thesecretlivesofdata.com/raft/

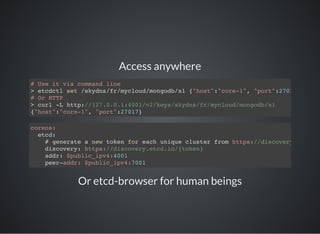

7. Access anywhere
# Use it via command line
> etcdctl set /skydns/fr/mycloud/mongodb/x1 {"host":"core-1", "port":27017
# Or HTTP
> curl -L http://127.0.0.1:4001/v2/keys/skydns/fr/mycloud/mongodb/x1
{"host":"core-1", "port":27017}
coreos:
etcd:
# generate a new token for each unique cluster from https://discovery.etcd.io
discovery: https://discovery.etcd.io/{token}
addr: $public_ipv4:4001
peer-addr: $public_ipv4:7001

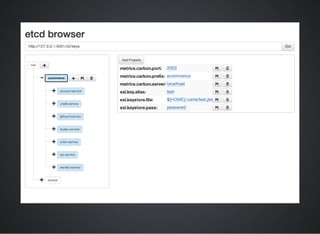

Or etcd-browser for human beings

9. SKYDNS
Nameserver (@95%)
Store and read data from etcd (or consul)
Simplest DNS to administrate ever

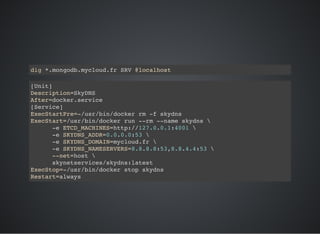

10. dig *.mongodb.mycloud.fr SRV @localhost
[Unit]
Description=SkyDNS
After=docker.service
[Service]
ExecStartPre=-/usr/bin/docker rm -f skydns
ExecStart=/usr/bin/docker run --rm --name skydns
-e ETCD_MACHINES=http://127.0.0.1:4001
-e SKYDNS_ADDR=0.0.0.0:53
-e SKYDNS_DOMAIN=mycloud.fr
-e SKYDNS_NAMESERVERS=8.8.8.8:53,8.8.4.4:53
--net=host
skynetservices/skydns:latest
ExecStop=-/usr/bin/docker stop skydns
Restart=always

11. CONFD
Read etcd and write config files
Basic go template
check, and reload services

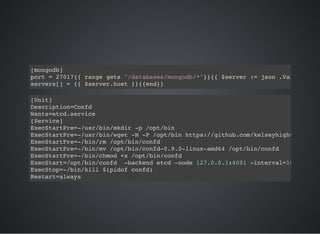

12. [mongodb]
port = 27017{{ range gets "/databases/mongodb/*"}}{{ $server := json .Value
servers[] = {{ $server.host }}{{end}}
[Unit]
Description=Confd
Wants=etcd.service
[Service]
ExecStartPre=-/usr/bin/mkdir -p /opt/bin
ExecStartPre=-/usr/bin/wget -N -P /opt/bin https://github.com/kelseyhightower
ExecStartPre=-/bin/rm /opt/bin/confd
ExecStartPre=-/bin/mv /opt/bin/confd-0.9.0-linux-amd64 /opt/bin/confd
ExecStartPre=-/bin/chmod +x /opt/bin/confd
ExecStart=/opt/bin/confd -backend etcd -node 127.0.0.1:4001 -interval=10
ExecStop=-/bin/kill $(pidof confd)
Restart=always

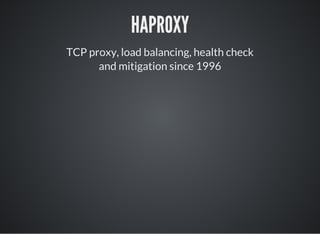

13. HAPROXY
TCP proxy, load balancing, health check
and mitigation since 1996

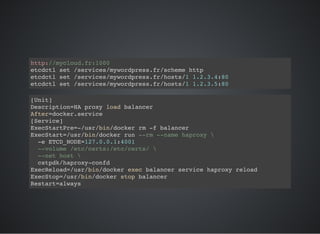

15. http://mycloud.fr:1000
etcdctl set /services/mywordpress.fr/scheme http
etcdctl set /services/mywordpress.fr/hosts/1 1.2.3.4:80
etcdctl set /services/mywordpress.fr/hosts/1 1.2.3.5:80
[Unit]
Description=HA proxy load balancer
After=docker.service
[Service]
ExecStartPre=-/usr/bin/docker rm -f balancer
ExecStart=/usr/bin/docker run --rm --name haproxy
-e ETCD_NODE=127.0.0.1:4001
--volume /etc/certs:/etc/certs/
--net host
cstpdk/haproxy-confd
ExecReload=/usr/bin/docker exec balancer service haproxy reload
ExecStop=/usr/bin/docker stop balancer
Restart=always

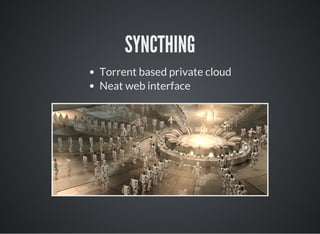

16. SYNCTHING
Torrent based private cloud
Neat web interface

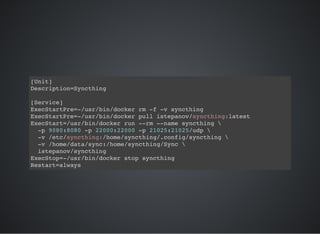

17. [Unit]
Description=Syncthing
[Service]
ExecStartPre=-/usr/bin/docker rm -f -v syncthing
ExecStartPre=-/usr/bin/docker pull istepanov/syncthing:latest
ExecStart=/usr/bin/docker run --rm --name syncthing
-p 9080:8080 -p 22000:22000 -p 21025:21025/udp
-v /etc/syncthing:/home/syncthing/.config/syncthing
-v /home/data/sync:/home/syncthing/Sync
istepanov/syncthing
ExecStop=-/usr/bin/docker stop syncthing
Restart=always

18. DATADOG
plug everything in easily
StatsD Graphite on vitamins
Monitoring and Alerting
Or cadvisor+heapster+fluentd or prometheus

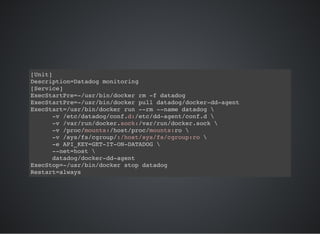

19. [Unit]
Description=Datadog monitoring
[Service]
ExecStartPre=-/usr/bin/docker rm -f datadog
ExecStartPre=-/usr/bin/docker pull datadog/docker-dd-agent
ExecStart=/usr/bin/docker run --rm --name datadog
-v /etc/datadog/conf.d:/etc/dd-agent/conf.d
-v /var/run/docker.sock:/var/run/docker.sock
-v /proc/mounts:/host/proc/mounts:ro
-v /sys/fs/cgroup/:/host/sys/fs/cgroup:ro
-e API_KEY=GET-IT-ON-DATADOG
--net=host
datadog/docker-dd-agent
ExecStop=-/usr/bin/docker stop datadog
Restart=always

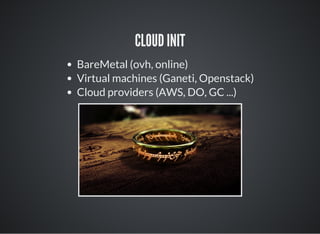

20. CLOUD INIT
BareMetal (ovh, online)
Virtual machines (Ganeti, Openstack)
Cloud providers (AWS, DO, GC ...)

21. #cloud-config
coreos:
update:
reboot-strategy: best-effort
group: stable
fleet:
public-ip: $public_ipv4
units:
- name: haproxy.service
command: start
content: |
[Unit]
....
write_files:
-
path: /etc/resolv.conf
owner: root:root
content: |

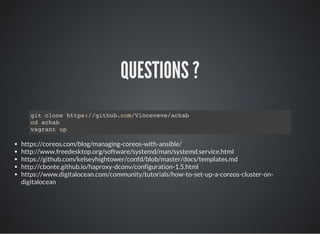

22. QUESTIONS ?
git clone https://github.com/Vinceveve/achab
cd achab
vagrant up
https://coreos.com/blog/managing-coreos-with-ansible/
http://www.freedesktop.org/software/systemd/man/systemd.service.html
https://github.com/kelseyhightower/confd/blob/master/docs/templates.md
http://cbonte.github.io/haproxy-dconv/configuration-1.5.html
https://www.digitalocean.com/community/tutorials/how-to-set-up-a-coreos-cluster-on-
digitalocean
