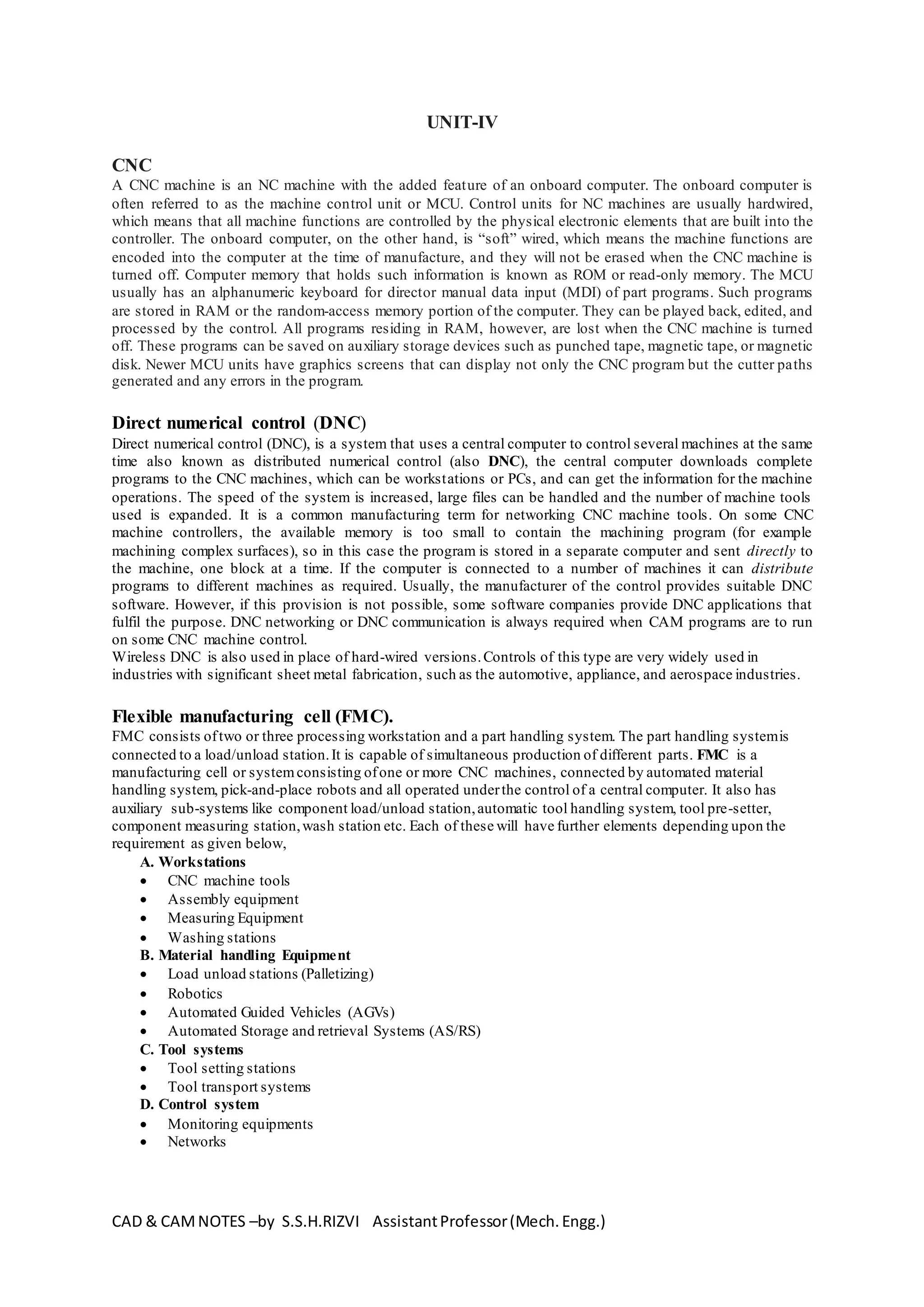

1. CAD & CAMNOTES –by S.S.H.RIZVI AssistantProfessor(Mech.Engg.)
UNIT-IV
CNC
A CNC machine is an NC machine with the added feature of an onboard computer. The onboard computer is
often referred to as the machine control unit or MCU. Control units for NC machines are usually hardwired,
which means that all machine functions are controlled by the physical electronic elements that are built into the
controller. The onboard computer, on the other hand, is “soft” wired, which means the machine functions are
encoded into the computer at the time of manufacture, and they will not be erased when the CNC machine is
turned off. Computer memory that holds such information is known as ROM or read-only memory. The MCU
usually has an alphanumeric keyboard for director manual data input (MDI) of part programs. Such programs
are stored in RAM or the random-access memory portion of the computer. They can be played back, edited, and
processed by the control. All programs residing in RAM, however, are lost when the CNC machine is turned
off. These programs can be saved on auxiliary storage devices such as punched tape, magnetic tape, or magnetic
disk. Newer MCU units have graphics screens that can display not only the CNC program but the cutter paths
generated and any errors in the program.
Direct numerical control (DNC)
Direct numerical control (DNC), is a system that uses a central computer to control several machines at the same
time also known as distributed numerical control (also DNC), the central computer downloads complete
programs to the CNC machines, which can be workstations or PCs, and can get the information for the machine
operations. The speed of the system is increased, large files can be handled and the number of machine tools
used is expanded. It is a common manufacturing term for networking CNC machine tools. On some CNC
machine controllers, the available memory is too small to contain the machining program (for example
machining complex surfaces), so in this case the program is stored in a separate computer and sent directly to
the machine, one block at a time. If the computer is connected to a number of machines it can distribute
programs to different machines as required. Usually, the manufacturer of the control provides suitable DNC
software. However, if this provision is not possible, some software companies provide DNC applications that
fulfil the purpose. DNC networking or DNC communication is always required when CAM programs are to run
on some CNC machine control.
Wireless DNC is also used in place of hard-wired versions.Controls of this type are very widely used in
industries with significant sheet metal fabrication, such as the automotive, appliance, and aerospace industries.
Flexible manufacturing cell (FMC).
FMC consists oftwo or three processing workstation and a part handling system. The part handling systemis
connected to a load/unload station.It is capable of simultaneous production of different parts. FMC is a
manufacturing cell or systemconsisting ofone or more CNC machines, connected by automated material
handling system, pick-and-place robots and all operated underthe control of a central computer. It also has
auxiliary sub-systems like component load/unload station,automatic tool handling system, tool pre-setter,
component measuring station,wash station etc. Each of these will have further elements depending upon the
requirement as given below,
A. Workstations
CNC machine tools
Assembly equipment
Measuring Equipment
Washing stations
B. Material handling Equipment
Load unload stations (Palletizing)
Robotics
Automated Guided Vehicles (AGVs)
Automated Storage and retrieval Systems (AS/RS)
C. Tool systems
Tool setting stations
Tool transport systems
D. Control system
Monitoring equipments
Networks
2. CAD & CAMNOTES –by S.S.H.RIZVI AssistantProfessor(Mech.Engg.)

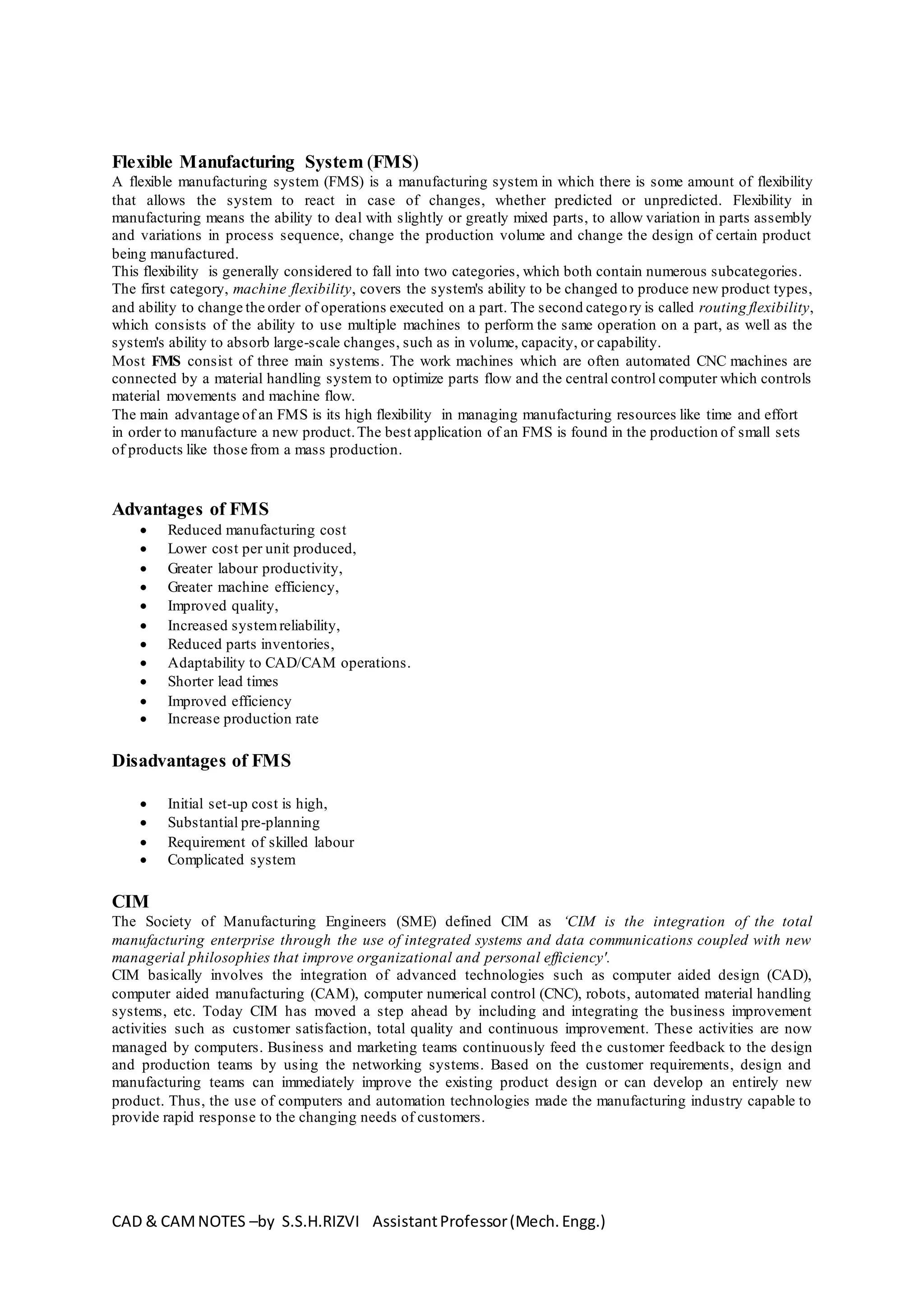

Flexible Manufacturing System (FMS)
A flexible manufacturing system (FMS) is a manufacturing system in which there is some amount of flexibility
that allows the system to react in case of changes, whether predicted or unpredicted. Flexibility in
manufacturing means the ability to deal with slightly or greatly mixed parts, to allow variation in parts assembly
and variations in process sequence, change the production volume and change the design of certain product
being manufactured.
This flexibility is generally considered to fall into two categories, which both contain numerous subcategories.
The first category, machine flexibility, covers the system's ability to be changed to produce new product types,
and ability to change the order of operations executed on a part. The second category is called routing flexibility,
which consists of the ability to use multiple machines to perform the same operation on a part, as well as the
system's ability to absorb large-scale changes, such as in volume, capacity, or capability.
Most FMS consist of three main systems. The work machines which are often automated CNC machines are
connected by a material handling system to optimize parts flow and the central control computer which controls
material movements and machine flow.
The main advantage of an FMS is its high flexibility in managing manufacturing resources like time and effort
in order to manufacture a new product.The best application of an FMS is found in the production of small sets
of products like those from a mass production.
Advantages of FMS
Reduced manufacturing cost
Lower cost per unit produced,
Greater labour productivity,
Greater machine efficiency,
Improved quality,
Increased systemreliability,
Reduced parts inventories,
Adaptability to CAD/CAM operations.
Shorter lead times
Improved efficiency
Increase production rate
Disadvantages of FMS
Initial set-up cost is high,
Substantial pre-planning
Requirement of skilled labour
Complicated system
CIM
The Society of Manufacturing Engineers (SME) defined CIM as ‘CIM is the integration of the total
manufacturing enterprise through the use of integrated systems and data communications coupled with new
managerial philosophies that improve organizational and personal efficiency'.
CIM basically involves the integration of advanced technologies such as computer aided design (CAD),
computer aided manufacturing (CAM), computer numerical control (CNC), robots, automated material handling
systems, etc. Today CIM has moved a step ahead by including and integrating the business improvement
activities such as customer satisfaction, total quality and continuous improvement. These activities are now
managed by computers. Business and marketing teams continuously feed the customer feedback to the design
and production teams by using the networking systems. Based on the customer requirements, design and
manufacturing teams can immediately improve the existing product design or can develop an entirely new
product. Thus, the use of computers and automation technologies made the manufacturing industry capable to
provide rapid response to the changing needs of customers.
3. CAD & CAMNOTES –by S.S.H.RIZVI AssistantProfessor(Mech.Engg.)
Automated Guided Vehicles
Automated guided vehicle systems (AGVs), commonly known as driverless vehicles, are turning out to be an
important part of the automated manufacturing system. With the shift from mass production to mid volume and
mid variety, flexible manufacturing systems are increasingly in use. They require not only machine flexibility
but also material handling, storage, and retrieval flexibility. Hence, the importance of AGVs has grown in
manifold. It is a battery powered driverless vehicle with programming capabilities for destination, path selection
and positioning. The AGVs belongs to a class of highly flexible, intelligent, and versatile material handling
systems used to transport materials from various loading locations to various unloading locations throughout the
facility. The capability related to collision avoidance is nicely inbuilt in AGVS. Therefore, the vehicle comes to
a dead stop before any damage is done to the personnel, materials, or structures. They are becoming an integral
part of flexible manufacturing system installations. Now a day, AGVS are versatile in nature and possess
flexible material handling system. They use modern microprocessor technology to guide a vehicle along a
prescribed path and makes correction if the vehicle strays from the path. A system controller receives
instructions directly from the host computer, communicates with other vehicles, and issues appropriate
commands to each vehicle. To avoid collision, communication is necessary among the AGVs. To facilitate the
communication, they are connected through a wire in the floor or by radio.
Components of AGVS
There are four main components of an automated guided vehicle system.
They are as follows:
The Vehicle: It is used to move the material within the systemwithout a human operator.
The Guide Path: It guides the vehicle to move along the path.
The Control Unit: It monitors and directs system operations including feedback on moves, inventory, and
vehicles.
The Computer Interface: It is connected with other computers and systems such as mainframe host computer,
the Automated Storage and Retrieval System (AS/RS), and the Flexible Manufacturing System.
Different Types of AGVS
There are different types of automated guided vehicles that are able to cater different service requirements. The
vehicle types include:
AGVS towing vehicles
AGVS unit load transporters
AGVS pallet trucks
AGVS forklift trucks
AGVS light load transporters
AGVS assembly line vehicles
ROBOTS
An industrial robot is a general purpose, programmable machine possessing certain anthropomorphic
characteristics. Mechanical arm is the most common characteristic of an industrial arm and is used to perform
various industrial tasks. Making decisions, capability to communicate with other machines, and capability to
respond to sensory inputs are the important attributes of an industrial robot. These capabilities allow the robots
to be more versatile in nature. It involves the coordinated control of multiple axes(joints) and use dedicated
digital computers as controllers. The various reasons for the commercial and technological importance of
industrial robots include the following:
(i)Robots can be substituted for humans in hazardous or uncomfortable work environments. A robot performs its
work cycle with a consistency and repeatability that cannot be attained by humans.
(ii)Robots can be reprogrammed. When the production run of the current task is completed, a robot can be
reprogrammed and equipped with necessary tooling to performan altogether different task.
(iii)Robots are controlled by computers and can therefore be connected to other computer systems to achieve
computer integrated manufacturing.
Robot Anatomy
A robot joint is a mechanism that permits relative movement between parts of a robot arm. The joints of a robot
are designed to enable the robot to move its end effector along a path fromone position to another as desired.
The basic movements required for the desired motion of most industrial robots are:
4. CAD & CAMNOTES –by S.S.H.RIZVI AssistantProfessor(Mech.Engg.)

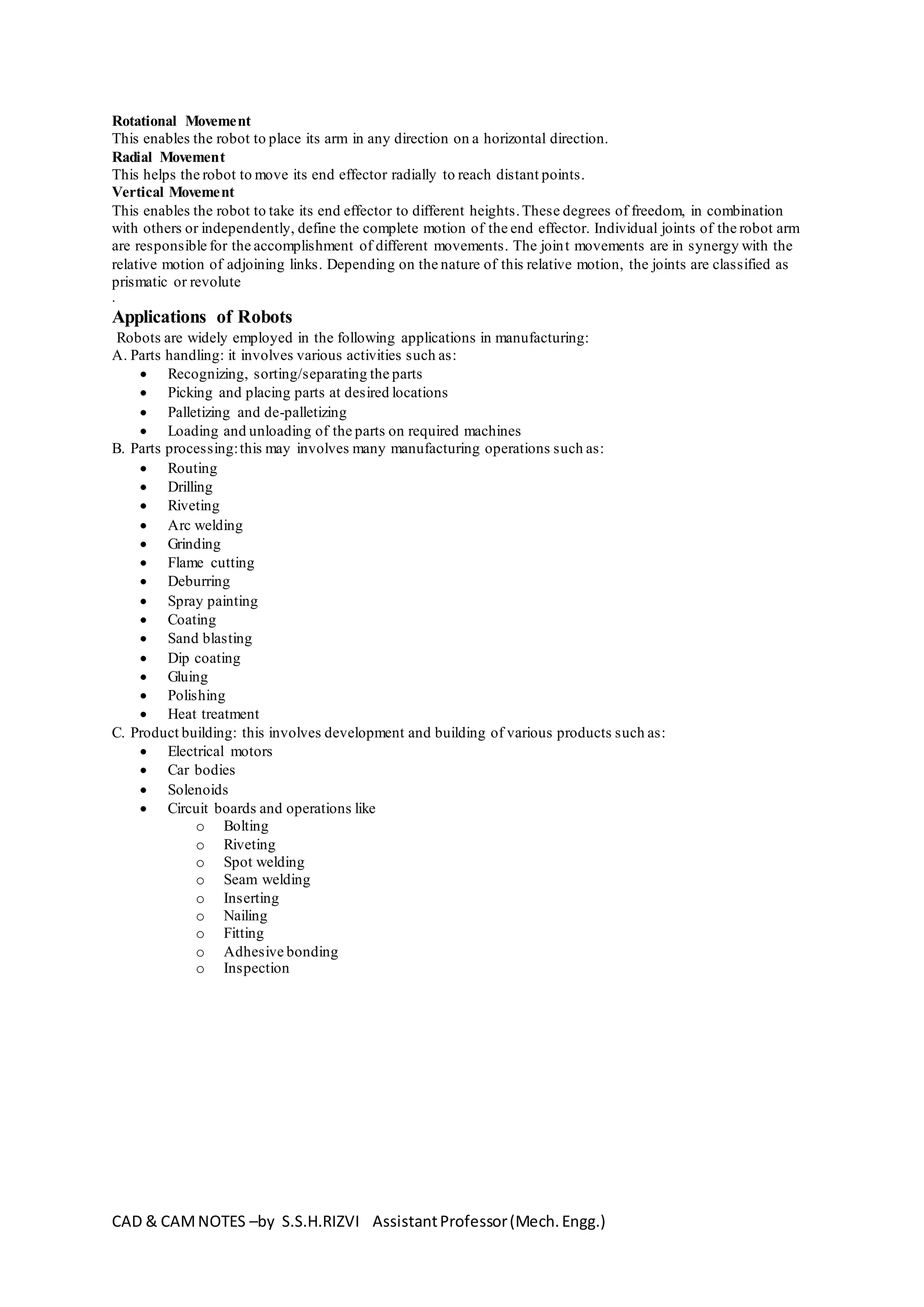

Rotational Movement
This enables the robot to place its arm in any direction on a horizontal direction.
Radial Movement
This helps the robot to move its end effector radially to reach distant points.
Vertical Movement
This enables the robot to take its end effector to different heights.These degrees of freedom, in combination
with others or independently, define the complete motion of the end effector. Individual joints of the robot arm
are responsible for the accomplishment of different movements. The joint movements are in synergy with the
relative motion of adjoining links. Depending on the nature of this relative motion, the joints are classified as
prismatic or revolute
.
Applications of Robots
Robots are widely employed in the following applications in manufacturing:
A. Parts handling: it involves various activities such as:
Recognizing, sorting/separating the parts
Picking and placing parts at desired locations
Palletizing and de-palletizing
Loading and unloading of the parts on required machines
B. Parts processing:this may involves many manufacturing operations such as:
Routing
Drilling
Riveting
Arc welding
Grinding
Flame cutting
Deburring
Spray painting
Coating
Sand blasting
Dip coating
Gluing
Polishing
Heat treatment
C. Product building: this involves development and building of various products such as:
Electrical motors
Car bodies
Solenoids
Circuit boards and operations like
o Bolting
o Riveting
o Spot welding
o Seam welding
o Inserting
o Nailing
o Fitting
o Adhesive bonding
o Inspection
