1. A Video REVOLUTION in 3D Modeling
Changing the Landscape of Subsea 3D Modeling

2. DimEye Corp.
Arnauld Dumont - President
!
Patrick Raymond - Business Development

3. Agenda
Company Introduction
A Brief History and Introduction to Photogrammetry
The VLS
Case Study: Flex Joint 3D Modeling
Additional VLS Applications

4. Company
Measurement by Optical Techniques
20+ Years of Close Range Photogrammetry and Laser Technologies
Experience
Active R&D Program

5. A Brief History...

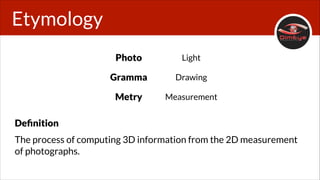

6. Etymology
Light
Gramma
Drawing
Metry
Measurement
Definition
!
The process of computing 3D information from the 2D measurement
of photographs.

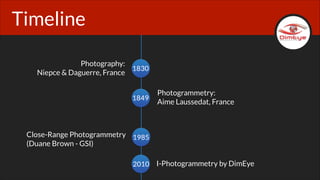

7. Timeline
Photography:
Niepce & Daguerre, France
Photogrammetry:
Aime Laussedat, France
Close-Range Photogrammetry
(Duane Brown - GSI)
I-Photogrammetry by DimEye

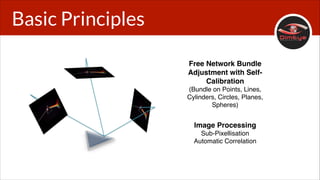

8. Basic Principles
Free Network Bundle
Adjustment with SelfCalibration!
(Bundle on Points, Lines,
Cylinders, Circles, Planes,
Spheres)!
!
Image Processing!
Sub-Pixellisation!
Automatic Correlation!

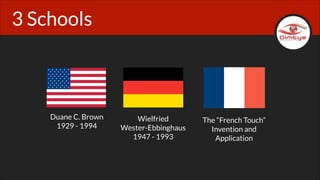

9. 3 Schools
Duane C. Brown
1929 - 1994
Wielfried
Wester-Ebbinghaus
1947 - 1993
The “French Touch”
Invention and
Application

10. The VLS
VLS: Video Laser Scan
HD Video + Laser
Benefits of Both Technologies without the Limitations
No Stability Requirements, Data Capture “on the fly”
Highly Automated Image Processing
Developed for Oil & Gas applications
In Use Today

11. Video: Pipe Dent Inspection

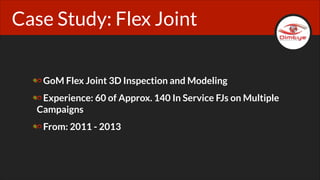

12. Case Study: Flex Joint
GoM Flex Joint 3D Inspection and Modeling
Experience: 60 of Approx. 140 In Service FJs on Multiple
Campaigns
From: 2011 - 2013

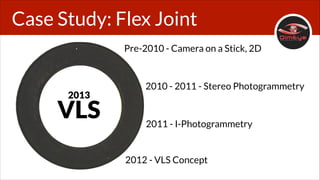

13. Case Study: Flex Joint
Pre-2010 - Camera on a Stick, 2D
2013
VLS
2010 - 2011 - Stereo Photogrammetry
2011 - I-Photogrammetry
2012 - VLS Concept

14. Case Study: Flex Joint
2 DimEye Personnel
DimEye VLS System
5 Minutes Per FJ Data Collection Time (Assumes an FJ
Prepared for Visual Inspection)

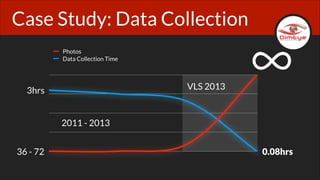

15. Case Study: Data Collection
Photos
Data Collection Time
VLS 2013
3hrs
2011 - 2013
36 - 72
0.08hrs

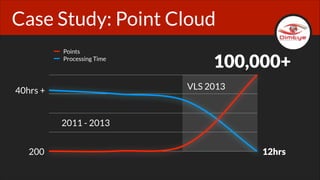

16. Case Study: Point Cloud
Points
Processing Time
100,000+
VLS 2013
40hrs +
2011 - 2013
200
12hrs

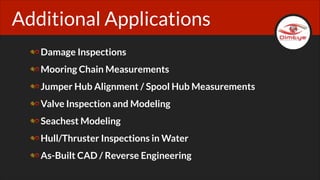

17. Additional Applications
Damage Inspections
Mooring Chain Measurements
Jumper Hub Alignment / Spool Hub Measurements
Valve Inspection and Modeling
Seachest Modeling
Hull/Thruster Inspections in Water
As-Built CAD / Reverse Engineering

18. Video: Mooring Chain Measurement

19. Summary
Efficient (Onshore / Offshore)
Cost Effective
Flexible
High Accuracy 3D Modeling
Better IM Decisions

20. Summary
If You Can Fly It… We Can Model It…
