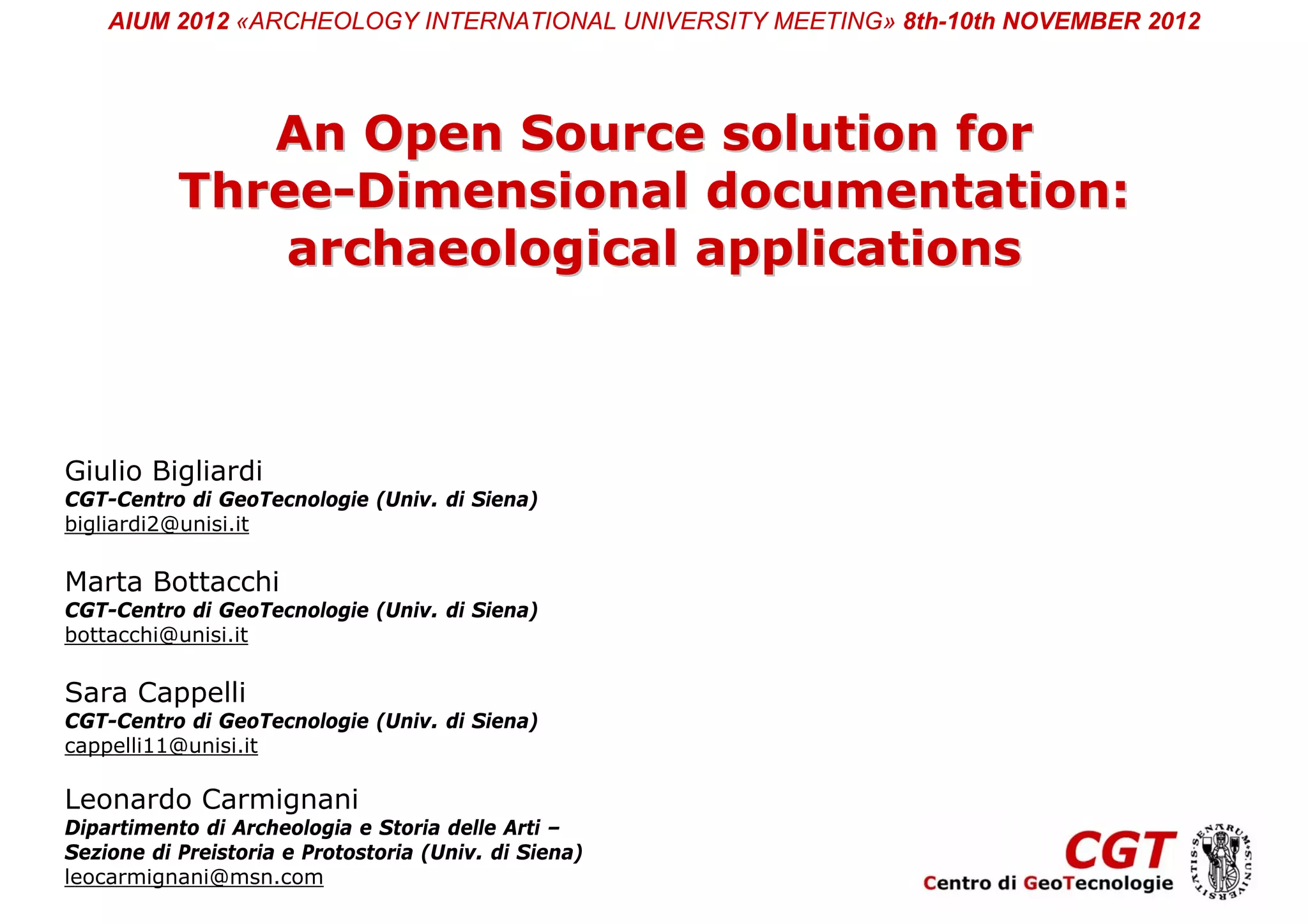

AIUM 2012 «ARCHEOLOGY INTERNATIONAL UNIVERSITY MEETING» 8th-10th NOVEMBER 2012




              An Open Source solution for
           Three-Dimensional documentation:
               archaeological applications



Giulio Bigliardi
CGT-Centro di GeoTecnologie (Univ. di Siena)
bigliardi2@unisi.it

Marta Bottacchi
CGT-Centro di GeoTecnologie (Univ. di Siena)
bottacchi@unisi.it

Sara Cappelli
CGT-Centro di GeoTecnologie (Univ. di Siena)
cappelli11@unisi.it

Leonardo Carmignani
Dipartimento di Archeologia e Storia delle Arti –
Sezione di Preistoria e Protostoria (Univ. di Siena)
leocarmignani@msn.com

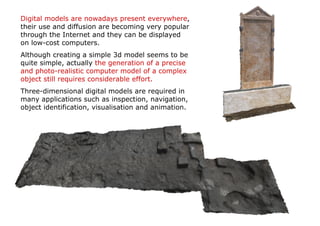

Digital models are nowadays present everywhere,
their use and diffusion are becoming very popular
through the Internet and they can be displayed
on low-cost computers.
Although creating a simple 3d model seems to be
quite simple, actually the generation of a precise
and photo-realistic computer model of a complex
object still requires considerable effort.
Three-dimensional digital models are required in
many applications such as inspection, navigation,
object identification, visualisation and animation.

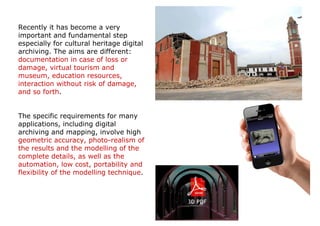

Recently it has become a very
important and fundamental step
especially for cultural heritage digital
archiving. The aims are different:
documentation in case of loss or
damage, virtual tourism and
museum, education resources,
interaction without risk of damage,
and so forth.


The specific requirements for many
applications, including digital
archiving and mapping, involve high
geometric accuracy, photo-realism of
the results and the modelling of the
complete details, as well as the
automation, low cost, portability and
flexibility of the modelling technique.
Three-dimensional modelling of objects
and scenes is an intensive and long-
lasting research problem in the graphic,
vision and photogrammetric
communities.
3D Digital copy can be done by different
technology, laser (ground), lidar
(aerial), photogrammetry.                                                 Lidar



                                           Nowadays the most common
                                           geomatics techniques used for 3D
                                           documentation, reconstruction and
                                           interpretation process in the
                                           archaeological field are based on
                                           image data (e.g. photogrammetry) or
                                           range data (e.g. active sensors such
                                           as laser scanners). Both approaches
                                           have their own advantages and
                                           disadvantages and generally the
                                           choice between them is made
                                           according to the budget, project size
                                           and goal, required degree of detail
                          Laser Scanner    and experience of the working team.
Image-Based Modelling and Structure from Motion

Nowadays 3D scanners are also becoming a
standard source for input data in many
application areas, but the modern techniques
of Structure from Motion (SfM) and Image-
Based Modelling (IBM) open new perspectives
in the field of archaeological documentation,
providing a simple and accurate way in
recording three-dimensional data.


In computer graphics and computer vision,
Structure from Motion (SfM) and Image-Based
Modelling (IBM) methods rely on a set of two-
dimensional images of a scene to generate a
three-dimensional model.


Compared to laser scanners, the main
advantages of SfM and IBM are that the
sensors are generally cheaper and portable
and that 3D information can be accurately
recovered regardless of the size of the object.

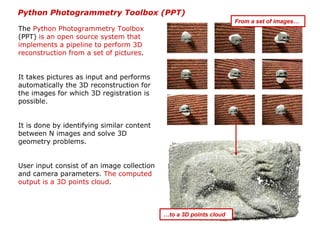

Python Photogrammetry Toolbox (PPT)
                                                                    From a set of images…
The Python Photogrammetry Toolbox
(PPT) is an open source system that
implements a pipeline to perform 3D
reconstruction from a set of pictures.


It takes pictures as input and performs
automatically the 3D reconstruction for
the images for which 3D registration is
possible.


It is done by identifying similar content
between N images and solve 3D
geometry problems.


User input consist of an image collection
and camera parameters. The computed
output is a 3D points cloud.



                                            …to a 3D points cloud

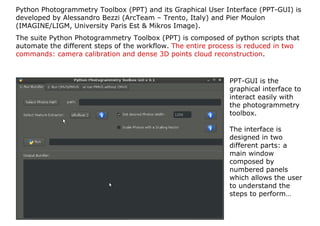

Python Photogrammetry Toolbox (PPT) and its Graphical User Interface (PPT-GUI) is
developed by Alessandro Bezzi (ArcTeam – Trento, Italy) and Pier Moulon
(IMAGINE/LIGM, University Paris Est & Mikros Image).
The suite Python Photogrammetry Toolbox (PPT) is composed of python scripts that
automate the different steps of the workflow. The entire process is reduced in two
commands: camera calibration and dense 3D points cloud reconstruction.



                                                             PPT-GUI is the
                                                             graphical interface to
                                                             interact easily with
                                                             the photogrammetry
                                                             toolbox.

                                                             The interface is
                                                             designed in two
                                                             different parts: a
                                                             main window
                                                             composed by
                                                             numbered panels
                                                             which allows the user
                                                             to understand the
                                                             steps to perform…

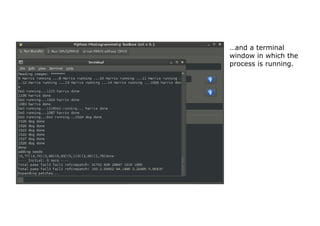

…and a terminal
window in which the
process is running.
RunBundler performs
the camera calibration
step.
Bundler is a structure-
from-motion (SfM)
system written in C
and C++ for
unordered image
collections.
It computes the 3D
camera pose from a
set of images. It
needs only two
parameters: camera
model and sensor
width size.

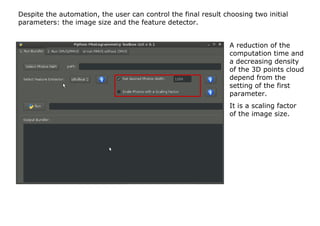

Despite the automation, the user can control the final result choosing two initial
parameters: the image size and the feature detector.


                                                                A reduction of the
                                                                computation time and
                                                                a decreasing density
                                                                of the 3D points cloud
                                                                depend from the
                                                                setting of the first
                                                                parameter.
                                                                It is a scaling factor
                                                                of the image size.

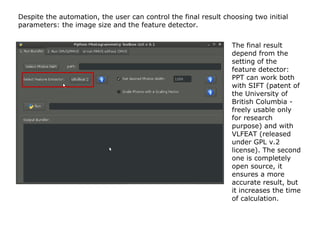

Despite the automation, the user can control the final result choosing two initial
parameters: the image size and the feature detector.


                                                                The final result
                                                                depend from the
                                                                setting of the
                                                                feature detector:
                                                                PPT can work both
                                                                with SIFT (patent of
                                                                the University of
                                                                British Columbia -
                                                                freely usable only
                                                                for research
                                                                purpose) and with
                                                                VLFEAT (released
                                                                under GPL v.2
                                                                license). The second
                                                                one is completely
                                                                open source, it
                                                                ensures a more
                                                                accurate result, but
                                                                it increases the time
                                                                of calculation.
RunCMVS takes the
output of structure-
from-motion (SfM)
software as input, and
perform the dense 3D
point cloud
computation.
Data conversion from
Bundler format to
CMVS/PMVS format is
made by using
Bundle2PMVS and
RadialUndistort.

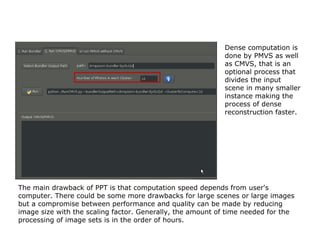

Dense computation is
                                                           done by PMVS as well
                                                           as CMVS, that is an
                                                           optional process that
                                                           divides the input
                                                           scene in many smaller
                                                           instance making the
                                                           process of dense
                                                           reconstruction faster.




The main drawback of PPT is that computation speed depends from user's
computer. There could be some more drawbacks for large scenes or large images
but a compromise between performance and quality can be made by reducing
image size with the scaling factor. Generally, the amount of time needed for the
processing of image sets is in the order of hours.

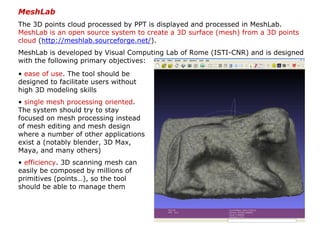

MeshLab
The 3D points cloud processed by PPT is displayed and processed in MeshLab.
MeshLab is an open source system to create a 3D surface (mesh) from a 3D points
cloud (http://meshlab.sourceforge.net/).
MeshLab is developed by Visual Computing Lab of Rome (ISTI-CNR) and is designed
with the following primary objectives:
• ease of use. The tool should be
designed to facilitate users without
high 3D modeling skills
• single mesh processing oriented.
The system should try to stay
focused on mesh processing instead
of mesh editing and mesh design
where a number of other applications
exist a (notably blender, 3D Max,
Maya, and many others)
• efficiency. 3D scanning mesh can
easily be composed by millions of
primitives (points…), so the tool
should be able to manage them

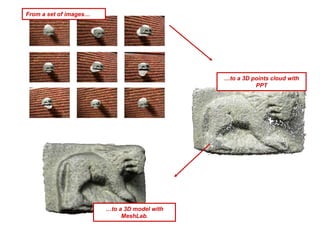

From a set of images…




                                              …to a 3D points cloud with
                                                        PPT




                        …to a 3D model with
                             MeshLab.

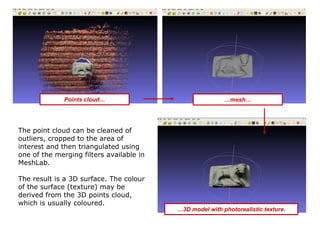

Points cloud…                               …mesh…




The point cloud can be cleaned of
outliers, cropped to the area of
interest and then triangulated using
one of the merging filters available in
MeshLab.

The result is a 3D surface. The colour
of the surface (texture) may be
derived from the 3D points cloud,
which is usually coloured.
                                          …3D model with photorealistic texture.
Step 1: import the points cloud

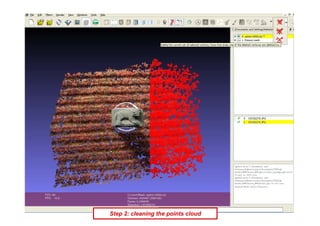

Step 2: cleaning the points cloud
Step 3: surface reconstruction (Poisson or Ball Pivoting approach)

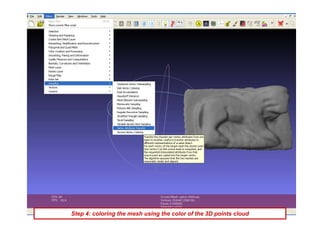

Step 4: coloring the mesh using the color of the 3D points cloud
The 3D model
Archaeological applications: Finds

Archaeological finds can be documented “in situ”, taking pictures moving around
the object, or in laboratory.

In this case 9 pictures were taken with a NIKON Coolpix L110 at 12 MP.
Archaeological applications: Finds

Archaeological finds can be documented “in situ”, taking pictures moving around
the object, or in laboratory.

In this case 9 pictures were taken with a NIKON Coolpix L110 at 12 MP.




In PPT the image were elaborated             In MeshLab the mesh was created
with the feature detector VLFEAT and         with the Poisson surface
with a scaling factor of 0.75.               reconstruction filter (octree depth 10,
                                             solver divide 9) and the coloured.

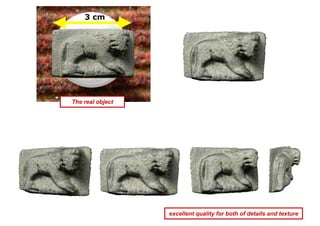

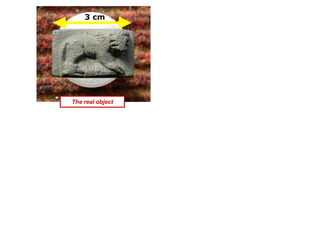

3 cm




The real object
3 cm




The real object




                  excellent quality for both of details and texture

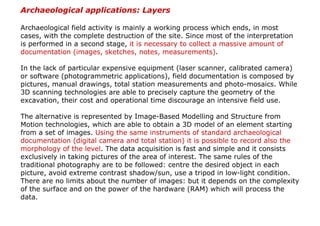

Archaeological applications: Layers

Archaeological field activity is mainly a working process which ends, in most
cases, with the complete destruction of the site. Since most of the interpretation
is performed in a second stage, it is necessary to collect a massive amount of
documentation (images, sketches, notes, measurements).

In the lack of particular expensive equipment (laser scanner, calibrated camera)
or software (photogrammetric applications), field documentation is composed by
pictures, manual drawings, total station measurements and photo-mosaics. While
3D scanning technologies are able to precisely capture the geometry of the
excavation, their cost and operational time discourage an intensive field use.

The alternative is represented by Image-Based Modelling and Structure from
Motion technologies, which are able to obtain a 3D model of an element starting
from a set of images. Using the same instruments of standard archaeological
documentation (digital camera and total station) it is possible to record also the
morphology of the level. The data acquisition is fast and simple and it consists
exclusively in taking pictures of the area of interest. The same rules of the
traditional photography are to be followed: centre the desired object in each
picture, avoid extreme contrast shadow/sun, use a tripod in low-light condition.
There are no limits about the number of images: but it depends on the complexity
of the surface and on the power of the hardware (RAM) which will process the
data.

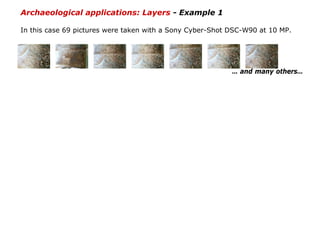

Archaeological applications: Layers - Example 1

In this case 69 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP.




                                                           … and many others…

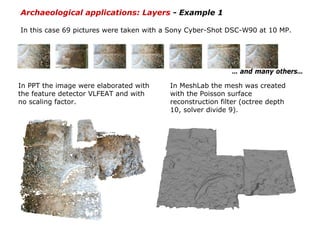

Archaeological applications: Layers - Example 1

In this case 69 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP.




                                                           … and many others…

In PPT the image were elaborated with    In MeshLab the mesh was created
the feature detector VLFEAT and with     with the Poisson surface
no scaling factor.                       reconstruction filter (octree depth
                                         10, solver divide 9).

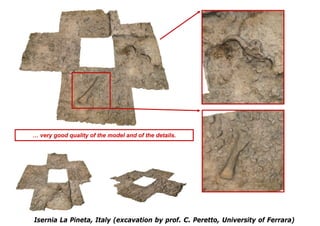

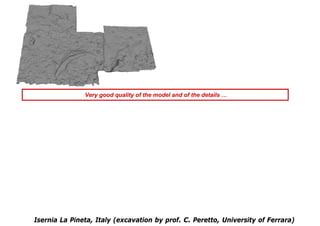

Very good quality of the model and of the details …

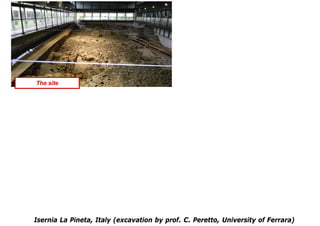

Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)

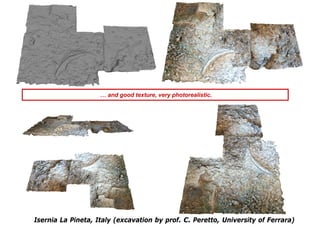

… and good texture, very photorealistic.




Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)

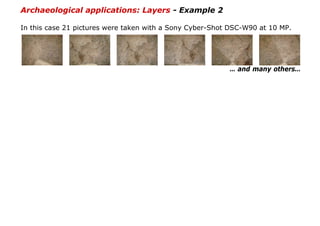

Archaeological applications: Layers - Example 2

In this case 21 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP.




                                                          … and many others…
Archaeological applications: Layers - Example 2

In this case 21 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP.




                                                           … and many others…
In PPT the image were elaborated       In MeshLab the mesh was created with
with the feature detector VLFEAT       the Poisson surface reconstruction filter
and with a scaling factor of 0.75.     (octree depth 10, solver divide 9)

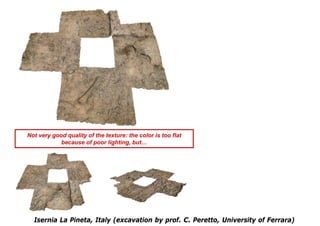

Not very good quality of the texture: the color is too flat
            because of poor lighting, but…




  Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
… very good quality of the model and of the details.




Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
… very good quality of the model and of the details.




Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)

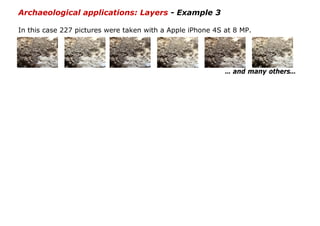

Archaeological applications: Layers - Example 3

In this case 227 pictures were taken with a Apple iPhone 4S at 8 MP.




                                                            … and many others…
Archaeological applications: Layers - Example 3

In this case 227 pictures were taken with a Apple iPhone 4S at 8 MP.




                                                            … and many others…


In PPT the image were
elaborated with the
feature detector VLFEAT
and with a scaling factor
of 0.25.




In MeshLab the mesh was
created with the Poisson
surface reconstruction
filter (octree depth 10,
solver divide 9)

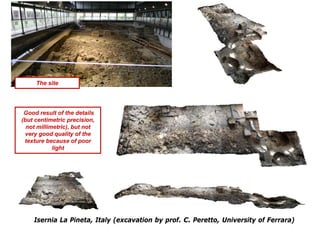

The site




Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
The site




 Good result of the details
(but centimetric precision,
  not millimetric), but not
 very good quality of the
 texture because of poor
            light




    Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)

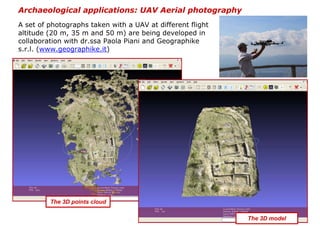

Archaeological applications: UAV Aerial photography
A set of photographs taken with a UAV at different flight
altitude (20 m, 35 m and 50 m) are being developed in
collaboration with dr.ssa Paola Piani and Geographike
s.r.l. (www.geographike.it)




         The 3D points cloud

                                                            The 3D model

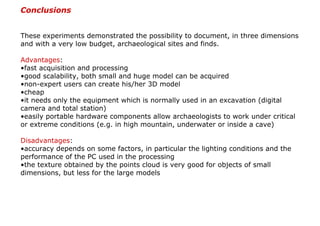

Conclusions


These experiments demonstrated the possibility to document, in three dimensions
and with a very low budget, archaeological sites and finds.

Advantages:
•fast acquisition and processing
•good scalability, both small and huge model can be acquired
•non-expert users can create his/her 3D model
•cheap
•it needs only the equipment which is normally used in an excavation (digital
camera and total station)
•easily portable hardware components allow archaeologists to work under critical
or extreme conditions (e.g. in high mountain, underwater or inside a cave)

Disadvantages:
•accuracy depends on some factors, in particular the lighting conditions and the
performance of the PC used in the processing
•the texture obtained by the points cloud is very good for objects of small
dimensions, but less for the large models

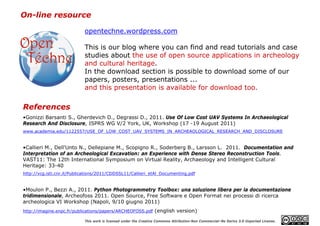

On-line resource

                            opentechne.wordpress.com

                            This is our blog where you can find and read tutorials and case
                            studies about the use of open source applications in archeology
                            and cultural heritage.
                            In the download section is possible to download some of our
                            papers, posters, presentations ...
                            and this presentation is available for download too.

References
•Gonizzi Barsanti S., Gherdevich D., Degrassi D., 2011. Use Of Low Cost UAV Systems In Archaeological
Research And Disclosure, ISPRS WG V/2 York, UK, Workshop (17 -19 August 2011)
www.academia.edu/1122557/USE_OF_LOW_COST_UAV_SYSTEMS_IN_ARCHEAOLOGICAL_RESEARCH_AND_DISCLOSURE


•Callieri M., Dell'Unto N., Dellepiane M., Scopigno R., Soderberg B., Larsson L. 2011. Documentation and
Interpretation of an Archeological Excavation: an Experience with Dense Stereo Reconstruction Tools.
VAST11: The 12th International Symposium on Virtual Reality, Archaeology and Intelligent Cultural
Heritage: 33-40
http://vcg.isti.cnr.it/Publications/2011/CDDSSL11/Callieri_etAl_Documenting.pdf


•Moulon P., Bezzi A., 2011. Python Photogrammetry Toolbox: una soluzione libera per la documentazione
tridimensionale, Archeofoss 2011. Open Source, Free Software e Open Format nei processi di ricerca
archeologica VI Workshop (Napoli, 9/10 giugno 2011)
http://imagine.enpc.fr/publications/papers/ARCHEOFOSS.pdf (english version)

                            This work is licensed under the Creative Commons Attribution-Non Commercial–No Derivs 3.0 Unported License.

More Related Content

What's hot

Sobel Edge Detection Using FPGA
Sobel Edge Detection Using FPGASobel Edge Detection Using FPGA
Sobel Edge Detection Using FPGA
ghanshyam zambare

Build Your Own 3D Scanner: Course Notes
Build Your Own 3D Scanner: Course NotesBuild Your Own 3D Scanner: Course Notes
Build Your Own 3D Scanner: Course Notes
Douglas Lanman

Lecture 1 for Digital Image Processing (2nd Edition)
Lecture 1 for Digital Image Processing (2nd Edition)Lecture 1 for Digital Image Processing (2nd Edition)
Lecture 1 for Digital Image Processing (2nd Edition)
Moe Moe Myint

Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...
Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...
Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...
Tomohiro Fukuda

Arpan pal roboticsensing_sw2015
Arpan pal roboticsensing_sw2015Arpan pal roboticsensing_sw2015
Arpan pal roboticsensing_sw2015
Arpan Pal

Chap1
Chap1Chap1
Efficient Point Cloud Pre-processing using The Point Cloud Library
Efficient Point Cloud Pre-processing using The Point Cloud LibraryEfficient Point Cloud Pre-processing using The Point Cloud Library
Efficient Point Cloud Pre-processing using The Point Cloud Library
CSCJournals

PhD defense talk (portfolio of my expertise)
PhD defense talk (portfolio of my expertise)PhD defense talk (portfolio of my expertise)
PhD defense talk (portfolio of my expertise)
Gernot Ziegler

PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...
PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...
PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...
광희 이

Digital image processing
Digital image processingDigital image processing
Digital image processing
Deevena Dayaal

Digital Image Processing_ ch1 introduction-2003
Digital Image Processing_ ch1 introduction-2003Digital Image Processing_ ch1 introduction-2003
Digital Image Processing_ ch1 introduction-2003
Malik obeisat

Image Processing Using MATLAB
Image Processing Using MATLABImage Processing Using MATLAB
Image Processing Using MATLAB
Amarjeetsingh Thakur

Digital image processing
Digital image processingDigital image processing
Digital image processing
gayathrysatheesan1

Image processing on matlab presentation
Image processing on matlab presentationImage processing on matlab presentation
Image processing on matlab presentation
Naatchammai Ramanathan

Background subtraction
Background subtractionBackground subtraction
Background subtraction
Shashank Dhariwal

Video processing on dsp
Video processing on dspVideo processing on dsp
Video processing on dsp
Nirma University

Background Subtraction Algorithm for Moving Object Detection Using Denoising ...
Background Subtraction Algorithm for Moving Object Detection Using Denoising ...Background Subtraction Algorithm for Moving Object Detection Using Denoising ...
Background Subtraction Algorithm for Moving Object Detection Using Denoising ...
International Journal of Science and Research (IJSR)

Deep Learning for Structure-from-Motion (SfM)
Deep Learning for Structure-from-Motion (SfM)Deep Learning for Structure-from-Motion (SfM)
Deep Learning for Structure-from-Motion (SfM)
PetteriTeikariPhD

Mmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokiaMmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokia
Rufael Mekuria

Digital Image Processing
Digital Image ProcessingDigital Image Processing
Digital Image Processing
Sahil Biswas


What's hot (20)

Sobel Edge Detection Using FPGA
Sobel Edge Detection Using FPGASobel Edge Detection Using FPGA
Sobel Edge Detection Using FPGA

Build Your Own 3D Scanner: Course Notes
Build Your Own 3D Scanner: Course NotesBuild Your Own 3D Scanner: Course Notes
Build Your Own 3D Scanner: Course Notes

Lecture 1 for Digital Image Processing (2nd Edition)
Lecture 1 for Digital Image Processing (2nd Edition)Lecture 1 for Digital Image Processing (2nd Edition)
Lecture 1 for Digital Image Processing (2nd Edition)

Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...
Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...
Visual Environment by Semantic Segmentation Using Deep Learning: A Prototype ...

Arpan pal roboticsensing_sw2015
Arpan pal roboticsensing_sw2015Arpan pal roboticsensing_sw2015
Arpan pal roboticsensing_sw2015

Chap1
Chap1Chap1
Chap1

Efficient Point Cloud Pre-processing using The Point Cloud Library
Efficient Point Cloud Pre-processing using The Point Cloud LibraryEfficient Point Cloud Pre-processing using The Point Cloud Library
Efficient Point Cloud Pre-processing using The Point Cloud Library

PhD defense talk (portfolio of my expertise)
PhD defense talk (portfolio of my expertise)PhD defense talk (portfolio of my expertise)
PhD defense talk (portfolio of my expertise)

PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...
PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...
PR-065 : High-Resolution Image Synthesis and Semantic Manipulation with Condi...

Digital image processing
Digital image processingDigital image processing
Digital image processing

Digital Image Processing_ ch1 introduction-2003
Digital Image Processing_ ch1 introduction-2003Digital Image Processing_ ch1 introduction-2003
Digital Image Processing_ ch1 introduction-2003

Image Processing Using MATLAB
Image Processing Using MATLABImage Processing Using MATLAB
Image Processing Using MATLAB

Digital image processing
Digital image processingDigital image processing
Digital image processing

Image processing on matlab presentation
Image processing on matlab presentationImage processing on matlab presentation
Image processing on matlab presentation

Background subtraction
Background subtractionBackground subtraction
Background subtraction

Video processing on dsp
Video processing on dspVideo processing on dsp
Video processing on dsp

Background Subtraction Algorithm for Moving Object Detection Using Denoising ...
Background Subtraction Algorithm for Moving Object Detection Using Denoising ...Background Subtraction Algorithm for Moving Object Detection Using Denoising ...
Background Subtraction Algorithm for Moving Object Detection Using Denoising ...

Deep Learning for Structure-from-Motion (SfM)
Deep Learning for Structure-from-Motion (SfM)Deep Learning for Structure-from-Motion (SfM)
Deep Learning for Structure-from-Motion (SfM)

Mmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokiaMmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokia

Digital Image Processing
Digital Image ProcessingDigital Image Processing
Digital Image Processing


Viewers also liked

Modelado basado en imágenes
Modelado basado en imágenesModelado basado en imágenes
Modelado basado en imágenes
Mario Rodriguez

Crime Scene Diagramming and Reconstruction by Det. Mike Anderson
Crime Scene Diagramming and Reconstruction by Det. Mike AndersonCrime Scene Diagramming and Reconstruction by Det. Mike Anderson
Crime Scene Diagramming and Reconstruction by Det. Mike Anderson
PPI_Group

Shape from Distortion - 3D Digitization
Shape from Distortion - 3D DigitizationShape from Distortion - 3D Digitization
Shape from Distortion - 3D Digitization
Vanya Valindria

Lecture 01 frank dellaert - 3 d reconstruction and mapping: a factor graph ...
Lecture 01   frank dellaert - 3 d reconstruction and mapping: a factor graph ...Lecture 01   frank dellaert - 3 d reconstruction and mapping: a factor graph ...
Lecture 01 frank dellaert - 3 d reconstruction and mapping: a factor graph ...
mustafa sarac

Build Your Own 3D Scanner: The Mathematics of 3D Triangulation
Build Your Own 3D Scanner: The Mathematics of 3D TriangulationBuild Your Own 3D Scanner: The Mathematics of 3D Triangulation
Build Your Own 3D Scanner: The Mathematics of 3D Triangulation
Douglas Lanman

Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0
Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0
Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0
Stephenson Prieto

Acosutic Trail, GPS manos libres
Acosutic Trail, GPS manos libresAcosutic Trail, GPS manos libres
Acosutic Trail, GPS manos libres
Congreso Turismo Rural

Ar techniques@sergi grau
Ar techniques@sergi grauAr techniques@sergi grau
Ar techniques@sergi grau
Sergi Grau

Overview of 3D GIS Capabilties
Overview of 3D GIS CapabiltiesOverview of 3D GIS Capabilties
Overview of 3D GIS Capabilties
Erik Van Der Zee

Inside Matters - 3D X-Ray Microscopy - Software - Octopus Imaging
Inside Matters - 3D X-Ray Microscopy - Software - Octopus ImagingInside Matters - 3D X-Ray Microscopy - Software - Octopus Imaging
Inside Matters - 3D X-Ray Microscopy - Software - Octopus Imaging
Leiv Hendrickx

Build Your Own 3D Scanner: 3D Scanning with Swept-Planes
Build Your Own 3D Scanner: 3D Scanning with Swept-PlanesBuild Your Own 3D Scanner: 3D Scanning with Swept-Planes
Build Your Own 3D Scanner: 3D Scanning with Swept-Planes
Douglas Lanman

3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained
3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained
3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained
VoxelMetric

3D CT Middle and Inner Ear
3D CT Middle and Inner Ear3D CT Middle and Inner Ear
3D CT Middle and Inner Ear
Dr. Paulose

Inside Matters - 3D X-Ray Microscopy - Services
Inside Matters - 3D X-Ray Microscopy - ServicesInside Matters - 3D X-Ray Microscopy - Services
Inside Matters - 3D X-Ray Microscopy - Services
Leiv Hendrickx

Pixie Dust - SIGGGRAPH 2014
Pixie Dust - SIGGGRAPH 2014Pixie Dust - SIGGGRAPH 2014
Pixie Dust - SIGGGRAPH 2014
Yoichi Ochiai

Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...
Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...
Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...
Alfredo BALLESTER FERNÁNDEZ

Técnicas de ingeniería inversa para diseño producto
Técnicas de ingeniería inversa para diseño productoTécnicas de ingeniería inversa para diseño producto
Técnicas de ingeniería inversa para diseño producto
Diseño e Ingeniería

DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013
DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013
DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013
Patrick Raymond

Ejercicios oferta demanda
Ejercicios oferta demandaEjercicios oferta demanda
Ejercicios oferta demanda
jsande

Build Your Own 3D Scanner: Introduction
Build Your Own 3D Scanner: IntroductionBuild Your Own 3D Scanner: Introduction
Build Your Own 3D Scanner: Introduction
Douglas Lanman


Viewers also liked (20)

Modelado basado en imágenes
Modelado basado en imágenesModelado basado en imágenes
Modelado basado en imágenes

Crime Scene Diagramming and Reconstruction by Det. Mike Anderson
Crime Scene Diagramming and Reconstruction by Det. Mike AndersonCrime Scene Diagramming and Reconstruction by Det. Mike Anderson
Crime Scene Diagramming and Reconstruction by Det. Mike Anderson

Shape from Distortion - 3D Digitization
Shape from Distortion - 3D DigitizationShape from Distortion - 3D Digitization
Shape from Distortion - 3D Digitization

Lecture 01 frank dellaert - 3 d reconstruction and mapping: a factor graph ...
Lecture 01   frank dellaert - 3 d reconstruction and mapping: a factor graph ...Lecture 01   frank dellaert - 3 d reconstruction and mapping: a factor graph ...
Lecture 01 frank dellaert - 3 d reconstruction and mapping: a factor graph ...

Build Your Own 3D Scanner: The Mathematics of 3D Triangulation
Build Your Own 3D Scanner: The Mathematics of 3D TriangulationBuild Your Own 3D Scanner: The Mathematics of 3D Triangulation
Build Your Own 3D Scanner: The Mathematics of 3D Triangulation

Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0
Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0
Programación 3D y Modelado de Realidad Virtual para Internet con VRML 2.0

Acosutic Trail, GPS manos libres
Acosutic Trail, GPS manos libresAcosutic Trail, GPS manos libres
Acosutic Trail, GPS manos libres

Ar techniques@sergi grau
Ar techniques@sergi grauAr techniques@sergi grau
Ar techniques@sergi grau

Overview of 3D GIS Capabilties
Overview of 3D GIS CapabiltiesOverview of 3D GIS Capabilties
Overview of 3D GIS Capabilties

Inside Matters - 3D X-Ray Microscopy - Software - Octopus Imaging
Inside Matters - 3D X-Ray Microscopy - Software - Octopus ImagingInside Matters - 3D X-Ray Microscopy - Software - Octopus Imaging
Inside Matters - 3D X-Ray Microscopy - Software - Octopus Imaging

Build Your Own 3D Scanner: 3D Scanning with Swept-Planes
Build Your Own 3D Scanner: 3D Scanning with Swept-PlanesBuild Your Own 3D Scanner: 3D Scanning with Swept-Planes
Build Your Own 3D Scanner: 3D Scanning with Swept-Planes

3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained
3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained
3D Scanning Technology Overview: Kinect Reconstruction Algorithms Explained

3D CT Middle and Inner Ear
3D CT Middle and Inner Ear3D CT Middle and Inner Ear
3D CT Middle and Inner Ear

Inside Matters - 3D X-Ray Microscopy - Services
Inside Matters - 3D X-Ray Microscopy - ServicesInside Matters - 3D X-Ray Microscopy - Services
Inside Matters - 3D X-Ray Microscopy - Services

Pixie Dust - SIGGGRAPH 2014
Pixie Dust - SIGGGRAPH 2014Pixie Dust - SIGGGRAPH 2014
Pixie Dust - SIGGGRAPH 2014

Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...
Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...
Low-cost data-driven 3D reconstruction and its applications @ 6th ICE 3D Body...

Técnicas de ingeniería inversa para diseño producto
Técnicas de ingeniería inversa para diseño productoTécnicas de ingeniería inversa para diseño producto
Técnicas de ingeniería inversa para diseño producto

DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013
DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013
DimEye Corp Presents Revolutionary VLS (Video Laser Scan) at SS IMMR 2013

Ejercicios oferta demanda
Ejercicios oferta demandaEjercicios oferta demanda
Ejercicios oferta demanda

Build Your Own 3D Scanner: Introduction
Build Your Own 3D Scanner: IntroductionBuild Your Own 3D Scanner: Introduction
Build Your Own 3D Scanner: Introduction


Similar to An Open Source solution for Three-Dimensional documentation: archaeological applications

Indoor 3D Video Monitoring Using Multiple Kinect Depth-Cameras
Indoor 3D Video Monitoring Using Multiple Kinect Depth-CamerasIndoor 3D Video Monitoring Using Multiple Kinect Depth-Cameras
Indoor 3D Video Monitoring Using Multiple Kinect Depth-Cameras
ijma

Indoor 3 d video monitoring using multiple kinect depth cameras
Indoor 3 d video monitoring using multiple kinect depth camerasIndoor 3 d video monitoring using multiple kinect depth cameras
Indoor 3 d video monitoring using multiple kinect depth cameras
ijma

DISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERAS
DISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERASDISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERAS
DISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERAS
cscpconf

Web-Based Online Embedded Security System And Alertness Via Social Media
Web-Based Online Embedded Security System And Alertness Via Social MediaWeb-Based Online Embedded Security System And Alertness Via Social Media
Web-Based Online Embedded Security System And Alertness Via Social Media
IRJET Journal

Robot Machine Vision
Robot Machine VisionRobot Machine Vision
Robot Machine Vision
anand hd

Multimodel Operation for Visually1.docx
Multimodel Operation for Visually1.docxMultimodel Operation for Visually1.docx
Multimodel Operation for Visually1.docx
AROCKIAJAYAIECW

IRJET- Full Body Motion Detection and Surveillance System Application
IRJET-  	  Full Body Motion Detection and Surveillance System ApplicationIRJET-  	  Full Body Motion Detection and Surveillance System Application
IRJET- Full Body Motion Detection and Surveillance System Application
IRJET Journal

Optical Recognition of Handwritten Text
Optical Recognition of Handwritten TextOptical Recognition of Handwritten Text
Optical Recognition of Handwritten Text
IRJET Journal

A Wireless Network Infrastructure Architecture for Rural Communities
A Wireless Network Infrastructure Architecture for Rural CommunitiesA Wireless Network Infrastructure Architecture for Rural Communities
A Wireless Network Infrastructure Architecture for Rural Communities
AIRCC Publishing Corporation

Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate...
 Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate... Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate...
Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate...
AIRCC Publishing Corporation

Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...
Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...
Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...
AIRCC Publishing Corporation

COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...
COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...
COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...
ijcsit

imagefiltervhdl.pptx
imagefiltervhdl.pptximagefiltervhdl.pptx
imagefiltervhdl.pptx
Akbarali206563

Image processing
Image processingImage processing
Image processing
Manjesh Mani

Arindam batabyal literature reviewpresentation
Arindam batabyal literature reviewpresentationArindam batabyal literature reviewpresentation
Arindam batabyal literature reviewpresentation
Arindam Batabyal

HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...
HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...
HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...
ijcsity

FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...
FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...
FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...
TELKOMNIKA JOURNAL

Blur Detection Methods for Digital Images-A Survey
Blur Detection Methods for Digital Images-A SurveyBlur Detection Methods for Digital Images-A Survey
Blur Detection Methods for Digital Images-A Survey
Editor IJCATR

A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...
A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...
A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...
sipij

H028038042
H028038042H028038042
H028038042
researchinventy


Similar to An Open Source solution for Three-Dimensional documentation: archaeological applications (20)

Indoor 3D Video Monitoring Using Multiple Kinect Depth-Cameras
Indoor 3D Video Monitoring Using Multiple Kinect Depth-CamerasIndoor 3D Video Monitoring Using Multiple Kinect Depth-Cameras
Indoor 3D Video Monitoring Using Multiple Kinect Depth-Cameras

Indoor 3 d video monitoring using multiple kinect depth cameras
Indoor 3 d video monitoring using multiple kinect depth camerasIndoor 3 d video monitoring using multiple kinect depth cameras
Indoor 3 d video monitoring using multiple kinect depth cameras

DISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERAS
DISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERASDISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERAS
DISTRIBUTED SYSTEM FOR 3D REMOTE MONITORING USING KINECT DEPTH CAMERAS

Web-Based Online Embedded Security System And Alertness Via Social Media
Web-Based Online Embedded Security System And Alertness Via Social MediaWeb-Based Online Embedded Security System And Alertness Via Social Media
Web-Based Online Embedded Security System And Alertness Via Social Media

Robot Machine Vision
Robot Machine VisionRobot Machine Vision
Robot Machine Vision

Multimodel Operation for Visually1.docx
Multimodel Operation for Visually1.docxMultimodel Operation for Visually1.docx
Multimodel Operation for Visually1.docx

IRJET- Full Body Motion Detection and Surveillance System Application
IRJET-  	  Full Body Motion Detection and Surveillance System ApplicationIRJET-  	  Full Body Motion Detection and Surveillance System Application
IRJET- Full Body Motion Detection and Surveillance System Application

Optical Recognition of Handwritten Text
Optical Recognition of Handwritten TextOptical Recognition of Handwritten Text
Optical Recognition of Handwritten Text

A Wireless Network Infrastructure Architecture for Rural Communities
A Wireless Network Infrastructure Architecture for Rural CommunitiesA Wireless Network Infrastructure Architecture for Rural Communities
A Wireless Network Infrastructure Architecture for Rural Communities

Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate...
 Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate... Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate...
Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrate...

Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...
Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...
Complete End-to-End Low Cost Solution to a 3D Scanning System with Integrated...

COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...
COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...
COMPLETE END-TO-END LOW COST SOLUTION TO A 3D SCANNING SYSTEM WITH INTEGRATED...

imagefiltervhdl.pptx
imagefiltervhdl.pptximagefiltervhdl.pptx
imagefiltervhdl.pptx

Image processing
Image processingImage processing
Image processing

Arindam batabyal literature reviewpresentation
Arindam batabyal literature reviewpresentationArindam batabyal literature reviewpresentation
Arindam batabyal literature reviewpresentation

HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...
HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...
HARDWARE SOFTWARE CO-SIMULATION FOR TRAFFIC LOAD COMPUTATION USING MATLAB SIM...

FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...
FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...
FPGA Based Pattern Generation and Synchonization for High Speed Structured Li...

Blur Detection Methods for Digital Images-A Survey
Blur Detection Methods for Digital Images-A SurveyBlur Detection Methods for Digital Images-A Survey
Blur Detection Methods for Digital Images-A Survey

A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...
A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...
A Smart Camera Processing Pipeline for Image Applications Utilizing Marching ...

H028038042
H028038042H028038042
H028038042


More from Giulio Bigliardi

La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...
La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...
La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...
Giulio Bigliardi

3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)
3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)
3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)
Giulio Bigliardi

Applicazioni Open Source per il rilievo tridimensionale. Il caso studio dell...
Applicazioni Open Source per il rilievo tridimensionale.  Il caso studio dell...Applicazioni Open Source per il rilievo tridimensionale.  Il caso studio dell...
Applicazioni Open Source per il rilievo tridimensionale. Il caso studio dell...
Giulio Bigliardi

Il progetto di scavo archeologico della città portuale di Adulis in Eritrea
Il progetto di scavo archeologico della città portuale di Adulis in EritreaIl progetto di scavo archeologico della città portuale di Adulis in Eritrea
Il progetto di scavo archeologico della città portuale di Adulis in EritreaGiulio Bigliardi

Open source e archeologia: casi di studio
Open source e archeologia: casi di studioOpen source e archeologia: casi di studio
Open source e archeologia: casi di studio
Giulio Bigliardi

Il Sistema Informativo Territoriale archeologico del Comune di Parma
Il Sistema Informativo Territoriale archeologico del Comune di ParmaIl Sistema Informativo Territoriale archeologico del Comune di Parma
Il Sistema Informativo Territoriale archeologico del Comune di Parma
Giulio Bigliardi


More from Giulio Bigliardi (6)

La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...
La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...
La Fabbricazione Digitale per i Beni Culturali: il rilievo e la stampa 3D per...

3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)
3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)
3D ArcheoLab, 7 aprile 2014 @ On/Off (Parma)

Applicazioni Open Source per il rilievo tridimensionale. Il caso studio dell...
Applicazioni Open Source per il rilievo tridimensionale.  Il caso studio dell...Applicazioni Open Source per il rilievo tridimensionale.  Il caso studio dell...
Applicazioni Open Source per il rilievo tridimensionale. Il caso studio dell...

Il progetto di scavo archeologico della città portuale di Adulis in Eritrea
Il progetto di scavo archeologico della città portuale di Adulis in EritreaIl progetto di scavo archeologico della città portuale di Adulis in Eritrea
Il progetto di scavo archeologico della città portuale di Adulis in Eritrea

Open source e archeologia: casi di studio
Open source e archeologia: casi di studioOpen source e archeologia: casi di studio
Open source e archeologia: casi di studio

Il Sistema Informativo Territoriale archeologico del Comune di Parma
Il Sistema Informativo Territoriale archeologico del Comune di ParmaIl Sistema Informativo Territoriale archeologico del Comune di Parma
Il Sistema Informativo Territoriale archeologico del Comune di Parma


Recently uploaded

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
SOFTTECHHUB

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days
Adtran

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
Neo4j

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI
Kumud Singh

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
James Anderson

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Vladimir Iglovikov, Ph.D.

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support
Alan Dix

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems S.M.S.A.

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
DanBrown980551

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect
Kari Kakkonen

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students
KAMESHS29


Recently uploaded (20)

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students


An Open Source solution for Three-Dimensional documentation: archaeological applications

  • 1. AIUM 2012 «ARCHEOLOGY INTERNATIONAL UNIVERSITY MEETING» 8th-10th NOVEMBER 2012 An Open Source solution for Three-Dimensional documentation: archaeological applications Giulio Bigliardi CGT-Centro di GeoTecnologie (Univ. di Siena) bigliardi2@unisi.it Marta Bottacchi CGT-Centro di GeoTecnologie (Univ. di Siena) bottacchi@unisi.it Sara Cappelli CGT-Centro di GeoTecnologie (Univ. di Siena) cappelli11@unisi.it Leonardo Carmignani Dipartimento di Archeologia e Storia delle Arti – Sezione di Preistoria e Protostoria (Univ. di Siena) leocarmignani@msn.com
  • 2. Digital models are nowadays present everywhere, their use and diffusion are becoming very popular through the Internet and they can be displayed on low-cost computers. Although creating a simple 3d model seems to be quite simple, actually the generation of a precise and photo-realistic computer model of a complex object still requires considerable effort. Three-dimensional digital models are required in many applications such as inspection, navigation, object identification, visualisation and animation.
  • 3. Recently it has become a very important and fundamental step especially for cultural heritage digital archiving. The aims are different: documentation in case of loss or damage, virtual tourism and museum, education resources, interaction without risk of damage, and so forth. The specific requirements for many applications, including digital archiving and mapping, involve high geometric accuracy, photo-realism of the results and the modelling of the complete details, as well as the automation, low cost, portability and flexibility of the modelling technique.
  • 4. Three-dimensional modelling of objects and scenes is an intensive and long- lasting research problem in the graphic, vision and photogrammetric communities. 3D Digital copy can be done by different technology, laser (ground), lidar (aerial), photogrammetry. Lidar Nowadays the most common geomatics techniques used for 3D documentation, reconstruction and interpretation process in the archaeological field are based on image data (e.g. photogrammetry) or range data (e.g. active sensors such as laser scanners). Both approaches have their own advantages and disadvantages and generally the choice between them is made according to the budget, project size and goal, required degree of detail Laser Scanner and experience of the working team.
  • 5. Image-Based Modelling and Structure from Motion Nowadays 3D scanners are also becoming a standard source for input data in many application areas, but the modern techniques of Structure from Motion (SfM) and Image- Based Modelling (IBM) open new perspectives in the field of archaeological documentation, providing a simple and accurate way in recording three-dimensional data. In computer graphics and computer vision, Structure from Motion (SfM) and Image-Based Modelling (IBM) methods rely on a set of two- dimensional images of a scene to generate a three-dimensional model. Compared to laser scanners, the main advantages of SfM and IBM are that the sensors are generally cheaper and portable and that 3D information can be accurately recovered regardless of the size of the object.
  • 6. Python Photogrammetry Toolbox (PPT) From a set of images… The Python Photogrammetry Toolbox (PPT) is an open source system that implements a pipeline to perform 3D reconstruction from a set of pictures. It takes pictures as input and performs automatically the 3D reconstruction for the images for which 3D registration is possible. It is done by identifying similar content between N images and solve 3D geometry problems. User input consist of an image collection and camera parameters. The computed output is a 3D points cloud. …to a 3D points cloud
  • 7. Python Photogrammetry Toolbox (PPT) and its Graphical User Interface (PPT-GUI) is developed by Alessandro Bezzi (ArcTeam – Trento, Italy) and Pier Moulon (IMAGINE/LIGM, University Paris Est & Mikros Image). The suite Python Photogrammetry Toolbox (PPT) is composed of python scripts that automate the different steps of the workflow. The entire process is reduced in two commands: camera calibration and dense 3D points cloud reconstruction. PPT-GUI is the graphical interface to interact easily with the photogrammetry toolbox. The interface is designed in two different parts: a main window composed by numbered panels which allows the user to understand the steps to perform…
  • 8. …and a terminal window in which the process is running.
  • 9. RunBundler performs the camera calibration step. Bundler is a structure- from-motion (SfM) system written in C and C++ for unordered image collections. It computes the 3D camera pose from a set of images. It needs only two parameters: camera model and sensor width size.
  • 10. Despite the automation, the user can control the final result choosing two initial parameters: the image size and the feature detector. A reduction of the computation time and a decreasing density of the 3D points cloud depend from the setting of the first parameter. It is a scaling factor of the image size.
  • 11. Despite the automation, the user can control the final result choosing two initial parameters: the image size and the feature detector. The final result depend from the setting of the feature detector: PPT can work both with SIFT (patent of the University of British Columbia - freely usable only for research purpose) and with VLFEAT (released under GPL v.2 license). The second one is completely open source, it ensures a more accurate result, but it increases the time of calculation.
  • 12. RunCMVS takes the output of structure- from-motion (SfM) software as input, and perform the dense 3D point cloud computation. Data conversion from Bundler format to CMVS/PMVS format is made by using Bundle2PMVS and RadialUndistort.
  • 13. Dense computation is done by PMVS as well as CMVS, that is an optional process that divides the input scene in many smaller instance making the process of dense reconstruction faster. The main drawback of PPT is that computation speed depends from user's computer. There could be some more drawbacks for large scenes or large images but a compromise between performance and quality can be made by reducing image size with the scaling factor. Generally, the amount of time needed for the processing of image sets is in the order of hours.
  • 14. MeshLab The 3D points cloud processed by PPT is displayed and processed in MeshLab. MeshLab is an open source system to create a 3D surface (mesh) from a 3D points cloud (http://meshlab.sourceforge.net/). MeshLab is developed by Visual Computing Lab of Rome (ISTI-CNR) and is designed with the following primary objectives: • ease of use. The tool should be designed to facilitate users without high 3D modeling skills • single mesh processing oriented. The system should try to stay focused on mesh processing instead of mesh editing and mesh design where a number of other applications exist a (notably blender, 3D Max, Maya, and many others) • efficiency. 3D scanning mesh can easily be composed by millions of primitives (points…), so the tool should be able to manage them
  • 15. From a set of images… …to a 3D points cloud with PPT …to a 3D model with MeshLab.
  • 16. Points cloud… …mesh… The point cloud can be cleaned of outliers, cropped to the area of interest and then triangulated using one of the merging filters available in MeshLab. The result is a 3D surface. The colour of the surface (texture) may be derived from the 3D points cloud, which is usually coloured. …3D model with photorealistic texture.
  • 17. Step 1: import the points cloud
  • 18. Step 2: cleaning the points cloud
  • 19. Step 3: surface reconstruction (Poisson or Ball Pivoting approach)
  • 20. Step 4: coloring the mesh using the color of the 3D points cloud
  • 22. Archaeological applications: Finds Archaeological finds can be documented “in situ”, taking pictures moving around the object, or in laboratory. In this case 9 pictures were taken with a NIKON Coolpix L110 at 12 MP.
  • 23. Archaeological applications: Finds Archaeological finds can be documented “in situ”, taking pictures moving around the object, or in laboratory. In this case 9 pictures were taken with a NIKON Coolpix L110 at 12 MP. In PPT the image were elaborated In MeshLab the mesh was created with the feature detector VLFEAT and with the Poisson surface with a scaling factor of 0.75. reconstruction filter (octree depth 10, solver divide 9) and the coloured.
  • 24. 3 cm The real object
  • 25. 3 cm The real object excellent quality for both of details and texture
  • 26. Archaeological applications: Layers Archaeological field activity is mainly a working process which ends, in most cases, with the complete destruction of the site. Since most of the interpretation is performed in a second stage, it is necessary to collect a massive amount of documentation (images, sketches, notes, measurements). In the lack of particular expensive equipment (laser scanner, calibrated camera) or software (photogrammetric applications), field documentation is composed by pictures, manual drawings, total station measurements and photo-mosaics. While 3D scanning technologies are able to precisely capture the geometry of the excavation, their cost and operational time discourage an intensive field use. The alternative is represented by Image-Based Modelling and Structure from Motion technologies, which are able to obtain a 3D model of an element starting from a set of images. Using the same instruments of standard archaeological documentation (digital camera and total station) it is possible to record also the morphology of the level. The data acquisition is fast and simple and it consists exclusively in taking pictures of the area of interest. The same rules of the traditional photography are to be followed: centre the desired object in each picture, avoid extreme contrast shadow/sun, use a tripod in low-light condition. There are no limits about the number of images: but it depends on the complexity of the surface and on the power of the hardware (RAM) which will process the data.
  • 27. Archaeological applications: Layers - Example 1 In this case 69 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP. … and many others…
  • 28. Archaeological applications: Layers - Example 1 In this case 69 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP. … and many others… In PPT the image were elaborated with In MeshLab the mesh was created the feature detector VLFEAT and with with the Poisson surface no scaling factor. reconstruction filter (octree depth 10, solver divide 9).
  • 29. Very good quality of the model and of the details … Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
  • 30. … and good texture, very photorealistic. Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
  • 31. Archaeological applications: Layers - Example 2 In this case 21 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP. … and many others…
  • 32. Archaeological applications: Layers - Example 2 In this case 21 pictures were taken with a Sony Cyber-Shot DSC-W90 at 10 MP. … and many others… In PPT the image were elaborated In MeshLab the mesh was created with with the feature detector VLFEAT the Poisson surface reconstruction filter and with a scaling factor of 0.75. (octree depth 10, solver divide 9)
  • 33. Not very good quality of the texture: the color is too flat because of poor lighting, but… Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
  • 34. … very good quality of the model and of the details. Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
  • 35. … very good quality of the model and of the details. Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
  • 36. Archaeological applications: Layers - Example 3 In this case 227 pictures were taken with a Apple iPhone 4S at 8 MP. … and many others…
  • 37. Archaeological applications: Layers - Example 3 In this case 227 pictures were taken with a Apple iPhone 4S at 8 MP. … and many others… In PPT the image were elaborated with the feature detector VLFEAT and with a scaling factor of 0.25. In MeshLab the mesh was created with the Poisson surface reconstruction filter (octree depth 10, solver divide 9)
  • 38. The site Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
  • 39. The site Good result of the details (but centimetric precision, not millimetric), but not very good quality of the texture because of poor light Isernia La Pineta, Italy (excavation by prof. C. Peretto, University of Ferrara)
  • 40. Archaeological applications: UAV Aerial photography A set of photographs taken with a UAV at different flight altitude (20 m, 35 m and 50 m) are being developed in collaboration with dr.ssa Paola Piani and Geographike s.r.l. (www.geographike.it) The 3D points cloud The 3D model
  • 41. Conclusions These experiments demonstrated the possibility to document, in three dimensions and with a very low budget, archaeological sites and finds. Advantages: •fast acquisition and processing •good scalability, both small and huge model can be acquired •non-expert users can create his/her 3D model •cheap •it needs only the equipment which is normally used in an excavation (digital camera and total station) •easily portable hardware components allow archaeologists to work under critical or extreme conditions (e.g. in high mountain, underwater or inside a cave) Disadvantages: •accuracy depends on some factors, in particular the lighting conditions and the performance of the PC used in the processing •the texture obtained by the points cloud is very good for objects of small dimensions, but less for the large models
  • 42. On-line resource opentechne.wordpress.com This is our blog where you can find and read tutorials and case studies about the use of open source applications in archeology and cultural heritage. In the download section is possible to download some of our papers, posters, presentations ... and this presentation is available for download too. References •Gonizzi Barsanti S., Gherdevich D., Degrassi D., 2011. Use Of Low Cost UAV Systems In Archaeological Research And Disclosure, ISPRS WG V/2 York, UK, Workshop (17 -19 August 2011) www.academia.edu/1122557/USE_OF_LOW_COST_UAV_SYSTEMS_IN_ARCHEAOLOGICAL_RESEARCH_AND_DISCLOSURE •Callieri M., Dell'Unto N., Dellepiane M., Scopigno R., Soderberg B., Larsson L. 2011. Documentation and Interpretation of an Archeological Excavation: an Experience with Dense Stereo Reconstruction Tools. VAST11: The 12th International Symposium on Virtual Reality, Archaeology and Intelligent Cultural Heritage: 33-40 http://vcg.isti.cnr.it/Publications/2011/CDDSSL11/Callieri_etAl_Documenting.pdf •Moulon P., Bezzi A., 2011. Python Photogrammetry Toolbox: una soluzione libera per la documentazione tridimensionale, Archeofoss 2011. Open Source, Free Software e Open Format nei processi di ricerca archeologica VI Workshop (Napoli, 9/10 giugno 2011) http://imagine.enpc.fr/publications/papers/ARCHEOFOSS.pdf (english version) This work is licensed under the Creative Commons Attribution-Non Commercial–No Derivs 3.0 Unported License.
