The digital torque meter model ACM-TM series by Weiber is designed for accurate measurement of rotational force across various industries, including automotive and electrical. It features high accuracy, multiple measurement units, and options for different torque testing accessories. The device can operate for up to 20 hours on a single charge and supports USB output and memory functions.

1. R
DIGITAL TORQUE METER
MODEL NO.- ACM- TM SERIES

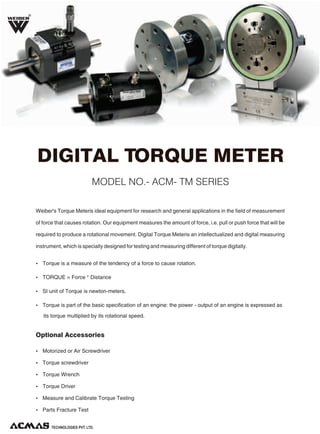

2. R
DIGITAL TORQUE METER
MODEL NO.- ACM- TM SERIES
Weiber's Torque Meteris ideal equipment for research and general applications in the field of measurement
of force that causes rotation. Our equipment measures the amount of force, i.e. pull or push force that will be
required to produce a rotational movement. Digital Torque Meteris an intellectualized and digital measuring
instrument, which is specially designed for testing and measuring different of torque digitally.
Ÿ Torque is a measure of the tendency of a force to cause rotation.
Ÿ TORQUE = Force * Distance
Ÿ SI unit of Torque is newton-meters.
Ÿ Torque is part of the basic specification of an engine: the power - output of an engine is expressed as
its torque multiplied by its rotational speed.
Optional Accessories
Ÿ Motorized or Air Screwdriver
Ÿ Torque screwdriver
Ÿ Torque Wrench
Ÿ Torque Driver
Ÿ Measure and Calibrate Torque Testing
Ÿ Parts Fracture Test
TECHNOLOGIES PVT. LTD.

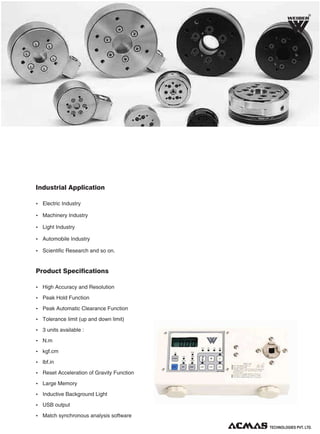

3. R
Industrial Application
Ÿ Electric Industry
Ÿ Machinery Industry
Ÿ Light Industry
Ÿ Automobile Industry
Ÿ Scientific Research and so on.
Product Specifications
Ÿ High Accuracy and Resolution
Ÿ Peak Hold Function
Ÿ Peak Automatic Clearance Function
Ÿ Tolerance limit (up and down limit)
Ÿ 3 units available :
Ÿ N.m
Ÿ kgf.cm
Ÿ lbf.in
Ÿ Reset Acceleration of Gravity Function
Ÿ Large Memory
Ÿ Inductive Background Light
Ÿ USB output
Ÿ Match synchronous analysis software
TECHNOLOGIES PVT. LTD.

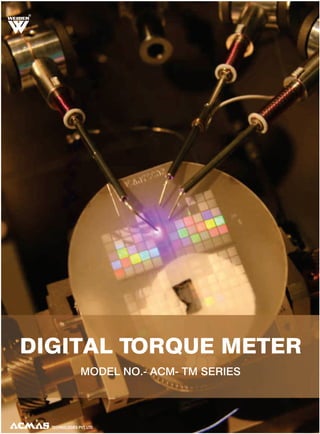

4. R
DIGITAL TORQUE METER
MODEL NO.- ACM- TM SERIES
TECHNOLOGIES PVT. LTD.

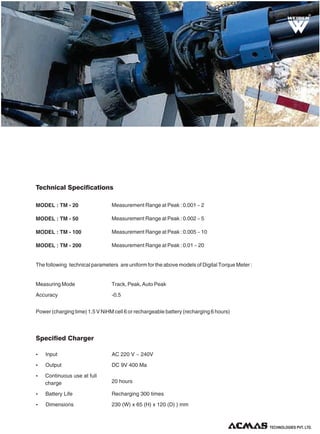

5. R
Technical Specifications
MODEL : TM - 20
Measurement Range at Peak : 0.001 ~ 2
MODEL : TM - 50
Measurement Range at Peak : 0.002 ~ 5
MODEL : TM - 100
Measurement Range at Peak : 0.005 ~ 10
MODEL : TM - 200
Measurement Range at Peak : 0.01 ~ 20
The following technical parameters are uniform for the above models of Digital Torque Meter :
Measuring Mode
Track, Peak, Auto Peak
Accuracy
-0.5
Power (charging time) 1.5 V NiHM cell 6 or rechargeable battery (recharging 6 hours)
Specified Charger
Ÿ
Input
AC 220 V ~ 240V
Ÿ
Output
DC 9V 400 Ma
Ÿ
Continuous use at full
charge
20 hours
Ÿ
Battery Life
Recharging 300 times
Ÿ
Dimensions
230 (W) x 65 (H) x 120 (D) ) mm
TECHNOLOGIES PVT. LTD.

6. R
Industrial Application
Ÿ Electric Industry
Ÿ Machinery Industry
Ÿ Light Industry
Ÿ Automobile Industry
Ÿ Scientific Research and so on.
Product Specifications
Ÿ High Accuracy and Resolution
Ÿ Peak Hold Function
Ÿ Peak Automatic Clearance Function
Ÿ Tolerance limit (up and down limit)
Ÿ 3 units available :
Ÿ N.m
Ÿ kgf.cm
Ÿ lbf.in
Ÿ Reset Acceleration of Gravity Function
Ÿ Large Memory
Ÿ Inductive Background Light
Ÿ USB output
Ÿ Match synchronous analysis software
TECHNOLOGIES PVT. LTD.
