This document summarizes a crane scale that measures tensile force between 1-25 tons. It has a compact, lightweight design suitable for industrial sites like construction, shipping ports, and warehouses. The scale displays peak loads, holds data, and operates for up to 40 hours on batteries with a large, backlit LCD screen. It measures in kilograms, pounds, and newtons, and has features like tare function, zero range, safe and ultimate overload thresholds, and temperature range of -10 to 40 degrees Celsius.

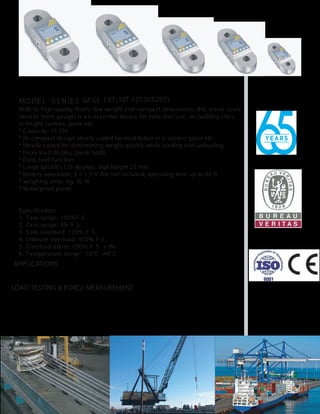

2. MODE L S E R IE S
With its high-quality finish, low weight and compact dimensions, this crane scale
(tensile force gauge) is an essential device for industrial use, on building sites,
in freight centres, ports etc.
* Capacity: 1t-25t
* its compact design ideally suited for installation in a system plant etc.
* Ideally suited for determining weight quickly while loading and unloading
* Peak load display (peak hold)
* Data hold function
* Large backlit LCD display, digit height 22 mm
* battery operation, 3 x 1.5 V AA not included, operating time up to 40 h
* weighing units: kg, lb, N
* Waterproof panel
S pecification:
1. Tare range: 100%F.S .
2. Zero range: 4% F.S .
3. S afe overload: 120% F.S .
4. Ultimate overload: 400% F.S .
5. Overload alarm: 100% F.S . + 9e
6. Temperature range: -10°C -40°C
GF-LL ( 5T ,10T.15T.20T.25T)
APPLICATIONS
LOAD TESTING & FORCE MEASUREMENT
