This document provides specifications for the MHE NEXT Engineering Private Limited MXAF-20 articulated forklift. Key details include a 2000kg capacity, 9050mm maximum lift height, 80V 500AH battery, AC drive and lift motors, Zapi controller, fingertip armrest control, integrated side shifter, and a 5 year/5000 hour warranty for key parts. It also lists technical details, components, and photos of the forklift.

1. MHE NEXT Engineering Private Limited
+91-7506504540/41/42
info@mhenext.com
www.mhenext.com
Contact Person :
Mr. dhanaji SAWANT
+91- 9769798900 /dhanaji.sawant@mhenext.com
MHE NEXT OEM Manufactured
ARTICULATED FORKLIFT
Model : MXAF-20 ( 2000 kg Capacity )

2.  Model : MXAF20
 Rated capacity : 2000kg
 Load center : 600mm
 Capacity@9050mm :750kg
 Mast : Triplex full free
 Lift height : 9050mm
 Fork length : 1070mm
 Pallet size : 1200x1000mm
 Aisle width : 1960mm (pallet to pallet)
 Transfer Aisle : 2700mm
 Grade ability : 18/20%
 Articulated angle : 220°
 Battery : 80V 500ah
 Automatic Charger : 80V/50a
 Zapi Controller &Panel
 AC Motor for Drive & Lift
 Fingertip armrest control
 5 white LED head light
 1 blue LED back-up warning light
 OPS system
 Wireless camera
 Guiding laser
 Back up Alarm
 Cooling fans
 Reverse mirror
 Integrated Side-shift
 Black Solid tire
 Adjustable Suspension seat with presence switch

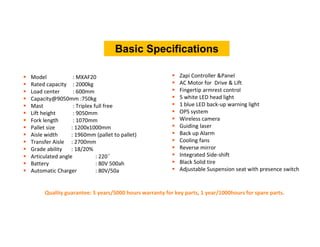

Basic Specifications
Quality guarantee: 5 years/5000 hours warranty for key parts, 1 year/1000hours for spare parts.

3. MODEL MXAF20
Technical Specification Unit Electric
Rated Capacity kg 2000
Lift height mm 9050
Mast closed height mm 4135
Free lift mm 3235
Extended height mm 10311
Overall length mm 2780
Ground clearance mm 50
Overhead guard height mm 2270
Chassis width rear mm 1220
Chassis width front mm 980
Load center mm 600
Wheel base mm 1735
Seat height mm 1220
Mast tilt(back/fwd） 。 3/1
Mast rotate angle (left/right) 。 220
Ground speed Km/h 16
Lift speed(load/unload) m/s 0.44/0.50
Front tyre size mm 412*174
Rear tyre size mm 457*170
Grade ability(load/unload) % 18/20
Battery voltage/capacity V/Ah 80v/500ah
Weight of truck kg 7850
Traction motor AC 19.5kw
Lifting motor AC 15kw
Transfer aisle width mm 2700

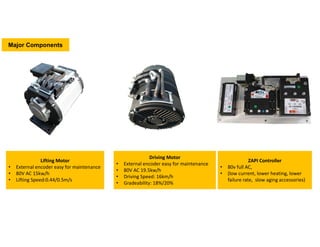

4. Driving Motor
• External encoder easy for maintenance
• 80V AC 19.5kw/h
• Driving Speed: 16km/h
• Gradeability: 18%/20%
Lifting Motor
• External encoder easy for maintenance
• 80V AC 15kw/h
• Lifting Speed:0.44/0.5m/s
ZAPI Controller
• 80v full AC,
• (low current, lower heating, lower
failure rate, slow aging accessories)
Major Components

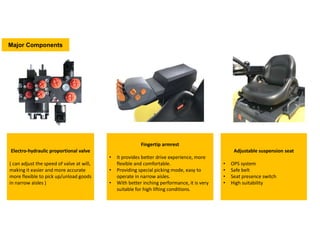

5. Adjustable suspension seat
• OPS system
• Safe belt
• Seat presence switch
• High suitability
Electro-hydraulic proportional valve
( can adjust the speed of valve at will,
making it easier and more accurate
more flexible to pick up/unload goods
in narrow aisles )
Fingertip armrest
• It provides better drive experience, more
flexible and comfortable.
• Providing special picking mode, easy to
operate in narrow aisles.
• With better inching performance, it is very
suitable for high lifting conditions.
Major Components

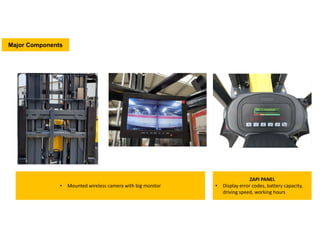

6. • Mounted wireless camera with big monitor
ZAPI PANEL
• Display error codes, battery capacity,
driving speed, working hours
Major Components

7. Cooling fans
Two efficient cooling fans, even in high temperature environment can
quickly cool down the motor and gear pump
Lights
1 LED back-up blue warning light
3 LED white head light
Major Components

8. • High strength load backrest &
integrated side shifter
Black solid tyre
• shock absorption
Optional white solid tyre
Major Components

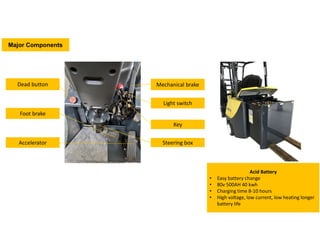

9. Light switch
Mechanical brake
Accelerator
Foot brake
Dead button
Key
Steering box
Acid Battery
• Easy battery change
• 80v 500AH 40 kwh
• Charging time 8-10 hours
• High voltage, low current, low heating longer
battery life
Major Components
