Best Practices to
Write, Deploy, and
Monitor Scheduled
Agents
Bill Buchan
HADSL

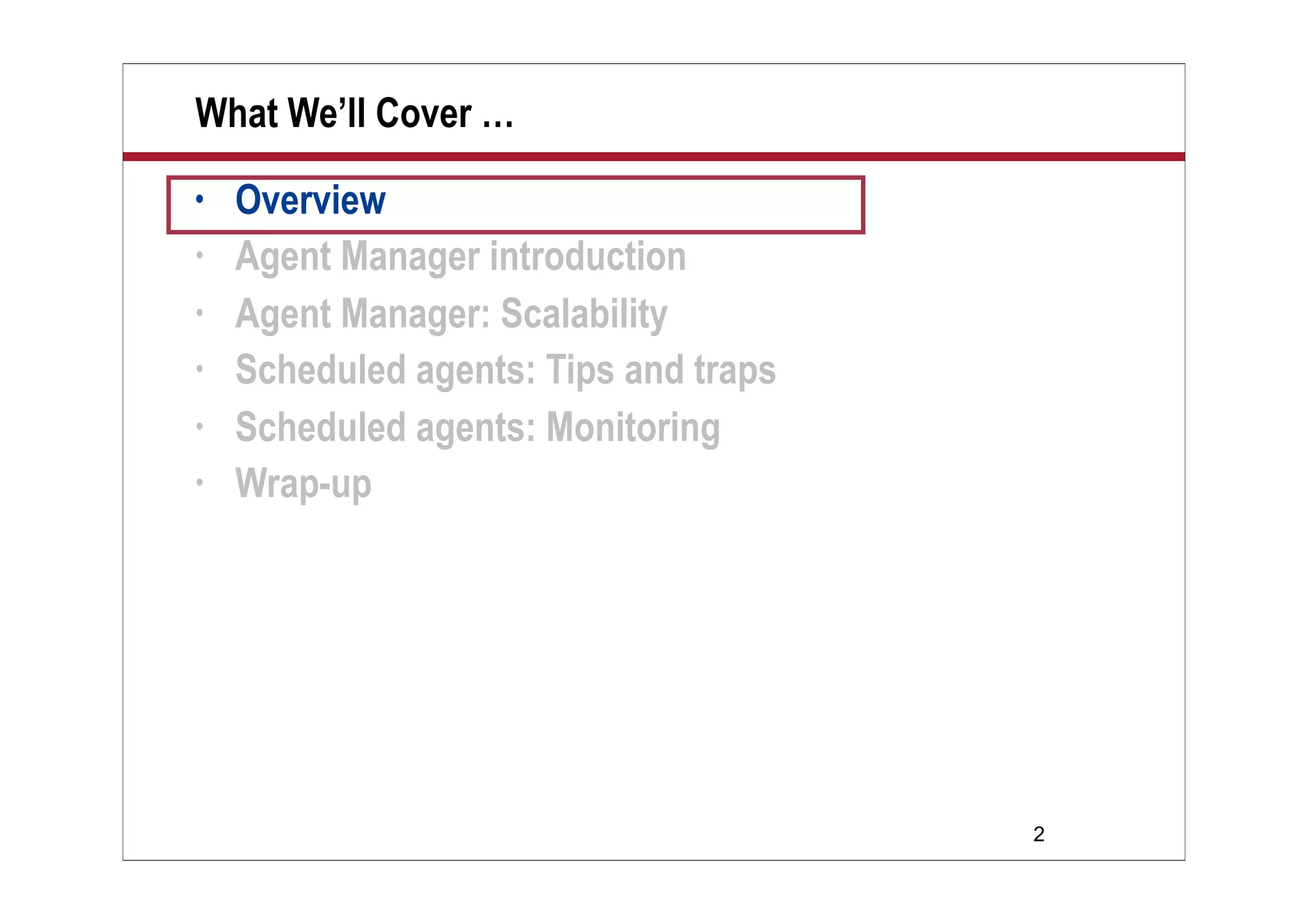

2. 2
What We’ll Cover …
• Overview
• Agent Manager introduction
• Agent Manager: Scalability
• Scheduled agents: Tips and traps
• Scheduled agents: Monitoring
• Wrap-up

3. 3

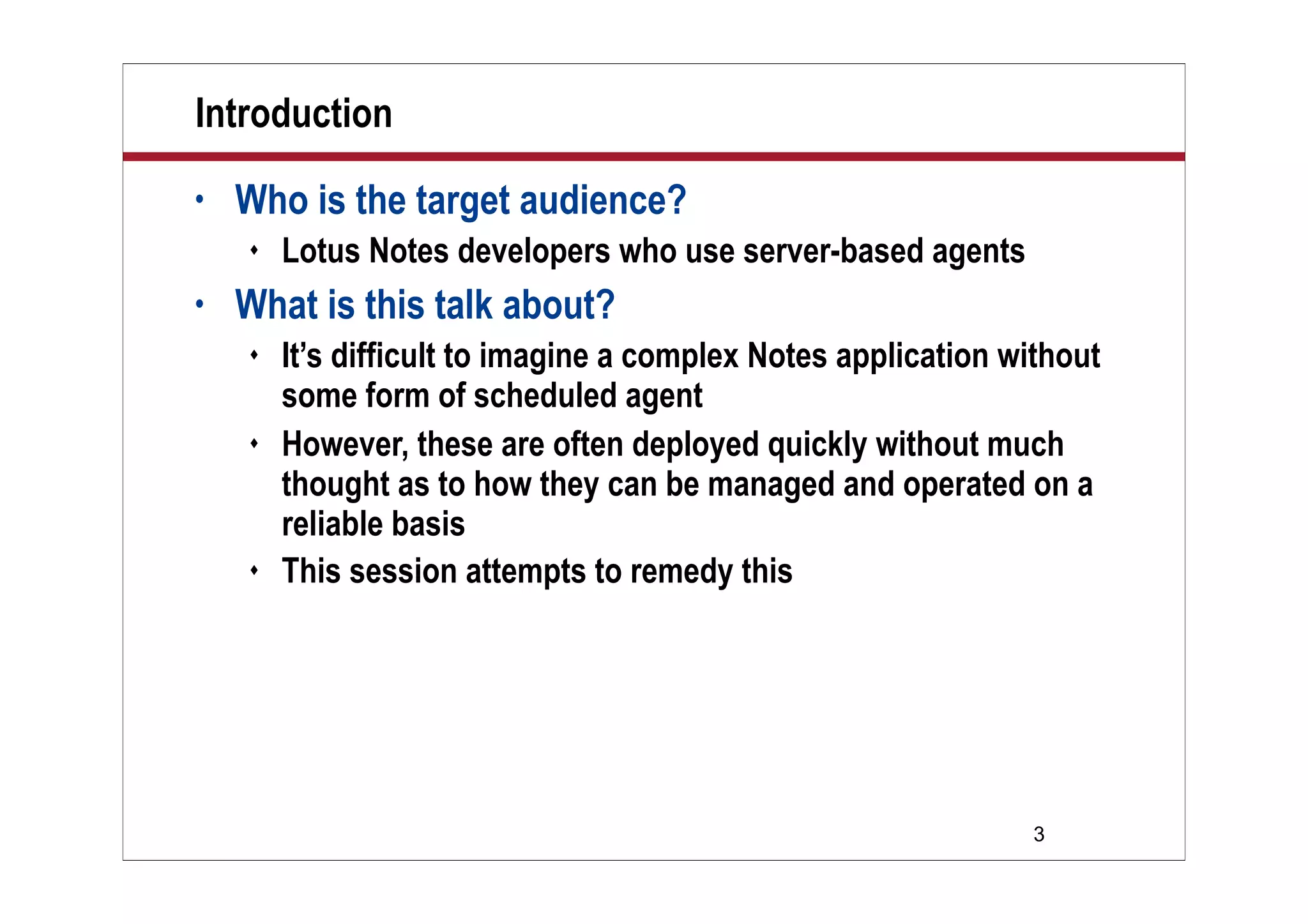

Introduction
• Who is the target audience?
 Lotus Notes developers who use server-based agents
• What is this talk about?
 It’s difficult to imagine a complex Notes application without
some form of scheduled agent
 However, these are often deployed quickly without much
thought as to how they can be managed and operated on a
reliable basis
 This session attempts to remedy this

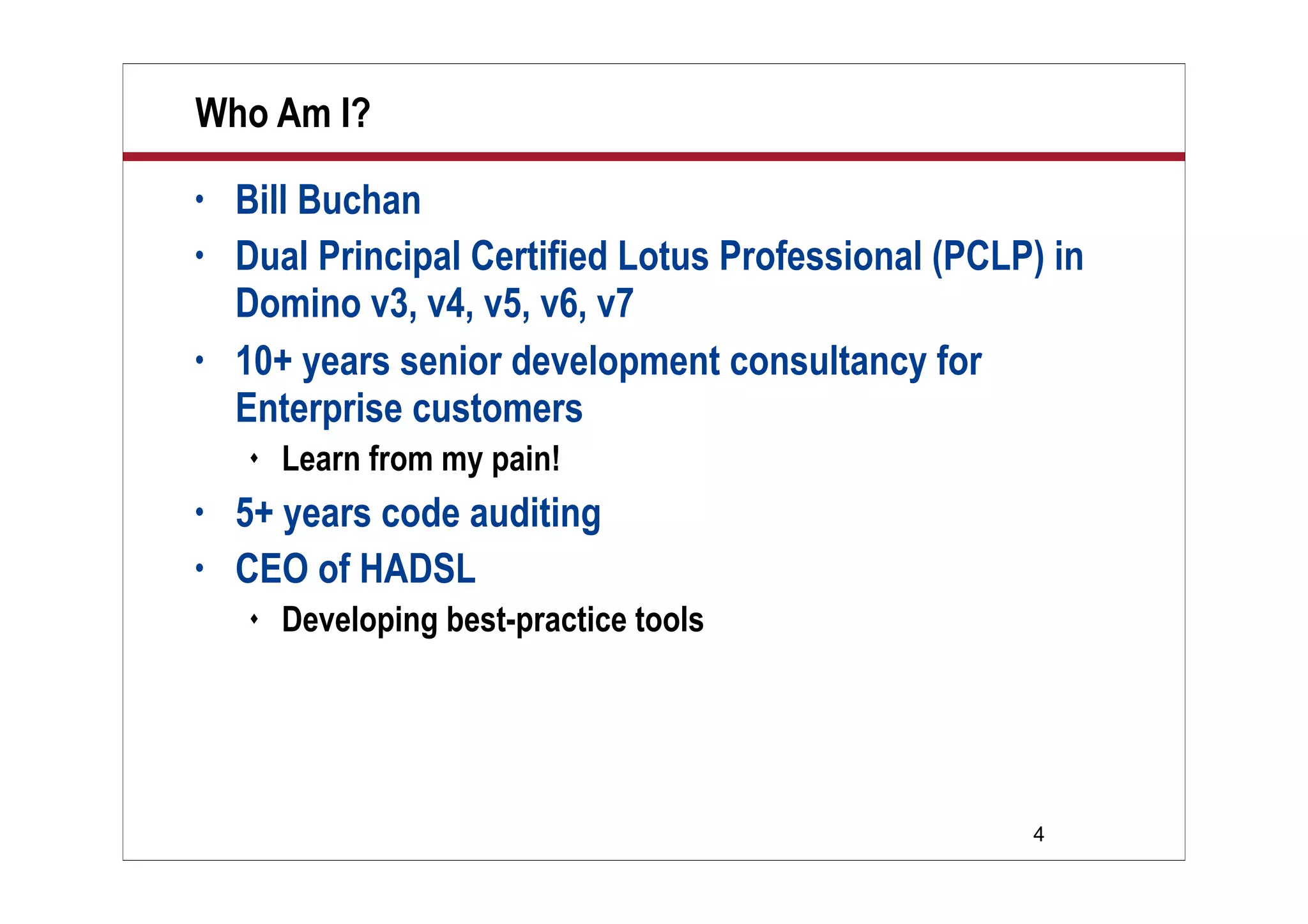

4. 4
Who Am I?
• Bill Buchan
• Dual Principal Certified Lotus Professional (PCLP) in
Domino v3, v4, v5, v6, v7
• 10+ years senior development consultancy for
Enterprise customers
 Learn from my pain!
• 5+ years code auditing
• CEO of HADSL
 Developing best-practice tools

5. 5

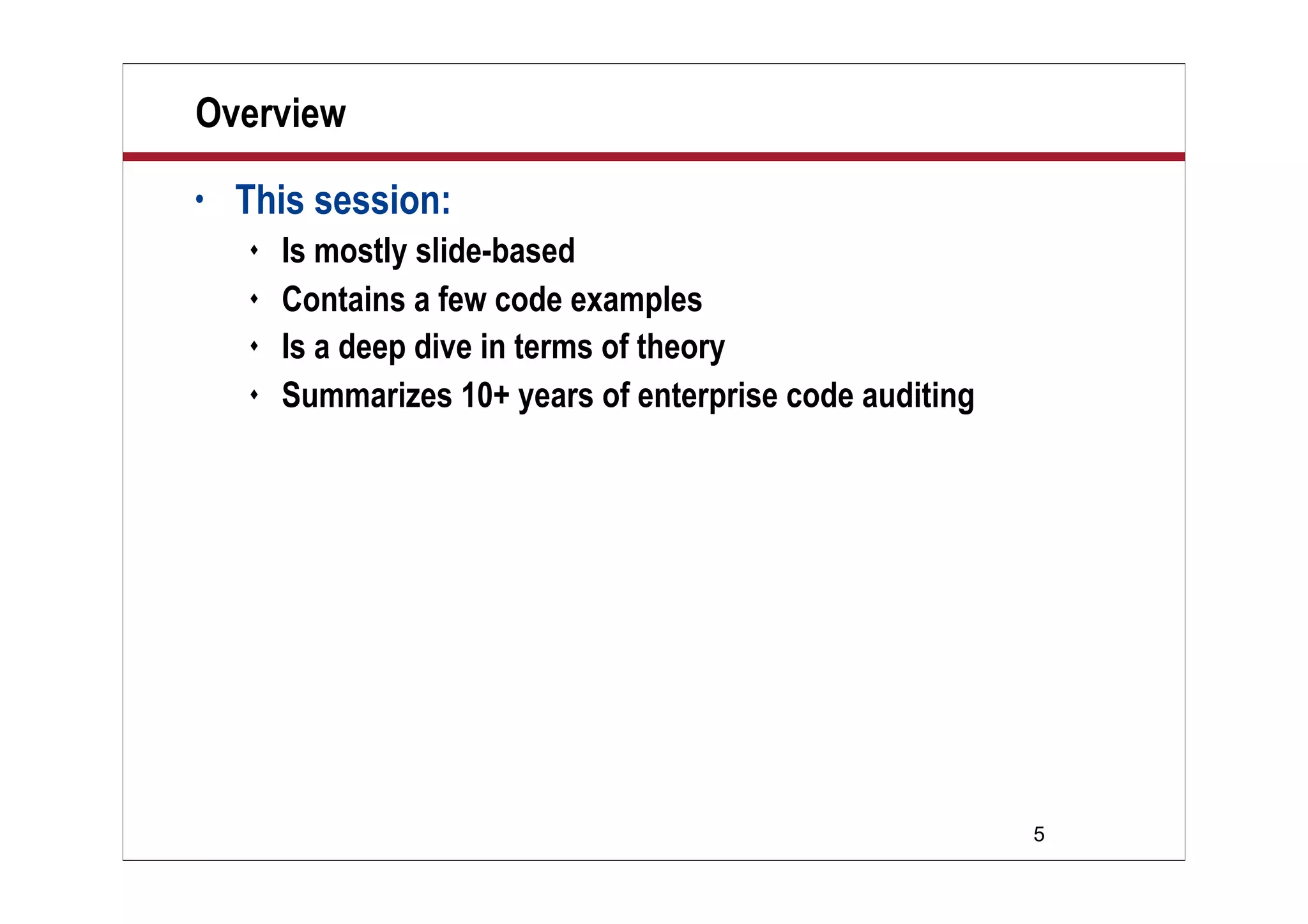

Overview
• This session:
 Is mostly slide-based
 Contains a few code examples
 Is a deep dive in terms of theory
 Summarizes 10+ years of enterprise code auditing

6. 6

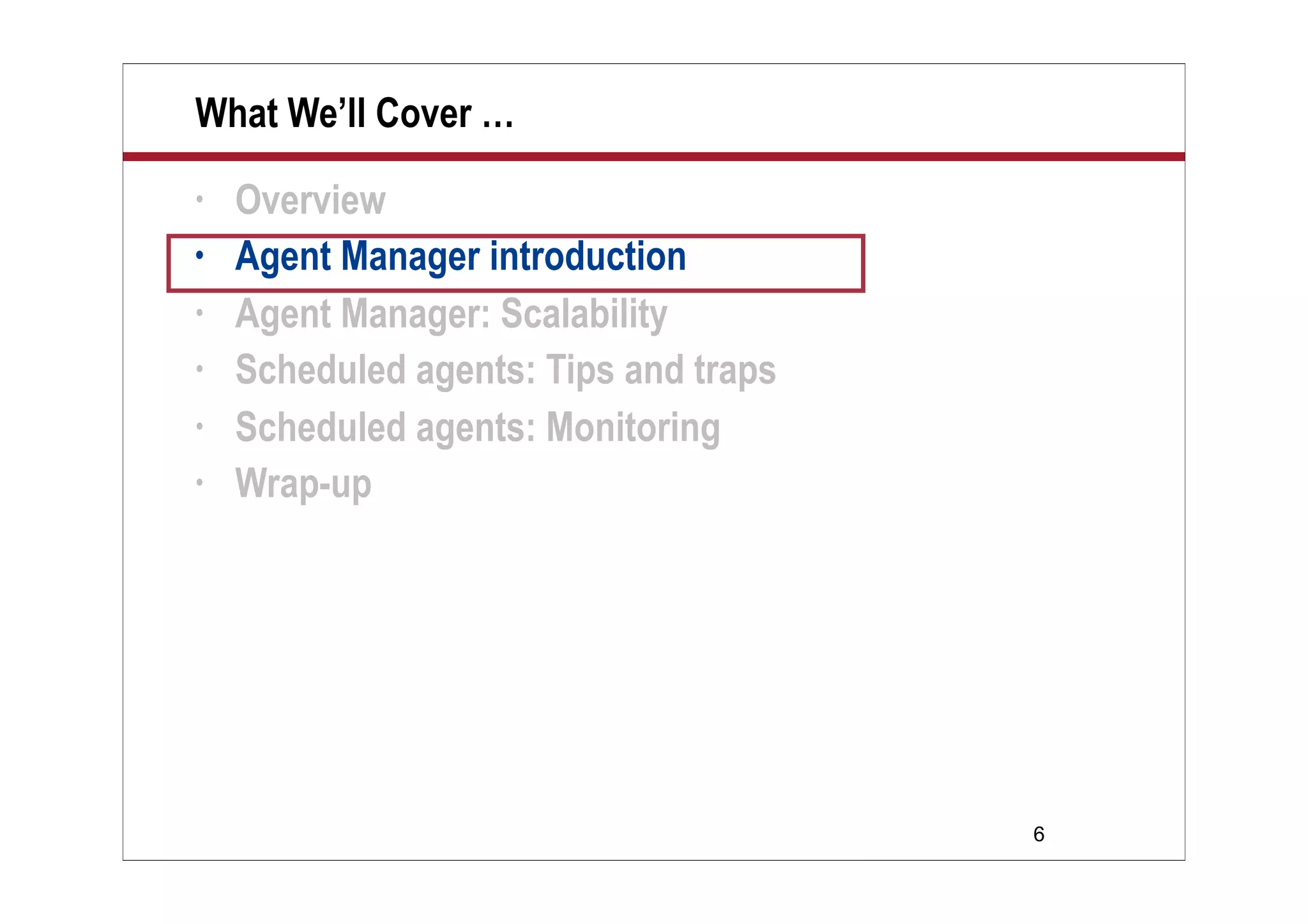

What We’ll Cover …
• Overview
• Agent Manager introduction
• Agent Manager: Scalability
• Scheduled agents: Tips and traps
• Scheduled agents: Monitoring
• Wrap-up

7. 7

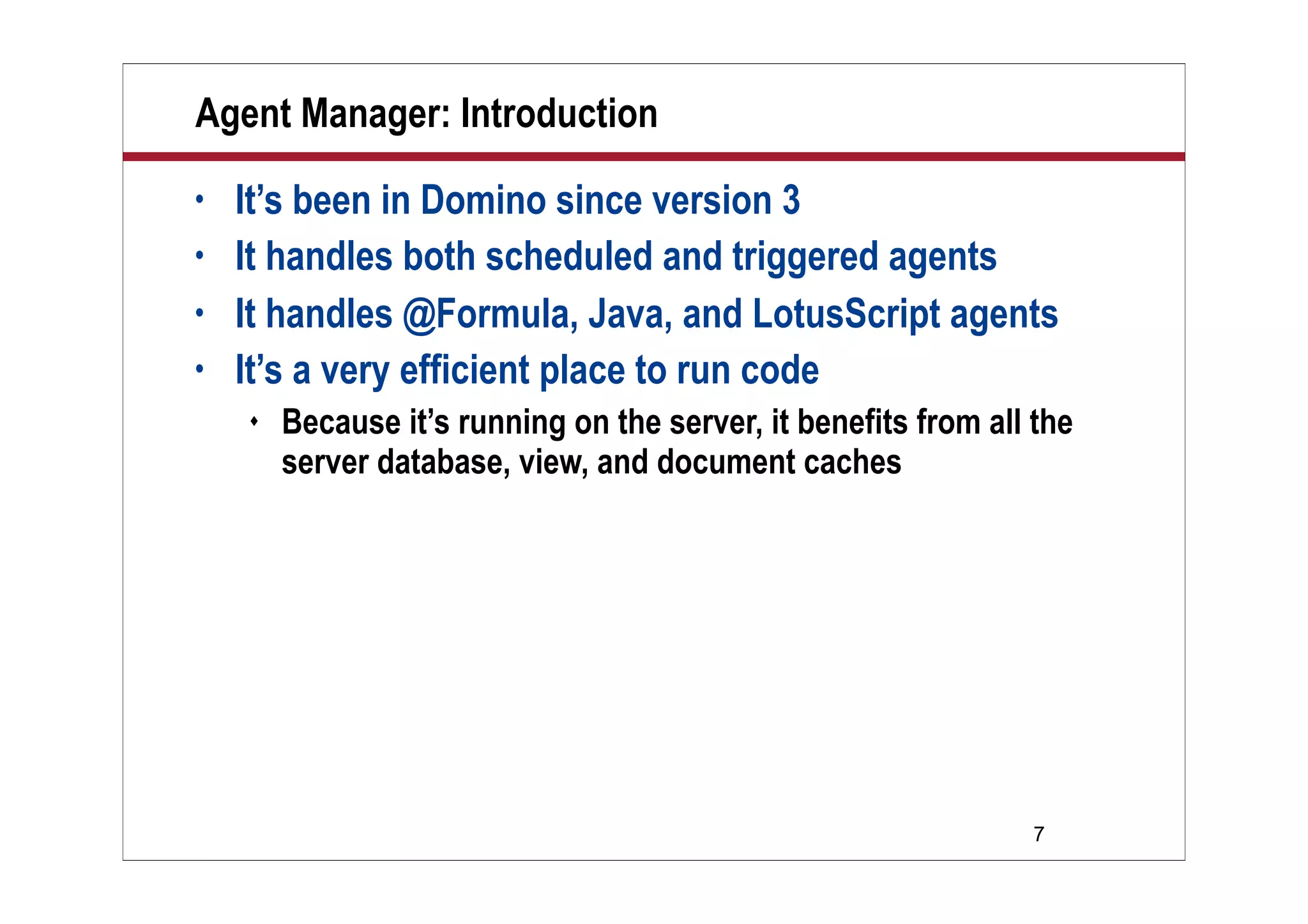

Agent Manager: Introduction
• It’s been in Domino since version 3
• It handles both scheduled and triggered agents
• It handles @Formula, Java, and LotusScript agents
• It’s a very efficient place to run code
 Because it’s running on the server, it benefits from all the
server database, view, and document caches

8. 8

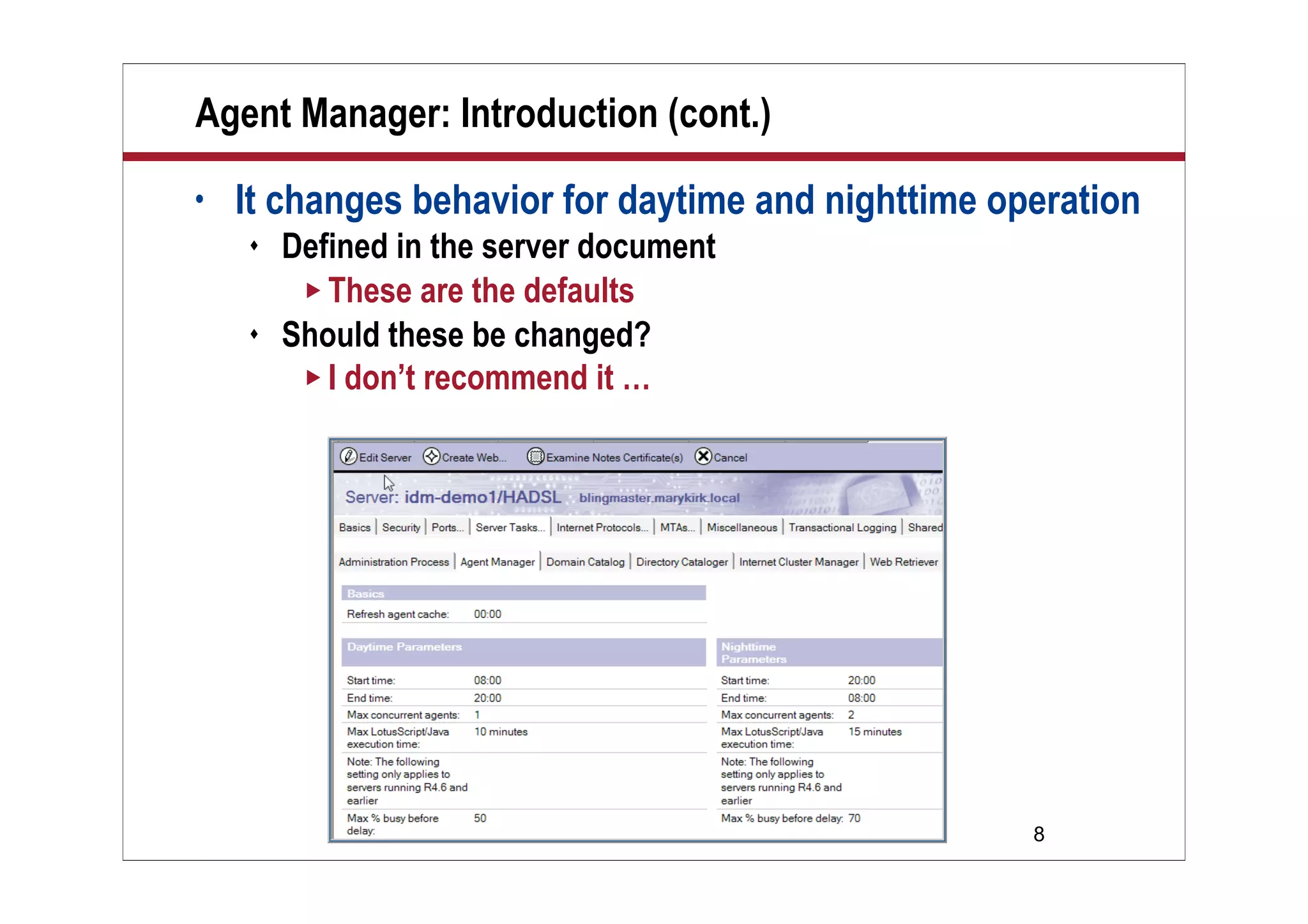

Agent Manager: Introduction (cont.)
• It changes behavior for daytime and nighttime operation
 Defined in the server document
 These are the defaults
 Should these be changed?
 I don’t recommend it …

9. 9

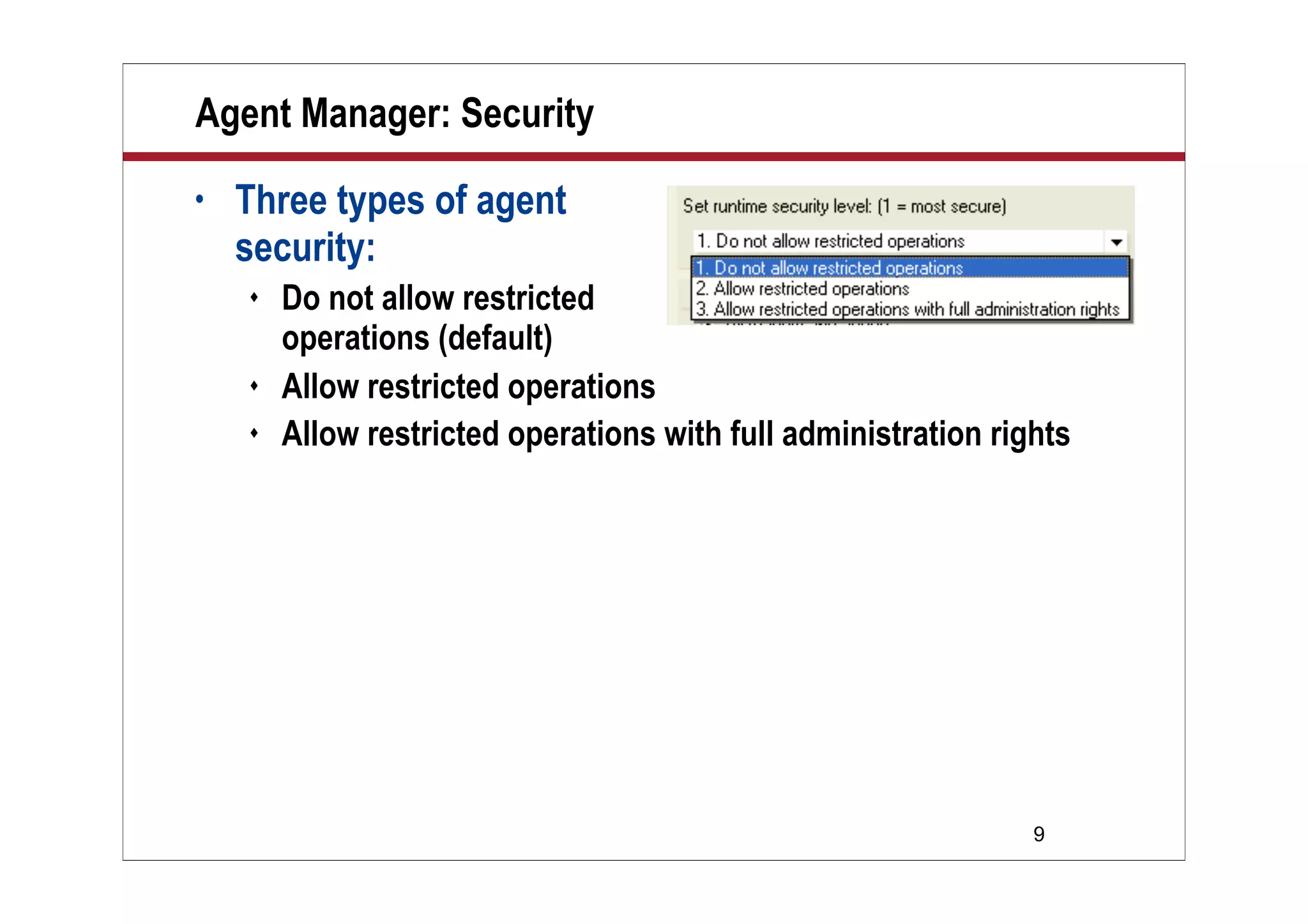

Agent Manager: Security
• Three types of agent
security:
 Do not allow restricted
operations (default)
 Allow restricted operations
 Allow restricted operations with full administration rights

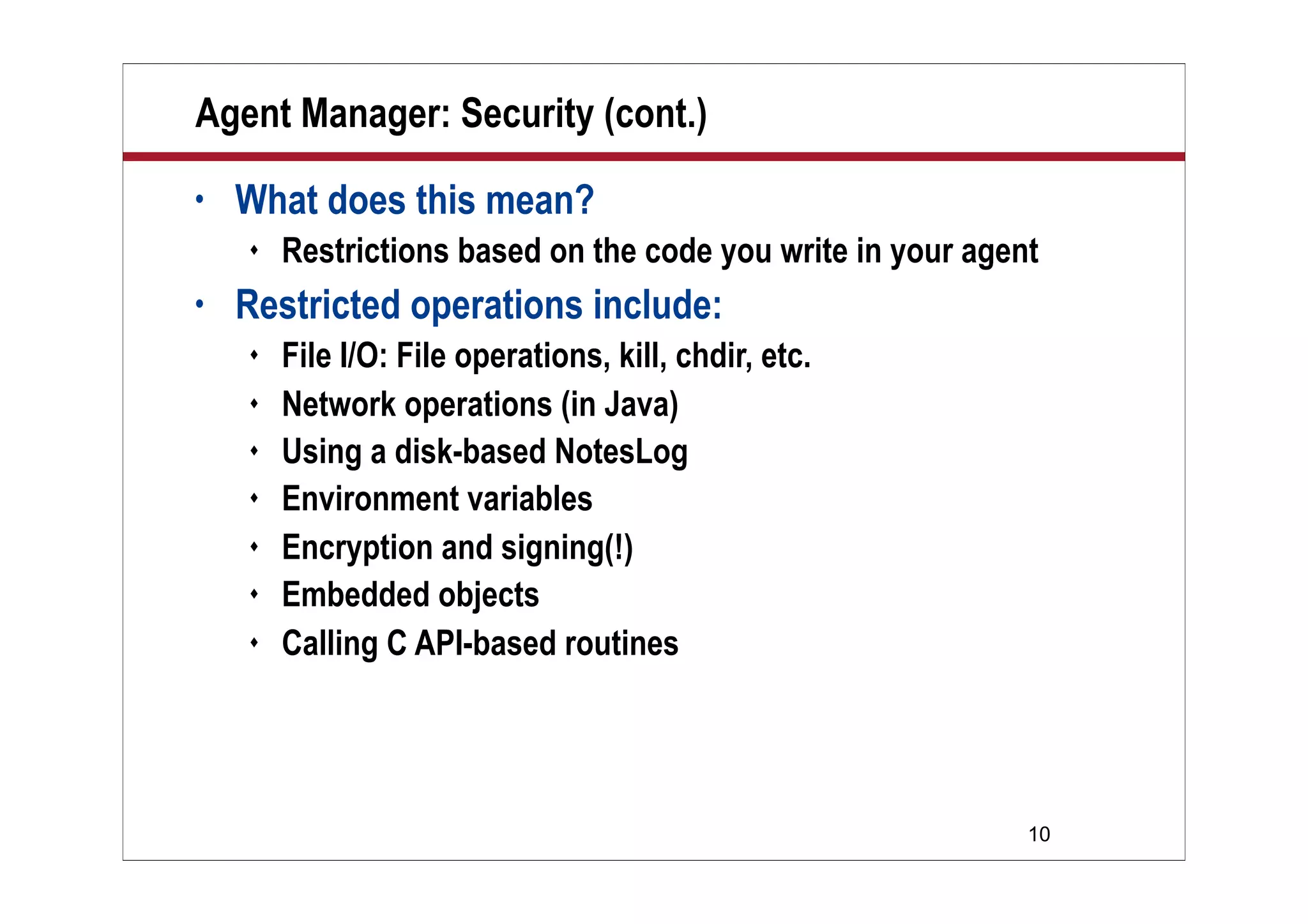

10. 10
Agent Manager: Security (cont.)
• What does this mean?
 Restrictions based on the code you write in your agent
• Restricted operations include:
 File I/O: File operations, kill, chdir, etc.
 Network operations (in Java)
 Using a disk-based NotesLog
 Environment variables
 Encryption and signing(!)
 Embedded objects
 Calling C API-based routines

11. 11

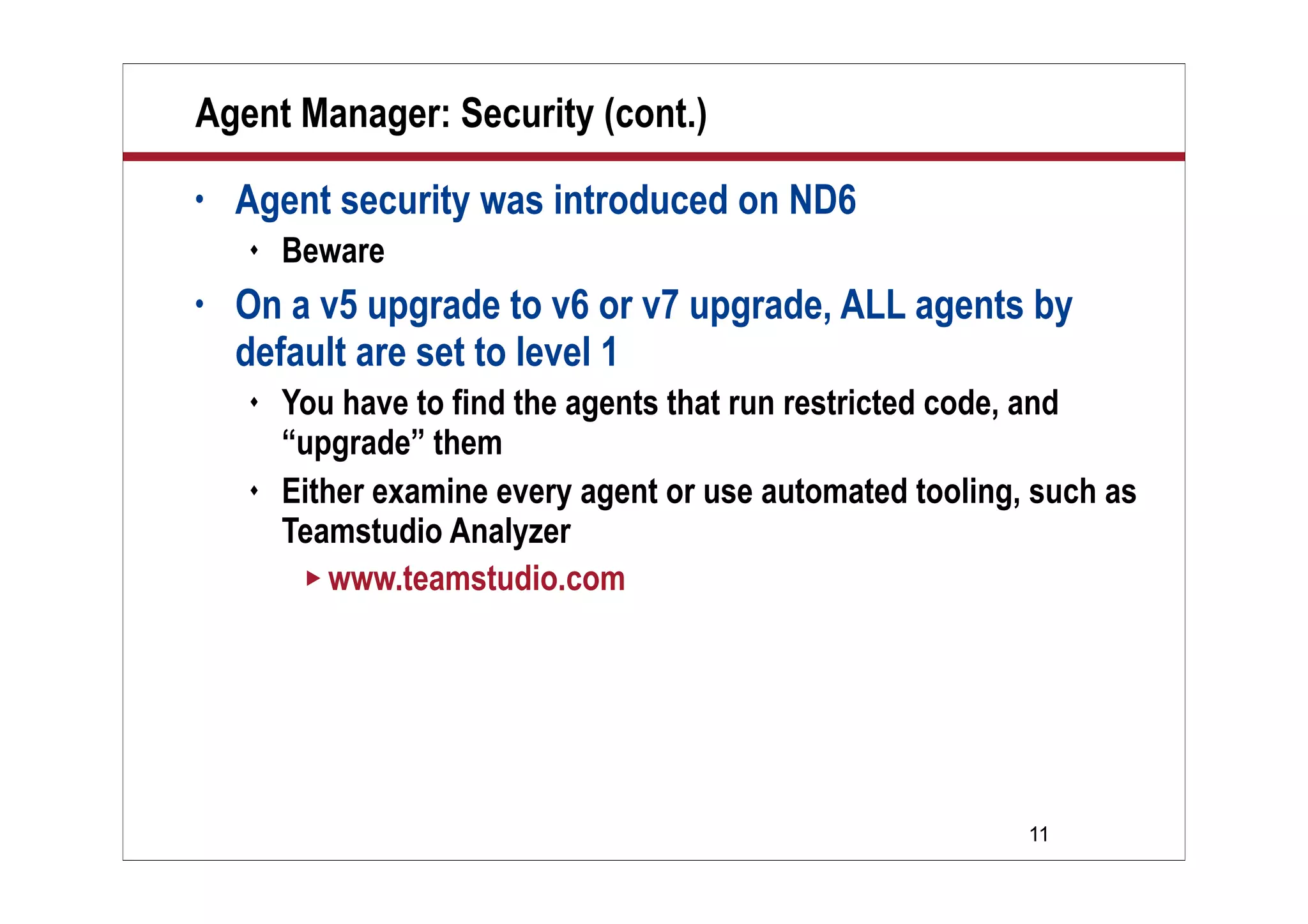

Agent Manager: Security (cont.)
• Agent security was introduced on ND6
 Beware
• On a v5 upgrade to v6 or v7 upgrade, ALL agents by
default are set to level 1
 You have to find the agents that run restricted code, and
“upgrade” them
 Either examine every agent or use automated tooling, such as
Teamstudio Analyzer
 www.teamstudio.com

12. 12

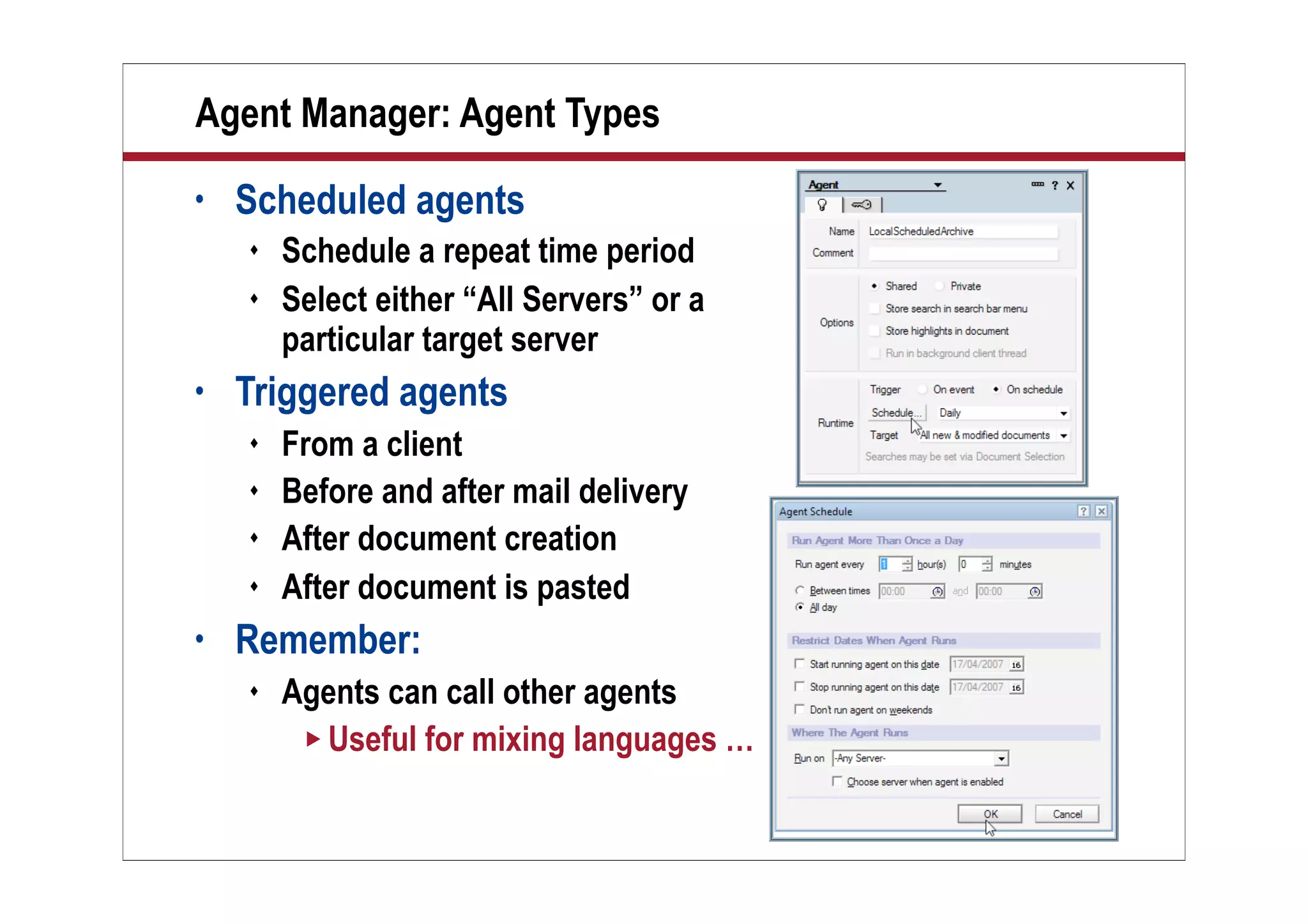

Agent Manager: Agent Types
• Scheduled agents
 Schedule a repeat time period
 Select either “All Servers” or a
particular target server
• Triggered agents
 From a client
 Before and after mail delivery
 After document creation
 After document is pasted
• Remember:
 Agents can call other agents
 Useful for mixing languages …

13. 13

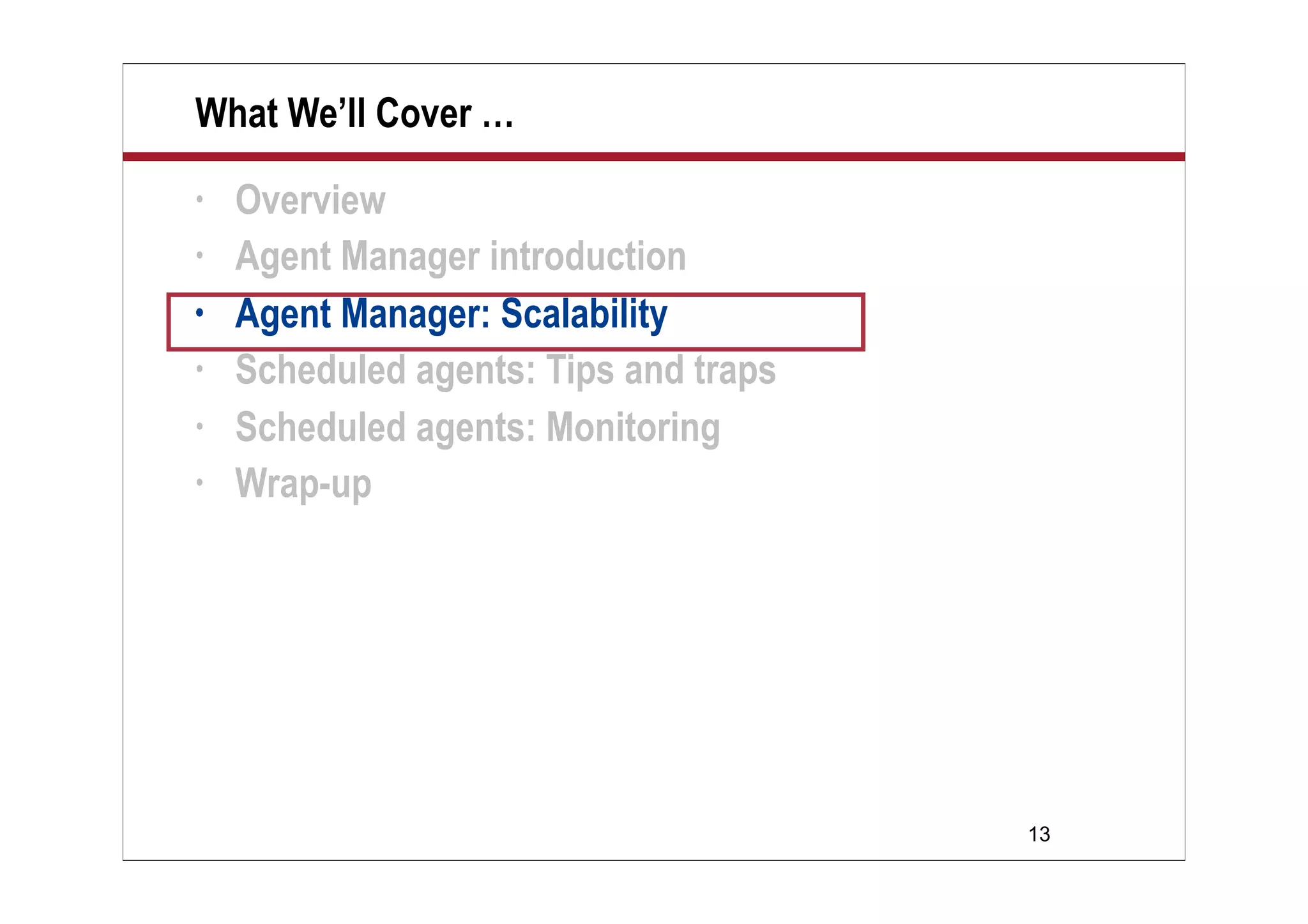

What We’ll Cover …
• Overview
• Agent Manager introduction
• Agent Manager: Scalability
• Scheduled agents: Tips and traps
• Scheduled agents: Monitoring
• Wrap-up

14. 14

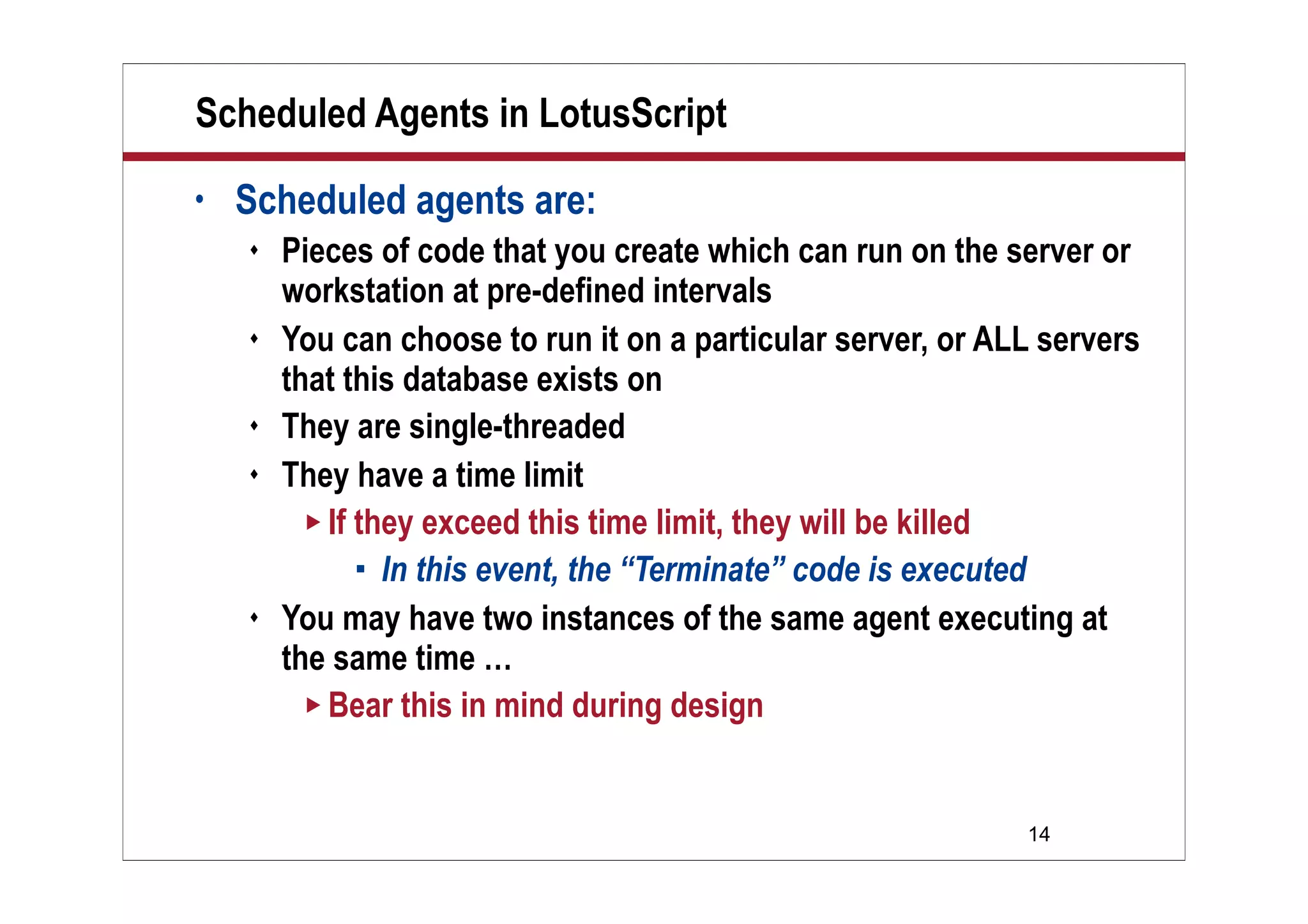

Scheduled Agents in LotusScript
• Scheduled agents are:
 Pieces of code that you create which can run on the server or
workstation at pre-defined intervals
 You can choose to run it on a particular server, or ALL servers
that this database exists on
 They are single-threaded
 They have a time limit
 If they exceed this time limit, they will be killed
 In this event, the “Terminate” code is executed
 You may have two instances of the same agent executing at
the same time …
 Bear this in mind during design

15. 15

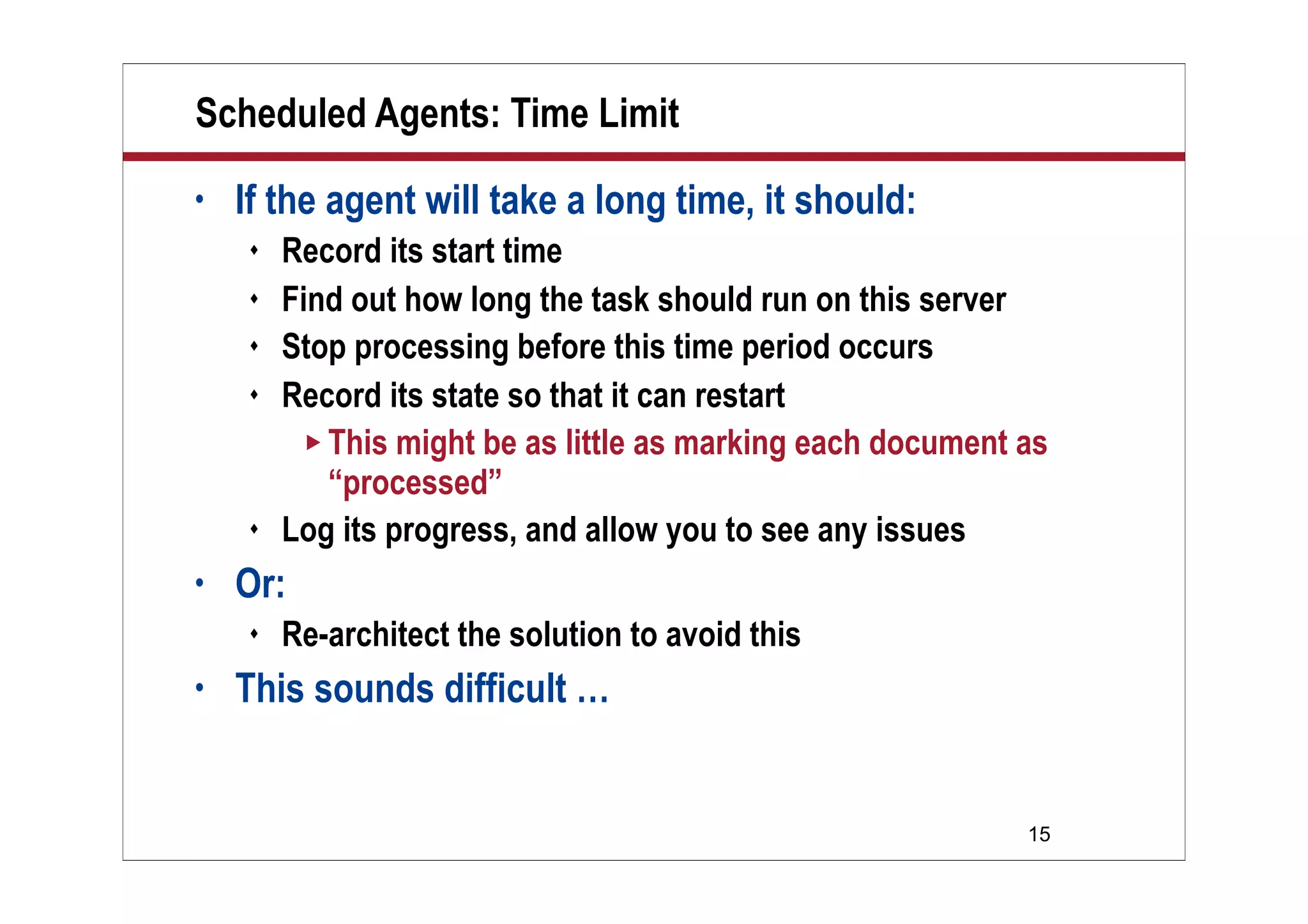

Scheduled Agents: Time Limit
• If the agent will take a long time, it should:
 Record its start time
 Find out how long the task should run on this server
 Stop processing before this time period occurs
 Record its state so that it can restart
 This might be as little as marking each document as
“processed”
 Log its progress, and allow you to see any issues
• Or:
 Re-architect the solution to avoid this
• This sounds difficult …

16. 16

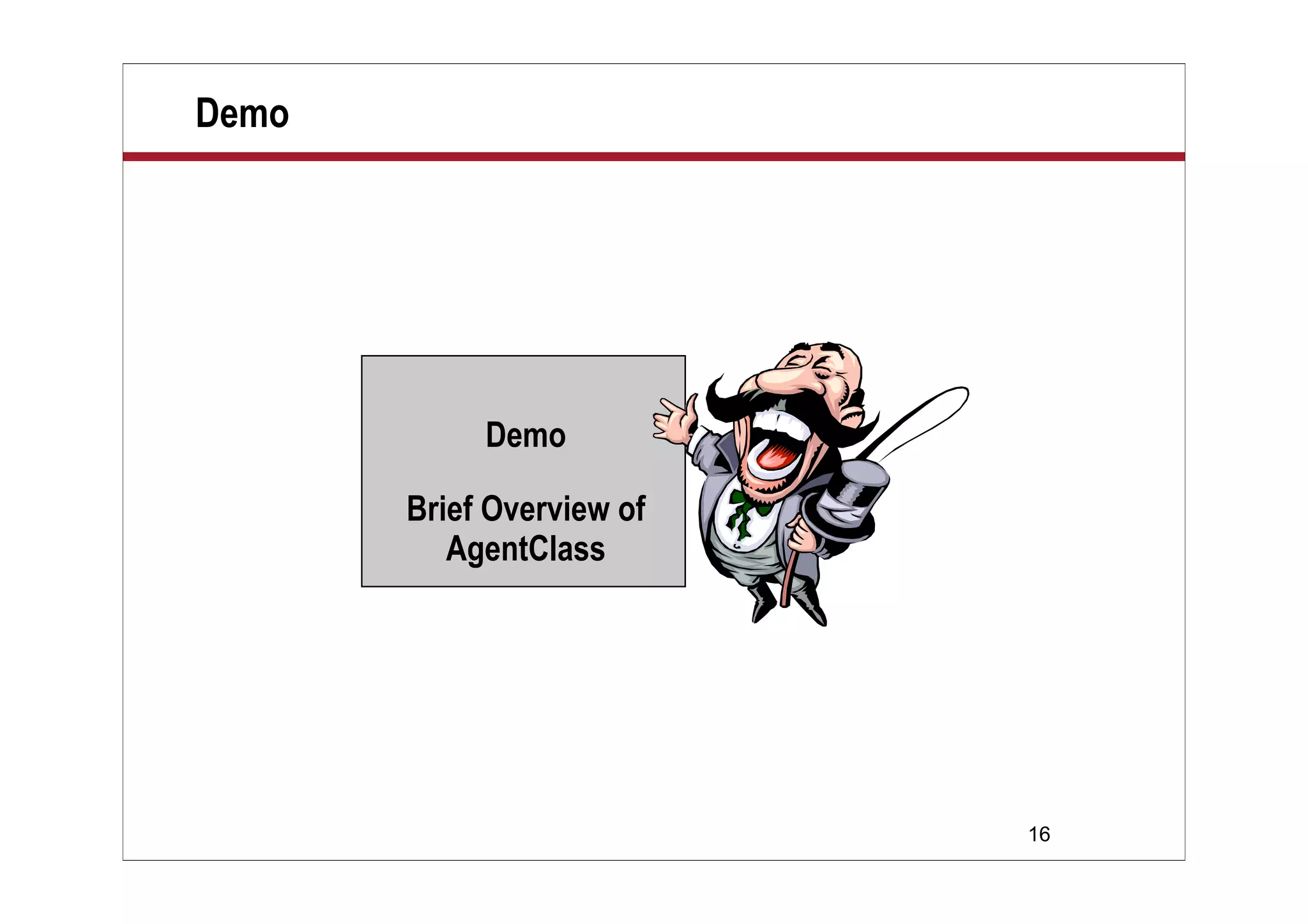

Demo
Demo
Brief Overview of
AgentClass

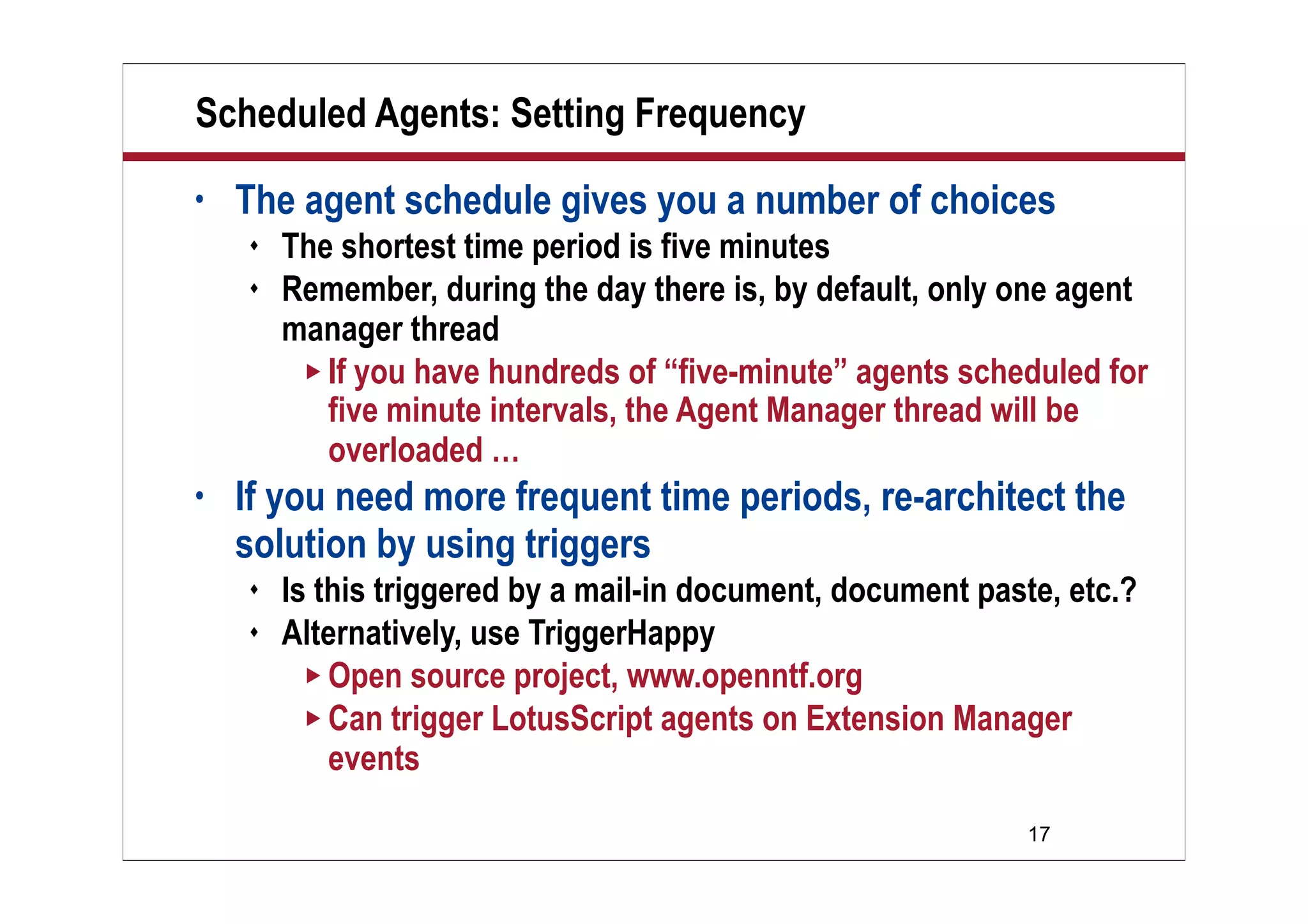

17. 17
Scheduled Agents: Setting Frequency
• The agent schedule gives you a number of choices
 The shortest time period is five minutes
 Remember, during the day there is, by default, only one agent
manager thread
 If you have hundreds of “five-minute” agents scheduled for
five minute intervals, the Agent Manager thread will be
overloaded …
• If you need more frequent time periods, re-architect the
solution by using triggers
 Is this triggered by a mail-in document, document paste, etc.?
 Alternatively, use TriggerHappy
 Open source project, www.openntf.org
 Can trigger LotusScript agents on Extension Manager
events

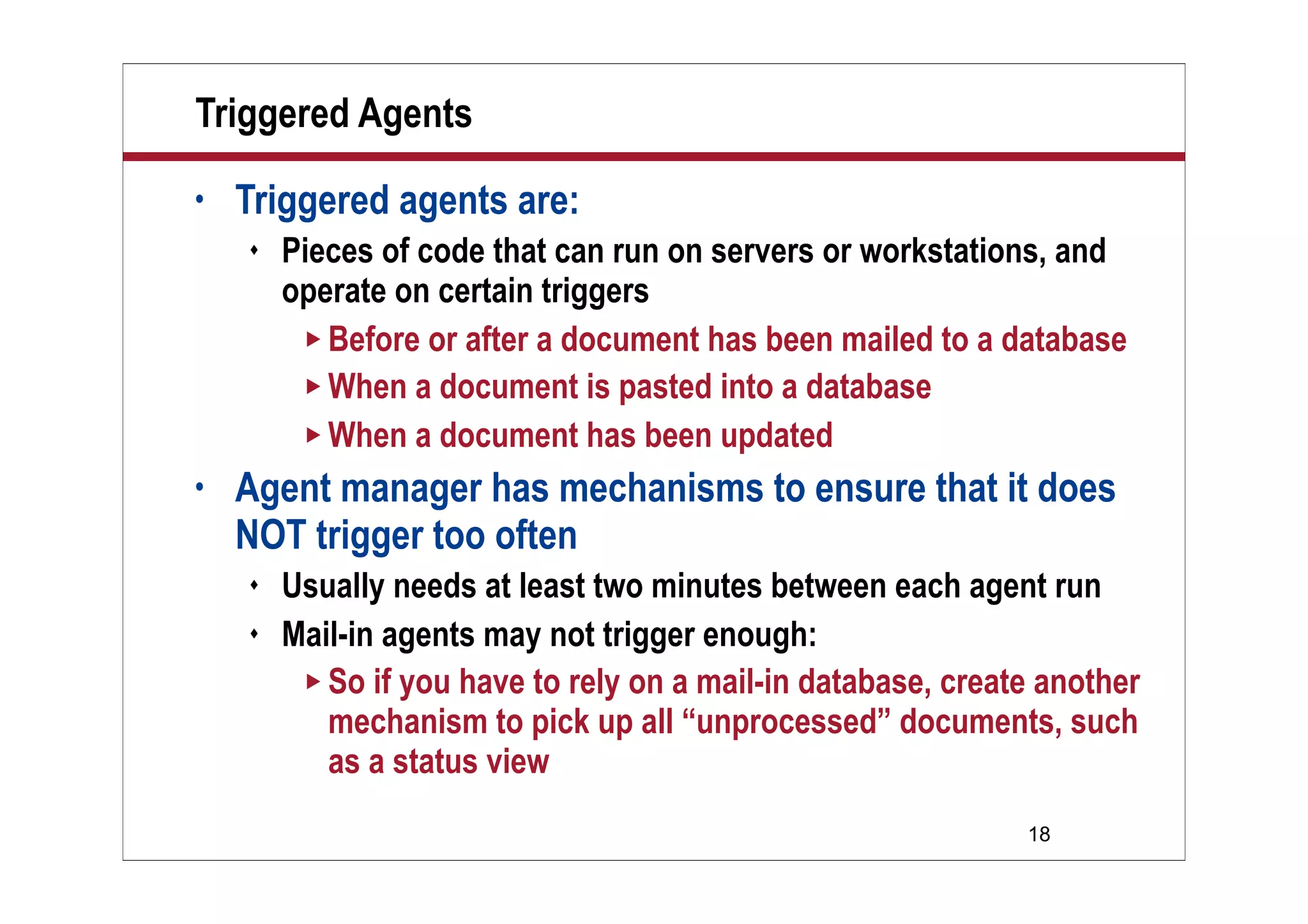

18. 18
Triggered Agents
• Triggered agents are:
 Pieces of code that can run on servers or workstations, and
operate on certain triggers
 Before or after a document has been mailed to a database
 When a document is pasted into a database
 When a document has been updated
• Agent manager has mechanisms to ensure that it does
NOT trigger too often
 Usually needs at least two minutes between each agent run
 Mail-in agents may not trigger enough:
 So if you have to rely on a mail-in database, create another
mechanism to pick up all “unprocessed” documents, such
as a status view

19. 19

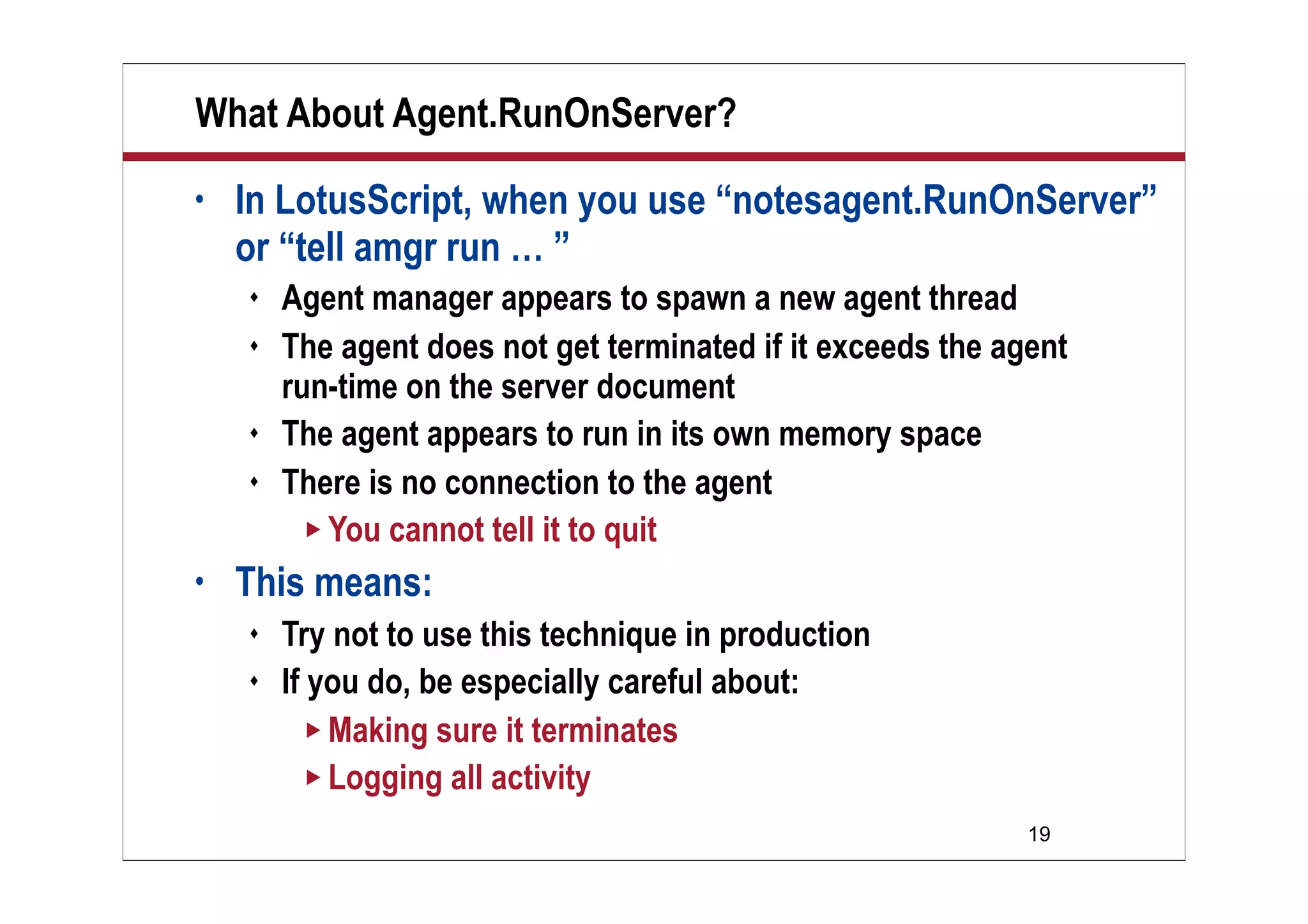

What About Agent.RunOnServer?
• In LotusScript, when you use “notesagent.RunOnServer”
or “tell amgr run … ”
 Agent manager appears to spawn a new agent thread
 The agent does not get terminated if it exceeds the agent
run-time on the server document
 The agent appears to run in its own memory space
 There is no connection to the agent
 You cannot tell it to quit
• This means:
 Try not to use this technique in production
 If you do, be especially careful about:
 Making sure it terminates
 Logging all activity

20. 20

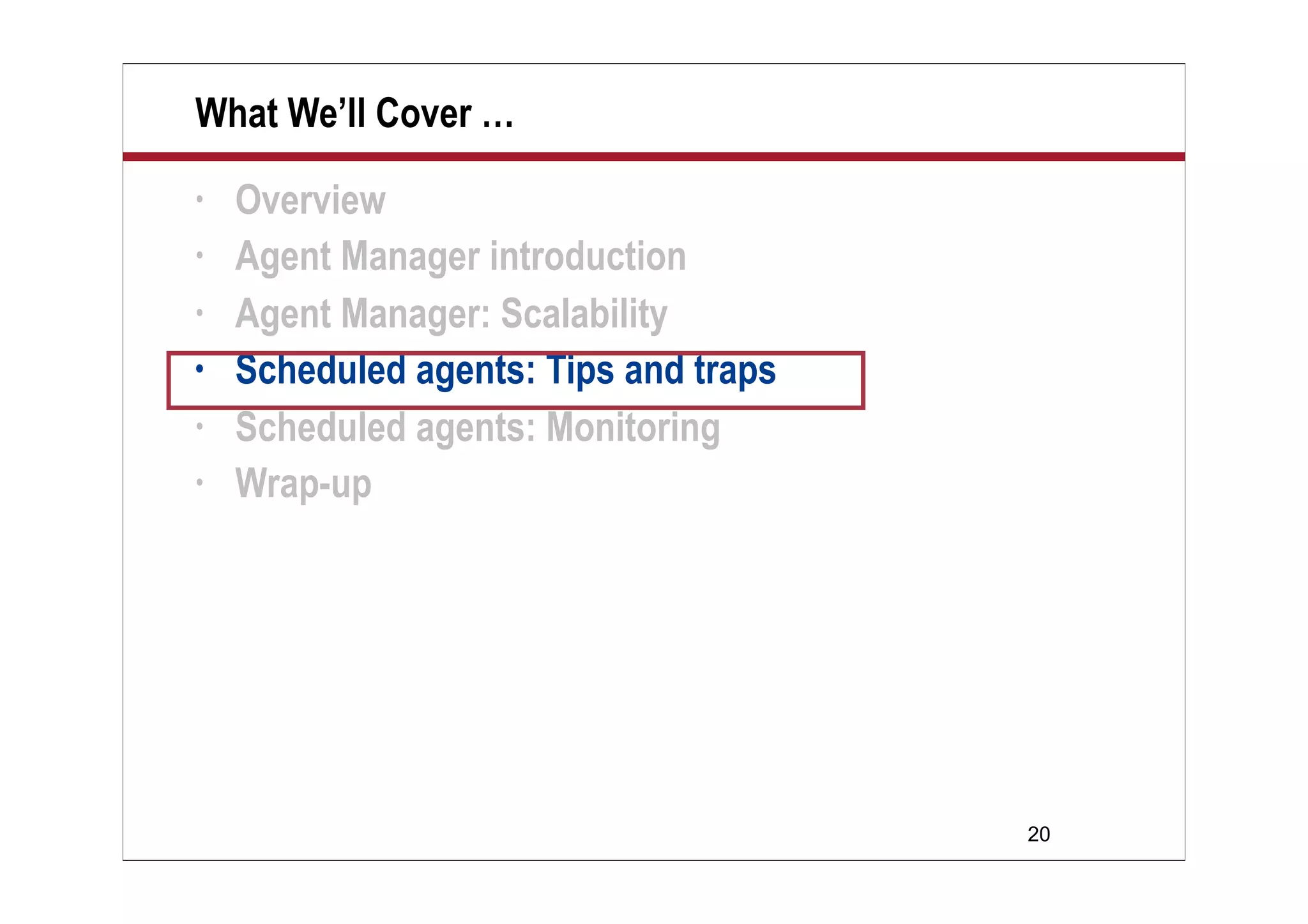

What We’ll Cover …
• Overview
• Agent Manager introduction
• Agent Manager: Scalability
• Scheduled agents: Tips and traps
• Scheduled agents: Monitoring
• Wrap-up

21. 21

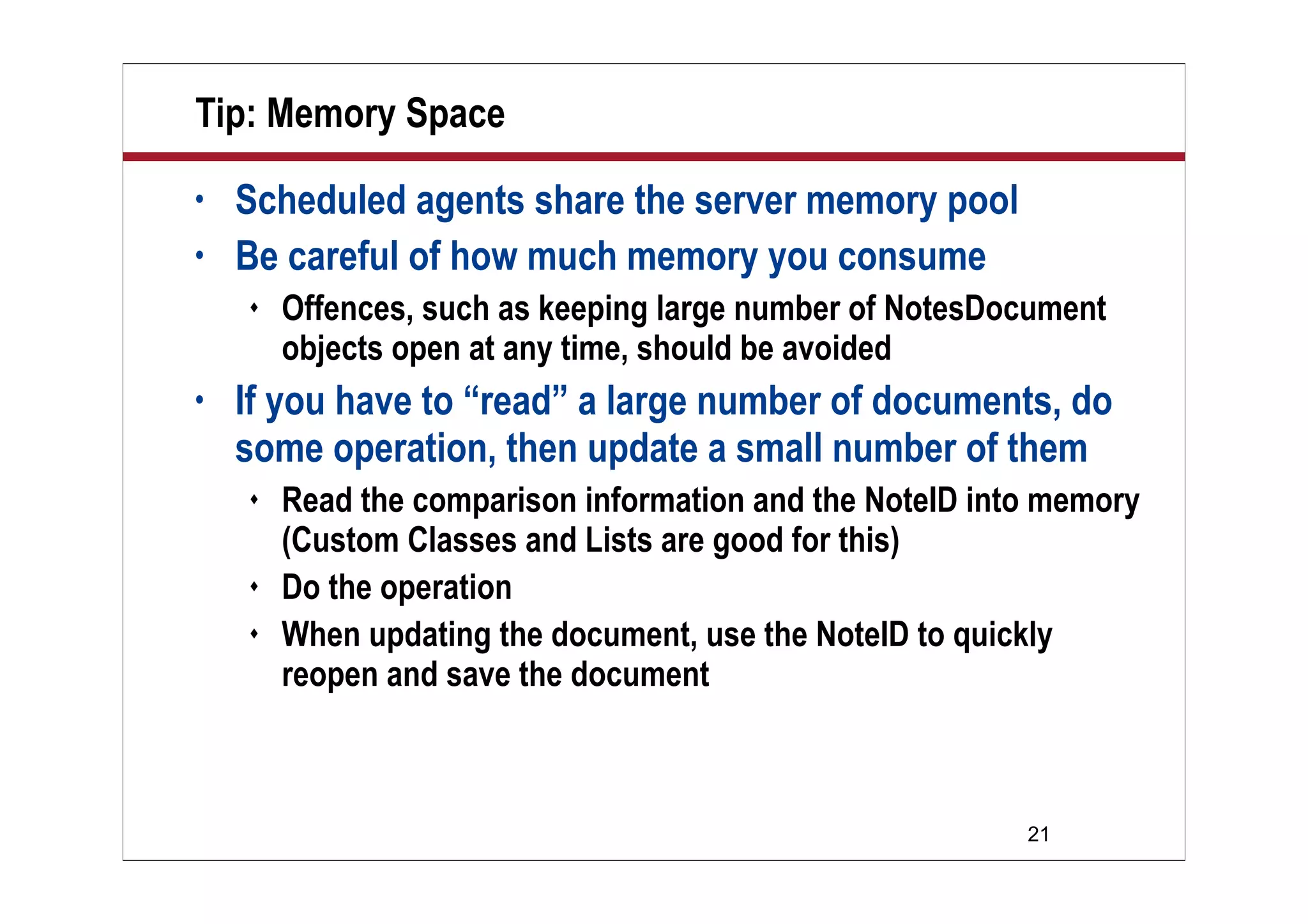

Tip: Memory Space
• Scheduled agents share the server memory pool
• Be careful of how much memory you consume
 Offences, such as keeping large number of NotesDocument
objects open at any time, should be avoided
• If you have to “read” a large number of documents, do
some operation, then update a small number of them
 Read the comparison information and the NoteID into memory
(Custom Classes and Lists are good for this)
 Do the operation
 When updating the document, use the NoteID to quickly
reopen and save the document

22. 22

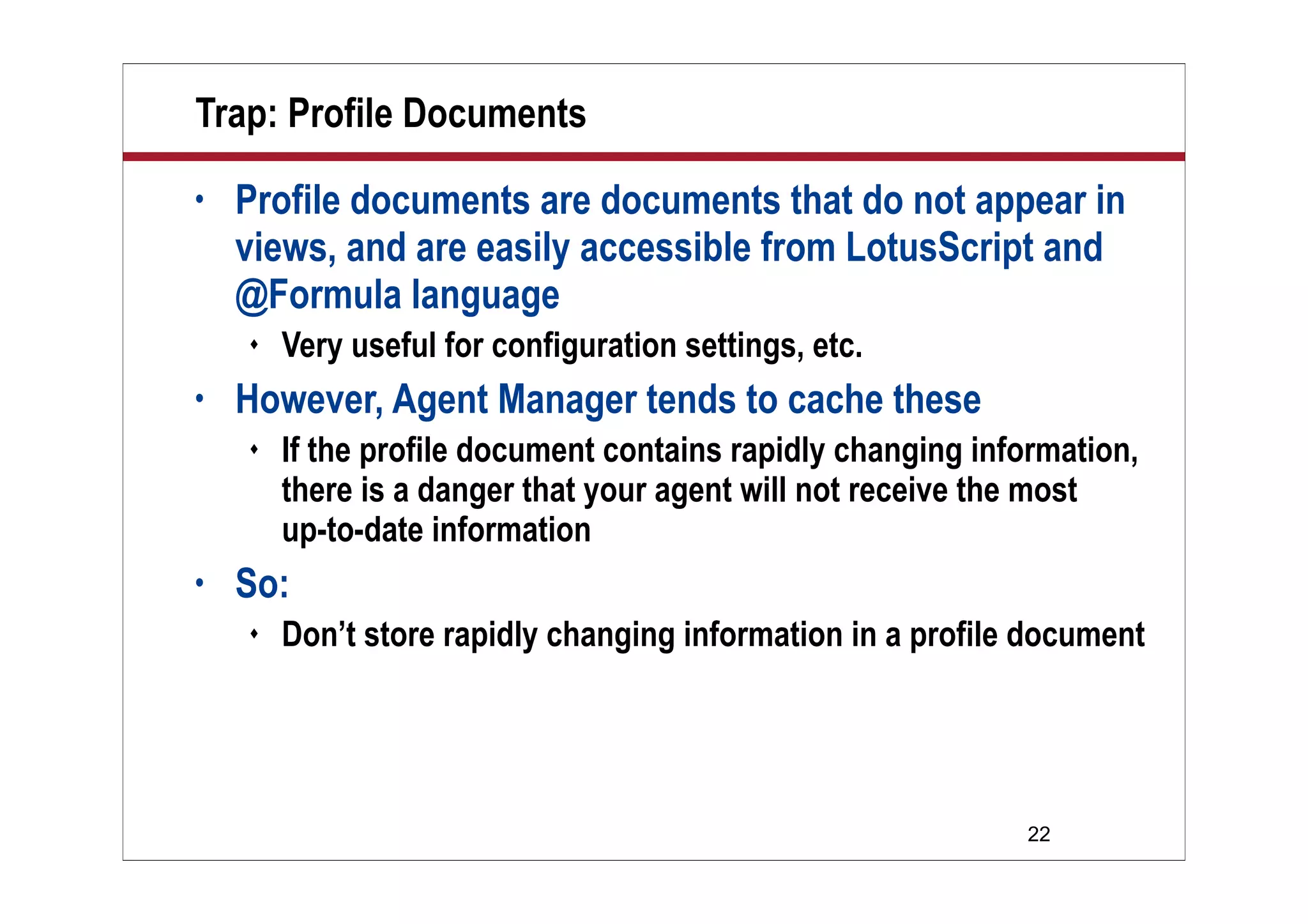

Trap: Profile Documents
• Profile documents are documents that do not appear in
views, and are easily accessible from LotusScript and
@Formula language
 Very useful for configuration settings, etc.
• However, Agent Manager tends to cache these
 If the profile document contains rapidly changing information,
there is a danger that your agent will not receive the most
up-to-date information
• So:
 Don’t store rapidly changing information in a profile document

23. 23

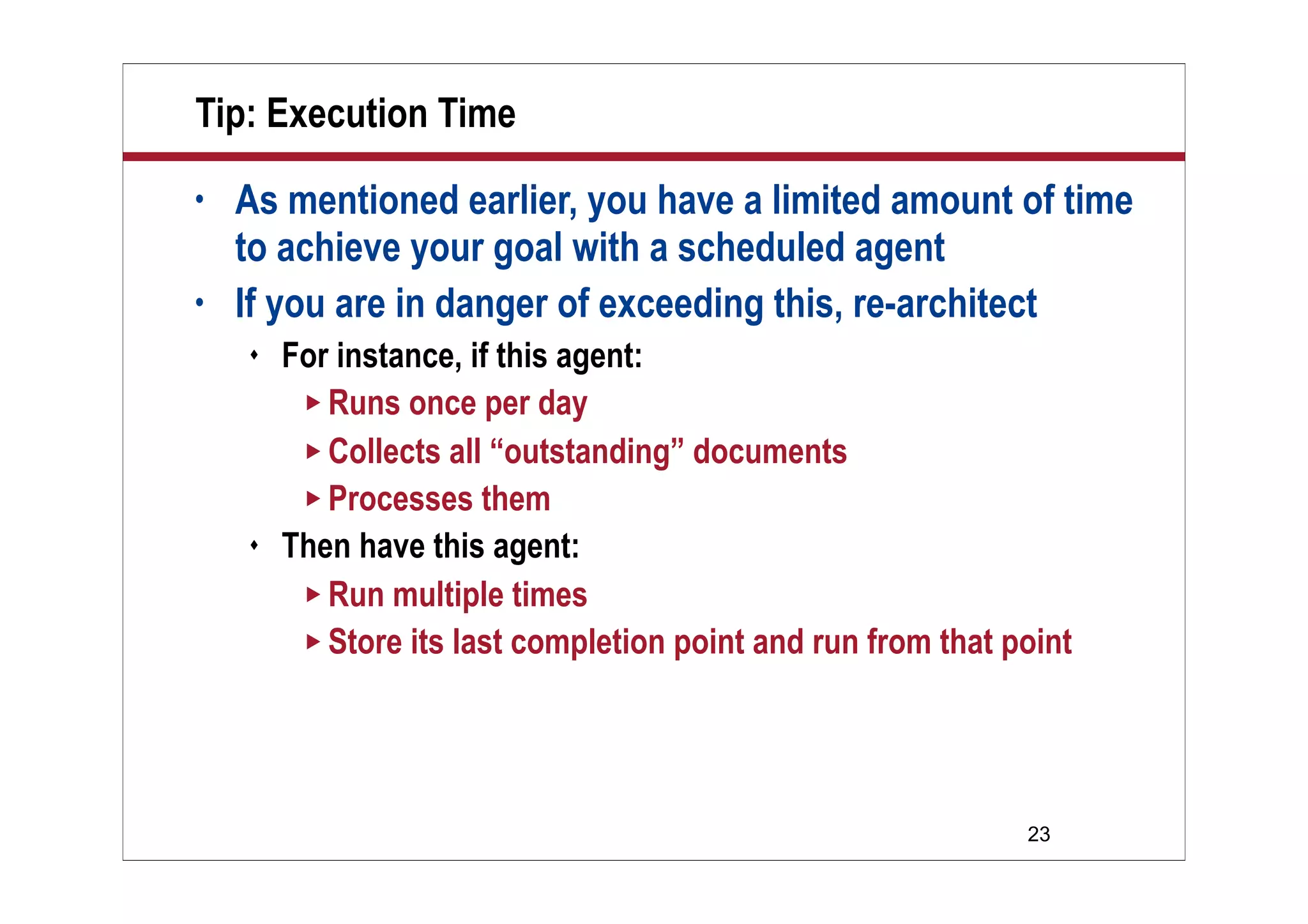

Tip: Execution Time
• As mentioned earlier, you have a limited amount of time
to achieve your goal with a scheduled agent
• If you are in danger of exceeding this, re-architect
 For instance, if this agent:
 Runs once per day
 Collects all “outstanding” documents
 Processes them
 Then have this agent:
 Run multiple times
 Store its last completion point and run from that point

24. 24

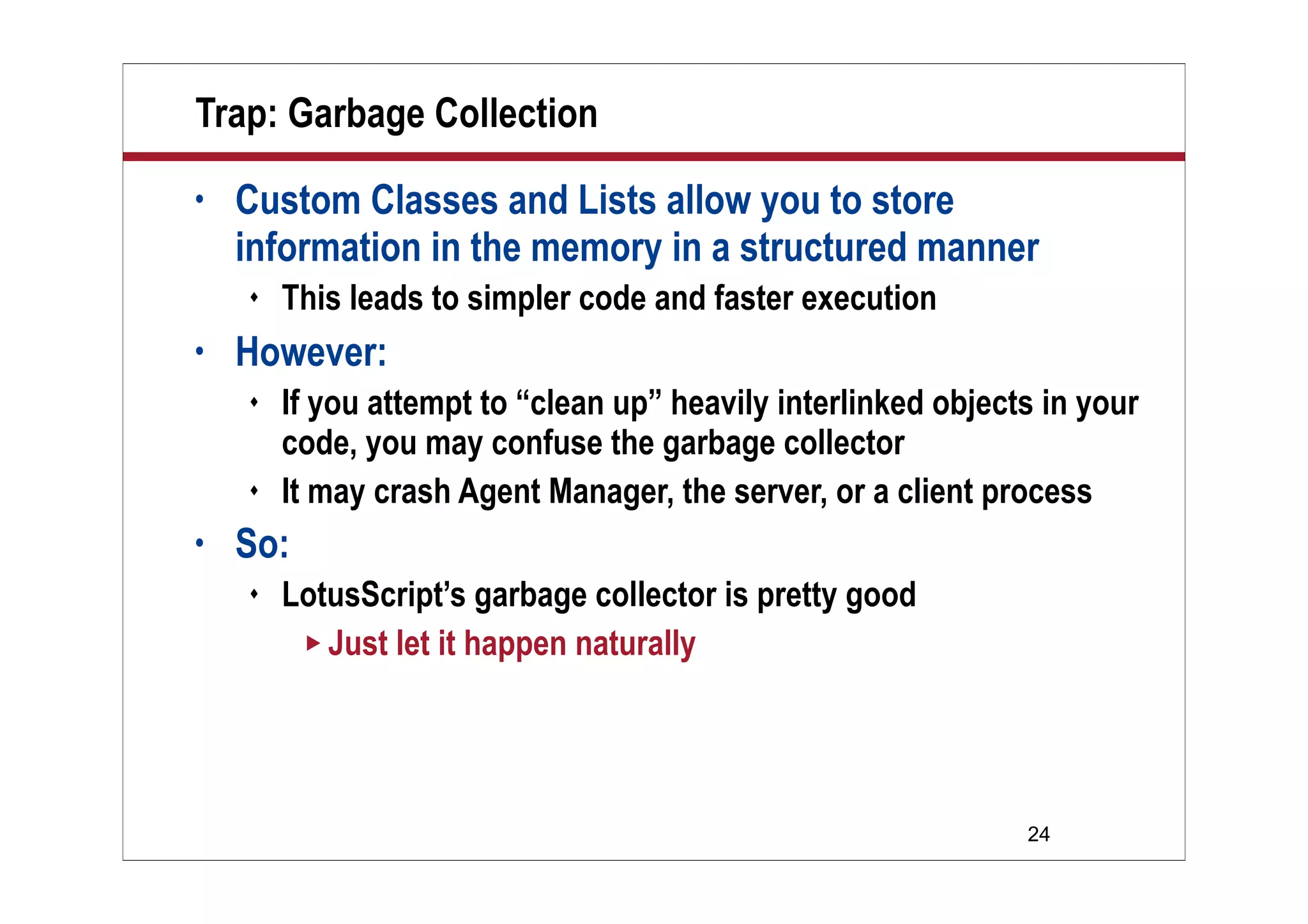

Trap: Garbage Collection
• Custom Classes and Lists allow you to store
information in the memory in a structured manner
 This leads to simpler code and faster execution
• However:
 If you attempt to “clean up” heavily interlinked objects in your
code, you may confuse the garbage collector
 It may crash Agent Manager, the server, or a client process
• So:
 LotusScript’s garbage collector is pretty good
 Just let it happen naturally

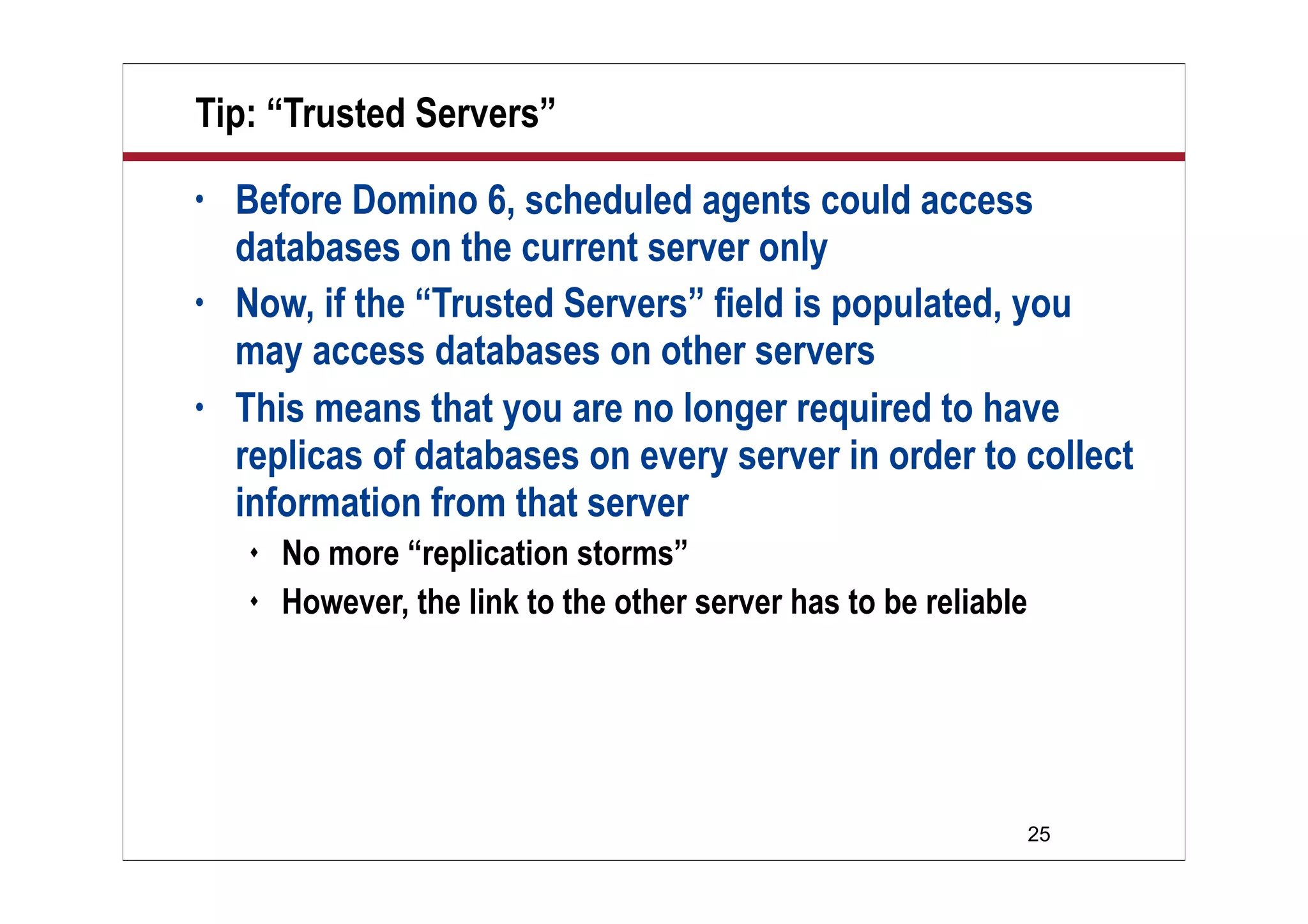

25. 25
Tip: “Trusted Servers”
• Before Domino 6, scheduled agents could access
databases on the current server only
• Now, if the “Trusted Servers” field is populated, you
may access databases on other servers
• This means that you are no longer required to have
replicas of databases on every server in order to collect
information from that server
 No more “replication storms”
 However, the link to the other server has to be reliable

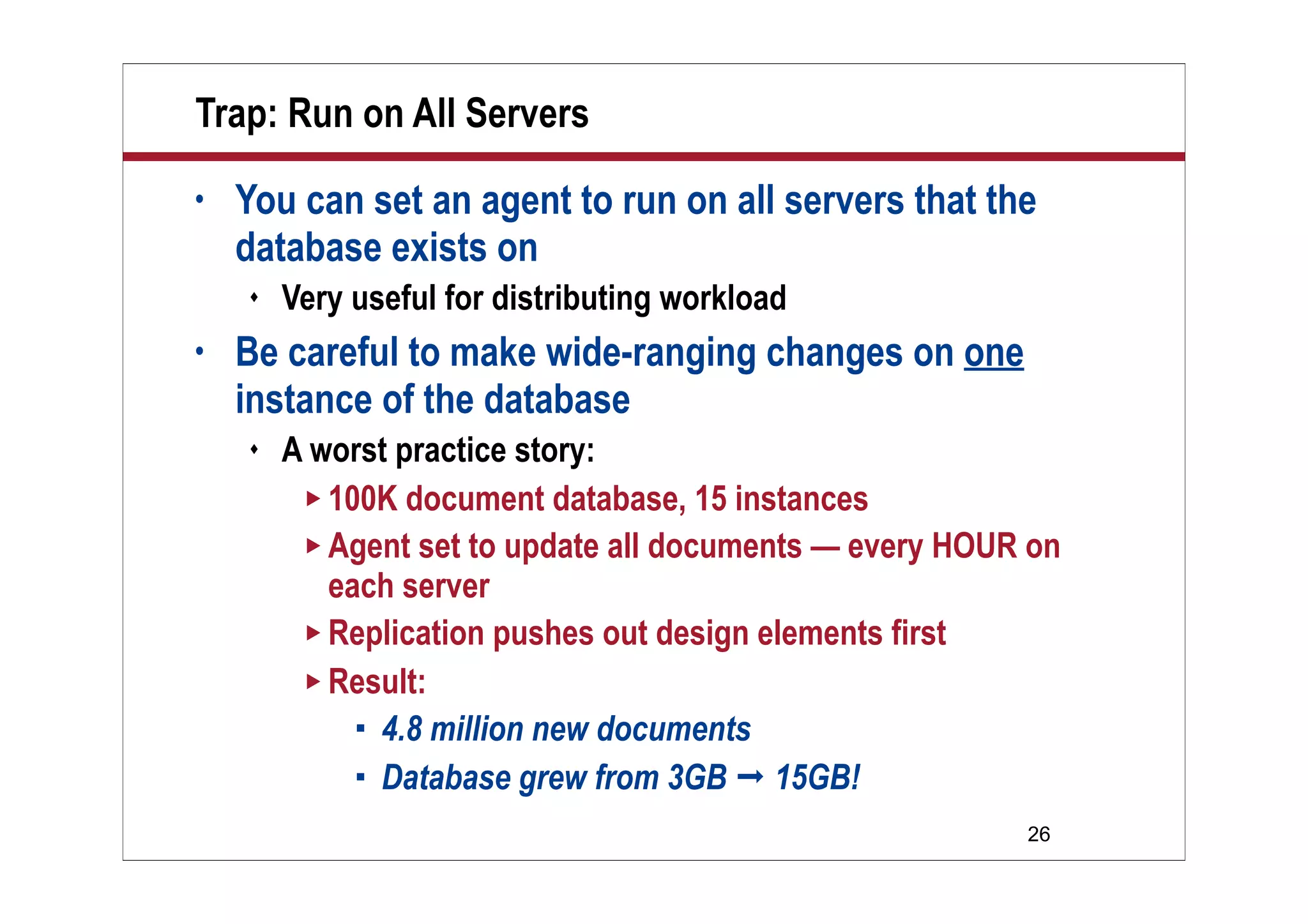

26. 26
Trap: Run on All Servers
• You can set an agent to run on all servers that the
database exists on
 Very useful for distributing workload
• Be careful to make wide-ranging changes on one
instance of the database
 A worst practice story:
 100K document database, 15 instances
 Agent set to update all documents — every HOUR on
each server
 Replication pushes out design elements first
 Result:
 4.8 million new documents
 Database grew from 3GB  15GB!

27. 27

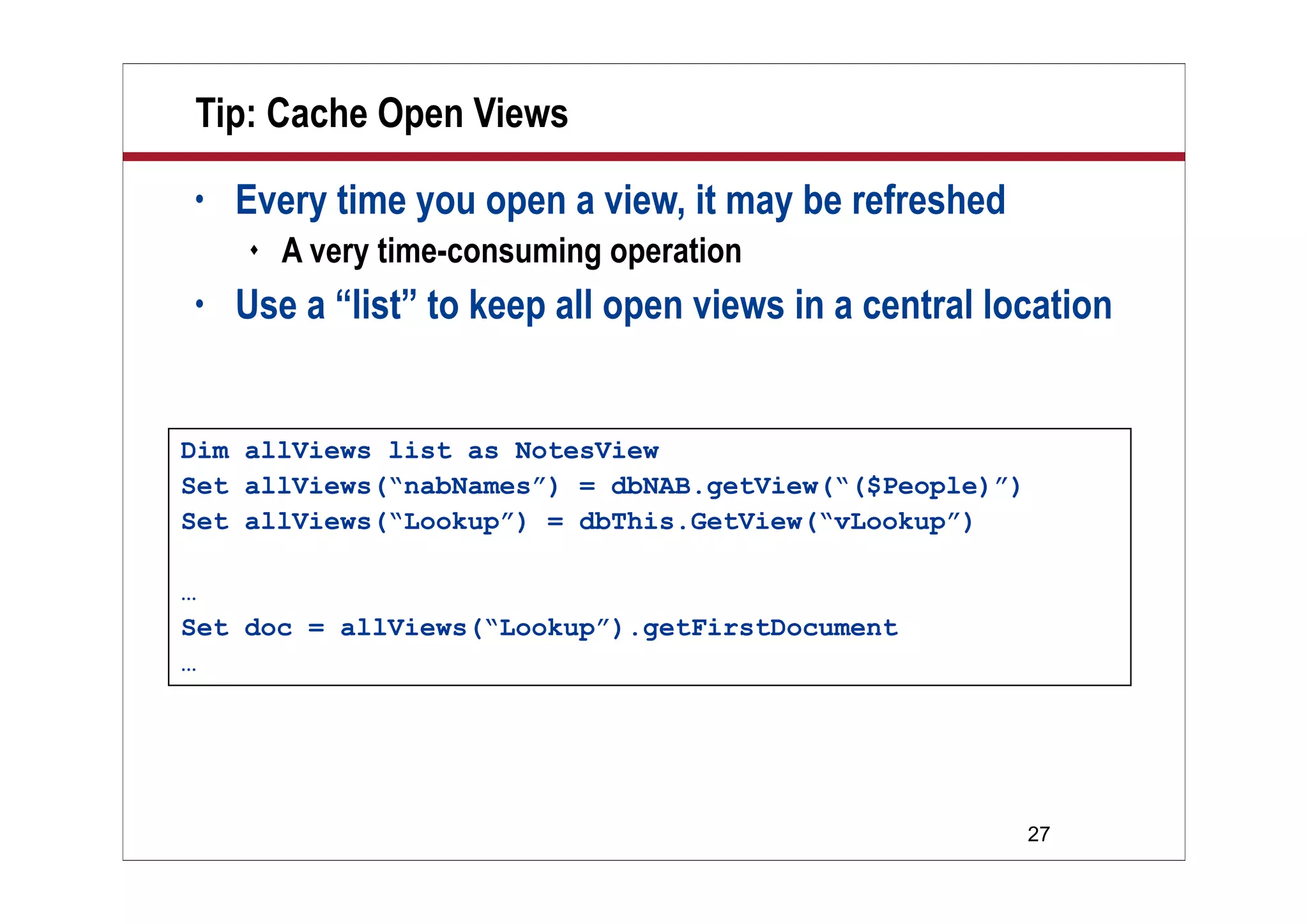

Tip: Cache Open Views
• Every time you open a view, it may be refreshed
 A very time-consuming operation
• Use a “list” to keep all open views in a central location
Dim allViews list as NotesView
Set allViews(“nabNames”) = dbNAB.getView(“($People)”)
Set allViews(“Lookup”) = dbThis.GetView(“vLookup”)
…
Set doc = allViews(“Lookup”).getFirstDocument
…

28. 28

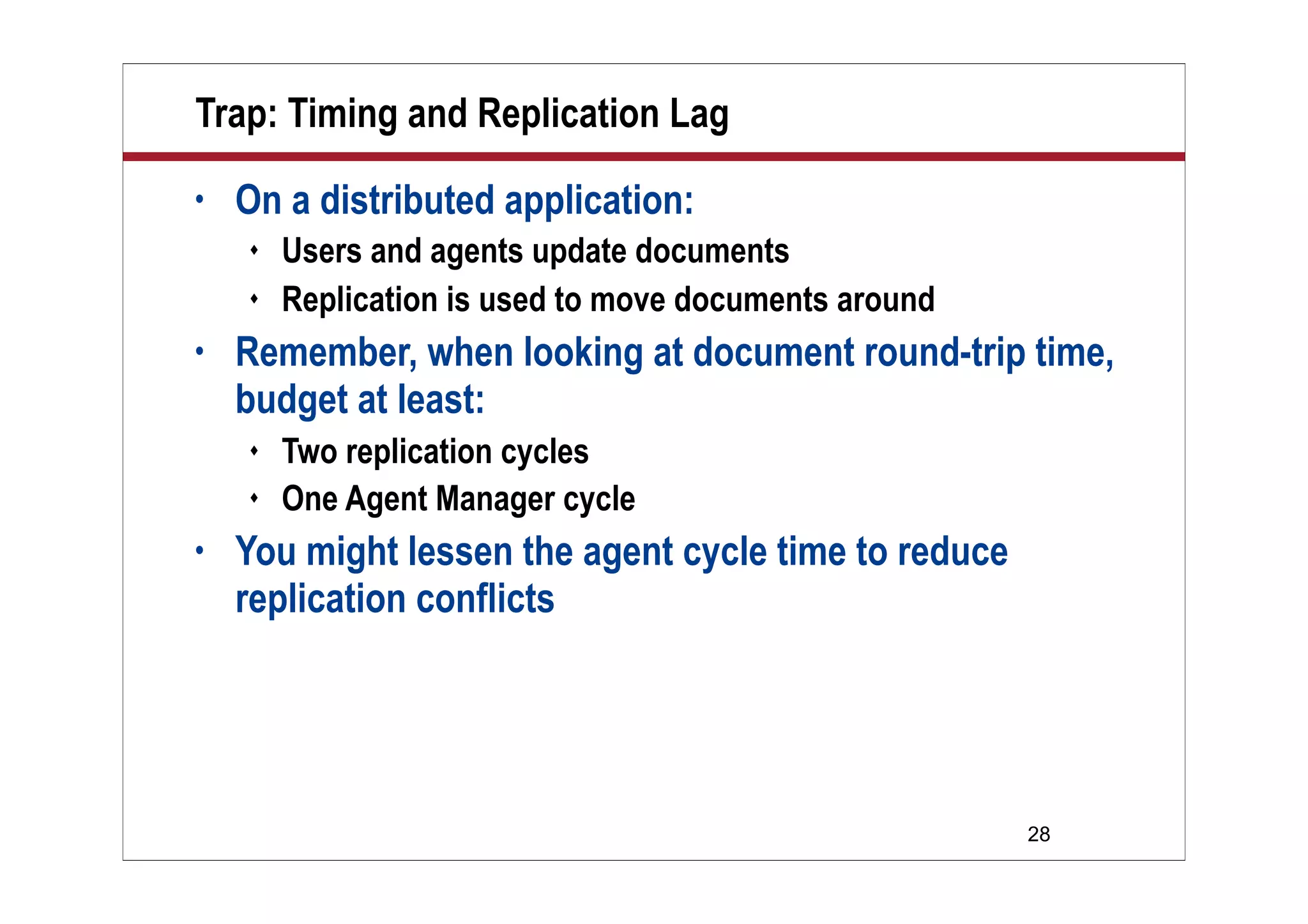

Trap: Timing and Replication Lag
• On a distributed application:
 Users and agents update documents
 Replication is used to move documents around
• Remember, when looking at document round-trip time,
budget at least:
 Two replication cycles
 One Agent Manager cycle
• You might lessen the agent cycle time to reduce
replication conflicts

29. 29

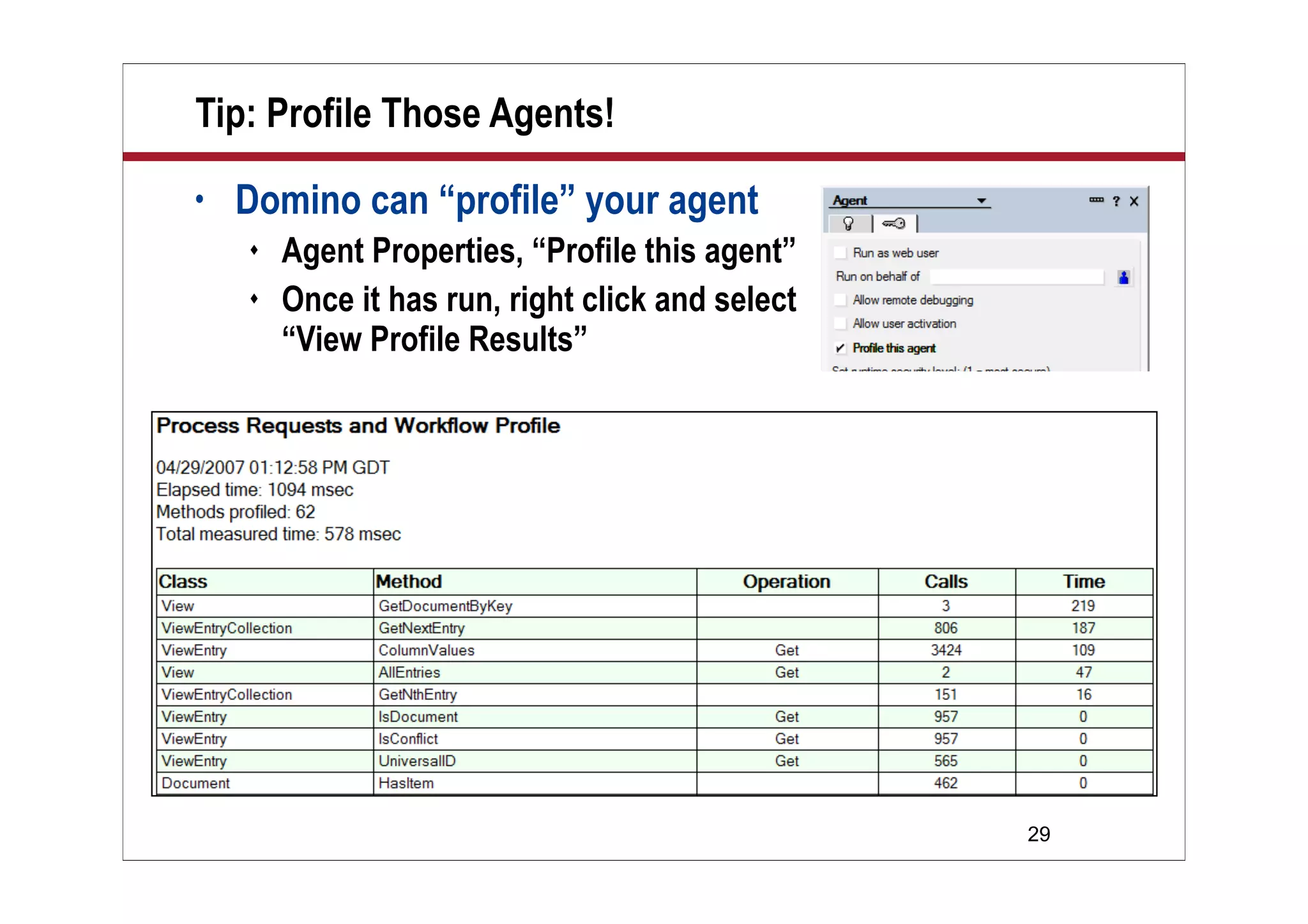

Tip: Profile Those Agents!
• Domino can “profile” your agent
 Agent Properties, “Profile this agent”
 Once it has run, right click and select
“View Profile Results”

30. 30

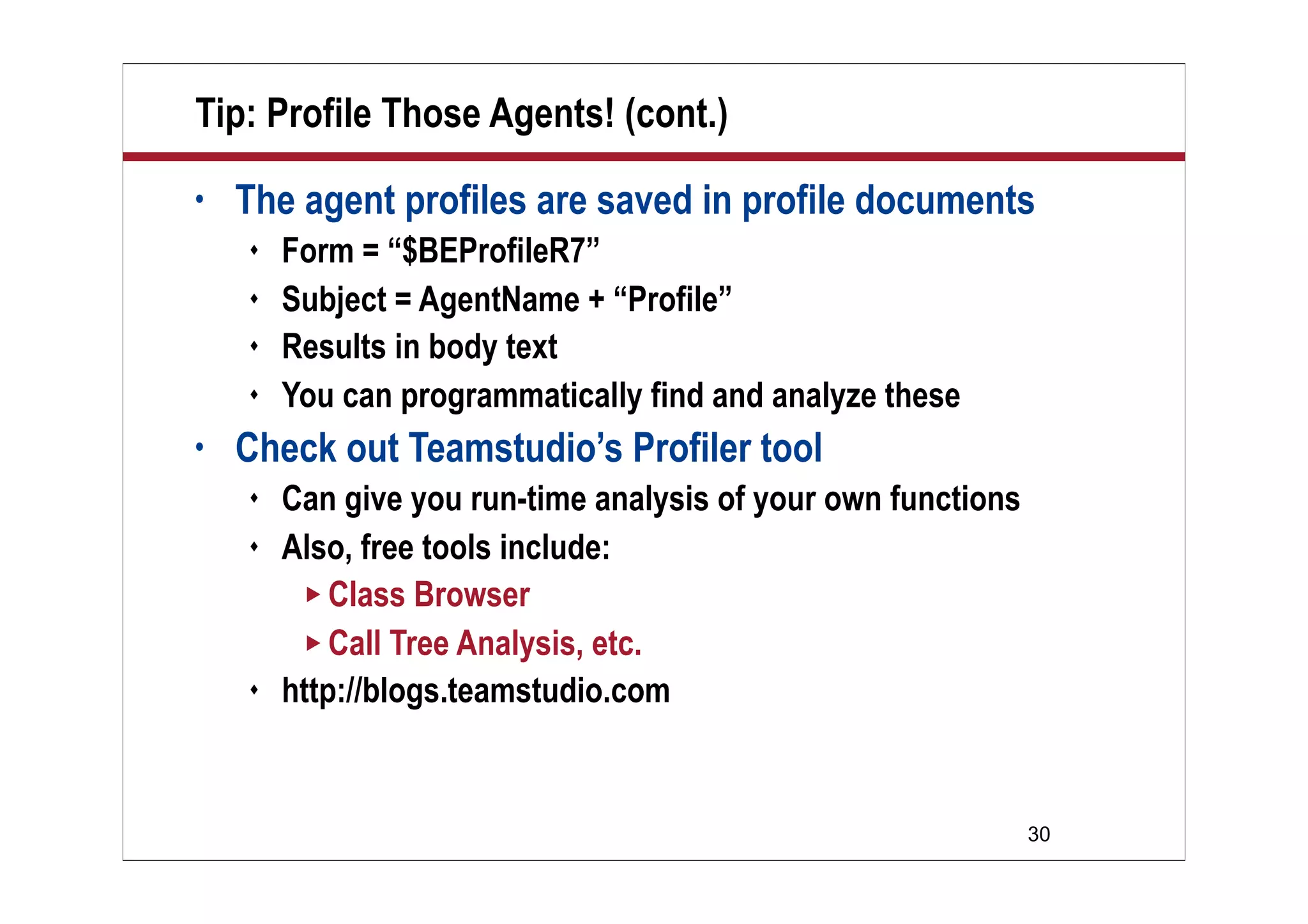

Tip: Profile Those Agents! (cont.)
• The agent profiles are saved in profile documents
 Form = “$BEProfileR7”
 Subject = AgentName + “Profile”
 Results in body text
 You can programmatically find and analyze these
• Check out Teamstudio’s Profiler tool
 Can give you run-time analysis of your own functions
 Also, free tools include:
 Class Browser
 Call Tree Analysis, etc.
 http://blogs.teamstudio.com

31. 31

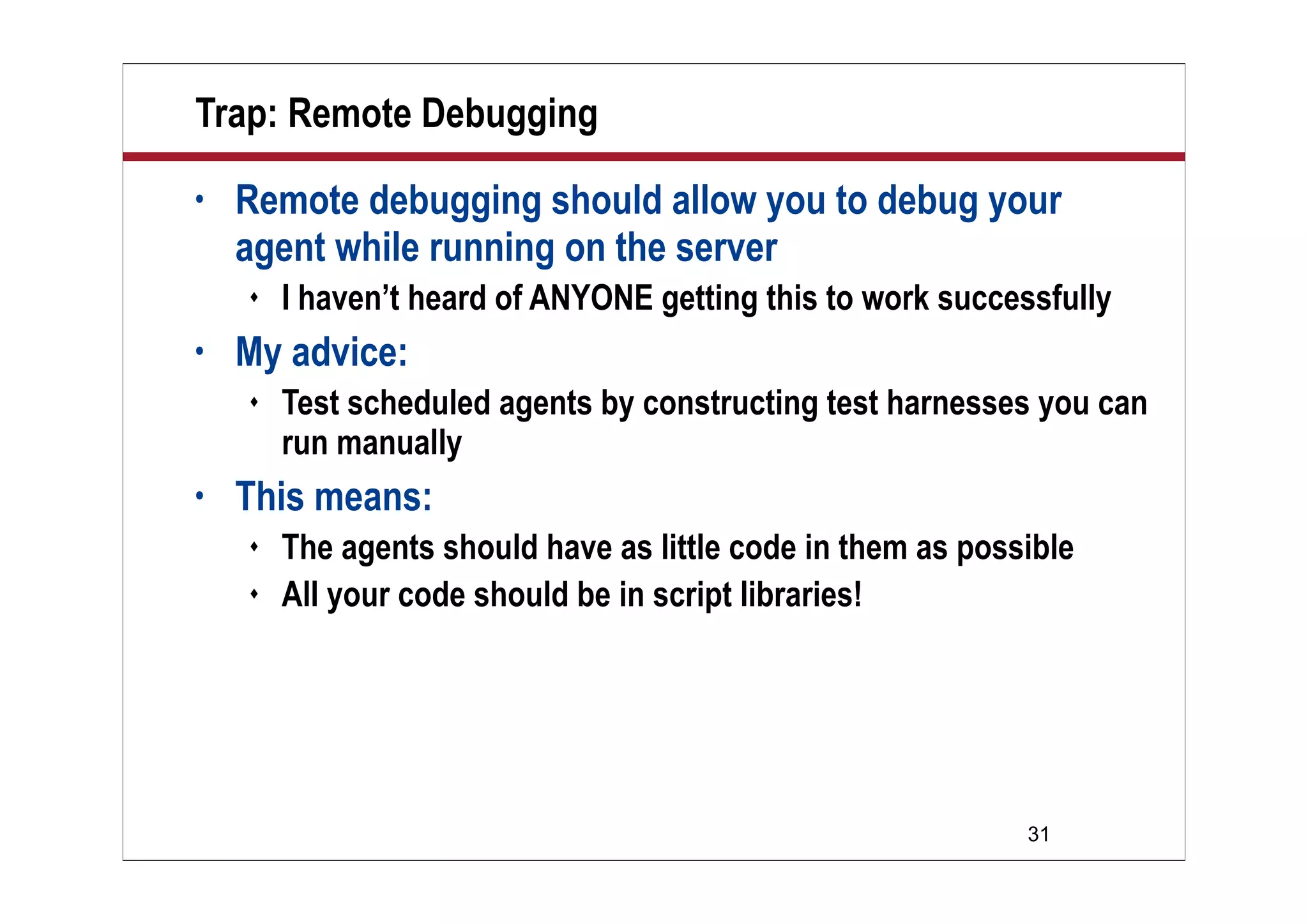

Trap: Remote Debugging
• Remote debugging should allow you to debug your
agent while running on the server
 I haven’t heard of ANYONE getting this to work successfully
• My advice:
 Test scheduled agents by constructing test harnesses you can
run manually
• This means:
 The agents should have as little code in them as possible
 All your code should be in script libraries!

32. 32

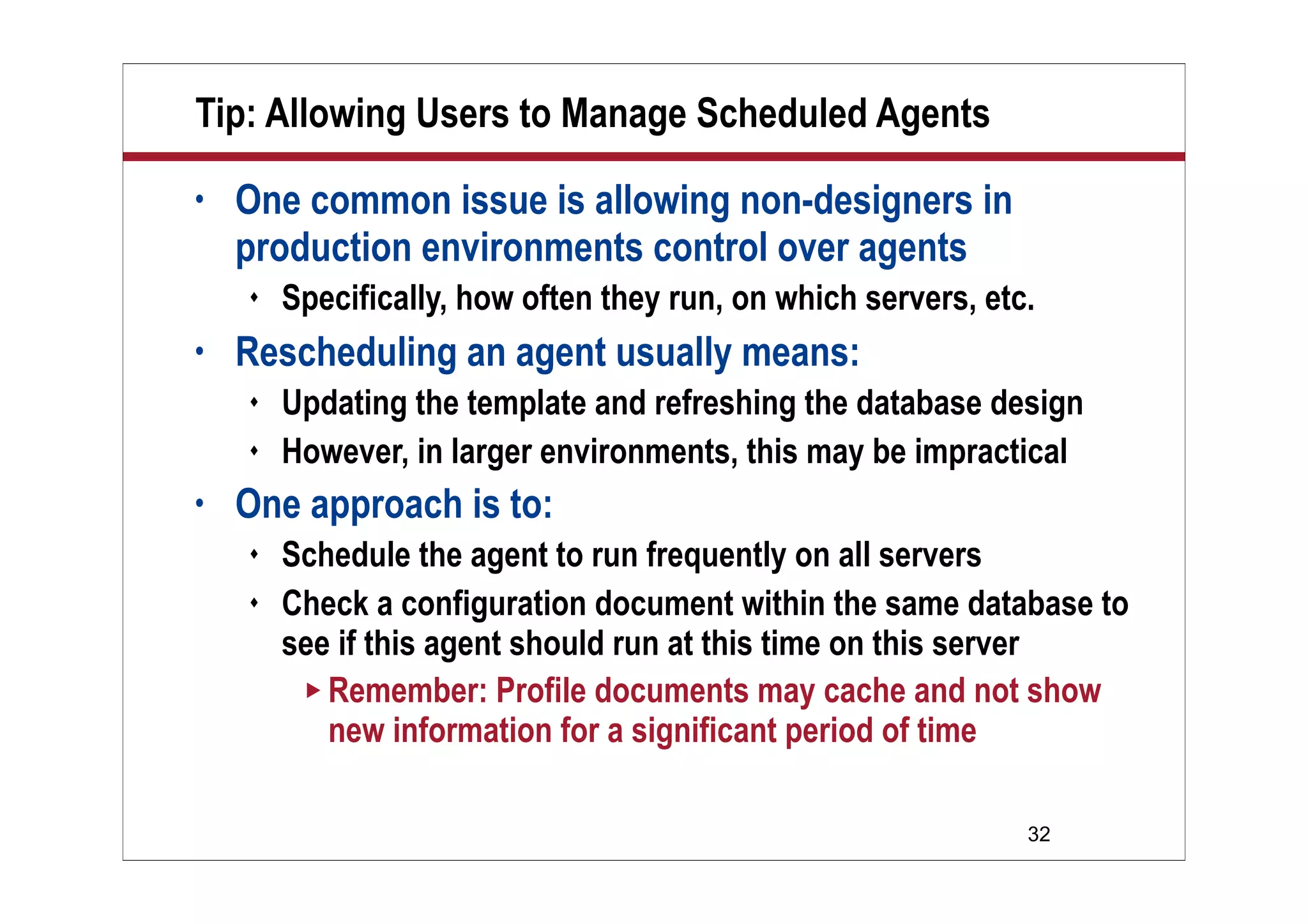

Tip: Allowing Users to Manage Scheduled Agents
• One common issue is allowing non-designers in
production environments control over agents
 Specifically, how often they run, on which servers, etc.
• Rescheduling an agent usually means:
 Updating the template and refreshing the database design
 However, in larger environments, this may be impractical
• One approach is to:
 Schedule the agent to run frequently on all servers
 Check a configuration document within the same database to
see if this agent should run at this time on this server
 Remember: Profile documents may cache and not show
new information for a significant period of time

33. 33

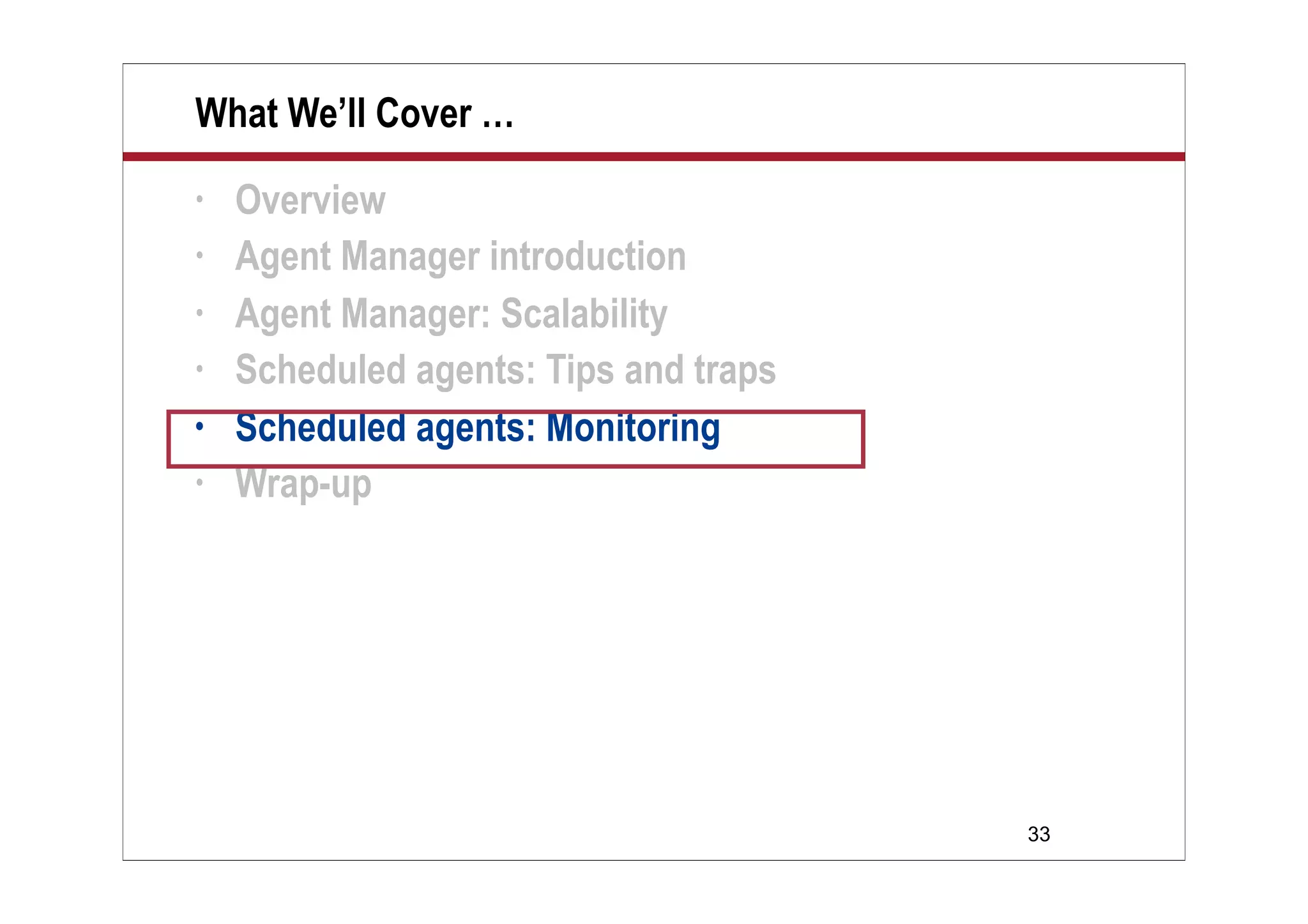

What We’ll Cover …
• Overview
• Agent Manager introduction
• Agent Manager: Scalability
• Scheduled agents: Tips and traps
• Scheduled agents: Monitoring
• Wrap-up

34. 34

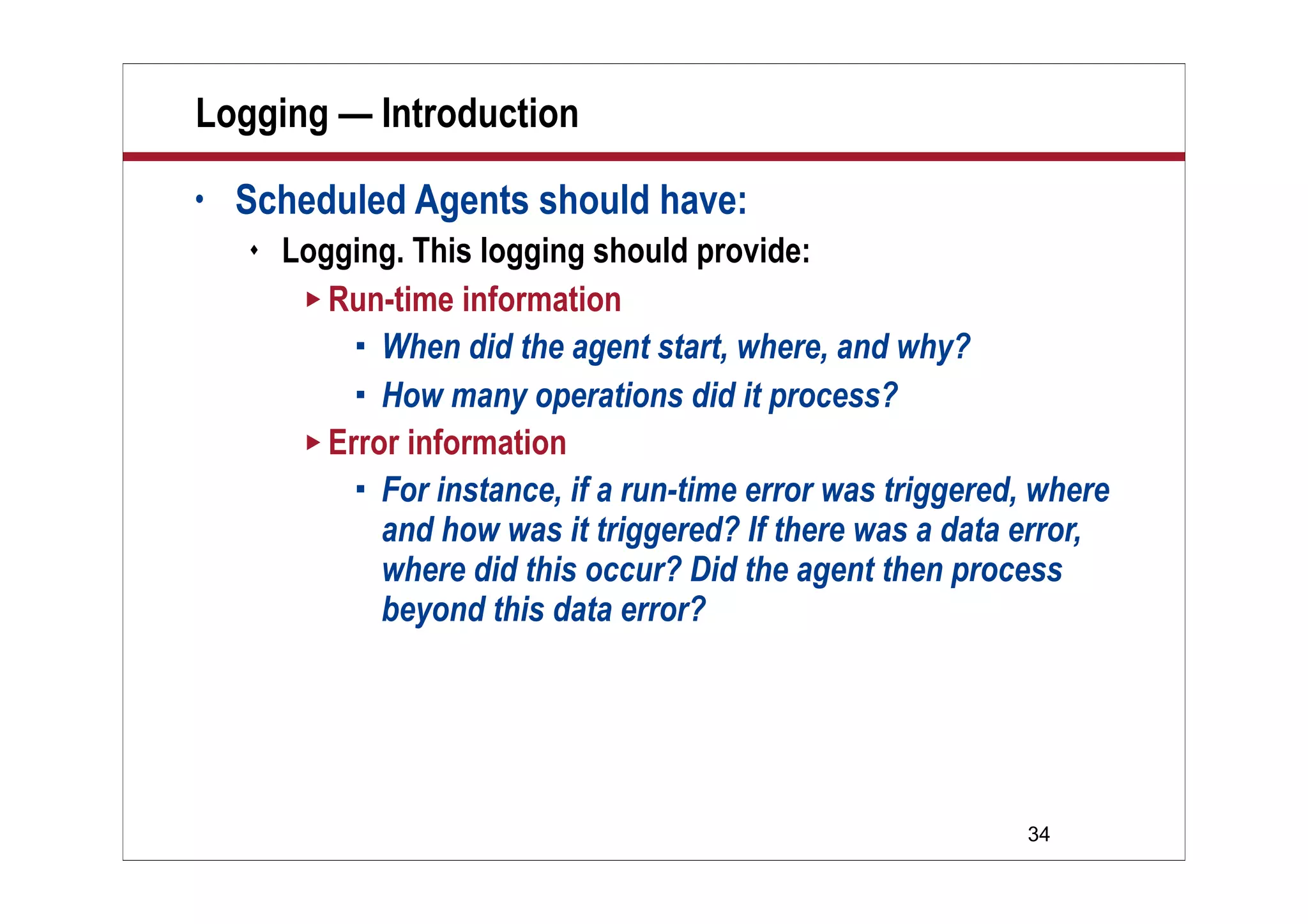

Logging — Introduction
• Scheduled Agents should have:
 Logging. This logging should provide:
 Run-time information
 When did the agent start, where, and why?
 How many operations did it process?
 Error information
 For instance, if a run-time error was triggered, where
and how was it triggered? If there was a data error,
where did this occur? Did the agent then process
beyond this data error?

35. 35

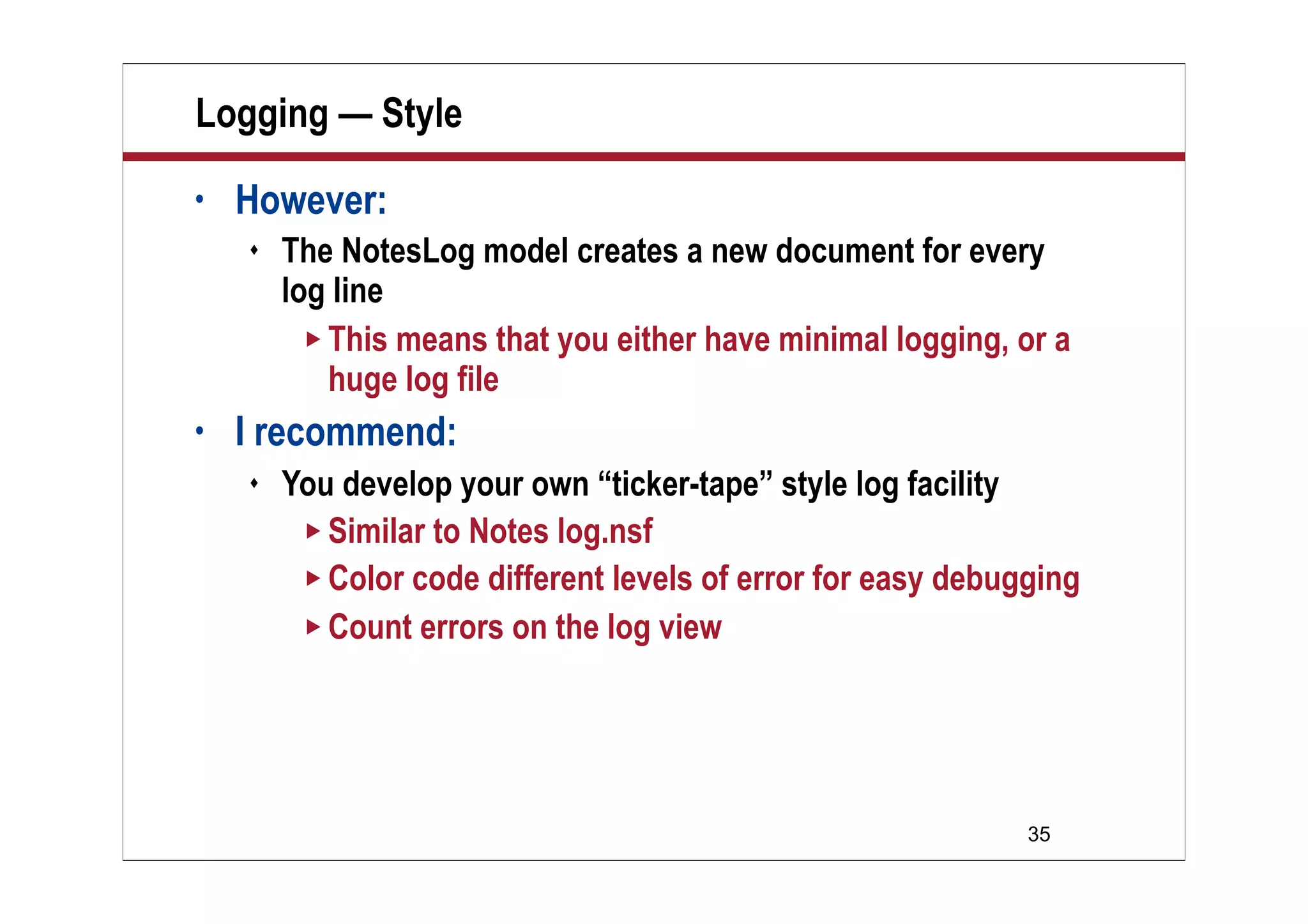

Logging — Style
• However:
 The NotesLog model creates a new document for every
log line
 This means that you either have minimal logging, or a
huge log file
• I recommend:
 You develop your own “ticker-tape” style log facility
 Similar to Notes log.nsf
 Color code different levels of error for easy debugging
 Count errors on the log view

36. 36

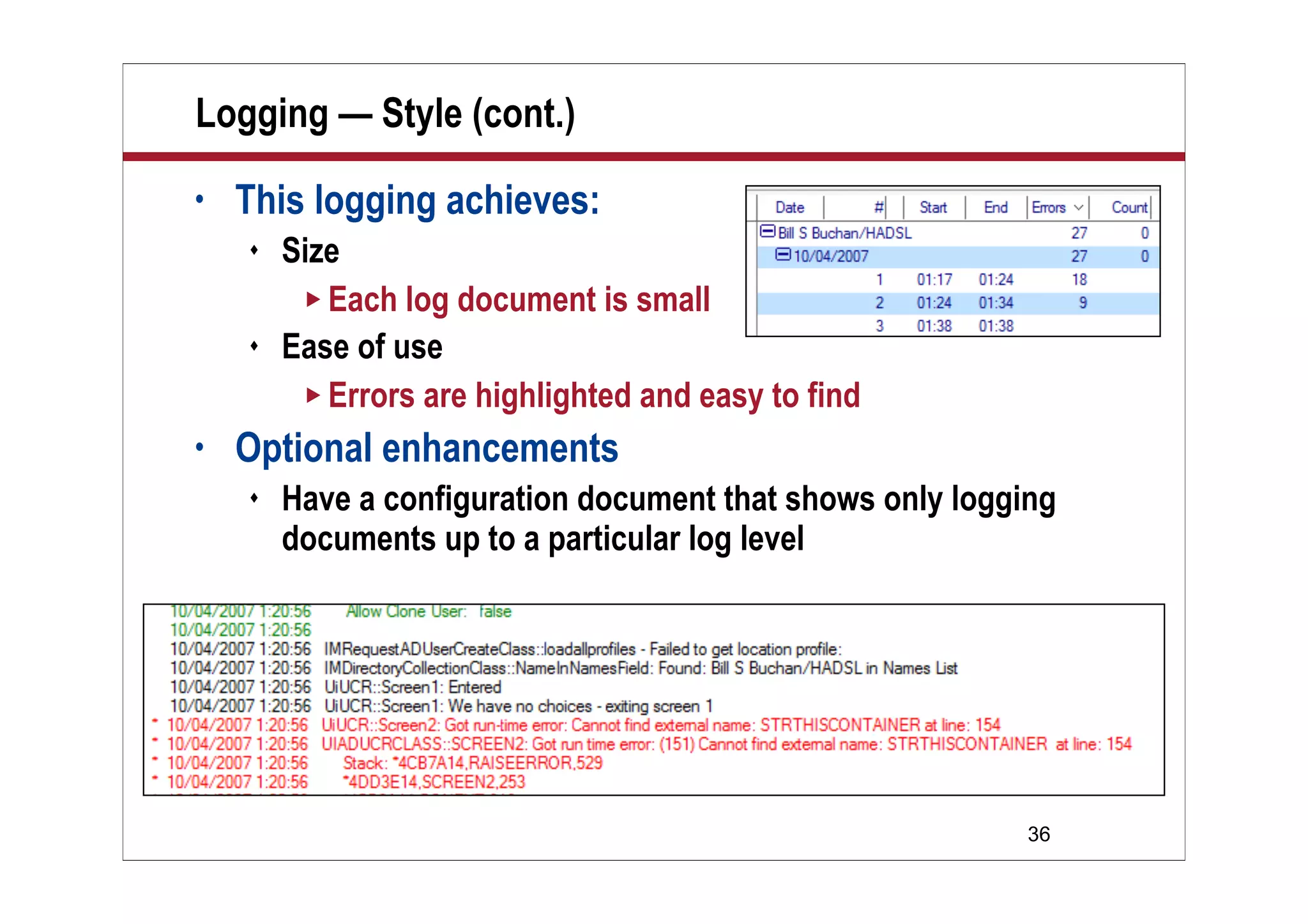

• This logging achieves:
 Size
 Each log document is small
 Ease of use
 Errors are highlighted and easy to find
• Optional enhancements
 Have a configuration document that shows only logging
documents up to a particular log level
Logging — Style (cont.)

37. 37

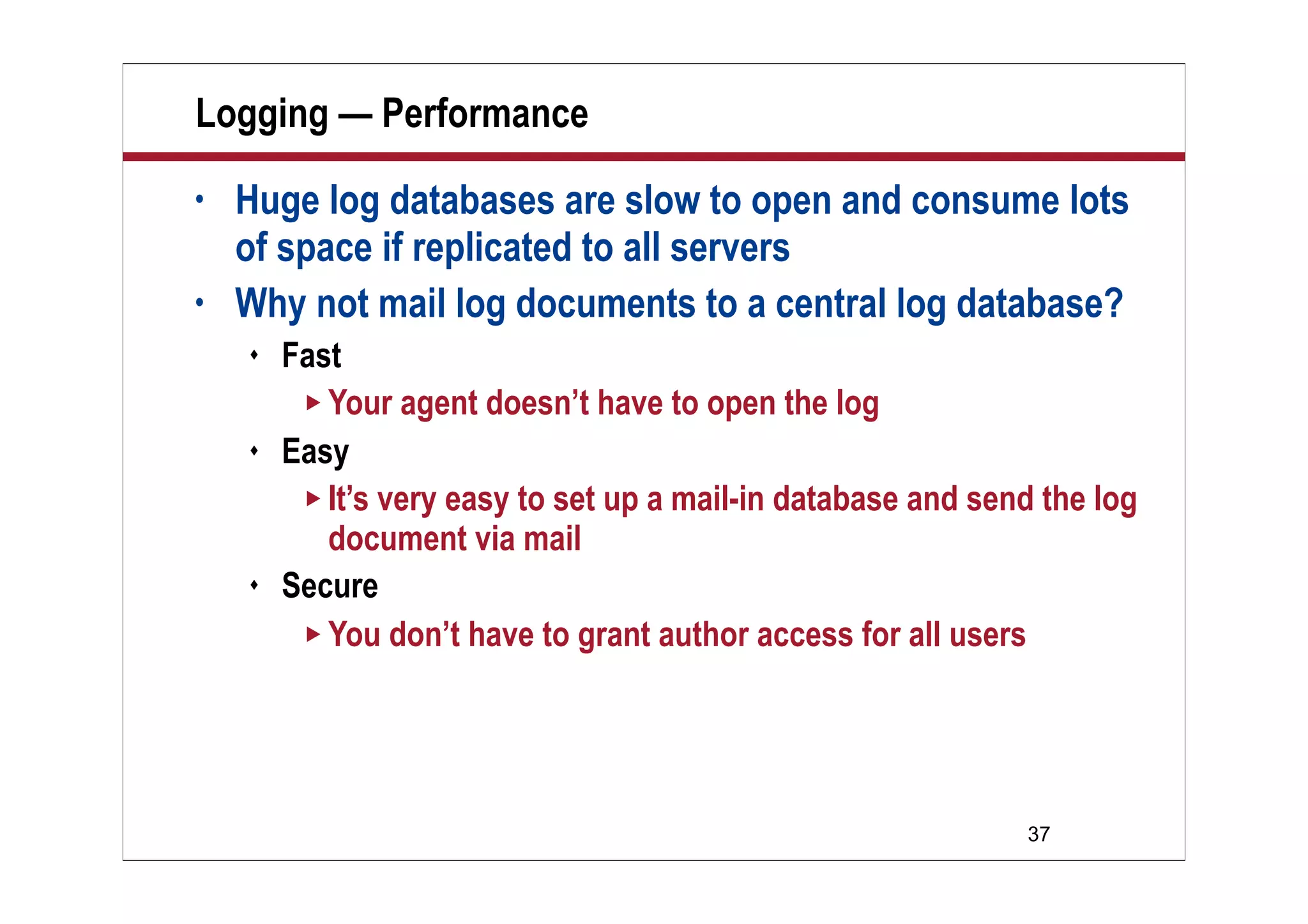

Logging — Performance
• Huge log databases are slow to open and consume lots
of space if replicated to all servers
• Why not mail log documents to a central log database?
 Fast
 Your agent doesn’t have to open the log
 Easy
 It’s very easy to set up a mail-in database and send the log
document via mail
 Secure
 You don’t have to grant author access for all users

38. 38

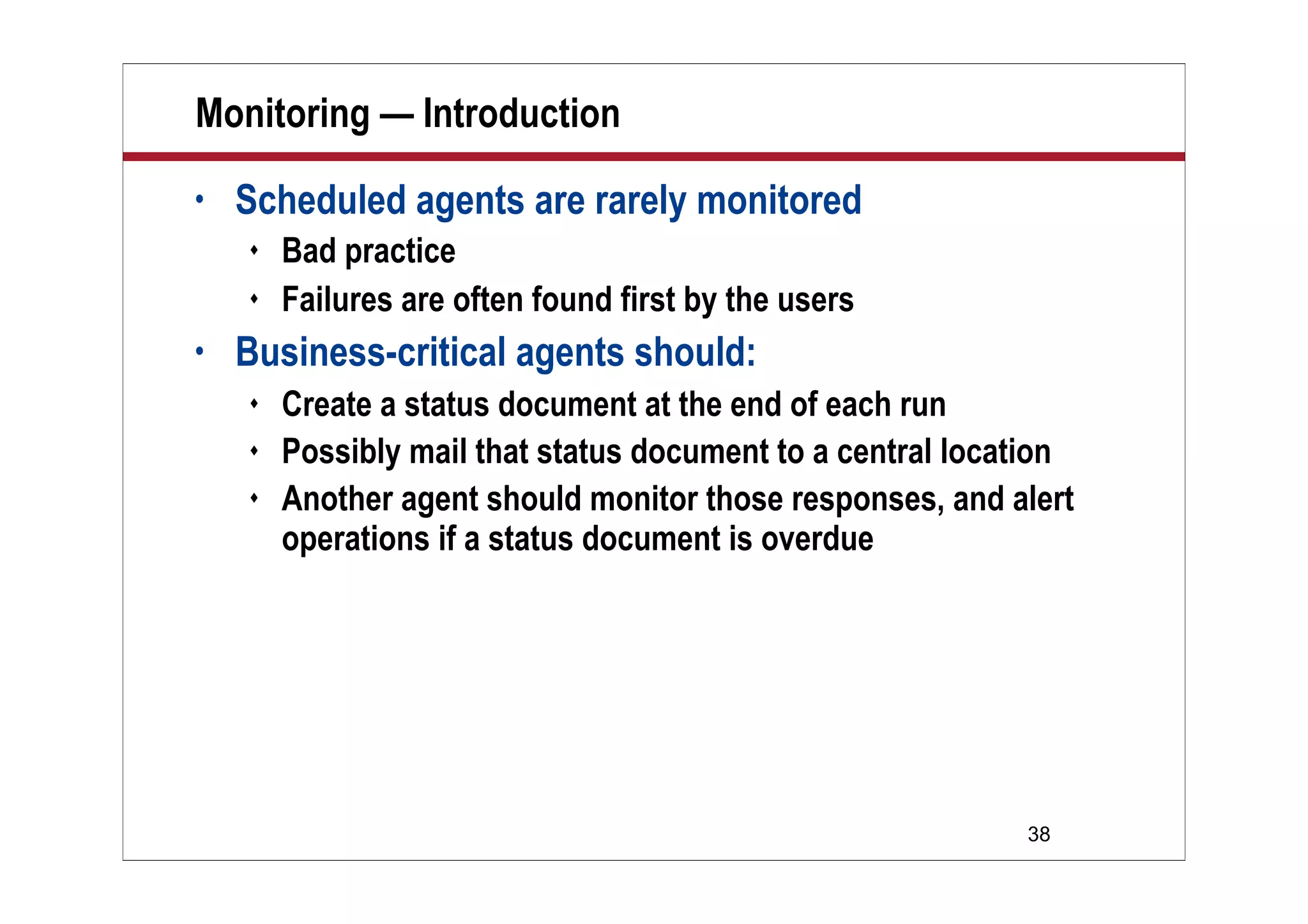

Monitoring — Introduction
• Scheduled agents are rarely monitored
 Bad practice
 Failures are often found first by the users
• Business-critical agents should:
 Create a status document at the end of each run
 Possibly mail that status document to a central location
 Another agent should monitor those responses, and alert
operations if a status document is overdue

39. 39

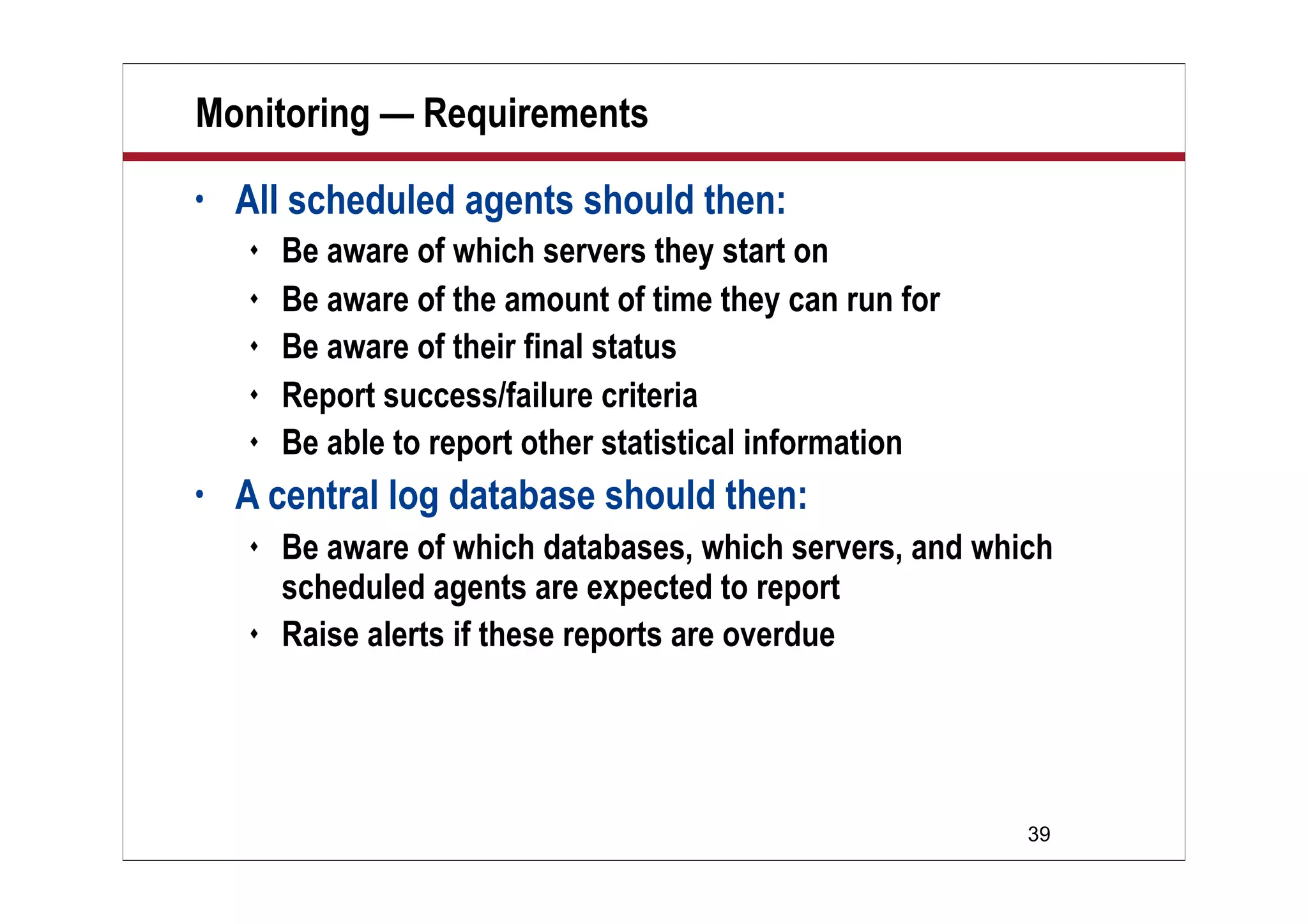

Monitoring — Requirements
• All scheduled agents should then:
 Be aware of which servers they start on
 Be aware of the amount of time they can run for
 Be aware of their final status
 Report success/failure criteria
 Be able to report other statistical information
• A central log database should then:
 Be aware of which databases, which servers, and which
scheduled agents are expected to report
 Raise alerts if these reports are overdue

40. 40
Demo
Demo
Brief Overview of
AgentClass with
Monitoring

41. 41

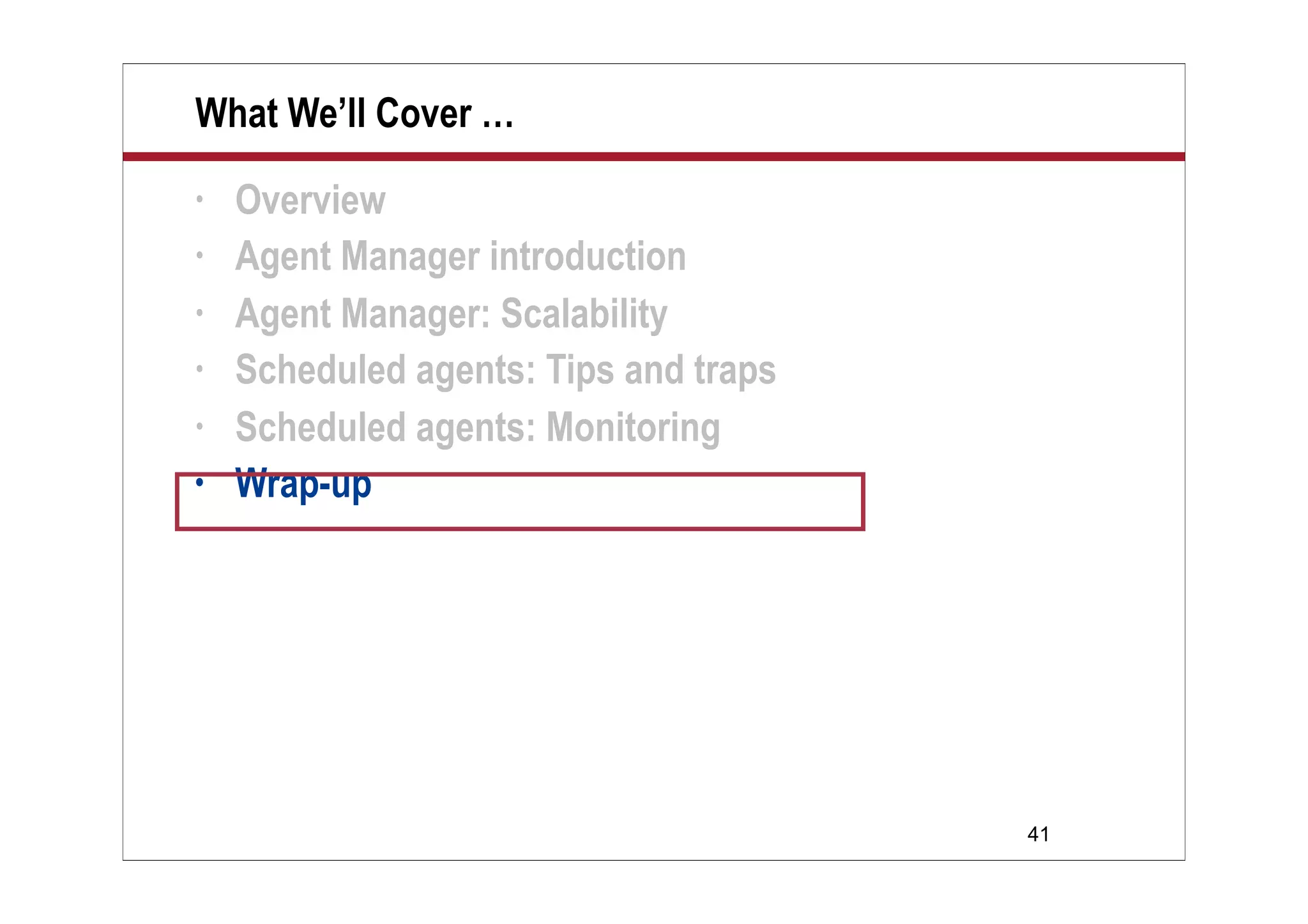

What We’ll Cover …
• Overview
• Agent Manager introduction
• Agent Manager: Scalability
• Scheduled agents: Tips and traps
• Scheduled agents: Monitoring
• Wrap-up

42. 42

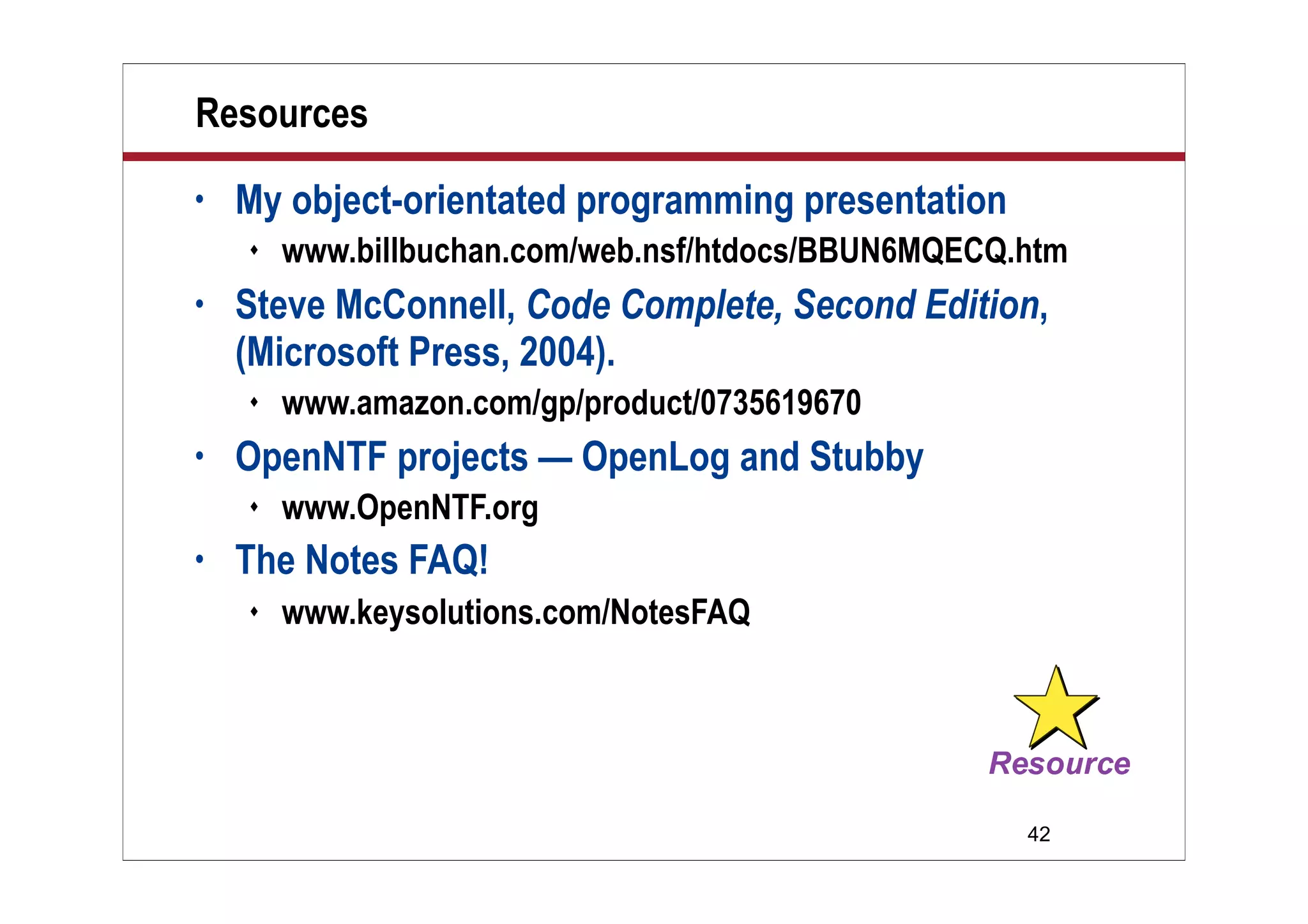

Resources
• My object-orientated programming presentation
 www.billbuchan.com/web.nsf/htdocs/BBUN6MQECQ.htm
• Steve McConnell, Code Complete, Second Edition,
(Microsoft Press, 2004).
 www.amazon.com/gp/product/0735619670
• OpenNTF projects — OpenLog and Stubby
 www.OpenNTF.org
• The Notes FAQ!
 www.keysolutions.com/NotesFAQ

43. 43

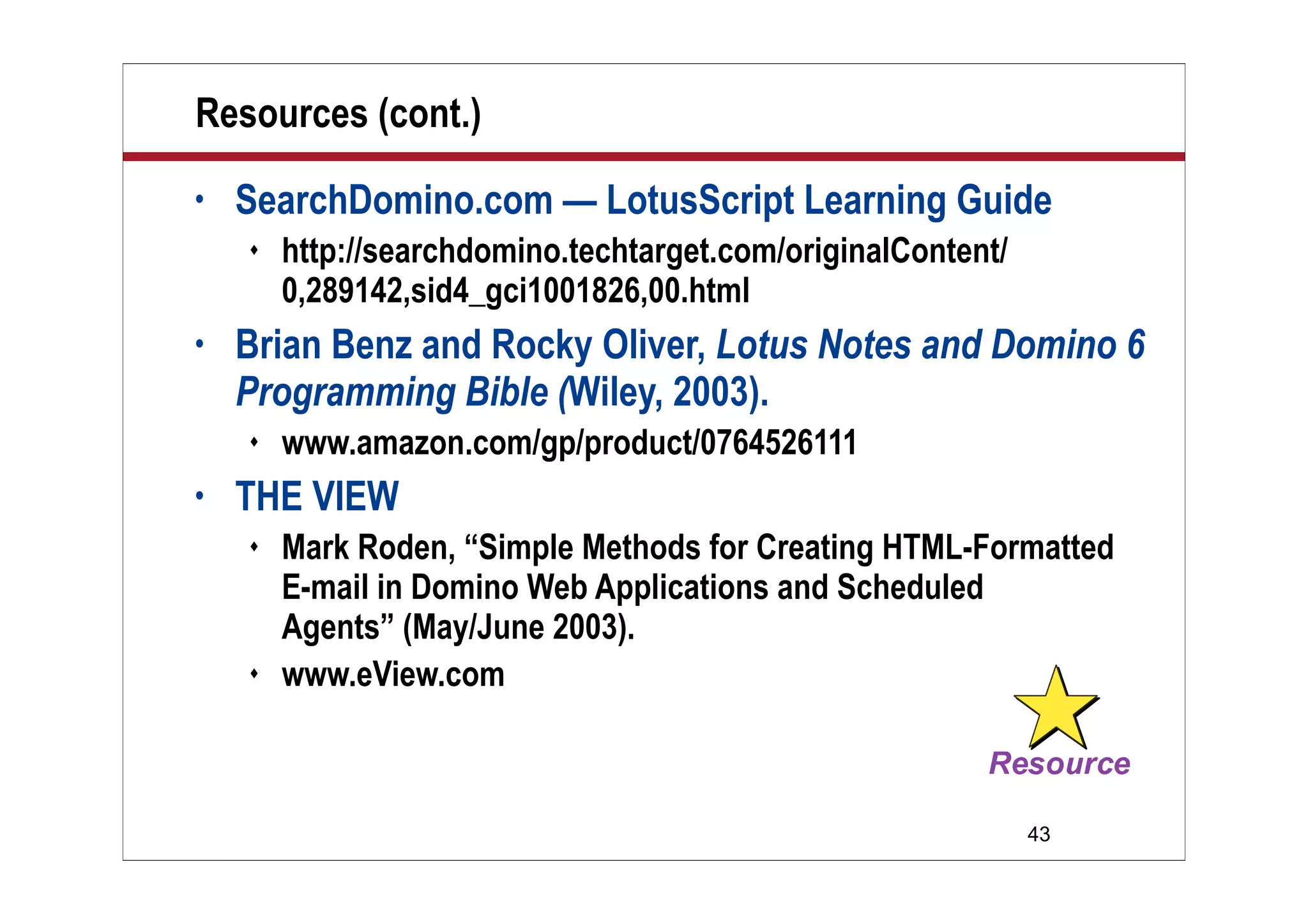

Resources (cont.)
• SearchDomino.com — LotusScript Learning Guide
 http://searchdomino.techtarget.com/originalContent/
0,289142,sid4_gci1001826,00.html
• Brian Benz and Rocky Oliver, Lotus Notes and Domino 6
Programming Bible (Wiley, 2003).
 www.amazon.com/gp/product/0764526111
• THE VIEW
 Mark Roden, “Simple Methods for Creating HTML-Formatted
E-mail in Domino Web Applications and Scheduled
Agents” (May/June 2003).
 www.eView.com

44. 44

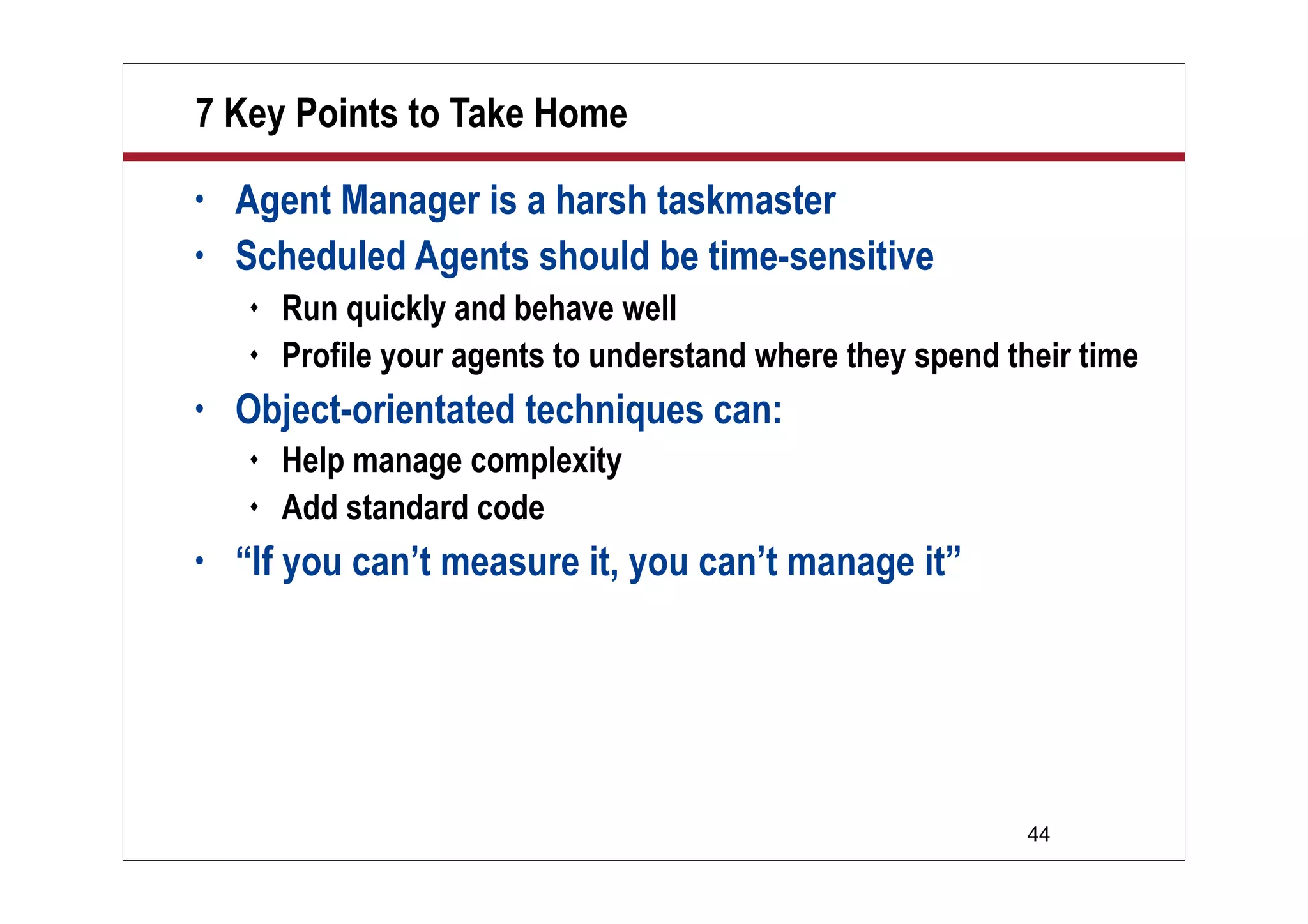

7 Key Points to Take Home
• Agent Manager is a harsh taskmaster
• Scheduled Agents should be time-sensitive
 Run quickly and behave well
 Profile your agents to understand where they spend their time
• Object-orientated techniques can:
 Help manage complexity
 Add standard code
• “If you can’t measure it, you can’t manage it”

45. 45

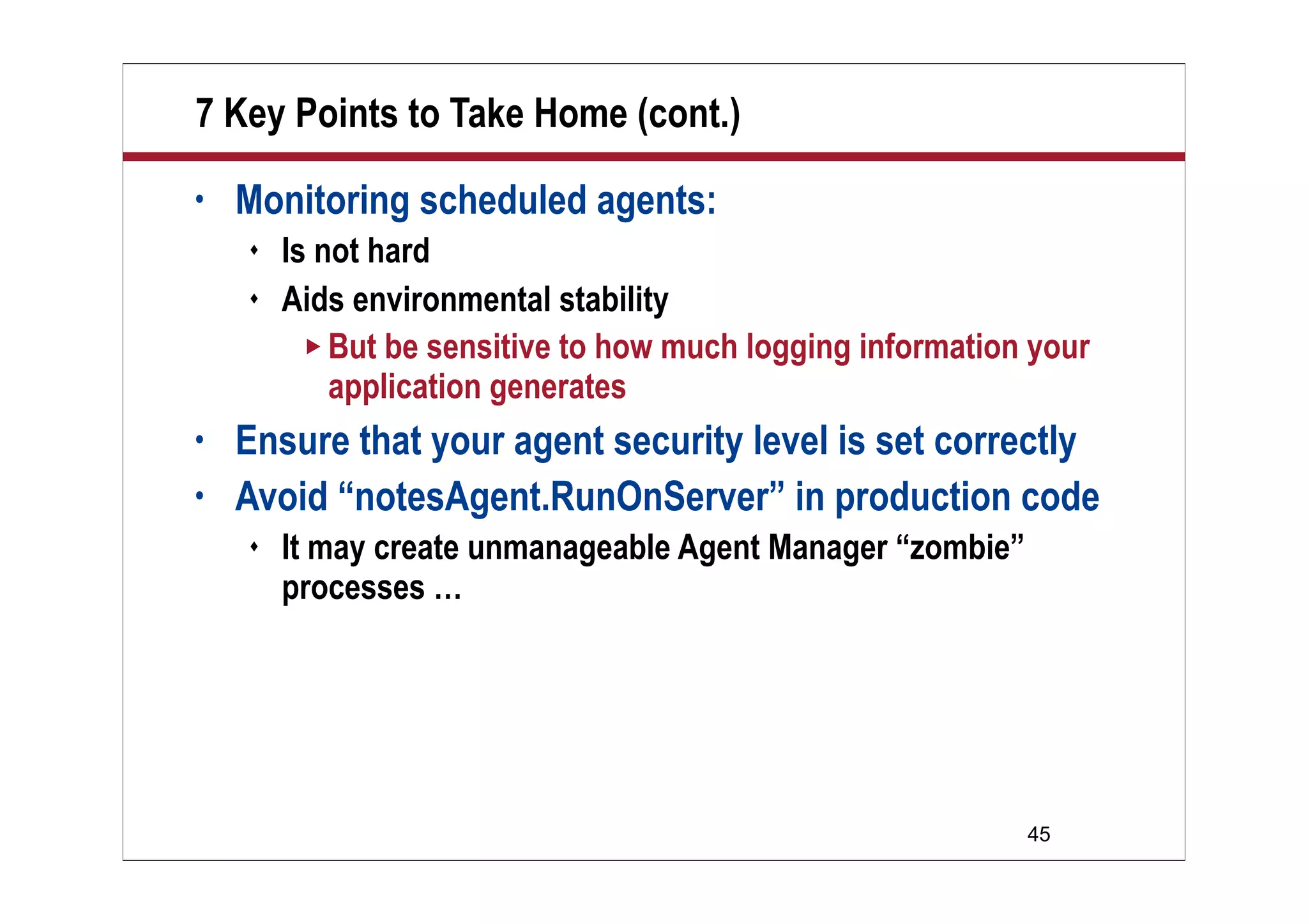

7 Key Points to Take Home (cont.)
• Monitoring scheduled agents:
 Is not hard
 Aids environmental stability
 But be sensitive to how much logging information your
application generates
• Ensure that your agent security level is set correctly
• Avoid “notesAgent.RunOnServer” in production code
 It may create unmanageable Agent Manager “zombie”
processes …

46. 46

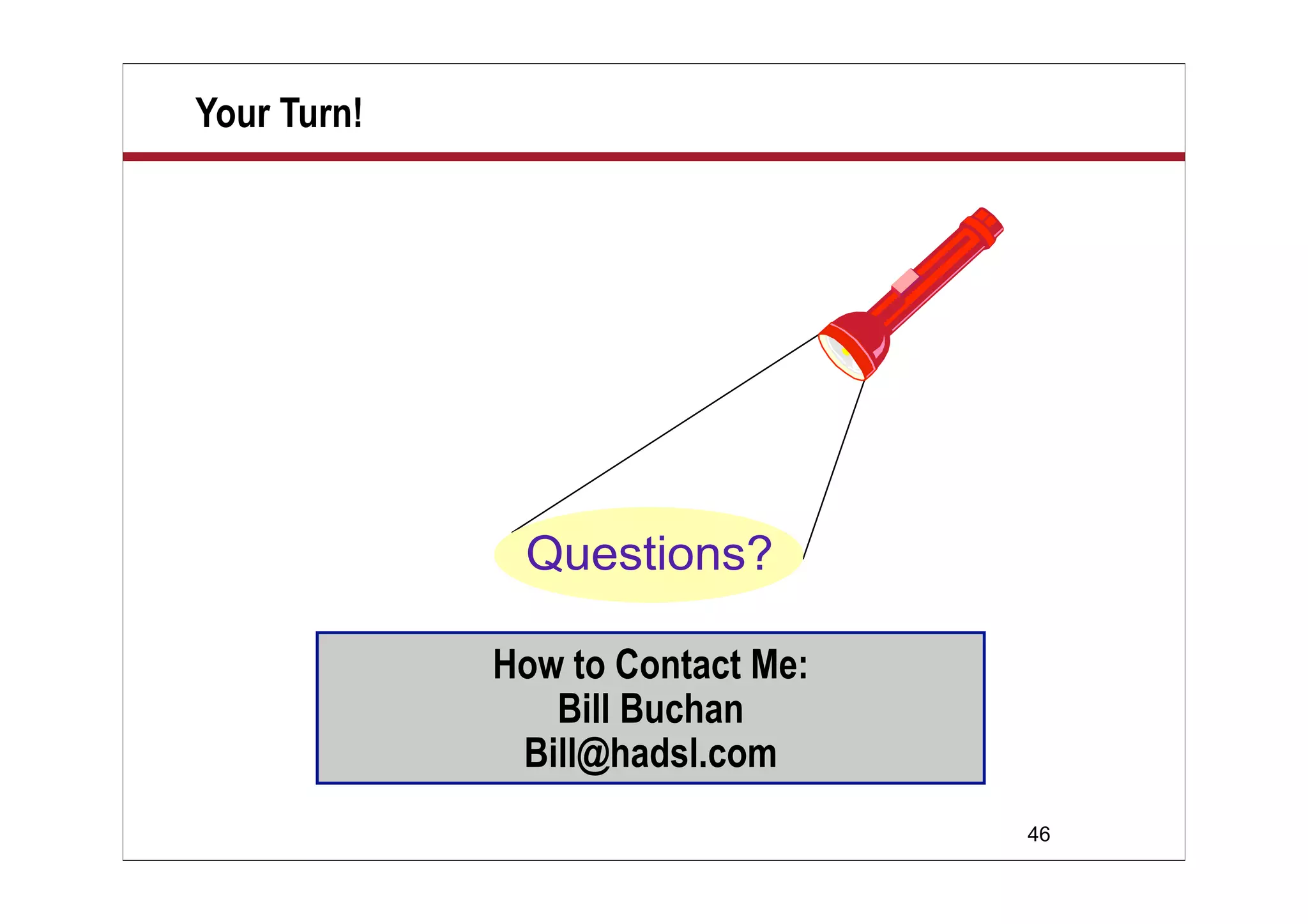

Your Turn!
How to Contact Me:
Bill Buchan
Bill@hadsl.com
