1. LotusScript Survival
Tips for Large Systems
Bill Buchan
hadsl.com

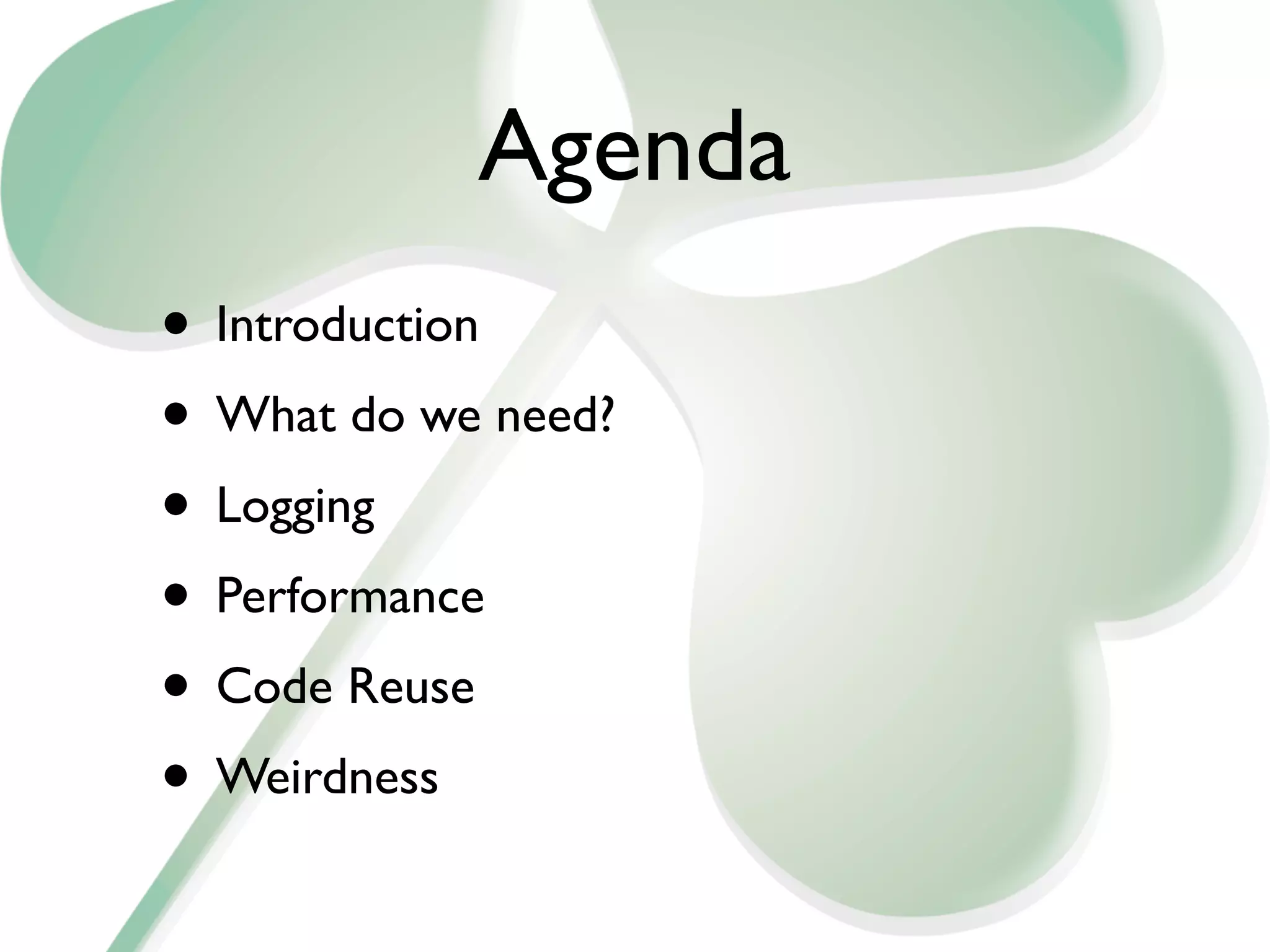

2. Agenda
• Introduction
• What do we need?
• Logging
• Performance
• Code Reuse
• Weirdness

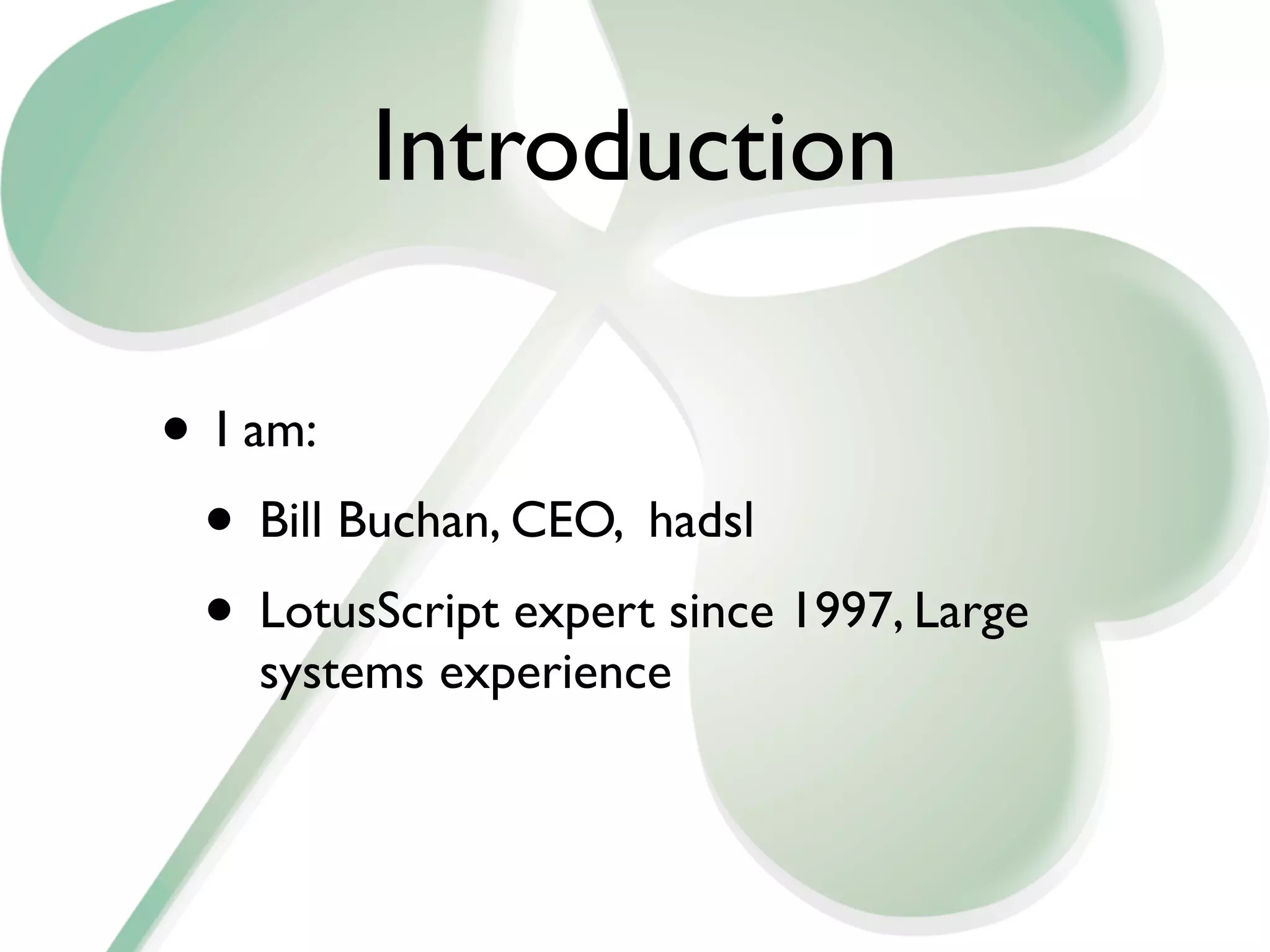

3. Introduction
• I am:
• Bill Buchan, CEO, hadsl
• LotusScript expert since 1997, Large
systems experience

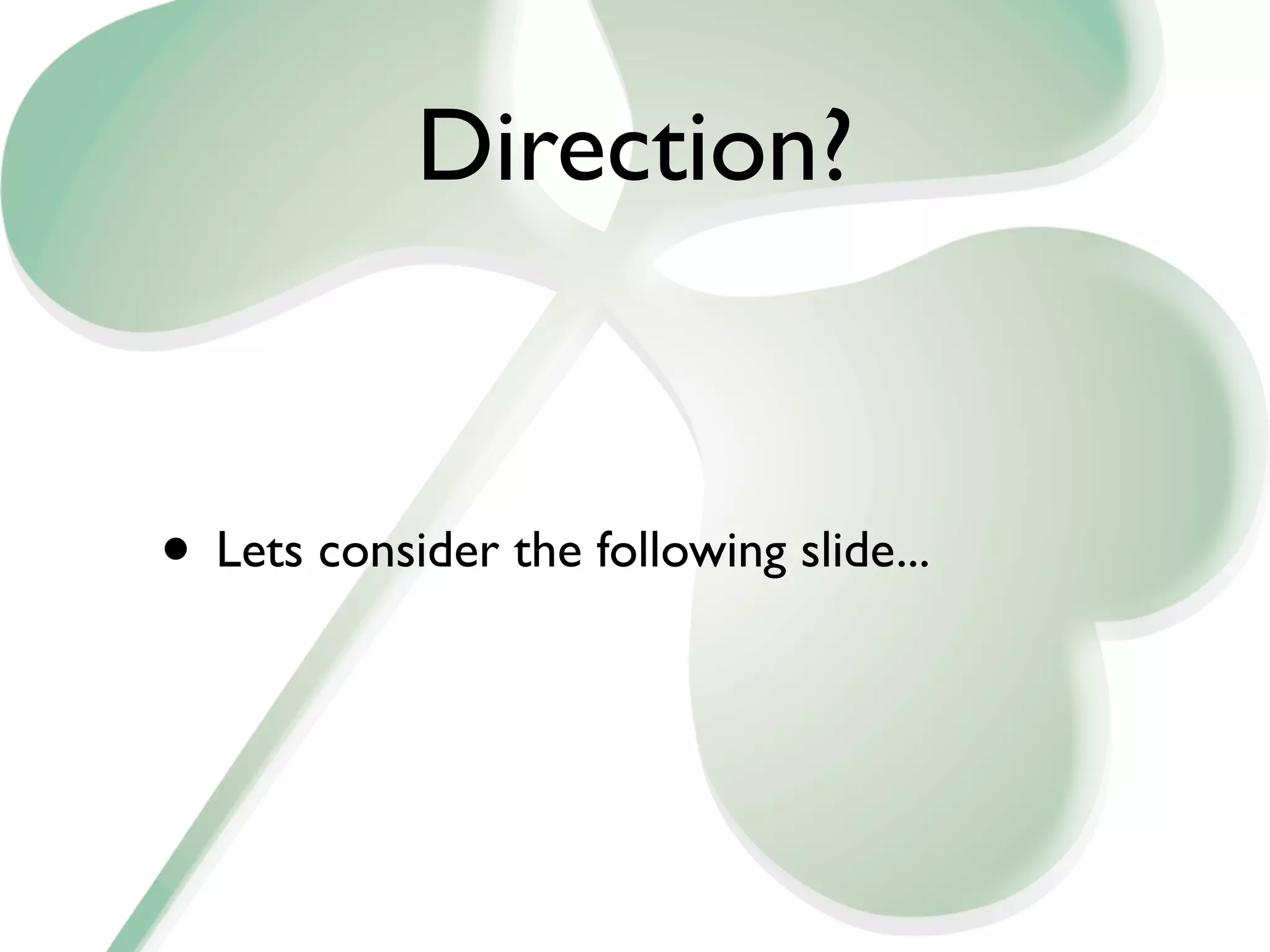

4. Direction?
• Lets consider the following slide...

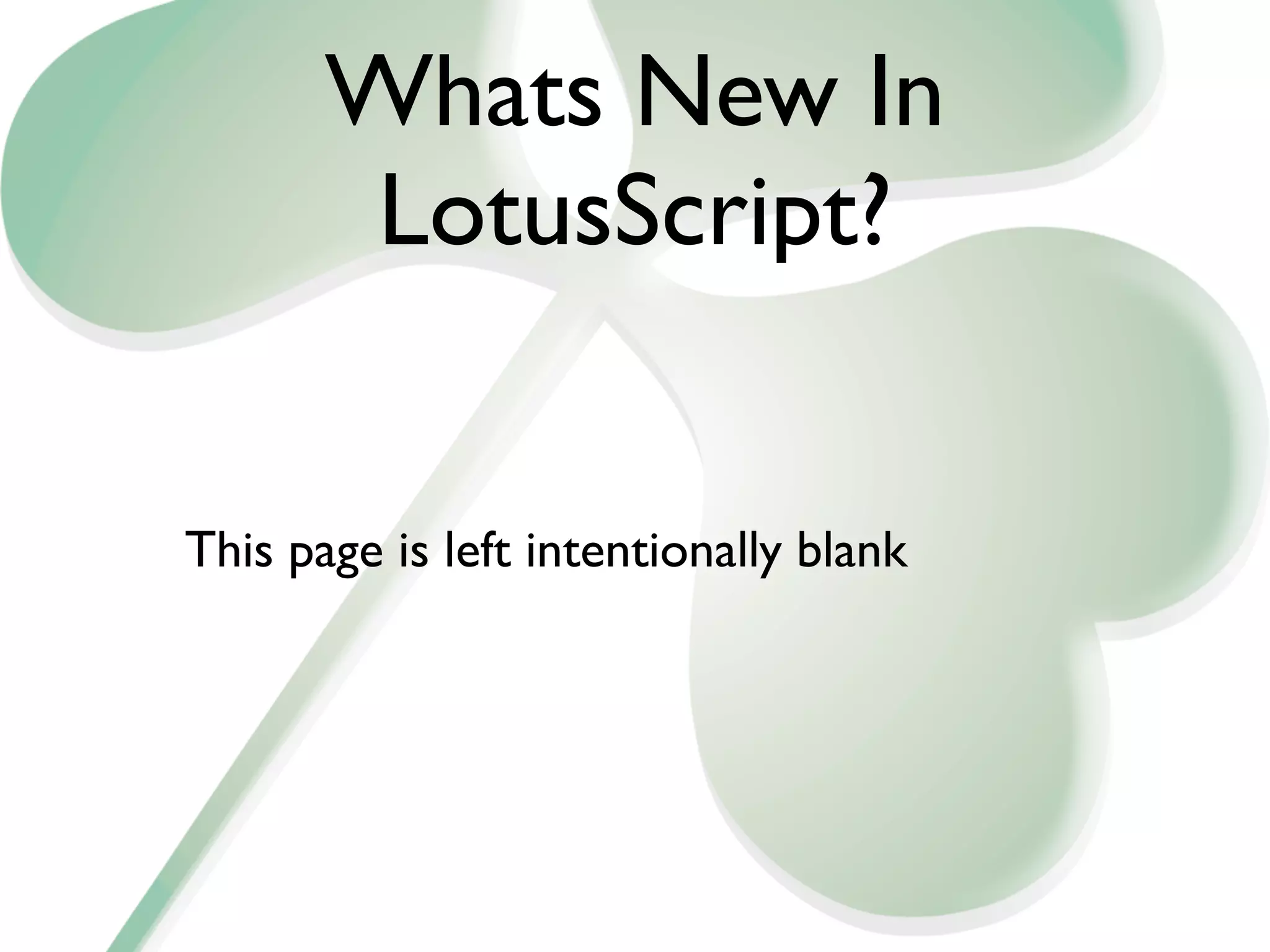

5. Whats New In
LotusScript?
This page is left intentionally blank

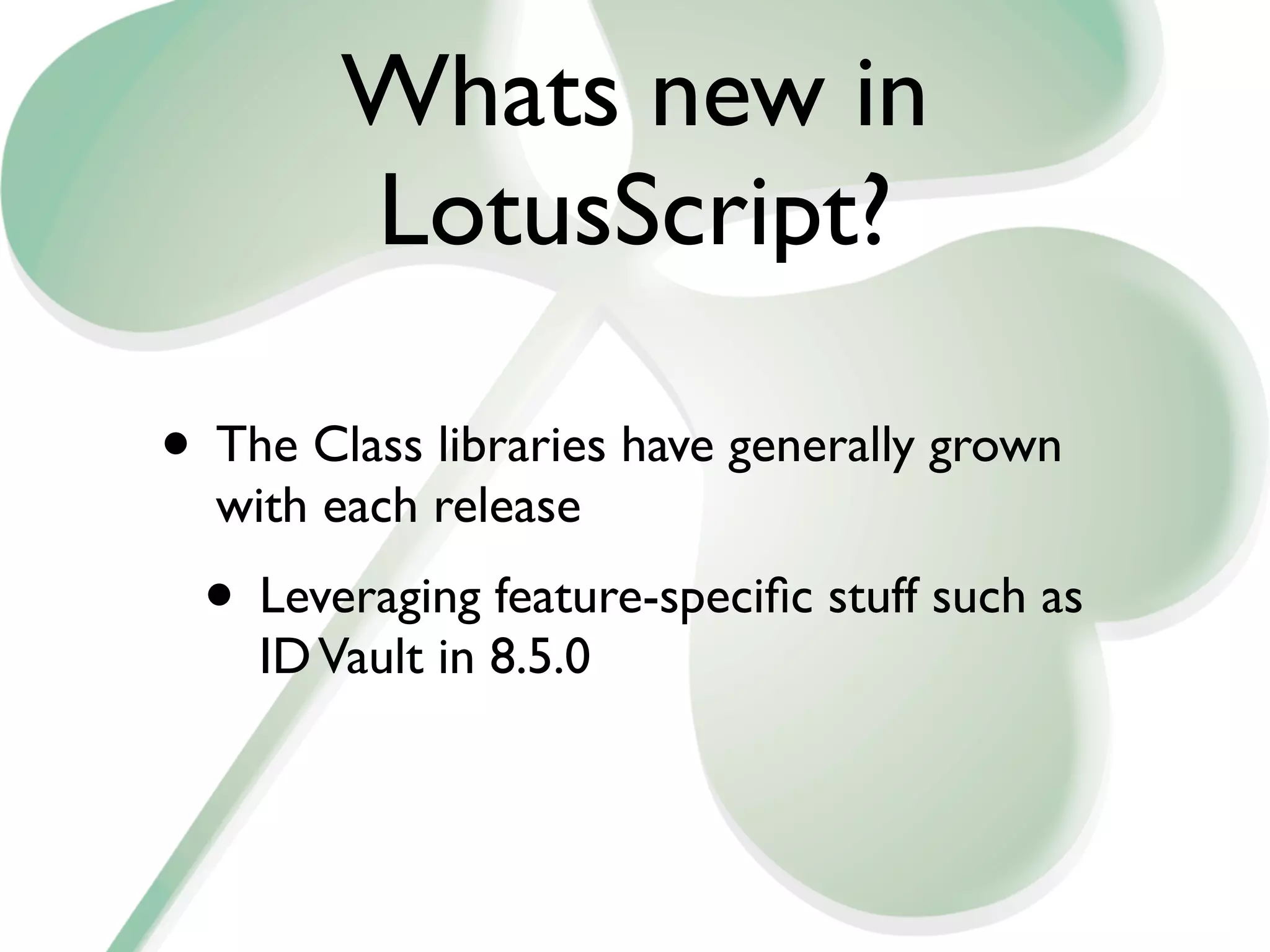

6. Whats new in
LotusScript?
• The Class libraries have generally grown
with each release
• Leveraging feature-specific stuff such as
ID Vault in 8.5.0

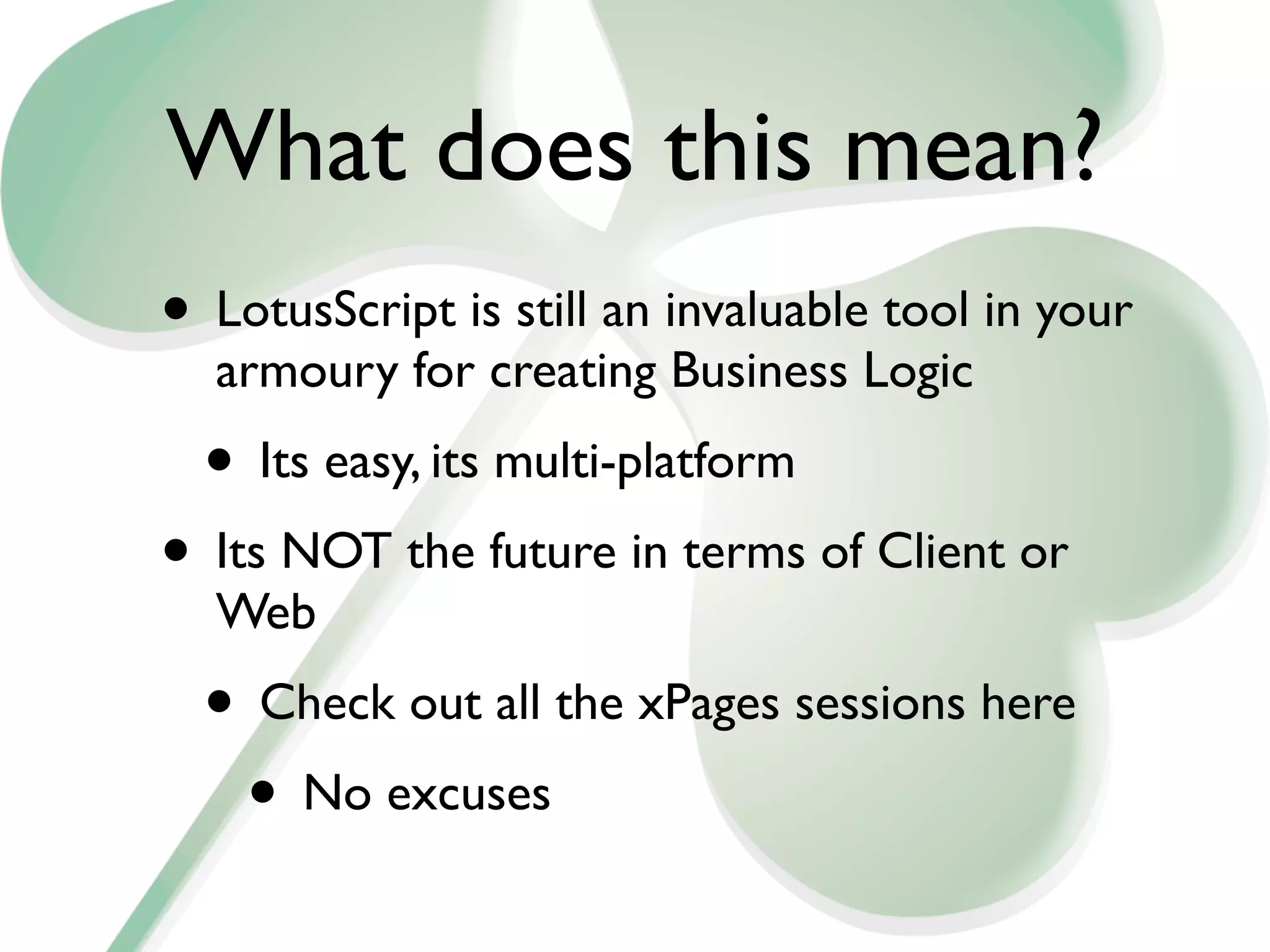

7. What does this mean?
• LotusScript is still an invaluable tool in your
armoury for creating Business Logic
• Its easy, its multi-platform
• Its NOT the future in terms of Client or
Web
• Check out all the xPages sessions here
• No excuses

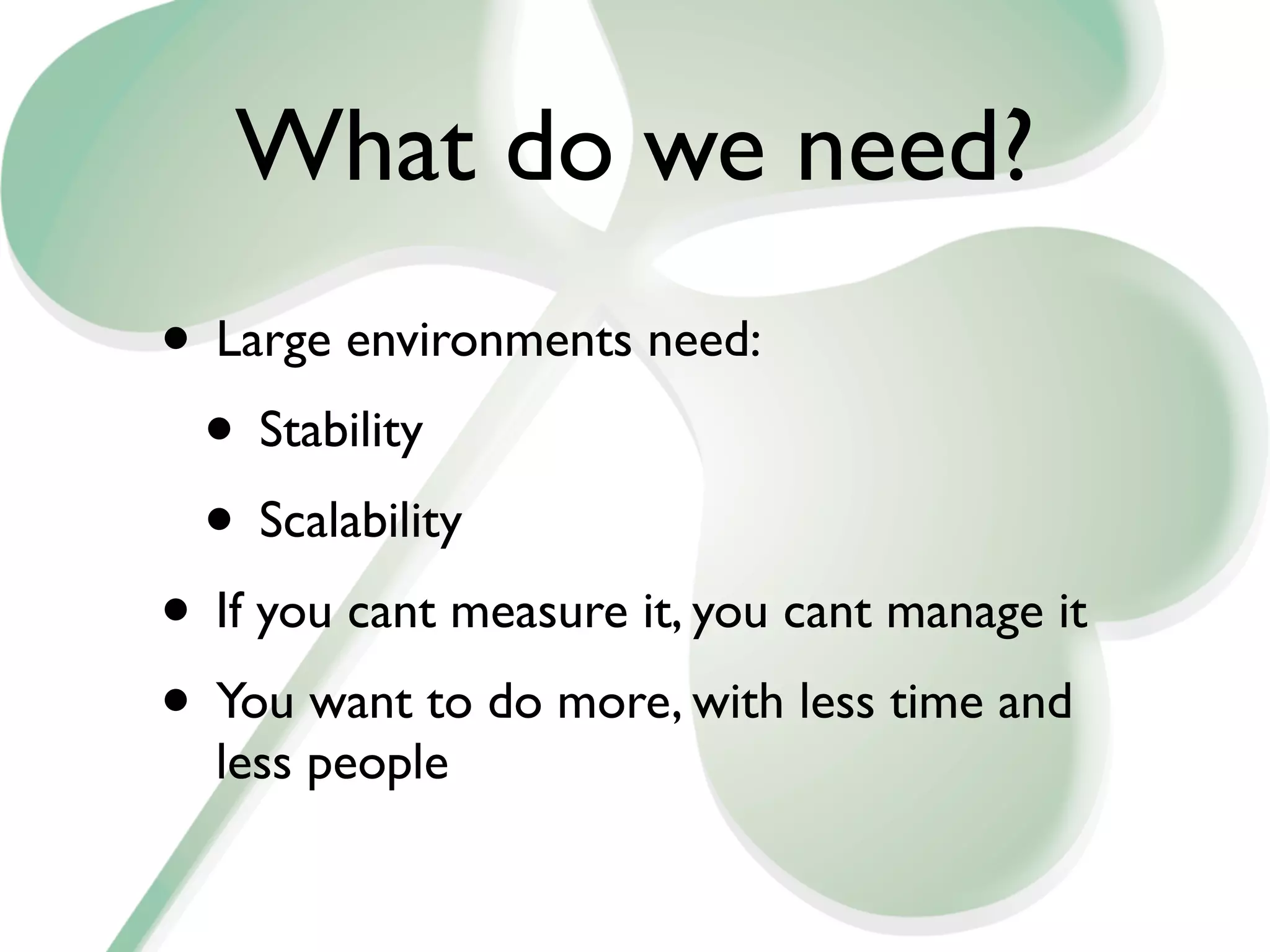

8. What do we need?
• Large environments need:
• Stability
• Scalability
• If you cant measure it, you cant manage it
• You want to do more, with less time and
less people

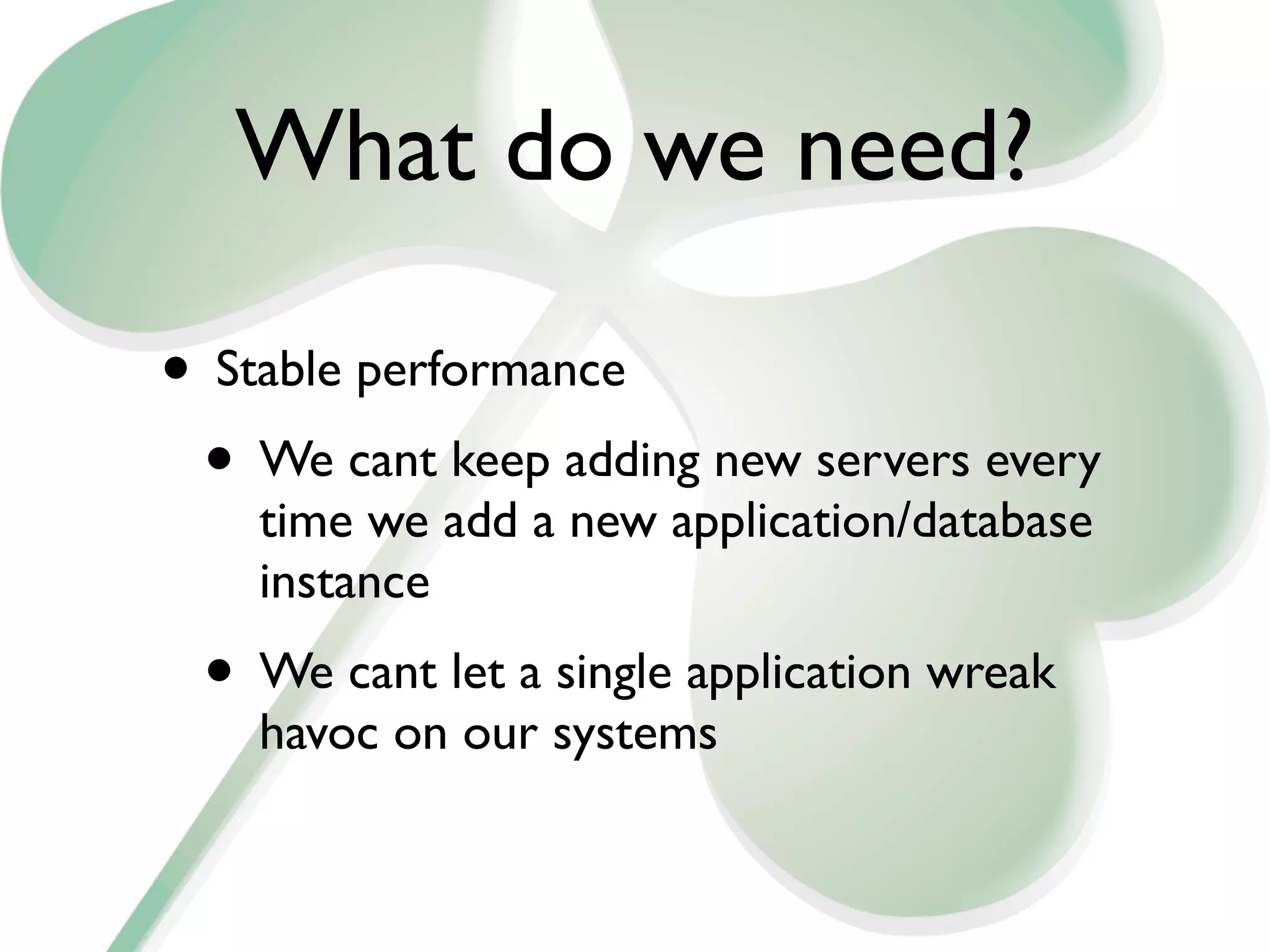

9. What do we need?
• Stable performance
• We cant keep adding new servers every
time we add a new application/database
instance
• We cant let a single application wreak
havoc on our systems

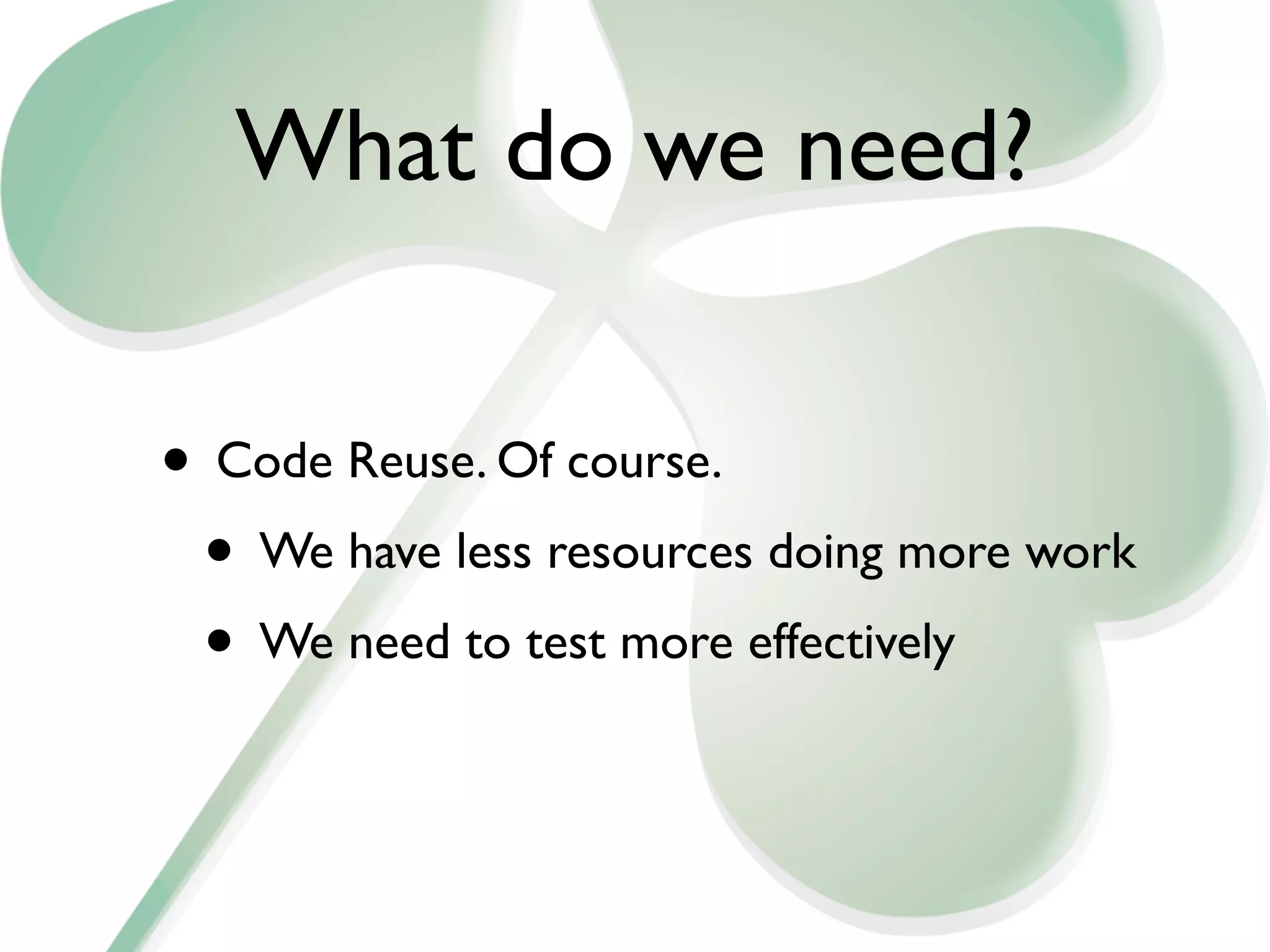

10. What do we need?
• Code Reuse. Of course.
• We have less resources doing more work
• We need to test more effectively

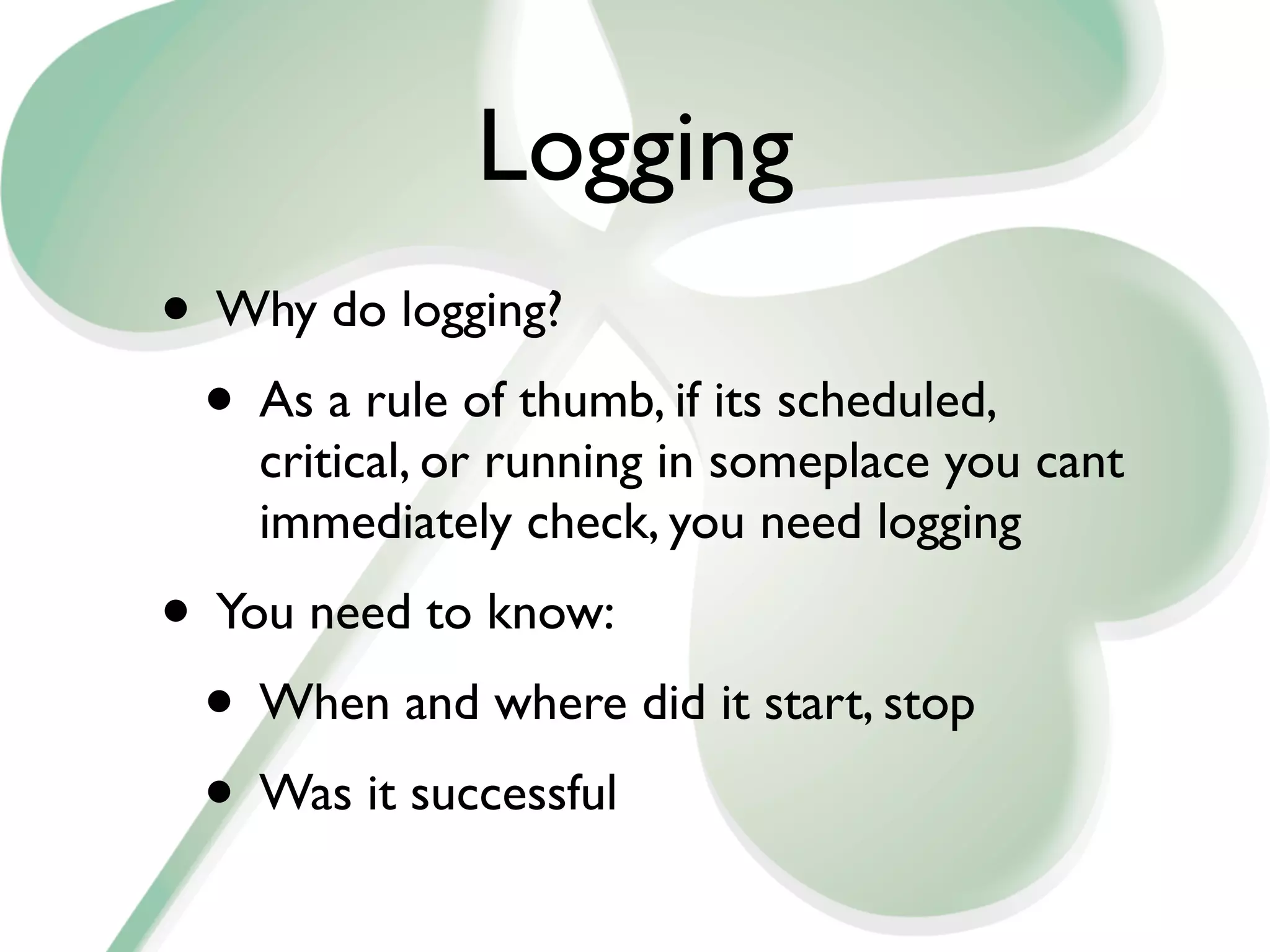

11. Logging
• Why do logging?
• As a rule of thumb, if its scheduled,
critical, or running in someplace you cant
immediately check, you need logging
• You need to know:
• When and where did it start, stop
• Was it successful

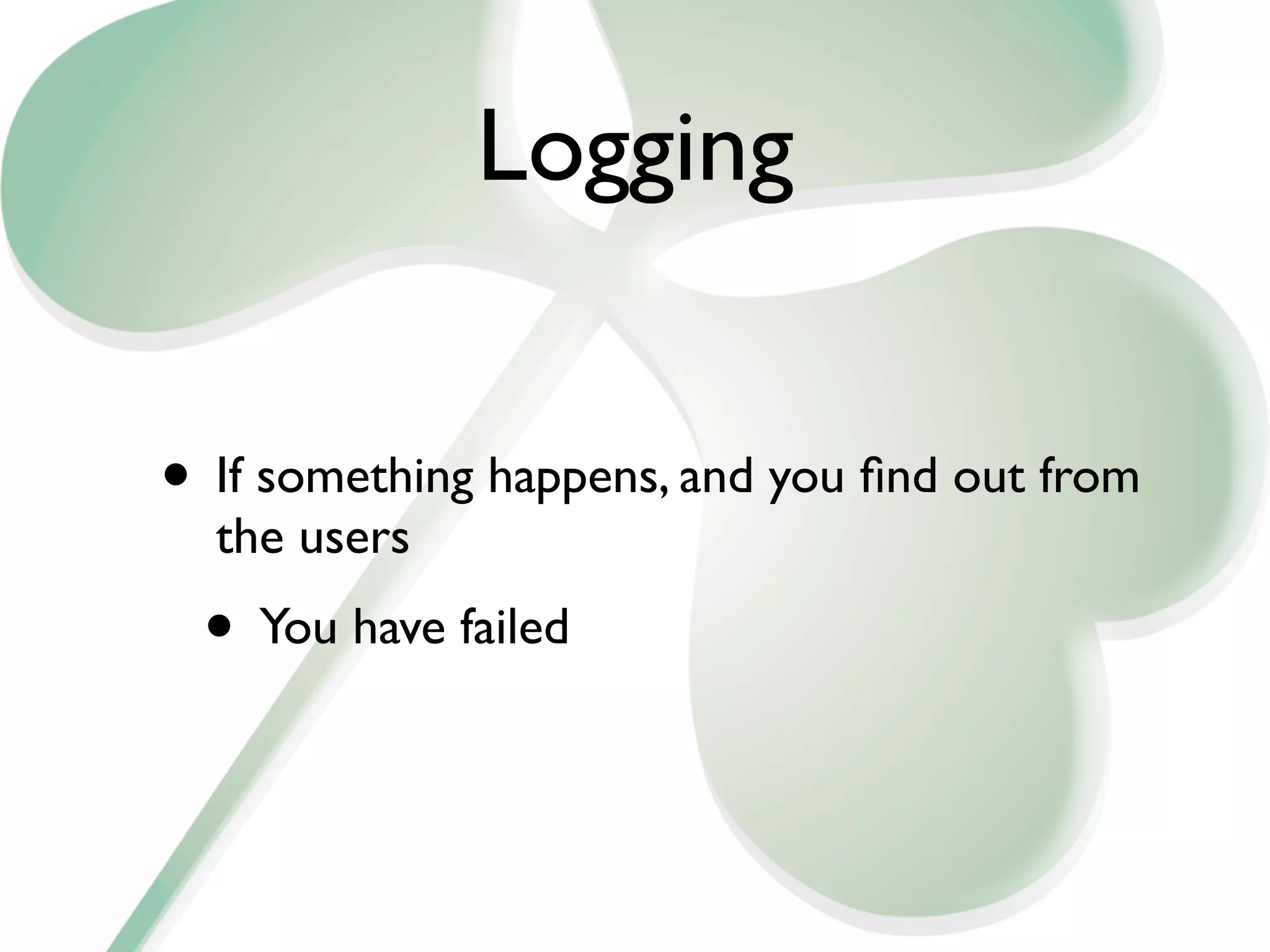

12. Logging
• If something happens, and you find out from
the users
• You have failed

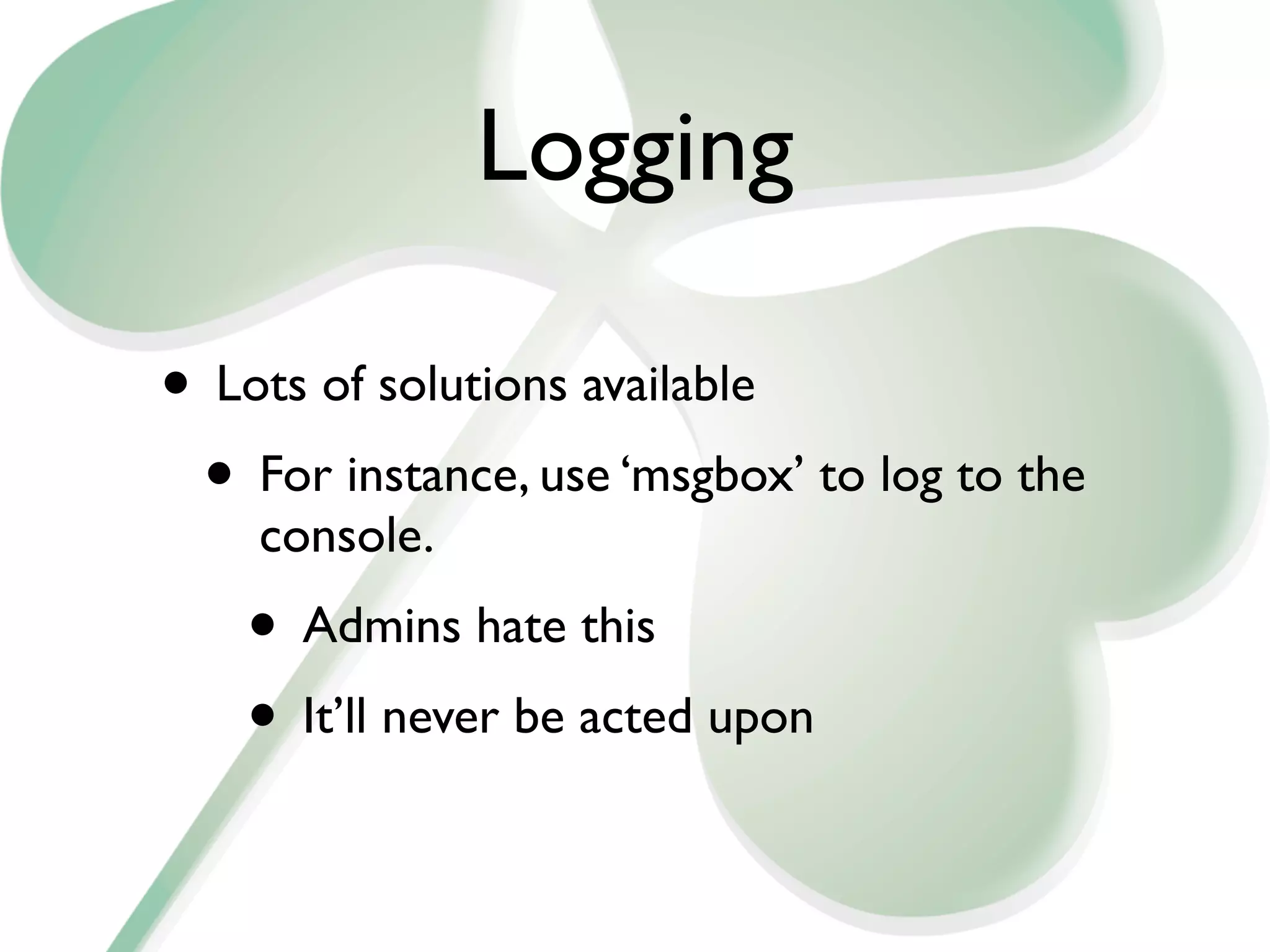

13. Logging
• Lots of solutions available
• For instance, use ‘msgbox’ to log to the
console.
• Admins hate this
• It’ll never be acted upon

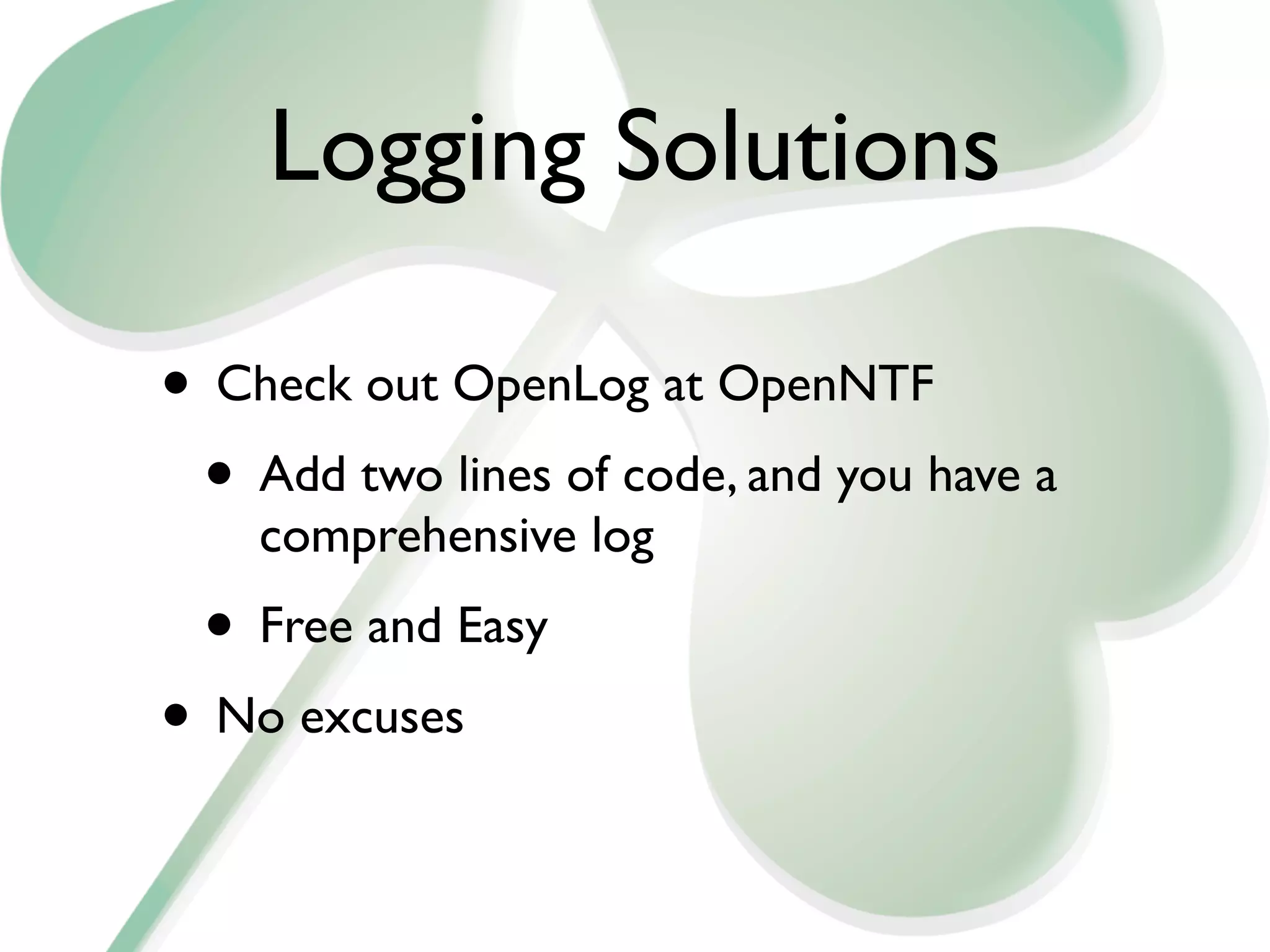

14. Logging Solutions
• Check out OpenLog at OpenNTF
• Add two lines of code, and you have a
comprehensive log
• Free and Easy
• No excuses

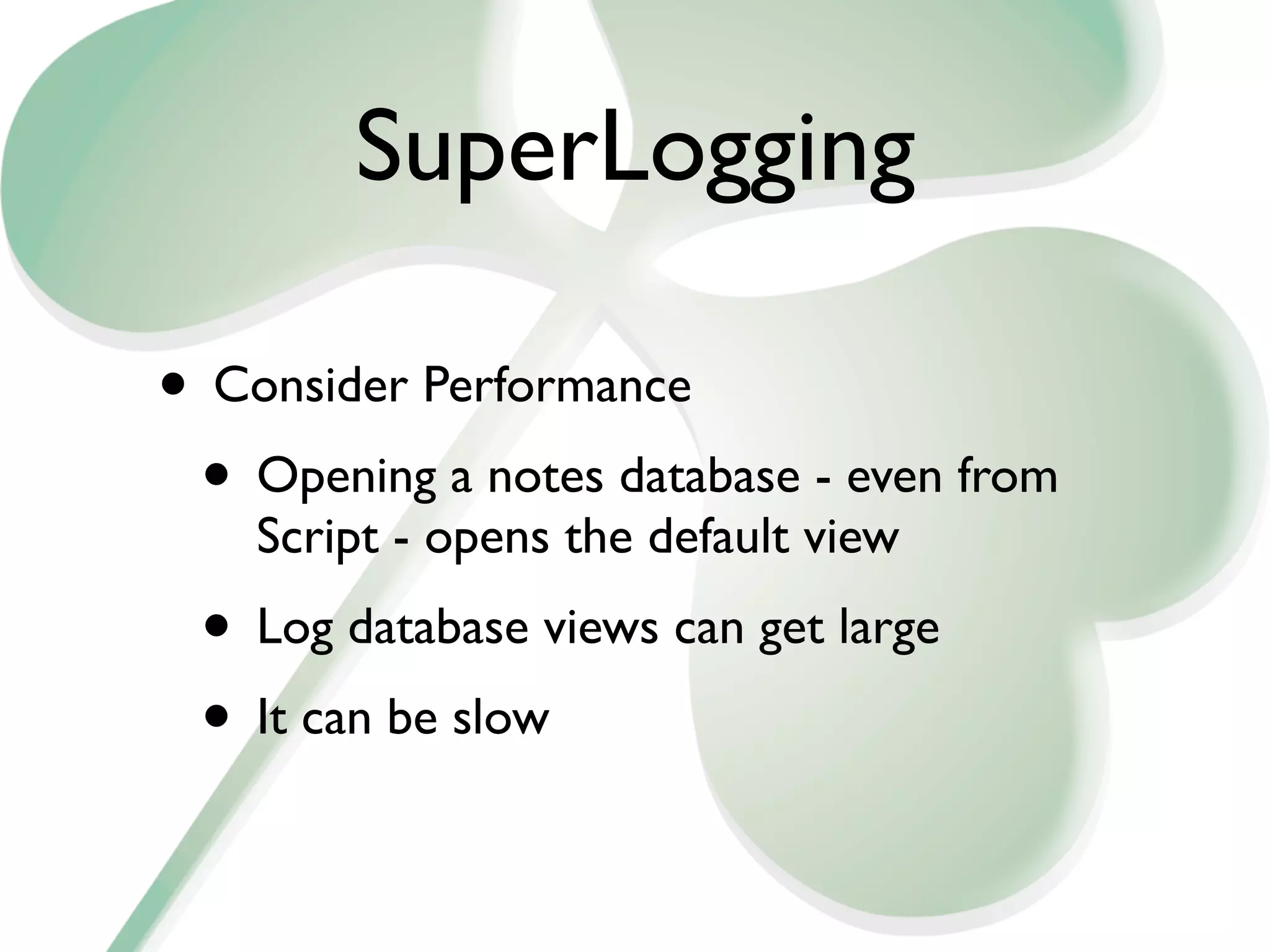

15. SuperLogging
• Consider Performance
• Opening a notes database - even from
Script - opens the default view
• Log database views can get large
• It can be slow

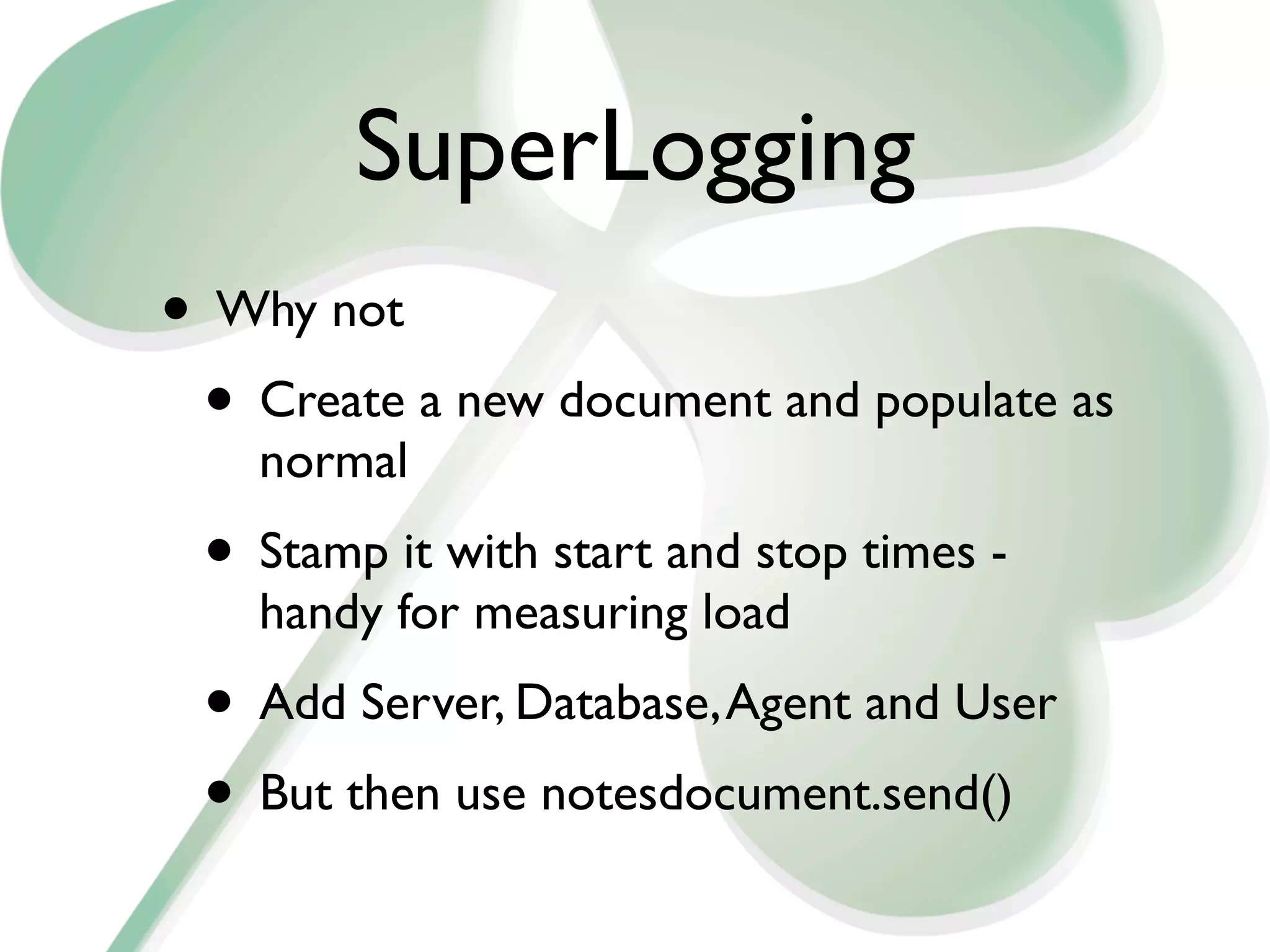

16. SuperLogging
• Why not
• Create a new document and populate as
normal
• Stamp it with start and stop times -
handy for measuring load
• Add Server, Database, Agent and User
• But then use notesdocument.send()

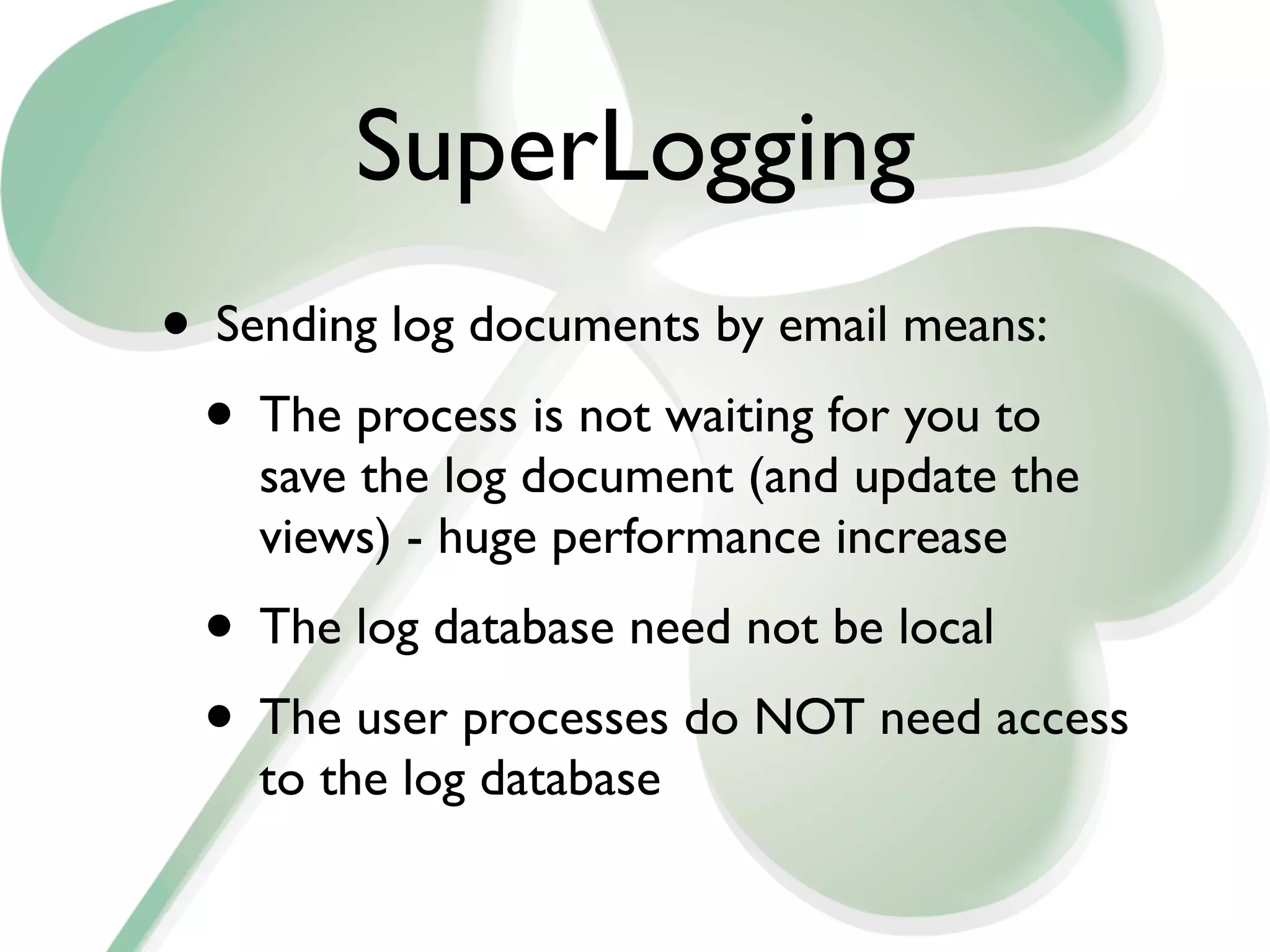

17. SuperLogging
• Sending log documents by email means:
• The process is not waiting for you to
save the log document (and update the
views) - huge performance increase
• The log database need not be local
• The user processes do NOT need access
to the log database

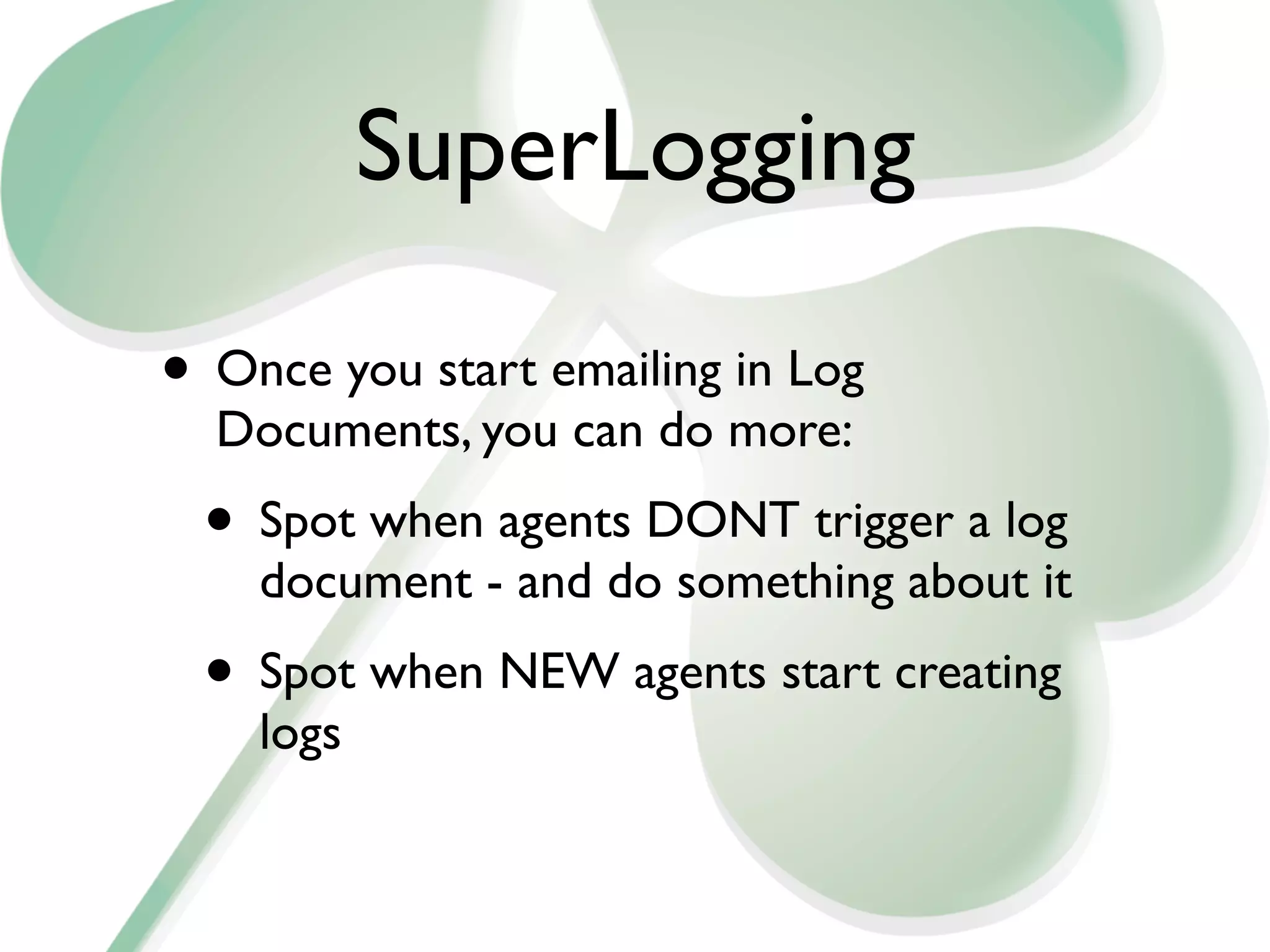

18. SuperLogging
• Once you start emailing in Log
Documents, you can do more:
• Spot when agents DONT trigger a log
document - and do something about it
• Spot when NEW agents start creating
logs

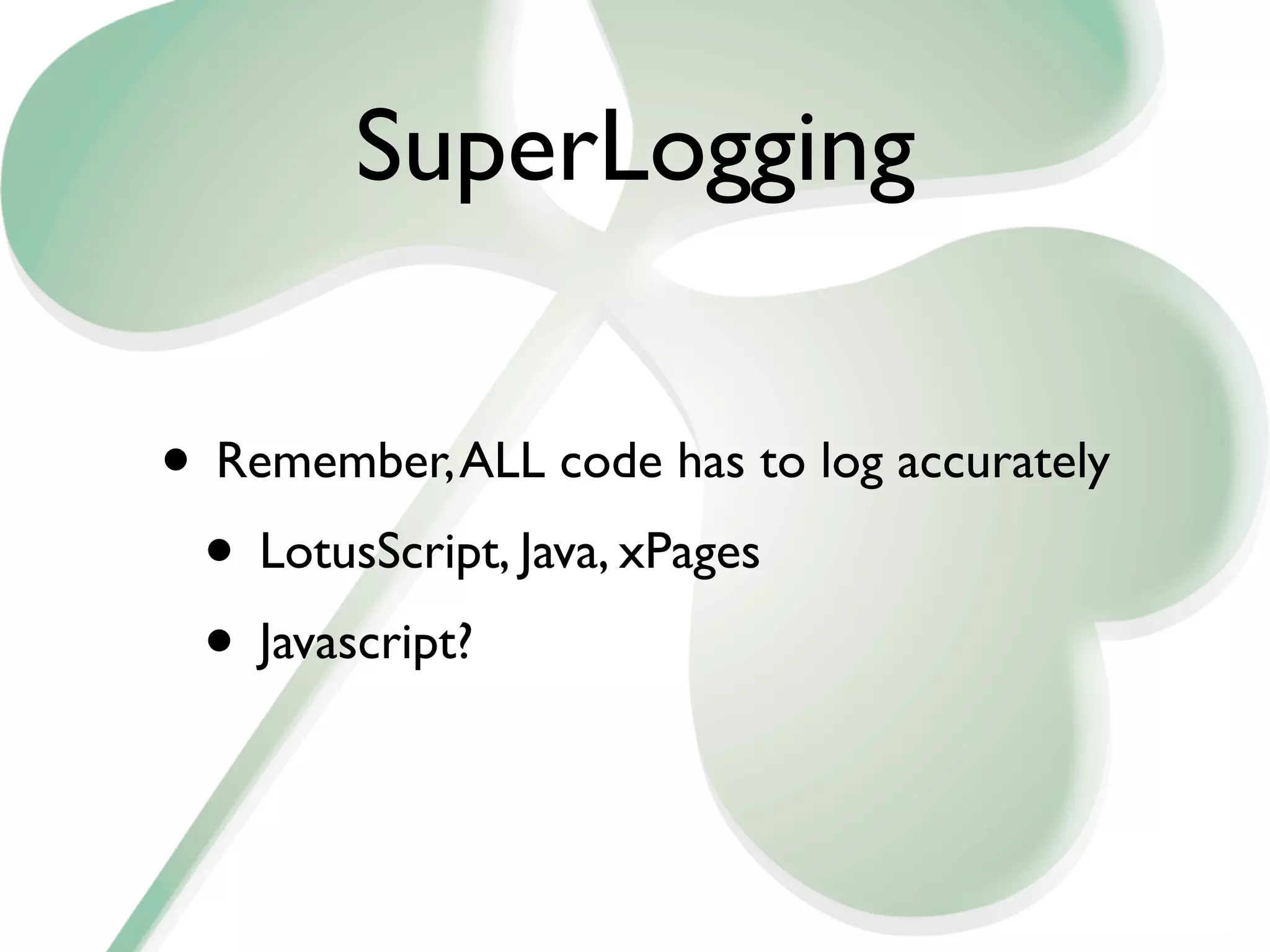

19. SuperLogging
• Remember, ALL code has to log accurately
• LotusScript, Java, xPages
• Javascript?

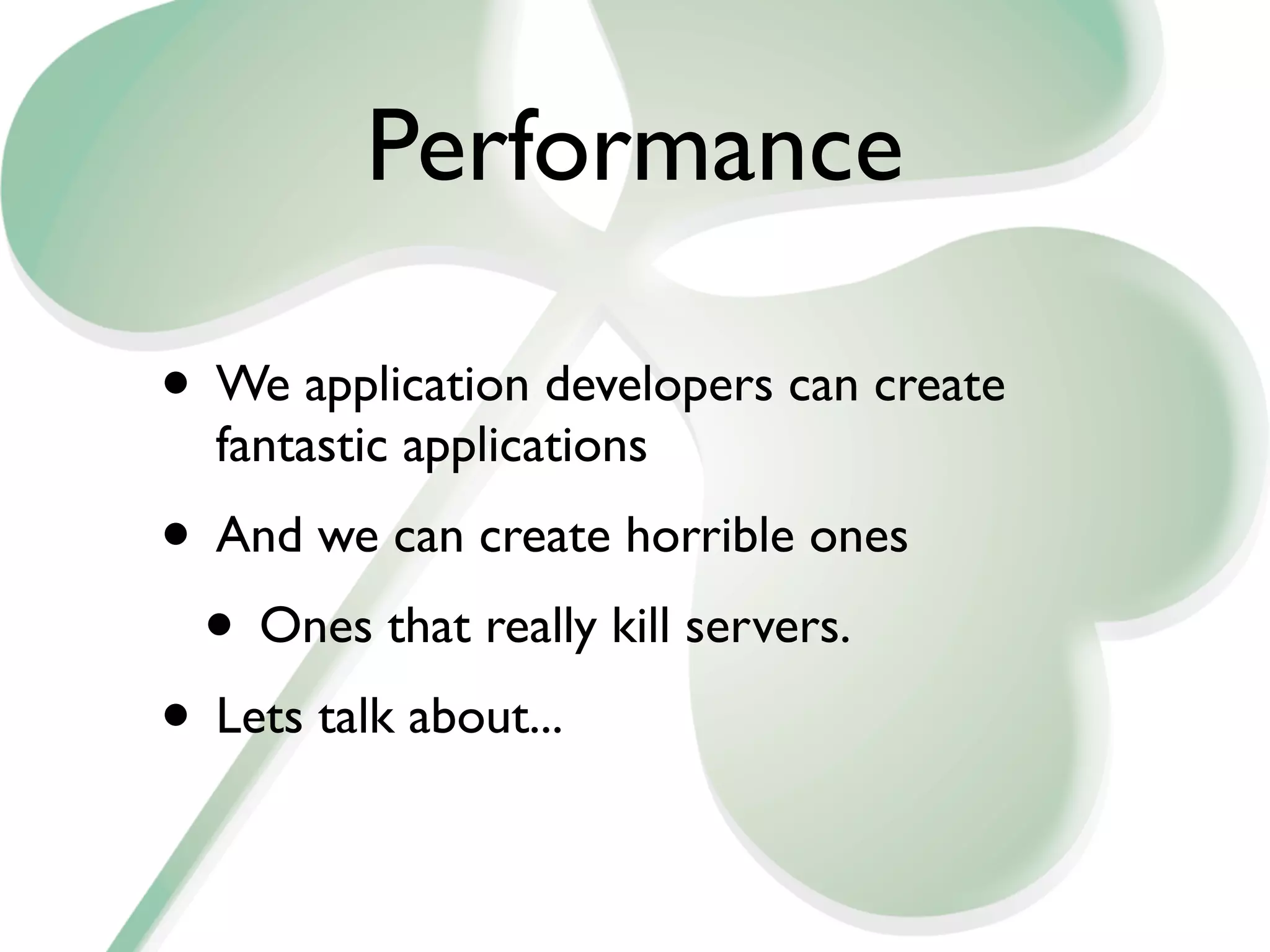

20. Performance
• We application developers can create
fantastic applications
• And we can create horrible ones
• Ones that really kill servers.
• Lets talk about...

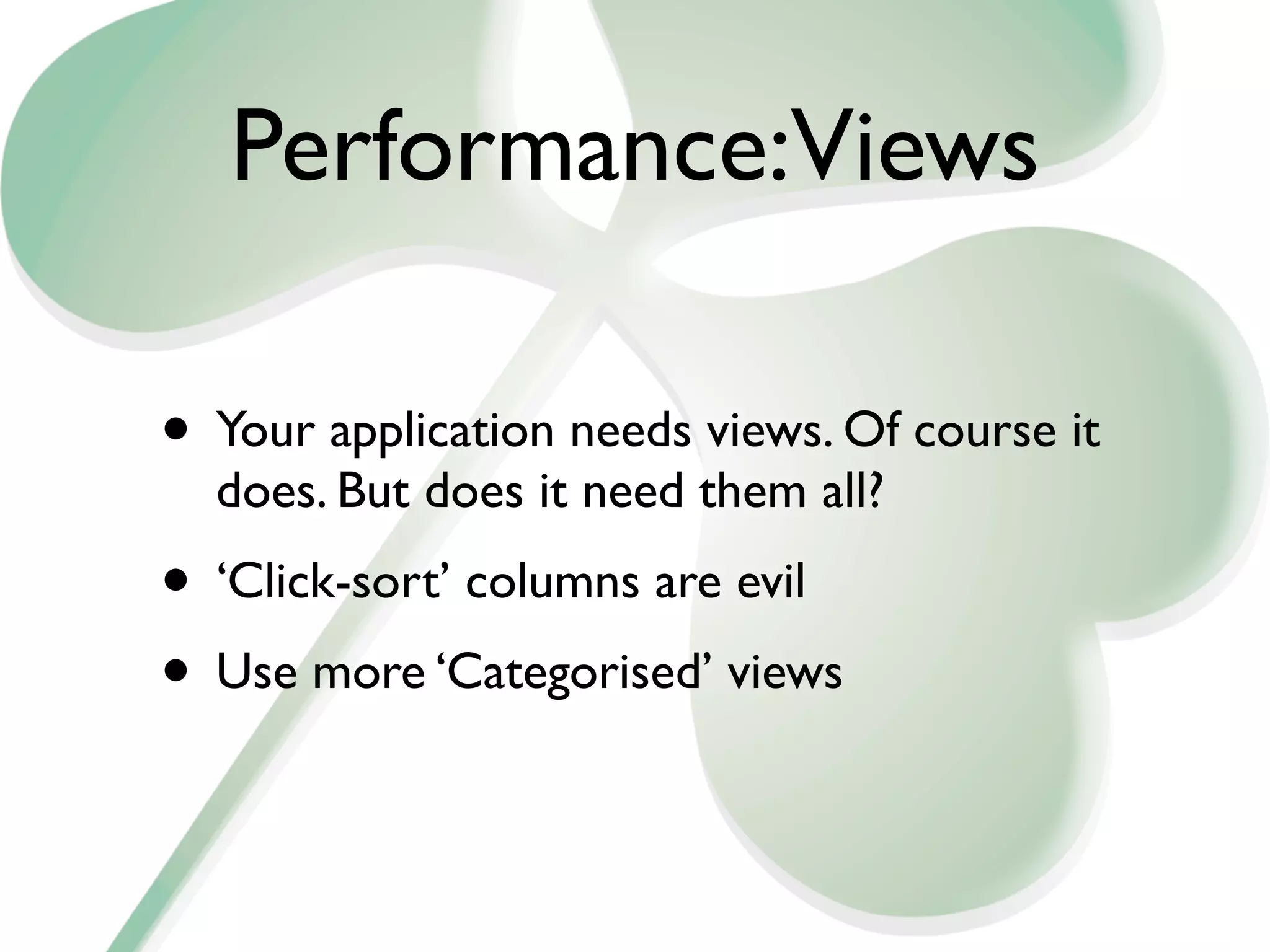

21. Performance:Views
• Your application needs views. Of course it
does. But does it need them all?
• ‘Click-sort’ columns are evil
• Use more ‘Categorised’ views

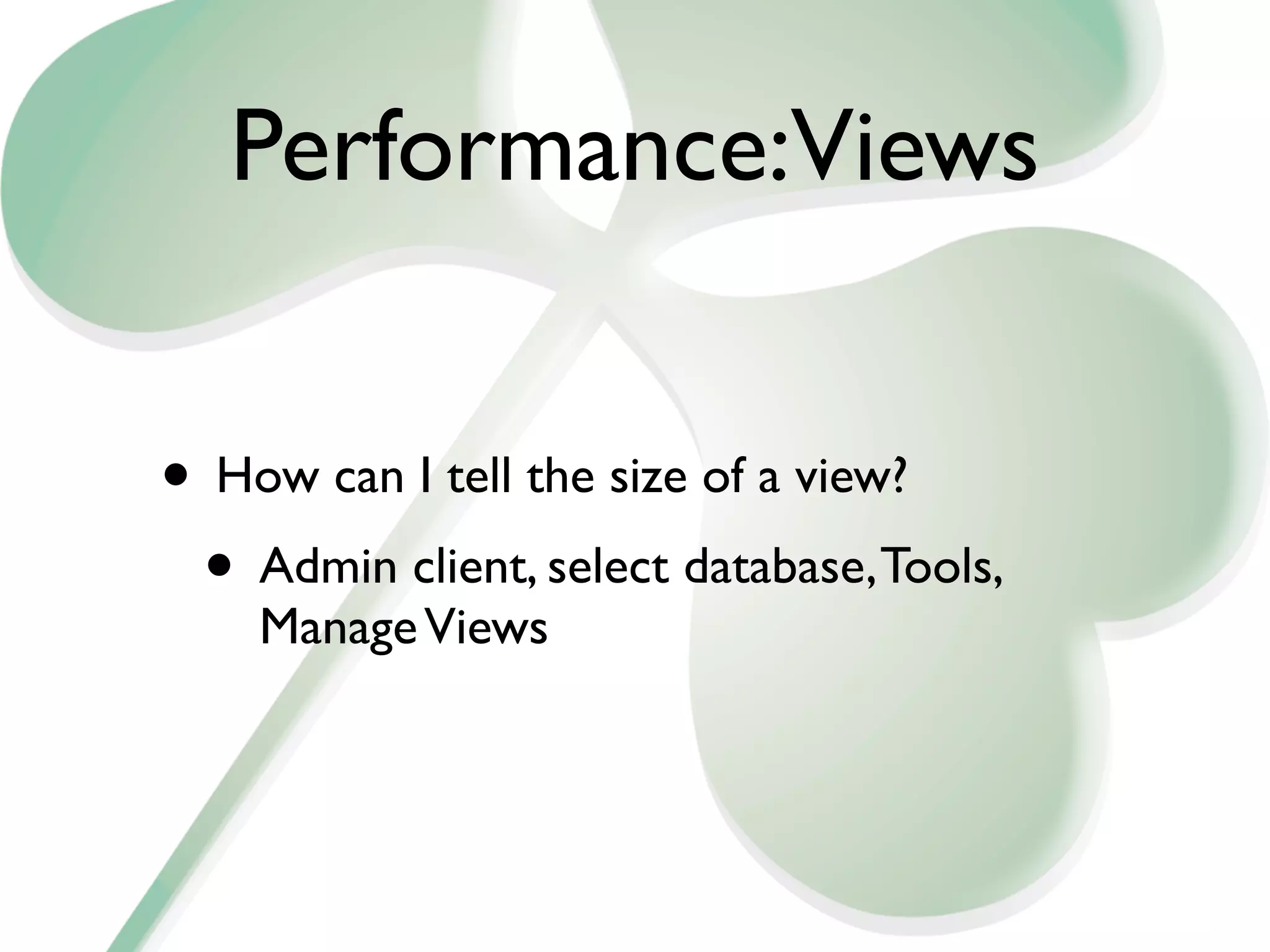

22. Performance:Views
• How can I tell the size of a view?
• Admin client, select database, Tools,
Manage Views

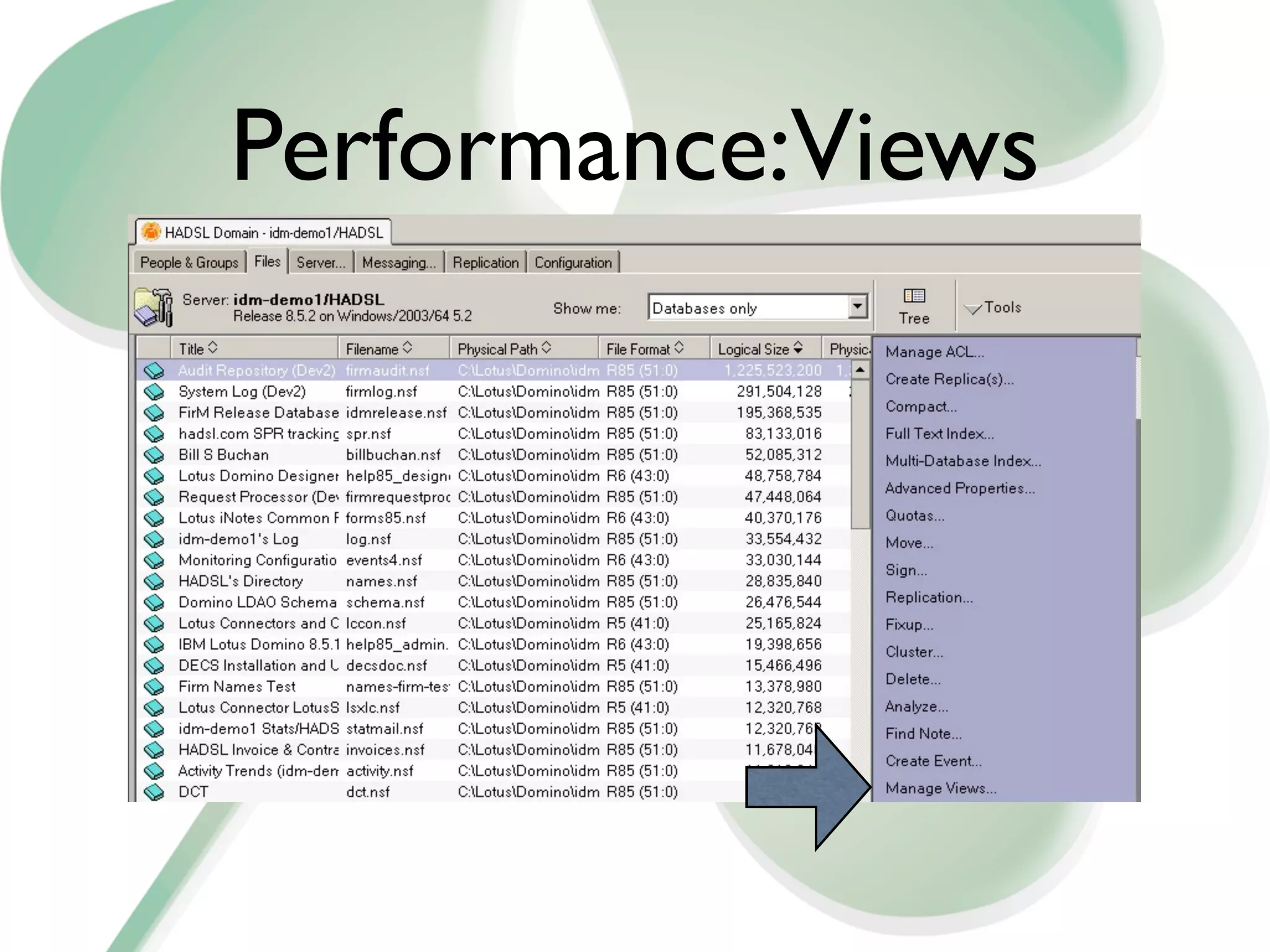

23. Performance:Views

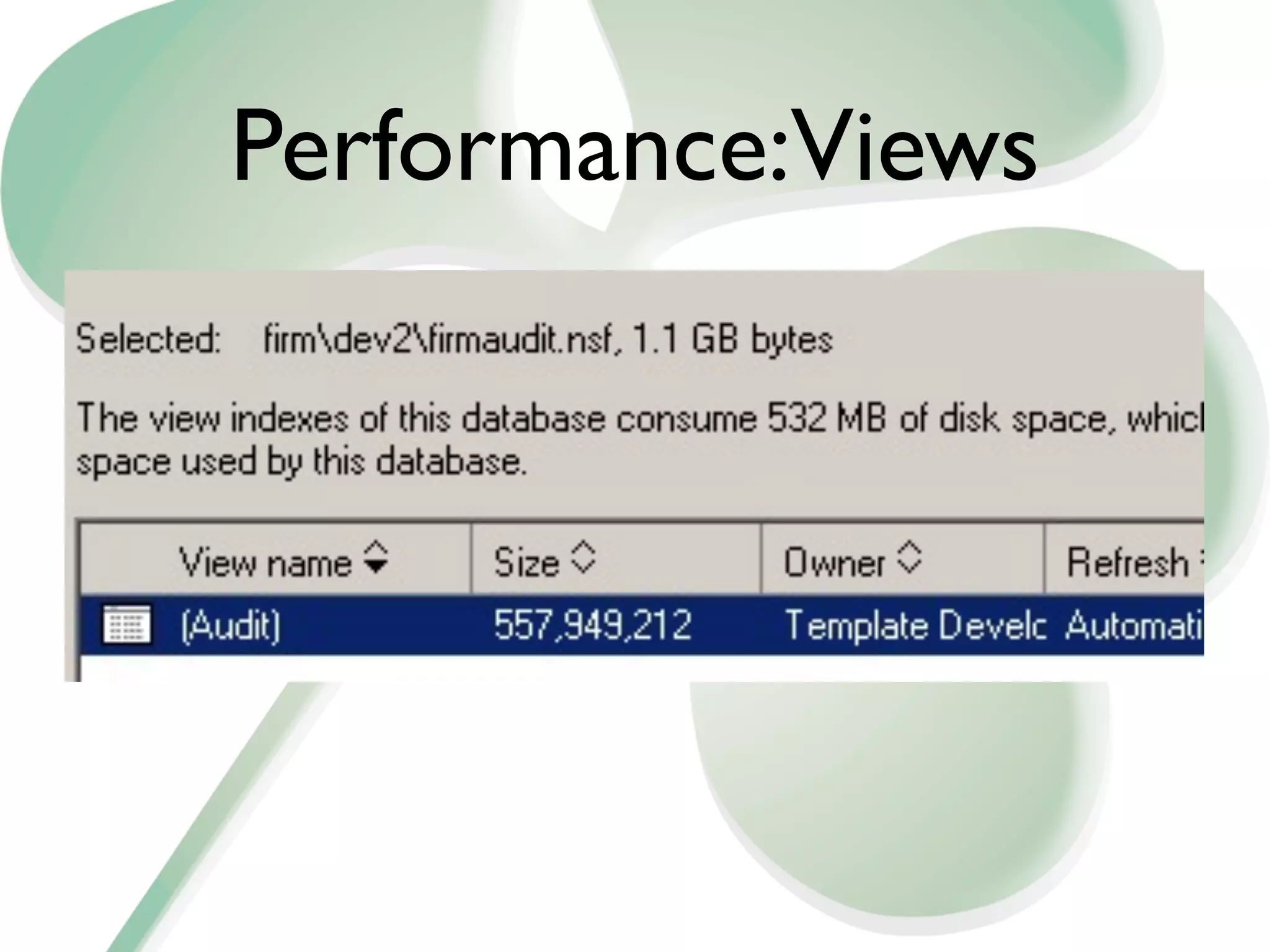

24. Performance:Views

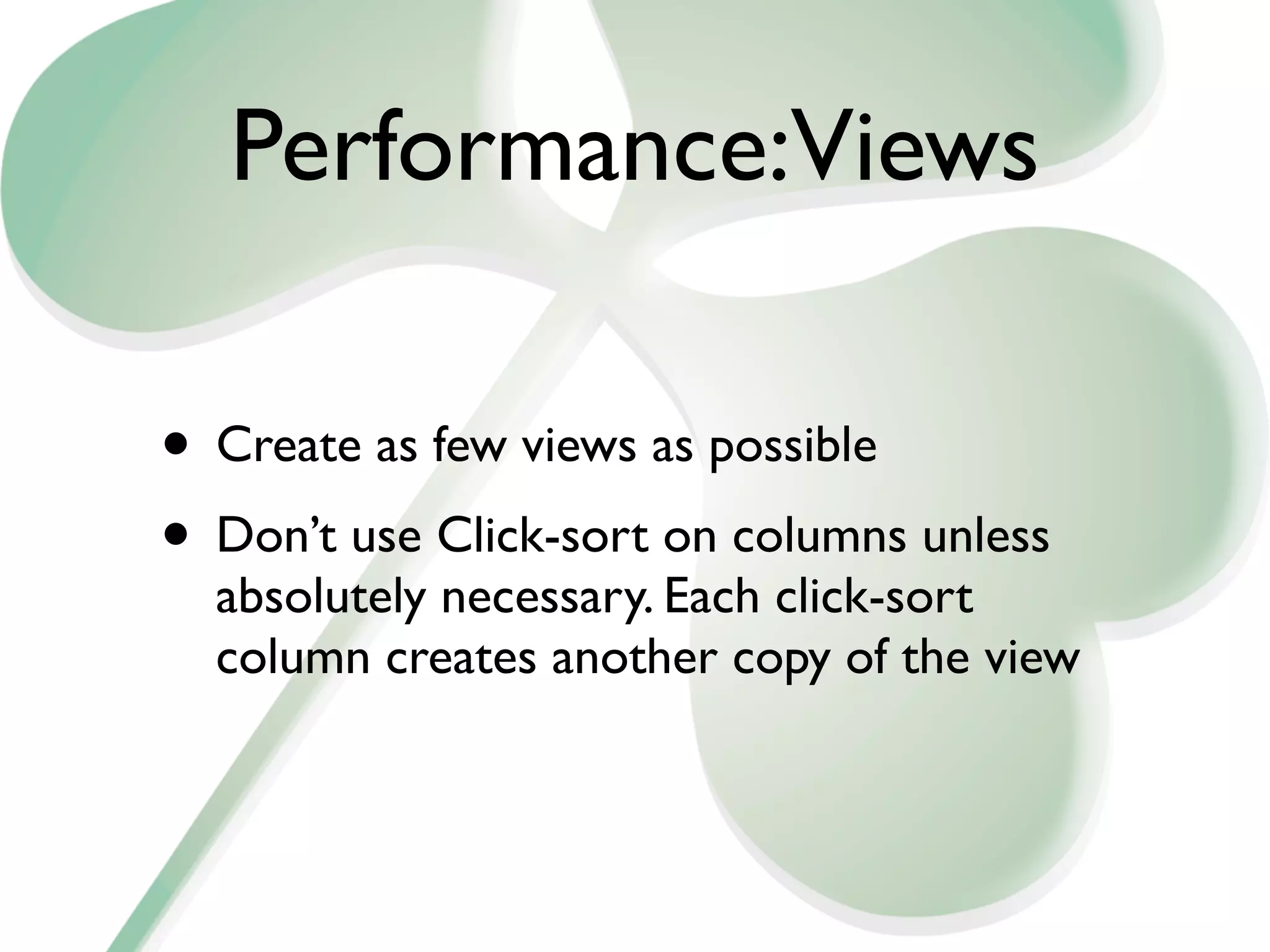

25. Performance:Views
• Create as few views as possible
• Don’t use Click-sort on columns unless
absolutely necessary. Each click-sort
column creates another copy of the view

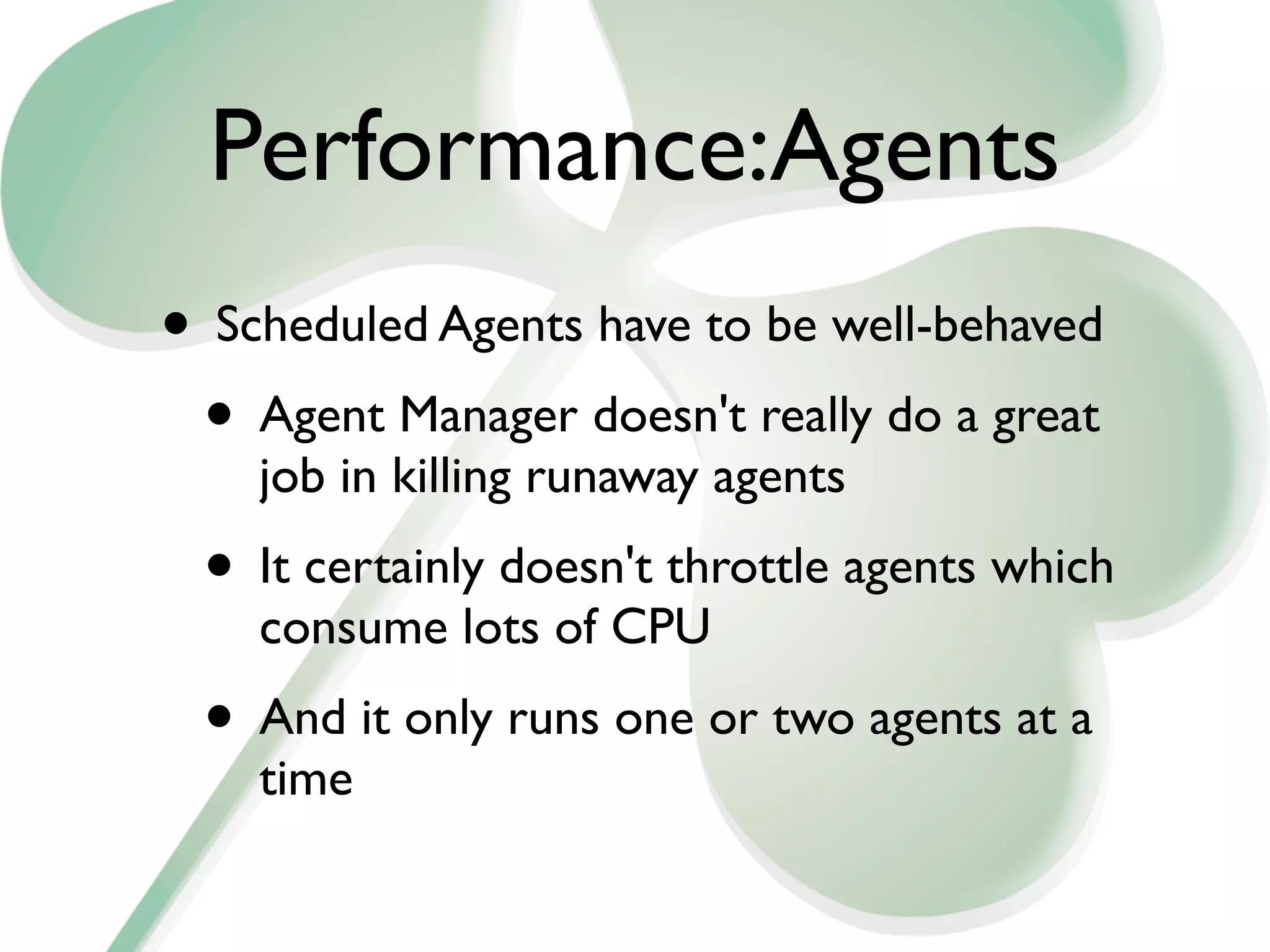

26. Performance:Agents
• Scheduled Agents have to be well-behaved
• Agent Manager doesn't really do a great
job in killing runaway agents
• It certainly doesn't throttle agents which
consume lots of CPU
• And it only runs one or two agents at a
time

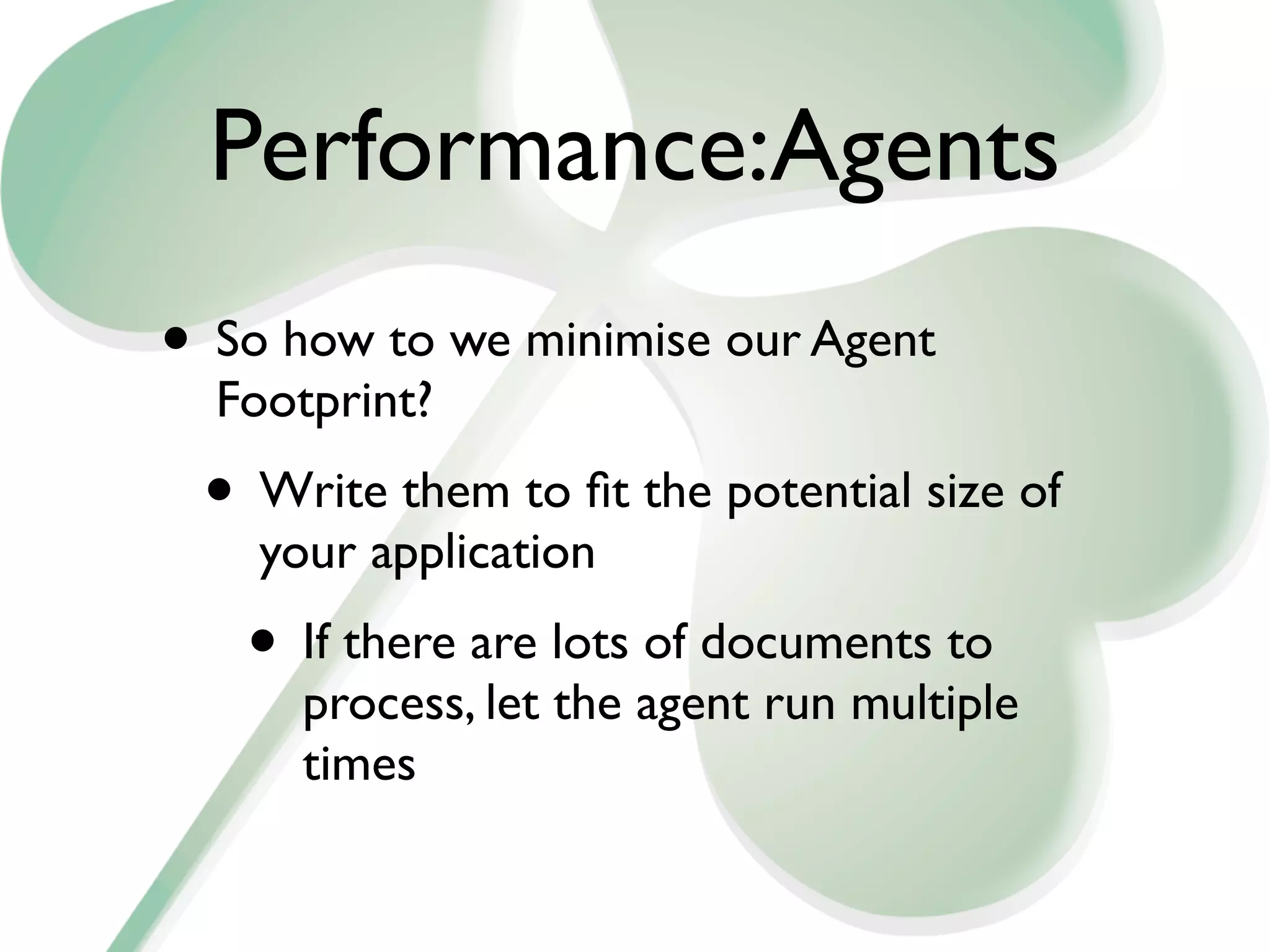

27. Performance:Agents
• So how to we minimise our Agent
Footprint?
• Write them to fit the potential size of
your application
• If there are lots of documents to
process, let the agent run multiple
times

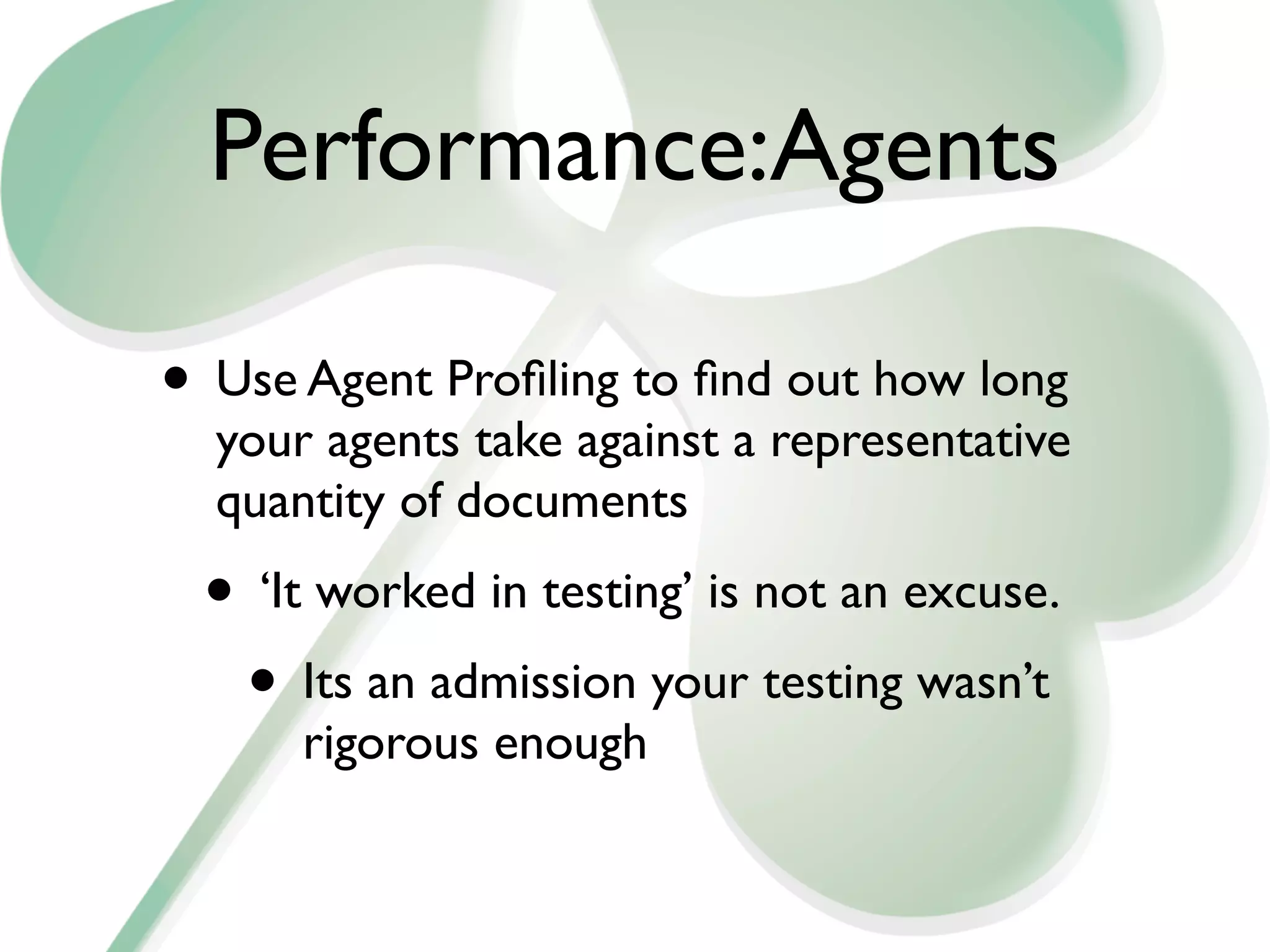

28. Performance:Agents
• Use Agent Profiling to find out how long
your agents take against a representative
quantity of documents
• ‘It worked in testing’ is not an excuse.
• Its an admission your testing wasn’t
rigorous enough

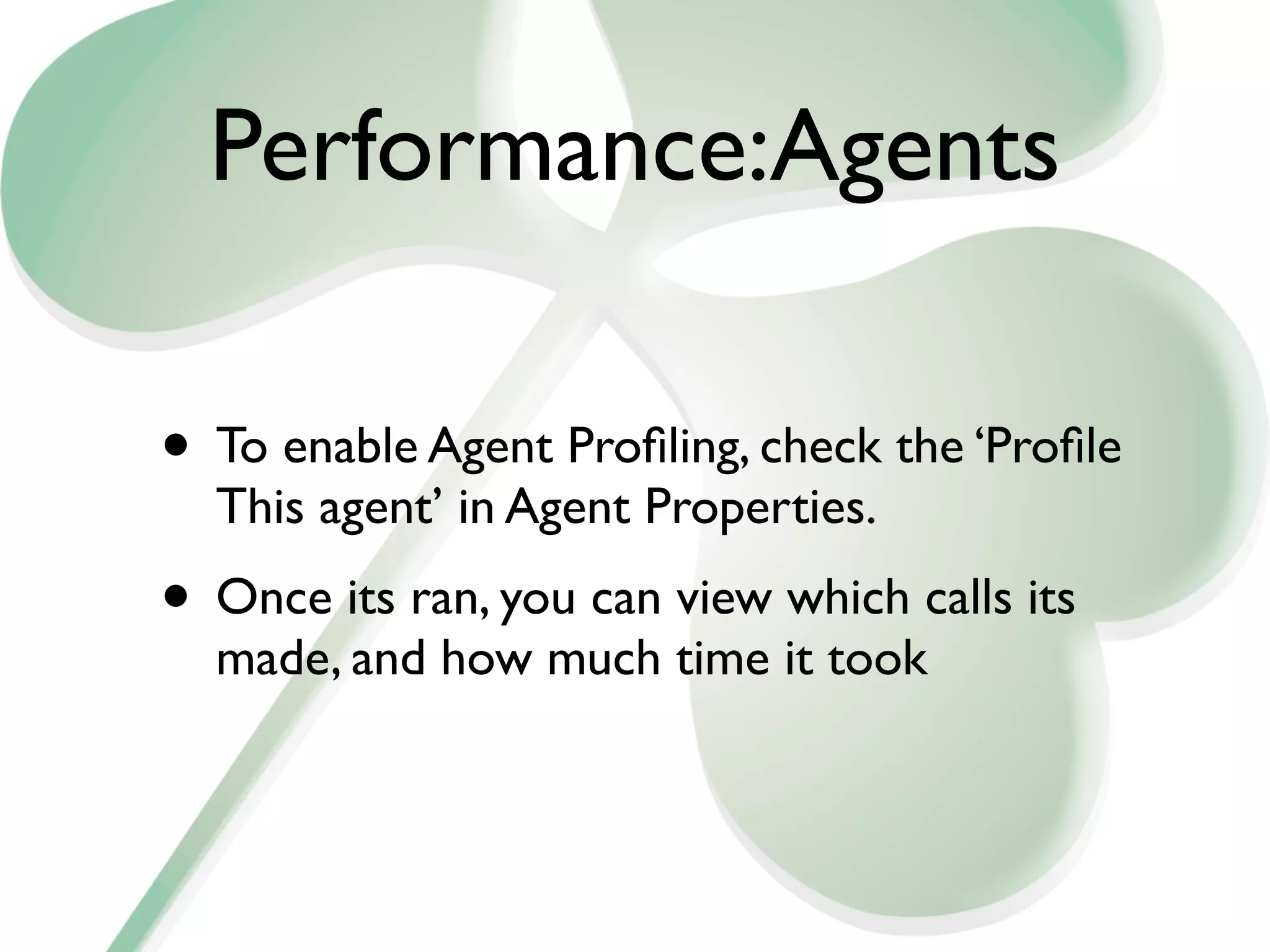

29. Performance:Agents
• To enable Agent Profiling, check the ‘Profile
This agent’ in Agent Properties.
• Once its ran, you can view which calls its
made, and how much time it took

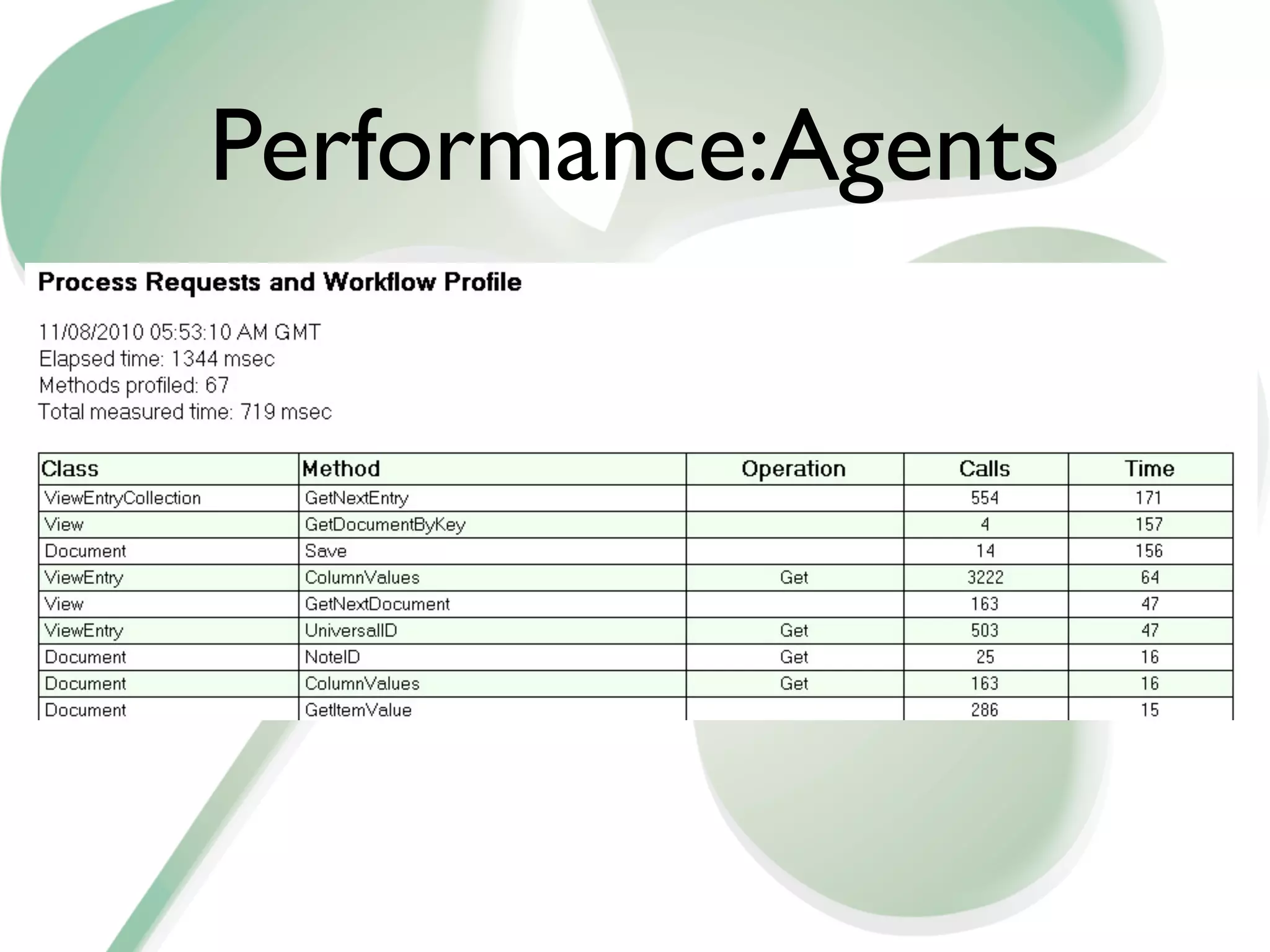

30. Performance:Agents

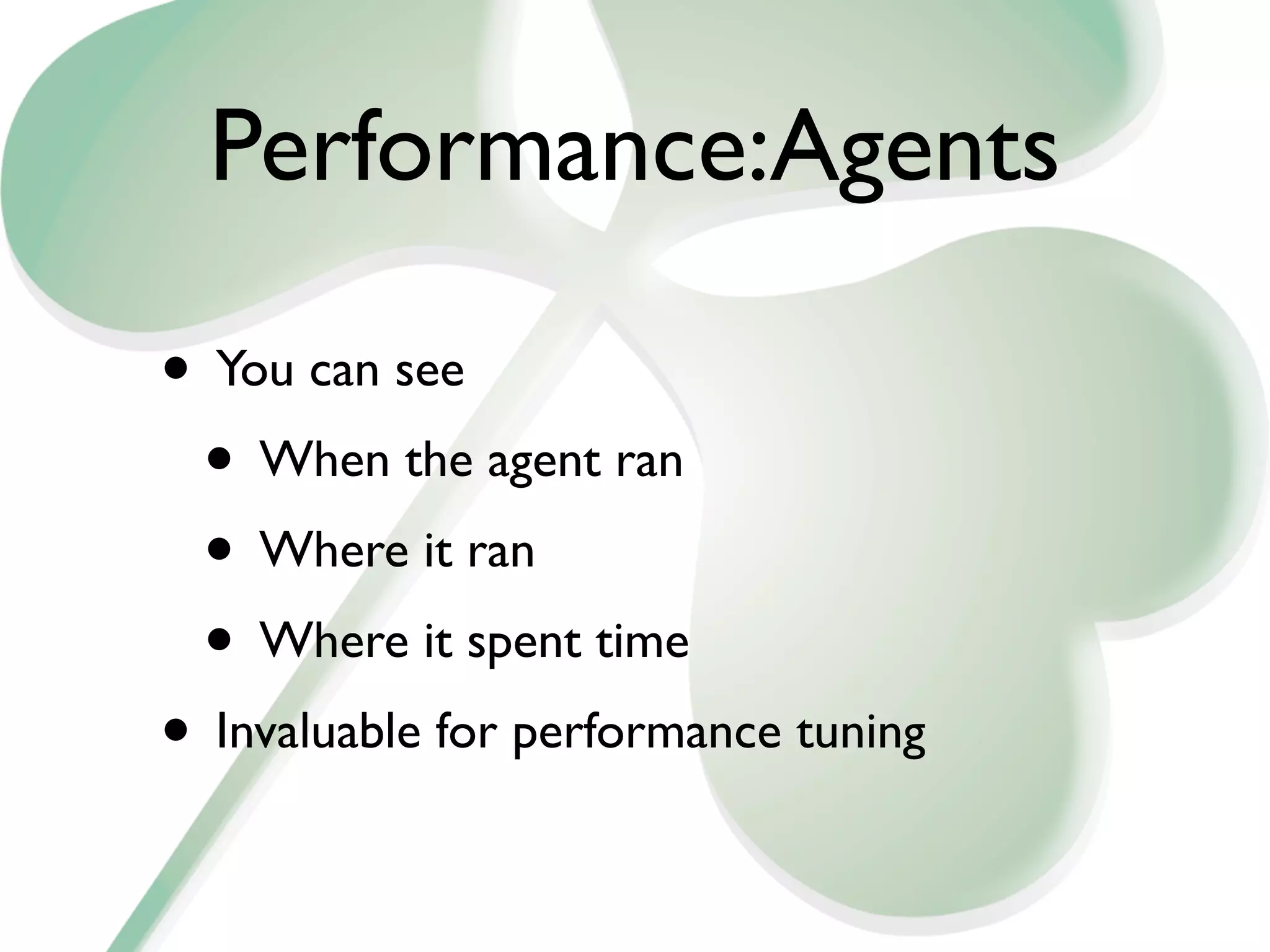

31. Performance:Agents
• You can see
• When the agent ran
• Where it ran
• Where it spent time
• Invaluable for performance tuning

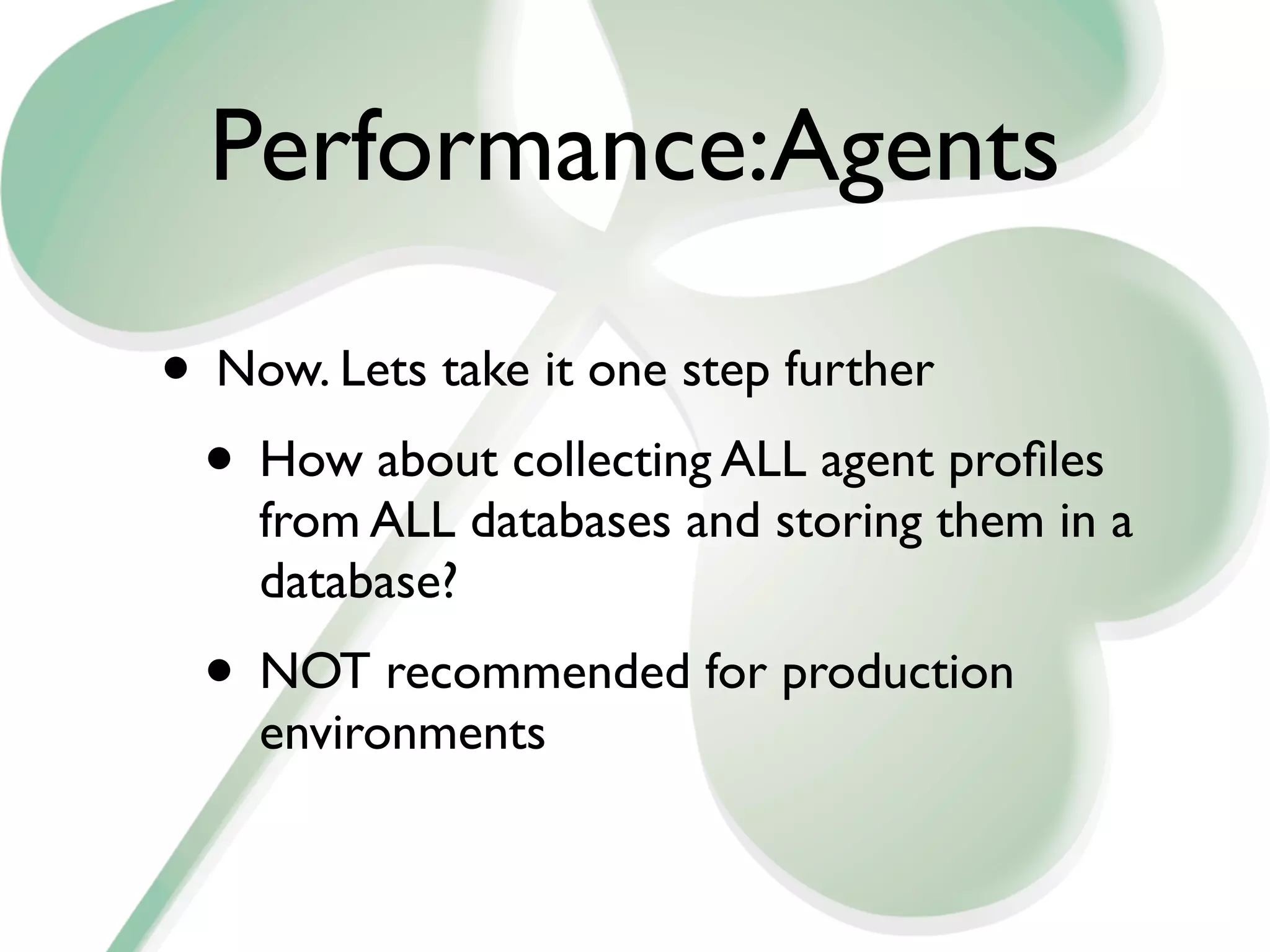

32. Performance:Agents
• Now. Lets take it one step further
• How about collecting ALL agent profiles
from ALL databases and storing them in a
database?
• NOT recommended for production
environments

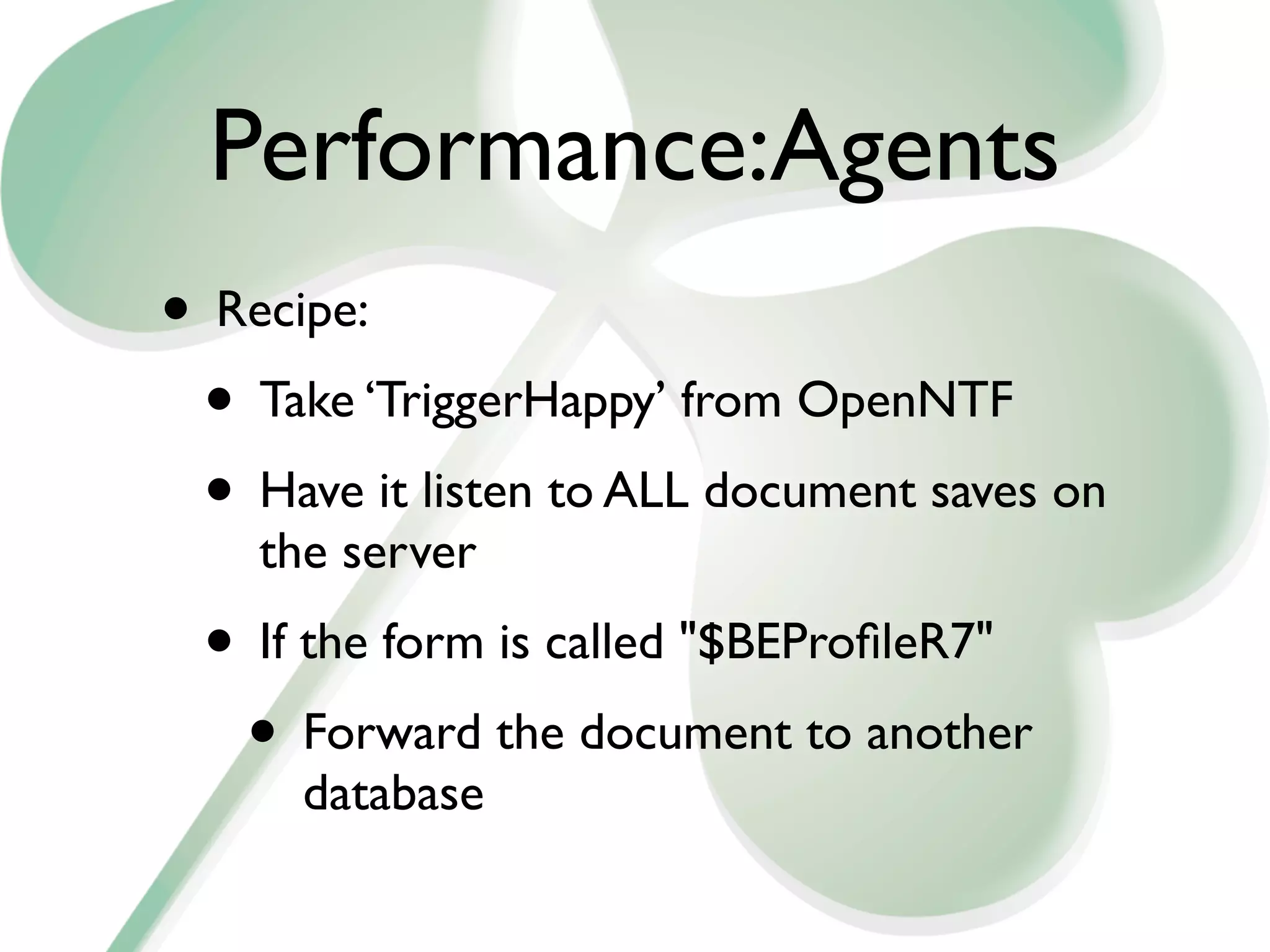

33. Performance:Agents
• Recipe:
• Take ‘TriggerHappy’ from OpenNTF
• Have it listen to ALL document saves on
the server
• If the form is called "$BEProfileR7"
• Forward the document to another
database

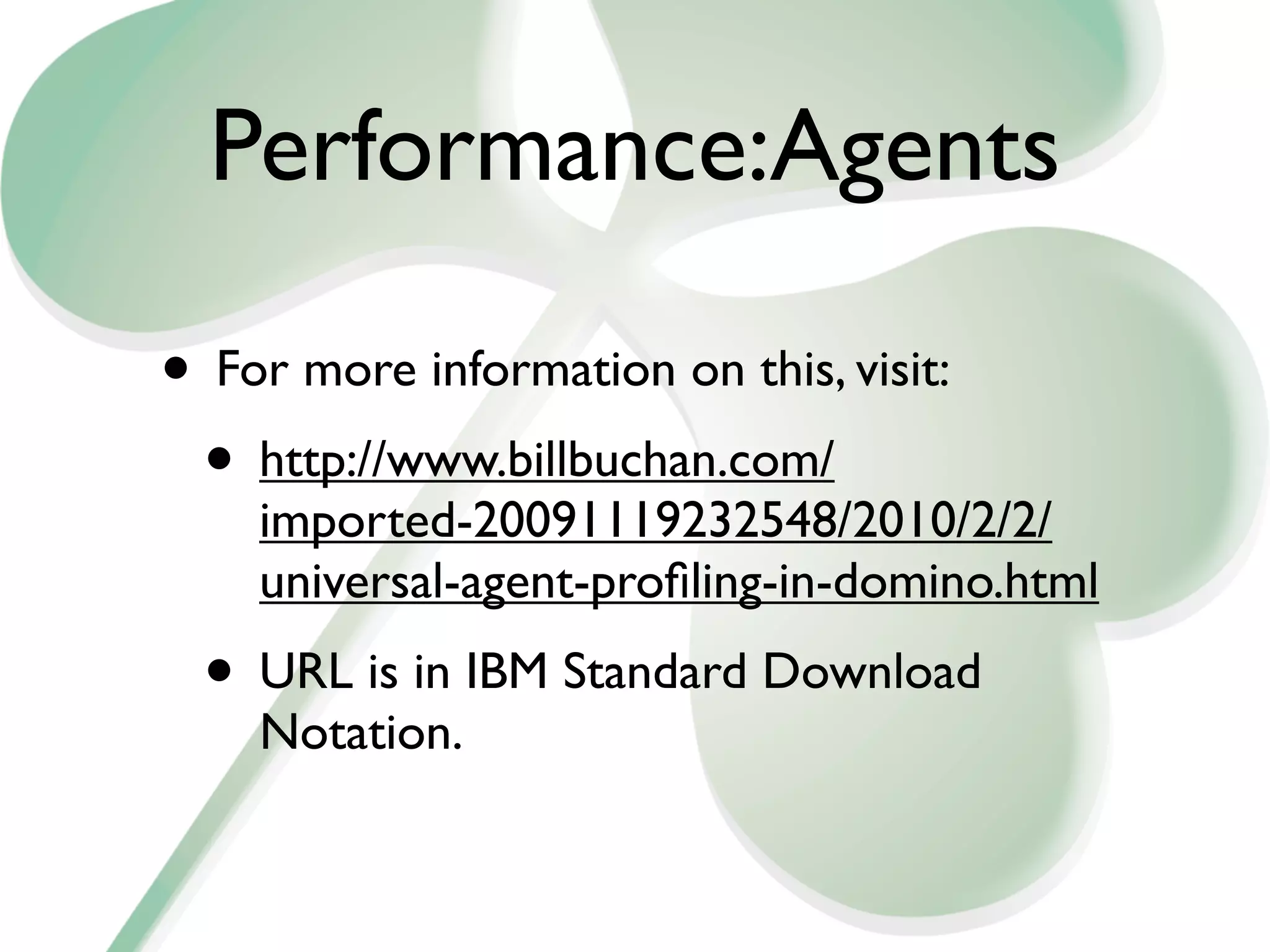

34. Performance:Agents
• For more information on this, visit:
• http://www.billbuchan.com/
imported-20091119232548/2010/2/2/
universal-agent-profiling-in-domino.html
• URL is in IBM Standard Download
Notation.

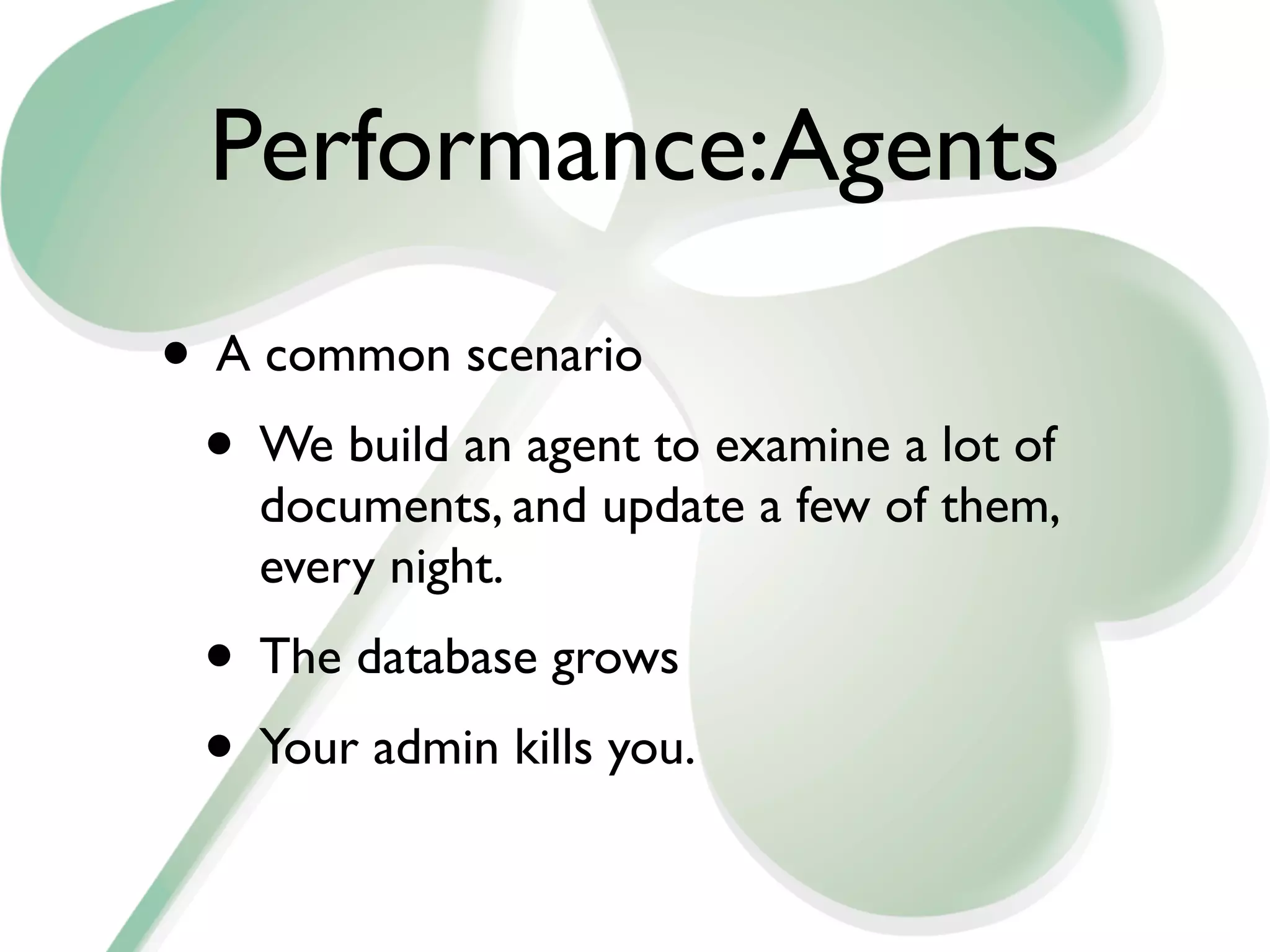

35. Performance:Agents
• A common scenario
• We build an agent to examine a lot of
documents, and update a few of them,
every night.
• The database grows
• Your admin kills you.

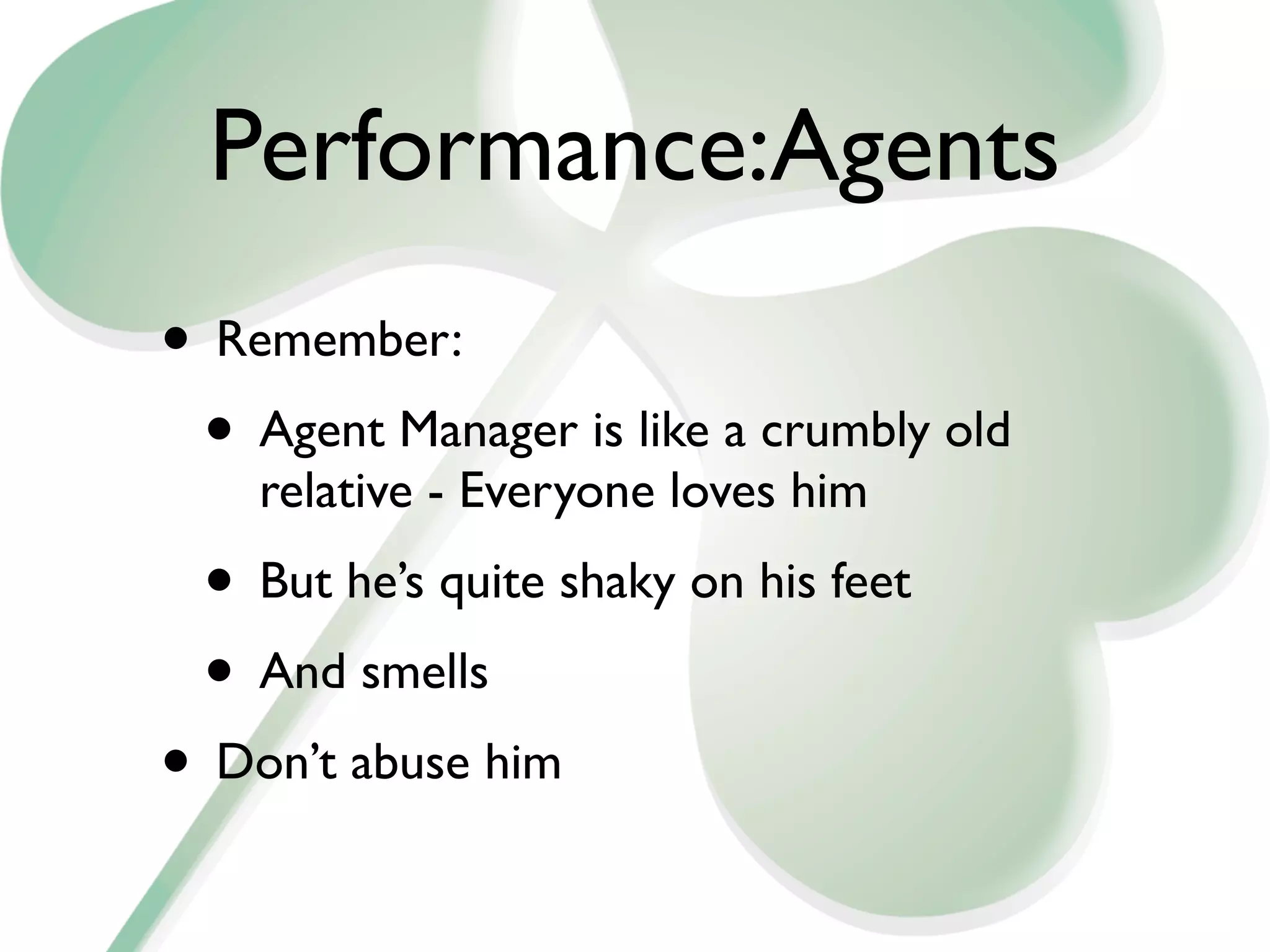

36. Performance:Agents
• Remember:
• Agent Manager is like a crumbly old
relative - Everyone loves him
• But he’s quite shaky on his feet
• And smells
• Don’t abuse him

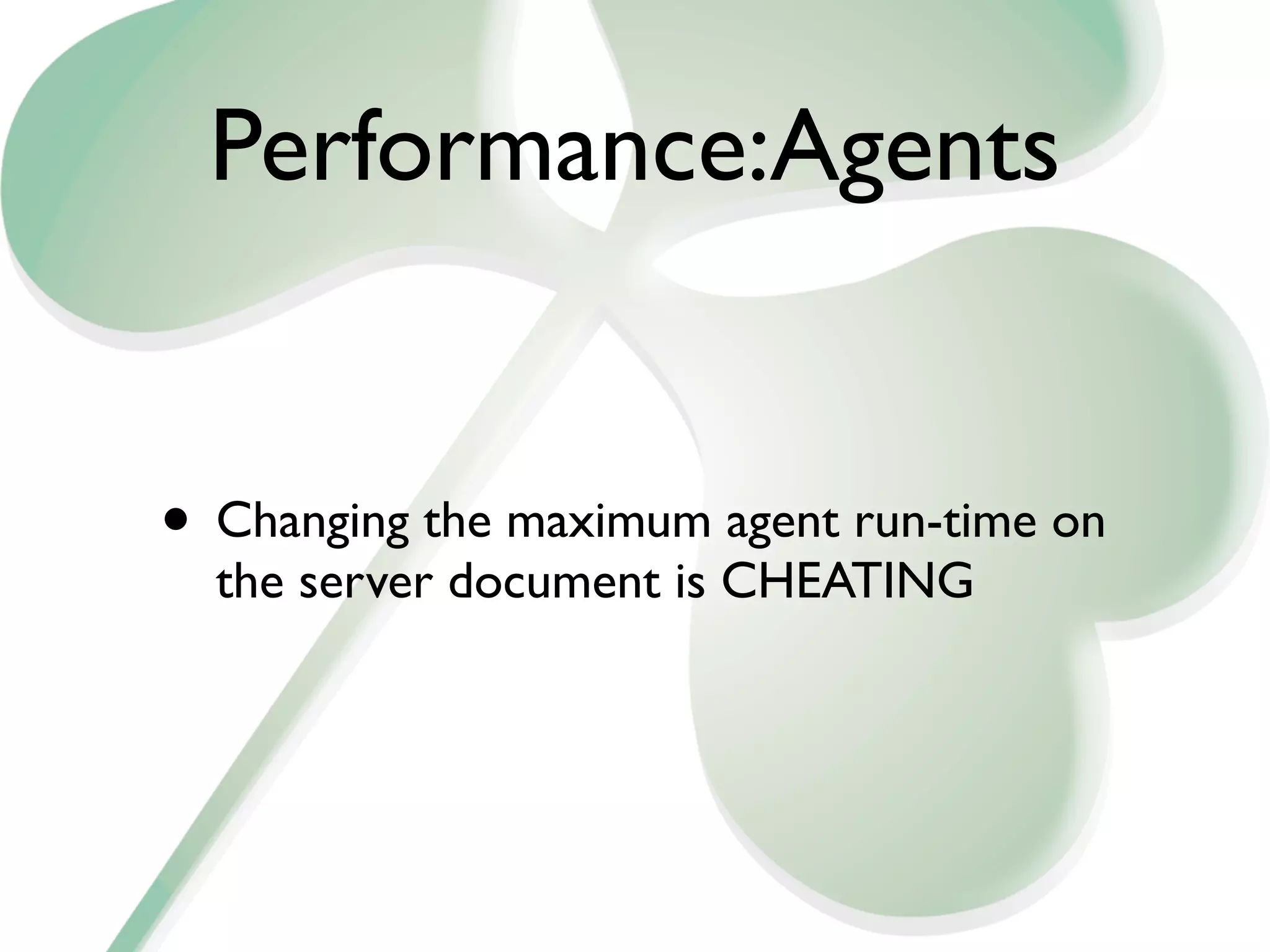

37. Performance:Agents
• Changing the maximum agent run-time on
the server document is CHEATING

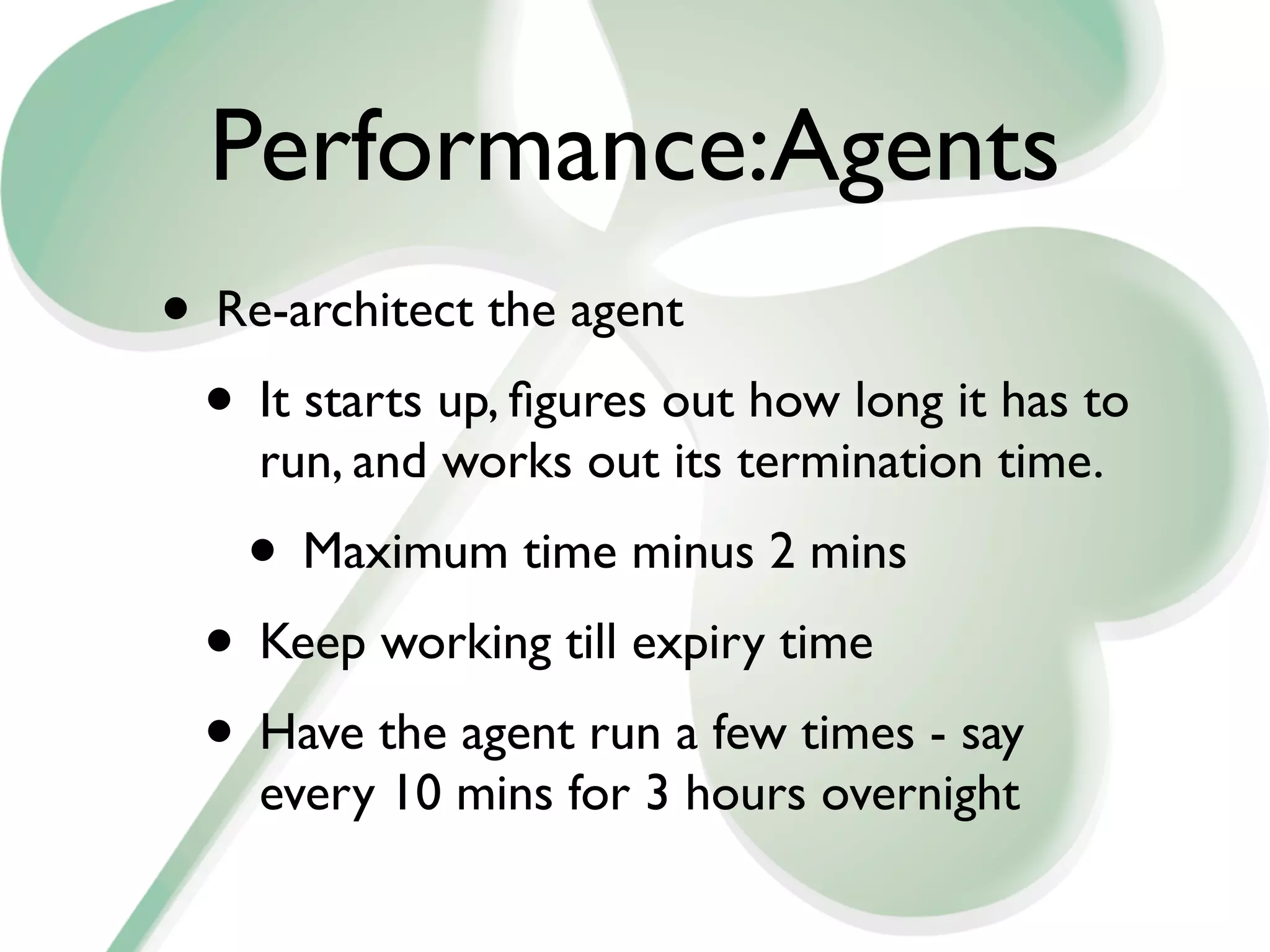

38. Performance:Agents
• Re-architect the agent
• It starts up, figures out how long it has to
run, and works out its termination time.
• Maximum time minus 2 mins
• Keep working till expiry time
• Have the agent run a few times - say
every 10 mins for 3 hours overnight

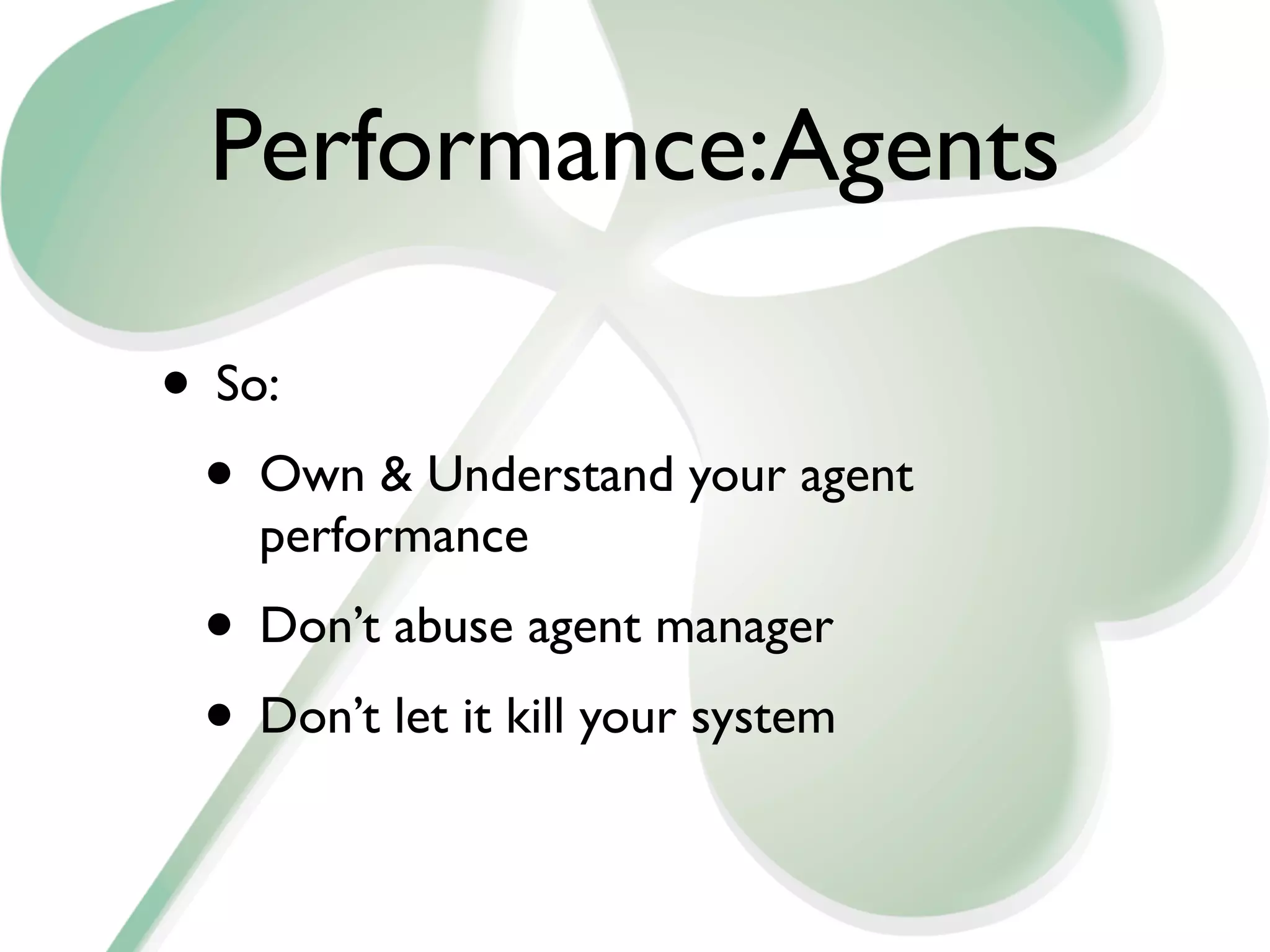

39. Performance:Agents
• So:
• Own & Understand your agent
performance
• Don’t abuse agent manager
• Don’t let it kill your system

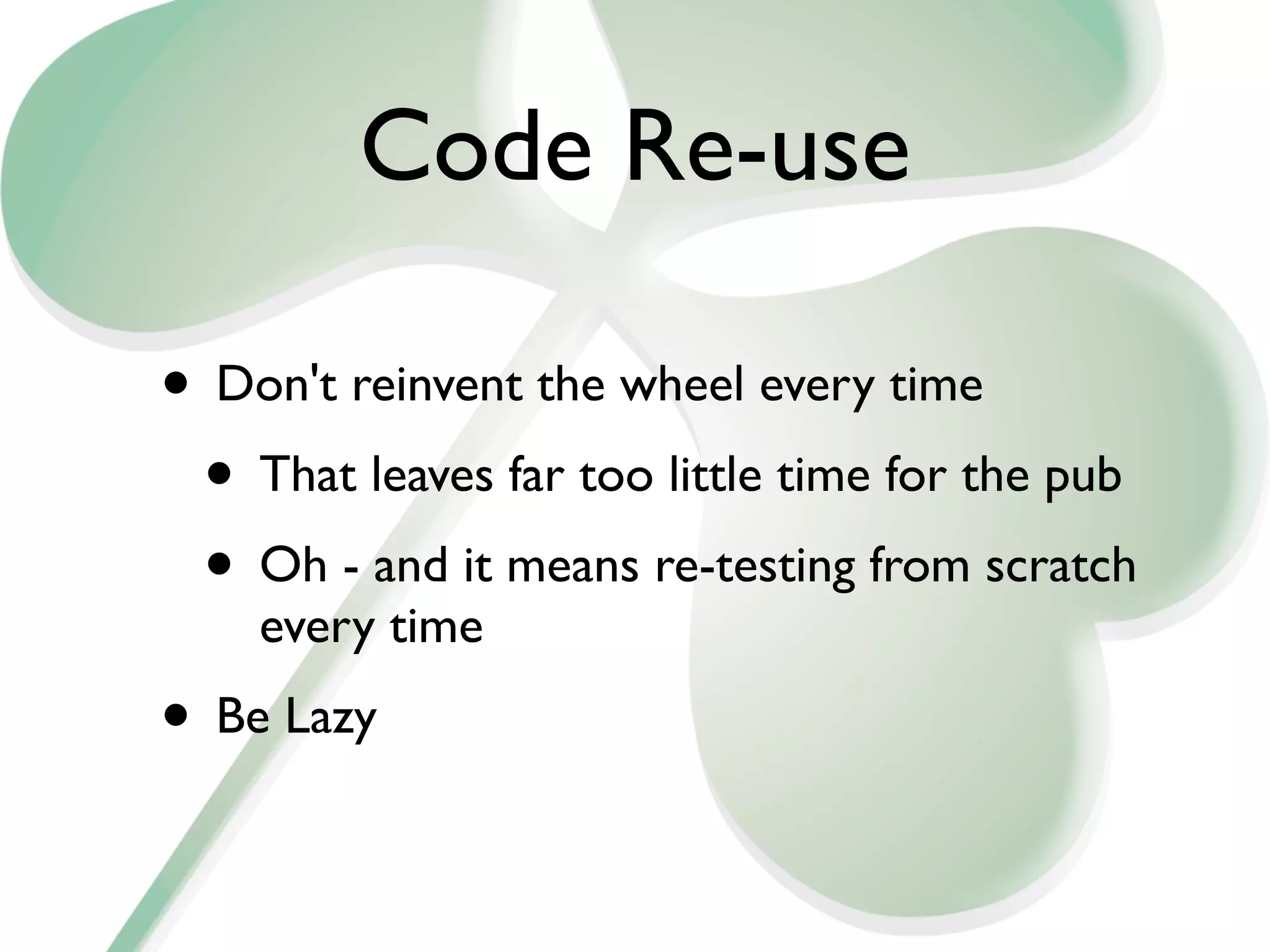

40. Code Re-use
• Don't reinvent the wheel every time
• That leaves far too little time for the pub
• Oh - and it means re-testing from scratch
every time
• Be Lazy

41. Code Re-use
• So
• If your an old-fashioned script guy, create
a standard script library that
encapsulates:
• Standard Logging
• Configuration lookup

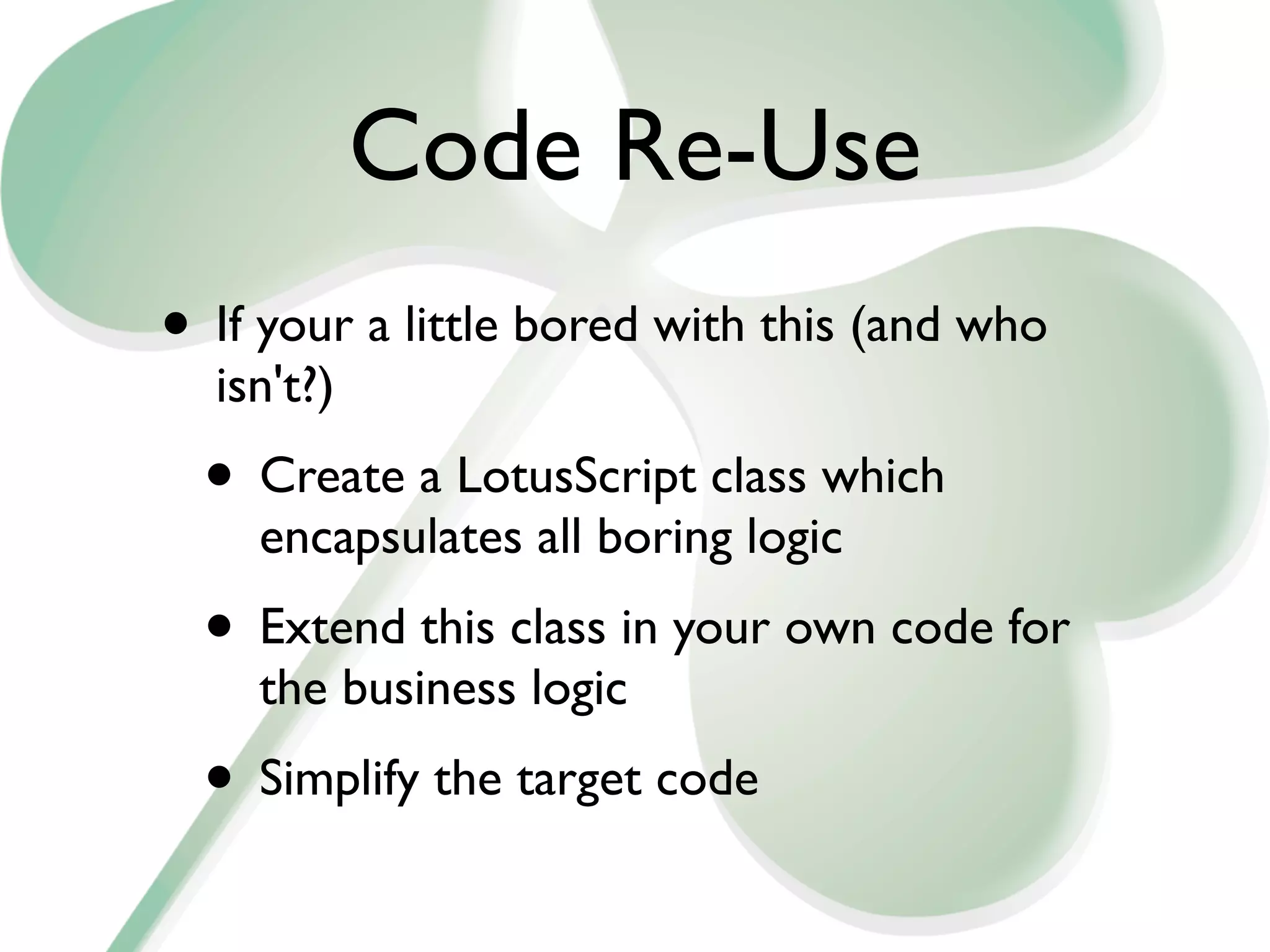

42. Code Re-Use
• If your a little bored with this (and who
isn't?)
• Create a LotusScript class which
encapsulates all boring logic
• Extend this class in your own code for
the business logic
• Simplify the target code

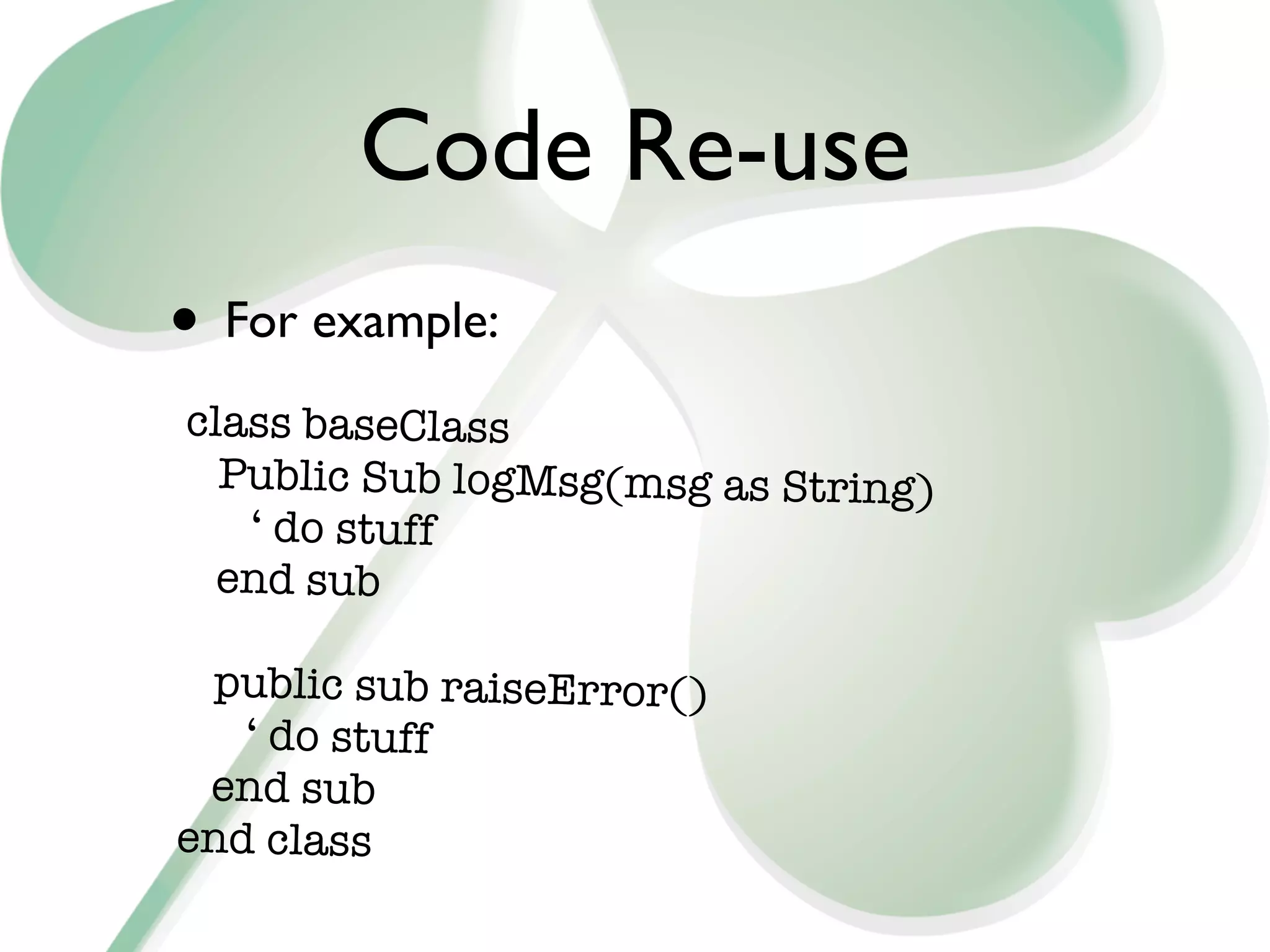

43. Code Re-use
• For example:
class baseClass
Public Sub logMsg(msg as String)
‘ do stuff
end sub
public sub raiseError()
‘ do stuff
end sub
end class

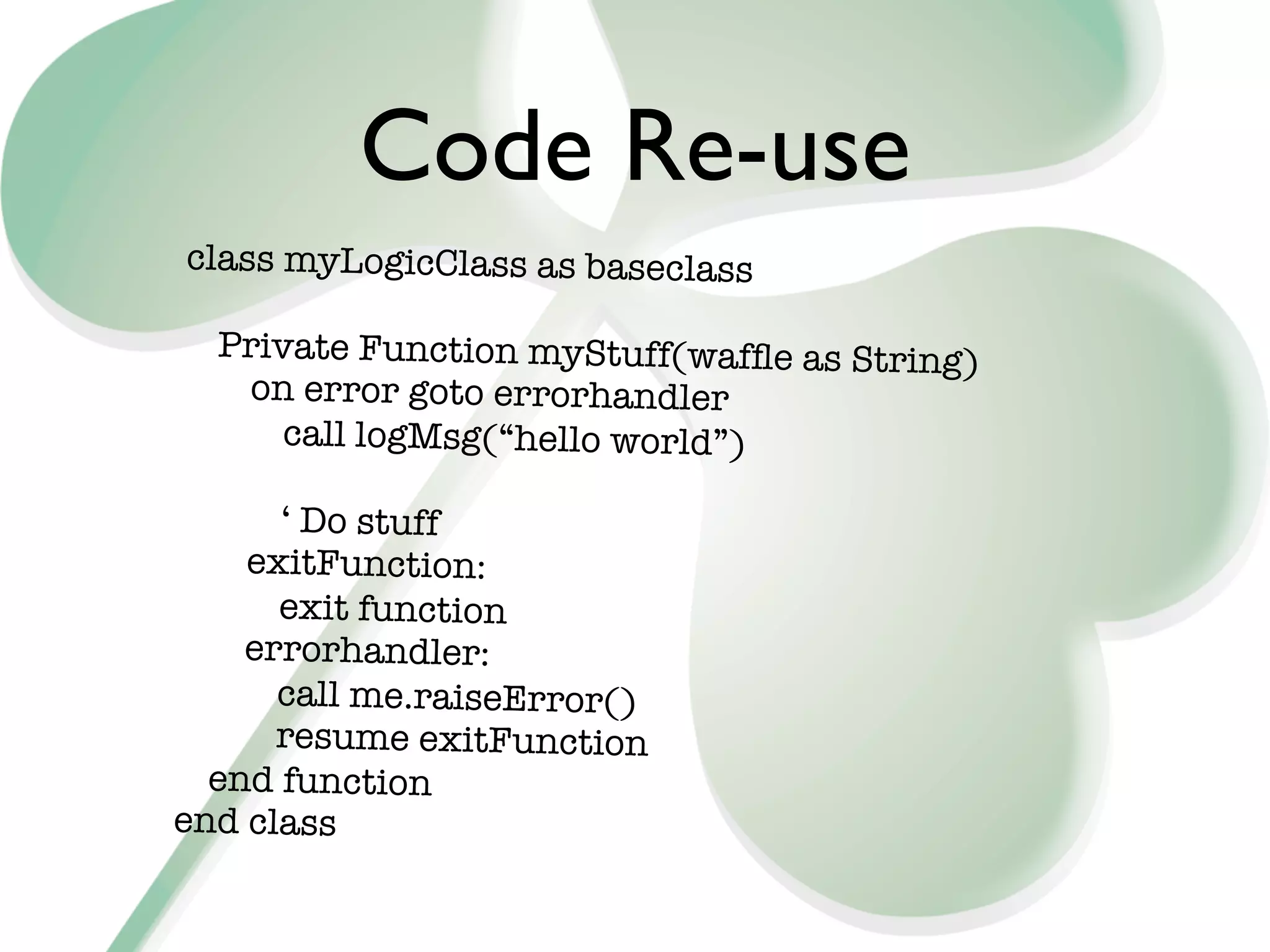

44. Code Re-use
class myLogicClass as baseclass
Private Function myStuff(waffle as String)
on error goto errorhandler
call logMsg(“hello world”)
‘ Do stuff
exitFunction:
exit function
errorhandler:
call me.raiseError()
resume exitFunction
end function
end class

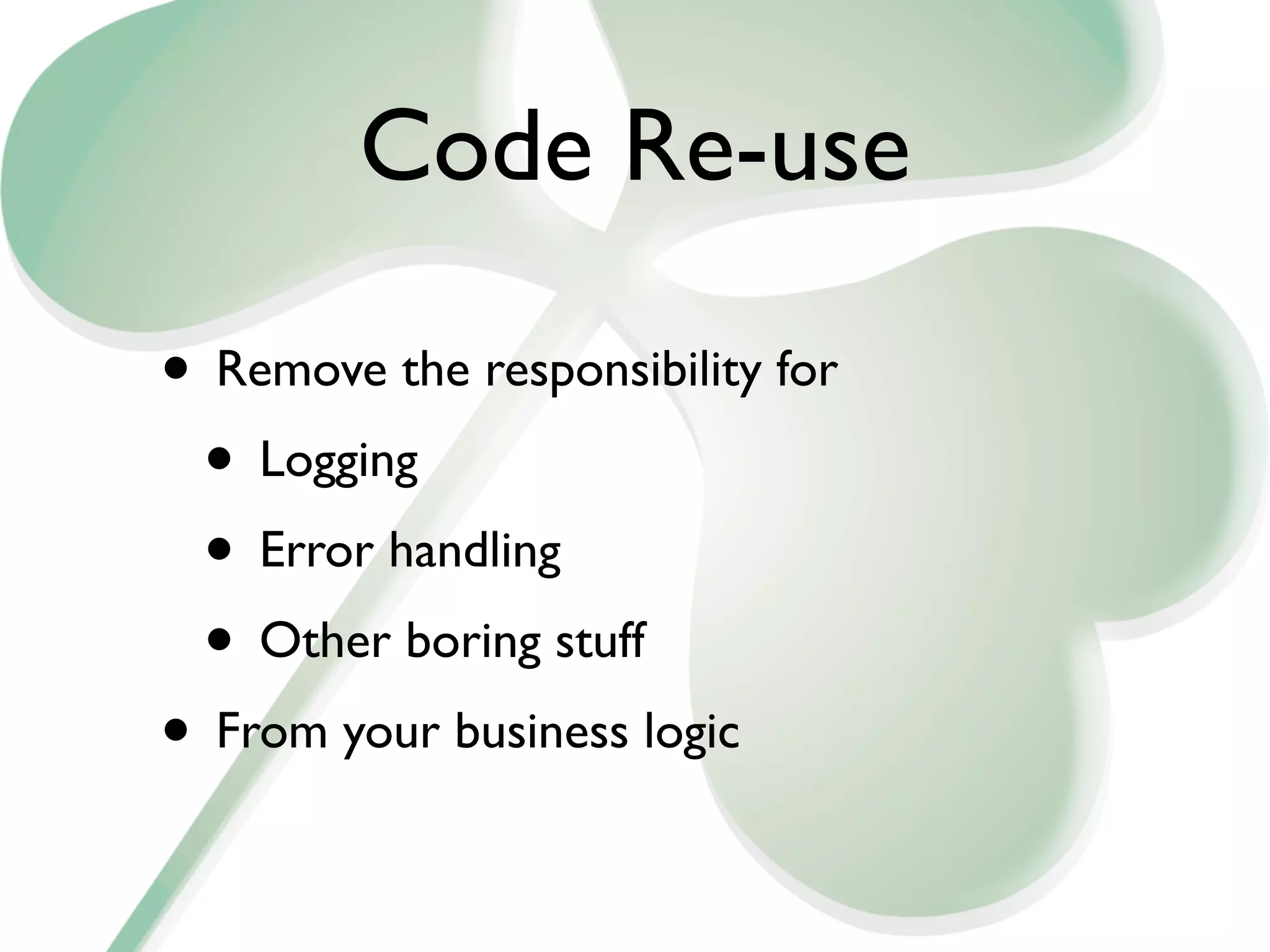

45. Code Re-use
• Remove the responsibility for
• Logging
• Error handling
• Other boring stuff
• From your business logic

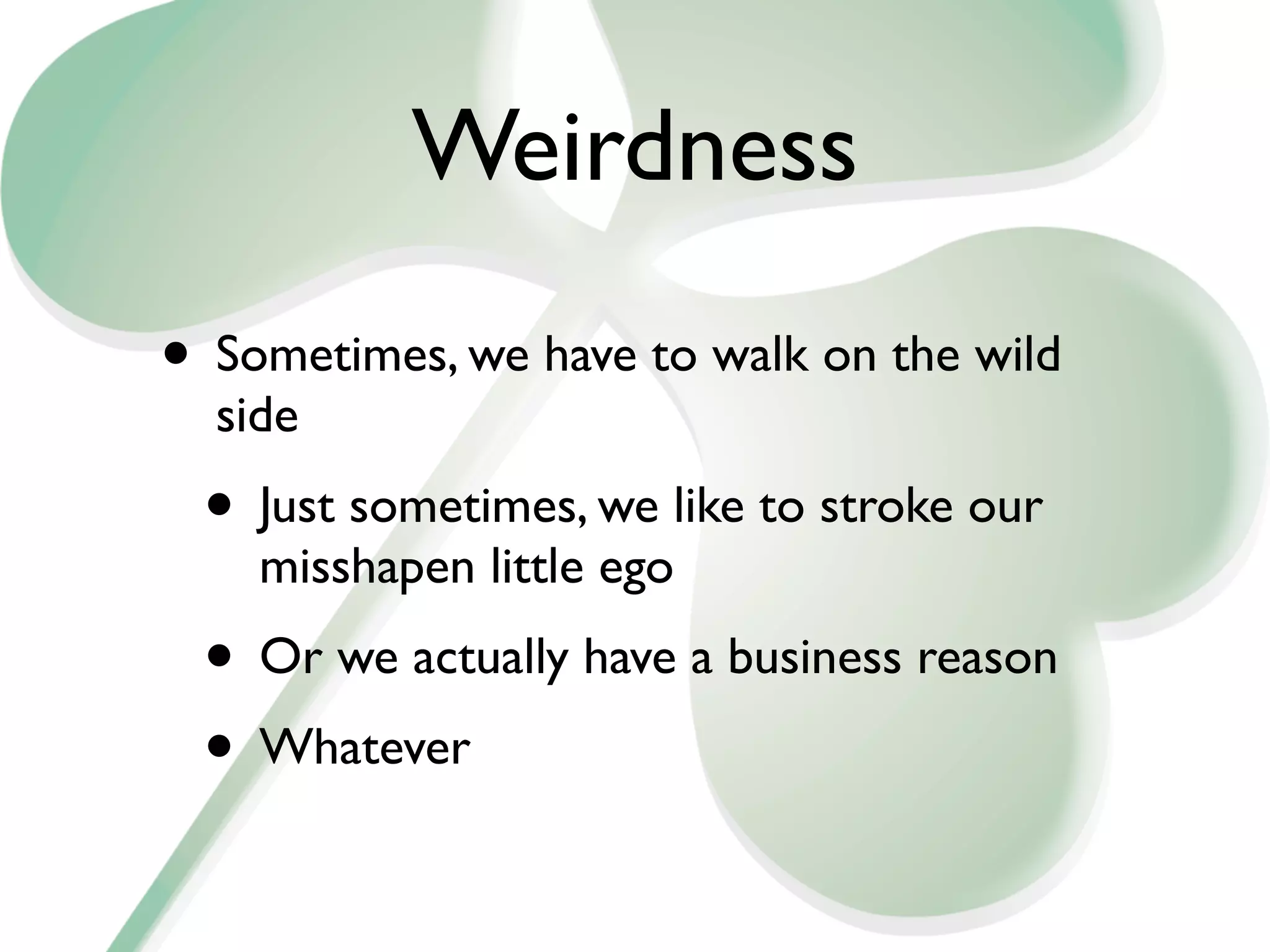

46. Weirdness
• Sometimes, we have to walk on the wild
side
• Just sometimes, we like to stroke our
misshapen little ego
• Or we actually have a business reason
• Whatever

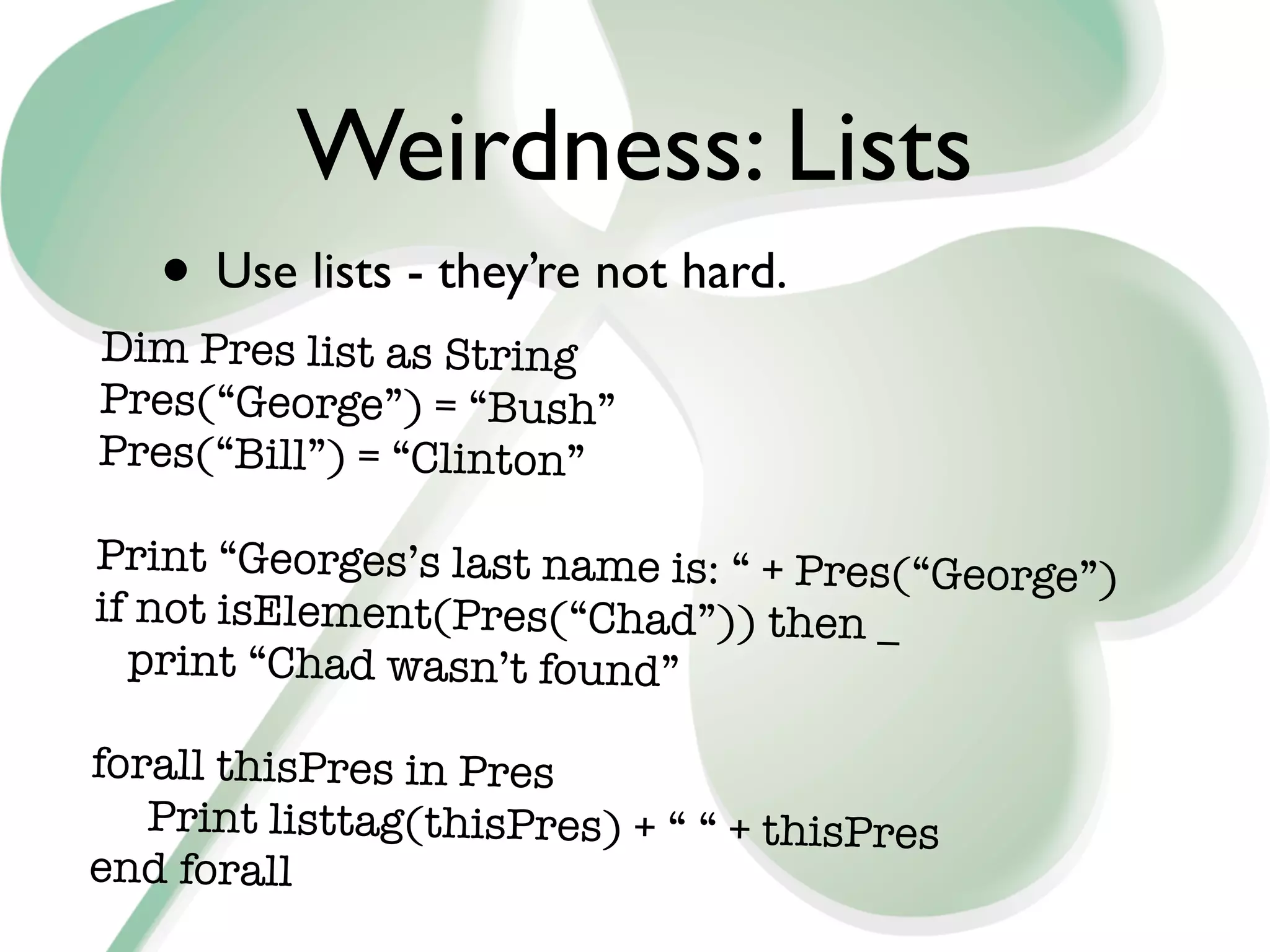

47. Weirdness: Lists
• Use lists - they’re not hard.
Dim Pres list as String
Pres(“George”) = “Bush”
Pres(“Bill”) = “Clinton”
Print “Georges’s last name is: “ + Pres(“George”
)
if not isElement(Pres(“Chad”)) then _
print “Chad wasn’t found”
forall thisPres in Pres
Print listtag(thisPres) + “ “ + thisPres
end forall

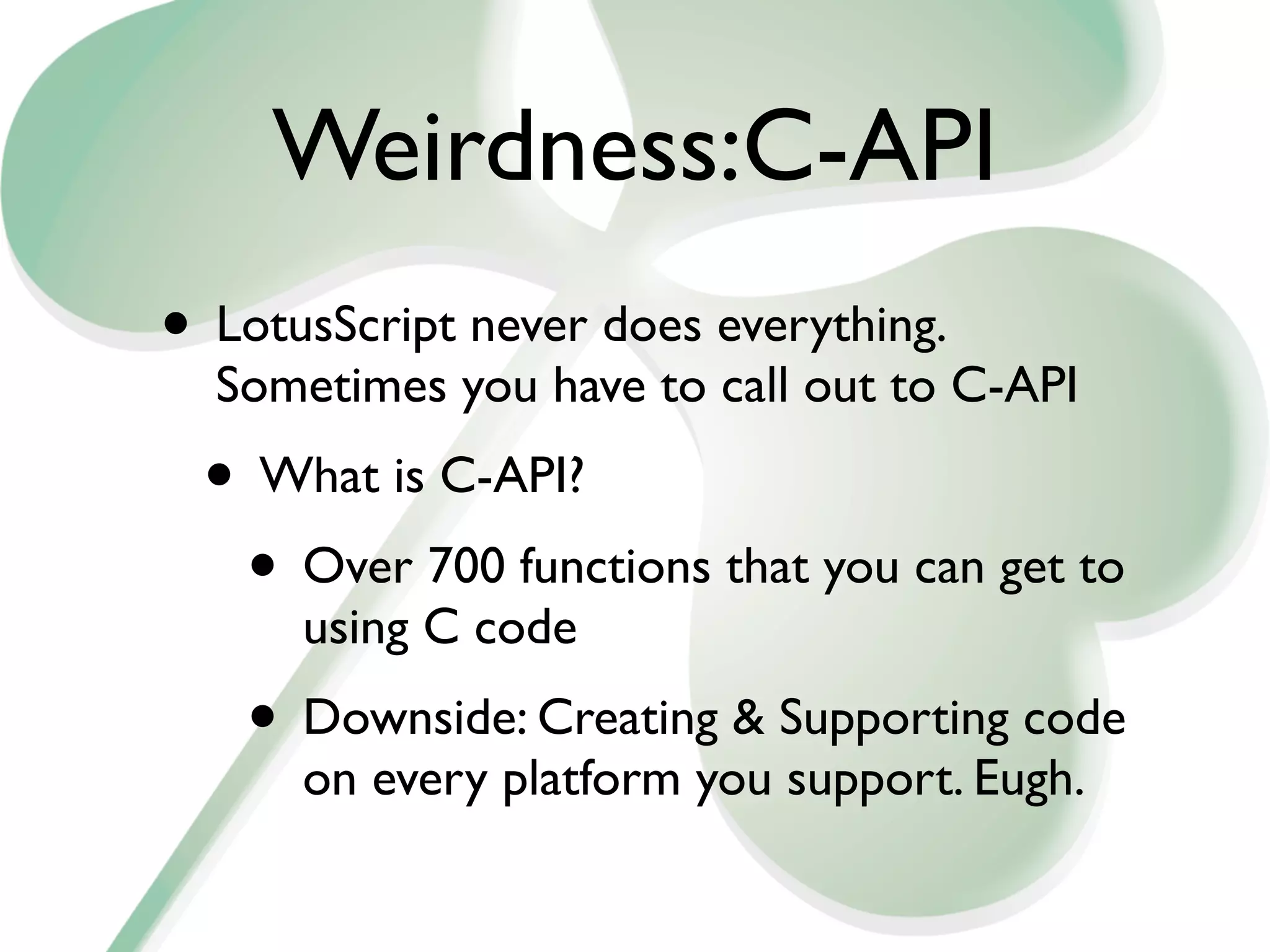

48. Weirdness:C-API
• LotusScript never does everything.
Sometimes you have to call out to C-API
• What is C-API?
• Over 700 functions that you can get to
using C code
• Downside: Creating & Supporting code
on every platform you support. Eugh.

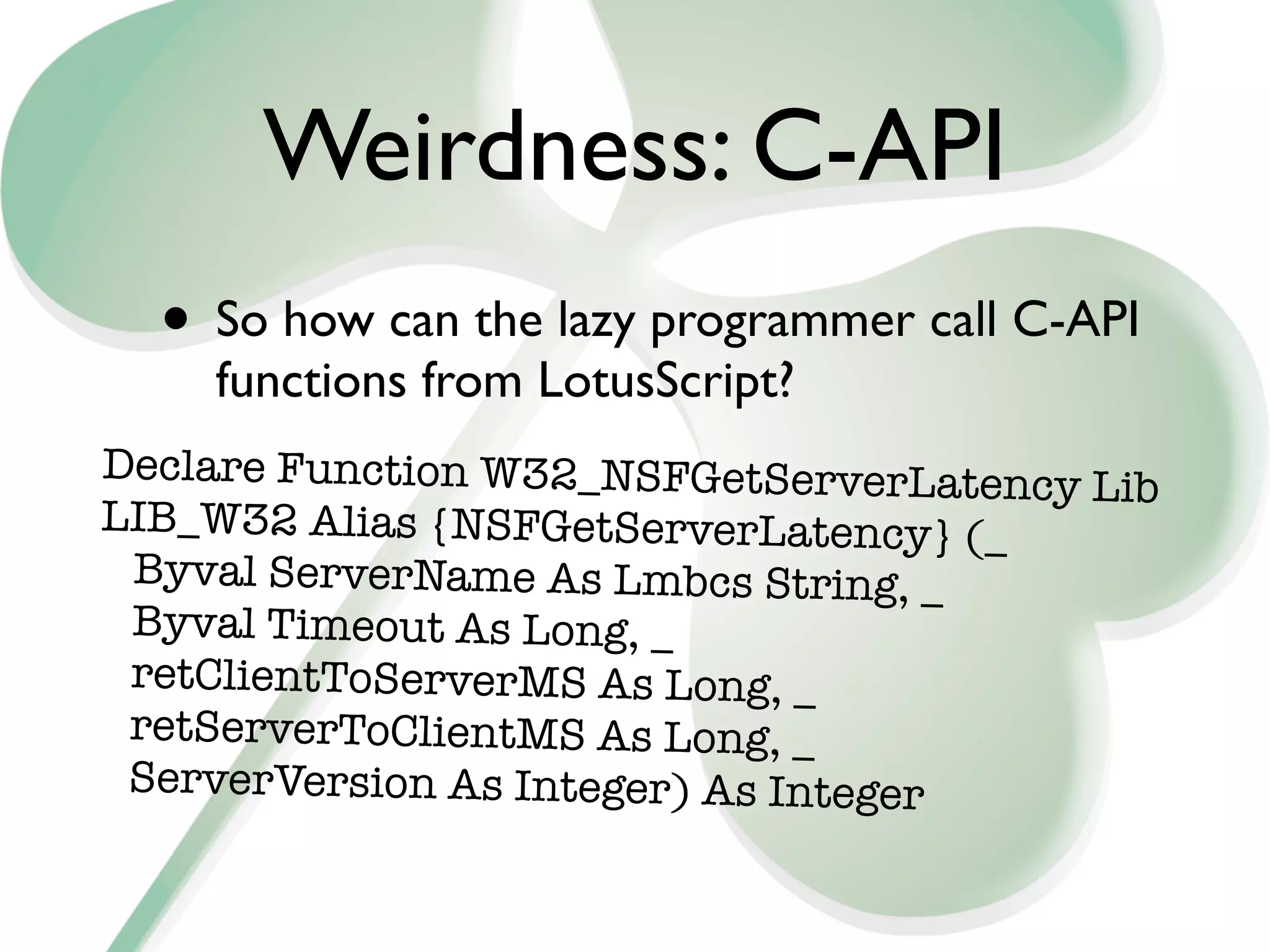

49. Weirdness: C-API
• So how can the lazy programmer call C-API
functions from LotusScript?
Declare Function W32_NSFGetServerLatency
Lib
LIB_W32 Alias {NSFGetServerLatency} (_
Byval ServerName As Lmbcs String, _
Byval Timeout As Long, _
retClientToServerMS As Long, _
retServerToClientMS As Long, _
ServerVersion As Integer) As Integer

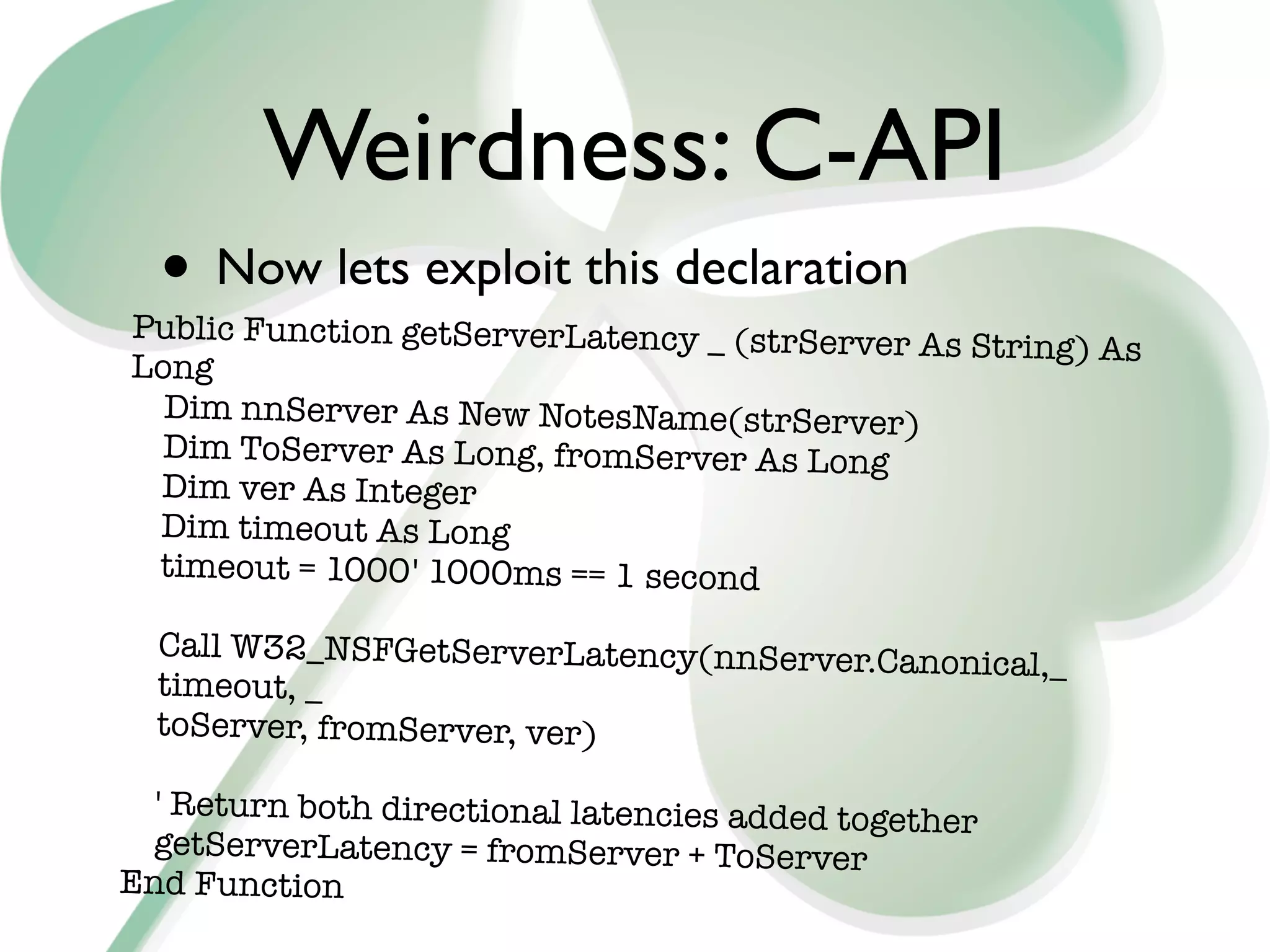

50. Weirdness: C-API
• Now lets exploit this declaration
Public Function getServerLatency _ (strServer
As String) As
Long
Dim nnServer As New NotesName(strServer)
Dim ToServer As Long, fromServer As Long
Dim ver As Integer
Dim timeout As Long
timeout = 1000 1000ms == 1 second
'
Call W32_NSFGetServerLatency(nnServer.Can
onical,_
timeout, _
toServer, fromServer, ver)
' Return both directional latencies added togeth
er
getServerLatency = fromServer + ToServer
End Function

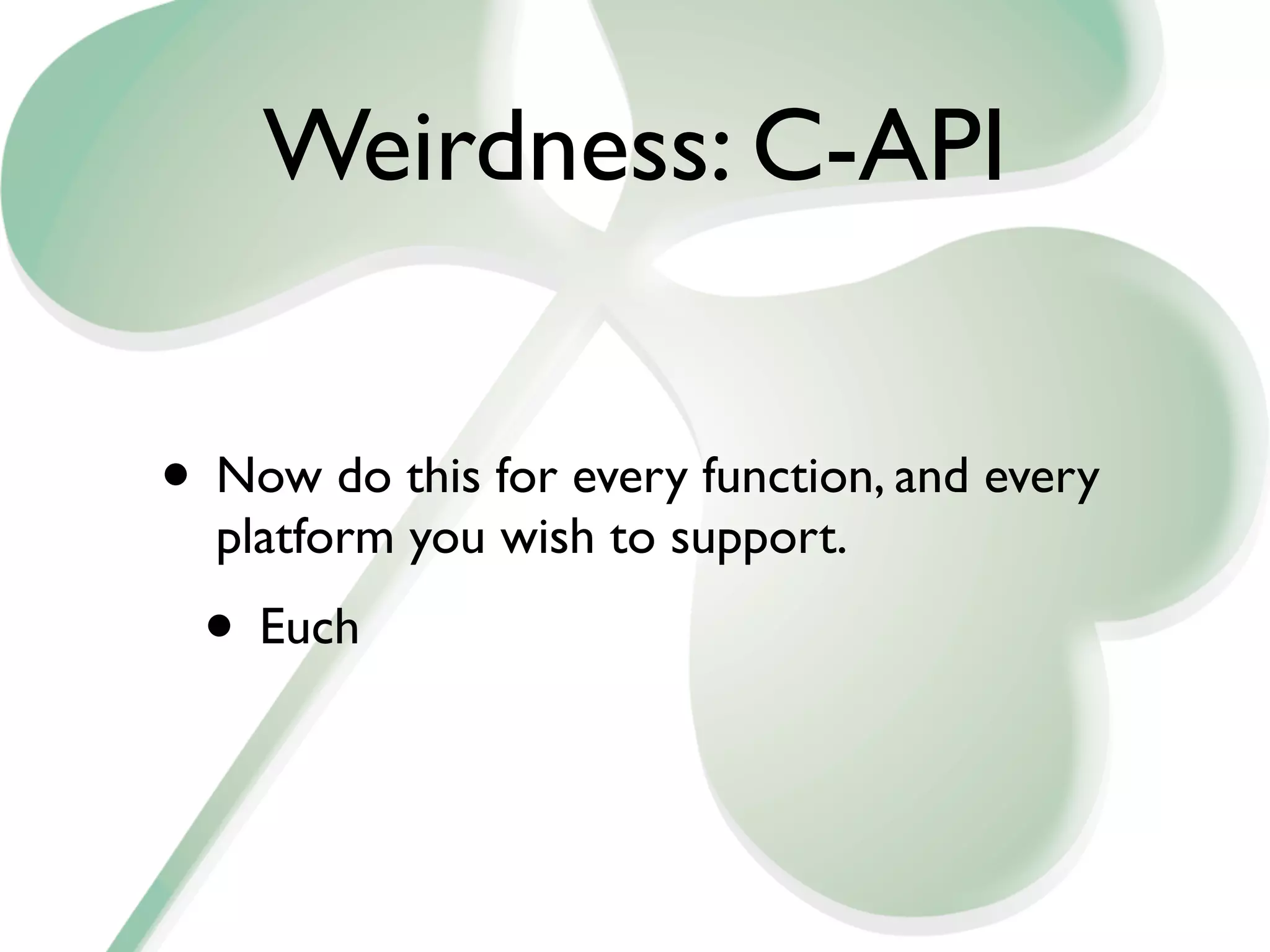

51. Weirdness: C-API
• Now do this for every function, and every
platform you wish to support.
• Euch

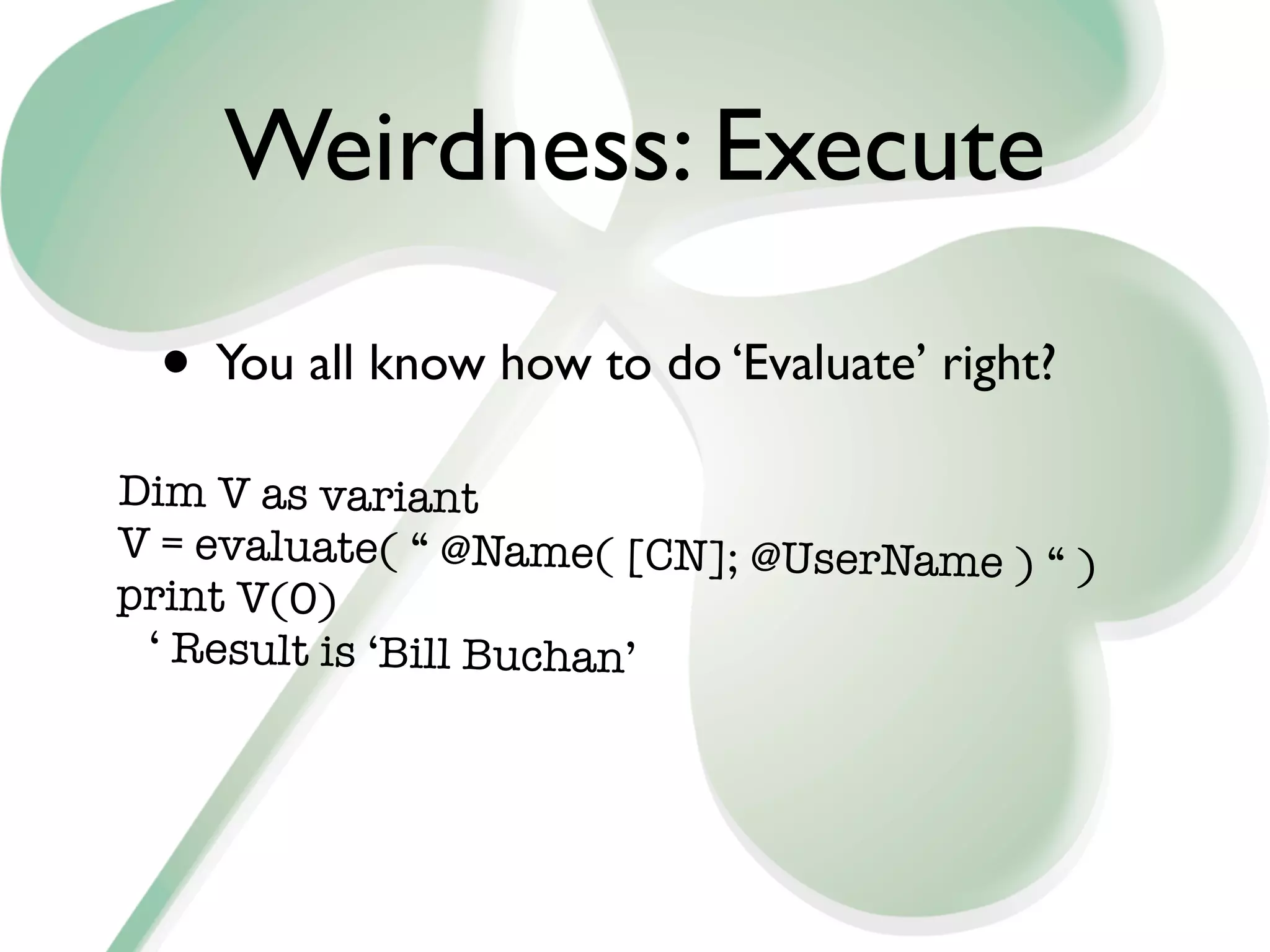

52. Weirdness: Execute
• You all know how to do ‘Evaluate’ right?
Dim V as variant
V = evaluate( “ @Name( [CN]; @UserName ) “ )
print V(0)
‘ Result is ‘Bill Buchan’

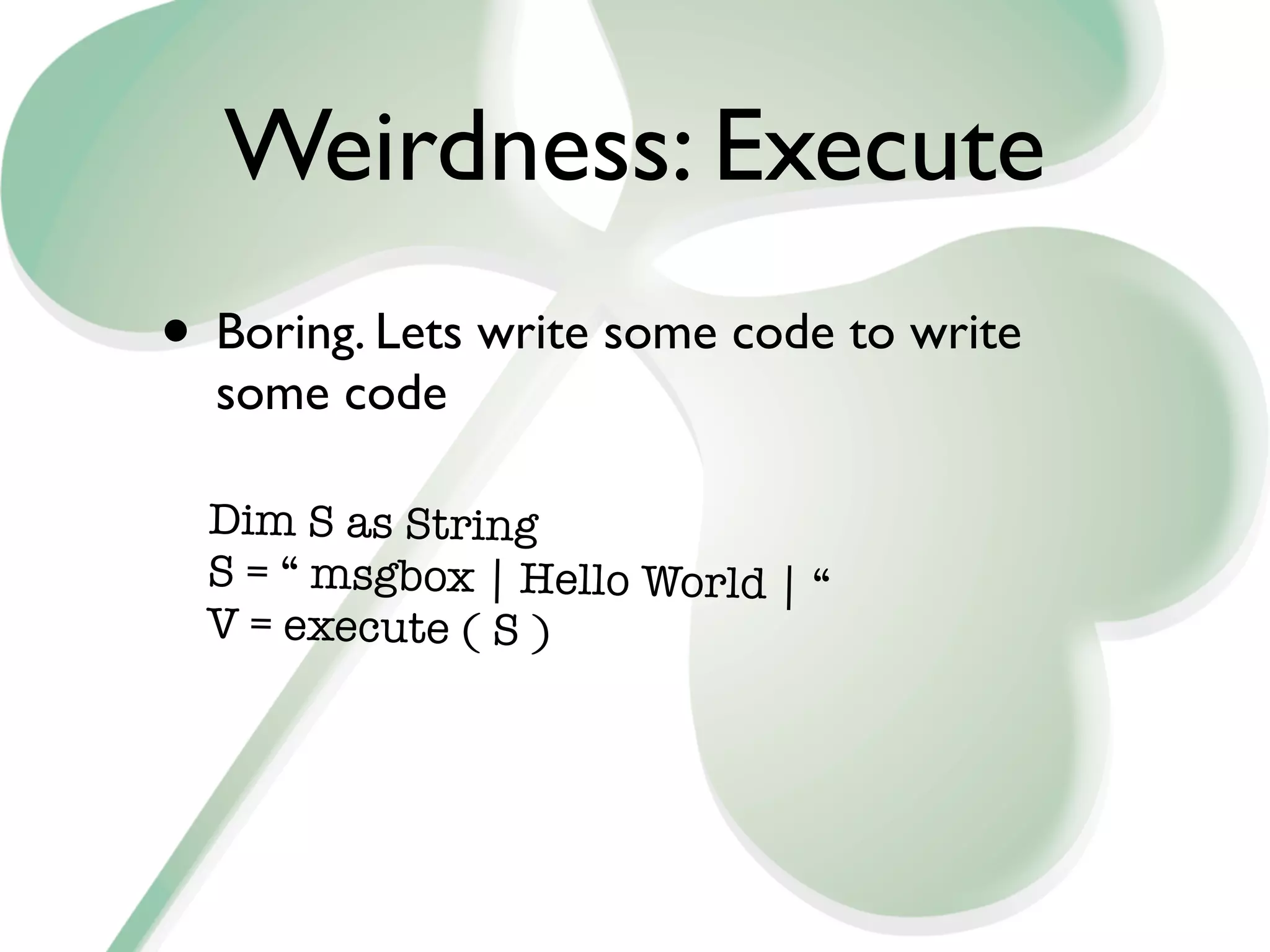

53. Weirdness: Execute
• Boring. Lets write some code to write
some code
Dim S as String
S = “ msgbox | Hello World | “
V = execute ( S )

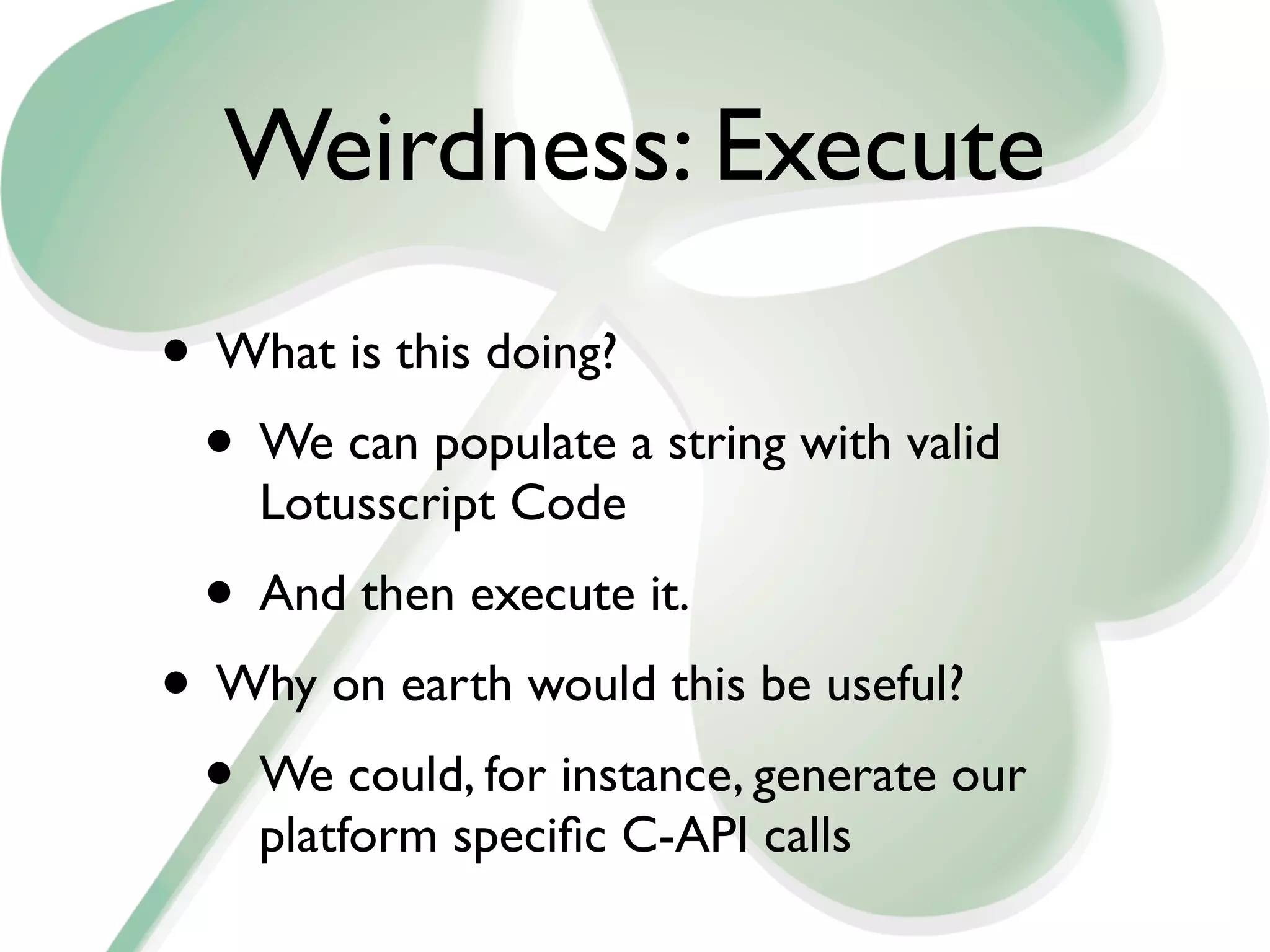

54. Weirdness: Execute
• What is this doing?
• We can populate a string with valid
Lotusscript Code
• And then execute it.
• Why on earth would this be useful?
• We could, for instance, generate our
platform specific C-API calls

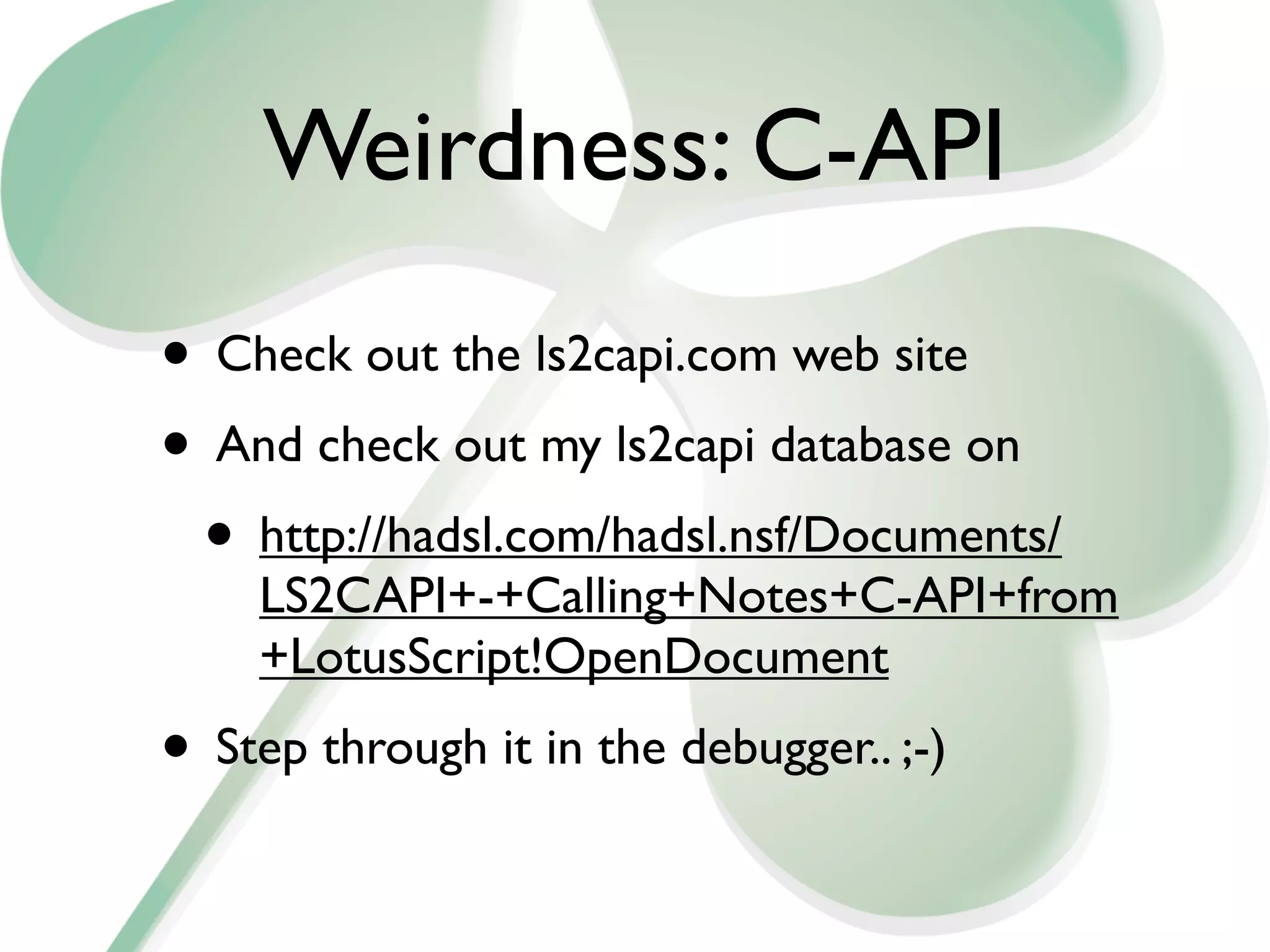

55. Weirdness: C-API
• Check out the ls2capi.com web site
• And check out my ls2capi database on
• http://hadsl.com/hadsl.nsf/Documents/
LS2CAPI+-+Calling+Notes+C-API+from
+LotusScript!OpenDocument
• Step through it in the debugger.. ;-)

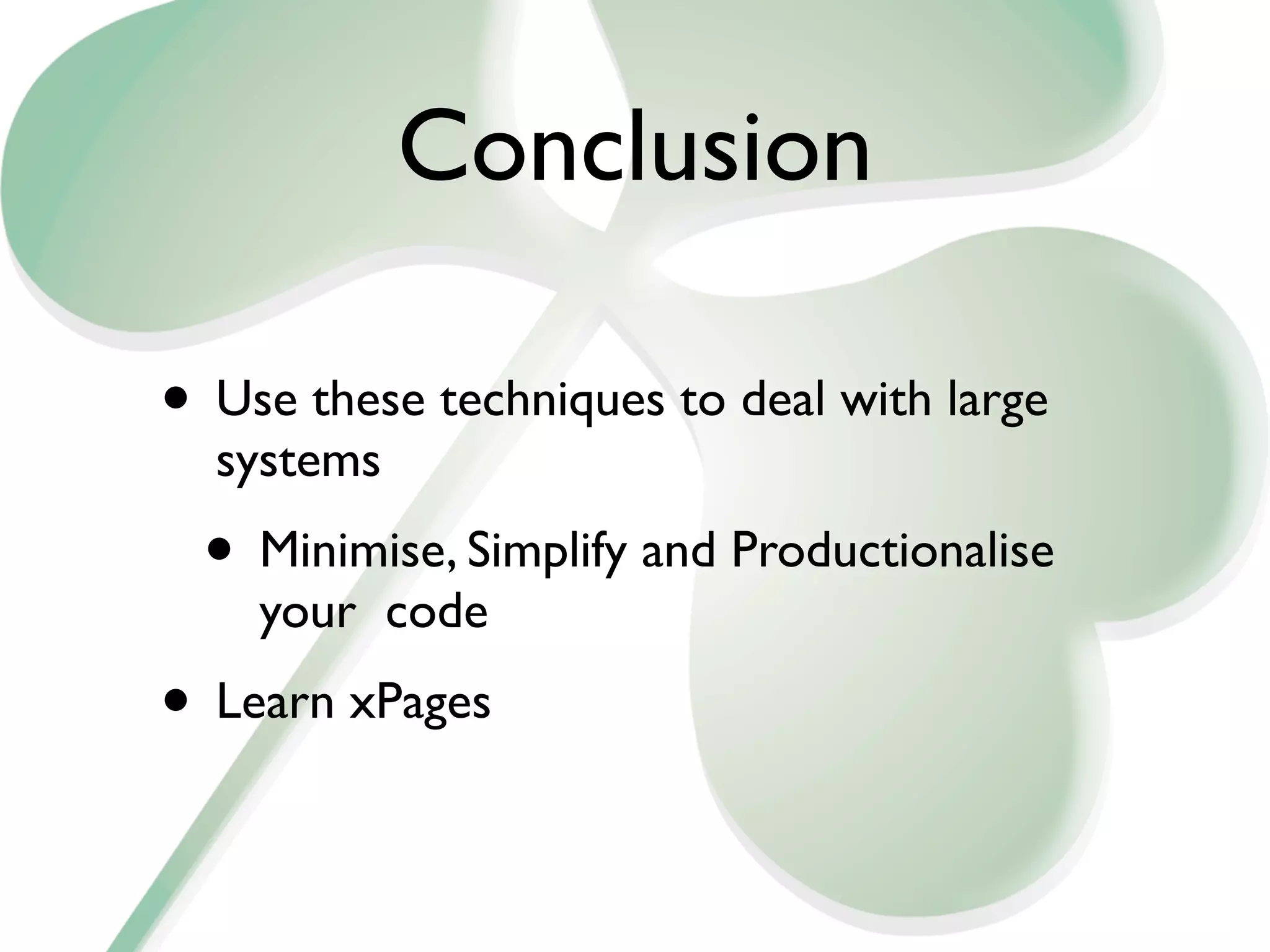

56. Conclusion
• Use these techniques to deal with large
systems
• Minimise, Simplify and Productionalise
your code
• Learn xPages
