1. Kubernetes 101
Lobster Ink - 2020

2. Plan for today
1. The “Why?” Question
2. The history of the project in a few sentences
3. Containers
4. Orchestration and Orchestrators
5. Container wars
6. Managed versions
7. k8s Architecture
8. Local clusters
9. Basic primitives

3. Big 5 Why’s?
Let’s explore :)
● Why we need to adopt k8s?
● Why k8s?
● Why we need to change ways we do things?
● Why k8s is not a hype?
● Why this presentation is in light blue colour
scheme?

4. History
● Kubernetes greek for “helmsman” or “pilot”
● Started from Google’s proprietary project know
as Borg
● Initially, project was called Seven of Nine
● Jun 2014 first commit to github repository
● April 2015 Borg Paper published
● K8s v1.0 was released on July 21, 2015 and
donated to CNCF organisation for future
development
● Build in Go :)
● Fully Open Source
● More here: The History of Kubernetes on a
Timeline | @RisingStack

5. Containers
Lightweight virtualization mechanism that allows to run within
single Linux instance without starting a separated VMs
Most popular - Docker
Alternatives:
● CoreOS rkt
● Mesos Containerizer
● LXC Linux Container
● OpenVZ
● containerd
● Others

6. Containers Wars

7. Containers Wars

8. Managed k8s offerings
Azure AKS
Free Control
Plane
Google GKE
One Free
Cluster,
$0.10 p/h
AWS EKS
$0.10 p/h
Digital Ocean
Free Control
Plane
Linode
Free Control
Plane
In fact many others out there these days…. even Oracle Cloud has it

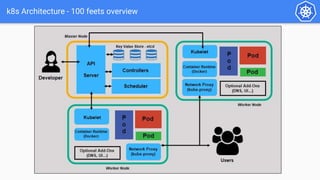

9. k8s Architecture - 100 feets overview

10. Architecture
Master Node(s)
Worker Node(s)
● etcd - K/V Store
● kube-apiserver - Main API of k8s.
All the components are communicating via this API. k8s is
API first, API is the main interface all other tools are using
(kubectl, dashboard, any 3rd party integrations)
● kube-scheduler - Process that assigns workload across
the cluster to the nodes based on workload requirements
and available resources
● kube-controller-manager - Manages all sorts of controllers
:).
● cloud-controller-manager - Cloud specific control logic.
Cloud resources fi Load Balancers
Master node also known as control plane

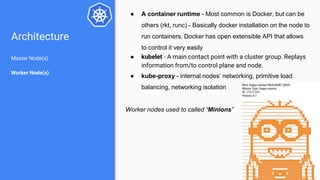

11. Architecture
Master Node(s)
Worker Node(s)
● A container runtime - Most common is Docker, but can be
others (rkt, runc) - Basically docker installation on the node to
run containers. Docker has open extensible API that allows
to control it very easily
● kubelet - A main contact point with a cluster group. Replays
information from/to control plane and node.
● kube-proxy - internal nodes’ networking, primitive load
balancing, networking isolation
Worker nodes used to called “Minions”

12. Local clusters
How the one does the
development locally?

13. Local clusters
minikube
During our hands on sessions we are going to use Minikube

14. Also might be handy - k8s Dashboard

15. But cool kids use command line ;)

16. Manifest
● It’s YAML :(
● You can wrap it into something human processable
● You manage everything in k8s via manifests

17. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
● The most basic unit k8s operates with
● One or more container grouped into logical unit that needs
to share life-cycle, and operate closely together
● Good practice - main container that represents the
application logic and some helping containers that facilitate
related tasks (sidecarring)
● Good practice - not to use Pods directly but as a part of
more complex structures (Deployments etc)

18. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
Typical manifest for pods:

19. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
● Replica set:
○ Guarantee the availability of a specified number of
identical Pods
○ Mainly should be used as a part of Deployment
● Replication Controller:
○ Ensures that a desired number of Pods with a matching
label selector are available and operational
○ Acts as Horizontal Pod Autoscaler Target

20. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
Typical manifest for Replicasets:

21. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
● Declarative updates for Pods and ReplicaSets
● You describe a desired state in a Deployment, and the
Deployment Controller changes the actual state to the
desired state at a controlled rate.

22. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
Typical manifest for Deployment:

23. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
● An abstract way to expose an application running on a set of
Pods as a network service.
● Service Discovery primitive
● Yes, microservices defined as Services in k8s

24. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
Typical Service manifest

25. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
● An API object that manages external access to the services in a cluster,
typically HTTP
● Ingress may provide load balancing, SSL termination and name-based
virtual hosting.

26. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
Typical Ingress manifest

27. Basic primitives
PODs
Replica Sets / Replication Controllers
Deployments
Services
Ingress
Developing ingress controllers is “a new black”
Every respectful company tries to develop an Ingress
Controller! Why do you think it is?

28. More?
● EdpointSlices
● Volumes
● Persistent Volumes
● Volume Snapshots
● ConfigMaps
● Secrets
● Jobs
● DeamonSets
● ...
This is only from the official documentation :). In fact there is more! Much more!
But it will be pretty much always same YAML Manifests

29. Stan, what do
you mean no
demo?

30. Let’s do this!
Let’s deploy something… Learnish-Axonish :)
# Getting helm
brew install helm
# Adding charts repository
helm repo add bitnami https://charts.bitnami.com/bitnami
# Installing moodle :)
helm install my-release bitnami/moodle

31. Summary: DevOps
after k8s
● Even closer DevOps cycles - IaaC to the max
● From Idempotency to Immutability - whole infra represented as
a set of specialized, stateless, disposable, containers
● Security out of the box - in cluster communications are
encrypted and there are tons of good practices to make stuff
very secure cheap
● Clouds are commodity - let’s not allow Microsoft and Co to
dictate us rules of the game
● Host OS is a commodity - well, as long as it is linux right ;)
● Serious and complex Operations now a reality for small and
mid size companies:
○ Global clusters
○ Cloud agnosticism(Hybrid or Multi Cloud workloads)
○ High availability(Cloud provider wide outages)
○ 0 - trust security

32. What is next?
1. Further Sessions like this one :)
2. Kubernetes Concepts https://kubernetes.io/docs/concepts/
3. Certified Kubernetes Applications Developer
https://www.cncf.io/certification/ckad/
4. Certified Kubernetes Administrator
https://www.cncf.io/certification/cka/
More Advanced topics:
1. Helm Charts (https://helm.sh/)
2. Operators (Operator pattern)
3. Security (Certified Kubernetes Security Specialist)
4. Service mesh(https://istio.io/, https://linkerd.io/, others)
5. OPA (https://www.openpolicyagent.org/ )
6. Knative (https://knative.dev/)
7. And More

33. Questions?
