WSO2Con ASIA 2016: WSO2 Cloud Strategy Update
- 1. WSO2 Cloud Strategy Update ImeshGunaratne Senior Technical Lead, WSO2

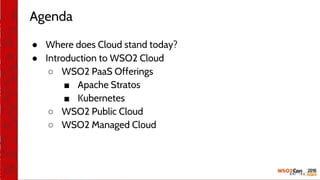

- 2. Agenda ● Where doesCloud stand today? ● Introduction to WSO2 Cloud ○ WSO2 PaaS Offerings ■ Apache Stratos ■ Kubernetes ○ WSO2 Public Cloud ○ WSO2 Managed Cloud

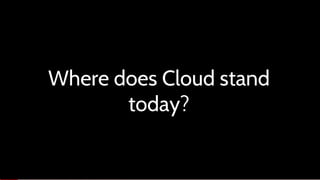

- 3. Where does Cloudstand today?
- 4. What is CloudComputing? “Cloud is a style of computing where scalable and elastic IT- related capabilities are provided as a service using Internet technologies.” - Gartner Cloud image source: Freepik

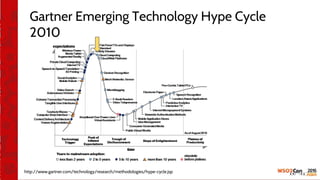

- 5. Gartner Emerging TechnologyHype Cycle 2010 http://www.gartner.com/technology/research/methodologies/hype-cycle.jsp
- 6. Gartner Emerging TechnologyHype Cycle 2015 http://www.gartner.com/technology/research/methodologies/hype-cycle.jsp

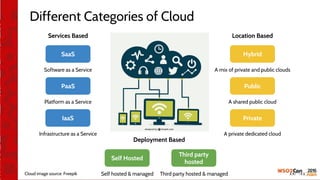

- 7. Different Categories ofCloud SaaS PaaS IaaS Software as a Service Platform as a Service Infrastructure as a Service Services Based Hybrid Public Private A mix of private and public clouds A shared public cloud Location Based A private dedicated cloud Self Hosted Self hosted & managed Third party hosted Third party hosted & managed Deployment Based Cloud image source: Freepik
- 8.
- 9.
- 10. WSO2 Cloud Cloud imagesource: Freepik WSO2 Public Cloud WSO2 Managed Cloud WSO2 PaaS Offerings

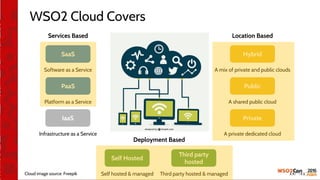

- 11. WSO2 Cloud Covers SaaS PaaS IaaS Softwareas a Service Platform as a Service Infrastructure as a Service Services Based Hybrid Public Private A mix of private and public clouds A shared public cloud Location Based A private dedicated cloud Self Hosted Self hosted & managed Third party hosted Third party hosted & managed Deployment Based Cloud image source: Freepik
- 12.
- 13.

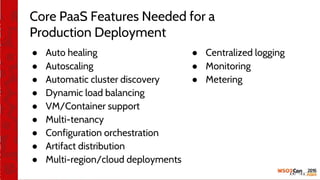

- 14. Core PaaS FeaturesNeeded for a Production Deployment ● Auto healing ● Autoscaling ● Automatic cluster discovery ● Dynamic load balancing ● VM/Container support ● Multi-tenancy ● Configuration orchestration ● Artifact distribution ● Multi-region/cloud deployments ● Centralized logging ● Monitoring ● Metering
- 15.

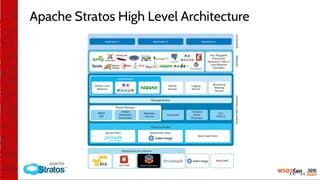

- 16. Apache Stratos HighLevel Architecture
- 17. WSO2 Cartridges &Composite Applications for Apache Stratos https://github.com/wso2/private-paas-cartridges

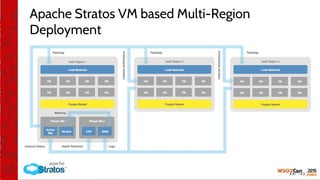

- 18. Apache Stratos VMbased Multi-Region Deployment

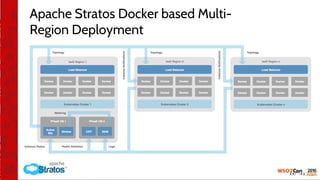

- 19. Apache Stratos Dockerbased Multi- Region Deployment
- 20. Apache Stratos CompositeApplication Model
- 21.
- 22.

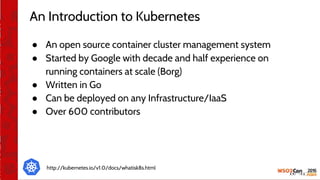

- 23. An Introduction toKubernetes ● An open source container cluster management system ● Started by Google with decade and half experience on running containers at scale (Borg) ● Written in Go ● Can be deployed on any Infrastructure/IaaS ● Over 600 contributors http://kubernetes.io/v1.0/docs/whatisk8s.html

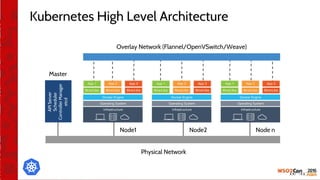

- 24. Kubernetes High LevelArchitecture Node1 Node2 Node n Physical Network Master Overlay Network (Flannel/OpenVSwitch/Weave)APIServer Scheduler ControllerManager etcd
- 25.
- 26.

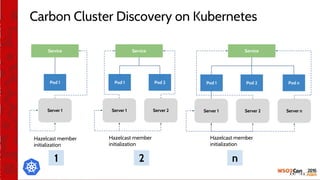

- 27. Carbon Cluster Discoveryon Kubernetes Pod 1 Pod 2 Pod n Service Server 1 Server 2 Server n Pod 1 Service Server 1 Pod 1 Pod 2 Service Server 1 Server 2 Hazelcast member initialization Hazelcast member initialization Hazelcast member initialization 1 2 n

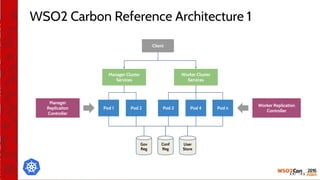

- 28. WSO2 Carbon ReferenceArchitecture 1 Pod 1 Pod 2 Manager Cluster Services Pod 3 Pod 4 Pod n Worker Cluster Services Manager Replication Controller Worker Replication Controller Client Gov Reg Conf Reg User Store

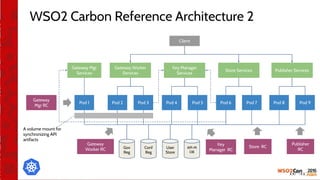

- 29. WSO2 Carbon ReferenceArchitecture 2 Pod 1 Gateway Mgr Services Pod 2 Pod 3 Gateway Worker Services Client Pod 4 Pod 5 Key Manager Services Pod 6 Pod 7 Store Services Gateway Mgr RC Gateway Worker RC Key Manager RC Store RCGov Reg Conf Reg User Store API-M DB A volume mount for synchronizing API artifacts Pod 8 Pod 9 Publisher Services Publisher RC

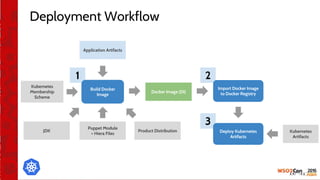

- 30. Deployment Workflow 3 1 2 BuildDocker Image Import Docker Image to Docker Registry Application Artifacts Kubernetes Membership Scheme Product Distribution Docker Image (DI) Puppet Module + Hiera Files JDK Deploy Kubernetes Artifacts Kubernetes Artifacts
- 31.
- 32. Monitoring Kubernetes Cluster/Node/Pod Health cAdvisorcAdvisor Node1 cAdvisor Heapster Node 2 Node n Grafana InfluxDB

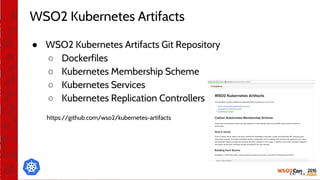

- 33. WSO2 Kubernetes Artifacts ●WSO2 Kubernetes Artifacts Git Repository ○ Dockerfiles ○ Kubernetes Membership Scheme ○ Kubernetes Services ○ Kubernetes Replication Controllers https://github.com/wso2/kubernetes-artifacts
- 34.

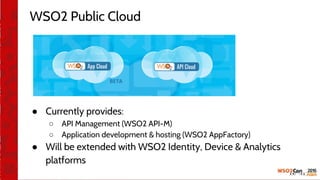

- 35. WSO2 Public Cloud ●Currently provides: ○ API Management (WSO2 API-M) ○ Application development & hosting (WSO2 AppFactory) ● Will be extended with WSO2 Identity, Device & Analytics platforms
- 36.
- 37.

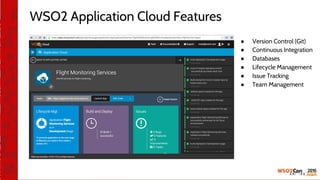

- 38. WSO2 Application CloudFeatures ● Version Control (Git) ● Continuous Integration ● Databases ● Lifecycle Management ● Issue Tracking ● Team Management

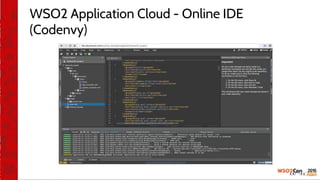

- 39. WSO2 Application Cloud- Online IDE (Codenvy)
- 40.

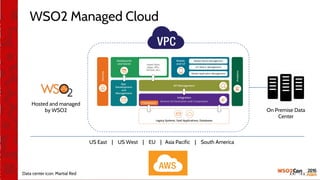

- 41. WSO2 Managed Cloud OnPremise Data Center US East | US West | EU | Asia Pacific | South America Hosted and managed by WSO2 Data center icon: Martial Red

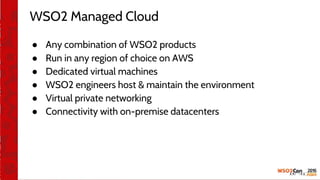

- 42. WSO2 Managed Cloud ●Any combination of WSO2 products ● Run in any region of choice on AWS ● Dedicated virtual machines ● WSO2 engineers host & maintain the environment ● Virtual private networking ● Connectivity with on-premise datacenters
- 43.
