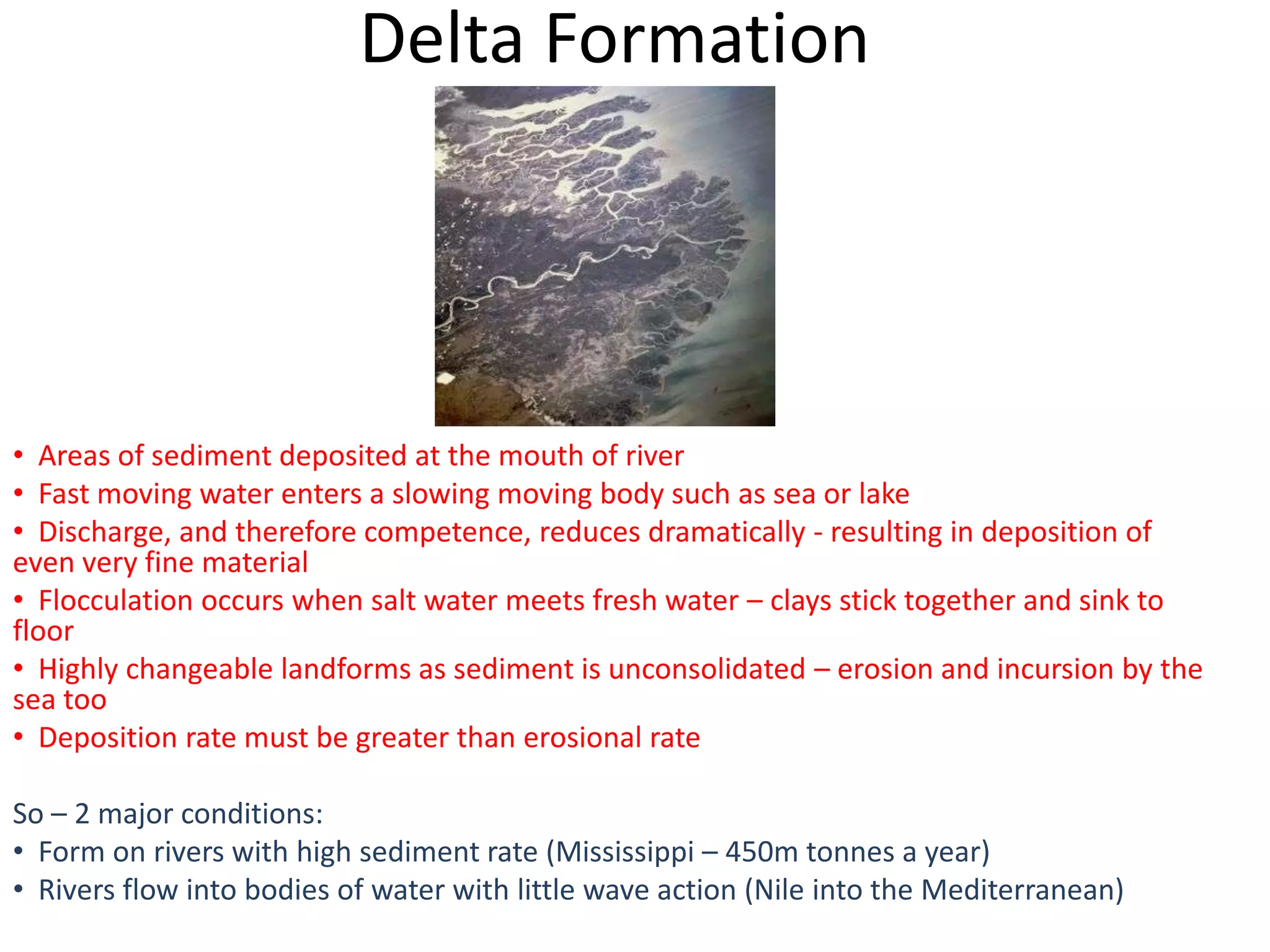

Delta Formation




• Areas of sediment deposited at the mouth of river
• Fast moving water enters a slowing moving body such as sea or lake
• Discharge, and therefore competence, reduces dramatically - resulting in deposition of
even very fine material
• Flocculation occurs when salt water meets fresh water – clays stick together and sink to
floor
• Highly changeable landforms as sediment is unconsolidated – erosion and incursion by the
sea too
• Deposition rate must be greater than erosional rate

So – 2 major conditions:
• Form on rivers with high sediment rate (Mississippi – 450m tonnes a year)
• Rivers flow into bodies of water with little wave action (Nile into the Mediterranean)

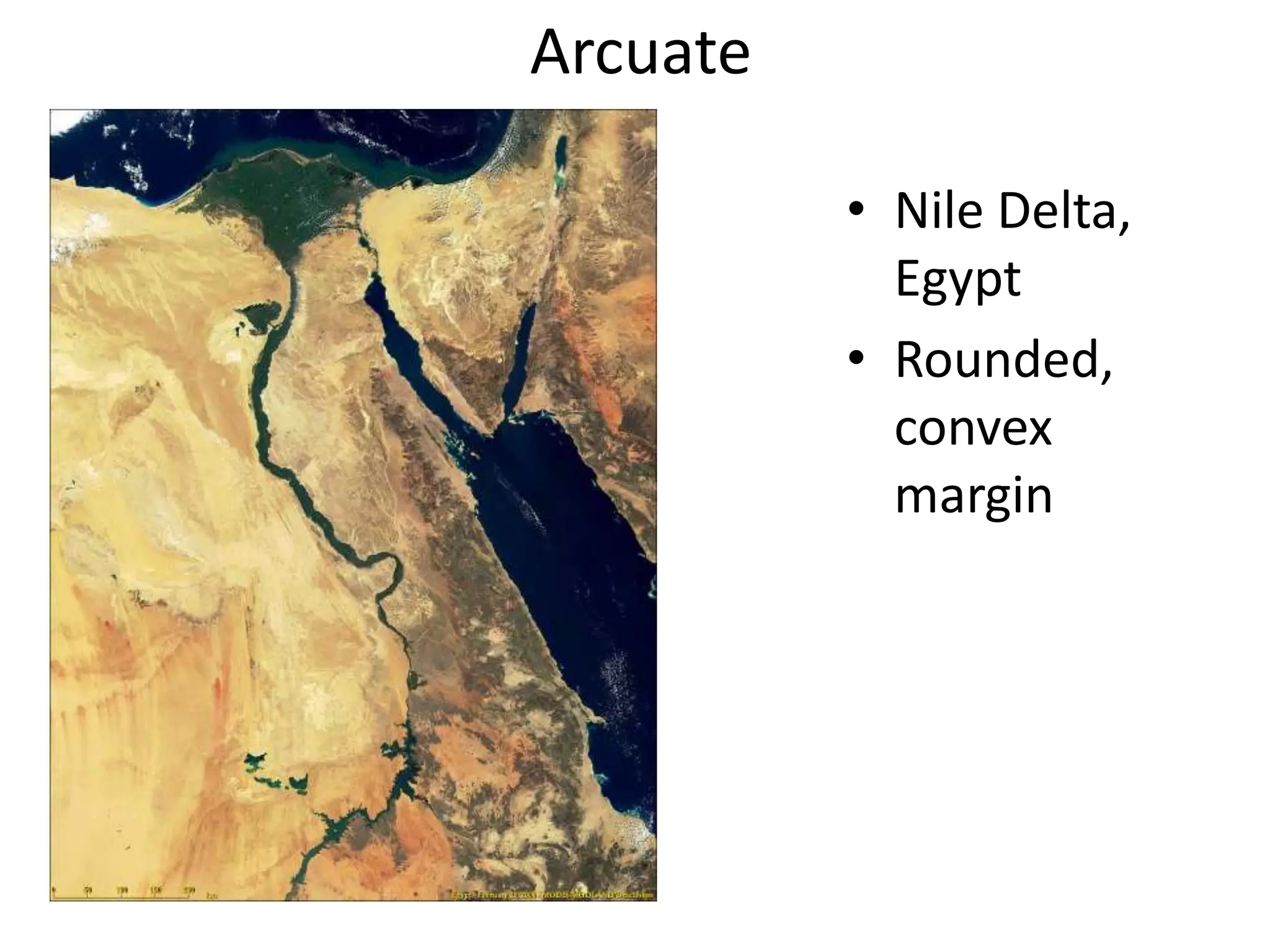

Arcuate

          • Nile Delta,
            Egypt
          • Rounded,
            convex
            margin

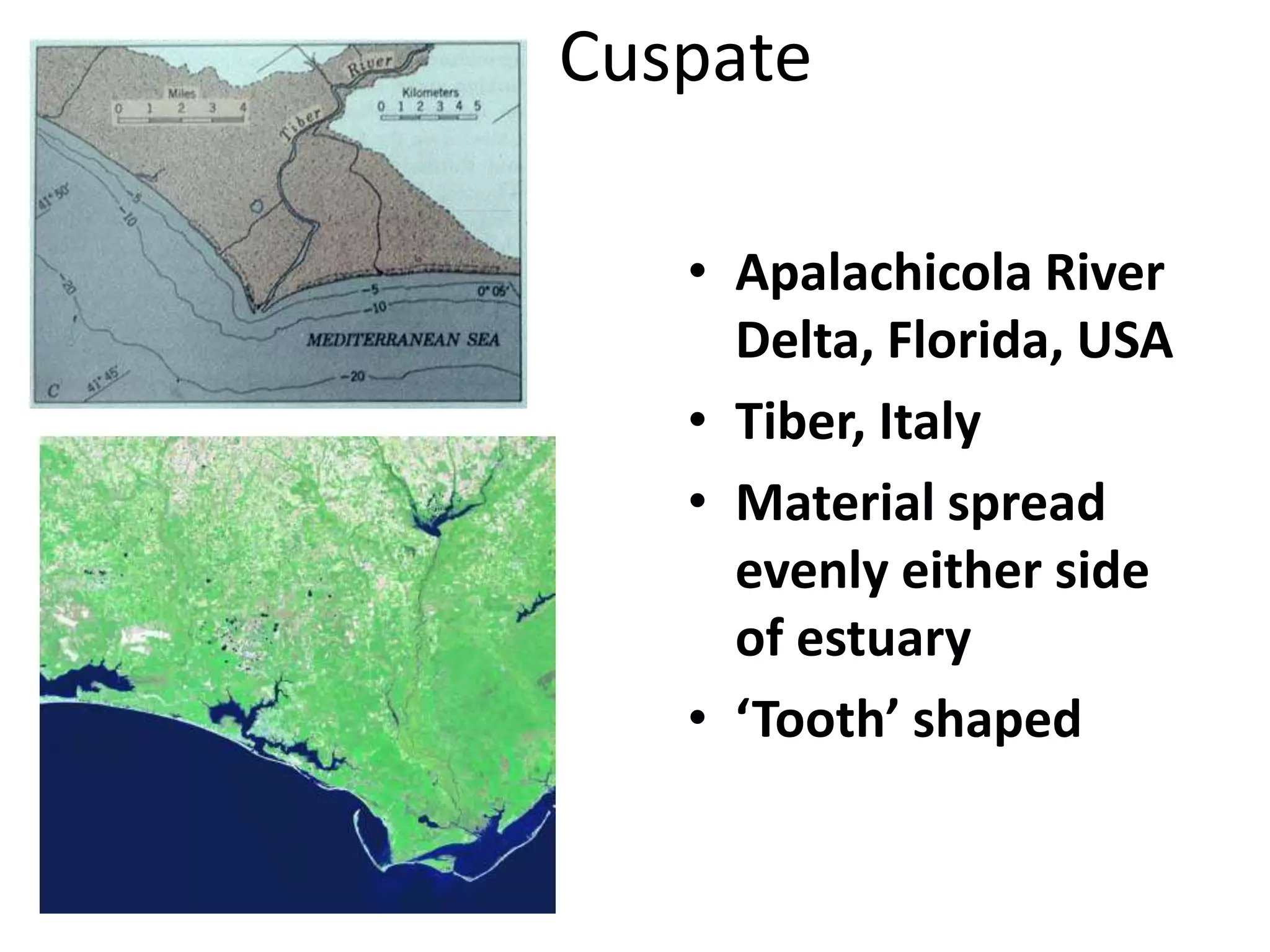

Cuspate

   • Apalachicola River
     Delta, Florida, USA
   • Tiber, Italy
   • Material spread
     evenly either side
     of estuary
   • ‘Tooth’ shaped

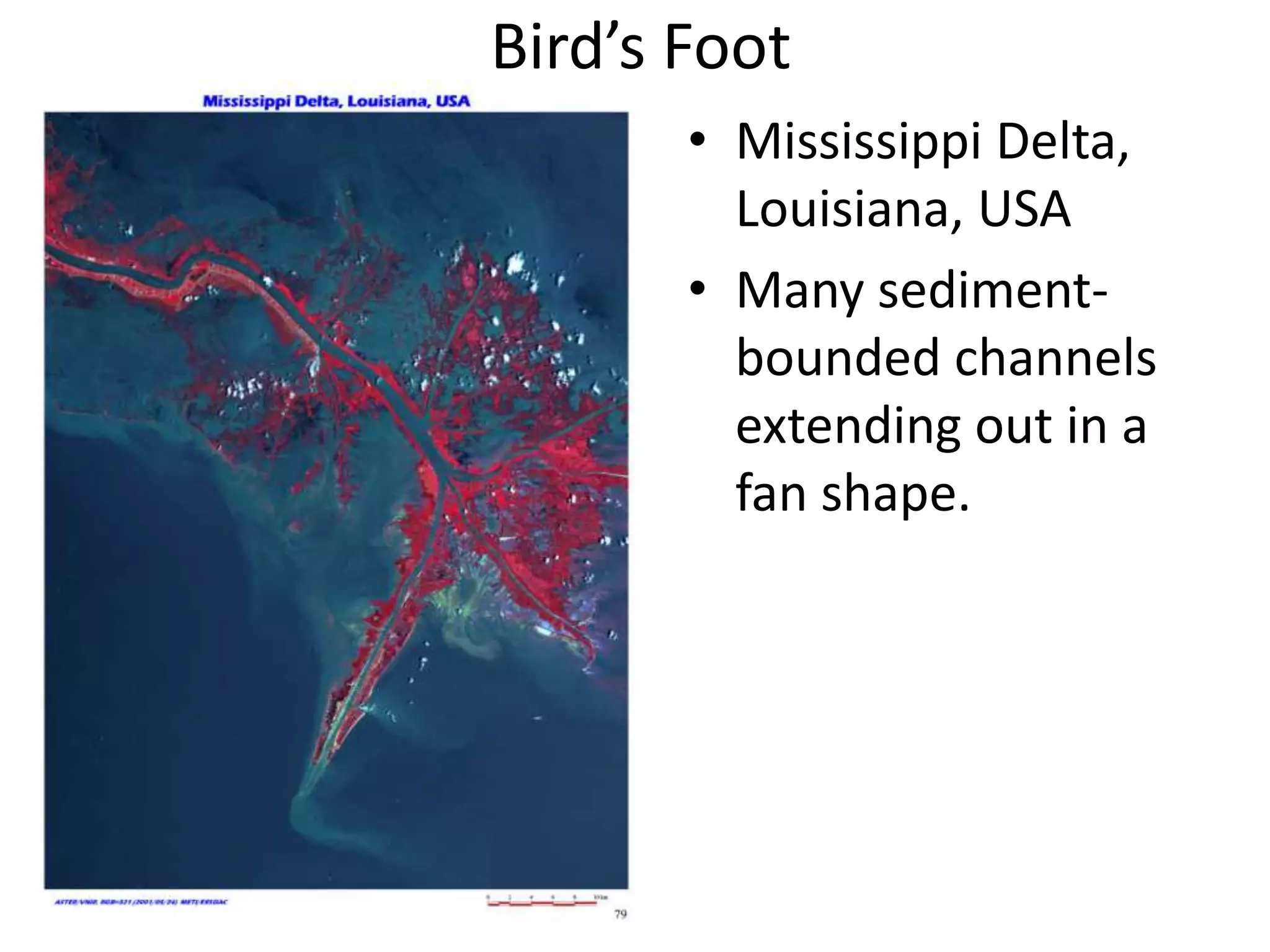

Bird’s Foot
       • Mississippi Delta,
         Louisiana, USA
       • Many sediment-
         bounded channels
         extending out in a
         fan shape.
