1. © RapidValue Solutions
Dell Boomi AtomSphere
How to Implement Integration Process in Build Phase?
Presentation by: Aneesha K.A
.Net Developer, RapidValue

2. © RapidValue Solutions 2

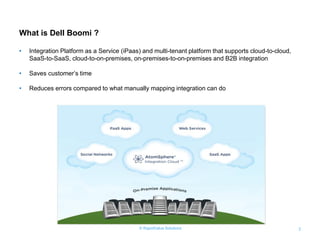

What is Dell Boomi ?
• Integration Platform as a Service (iPaas) and multi-tenant platform that supports cloud-to-cloud,
SaaS-to-SaaS, cloud-to-on-premises, on-premises-to-on-premises and B2B integration
• Saves customer‟s time
• Reduces errors compared to what manually mapping integration can do

3. © RapidValue Solutions 3

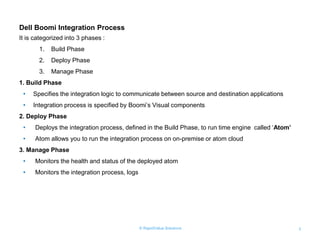

Dell Boomi Integration Process
It is categorized into 3 phases :
1. Build Phase
2. Deploy Phase
3. Manage Phase
1. Build Phase
• Specifies the integration logic to communicate between source and destination applications
• Integration process is specified by Boomi‟s Visual components
2. Deploy Phase
• Deploys the integration process, defined in the Build Phase, to run time engine called „Atom’
• Atom allows you to run the integration process on on-premise or atom cloud
3. Manage Phase
• Monitors the health and status of the deployed atom
• Monitors the integration process, logs

4. © RapidValue Solutions 4

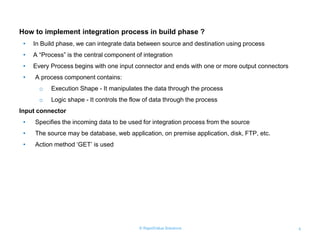

How to implement integration process in build phase ?
• In Build phase, we can integrate data between source and destination using process
• A “Process” is the central component of integration
• Every Process begins with one input connector and ends with one or more output connectors
• A process component contains:
o Execution Shape - It manipulates the data through the process
o Logic shape - It controls the flow of data through the process
Input connector
• Specifies the incoming data to be used for integration process from the source
• The source may be database, web application, on premise application, disk, FTP, etc.
• Action method „GET‟ is used

5. © RapidValue Solutions 5

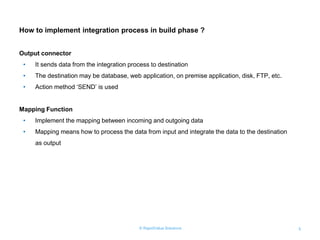

How to implement integration process in build phase ?
Output connector
• It sends data from the integration process to destination
• The destination may be database, web application, on premise application, disk, FTP, etc.
• Action method „SEND‟ is used
Mapping Function
• Implement the mapping between incoming and outgoing data
• Mapping means how to process the data from input and integrate the data to the destination
as output

6. © RapidValue Solutions 6

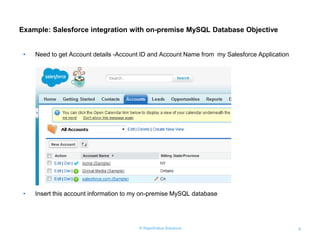

Example: Salesforce integration with on-premise MySQL Database Objective
• Need to get Account details -Account ID and Account Name from my Salesforce Application
• Insert this account information to my on-premise MySQL database

7. © RapidValue Solutions 7

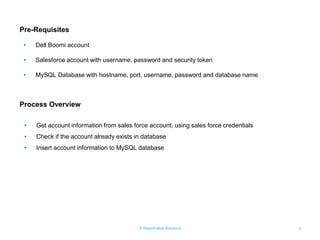

Pre-Requisites
• Dell Boomi account
• Salesforce account with username, password and security token
• MySQL Database with hostname, port, username, password and database name
• Get account information from sales force account, using sales force credentials
• Check if the account already exists in database
• Insert account information to MySQL database
Process Overview

8. © RapidValue Solutions 8

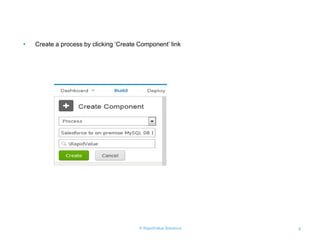

• Create a process by clicking „Create Component‟ link

9. © RapidValue Solutions 9

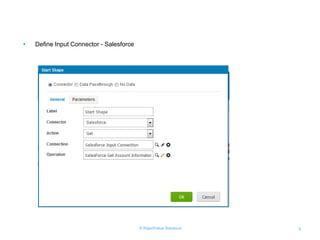

• Define Input Connector - Salesforce

10. © RapidValue Solutions 10

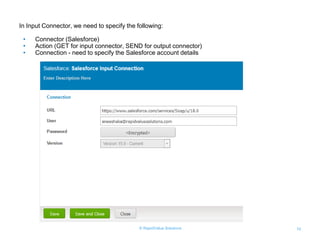

In Input Connector, we need to specify the following:
• Connector (Salesforce)
• Action (GET for input connector, SEND for output connector)
• Connection - need to specify the Salesforce account details

11. © RapidValue Solutions 11

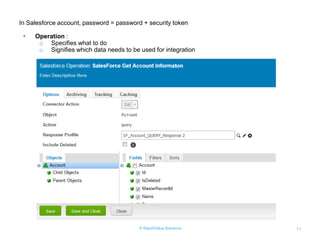

In Salesforce account, password = password + security token
• Operation :
o Specifies what to do
o Signifies which data needs to be used for integration

12. © RapidValue Solutions 12
• Define Output connector -MySQL database

13. © RapidValue Solutions 13
• For Output Connector, the following needs to be specified:
○ Connector (database)
○ Action - SEND
○ Connection- you need to specify MySQL Database host, port, credentials and database

14. © RapidValue Solutions 14

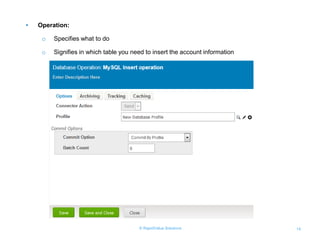

• Operation:
o Specifies what to do
o Signifies in which table you need to insert the account information

15. © RapidValue Solutions 15

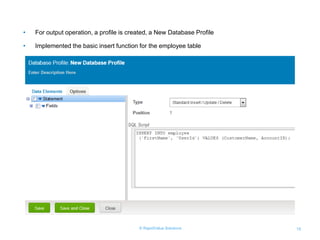

• For output operation, a profile is created, a New Database Profile
• Implemented the basic insert function for the employee table

16. © RapidValue Solutions 16

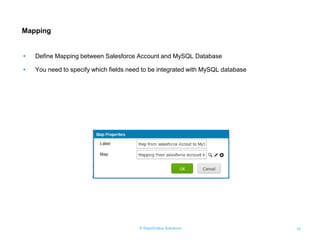

Mapping
• Define Mapping between Salesforce Account and MySQL Database
• You need to specify which fields need to be integrated with MySQL database

17. © RapidValue Solutions 17
• Input fields are on the left side and output fields on the right
• Each field is mapped, from input, to the corresponding output field

18. © RapidValue Solutions 18
Define Decision Logic
• You can check whether the account already exists in the database, using decision logic
• If the account does not exist, insert it into MySQL DB, else Stop

19. © RapidValue Solutions 19
Build Phase Overview
1. Define Input connector
2. Define Output connector
3. Define Mapping Logic between input and output
4. Define decision logic. Has the account, already, been inserted?
5. Stop

20. © RapidValue Solutions 20
Test Mode in Build Phase
• You can test the input and output by using „Run a Test’ option on Test Atom cloud
• If you run it, it will go through every single node
• If it‟s a success, individual node is shown as green color
• If it fails, it will be shown as red color

21. © RapidValue Solutions 21
Test Mode in Build Phase
• During test mode, you can view the input data obtained from Salesforce

22. © RapidValue Solutions 22

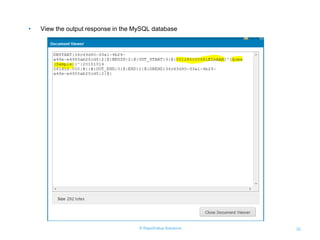

• View the output response in the MySQL database

23. © RapidValue Solutions

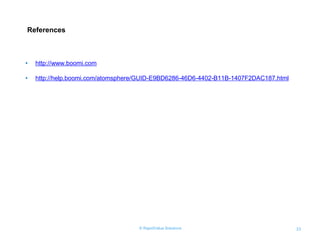

References
• http://www.boomi.com
• http://help.boomi.com/atomsphere/GUID-E9BD6286-46D6-4402-B11B-1407F2DAC187.html
23
