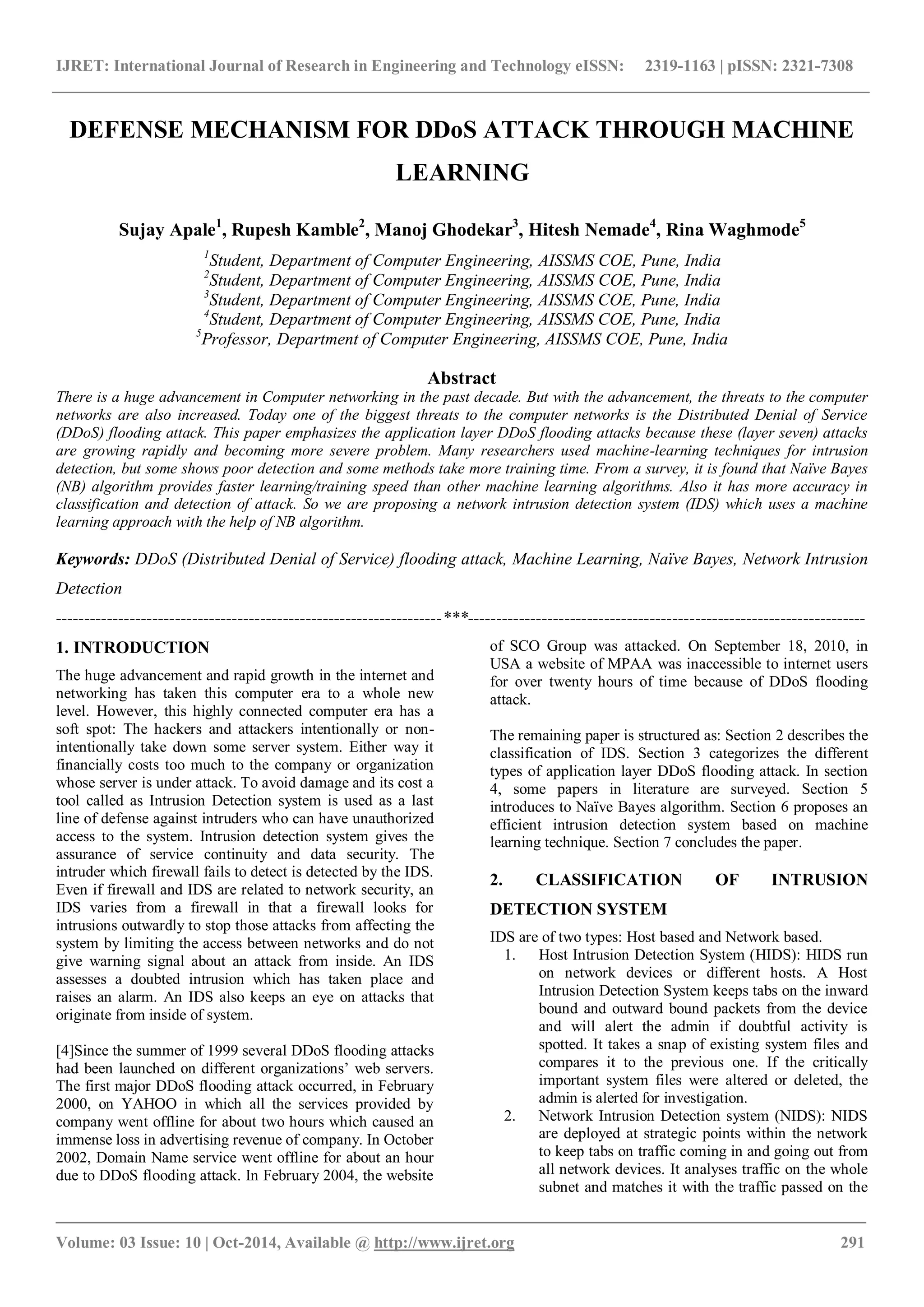

1. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Issue: 10 | Oct-2014, Available @ http://www.ijret.org 291
DEFENSE MECHANISM FOR DDoS ATTACK THROUGH MACHINE
LEARNING
Sujay Apale1
, Rupesh Kamble2
, Manoj Ghodekar3
, Hitesh Nemade4
, Rina Waghmode5
1
Student, Department of Computer Engineering, AISSMS COE, Pune, India
2
Student, Department of Computer Engineering, AISSMS COE, Pune, India
3
Student, Department of Computer Engineering, AISSMS COE, Pune, India
4
Student, Department of Computer Engineering, AISSMS COE, Pune, India
5
Professor, Department of Computer Engineering, AISSMS COE, Pune, India
Abstract
There is a huge advancement in Computer networking in the past decade. But with the advancement, the threats to the computer
networks are also increased. Today one of the biggest threats to the computer networks is the Distributed Denial of Service
(DDoS) flooding attack. This paper emphasizes the application layer DDoS flooding attacks because these (layer seven) attacks
are growing rapidly and becoming more severe problem. Many researchers used machine-learning techniques for intrusion
detection, but some shows poor detection and some methods take more training time. From a survey, it is found that Naïve Bayes
(NB) algorithm provides faster learning/training speed than other machine learning algorithms. Also it has more accuracy in
classification and detection of attack. So we are proposing a network intrusion detection system (IDS) which uses a machine
learning approach with the help of NB algorithm.
Keywords: DDoS (Distributed Denial of Service) flooding attack, Machine Learning, Naïve Bayes, Network Intrusion
Detection
--------------------------------------------------------------------***----------------------------------------------------------------------
1. INTRODUCTION
The huge advancement and rapid growth in the internet and
networking has taken this computer era to a whole new
level. However, this highly connected computer era has a
soft spot: The hackers and attackers intentionally or non-
intentionally take down some server system. Either way it
financially costs too much to the company or organization
whose server is under attack. To avoid damage and its cost a
tool called as Intrusion Detection system is used as a last
line of defense against intruders who can have unauthorized
access to the system. Intrusion detection system gives the
assurance of service continuity and data security. The
intruder which firewall fails to detect is detected by the IDS.
Even if firewall and IDS are related to network security, an
IDS varies from a firewall in that a firewall looks for
intrusions outwardly to stop those attacks from affecting the
system by limiting the access between networks and do not
give warning signal about an attack from inside. An IDS
assesses a doubted intrusion which has taken place and
raises an alarm. An IDS also keeps an eye on attacks that
originate from inside of system.
[4]Since the summer of 1999 several DDoS flooding attacks
had been launched on different organizations’ web servers.
The first major DDoS flooding attack occurred, in February
2000, on YAHOO in which all the services provided by
company went offline for about two hours which caused an
immense loss in advertising revenue of company. In October
2002, Domain Name service went offline for about an hour
due to DDoS flooding attack. In February 2004, the website
of SCO Group was attacked. On September 18, 2010, in
USA a website of MPAA was inaccessible to internet users
for over twenty hours of time because of DDoS flooding
attack.
The remaining paper is structured as: Section 2 describes the
classification of IDS. Section 3 categorizes the different
types of application layer DDoS flooding attack. In section
4, some papers in literature are surveyed. Section 5
introduces to Naïve Bayes algorithm. Section 6 proposes an
efficient intrusion detection system based on machine
learning technique. Section 7 concludes the paper.
2. CLASSIFICATION OF INTRUSION
DETECTION SYSTEM
IDS are of two types: Host based and Network based.
1. Host Intrusion Detection System (HIDS): HIDS run
on network devices or different hosts. A Host
Intrusion Detection System keeps tabs on the inward
bound and outward bound packets from the device
and will alert the admin if doubtful activity is
spotted. It takes a snap of existing system files and
compares it to the previous one. If the critically
important system files were altered or deleted, the
admin is alerted for investigation.
2. Network Intrusion Detection system (NIDS): NIDS
are deployed at strategic points within the network
to keep tabs on traffic coming in and going out from
all network devices. It analyses traffic on the whole
subnet and matches it with the traffic passed on the

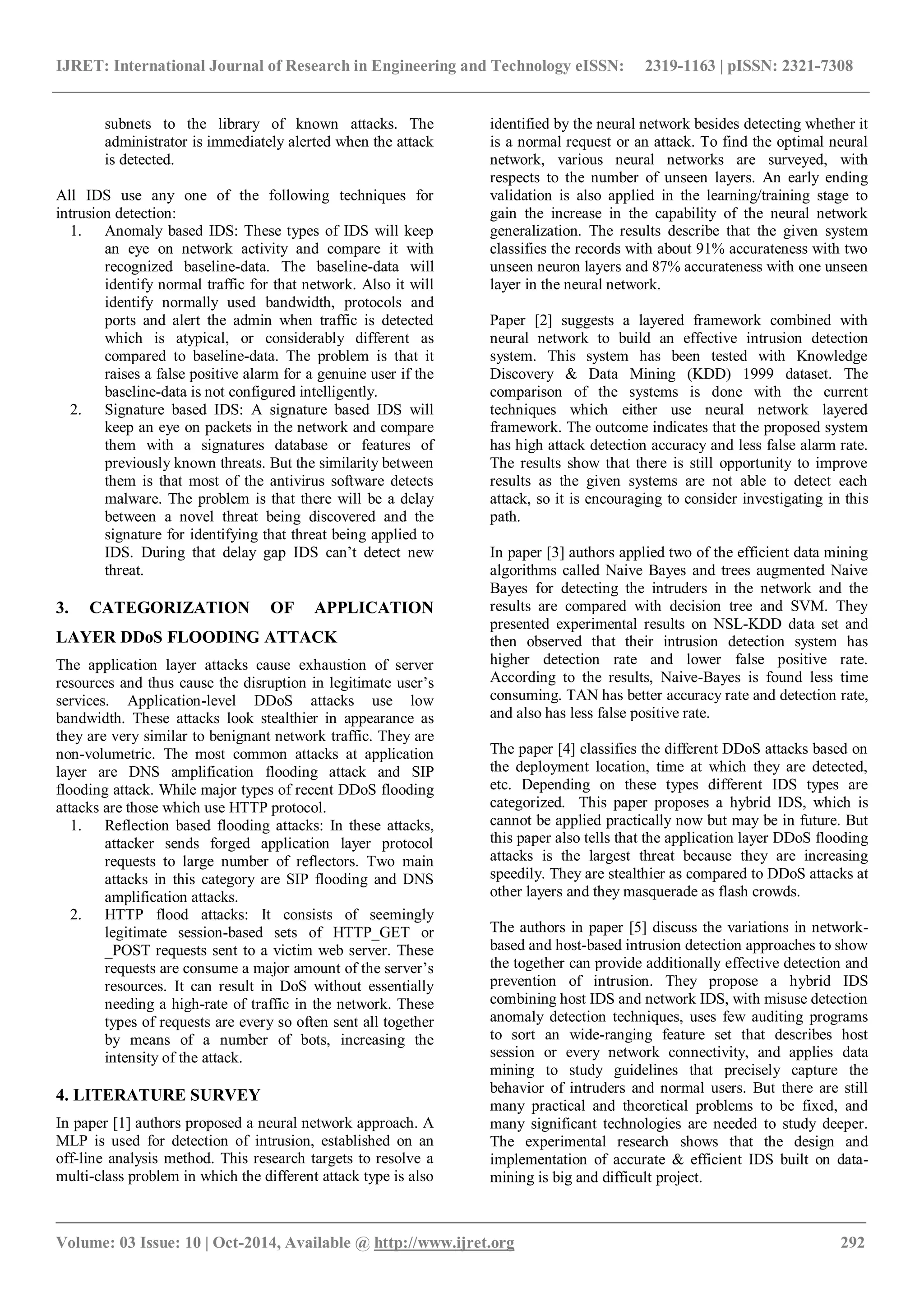

2. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Issue: 10 | Oct-2014, Available @ http://www.ijret.org 292
subnets to the library of known attacks. The
administrator is immediately alerted when the attack
is detected.
All IDS use any one of the following techniques for
intrusion detection:
1. Anomaly based IDS: These types of IDS will keep
an eye on network activity and compare it with
recognized baseline-data. The baseline-data will
identify normal traffic for that network. Also it will
identify normally used bandwidth, protocols and
ports and alert the admin when traffic is detected
which is atypical, or considerably different as
compared to baseline-data. The problem is that it
raises a false positive alarm for a genuine user if the
baseline-data is not configured intelligently.
2. Signature based IDS: A signature based IDS will
keep an eye on packets in the network and compare
them with a signatures database or features of
previously known threats. But the similarity between
them is that most of the antivirus software detects
malware. The problem is that there will be a delay
between a novel threat being discovered and the
signature for identifying that threat being applied to
IDS. During that delay gap IDS can’t detect new
threat.
3. CATEGORIZATION OF APPLICATION
LAYER DDoS FLOODING ATTACK
The application layer attacks cause exhaustion of server
resources and thus cause the disruption in legitimate user’s
services. Application-level DDoS attacks use low
bandwidth. These attacks look stealthier in appearance as
they are very similar to benignant network traffic. They are
non-volumetric. The most common attacks at application
layer are DNS amplification flooding attack and SIP
flooding attack. While major types of recent DDoS flooding
attacks are those which use HTTP protocol.
1. Reflection based flooding attacks: In these attacks,
attacker sends forged application layer protocol
requests to large number of reflectors. Two main
attacks in this category are SIP flooding and DNS
amplification attacks.
2. HTTP flood attacks: It consists of seemingly
legitimate session-based sets of HTTP_GET or
_POST requests sent to a victim web server. These
requests are consume a major amount of the server’s
resources. It can result in DoS without essentially
needing a high-rate of traffic in the network. These
types of requests are every so often sent all together
by means of a number of bots, increasing the
intensity of the attack.
4. LITERATURE SURVEY
In paper [1] authors proposed a neural network approach. A
MLP is used for detection of intrusion, established on an
off-line analysis method. This research targets to resolve a
multi-class problem in which the different attack type is also
identified by the neural network besides detecting whether it
is a normal request or an attack. To find the optimal neural
network, various neural networks are surveyed, with
respects to the number of unseen layers. An early ending
validation is also applied in the learning/training stage to
gain the increase in the capability of the neural network
generalization. The results describe that the given system
classifies the records with about 91% accurateness with two
unseen neuron layers and 87% accurateness with one unseen
layer in the neural network.
Paper [2] suggests a layered framework combined with
neural network to build an effective intrusion detection
system. This system has been tested with Knowledge
Discovery & Data Mining (KDD) 1999 dataset. The
comparison of the systems is done with the current
techniques which either use neural network layered
framework. The outcome indicates that the proposed system
has high attack detection accuracy and less false alarm rate.
The results show that there is still opportunity to improve
results as the given systems are not able to detect each
attack, so it is encouraging to consider investigating in this
path.
In paper [3] authors applied two of the efficient data mining
algorithms called Naive Bayes and trees augmented Naive
Bayes for detecting the intruders in the network and the
results are compared with decision tree and SVM. They
presented experimental results on NSL-KDD data set and
then observed that their intrusion detection system has
higher detection rate and lower false positive rate.
According to the results, Naive-Bayes is found less time
consuming. TAN has better accuracy rate and detection rate,
and also has less false positive rate.
The paper [4] classifies the different DDoS attacks based on
the deployment location, time at which they are detected,
etc. Depending on these types different IDS types are
categorized. This paper proposes a hybrid IDS, which is
cannot be applied practically now but may be in future. But
this paper also tells that the application layer DDoS flooding
attacks is the largest threat because they are increasing
speedily. They are stealthier as compared to DDoS attacks at
other layers and they masquerade as flash crowds.
The authors in paper [5] discuss the variations in network-
based and host-based intrusion detection approaches to show
the together can provide additionally effective detection and
prevention of intrusion. They propose a hybrid IDS
combining host IDS and network IDS, with misuse detection
anomaly detection techniques, uses few auditing programs
to sort an wide-ranging feature set that describes host
session or every network connectivity, and applies data
mining to study guidelines that precisely capture the
behavior of intruders and normal users. But there are still
many practical and theoretical problems to be fixed, and
many significant technologies are needed to study deeper.
The experimental research shows that the design and
implementation of accurate & efficient IDS built on data-
mining is big and difficult project.

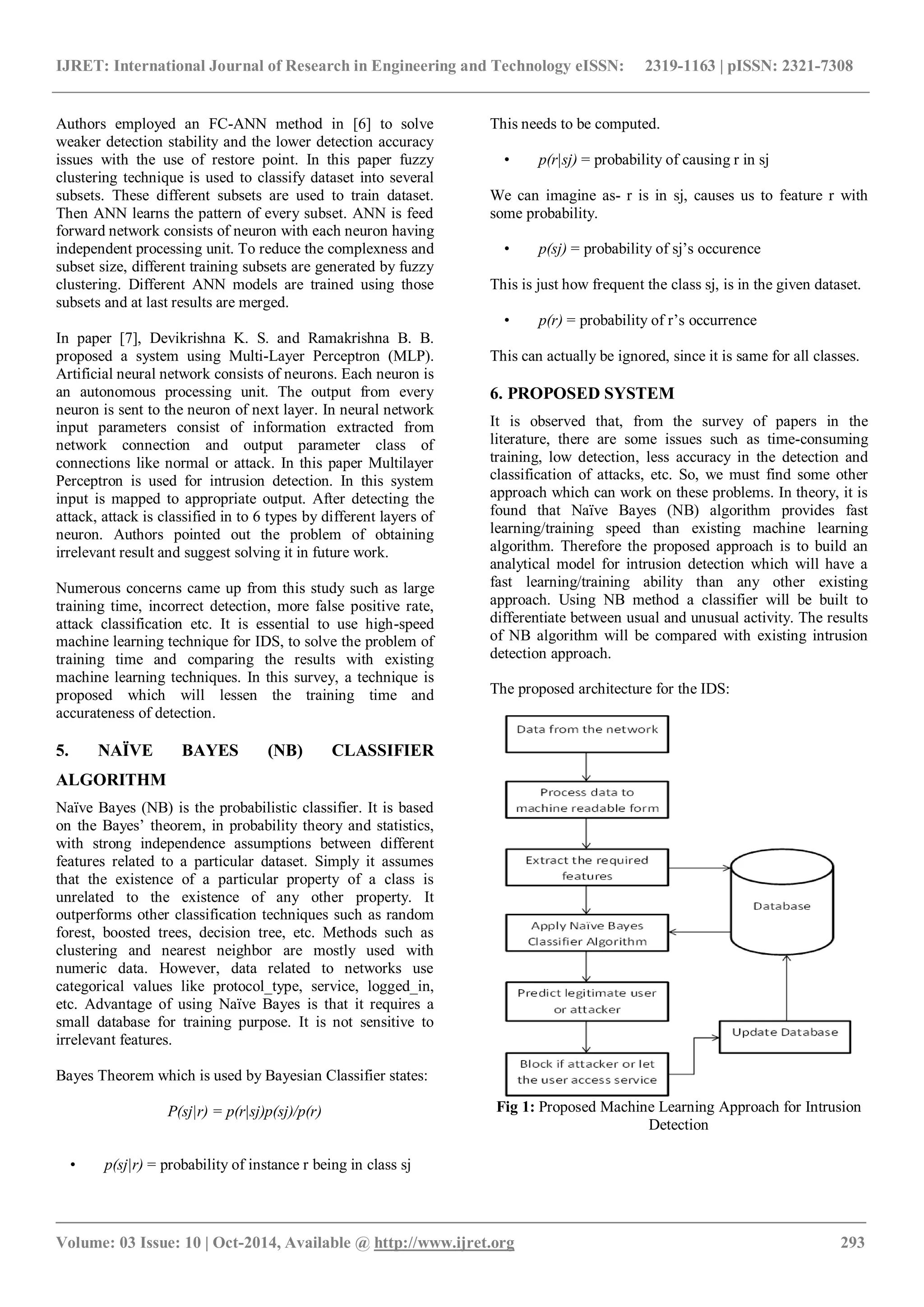

3. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Issue: 10 | Oct-2014, Available @ http://www.ijret.org 293
Authors employed an FC-ANN method in [6] to solve
weaker detection stability and the lower detection accuracy
issues with the use of restore point. In this paper fuzzy
clustering technique is used to classify dataset into several
subsets. These different subsets are used to train dataset.
Then ANN learns the pattern of every subset. ANN is feed
forward network consists of neuron with each neuron having
independent processing unit. To reduce the complexness and
subset size, different training subsets are generated by fuzzy
clustering. Different ANN models are trained using those
subsets and at last results are merged.
In paper [7], Devikrishna K. S. and Ramakrishna B. B.
proposed a system using Multi-Layer Perceptron (MLP).
Artificial neural network consists of neurons. Each neuron is
an autonomous processing unit. The output from every
neuron is sent to the neuron of next layer. In neural network
input parameters consist of information extracted from
network connection and output parameter class of
connections like normal or attack. In this paper Multilayer
Perceptron is used for intrusion detection. In this system
input is mapped to appropriate output. After detecting the
attack, attack is classified in to 6 types by different layers of
neuron. Authors pointed out the problem of obtaining
irrelevant result and suggest solving it in future work.
Numerous concerns came up from this study such as large
training time, incorrect detection, more false positive rate,
attack classification etc. It is essential to use high-speed
machine learning technique for IDS, to solve the problem of
training time and comparing the results with existing
machine learning techniques. In this survey, a technique is
proposed which will lessen the training time and
accurateness of detection.
5. NAÏVE BAYES (NB) CLASSIFIER
ALGORITHM
Naïve Bayes (NB) is the probabilistic classifier. It is based
on the Bayes’ theorem, in probability theory and statistics,
with strong independence assumptions between different
features related to a particular dataset. Simply it assumes
that the existence of a particular property of a class is
unrelated to the existence of any other property. It
outperforms other classification techniques such as random
forest, boosted trees, decision tree, etc. Methods such as
clustering and nearest neighbor are mostly used with
numeric data. However, data related to networks use
categorical values like protocol_type, service, logged_in,
etc. Advantage of using Naïve Bayes is that it requires a
small database for training purpose. It is not sensitive to
irrelevant features.
Bayes Theorem which is used by Bayesian Classifier states:
P(sj|r) = p(r|sj)p(sj)/p(r)
• p(sj|r) = probability of instance r being in class sj
This needs to be computed.
• p(r|sj) = probability of causing r in sj
We can imagine as- r is in sj, causes us to feature r with
some probability.
• p(sj) = probability of sj’s occurence
This is just how frequent the class sj, is in the given dataset.
• p(r) = probability of r’s occurrence
This can actually be ignored, since it is same for all classes.
6. PROPOSED SYSTEM
It is observed that, from the survey of papers in the
literature, there are some issues such as time-consuming
training, low detection, less accuracy in the detection and
classification of attacks, etc. So, we must find some other
approach which can work on these problems. In theory, it is
found that Naïve Bayes (NB) algorithm provides fast
learning/training speed than existing machine learning
algorithm. Therefore the proposed approach is to build an
analytical model for intrusion detection which will have a
fast learning/training ability than any other existing
approach. Using NB method a classifier will be built to
differentiate between usual and unusual activity. The results
of NB algorithm will be compared with existing intrusion
detection approach.
The proposed architecture for the IDS:
Fig 1: Proposed Machine Learning Approach for Intrusion
Detection

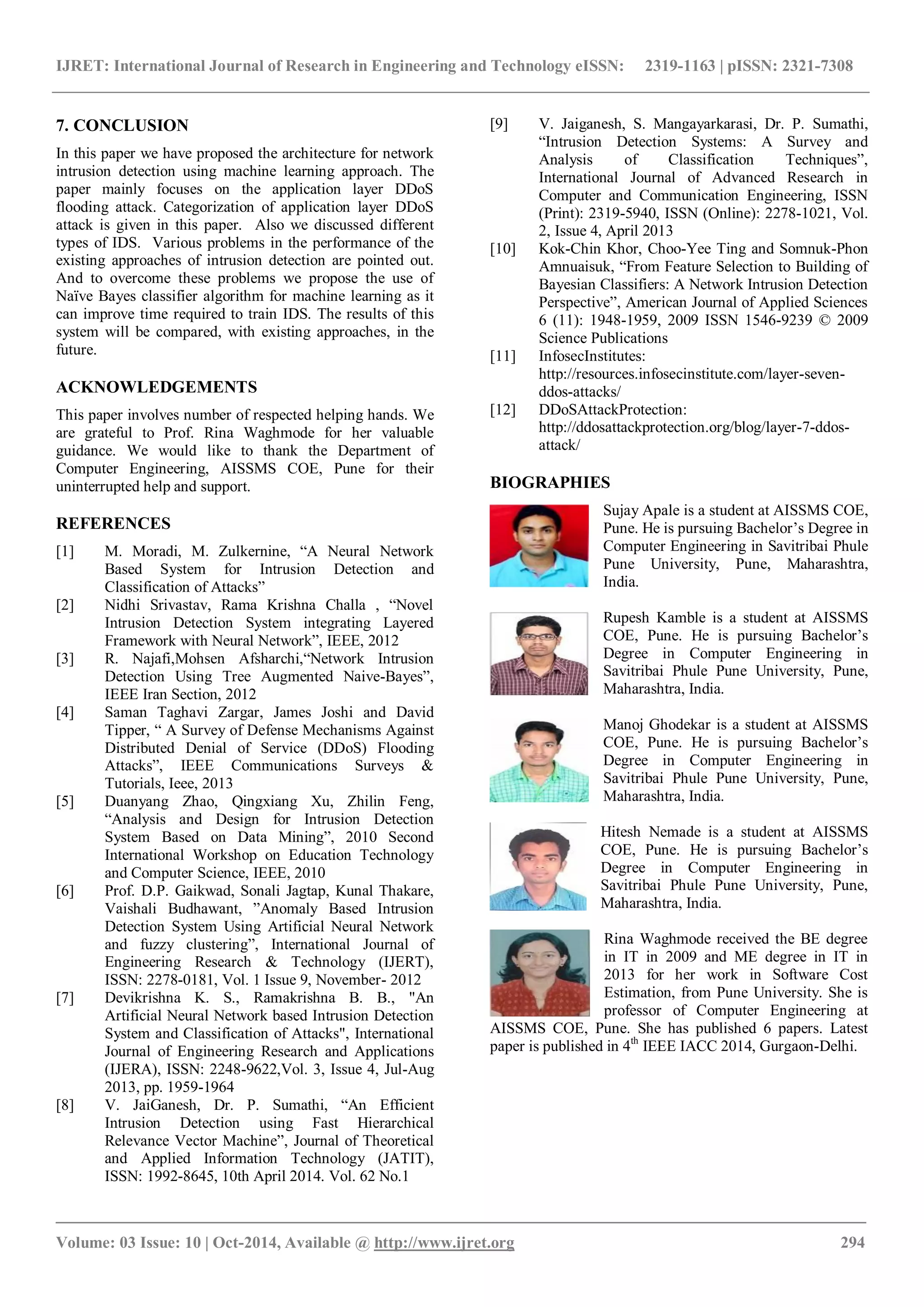

4. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Issue: 10 | Oct-2014, Available @ http://www.ijret.org 294
7. CONCLUSION
In this paper we have proposed the architecture for network
intrusion detection using machine learning approach. The
paper mainly focuses on the application layer DDoS
flooding attack. Categorization of application layer DDoS
attack is given in this paper. Also we discussed different
types of IDS. Various problems in the performance of the
existing approaches of intrusion detection are pointed out.
And to overcome these problems we propose the use of
Naïve Bayes classifier algorithm for machine learning as it
can improve time required to train IDS. The results of this
system will be compared, with existing approaches, in the
future.
ACKNOWLEDGEMENTS
This paper involves number of respected helping hands. We
are grateful to Prof. Rina Waghmode for her valuable
guidance. We would like to thank the Department of
Computer Engineering, AISSMS COE, Pune for their
uninterrupted help and support.
REFERENCES
[1] M. Moradi, M. Zulkernine, “A Neural Network
Based System for Intrusion Detection and
Classification of Attacks”
[2] Nidhi Srivastav, Rama Krishna Challa , “Novel
Intrusion Detection System integrating Layered
Framework with Neural Network”, IEEE, 2012
[3] R. Najafi,Mohsen Afsharchi,“Network Intrusion
Detection Using Tree Augmented Naive-Bayes”,
IEEE Iran Section, 2012
[4] Saman Taghavi Zargar, James Joshi and David
Tipper, “ A Survey of Defense Mechanisms Against
Distributed Denial of Service (DDoS) Flooding
Attacks”, IEEE Communications Surveys &
Tutorials, Ieee, 2013
[5] Duanyang Zhao, Qingxiang Xu, Zhilin Feng,
“Analysis and Design for Intrusion Detection
System Based on Data Mining”, 2010 Second
International Workshop on Education Technology
and Computer Science, IEEE, 2010
[6] Prof. D.P. Gaikwad, Sonali Jagtap, Kunal Thakare,
Vaishali Budhawant, ”Anomaly Based Intrusion
Detection System Using Artificial Neural Network
and fuzzy clustering”, International Journal of
Engineering Research & Technology (IJERT),
ISSN: 2278-0181, Vol. 1 Issue 9, November- 2012
[7] Devikrishna K. S., Ramakrishna B. B., "An
Artificial Neural Network based Intrusion Detection
System and Classification of Attacks", International
Journal of Engineering Research and Applications
(IJERA), ISSN: 2248-9622,Vol. 3, Issue 4, Jul-Aug
2013, pp. 1959-1964
[8] V. JaiGanesh, Dr. P. Sumathi, “An Efficient
Intrusion Detection using Fast Hierarchical
Relevance Vector Machine”, Journal of Theoretical
and Applied Information Technology (JATIT),
ISSN: 1992-8645, 10th April 2014. Vol. 62 No.1
[9] V. Jaiganesh, S. Mangayarkarasi, Dr. P. Sumathi,
“Intrusion Detection Systems: A Survey and
Analysis of Classification Techniques”,
International Journal of Advanced Research in
Computer and Communication Engineering, ISSN
(Print): 2319-5940, ISSN (Online): 2278-1021, Vol.
2, Issue 4, April 2013
[10] Kok-Chin Khor, Choo-Yee Ting and Somnuk-Phon
Amnuaisuk, “From Feature Selection to Building of
Bayesian Classifiers: A Network Intrusion Detection
Perspective”, American Journal of Applied Sciences
6 (11): 1948-1959, 2009 ISSN 1546-9239 © 2009
Science Publications
[11] InfosecInstitutes:
http://resources.infosecinstitute.com/layer-seven-
ddos-attacks/
[12] DDoSAttackProtection:
http://ddosattackprotection.org/blog/layer-7-ddos-
attack/
BIOGRAPHIES
Sujay Apale is a student at AISSMS COE,
Pune. He is pursuing Bachelor’s Degree in
Computer Engineering in Savitribai Phule
Pune University, Pune, Maharashtra,
India.
Rupesh Kamble is a student at AISSMS
COE, Pune. He is pursuing Bachelor’s
Degree in Computer Engineering in
Savitribai Phule Pune University, Pune,
Maharashtra, India.
Manoj Ghodekar is a student at AISSMS
COE, Pune. He is pursuing Bachelor’s
Degree in Computer Engineering in
Savitribai Phule Pune University, Pune,
Maharashtra, India.
Hitesh Nemade is a student at AISSMS
COE, Pune. He is pursuing Bachelor’s
Degree in Computer Engineering in
Savitribai Phule Pune University, Pune,
Maharashtra, India.
Rina Waghmode received the BE degree
in IT in 2009 and ME degree in IT in
2013 for her work in Software Cost
Estimation, from Pune University. She is
professor of Computer Engineering at
AISSMS COE, Pune. She has published 6 papers. Latest
paper is published in 4th
IEEE IACC 2014, Gurgaon-Delhi.
