- 1. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-1© 2002, Cisco Systems, Inc. All rights reserved. 1 Enabling RIP

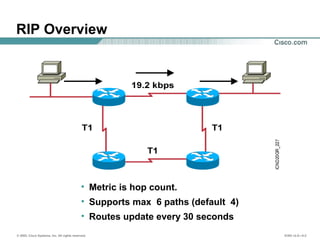

- 2. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-2 • Metric is hop count. • Supports max 6 paths (default 4) • Routes update every 30 seconds RIP Overview

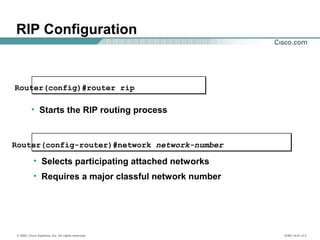

- 3. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-3 • Starts the RIP routing process Router(config)#router rip Router(config-router)#network network-number • Selects participating attached networks • Requires a major classful network number RIP Configuration

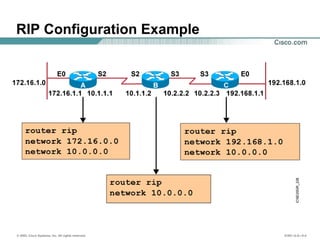

- 4. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-4 RIP Configuration Example

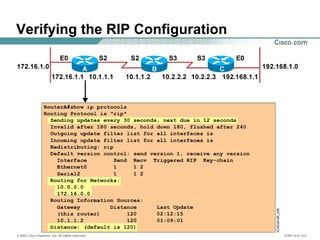

- 5. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-5 Verifying the RIP Configuration

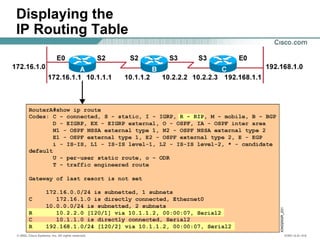

- 6. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-6 Displaying the IP Routing Table
- 7. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-7 debug ip rip Command

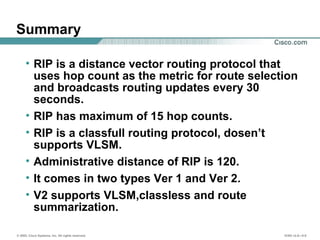

- 8. © 2002, Cisco Systems, Inc. All rights reserved. ICND v2.0—5-8 Summary • RIP is a distance vector routing protocol that uses hop count as the metric for route selection and broadcasts routing updates every 30 seconds. • RIP has maximum of 15 hop counts. • RIP is a classfull routing protocol, dosen’t supports VLSM. • Administrative distance of RIP is 120. • It comes in two types Ver 1 and Ver 2. • V2 supports VLSM,classless and route summarization.
