This document discusses data warehousing, including its definition, importance, components, strategies, ETL processes, and considerations for success and pitfalls. A data warehouse is a collection of integrated, subject-oriented, non-volatile data used for analysis. It allows more effective decision making through consolidated historical data from multiple sources. Key components include summarized and current detailed data, as well as transformation programs. Common strategies are enterprise-wide and data mart approaches. ETL processes extract, transform and load the data. Clean data and proper implementation, training and maintenance are important for success.

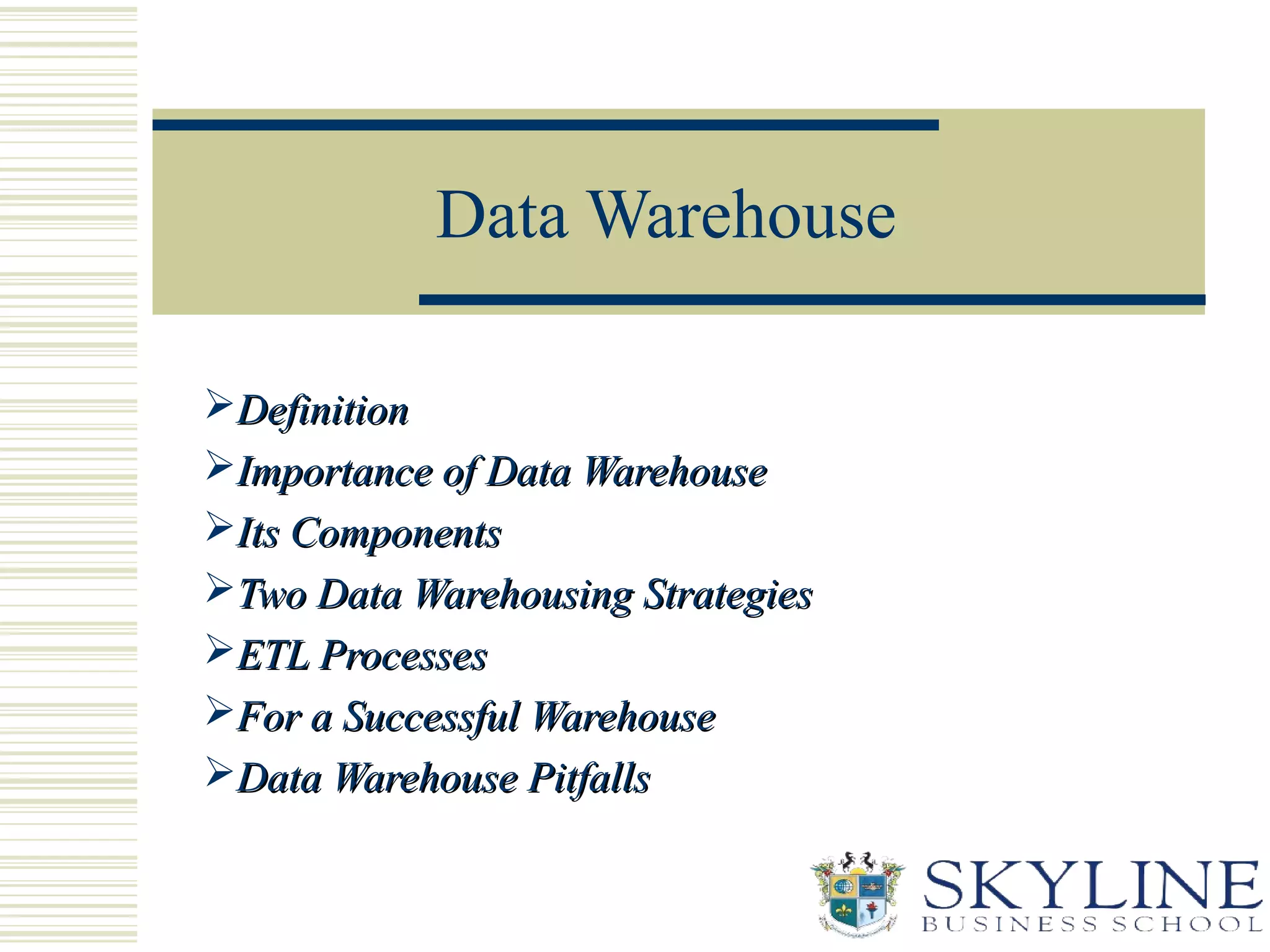

1. Data Warehouse
DefinitionDefinition
Importance of Data WarehouseImportance of Data Warehouse
Its ComponentsIts Components
Two Data Warehousing StrategiesTwo Data Warehousing Strategies
ETL ProcessesETL Processes
For a Successful WarehouseFor a Successful Warehouse
Data Warehouse PitfallsData Warehouse Pitfalls

2. Data Warehouse
 A subject oriented, integrated, time-variant, non-volatile
collection of data in support of management decisions (Bill
Inmon)
 Subject oriented -- data are organized around sales,
products, etc.
 Integrated -- data are integrated to provide a
comprehensive view
 Time variant -- historical data are maintained
 Nonvolatile -- data are not updated by users

3. Limitations of Traditional
Databases
 lack of on-line historical data
 residing in different operational systems
 extremely poor query performance
 operational database designs not suited for
decision support

4. The Importance of Data
Warehousing
 More cost – effective decision making
 Increase quality and flexibility of enterprise analysis as
data warehouse contain accurate and reliable data
 Ability to maintain better customer relationships
 Unlimited analyses of enterprise information

5. Components of Data warehouse
 Summarized data
 Basically of two type: 1) Lightly (departmental information)
2) Highly (enterprise wide decision)
 Current detail
 Comes directly from operational system
 But stored by subject area and represent entire organization not a department
 System of record
 Maintaining the source of record
 Integration and transformation Programs
 Programs that convert an application – specific data to enterprise data

6. Cont..
 Performs many function like
 Reformatting, recalculating
 Adding time element
 Identifying the default value
 Summarizing and merging the data
 Filling up the blank fields
 Archives
 Contain old data which hold some amount of significance to the organization
 Used for trend analysis
 Metadata
 Control access and analysis of the data warehouse contents

To manage and control data warehouse creation and maintenance

7. Two Data Warehousing
Strategies
 Enterprise-wide warehouse, top down, the
Inmon methodology
 Data mart, bottom up, the Kimball
methodology
 When properly executed, both result in an
enterprise-wide data warehouse

8. The Data Mart Strategy
 The most common approach
 Begins with a single mart and are added over
time for more subject areas
 Relatively inexpensive and easy to implement
 Can be used as a proof of concept for data
warehousing
 Requires an overall integration plan

9. The Enterprise-wide Strategy
 A comprehensive warehouse is built initially
 An initial dependent data mart is built using a
subset of the data in the warehouse
 Additional data marts are built using subsets of the
data in the warehouse
 Like all complex projects, it is expensive, time
consuming, and prone to failure
 When successful, it results in an integrated, scalable
warehouse

10. ETL Processes
 Extraction, Transformation, and Loading Process
 The “plumbing” work of data warehousing
 Data are moved from source to target data
bases
 A very costly, time consuming part of data
warehousing

11. Sample ETL Tools
 Teradata Warehouse Builder from Teradata
 DataStage from Ascential Software
 SAS System from SAS Institute
 Power Mart/Power Center from Informatica
 Sagent Solution from Sagent Software

12. Reasons for “Dirty” Data
• Dummy Values
• Absence of Data
• Multipurpose Fields
• Inappropriate Use of Address Lines
• Violation of Business Rules
• Non-Unique Identifiers
• Data Integration Problems

13. I. Data Cleansing and
Extracting
 Source systems contain “dirty data” that must be cleansed
 ETL software contains rudimentary data cleansing capabilities
 Specialized data cleansing software is often used. Important
for performing name and address correction and householding
functions
 Leading data cleansing vendors include Vality (Integrity),
Harte-Hanks (Trillium), and Firstlogic (i.d.Centric)

14. Steps in Data Cleansing
 Parsing
 Correcting
 Standardizing
 Matching
 Consolidating

15. Parsing
 Parsing locates and identifies individual data
elements in the source files and then isolates
these data elements in the target files.
 Examples include parsing the first, middle,
and last name; street number and street
name; and city and state.

16. Correcting
 Corrects parsed individual data components
using sophisticated data algorithms and
secondary data sources.
 Example include replacing a vanity address
and adding a zip code.

17. Standardizing
 Standardizing applies conversion routines to
transform data into its preferred (and
consistent) format using both standard and
custom business rules.
 Examples include adding a pre name,
replacing a nickname, and using a preferred
street name

18. Matching
 Searching and matching records within and
across the parsed, corrected and standardized
data based on predefined business rules to
eliminate duplications.
 Examples include identifying similar names
and addresses.

19. Consolidating
• Analyzing and identifying relationships between
matched records and consolidating/merging
them into ONE representation.

20. II. Data Transformation
 Transforms the data in accordance with the
business rules and standards that have been
established
 Example include: format changes,
deduplication, splitting up fields,
replacement of codes, derived values, and
aggregates

21. III. Data Loading
 Data are physically moved to the data
warehouse
 The loading takes place within a “load
window”
 The trend is to near real time updates of the
data warehouse as the warehouse is
increasingly used for operational applications

22. For a Successful Warehouse
 From day one establish that warehousing is a joint
user/builder project
 Establish that maintaining data quality will be an
ONGOING joint user/builder responsibility
 Train the users one step at a time
 Consider doing a high level corporate data model in no
more than three weeks
 Look closely at the data extracting, cleaning, and loading
tools

23. Cont..
 Determine a plan to test the integrity of the data in the
warehouse
 From the start get warehouse users in the habit of 'testing'
complex queries
 Coordinate system roll-out with network administration
personnel
 Implement a user accessible automated directory to information
stored in the warehouse

24. Data Warehouse Pitfalls
 Many warehouse end users will be trained and never or
seldom apply their training
 Large scale data warehousing can become an exercise in
data homogenizing
 Loading information only because it is available
 Providing no maintenance to the data warehouse
