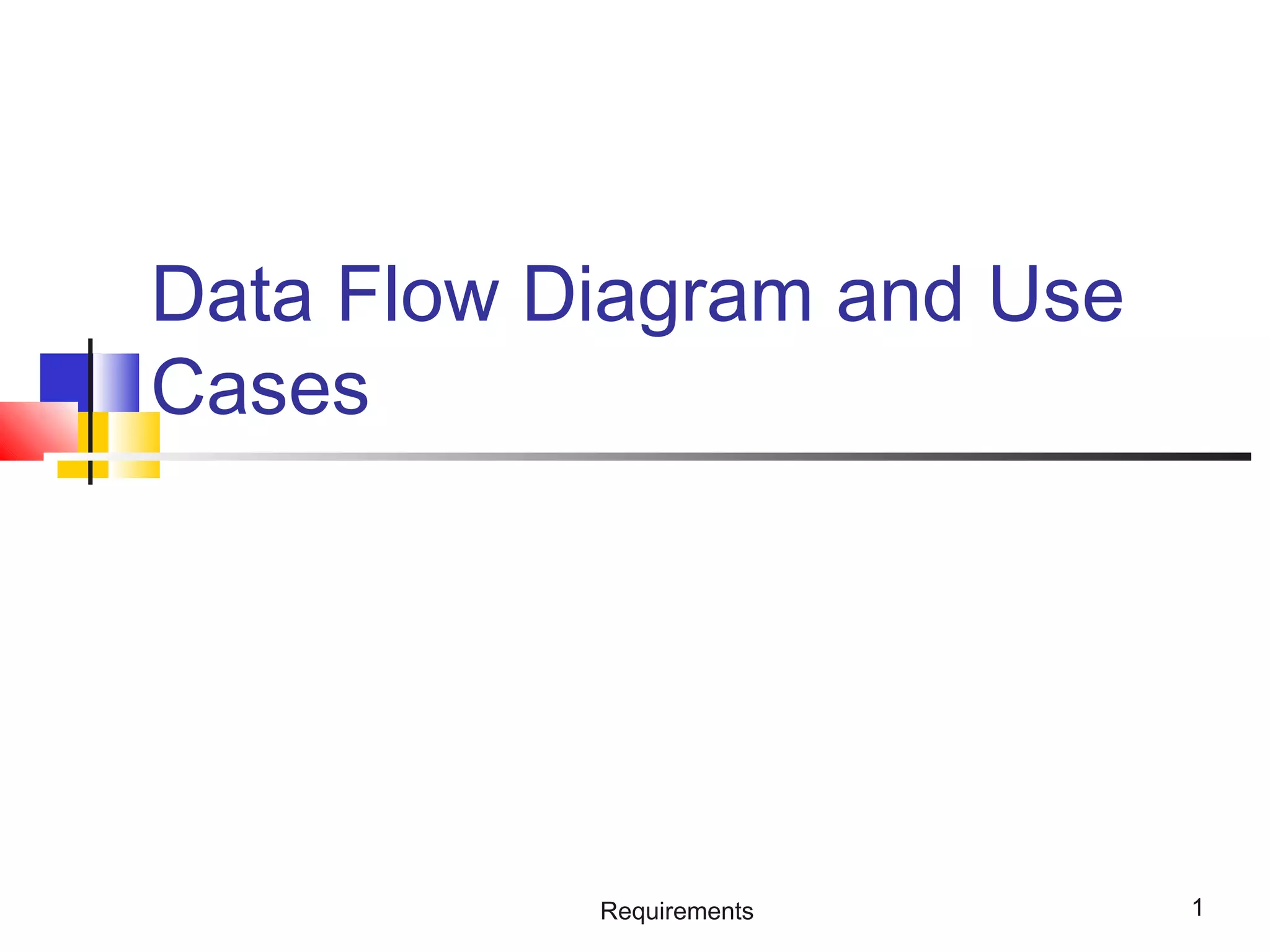

Requirements 1
Data Flow Diagram and Use
Cases
Requirements 2

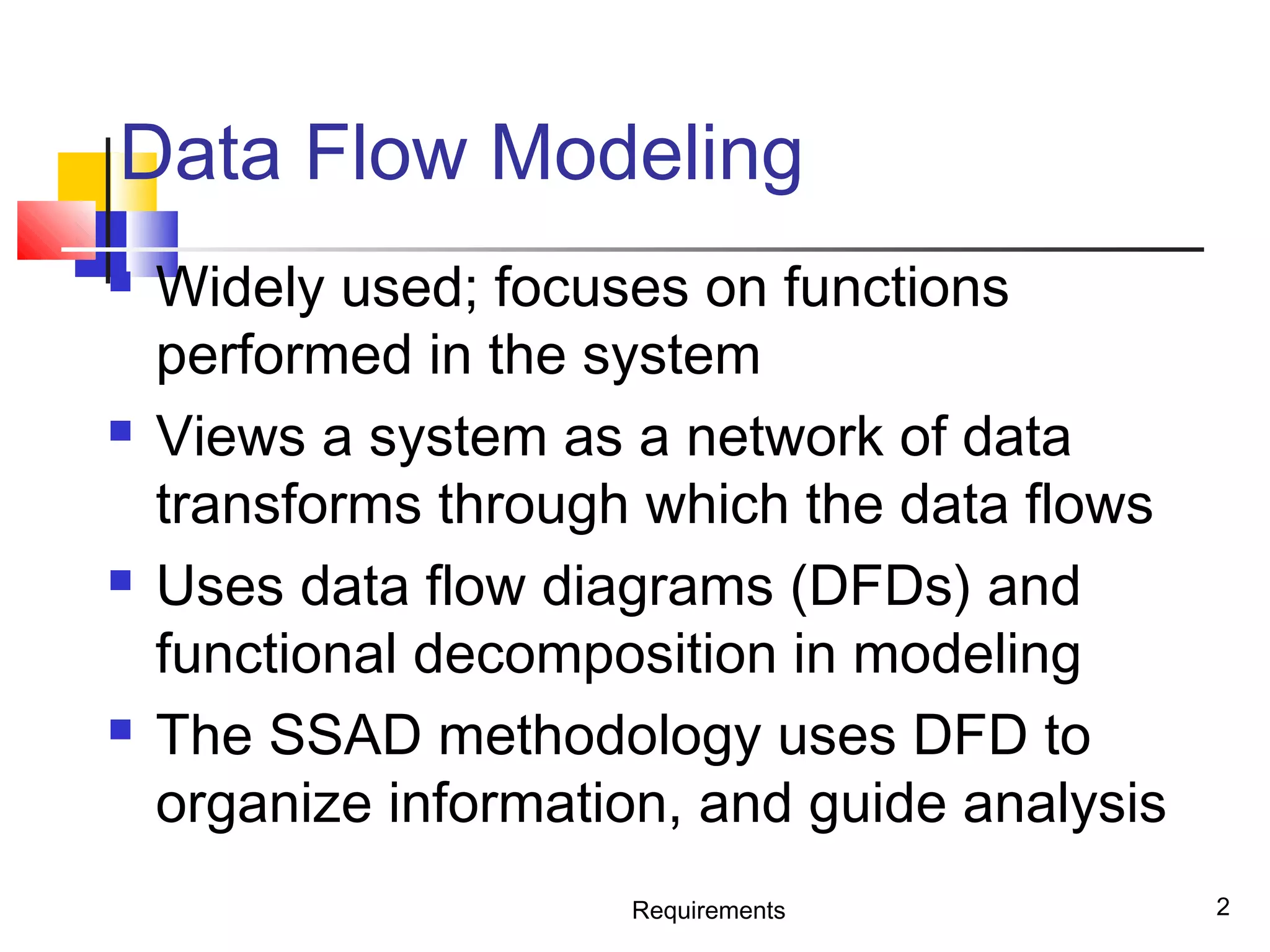

Data Flow Modeling
 Widely used; focuses on functions
performed in the system
 Views a system as a network of data
transforms through which the data flows
 Uses data flow diagrams (DFDs) and
functional decomposition in modeling
 The SSAD methodology uses DFD to
organize information, and guide analysis
Requirements 3
Data flow diagrams
 A DFD shows flow of data through the
system
 Views system as transforming inputs to
outputs
 Transformation done through transforms
 DFD captures how transformation occurs
from input to output as data moves through
the transforms
 Not limited to software
Requirements 4
Data flow diagrams…
 DFD
 Transforms represented by named
circles/bubbles
 Bubbles connected by arrows on which
named data travels
 A rectangle represents a source or sink
and is originator/consumer of data (often
outside the system)
Requirements 5
DFD Example
Requirements 6
DFD Conventions
 External files shown as labeled straight lines
 Need for multiple data flows by a process
represented by * (means and)
 OR relationship represented by +
 All processes and arrows should be named
 Processes should represent transforms,
arrows should represent some data
Requirements 7
Data flow diagrams…
 Focus on what transforms happen , how
they are done is not important
 Usually major inputs/outputs shown,
minor are ignored in this modeling
 No loops , conditional thinking , …
 DFD is NOT a control chart, no
algorithmic design/thinking
 Sink/Source , external files
Requirements 8
Drawing a DFD
 If get stuck , reverse direction
 If control logic comes in , stop and restart
 Label each arrows and bubbles
 Make use of + & *
 Try drawing alternate DFDs
Leveled DFDs :
Requirements 9
Data Dictionary
 In a DFD arrows are labeled with data items
 Data dictionary defines data flows in a DFD
 Shows structure of data; structure becomes
more visible when exploding
 Can use regular expressions to express the
structure of data
Requirements 10
Data Dictionary Example
 For the timesheet DFD
Weekly_timesheet – employee_name + id +
[regular_hrs + overtime_hrs]*
Pay_rate = [hourly | daily | weekly] + dollar_amt
Employee_name = last + first + middle
Id = digit + digit + digit + digit
Requirements 11
DFD drawing – common errors
 Unlabeled data flows
 Missing data flows
 Extraneous data flows
 Consistency not maintained during
refinement
 Missing processes
 Too detailed or too abstract
 Contains some control information
Requirements 12
Structured Analysis Method
 Structured system analysis and design
(SSAD) – we will focus only on analysis
 Was used a lot when automating existing
manual systems
 Main steps
 Draw a context diagram
 Draw DFD of the existing system
 Draw DFD of the proposed system and identify the
man-machine boundary
Requirements 13
Context Diagram
 Views the entire system as a transform
and identifies the context
 Is a DFD with one transform (system),
with all inputs, outputs, sources, sinks
for the system identified
Requirements 14
Modeling the Proposed System
 No general rules for drawing the DFD of the
future system
 Use existing system understanding
 DFD should model the entire proposed system
- process may be automated or manual
 validate with the user
 Then establish man-machine boundary
 what processes will be automated and which
remains manual
 Show clearly interaction between automated
and manual processes
Requirements 15
Example – context diagram
Requirements 16
Example – DFD of existing sys
Requirements 17
Example – DFD of proposed system
Requirements 18
Characteristics of an SRS
 Correct
 Complete
 Unambiguous
 Consistent
 Verifiable
 Traceable
 Modifiable
 Ranked for importance and/or stability
Requirements 19
Characteristics…
 Correctness
 Each requirement accurately represents some
desired feature in the final system
 Completeness
 All desired features/characteristics specified
 Hardest to satisfy
 Completeness and correctness strongly related
 Unambiguous
 Each req has exactly one meaning
 Without this errors will creep in
 Important as natural languages often used
Requirements 20
Characteristics…
 Verifiability
 There must exist a cost effective way of checking if sw
satisfies requirements
 Consistent
 two requirements don’t contradict each other
 Traceable
 The origin of the req, and how the req relates to software
elements can be determined
 Ranked for importance/stability
 Needed for prioritizing in construction
 To reduce risks due to changing requirements
Requirements 21
Use Cases Approach
 Traditional approach for fn specs – specify
each function
 Use cases is a newer technique for specifying
behavior (functionality)
 I.e. focuses on functional specs only
 Though primarily for specification, can be
used in analysis and elicitation
 Can be used to specify business or org
behavior also, though we will focus on sw
 Well suited for interactive systems
Requirements 22
Use Cases Basics
 A use case captures a contract
between a user and system about
behavior
 Basically a textual form; diagrams are
mostly to support
 Also useful in requirements elicitation
as users like and understand the story
telling form and react to it easily
Requirements 23
Basics..
 Actor: a person or a system that interacts with the
proposed system to achieve a goal
 Eg. User of an ATM (goal: get money); data entry operator;
(goal: Perform transaction)
 Actor is a logical entity, so receiver and sender actors
are different (even if the same person)
 Actors can be people or systems
 Primary actor: The main actor who initiates a UC
 UC is to satisfy his goals
 The actual execution may be done by a system or another
person on behalf of the Primary actor
Requirements 24
Basics..
 A UC is a collection of many such
scenarios
 A scenario may employ other use cases
in a step
 I.e. a sub-goal of a UC goal may be
performed by another UC
 I.e. UCs can be organized hierarchically
Requirements 25
Basics…
 UCs specify functionality by describing
interactions between actors and system
 Focuses on external behavior
 UCs are primarily textual
 UC diagrams show UCs, actors, and
dependencies
 They provide an overview
 Story like description easy to understand by
both users and analysts
 They do not form the complete SRS, only the
functionality part
Requirements 26
Example – An auction site
 Use Case1: Put an item for auction
 Primary Actor: Seller
 Precondition: Seller has logged in
 Main Success Scenario:
 Seller posts an item (its category, description, picture,
etc.) for auction
 System shows past prices of similar items to seller
 System specifies the starting bid price and a date when
auction will close
 System accepts the item and posts it
 Exception Scenarios:

-- 2 a) There are no past items of this category
* System tells the seller this situation
Requirements 27
Example – auction site..
 Use Case2: Make a bid
 Primary Actor: Buyer
 Precondition: The buyer has logged in
 Main Success Scenario:
 Buyer searches or browses and selects some item
 System shows the rating of the seller, the starting bid, the
current bids, and the highest bid; asks buyer to make a bid
 Buyer specifies bid price, max bid price, and increment
 Systems accepts the bid; Blocks funds in bidders account
 System updates the bid price of other bidders where needed,
and updates the records for the item
Requirements 28
 Exception Scenarios:
 -- 3 a) The bid price is lower than the current
highest
* System informs the bidder and asks to rebid
 -- 4 a) The bidder does not have enough funds in
his account
* System cancels the bid, asks the user to get
more funds
Requirements 29
Example –auction site..
 Use Case3: Complete auction of an item
 Primary Actor: Auction System
 Precondition: The last date for bidding has been
reached
 Main Success Scenario:
 Select highest bidder; send email to selected bidder and seller
informing final bid price; send email to other bidders also
 Debit bidder’s account and credit seller’s account
 Transfer from seller’s account commission amount to
organization’s account
 Remove item from the site; update records
 Exception Scenarios: None
Requirements 30
Example – summary-level Use Case
 Use Case 0 : Auction an item
 Primary Actor: Auction system
 Scope: Auction conducting organization
 Precondition: None
 Main Success Scenario:
 Seller performs put an item for auction
 Various bidders make a bid
 On final date perform Complete the auction of
the item
 Get feed back from seller; get feedback from
buyer; update records
Requirements 31
Requirements with Use Cases
 UCs specify functional requirements
 Other req identified separately
 A complete SRS will contain the use
cases plus the other requirements
 Note – for system requirements it is
important to identify UCs for which the
system itself may be the actor
Requirements 32
Developing Use Cases
 UCs form a good medium for
brainstorming and discussions
 Hence can be used in elicitation and
problem analysis also
 UCs can be developed in a stepwise
refinement manner
 Many levels possible, but four naturally
emerge
Requirements 33
Requirements Validation
 Lot of room for misunderstanding
 Errors possible
 Expensive to fix req defects later
 Must try to remove most errors in SRS
 Most common errors
 Omission - 30%
 Inconsistency - 10-30%
 Incorrect fact - 10-30%
 Ambiguity - 5 -20%

More Related Content

What's hot

Component and Deployment Diagram - Brief Overview
Component and Deployment Diagram - Brief OverviewComponent and Deployment Diagram - Brief Overview
Component and Deployment Diagram - Brief Overview
Rajiv Kumar

OOAD - UML - Sequence and Communication Diagrams - Lab
OOAD - UML - Sequence and Communication Diagrams - LabOOAD - UML - Sequence and Communication Diagrams - Lab
OOAD - UML - Sequence and Communication Diagrams - Lab
Victer Paul

Software Engineering- ERD DFD Decision Tree and Table
Software Engineering- ERD DFD Decision Tree and TableSoftware Engineering- ERD DFD Decision Tree and Table
Software Engineering- ERD DFD Decision Tree and Table
Nishu Rastogi

Data flow diagrams - DFD
Data flow diagrams - DFDData flow diagrams - DFD
Data flow diagrams - DFD
mbedlabs Technosolutions

Object oriented software engineering concepts
Object oriented software engineering conceptsObject oriented software engineering concepts
Object oriented software engineering conceptsKomal Singh

SRS(software requirement specification)
SRS(software requirement specification)SRS(software requirement specification)
SRS(software requirement specification)
Akash Kumar Dhameja

Object Oriented Analysis and Design
Object Oriented Analysis and DesignObject Oriented Analysis and Design
Object Oriented Analysis and DesignHaitham El-Ghareeb

SE_Lec 05_System Modelling and Context Model
SE_Lec 05_System Modelling and Context ModelSE_Lec 05_System Modelling and Context Model
SE_Lec 05_System Modelling and Context Model
Amr E. Mohamed

SDLC Models
SDLC ModelsSDLC Models
SDLC Models
akash250690

Software requirements
Software requirementsSoftware requirements
Software requirements
Dr. Loganathan R

Structured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and DesignStructured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and Design
Motaz Saad

Software Engineering :Behavioral Modelling - I Sequence diagram
Software Engineering :Behavioral Modelling - I Sequence diagram Software Engineering :Behavioral Modelling - I Sequence diagram
Software Engineering :Behavioral Modelling - I Sequence diagram
Ajit Nayak

Data Flow Diagrams
Data Flow DiagramsData Flow Diagrams
Data Flow Diagrams
Sinhaa Yash

2.software requirement specification
2.software requirement specification2.software requirement specification
2.software requirement specificationDeepak Sharma

Behavioural modelling
Behavioural modellingBehavioural modelling
Behavioural modelling
Benazir Fathima

Activity diagram
Activity diagramActivity diagram
Activity diagram
LOKENDRA PRAJAPATI

Design Concepts in Software Engineering-1.pptx
Design Concepts in Software Engineering-1.pptxDesign Concepts in Software Engineering-1.pptx
Design Concepts in Software Engineering-1.pptx
KarthigaiSelviS3

Unit 1( modelling concepts & class modeling)
Unit  1( modelling concepts & class modeling)Unit  1( modelling concepts & class modeling)
Unit 1( modelling concepts & class modeling)
Manoj Reddy

Dynamic and Static Modeling
Dynamic and Static ModelingDynamic and Static Modeling
Dynamic and Static ModelingSaurabh Kumar

Software architecture Unit 1 notes
Software architecture Unit 1 notesSoftware architecture Unit 1 notes
Software architecture Unit 1 notesSudarshan Dhondaley


What's hot (20)

Component and Deployment Diagram - Brief Overview
Component and Deployment Diagram - Brief OverviewComponent and Deployment Diagram - Brief Overview
Component and Deployment Diagram - Brief Overview

OOAD - UML - Sequence and Communication Diagrams - Lab
OOAD - UML - Sequence and Communication Diagrams - LabOOAD - UML - Sequence and Communication Diagrams - Lab
OOAD - UML - Sequence and Communication Diagrams - Lab

Software Engineering- ERD DFD Decision Tree and Table
Software Engineering- ERD DFD Decision Tree and TableSoftware Engineering- ERD DFD Decision Tree and Table
Software Engineering- ERD DFD Decision Tree and Table

Data flow diagrams - DFD
Data flow diagrams - DFDData flow diagrams - DFD
Data flow diagrams - DFD

Object oriented software engineering concepts
Object oriented software engineering conceptsObject oriented software engineering concepts
Object oriented software engineering concepts

SRS(software requirement specification)
SRS(software requirement specification)SRS(software requirement specification)
SRS(software requirement specification)

Object Oriented Analysis and Design
Object Oriented Analysis and DesignObject Oriented Analysis and Design
Object Oriented Analysis and Design

SE_Lec 05_System Modelling and Context Model
SE_Lec 05_System Modelling and Context ModelSE_Lec 05_System Modelling and Context Model
SE_Lec 05_System Modelling and Context Model

SDLC Models
SDLC ModelsSDLC Models
SDLC Models

Software requirements
Software requirementsSoftware requirements
Software requirements

Structured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and DesignStructured Vs, Object Oriented Analysis and Design
Structured Vs, Object Oriented Analysis and Design

Software Engineering :Behavioral Modelling - I Sequence diagram
Software Engineering :Behavioral Modelling - I Sequence diagram Software Engineering :Behavioral Modelling - I Sequence diagram
Software Engineering :Behavioral Modelling - I Sequence diagram

Data Flow Diagrams
Data Flow DiagramsData Flow Diagrams
Data Flow Diagrams

2.software requirement specification
2.software requirement specification2.software requirement specification
2.software requirement specification

Behavioural modelling
Behavioural modellingBehavioural modelling
Behavioural modelling

Activity diagram
Activity diagramActivity diagram
Activity diagram

Design Concepts in Software Engineering-1.pptx
Design Concepts in Software Engineering-1.pptxDesign Concepts in Software Engineering-1.pptx
Design Concepts in Software Engineering-1.pptx

Unit 1( modelling concepts & class modeling)
Unit  1( modelling concepts & class modeling)Unit  1( modelling concepts & class modeling)
Unit 1( modelling concepts & class modeling)

Dynamic and Static Modeling
Dynamic and Static ModelingDynamic and Static Modeling
Dynamic and Static Modeling

Software architecture Unit 1 notes
Software architecture Unit 1 notesSoftware architecture Unit 1 notes
Software architecture Unit 1 notes


Similar to Data Flow Diagram and USe Case Diagram

Day01 01 software requirement concepts
Day01 01 software requirement conceptsDay01 01 software requirement concepts
Day01 01 software requirement concepts
Namtướcbóngđêm Virut

Chapter 3 requirements
Chapter 3 requirementsChapter 3 requirements
Chapter 3 requirements
Golda Margret Sheeba J

Requirement specification
Requirement specificationRequirement specification
Requirement specificationAbdul Basit

software requirement and architecture.pdf
software requirement and architecture.pdfsoftware requirement and architecture.pdf
software requirement and architecture.pdf
wajoce8790

Final use case (1)
Final use case (1)Final use case (1)
Final use case (1)
03028335403

SE_Lec 08_UML Use Cases
SE_Lec 08_UML Use CasesSE_Lec 08_UML Use Cases
SE_Lec 08_UML Use Cases
Amr E. Mohamed

6.SE_Requirements Modeling.ppt
6.SE_Requirements Modeling.ppt6.SE_Requirements Modeling.ppt
6.SE_Requirements Modeling.ppt
HaiderAli252366

VTU - MIS Module 4 - SDLC
VTU - MIS Module 4 - SDLCVTU - MIS Module 4 - SDLC
VTU - MIS Module 4 - SDLC
Priya Diana Mercy

OOAD U1.pptx
OOAD U1.pptxOOAD U1.pptx
OOAD U1.pptx
anguraju1

Use case modeling
Use case modelingUse case modeling
Use case modeling
Wajahat Hasnain

conversion-gate02.pptx
conversion-gate02.pptxconversion-gate02.pptx
conversion-gate02.pptx
NouraBaccar1

Lecture7 use case modeling
Lecture7 use case modelingLecture7 use case modeling
Lecture7 use case modeling
Shahid Riaz

6. ch 5-understanding requirements
6. ch 5-understanding requirements6. ch 5-understanding requirements
6. ch 5-understanding requirements
Delowar hossain

CIS 2303 LO3 Process Modeling
CIS 2303 LO3 Process ModelingCIS 2303 LO3 Process Modeling
CIS 2303 LO3 Process ModelingAhmad Ammari

Unit ii update
Unit ii updateUnit ii update
Unit ii update
Sangeetha Rangarajan

Slides chapters 6-7
Slides chapters 6-7Slides chapters 6-7
Slides chapters 6-7
Priyanka Shetty


Similar to Data Flow Diagram and USe Case Diagram (20)

Day01 01 software requirement concepts
Day01 01 software requirement conceptsDay01 01 software requirement concepts
Day01 01 software requirement concepts

Chapter 3 requirements
Chapter 3 requirementsChapter 3 requirements
Chapter 3 requirements

Requirement specification
Requirement specificationRequirement specification
Requirement specification

chapter_5_5.ppt
chapter_5_5.pptchapter_5_5.ppt
chapter_5_5.ppt

software requirement and architecture.pdf
software requirement and architecture.pdfsoftware requirement and architecture.pdf
software requirement and architecture.pdf

Final use case (1)
Final use case (1)Final use case (1)
Final use case (1)

3-Requirements.ppt
3-Requirements.ppt3-Requirements.ppt
3-Requirements.ppt

Jar chapter 3
Jar chapter 3Jar chapter 3
Jar chapter 3

SE_Lec 08_UML Use Cases
SE_Lec 08_UML Use CasesSE_Lec 08_UML Use Cases
SE_Lec 08_UML Use Cases

Week 5
Week 5Week 5
Week 5

6.SE_Requirements Modeling.ppt
6.SE_Requirements Modeling.ppt6.SE_Requirements Modeling.ppt
6.SE_Requirements Modeling.ppt

VTU - MIS Module 4 - SDLC
VTU - MIS Module 4 - SDLCVTU - MIS Module 4 - SDLC
VTU - MIS Module 4 - SDLC

OOAD U1.pptx
OOAD U1.pptxOOAD U1.pptx
OOAD U1.pptx

Use case modeling
Use case modelingUse case modeling
Use case modeling

conversion-gate02.pptx
conversion-gate02.pptxconversion-gate02.pptx
conversion-gate02.pptx

Lecture7 use case modeling
Lecture7 use case modelingLecture7 use case modeling
Lecture7 use case modeling

6. ch 5-understanding requirements
6. ch 5-understanding requirements6. ch 5-understanding requirements
6. ch 5-understanding requirements

CIS 2303 LO3 Process Modeling
CIS 2303 LO3 Process ModelingCIS 2303 LO3 Process Modeling
CIS 2303 LO3 Process Modeling

Unit ii update
Unit ii updateUnit ii update
Unit ii update

Slides chapters 6-7
Slides chapters 6-7Slides chapters 6-7
Slides chapters 6-7


More from Kumar

Graphics devices
Graphics devicesGraphics devices
Graphics devices
Kumar

Fill area algorithms
Fill area algorithmsFill area algorithms
Fill area algorithms
Kumar

region-filling
region-fillingregion-filling
region-filling
Kumar

Bresenham derivation
Bresenham derivationBresenham derivation
Bresenham derivation
Kumar

Bresenham circles and polygons derication
Bresenham circles and polygons dericationBresenham circles and polygons derication
Bresenham circles and polygons derication
Kumar

Introductionto xslt
Introductionto xsltIntroductionto xslt
Introductionto xslt
Kumar

Extracting data from xml
Extracting data from xmlExtracting data from xml
Extracting data from xml
Kumar

Xml basics
Xml basicsXml basics
Xml basics
Kumar

XML Schema
XML SchemaXML Schema
XML Schema
Kumar

Publishing xml
Publishing xmlPublishing xml
Publishing xml
Kumar

DTD
DTDDTD
DTD
Kumar

Applying xml
Applying xmlApplying xml
Applying xml
Kumar

Introduction to XML
Introduction to XMLIntroduction to XML
Introduction to XML
Kumar

How to deploy a j2ee application
How to deploy a j2ee applicationHow to deploy a j2ee application
How to deploy a j2ee application
Kumar

JNDI, JMS, JPA, XML
JNDI, JMS, JPA, XMLJNDI, JMS, JPA, XML
JNDI, JMS, JPA, XML
Kumar

EJB Fundmentals
EJB FundmentalsEJB Fundmentals
EJB Fundmentals
Kumar

JSP and struts programming
JSP and struts programmingJSP and struts programming
JSP and struts programming
Kumar

java servlet and servlet programming
java servlet and servlet programmingjava servlet and servlet programming
java servlet and servlet programming
Kumar

Introduction to JDBC and JDBC Drivers
Introduction to JDBC and JDBC DriversIntroduction to JDBC and JDBC Drivers
Introduction to JDBC and JDBC Drivers
Kumar

Introduction to J2EE
Introduction to J2EEIntroduction to J2EE
Introduction to J2EE
Kumar


More from Kumar (20)

Graphics devices
Graphics devicesGraphics devices
Graphics devices

Fill area algorithms
Fill area algorithmsFill area algorithms
Fill area algorithms

region-filling
region-fillingregion-filling
region-filling

Bresenham derivation
Bresenham derivationBresenham derivation
Bresenham derivation

Bresenham circles and polygons derication
Bresenham circles and polygons dericationBresenham circles and polygons derication
Bresenham circles and polygons derication

Introductionto xslt
Introductionto xsltIntroductionto xslt
Introductionto xslt

Extracting data from xml
Extracting data from xmlExtracting data from xml
Extracting data from xml

Xml basics
Xml basicsXml basics
Xml basics

XML Schema
XML SchemaXML Schema
XML Schema

Publishing xml
Publishing xmlPublishing xml
Publishing xml

DTD
DTDDTD
DTD

Applying xml
Applying xmlApplying xml
Applying xml

Introduction to XML
Introduction to XMLIntroduction to XML
Introduction to XML

How to deploy a j2ee application
How to deploy a j2ee applicationHow to deploy a j2ee application
How to deploy a j2ee application

JNDI, JMS, JPA, XML
JNDI, JMS, JPA, XMLJNDI, JMS, JPA, XML
JNDI, JMS, JPA, XML

EJB Fundmentals
EJB FundmentalsEJB Fundmentals
EJB Fundmentals

JSP and struts programming
JSP and struts programmingJSP and struts programming
JSP and struts programming

java servlet and servlet programming
java servlet and servlet programmingjava servlet and servlet programming
java servlet and servlet programming

Introduction to JDBC and JDBC Drivers
Introduction to JDBC and JDBC DriversIntroduction to JDBC and JDBC Drivers
Introduction to JDBC and JDBC Drivers

Introduction to J2EE
Introduction to J2EEIntroduction to J2EE
Introduction to J2EE


Recently uploaded

In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...
In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...
In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...
Juraj Vysvader

Providing Globus Services to Users of JASMIN for Environmental Data Analysis
Providing Globus Services to Users of JASMIN for Environmental Data AnalysisProviding Globus Services to Users of JASMIN for Environmental Data Analysis
Providing Globus Services to Users of JASMIN for Environmental Data Analysis
Globus

Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...
Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...
Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...
Shahin Sheidaei

Prosigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology SolutionsProsigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology Solutions
Prosigns

Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024
Globus

A Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdfA Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdf
kalichargn70th171

Into the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdfInto the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdf
Ortus Solutions, Corp

Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...
Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...
Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...
Globus

RISE with SAP and Journey to the Intelligent Enterprise
RISE with SAP and Journey to the Intelligent EnterpriseRISE with SAP and Journey to the Intelligent Enterprise
RISE with SAP and Journey to the Intelligent Enterprise
Srikant77

Using IESVE for Room Loads Analysis - Australia & New Zealand
Using IESVE for Room Loads Analysis - Australia & New ZealandUsing IESVE for Room Loads Analysis - Australia & New Zealand
Using IESVE for Room Loads Analysis - Australia & New Zealand
IES VE

Corporate Management | Session 3 of 3 | Tendenci AMS
Corporate Management | Session 3 of 3 | Tendenci AMSCorporate Management | Session 3 of 3 | Tendenci AMS
Corporate Management | Session 3 of 3 | Tendenci AMS
Tendenci - The Open Source AMS (Association Management Software)

Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...
Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...
Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...
informapgpstrackings

SOCRadar Research Team: Latest Activities of IntelBroker
SOCRadar Research Team: Latest Activities of IntelBrokerSOCRadar Research Team: Latest Activities of IntelBroker
SOCRadar Research Team: Latest Activities of IntelBroker
SOCRadar

Lecture 1 Introduction to games development
Lecture 1 Introduction to games developmentLecture 1 Introduction to games development
Lecture 1 Introduction to games development
abdulrafaychaudhry

How to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good PracticesHow to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good Practices
Globus

GlobusWorld 2024 Opening Keynote session
GlobusWorld 2024 Opening Keynote sessionGlobusWorld 2024 Opening Keynote session
GlobusWorld 2024 Opening Keynote session
Globus

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptxTop Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx
rickgrimesss22

Graphic Design Crash Course for beginners
Graphic Design Crash Course for beginnersGraphic Design Crash Course for beginners
Graphic Design Crash Course for beginners
e20449

OpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoam
OpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoamOpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoam
OpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoam
takuyayamamoto1800

Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Globus


Recently uploaded (20)

In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...
In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...
In 2015, I used to write extensions for Joomla, WordPress, phpBB3, etc and I ...

Providing Globus Services to Users of JASMIN for Environmental Data Analysis
Providing Globus Services to Users of JASMIN for Environmental Data AnalysisProviding Globus Services to Users of JASMIN for Environmental Data Analysis
Providing Globus Services to Users of JASMIN for Environmental Data Analysis

Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...
Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...
Gamify Your Mind; The Secret Sauce to Delivering Success, Continuously Improv...

Prosigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology SolutionsProsigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology Solutions

Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024

A Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdfA Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdf

Into the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdfInto the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdf

Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...
Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...
Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...

RISE with SAP and Journey to the Intelligent Enterprise
RISE with SAP and Journey to the Intelligent EnterpriseRISE with SAP and Journey to the Intelligent Enterprise
RISE with SAP and Journey to the Intelligent Enterprise

Using IESVE for Room Loads Analysis - Australia & New Zealand
Using IESVE for Room Loads Analysis - Australia & New ZealandUsing IESVE for Room Loads Analysis - Australia & New Zealand
Using IESVE for Room Loads Analysis - Australia & New Zealand

Corporate Management | Session 3 of 3 | Tendenci AMS
Corporate Management | Session 3 of 3 | Tendenci AMSCorporate Management | Session 3 of 3 | Tendenci AMS
Corporate Management | Session 3 of 3 | Tendenci AMS

Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...
Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...
Field Employee Tracking System| MiTrack App| Best Employee Tracking Solution|...

SOCRadar Research Team: Latest Activities of IntelBroker
SOCRadar Research Team: Latest Activities of IntelBrokerSOCRadar Research Team: Latest Activities of IntelBroker
SOCRadar Research Team: Latest Activities of IntelBroker

Lecture 1 Introduction to games development
Lecture 1 Introduction to games developmentLecture 1 Introduction to games development
Lecture 1 Introduction to games development

How to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good PracticesHow to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good Practices

GlobusWorld 2024 Opening Keynote session
GlobusWorld 2024 Opening Keynote sessionGlobusWorld 2024 Opening Keynote session
GlobusWorld 2024 Opening Keynote session

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptxTop Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx

Graphic Design Crash Course for beginners
Graphic Design Crash Course for beginnersGraphic Design Crash Course for beginners
Graphic Design Crash Course for beginners

OpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoam
OpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoamOpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoam
OpenFOAM solver for Helmholtz equation, helmholtzFoam / helmholtzBubbleFoam

Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...


Data Flow Diagram and USe Case Diagram

  • 1. Requirements 1 Data Flow Diagram and Use Cases
  • 2. Requirements 2 Data Flow Modeling  Widely used; focuses on functions performed in the system  Views a system as a network of data transforms through which the data flows  Uses data flow diagrams (DFDs) and functional decomposition in modeling  The SSAD methodology uses DFD to organize information, and guide analysis
  • 3. Requirements 3 Data flow diagrams  A DFD shows flow of data through the system  Views system as transforming inputs to outputs  Transformation done through transforms  DFD captures how transformation occurs from input to output as data moves through the transforms  Not limited to software
  • 4. Requirements 4 Data flow diagrams…  DFD  Transforms represented by named circles/bubbles  Bubbles connected by arrows on which named data travels  A rectangle represents a source or sink and is originator/consumer of data (often outside the system)
  • 6. Requirements 6 DFD Conventions  External files shown as labeled straight lines  Need for multiple data flows by a process represented by * (means and)  OR relationship represented by +  All processes and arrows should be named  Processes should represent transforms, arrows should represent some data
  • 7. Requirements 7 Data flow diagrams…  Focus on what transforms happen , how they are done is not important  Usually major inputs/outputs shown, minor are ignored in this modeling  No loops , conditional thinking , …  DFD is NOT a control chart, no algorithmic design/thinking  Sink/Source , external files
  • 8. Requirements 8 Drawing a DFD  If get stuck , reverse direction  If control logic comes in , stop and restart  Label each arrows and bubbles  Make use of + & *  Try drawing alternate DFDs Leveled DFDs :
  • 9. Requirements 9 Data Dictionary  In a DFD arrows are labeled with data items  Data dictionary defines data flows in a DFD  Shows structure of data; structure becomes more visible when exploding  Can use regular expressions to express the structure of data
  • 10. Requirements 10 Data Dictionary Example  For the timesheet DFD Weekly_timesheet – employee_name + id + [regular_hrs + overtime_hrs]* Pay_rate = [hourly | daily | weekly] + dollar_amt Employee_name = last + first + middle Id = digit + digit + digit + digit
  • 11. Requirements 11 DFD drawing – common errors  Unlabeled data flows  Missing data flows  Extraneous data flows  Consistency not maintained during refinement  Missing processes  Too detailed or too abstract  Contains some control information
  • 12. Requirements 12 Structured Analysis Method  Structured system analysis and design (SSAD) – we will focus only on analysis  Was used a lot when automating existing manual systems  Main steps  Draw a context diagram  Draw DFD of the existing system  Draw DFD of the proposed system and identify the man-machine boundary
  • 13. Requirements 13 Context Diagram  Views the entire system as a transform and identifies the context  Is a DFD with one transform (system), with all inputs, outputs, sources, sinks for the system identified
  • 14. Requirements 14 Modeling the Proposed System  No general rules for drawing the DFD of the future system  Use existing system understanding  DFD should model the entire proposed system - process may be automated or manual  validate with the user  Then establish man-machine boundary  what processes will be automated and which remains manual  Show clearly interaction between automated and manual processes
  • 15. Requirements 15 Example – context diagram
  • 16. Requirements 16 Example – DFD of existing sys
  • 17. Requirements 17 Example – DFD of proposed system
  • 18. Requirements 18 Characteristics of an SRS  Correct  Complete  Unambiguous  Consistent  Verifiable  Traceable  Modifiable  Ranked for importance and/or stability
  • 19. Requirements 19 Characteristics…  Correctness  Each requirement accurately represents some desired feature in the final system  Completeness  All desired features/characteristics specified  Hardest to satisfy  Completeness and correctness strongly related  Unambiguous  Each req has exactly one meaning  Without this errors will creep in  Important as natural languages often used
  • 20. Requirements 20 Characteristics…  Verifiability  There must exist a cost effective way of checking if sw satisfies requirements  Consistent  two requirements don’t contradict each other  Traceable  The origin of the req, and how the req relates to software elements can be determined  Ranked for importance/stability  Needed for prioritizing in construction  To reduce risks due to changing requirements
  • 21. Requirements 21 Use Cases Approach  Traditional approach for fn specs – specify each function  Use cases is a newer technique for specifying behavior (functionality)  I.e. focuses on functional specs only  Though primarily for specification, can be used in analysis and elicitation  Can be used to specify business or org behavior also, though we will focus on sw  Well suited for interactive systems
  • 22. Requirements 22 Use Cases Basics  A use case captures a contract between a user and system about behavior  Basically a textual form; diagrams are mostly to support  Also useful in requirements elicitation as users like and understand the story telling form and react to it easily
  • 23. Requirements 23 Basics..  Actor: a person or a system that interacts with the proposed system to achieve a goal  Eg. User of an ATM (goal: get money); data entry operator; (goal: Perform transaction)  Actor is a logical entity, so receiver and sender actors are different (even if the same person)  Actors can be people or systems  Primary actor: The main actor who initiates a UC  UC is to satisfy his goals  The actual execution may be done by a system or another person on behalf of the Primary actor
  • 24. Requirements 24 Basics..  A UC is a collection of many such scenarios  A scenario may employ other use cases in a step  I.e. a sub-goal of a UC goal may be performed by another UC  I.e. UCs can be organized hierarchically
  • 25. Requirements 25 Basics…  UCs specify functionality by describing interactions between actors and system  Focuses on external behavior  UCs are primarily textual  UC diagrams show UCs, actors, and dependencies  They provide an overview  Story like description easy to understand by both users and analysts  They do not form the complete SRS, only the functionality part
  • 26. Requirements 26 Example – An auction site  Use Case1: Put an item for auction  Primary Actor: Seller  Precondition: Seller has logged in  Main Success Scenario:  Seller posts an item (its category, description, picture, etc.) for auction  System shows past prices of similar items to seller  System specifies the starting bid price and a date when auction will close  System accepts the item and posts it  Exception Scenarios:  -- 2 a) There are no past items of this category * System tells the seller this situation
  • 27. Requirements 27 Example – auction site..  Use Case2: Make a bid  Primary Actor: Buyer  Precondition: The buyer has logged in  Main Success Scenario:  Buyer searches or browses and selects some item  System shows the rating of the seller, the starting bid, the current bids, and the highest bid; asks buyer to make a bid  Buyer specifies bid price, max bid price, and increment  Systems accepts the bid; Blocks funds in bidders account  System updates the bid price of other bidders where needed, and updates the records for the item
  • 28. Requirements 28  Exception Scenarios:  -- 3 a) The bid price is lower than the current highest * System informs the bidder and asks to rebid  -- 4 a) The bidder does not have enough funds in his account * System cancels the bid, asks the user to get more funds
  • 29. Requirements 29 Example –auction site..  Use Case3: Complete auction of an item  Primary Actor: Auction System  Precondition: The last date for bidding has been reached  Main Success Scenario:  Select highest bidder; send email to selected bidder and seller informing final bid price; send email to other bidders also  Debit bidder’s account and credit seller’s account  Transfer from seller’s account commission amount to organization’s account  Remove item from the site; update records  Exception Scenarios: None
  • 30. Requirements 30 Example – summary-level Use Case  Use Case 0 : Auction an item  Primary Actor: Auction system  Scope: Auction conducting organization  Precondition: None  Main Success Scenario:  Seller performs put an item for auction  Various bidders make a bid  On final date perform Complete the auction of the item  Get feed back from seller; get feedback from buyer; update records
  • 31. Requirements 31 Requirements with Use Cases  UCs specify functional requirements  Other req identified separately  A complete SRS will contain the use cases plus the other requirements  Note – for system requirements it is important to identify UCs for which the system itself may be the actor
  • 32. Requirements 32 Developing Use Cases  UCs form a good medium for brainstorming and discussions  Hence can be used in elicitation and problem analysis also  UCs can be developed in a stepwise refinement manner  Many levels possible, but four naturally emerge
  • 33. Requirements 33 Requirements Validation  Lot of room for misunderstanding  Errors possible  Expensive to fix req defects later  Must try to remove most errors in SRS  Most common errors  Omission - 30%  Inconsistency - 10-30%  Incorrect fact - 10-30%  Ambiguity - 5 -20%
