Behavioural modelling

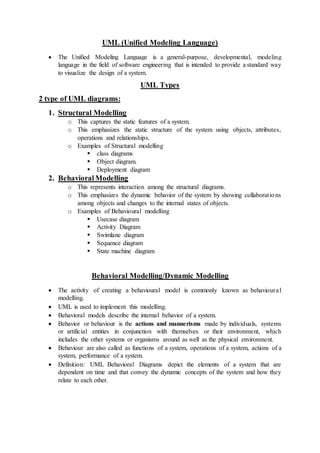

1. UML (Unified Modeling Language)
The Unified Modeling Language is a general-purpose, developmental, modeling
language in the field of software engineering that is intended to provide a standard way
to visualize the design of a system.
UML Types
2 type of UML diagrams:
1. Structural Modelling
o This captures the static features of a system.
o This emphasizes the static structure of the system using objects, attributes,
operations and relationships.
o Examples of Structural modelling
class diagrams
Object diagram.
Deployment diagram
2. Behavioral Modelling
o This represents interaction among the structural diagrams.
o This emphasizes the dynamic behavior of the system by showing collaborations
among objects and changes to the internal states of objects.
o Examples of Behavioural modelling
Usecase diagram
Activity Diagram
Swimlane diagram
Sequence diagram
State machine diagram
Behavioral Modelling/Dynamic Modelling
The activity of creating a behavioural model is commonly known as behavioural
modelling.
UML is used to implement this modelling.
Behavioral models describe the internal behavior of a system.
Behavior or behaviour is the actions and mannerisms made by individuals, systems
or artificial entities in conjunction with themselves or their environment, which
includes the other systems or organisms around as well as the physical environment.
Behaviour are also called as functions of a system, operations of a system, actions of a
system, performance of a system.
Definition: UML Behavioral Diagrams depict the elements of a system that are
dependent on time and that convey the dynamic concepts of the system and how they
relate to each other.

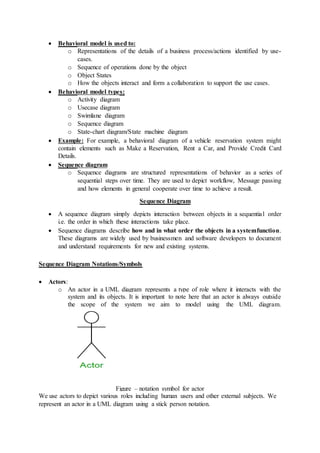

2. Behavioral model is used to:
o Representations of the details of a business process/actions identified by use-
cases.
o Sequence of operations done by the object
o Object States
o How the objects interact and form a collaboration to support the use cases.
Behavioral model types:
o Activity diagram
o Usecase diagram
o Swimlane diagram
o Sequence diagram
o State-chart diagram/State machine diagram
Example: For example, a behavioral diagram of a vehicle reservation system might
contain elements such as Make a Reservation, Rent a Car, and Provide Credit Card
Details.

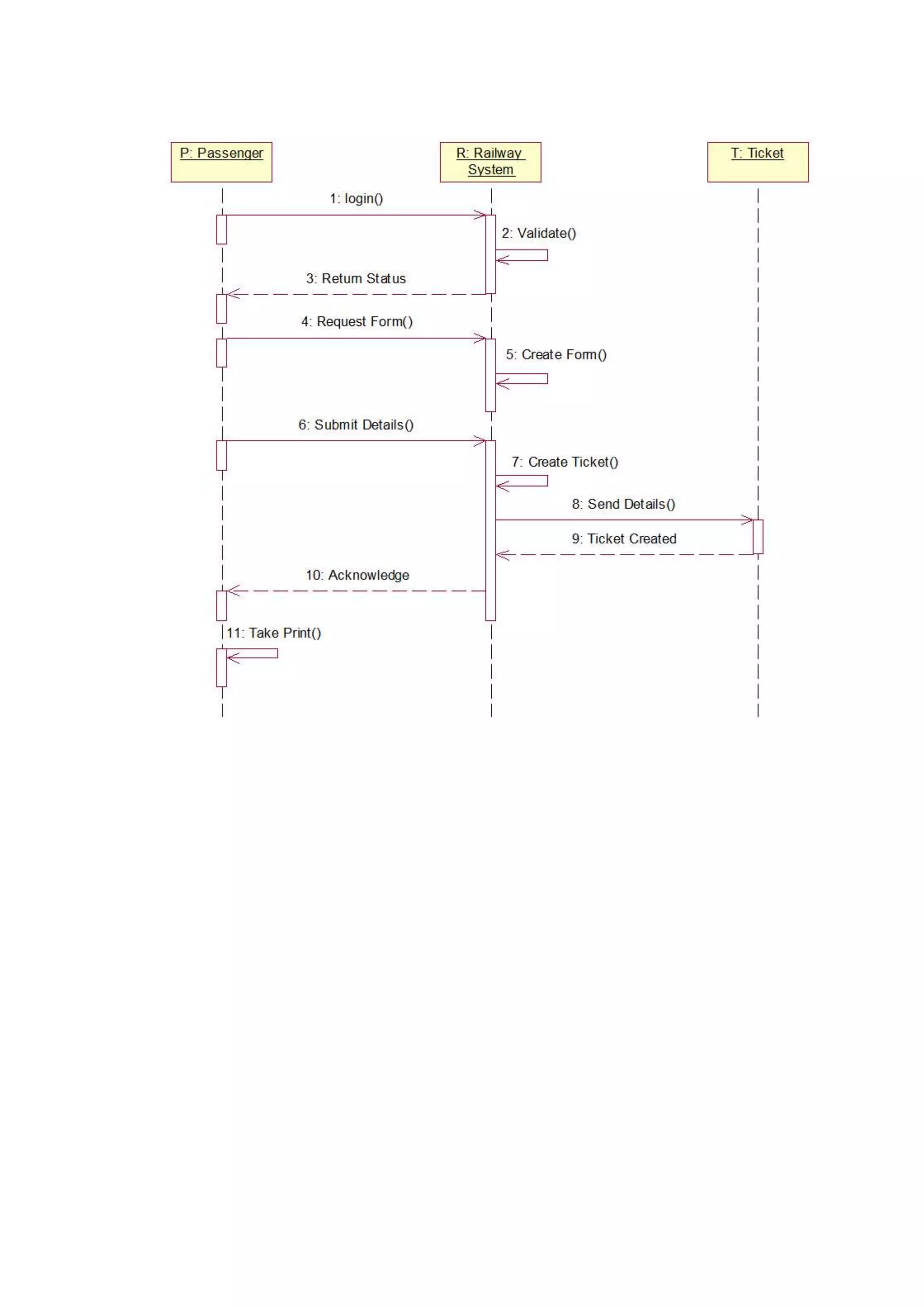

Sequence diagram
o Sequence diagrams are structured representations of behavior as a series of
sequential steps over time. They are used to depict workflow, Message passing
and how elements in general cooperate over time to achieve a result.
Sequence Diagram
A sequence diagram simply depicts interaction between objects in a sequential order
i.e. the order in which these interactions take place.
Sequence diagrams describe how and in what order the objects in a systemfunction.
These diagrams are widely used by businessmen and software developers to document
and understand requirements for new and existing systems.
Sequence Diagram Notations/Symbols
Actors:
o An actor in a UML diagram represents a type of role where it interacts with the
system and its objects. It is important to note here that an actor is always outside
the scope of the system we aim to model using the UML diagram.
Figure – notation symbol for actor
We use actors to depict various roles including human users and other external subjects. We
represent an actor in a UML diagram using a stick person notation.

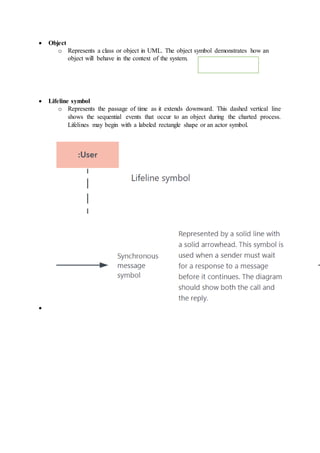

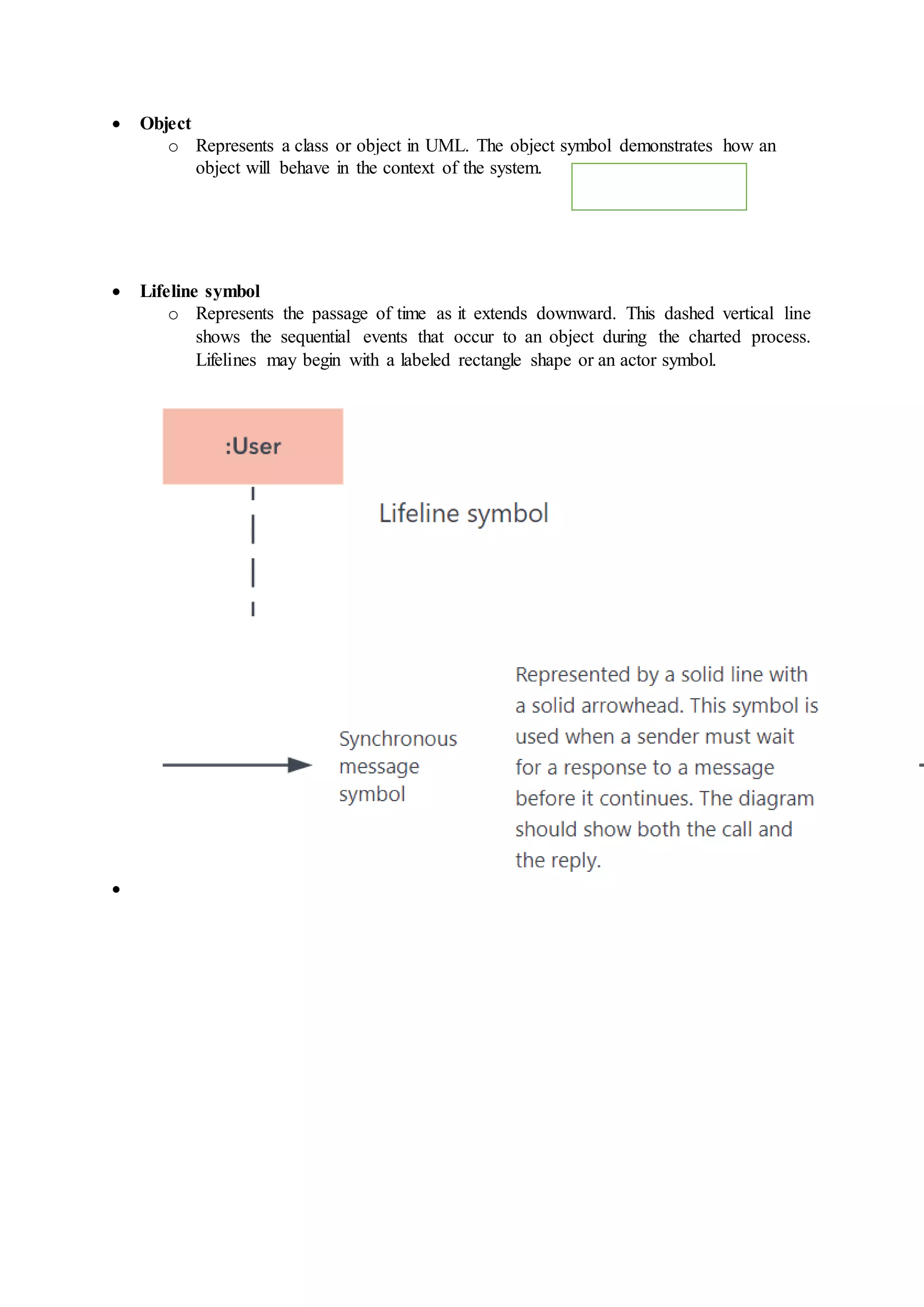

3. Object
o Represents a class or object in UML. The object symbol demonstrates how an
object will behave in the context of the system.
Lifeline symbol
o Represents the passage of time as it extends downward. This dashed vertical line
shows the sequential events that occur to an object during the charted process.
Lifelines may begin with a labeled rectangle shape or an actor symbol.
