1. Chapter 6 System Engineering Software Engineering: A Practitioner’s Approach, 6th edition by Roger S. Pressman

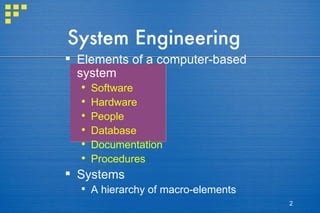

2. System Engineering Elements of a computer-based system Software Hardware People Database Documentation Procedures Systems A hierarchy of macro-elements

3. The Hierarchy

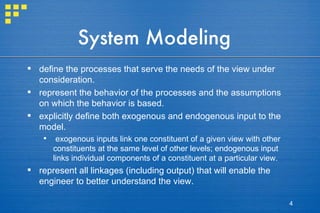

4. System Modeling define the processes that serve the needs of the view under consideration. represent the behavior of the processes and the assumptions on which the behavior is based. explicitly define both exogenous and endogenous input to the model. exogenous inputs link one constituent of a given view with other constituents at the same level of other levels; endogenous input links individual components of a constituent at a particular view. represent all linkages (including output) that will enable the engineer to better understand the view.

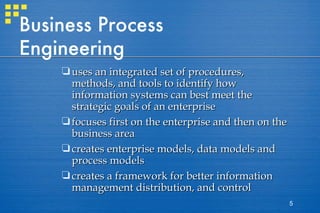

5. Business Process Engineering uses an integrated set of procedures, methods, and tools to identify how information systems can best meet the strategic goals of an enterprise focuses first on the enterprise and then on the business area creates enterprise models, data models and process models creates a framework for better information management distribution, and control

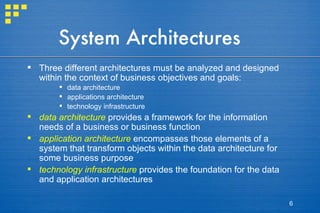

6. System Architectures Three different architectures must be analyzed and designed within the context of business objectives and goals: data architecture applications architecture technology infrastructure data architecture provides a framework for the information needs of a business or business function application architecture encompasses those elements of a system that transform objects within the data architecture for some business purpose technology infrastructure provides the foundation for the data and application architectures

7. The BPE Hierarchy Information strategy planning (ISP) strategic goals defined success factors/business rules identified enterprise model created Business area analysis (BAA) processes/services modeled interrelationships of processes and data Application Engineering a.k.a ... software engineering modeling applications/procedures that address (BAA) and constraints of ISP Construction and delivery using CASE and 4GTs, testing

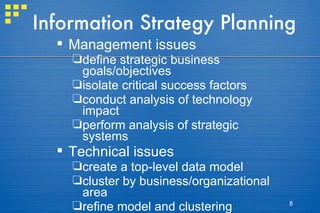

8. Information Strategy Planning Management issues define strategic business goals/objectives isolate critical success factors conduct analysis of technology impact perform analysis of strategic systems Technical issues create a top-level data model cluster by business/organizational area refine model and clustering

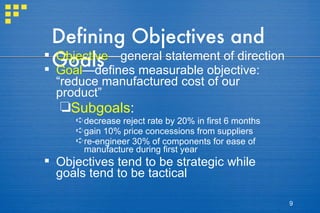

9. Defining Objectives and Goals Objective —general statement of direction Goal —defines measurable objective: “reduce manufactured cost of our product” Subgoals : decrease reject rate by 20% in first 6 months gain 10% price concessions from suppliers re-engineer 30% of components for ease of manufacture during first year Objectives tend to be strategic while goals tend to be tactical

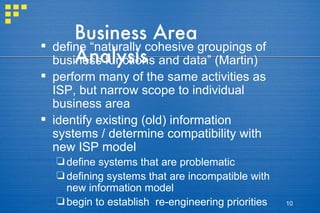

10. Business Area Analysis define “naturally cohesive groupings of business functions and data” (Martin) perform many of the same activities as ISP, but narrow scope to individual business area identify existing (old) information systems / determine compatibility with new ISP model define systems that are problematic defining systems that are incompatible with new information model begin to establish re-engineering priorities

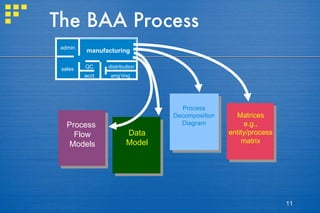

11. The BAA Process sales acct manufacturing QC eng’ring distribution admin. Data Model Process Decomposition Diagram Matrices e.g., entity/process matrix Process Flow Models

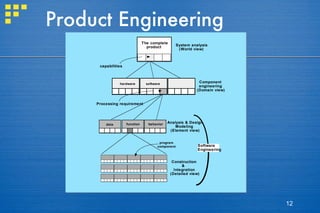

12. Product Engineering

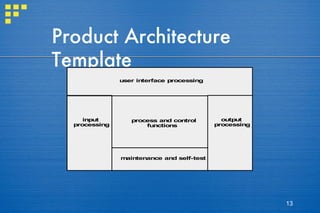

13. Product Architecture Template

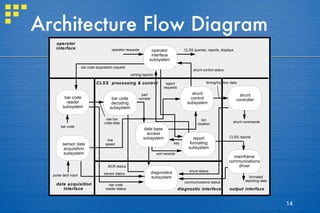

14. Architecture Flow Diagram

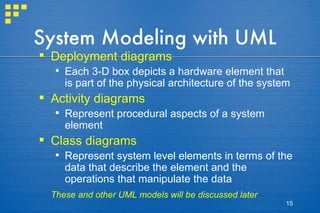

15. System Modeling with UML Deployment diagrams Each 3-D box depicts a hardware element that is part of the physical architecture of the system Activity diagrams Represent procedural aspects of a system element Class diagrams Represent system level elements in terms of the data that describe the element and the operations that manipulate the data These and other UML models will be discussed later

16. Deployment Diagram

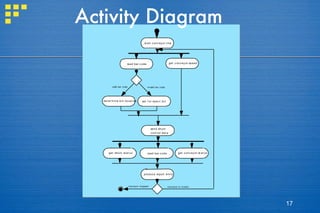

17. Activity Diagram

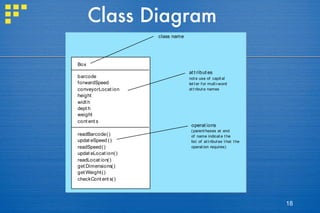

18. Class Diagram

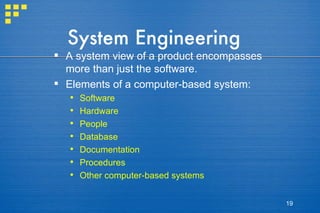

19. System Engineering A system view of a product encompasses more than just the software. Elements of a computer-based system: Software Hardware People Database Documentation Procedures Other computer-based systems

20. Chapter 7 Requirements Engineering Software Engineering: A Practitioner’s Approach, 6th edition by Roger S. Pressman

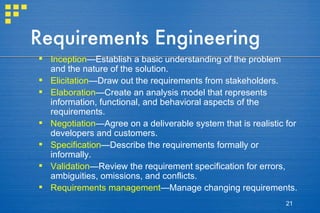

21. Requirements Engineering Inception —Establish a basic understanding of the problem and the nature of the solution. Elicitation —Draw out the requirements from stakeholders. Elaboration —Create an analysis model that represents information, functional, and behavioral aspects of the requirements. Negotiation —Agree on a deliverable system that is realistic for developers and customers. Specification —Describe the requirements formally or informally. Validation —Review the requirement specification for errors, ambiguities, omissions, and conflicts. Requirements management —Manage changing requirements.

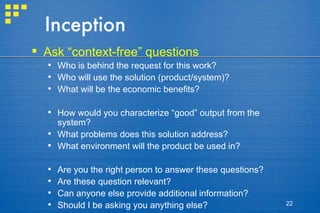

22. Inception Ask “context-free” questions Who is behind the request for this work? Who will use the solution (product/system)? What will be the economic benefits? How would you characterize “good” output from the system? What problems does this solution address? What environment will the product be used in? Are you the right person to answer these questions? Are these question relevant? Can anyone else provide additional information? Should I be asking you anything else?

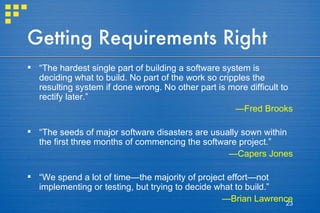

23. Getting Requirements Right “ The hardest single part of building a software system is deciding what to build. No part of the work so cripples the resulting system if done wrong. No other part is more difficult to rectify later.” — Fred Brooks “ The seeds of major software disasters are usually sown within the first three months of commencing the software project.” — Capers Jones “ We spend a lot of time—the majority of project effort—not implementing or testing, but trying to decide what to build.” — Brian Lawrence

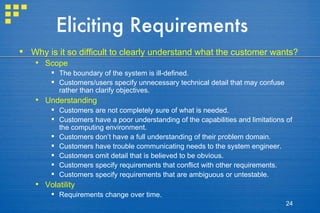

24. Eliciting Requirements Why is it so difficult to clearly understand what the customer wants? Scope The boundary of the system is ill-defined. Customers/users specify unnecessary technical detail that may confuse rather than clarify objectives. Understanding Customers are not completely sure of what is needed. Customers have a poor understanding of the capabilities and limitations of the computing environment. Customers don’t have a full understanding of their problem domain. Customers have trouble communicating needs to the system engineer. Customers omit detail that is believed to be obvious. Customers specify requirements that conflict with other requirements. Customers specify requirements that are ambiguous or untestable. Volatility Requirements change over time.

25. Collaborative Requirements Gathering Meetings are attended by all interested stakeholders. Rules established for preparation and participation. Agenda should be formal enough to cover all important points, but informal enough to encourage the free flow of ideas. A facilitator controls the meeting. A definition mechanism (blackboard, flip charts, etc.) is used. During the meeting: The problem is identified. Elements of the solution are proposed. Different approaches are negotiated. A preliminary set of solution requirements are obtained. The atmosphere is collaborative and non-threatening.

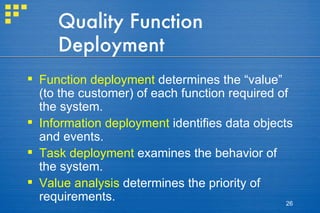

26. Quality Function Deployment Function deployment determines the “value” (to the customer) of each function required of the system. Information deployment identifies data objects and events. Task deployment examines the behavior of the system. Value analysis determines the priority of requirements.

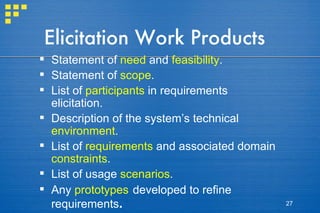

27. Elicitation Work Products Statement of need and feasibility . Statement of scope . List of participants in requirements elicitation. Description of the system’s technical environment . List of requirements and associated domain constraints . List of usage scenarios . Any prototypes developed to refine requirements .

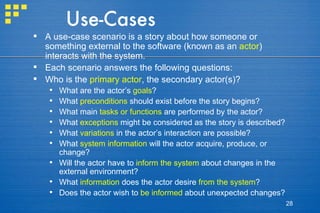

28. Use-Cases A use-case scenario is a story about how someone or something external to the software (known as an actor ) interacts with the system. Each scenario answers the following questions: Who is the primary actor , the secondary actor(s)? What are the actor’s goals ? What preconditions should exist before the story begins? What main tasks or functions are performed by the actor? What exceptions might be considered as the story is described? What variations in the actor’s interaction are possible? What system information will the actor acquire, produce, or change? Will the actor have to inform the system about changes in the external environment? What information does the actor desire from the system ? Does the actor wish to be informed about unexpected changes?

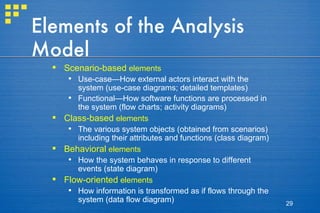

29. Elements of the Analysis Model Scenario-based elements Use-case—How external actors interact with the system (use-case diagrams; detailed templates) Functional—How software functions are processed in the system (flow charts; activity diagrams) Class-based elements The various system objects (obtained from scenarios) including their attributes and functions (class diagram) Behavioral elements How the system behaves in response to different events (state diagram) Flow-oriented elements How information is transformed as if flows through the system (data flow diagram)

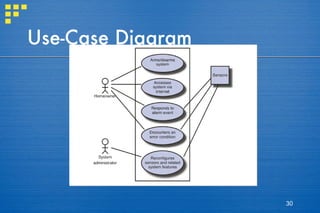

30. Use-Case Diagram

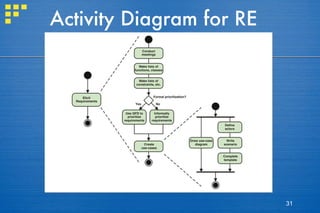

31. Activity Diagram for RE

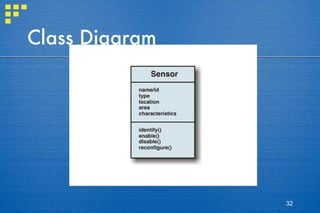

32. Class Diagram

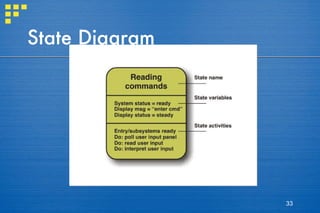

33. State Diagram

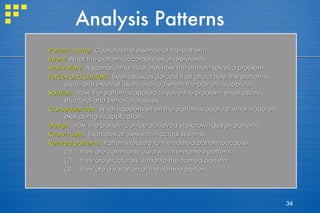

34. Analysis Patterns Pattern name: Captures the essence of the pattern. Intent: What the pattern accomplishes or represents. Motivation: A scenario that illustrates how the pattern solves a problem. Forces and context: External issues (forces) that affect how the pattern is used, and external issues resolved when the pattern is applied. Solution: How the pattern is applied to solve the problem; emphasizes structural and behavioral issues. Consequences : What happens when the pattern is applied; what trade-offs exist during its application. Design : How the pattern can be achieved via known design patterns. Known uses : Examples of uses within actual systems. Related patterns : Patterns related to the named pattern because they are commonly used with the named pattern; they are structurally similar to the named pattern; they are a variation of the named pattern.

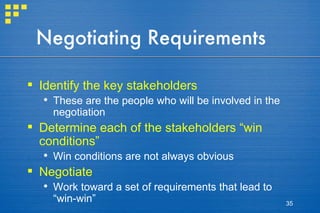

35. Negotiating Requirements Identify the key stakeholders These are the people who will be involved in the negotiation Determine each of the stakeholders “win conditions” Win conditions are not always obvious Negotiate Work toward a set of requirements that lead to “win-win”

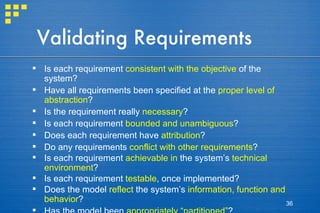

36. Validating Requirements Is each requirement consistent with the objective of the system? Have all requirements been specified at the proper level of abstraction ? Is the requirement really necessary ? Is each requirement bounded and unambiguous ? Does each requirement have attribution ? Do any requirements conflict with other requirements ? Is each requirement achievable in the system’s technical environment ? Is each requirement testable , once implemented? Does the model reflect the system’s information, function and behavior ? Has the model been appropriately “partitioned” ? Have appropriate requirements patterns been used?

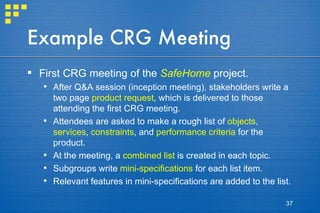

37. Example CRG Meeting First CRG meeting of the SafeHome project. After Q&A session (inception meeting), stakeholders write a two page product request , which is delivered to those attending the first CRG meeting. Attendees are asked to make a rough list of objects , services , constraints , and performance criteria for the product. At the meeting, a combined list is created in each topic. Subgroups write mini-specifications for each list item. Relevant features in mini-specifications are added to the list.

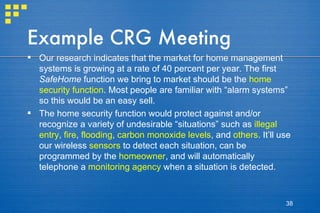

38. Example CRG Meeting Our research indicates that the market for home management systems is growing at a rate of 40 percent per year. The first SafeHome function we bring to market should be the home security function . Most people are familiar with “alarm systems” so this would be an easy sell. The home security function would protect against and/or recognize a variety of undesirable “situations” such as illegal entry , fire , flooding , carbon monoxide levels , and others . It’ll use our wireless sensors to detect each situation, can be programmed by the homeowner , and will automatically telephone a monitoring agency when a situation is detected.

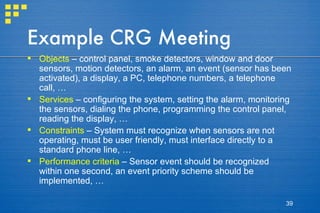

39. Example CRG Meeting Objects – control panel, smoke detectors, window and door sensors, motion detectors, an alarm, an event (sensor has been activated), a display, a PC, telephone numbers, a telephone call, … Services – configuring the system, setting the alarm, monitoring the sensors, dialing the phone, programming the control panel, reading the display, … Constraints – System must recognize when sensors are not operating, must be user friendly, must interface directly to a standard phone line, … Performance criteria – Sensor event should be recognized within one second, an event priority scheme should be implemented, …

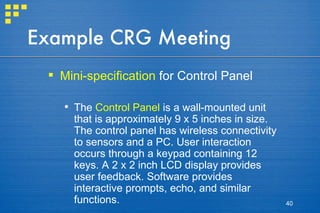

40. Example CRG Meeting Mini-specification for Control Panel The Control Panel is a wall-mounted unit that is approximately 9 x 5 inches in size. The control panel has wireless connectivity to sensors and a PC. User interaction occurs through a keypad containing 12 keys. A 2 x 2 inch LCD display provides user feedback. Software provides interactive prompts, echo, and similar functions.
