1. Proprietary & Confidential
Data Center Interconnect
Seamlessly with SDN
Alessandro Barbieri
VP of Product Development – Pluribus Networks
Alessandro.Barbieri@PluribusNetworks.com
Srinivasan Balaji
Associate Product Line Director -
Broadcom
Balaji.Srinivasan@Broadcom.com

2. 2 © 2016 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Limited and/or its subsidiaries.|
• Broadcom XGS Switch Silicon in the data center
• Foundational Blocks
• Typical Flow handling in the switch with VxLAN sample flow
Agenda
A Broadcom Switch Silicon Perspective

3. 3 © 2016 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Limited and/or its subsidiaries.|
Broadcom Data Center Switch Silicon
20122010 2014 2016
Trident 64 port 10GE
Trident
2
32 port 40GE
32 port 100GE
Tomahawk
2
64 port 100GE
Tomahawk
Since Trident in 2010…. a 10x increase in bandwidth
BROADCOM
BROADCOM
BROADCOM
BROADCOM
10G Adoption
40G Aggregation
10G Virtualization
40G Scaleout
25G Adoption
100G Aggregation
50G/100G Adoption
100G Scaleout
NEW

4. 4 © 2016 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Limited and/or its subsidiaries.|
Foundational Blocks of Data Center Switch
Application Support
Automation and
Visibility
Multiprotocol for
Inter/Intra Network
Flexibility
Performance
Scale
Bandwidth Ports: 10/25/40/50/100GE…. 200/400GE
1.28T/3.2T/6.4T…
Tables: MAC, IPv4/IPv6, MPLS, VxLAN,
Radix
Thruput: QoS, Buffering, Load balancing,
Latency, Multicast, Setup/Teardown
Transformations: Interface, Flex
Lookups, Header insertion/removal
Personality: L2/L3, ToR/ Spine, DCI,
LSR/LER, VxLAN/NVGRE/NVO3, Security
Remote control: SDN, flow monitoring
and control, Buffer stats, packet tracking,
mirroring, event driven actions
VM, Storage: Hadoop, IT Apps,
Storage, NFV, Video, ….
Enable Massive
Connectivity
Network OS Software creates personalities of solutions

5. 5 © 2016 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Limited and/or its subsidiaries.|
Typical Flow Handling In Broadcom Switch
1. Simultaneous processing of multiple flows, e.g., L2, L3 (v4, v6), MPLS, VxLAN etc.
2. Tenant-level classification, ACLs and metering
3. Load Distribution across wide overlay and underlay ECMP Paths
4. In-line instrumentation and telemetry across packet processing pipeline
IPv4
IPv6
Layer2
ACLsVLAN/
Port
Meters
Tunnel ECMP
Underlay ECMP
Instrumentation and Telemetry
BST, Packet Tracing, ECMP Resolution, Several thousand flexible counters
Queuing/QoS
Overlay Load
Distribution
VxLAN
MPLS
GRE
Drop
Tag
Other Actions
Tenant
Classification
Underlay
Table Maintenance
A Highly Integrated and Orchestrated Functionality

6. 6 © 2016 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Limited and/or its subsidiaries.|
Sample VXLAN Flow Handling
Flow
Type
Source Destination Action
Unicast/
Multicast
Access Access L2 Switch packet
Unicast/
Multicast
Access Network L2 packets from tenant VM mapped to VXLAN tunnel
towards destination across L3 network
Unicast/
Multicast
Network Access L2 packets VXLAN tunnel gets decapsulated and forwarded
to local tenant VM
Multicast Network Network Multicast VXLAN tunnel can have local and network
receivers (BUD)
Tenant Isolation, Layer2 Adjacency

7. Proprietary & Confidential
Pluribus Open Data Center Interconnect (DCI)
Alessandro Barbieri
7

8. Proprietary & Confidential

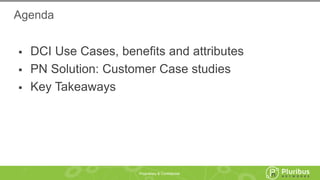

 DCI Use Cases, benefits and attributes
 PN Solution: Customer Case studies
 Key Takeaways
Agenda

9. Proprietary & Confidential
What is DCI?
 Data Center Interconnect (DCI) is the process of connecting two or
more locations typically with Layer-2 or VLAN connectivity
 Can be accomplished with dark fiber direct links, VPN, or tunnel
encapsulation methods
9
Site1 Site2
L3, dark
fiber, L2
emulation
…

10. Proprietary & Confidential

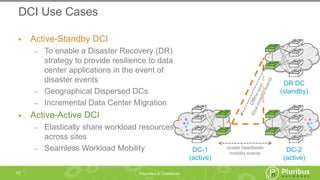

DCI Use Cases
 Active-Standby DCI
‒ To enable a Disaster Recovery (DR)
strategy to provide resilience to data
center applications in the event of
disaster events
‒ Geographical Dispersed DCs
‒ Incremental Data Center Migration
 Active-Active DCI
‒ Elastically share workload resources
across sites
‒ Seamless Workload Mobility
10
DC-1
(active)
DC-2
(active)
DR DC
(standby)
cluster heartbeats
mobility events

11. Proprietary & Confidential
Benefits Of DCI
11
Business Continuity
Service resiliency upon single or multi-
point failures, capacity exhaustion
App Performance Increase
Distribute, localize resources
Capacity Expansion
Statically/dynamically scale
service capacity
Resource Efficiency
Share/Move workload resources
across sites where space, power, is
more convenient
DC-1
(active)
DC-2
(active)
DR DC
(standby)
cluster heartbeats
mobility events

12. Proprietary & Confidential
There Are Plenty Of Solutions Today…
12
COMPLEX TO DEPLOY & MANAGE
CONSTRAINT ON TRANSPORT NETWORK
DIFFICULT TO SCALE (SITES, END POINTS)
EXTREMELY EXPENSIVE ($/bit), CUSTOM HARDWARE
NO VISIBILITY!!
L2TPGRE MPLS VPLS OTV EVPN
L2 interconnect solutions

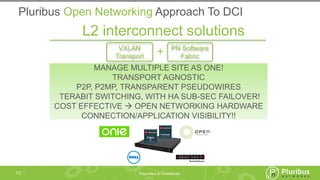

13. Proprietary & Confidential
Pluribus Open Networking Approach To DCI
13
MANAGE MULTIPLE SITE AS ONE!
TRANSPORT AGNOSTIC
P2P, P2MP, TRANSPARENT PSEUDOWIRES
TERABIT SWITCHING, WITH HA SUB-SEC FAILOVER!
COST EFFECTIVE  OPEN NETWORKING HARDWARE
CONNECTION/APPLICATION VISIBILITY!!
VXLAN
Transport
L2 interconnect solutions
PN Software
Fabric
Trident
2
BROADCOM
Tomahawk
BROADCOM
+

14. Proprietary & Confidential
 DCI Use Cases, benefits and attributes
 PN Solution: customer case studies
 Key Takeaways
Agenda

15. Proprietary & Confidential
Customer Example: Mid-Size Enterprise
Requirements
 3-Site L2 extension over existing L3
underlay
 Interoperable with existing Core Network
using standard protocols:
‒ Multi-chassis link aggregation (vLAG), MSTP
‒ OSPF, BGP, BFD
 Layer-2 Extension
 Symmetric routing for inbound/outbooud
traffic
 VM Mobility Support
 Terabit Switching, HA 100ms failover
 Single Point Of Management
15
DC-3
DC-1 DC-2
s6010 s6010
s6010
s6048T
s6048Ts6048T VTEPs
VTEPs
VTEPs

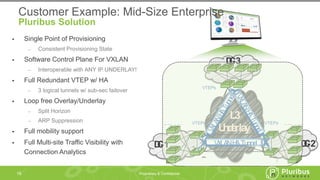

16. Proprietary & Confidential
 Single Point of Provisioning
‒ Consistent Provisioning State
 Software Control Plane For VXLAN
‒ Interoperable with ANY IP UNDERLAY!
 Full Redundant VTEP w/ HA
‒ 3 logical tunnels w/ sub-sec failover
 Loop free Overlay/Underlay
‒ Split Horizon
‒ ARP Suppression
 Full mobility support
 Full Multi-site Traffic Visibility with
Connection Analytics
16
DC-3
DC-1 DC-2
s6010 s6010
s6010
s6048T
s6048Ts6048T VTEPs
VTEPs
VTEPs
L3
Underlay
VXLANHATunnel
VXLANHATunnelVXLANHATunnel
Customer Example: Mid-Size Enterprise
Pluribus Solution

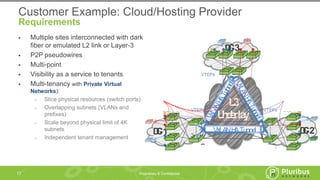

17. Proprietary & Confidential
 Multiple sites interconnected with dark
fiber or emulated L2 link or Layer-3
 P2P pseudowires
 Multi-point
 Visibility as a service to tenants
 Multi-tenancy with Private Virtual
Networks):
‒ Slice physical resources (switch ports)
‒ Overlapping subnets (VLANs and
prefixes)
‒ Scale beyond physical limit of 4K
subnets
‒ Independent tenant management
17
Customer Example: Cloud/Hosting Provider
Requirements
DC-3
DC-1 DC-2
s6010 s6010
s6010
s6048T
s6048Ts6048T VTEPs
VTEPs
VTEPs
L3
Underlay
VXLANHATunnel
VXLANHATunnelVXLANHATunnel

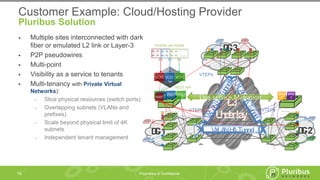

18. Proprietary & Confidential
 Multiple sites interconnected with dark
fiber or emulated L2 link or Layer-3
 P2P pseudowires
 Multi-point
 Visibility as a service to tenants
 Multi-tenancy with Private Virtual
Networks):
‒ Slice physical resources (switch ports)
‒ Overlapping subnets (VLANs and
prefixes)
‒ Scale beyond physical limit of 4K
subnets
‒ Independent tenant management
18
Customer Example: Cloud/Hosting Provider
Pluribus Solution
DC-3
DC-1 DC-2
s6010 s6010
s6010
s6048T
s6048Ts6048T VTEPs
VTEPs
VTEPs
L3
Underlay
VXLANHATunnel
VXLANHATunnelVXLANHATunnel
VNETVNET VNET VNET VNE
T
VNE
TLive service MigrationVNET
REST API
VCFC VCFC VCFC
Visibility per tenant

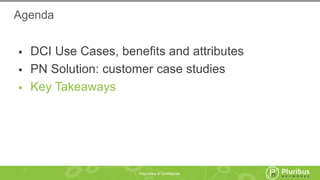

19. Proprietary & Confidential
 DCI Use Cases, benefits and attributes
 PN Solution: customer case studies
 Key Takeaways
Agenda

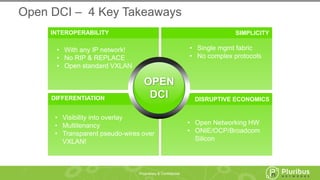

20. Proprietary & Confidential
SIMPLICITY
DISRUPTIVE ECONOMICS
• Single mgmt fabric
• No complex protocols
• Open Networking HW
• ONIE/OCP/Broadcom
Silicon
Open DCI – 4 Key Takeaways
OPEN
DCI
INTEROPERABILITY
DIFFERENTIATION
• With any IP network!
• No RIP & REPLACE
• Open standard VXLAN
• Visibility into overlay
• Multitenancy
• Transparent pseudo-wires over
VXLAN!

21. Proprietary & Confidential
Thank You, Questions?
21

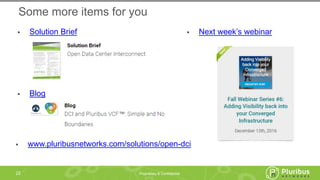

22. Proprietary & Confidential
