Linux Native VXLAN Integration - CloudStack Collaboration Conference 2013, Santa Clara
Toshiaki Hatano presented on integrating VXLAN support natively in Linux to address the VLAN ID limit in CloudStack. VXLAN allows for more isolated guest networks by using 16 million VXLAN network identifiers instead of the 4096 VLAN IDs. The implementation strategy is to initially target KVM hypervisors with Linux bridging, and add a VXLAN isolation method and VXLAN guest network driver while keeping most of the existing VLAN logic. This would allow CloudStack to provide larger virtual private cloud deployments with network isolation comparable to VLANs but without being restricted by the VLAN ID limit.
More Related Content
Similar to Linux Native VXLAN Integration - CloudStack Collaboration Conference 2013, Santa Clara
Linux Native VXLAN Integration - CloudStack Collaboration Conference 2013, Santa Clara
- 1. 6/24/2013 1 Linux NativeVXLAN Integration Toshiaki Hatano Verio Inc.
- 2. 6/24/2013 2 • ToshiakiHatano • Network Engineer, and Technical Account Manager at Verio • Employee of NTT Communications o a leading telecommunication company in Japan About me
- 3. 6/24/2013 3 • We’reusing CloudStack • As core component of our Public Cloud Service CloudStack and Us Cloudn• • We’re providing both Basic and Advanced zone. • Planning to provide VPC.
- 4. 6/24/2013 4 • AdvancedZone o have more functionality • NAT, FW, LB, VPN • VPC o Isolation required • For each guest network • For each VPC tier • Isolation Method: VLAN o VLAN ID is limited • Only 4096 • Should be identical in a zone o # of Domains are limited by VLAN • A domain require at least one VID Problem: VLAN ID limit VPC Public Network Virtual Router VPC Tier VM VM VM VM VPC Tier Guest Network VM VM Virtual Router Isolated Advanced Zone
- 5. 6/24/2013 5 • VXLAN •VLAN like Layer 2 encapsulation over UDP • being standardized in IETF • 16M isolated network • Why? • Open source implementation exists in Linux kernel • Work in distributed manner, just like VLAN • Learning bridge • 1:N tunneling • UDP encapsulation • No need of expensive network device to support VXLAN and Why?
- 6. 6/24/2013 6 VXLAN 1:Ntunnel Host VM vxlanYethX brethX-Y vnet Underlying Network VMVM (not associated with VXLAN Y) (1) (2) ① If multicast or broadcast or Unicast but host (Src) doesn’t know mapping VXLAN uses Multicast Host (Dst) learn mapping between VM and Host (Src) ② If Unicast and Host (Src) learned mapping between VM and Host (Dst) VXLAN uses Unicast *1 *1: If underlying Network supports IGMP/MLD snooping and/or Multicast routing.
- 7. 6/24/2013 7 • Initialtarget • KVM hypervisor with “Bridge” (not Open vSwitch) • Only for Guest Network • Share logic/UI-flow with VLAN as much as possible 1. Assign VNI range for zone while zone creation 2. Allocate VNI for network while network creation 3. Automatically create VXLAN interface and connect it to bridge when first VM in network created • To handle difference • Add isolation method “VXLAN” • Add Guru “VxlanGuestNetworkGuru” • Add code like “if( isolationmethod == “VXLAN” ) …” to every code assuming VLAN, outside Guru Implementation strategy
- 8. 6/24/2013 8 CloudStack KVMVLAN – bridging Overview KVM Host Public Network Internet cloudbrX ethX VR vnetX vnetX brethX-Y VM vnetX brethX-Y KVM Host Guest Network (VLAN encap) ethX.Y ethX.Y VM vnetX ethX ethX
- 9. 6/24/2013 9 CloudStack KVMVXLAN– bridging Overview KVM Public Network Internet cloudbrX ethX VR vnetX vnetX brethX-Y VM vnetX brethX-Y KVM VXLAN encapsulated VM vnetX cloudbrX cloudbrX ethX ethX vxlanY vxlanY
- 10. 6/24/2013 10 Requirement: KVM/Bridge (not OpenvSwitch) Linux kernel 3.7 or later VXLAN kernel module and iproute2 supporting Recent Linux distribution satisfy this. Fedora 17 Ubuntu 13 Etc. User flow – (1) Setup KVM
- 11. 6/24/2013 11 User flow –(2) Adding Zone
- 12. 6/24/2013 12 User flow –(2) Adding Zone * UI is Mockup vNet
- 13. 6/24/2013 13 User flow –(3) Adding Network * UI is Mockup vNet
- 14. 6/24/2013 14 Packet capture KVM 1 vxlanX KVM2 KVM 3 vxlanX vxlanX eth eth eth VM 1 VR VM 2 VM 3 1) Ping from VM1 to VM2 (captured from vxlanX on KVM1) 2) Ping from VM1 to broadcast address (captured from vxlanX on KVM1)
- 15. 6/24/2013 15 unicastping.pcap Left: Outer packetRight: Decode inner frame
- 16. 6/24/2013 16 bcastping.pcap Left: Outer packetRight: Decode inner frame
- 17. 6/24/2013 17 • We’re addingnew network isolation method: “VXLAN” • The goal is to provide bigger substitute of VLAN • And make as little change in UI/UX as possible Summary Special Thanks: Jamie Gritton: Verio Inc. Junji Arakawa: NTT Communications Corp.

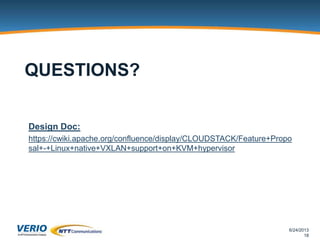

- 18.
Editor's Notes
- #3 Hello.Good morning everyone.My name is Toshiaki Hatano.I’m currently working at Verio, a hosting company, as Network Engineer and Technical Account Manager.I’m also employee of NTT Communications, a leading telecom company in Japan.I don’t have much things to be written here, because I’m very new in this industry.I was university student specializing networking in Japan, before I join the company last year.
- #4 Before start talking about VXLAN, As Mr. childer mentioned in key note.We are operator.And we’d like to be developer now.
- #5 Let me share some background of this speech.I believe this is common problem for the people who providing IaaS.Right diagram illustrate networking of advanced zone.It’s obvious that Advanced Zone have more functionality.You can have your domain dedicated private network.You can do NAT, Firewall, Load Balancing, and VPN within CloudStack.And that’s most important one, you can setup your Virtual Private Cloud in Advanced Zone.I heard some customers are really demanding VPC function in IaaS.But Advanced zone require isolation between Guest Networks.Additionally, in VPC, tiers should be isolated each other.We’re using VLAN to isolate networks and I believe VLAN is most typical method to isolate networks.VLAN ID should be identical within a zone.A domain consume at least one VLAN ID.VLAN ID is limited to 4096. It may decreased by switch spec.In our case, we’re allocating a domain per customer account.So, we cannot put more than 4096 customer in a zone.MAC address table
- #6 There’re already many solution for CloudStack that could solve that 4k VLAN ID limitation.Like Private VLAN, Security Group isolation for advanced zone, Q-in-Q, Open vSwitch tunnel using GRE, many proprietary SDN solutions.Open sources are good. But currently all introduce some limitation.For example, prohibit broadcast at all.There’re open source implementation that we’re ready to use… At least for Linux based hypervisors.It’s UDP encapsulation, so what the underlying network devices have to do is just pass UDP packet. We can use common network device.Open sourceNo full mesh required
- #7 I’d like to explain a little bit detail about 1:N tunneling.When we create vxlan interface, it’s bonded to some actual interface. Let’s call the actual interface with “ethX”, you could use bridge interface or vlan interface for the actual interface also.The frame passed to vxlan interface will be encapsulated and go out from the actual interface.It’s same behavior as tun/tap device.When the VM start communicating other VM or VR, host doesn’t know where the destination VM is in.So, when host doesn’t know where the destination VM is, host send the encapsulated packet to multicast address.So destination host and all other host in that vxlan network know where the source host and VM is.Learn the mapping of the src host and src VM.So, we don’t need to setup per flow table by ourselves nor by complicated centralized controller.Don’t need to setup mesh of the tunnel.Only the host that newly connected to isolated vxlan network, should be change. No need to reconfigure existing host every time we add new VM.That make management code very simple.
- #8 For example, vNet range check code in NetworkManagerImpl class.
- #9 cloud-agent create vlaninterface (ethY.X) onphysical interface (ethY)which associated to guesttraffic label (cloudbrZ), created vlan interface will beassociated to cloudVirBrX.Frame sent via ethY.X willbe encapsulated with vlanheader and go out from physical interface (ethY).
- #10 cloud-agent create vxlaninterface (vxlanX) onbridge interface (cloudbrZ)specified by guest traffic label, created vxlan interface willbe associated to cloudVirBrX.Frame sent via vxlanX willbe encapsulated with vxlanheader and go out from physical interface (ethY).It’s just replace tunnel interface. From VLAN to VXLAN.Basically no change to other components.Thanks to the similarity of VLAN and VXLAN, other functions like NAT, firewall, load balancing, security groups should work with VXLAN.So, we don’t need to re-invent wheel for VXLAN.
- #12 Put the guest network in separated physical network
- #19 Roadmap
