- 1. 12-13 April 2016| Data Center World | London 100G and Beyond DC Interconnect: Present and Future • Dr. Susmita Adhikari • Phone: +49-6131-69851-225 • susmita.adhikari@hubersuhner.com • www.hubersuhner.com | www.cubeoptics.com | blog.cubeoptics.com DATA CENTRE WORLD
- 2. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London Global Data Center Traffic 73.1% 8.7% 18.2% 2019 Within Data Center Data Center- to-Data Center Data Center- to-User 75.4% 6.8% 17.8% 2014 Source: Cisco Global Cloud Index 2015, 2014–2019 • Traffic between data centers is growing faster • 100G data center optics is accelerating 100G and Beyond DC Interconnect: Present and Future 2
- 3. Part I 100G DCInterconnect ‘Present’ 12-13 April 2016 | Data Center World | London
- 4. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London IEEE 100GbE Standards Non-Standard Source:ADVAOpticalCopper Multimode Single-Mode Single-Mode Single-Mode Media Type MMF Name 100GBASE- SR10 100GBASE- SR4 Standard IEEE 802.3ba IEEE 802.3bm Electrical 10 x10Gb/s CAUI 10 4 x 25Gb/s CAUI 4 Reach 100m OM3/ 150m OM4 70m OM3/ 100m OM4 Fiber Count (Tx/Rx) 10 4 Lanes 1 850nm 1 850nm Gb/s per lane 10Gb/s 25Gb/s Connector MPO/MTP MPO/MTP Media Type MMF SMF Name 100GBASE- SR10 100GBASE- SR4 100GBASE- LR4 100GBASE- ER4 Standard IEEE 802.3ba IEEE 802.3bm IEEE 802.3ba IEEE 802.3ba Electrical 10 x10Gb/s CAUI 10 4 x 25Gb/s CAUI 4 10 x 10Gb/s CAUI 10 10 x 10Gb/s CAUI 10 Reach 100m OM3/ 150m OM4 70m OM3/ 100m OM4 10km 40km Fiber Count (Tx/Rx) 10 4 1 1 Lanes 1 850nm 1 850nm 4 1295.56nm 1300.05nm 1304.59nm 1309.14nm 4 1295.56nm 1300.05nm 1304.59nm 1309.14nm Gb/s per lane 10Gb/s 25Gb/s 25Gb/s 25Gb/s Connector MPO/MTP MPO/MTP LC LC 100G and Beyond DC Interconnect: Present and Future 4

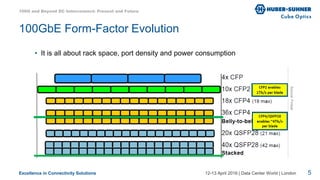

- 5. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London 100GbE Form-Factor Evolution • It is all about rack space, port density and power consumption Source:Finisar 100G and Beyond DC Interconnect: Present and Future 5

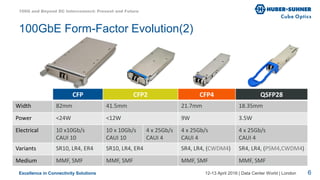

- 6. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London 100GbE Form-Factor Evolution(2) CFP CFP2 CFP4 QSFP28CFP CFP2 CFP4 QSFP28 Width 82mm 41.5mm 21.7mm 18.35mm Power <24W <12W 9W 3.5W Electrical 10 x10Gb/s CAUI 10 10 x 10Gb/s CAUI 10 4 x 25Gb/s CAUI 4 4 x 25Gb/s CAUI 4 4 x 25Gb/s CAUI 4 Variants SR10, LR4, ER4 SR10, LR4, ER4 SR4, LR4, (CWDM4) SR4, LR4, (PSM4,CWDM4) Medium MMF, SMF MMF, SMF MMF, SMF MMF, SMF 100G and Beyond DC Interconnect: Present and Future 6

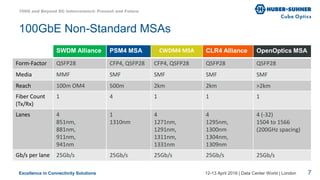

- 7. Excellence in ConnectivitySolutions SWDM Alliance PSM4 MSA CWDM4 MSA CLR4 Alliance OpenOptics MSA Form-Factor QSFP28 CFP4, QSFP28 CFP4, QSFP28 QSFP28 QSFP28 Media MMF SMF SMF SMF SMF Reach 100m OM4 500m 2km 2km >2km Fiber Count (Tx/Rx) 1 4 1 1 1 Lanes 4 851nm, 881nm, 911nm, 941nm 1 1310nm 4 1271nm, 1291nm, 1311nm, 1331nm 4 1295nm, 1300nm 1304nm, 1309nm 4 (-32) 1504 to 1566 (200GHz spacing) Gb/s per lane 25Gb/s 25Gb/s 25Gb/s 25Gb/s 25Gb/s SWDM Alliance PSM4 MSA CWDM4 MSA CLR4 Alliance Form-Factor QSFP28 CFP4, QSFP28 CFP4, QSFP28 QSFP28 Media MMF SMF SMF SMF Reach 100m OM4 500m 2km 2km Fiber Count (Tx/Rx) 1 4 1 1 Lanes 4 851nm, 881nm, 911nm, 941nm 1 1310nm 4 1271nm, 1291nm, 1311nm, 1331nm 4 1295nm, 1300nm 1304nm, 1309nm Gb/s per lane 25Gb/s 25Gb/s 25Gb/s 25Gb/s 12-13 April 2016 | Data Center World | London 100GbE Non-Standard MSAs 100G and Beyond DC Interconnect: Present and Future 7 SWDM Alliance PSM4 MSA Form-Factor QSFP28 CFP4, QSFP28 Media MMF SMF Reach 100m OM4 500m Fiber Count (Tx/Rx) 1 4 Lanes 4 851nm, 881nm, 911nm, 941nm 1 1310nm Gb/s per lane 25Gb/s 25Gb/s SWDM Alliance Form-Factor QSFP28 Media MMF Reach 100m OM4 Fiber Count (Tx/Rx) 1 Lanes 4 851nm, 881nm, 911nm, 941nm Gb/s per lane 25Gb/s

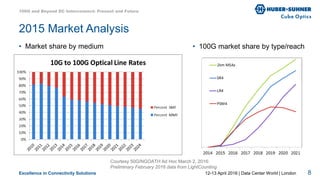

- 8. Excellence in ConnectivitySolutions • Market share by medium 12-13 April 2016 | Data Center World | London 2015 Market Analysis 100G and Beyond DC Interconnect: Present and Future • 100G market share by type/reach Courtesy 50G/NGOATH Ad Hoc March 2, 2016: Preliminary February 2016 data from LightCounting 8

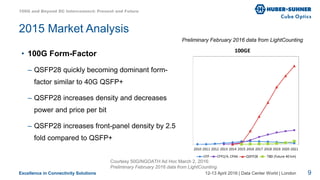

- 9. Excellence in ConnectivitySolutions • 100G Form-Factor – QSFP28 quickly becoming dominant form- factor similar to 40G QSFP+ – QSFP28 increases density and decreases power and price per bit – QSFP28 increases front-panel density by 2.5 fold compared to QSFP+ 12-13 April 2016 | Data Center World | London 2015 Market Analysis Preliminary February 2016 data from LightCounting 100G and Beyond DC Interconnect: Present and Future 9 Courtesy 50G/NGOATH Ad Hoc March 2, 2016: Preliminary February 2016 data from LightCounting
- 10. Part II 100G andBeyond DC Interconnect ‘Future’ 12-13 April 2016 | Data Center World | London

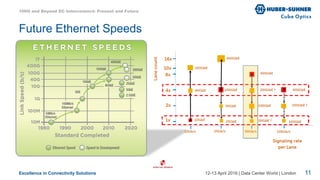

- 11. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London Future Ethernet Speeds 100G and Beyond DC Interconnect: Present and Future 11

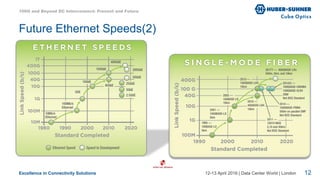

- 12. Excellence in ConnectivitySolutions Future Ethernet Speeds(2) 12-13 April 2016 | Data Center World | London 100G and Beyond DC Interconnect: Present and Future 12

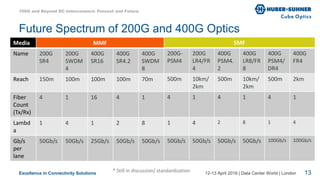

- 13. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London Future Spectrum of 200G and 400G Optics Media MMF SMF Name 200G SR4 200G SWDM 4 400G SR16 400G SR4.2 400G SWDM 8 200G- PSM4 200G LR4/FR 4 400G PSM4. 2 400G LR8/FR 8 400G PSM4/ DR4 400G FR4 Reach 150m 100m 100m 100m 70m 500m 10km/ 2km 500m 10km/ 2km 500m 2km Fiber Count (Tx/Rx) 4 1 16 4 1 4 1 4 1 4 1 Lambd a 1 4 1 2 8 1 4 2 8 1 4 Gb/s per lane 50Gb/s 50Gb/s 25Gb/s 50Gb/s 50Gb/s 50Gb/s 50Gb/s 50Gb/s 50Gb/s 100Gb/s 100Gb/s * Still in discussion/ standardization 100G and Beyond DC Interconnect: Present and Future Media MMF Name 200G SR4 200G SWDM 4 400G SR16 400G SR4.2 400G SWDM 8 Reach 150m 100m 100m 100m 70m Fiber Count (Tx/Rx) 4 1 16 4 1 Lambd a 1 4 1 2 8 Gb/s per lane 50Gb/s 50Gb/s 25Gb/s 50Gb/s 50Gb/s 13
- 14. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London Future Form-Factors 100G and Beyond DC Interconnect: Present and Future 14
- 15. Excellence in ConnectivitySolutions 400GbE Form-Factors 12-13 April 2016 | Data Center World | London CFP2-like 100G and Beyond DC Interconnect: Present and Future 15 CFP8 SR16 Demo at Ethernet Alliance Booth OFC2016
- 16. Part III 100G DCInterconnect ‘Metro’ 12-13 April 2016 | Data Center World | London

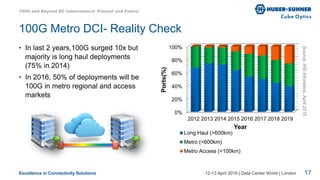

- 17. Excellence in ConnectivitySolutions • In last 2 years,100G surged 10x but majority is long haul deployments (75% in 2014) • In 2016, 50% of deployments will be 100G in metro regional and access markets 12-13 April 2016 | Data Center World | London 100G Metro DCI- Reality Check 0% 20% 40% 60% 80% 100% 2012 2013 2014 2015 2016 2017 2018 2019 Ports(%) Year Long Haul (>600km) Metro (<600km) Metro Access (<100km) Source:IHSInfonetics,April2015 100G and Beyond DC Interconnect: Present and Future 17

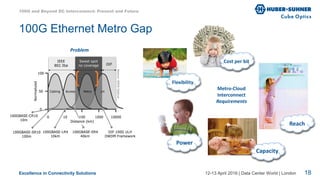

- 18. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London 100G Ethernet Metro Gap Problem 100G and Beyond DC Interconnect: Present and Future 18 Metro-Cloud Interconnect Requirements Reach Capacity Power Flexibility Cost per bit

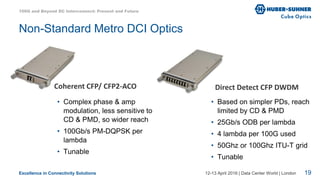

- 19. Excellence in ConnectivitySolutions Non-Standard Metro DCI Optics • Complex phase & amp modulation, less sensitive to CD & PMD, so wider reach • 100Gb/s PM-DQPSK per lambda • Tunable • Based on simpler PDs, reach limited by CD & PMD • 25Gb/s ODB per lambda • 4 lambda per 100G used • 50Ghz or 100Ghz ITU-T grid • Tunable Coherent CFP/ CFP2-ACO Direct Detect CFP DWDM 12-13 April 2016 | Data Center World | London 100G and Beyond DC Interconnect: Present and Future 19

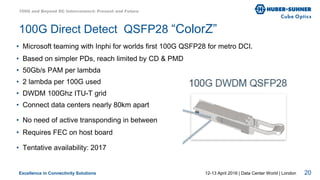

- 20. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London 20 100G Direct Detect QSFP28 “ColorZ” • Microsoft teaming with Inphi for worlds first 100G QSFP28 for metro DCI. • Based on simpler PDs, reach limited by CD & PMD • 50Gb/s PAM per lambda • 2 lambda per 100G used • DWDM 100Ghz ITU-T grid • Connect data centers nearly 80km apart • No need of active transponding in between • Requires FEC on host board • Tentative availability: 2017 100G and Beyond DC Interconnect: Present and Future

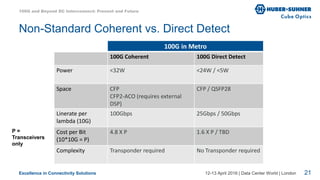

- 21. Excellence in ConnectivitySolutions 12-13 April 2016 | Data Center World | London Non-Standard Coherent vs. Direct Detect 100G in Metro 100G Coherent 100G Direct Detect Power <32W <24W / <5W Space CFP CFP2-ACO (requires external DSP) CFP / QSFP28 Linerate per lambda (10G) 100Gbps 25Gbps / 50Gbps Cost per Bit (10*10G = P) 4.8 X P 1.6 X P / TBD Complexity Transponder required No Transponder required P = Transceivers only 100G and Beyond DC Interconnect: Present and Future 21

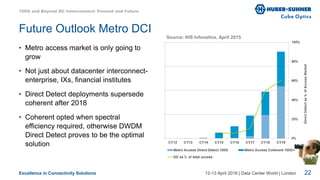

- 22. Excellence in ConnectivitySolutions Future Outlook Metro DCI • Metro access market is only going to grow • Not just about datacenter interconnect- enterprise, IXs, financial institutes • Direct Detect deployments supersede coherent after 2018 • Coherent opted when spectral efficiency required, otherwise DWDM Direct Detect proves to be the optimal solution Source: IHS Infonetics, April 2015 12-13 April 2016 | Data Center World | London 22 100G and Beyond DC Interconnect: Present and Future

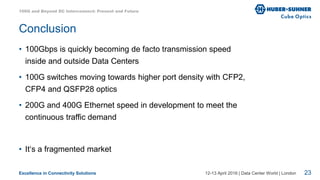

- 23. Excellence in ConnectivitySolutions • 100Gbps is quickly becoming de facto transmission speed inside and outside Data Centers • 100G switches moving towards higher port density with CFP2, CFP4 and QSFP28 optics • 200G and 400G Ethernet speed in development to meet the continuous traffic demand • It‘s a fragmented market 12-13 April 2016 | Data Center World | London Conclusion 100G and Beyond DC Interconnect: Present and Future 23
- 24. • Dr. SusmitaAdhikari • Phone: +49-6131-69851-225 • susmita.adhikari@hubersuhner.com • www.hubersuhner.com | www.cubeoptics.com | blog.cubeoptics.com 12-13 April 2016 | Data Center World | London Thank you for your attention.
