Apache Kafka in conjunction with Apache Spark became the de facto standard for processing and analyzing data. Both frameworks are open, flexible, and scalable. Unfortunately, the latter makes operations a challenge for many teams. Ideally, teams can use serverless SaaS offerings to focus on business logic. However, hybrid and multi-cloud scenarios require a cloud-native platform that provides automated and elastic tooling to reduce the operations burden. This session explores different architectures to build serverless Apache Kafka and Apache Spark multi-cloud architectures across regions and continents. We start from the analytics perspective of a data lake and explore its relation to a fully integrated data streaming layer with Kafka to build a modern data Data Lakehouse. Real-world use cases show the joint value and explore the benefit of the "delta lake" integration.

1. Serverless Kafka and Spark in a
Multi-Cloud Data Lakehouse Architecture
Kai Waehner
Field CTO
kai.waehner@confluent.io
linkedin.com/in/kaiwaehner
@KaiWaehner
confluent.io
kai-waehner.de

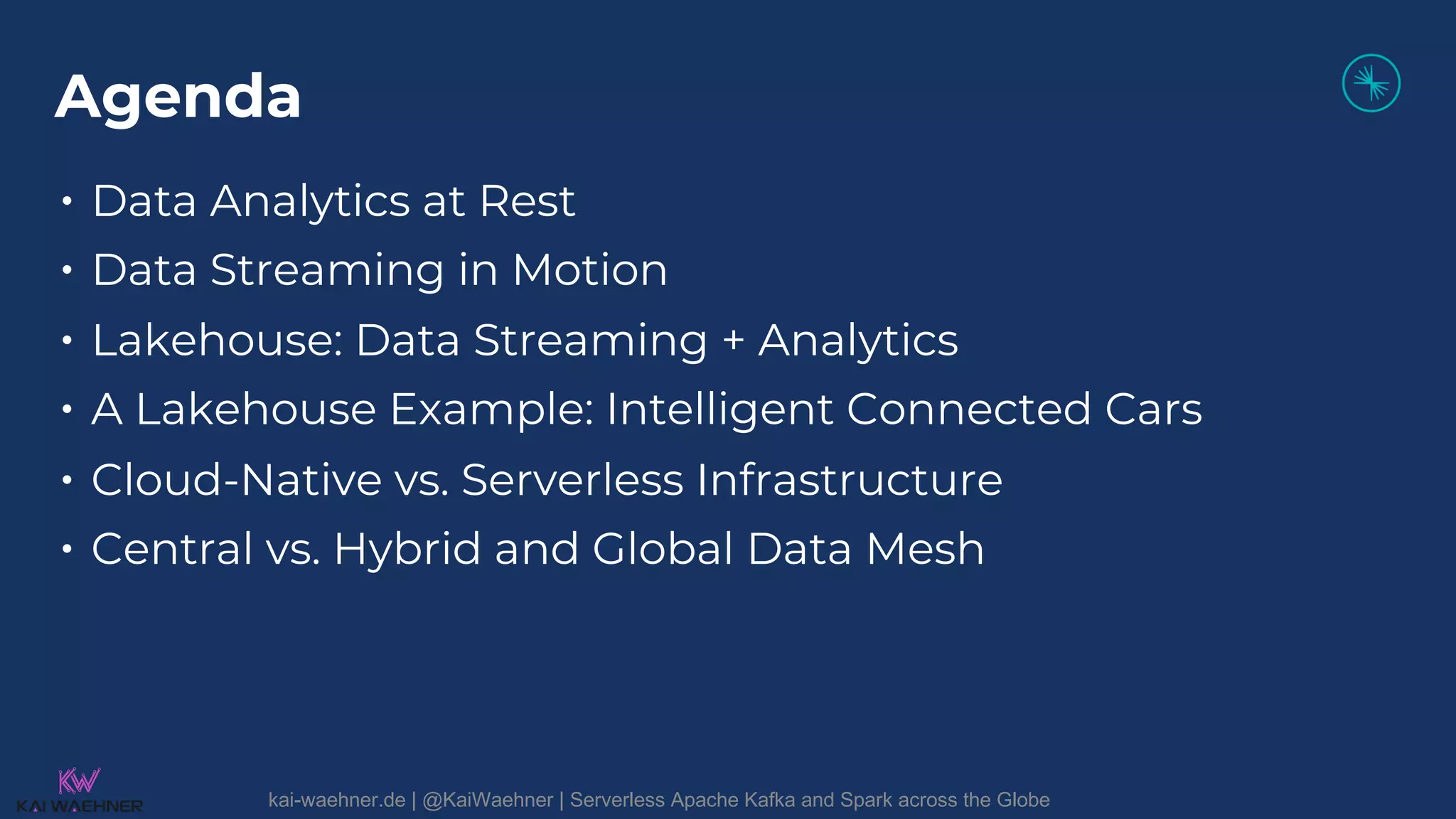

2. Agenda
• Data Analytics at Rest
• Data Streaming in Motion
• Lakehouse: Data Streaming + Analytics
• A Lakehouse Example: Intelligent Connected Cars
• Cloud-Native vs. Serverless Infrastructure
• Central vs. Hybrid and Global Data Mesh
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

3. Agenda
• Data Analytics at Rest
• Data Streaming in Motion
• Lakehouse: Data Streaming + Analytics
• A Lakehouse Example: Intelligent Connected Cars
• Cloud-Native vs. Serverless Infrastructure
• Central vs. Hybrid and Global Data Mesh
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

4. Storage at Rest
USER
JAY
SUE
FRED
CREDIT_SCORE
695
430
710
V1
V3
V2

5. Analytics at Rest
SELECT * FROM
DB_TABLE
Active Query: Passive Data:
DB Table

6. Use Cases for Data at Rest
• Reporting
• Business Intelligence
• Data Engineering
• Big Data Analytics
• Machine Learning
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

7. Apache Spark – The De Facto Standard for Big Data at Rest
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe
Big Data In Big Data Out
Big Data Storage and Processing
From Historical Data
to Insights

8. Delta Lake Open-source storage framework and open format for data analytics
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

9. Agenda
• Data Analytics at Rest
• Data Streaming in Motion
• Lakehouse: Data Streaming + Analytics
• A Lakehouse Example: Intelligent Connected Cars
• Cloud-Native vs. Serverless Infrastructure
• Central vs. Hybrid and Global Data Mesh
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

10. Real-time Data beats Slow Data.
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

11. Real-time Data beats Slow Data.
Transportation
Real-time sensor
diagnostics
Driver-rider match
ETA updates
Insurance
Claim processing
Fraud detection
Omnichannel quote
processing
Retail
Real-time inventory
Real-time POS
reporting
Personalization
Entertainment
Real-time
recommendations
Personalized
news feed
In-app purchases
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

12. Data at Rest Data in Motion
SELECT * FROM
DB_TABLE
CREATE TABLE T
AS SELECT * FROM
EVENT_STREAM
Active Query: Passive Data:
DB Table
Active Data: Passive Query:
Event Stream

13. Tables at
Rest
Streams in
Motion
USER
JAY
SUE
FRED
CREDIT_SCORE
695
430
710
V1
V3
V2
PAYMENTS
42
18
65
...
USER
JAY
SUE
FRED
...

14. Data Streaming = Data at Rest + Data in Motion
Payments Stream
Credit Score Stream
CREATE TABLE credit_scores AS
SELECT user, updateScore(p.amount)…

15. Apache Kafka – The De Facto Standard for Data in Motion
Database
CRM
Sensors
Mobile
Customer 360
Real-time
Alerting System
Data
warehouse
Producers
Consumers
Streams of real time events
Stream processing
apps
Connectors
Connectors
Stream processing
apps
Incident
Alert
Forecast
Pricing Customer
Order
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

16. Agenda
• Data Analytics at Rest
• Data Streaming in Motion
• Lakehouse: Data Streaming + Analytics
• A Lakehouse Example: Intelligent Connected Cars
• Cloud-Native vs. Serverless Infrastructure
• Central vs. Hybrid and Global Data Mesh
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

17. Data Lakehouse
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe
Building the Data Lakehouse
Author: Bill Inmon
Lakehouse is a
logical view, not physical!

18. Lambda Architecture
Option 1: Unified serving layer
Data
Source
Real-Time Layer
(Data Processing in Motion)
Batch Layer
(Data Processing at Rest)
Serving
Layer
Real-Time App
(Data Processing in Motion)
Batch App
(Data Processing at Rest)
ms
min/hr
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

19. Data
Source
Real-Time Layer
(Data Processing in Motion)
Batch Layer
(Data Processing at Rest)
Real-time Query
Mixed Query
ms
min/hr
Speed
View
Batch
View
Batch Query
Lambda Architecture
Option 2: Separate serving layers
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

20. Data
Source
Real-Time Layer
(Data Processing in Motion)
Real-Time App
(Data Processing in Motion)
Storage
Batch App
(Data Processing at Rest)
Storage
ms
min/hr
Storage
Kappa Architecture
One pipeline for real-time and batch consumers
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

21. Kappa @ Uber
24
kai-waehner.de | @KaiWaehner | Kappa vs. Lambda Architecture

22. Confluent + Databricks Reference Architecture
Kafka
Connect
On Premises
or any cloud
Kafka Streams
& ksqlDB - real-time
stream processing
and transformations
Databricks Data
Science Workspace
Databricks
Delta Lake
Sink
Connector
for
Confluent
Cloud
(AWS)
Legacy Data Stores:
Netezza, Teradata
Oracle, Mainframes
Databases
IoT
Data Streaming Analytics
Sources
Data Streaming
Platform
built on Kafka
On Premises
or any cloud
Databricks BI
Workspace
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

23. Agenda
• Data Analytics at Rest
• Data Streaming in Motion
• Lakehouse: Data Streaming + Analytics
• A Lakehouse Example: Intelligent Connected Cars
• Cloud-Native vs. Serverless Infrastructure
• Central vs. Hybrid and Global Data Mesh
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

24. Connected Car Infrastructure at Audi
27
• Real Time Data Analysis
• Swarm Intelligence
• Collaboration with Partners
• Predictive AI
• …
https://www.youtube.com/watch?v=yGLKi3TMJv8
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

25. Connected Car Infrastructure at Audi
28
https://www.youtube.com/watch?v=yGLKi3TMJv8
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

26. Kappa Architecture for a Lakehouse with Kafka and Spark
MQTT
Proxy
Spark Core
Storage
Spark SQL
Reporting
Kafka
Cluster
Kafka
Connect
Car Sensors
Kafka Ecosystem
Spark Ecosystem
Other Components
Kafka
Streams
All
Data
Critical
Data
Ingest
Data
Potential
Detect
Spark
MLlib
Model
Training
ksqlDB
Model
Deployment
Preprocess
Data
Consume
Data
Deploy
Analytic
Model
Mobile App
BI Tool
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

27. Machine Learning Model Training
with Spark MLlib
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe
https://dev.to/siddhantpatro/spark-mllib-for-big-data-and-machine-learning-330j

28. “CREATE STREAM AnomalyDetection AS
SELECT sensor_id, detectAnomaly(sensor_values)
FROM car_engine;“
User Defined Function (UDF)
Model Deployment with
Apache Kafka, ksqlDB and Spark MLlib
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe
MLlib

29. Stream Processing with Kafka or Spark?
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe
Kafka Streams /
ksqlDB
Spark
Streaming
Component of the
data streaming infrastructure
Low latency
Focus on 24/7 operations
Lightweight, decoupled
microservices
Component of the data
analytics infrastructure
Strong integration with the rest
of the Spark ecossytem
Stream and batch
Machine Learning “embedded”

30. Agenda
• Data Analytics at Rest
• Data Streaming in Motion
• Lakehouse: Data Streaming + Analytics
• A Lakehouse Example: Intelligent Connected Cars
• Cloud-Native vs. Serverless Infrastructure
• Central vs. Hybrid and Global Data Mesh
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

31. Cloud-Native Deployment
à Elastic Infrastructure and Faster Time-to-Market
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

32. You
Manage
Provider
Managed
Self-managed IaaS Hosted Cloud Service Fully Managed SaaS
Scaling Scaling Scaling
Load balancing Load balancing Load balancing
Partition placement Partition placement Partition placement
Logical Storage Logical Storage Logical Storage
Broker settings Broker settings Broker settings
Zookeeper Zookeeper Zookeeper
Kafka patching Kafka patching Kafka patching
JVM JVM JVM
O/S O/S O/S
VMs VMs VMs
Servers Servers Servers
Provider
managed
features
Product
ease of use
Fully Managed
Partially Managed
Self-Managed
What is a (truly) fully-managed SaaS?
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

33. Agenda
• Data Analytics at Rest
• Data Streaming in Motion
• Lakehouse: Data Streaming + Analytics
• A Lakehouse Example: Intelligent Connected Cars
• Cloud-Native vs. Serverless Infrastructure
• Central vs. Hybrid and Global Data Mesh
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

34. AWS Cloud Outage hit Disney World Visitors…
https://www.cnet.com/tech/services-and-software/disney-parks-were-already-facing-heat-from-fans-then-an-aws-outage-came-along/
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

35. Disaster Recovery – RPO and RTO
RPO = Recovery Point Objective
RTO = Recovery Time Objective
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

36. Use Cases for Hybrid and Multi-Cloud Data Lakehouses
• Disaster Recovery and High Availability:
Create a disaster recovery cluster, and fail
over to it during an outage.
• Global and Multi-Cloud Replication: Move
and aggregate data across regions and
clouds.
• Data Sharing: Share data with other teams,
lines-of-business, or organizations.
• Data Migration: Migrate data and workloads
from one cluster to another (like from legacy
on-premise data warehouse to cloud-native
data lakehouse).
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe
Data Replication
at Rest
or in Motion?

37. Copyright 2021, Confluent, Inc. All rights reserved. This document may not be reproduced in any manner without the express written permission of Confluent, Inc.
Global Data Lakehouse across Edge and Hybrid Cloud
Streaming Replication between Kafka Clusters
Bridge to Databases, Data Lakes, Apps, APIs, SaaS
Aggregation of Edge
Deployments with
Replication (Aggregation)
Disaster Recovery
Operations with
Multi-Region Clusters
for RPO=0 and RTO~0
Global Data Streaming with
Replication and Cluster Linking
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe

38. A data mesh for decentralized data products
Data
Product
Independent Data Products
for Reporting, Analytics,
Data Streaming
kai-waehner.de | @KaiWaehner | Serverless Apache Kafka and Spark across the Globe
For instance:
A KSQL microservice

39. Kai Waehner
Field CTO
kai.waehner@confluent.io
@KaiWaehner
confluent.io
kai-waehner.de
linkedin.com/in/kaiwaehner
Questions? Feedback?
Let’s connect!
