1. 5/1/2024 1
DARKROOM
CONSTRUCTION
1

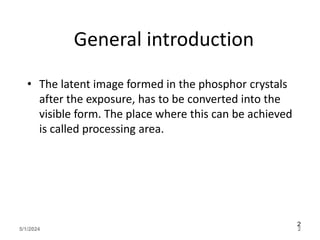

2. General introduction
• The latent image formed in the phosphor crystals
after the exposure, has to be converted into the
visible form. The place where this can be achieved
is called processing area.
5/1/2024 2
2

3. Types of processing area
1.Daylight processing
2.Darkroom processing
5/1/2024 3
3

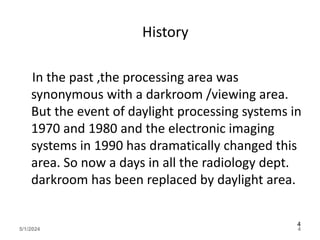

4. History
In the past ,the processing area was
synonymous with a darkroom /viewing area.
But the event of daylight processing systems in
1970 and 1980 and the electronic imaging
systems in 1990 has dramatically changed this
area. So now a days in all the radiology dept.
darkroom has been replaced by daylight area.
5/1/2024 4
4

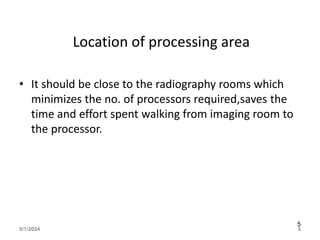

5. Location of processing area
• It should be close to the radiography rooms which
minimizes the no. of processors required,saves the
time and effort spent walking from imaging room to
the processor.
5/1/2024 5
5

6. 2008-august-10
DARK ROOM-THE
PROCESSING AREA
x-ray room
2
Cassette
hatch
x-ray room
3
x-ray room
1
Darkroom
X- ray room
4
Automatic
processor
Viewing area
Film sorting

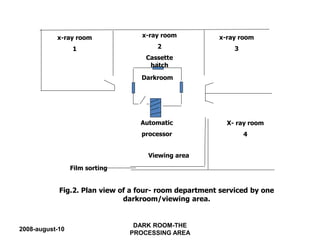

Fig.2. Plan view of a four- room department serviced by one
darkroom/viewing area.

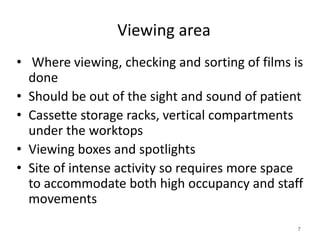

7. Viewing area
• Where viewing, checking and sorting of films is
done
• Should be out of the sight and sound of patient
• Cassette storage racks, vertical compartments
under the worktops
• Viewing boxes and spotlights
• Site of intense activity so requires more space
to accommodate both high occupancy and staff
movements
7

8. Darkroom design /construction
1.Location
2.size
3.Radiation protection
4.Floor
5.Walls
6.Ceiling
7.Ventilation/heating
8.Entrance
9.Cassette hatch
10.Layout
11. Illumination
5/1/2024 8
8

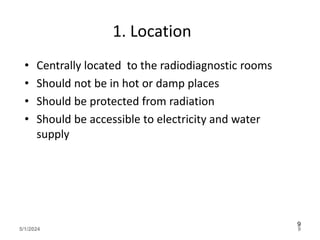

9. 1. Location
• Centrally located to the radiodiagnostic rooms
• Should not be in hot or damp places
• Should be protected from radiation
• Should be accessible to electricity and water
supply
5/1/2024 9
9

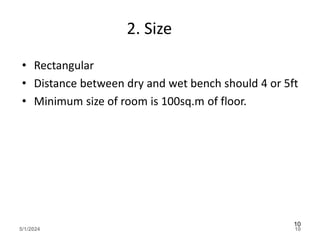

10. 2. Size
• Rectangular
• Distance between dry and wet bench should 4 or 5ft
• Minimum size of room is 100sq.m of floor.
5/1/2024 10
10

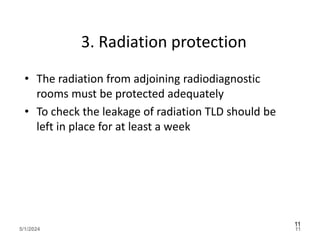

11. 3. Radiation protection
• The radiation from adjoining radiodiagnostic
rooms must be protected adequately
• To check the leakage of radiation TLD should be
left in place for at least a week
5/1/2024 11
11

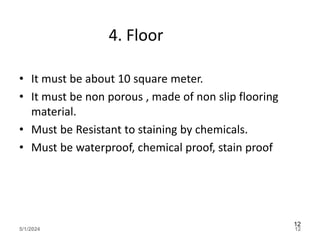

12. 4. Floor
• It must be about 10 square meter.
• It must be non porous , made of non slip flooring
material.
• Must be Resistant to staining by chemicals.
• Must be waterproof, chemical proof, stain proof
5/1/2024 12
12

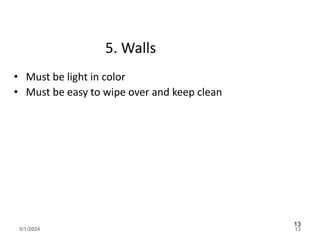

13. 5. Walls
• Must be light in color
• Must be easy to wipe over and keep clean
5/1/2024 13
13

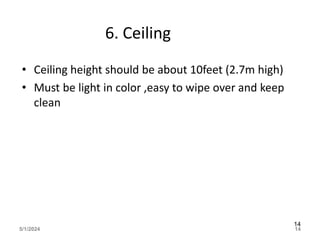

14. 6. Ceiling
• Ceiling height should be about 10feet (2.7m high)
• Must be light in color ,easy to wipe over and keep
clean
5/1/2024 14
14

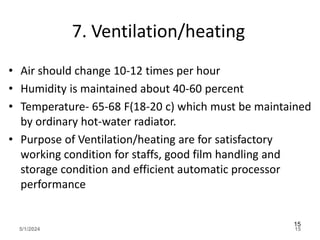

15. 7. Ventilation/heating
• Air should change 10-12 times per hour
• Humidity is maintained about 40-60 percent
• Temperature- 65-68 F(18-20 c) which must be maintained
by ordinary hot-water radiator.
• Purpose of Ventilation/heating are for satisfactory
working condition for staffs, good film handling and
storage condition and efficient automatic processor
performance
5/1/2024 15
15

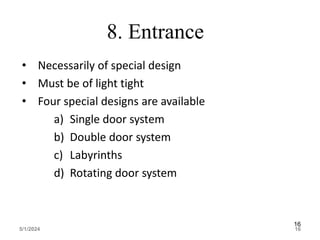

16. 8. Entrance
• Necessarily of special design
• Must be of light tight
• Four special designs are available
a) Single door system
b) Double door system
c) Labyrinths
d) Rotating door system
5/1/2024 16
16

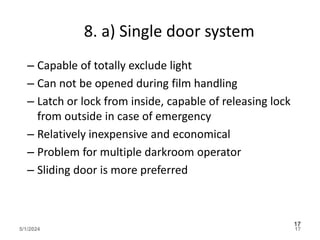

17. 8. a) Single door system
– Capable of totally exclude light
– Can not be opened during film handling
– Latch or lock from inside, capable of releasing lock
from outside in case of emergency
– Relatively inexpensive and economical
– Problem for multiple darkroom operator
– Sliding door is more preferred
5/1/2024 17
17

18. 2008-august-10
DARK ROOM-THE
PROCESSING AREA

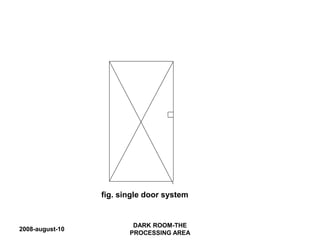

fig. single door system

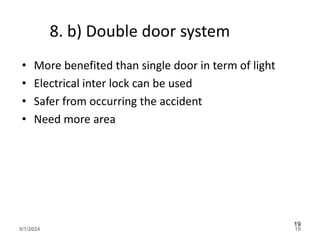

19. 8. b) Double door system
• More benefited than single door in term of light
• Electrical inter lock can be used
• Safer from occurring the accident
• Need more area
5/1/2024 19
19

20. 5/1/2024 20
20

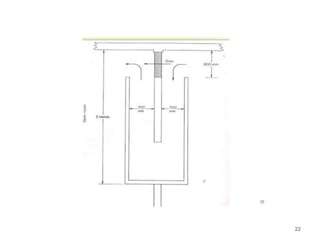

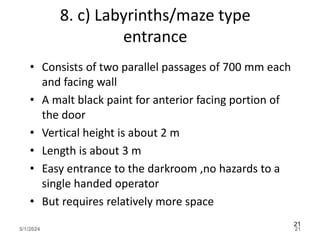

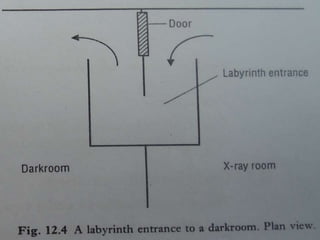

21. 8. c) Labyrinths/maze type
entrance
• Consists of two parallel passages of 700 mm each
and facing wall
• A malt black paint for anterior facing portion of
the door
• Vertical height is about 2 m
• Length is about 3 m
• Easy entrance to the darkroom ,no hazards to a
single handed operator
• But requires relatively more space
5/1/2024 21
21

22. 22

23. 5/1/2024 23
23

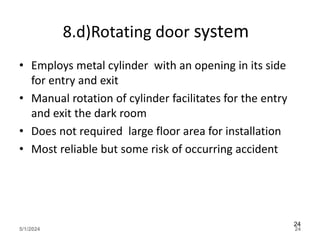

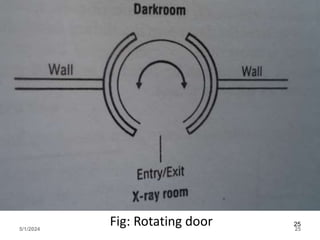

24. 8.d)Rotating door system
• Employs metal cylinder with an opening in its side
for entry and exit
• Manual rotation of cylinder facilitates for the entry
and exit the dark room
• Does not required large floor area for installation
• Most reliable but some risk of occurring accident
5/1/2024 24
24

25. Fig: Rotating door
5/1/2024 25
25

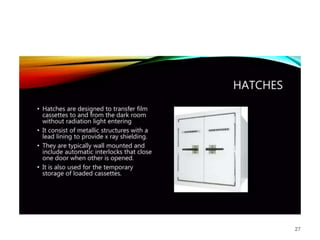

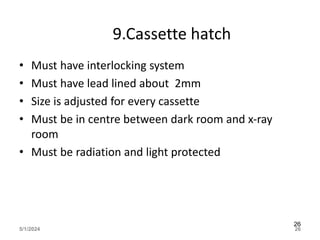

26. 9.Cassette hatch
• Must have interlocking system
• Must have lead lined about 2mm
• Size is adjusted for every cassette
• Must be in centre between dark room and x-ray
room
• Must be radiation and light protected
5/1/2024 26
26

27. 27

28. 10.Illumination
• It is used to light the room
• To prevent the staff from electric shock
• For the controlling of mishandling of films
5/1/2024 28
28

29. Illumination types
1.General white light
2.Safe light
5/1/2024 29
29

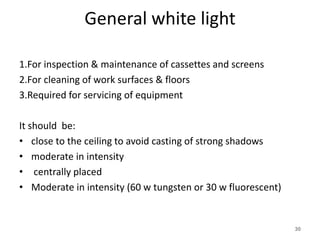

30. General white light
1.For inspection & maintenance of cassettes and screens
2.For cleaning of work surfaces & floors
3.Required for servicing of equipment
It should be:
• close to the ceiling to avoid casting of strong shadows
• moderate in intensity
• centrally placed
• Moderate in intensity (60 w tungsten or 30 w fluorescent)
30

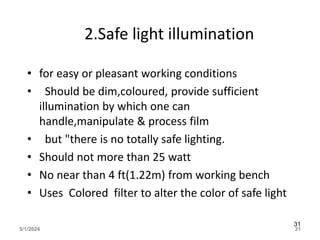

31. 2.Safe light illumination
• for easy or pleasant working conditions
• Should be dim,coloured, provide sufficient
illumination by which one can
handle,manipulate & process film
• but "there is no totally safe lighting.
• Should not more than 25 watt
• No near than 4 ft(1.22m) from working bench
• Uses Colored filter to alter the color of safe light
5/1/2024 31
31

32. 2008-august-10
DARK ROOM-THE
PROCESSING AREA

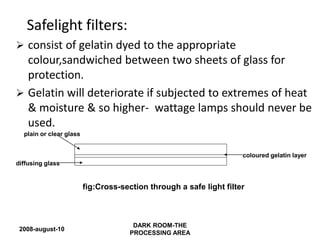

Safelight filters:
 consist of gelatin dyed to the appropriate
colour,sandwiched between two sheets of glass for
protection.
 Gelatin will deteriorate if subjected to extremes of heat
& moisture & so higher- wattage lamps should never be
used.
coloured gelatin layer
plain or clear glass
diffusing glass
fig:Cross-section through a safe light filter

33. Safe light color
• Depends on the types of emulsion used in
the film
5/1/2024 33
33

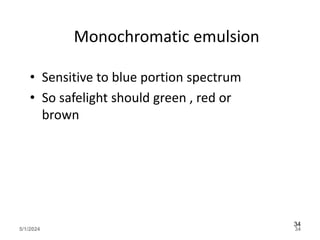

34. Monochromatic emulsion
• Sensitive to blue portion spectrum
• So safelight should green , red or
brown
5/1/2024 34
34

35. Orthochromatic emulsion
• Blue green sensitive film
• Safelight color is red
5/1/2024 35
35

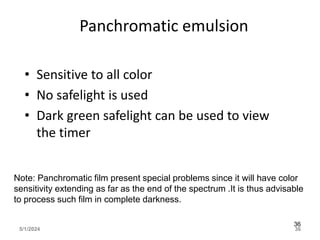

36. Panchromatic emulsion
• Sensitive to all color
• No safelight is used
• Dark green safelight can be used to view
the timer
5/1/2024 36
36
Note: Panchromatic film present special problems since it will have color
sensitivity extending as far as the end of the spectrum .It is thus advisable
to process such film in complete darkness.

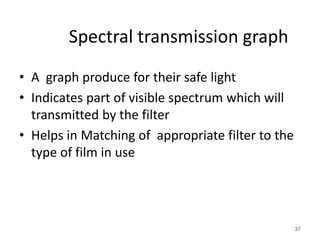

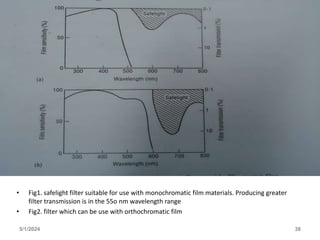

37. Spectral transmission graph
• A graph produce for their safe light
• Indicates part of visible spectrum which will
transmitted by the filter
• Helps in Matching of appropriate filter to the
type of film in use
37

38. • Fig1. safelight filter suitable for use with monochromatic film materials. Producing greater
filter transmission is in the 55o nm wavelength range
• Fig2. filter which can be use with orthochromatic film
5/1/2024 38

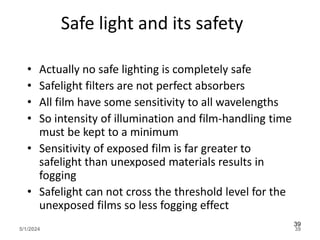

39. Safe light and its safety
• Actually no safe lighting is completely safe
• Safelight filters are not perfect absorbers
• All film have some sensitivity to all wavelengths
• So intensity of illumination and film-handling time
must be kept to a minimum
• Sensitivity of exposed film is far greater to
safelight than unexposed materials results in
fogging
• Safelight can not cross the threshold level for the
unexposed films so less fogging effect
5/1/2024 39
39

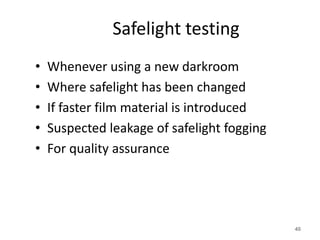

40. Safelight testing
• Whenever using a new darkroom
• Where safelight has been changed
• If faster film material is introduced
• Suspected leakage of safelight fogging
• For quality assurance
40

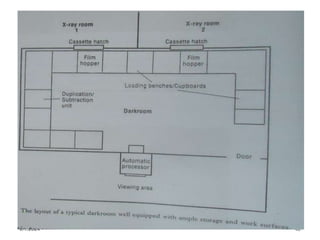

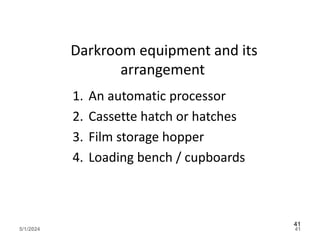

41. Darkroom equipment and its
arrangement
1. An automatic processor
2. Cassette hatch or hatches
3. Film storage hopper
4. Loading bench / cupboards
5/1/2024 41
41

42. 5/1/2024 42
42

43. 5/1/2024 43
43

44. 5/1/2024 44
44

45. 2008-august-10
DARK ROOM-THE
PROCESSING AREA

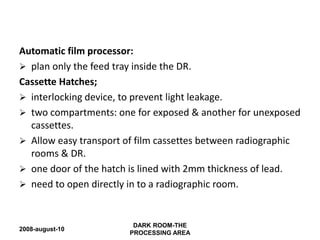

Automatic film processor:
 plan only the feed tray inside the DR.
Cassette Hatches;
 interlocking device, to prevent light leakage.
 two compartments: one for exposed & another for unexposed
cassettes.
 Allow easy transport of film cassettes between radiographic
rooms & DR.
 one door of the hatch is lined with 2mm thickness of lead.
 need to open directly in to a radiographic room.

46. 2008-august-10
DARK ROOM-THE
PROCESSING AREA

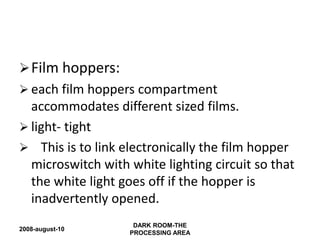

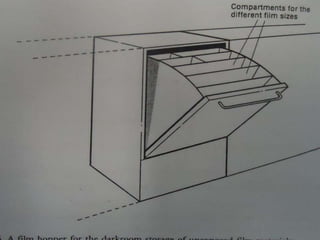

Film hoppers:
 each film hoppers compartment
accommodates different sized films.
 light- tight
 This is to link electronically the film hopper
microswitch with white lighting circuit so that
the white light goes off if the hopper is
inadvertently opened.

47. 2008-august-10
DARK ROOM-THE
PROCESSING AREA

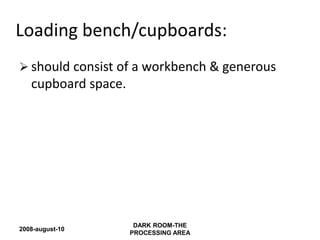

Loading bench/cupboards:
 should consist of a workbench & generous
cupboard space.

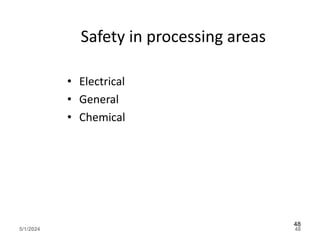

48. Safety in processing areas
• Electrical
• General
• Chemical
5/1/2024 48
48

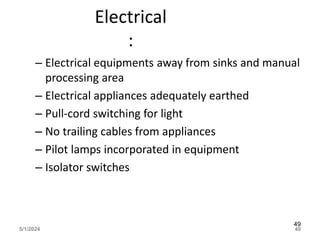

49. Electrical
:
– Electrical equipments away from sinks and manual
processing area
– Electrical appliances adequately earthed
– Pull-cord switching for light
– No trailing cables from appliances
– Pilot lamps incorporated in equipment
– Isolator switches
5/1/2024 49
49

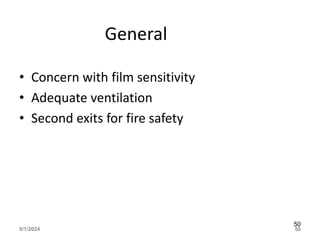

50. General
• Concern with film sensitivity
• Adequate ventilation
• Second exits for fire safety
5/1/2024 50
50

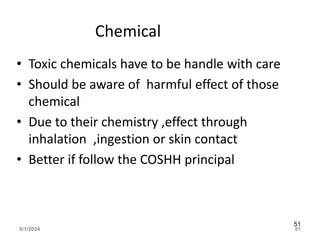

51. Chemical
• Toxic chemicals have to be handle with care
• Should be aware of harmful effect of those
chemical
• Due to their chemistry ,effect through
inhalation ,ingestion or skin contact
• Better if follow the COSHH principal
5/1/2024 51
51

52. 2008-august-10
DARK ROOM-THE
PROCESSING AREA
Control of Substances Hazardous to
Health(COSHH)
It impose a responsibility upon managers to ensure that the
following procedures are carried out in their departments.
a) health risk assessments undertaken in order to determine
with hazards ,if any,exist. necessary precautions decided.
b) control measures introduced to minimize or eliminate
identified risks.
c) if deemed necessary, health surveillance undertaken for
early detection of illness due to occupational exposure.
d) adequate information, instruction & training afforded to all
key staff.
