Csw2016 evron sysman_apt_reports_and_opsec_evolution
- 1. APT REPORTS AND OPSEC EVOLUTION OR ©
- 2. CanSecWest 2016 © WHY ARE WE HERE? 2 We will simplify the attack process, demonstrate the evolution of various actors over the years, and suggest ways to close the evolutionary gap. @deanSysman (CREDIT):@gadievron / @inbarraz
- 4. CanSecWest 2016 © WE’VE ALWAYS HAD MALWARE 4

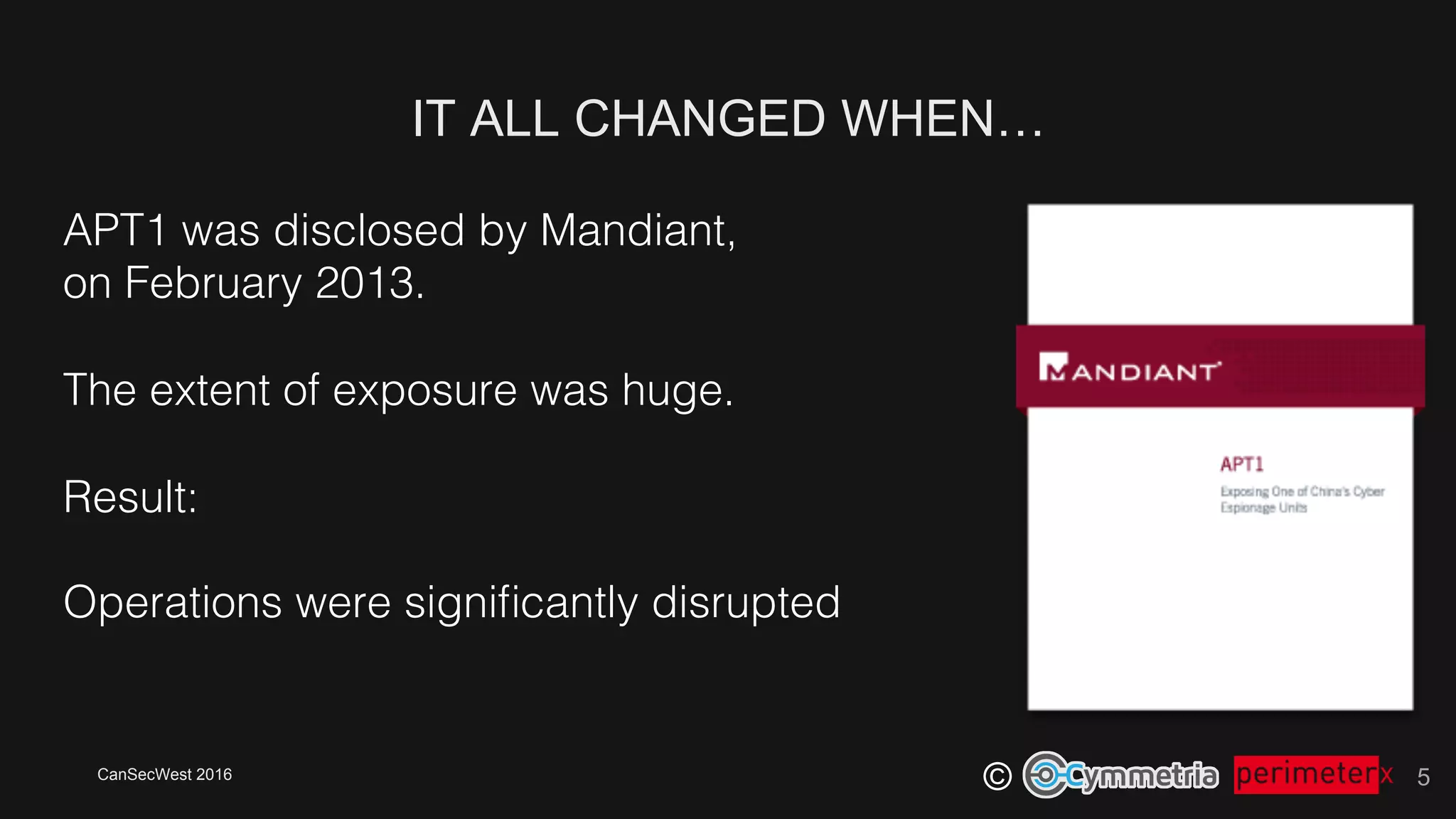

- 5. CanSecWest 2016 © IT ALL CHANGED WHEN… 5 APT1 was disclosed by Mandiant, ! on February 2013.! ! The extent of exposure was huge.! ! Result:! ! Operations were significantly disrupted!
- 6. CanSecWest 2016 © BUT THEY WERE NOT ALONE 6 Other campaigns had already been disclosed, ! such as Stuxnet and Flame.! Stuxnet was tight (~500K)! and target-specific.! ! Flame was a monster (20M),! clearly meant for scale.!

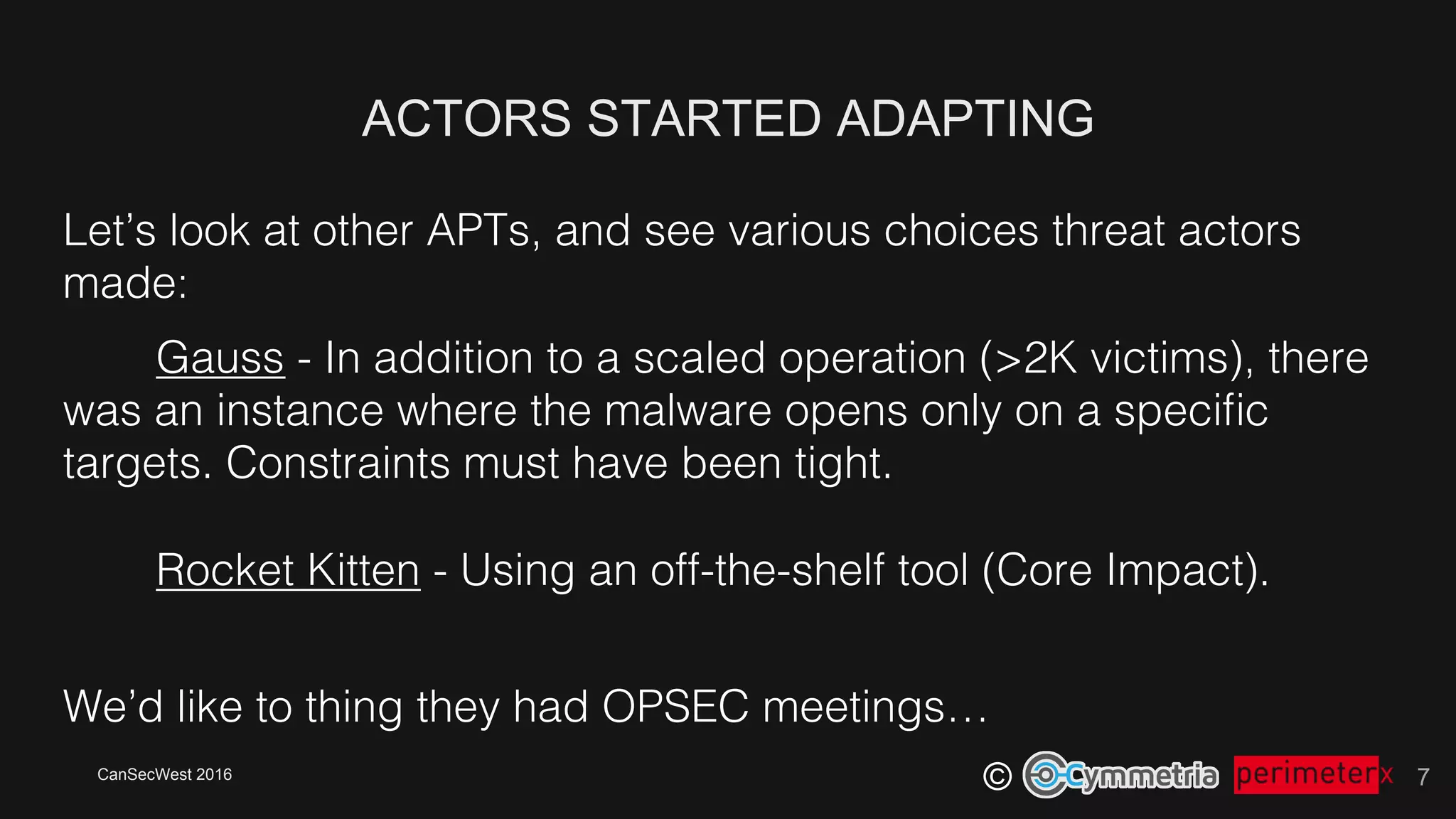

- 7. CanSecWest 2016 © ACTORS STARTED ADAPTING 7 Let’s look at other APTs, and see various choices threat actors made:! Gauss - In addition to a scaled operation (>2K victims), there was an instance where the malware opens only on a specific targets. Constraints must have been tight.! ! Rocket Kitten - Using an off-the-shelf tool (Core Impact).! We’d like to thing they had OPSEC meetings…!

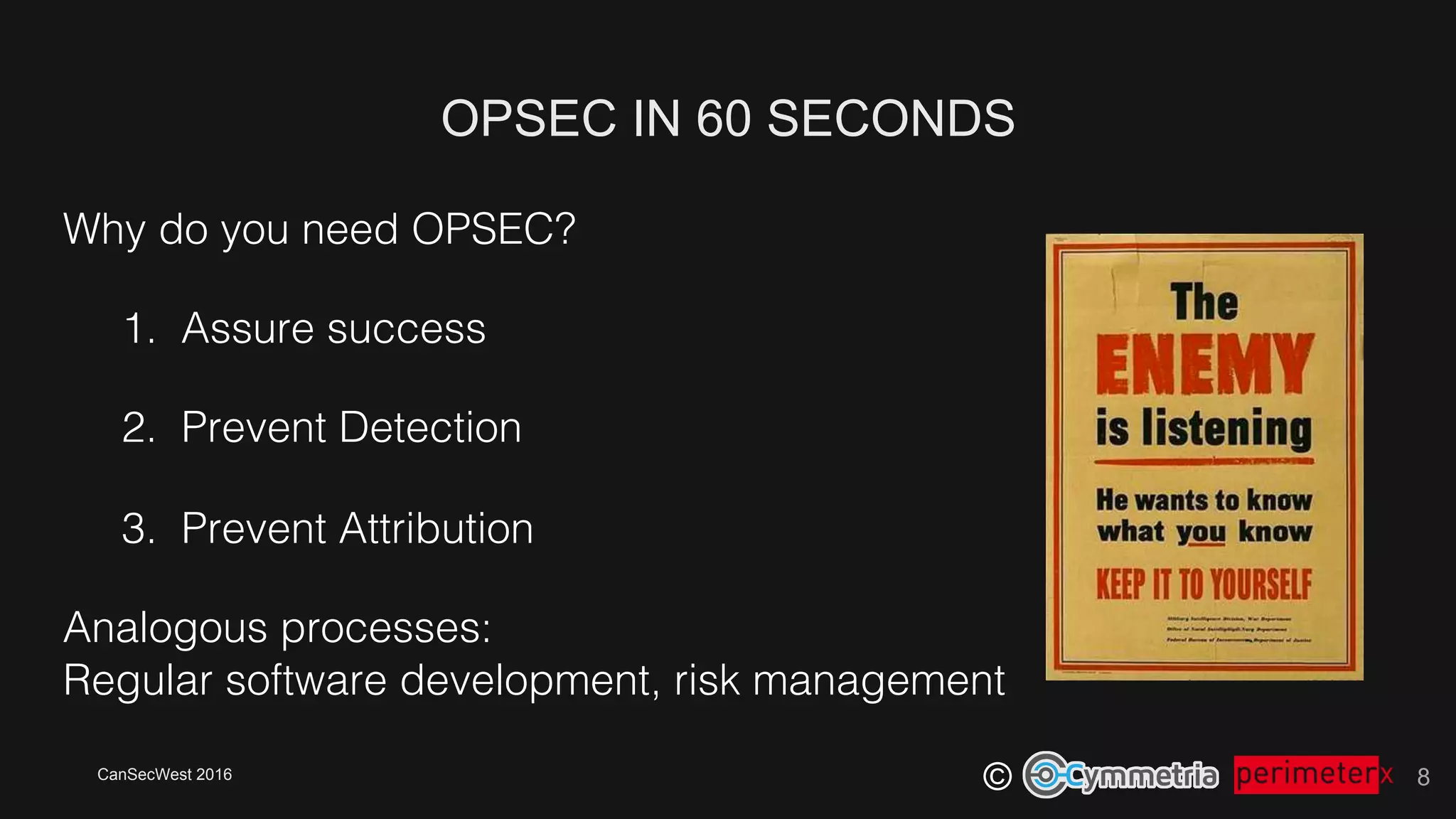

- 8. CanSecWest 2016 © OPSEC IN 60 SECONDS 8 Why do you need OPSEC?! 1. Assure success! 2. Prevent Detection! 3. Prevent Attribution! Analogous processes: ! Regular software development, risk management!

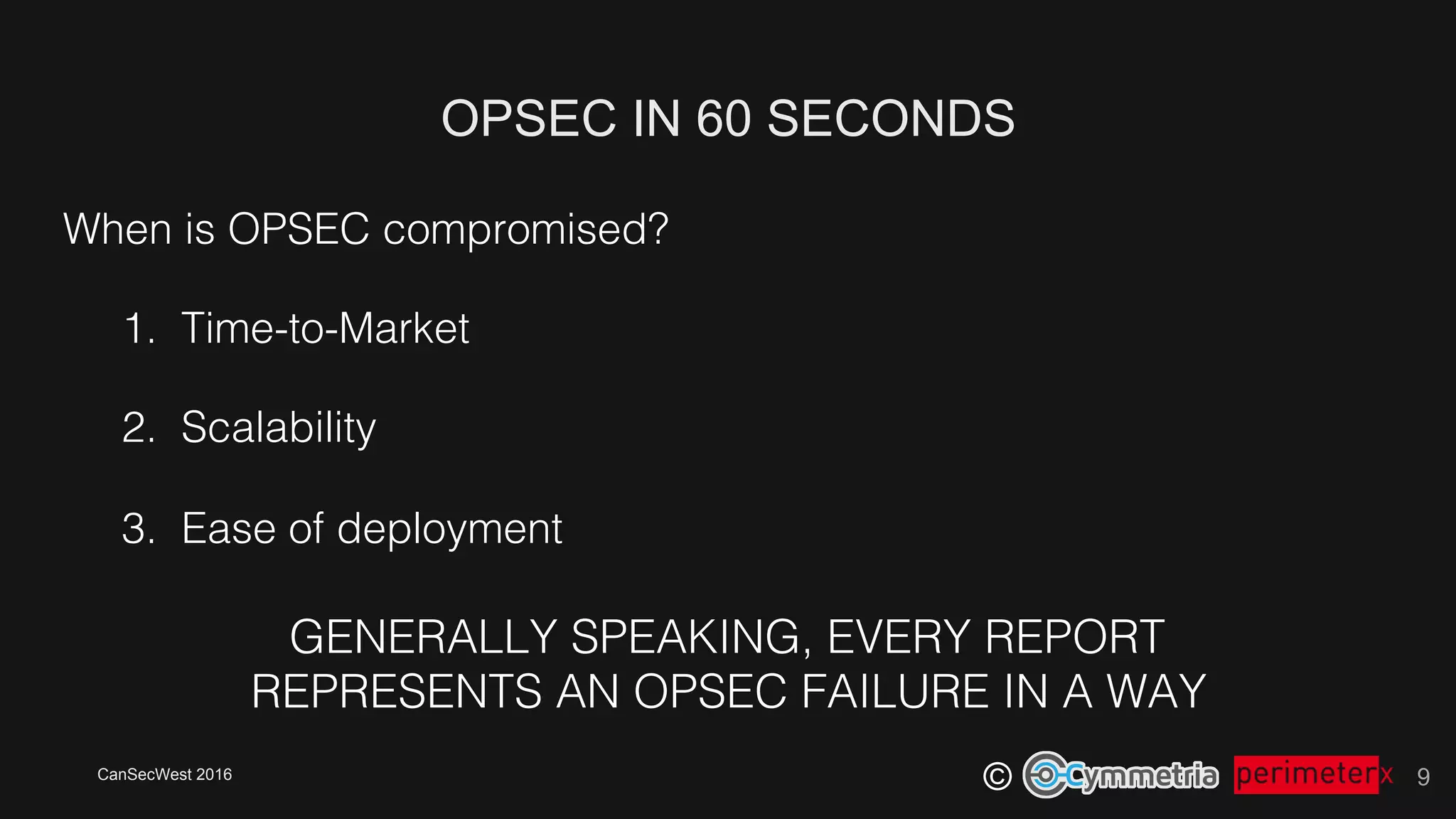

- 9. CanSecWest 2016 © OPSEC IN 60 SECONDS 9 When is OPSEC compromised?! 1. Time-to-Market! 2. Scalability! 3. Ease of deployment! ! ! ! GENERALLY SPEAKING, EVERY REPORT ! REPRESENTS AN OPSEC FAILURE IN A WAY!

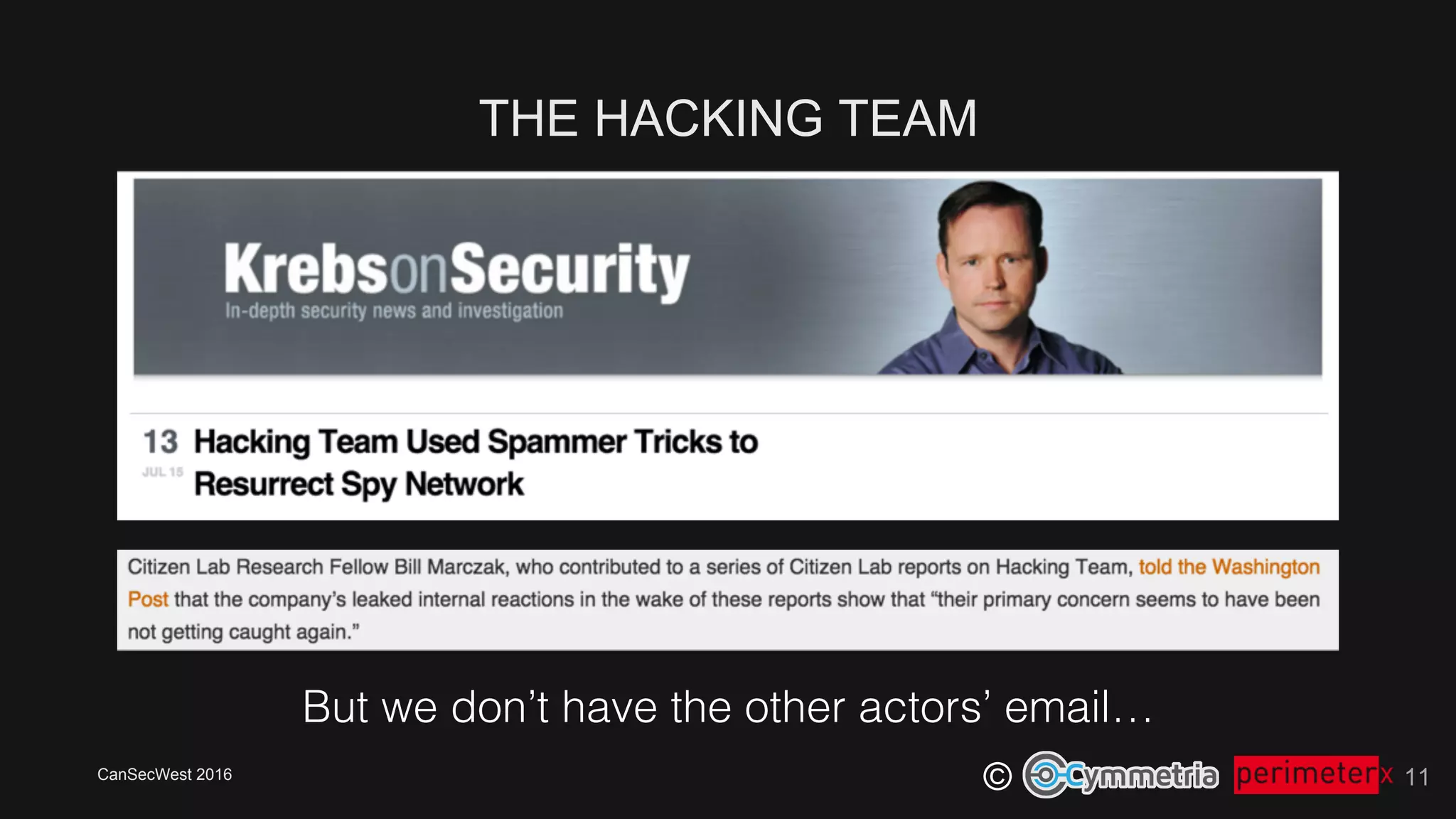

- 11. CanSecWest 2016 © THE HACKING TEAM 11 But we don’t have the other actors’ email…!
- 12. CanSecWest 2016 © MANY APT REPORTS SUCK 12
- 13. CanSecWest 2016 © MANY APT REPORTS SUCK 13
- 14. CanSecWest 2016 © MANY APT REPORTS SUCK 14
- 15. CanSecWest 2016 © AS A RESULT 15

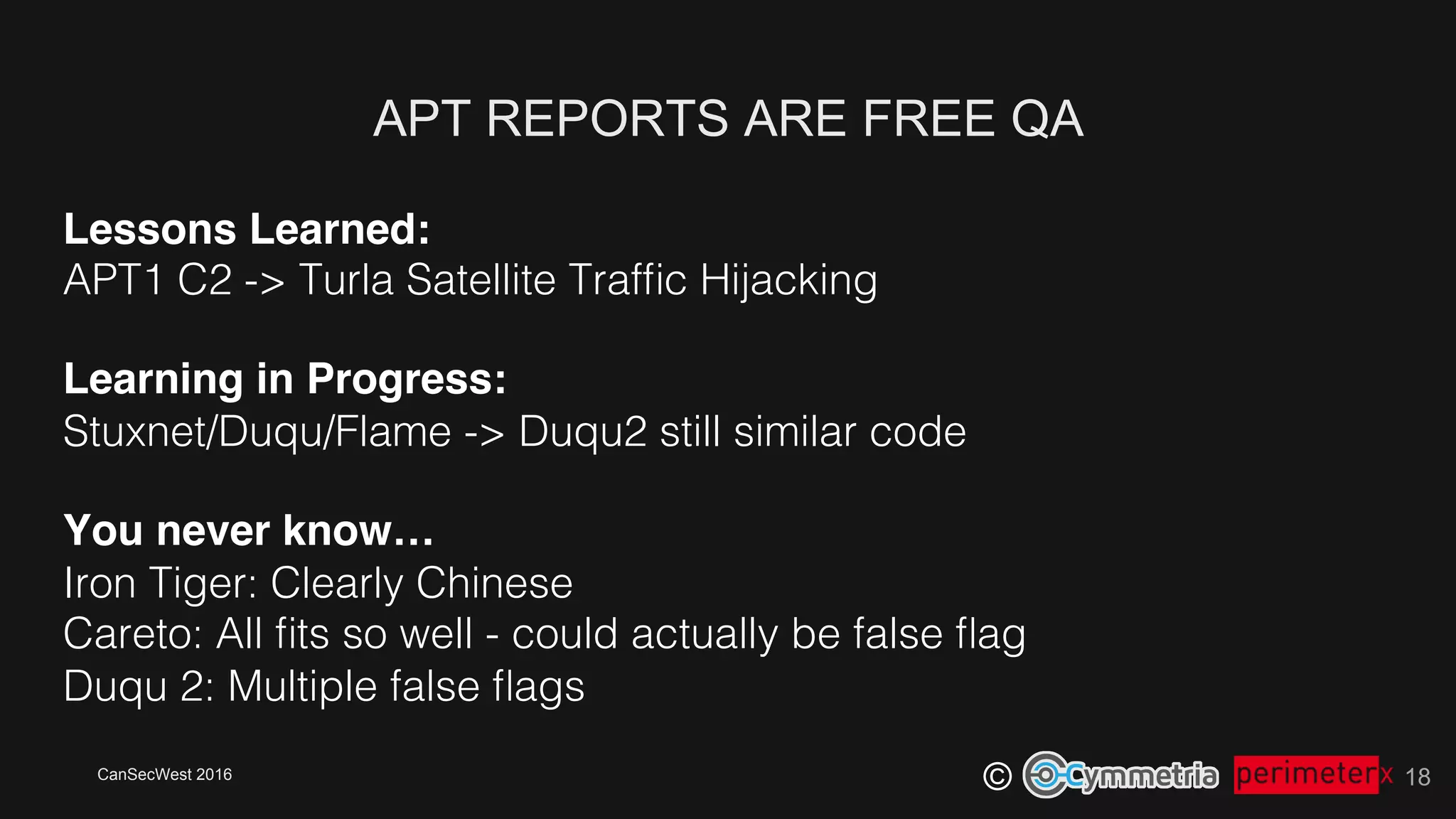

- 18. CanSecWest 2016 © APT REPORTS ARE FREE QA 18 Lessons Learned:! APT1 C2 -> Turla Satellite Traffic Hijacking! Learning in Progress: Stuxnet/Duqu/Flame -> Duqu2 still similar code! You never know… Iron Tiger: Clearly Chinese Careto: All fits so well - could actually be false flag! Duqu 2: Multiple false flags!

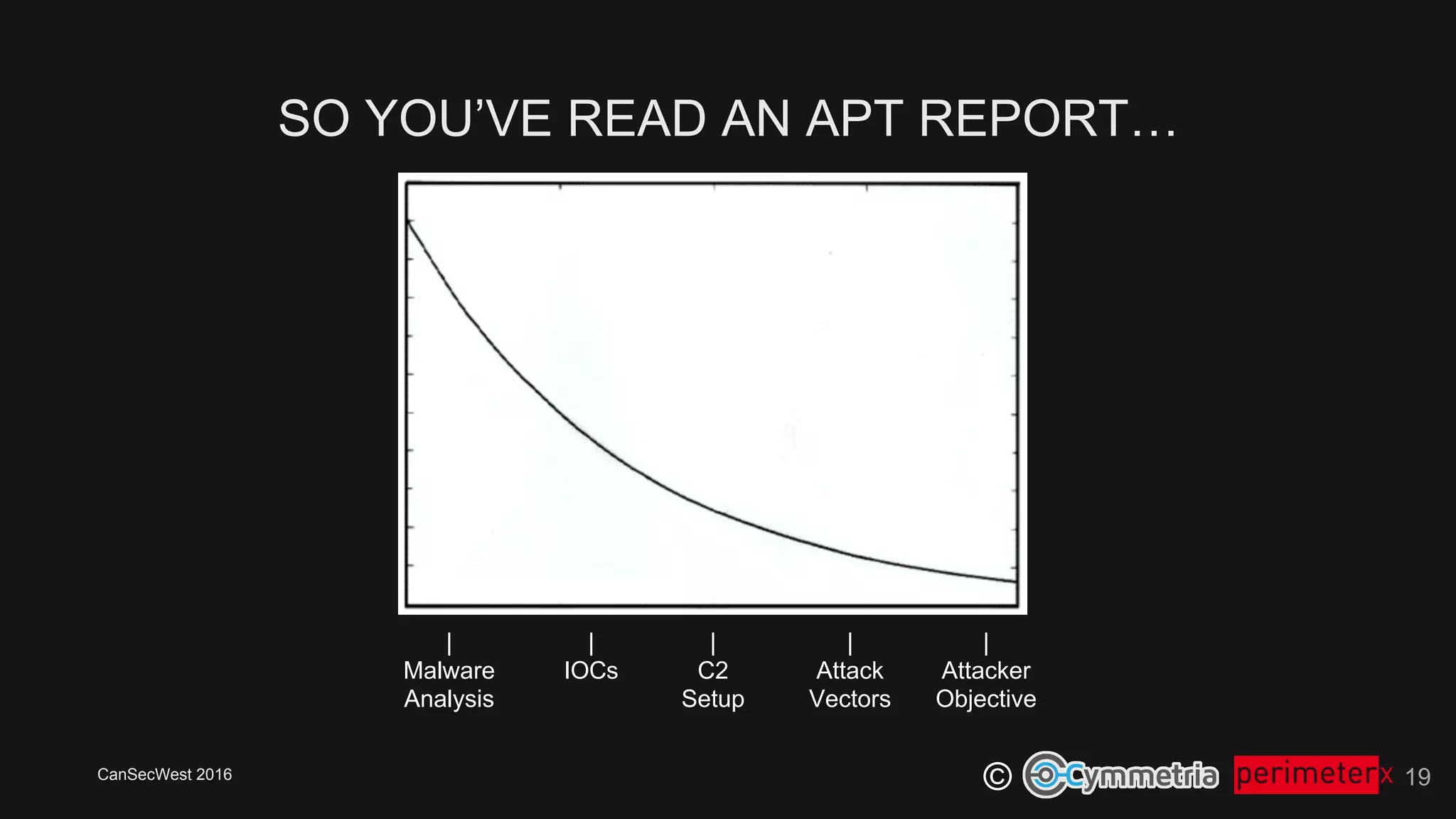

- 19. CanSecWest 2016 © SO YOU’VE READ AN APT REPORT… 19 | Malware Analysis | C2 Setup | Attack Vectors | IOCs | Attacker Objective
- 20. CanSecWest 2016 © WHAT IT FEELS LIKE 20

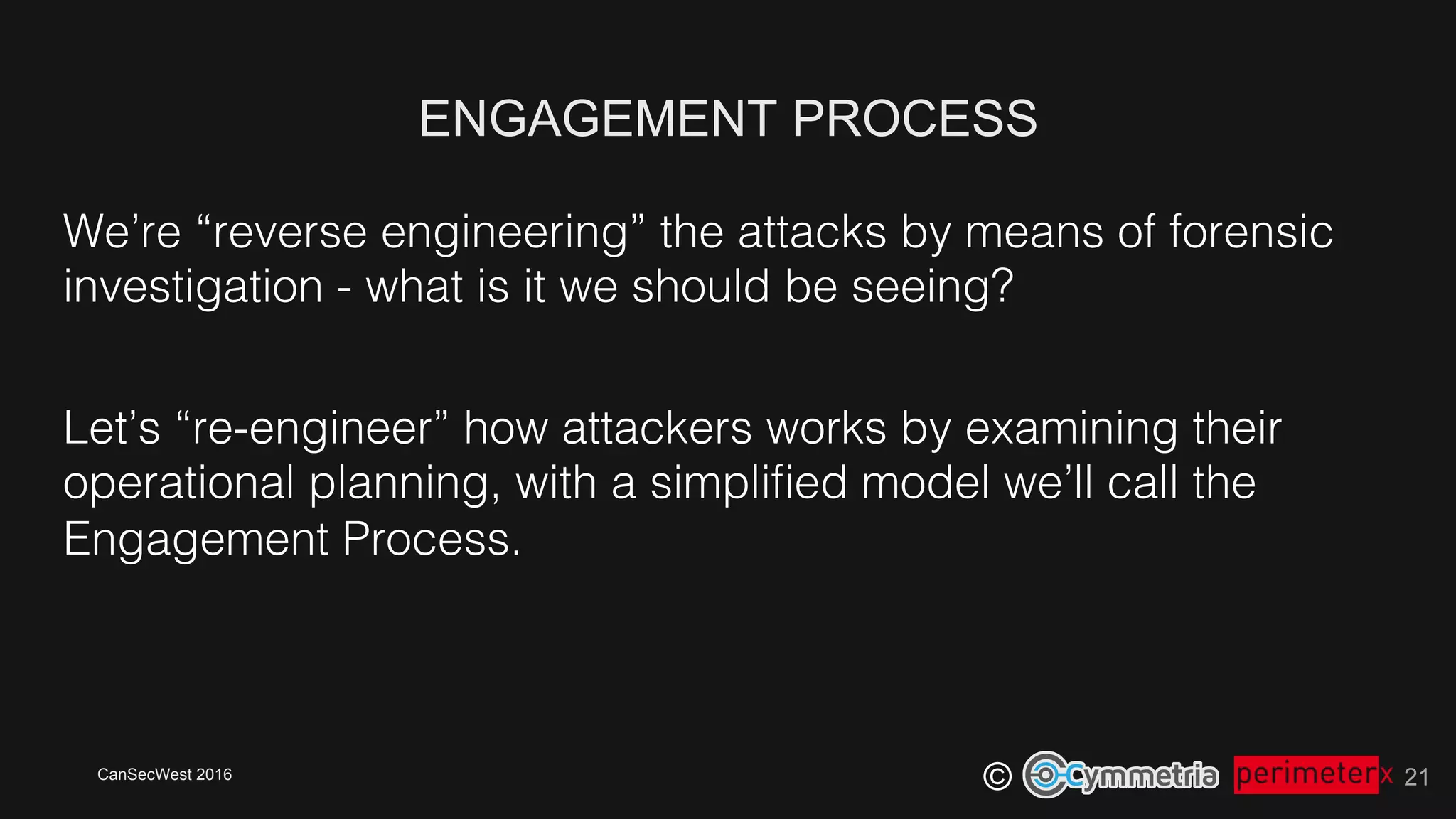

- 21. CanSecWest 2016 © ENGAGEMENT PROCESS 21 We’re “reverse engineering” the attacks by means of forensic investigation - what is it we should be seeing?! Let’s “re-engineer” how attackers works by examining their operational planning, with a simplified model we’ll call the Engagement Process.!
- 23. CanSecWest 2016 © It’s like going shopping.! ! ! ! What Would I Like to Know?! 1. COMPOSE INTELLIGENCE REQUIREMENTS 23
- 24. CanSecWest 2016 © Examples:! - Does Saddam Hussain have WMD’s?! - Where are the WMD’s?! - Does he intend to use the WMD’s?! - Who is working on the WMD’s?! - How can we get Matt Damon back?! 1. COMPOSE INTELLIGENCE REQUIREMENTS 24
- 25. CanSecWest 2016 © “Where can I find answers?”! or:! “Who holds the information I need?”! 2. COMPILE TARGET LIST 25
- 26. CanSecWest 2016 © Examples:! -> Verticals: Banking, Energy, Pharmaceutical! -> Specific Targets! Exceptions:! -> Sofacy! 2. COMPILE TARGET LIST 26
- 27. CanSecWest 2016 © 3. INTELLIGENCE GATHERING 27
- 28. CanSecWest 2016 © 4. TARGET REPORT 28
- 29. CanSecWest 2016 © 5. ATTACK PLAN AND EXECUTION 29
- 30. CanSecWest 2016 © Examples:! 5. ATTACK PLAN AND EXECUTION 30

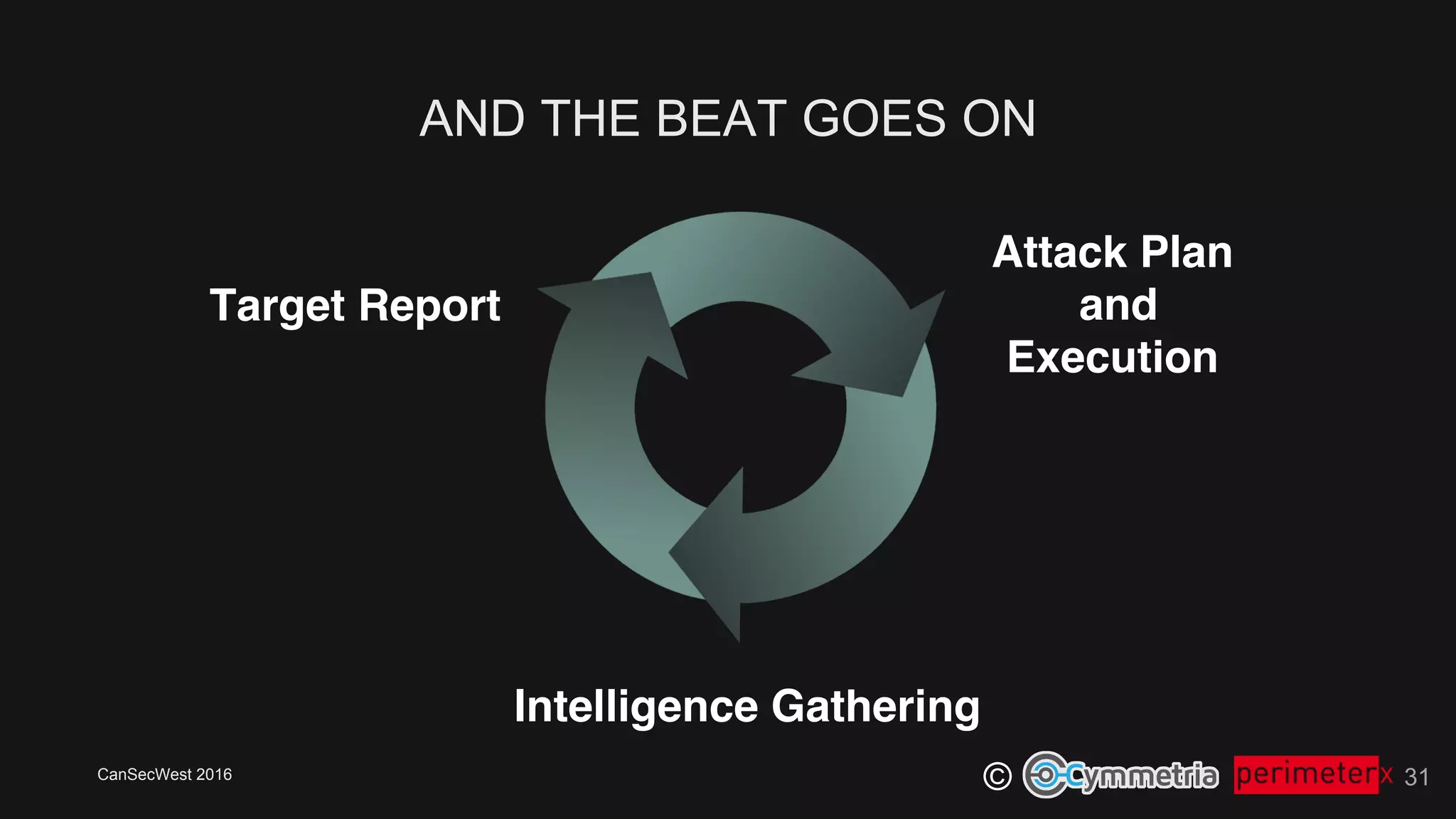

- 31. CanSecWest 2016 © AND THE BEAT GOES ON 31 Target Report Intelligence Gathering Attack Plan and Execution
- 32. CanSecWest 2016 © 3. INTELLIGENCE GATHERING: REVISITED 32

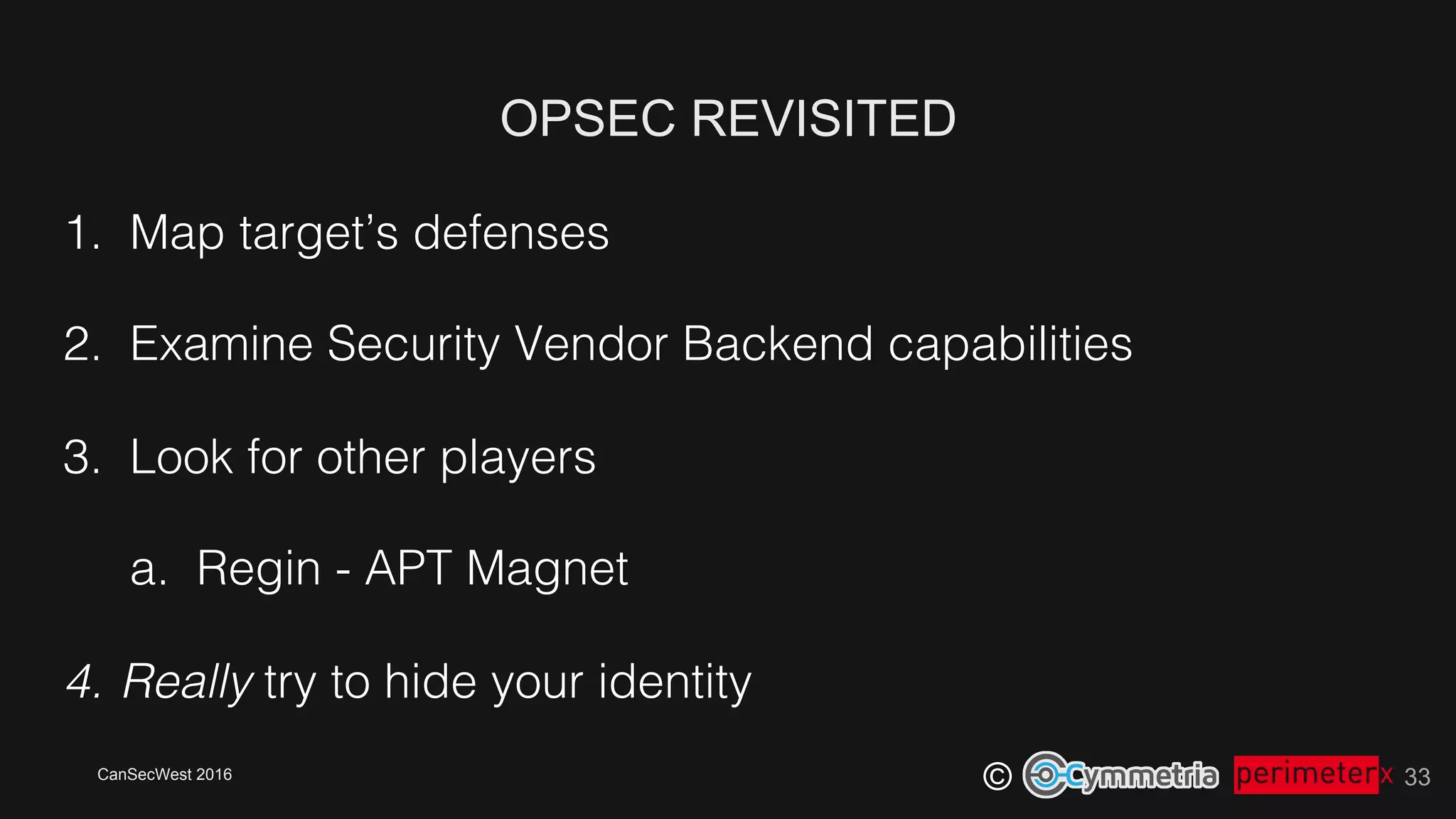

- 33. CanSecWest 2016 © OPSEC REVISITED 33 1. Map target’s defenses! 2. Examine Security Vendor Backend capabilities! 3. Look for other players! a. Regin - APT Magnet! 4. Really try to hide your identity!

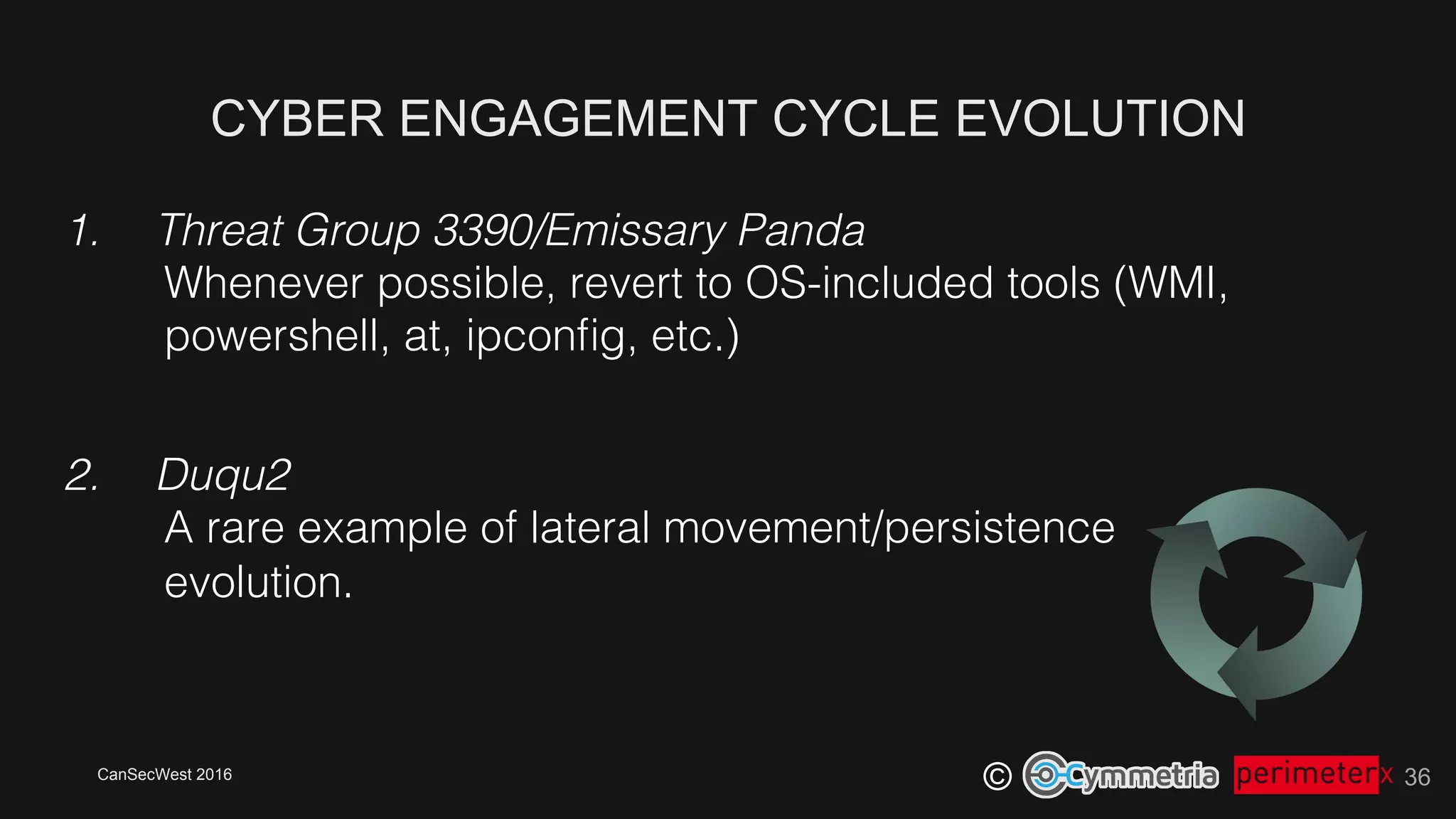

- 36. CanSecWest 2016 © CYBER ENGAGEMENT CYCLE EVOLUTION 36 1. Threat Group 3390/Emissary Panda! Whenever possible, revert to OS-included tools (WMI, powershell, at, ipconfig, etc.)! 2. Duqu2! A rare example of lateral movement/persistence! evolution.!
- 37. CanSecWest 2016 © 6. FOLD / RETREAT 37

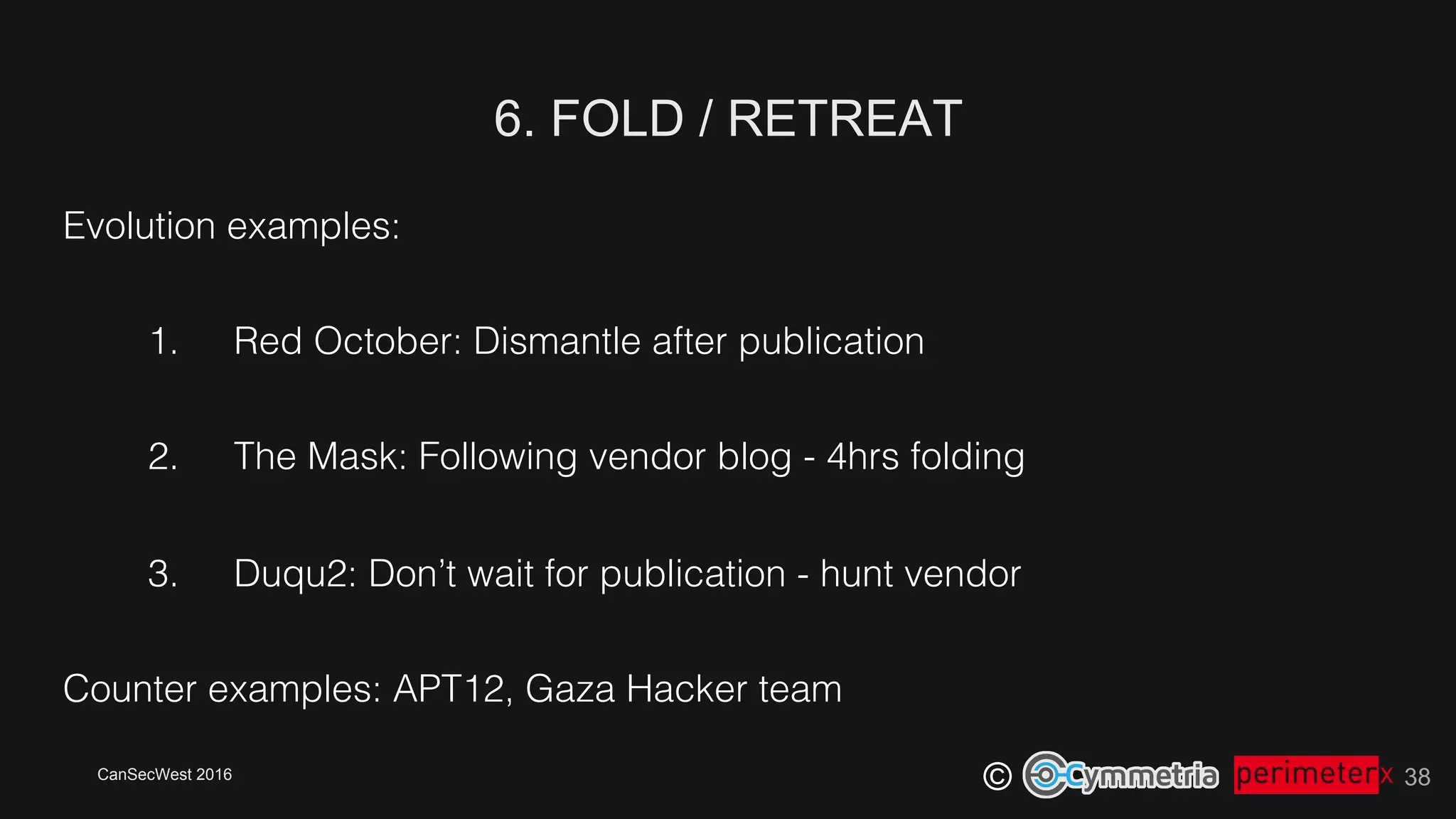

- 38. CanSecWest 2016 © 6. FOLD / RETREAT 38 Evolution examples:! 1. Red October: Dismantle after publication! 2. The Mask: Following vendor blog - 4hrs folding! 3. Duqu2: Don’t wait for publication - hunt vendor! Counter examples: APT12, Gaza Hacker team!

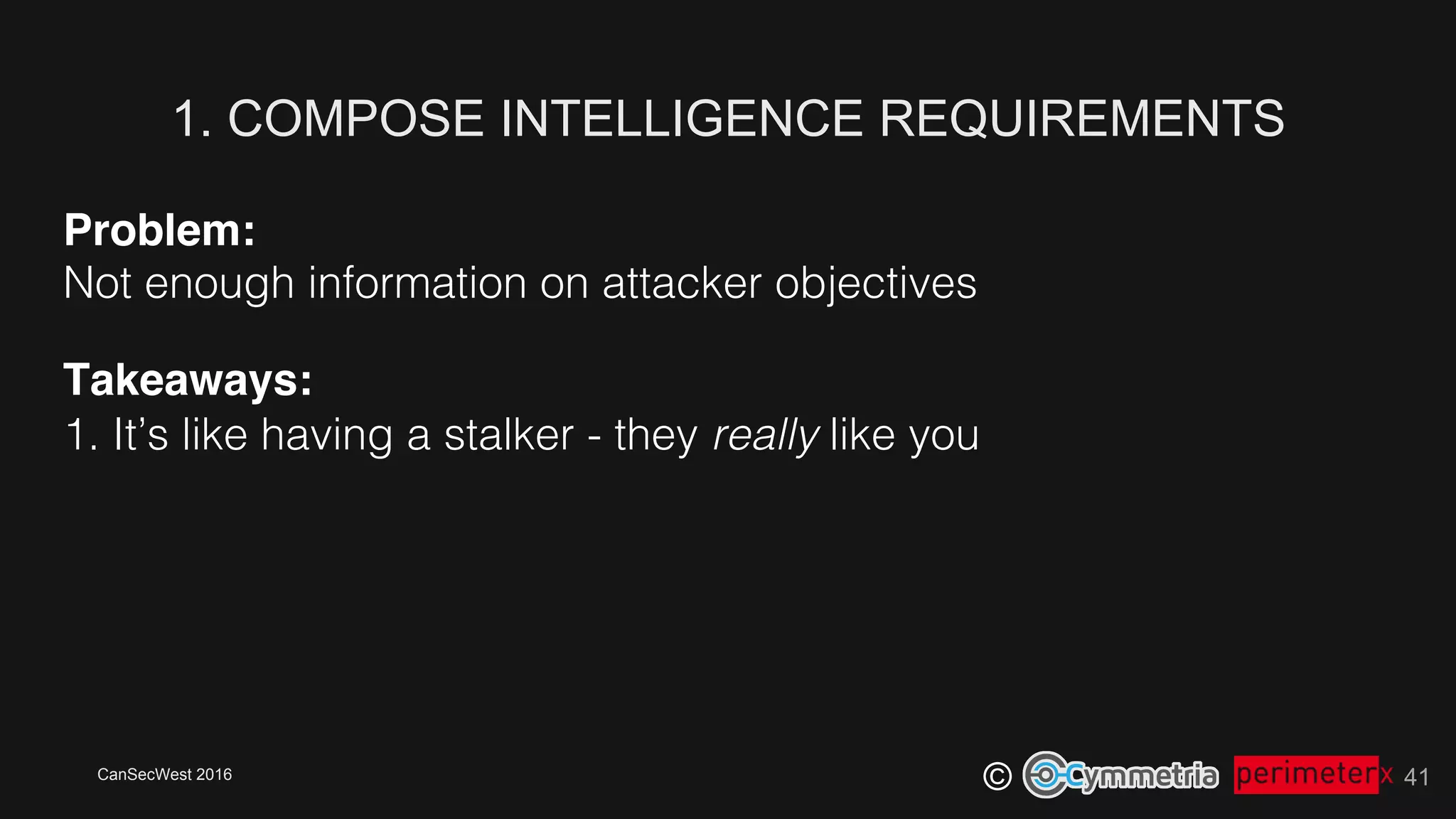

- 41. CanSecWest 2016 © Problem:! Not enough information on attacker objectives! Takeaways: 1. It’s like having a stalker - they really like you! 1. COMPOSE INTELLIGENCE REQUIREMENTS 41

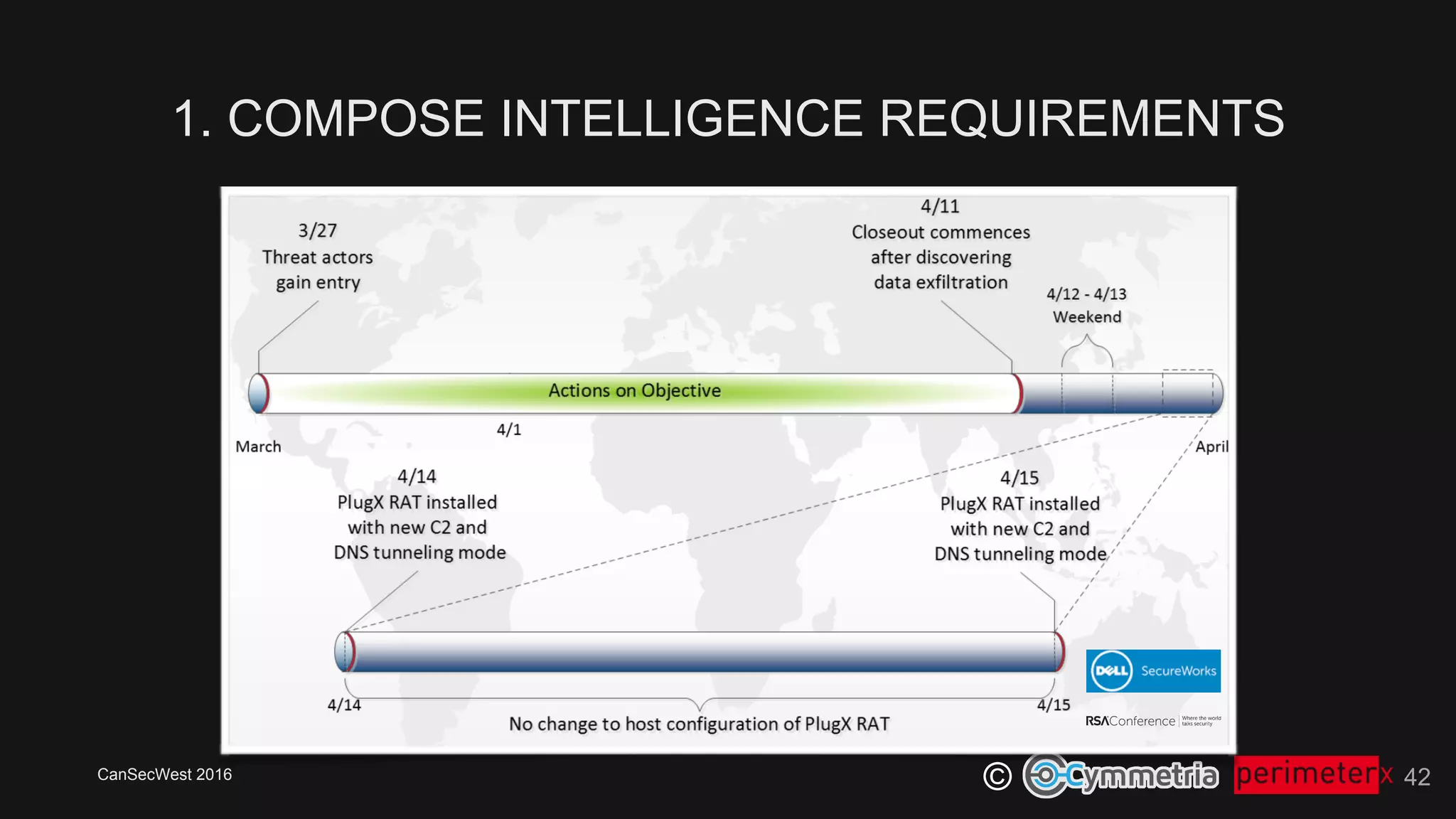

- 42. CanSecWest 2016 © 1. COMPOSE INTELLIGENCE REQUIREMENTS 42

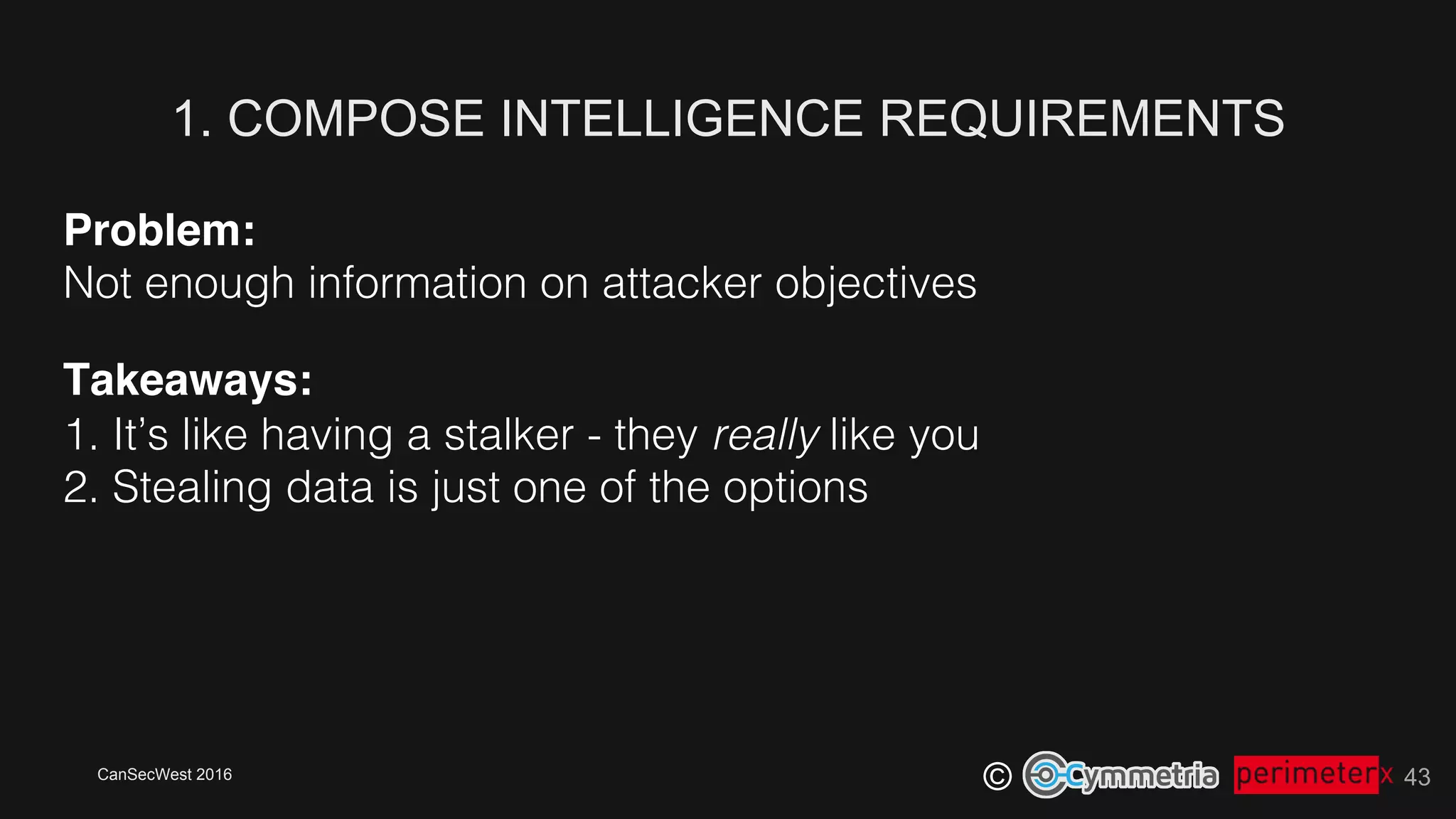

- 43. CanSecWest 2016 © Problem:! Not enough information on attacker objectives! Takeaways: 1. It’s like having a stalker - they really like you! 2. Stealing data is just one of the options! 1. COMPOSE INTELLIGENCE REQUIREMENTS 43
- 44. CanSecWest 2016 © 1. COMPOSE INTELLIGENCE REQUIREMENTS 44

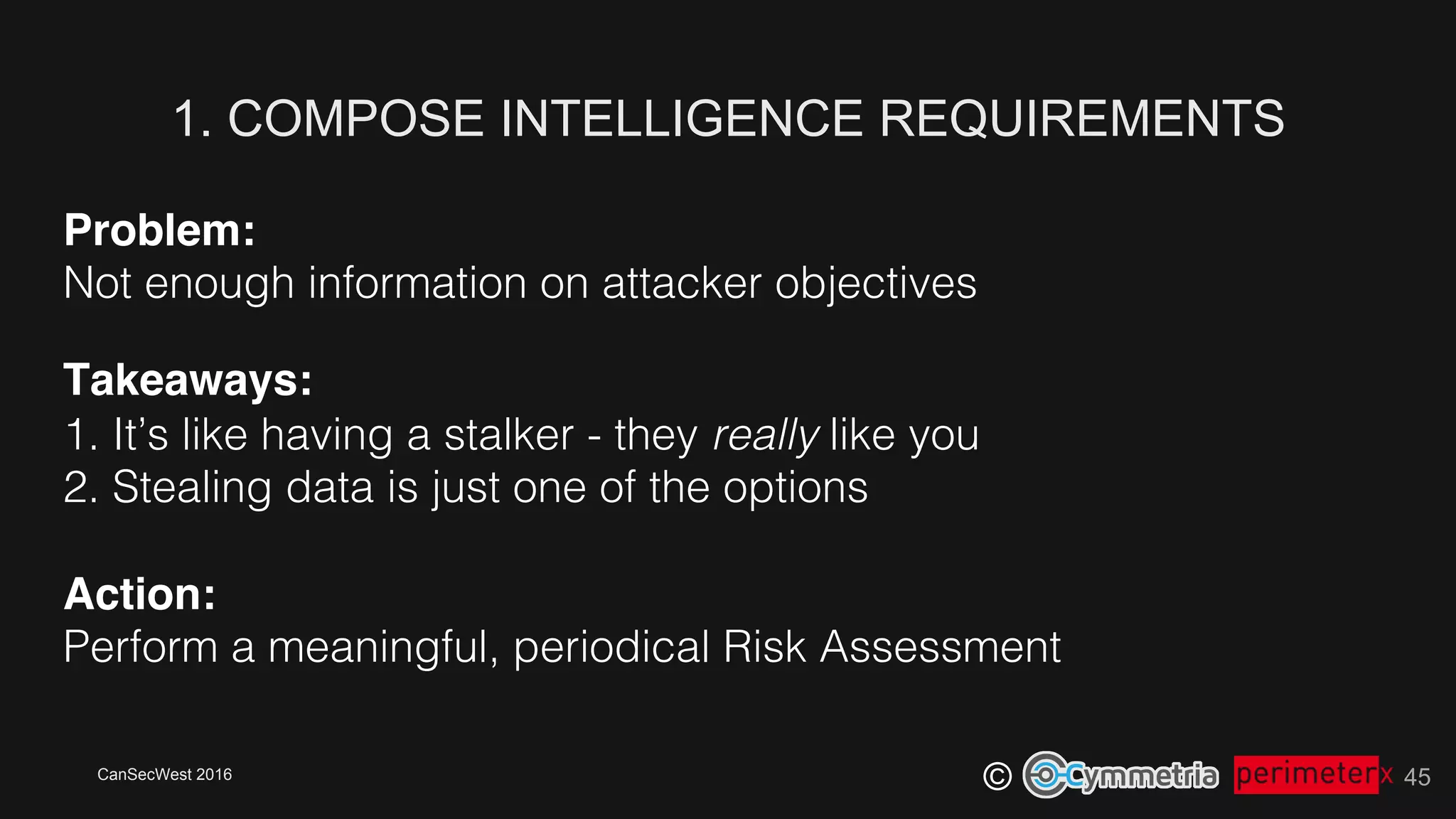

- 45. CanSecWest 2016 © Problem:! Not enough information on attacker objectives! Takeaways: 1. It’s like having a stalker - they really like you! 2. Stealing data is just one of the options! ! Action: Perform a meaningful, periodical Risk Assessment! 1. COMPOSE INTELLIGENCE REQUIREMENTS 45

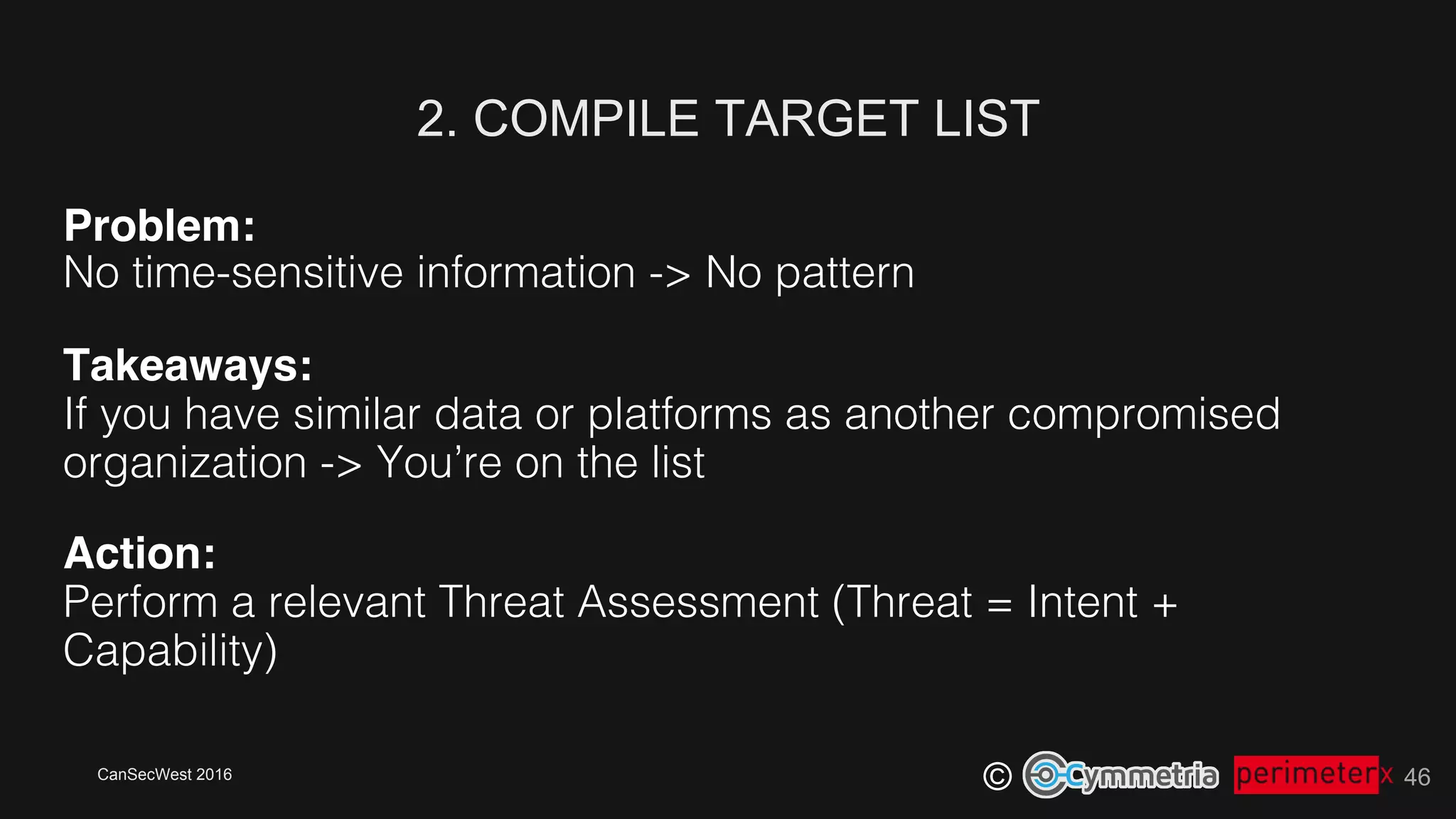

- 46. CanSecWest 2016 © 2. COMPILE TARGET LIST 46 Problem:! No time-sensitive information -> No pattern! Takeaways: If you have similar data or platforms as another compromised organization -> You’re on the list! Action: Perform a relevant Threat Assessment (Threat = Intent + Capability)!

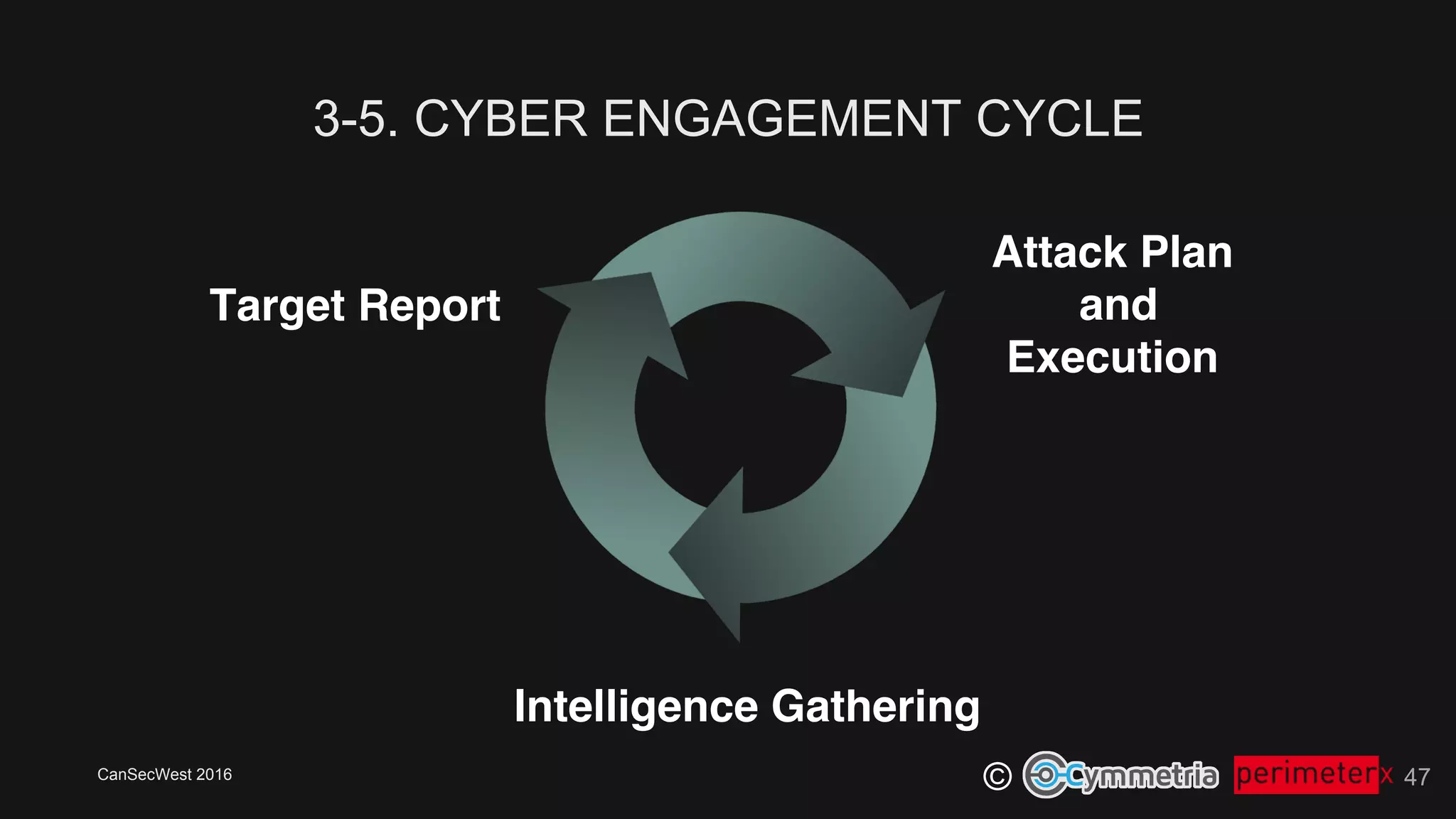

- 47. CanSecWest 2016 © 3-5. CYBER ENGAGEMENT CYCLE 47 Target Report Intelligence Gathering Attack Plan and Execution

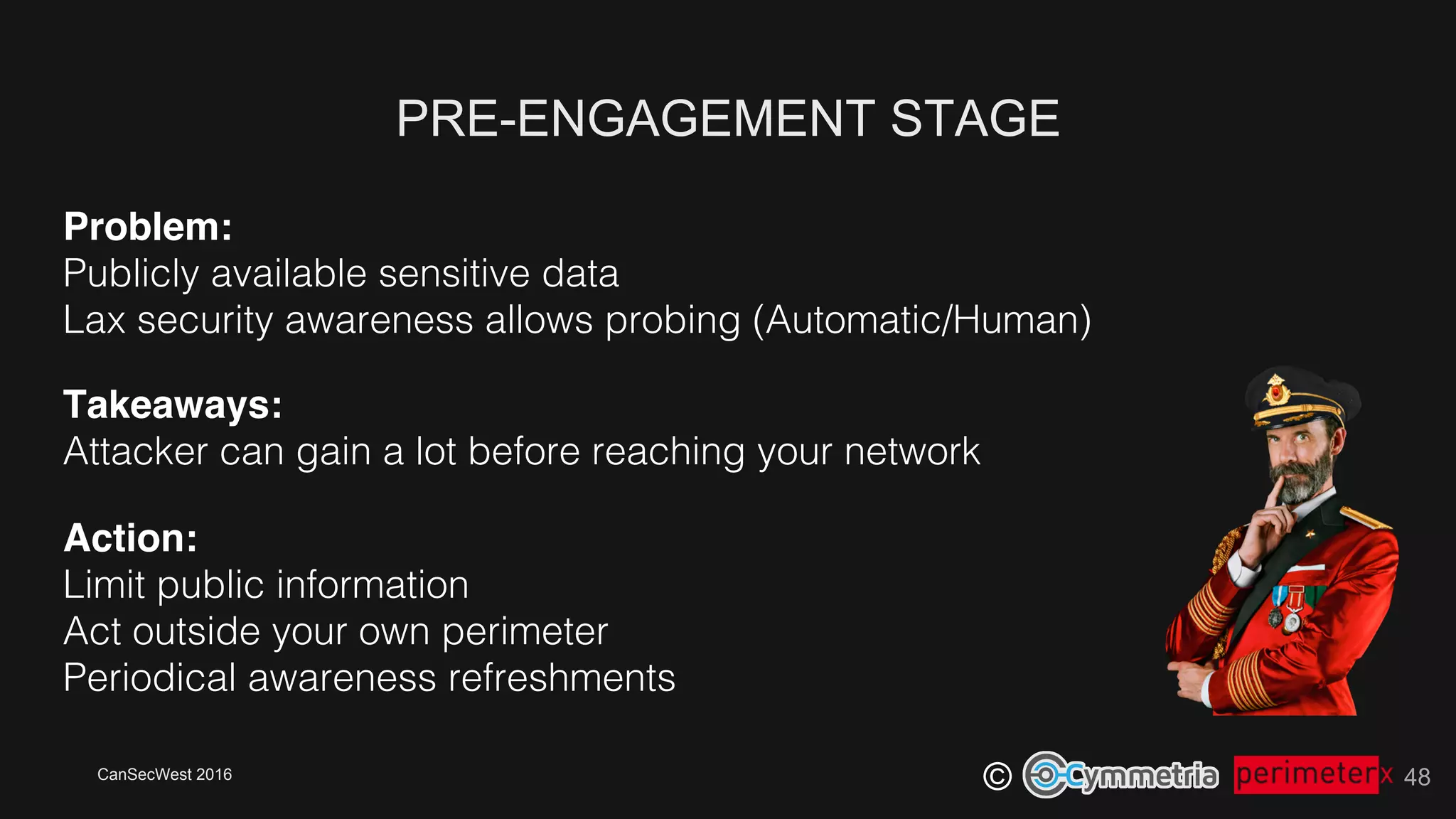

- 48. CanSecWest 2016 © PRE-ENGAGEMENT STAGE 48 Problem:! Publicly available sensitive data! Lax security awareness allows probing (Automatic/Human)! Takeaways: Attacker can gain a lot before reaching your network! Action: Limit public information! Act outside your own perimeter! Periodical awareness refreshments!

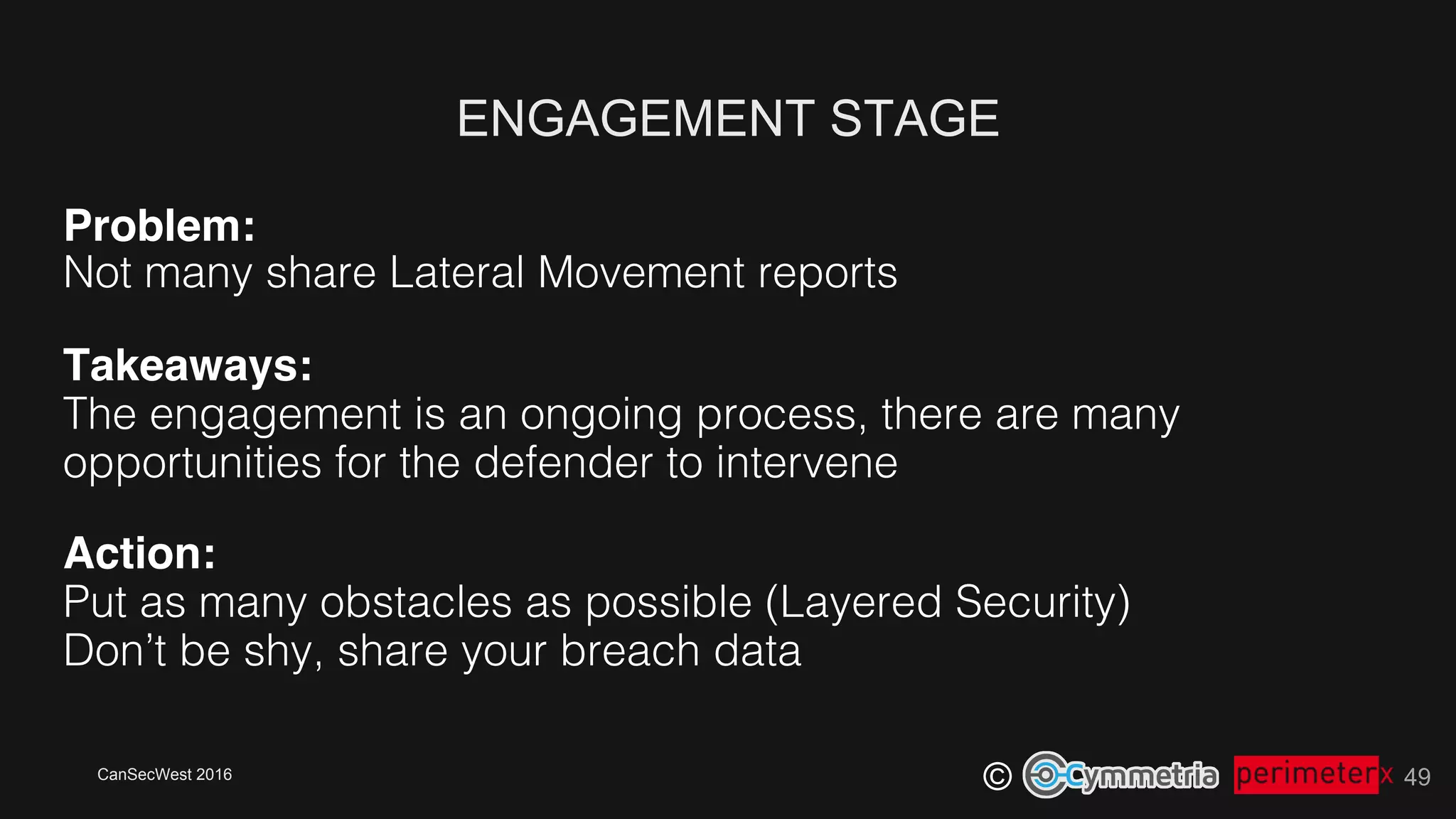

- 49. CanSecWest 2016 © ENGAGEMENT STAGE 49 Problem:! Not many share Lateral Movement reports! Takeaways: The engagement is an ongoing process, there are many opportunities for the defender to intervene! Action: Put as many obstacles as possible (Layered Security)! Don’t be shy, share your breach data!
- 50. CanSecWest 2016 © Problem:! Attacker can destroy forensic evidence! Takeaways: Snapshots and logs can potentially save the day! Action: Backup Response Plan! 6. FOLD/RETREAT 50

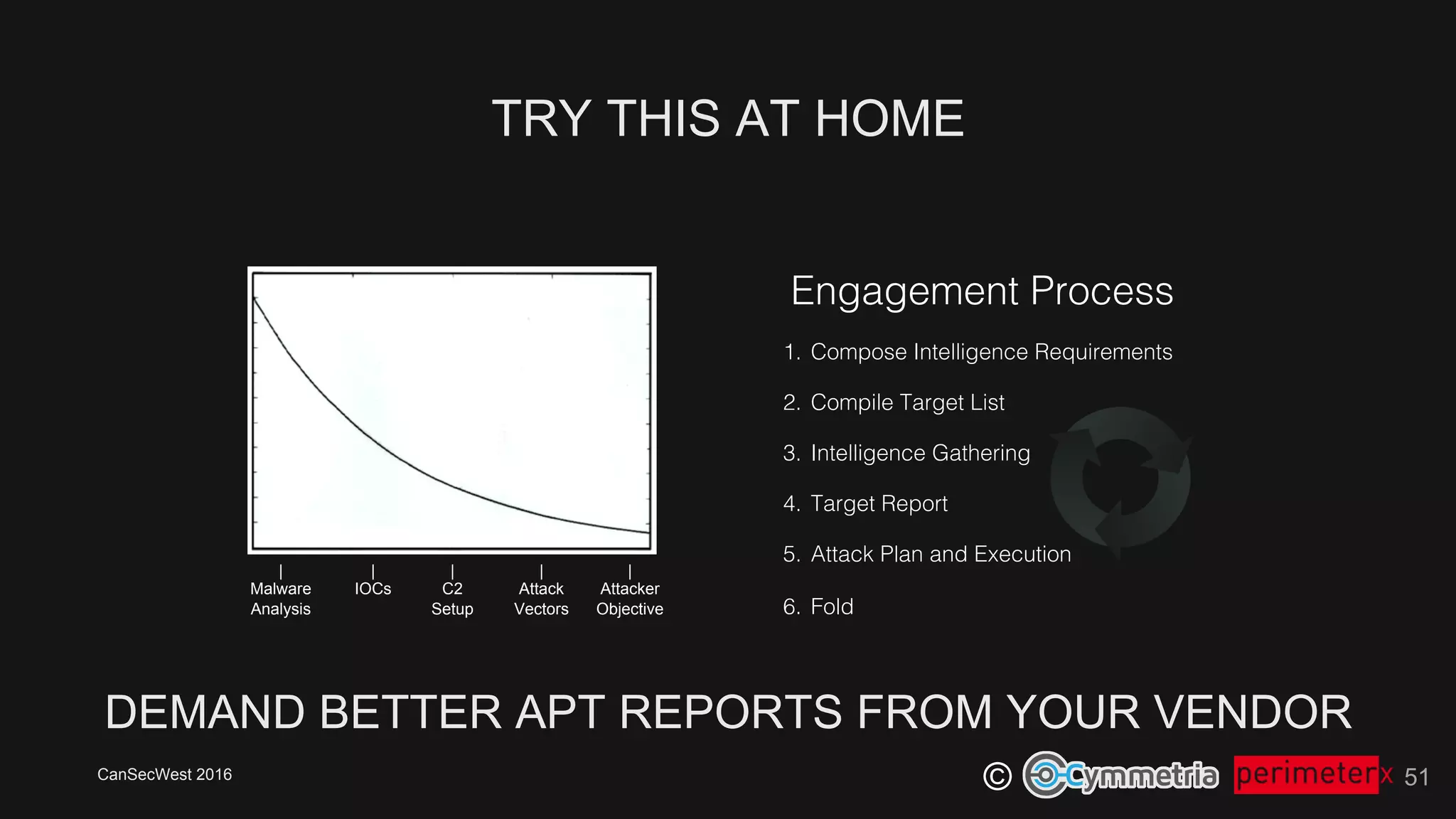

- 51. CanSecWest 2016 © TRY THIS AT HOME 51 DEMAND BETTER APT REPORTS FROM YOUR VENDOR 1. Compose Intelligence Requirements! 2. Compile Target List! 3. Intelligence Gathering! 4. Target Report! 5. Attack Plan and Execution! 6. Fold! | Malware Analysis | C2 Setup | Attack Vectors | IOCs | Attacker Objective Engagement Process!
- 52. CanSecWest 2016 © THE DECLINE OF SHAME 52
- 53. CanSecWest 2016 © THE DECLINE OF SHAME 53

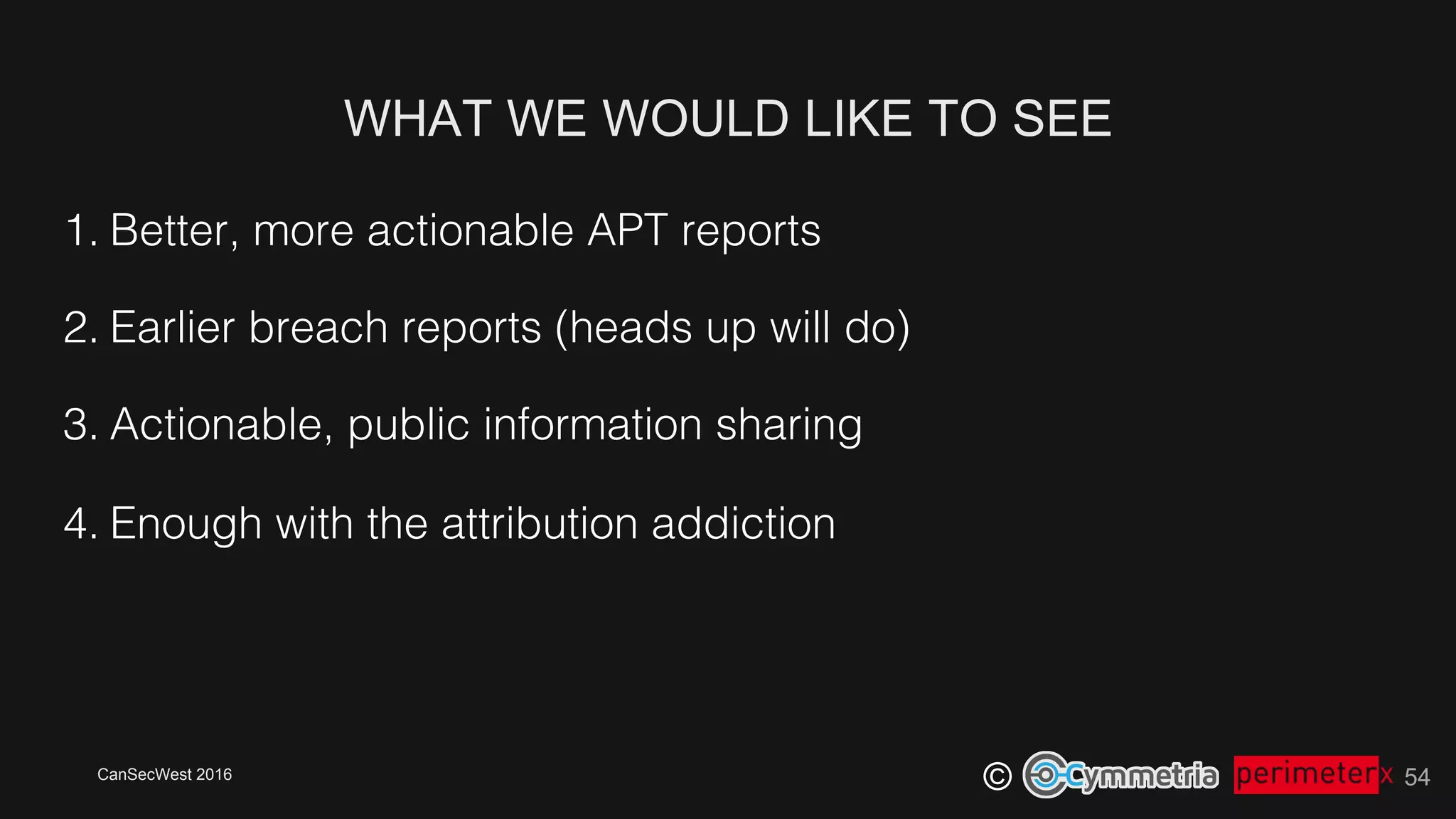

- 54. CanSecWest 2016 © WHAT WE WOULD LIKE TO SEE 54 1. Better, more actionable APT reports! 2. Earlier breach reports (heads up will do)! 3. Actionable, public information sharing! 4. Enough with the attribution addiction!
- 55. CanSecWest 2016 © WHAT WE WOULD LIKE TO SEE 55
- 56. CanSecWest 2016 © FINAL WORDS 56 APT Reports can be a huge help Stay on the attacker’s 6 Increase their costs
- 57. CanSecWest 2016 © 57 Inbar Raz VP of Research @inbarraz inbar@perimeterx.com Gadi Evron Founder, CEO @gadievron gadi@cymmetria.com Dean Sysman Co-Founder, CTO @DeanSysman dean@cymmetria.com
