CSW2017 Privilege escalation on high-end servers due to implementation gaps in CPU Hot-Add flow

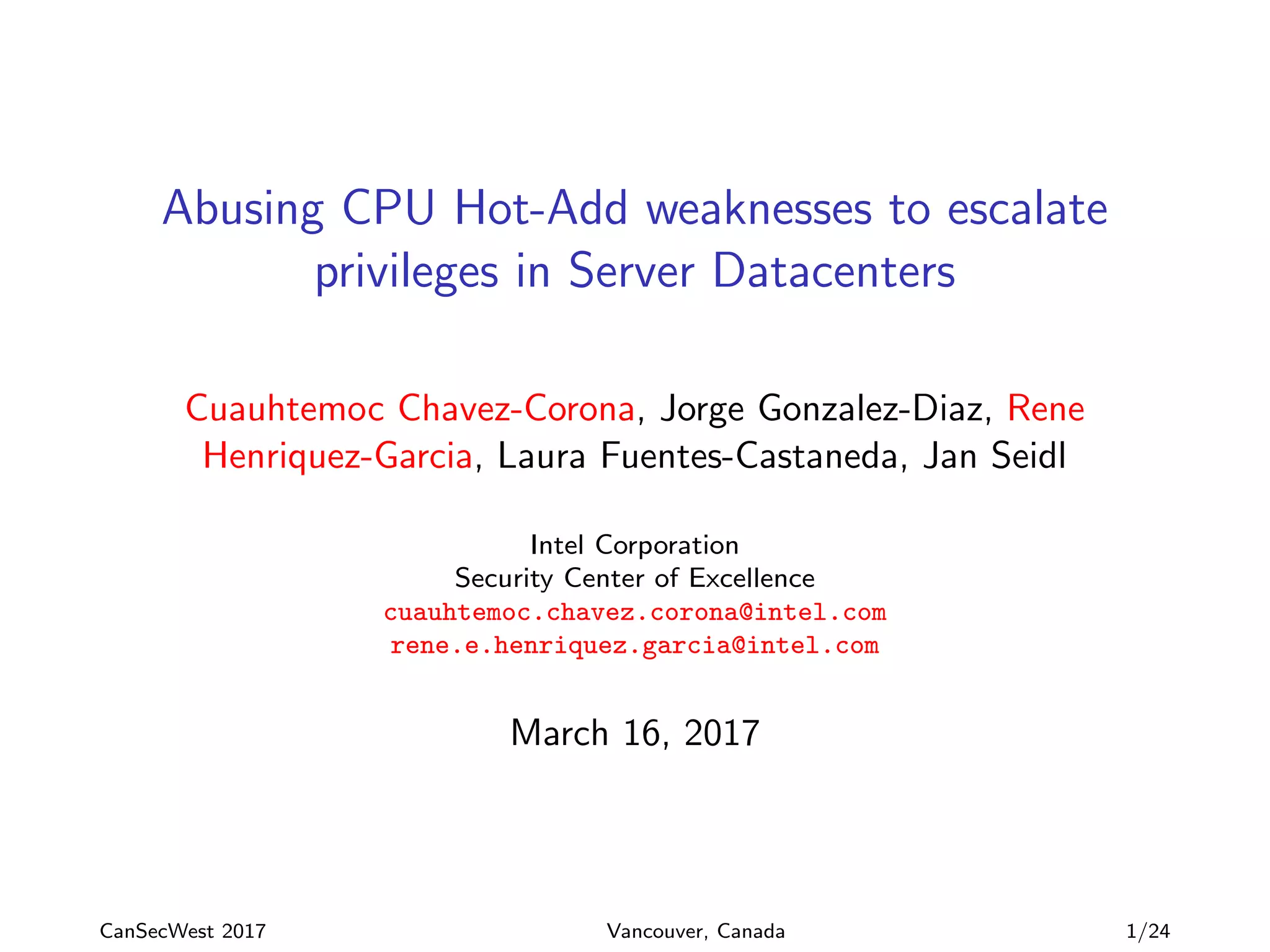

1. Abusing CPU Hot-Add weaknesses to escalate
privileges in Server Datacenters
Cuauhtemoc Chavez-Corona, Jorge Gonzalez-Diaz, Rene
Henriquez-Garcia, Laura Fuentes-Castaneda, Jan Seidl
Intel Corporation
Security Center of Excellence
cuauhtemoc.chavez.corona@intel.com
rene.e.henriquez.garcia@intel.com
March 16, 2017
CanSecWest 2017 Vancouver, Canada 1/24

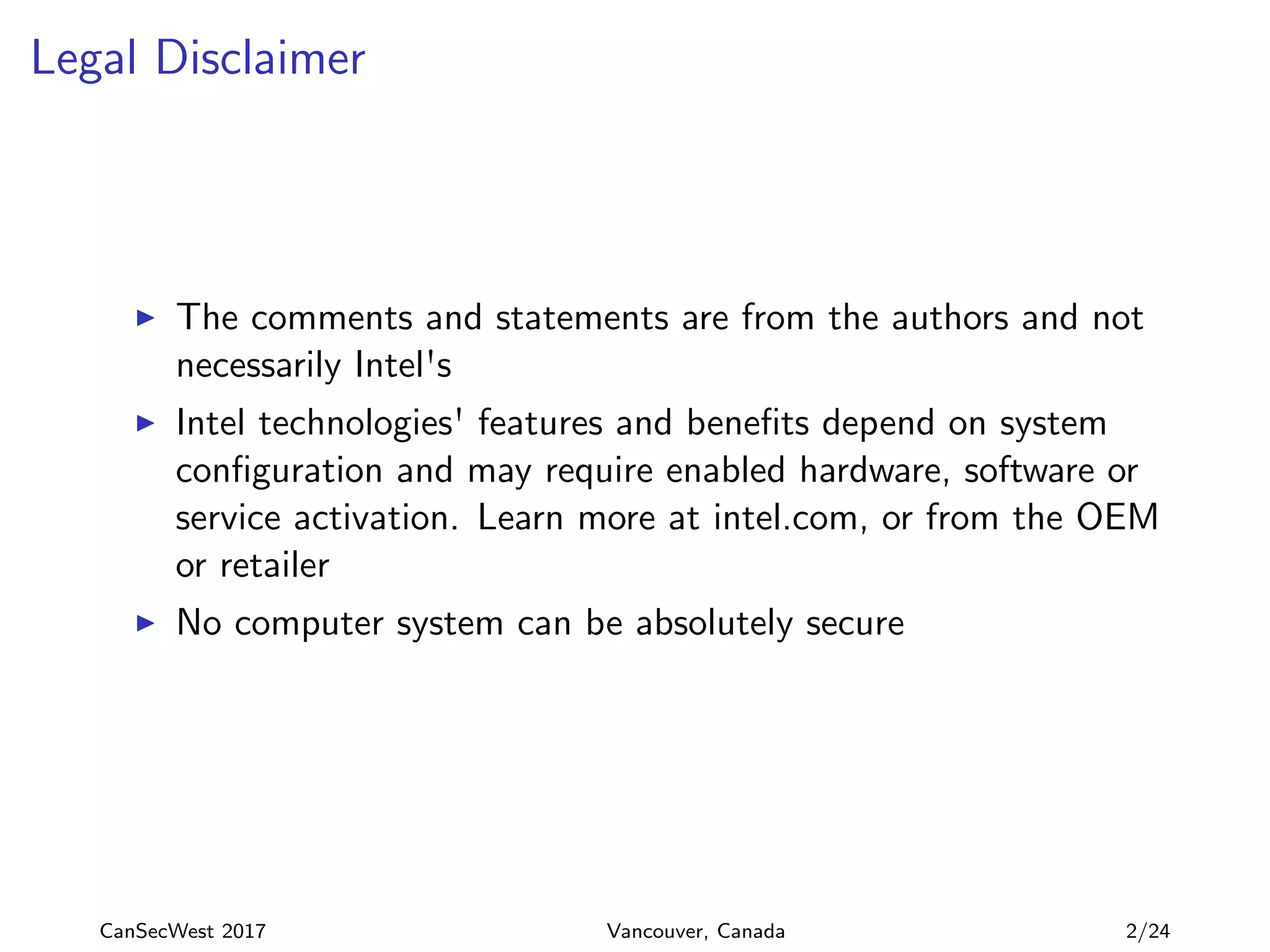

2. Legal Disclaimer
The comments and statements are from the authors and not
necessarily Intel's
Intel technologies' features and benefits depend on system
configuration and may require enabled hardware, software or
service activation. Learn more at intel.com, or from the OEM
or retailer
No computer system can be absolutely secure
CanSecWest 2017 Vancouver, Canada 2/24
5. Background: Datacenter’s landscape
Mission-critical applications such as e-commerce, ERP, CRM,
BI have low tolerance for downtime
As a response, solutions comprised of robust Hardware +
reliable/serviceable FW/SW are continuously being designed
CanSecWest 2017 Vancouver, Canada 4/24
6. Background: Datacenter’s landscape
Mission-critical applications such as e-commerce, ERP, CRM,
BI have low tolerance for downtime
As a response, solutions comprised of robust Hardware +
reliable/serviceable FW/SW are continuously being designed
Are these new systems being architected such that the attack
surface is not increased? We’ll see..
CanSecWest 2017 Vancouver, Canada 4/24
7. Background: Attacks coming from DMA entry point
Understanding DMA Malware ,Patrick Stewin and Iurii
Bystrov, Proceedings of the 9th International Conference on
Detection of Intrusions and Malware, and Vulnerability
Assessment,2013
CanSecWest 2017 Vancouver, Canada 5/24
8. Background: Attacks coming from DMA entry point
Understanding DMA Malware ,Patrick Stewin and Iurii
Bystrov, Proceedings of the 9th International Conference on
Detection of Intrusions and Malware, and Vulnerability
Assessment,2013
Direct Memory Attack the KERNEL, ULF FRISK, DEFCON
24 August 4-7 2016
CanSecWest 2017 Vancouver, Canada 5/24
9. Definition: RAS features
Reliability
Can be defined as the characteristic that ensures the system will
provide correct outputs, and any corrupted data will be detected
and repaired.
Availability
Means that the system will be operating during the planned
time, avoiding unexpected crashes.
Serviceability
Refers to the simplicity and speed of maintenance and repara-
tion.
CanSecWest 2017 Vancouver, Canada 6/24
10. Definition: CPU Hot Add
CPU Hot Add (aka CPU on-lining) is a RAS feature that
allows customers to increase computing power in a Server by
adding a new socket to the already running system at Intel R
QPI
interface without the necessity of shutting down the machine.
CanSecWest 2017 Vancouver, Canada 7/24
11. Definition: CPU Hot Add
CPU Hot Add (aka CPU on-lining) is a RAS feature that
allows customers to increase computing power in a Server by
adding a new socket to the already running system at Intel R
QPI
interface without the necessity of shutting down the machine.
In a multi-CPU system comprised of n processors, one can
therefore choose to boot with m CPUs where m < n
CanSecWest 2017 Vancouver, Canada 7/24
12. Definition: CPU Hot Add
CPU Hot Add (aka CPU on-lining) is a RAS feature that
allows customers to increase computing power in a Server by
adding a new socket to the already running system at Intel R
QPI
interface without the necessity of shutting down the machine.
In a multi-CPU system comprised of n processors, one can
therefore choose to boot with m CPUs where m < n
This allows the possibility to increase the computing power
later if required by bringing up new CPUs to the already
running system
CanSecWest 2017 Vancouver, Canada 7/24
13. Definition: CPU Hot Add
CPU On-lining requires coordinated support from the complete
application stack to ensure correctness while adding a new CPU.
Hardware. Internal logic in the CPU to drain transactions and
prevent originators from sending new ones.
Firmware. BIOS and SMM routines to trigger, handle and
coordinate CPU on-lining.
Operating System. Currently several OS’s support this feature.
CanSecWest 2017 Vancouver, Canada 8/24
14. High level overview of Hot Add flow
MotherBoard
CPU2
ON
ON
ON
CPU3
CPU1 CPU4
OFF
CanSecWest 2017 Vancouver, Canada 9/24
15. High level overview of Hot Add flow
Active CPUs enter in
quiesce mode
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
CanSecWest 2017 Vancouver, Canada 9/24
16. High level overview of Hot Add flow
Active CPUs enter in
quiesce mode
HotAdd CPU boot process
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
CanSecWest 2017 Vancouver, Canada 9/24
17. High level overview of Hot Add flow
Active CPUs enter in
quiesce mode
HotAdd CPU boot process
BSP initialization
Memory config
etc.
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
CanSecWest 2017 Vancouver, Canada 9/24
18. High level overview of Hot Add flow
Active CPUs enter in
quiesce mode
HotAdd CPU boot process
BSP initialization
Memory config
etc.
Interesting!
1. Boot flow is very
sensitive
CanSecWest 2017 Vancouver, Canada 9/24
19. High level overview of Hot Add flow
Active CPUs enter in
quiesce mode
HotAdd CPU boot process
BSP initialization
Memory config
etc.
Interesting!
1. Boot flow is very
sensitive
2. Quiesced CPUs need
reconfiguration
CanSecWest 2017 Vancouver, Canada 9/24
20. High level overview of Hot Add flow
Active CPUs enter in
quiesce mode
HotAdd CPU boot process
BSP initialization
Memory config
etc.
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
ON
CanSecWest 2017 Vancouver, Canada 9/24
21. High level overview of Hot Add flow
Active CPUs enter in
quiesce mode
HotAdd CPU boot process
BSP initialization
Memory config
etc.
Release quiesced CPUs
MotherBoard
ON
ON
CPU3
ON
CPU1
CPU2
ON
CPU4
CanSecWest 2017 Vancouver, Canada 9/24
22. Brief overview of Boot Flow
The Boot Strap
Processor (BSP) is
chosen
BSP Fetch Code
from the Flash
Minimum System
Configuration
Memory
Initialization.
Memory
Reference Code
(MRC)
BIOS Shadowing
PAM (Programmable
Attribute Maps) registers
are used to make a copy
of BIOS code into memory
SMI initialization
BSP sends the SIPI
indication trough the Local
Advance Programmable
Controller
Advanced Configuration
Other platform & devices
init; dispatch drivers
(network, I/O, etc.);
Produce Boot and
Runtime Services
Boot Manager (Select
Boot Device) EFI Shell/
Apps; OS Boot Loader(s)
Boot
Flow
END
CanSecWest 2017 Vancouver, Canada 10/24
23. Security Claims from CPU Hot Add definition
One fundamental Security Objective related to CPU Hot Add is
that any new CPU to be introduced in the running system must
execute a trusted path to ensure its security won't be subverted by
any attacker already present in the system
CanSecWest 2017 Vancouver, Canada 11/24
24. Security Claims from CPU Hot Add definition
One fundamental Security Objective related to CPU Hot Add is
that any new CPU to be introduced in the running system must
execute a trusted path to ensure its security won't be subverted by
any attacker already present in the system
By attackers we mean
Any rogue code already running in system’s CPUs
DMA agents whose internal FW has been compromised
CanSecWest 2017 Vancouver, Canada 11/24
25. Assets
There are two interesting regions to be protected in order to ensure
security claim presented previously
CanSecWest 2017 Vancouver, Canada 12/24
26. Assets
There are two interesting regions to be protected in order to ensure
security claim presented previously
0x38000: Holds the code to be executed in the first SMI by
the newly-added CPU in order to perform SMBASE relocation.
CanSecWest 2017 Vancouver, Canada 12/24
27. Assets
There are two interesting regions to be protected in order to ensure
security claim presented previously
0x38000: Holds the code to be executed in the first SMI by
the newly-added CPU in order to perform SMBASE relocation.
0xe2000: Holds SIPI initialization vector code vital for the
newly-added CPU and its integration into the running system.
CanSecWest 2017 Vancouver, Canada 12/24
28. Why do we care about those assets?
SMM has superior privileges as it can change different settings
which cannot be modified by OS
CanSecWest 2017 Vancouver, Canada 13/24
29. Why do we care about those assets?
SMM has superior privileges as it can change different settings
which cannot be modified by OS
In Servers, it is usually referred to as ring -2 whereas OS is
being considered as ring 0
CanSecWest 2017 Vancouver, Canada 13/24
30. Why do we care about those assets?
SMM has superior privileges as it can change different settings
which cannot be modified by OS
In Servers, it is usually referred to as ring -2 whereas OS is
being considered as ring 0
Corrupting Startup Inter-Process Interrupt vector code is also
interesting for an attacker as it could potentially be used to
misconfigure initial configuration of the newly-added CPU
CanSecWest 2017 Vancouver, Canada 13/24
31. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
CPU2
ON
ON
ON
CPU3
CPU1 CPU4
OFF
DRAM
0x3FFFF
0x30000
CanSecWest 2017 Vancouver, Canada 14/24
32. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
DRAM
0x3FFFF
0x30000
CanSecWest 2017 Vancouver, Canada 14/24
33. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
DRAM
0x3FFFF
0x30000
0x38000
CanSecWest 2017 Vancouver, Canada 14/24
34. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
DRAM
0x3FFFF
0x30000
0x38000
CanSecWest 2017 Vancouver, Canada 14/24
35. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
DRAM
0x3FFFF
0x30000
0x38000
0000000000000011111111111111
0000000000
00000
1111111111
11111
CanSecWest 2017 Vancouver, Canada 14/24
36. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
DRAM
0x3FFFF
0x30000
0x38000
Malicious SMI Handler
0000000000000011111111111111
0000000000
00000
1111111111
11111
CanSecWest 2017 Vancouver, Canada 14/24
37. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
ON
DRAM
0x3FFFF
0x30000
0x38000
Malicious SMI Handler
0000000000000011111111111111
0000000000
00000
1111111111
11111
CanSecWest 2017 Vancouver, Canada 14/24
38. 0x38000 attack: Escalate to SMM privileges in a Server
MotherBoard
ON
ON
CPU3
ON
CPU1
CPU2
ON
CPU4
DRAM
0x3FFFF
0x30000
0x38000
Malicious SMI Handler
0000000000000011111111111111
0000000000
00000
1111111111
11111
CanSecWest 2017 Vancouver, Canada 14/24
39. 0x38000 attack: Lab Setup
Hardware
Intel Platform/Motherboard supporting CPU Hot-Add
Intel Xeon E7-8800 V2 family processor
PP3380-AB PCIe 2 x1 - USB3380-AB Evaluation board
Attacker’s laptop with Windows 10 64bit Operating System
CanSecWest 2017 Vancouver, Canada 15/24
40. 0x38000 attack: Lab Setup
Hardware
Intel Platform/Motherboard supporting CPU Hot-Add
Intel Xeon E7-8800 V2 family processor
PP3380-AB PCIe 2 x1 - USB3380-AB Evaluation board
Attacker’s laptop with Windows 10 64bit Operating System
Firmware
BMC Firwmare supporting CPU Hot-Add flow
System FW (aka BIOS) supporting CPU Hot-Add Flow
CanSecWest 2017 Vancouver, Canada 15/24
41. 0x38000 attack: Lab Setup
Hardware
Intel Platform/Motherboard supporting CPU Hot-Add
Intel Xeon E7-8800 V2 family processor
PP3380-AB PCIe 2 x1 - USB3380-AB Evaluation board
Attacker’s laptop with Windows 10 64bit Operating System
Firmware
BMC Firwmare supporting CPU Hot-Add flow
System FW (aka BIOS) supporting CPU Hot-Add Flow
Software
PCILeech solution and a batch script to automate data writes
to memory
Operating System supporting CPU Hot-Add (i.e. Windows
2008/2012 Server)
CanSecWest 2017 Vancouver, Canada 15/24
42. PCILeech Configuration
Place jumper on J3 at PP3380-AB board and start platform
Run PCILeechFlash Installer.exe
Wait a while (1 min or so)
Shutdown the platform
Remove jumper on J3 at PP3380-AB board and start platform
Use our simple batch script to write 0x38000 region to inject
arbitrary code
CanSecWest 2017 Vancouver, Canada 16/24
43. Time to watch the DEMO
CanSecWest 2017 Vancouver, Canada 17/24
44. Mitigating 0x38000 attack
The attack just described is possible because DMA engines
were still able to inject malicious code in 0x38000 region
(despite Hardware effectively prevents code injection from
existing cores in the system)
CanSecWest 2017 Vancouver, Canada 18/24
45. Mitigating 0x38000 attack
The attack just described is possible because DMA engines
were still able to inject malicious code in 0x38000 region
(despite Hardware effectively prevents code injection from
existing cores in the system)
To mitigate this, BIOS leverages existing HW protection
mechanism in Intel CPUs against rogue DMA engines:
GENPROTRANGE register programming
CanSecWest 2017 Vancouver, Canada 18/24
46. Mitigating 0x38000 attack
The attack just described is possible because DMA engines
were still able to inject malicious code in 0x38000 region
(despite Hardware effectively prevents code injection from
existing cores in the system)
To mitigate this, BIOS leverages existing HW protection
mechanism in Intel CPUs against rogue DMA engines:
GENPROTRANGE register programming
This mitigation is already in place as part of BIOS reference
code delivered to OEMs
CanSecWest 2017 Vancouver, Canada 18/24
47. 0xe2000 attack part I: Take control of the system by
inserting rogue code
Corruption of SIPI initialization vector
DMA malicious writes could be attempted to attack 0xe2000
if not properly protected
CanSecWest 2017 Vancouver, Canada 19/24
48. 0xe2000 attack part I: Take control of the system by
inserting rogue code
Corruption of SIPI initialization vector
DMA malicious writes could be attempted to attack 0xe2000
if not properly protected
However, rogue code already present in other CPUs could try
to corrupt the vector either before CPU on-lining flow gets
triggered or in between SMIs
CanSecWest 2017 Vancouver, Canada 19/24
49. 0xe2000 attack part I: Take control of the system by
inserting rogue code
Corruption of SIPI initialization vector
DMA malicious writes could be attempted to attack 0xe2000
if not properly protected
However, rogue code already present in other CPUs could try
to corrupt the vector either before CPU on-lining flow gets
triggered or in between SMIs
Mitigation: Secure Integrity check before attempting SIPI
vector code execution
CanSecWest 2017 Vancouver, Canada 19/24
50. Depiction of 0xe2000 attack part I
MotherBoard
CPU2
ON
ON
ON
CPU3
CPU1 CPU4
OFF
DRAM
0xE2000
CanSecWest 2017 Vancouver, Canada 20/24
51. Depiction of 0xe2000 attack part I
MotherBoard
CPU2
ON
ON
ON
CPU3
CPU1 CPU4
OFF
DRAM
0xE2000
Malicious Vector
CanSecWest 2017 Vancouver, Canada 20/24
52. Depiction of 0xe2000 attack part I
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
DRAM
0xE2000
Malicious Vector
CanSecWest 2017 Vancouver, Canada 20/24
53. Depiction of 0xe2000 attack part I
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
BOOT
x
DRAM
0xE2000
Malicious Vector
CanSecWest 2017 Vancouver, Canada 20/24
54. Depiction of 0xe2000 attack part I
MotherBoard
ONON
CPU1
CPU3CPU2
ON
CPU4
ON
x
DRAM
0xE2000
Malicious Vector
CanSecWest 2017 Vancouver, Canada 20/24
55. Depiction of 0xe2000 attack part I
MotherBoard
ON
ON
CPU3
ON
CPU1
CPU2
ON
CPU4 x
DRAM
0xE2000
Malicious Vector
CanSecWest 2017 Vancouver, Canada 20/24
56. 0xe2000 attack part II: Confusion due to name collision
Integrity verification of 0xe2000 region was meant to be achieved
through a cryptographically strong hash function
CanSecWest 2017 Vancouver, Canada 21/24
57. 0xe2000 attack part II: Confusion due to name collision
Integrity verification of 0xe2000 region was meant to be achieved
through a cryptographically strong hash function
It turns out sometimes one can refer to the output of a
cryptographic hash function as a checksum
CanSecWest 2017 Vancouver, Canada 21/24
58. 0xe2000 attack part II: Confusion due to name collision
Integrity verification of 0xe2000 region was meant to be achieved
through a cryptographically strong hash function
It turns out sometimes one can refer to the output of a
cryptographic hash function as a checksum
In fact, this confusion led to erroneously implement an
integrity verification mechanism in the form of a weak
checksum (from a security standpoint)
CanSecWest 2017 Vancouver, Canada 21/24
59. 0xe2000 attack part II: Confusion due to name collision
Integrity verification of 0xe2000 region was meant to be achieved
through a cryptographically strong hash function
It turns out sometimes one can refer to the output of a
cryptographic hash function as a checksum
In fact, this confusion led to erroneously implement an
integrity verification mechanism in the form of a weak
checksum (from a security standpoint)
Such mechanism can easily be bypassed by crafting a special
rogue code through some tweaks to arithmetically map it to
the expected checksum
CanSecWest 2017 Vancouver, Canada 21/24
60. Mitigating 0xe2000 attack
Instead of verifying code vector’s integrity, always shadow a
fresh copy into 0xe2000 region before its execution
This mitigation is already in place as well by Intel into the
BIOS reference code
CanSecWest 2017 Vancouver, Canada 22/24
61. Conclusions
Datacenter products and their features deserve a thorough
security analysis despite old assumptions of being isolated
behind building walls
CanSecWest 2017 Vancouver, Canada 23/24
62. Conclusions
Datacenter products and their features deserve a thorough
security analysis despite old assumptions of being isolated
behind building walls
DMA remains as an interesting entry point since it might
enable remote exploitation of security weaknesses; also, it
turns out this entry point might be overlooked while
architecturing new technologies
CanSecWest 2017 Vancouver, Canada 23/24
63. Conclusions
Datacenter products and their features deserve a thorough
security analysis despite old assumptions of being isolated
behind building walls
DMA remains as an interesting entry point since it might
enable remote exploitation of security weaknesses; also, it
turns out this entry point might be overlooked while
architecturing new technologies
Implementation-wise, it is critical to ensure developers
correctly understand the exact security mechanism that
mitigates a corresponding threat; failure in this regard could
lead to mistakenly break overall system’s security
CanSecWest 2017 Vancouver, Canada 23/24
