The document discusses crop discrimination and yield monitoring in precision agriculture, emphasizing their role in optimizing crop management and resource utilization through remote sensing techniques and machine learning. It highlights various methodologies such as spectral analysis and vegetation indices to differentiate crops and monitor health, along with the use of yield monitoring systems for data-driven decision-making. Ultimately, these technologies enhance efficiency and sustainability in farming practices.

1. Crop Discrimination and Yield Monitoring in
Precision Agriculture
Geoinformatics and Nanotechnology and Precision
Farming 2(1+1)
Course Teachers
Dr. M. KUMARESAN, Ph.D.
(Hort.)
School of Agriculture
Vels Institute of Science, Technology
and Advanced Studies (VISTAS)
Pallavaram, Chennai - 600 117

2. Crop discrimination refers to the ability to differentiate and identify different
crop types, varieties, or growth conditions within a given area using various
remote sensing techniques, such as satellite or drone-based imaging, spectral
analysis, and machine learning
Two crucial components of precision agriculture are crop discrimination and
yield monitoring.
Both play a key role in optimizing crop management, resource utilization, and
decision-making.
Crop Discrimination

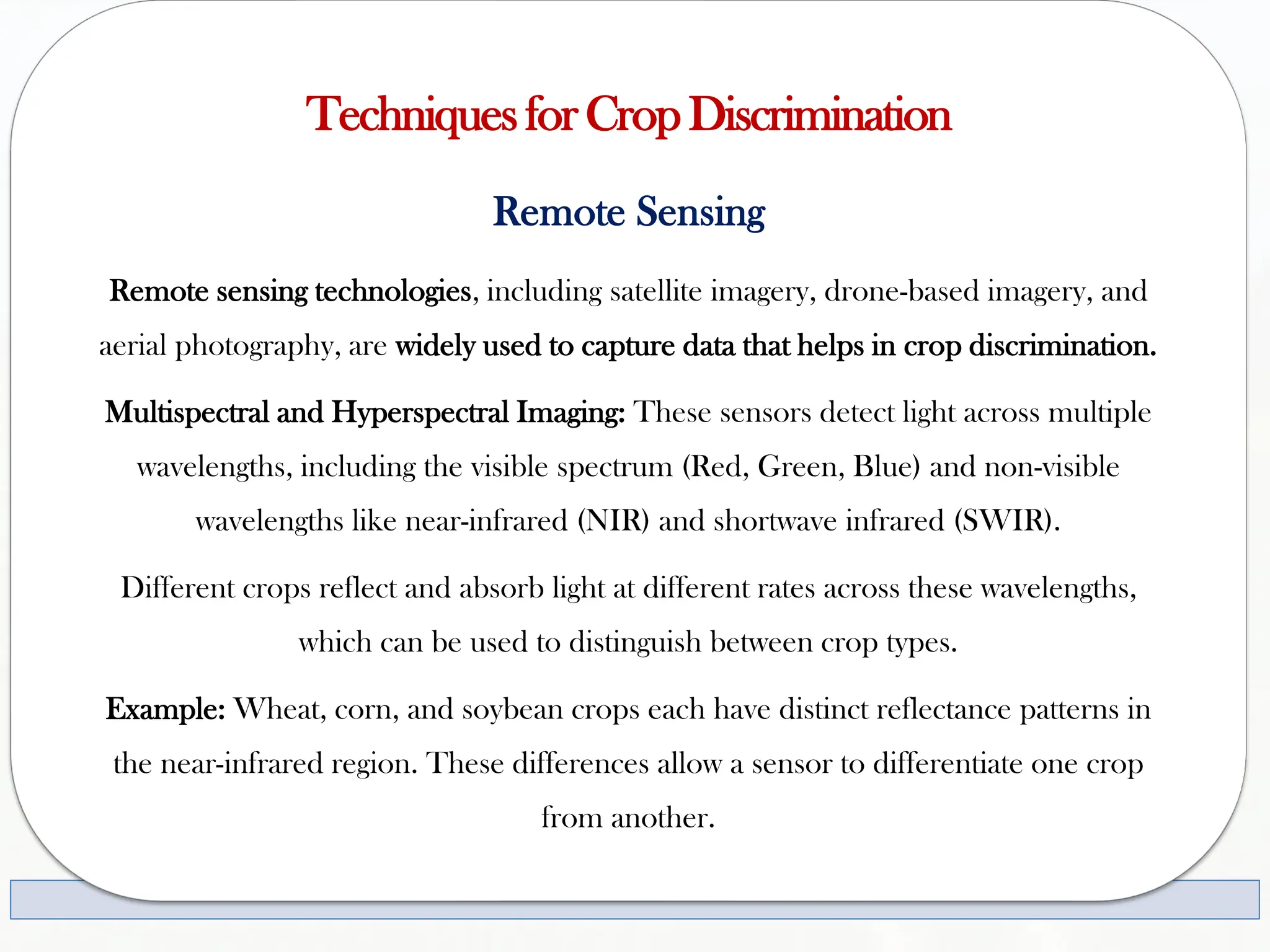

3. TechniquesforCropDiscrimination
Remote Sensing
Remote sensing technologies, including satellite imagery, drone-based imagery, and
aerial photography, are widely used to capture data that helps in crop discrimination.
Multispectral and Hyperspectral Imaging: These sensors detect light across multiple
wavelengths, including the visible spectrum (Red, Green, Blue) and non-visible
wavelengths like near-infrared (NIR) and shortwave infrared (SWIR).
Different crops reflect and absorb light at different rates across these wavelengths,
which can be used to distinguish between crop types.
Example: Wheat, corn, and soybean crops each have distinct reflectance patterns in
the near-infrared region. These differences allow a sensor to differentiate one crop
from another.

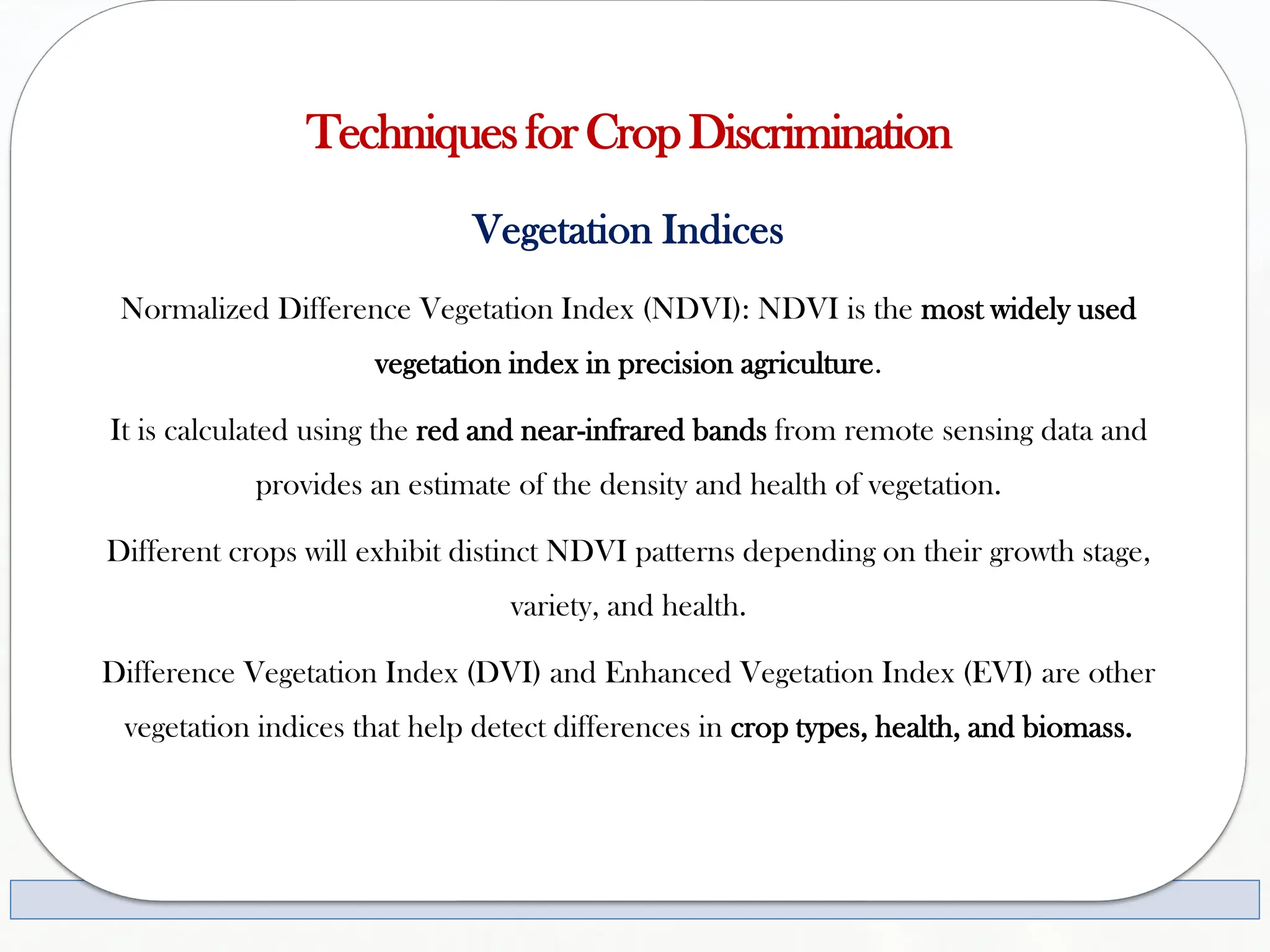

4. TechniquesforCropDiscrimination
Vegetation Indices
Normalized Difference Vegetation Index (NDVI): NDVI is the most widely used
vegetation index in precision agriculture.
It is calculated using the red and near-infrared bands from remote sensing data and
provides an estimate of the density and health of vegetation.
Different crops will exhibit distinct NDVI patterns depending on their growth stage,
variety, and health.
Difference Vegetation Index (DVI) and Enhanced Vegetation Index (EVI) are other
vegetation indices that help detect differences in crop types, health, and biomass.

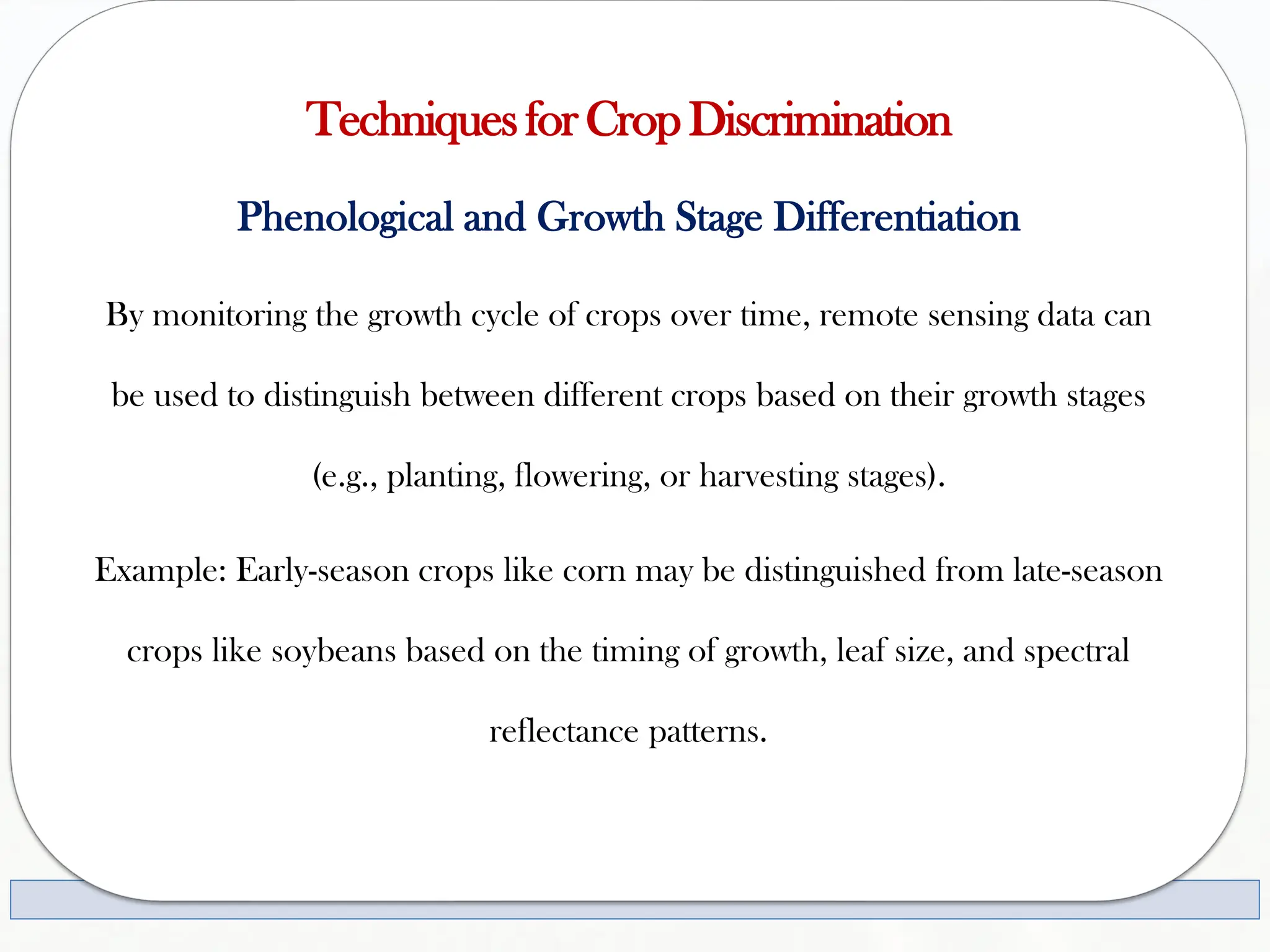

5. TechniquesforCropDiscrimination
Phenological and Growth Stage Differentiation
By monitoring the growth cycle of crops over time, remote sensing data can
be used to distinguish between different crops based on their growth stages
(e.g., planting, flowering, or harvesting stages).
Example: Early-season crops like corn may be distinguished from late-season
crops like soybeans based on the timing of growth, leaf size, and spectral
reflectance patterns.

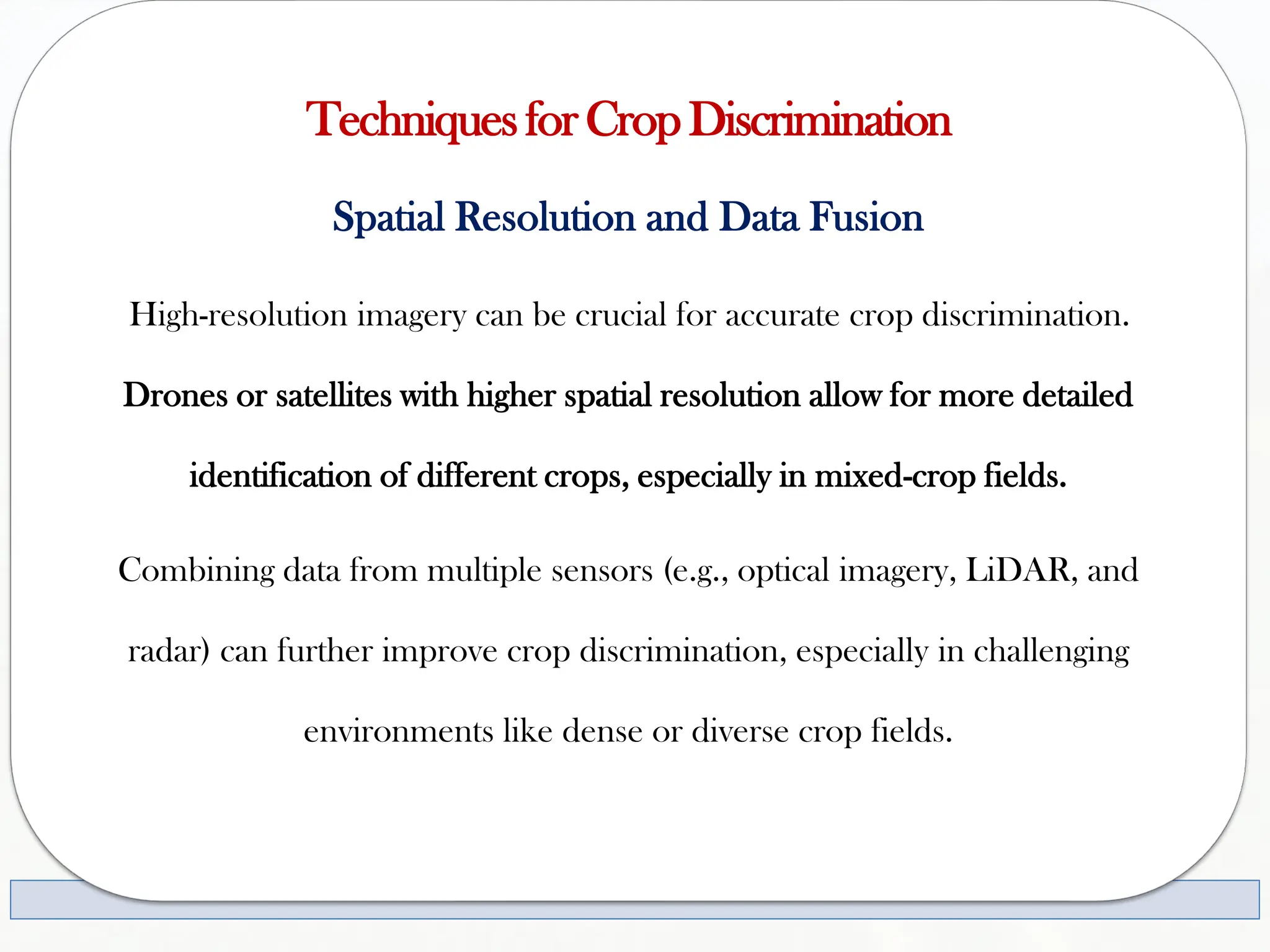

6. TechniquesforCropDiscrimination
Spatial Resolution and Data Fusion
High-resolution imagery can be crucial for accurate crop discrimination.
Drones or satellites with higher spatial resolution allow for more detailed
identification of different crops, especially in mixed-crop fields.
Combining data from multiple sensors (e.g., optical imagery, LiDAR, and
radar) can further improve crop discrimination, especially in challenging
environments like dense or diverse crop fields.

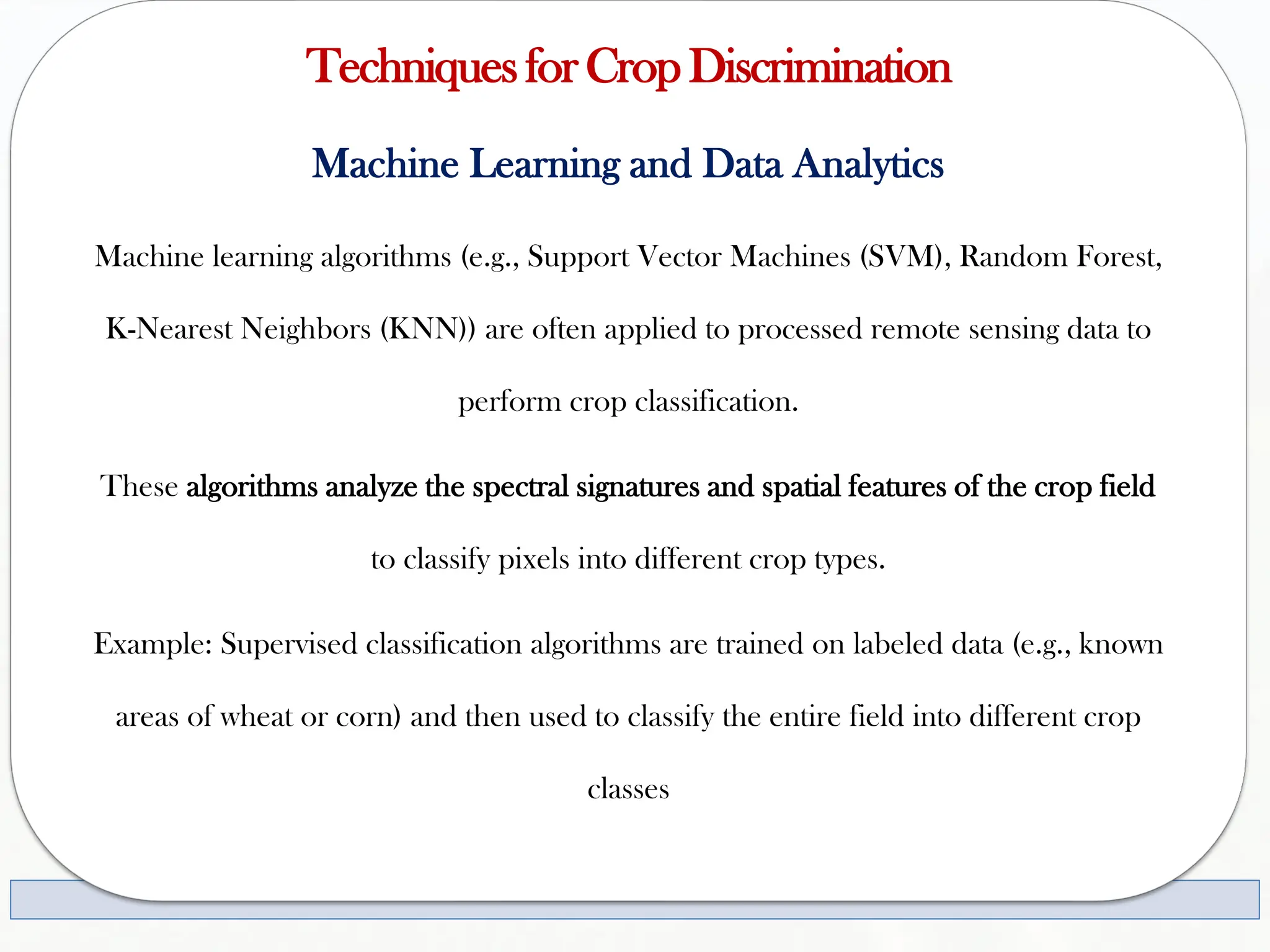

7. TechniquesforCropDiscrimination
Machine Learning and Data Analytics
Machine learning algorithms (e.g., Support Vector Machines (SVM), Random Forest,
K-Nearest Neighbors (KNN)) are often applied to processed remote sensing data to
perform crop classification.
These algorithms analyze the spectral signatures and spatial features of the crop field
to classify pixels into different crop types.
Example: Supervised classification algorithms are trained on labeled data (e.g., known
areas of wheat or corn) and then used to classify the entire field into different crop
classes

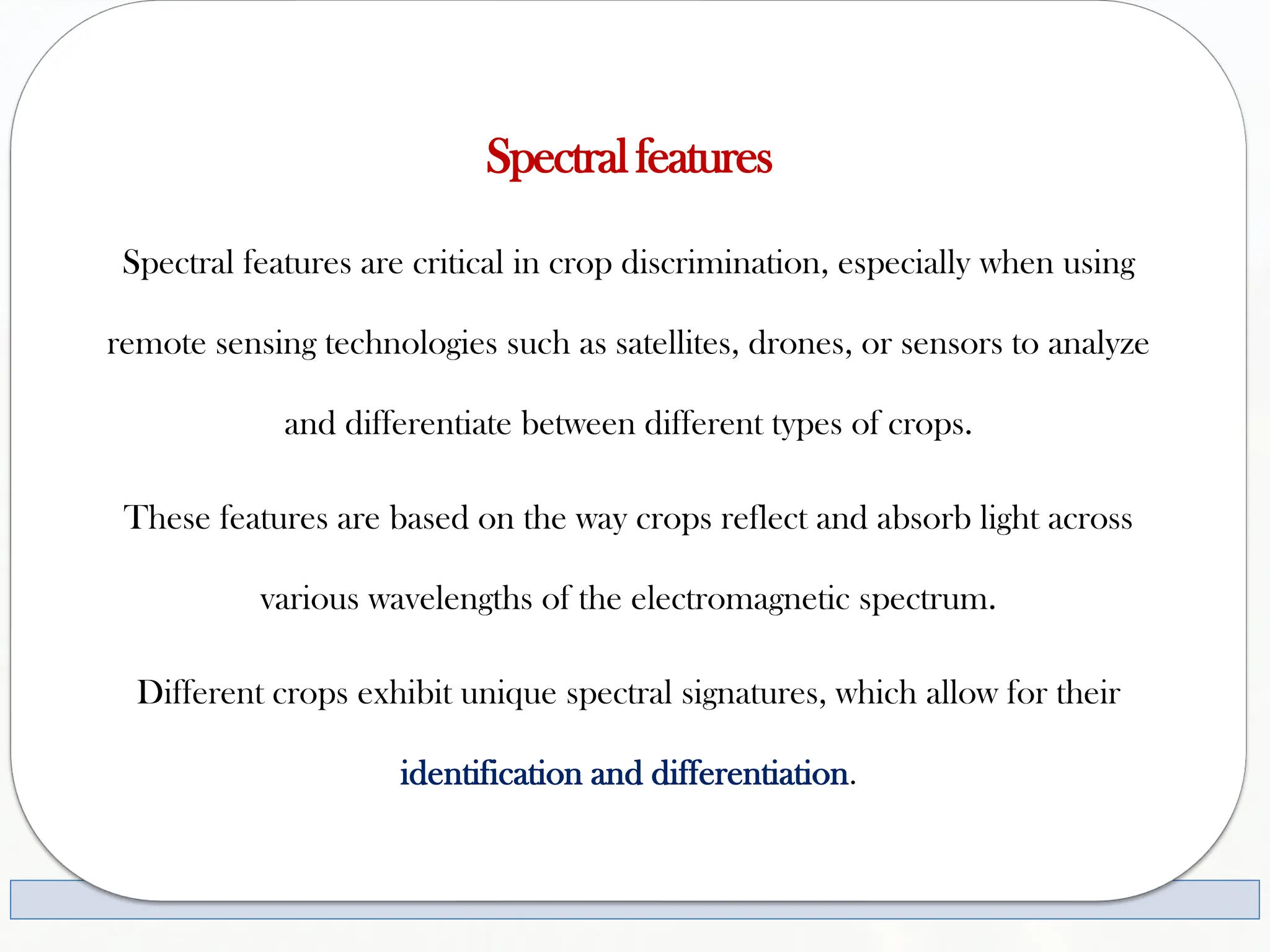

8. Spectralfeatures
Spectral features are critical in crop discrimination, especially when using
remote sensing technologies such as satellites, drones, or sensors to analyze
and differentiate between different types of crops.
These features are based on the way crops reflect and absorb light across
various wavelengths of the electromagnetic spectrum.
Different crops exhibit unique spectral signatures, which allow for their
identification and differentiation.

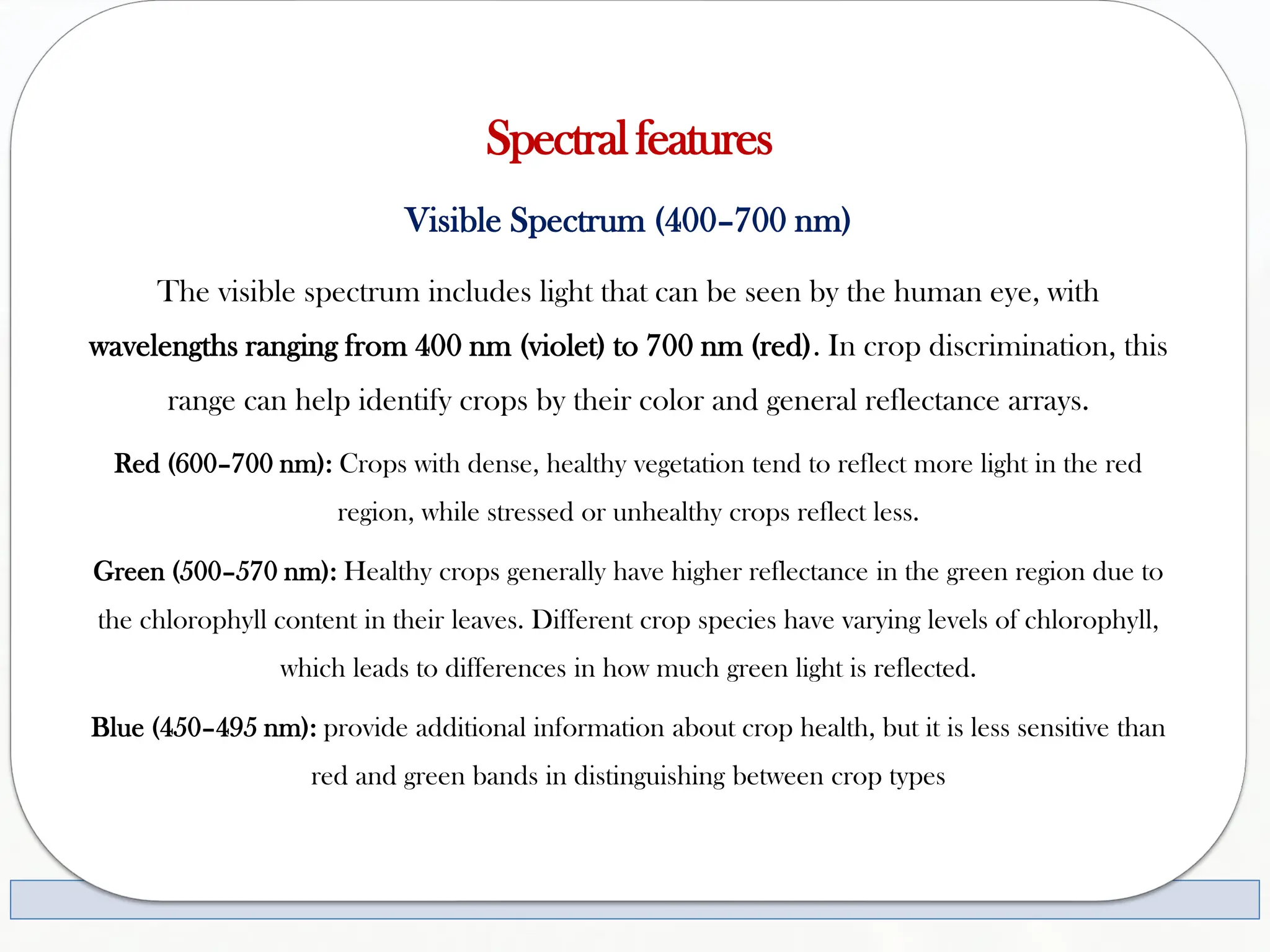

9. Spectralfeatures
Visible Spectrum (400–700 nm)
The visible spectrum includes light that can be seen by the human eye, with
wavelengths ranging from 400 nm (violet) to 700 nm (red). In crop discrimination, this
range can help identify crops by their color and general reflectance arrays.
Red (600–700 nm): Crops with dense, healthy vegetation tend to reflect more light in the red
region, while stressed or unhealthy crops reflect less.
Green (500–570 nm): Healthy crops generally have higher reflectance in the green region due to
the chlorophyll content in their leaves. Different crop species have varying levels of chlorophyll,
which leads to differences in how much green light is reflected.
Blue (450–495 nm): provide additional information about crop health, but it is less sensitive than
red and green bands in distinguishing between crop types

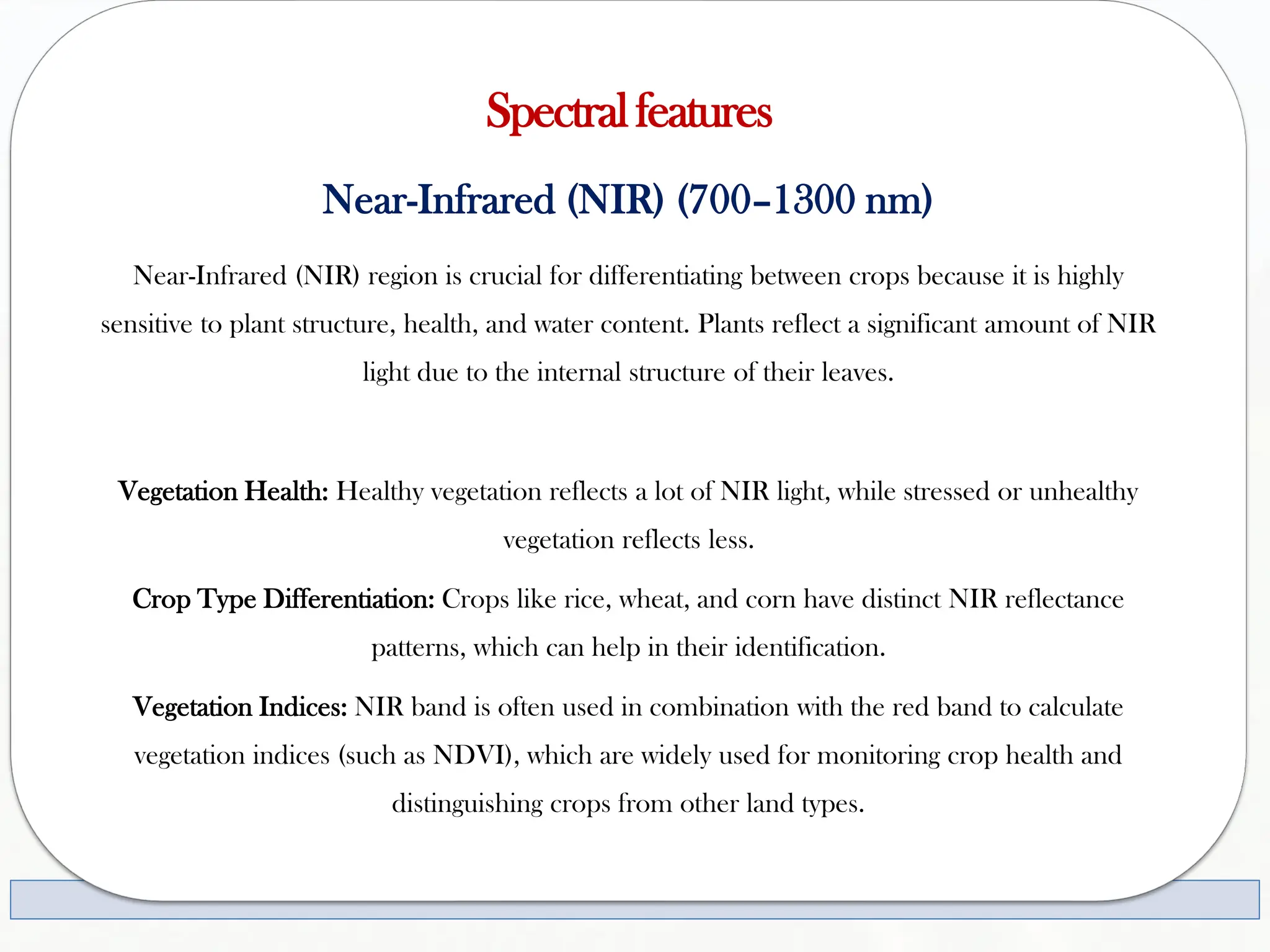

10. Spectralfeatures
Near-Infrared (NIR) (700–1300 nm)
Near-Infrared (NIR) region is crucial for differentiating between crops because it is highly
sensitive to plant structure, health, and water content. Plants reflect a significant amount of NIR
light due to the internal structure of their leaves.
Vegetation Health: Healthy vegetation reflects a lot of NIR light, while stressed or unhealthy
vegetation reflects less.
Crop Type Differentiation: Crops like rice, wheat, and corn have distinct NIR reflectance
patterns, which can help in their identification.
Vegetation Indices: NIR band is often used in combination with the red band to calculate
vegetation indices (such as NDVI), which are widely used for monitoring crop health and
distinguishing crops from other land types.

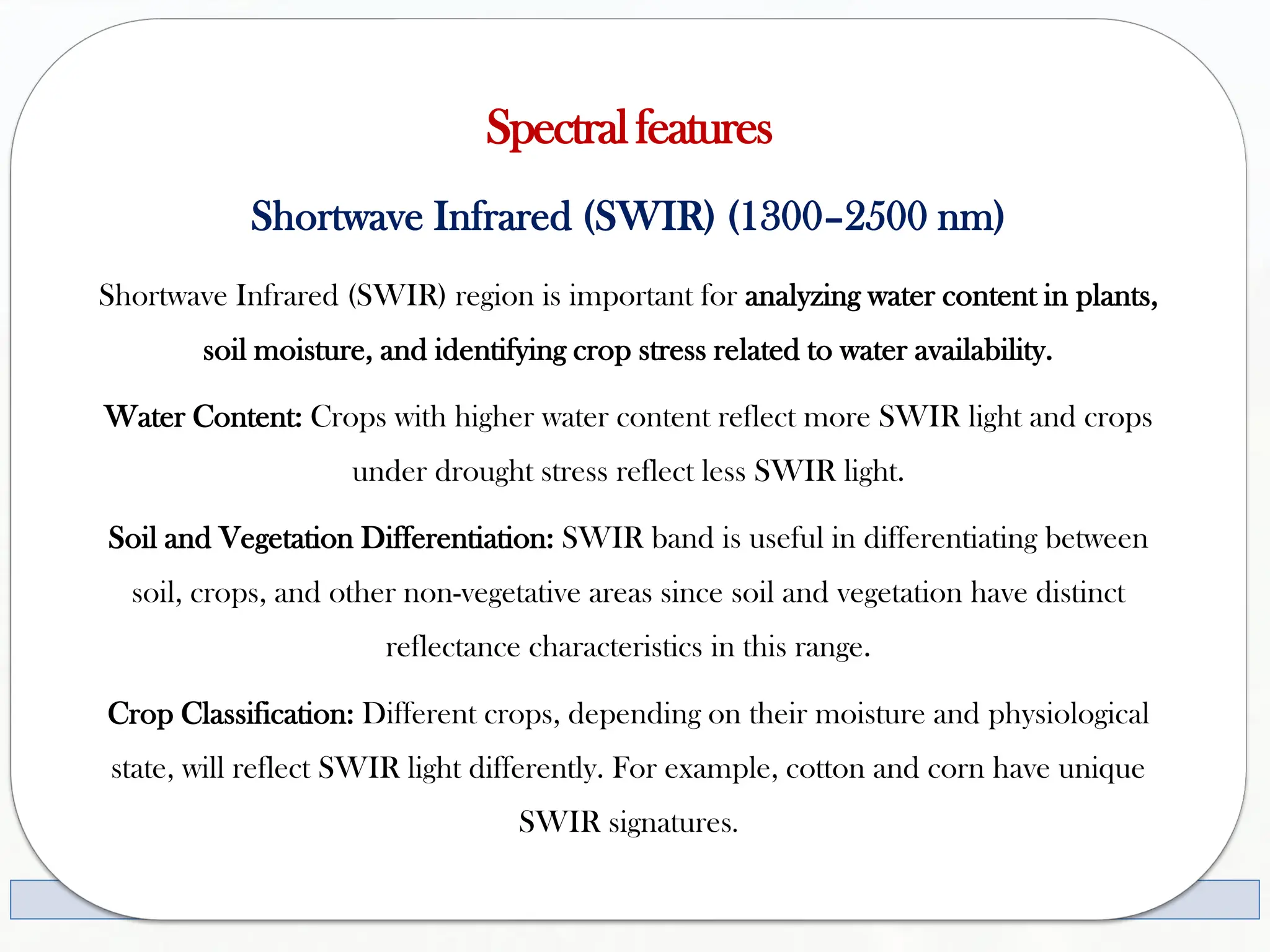

11. Spectralfeatures
Shortwave Infrared (SWIR) (1300–2500 nm)
Shortwave Infrared (SWIR) region is important for analyzing water content in plants,
soil moisture, and identifying crop stress related to water availability.
Water Content: Crops with higher water content reflect more SWIR light and crops
under drought stress reflect less SWIR light.
Soil and Vegetation Differentiation: SWIR band is useful in differentiating between
soil, crops, and other non-vegetative areas since soil and vegetation have distinct
reflectance characteristics in this range.
Crop Classification: Different crops, depending on their moisture and physiological
state, will reflect SWIR light differently. For example, cotton and corn have unique
SWIR signatures.

12. Spectralfeatures
Red-Edge (700–740 nm)
Red-Edge is a intermediate region between the red and NIR bands and is increasingly
used for crop discrimination.
This region is particularly sensitive to changes in plant chlorophyll content and can be
a strong indicator of crop type and health.
Chlorophyll Content: The red-edge band is highly responsive to changes in
chlorophyll levels, which varies between different crop species.
Crop Differentiation: Different crops, such as wheat and maize, will show distinct
reflectance profiles in the red-edge region, making it useful for distinguishing between
crops that may appear similar in the visible and NIR regions.

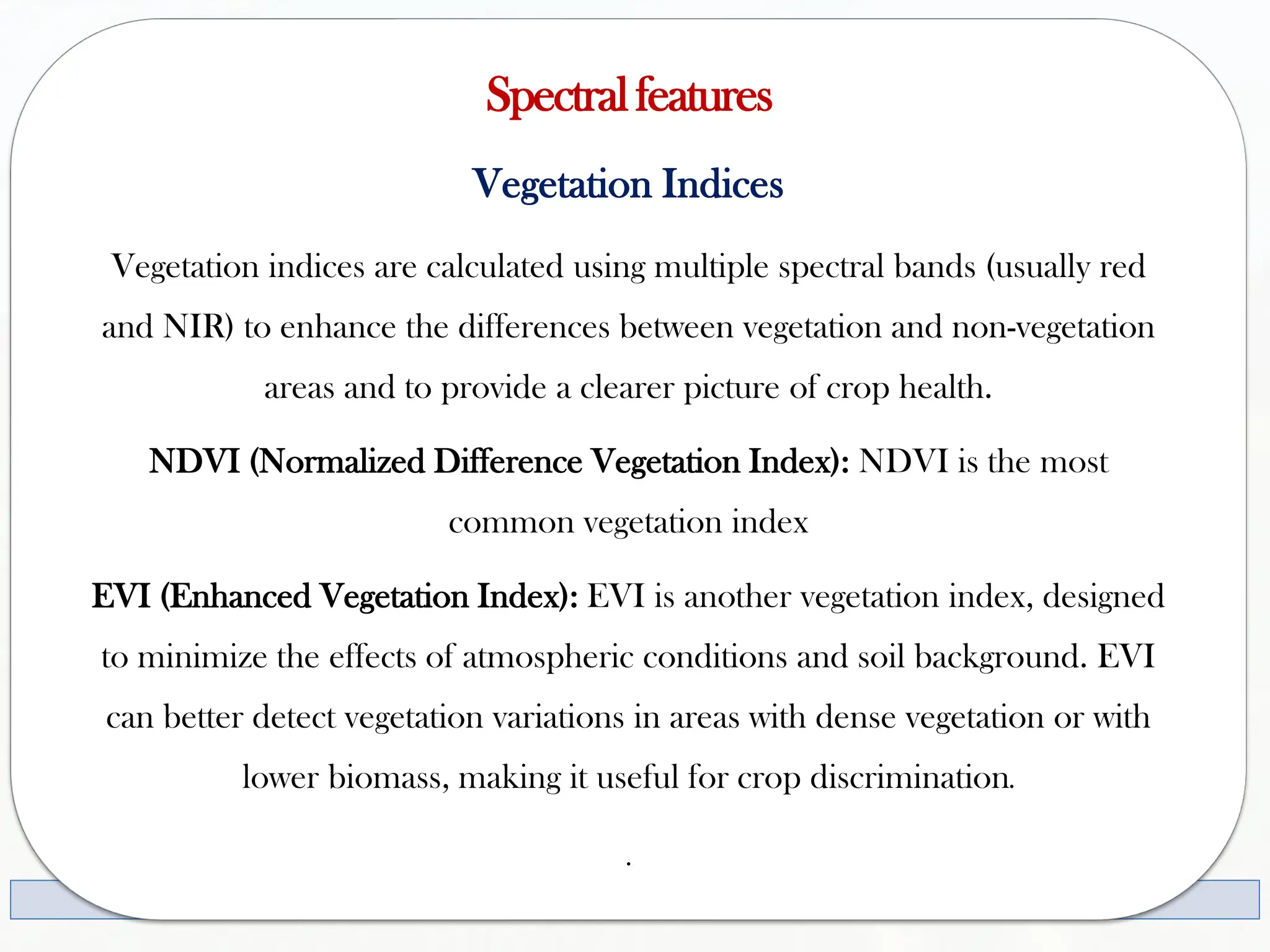

13. Spectralfeatures
Vegetation Indices
Vegetation indices are calculated using multiple spectral bands (usually red
and NIR) to enhance the differences between vegetation and non-vegetation
areas and to provide a clearer picture of crop health.
NDVI (Normalized Difference Vegetation Index): NDVI is the most
common vegetation index
EVI (Enhanced Vegetation Index): EVI is another vegetation index, designed
to minimize the effects of atmospheric conditions and soil background. EVI
can better detect vegetation variations in areas with dense vegetation or with
lower biomass, making it useful for crop discrimination.
.

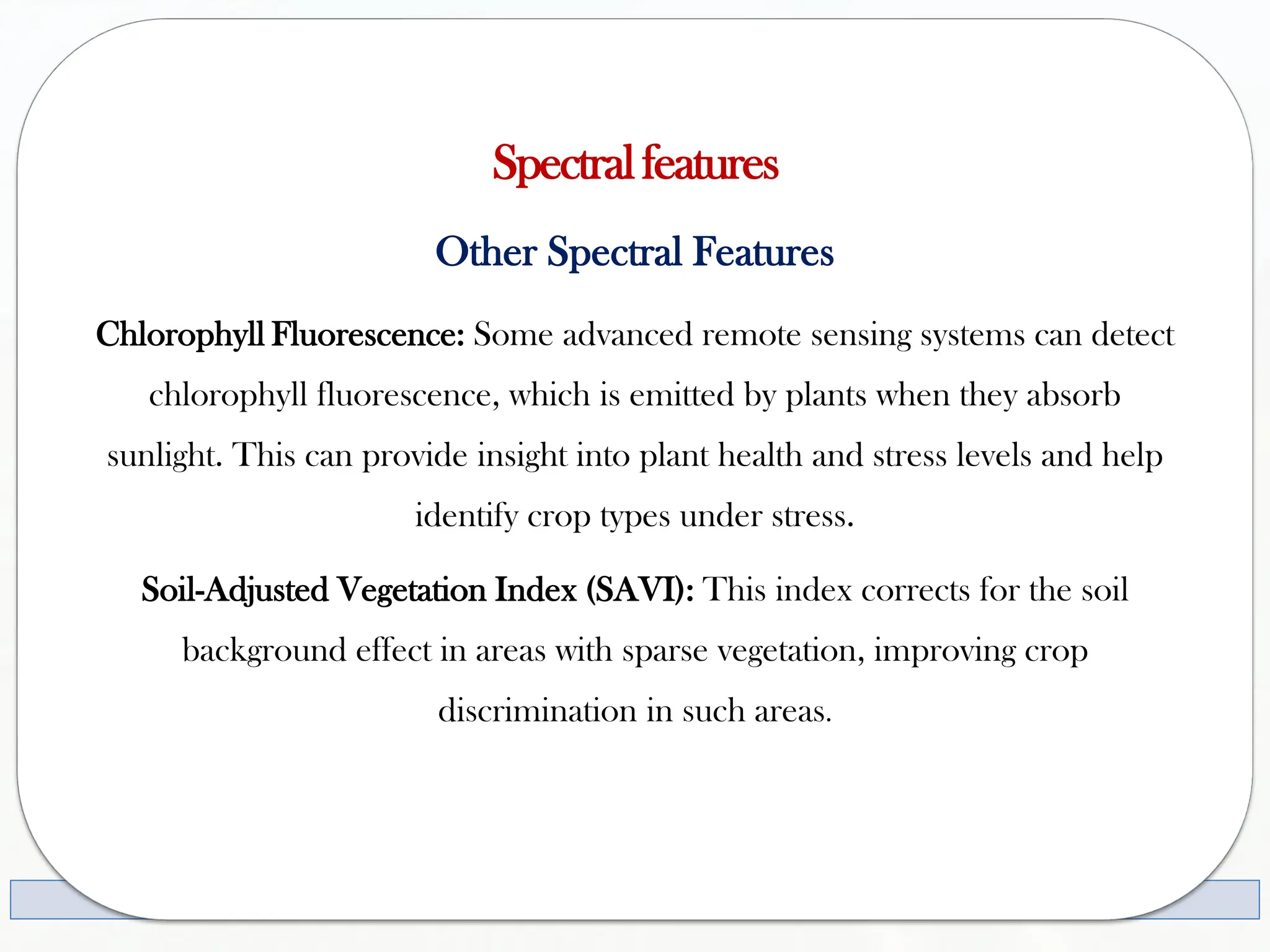

14. Spectralfeatures
Other Spectral Features
Chlorophyll Fluorescence: Some advanced remote sensing systems can detect
chlorophyll fluorescence, which is emitted by plants when they absorb
sunlight. This can provide insight into plant health and stress levels and help
identify crop types under stress.
Soil-Adjusted Vegetation Index (SAVI): This index corrects for the soil
background effect in areas with sparse vegetation, improving crop
discrimination in such areas.

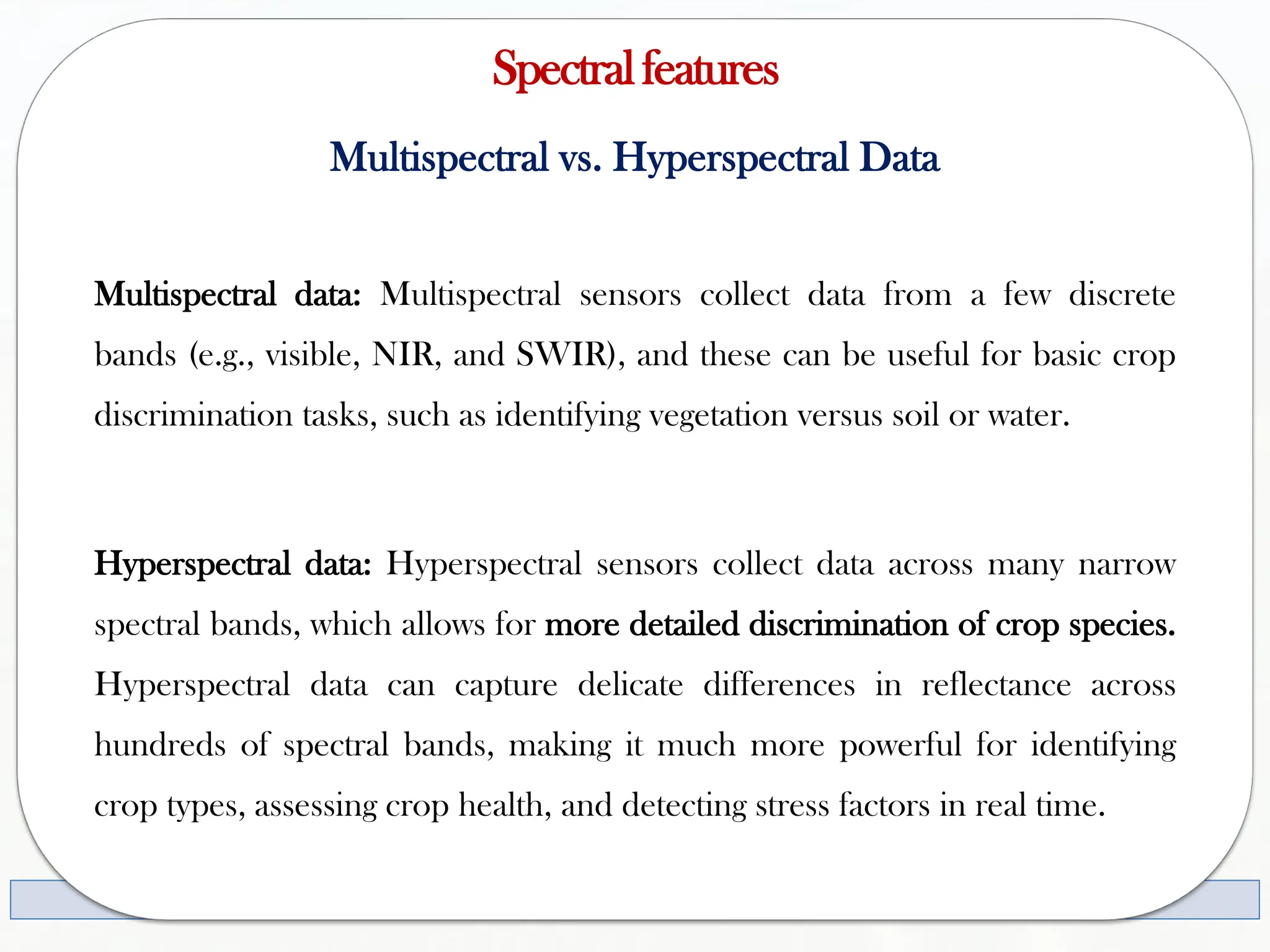

15. Spectralfeatures
Multispectral vs. Hyperspectral Data
Multispectral data: Multispectral sensors collect data from a few discrete
bands (e.g., visible, NIR, and SWIR), and these can be useful for basic crop
discrimination tasks, such as identifying vegetation versus soil or water.
Hyperspectral data: Hyperspectral sensors collect data across many narrow
spectral bands, which allows for more detailed discrimination of crop species.
Hyperspectral data can capture delicate differences in reflectance across
hundreds of spectral bands, making it much more powerful for identifying
crop types, assessing crop health, and detecting stress factors in real time.

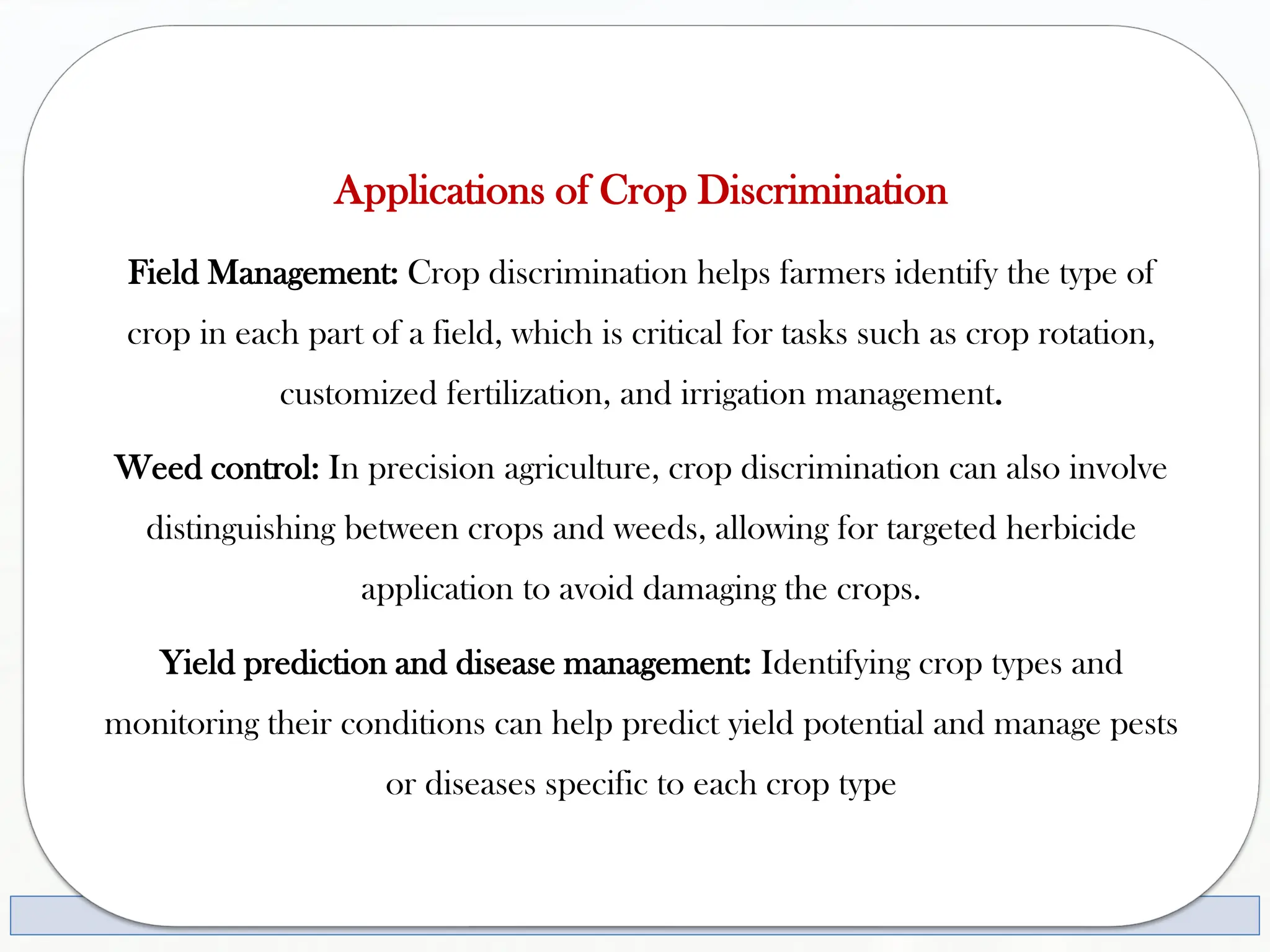

16. Applications of Crop Discrimination
Field Management: Crop discrimination helps farmers identify the type of
crop in each part of a field, which is critical for tasks such as crop rotation,
customized fertilization, and irrigation management.
Weed control: In precision agriculture, crop discrimination can also involve
distinguishing between crops and weeds, allowing for targeted herbicide
application to avoid damaging the crops.
Yield prediction and disease management: Identifying crop types and
monitoring their conditions can help predict yield potential and manage pests
or diseases specific to each crop type

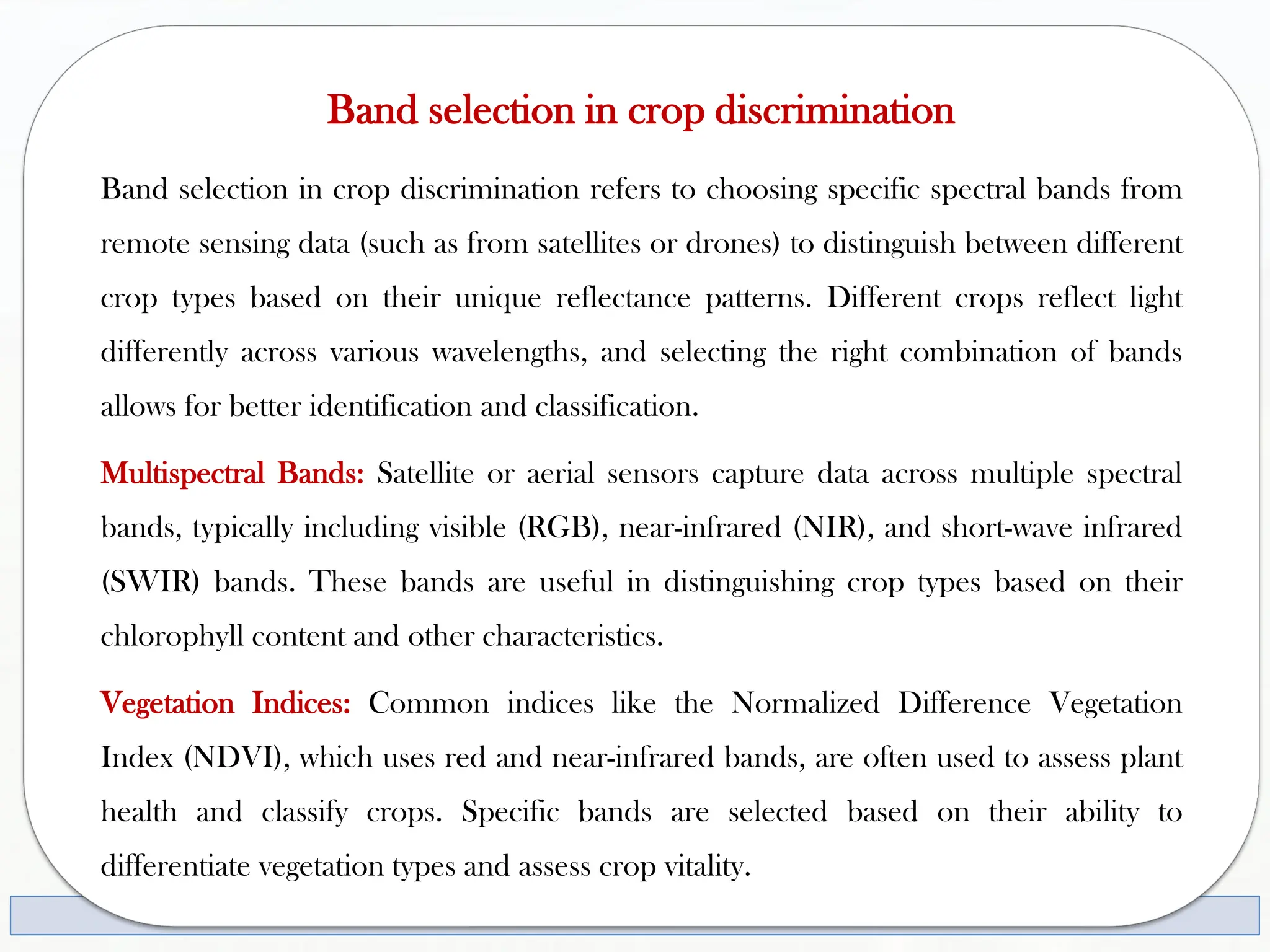

17. Band selection in crop discrimination
Band selection in crop discrimination refers to choosing specific spectral bands from
remote sensing data (such as from satellites or drones) to distinguish between different
crop types based on their unique reflectance patterns. Different crops reflect light
differently across various wavelengths, and selecting the right combination of bands
allows for better identification and classification.
Multispectral Bands: Satellite or aerial sensors capture data across multiple spectral
bands, typically including visible (RGB), near-infrared (NIR), and short-wave infrared
(SWIR) bands. These bands are useful in distinguishing crop types based on their
chlorophyll content and other characteristics.
Vegetation Indices: Common indices like the Normalized Difference Vegetation
Index (NDVI), which uses red and near-infrared bands, are often used to assess plant
health and classify crops. Specific bands are selected based on their ability to
differentiate vegetation types and assess crop vitality.

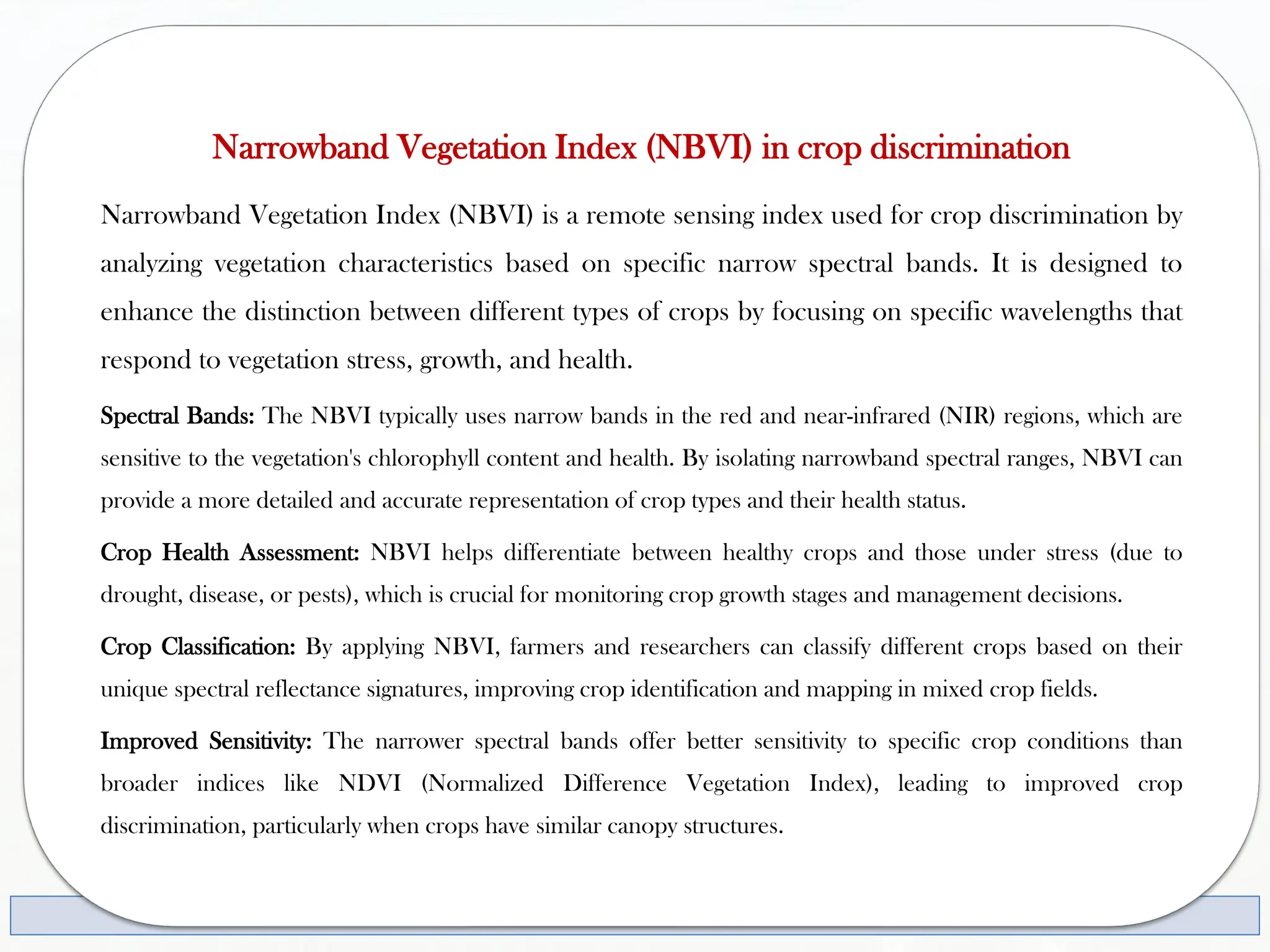

18. Narrowband Vegetation Index (NBVI) in crop discrimination
Narrowband Vegetation Index (NBVI) is a remote sensing index used for crop discrimination by
analyzing vegetation characteristics based on specific narrow spectral bands. It is designed to
enhance the distinction between different types of crops by focusing on specific wavelengths that
respond to vegetation stress, growth, and health.
Spectral Bands: The NBVI typically uses narrow bands in the red and near-infrared (NIR) regions, which are
sensitive to the vegetation's chlorophyll content and health. By isolating narrowband spectral ranges, NBVI can
provide a more detailed and accurate representation of crop types and their health status.
Crop Health Assessment: NBVI helps differentiate between healthy crops and those under stress (due to
drought, disease, or pests), which is crucial for monitoring crop growth stages and management decisions.
Crop Classification: By applying NBVI, farmers and researchers can classify different crops based on their
unique spectral reflectance signatures, improving crop identification and mapping in mixed crop fields.
Improved Sensitivity: The narrower spectral bands offer better sensitivity to specific crop conditions than
broader indices like NDVI (Normalized Difference Vegetation Index), leading to improved crop
discrimination, particularly when crops have similar canopy structures.

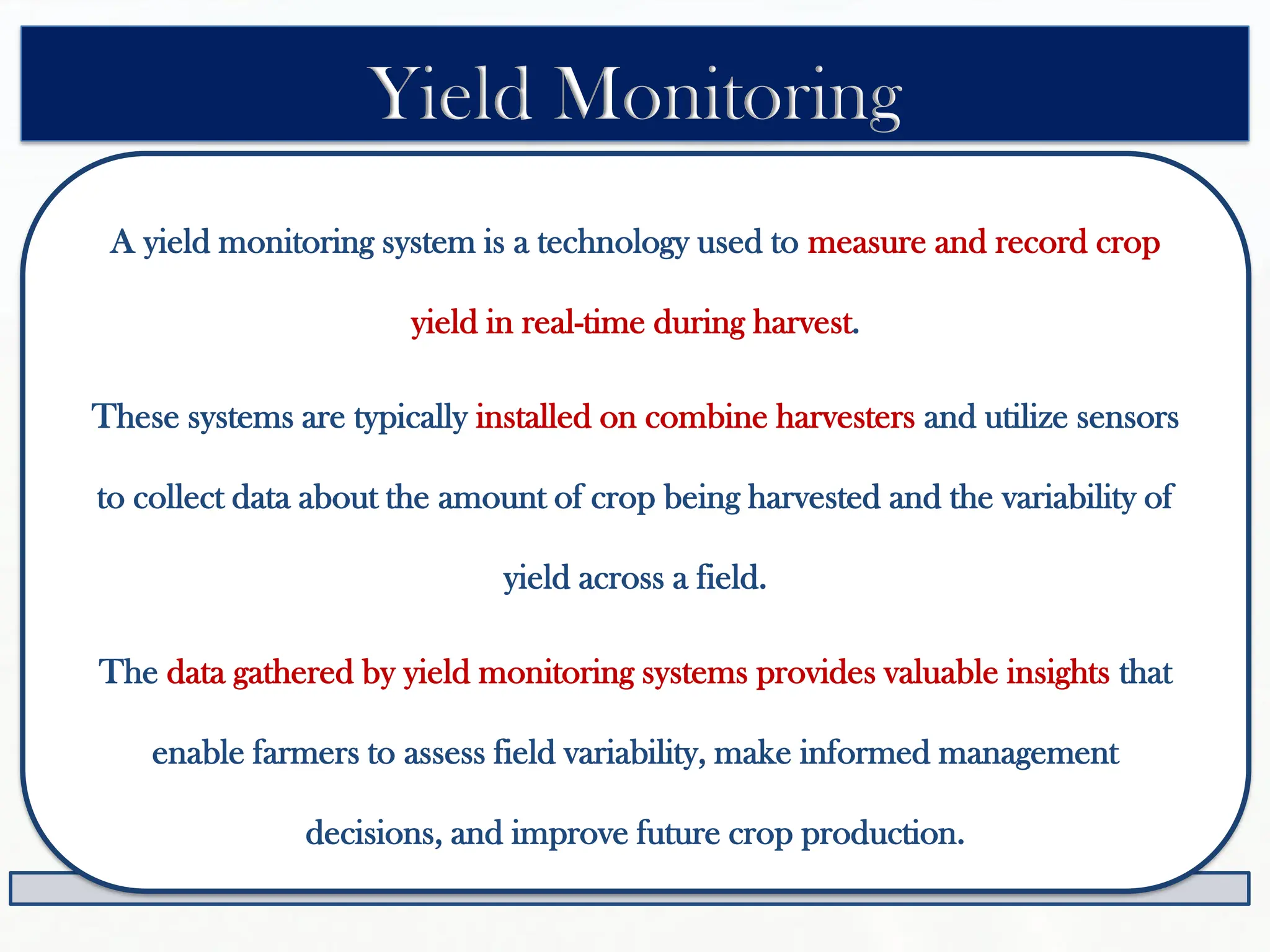

19. A yield monitoring system is a technology used to measure and record crop
yield in real-time during harvest.
These systems are typically installed on combine harvesters and utilize sensors
to collect data about the amount of crop being harvested and the variability of
yield across a field.
The data gathered by yield monitoring systems provides valuable insights that
enable farmers to assess field variability, make informed management
decisions, and improve future crop production.
Yield Monitoring

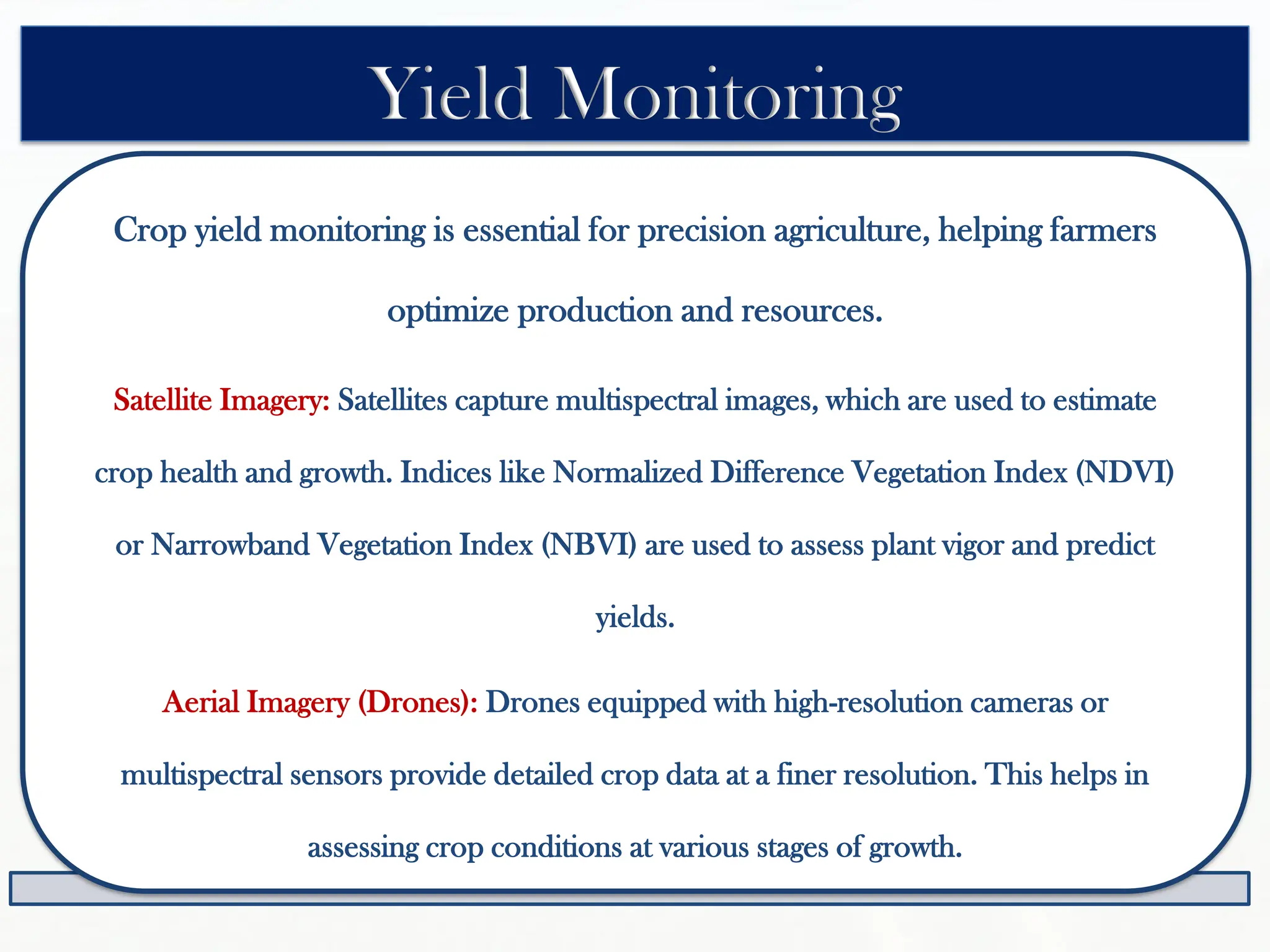

20. Crop yield monitoring is essential for precision agriculture, helping farmers
optimize production and resources.
Satellite Imagery: Satellites capture multispectral images, which are used to estimate
crop health and growth. Indices like Normalized Difference Vegetation Index (NDVI)
or Narrowband Vegetation Index (NBVI) are used to assess plant vigor and predict
yields.

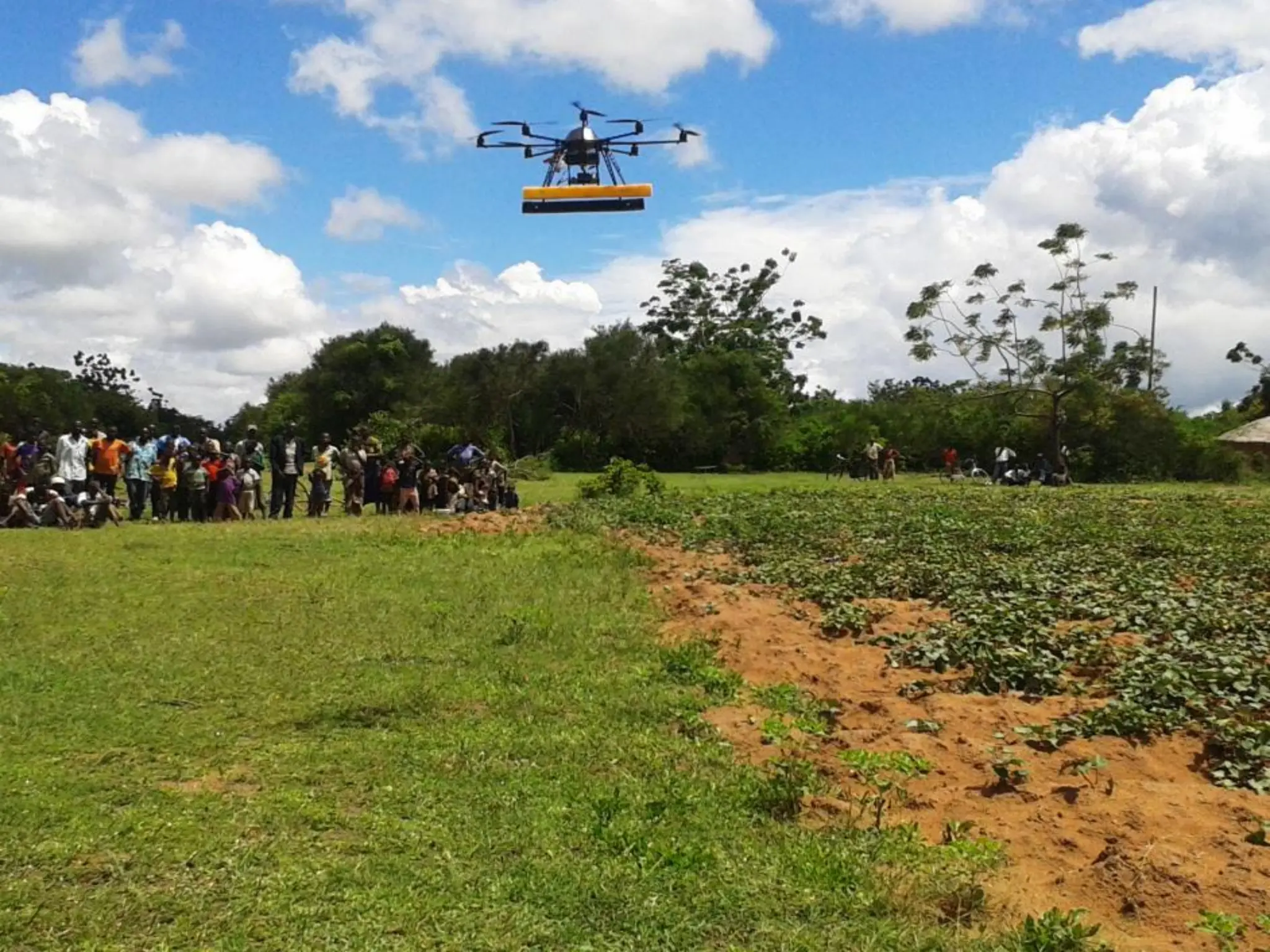

Aerial Imagery (Drones): Drones equipped with high-resolution cameras or
multispectral sensors provide detailed crop data at a finer resolution. This helps in
assessing crop conditions at various stages of growth.
Yield Monitoring

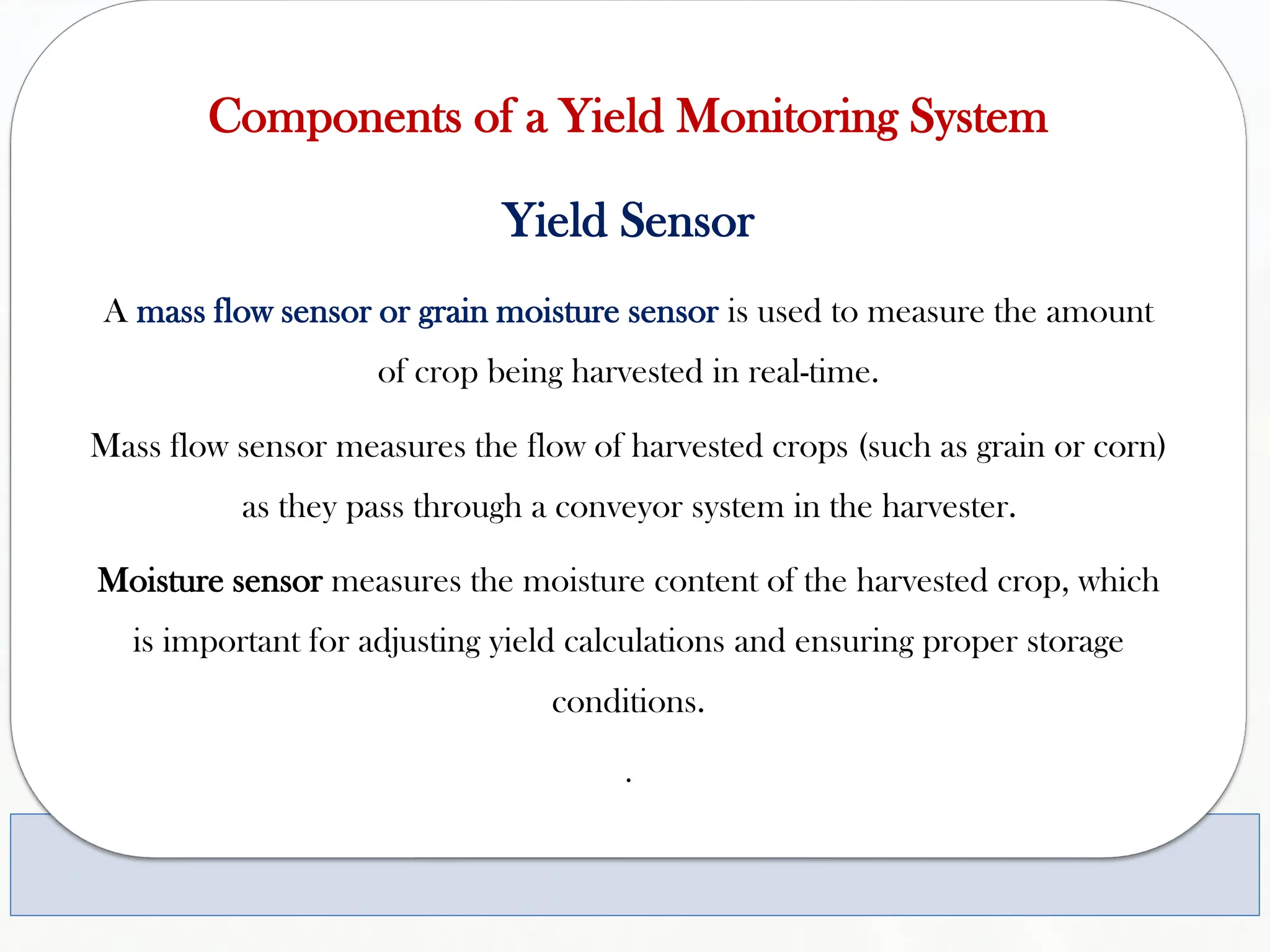

21. Components of a Yield Monitoring System
Yield Sensor
A mass flow sensor or grain moisture sensor is used to measure the amount
of crop being harvested in real-time.
Mass flow sensor measures the flow of harvested crops (such as grain or corn)
as they pass through a conveyor system in the harvester.
Moisture sensor measures the moisture content of the harvested crop, which
is important for adjusting yield calculations and ensuring proper storage
conditions.
.

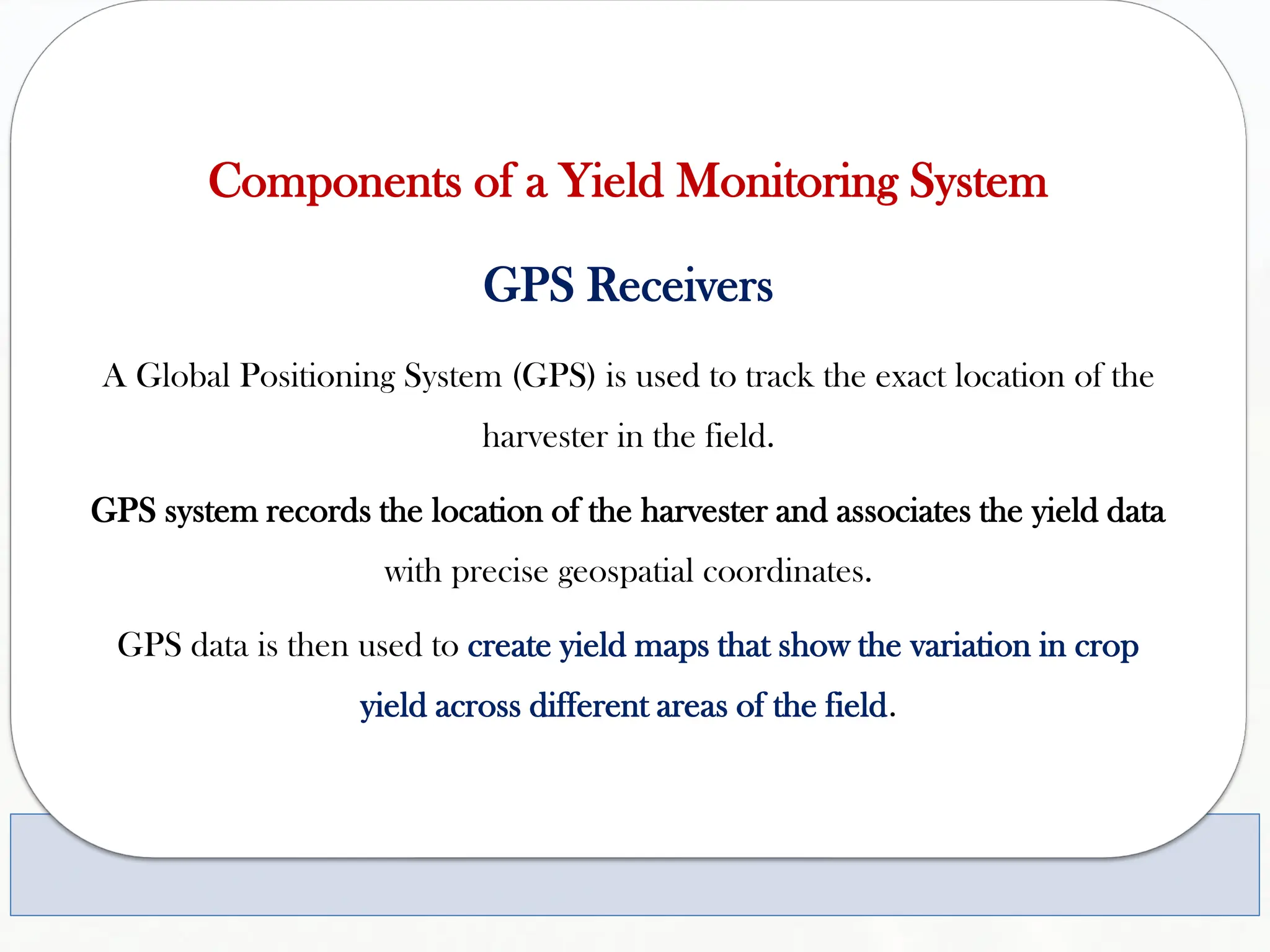

22. Components of a Yield Monitoring System
GPS Receivers
A Global Positioning System (GPS) is used to track the exact location of the
harvester in the field.
GPS system records the location of the harvester and associates the yield data
with precise geospatial coordinates.
GPS data is then used to create yield maps that show the variation in crop
yield across different areas of the field.

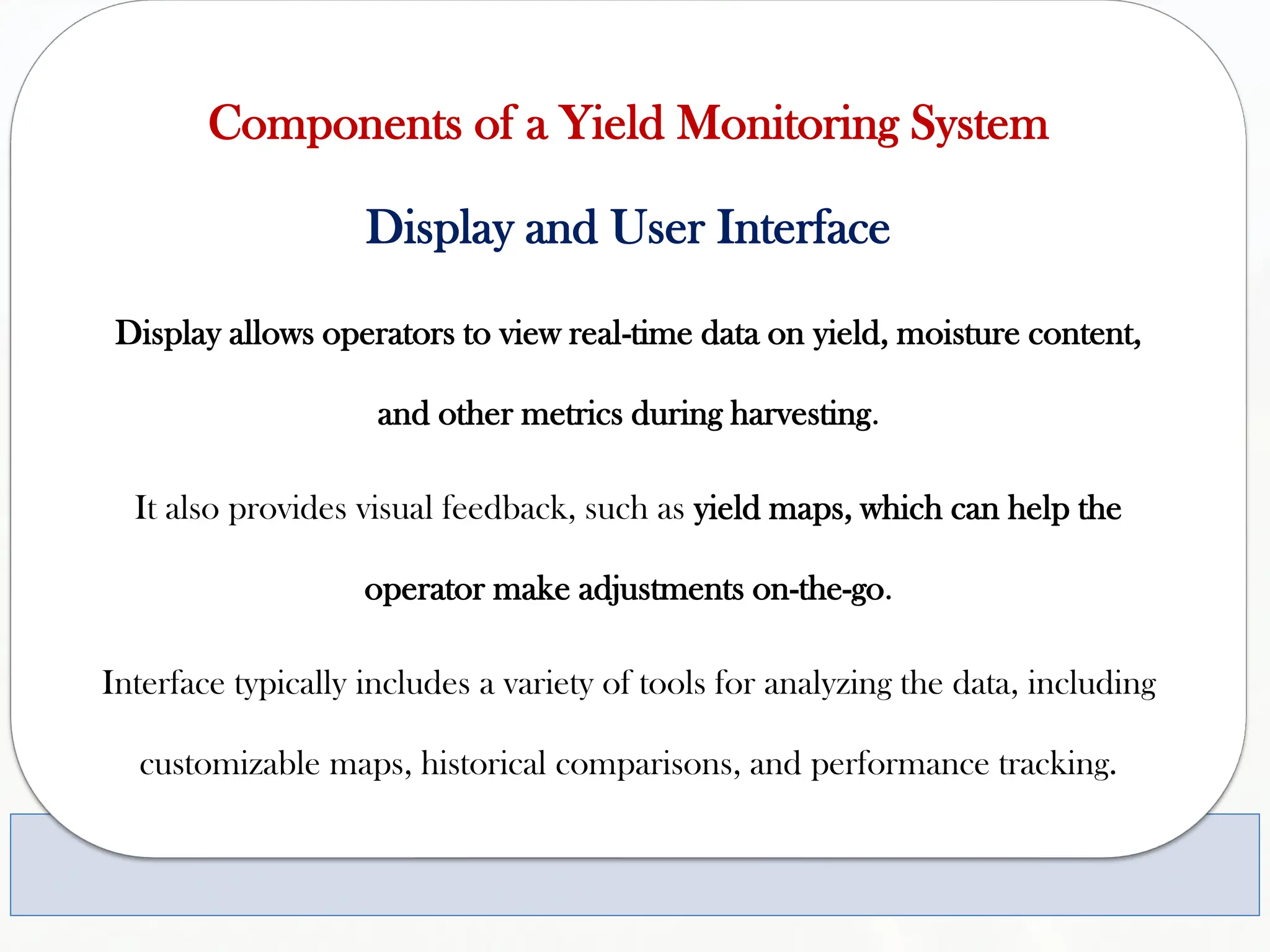

23. Components of a Yield Monitoring System
Display and User Interface
Display allows operators to view real-time data on yield, moisture content,
and other metrics during harvesting.
It also provides visual feedback, such as yield maps, which can help the
operator make adjustments on-the-go.
Interface typically includes a variety of tools for analyzing the data, including
customizable maps, historical comparisons, and performance tracking.

24. Working of a Yield Monitoring System
As the combine harvester moves across the field, sensors continuously
measure the flow of harvested crop and its moisture content.
GPS system records the position of the harvester at any given moment.
Data from the sensors is transmitted to the onboard computer system, which
processes it to calculate the yield for each point in the field.
Processed data is then mapped and displayed as yield maps that show the
spatial distribution of yield across the entire field.
.

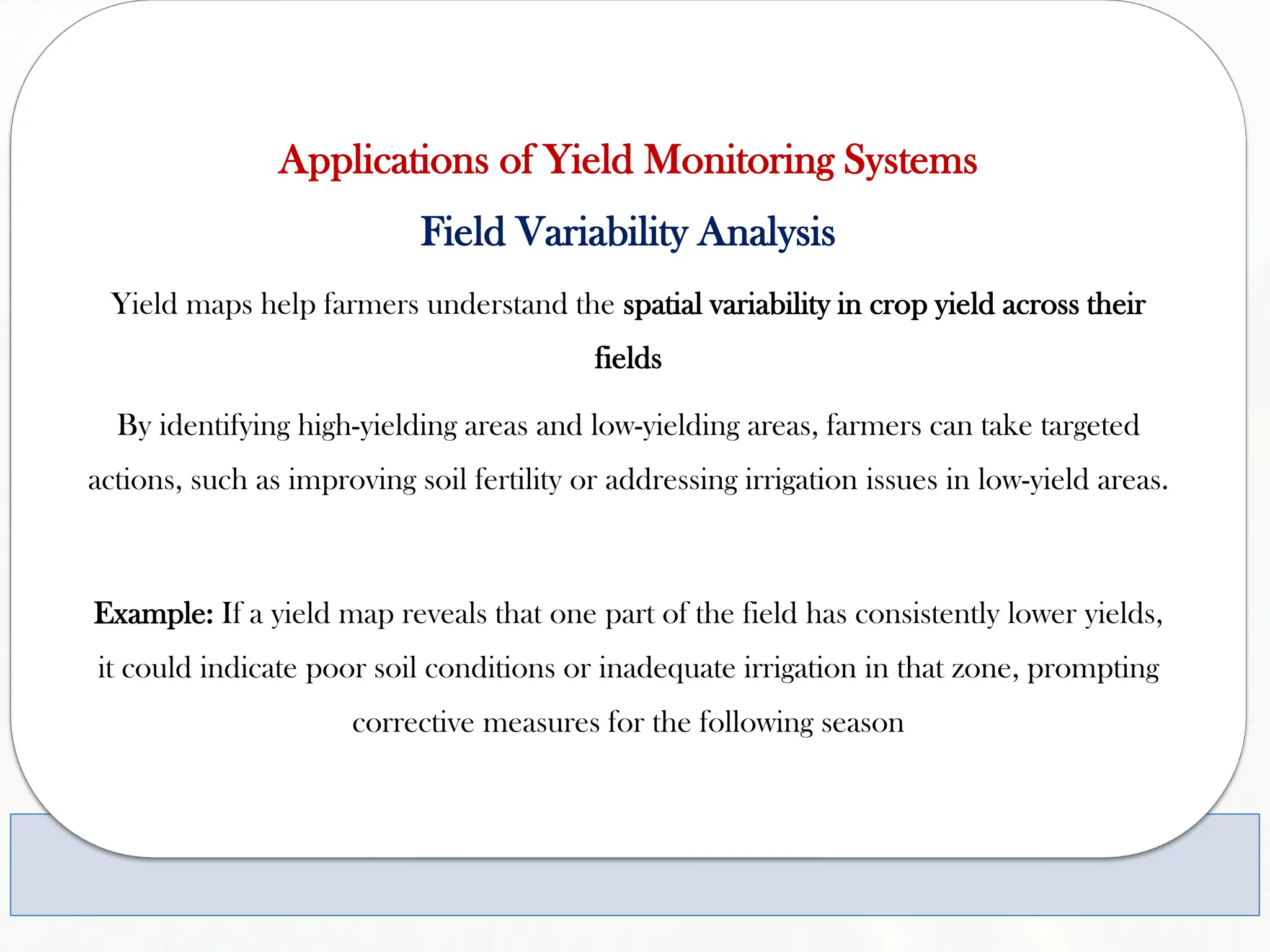

25. Applications of Yield Monitoring Systems
Field Variability Analysis
Yield maps help farmers understand the spatial variability in crop yield across their
fields
By identifying high-yielding areas and low-yielding areas, farmers can take targeted
actions, such as improving soil fertility or addressing irrigation issues in low-yield areas.
Example: If a yield map reveals that one part of the field has consistently lower yields,
it could indicate poor soil conditions or inadequate irrigation in that zone, prompting
corrective measures for the following season

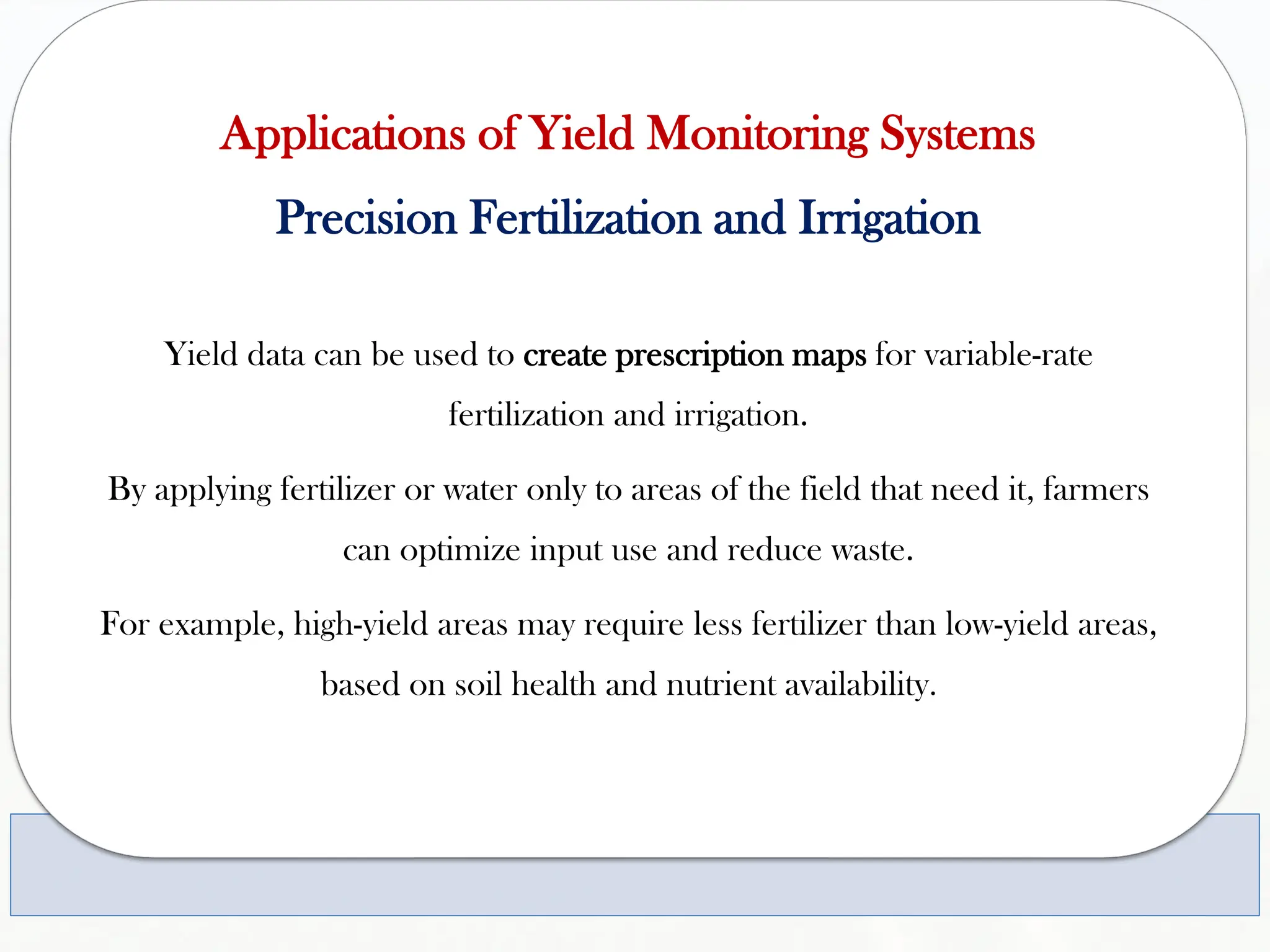

26. Applications of Yield Monitoring Systems
Precision Fertilization and Irrigation
Yield data can be used to create prescription maps for variable-rate
fertilization and irrigation.
By applying fertilizer or water only to areas of the field that need it, farmers
can optimize input use and reduce waste.
For example, high-yield areas may require less fertilizer than low-yield areas,
based on soil health and nutrient availability.

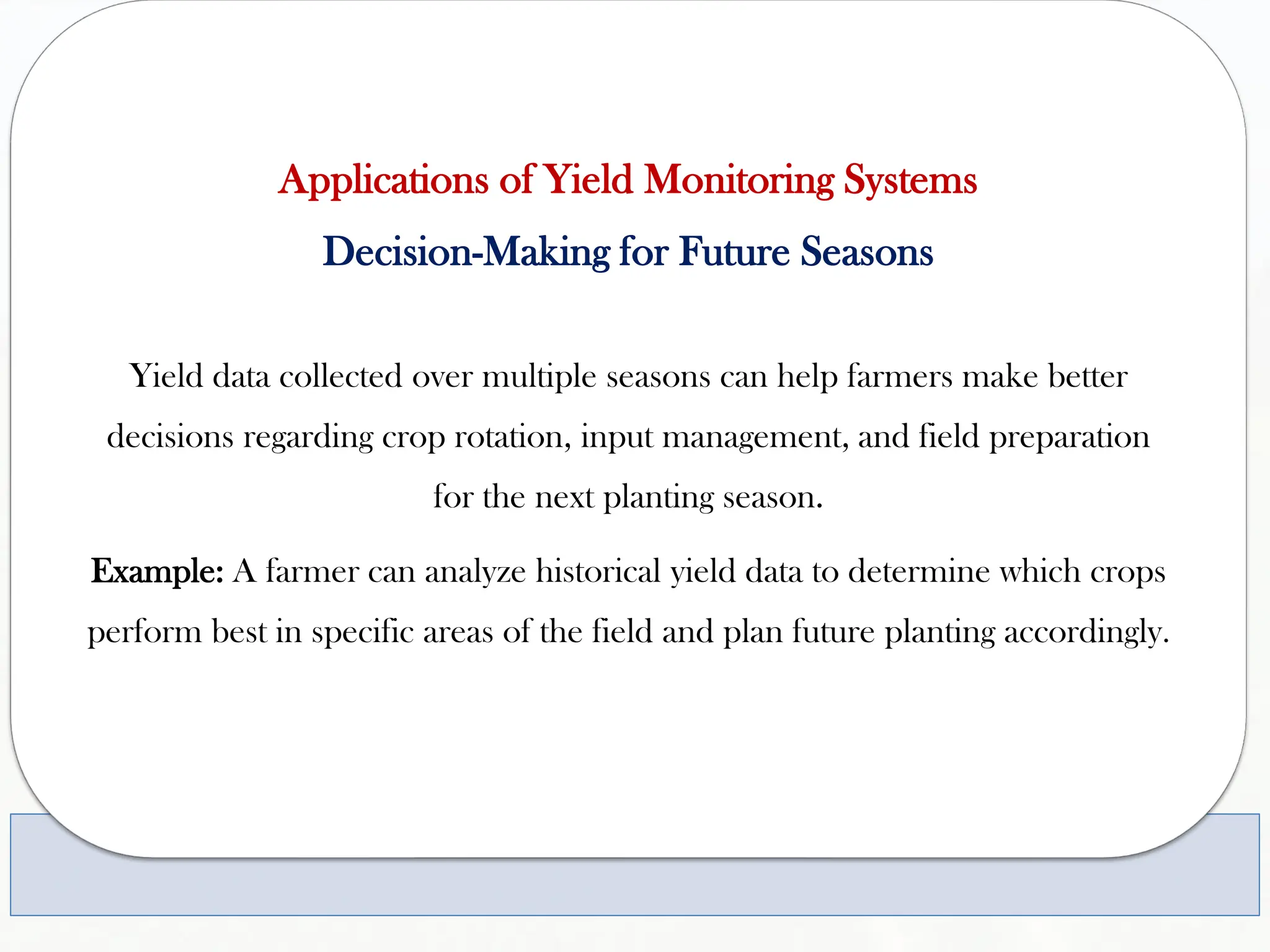

27. Applications of Yield Monitoring Systems
Decision-Making for Future Seasons
Yield data collected over multiple seasons can help farmers make better
decisions regarding crop rotation, input management, and field preparation
for the next planting season.
Example: A farmer can analyze historical yield data to determine which crops
perform best in specific areas of the field and plan future planting accordingly.

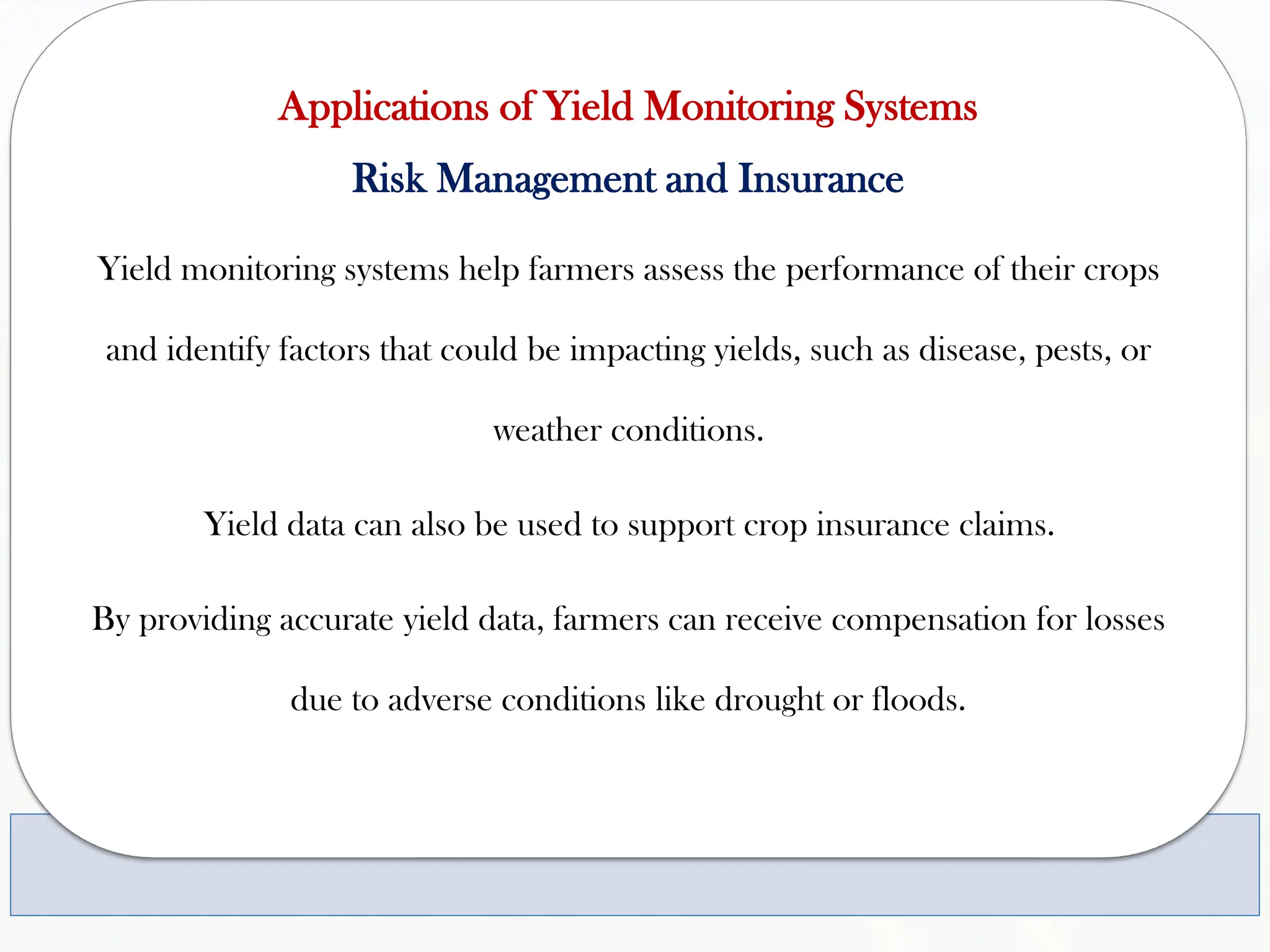

28. Applications of Yield Monitoring Systems
Risk Management and Insurance
Yield monitoring systems help farmers assess the performance of their crops
and identify factors that could be impacting yields, such as disease, pests, or
weather conditions.
Yield data can also be used to support crop insurance claims.
By providing accurate yield data, farmers can receive compensation for losses
due to adverse conditions like drought or floods.

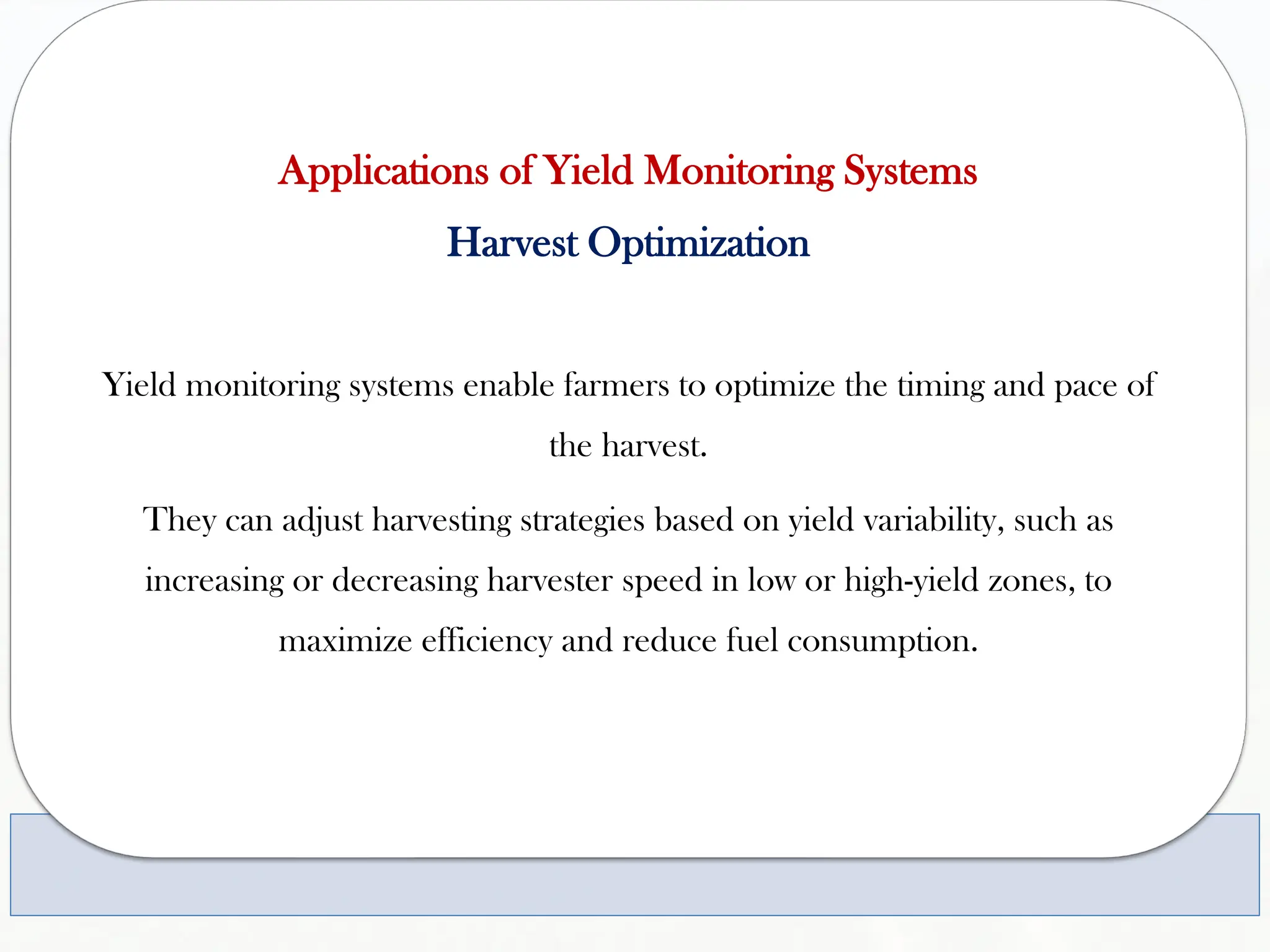

29. Applications of Yield Monitoring Systems
Harvest Optimization
Yield monitoring systems enable farmers to optimize the timing and pace of
the harvest.
They can adjust harvesting strategies based on yield variability, such as
increasing or decreasing harvester speed in low or high-yield zones, to
maximize efficiency and reduce fuel consumption.

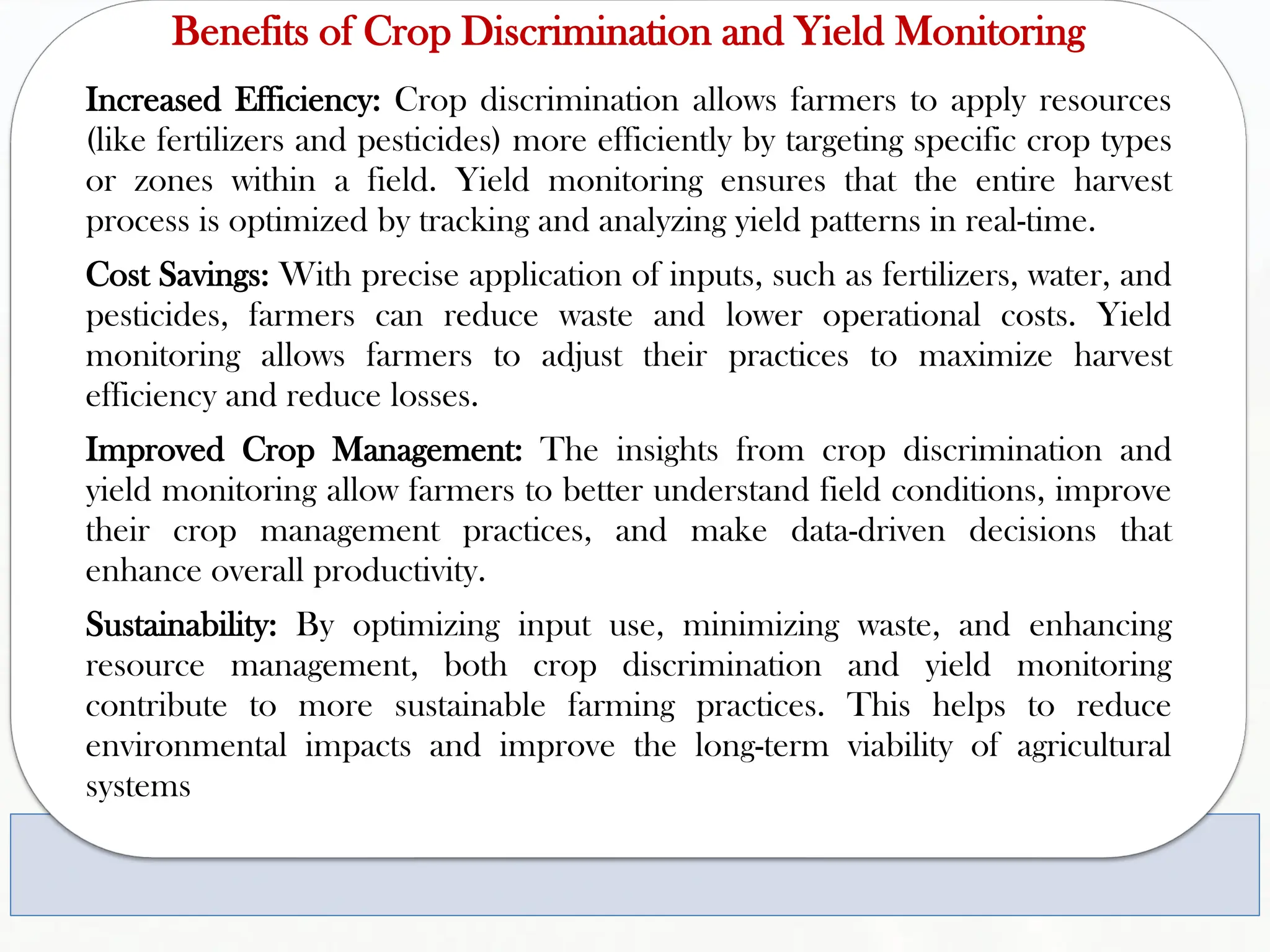

30. Benefits of Crop Discrimination and Yield Monitoring
Increased Efficiency: Crop discrimination allows farmers to apply resources
(like fertilizers and pesticides) more efficiently by targeting specific crop types
or zones within a field. Yield monitoring ensures that the entire harvest
process is optimized by tracking and analyzing yield patterns in real-time.
Cost Savings: With precise application of inputs, such as fertilizers, water, and
pesticides, farmers can reduce waste and lower operational costs. Yield
monitoring allows farmers to adjust their practices to maximize harvest
efficiency and reduce losses.
Improved Crop Management: The insights from crop discrimination and
yield monitoring allow farmers to better understand field conditions, improve
their crop management practices, and make data-driven decisions that
enhance overall productivity.
Sustainability: By optimizing input use, minimizing waste, and enhancing
resource management, both crop discrimination and yield monitoring
contribute to more sustainable farming practices. This helps to reduce
environmental impacts and improve the long-term viability of agricultural
systems
