Creo Parametric
Tips and Tricks
Evan Winter
PTC
2
System
3
1. File > Options > System Colors > Graphics
2. Select Background and ensure “No Gradient” is checked.
3. Set color to black (or other color to be used in Sketcher).
4. Select Background again and un-check “No Gradient”
5. Select Background again and click More Gradients…
6. Set your desired Top and Bottom colors by selecting the
swatch icons.
Setting Pro/E style background colors
Blended backgrounds can still be used, and Sketcher can use a default black
background as in pre-Creo releases.
Blended Background in 3D
Default color (black) background in
Sketcher
4

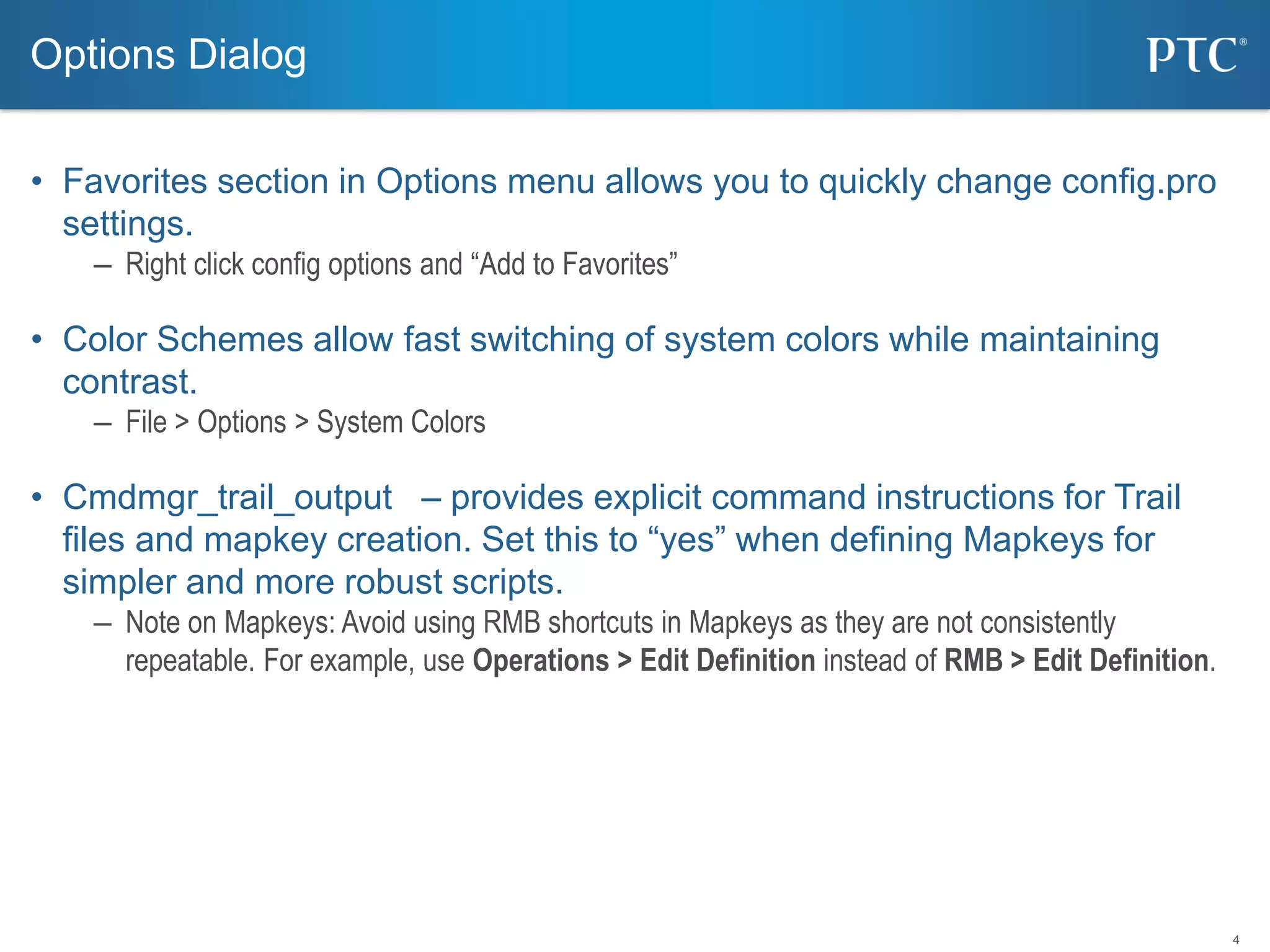

• Favorites section in Options menu allows you to quickly change config.pro
settings.
– Right click config options and “Add to Favorites”
• Color Schemes allow fast switching of system colors while maintaining
contrast.
– File > Options > System Colors
• Cmdmgr_trail_output – provides explicit command instructions for Trail
files and mapkey creation. Set this to “yes” when defining Mapkeys for
simpler and more robust scripts.
– Note on Mapkeys: Avoid using RMB shortcuts in Mapkeys as they are not consistently
repeatable. For example, use Operations > Edit Definition instead of RMB > Edit Definition.
Options Dialog
5

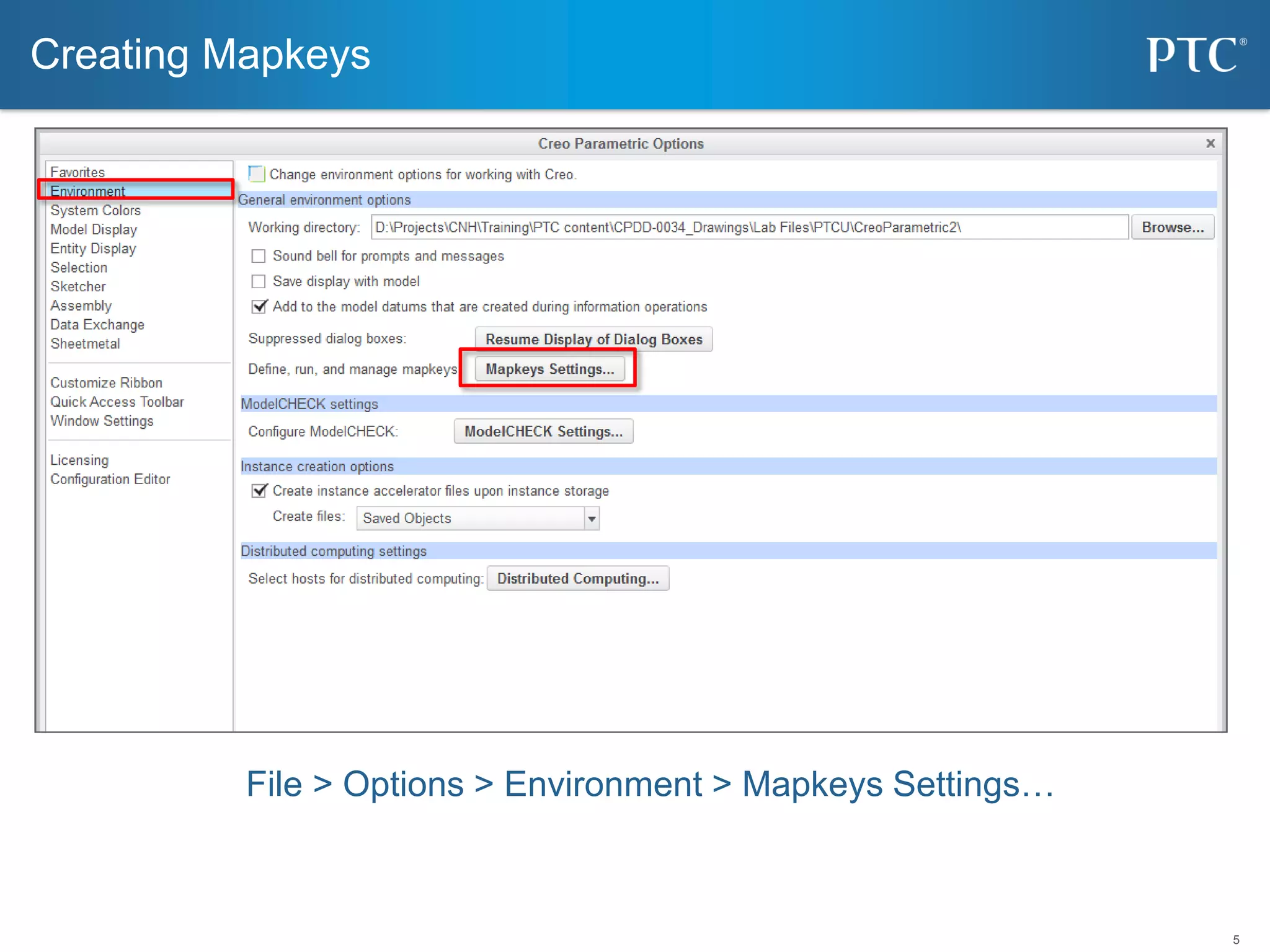

File > Options > Environment > Mapkeys Settings…
Creating Mapkeys
6
• Create a
Mapkey
• Modify an
existing Mapkey
• Run (Test) a
Mapkey
• Delete
• Save a single
mapkey
definition to file
Creating Mapkeys (Cont.)
• Enter key
sequence
• Assign a name
• Provide a
description
• Choose Record
Keyboard Input
• Start recording,
add Pause for
any user inputs
needed, Stop
recording.
7
Creating Mapkeys (Cont.)
File > Options > Quick Access Toolbar
This process should be repeated for each mode
where command should be available (Part,
Assembly, Drawing).
8

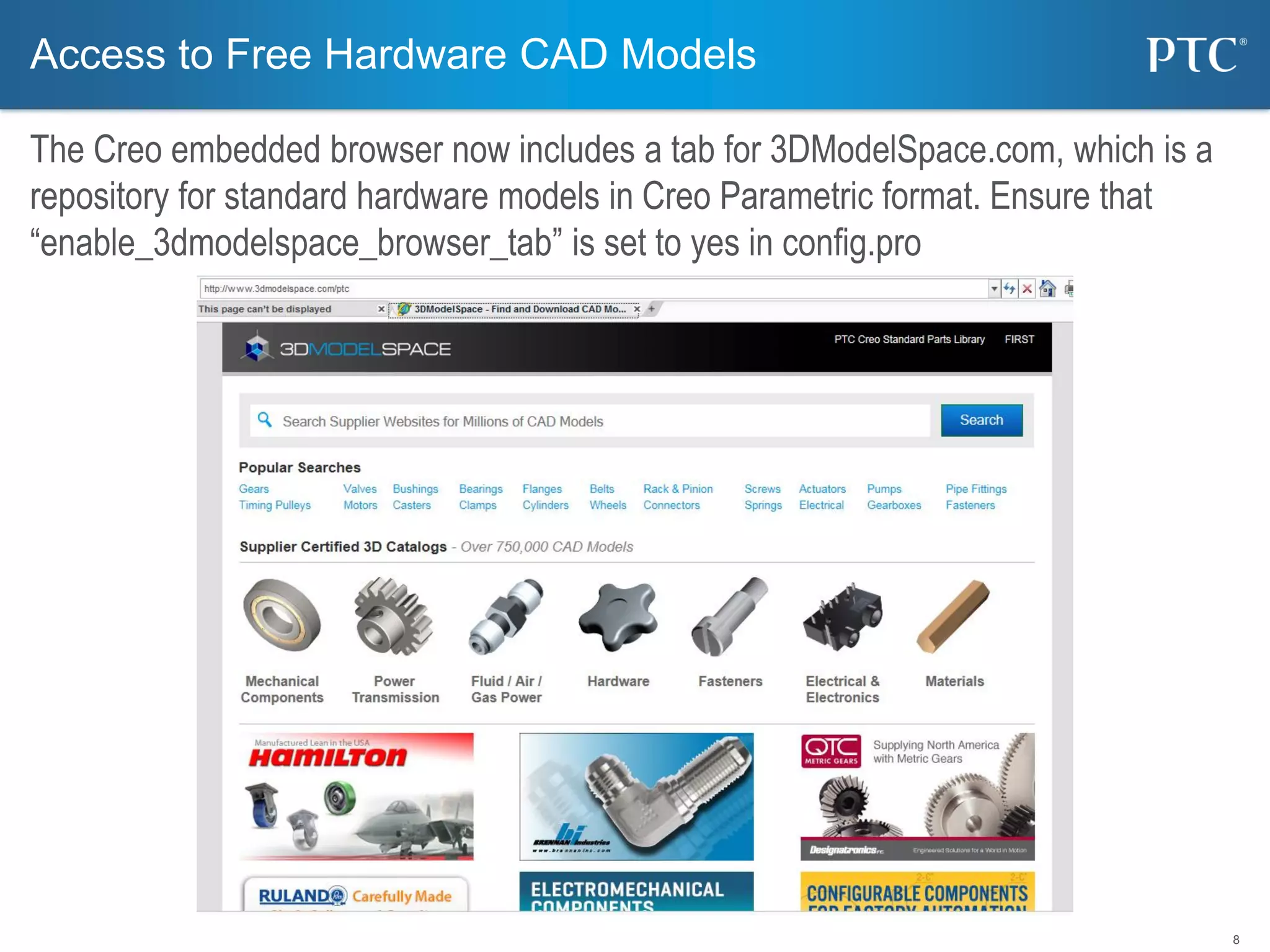

Access to Free Hardware CAD Models
The Creo embedded browser now includes a tab for 3DModelSpace.com, which is a
repository for standard hardware models in Creo Parametric format. Ensure that
“enable_3dmodelspace_browser_tab” is set to yes in config.pro
9
Part
10
Query Select to Intent
references, or use “Pick
from List” in RMB while
creating Rounds, Chamfers,
Draft, etc.

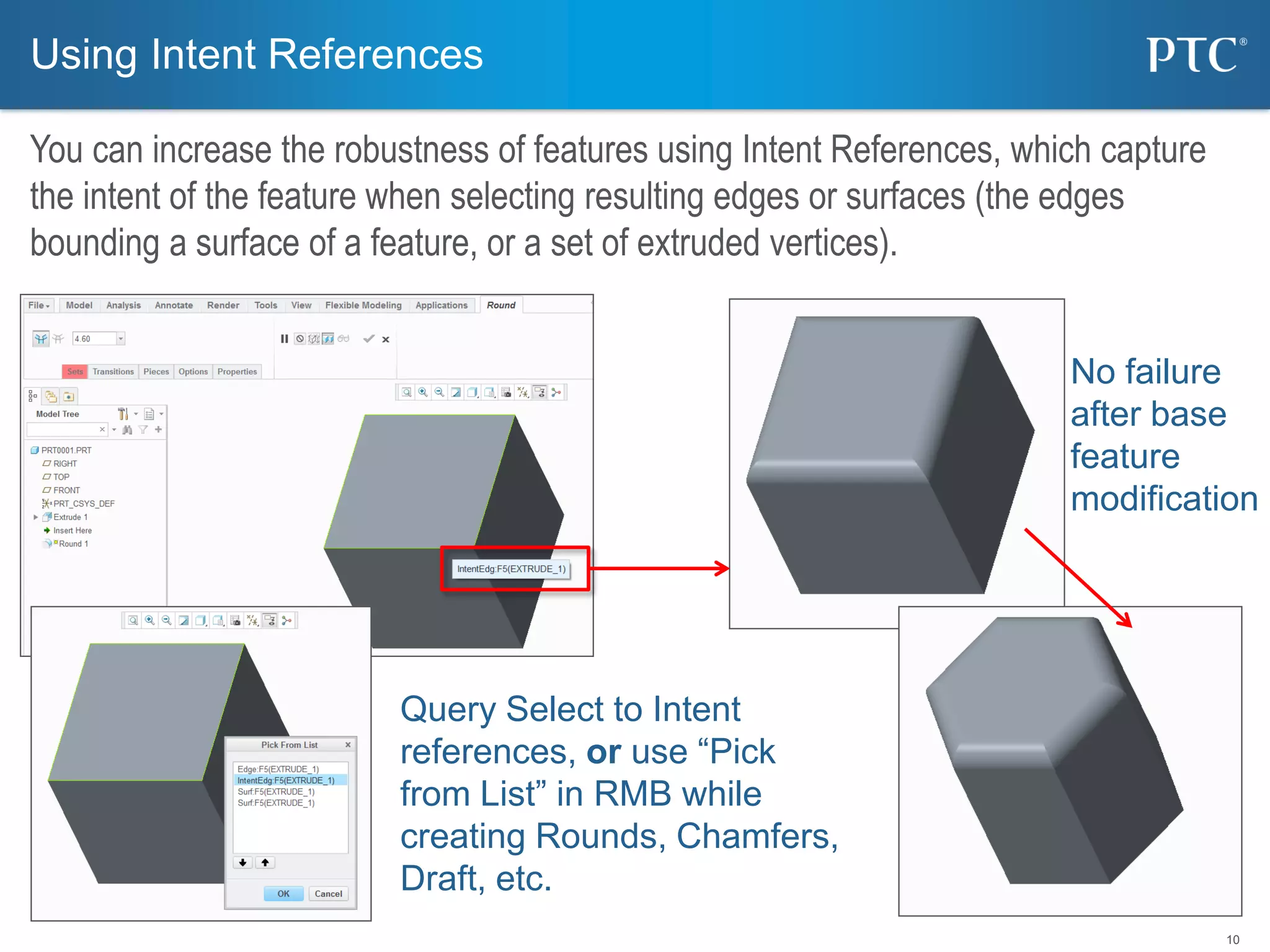

Using Intent References
You can increase the robustness of features using Intent References, which capture
the intent of the feature when selecting resulting edges or surfaces (the edges
bounding a surface of a feature, or a set of extruded vertices).
No failure
after base
feature
modification
11
1. Hold ALT and select the Seed surface.
2. Hold SHIFT and select the
first Boundary surface.
3. While holding SHIFT
continue selecting
Boundary surfaces (as
many as needed).
4. Release SHIFT
to complete the selection.

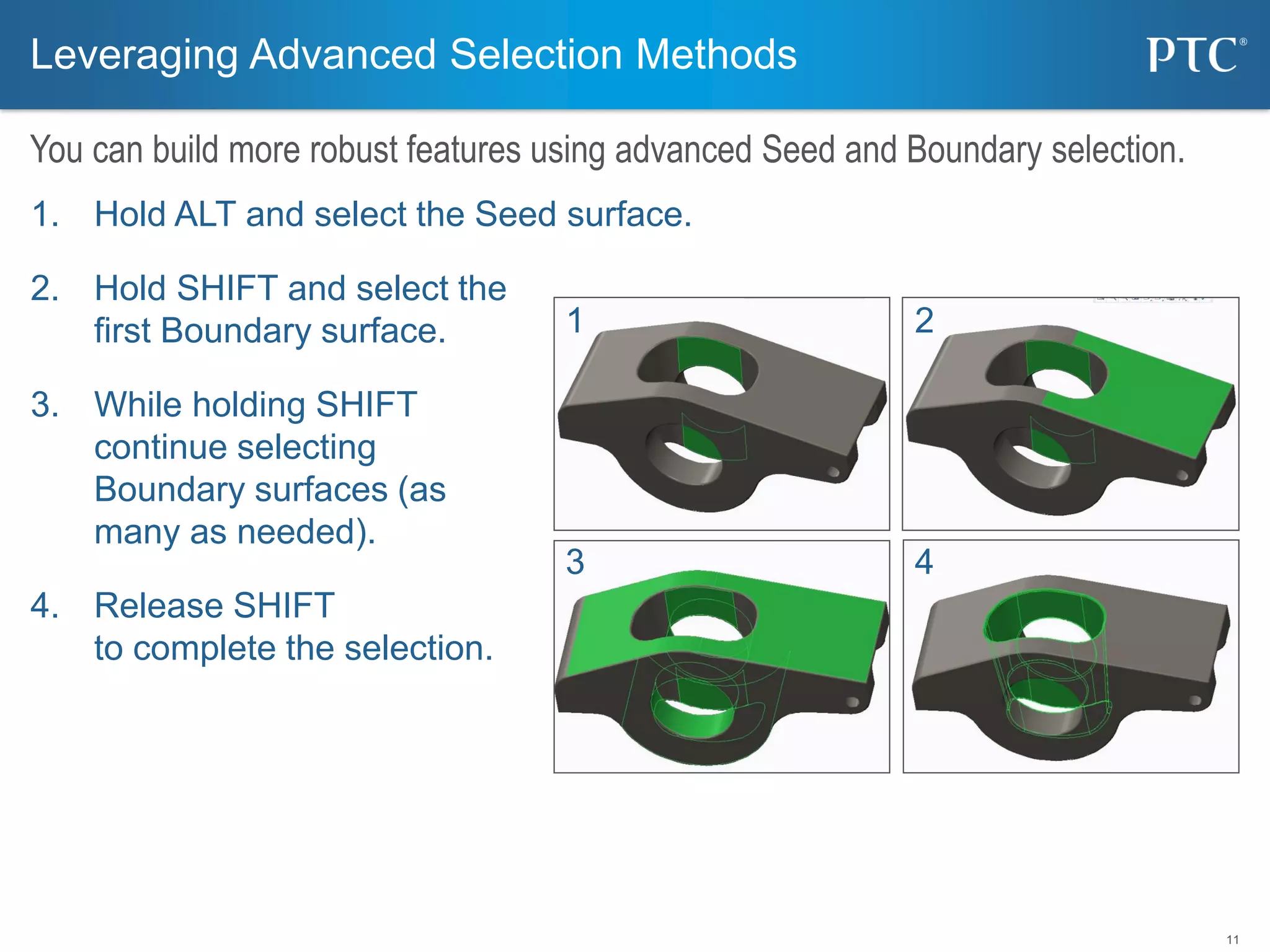

Leveraging Advanced Selection Methods
You can build more robust features using advanced Seed and Boundary selection.
1 2
3 4
12
Leveraging Advanced Selection Methods (Cont.)

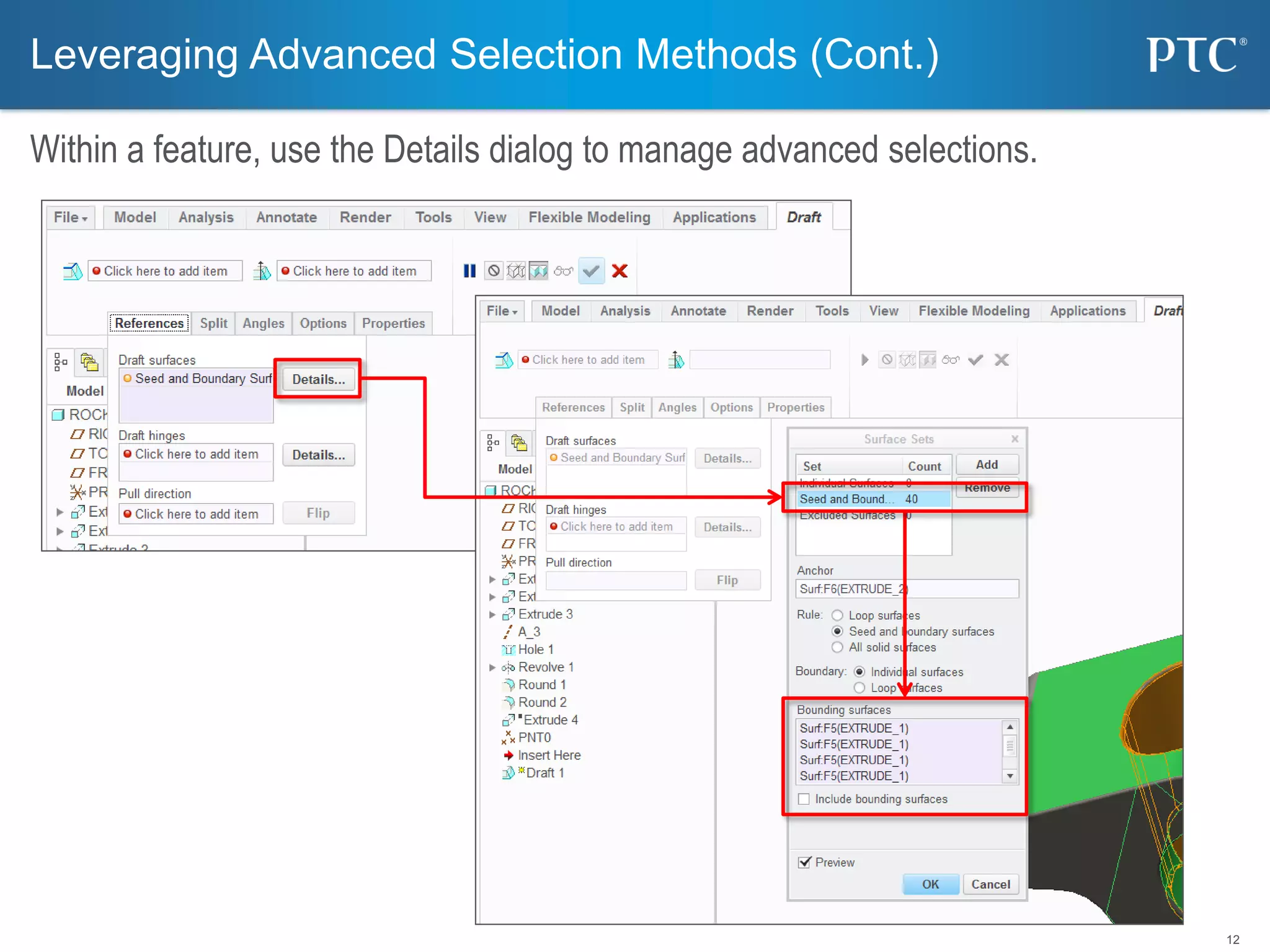

Within a feature, use the Details dialog to manage advanced selections.
13
• Settings > Tree Columns
– Type = Layer
– “Layer Names” and/or “Layer Status” > Add Column > OK

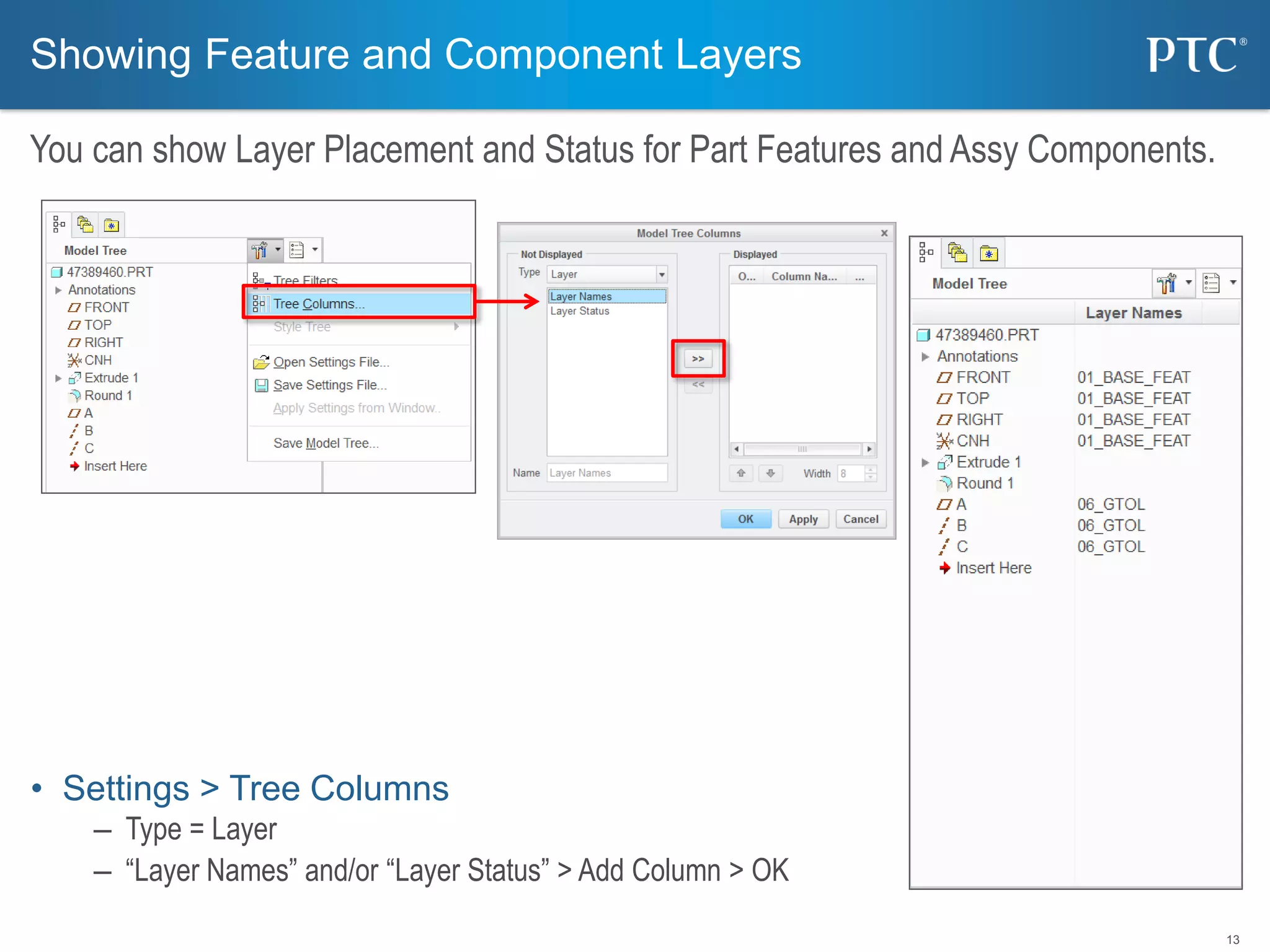

Showing Feature and Component Layers
You can show Layer Placement and Status for Part Features and Assy Components.
14

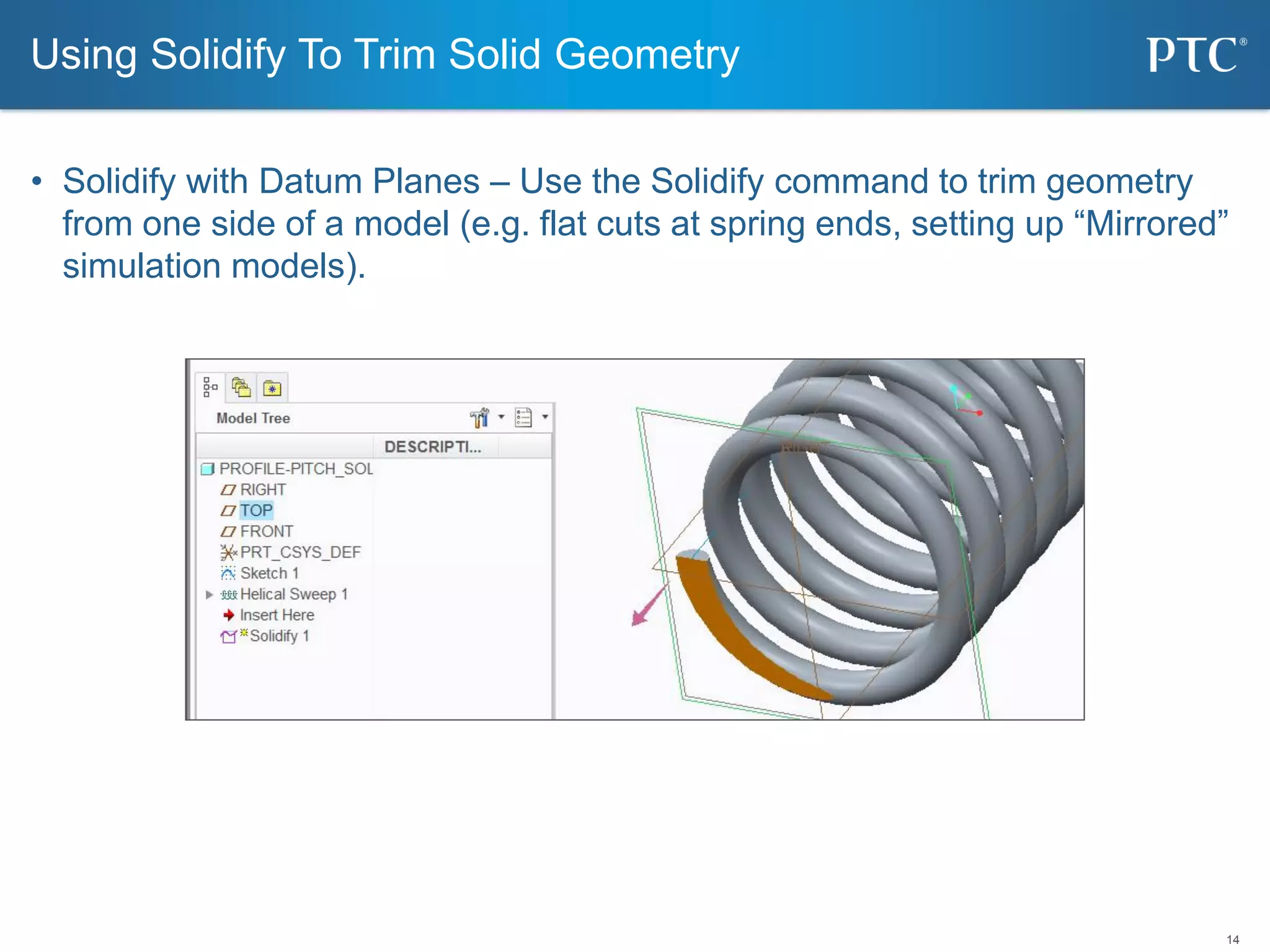

• Solidify with Datum Planes – Use the Solidify command to trim geometry
from one side of a model (e.g. flat cuts at spring ends, setting up “Mirrored”
simulation models).
Using Solidify To Trim Solid Geometry
15

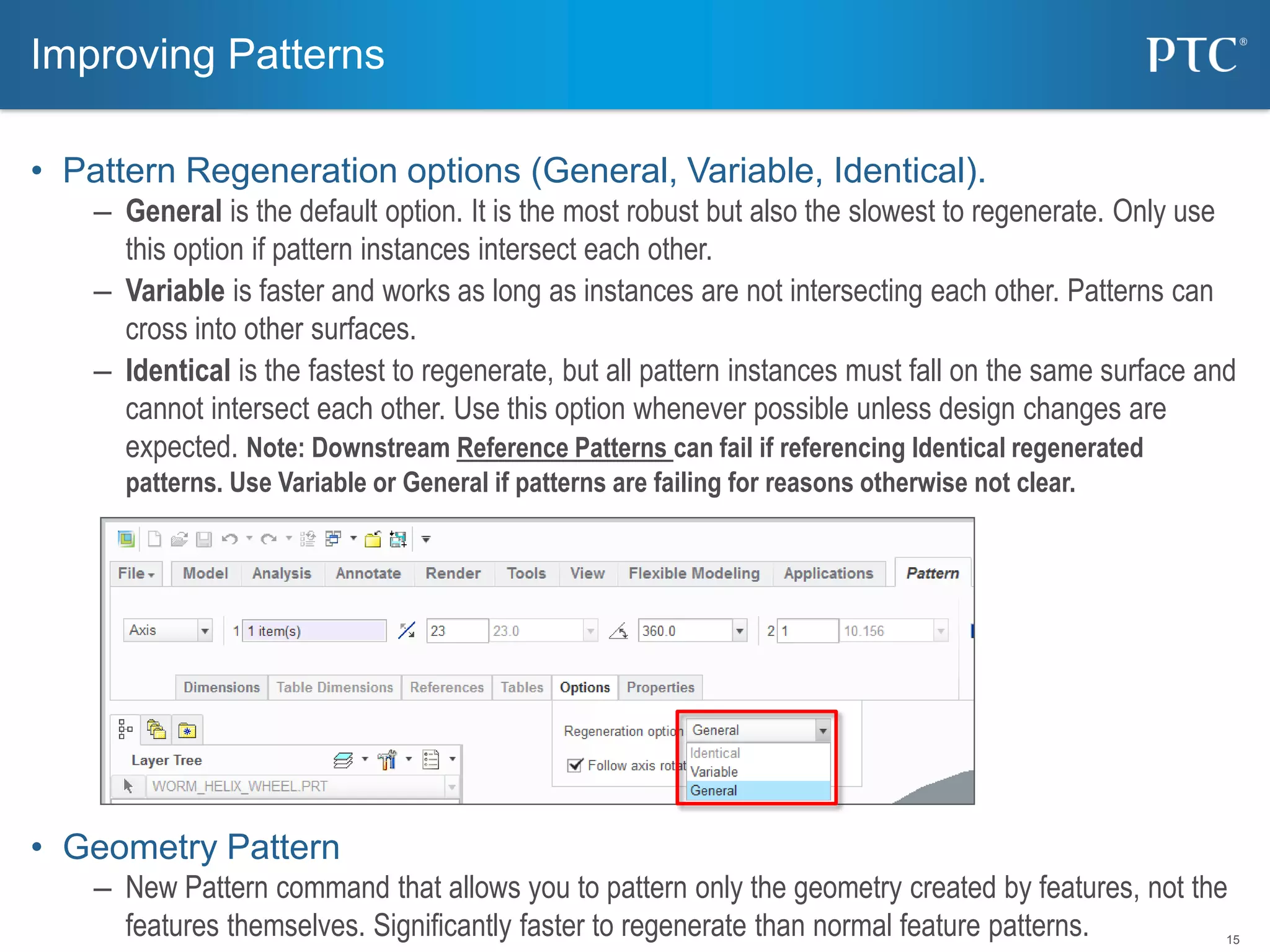

• Pattern Regeneration options (General, Variable, Identical).
– General is the default option. It is the most robust but also the slowest to regenerate. Only use
this option if pattern instances intersect each other.
– Variable is faster and works as long as instances are not intersecting each other. Patterns can
cross into other surfaces.
– Identical is the fastest to regenerate, but all pattern instances must fall on the same surface and
cannot intersect each other. Use this option whenever possible unless design changes are
expected. Note: Downstream Reference Patterns can fail if referencing Identical regenerated
patterns. Use Variable or General if patterns are failing for reasons otherwise not clear.
• Geometry Pattern
– New Pattern command that allows you to pattern only the geometry created by features, not the
features themselves. Significantly faster to regenerate than normal feature patterns.
Improving Patterns
16

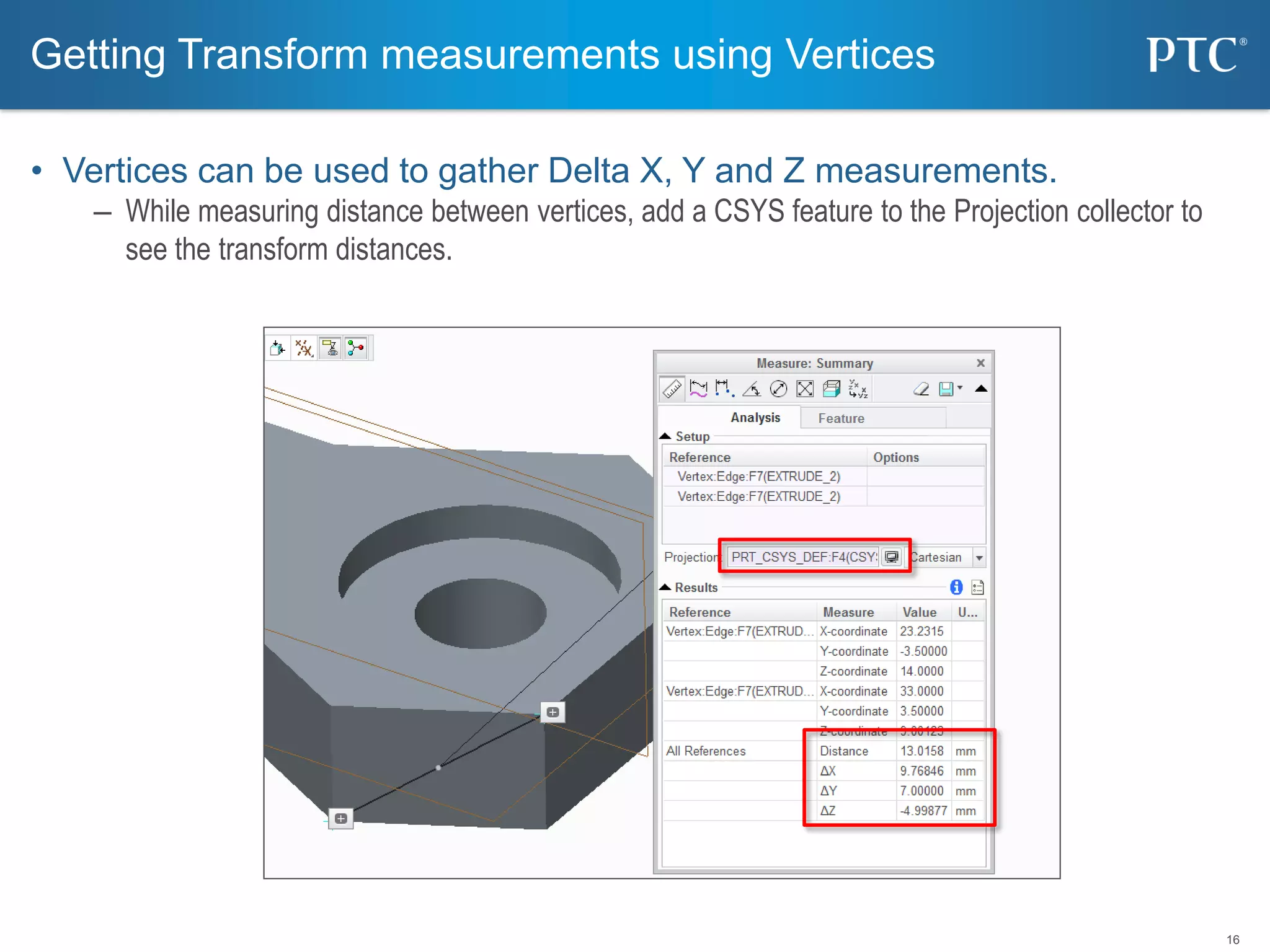

• Vertices can be used to gather Delta X, Y and Z measurements.
– While measuring distance between vertices, add a CSYS feature to the Projection collector to
see the transform distances.
Getting Transform measurements using Vertices
17

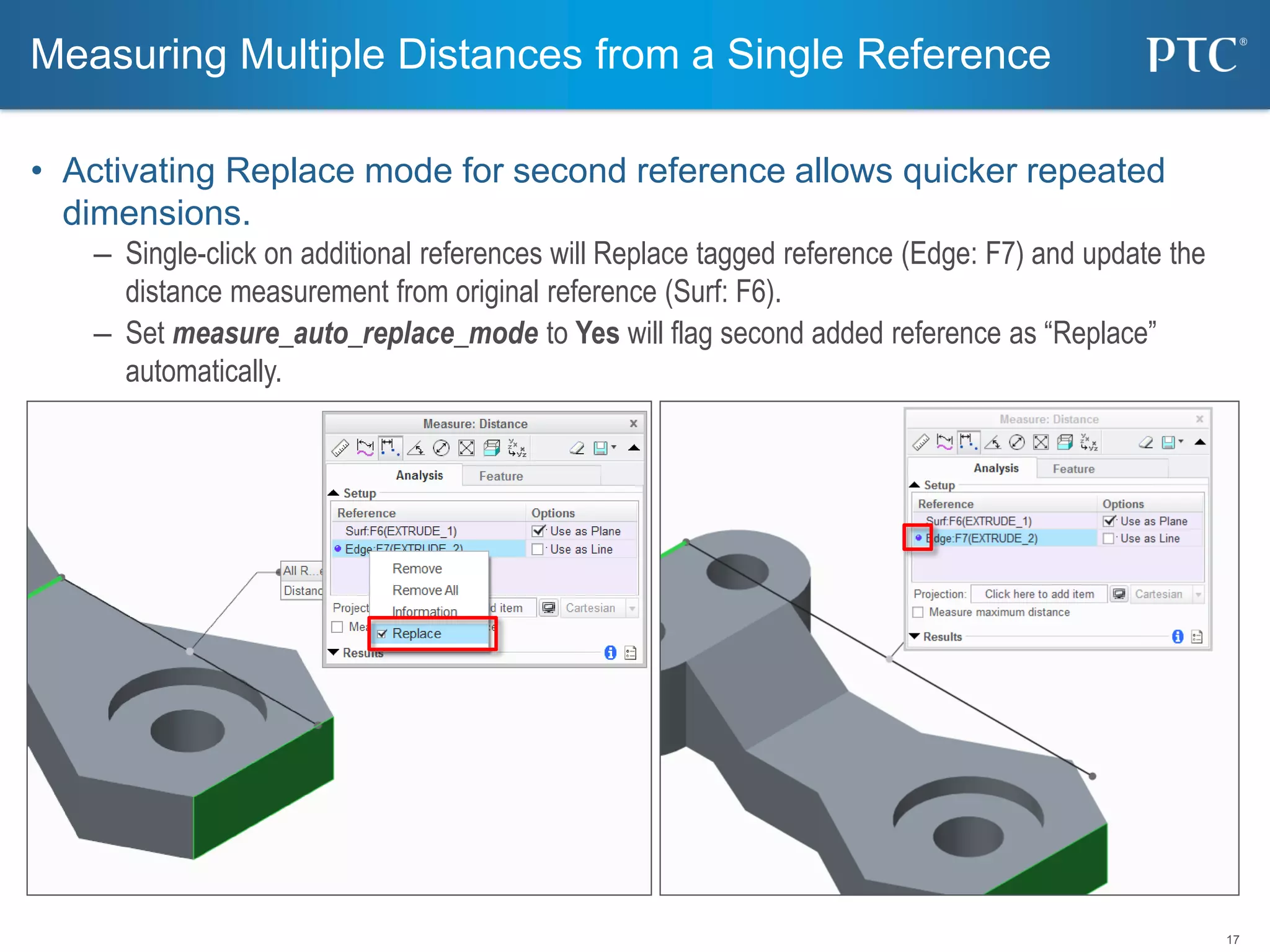

• Activating Replace mode for second reference allows quicker repeated
dimensions.
– Single-click on additional references will Replace tagged reference (Edge: F7) and update the
distance measurement from original reference (Surf: F6).
– Set measure_auto_replace_mode to Yes will flag second added reference as “Replace”
automatically.
Measuring Multiple Distances from a Single Reference
18

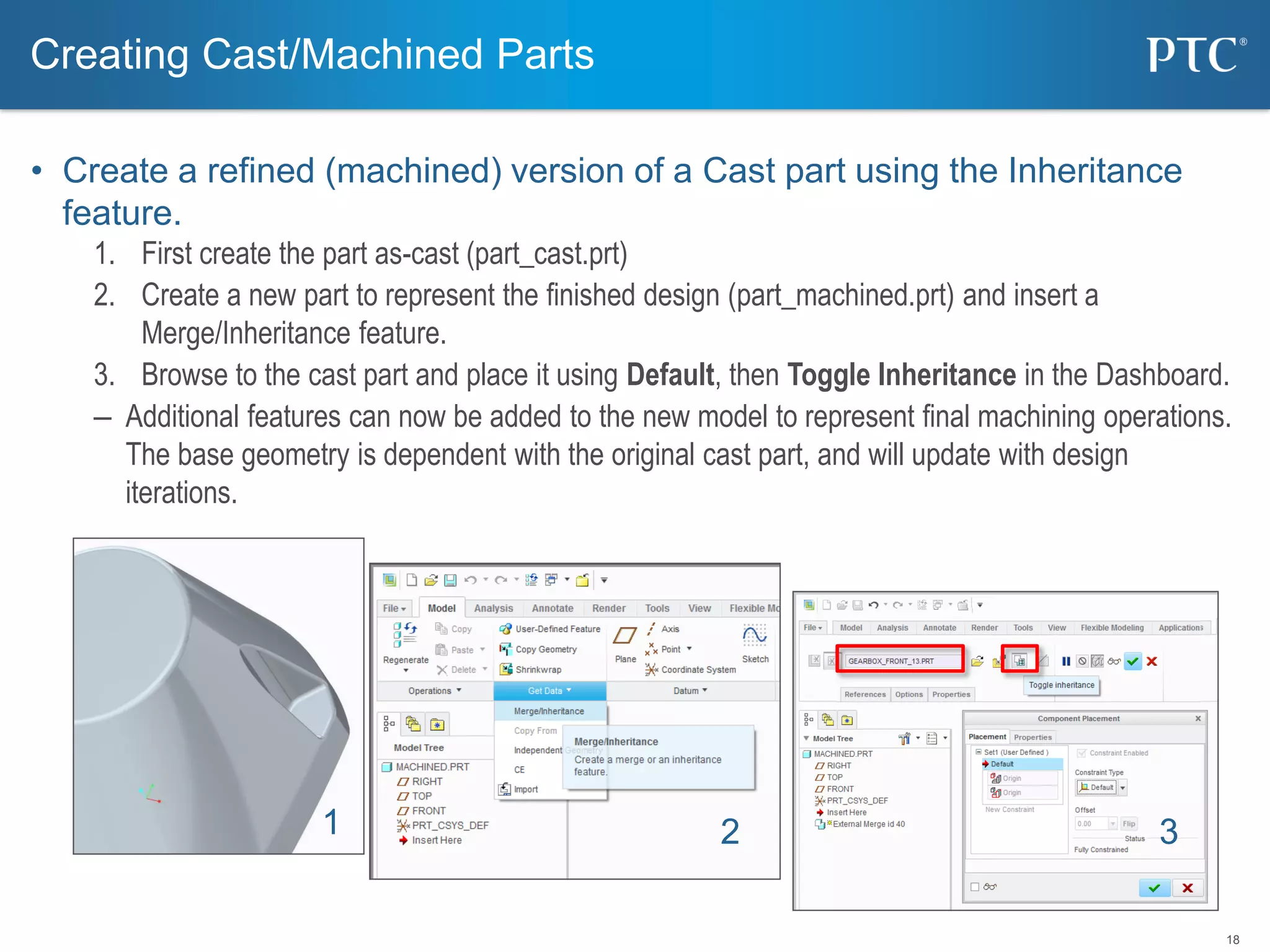

• Create a refined (machined) version of a Cast part using the Inheritance
feature.
1. First create the part as-cast (part_cast.prt)
2. Create a new part to represent the finished design (part_machined.prt) and insert a
Merge/Inheritance feature.
3. Browse to the cast part and place it using Default, then Toggle Inheritance in the Dashboard.
– Additional features can now be added to the new model to represent final machining operations.
The base geometry is dependent with the original cast part, and will update with design
iterations.
Creating Cast/Machined Parts
1 2 3
19
• Apply colors to a model that represent machining operations on a
previously Cast part.
1. In the machined model (an inheritance part from the previous slide), apply a color to the “part”
definition that represents the machined surfaces (select the part name in the Model Tree when
applying color).
2. Select a single surface, then RMB select Solid Surfaces. Pick a “cast” (matte) color from the
Appearance Gallery to apply the color to the “surface” definition of the part.
3. Add the final machining features (holes, chamfers, facing, milling, etc.) to “reveal” the
machined part color underneath the cast surface color.
Adding colors to Cast/Machined Parts
1 2 3
20
Assembly
21
• Set auto_constr_always_use_offset to Never
– Coincident will be the default constraint type for the following reference pairs:
• Planes
• Linear edges / Datum Axis
• Planes combined with Linear edges
• Set auto_constr_always_use_offset to Yes
– Offset (Angle or Normal) will be the default constraint type for the following reference pairs, never coincident:
• Planes
• Linear edges / Datum Axis
• Planes combined with Linear edges
• Set auto_constr_always_use_offset to No*
– Creo will suggest a constraint type based on current component position and orientation
• Coincident
• Distance
• Angle
• Normal
– Setting up the orientation tolerance is done with the 3 additional config.pro options on the next
slide.
Assembly Constraint Tweaking
Use these options to change how constraints are applied by default.
22

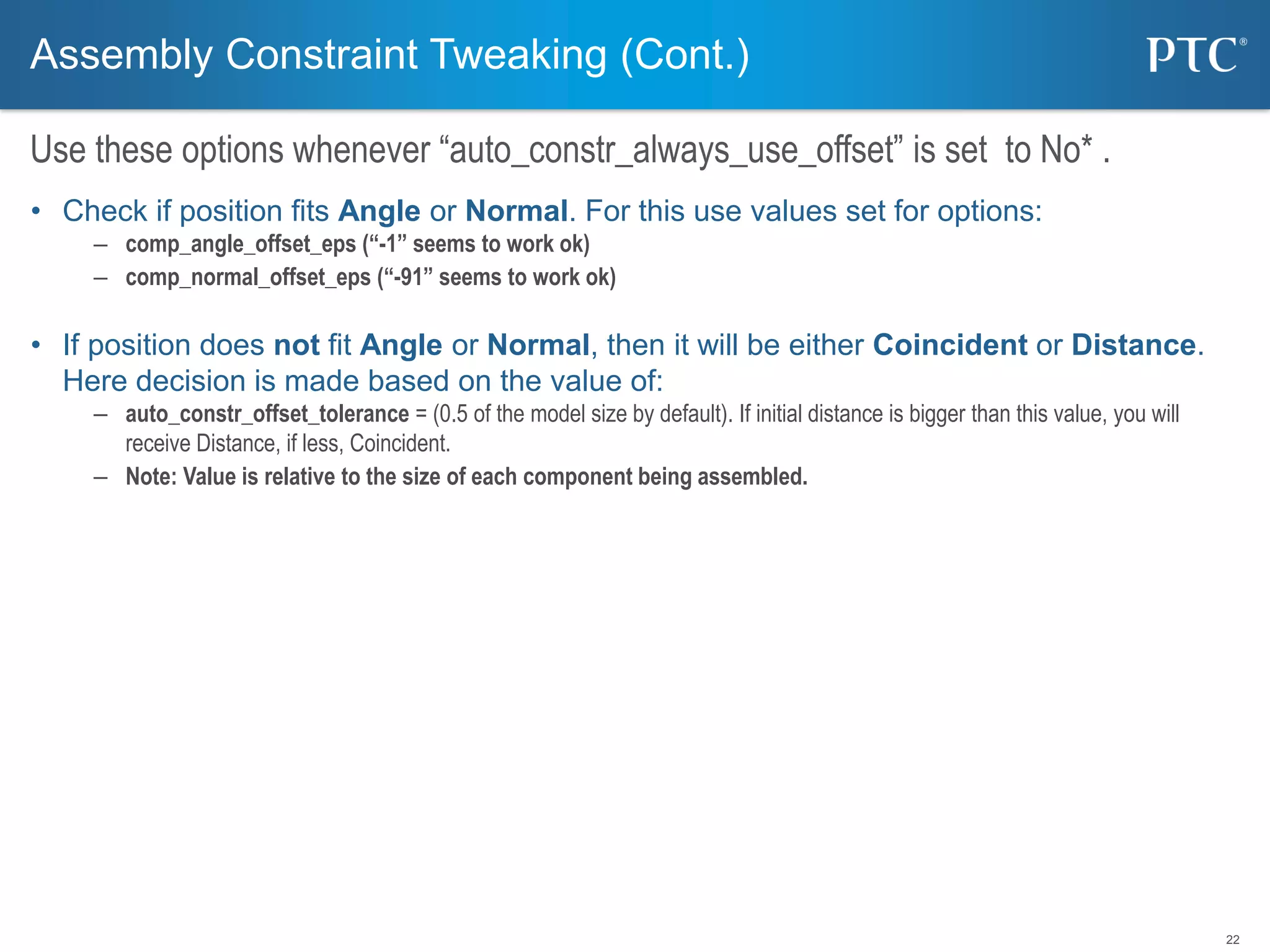

• Check if position fits Angle or Normal. For this use values set for options:
– comp_angle_offset_eps (“-1” seems to work ok)
– comp_normal_offset_eps (“-91” seems to work ok)
• If position does not fit Angle or Normal, then it will be either Coincident or Distance.
Here decision is made based on the value of:
– auto_constr_offset_tolerance = (0.5 of the model size by default). If initial distance is bigger than this value, you will
receive Distance, if less, Coincident.
– Note: Value is relative to the size of each component being assembled.
Assembly Constraint Tweaking (Cont.)
Use these options whenever “auto_constr_always_use_offset” is set to No* .
23

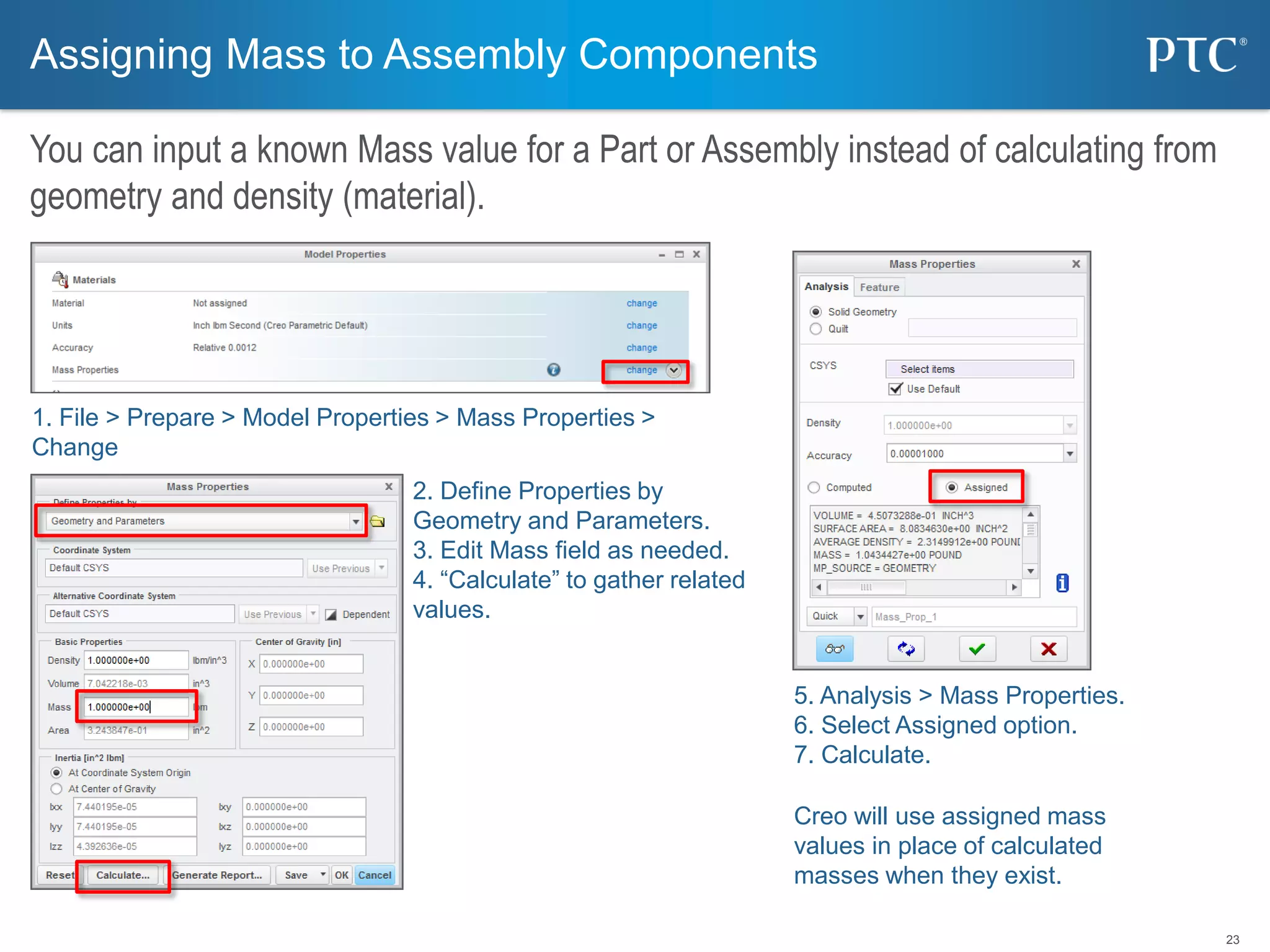

Assigning Mass to Assembly Components
You can input a known Mass value for a Part or Assembly instead of calculating from
geometry and density (material).
1. File > Prepare > Model Properties > Mass Properties >
Change
2. Define Properties by
Geometry and Parameters.
3. Edit Mass field as needed.
4. “Calculate” to gather related
values.
5. Analysis > Mass Properties.
6. Select Assigned option.
7. Calculate.
Creo will use assigned mass
values in place of calculated
masses when they exist.
24

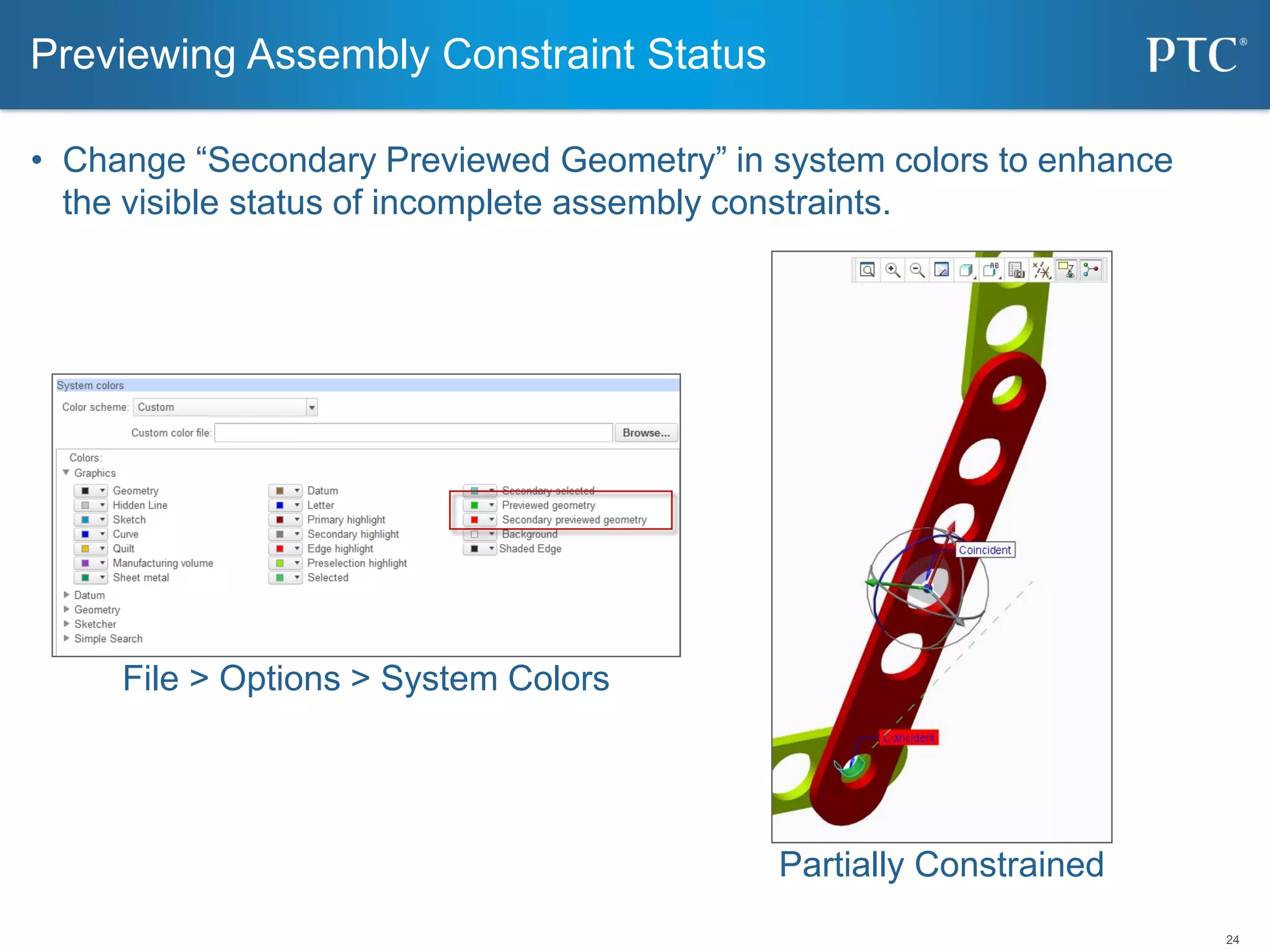

• Change “Secondary Previewed Geometry” in system colors to enhance
the visible status of incomplete assembly constraints.
Previewing Assembly Constraint Status
Partially Constrained
File > Options > System Colors
25

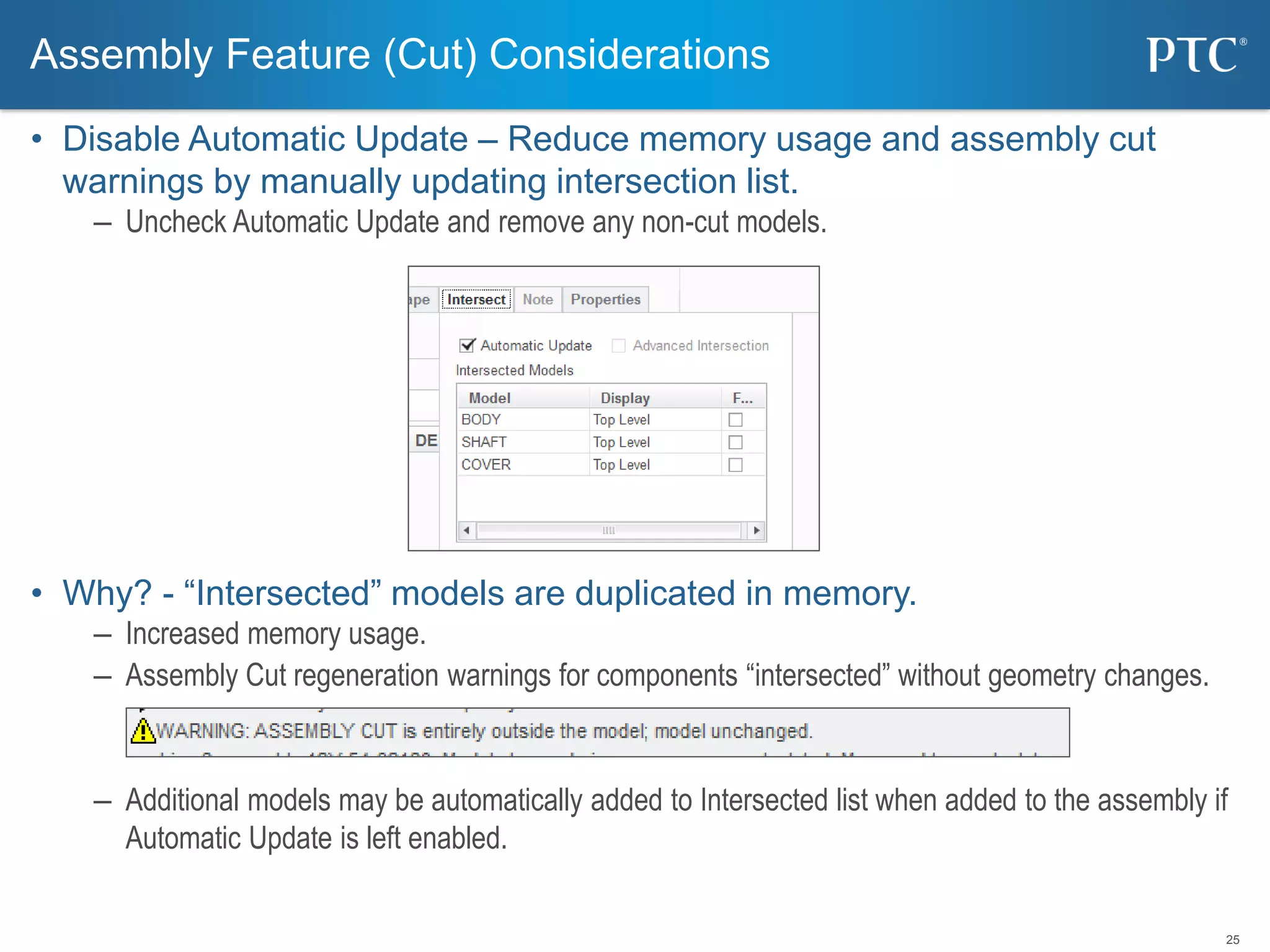

• Disable Automatic Update – Reduce memory usage and assembly cut
warnings by manually updating intersection list.
– Uncheck Automatic Update and remove any non-cut models.
• Why? - “Intersected” models are duplicated in memory.
– Increased memory usage.
– Assembly Cut regeneration warnings for components “intersected” without geometry changes.
– Additional models may be automatically added to Intersected list when added to the assembly if
Automatic Update is left enabled.
Assembly Feature (Cut) Considerations
26

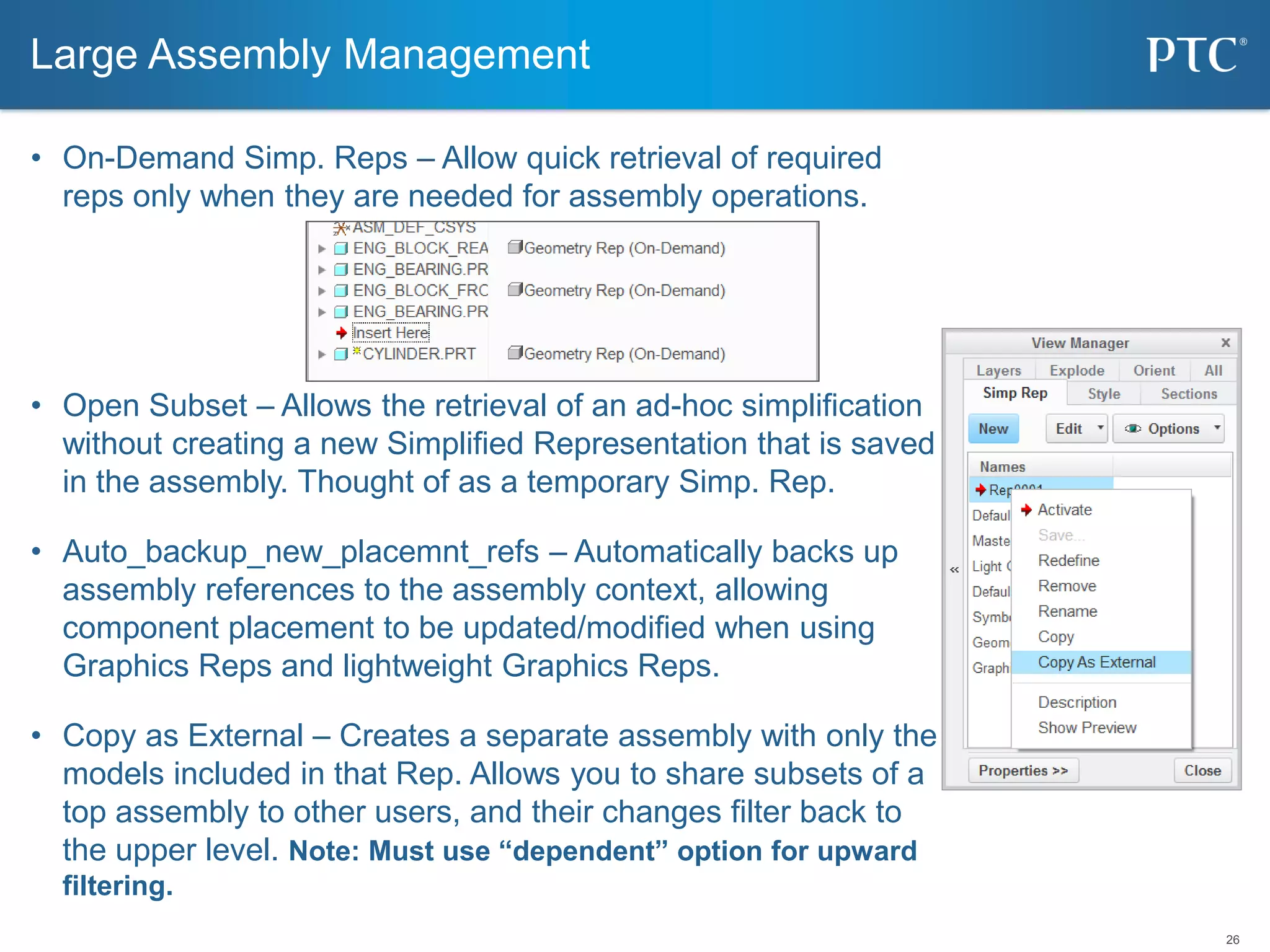

• On-Demand Simp. Reps – Allow quick retrieval of required
reps only when they are needed for assembly operations.
• Open Subset – Allows the retrieval of an ad-hoc simplification
without creating a new Simplified Representation that is saved
in the assembly. Thought of as a temporary Simp. Rep.
• Auto_backup_new_placemnt_refs – Automatically backs up
assembly references to the assembly context, allowing
component placement to be updated/modified when using
Graphics Reps and lightweight Graphics Reps.
• Copy as External – Creates a separate assembly with only the
models included in that Rep. Allows you to share subsets of a
top assembly to other users, and their changes filter back to
the upper level. Note: Must use “dependent” option for upward
filtering.
Large Assembly Management
27

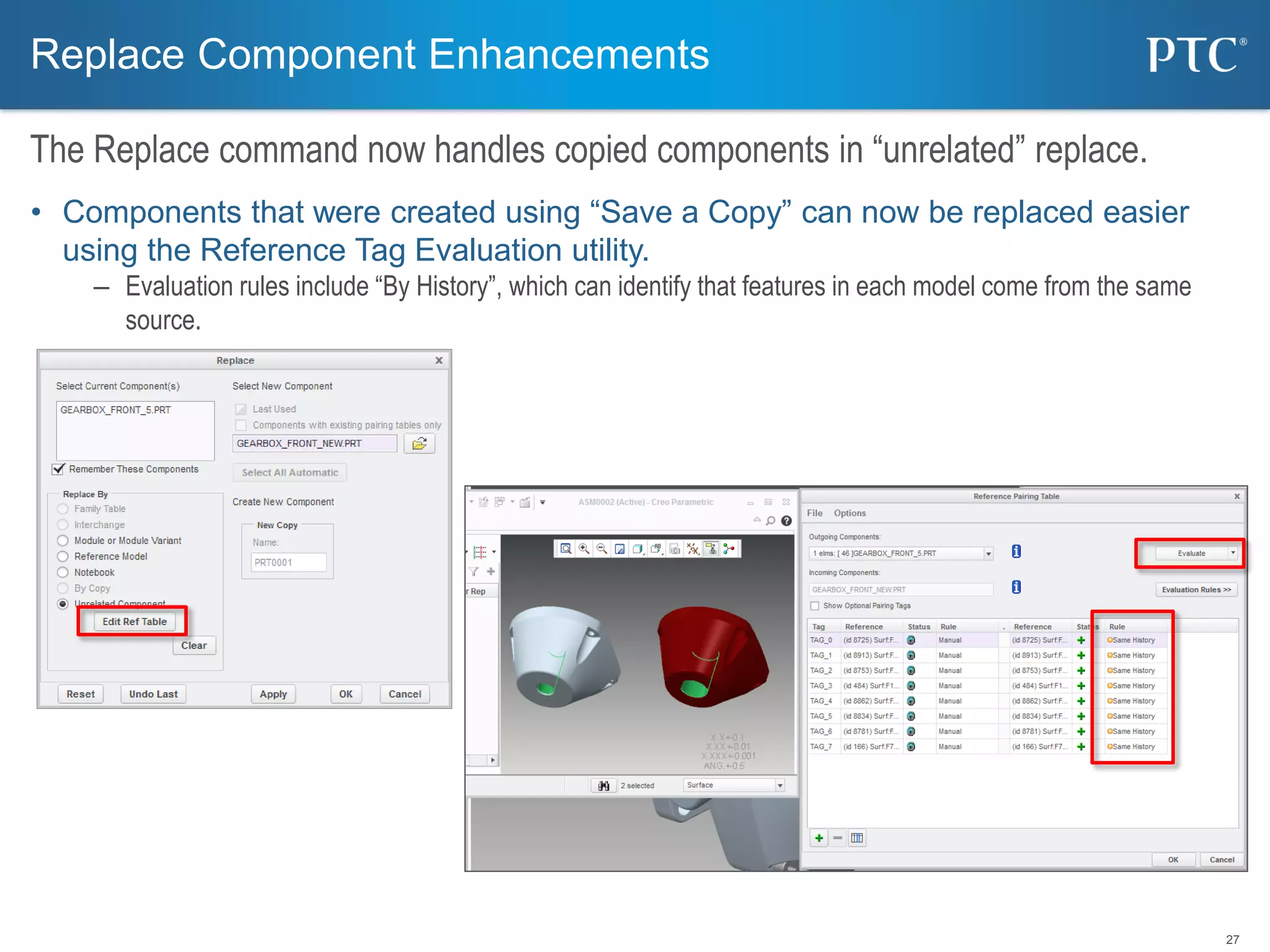

• Components that were created using “Save a Copy” can now be replaced easier
using the Reference Tag Evaluation utility.
– Evaluation rules include “By History”, which can identify that features in each model come from the same
source.
Replace Component Enhancements
The Replace command now handles copied components in “unrelated” replace.
28

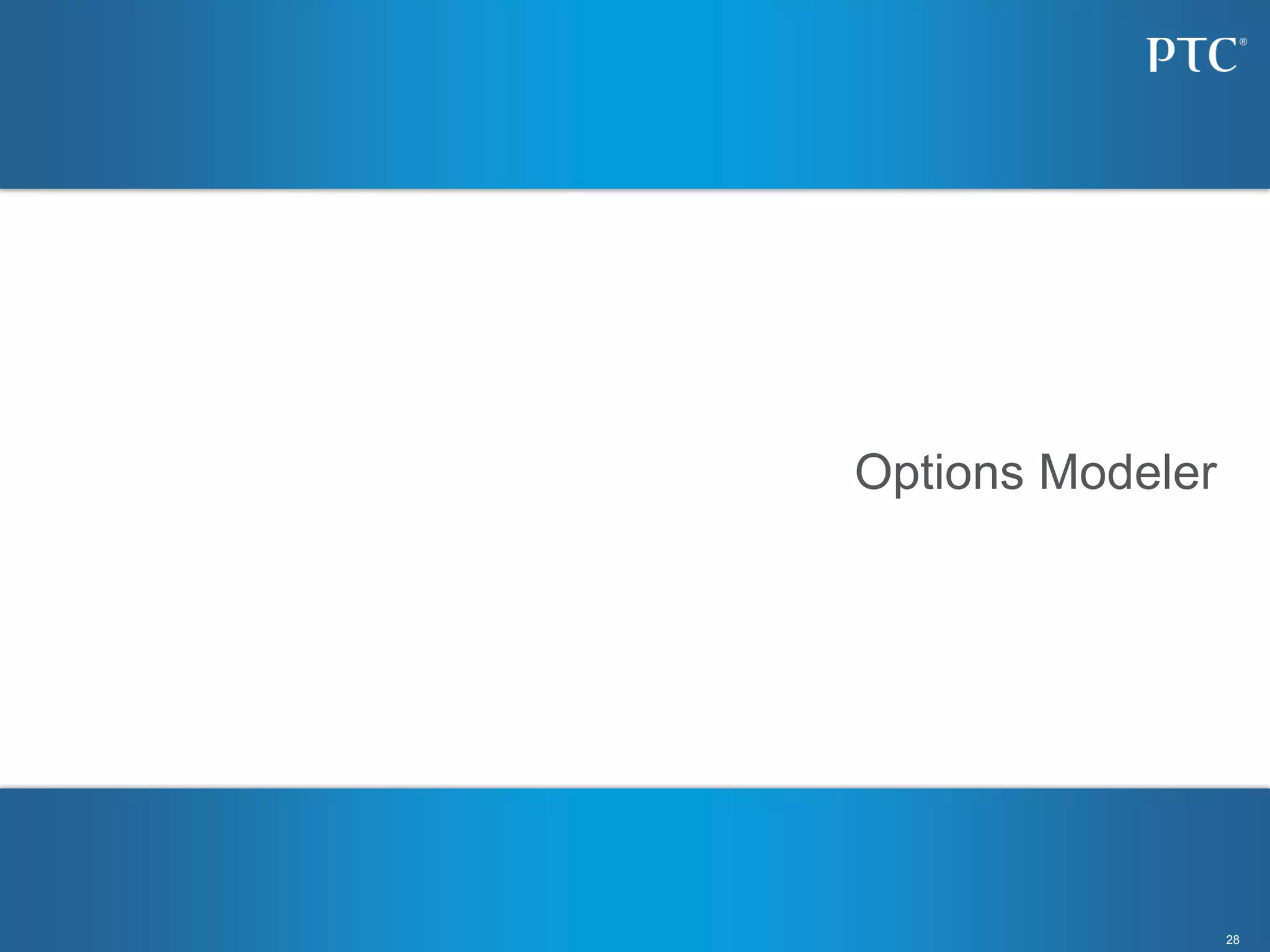

Options Modeler
29

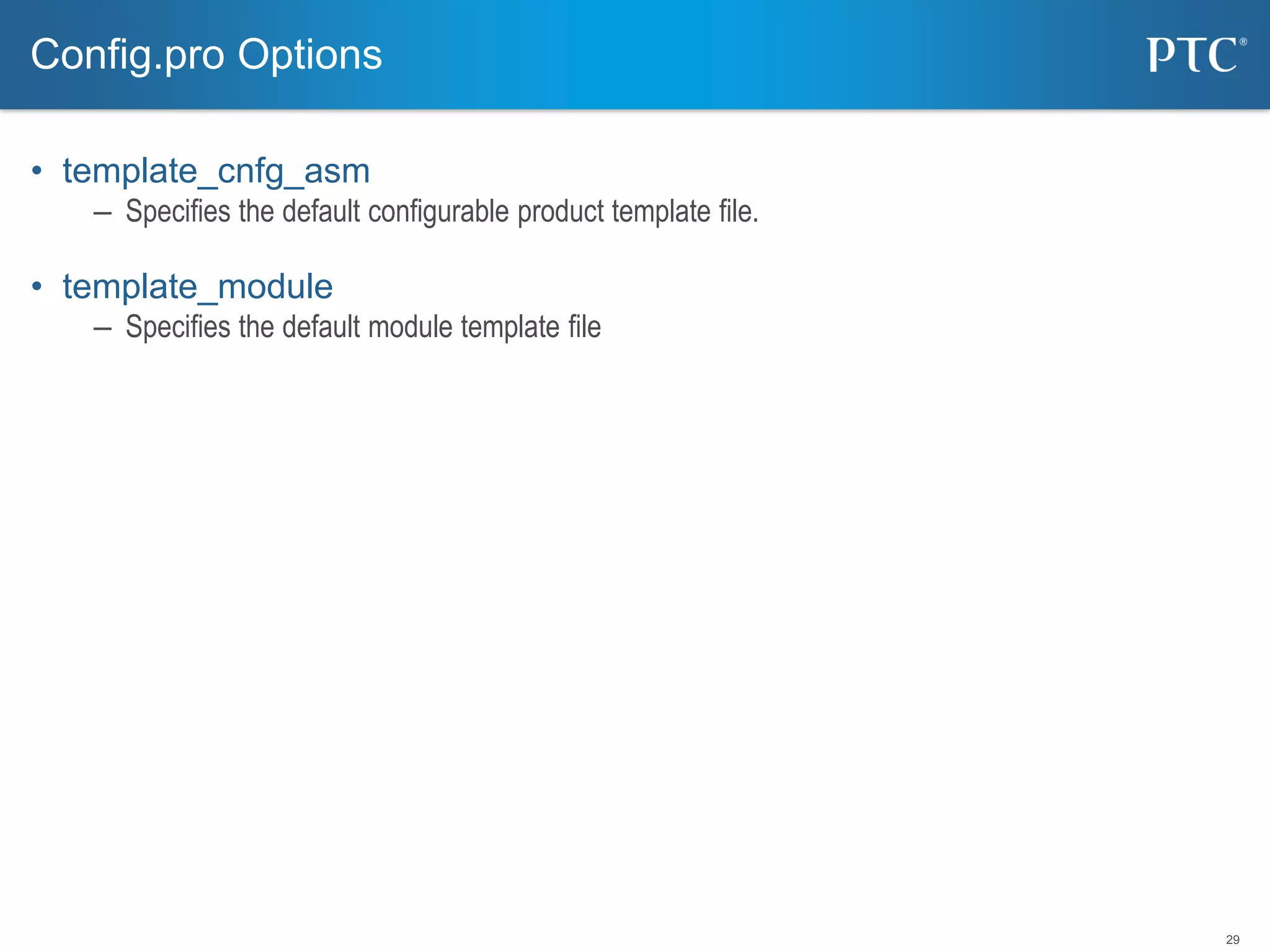

• template_cnfg_asm
– Specifies the default configurable product template file.
• template_module
– Specifies the default module template file
Config.pro Options
30

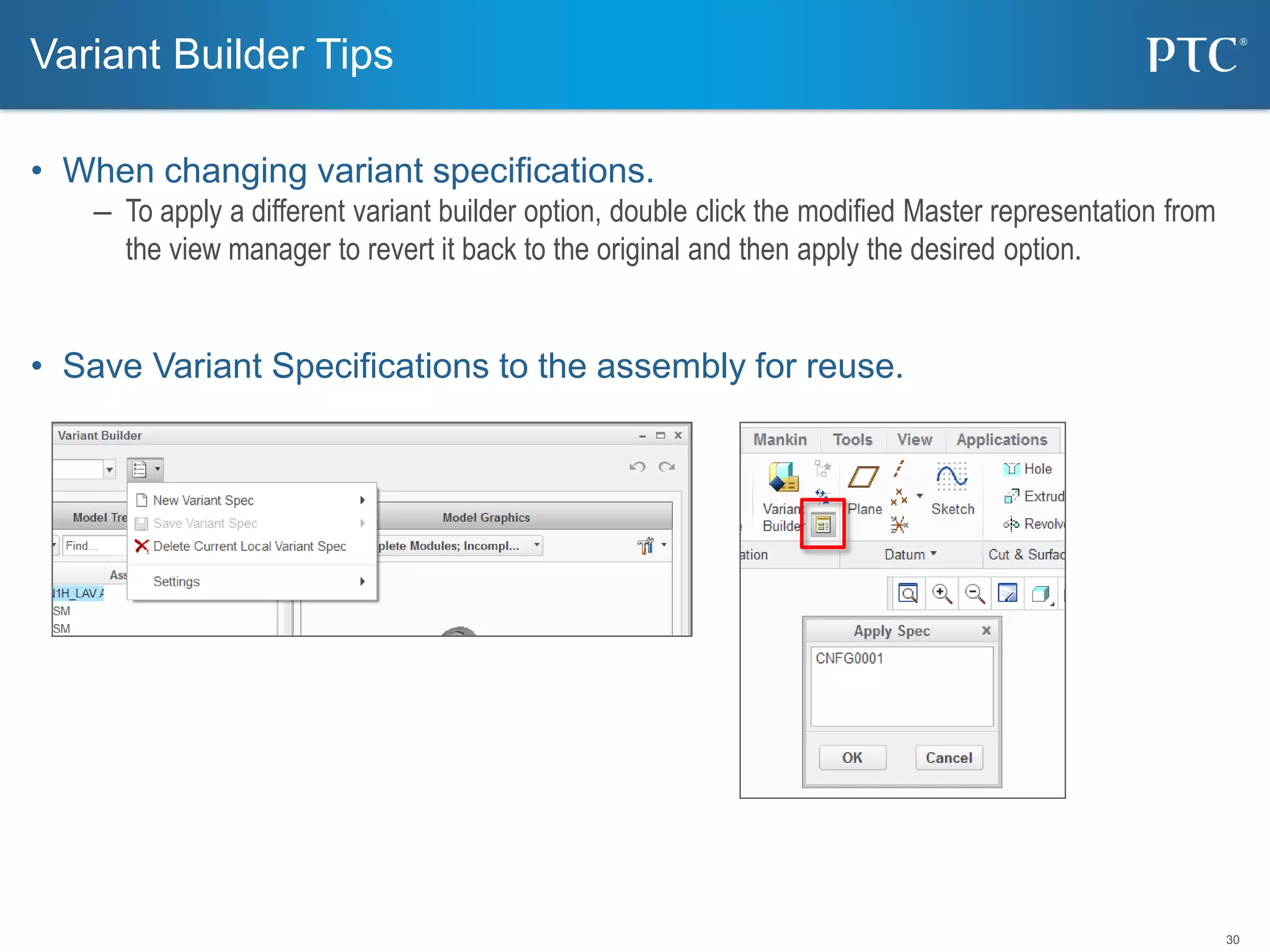

• When changing variant specifications.
– To apply a different variant builder option, double click the modified Master representation from
the view manager to revert it back to the original and then apply the desired option.
• Save Variant Specifications to the assembly for reuse.
Variant Builder Tips
31

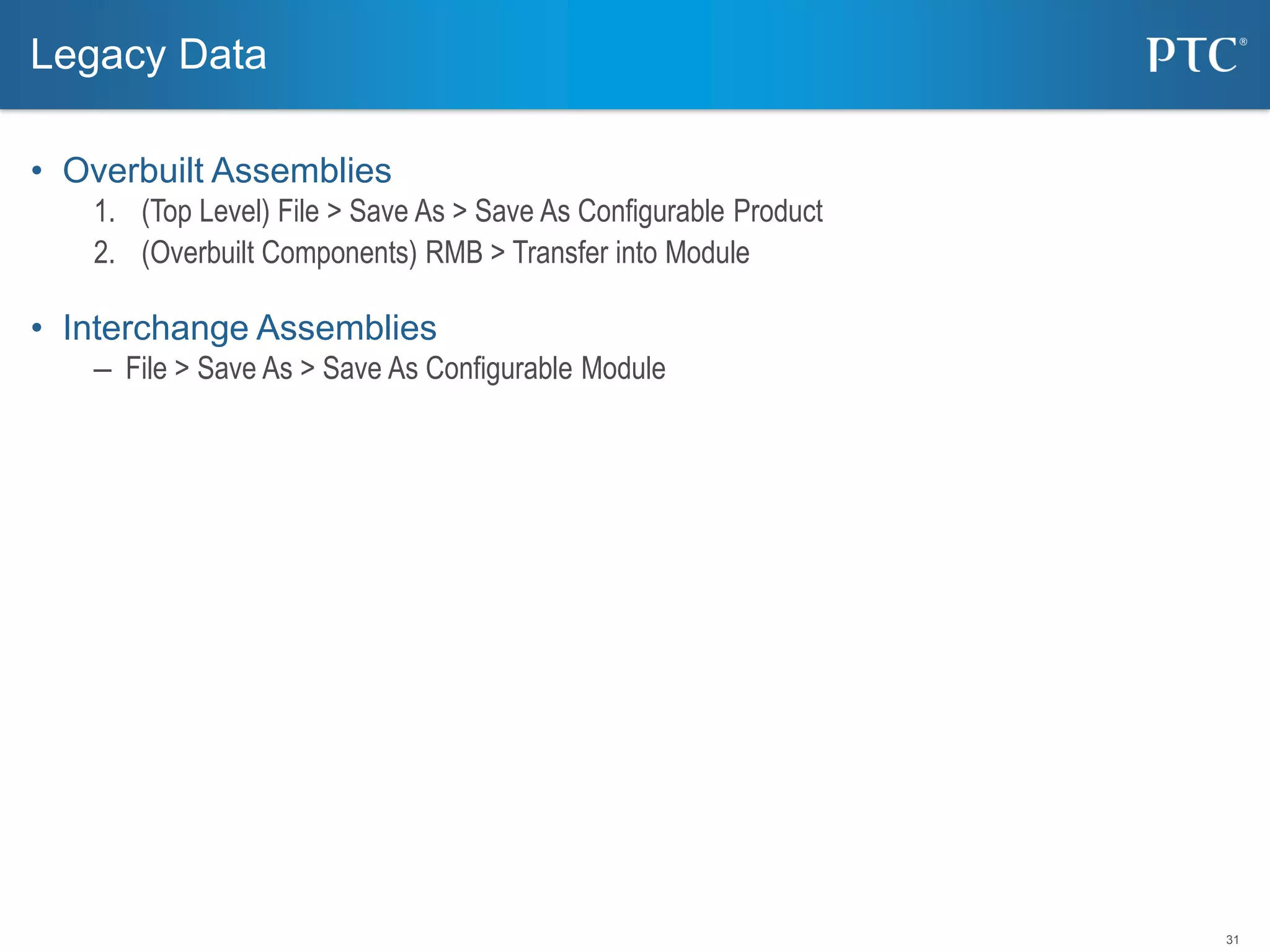

• Overbuilt Assemblies
1. (Top Level) File > Save As > Save As Configurable Product
2. (Overbuilt Components) RMB > Transfer into Module
• Interchange Assemblies
– File > Save As > Save As Configurable Module
Legacy Data
32
Mechanism
33

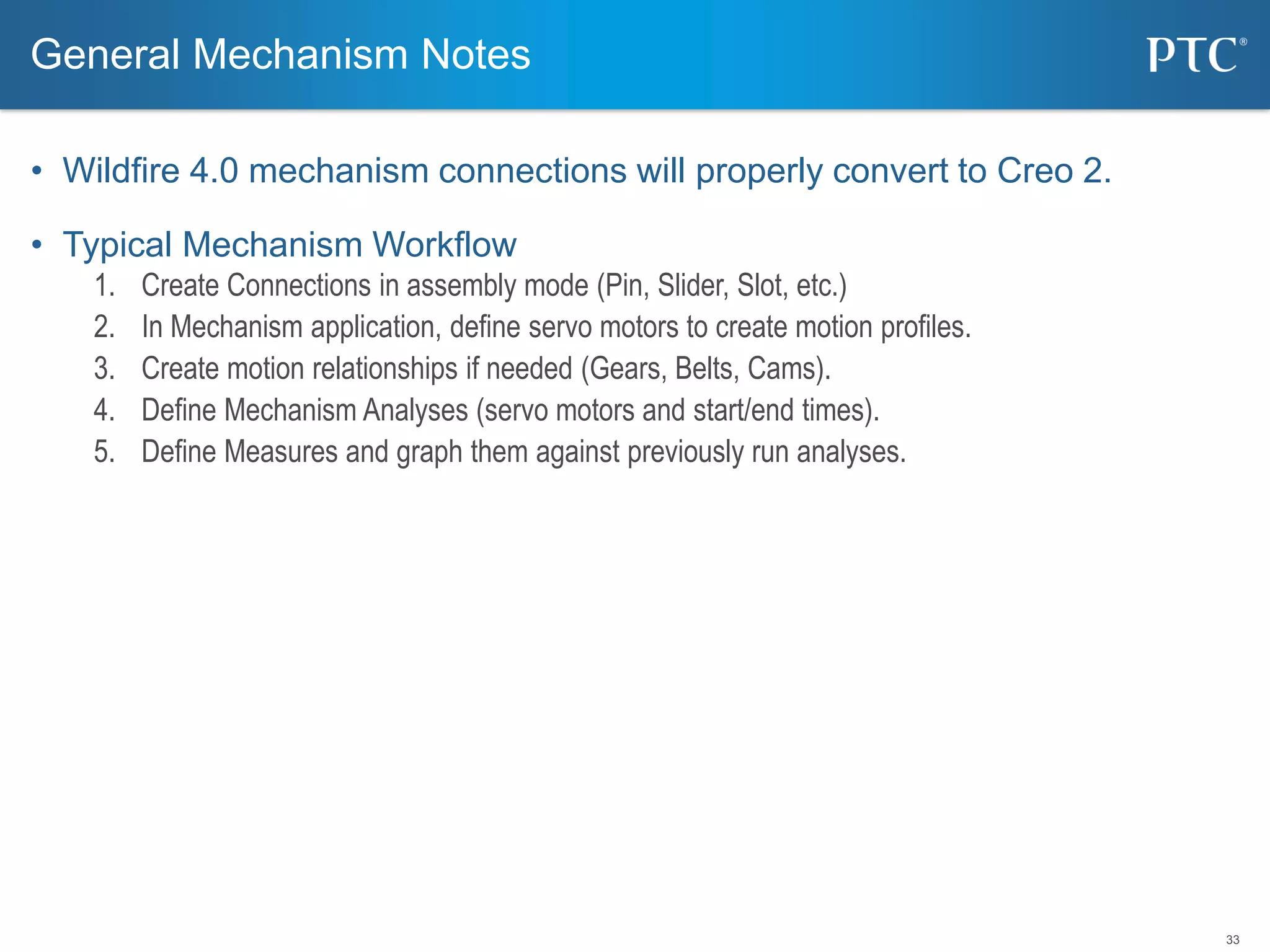

• Wildfire 4.0 mechanism connections will properly convert to Creo 2.
• Typical Mechanism Workflow
1. Create Connections in assembly mode (Pin, Slider, Slot, etc.)
2. In Mechanism application, define servo motors to create motion profiles.
3. Create motion relationships if needed (Gears, Belts, Cams).
4. Define Mechanism Analyses (servo motors and start/end times).
5. Define Measures and graph them against previously run analyses.
General Mechanism Notes
34

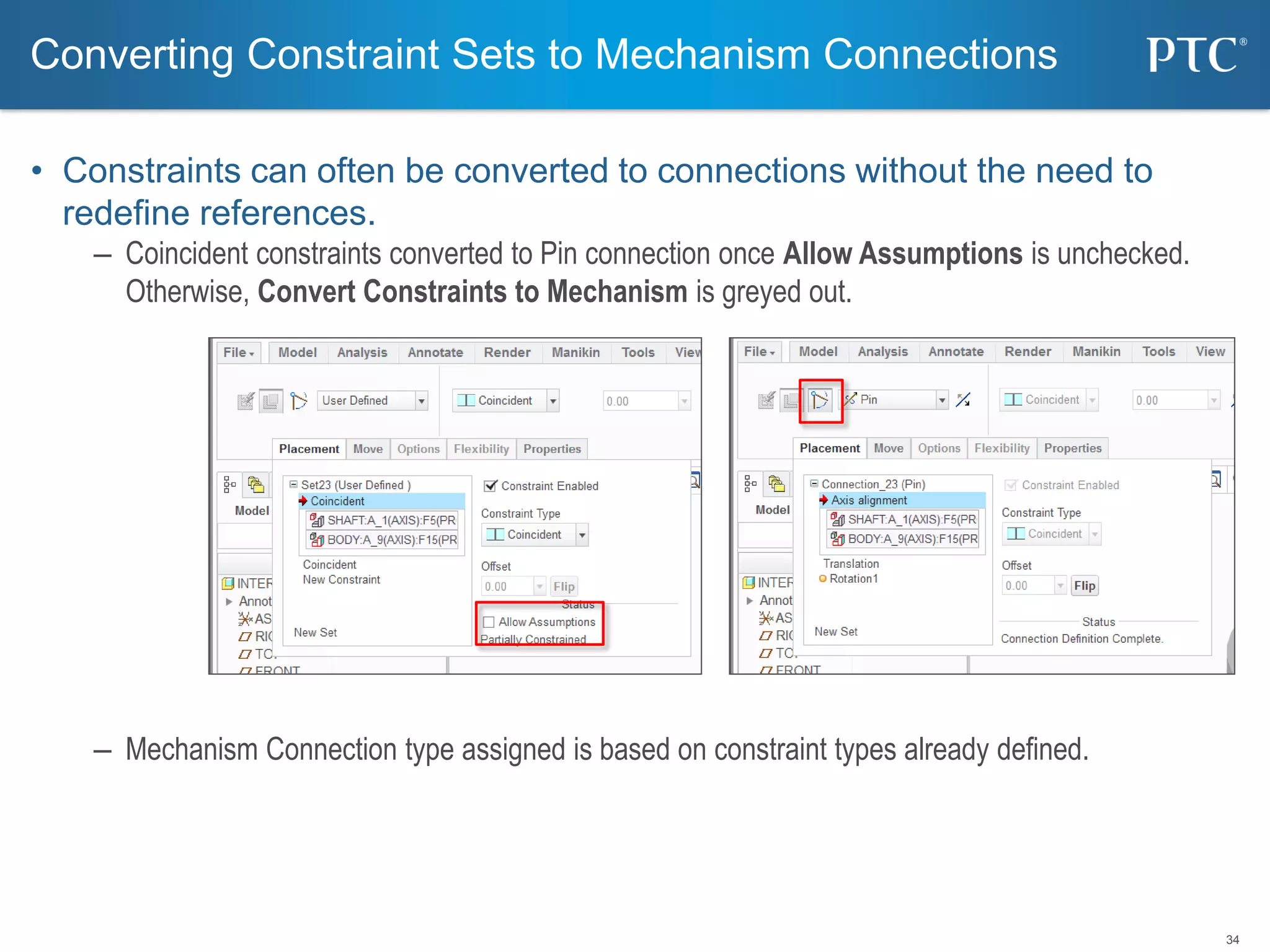

• Constraints can often be converted to connections without the need to
redefine references.
– Coincident constraints converted to Pin connection once Allow Assumptions is unchecked.
Otherwise, Convert Constraints to Mechanism is greyed out.
– Mechanism Connection type assigned is based on constraint types already defined.
Converting Constraint Sets to Mechanism Connections
35

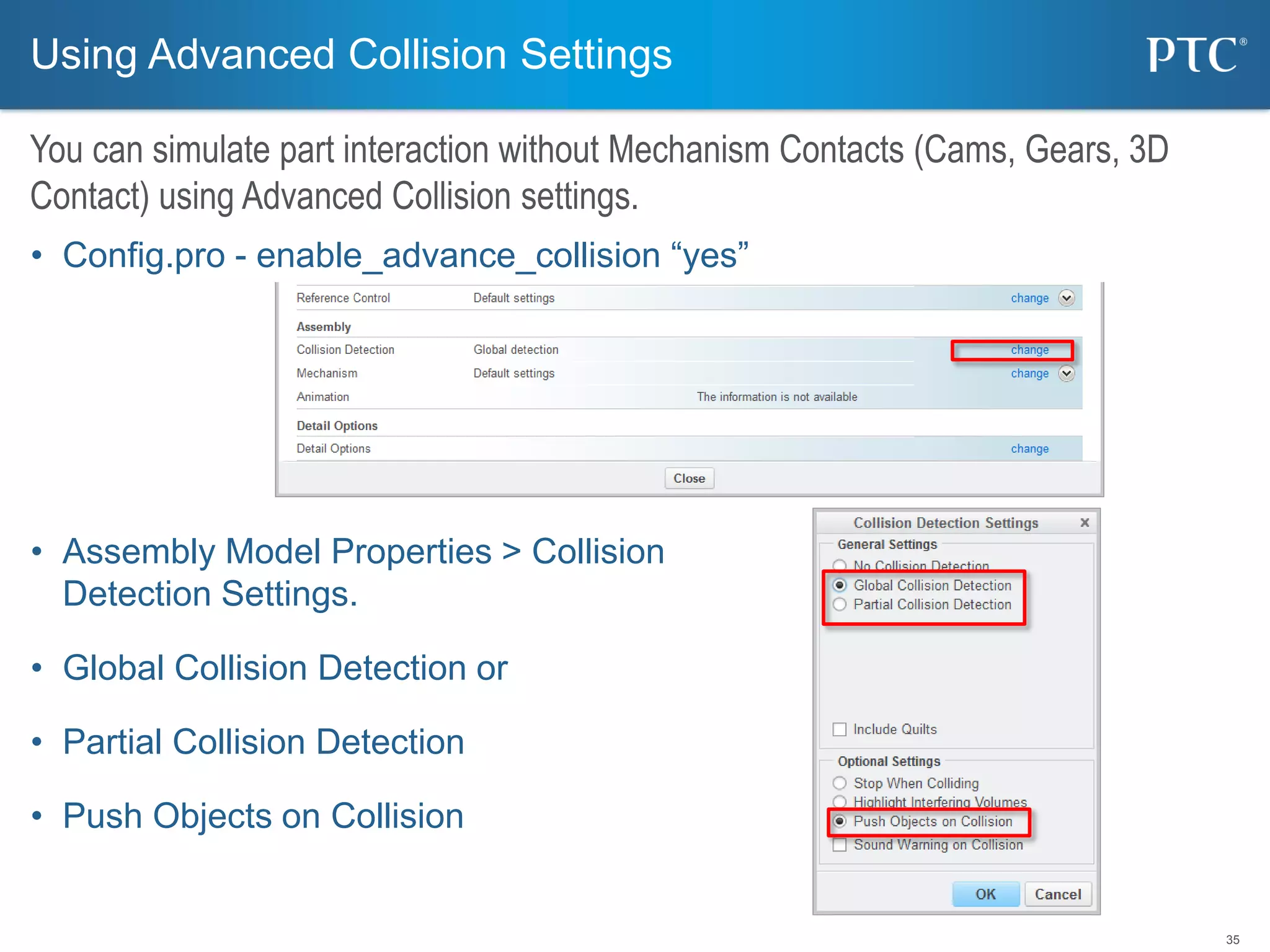

• Config.pro - enable_advance_collision “yes”
• Assembly Model Properties > Collision
Detection Settings.
• Global Collision Detection or
• Partial Collision Detection
• Push Objects on Collision
Using Advanced Collision Settings
You can simulate part interaction without Mechanism Contacts (Cams, Gears, 3D
Contact) using Advanced Collision settings.
36
Type Total DOF Rotation Translation
Rigid 0 0 0
Pin 1 1 0
Slider 1 0 1
Cylinder 2 1 1
Planar 3 1 2
Ball 3 3 0
Weld 0 0 0
Bearing 4 3 1
General Varies Varies Varies
6dof 6 3 3
Gimbal 5 0 0
Slot Varies Varies Varies

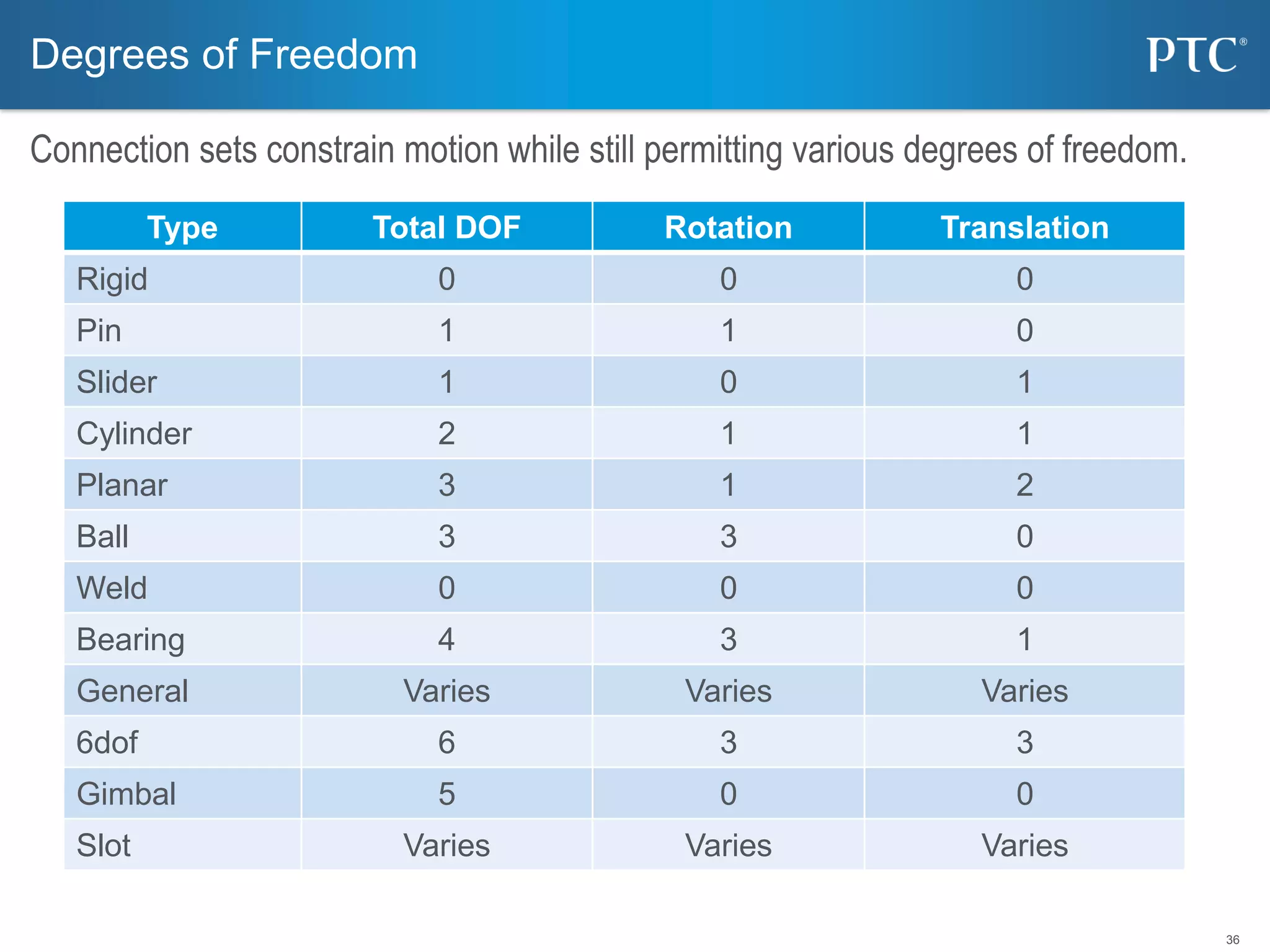

Degrees of Freedom
Connection sets constrain motion while still permitting various degrees of freedom.
37

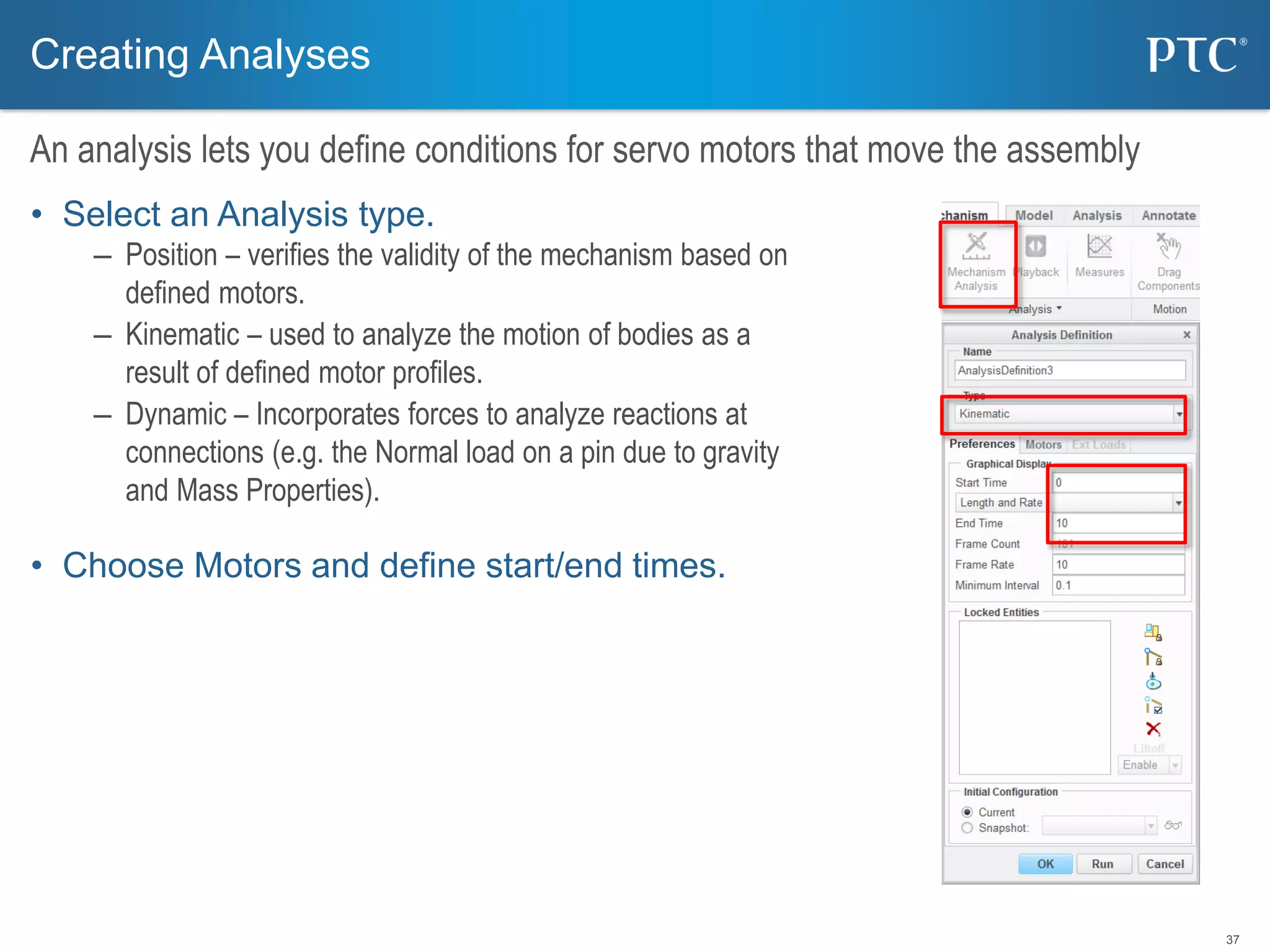

Creating Analyses
An analysis lets you define conditions for servo motors that move the assembly
• Select an Analysis type.
– Position – verifies the validity of the mechanism based on
defined motors.
– Kinematic – used to analyze the motion of bodies as a
result of defined motor profiles.
– Dynamic – Incorporates forces to analyze reactions at
connections (e.g. the Normal load on a pin due to gravity
and Mass Properties).
• Choose Motors and define start/end times.
38

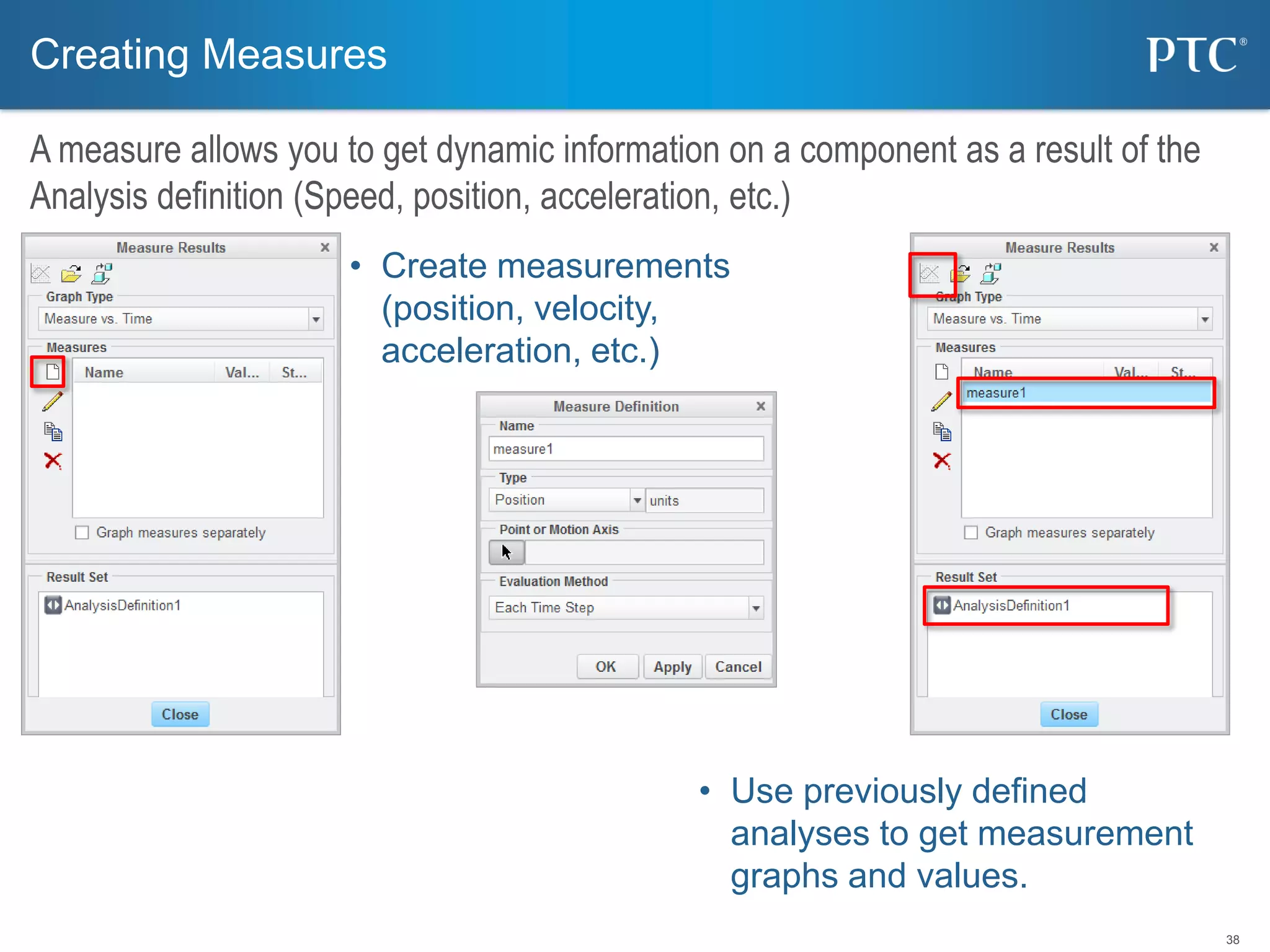

Creating Measures
A measure allows you to get dynamic information on a component as a result of the
Analysis definition (Speed, position, acceleration, etc.)
• Create measurements
(position, velocity,
acceleration, etc.)
• Use previously defined
analyses to get measurement
graphs and values.
39

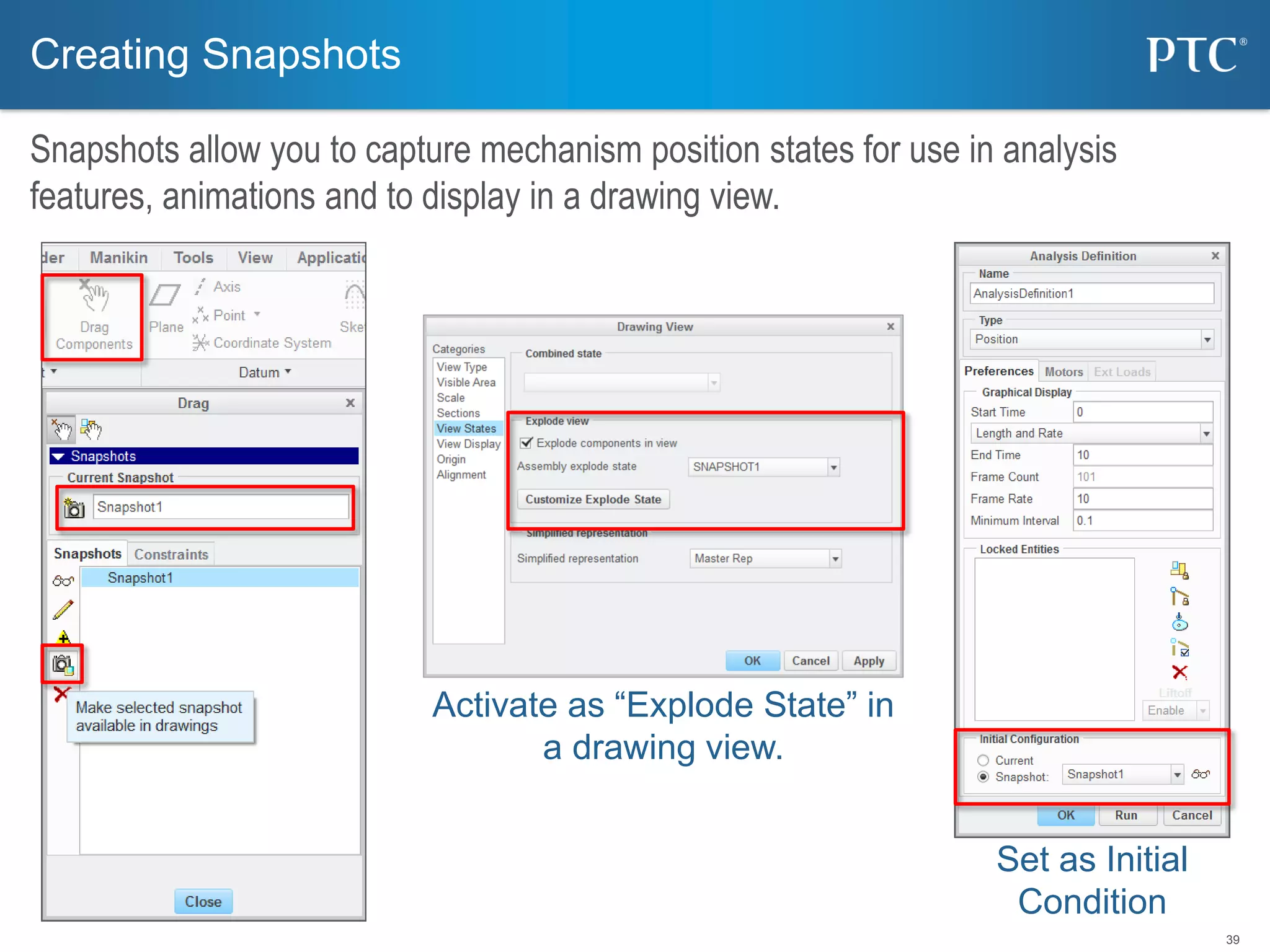

Creating Snapshots
Snapshots allow you to capture mechanism position states for use in analysis
features, animations and to display in a drawing view.
Activate as “Explode State” in
a drawing view.
Set as Initial
Condition
40
Drawings
41

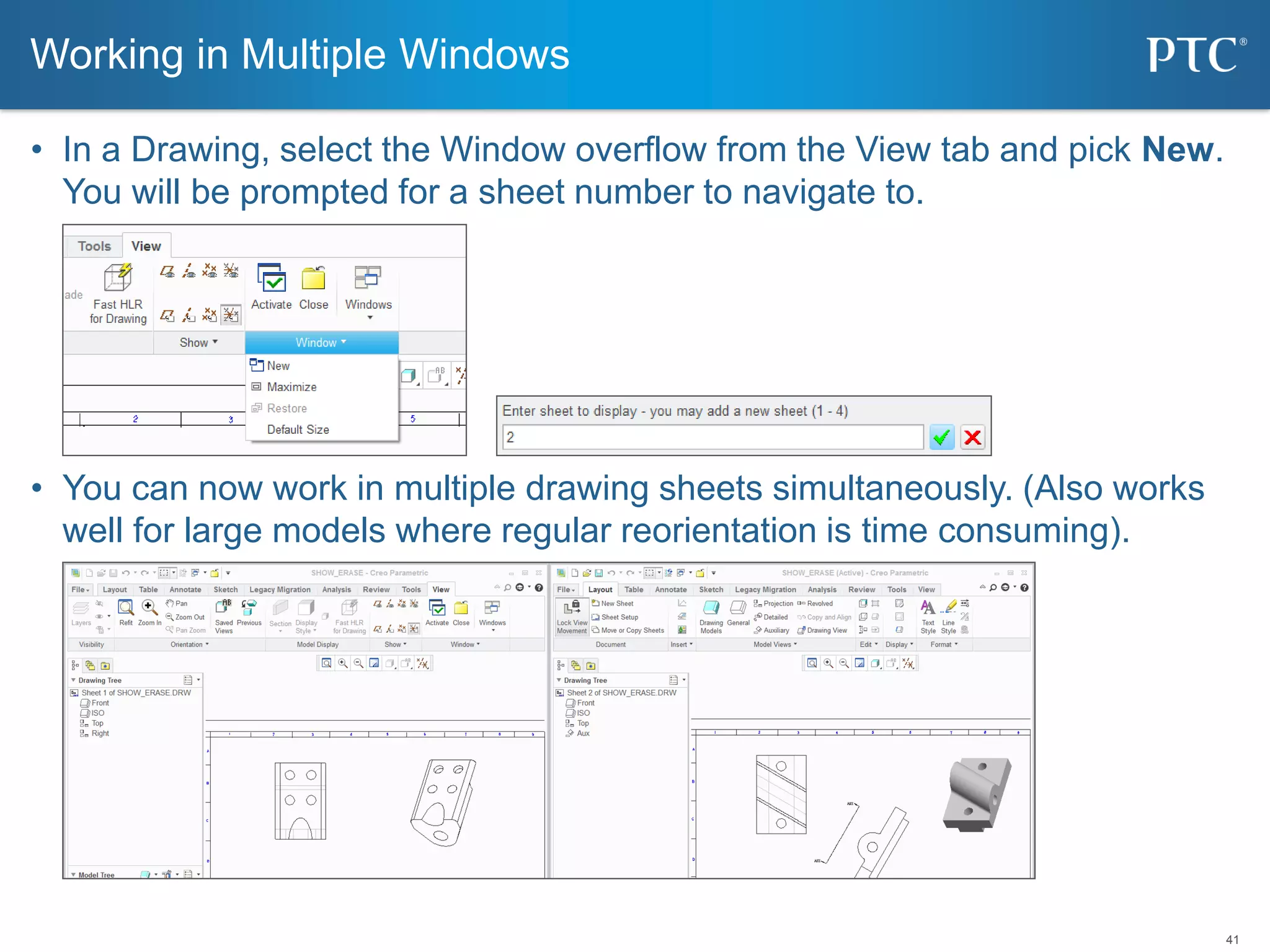

• In a Drawing, select the Window overflow from the View tab and pick New.
You will be prompted for a sheet number to navigate to.
• You can now work in multiple drawing sheets simultaneously. (Also works
well for large models where regular reorientation is time consuming).
Working in Multiple Windows
42

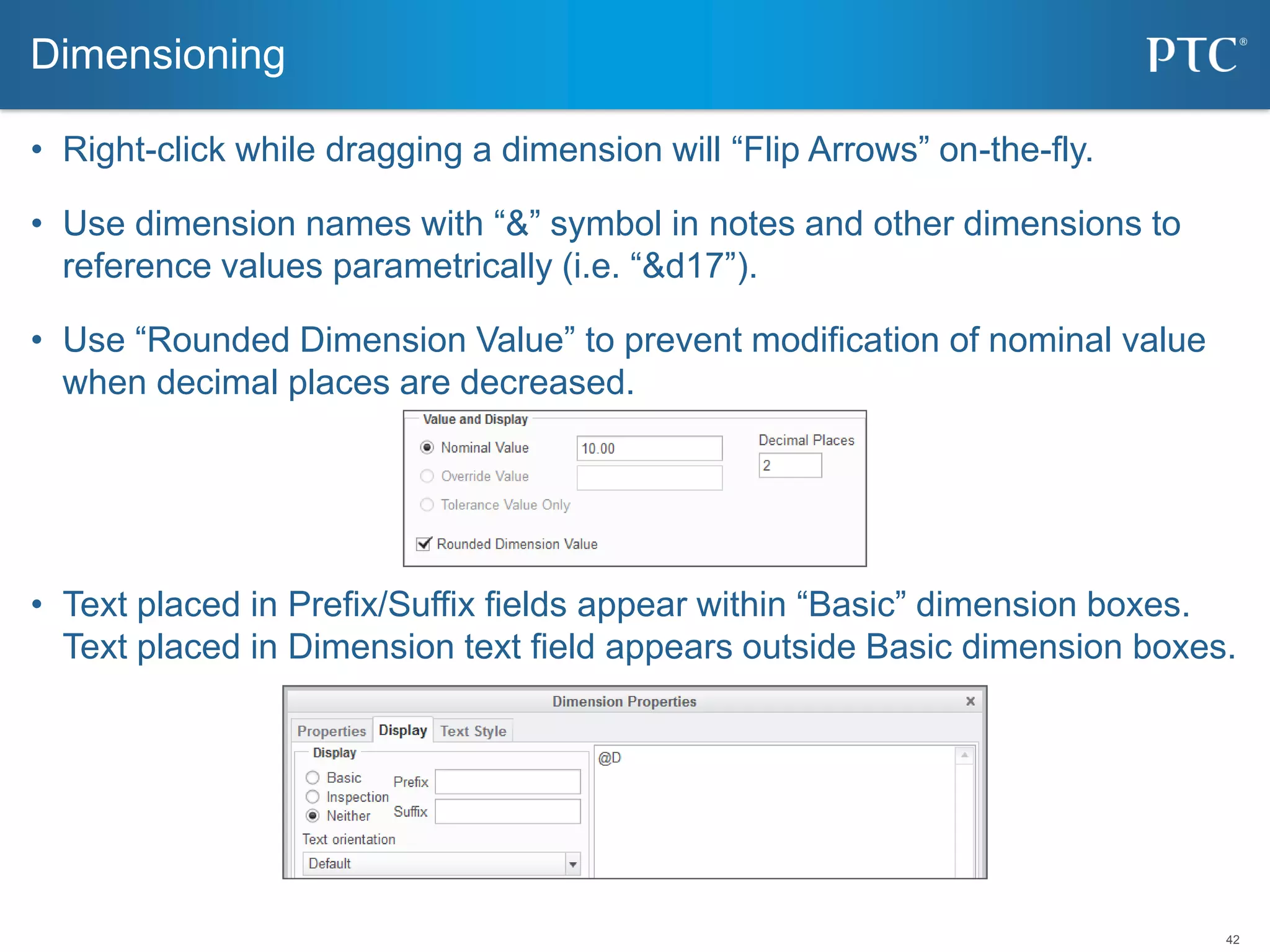

• Right-click while dragging a dimension will “Flip Arrows” on-the-fly.
• Use dimension names with “&” symbol in notes and other dimensions to
reference values parametrically (i.e. “&d17”).
• Use “Rounded Dimension Value” to prevent modification of nominal value
when decimal places are decreased.
• Text placed in Prefix/Suffix fields appear within “Basic” dimension boxes.
Text placed in Dimension text field appears outside Basic dimension boxes.
Dimensioning
43

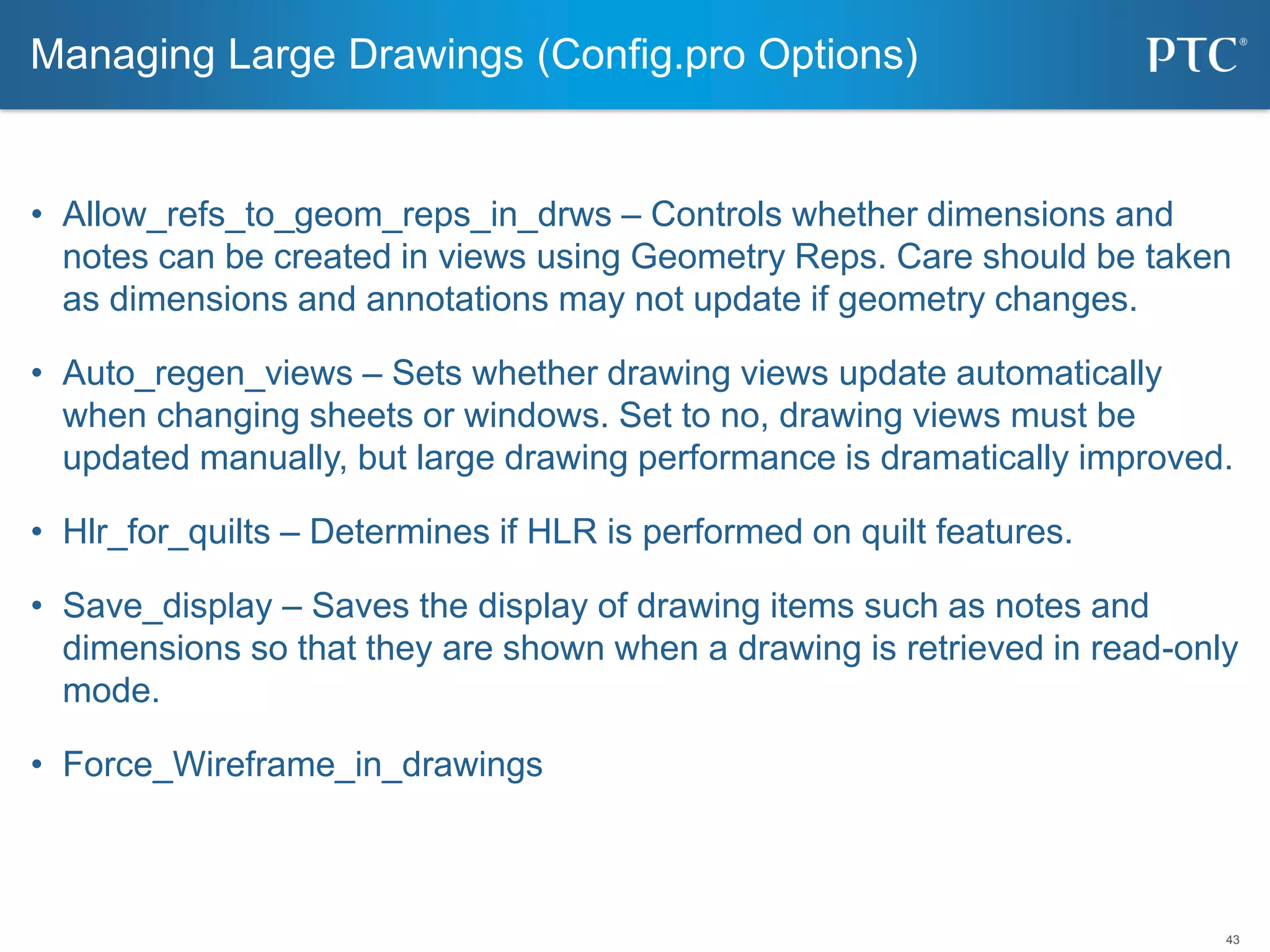

• Allow_refs_to_geom_reps_in_drws – Controls whether dimensions and
notes can be created in views using Geometry Reps. Care should be taken
as dimensions and annotations may not update if geometry changes.
• Auto_regen_views – Sets whether drawing views update automatically
when changing sheets or windows. Set to no, drawing views must be
updated manually, but large drawing performance is dramatically improved.
• Hlr_for_quilts – Determines if HLR is performed on quilt features.
• Save_display – Saves the display of drawing items such as notes and
dimensions so that they are shown when a drawing is retrieved in read-only
mode.
• Force_Wireframe_in_drawings
Managing Large Drawings (Config.pro Options)
44

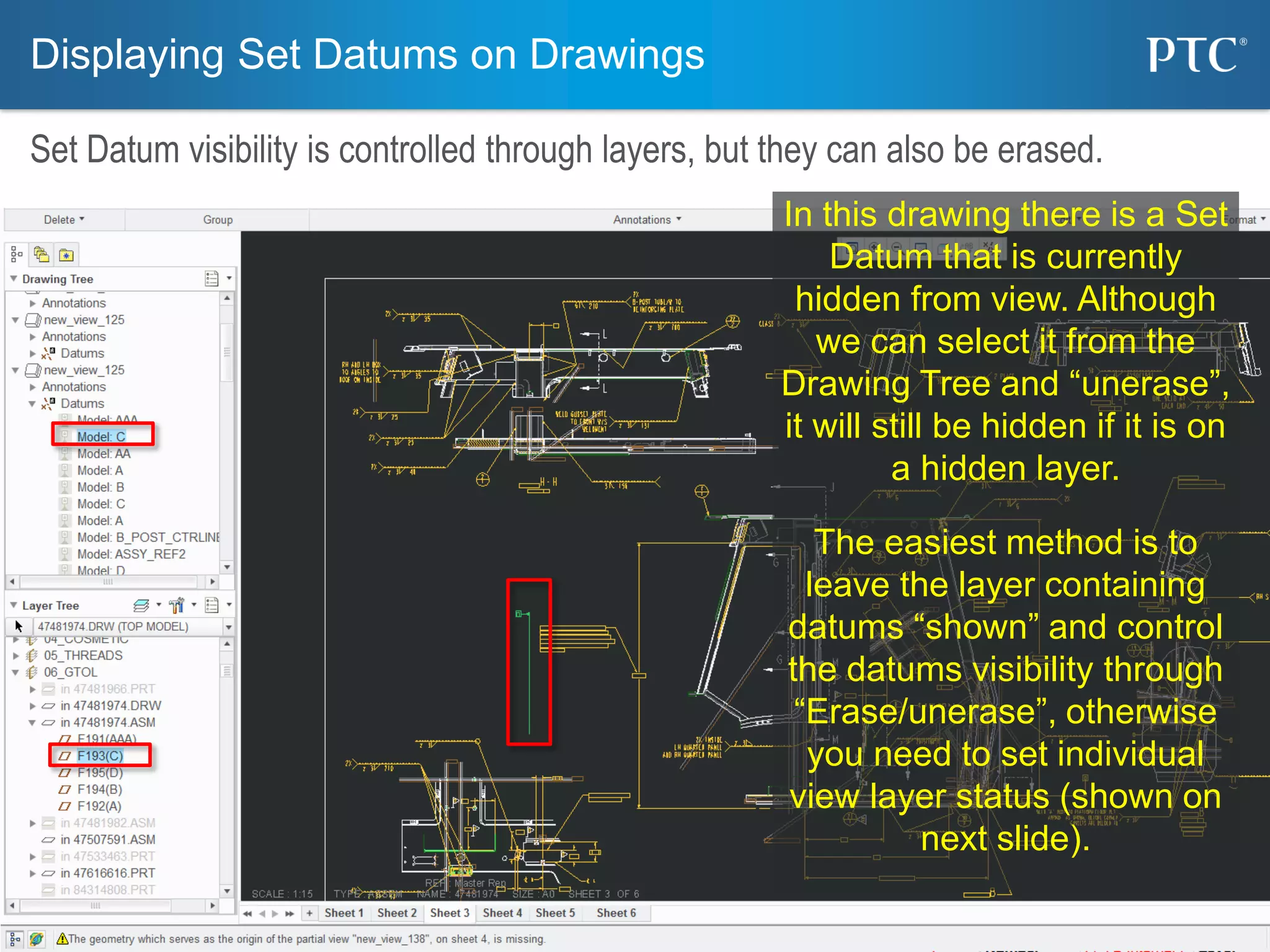

In this drawing there is a Set
Datum that is currently
hidden from view. Although
we can select it from the
Drawing Tree and “unerase”,
it will still be hidden if it is on
a hidden layer.
The easiest method is to
leave the layer containing
datums “shown” and control
the datums visibility through
“Erase/unerase”, otherwise
you need to set individual
view layer status (shown on
next slide).
Displaying Set Datums on Drawings
Set Datum visibility is controlled through layers, but they can also be erased.
45

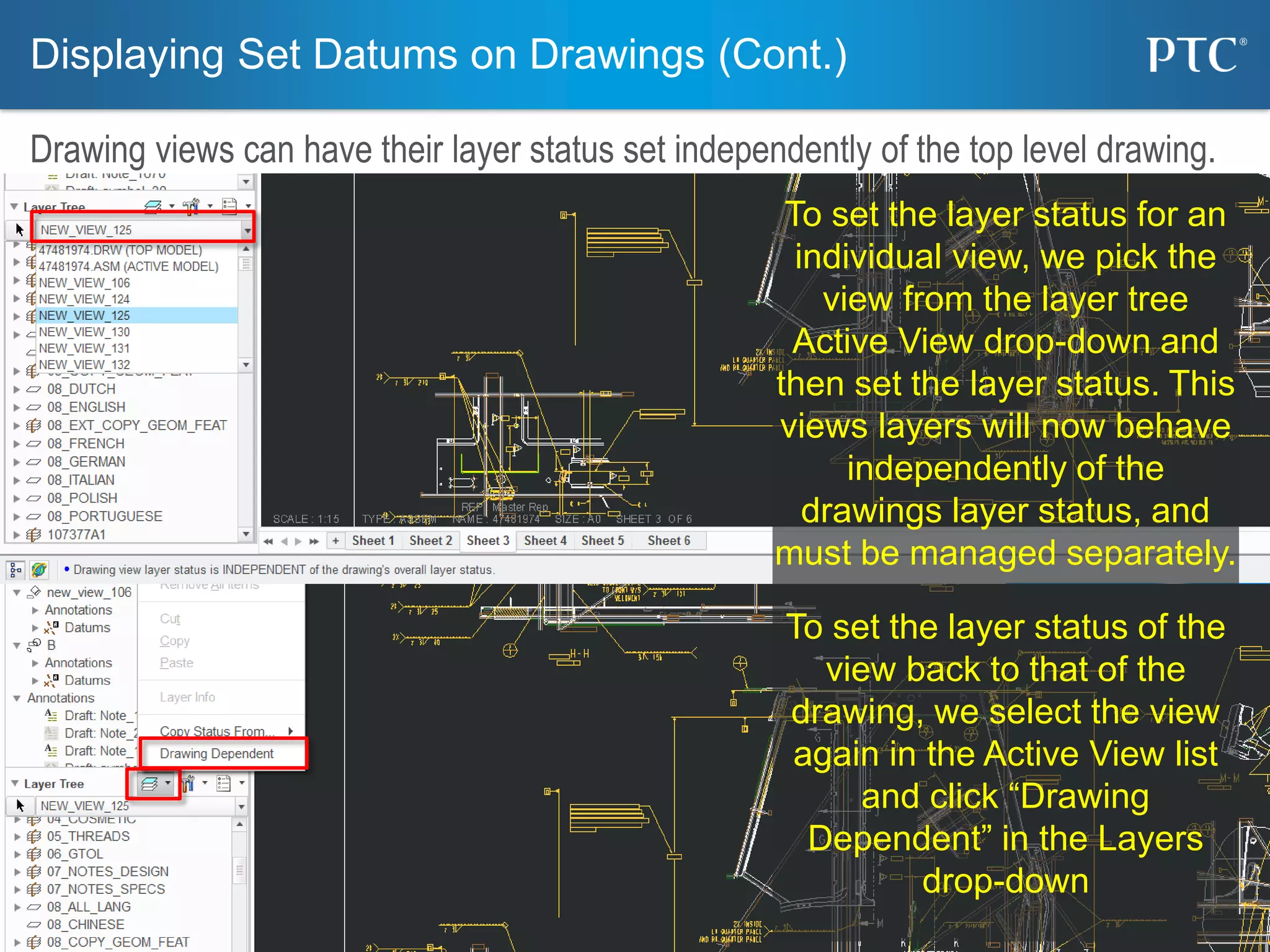

To set the layer status for an
individual view, we pick the
view from the layer tree
Active View drop-down and
then set the layer status. This
views layers will now behave
independently of the
drawings layer status, and
must be managed separately.
To set the layer status of the
view back to that of the
drawing, we select the view
again in the Active View list
and click “Drawing
Dependent” in the Layers
drop-down
Displaying Set Datums on Drawings (Cont.)
Drawing views can have their layer status set independently of the top level drawing.
46

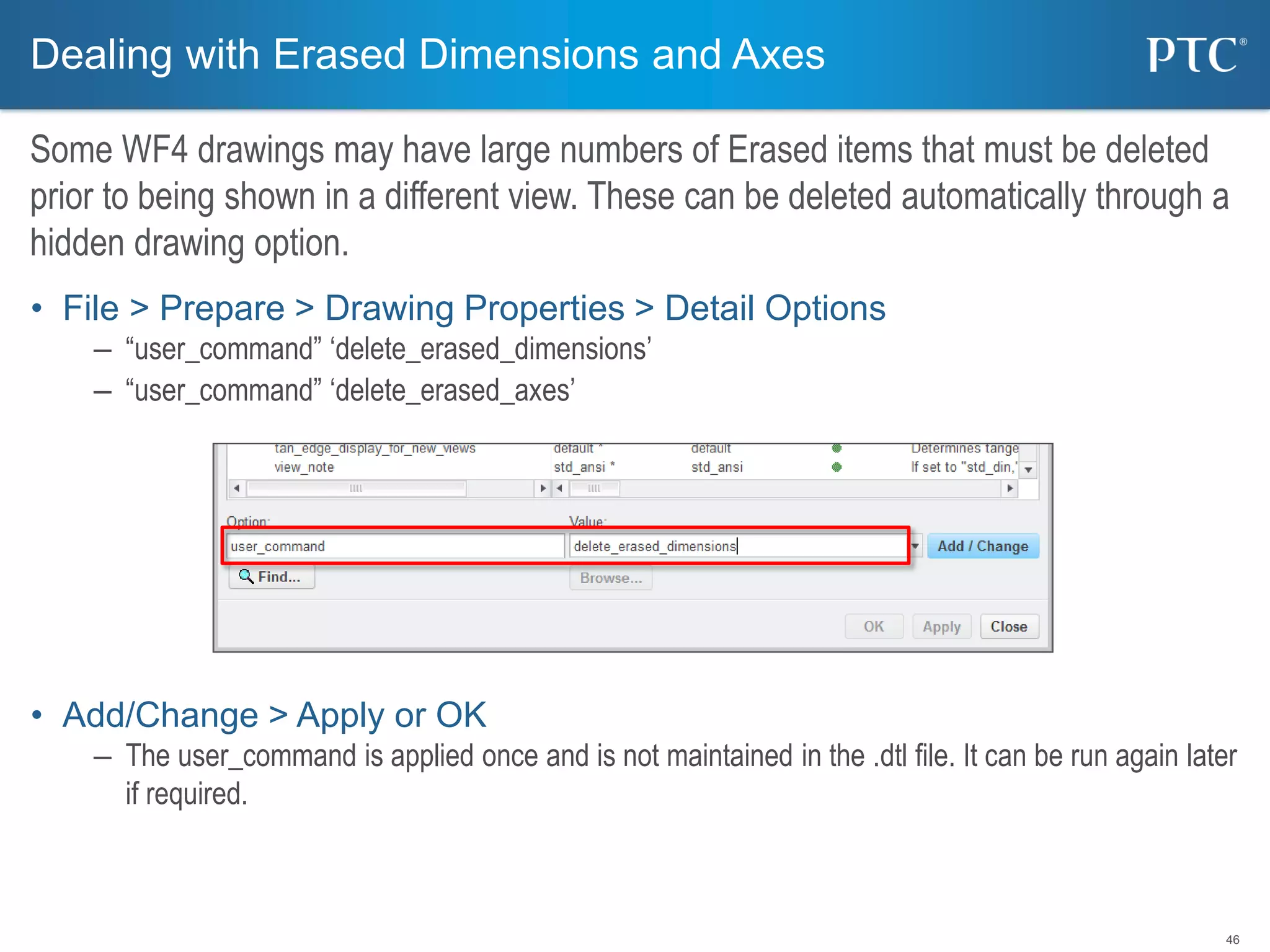

• File > Prepare > Drawing Properties > Detail Options
– “user_command” ‘delete_erased_dimensions’
– “user_command” ‘delete_erased_axes’
• Add/Change > Apply or OK
– The user_command is applied once and is not maintained in the .dtl file. It can be run again later
if required.
Dealing with Erased Dimensions and Axes
Some WF4 drawings may have large numbers of Erased items that must be deleted
prior to being shown in a different view. These can be deleted automatically through a
hidden drawing option.
47
• File > Prepare > Drawing Properties > Detail Options
– User_command delete_erased_dimensions
– User_command delete_erased_axes
– user_command clean_duplicate_axes
– user_command update_note_text_padding
– update_drawing 1808656 (remove extra spaces in basic dimensions)
– update_drawing 2119624 (Crosshatching break across text)
– Update_drawing 2140864 (secondary dimensions show at maximum decimal places)
– update_drawing all (applies all updates. Use caution as this command may make more changes
than are desired)
• Config.sup Options
– enable_auto_drawing_update yes *(required to use the options below)
– auto_drawing_update all
– auto_drawing_update_command delete_erased_axes
– auto_drawing_update_command delete_erased_dimensions

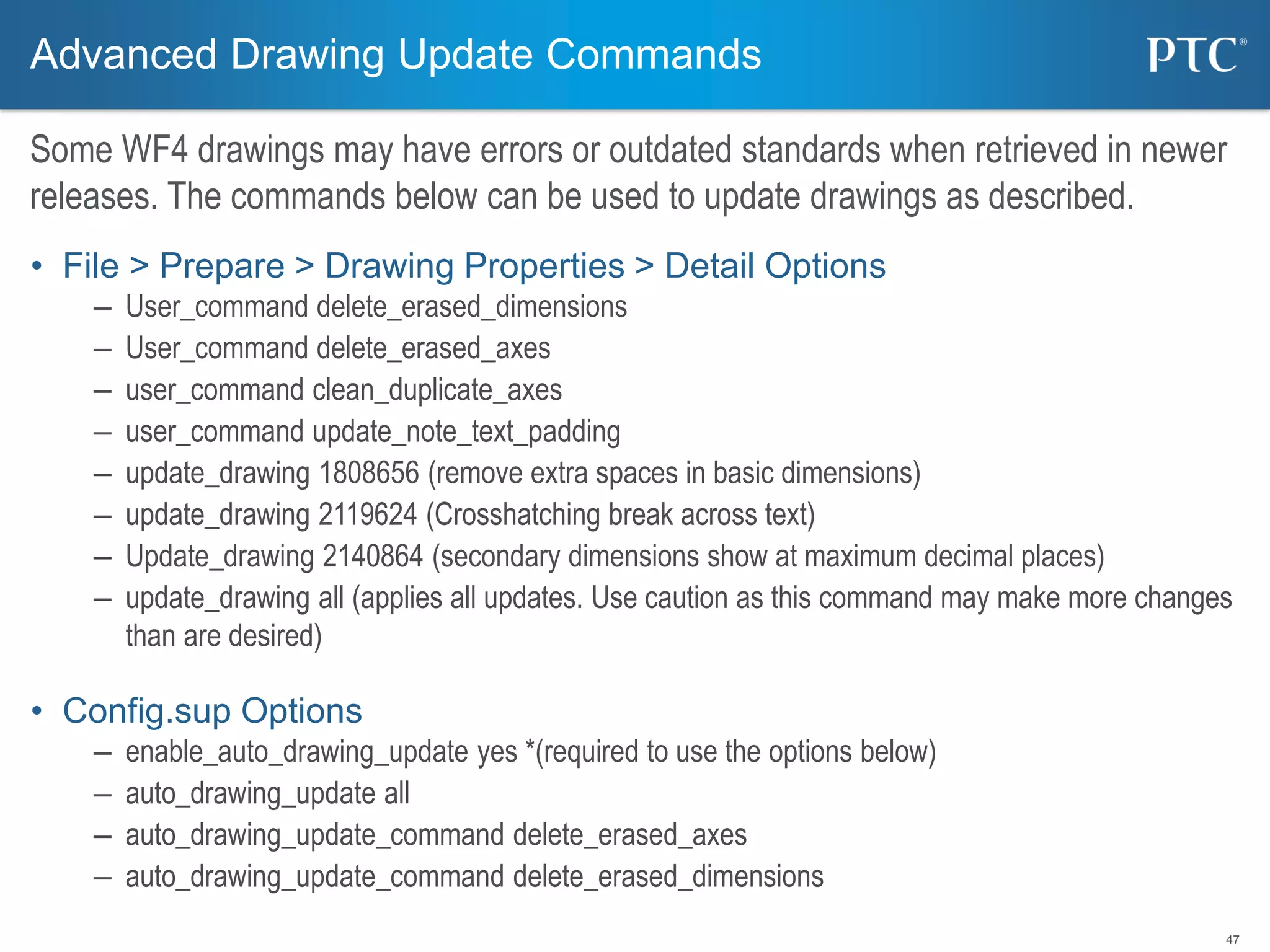

Advanced Drawing Update Commands
Some WF4 drawings may have errors or outdated standards when retrieved in newer
releases. The commands below can be used to update drawings as described.
48

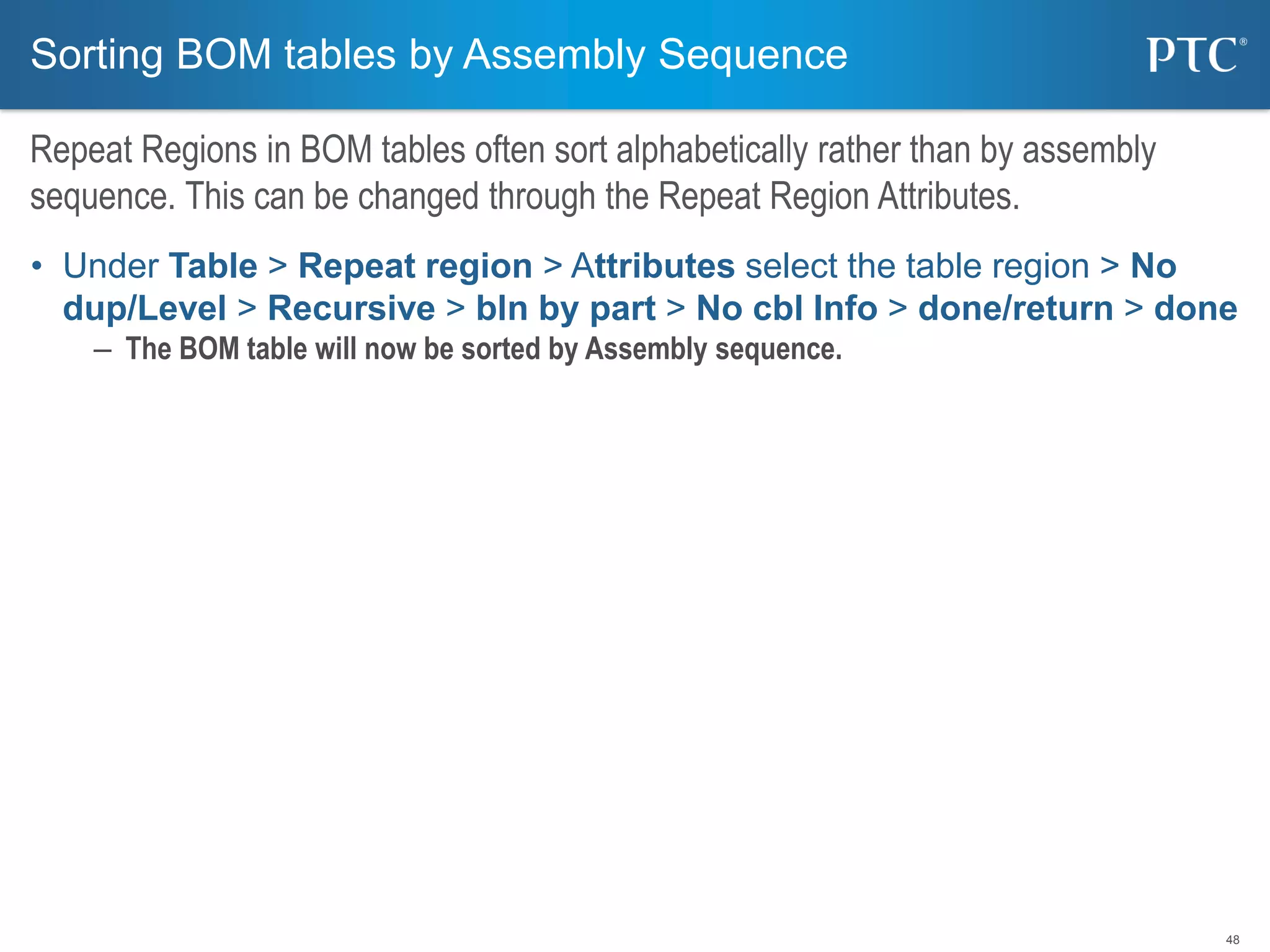

• Under Table > Repeat region > Attributes select the table region > No
dup/Level > Recursive > bln by part > No cbl Info > done/return > done
– The BOM table will now be sorted by Assembly sequence.
Sorting BOM tables by Assembly Sequence
Repeat Regions in BOM tables often sort alphabetically rather than by assembly
sequence. This can be changed through the Repeat Region Attributes.
49
Sketcher
50
1. Show Entity Locks – Toggles the display of sketch entity locks
that were used in place of dimension locks.
2. References – Provides a shortcut to the Sketch References
dialog.
3. Shapes shortcuts – Quick access to sketch tools such as Lines,
Rectangles, Circles, etc.
Selection-based Commands:
1. Lock – Locks sketcher entities in leu of locking individual
dimensions.
2. Rotate Resize – Activates the Rotate/Resize command.
3. Constraints (Tangent, Coincident, Equal, etc.) – creates various
constraints based on current selection of single or multiple
sketch entities.
4. OK/Cancel – Allows quick completion of sketch feature.

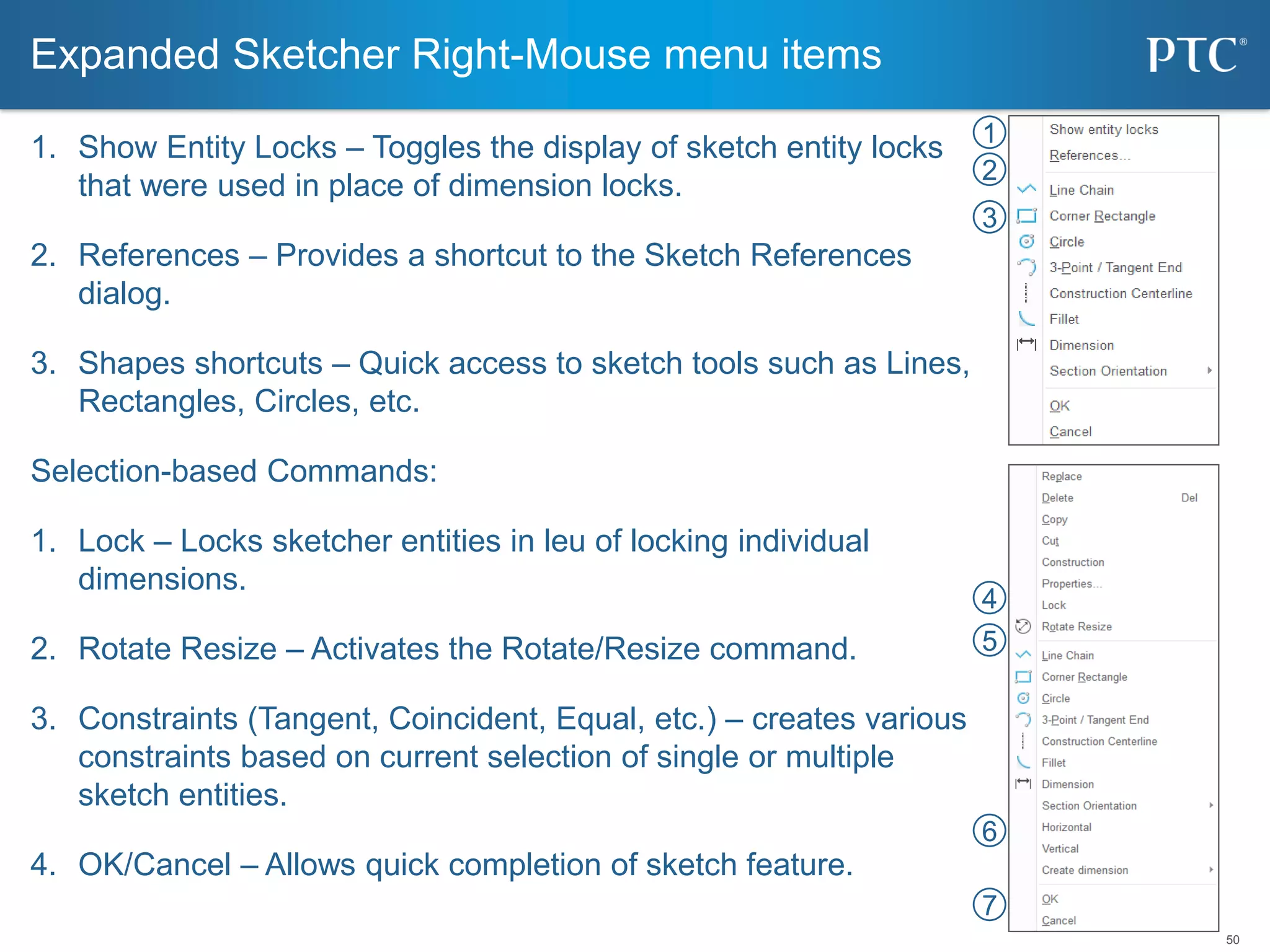

Expanded Sketcher Right-Mouse menu items
1
2
3
4
5
6
7
51

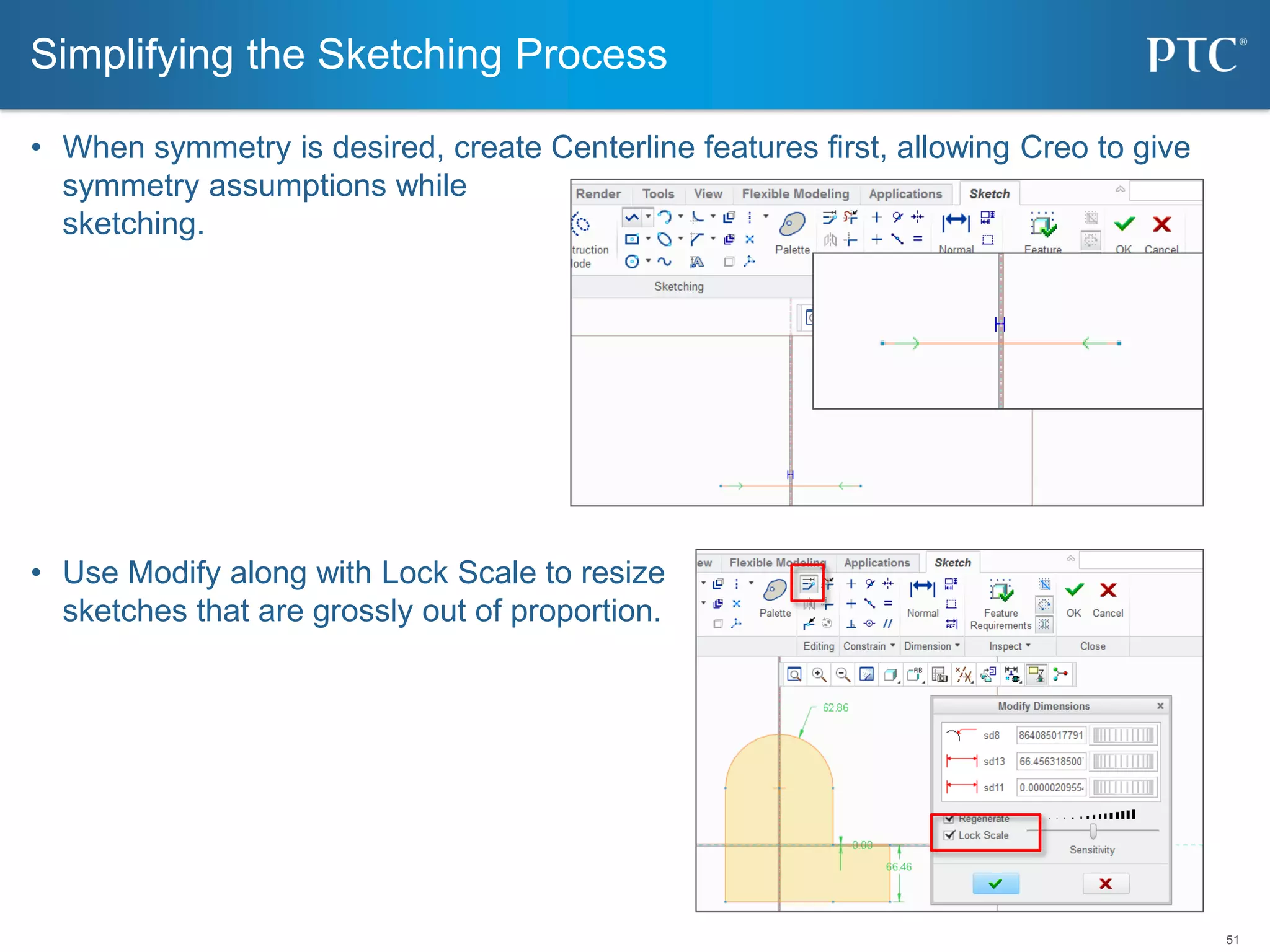

• When symmetry is desired, create Centerline features first, allowing Creo to give
symmetry assumptions while
sketching.
• Use Modify along with Lock Scale to resize
sketches that are grossly out of proportion.
Simplifying the Sketching Process
52

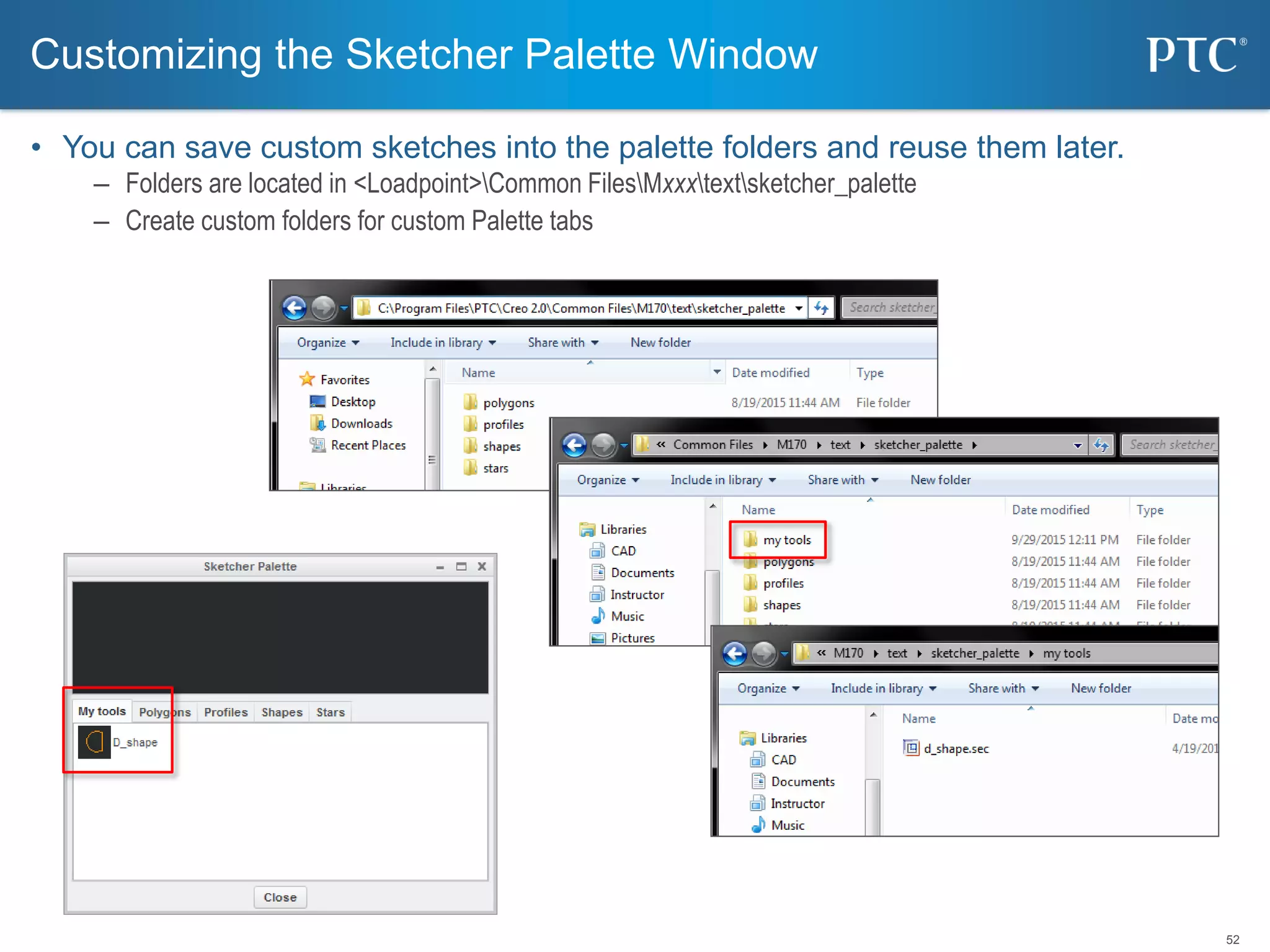

• You can save custom sketches into the palette folders and reuse them later.
– Folders are located in <Loadpoint>Common FilesMxxxtextsketcher_palette
– Create custom folders for custom Palette tabs
Customizing the Sketcher Palette Window
53
Resolving Failures
54
• Regen_failure_handling
– No_resolve_mode*
– Resolve_mode
Specifies whether to enter resolve mode when regeneration failures occur.
Resolve_mode - Enter resolve mode when regeneration failures occur.
No_resolve_mode - Don't enter resolve mode when regeneration failures
occur.
• allow_save_failed_model
– Prompt*
– Yes
– No
Yes - Failed models can be saved. No - Failed models cannot be saved.
Prompt - Let the user decide whether failed models can be saved.

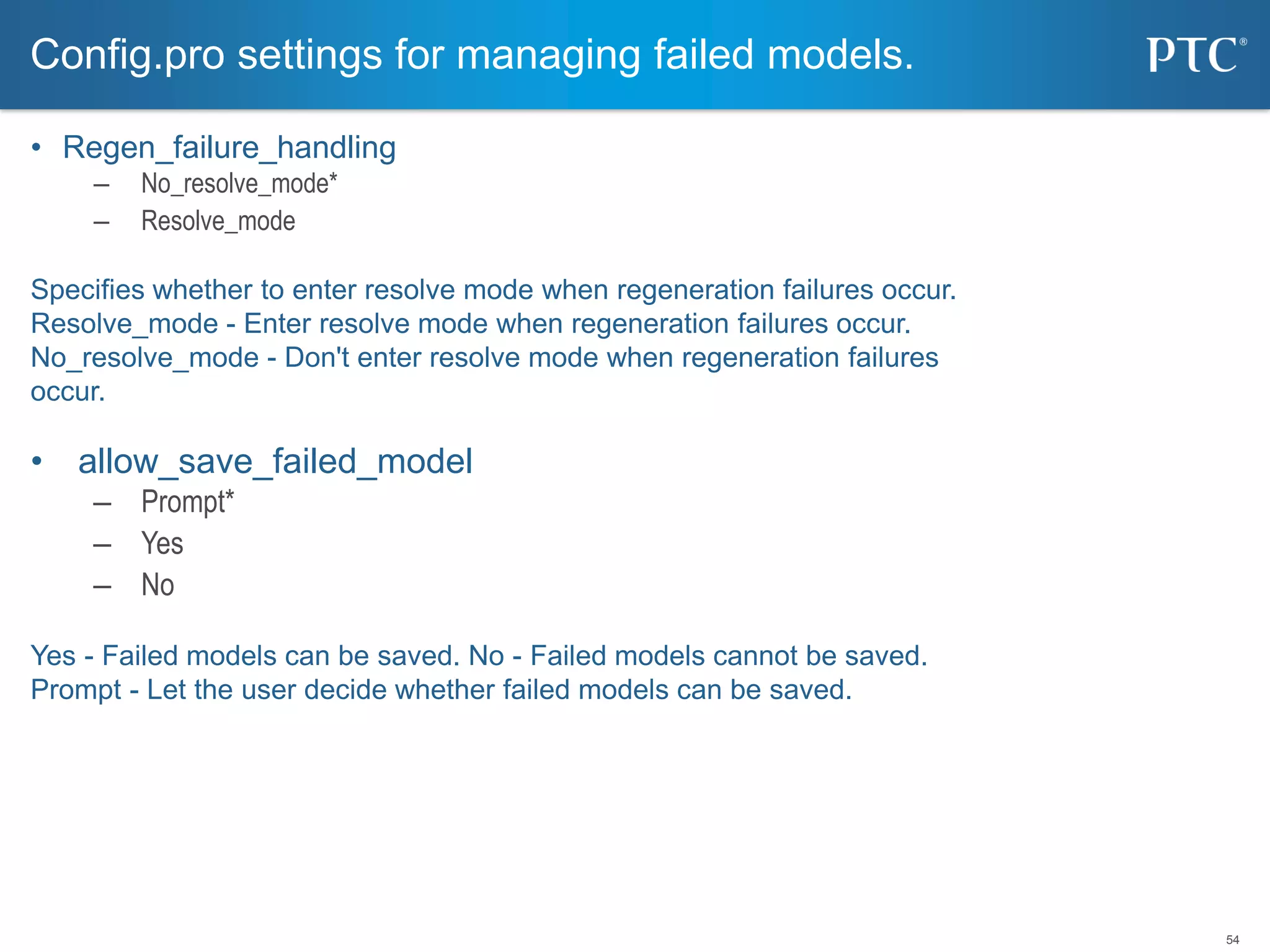

Config.pro settings for managing failed models.
55

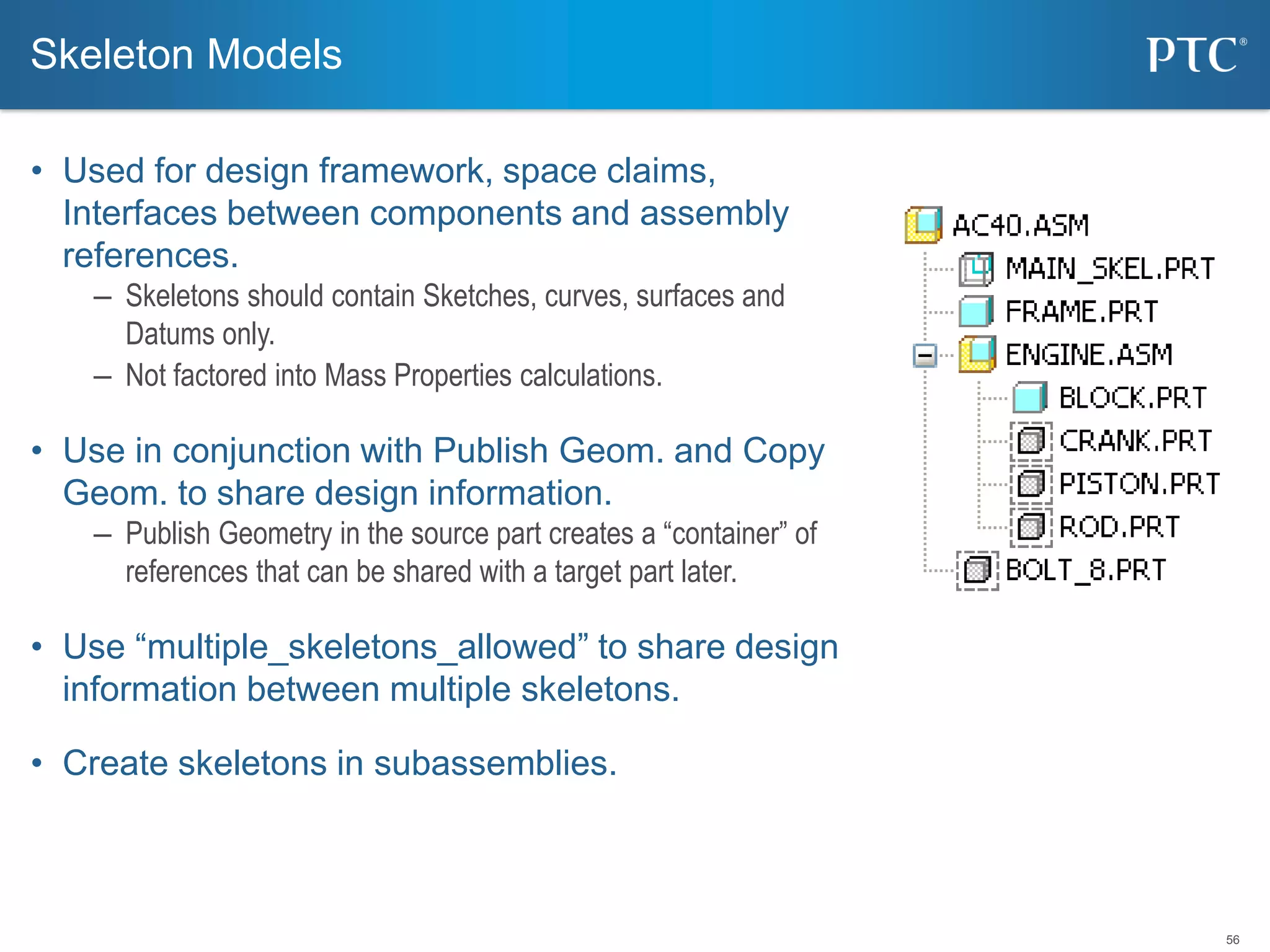

Top Down Design
56
• Used for design framework, space claims,
Interfaces between components and assembly
references.
– Skeletons should contain Sketches, curves, surfaces and
Datums only.
– Not factored into Mass Properties calculations.
• Use in conjunction with Publish Geom. and Copy
Geom. to share design information.
– Publish Geometry in the source part creates a “container” of
references that can be shared with a target part later.
• Use “multiple_skeletons_allowed” to share design
information between multiple skeletons.
• Create skeletons in subassemblies.
Skeleton Models

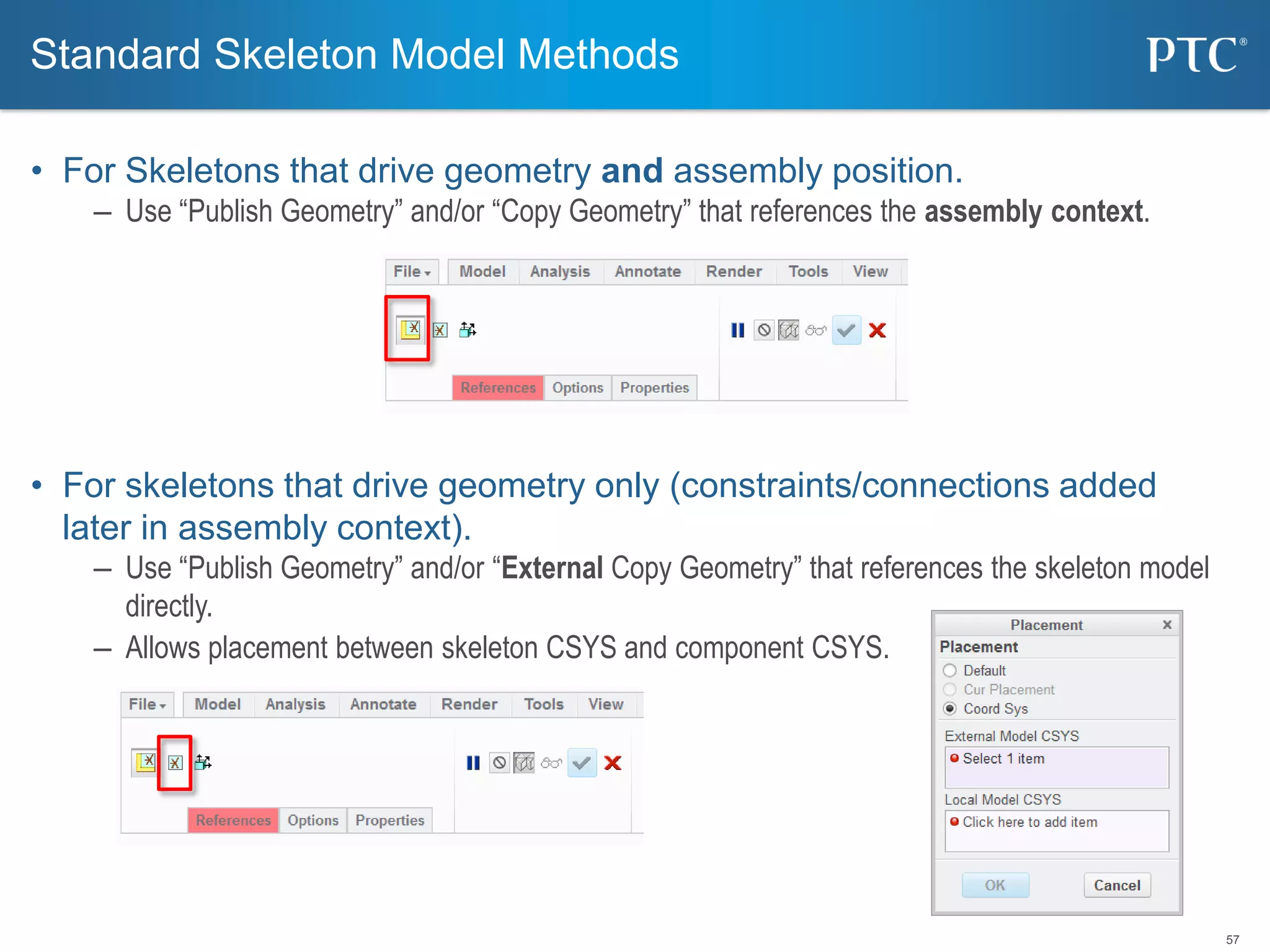

57
• For Skeletons that drive geometry and assembly position.
– Use “Publish Geometry” and/or “Copy Geometry” that references the assembly context.
• For skeletons that drive geometry only (constraints/connections added
later in assembly context).
– Use “Publish Geometry” and/or “External Copy Geometry” that references the skeleton model
directly.
– Allows placement between skeleton CSYS and component CSYS.
Standard Skeleton Model Methods
58

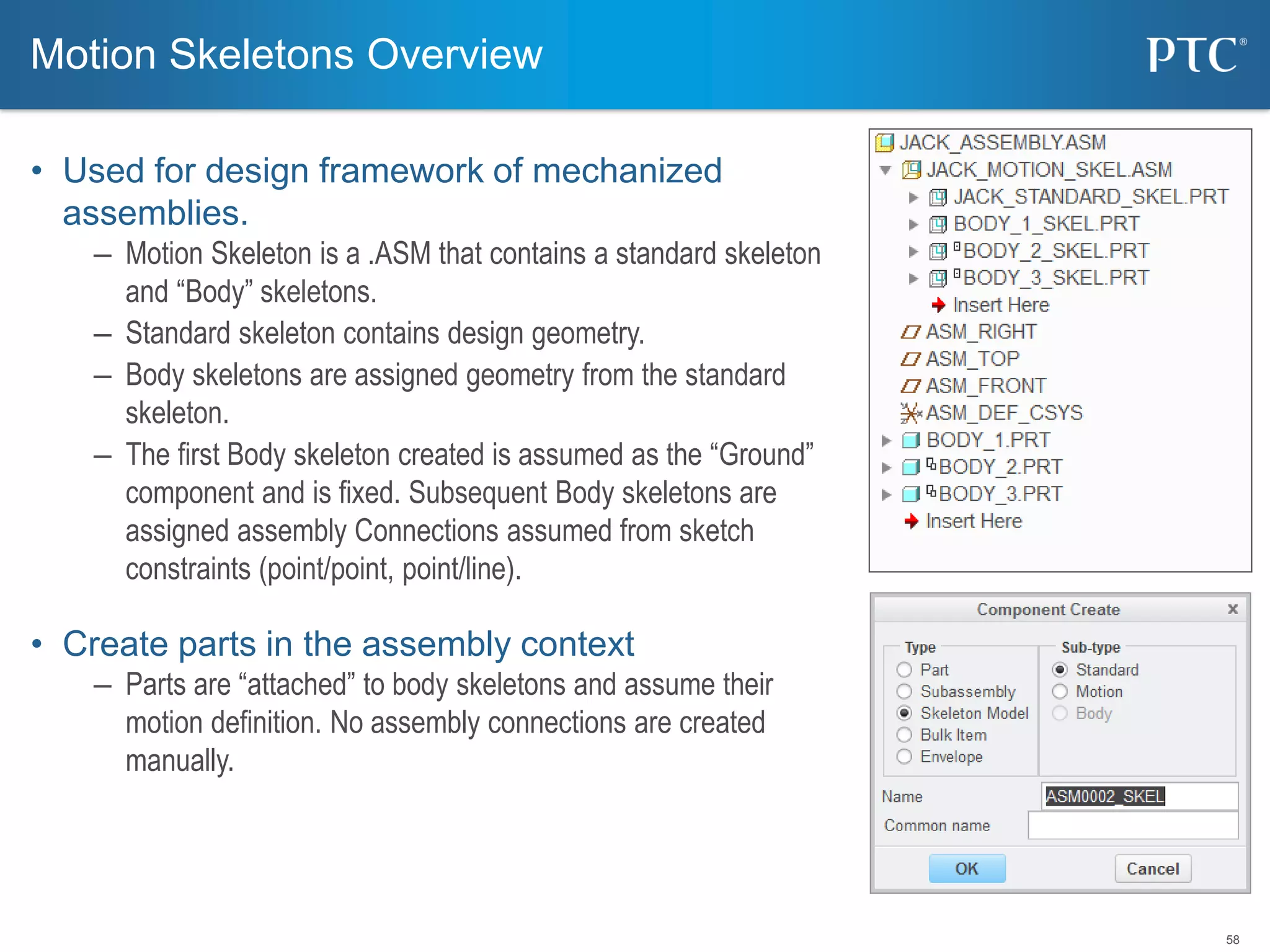

• Used for design framework of mechanized
assemblies.
– Motion Skeleton is a .ASM that contains a standard skeleton
and “Body” skeletons.
– Standard skeleton contains design geometry.
– Body skeletons are assigned geometry from the standard
skeleton.
– The first Body skeleton created is assumed as the “Ground”
component and is fixed. Subsequent Body skeletons are
assigned assembly Connections assumed from sketch
constraints (point/point, point/line).
• Create parts in the assembly context
– Parts are “attached” to body skeletons and assume their
motion definition. No assembly connections are created
manually.
Motion Skeletons Overview
59

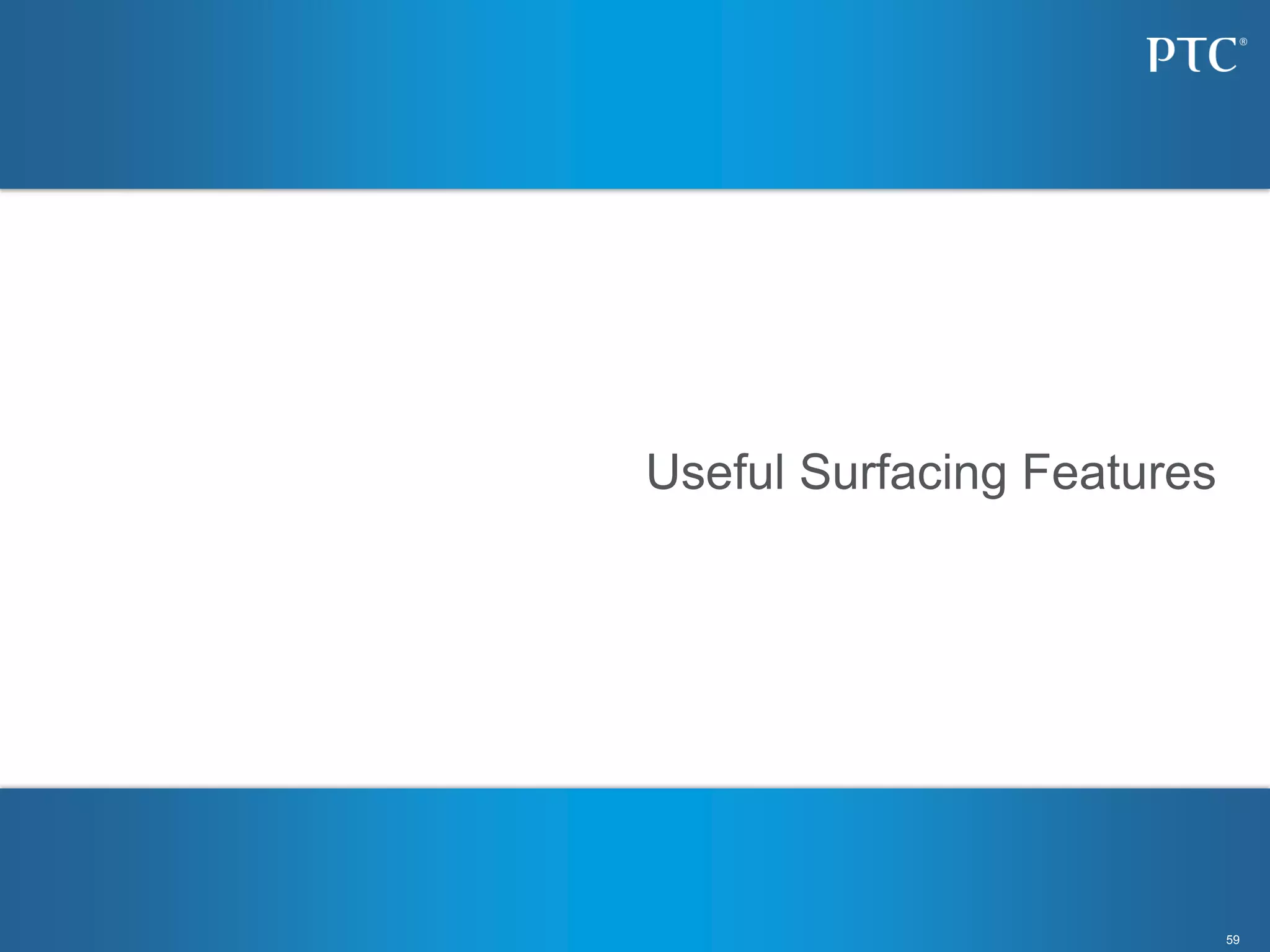

Useful Surfacing Features
60
• Curves
– Through Points, Offset Csys, From Xsec
– Define ends conditions (Tangency, Curvature Continuity).
• Boundary Blend
– Similar to Blends, transitions between curves.
– First and second direction options.
• Intersect
– Creates a new 3D curve from two 2D sketches/curves
– Creates curve at intersection of surface/surface or surface/datum.
• Merge
– Combine surfaces into quilts, trimming excess geometry.
• Fill
– Creates a surface within a sketch boundary.
• Thicken/Solidify

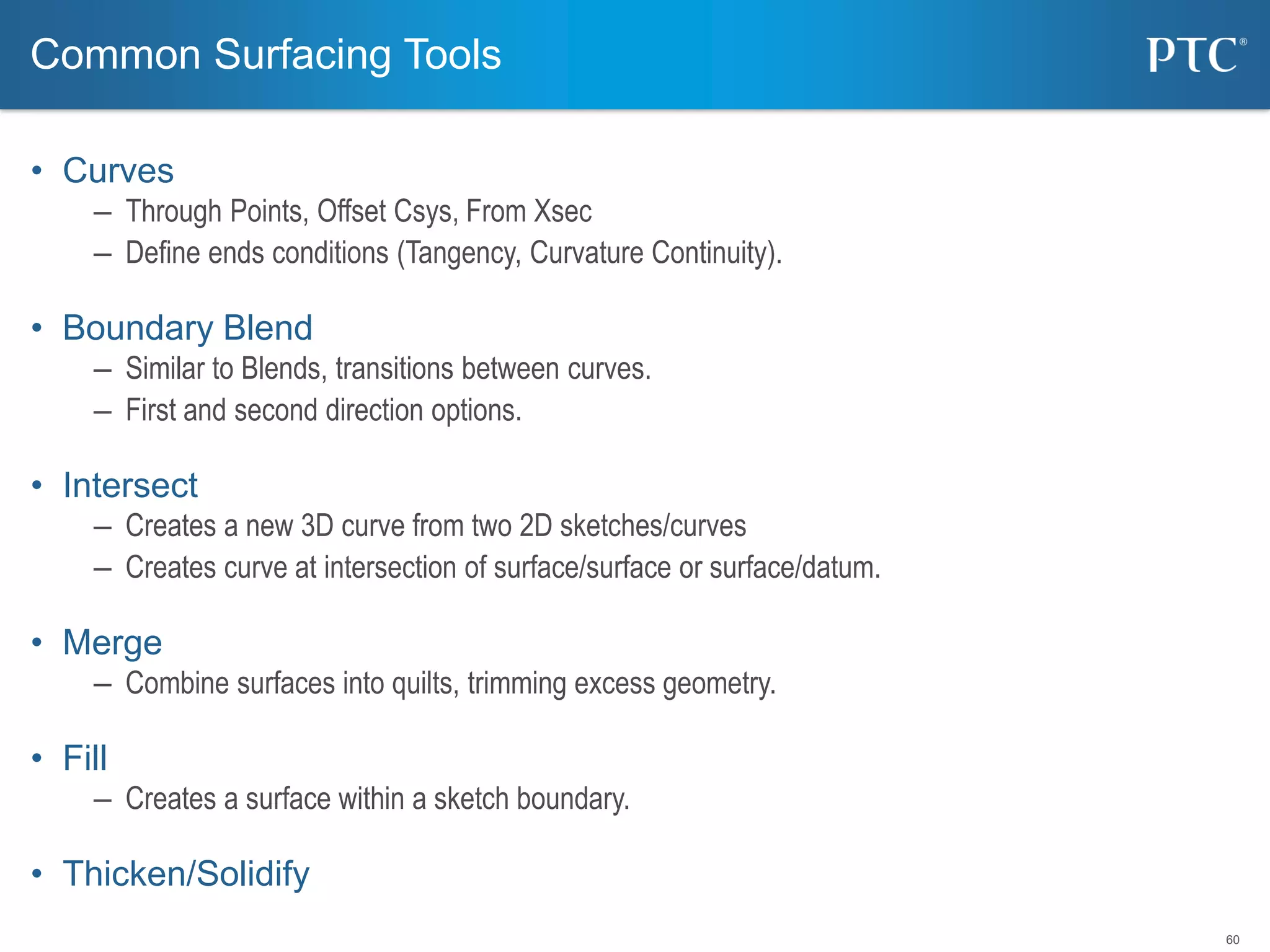

Common Surfacing Tools
61
Using PrecisionLMS for Web-Based-Training
62
• Go to PTC.COM
– Services > eLearning
• Login
– Learn and Explore tab > Precision LMS
– Use assigned login information.

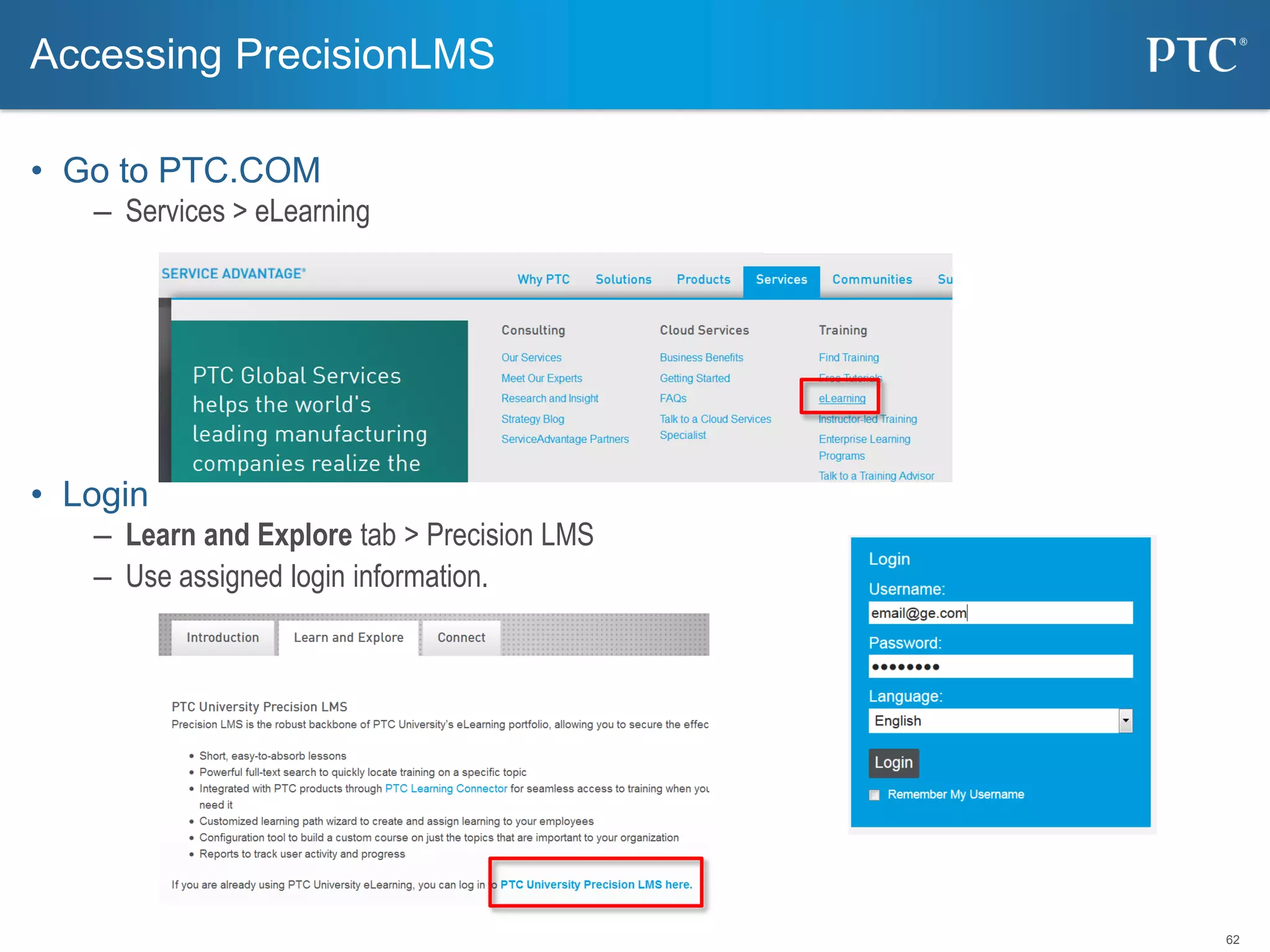

Accessing PrecisionLMS
Creo parametric tips and tricks

More Related Content

What's hot

Biw
BiwBiw
Biw fixture
Biw fixtureBiw fixture
Biw fixture
Jayesh Sarode

CAD AND CAM PPT.pptx
CAD AND CAM PPT.pptxCAD AND CAM PPT.pptx
CAD AND CAM PPT.pptx
jntuhcej

Catia sketcher workbench
Catia  sketcher workbenchCatia  sketcher workbench
Catia sketcher workbench
Jayesh Sarode

Finite Element Analysis Creo-Simulate Webinar
Finite Element Analysis Creo-Simulate WebinarFinite Element Analysis Creo-Simulate Webinar
Finite Element Analysis Creo-Simulate Webinar
Santhosh N L

Jig and fixtures
Jig and fixturesJig and fixtures
Jig and fixtures
Vishnudutt Kj

Engineering Metrology : System of Limits and Fits
Engineering Metrology : System of Limits and FitsEngineering Metrology : System of Limits and Fits
Engineering Metrology : System of Limits and Fits
Unimetry Technology

Ppt on catia
Ppt on  catiaPpt on  catia
Ppt on catia
Tajender12singh

Introduction to nx
Introduction to nxIntroduction to nx
Introduction to nx
Tajender12singh

1.2 bearing life
1.2 bearing life1.2 bearing life
1.2 bearing life
Chetan vadodariya

CNC Programming
CNC Programming CNC Programming
CNC Programming
rajguptanitw

COMPUTER AIDED PROCESS PLANNING
COMPUTER AIDED PROCESS PLANNINGCOMPUTER AIDED PROCESS PLANNING
COMPUTER AIDED PROCESS PLANNING
jntuhcej

Limits, fits and tolerances
Limits, fits and tolerancesLimits, fits and tolerances
Limits, fits and tolerances
taruian

Fundamentals of gd&amp;amp;t
Fundamentals of gd&amp;amp;tFundamentals of gd&amp;amp;t
Fundamentals of gd&amp;amp;t
21403515

GD&T - PPT
GD&T - PPTGD&T - PPT
GD&T - PPT
Sree Lakshmy

Nx Unigraphics
Nx Unigraphics Nx Unigraphics
Nx Unigraphics
cadmaxxsolutions

Design for Manufacturing-Module 5
Design for Manufacturing-Module 5 Design for Manufacturing-Module 5
Design for Manufacturing-Module 5
RajuBasava

Gd&t introductory presentation
Gd&t introductory presentationGd&t introductory presentation
Gd&t introductory presentation
Simranjit Singh

Basic Geometrical Dimensioning & Tolerancing Tranning
Basic Geometrical Dimensioning  & Tolerancing TranningBasic Geometrical Dimensioning  & Tolerancing Tranning
Basic Geometrical Dimensioning & Tolerancing Tranning
Timothy Wooi

INTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESS
INTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESSINTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESS
INTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESS
Abhilash kk


What's hot (20)

Biw
BiwBiw
Biw

Biw fixture
Biw fixtureBiw fixture
Biw fixture

CAD AND CAM PPT.pptx
CAD AND CAM PPT.pptxCAD AND CAM PPT.pptx
CAD AND CAM PPT.pptx

Catia sketcher workbench
Catia  sketcher workbenchCatia  sketcher workbench
Catia sketcher workbench

Finite Element Analysis Creo-Simulate Webinar
Finite Element Analysis Creo-Simulate WebinarFinite Element Analysis Creo-Simulate Webinar
Finite Element Analysis Creo-Simulate Webinar

Jig and fixtures
Jig and fixturesJig and fixtures
Jig and fixtures

Engineering Metrology : System of Limits and Fits
Engineering Metrology : System of Limits and FitsEngineering Metrology : System of Limits and Fits
Engineering Metrology : System of Limits and Fits

Ppt on catia
Ppt on  catiaPpt on  catia
Ppt on catia

Introduction to nx
Introduction to nxIntroduction to nx
Introduction to nx

1.2 bearing life
1.2 bearing life1.2 bearing life
1.2 bearing life

CNC Programming
CNC Programming CNC Programming
CNC Programming

COMPUTER AIDED PROCESS PLANNING
COMPUTER AIDED PROCESS PLANNINGCOMPUTER AIDED PROCESS PLANNING
COMPUTER AIDED PROCESS PLANNING

Limits, fits and tolerances
Limits, fits and tolerancesLimits, fits and tolerances
Limits, fits and tolerances

Fundamentals of gd&amp;amp;t
Fundamentals of gd&amp;amp;tFundamentals of gd&amp;amp;t
Fundamentals of gd&amp;amp;t

GD&T - PPT
GD&T - PPTGD&T - PPT
GD&T - PPT

Nx Unigraphics
Nx Unigraphics Nx Unigraphics
Nx Unigraphics

Design for Manufacturing-Module 5
Design for Manufacturing-Module 5 Design for Manufacturing-Module 5
Design for Manufacturing-Module 5

Gd&t introductory presentation
Gd&t introductory presentationGd&t introductory presentation
Gd&t introductory presentation

Basic Geometrical Dimensioning & Tolerancing Tranning
Basic Geometrical Dimensioning  & Tolerancing TranningBasic Geometrical Dimensioning  & Tolerancing Tranning
Basic Geometrical Dimensioning & Tolerancing Tranning

INTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESS
INTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESSINTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESS
INTRODUCTION TO CAD,WORKSTATION & DESIGN PROCESS


Viewers also liked

PTC Creo customization using VB API - Lecture 1 - Overview
PTC Creo customization using VB API - Lecture 1 - OverviewPTC Creo customization using VB API - Lecture 1 - Overview
PTC Creo customization using VB API - Lecture 1 - Overview
Sandip Jadhav

Using pro weld in creo 2.0
Using pro weld in creo 2.0Using pro weld in creo 2.0
Using pro weld in creo 2.0
Evan Winter

Creo toolkit introduction
Creo toolkit  introductionCreo toolkit  introduction
Creo toolkit introduction
Sandip Jadhav

Ptc creo essentials 3.0 overview new features
Ptc creo essentials 3.0 overview new featuresPtc creo essentials 3.0 overview new features
Ptc creo essentials 3.0 overview new features
Victor Mitov

Making model check work for you
Making model check work for youMaking model check work for you
Making model check work for you
Evan Winter

Creo ?Pro E 5.0
Creo ?Pro E 5.0Creo ?Pro E 5.0
Creo ?Pro E 5.0
Gomathi nayagam

PRO ENGINEER BASIC
PRO ENGINEER BASICPRO ENGINEER BASIC
PRO ENGINEER BASIC
Parveen Kumar

Using_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_Variants
Using_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_VariantsUsing_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_Variants
Using_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_Variants
Vladimir Pezel

Creo parametric-quick-start
Creo parametric-quick-startCreo parametric-quick-start
Creo parametric-quick-start
P.N.Bhatt +919997960333

Pro e
Pro ePro e
Pro e
Naren R

Creo tookit geometric traversal and evaluator
Creo tookit  geometric traversal and evaluatorCreo tookit  geometric traversal and evaluator
Creo tookit geometric traversal and evaluator
Sandip Jadhav

pro/e
pro/epro/e
CADD Modelling of Bench Vise using Creo Parametric 2.0
CADD Modelling of Bench Vise using Creo Parametric 2.0CADD Modelling of Bench Vise using Creo Parametric 2.0
CADD Modelling of Bench Vise using Creo Parametric 2.0
Khusro Kamaluddin

Ptc creo fmx sales presentation
Ptc creo fmx sales presentationPtc creo fmx sales presentation
Ptc creo fmx sales presentation
Victor Mitov

OpenGL Interaction
OpenGL InteractionOpenGL Interaction
OpenGL Interaction
Sandip Jadhav

Nx basics 2014
Nx basics 2014 Nx basics 2014
Nx basics 2014
Miguele Davila

NX Tutorial
NX TutorialNX Tutorial
NX Tutorial
Stacy McCarthey

Unigraphics Full.......
Unigraphics Full.......Unigraphics Full.......
Unigraphics Full.......
Adesh C

Catia v5 NOTES
Catia v5  NOTESCatia v5  NOTES
Catia v5 NOTES
vipinshelke

Auto quiz mains
Auto quiz mainsAuto quiz mains
Auto quiz mains
N Mohammed Sahil


Viewers also liked (20)

PTC Creo customization using VB API - Lecture 1 - Overview
PTC Creo customization using VB API - Lecture 1 - OverviewPTC Creo customization using VB API - Lecture 1 - Overview
PTC Creo customization using VB API - Lecture 1 - Overview

Using pro weld in creo 2.0
Using pro weld in creo 2.0Using pro weld in creo 2.0
Using pro weld in creo 2.0

Creo toolkit introduction
Creo toolkit  introductionCreo toolkit  introduction
Creo toolkit introduction

Ptc creo essentials 3.0 overview new features
Ptc creo essentials 3.0 overview new featuresPtc creo essentials 3.0 overview new features
Ptc creo essentials 3.0 overview new features

Making model check work for you
Making model check work for youMaking model check work for you
Making model check work for you

Creo ?Pro E 5.0
Creo ?Pro E 5.0Creo ?Pro E 5.0
Creo ?Pro E 5.0

PRO ENGINEER BASIC
PRO ENGINEER BASICPRO ENGINEER BASIC
PRO ENGINEER BASIC

Using_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_Variants
Using_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_VariantsUsing_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_Variants
Using_PTC_Windchill_and_Creo_for_Creating_Customer-Driven_Product_Variants

Creo parametric-quick-start
Creo parametric-quick-startCreo parametric-quick-start
Creo parametric-quick-start

Pro e
Pro ePro e
Pro e

Creo tookit geometric traversal and evaluator
Creo tookit  geometric traversal and evaluatorCreo tookit  geometric traversal and evaluator
Creo tookit geometric traversal and evaluator

pro/e
pro/epro/e
pro/e

CADD Modelling of Bench Vise using Creo Parametric 2.0
CADD Modelling of Bench Vise using Creo Parametric 2.0CADD Modelling of Bench Vise using Creo Parametric 2.0
CADD Modelling of Bench Vise using Creo Parametric 2.0

Ptc creo fmx sales presentation
Ptc creo fmx sales presentationPtc creo fmx sales presentation
Ptc creo fmx sales presentation

OpenGL Interaction
OpenGL InteractionOpenGL Interaction
OpenGL Interaction

Nx basics 2014
Nx basics 2014 Nx basics 2014
Nx basics 2014

NX Tutorial
NX TutorialNX Tutorial
NX Tutorial

Unigraphics Full.......
Unigraphics Full.......Unigraphics Full.......
Unigraphics Full.......

Catia v5 NOTES
Catia v5  NOTESCatia v5  NOTES
Catia v5 NOTES

Auto quiz mains
Auto quiz mainsAuto quiz mains
Auto quiz mains


Similar to Creo parametric tips and tricks

Revit 2021 Structure.pptx
Revit 2021 Structure.pptxRevit 2021 Structure.pptx
Revit 2021 Structure.pptx
HAMISABUBAKAR1

Revit 2021 Structure Essentials pptx
Revit 2021 Structure Essentials pptxRevit 2021 Structure Essentials pptx
Revit 2021 Structure Essentials pptx
HAMISABUBAKAR1

Synergis University 2014 - Inventor Performance Optimization
Synergis University 2014 - Inventor Performance OptimizationSynergis University 2014 - Inventor Performance Optimization
Synergis University 2014 - Inventor Performance Optimization
Synergis Engineering Design Solutions

Using skeleton models_to_achieve_top-down_assembly_design
Using skeleton models_to_achieve_top-down_assembly_designUsing skeleton models_to_achieve_top-down_assembly_design
Using skeleton models_to_achieve_top-down_assembly_design
Niveditha M

assembly modelling.pdf
assembly modelling.pdfassembly modelling.pdf
assembly modelling.pdf
gvkovind

Catia Assembly drawing.pptx
Catia Assembly drawing.pptxCatia Assembly drawing.pptx
Catia Assembly drawing.pptx
international13

Work flow
Work flowWork flow
Work flow
Sharad Mitra

Leacture about assembly-modeling.pdf
Leacture about      assembly-modeling.pdfLeacture about      assembly-modeling.pdf
Leacture about assembly-modeling.pdf
Meinathan Selvamoorthy

Copias asociativas SIEMENS NX
Copias asociativas SIEMENS NXCopias asociativas SIEMENS NX
Copias asociativas SIEMENS NX
Raul Marcos Sanchez

07 release notes 2005
07 release notes 200507 release notes 2005
07 release notes 2005
struds

Motor3 d v13
Motor3 d v13Motor3 d v13
Motor3 d v13
ramdanelateb

Power copy with CATIA
Power copy with CATIAPower copy with CATIA
Power copy with CATIA
Rakesh Bunkar

InRoads V8i Templates Library Creation
InRoads V8i Templates Library CreationInRoads V8i Templates Library Creation
InRoads V8i Templates Library Creation
Joe Lukovits

DISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorial
DISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorialDISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorial
DISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorial
Frankey Sun

Design Intent.ppt
Design Intent.pptDesign Intent.ppt
Design Intent.ppt
JosephYunun1

Cw2014 sp1 whats_new
Cw2014 sp1 whats_newCw2014 sp1 whats_new
Cw2014 sp1 whats_new
RODOLFO ALDAIR

Dm quick evalguide design of component
Dm quick evalguide design of componentDm quick evalguide design of component
Dm quick evalguide design of component
manooch.ehr

Creo advanced assembly extension
Creo advanced assembly extensionCreo advanced assembly extension
Creo advanced assembly extension
Anubhav Singh

User guide of numerical simulation gridding v2.2.0
User guide of numerical simulation gridding v2.2.0User guide of numerical simulation gridding v2.2.0
User guide of numerical simulation gridding v2.2.0
Bo Sun

Animator32
Animator32Animator32
Animator32
Insforia


Similar to Creo parametric tips and tricks (20)

Revit 2021 Structure.pptx
Revit 2021 Structure.pptxRevit 2021 Structure.pptx
Revit 2021 Structure.pptx

Revit 2021 Structure Essentials pptx
Revit 2021 Structure Essentials pptxRevit 2021 Structure Essentials pptx
Revit 2021 Structure Essentials pptx

Synergis University 2014 - Inventor Performance Optimization
Synergis University 2014 - Inventor Performance OptimizationSynergis University 2014 - Inventor Performance Optimization
Synergis University 2014 - Inventor Performance Optimization

Using skeleton models_to_achieve_top-down_assembly_design
Using skeleton models_to_achieve_top-down_assembly_designUsing skeleton models_to_achieve_top-down_assembly_design
Using skeleton models_to_achieve_top-down_assembly_design

assembly modelling.pdf
assembly modelling.pdfassembly modelling.pdf
assembly modelling.pdf

Catia Assembly drawing.pptx
Catia Assembly drawing.pptxCatia Assembly drawing.pptx
Catia Assembly drawing.pptx

Work flow
Work flowWork flow
Work flow

Leacture about assembly-modeling.pdf
Leacture about      assembly-modeling.pdfLeacture about      assembly-modeling.pdf
Leacture about assembly-modeling.pdf

Copias asociativas SIEMENS NX
Copias asociativas SIEMENS NXCopias asociativas SIEMENS NX
Copias asociativas SIEMENS NX

07 release notes 2005
07 release notes 200507 release notes 2005
07 release notes 2005

Motor3 d v13
Motor3 d v13Motor3 d v13
Motor3 d v13

Power copy with CATIA
Power copy with CATIAPower copy with CATIA
Power copy with CATIA

InRoads V8i Templates Library Creation
InRoads V8i Templates Library CreationInRoads V8i Templates Library Creation
InRoads V8i Templates Library Creation

DISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorial
DISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorialDISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorial
DISEÑO DE MOLDES - 97471744 vero-visi-mould-tutorial

Design Intent.ppt
Design Intent.pptDesign Intent.ppt
Design Intent.ppt

Cw2014 sp1 whats_new
Cw2014 sp1 whats_newCw2014 sp1 whats_new
Cw2014 sp1 whats_new

Dm quick evalguide design of component
Dm quick evalguide design of componentDm quick evalguide design of component
Dm quick evalguide design of component

Creo advanced assembly extension
Creo advanced assembly extensionCreo advanced assembly extension
Creo advanced assembly extension

User guide of numerical simulation gridding v2.2.0
User guide of numerical simulation gridding v2.2.0User guide of numerical simulation gridding v2.2.0
User guide of numerical simulation gridding v2.2.0

Animator32
Animator32Animator32
Animator32


Recently uploaded

Buy a fake University of Washington diploma
Buy a fake University of Washington diplomaBuy a fake University of Washington diploma
Buy a fake University of Washington diploma
College diploma

SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
Jim Mimlitz, P.E.

FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATAFINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
kevig

Traffic Engineering-MODULE-1 vtu syllabus.pptx
Traffic Engineering-MODULE-1 vtu syllabus.pptxTraffic Engineering-MODULE-1 vtu syllabus.pptx
Traffic Engineering-MODULE-1 vtu syllabus.pptx
mailmad391

carpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying toolscarpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying tools
ChristopherAltizen2

OME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptxOME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptx
shanmugamram247

Disaster Management and Mitigation presentation
Disaster Management and Mitigation presentationDisaster Management and Mitigation presentation
Disaster Management and Mitigation presentation
RajaRamannaTarigoppu

Metal air battery presentation for online interview
Metal air battery presentation for online interviewMetal air battery presentation for online interview
Metal air battery presentation for online interview
muhammadhamza505998

Chapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdfChapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdf
MeghaGupta952452

Presentation python programming vtu 6th sem
Presentation python programming vtu 6th semPresentation python programming vtu 6th sem
Presentation python programming vtu 6th sem
ssuser8f6b1d1

ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented ArchitectureANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
Divya Rajasekar

Distillation-1.vapour liquid equilibrium
Distillation-1.vapour liquid equilibriumDistillation-1.vapour liquid equilibrium
Distillation-1.vapour liquid equilibrium
RjKing12

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...
RohitGhulanavar2

the potential for the development of autonomous aircraft
the potential for the development of autonomous aircraftthe potential for the development of autonomous aircraft
the potential for the development of autonomous aircraft
huseindihon

Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A SurveySecurity Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
pijans

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
AsiimweJulius2

EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagneEAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
idelewebmestre

Metrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical EngineeringMetrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical Engineering
leakingvideo

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT
Yesh20

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf
mdfkobir


Recently uploaded (20)

Buy a fake University of Washington diploma
Buy a fake University of Washington diplomaBuy a fake University of Washington diploma
Buy a fake University of Washington diploma

SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...

FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATAFINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA

Traffic Engineering-MODULE-1 vtu syllabus.pptx
Traffic Engineering-MODULE-1 vtu syllabus.pptxTraffic Engineering-MODULE-1 vtu syllabus.pptx
Traffic Engineering-MODULE-1 vtu syllabus.pptx

carpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying toolscarpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying tools

OME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptxOME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptx

Disaster Management and Mitigation presentation
Disaster Management and Mitigation presentationDisaster Management and Mitigation presentation
Disaster Management and Mitigation presentation

Metal air battery presentation for online interview
Metal air battery presentation for online interviewMetal air battery presentation for online interview
Metal air battery presentation for online interview

Chapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdfChapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdf

Presentation python programming vtu 6th sem
Presentation python programming vtu 6th semPresentation python programming vtu 6th sem
Presentation python programming vtu 6th sem

ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented ArchitectureANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture

Distillation-1.vapour liquid equilibrium
Distillation-1.vapour liquid equilibriumDistillation-1.vapour liquid equilibrium
Distillation-1.vapour liquid equilibrium

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...

the potential for the development of autonomous aircraft
the potential for the development of autonomous aircraftthe potential for the development of autonomous aircraft
the potential for the development of autonomous aircraft

Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A SurveySecurity Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf

EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagneEAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne

Metrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical EngineeringMetrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical Engineering

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf


Creo parametric tips and tricks

  • 1. Creo Parametric Tips and Tricks Evan Winter PTC
  • 3. 3 1. File > Options > System Colors > Graphics 2. Select Background and ensure “No Gradient” is checked. 3. Set color to black (or other color to be used in Sketcher). 4. Select Background again and un-check “No Gradient” 5. Select Background again and click More Gradients… 6. Set your desired Top and Bottom colors by selecting the swatch icons. Setting Pro/E style background colors Blended backgrounds can still be used, and Sketcher can use a default black background as in pre-Creo releases. Blended Background in 3D Default color (black) background in Sketcher
  • 4. 4 • Favorites section in Options menu allows you to quickly change config.pro settings. – Right click config options and “Add to Favorites” • Color Schemes allow fast switching of system colors while maintaining contrast. – File > Options > System Colors • Cmdmgr_trail_output – provides explicit command instructions for Trail files and mapkey creation. Set this to “yes” when defining Mapkeys for simpler and more robust scripts. – Note on Mapkeys: Avoid using RMB shortcuts in Mapkeys as they are not consistently repeatable. For example, use Operations > Edit Definition instead of RMB > Edit Definition. Options Dialog
  • 5. 5 File > Options > Environment > Mapkeys Settings… Creating Mapkeys
  • 6. 6 • Create a Mapkey • Modify an existing Mapkey • Run (Test) a Mapkey • Delete • Save a single mapkey definition to file Creating Mapkeys (Cont.) • Enter key sequence • Assign a name • Provide a description • Choose Record Keyboard Input • Start recording, add Pause for any user inputs needed, Stop recording.
  • 7. 7 Creating Mapkeys (Cont.) File > Options > Quick Access Toolbar This process should be repeated for each mode where command should be available (Part, Assembly, Drawing).
  • 8. 8 Access to Free Hardware CAD Models The Creo embedded browser now includes a tab for 3DModelSpace.com, which is a repository for standard hardware models in Creo Parametric format. Ensure that “enable_3dmodelspace_browser_tab” is set to yes in config.pro
  • 10. 10 Query Select to Intent references, or use “Pick from List” in RMB while creating Rounds, Chamfers, Draft, etc. Using Intent References You can increase the robustness of features using Intent References, which capture the intent of the feature when selecting resulting edges or surfaces (the edges bounding a surface of a feature, or a set of extruded vertices). No failure after base feature modification
  • 11. 11 1. Hold ALT and select the Seed surface. 2. Hold SHIFT and select the first Boundary surface. 3. While holding SHIFT continue selecting Boundary surfaces (as many as needed). 4. Release SHIFT to complete the selection. Leveraging Advanced Selection Methods You can build more robust features using advanced Seed and Boundary selection. 1 2 3 4
  • 12. 12 Leveraging Advanced Selection Methods (Cont.) Within a feature, use the Details dialog to manage advanced selections.
  • 13. 13 • Settings > Tree Columns – Type = Layer – “Layer Names” and/or “Layer Status” > Add Column > OK Showing Feature and Component Layers You can show Layer Placement and Status for Part Features and Assy Components.
  • 14. 14 • Solidify with Datum Planes – Use the Solidify command to trim geometry from one side of a model (e.g. flat cuts at spring ends, setting up “Mirrored” simulation models). Using Solidify To Trim Solid Geometry
  • 15. 15 • Pattern Regeneration options (General, Variable, Identical). – General is the default option. It is the most robust but also the slowest to regenerate. Only use this option if pattern instances intersect each other. – Variable is faster and works as long as instances are not intersecting each other. Patterns can cross into other surfaces. – Identical is the fastest to regenerate, but all pattern instances must fall on the same surface and cannot intersect each other. Use this option whenever possible unless design changes are expected. Note: Downstream Reference Patterns can fail if referencing Identical regenerated patterns. Use Variable or General if patterns are failing for reasons otherwise not clear. • Geometry Pattern – New Pattern command that allows you to pattern only the geometry created by features, not the features themselves. Significantly faster to regenerate than normal feature patterns. Improving Patterns
  • 16. 16 • Vertices can be used to gather Delta X, Y and Z measurements. – While measuring distance between vertices, add a CSYS feature to the Projection collector to see the transform distances. Getting Transform measurements using Vertices
  • 17. 17 • Activating Replace mode for second reference allows quicker repeated dimensions. – Single-click on additional references will Replace tagged reference (Edge: F7) and update the distance measurement from original reference (Surf: F6). – Set measure_auto_replace_mode to Yes will flag second added reference as “Replace” automatically. Measuring Multiple Distances from a Single Reference
  • 18. 18 • Create a refined (machined) version of a Cast part using the Inheritance feature. 1. First create the part as-cast (part_cast.prt) 2. Create a new part to represent the finished design (part_machined.prt) and insert a Merge/Inheritance feature. 3. Browse to the cast part and place it using Default, then Toggle Inheritance in the Dashboard. – Additional features can now be added to the new model to represent final machining operations. The base geometry is dependent with the original cast part, and will update with design iterations. Creating Cast/Machined Parts 1 2 3
  • 19. 19 • Apply colors to a model that represent machining operations on a previously Cast part. 1. In the machined model (an inheritance part from the previous slide), apply a color to the “part” definition that represents the machined surfaces (select the part name in the Model Tree when applying color). 2. Select a single surface, then RMB select Solid Surfaces. Pick a “cast” (matte) color from the Appearance Gallery to apply the color to the “surface” definition of the part. 3. Add the final machining features (holes, chamfers, facing, milling, etc.) to “reveal” the machined part color underneath the cast surface color. Adding colors to Cast/Machined Parts 1 2 3
  • 21. 21 • Set auto_constr_always_use_offset to Never – Coincident will be the default constraint type for the following reference pairs: • Planes • Linear edges / Datum Axis • Planes combined with Linear edges • Set auto_constr_always_use_offset to Yes – Offset (Angle or Normal) will be the default constraint type for the following reference pairs, never coincident: • Planes • Linear edges / Datum Axis • Planes combined with Linear edges • Set auto_constr_always_use_offset to No* – Creo will suggest a constraint type based on current component position and orientation • Coincident • Distance • Angle • Normal – Setting up the orientation tolerance is done with the 3 additional config.pro options on the next slide. Assembly Constraint Tweaking Use these options to change how constraints are applied by default.
  • 22. 22 • Check if position fits Angle or Normal. For this use values set for options: – comp_angle_offset_eps (“-1” seems to work ok) – comp_normal_offset_eps (“-91” seems to work ok) • If position does not fit Angle or Normal, then it will be either Coincident or Distance. Here decision is made based on the value of: – auto_constr_offset_tolerance = (0.5 of the model size by default). If initial distance is bigger than this value, you will receive Distance, if less, Coincident. – Note: Value is relative to the size of each component being assembled. Assembly Constraint Tweaking (Cont.) Use these options whenever “auto_constr_always_use_offset” is set to No* .
  • 23. 23 Assigning Mass to Assembly Components You can input a known Mass value for a Part or Assembly instead of calculating from geometry and density (material). 1. File > Prepare > Model Properties > Mass Properties > Change 2. Define Properties by Geometry and Parameters. 3. Edit Mass field as needed. 4. “Calculate” to gather related values. 5. Analysis > Mass Properties. 6. Select Assigned option. 7. Calculate. Creo will use assigned mass values in place of calculated masses when they exist.
  • 24. 24 • Change “Secondary Previewed Geometry” in system colors to enhance the visible status of incomplete assembly constraints. Previewing Assembly Constraint Status Partially Constrained File > Options > System Colors
  • 25. 25 • Disable Automatic Update – Reduce memory usage and assembly cut warnings by manually updating intersection list. – Uncheck Automatic Update and remove any non-cut models. • Why? - “Intersected” models are duplicated in memory. – Increased memory usage. – Assembly Cut regeneration warnings for components “intersected” without geometry changes. – Additional models may be automatically added to Intersected list when added to the assembly if Automatic Update is left enabled. Assembly Feature (Cut) Considerations
  • 26. 26 • On-Demand Simp. Reps – Allow quick retrieval of required reps only when they are needed for assembly operations. • Open Subset – Allows the retrieval of an ad-hoc simplification without creating a new Simplified Representation that is saved in the assembly. Thought of as a temporary Simp. Rep. • Auto_backup_new_placemnt_refs – Automatically backs up assembly references to the assembly context, allowing component placement to be updated/modified when using Graphics Reps and lightweight Graphics Reps. • Copy as External – Creates a separate assembly with only the models included in that Rep. Allows you to share subsets of a top assembly to other users, and their changes filter back to the upper level. Note: Must use “dependent” option for upward filtering. Large Assembly Management
  • 27. 27 • Components that were created using “Save a Copy” can now be replaced easier using the Reference Tag Evaluation utility. – Evaluation rules include “By History”, which can identify that features in each model come from the same source. Replace Component Enhancements The Replace command now handles copied components in “unrelated” replace.
  • 29. 29 • template_cnfg_asm – Specifies the default configurable product template file. • template_module – Specifies the default module template file Config.pro Options
  • 30. 30 • When changing variant specifications. – To apply a different variant builder option, double click the modified Master representation from the view manager to revert it back to the original and then apply the desired option. • Save Variant Specifications to the assembly for reuse. Variant Builder Tips
  • 31. 31 • Overbuilt Assemblies 1. (Top Level) File > Save As > Save As Configurable Product 2. (Overbuilt Components) RMB > Transfer into Module • Interchange Assemblies – File > Save As > Save As Configurable Module Legacy Data
  • 33. 33 • Wildfire 4.0 mechanism connections will properly convert to Creo 2. • Typical Mechanism Workflow 1. Create Connections in assembly mode (Pin, Slider, Slot, etc.) 2. In Mechanism application, define servo motors to create motion profiles. 3. Create motion relationships if needed (Gears, Belts, Cams). 4. Define Mechanism Analyses (servo motors and start/end times). 5. Define Measures and graph them against previously run analyses. General Mechanism Notes
  • 34. 34 • Constraints can often be converted to connections without the need to redefine references. – Coincident constraints converted to Pin connection once Allow Assumptions is unchecked. Otherwise, Convert Constraints to Mechanism is greyed out. – Mechanism Connection type assigned is based on constraint types already defined. Converting Constraint Sets to Mechanism Connections
  • 35. 35 • Config.pro - enable_advance_collision “yes” • Assembly Model Properties > Collision Detection Settings. • Global Collision Detection or • Partial Collision Detection • Push Objects on Collision Using Advanced Collision Settings You can simulate part interaction without Mechanism Contacts (Cams, Gears, 3D Contact) using Advanced Collision settings.
  • 36. 36 Type Total DOF Rotation Translation Rigid 0 0 0 Pin 1 1 0 Slider 1 0 1 Cylinder 2 1 1 Planar 3 1 2 Ball 3 3 0 Weld 0 0 0 Bearing 4 3 1 General Varies Varies Varies 6dof 6 3 3 Gimbal 5 0 0 Slot Varies Varies Varies Degrees of Freedom Connection sets constrain motion while still permitting various degrees of freedom.
  • 37. 37 Creating Analyses An analysis lets you define conditions for servo motors that move the assembly • Select an Analysis type. – Position – verifies the validity of the mechanism based on defined motors. – Kinematic – used to analyze the motion of bodies as a result of defined motor profiles. – Dynamic – Incorporates forces to analyze reactions at connections (e.g. the Normal load on a pin due to gravity and Mass Properties). • Choose Motors and define start/end times.
  • 38. 38 Creating Measures A measure allows you to get dynamic information on a component as a result of the Analysis definition (Speed, position, acceleration, etc.) • Create measurements (position, velocity, acceleration, etc.) • Use previously defined analyses to get measurement graphs and values.
  • 39. 39 Creating Snapshots Snapshots allow you to capture mechanism position states for use in analysis features, animations and to display in a drawing view. Activate as “Explode State” in a drawing view. Set as Initial Condition
  • 41. 41 • In a Drawing, select the Window overflow from the View tab and pick New. You will be prompted for a sheet number to navigate to. • You can now work in multiple drawing sheets simultaneously. (Also works well for large models where regular reorientation is time consuming). Working in Multiple Windows
  • 42. 42 • Right-click while dragging a dimension will “Flip Arrows” on-the-fly. • Use dimension names with “&” symbol in notes and other dimensions to reference values parametrically (i.e. “&d17”). • Use “Rounded Dimension Value” to prevent modification of nominal value when decimal places are decreased. • Text placed in Prefix/Suffix fields appear within “Basic” dimension boxes. Text placed in Dimension text field appears outside Basic dimension boxes. Dimensioning
  • 43. 43 • Allow_refs_to_geom_reps_in_drws – Controls whether dimensions and notes can be created in views using Geometry Reps. Care should be taken as dimensions and annotations may not update if geometry changes. • Auto_regen_views – Sets whether drawing views update automatically when changing sheets or windows. Set to no, drawing views must be updated manually, but large drawing performance is dramatically improved. • Hlr_for_quilts – Determines if HLR is performed on quilt features. • Save_display – Saves the display of drawing items such as notes and dimensions so that they are shown when a drawing is retrieved in read-only mode. • Force_Wireframe_in_drawings Managing Large Drawings (Config.pro Options)
  • 44. 44 In this drawing there is a Set Datum that is currently hidden from view. Although we can select it from the Drawing Tree and “unerase”, it will still be hidden if it is on a hidden layer. The easiest method is to leave the layer containing datums “shown” and control the datums visibility through “Erase/unerase”, otherwise you need to set individual view layer status (shown on next slide). Displaying Set Datums on Drawings Set Datum visibility is controlled through layers, but they can also be erased.
  • 45. 45 To set the layer status for an individual view, we pick the view from the layer tree Active View drop-down and then set the layer status. This views layers will now behave independently of the drawings layer status, and must be managed separately. To set the layer status of the view back to that of the drawing, we select the view again in the Active View list and click “Drawing Dependent” in the Layers drop-down Displaying Set Datums on Drawings (Cont.) Drawing views can have their layer status set independently of the top level drawing.
  • 46. 46 • File > Prepare > Drawing Properties > Detail Options – “user_command” ‘delete_erased_dimensions’ – “user_command” ‘delete_erased_axes’ • Add/Change > Apply or OK – The user_command is applied once and is not maintained in the .dtl file. It can be run again later if required. Dealing with Erased Dimensions and Axes Some WF4 drawings may have large numbers of Erased items that must be deleted prior to being shown in a different view. These can be deleted automatically through a hidden drawing option.
  • 47. 47 • File > Prepare > Drawing Properties > Detail Options – User_command delete_erased_dimensions – User_command delete_erased_axes – user_command clean_duplicate_axes – user_command update_note_text_padding – update_drawing 1808656 (remove extra spaces in basic dimensions) – update_drawing 2119624 (Crosshatching break across text) – Update_drawing 2140864 (secondary dimensions show at maximum decimal places) – update_drawing all (applies all updates. Use caution as this command may make more changes than are desired) • Config.sup Options – enable_auto_drawing_update yes *(required to use the options below) – auto_drawing_update all – auto_drawing_update_command delete_erased_axes – auto_drawing_update_command delete_erased_dimensions Advanced Drawing Update Commands Some WF4 drawings may have errors or outdated standards when retrieved in newer releases. The commands below can be used to update drawings as described.
  • 48. 48 • Under Table > Repeat region > Attributes select the table region > No dup/Level > Recursive > bln by part > No cbl Info > done/return > done – The BOM table will now be sorted by Assembly sequence. Sorting BOM tables by Assembly Sequence Repeat Regions in BOM tables often sort alphabetically rather than by assembly sequence. This can be changed through the Repeat Region Attributes.
  • 50. 50 1. Show Entity Locks – Toggles the display of sketch entity locks that were used in place of dimension locks. 2. References – Provides a shortcut to the Sketch References dialog. 3. Shapes shortcuts – Quick access to sketch tools such as Lines, Rectangles, Circles, etc. Selection-based Commands: 1. Lock – Locks sketcher entities in leu of locking individual dimensions. 2. Rotate Resize – Activates the Rotate/Resize command. 3. Constraints (Tangent, Coincident, Equal, etc.) – creates various constraints based on current selection of single or multiple sketch entities. 4. OK/Cancel – Allows quick completion of sketch feature. Expanded Sketcher Right-Mouse menu items 1 2 3 4 5 6 7
  • 51. 51 • When symmetry is desired, create Centerline features first, allowing Creo to give symmetry assumptions while sketching. • Use Modify along with Lock Scale to resize sketches that are grossly out of proportion. Simplifying the Sketching Process
  • 52. 52 • You can save custom sketches into the palette folders and reuse them later. – Folders are located in <Loadpoint>Common FilesMxxxtextsketcher_palette – Create custom folders for custom Palette tabs Customizing the Sketcher Palette Window
  • 54. 54 • Regen_failure_handling – No_resolve_mode* – Resolve_mode Specifies whether to enter resolve mode when regeneration failures occur. Resolve_mode - Enter resolve mode when regeneration failures occur. No_resolve_mode - Don't enter resolve mode when regeneration failures occur. • allow_save_failed_model – Prompt* – Yes – No Yes - Failed models can be saved. No - Failed models cannot be saved. Prompt - Let the user decide whether failed models can be saved. Config.pro settings for managing failed models.
  • 56. 56 • Used for design framework, space claims, Interfaces between components and assembly references. – Skeletons should contain Sketches, curves, surfaces and Datums only. – Not factored into Mass Properties calculations. • Use in conjunction with Publish Geom. and Copy Geom. to share design information. – Publish Geometry in the source part creates a “container” of references that can be shared with a target part later. • Use “multiple_skeletons_allowed” to share design information between multiple skeletons. • Create skeletons in subassemblies. Skeleton Models
  • 57. 57 • For Skeletons that drive geometry and assembly position. – Use “Publish Geometry” and/or “Copy Geometry” that references the assembly context. • For skeletons that drive geometry only (constraints/connections added later in assembly context). – Use “Publish Geometry” and/or “External Copy Geometry” that references the skeleton model directly. – Allows placement between skeleton CSYS and component CSYS. Standard Skeleton Model Methods
  • 58. 58 • Used for design framework of mechanized assemblies. – Motion Skeleton is a .ASM that contains a standard skeleton and “Body” skeletons. – Standard skeleton contains design geometry. – Body skeletons are assigned geometry from the standard skeleton. – The first Body skeleton created is assumed as the “Ground” component and is fixed. Subsequent Body skeletons are assigned assembly Connections assumed from sketch constraints (point/point, point/line). • Create parts in the assembly context – Parts are “attached” to body skeletons and assume their motion definition. No assembly connections are created manually. Motion Skeletons Overview
  • 60. 60 • Curves – Through Points, Offset Csys, From Xsec – Define ends conditions (Tangency, Curvature Continuity). • Boundary Blend – Similar to Blends, transitions between curves. – First and second direction options. • Intersect – Creates a new 3D curve from two 2D sketches/curves – Creates curve at intersection of surface/surface or surface/datum. • Merge – Combine surfaces into quilts, trimming excess geometry. • Fill – Creates a surface within a sketch boundary. • Thicken/Solidify Common Surfacing Tools
  • 61. 61 Using PrecisionLMS for Web-Based-Training
  • 62. 62 • Go to PTC.COM – Services > eLearning • Login – Learn and Explore tab > Precision LMS – Use assigned login information. Accessing PrecisionLMS
