Pro/ENGINEER is feature-based, associative solid modeling software that runs on the Microsoft Windows platform. It provides capabilities for solid modeling, assembly modeling, drafting, finite element analysis, and NC and tooling functions for mechanical engineers. Creo Elements/Pro is the updated name for Pro/ENGINEER. The document then provides brief descriptions of computer-aided design (CAD) and computer-aided manufacturing (CAM). CAD is used by engineers to create 2D and 3D drawings, while CAM uses computer control for manufacturing objects from those drawings.

1. What is Pro/ENGINEER?
Pro/Engineer feature-based, associative solid
modeling software. The application runs on
Microsoft Windows platform, and provides
solid modeling, assembly modelling and
drafting, finite element analysis, and NC and
tooling functionality for mechanical engineers.
The Pro/ENGINEER name was changed to
Creo Elements/Pro

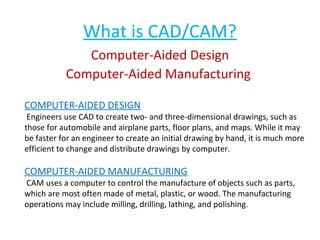

2. What is CAD/CAM?
Computer-Aided Design
Computer-Aided Manufacturing
COMPUTER-AIDED DESIGN
Engineers use CAD to create two- and three-dimensional drawings, such as
those for automobile and airplane parts, floor plans, and maps. While it may
be faster for an engineer to create an initial drawing by hand, it is much more
efficient to change and distribute drawings by computer.
COMPUTER-AIDED MANUFACTURING
CAM uses a computer to control the manufacture of objects such as parts,
which are most often made of metal, plastic, or wood. The manufacturing
operations may include milling, drilling, lathing, and polishing.

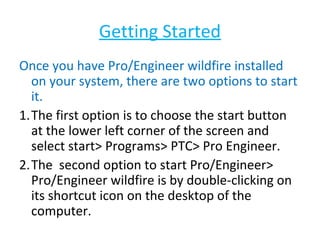

3. Getting Started
Once you have Pro/Engineer wildfire installed
on your system, there are two options to start
it.
1.The first option is to choose the start button
at the lower left corner of the screen and
select start> Programs> PTC> Pro Engineer.
2.The second option to start Pro/Engineer>
Pro/Engineer wildfire is by double-clicking on
its shortcut icon on the desktop of the
computer.

4. Initial screen appearance after starting
Pro/engineer wildfire

5. Now, look for the icon
under your menu to start a new
application.
Press the icon; or you may use the menu
FILE > New. Either way, you should be able to launch the
following window.

6. Pro/ENGINEER Basic Design Modes
• Sketch mode: -(Sketching using the basic sketch
entities) File extensions *.sec
• Part mode: -(Converting the sketch into features
and parts) File extensions *.prt
• Assembly mode: -(Assembling different parts and
analyzing them) File extensions *.asm
• Sheet Metal mode: -(create and work with thinwalled parts using) File extensions *.prt
• Drawing mode: -(Documenting parts and the
assembly in terms of drawing views) File
extensions *.drw

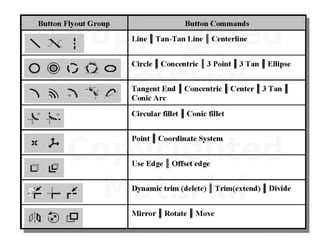

7. SKETCHER TOOLS TOOLBAR
Sketcher Tools Toolbar
→
Select
→
Create from Edge
2-point
→
Line
offset from edge
Tangent Line
→
Dimension
Center Line
→
on edge
→
Modify
Rectangle
Vertical
Center/Point Circle
Concentric Circle
→
Circle
Horizontal
Perpendicular
3-Point Circle
Tangent
3-Tangent Circle
→
Constraints
Midpoint
Ellipse
3-Point Arc
Arc
Symmetric
Concentric Arc
→
Coincident
Equal
Center/Endpoints Arc
Parallel
3-Tangent Arc
→
Text
Conic Arc
→
Fillet
Circular
Dynamic Trim
→
Trim
Elliptical
→
→
Divide
Spline
Point
Cut/Extend
Mirror
Point
Reference Coordinate System
→
Copy
Scale and Rotate
Copy

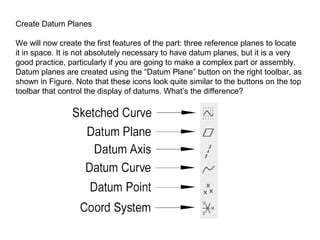

9. Create Datum Planes
We will now create the first features of the part: three reference planes to locate
it in space. It is not absolutely necessary to have datum planes, but it is a very
good practice, particularly if you are going to make a complex part or assembly.
Datum planes are created using the “Datum Plane” button on the right toolbar, as
shown in Figure. Note that these icons look quite similar to the buttons on the top
toolbar that control the display of datums. What’s the difference?

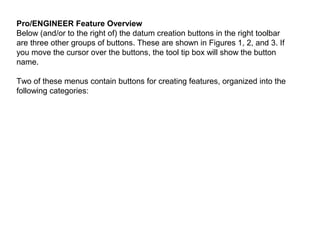

10. Pro/ENGINEER Feature Overview
Below (and/or to the right of) the datum creation buttons in the right toolbar
are three other groups of buttons. These are shown in Figures 1, 2, and 3. If
you move the cursor over the buttons, the tool tip box will show the button
name.
Two of these menus contain buttons for creating features, organized into the
following categories:

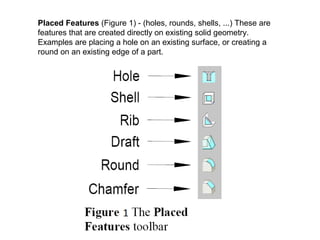

11. Placed Features (Figure 1) - (holes, rounds, shells, ...) These are
features that are created directly on existing solid geometry.
Examples are placing a hole on an existing surface, or creating a
round on an existing edge of a part.

12. Sketched Features (Figure 2) - (extrusions, revolves, sweeps, blends, ..) These
features require the definition of a two-dimensional cross section which is then
manipulated into the third dimension. Although they usually use existing
geometry for references, they do not specifically require this. These features will
involve the use of an important tool called Sketcher.

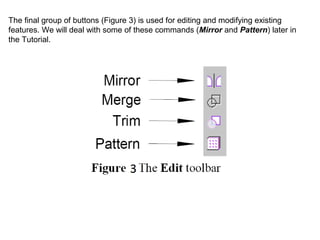

13. The final group of buttons (Figure 3) is used for editing and modifying existing
features. We will deal with some of these commands (Mirror and Pattern) later in
the Tutorial.

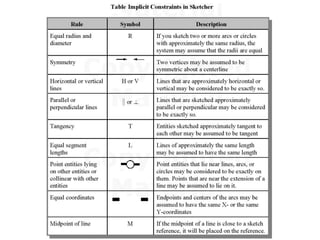

15. Another change is the addition of some new toolbar buttons at the top of the
screen5. See Figure. These are in two groups: a Sketch Display group and a
Sketch Diagnosis group
In the Display group, the four buttons with the eyeballs control display of
dimensions, constraints, the grid (default off), and vertices. Leave these buttons in
their default position (Dimensions, Constraints, Vertices, all turned on). It is
seldom (if ever) that you will need to turn on the grid in Sketcher. The button at the
far left will return you to the default view of the sketch if you should accidentally (or
intentionally) go into 3D view. Buttons in the Diagnosis group will control or launch
functions that can help you identify and fix possible problems in the sketch. For our
first sketch, turn on the Shade Closed Loops and Highlight Open Ends buttons.

16. On the right end of the dashboard are several common tools that appear for all
features. See Figure. These function as follows:
Pause - allow you to temporarily suspend work on this feature so that you can, for
example, create a missing reference like a datum plane, measure something in the
model, etc. When you are finished with the side trip, press the symbol < that
appears here to continue where you left off.
Preview - (default on = checked) this is responsible for the shaded yellow display of
the feature under construction. Uncheck this - all you will see is the feature creation
direction, drag handle, and depth dimension. Turn this back on.
View Geometry (or Verify) - this shows what the geometry will look like when the
feature is fully integrated into the part. Not much happens with this first protrusion.
Press again to return to preview.
Accept and Quit - do just what you expect!

17. This is one of the few times when a middle click does not mean “Accept”, which is a
good thing since inadvertent middle clicks happen often when you are in Sketcher.

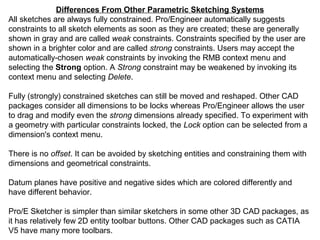

19. Differences From Other Parametric Sketching Systems
All sketches are always fully constrained. Pro/Engineer automatically suggests
constraints to all sketch elements as soon as they are created; these are generally
shown in gray and are called weak constraints. Constraints specified by the user are
shown in a brighter color and are called strong constraints. Users may accept the
automatically-chosen weak constraints by invoking the RMB context menu and
selecting the Strong option. A Strong constraint may be weakened by invoking its
context menu and selecting Delete.
Fully (strongly) constrained sketches can still be moved and reshaped. Other CAD
packages consider all dimensions to be locks whereas Pro/Engineer allows the user
to drag and modify even the strong dimensions already specified. To experiment with
a geometry with particular constraints locked, the Lock option can be selected from a
dimension's context menu.
There is no offset. It can be avoided by sketching entities and constraining them with
dimensions and geometrical constraints.
Datum planes have positive and negative sides which are colored differently and
have different behavior.
Pro/E Sketcher is simpler than similar sketchers in some other 3D CAD packages, as
it has relatively few 2D entity toolbar buttons. Other CAD packages such as CATIA
V5 have many more toolbars.

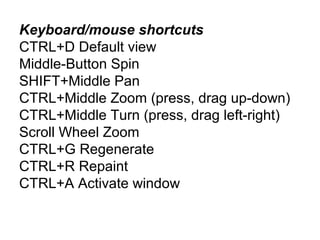

20. Keyboard/mouse shortcuts
CTRL+D Default view
Middle-Button Spin
SHIFT+Middle Pan
CTRL+Middle Zoom (press, drag up-down)
CTRL+Middle Turn (press, drag left-right)
Scroll Wheel Zoom
CTRL+G Regenerate
CTRL+R Repaint
CTRL+A Activate window

21. The user can spin, zoom, and pan the model by moving the mouse while
holding middle mouse button, middle mouse and CTRL key, and middle
mouse and SHIFT key respectively. Fig. illustrates the mouse
functions. The center of the zoom is always at the cursor location. The
view can be scaled by a factor of 2 by holding SHIFT or CTRL key, and
rotating the middle mouse button. Explore each of these functions.

22. A description of the Pro/E screen

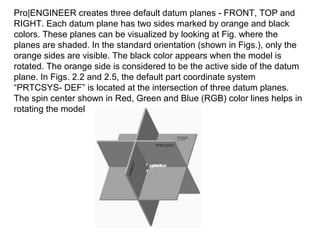

23. Pro|ENGINEER creates three default datum planes - FRONT, TOP and
RIGHT. Each datum plane has two sides marked by orange and black
colors. These planes can be visualized by looking at Fig. where the
planes are shaded. In the standard orientation (shown in Figs.), only the
orange sides are visible. The black color appears when the model is
rotated. The orange side is considered to be the active side of the datum
plane. In Figs. 2.2 and 2.5, the default part coordinate system
“PRTCSYS- DEF” is located at the intersection of three datum planes.
The spin center shown in Red, Green and Blue (RGB) color lines helps in
rotating the model

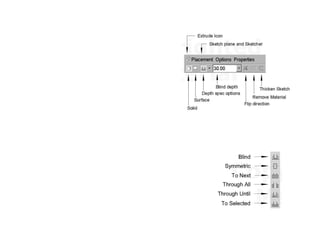

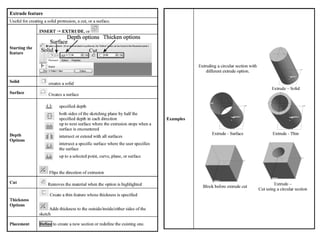

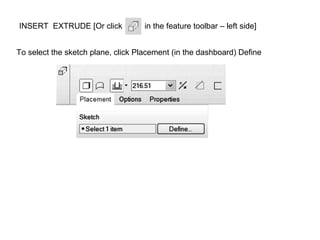

24. INSERT EXTRUDE [Or click
in the feature toolbar – left side]
To select the sketch plane, click Placement (in the dashboard) Define

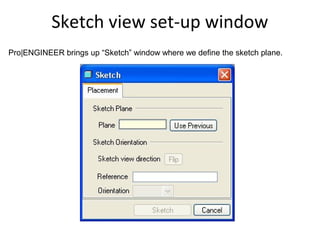

25. Sketch view set-up window
Pro|ENGINEER brings up “Sketch” window where we define the sketch plane.

26. We are going to sketch the section on the TOP
datum plane.
Pro|ENGINEER highlights different planes as we
move the mouse over them.
Select the TOP datum plane in the graphics
window or in the model tree by clicking on “TOP”
The yellow arrow in the graphics window points
to the view direction. Clicking “Flip” in the sketch
window
reverses the view direction.
Pro|ENGINEER automatically orients the sketch
plane by aligning the outward normal from the
reference (the right datum plane) in the right
direction.
Sketch
The screen changes to the sketcher mode.
Activate “References” window by selecting:

27. SKETCH REFERENCES
The “References” window shows two
references: F1(RIGHT) and
F3(FRONT).
All dimensions are placed with respect
to these two references. If necessary,
additional references can be added to
this list. It is advisable to select the
references before sketching.

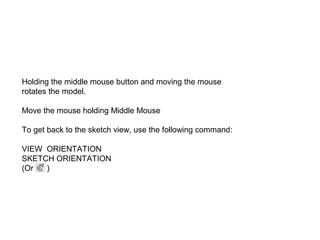

28. Holding the middle mouse button and moving the mouse
rotates the model.
Move the mouse holding Middle Mouse
To get back to the sketch view, use the following command:
VIEW ORIENTATION
SKETCH ORIENTATION
(Or
)

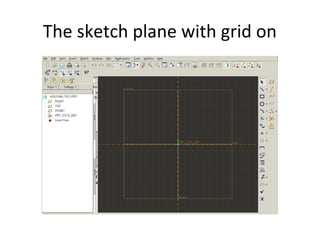

29. The sketch plane with grid on

30. The profile

31. The modified dimensions of the profile

32. The first feature of the part Housing

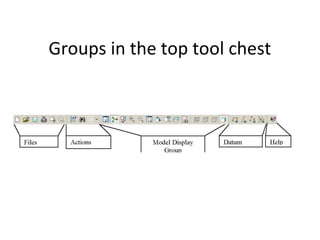

34. Groups in the top tool chest

35. Modeling a Complete Part

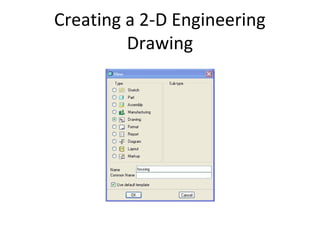

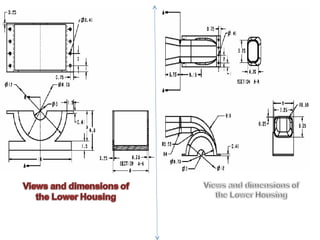

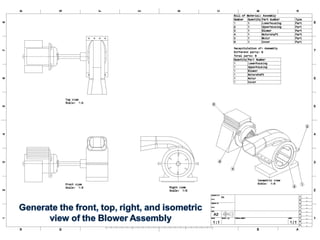

36. Creating a 2-D Engineering
Drawing

37. Drawing set-up window

38. Dialog window for view control in the
drawing mode

39. The drawing of Housing after the
Inserting Views step

40. The drawing of the component
Housing

41. Creating the Disk-Brake Assembly

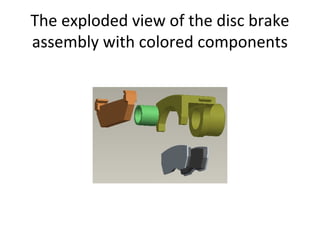

42. The exploded view of the disc brake
assembly with colored components

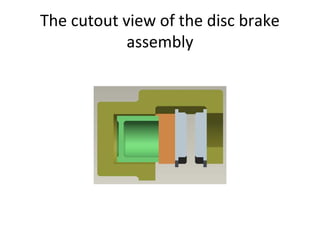

43. The cutout view of the disc brake
assembly

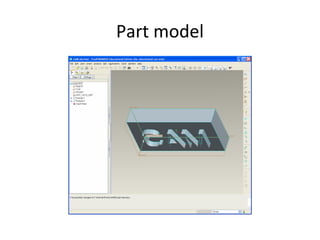

44. Part model

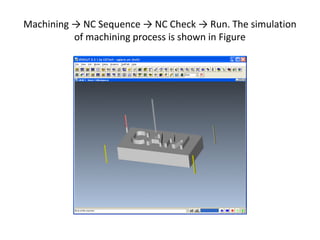

45. Machining → NC Sequence → NC Check → Run. The simulation
of machining process is shown in Figure

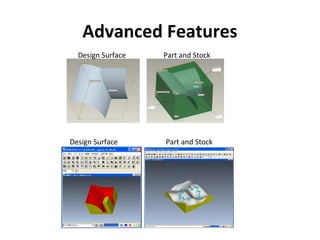

46. Advanced Features
Design Surface
Design Surface
Part and Stock
Part and Stock

47. Automated Generation of CNC Tool
Paths Using Pro/Manufacturing

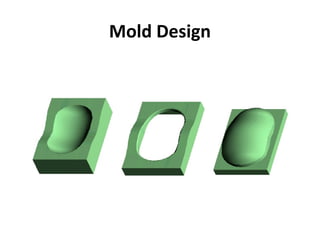

48. Mold Design

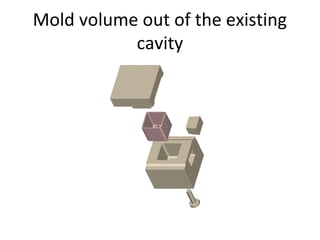

49. Mold volume out of the existing
cavity

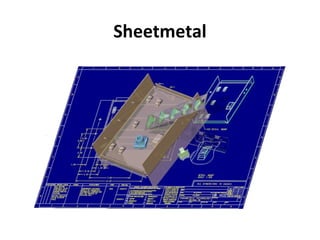

50. Sheetmetal

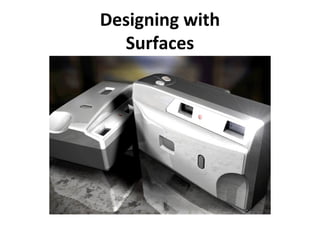

51. Designing with
Surfaces

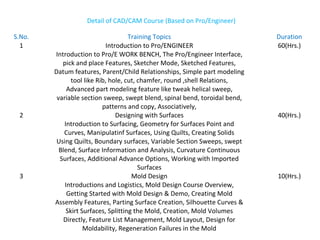

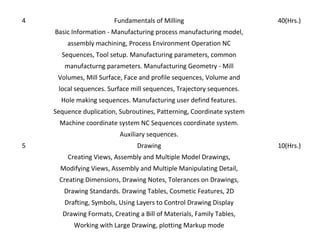

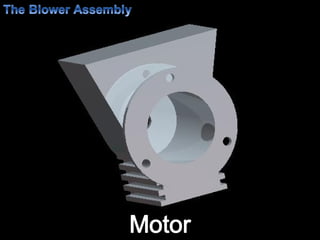

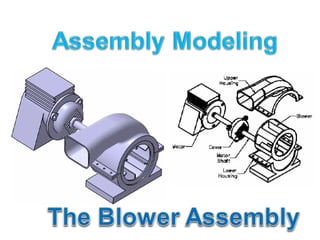

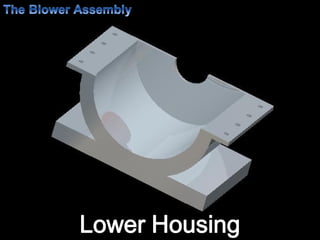

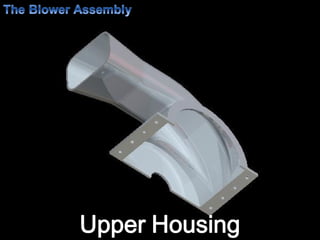

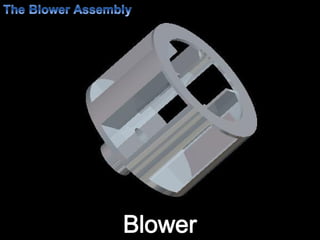

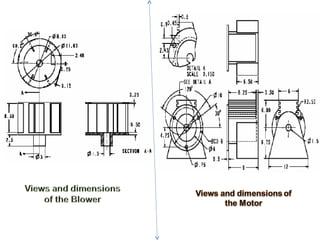

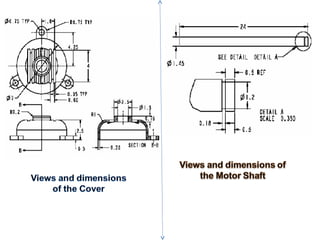

65. Detail of CAD/CAM Course (Based on Pro/Engineer)
S.No.
1
2
3
Training Topics
Introduction to Pro/ENGINEER
Introduction to Pro/E WORK BENCH, The Pro/Engineer Interface,
pick and place Features, Sketcher Mode, Sketched Features,
Datum features, Parent/Child Relationships, Simple part modeling
tool like Rib, hole, cut, chamfer, round ,shell Relations,
Advanced part modeling feature like tweak helical sweep,
variable section sweep, swept blend, spinal bend, toroidal bend,
patterns and copy, Associatively,
Designing with Surfaces
Introduction to Surfacing, Geometry for Surfaces Point and
Curves, Manipulatinf Surfaces, Using Quilts, Creating Solids
Using Quilts, Boundary surfaces, Variable Section Sweeps, swept
Blend, Surface Information and Analysis, Curvature Continuous
Surfaces, Additional Advance Options, Working with Imported
Surfaces
Mold Design
Introductions and Logistics, Mold Design Course Overview,
Getting Started with Mold Design & Demo, Creating Mold
Assembly Features, Parting Surface Creation, Silhouette Curves &
Skirt Surfaces, Splitting the Mold, Creation, Mold Volumes
Directly, Feature List Management, Mold Layout, Design for
Moldability, Regeneration Failures in the Mold
Duration
60(Hrs.)
40(Hrs.)
10(Hrs.)

66. 4
Fundamentals of Milling
40(Hrs.)
Basic Information - Manufacturing process manufacturing model,
assembly machining, Process Environment Operation NC
Sequences, Tool setup. Manufacturing parameters, common
manufacturng parameters. Manufacturing Geometry - Mill
Volumes, Mill Surface, Face and profile sequences, Volume and
local sequences. Surface mill sequences, Trajectory sequences.
Hole making sequences. Manufacturing user defind features.
Sequence duplication, Subroutines, Patterning, Coordinate system
Machine coordinate system NC Sequences coordinate system.
Auxiliary sequences.
5
Drawing
Creating Views, Assembly and Multiple Model Drawings,
Modifying Views, Assembly and Multiple Manipulating Detail,
Creating Dimensions, Drawing Notes, Tolerances on Drawings,
Drawing Standards. Drawing Tables, Cosmetic Features, 2D
Drafting, Symbols, Using Layers to Control Drawing Display
Drawing Formats, Creating a Bill of Materials, Family Tables,
Working with Large Drawing, plotting Markup mode
10(Hrs.)
