1. Creating Large-Scale Software
Platforms with OSGi and
an Extension Point Model
Introducing Eclipse Content Repository
Bogdan Stefanescu, Lead Architect at Nuxeo
2011-03-23
1

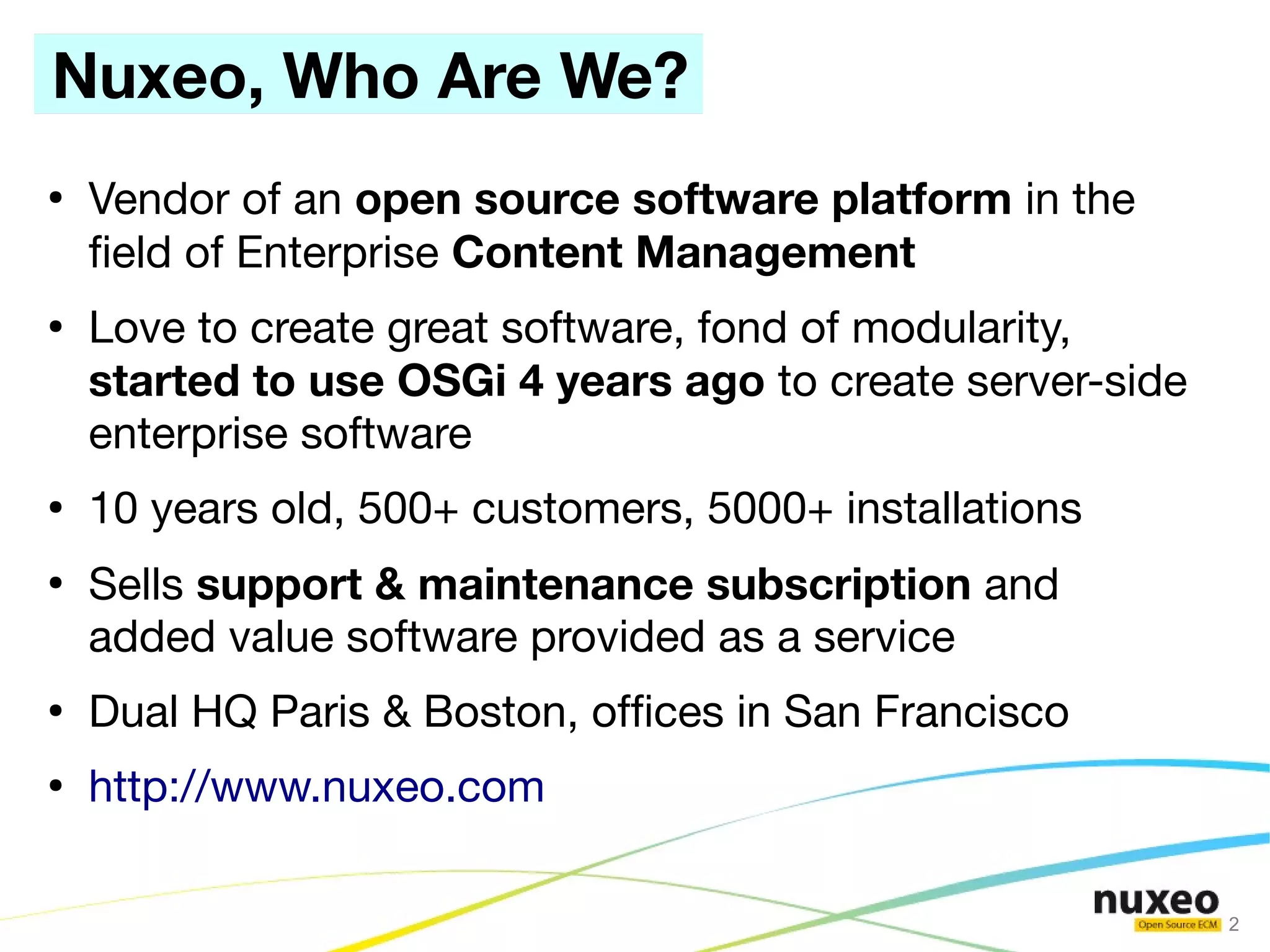

2. Nuxeo, Who Are We?
●
Vendor of an open source software platform in the
feld of Enterprise Content Management
●
Love to create great software, fond of modularity,
started to use OSGi 4 years ago to create server-side
enterprise software
●
10 years old, 500+ customers, 5000+ installations
●
Sells support & maintenance subscription and
added value software provided as a service
●
Dual HQ Paris & Boston, offces in San Francisco
●
http://www.nuxeo.com
2

3. Nuxeo Enterprise Platform
●
The software we develop is an Open Source ECM
platform known as Nuxeo Enterprise Platform (EP)
●
A platform because you can use Nuxeo EP to develop
your own customized ECM application
●
We also provide turn-key pre-built applications based
on Nuxeo EP already customized for different scopes:
– Document Management (DM)
– Digital Asset Management (DAM)
– Case Management Framework (CMF)
– or simply Content Application Platform (CAP) for developers
3

4. 4

5. Why Are We Here Today?
●
To share our experience in building an enterprise
application using OSGi and an extension point
model
●
To discuss and participate into spreading
Equinox on the server side as well
●
To grab your feedback and ideas!
●
And, why not... to do some marketing too ;-)
5

6. What Have We Achieved For Now?
●
A complex software platform made of
●
186+ bundles, 215+ extension points
●
Very fexible thanks to extension points
●
Easy to contribute new services
●
Easy to customize the default application (including UI
and business logic)
●
Running virtually everywhere
●
JBoss AS - as an EAR application
●
Tomcat - as a WAR application
●
Equinox - as an OSGi application (and Virgo very soon)
6

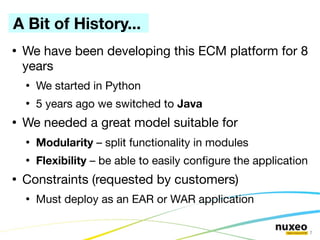

7. A Bit of History...
●
We have been developing this ECM platform for 8
years
●
We started in Python
●
5 years ago we switched to Java
●
We needed a great model suitable for
●
Modularity – split functionality in modules
●
Flexibility – be able to easily confgure the application
●
Constraints (requested by customers)
●
Must deploy as an EAR or WAR application
7

8. Choosing the Framework
●
What were the choices?
●
Java SE – nothing proposed
– No bundle life cycle, no modularity, no extension system
●
Java EE – not modular at all
– All is packaged as one big application (EAR or WAR)
– To update or add a feature you need to recompile the entire
application
●
OSGi – great specifcation – love at frst sight
– But not compatible with J2EE
– No real OSGi enterprise framework implementations at that
moment
8

9. Let's Give OSGi a Try...
●
OSGi was best suited for our dreams… but...
●
How to achieve fexibility?
●
Eclipse already had the answer: extension points
– Thanks Eclipse!
●
How to integrate with J2EE Application Servers?
●
J2EE applications are monolithic – there is no notion
of modularity inside an application; the application is
the unit
●
But our application is supposed to be a platform
made from tens or hundreds of units!
9

10. An Extension Point Model ...
●
So Eclipse already provided an extension point
model – which is very good but ...
●
It is based on EXSD descriptors
●
Diffcult to manage EXSD fles outside PDE IDE
●
PDE is very related to Eclipse plugin development
●
PDE was not friendly with server side development
– Remember we are in 2006
●
PDE was not friendly with other build systems
– We were using Maven as our build system
10

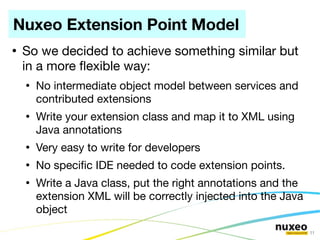

11. Nuxeo Extension Point Model
●
So we decided to achieve something similar but
in a more fexible way:
●
No intermediate object model between services and
contributed extensions
●
Write your extension class and map it to XML using
Java annotations
●
Very easy to write for developers
●
No specifc IDE needed to code extension points.
●
Write a Java class, put the right annotations and the
extension XML will be correctly injected into the Java
object
11

12. Extension Example
XML Extension Extension Class
12

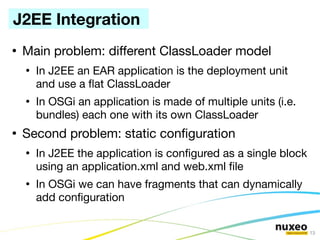

13. J2EE Integration
●
Main problem: different ClassLoader model
●
In J2EE an EAR application is the deployment unit
and use a fat ClassLoader
●
In OSGi an application is made of multiple units (i.e.
bundles) each one with its own ClassLoader
●
Second problem: static confguration
●
In J2EE the application is confgured as a single block
using an application.xml and web.xml fle
●
In OSGi we can have fragments that can dynamically
add confguration
13

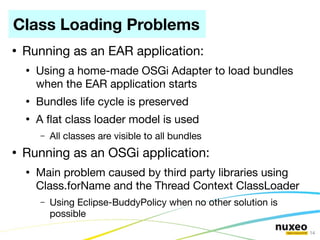

14. Class Loading Problems
●
Running as an EAR application:
●
Using a home-made OSGi Adapter to load bundles
when the EAR application starts
●
Bundles life cycle is preserved
●
A fat class loader model is used
– All classes are visible to all bundles
●
Running as an OSGi application:
●
Main problem caused by third party libraries using
Class.forName and the Thread Context ClassLoader
– Using Eclipse-BuddyPolicy when no other solution is
possible
14

15. Confguration Fragments – 1
●
On J2EE confguration is monolithic
●
To declare servlets you should know in advance what
are the servlets provided by different bundles
●
Using templates for J2EE confguration fles
●
Dynamically generate these fles at application startup
from the confguration contributed by bundles
●
Able to package EAR applications that can adapt
themselves to the confguration provided by
application bundles
●
No need of having different product packagings for
different confgurations
15

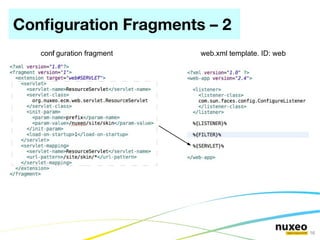

16. Confguration Fragments – 2
conf guration fragment
i web.xml template. ID: web
16

17. J2EE Features Added to OSGi
●
Full OSGi integration of JAAS – for the
authentication system
●
Full JTA (transactions) support through Apache
Geronimo
●
Full JCA (resource adapters and pooling) support
through Apache Geronimo
●
In-memory JNDI server
●
Future plans to integrate the work done in the
Gemini project (and also support Virgo)
17

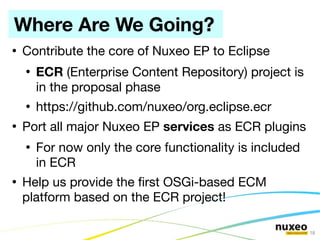

18. Where Are We Going?
●
Contribute the core of Nuxeo EP to Eclipse
●
ECR (Enterprise Content Repository) project is
in the proposal phase
●
https://github.com/nuxeo/org.eclipse.ecr
●
Port all major Nuxeo EP services as ECR plugins
●
For now only the core functionality is included
in ECR
●
Help us provide the frst OSGi-based ECM
platform based on the ECR project!
18

19. Questions?
Start Hacking ECR:
https://github.com/nuxeo/org.eclipse.ecr
Get Involved:
ECR Proposal Forum
Read more:
Eclipse ECR Proposal
Nuxeo EP Reference Documentation
Contact me/us:
Bogdan Stefanescu - bstefanescu@nuxeo.com
http://www.nuxeo.com
19
