The document discusses using OSGi and Java EE together for enterprise application development. It provides an overview of OSGi including modules, services, and lifecycle. OSGi allows Java EE applications to be built as bundles that can leverage Java EE services. Specifications integrate technologies like JPA, JTA, and web applications. A demo shows lazy loading with JPA, EJB as a service, and security/transaction context propagation. More advanced topics include CDI injection of OSGi services and demos. The hybrid approach provides modularity, dynamism, and ease of deployment benefits for enterprise applications.

1. 1

2. <Insert Picture Here>
OSGi and Java EE: A Hybrid Approach to Enterprise Java Application
Development
Sanjeeb Sahoo and Sivakumar Thyagarajan
Staff Engineers, Sun Microsystems India Pvt. Ltd.

3. JavaOne and Oracle Develop
Latin America 2010
December 7–9, 2010
3

4. JavaOne and Oracle Develop
Beijing 2010
December 13–16, 2010
4

5. Agenda
• OSGi 101 <Insert Picture Here>
• Basic OSGi Demo
• OSGi meets Java EE – Hybrid Applications
• Hybrid Application Demo
• Advanced usecases
• Q&A
5

6. Agenda
• OSGi 101 <Insert Picture Here>
• Basic OSGi Demo
• OSGi meets Java EE – Hybrid Applications
• Hybrid Application Demo
• Advanced usecases
• Q&A
6

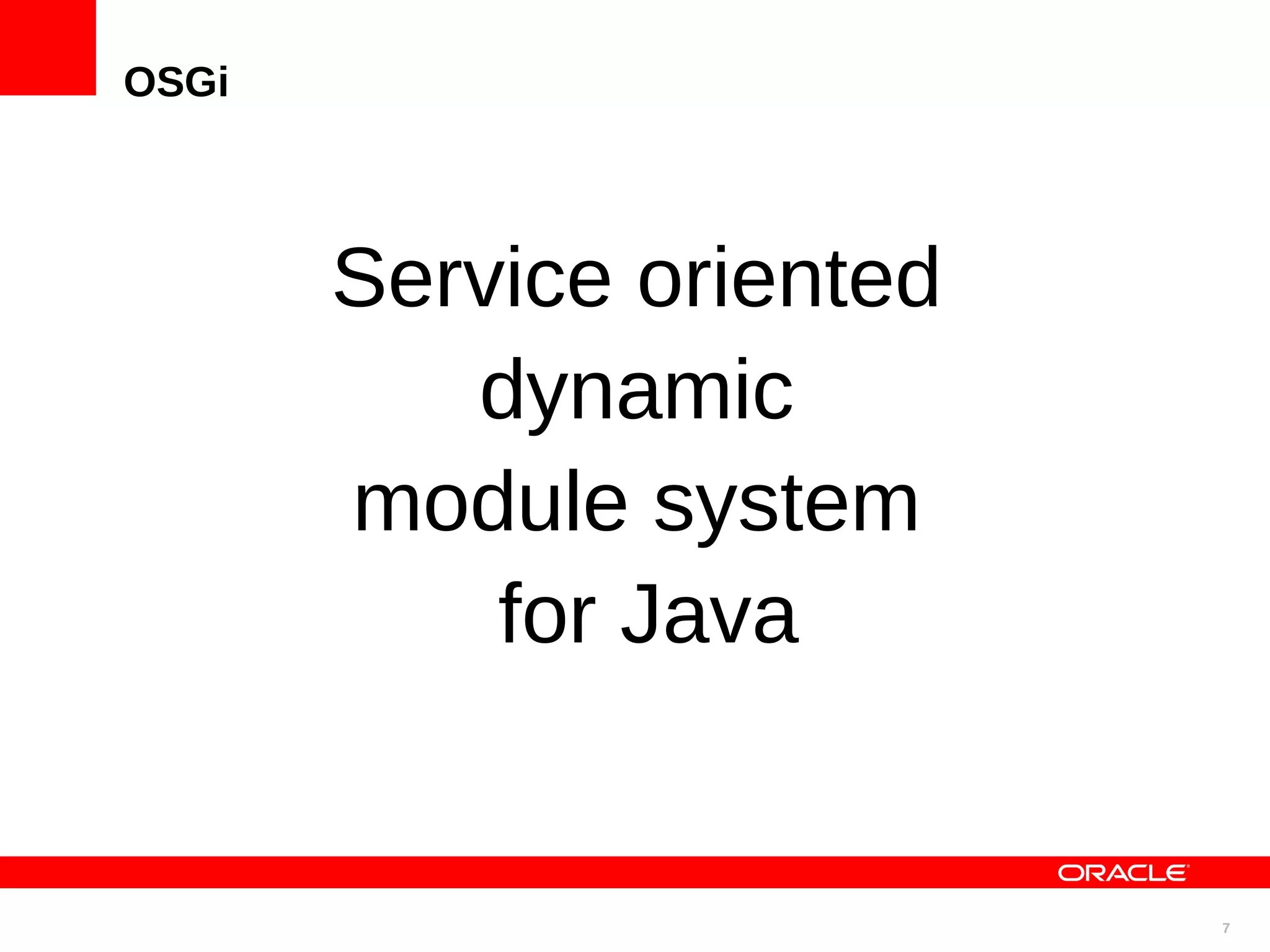

7. OSGi
Service oriented
dynamic
module system
for Java
7

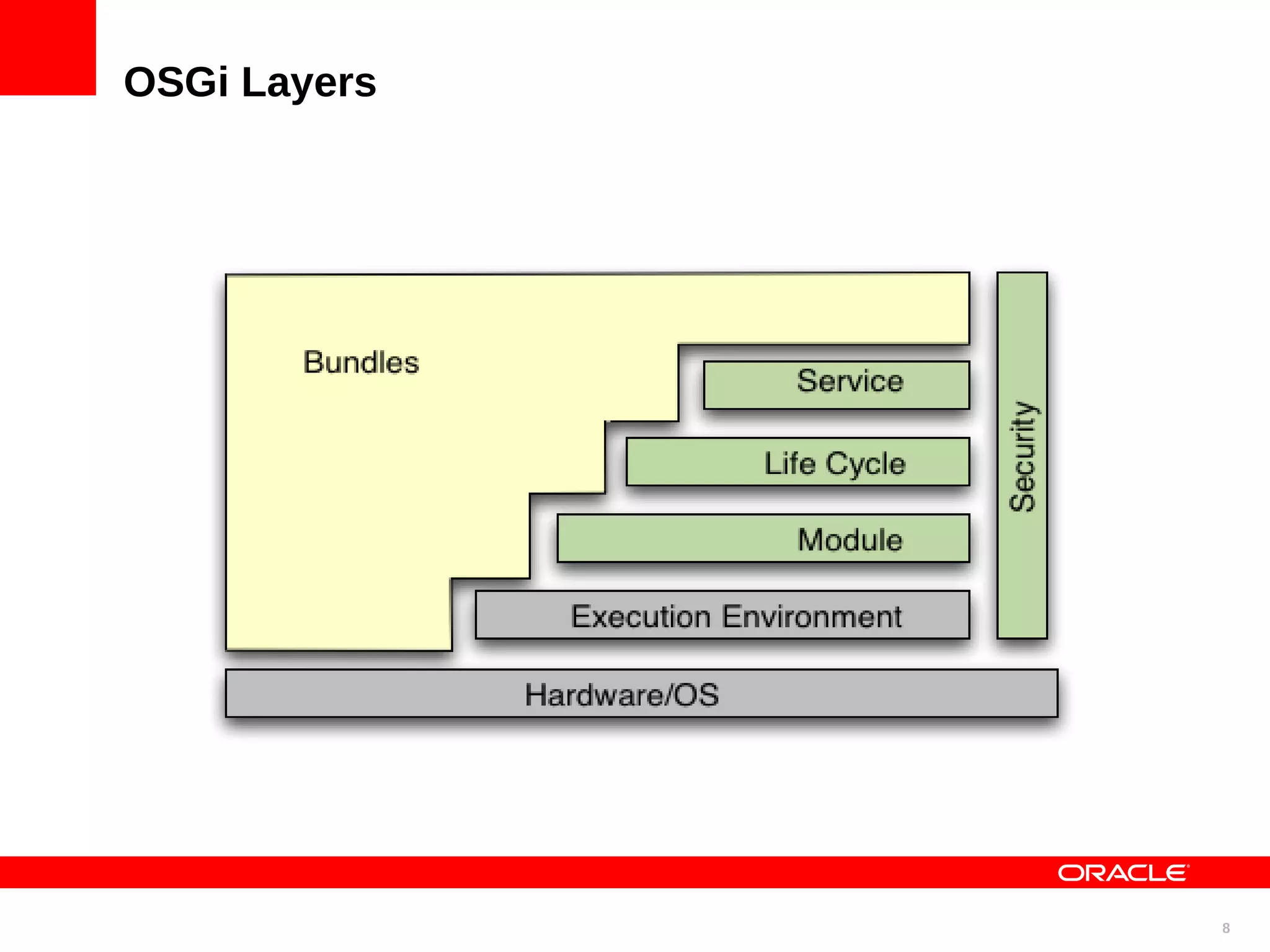

8. OSGi Layers
8

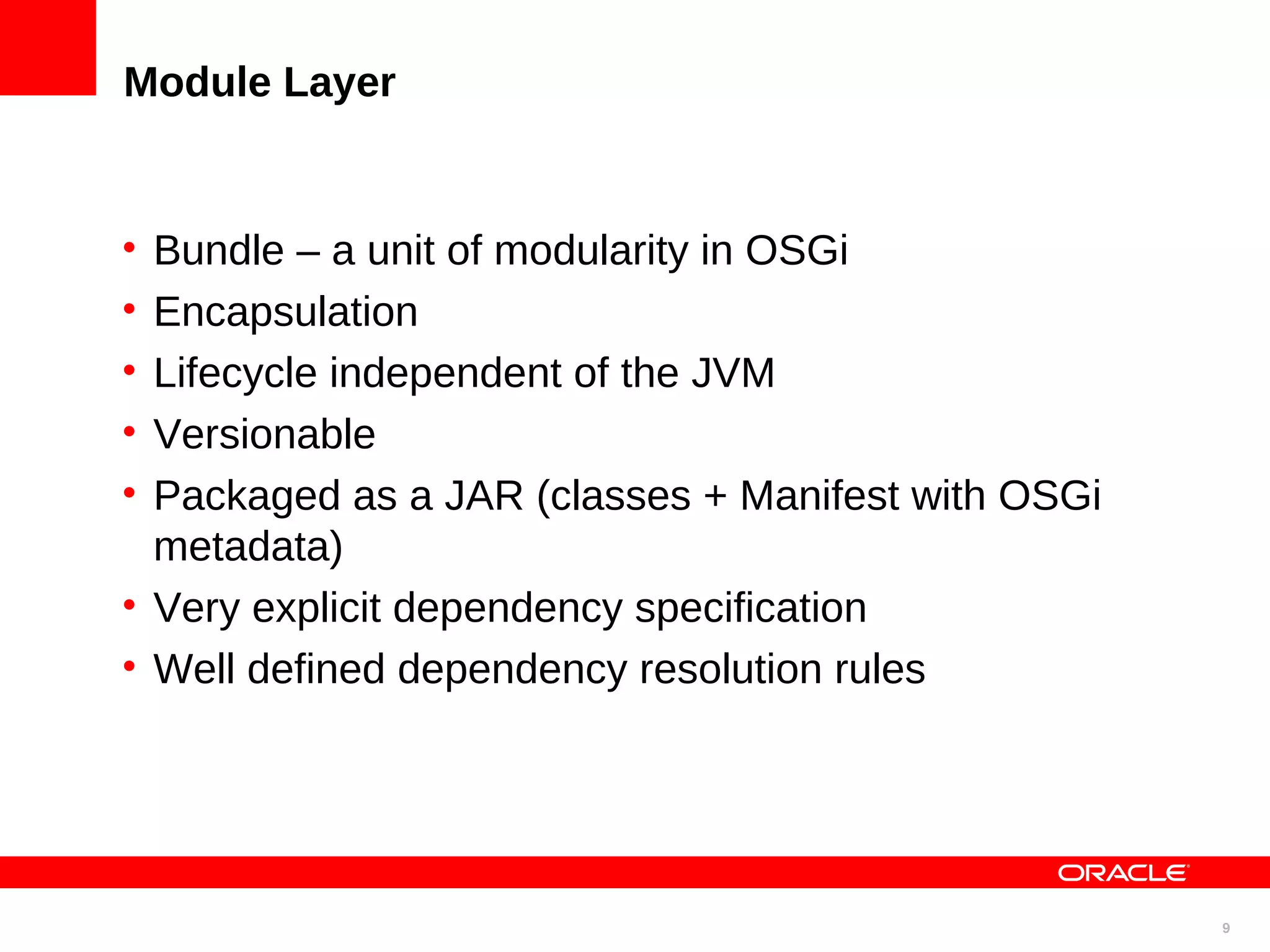

9. Module Layer
• Bundle – a unit of modularity in OSGi
• Encapsulation
• Lifecycle independent of the JVM
• Versionable
• Packaged as a JAR (classes + Manifest with OSGi
metadata)
• Very explicit dependency specification
• Well defined dependency resolution rules
9

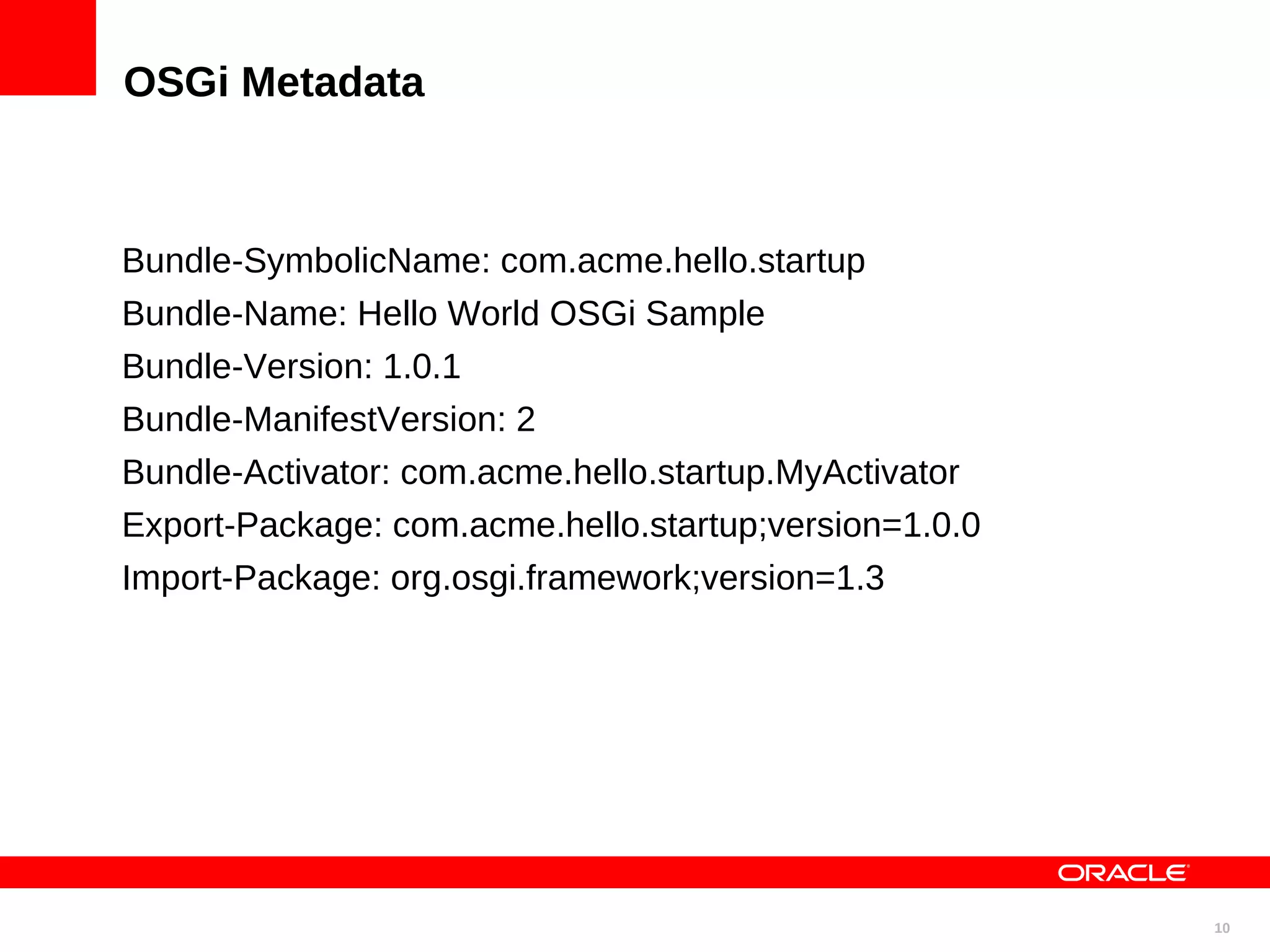

10. OSGi Metadata
Bundle-SymbolicName: com.acme.hello.startup
Bundle-Name: Hello World OSGi Sample
Bundle-Version: 1.0.1
Bundle-ManifestVersion: 2
Bundle-Activator: com.acme.hello.startup.MyActivator
Export-Package: com.acme.hello.startup;version=1.0.0
Import-Package: org.osgi.framework;version=1.3
10

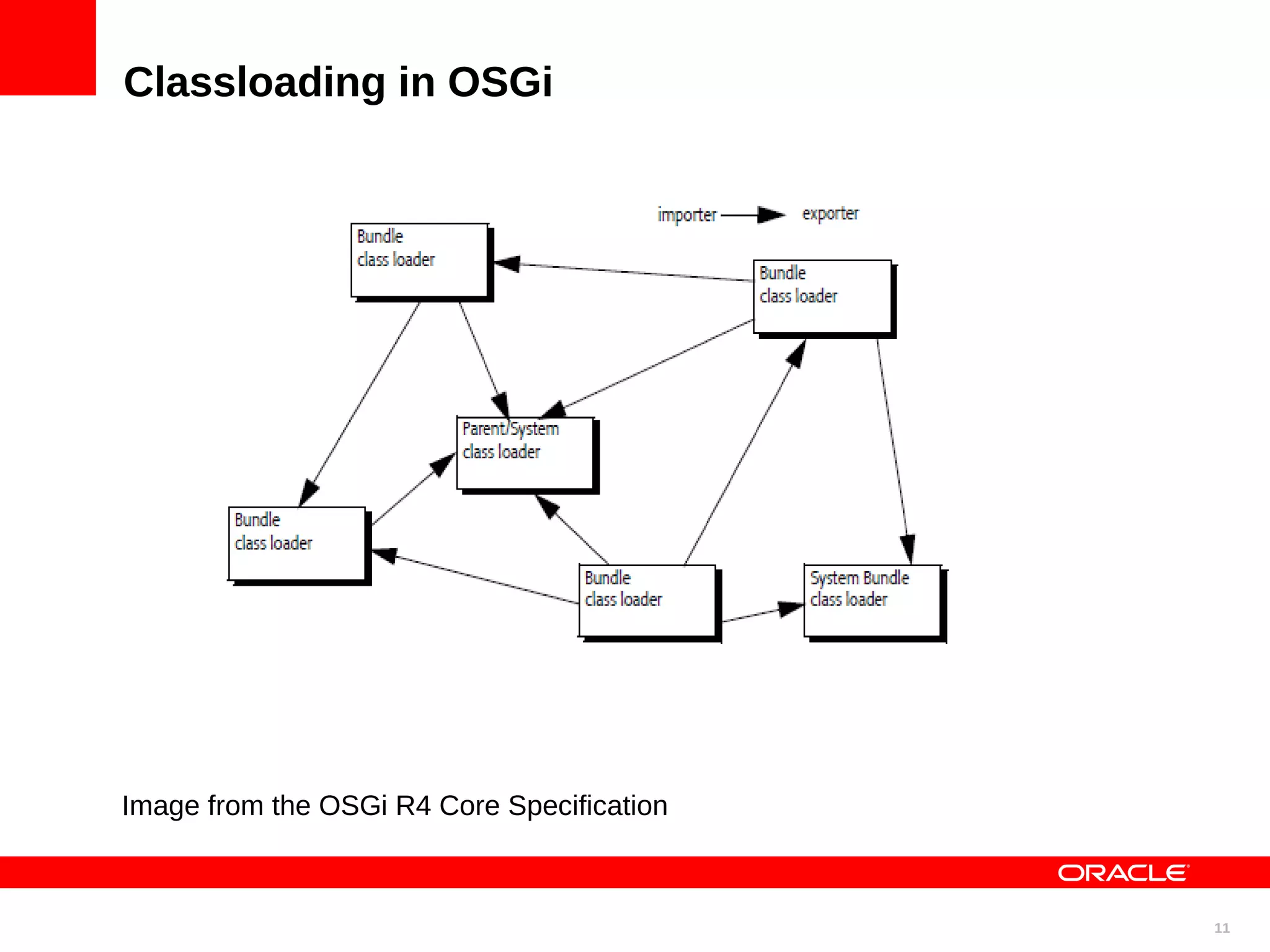

11. Classloading in OSGi
Image from the OSGi R4 Core Specification
11

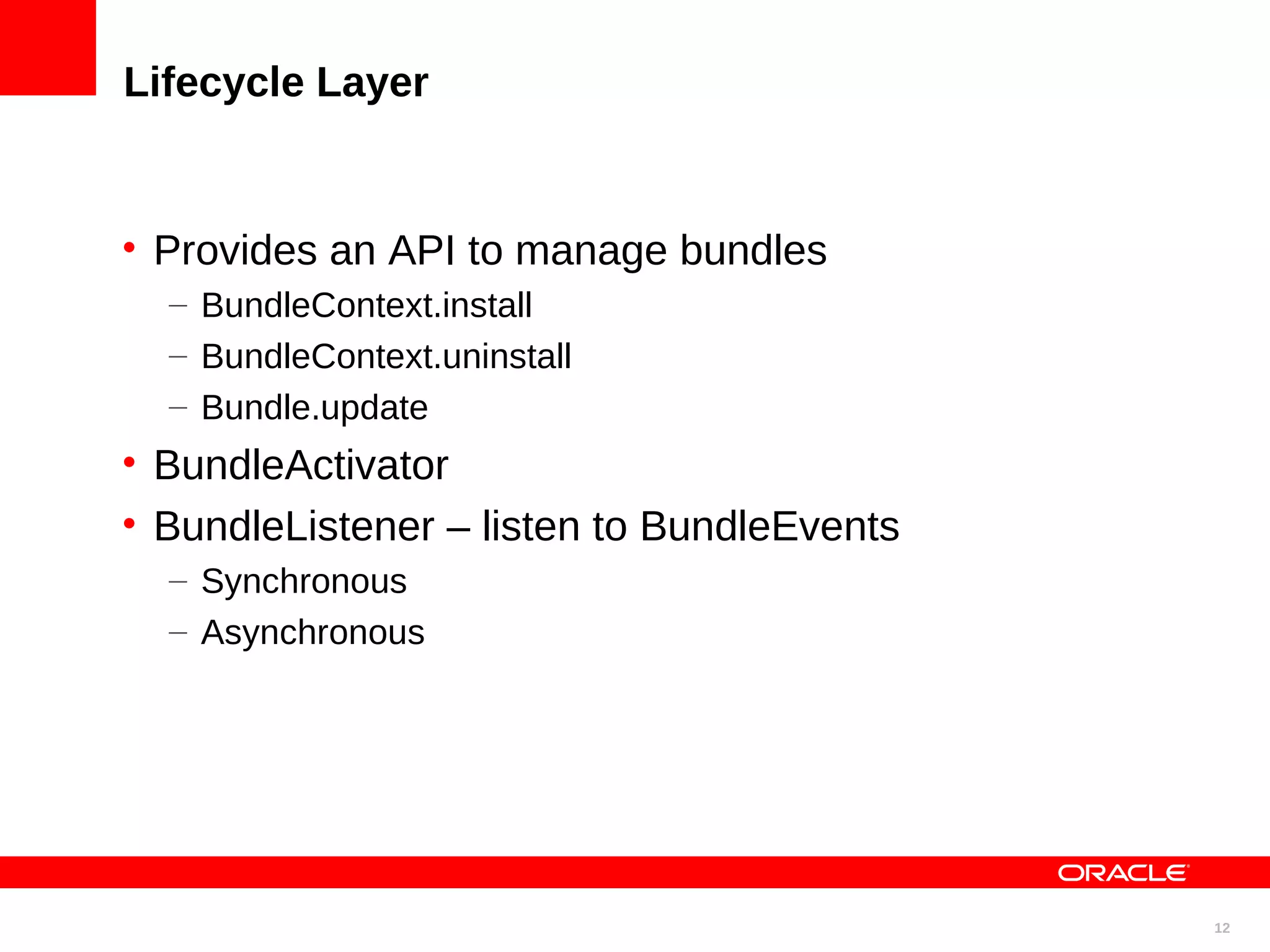

12. Lifecycle Layer
• Provides an API to manage bundles
– BundleContext.install
– BundleContext.uninstall
– Bundle.update
• BundleActivator
• BundleListener – listen to BundleEvents
– Synchronous
– Asynchronous
12

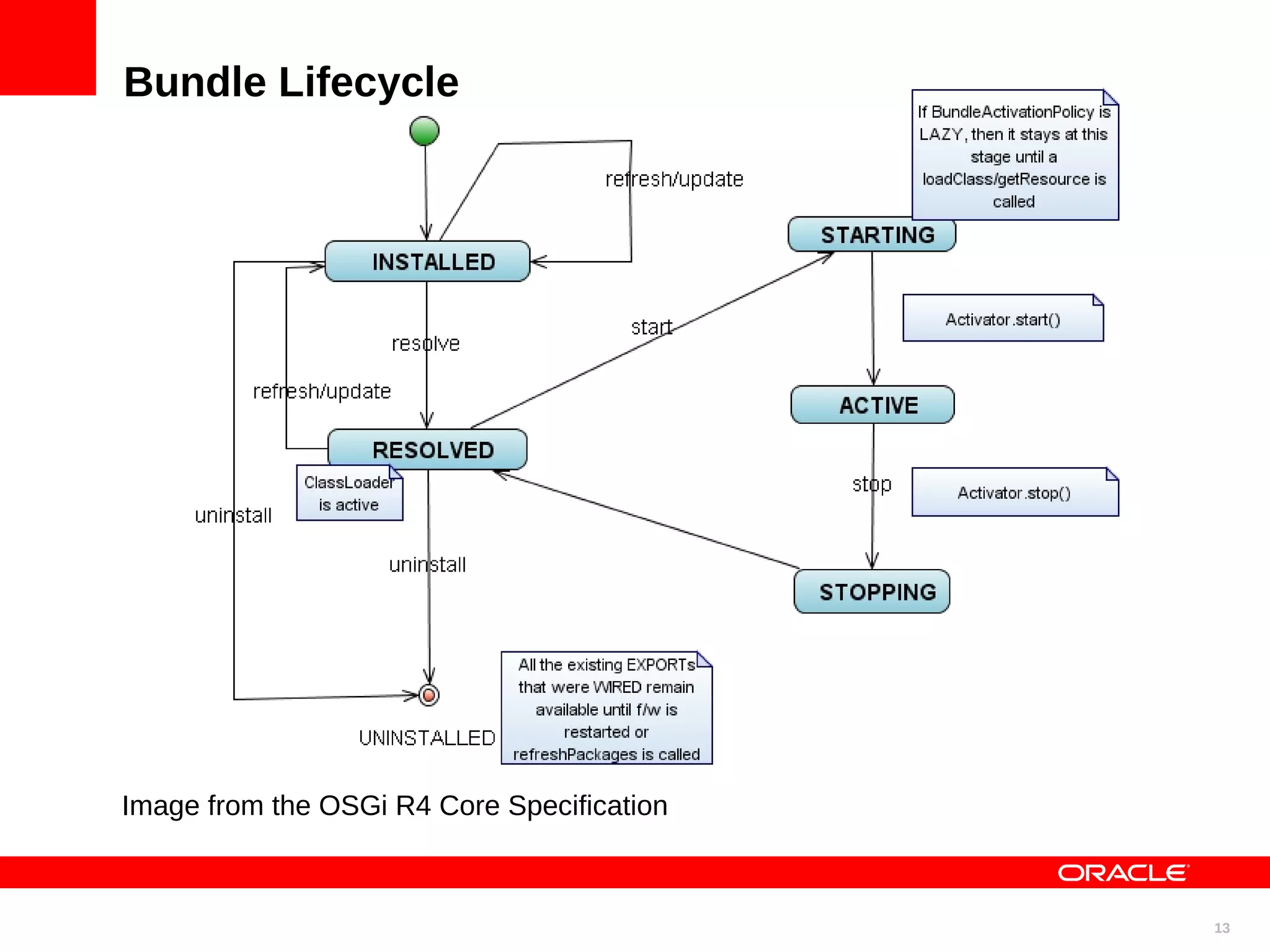

13. Bundle Lifecycle
Image from the OSGi R4 Core Specification
13

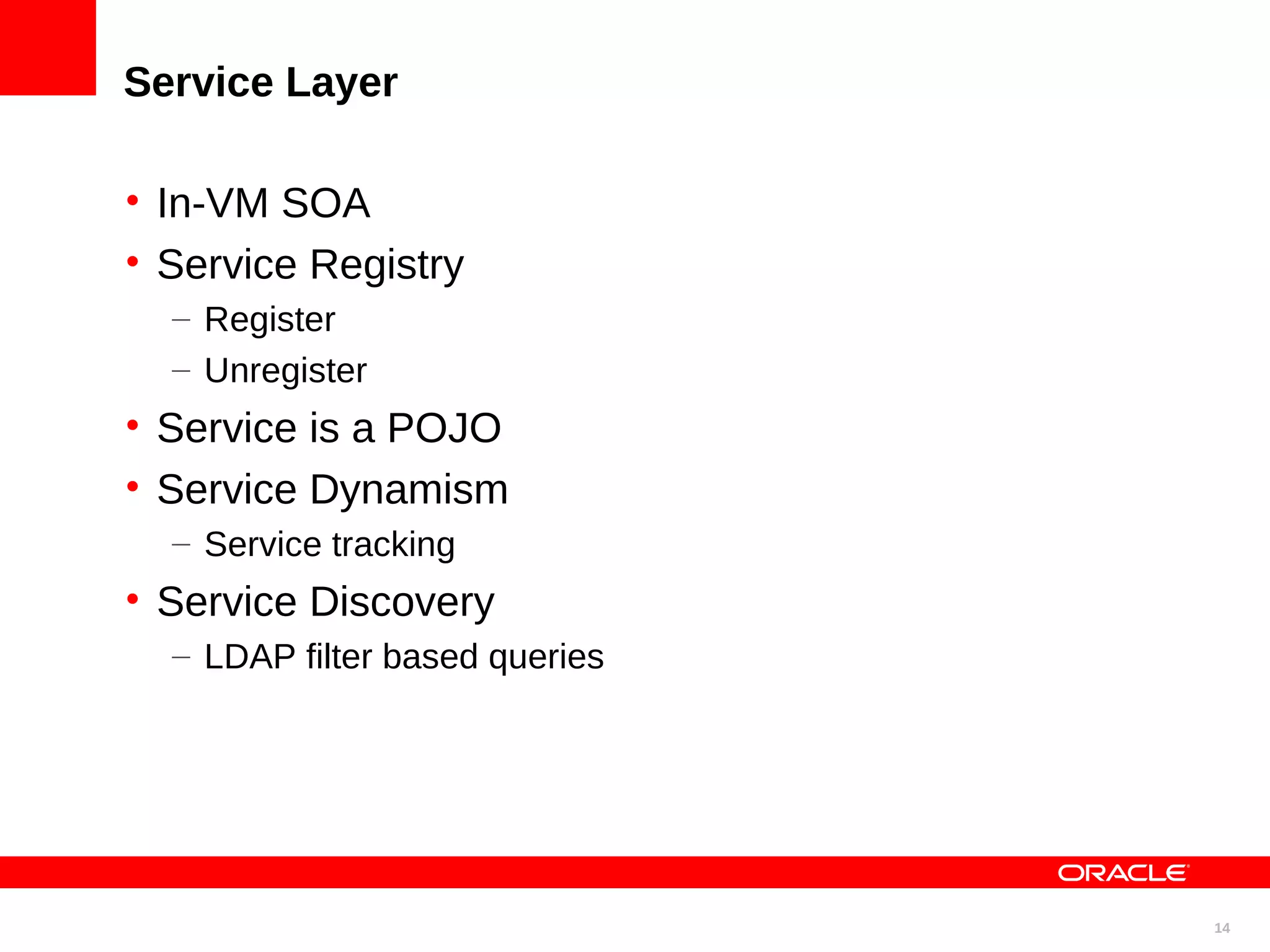

14. Service Layer
• In-VM SOA
• Service Registry
– Register
– Unregister
• Service is a POJO
• Service Dynamism
– Service tracking
• Service Discovery
– LDAP filter based queries
14

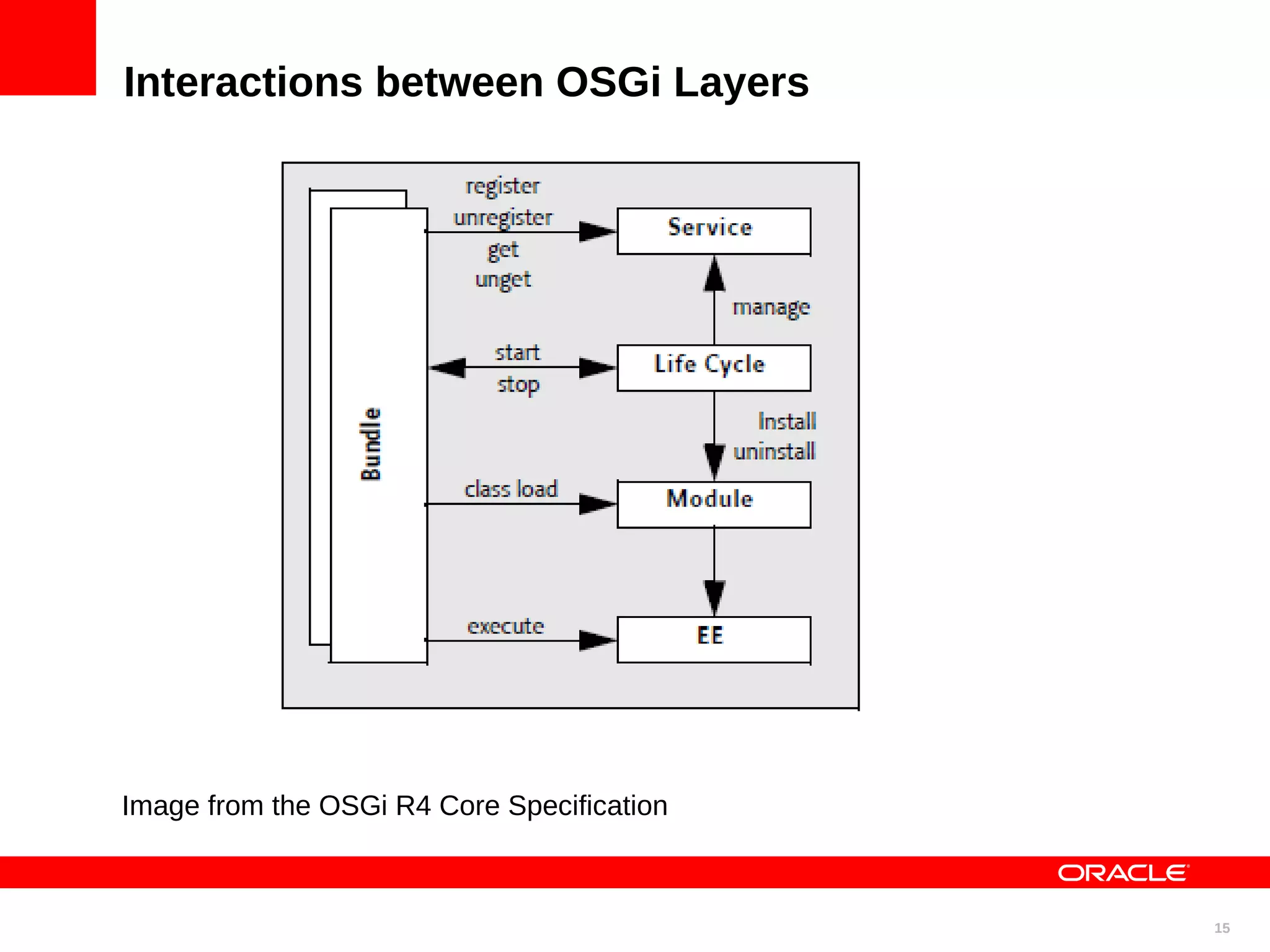

15. Interactions between OSGi Layers
Image from the OSGi R4 Core Specification
15

16. Simple OSGi Demo
16

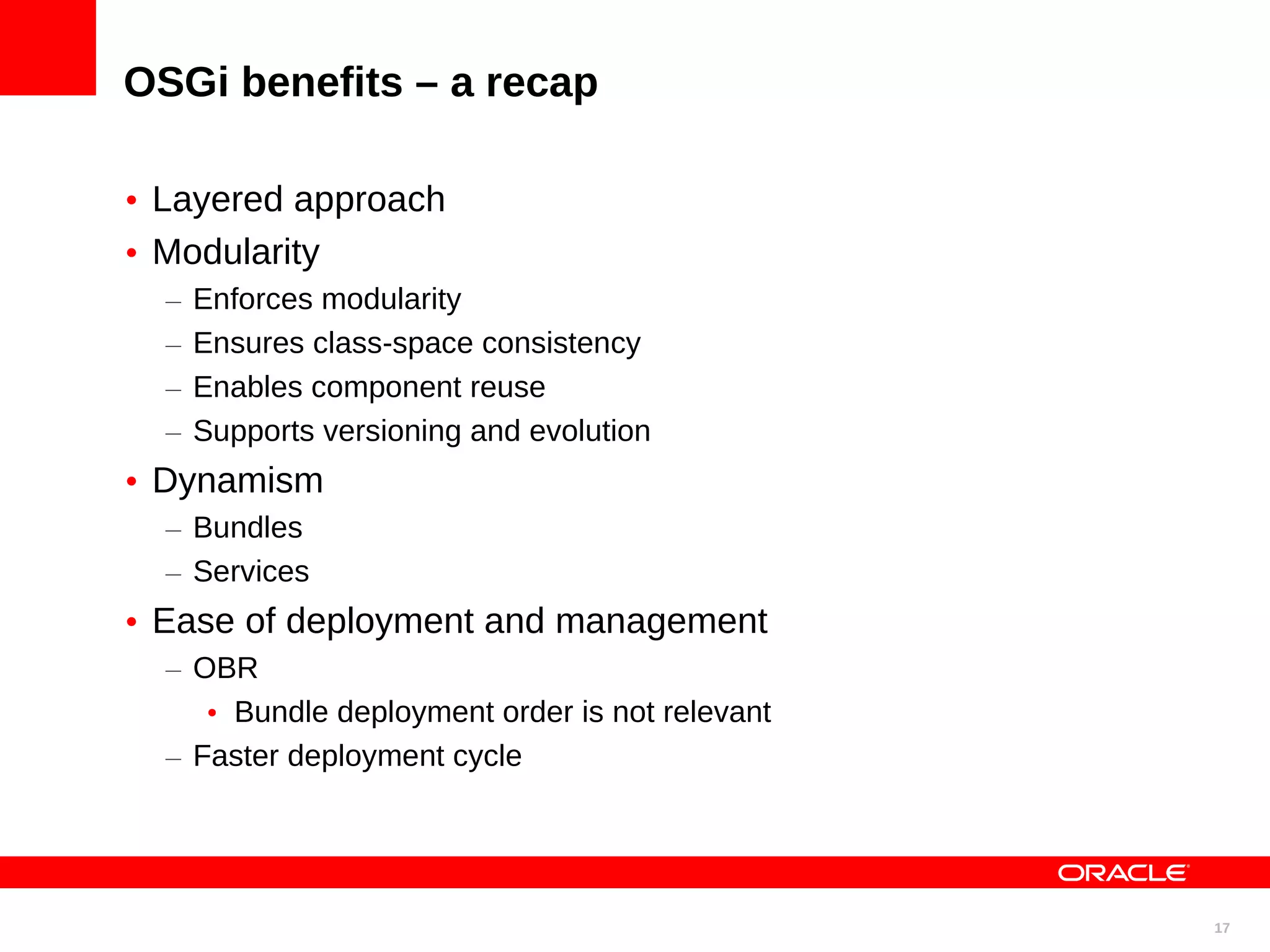

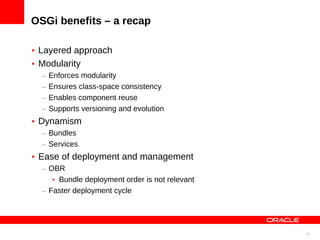

17. OSGi benefits – a recap
• Layered approach
• Modularity
– Enforces modularity
– Ensures class-space consistency
– Enables component reuse
– Supports versioning and evolution
• Dynamism
– Bundles
– Services
• Ease of deployment and management
– OBR
• Bundle deployment order is not relevant
– Faster deployment cycle
17

18. OSGi meets Java EE
18

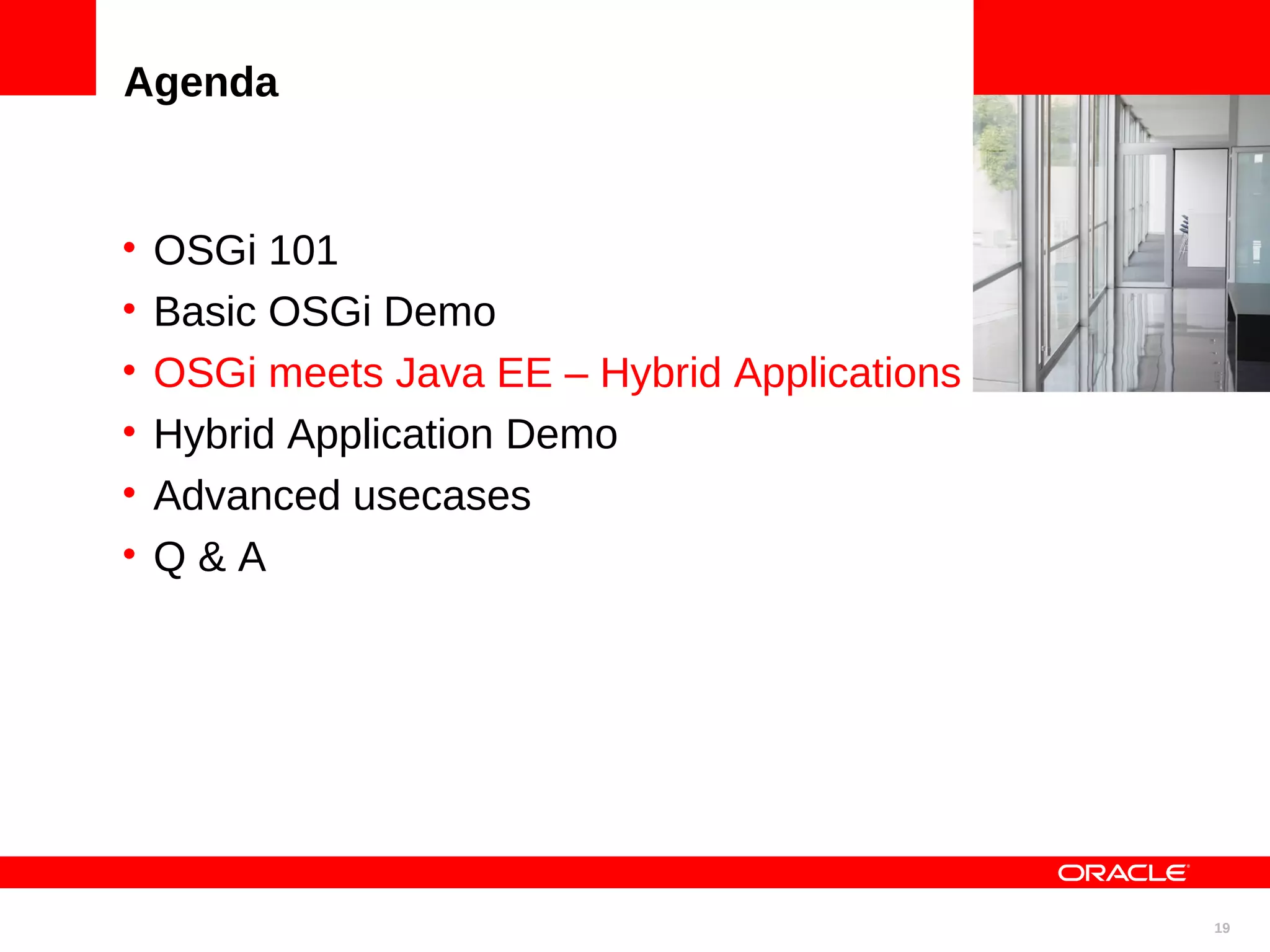

19. Agenda
• OSGi 101 <Insert Picture Here>
• Basic OSGi Demo
• OSGi meets Java EE – Hybrid Applications
• Hybrid Application Demo
• Advanced usecases
• Q&A
19

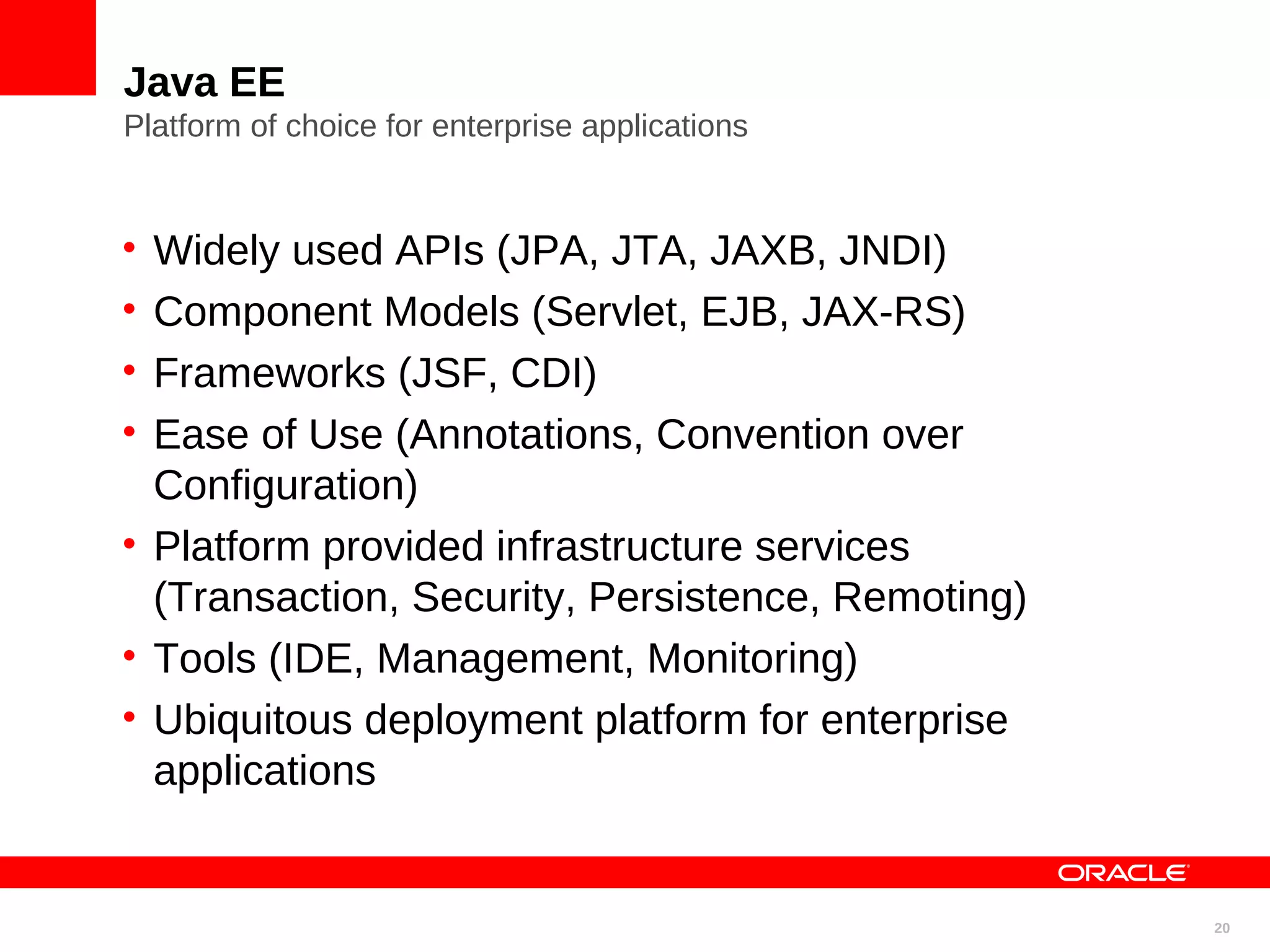

20. Java EE
Platform of choice for enterprise applications
• Widely used APIs (JPA, JTA, JAXB, JNDI)
• Component Models (Servlet, EJB, JAX-RS)
• Frameworks (JSF, CDI)
• Ease of Use (Annotations, Convention over
Configuration)
• Platform provided infrastructure services
(Transaction, Security, Persistence, Remoting)
• Tools (IDE, Management, Monitoring)
• Ubiquitous deployment platform for enterprise
applications
20

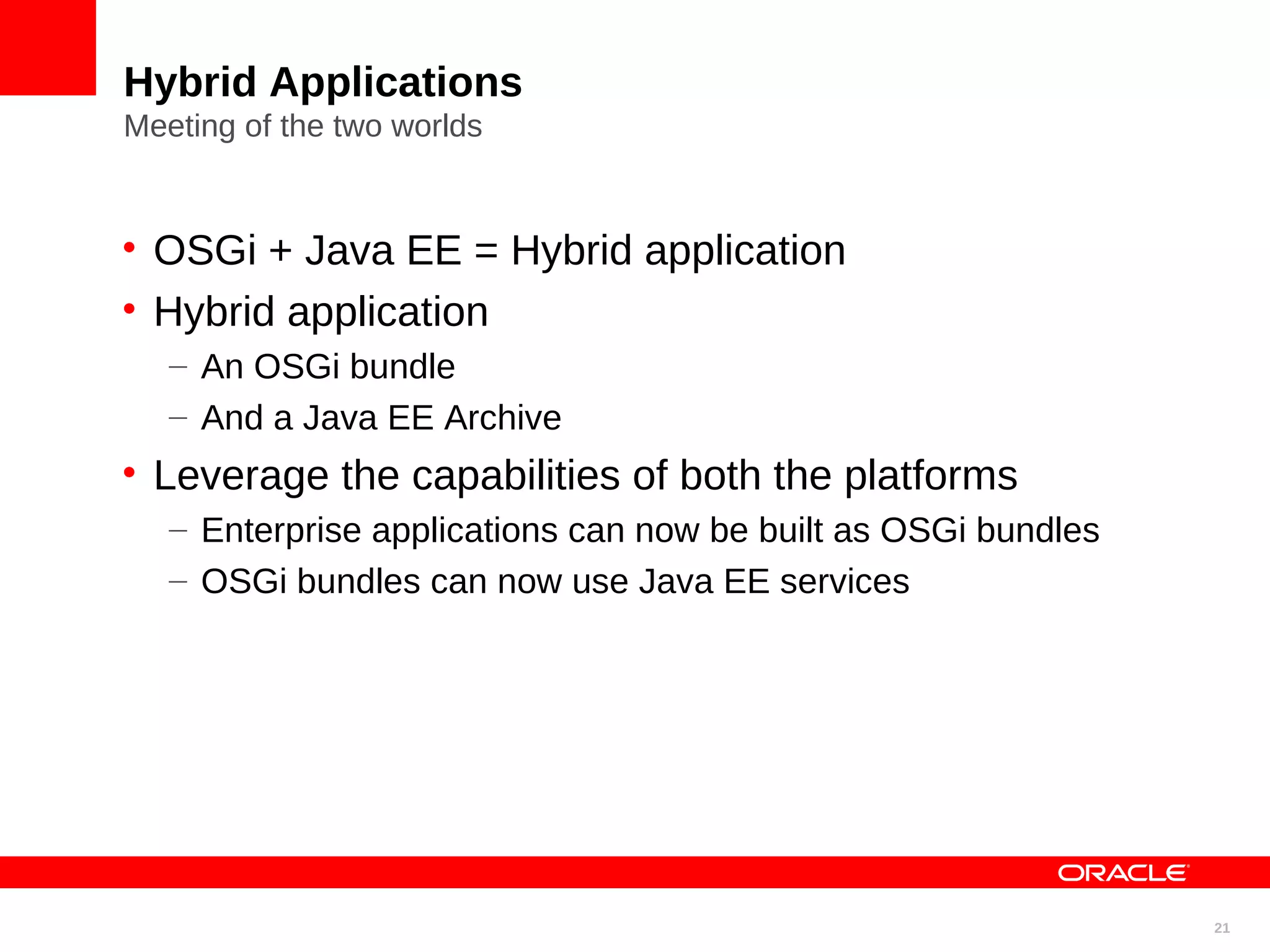

21. Hybrid Applications
Meeting of the two worlds
• OSGi + Java EE = Hybrid application
• Hybrid application
– An OSGi bundle
– And a Java EE Archive
• Leverage the capabilities of both the platforms
– Enterprise applications can now be built as OSGi bundles
– OSGi bundles can now use Java EE services
21

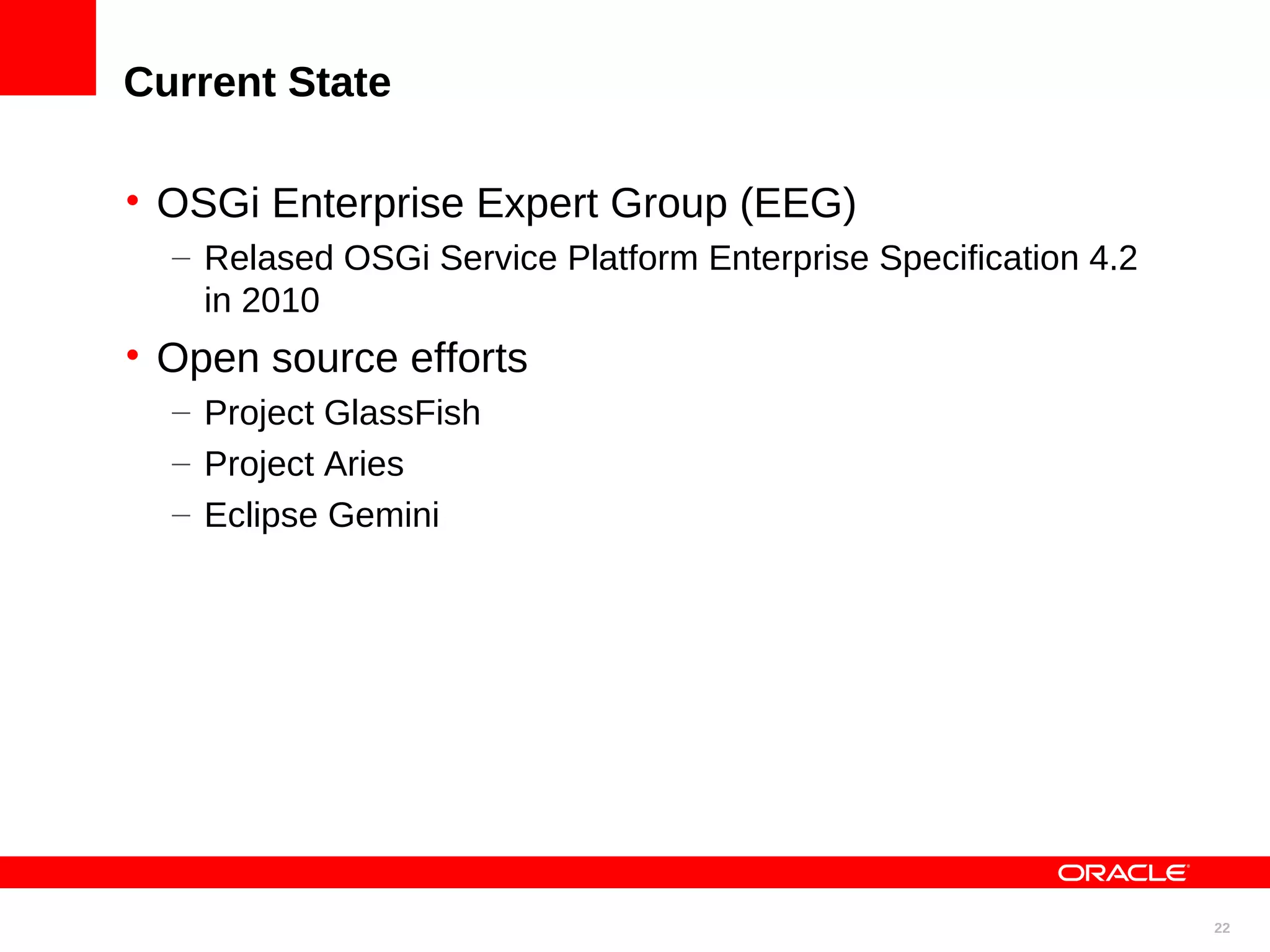

22. Current State
• OSGi Enterprise Expert Group (EEG)
– Relased OSGi Service Platform Enterprise Specification 4.2
in 2010
• Open source efforts
– Project GlassFish
– Project Aries
– Eclipse Gemini
22

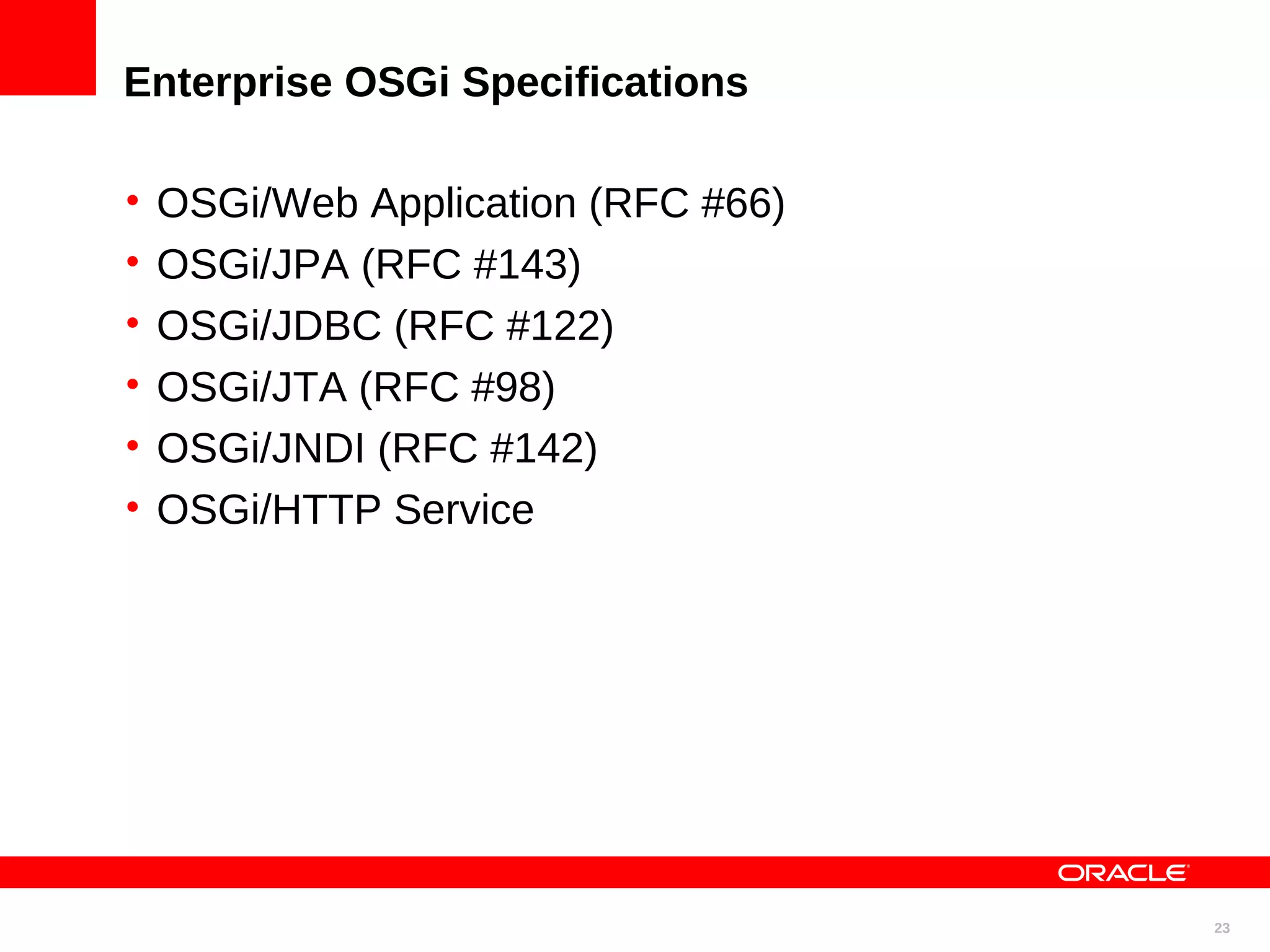

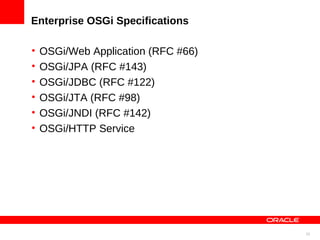

23. Enterprise OSGi Specifications
• OSGi/Web Application (RFC #66)
• OSGi/JPA (RFC #143)
• OSGi/JDBC (RFC #122)
• OSGi/JTA (RFC #98)
• OSGi/JNDI (RFC #142)
• OSGi/HTTP Service
23

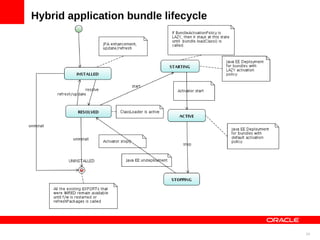

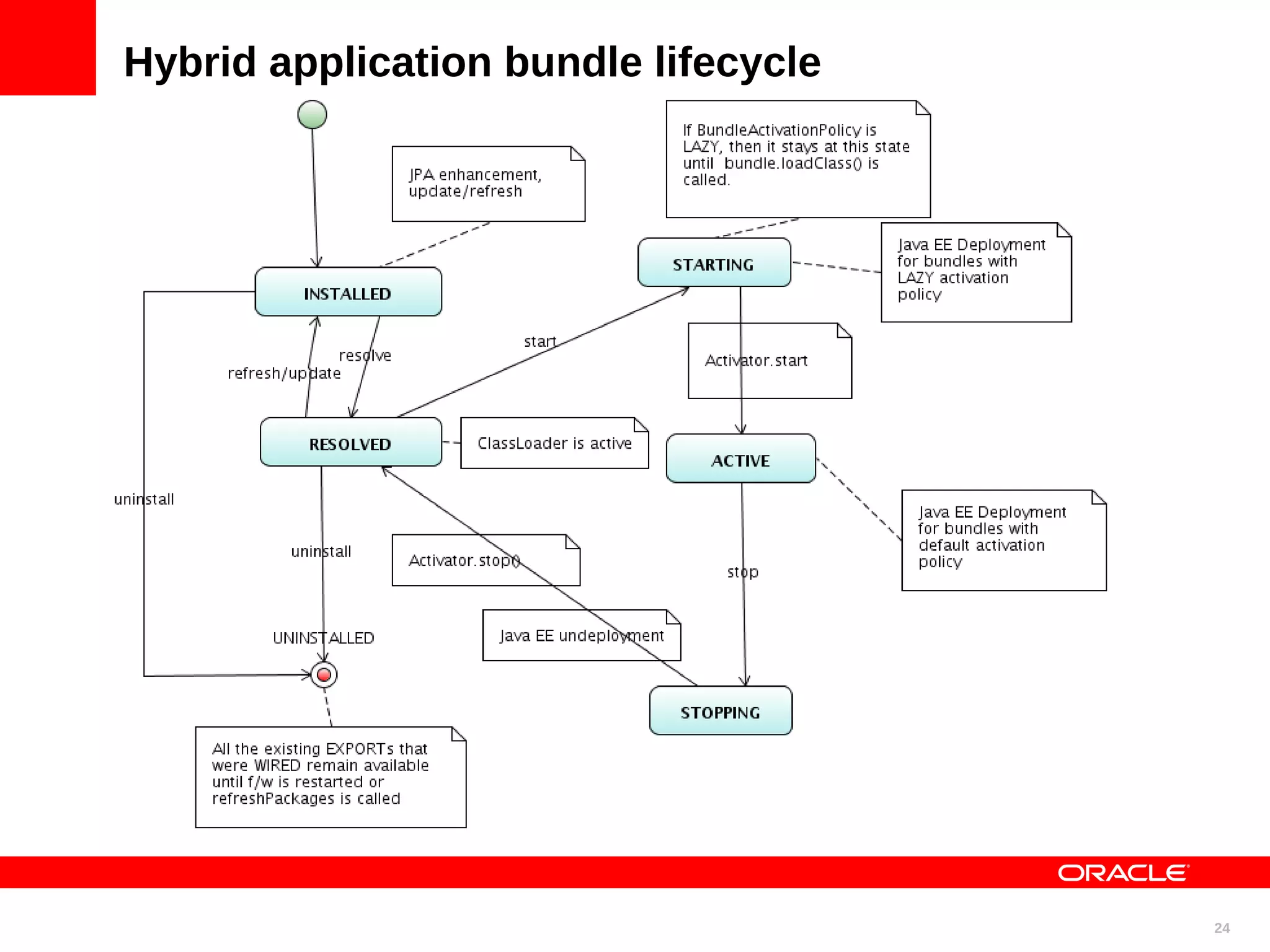

24. Hybrid application bundle lifecycle
24

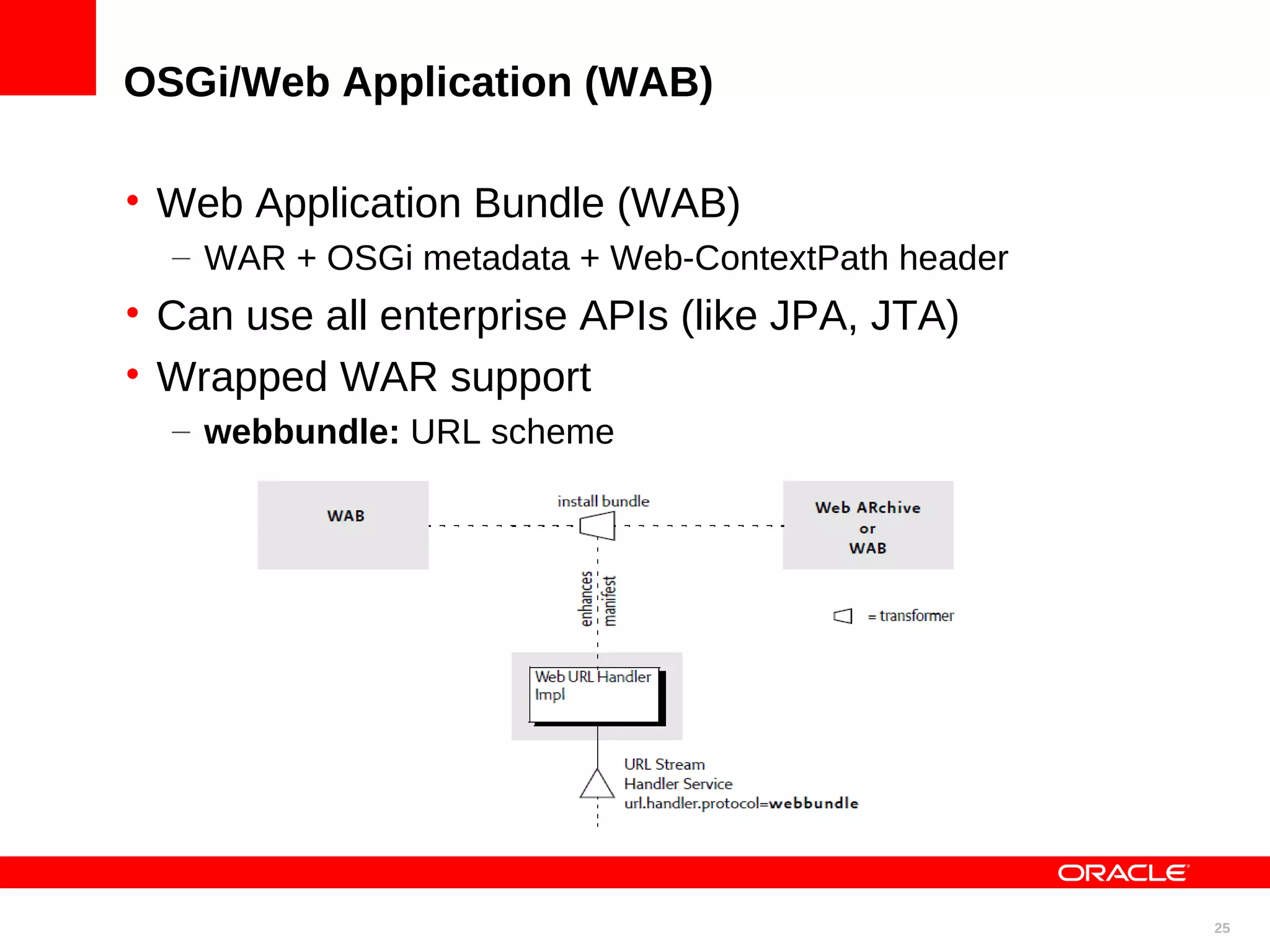

25. OSGi/Web Application (WAB)
• Web Application Bundle (WAB)
– WAR + OSGi metadata + Web-ContextPath header
• Can use all enterprise APIs (like JPA, JTA)
• Wrapped WAR support
– webbundle: URL scheme
25

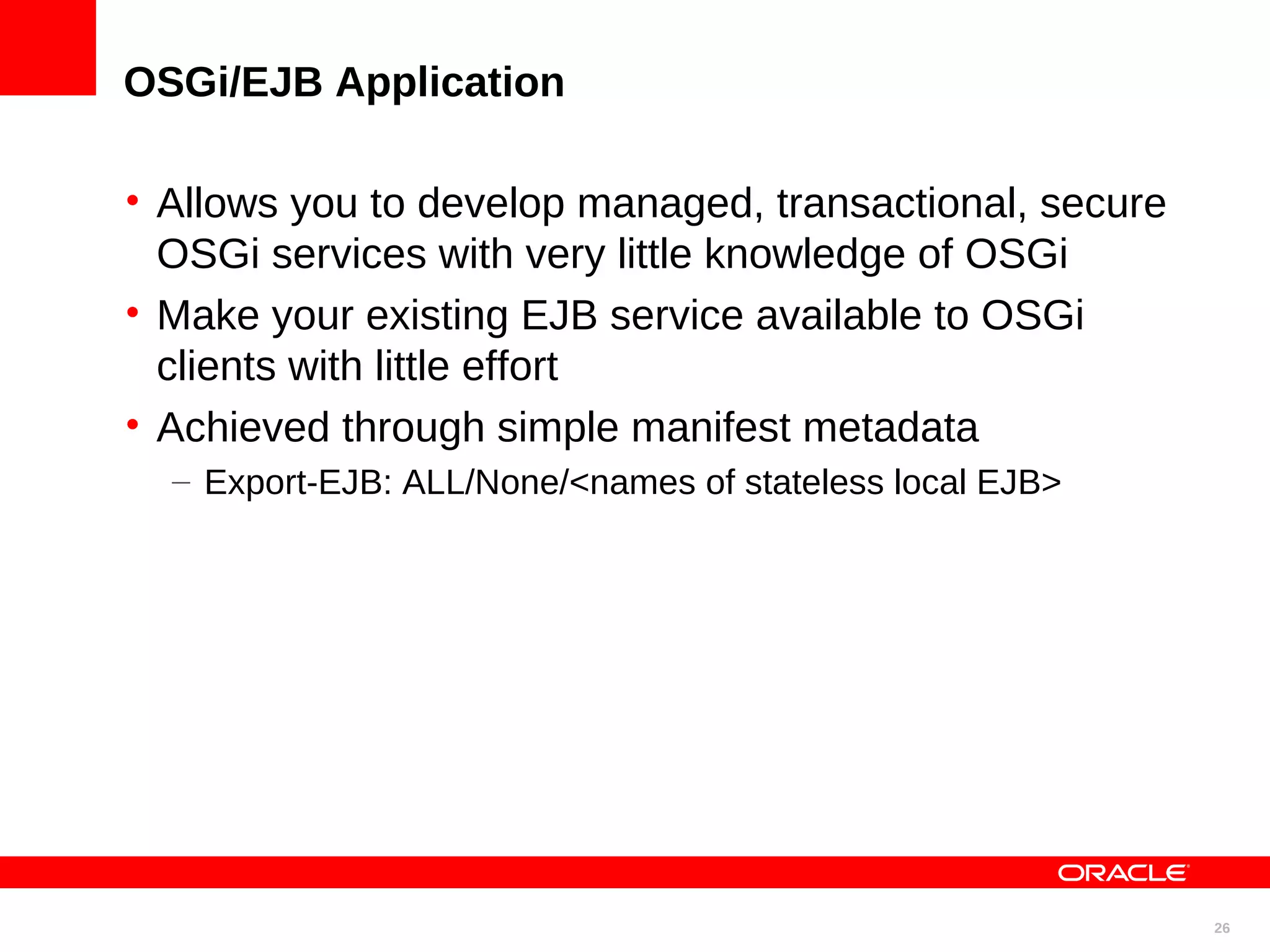

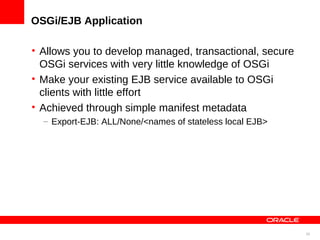

26. OSGi/EJB Application
• Allows you to develop managed, transactional, secure
OSGi services with very little knowledge of OSGi
• Make your existing EJB service available to OSGi
clients with little effort
• Achieved through simple manifest metadata
– Export-EJB: ALL/None/<names of stateless local EJB>
26

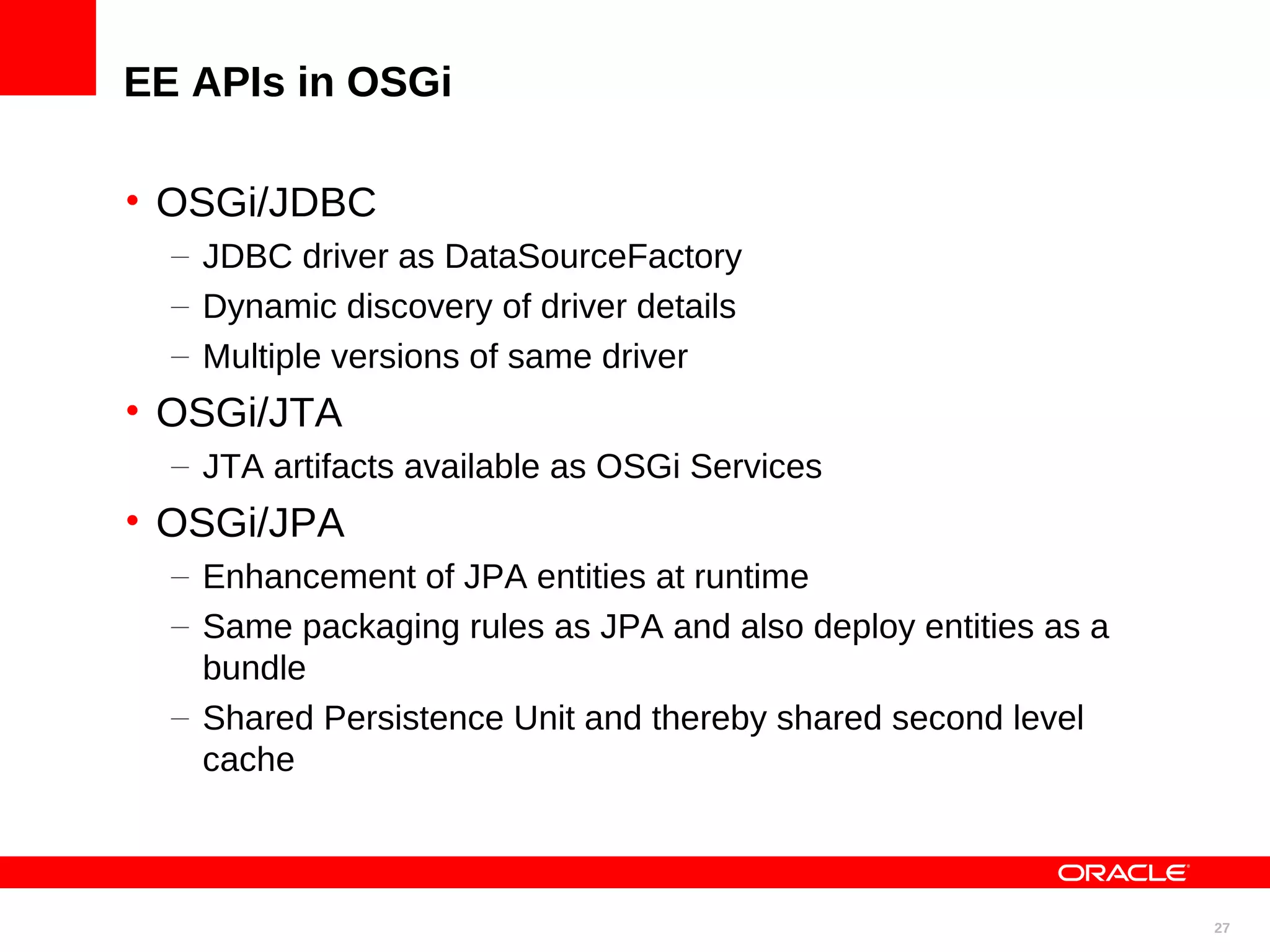

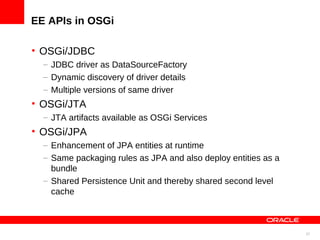

27. EE APIs in OSGi
• OSGi/JDBC
– JDBC driver as DataSourceFactory
– Dynamic discovery of driver details
– Multiple versions of same driver
• OSGi/JTA
– JTA artifacts available as OSGi Services
• OSGi/JPA
– Enhancement of JPA entities at runtime
– Same packaging rules as JPA and also deploy entities as a
bundle
– Shared Persistence Unit and thereby shared second level
cache
27

28. Demo: Putting them
together
28

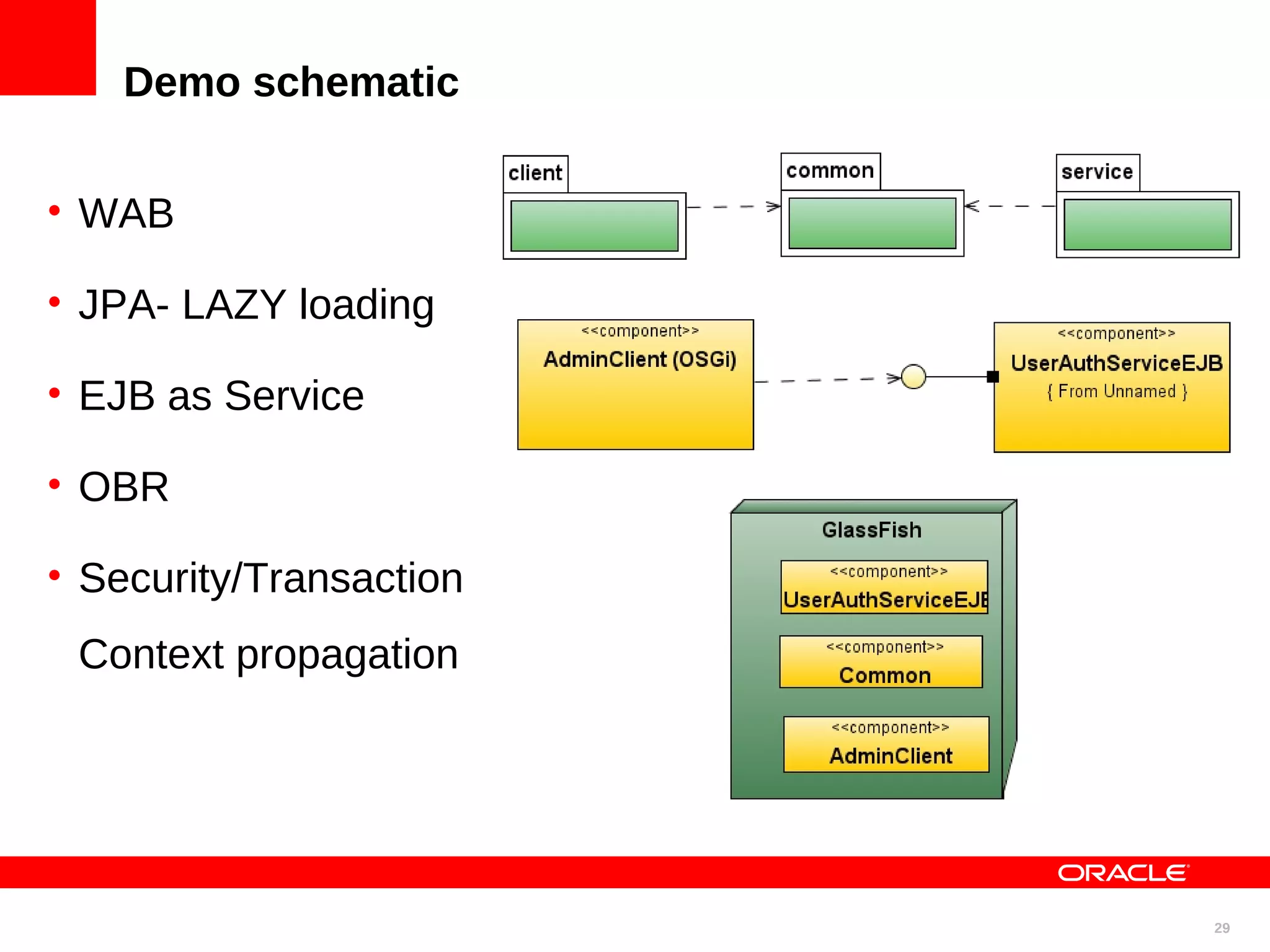

29. Demo schematic
• WAB
• JPA- LAZY loading
• EJB as Service
• OBR
• Security/Transaction
Context propagation
29

30. Advanced Usecases
30

31. Agenda
• OSGi 101 <Insert Picture Here>
• Basic OSGi Demo
• OSGi meets Java EE – Hybrid Applications
• Hybrid Application Demo
• Advanced usecases
• Q&A
31

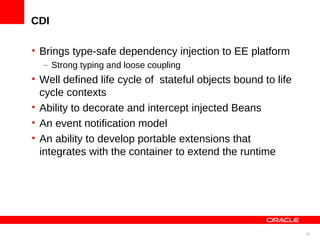

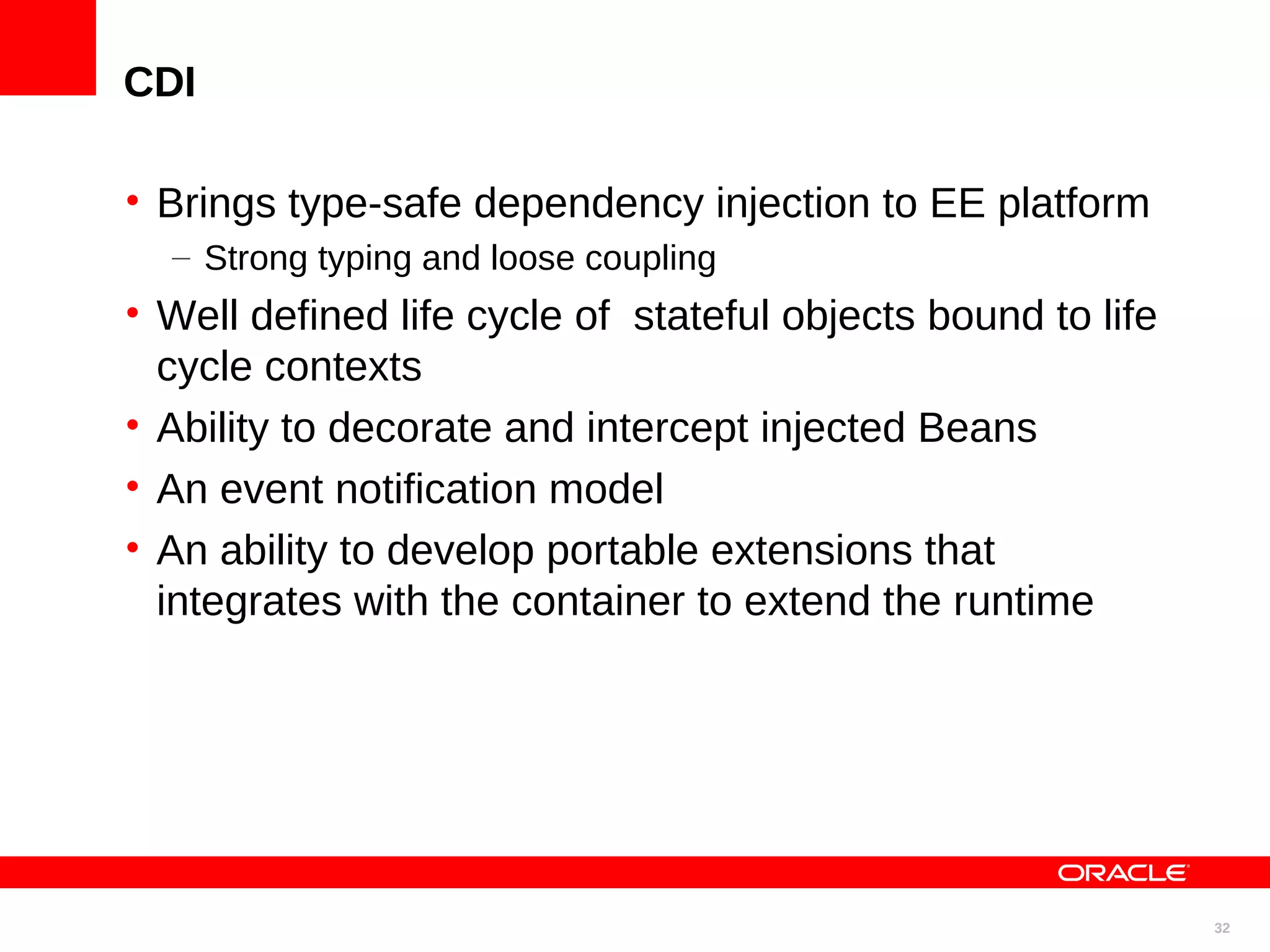

32. CDI
• Brings type-safe dependency injection to EE platform
– Strong typing and loose coupling
• Well defined life cycle of stateful objects bound to life
cycle contexts
• Ability to decorate and intercept injected Beans
• An event notification model
• An ability to develop portable extensions that
integrates with the container to extend the runtime
32

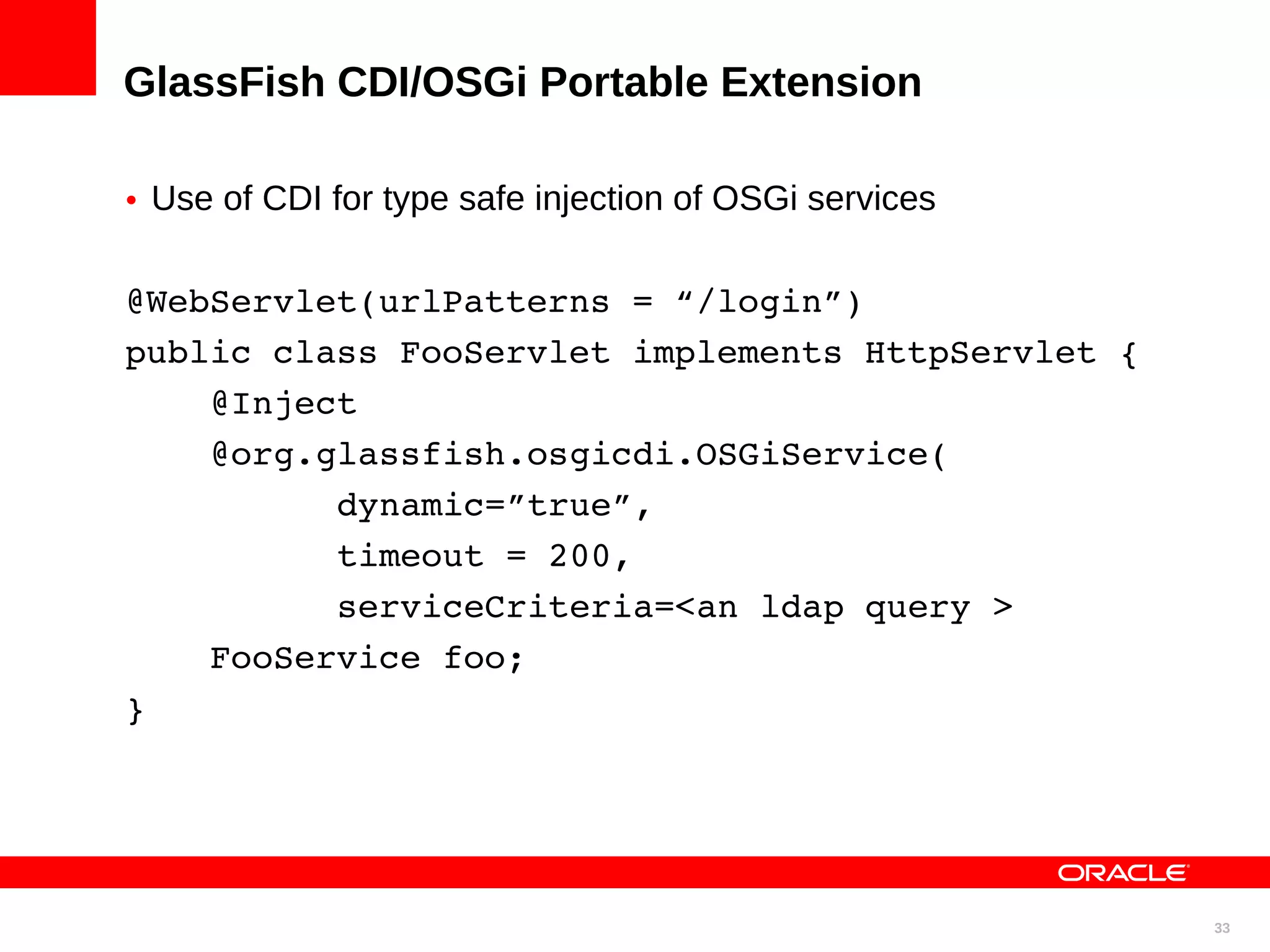

33. GlassFish CDI/OSGi Portable Extension
• Use of CDI for type safe injection of OSGi services
@WebServlet(urlPatterns = “/login”)
public class FooServlet implements HttpServlet {
@Inject
@org.glassfish.osgicdi.OSGiService(
dynamic=”true”,
timeout = 200,
serviceCriteria=<an ldap query >
FooService foo;
}
33

34. Demo: Service Injection
34

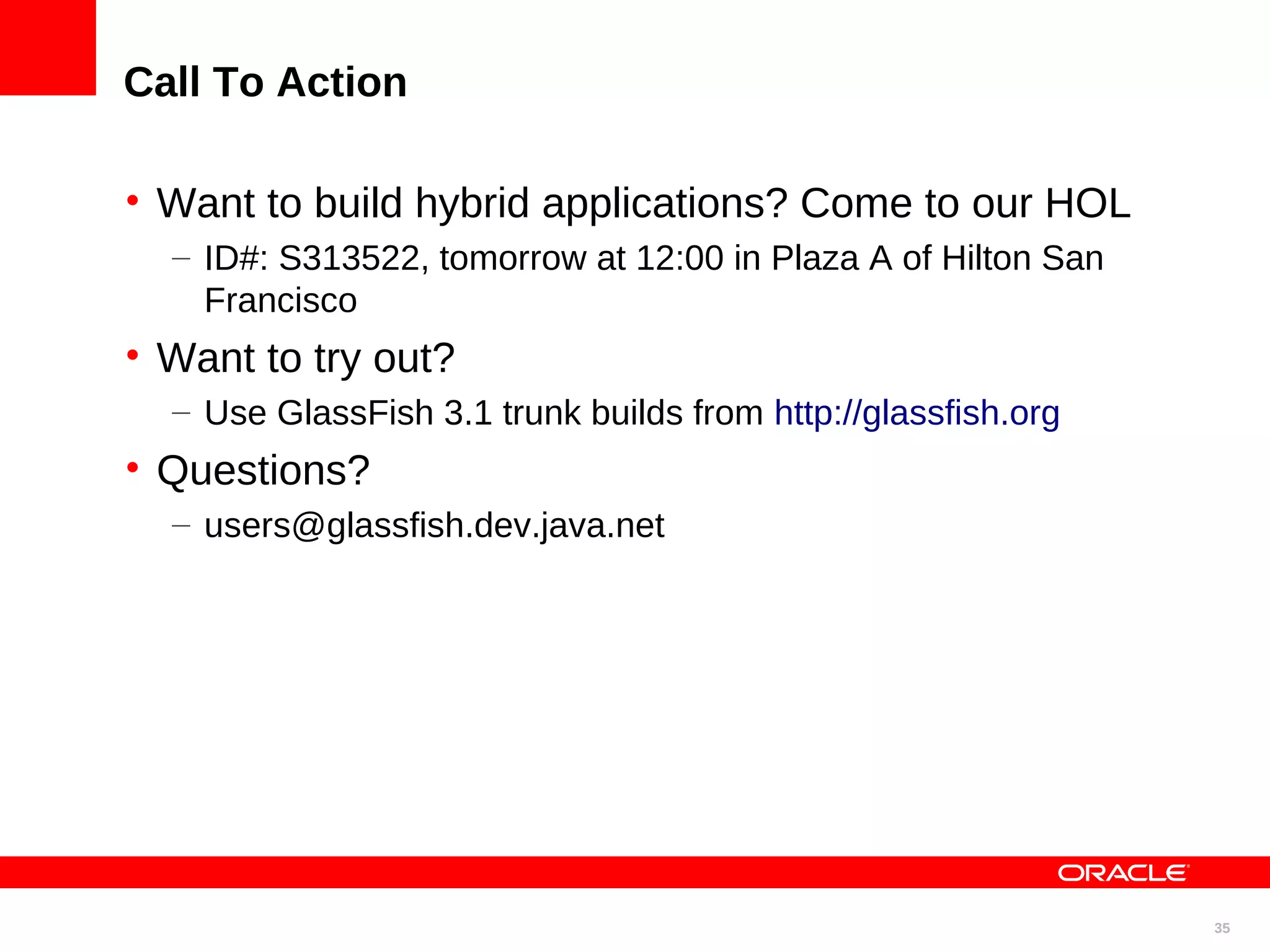

35. Call To Action
• Want to build hybrid applications? Come to our HOL
– ID#: S313522, tomorrow at 12:00 in Plaza A of Hilton San
Francisco
• Want to try out?
– Use GlassFish 3.1 trunk builds from http://glassfish.org
• Questions?
– users@glassfish.dev.java.net
35

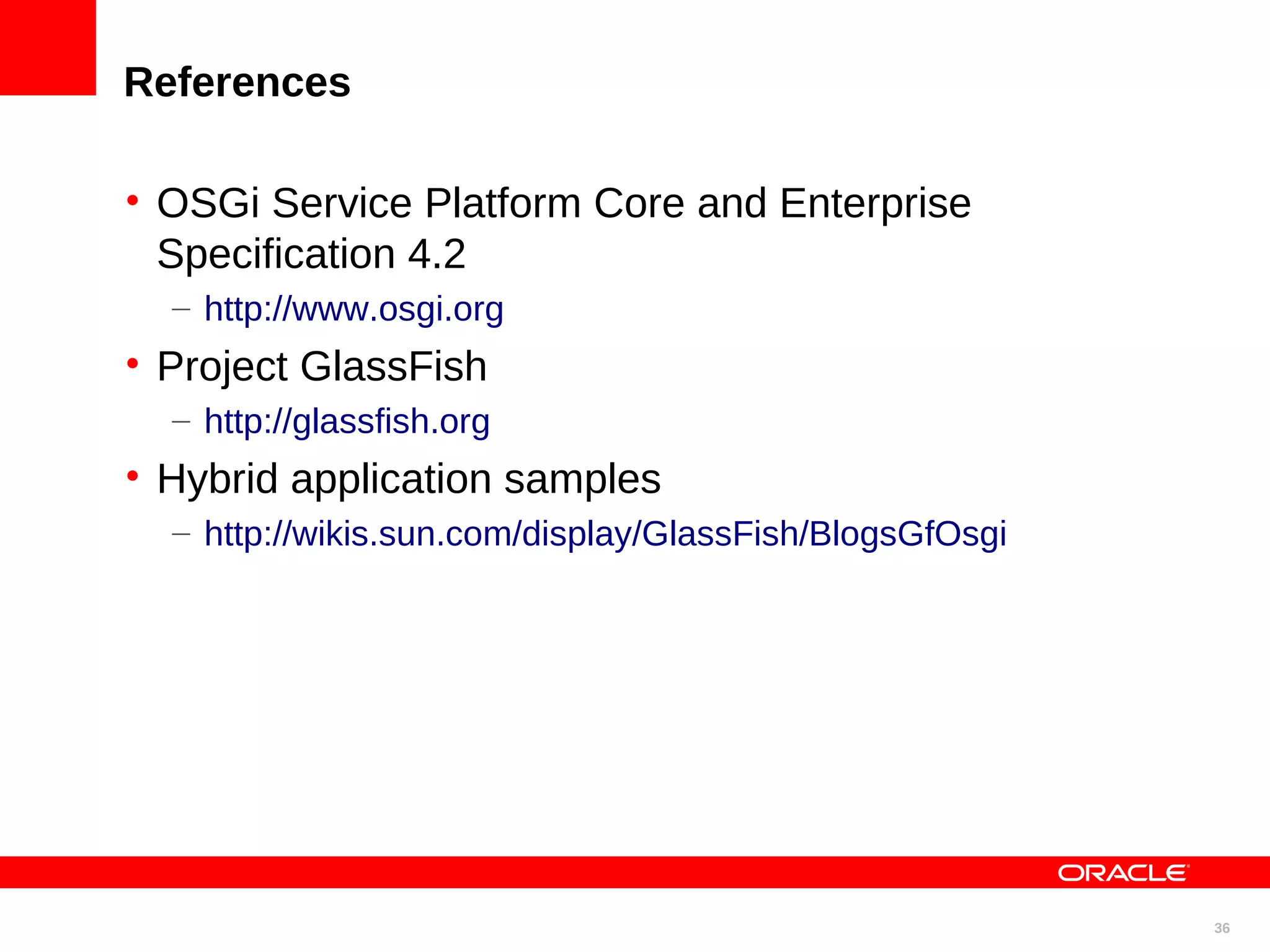

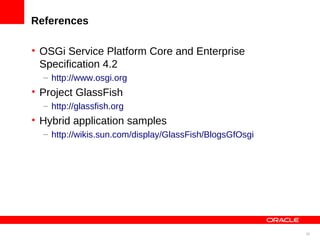

36. References
• OSGi Service Platform Core and Enterprise
Specification 4.2
– http://www.osgi.org
• Project GlassFish
– http://glassfish.org
• Hybrid application samples
– http://wikis.sun.com/display/GlassFish/BlogsGfOsgi
36

37. Agenda
• OSGi 101 <Insert Picture Here>
• Basic OSGi Demo
• OSGi meets Java EE – Hybrid Applications
• Hybrid Application Demo
• Advanced usecases
• Q&A
37

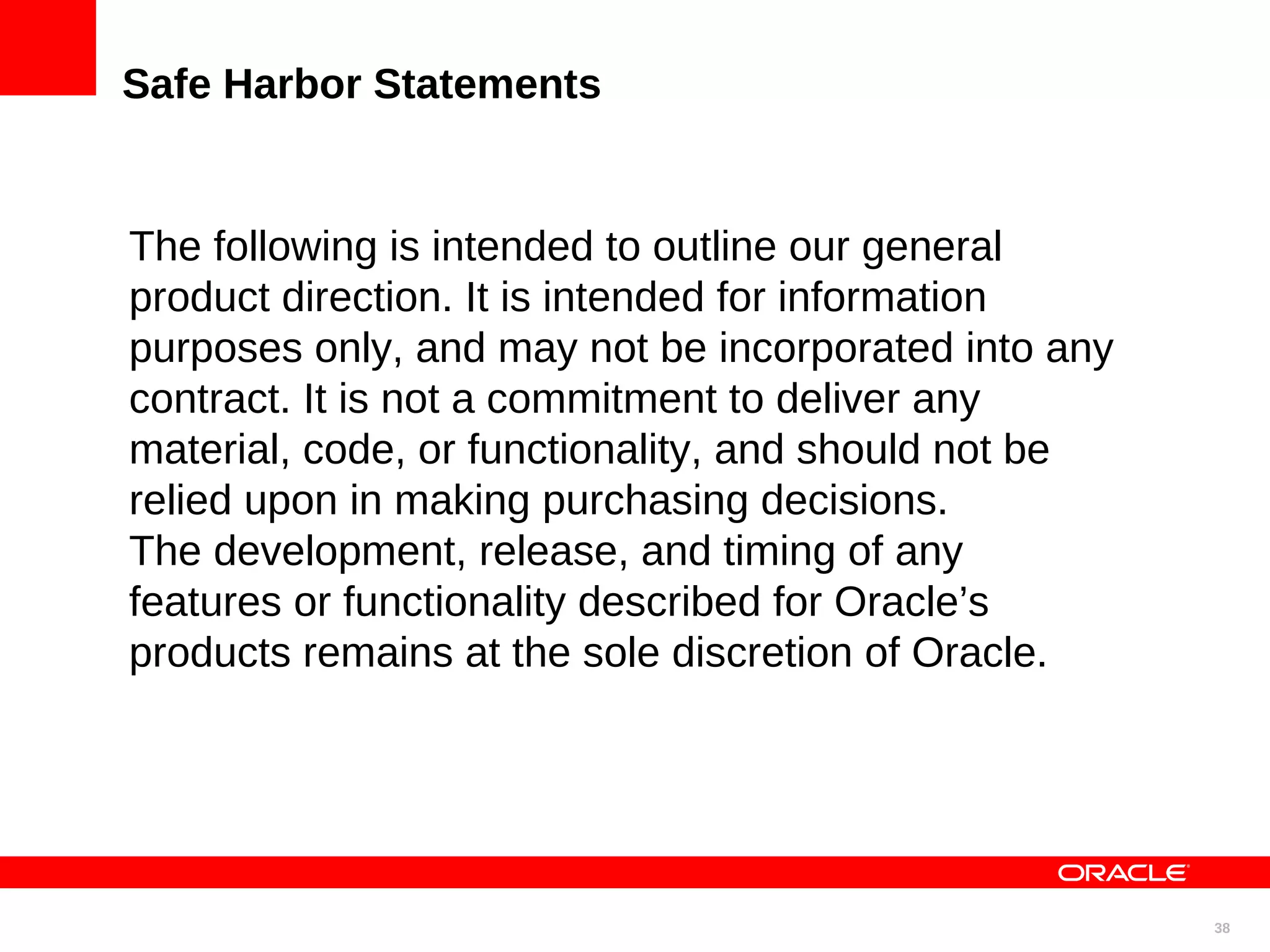

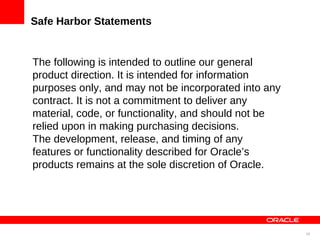

38. Safe Harbor Statements
The following is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into any
contract. It is not a commitment to deliver any
material, code, or functionality, and should not be
relied upon in making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.
38

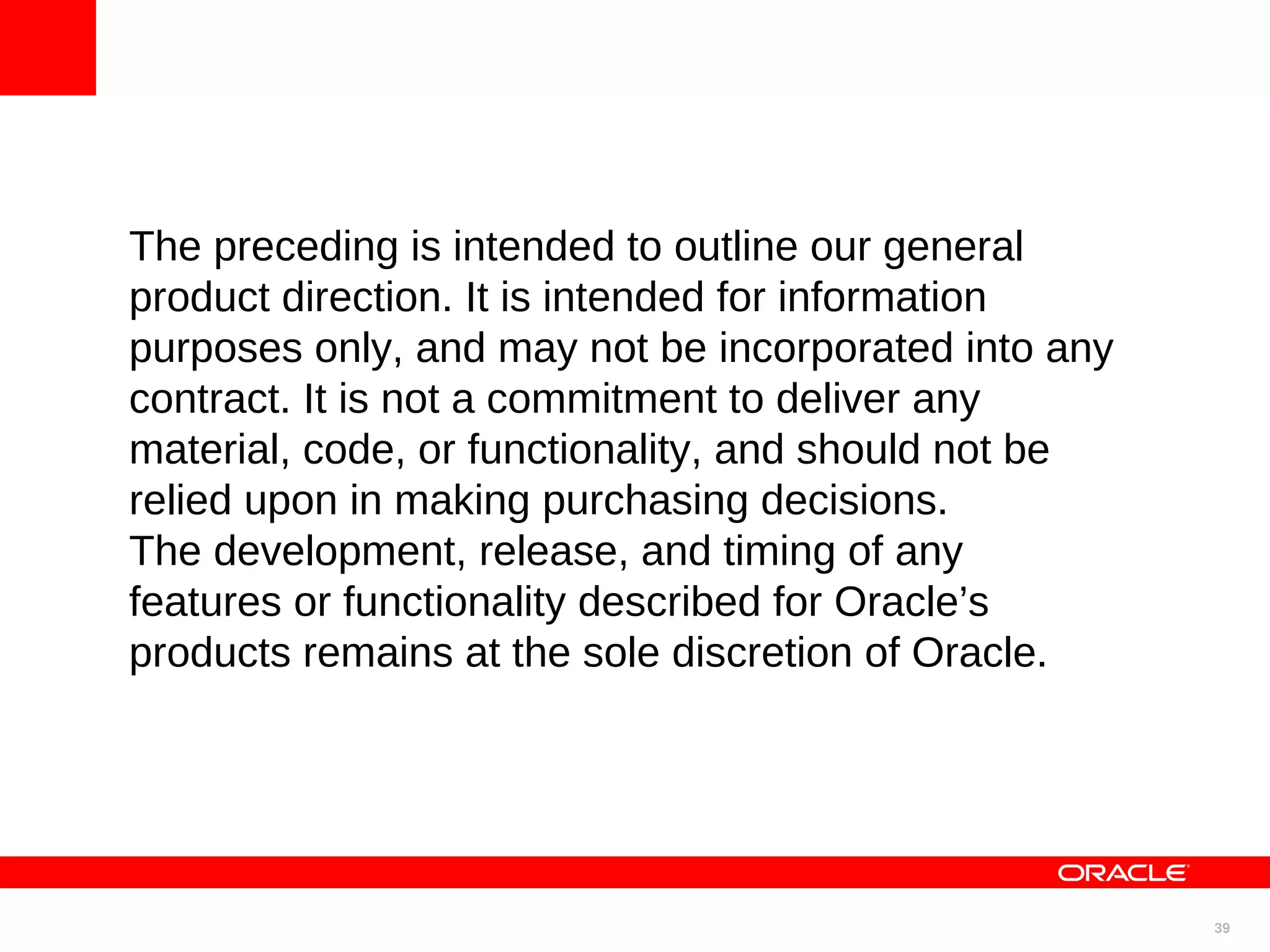

39. The preceding is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into any
contract. It is not a commitment to deliver any
material, code, or functionality, and should not be
relied upon in making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.
39

40. <Insert Picture Here>
OSGi and Java EE: A Hybrid Approach to Enterprise Java Application
Development
{sahoo, sivakumart}@sun.com
Staff Engineers, Sun Microsystems India Pvt. Ltd.

41. 41
