1. OSGi In Anger
A Case Study

2. Aepona?
• Instil customer for 3 years
• Provider of products into Telco space
• Focus on ‘Network as a Service’
• Think abstractions over operator
capabilities

3. Telecom Web Services
(In a Nutshell)
• SOAP/REST web services offering
simplified APIs over SMS, MMS, Location,
Conference Calling, etc
• Endpoints provisioned on a per-partner
basis
• Endpoints backed by per-partner runtime
policy enforcement

4. And Much More
• Billing
• Reporting
• Alarms
• Fault Reporting
• System deployed with null implementations
of optional features

5. Architecture
container
SMS
(i.e. JVM)
Portal
OAM TLX
(JBoss)
MMS
nodeA container
group
DEVKIT
(Eclipse) MMS
OAM TLX
SMS
nodeB

6. Container Groups
Load
Balancer
MMS MMS
Container Group

7. Runtime
• Equinox-based stack
• Initial bundles defined by config.ini
• Bundles can be remotely installed,
uninstalled, activated, etc
• Managed by Eclipse RCP plug-in or
command line (telnet & Command
Provider)

8. A Potted History
• Project started in late 2006
• Began life as Artix-based stack
• Fairly large, ~10000 unit tests
• Evolved to OSGi 2007

9. The OAM
• Operations, Administration and
Maintenance component spec’ed in 2007
• Used to create, delete, monitor & manage
a multi-container (JVM) environment
• Two key requirements: (a) 99.999% uptime
(b) ability to DYNAMICALLY install,
uninstall and patch components

10. A Leap of Faith
• But for the wrong(ish) reasons
• OAM provided compelling reason for OSGi
• OSGi chosen mainly because it enabled
hot-deploys
• Not because of enforced modularity or
service-oriented design

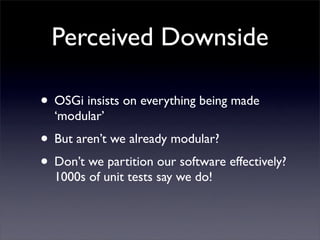

11. Perceived Downside
• OSGi insists on everything being made
‘modular’
• But aren’t we already modular?
• Don’t we partition our software effectively?
1000s of unit tests say we do!

12. Umm..NO!
• In retrospect, system far from modular
• Layers not partitioned cleanly
• Code not open for extension
• Free-for-all on code base

13. Life Before OSGi
• Single source tree
• Spring Configuration Hell
• Extensibility issues - PS work polluting core
product
• Build issues

14. Evolving to OSGi
• How do we develop? Tools?
• How do we build? Ant, Maven?
• What to do with Artix, Spring & Hibernate?
• How to modularise existing code stream?
• How much time ($) is this going to take?
• No prior OSGi experience

15. Eclipse PDE
• OSGi is first class citizen
• Single project defines ‘target platform’
• Per-customer PSF (Team Project Set) files
• Export bundles directly to TWS
• We like PDE - but we don’t know any
better!

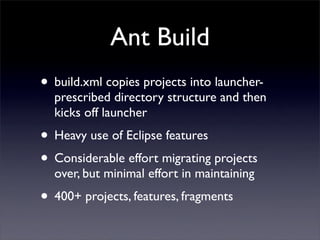

16. Ant Build
• build.xml copies projects into launcher-
prescribed directory structure and then
kicks off launcher
• Heavy use of Eclipse features
• Considerable effort migrating projects
over, but minimal effort in maintaining
• 400+ projects, features, fragments

17. Baby Steps
• No big bang
• Artix converted to single bundle
• Common code refactored into core bundle
• Services deployed as mega-bundles, built
from single source tree
• Gradual migration to OSGi services

18. Hibernate
• Used bnd to create hibernate bundle
• Used DynamicImport-Package: * to find all
exported mapping files & pojos
• Added Antlr & all hibernate jar files to
internal classpath
• Works, but less than ideal

19. Spring DM
• Consistent programming model with
existing Spring infrastructure/knowledge
• No issues with proxy-based approach
• Outside of core, only use Spring DM
• Inside core, mixture of Spring DM and
direct OSGi, but only when necessary

20. Early Mistakes
• Failed to appreciate beauty of whiteboard
pattern: publish/subscribe really should be
replaced with export/track
• Modules not delineated using OSGi
services - services enable dynamism &
enforce better design
• Forgetting to unget services

21. Gradual Modularisation
• Services migrated one at a time
• Initially, layers broken into modules with
public and private parts
• Eventually, modules refactored to be
service oriented
• Code base significantly cleaner

22. Life Before OSGi
Service
ParlayX (e.g. SMS)
ICallback ISmsDao
SmsMessage
Adapter ISmsActivityFactory
SmsActivity
* ALL PUBLIC
Gateway/Network

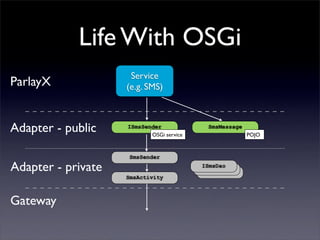

23. Life With OSGi
Service
ParlayX (e.g. SMS)
Adapter - public ISmsSender
OSGi service
SmsMessage
POJO
SmsSender
Adapter - private ISmsDao
ISmsDao
ISmsDao
SmsActivity
Gateway

24. Note to Self
• OSGi did not make me this way!
• But it encouraged me to step back...
• And be even more clinical in my
separations

25. Reality Check
• Developers rarely have the good grace to
hide implementation details!
• Developers who struggle with partitioning
and layering will struggle even more
with OSGi
• OSGi requires that you think more & be
more disciplined

26. Today
• Extensive use of services & properties
• Heavy use of Spring DM
• Moderate use of the OSGi API
• Little use of compendium services

27. Design
• Layered WebService
(e.g. SMS)
• Service-Oriented
OSGi services
• Event-Driven Service
(e.g. SMS)
Shared
OSGi
services
core
• Loosely-Coupled
OSGi services
• Dynamic/Modular!
Adapter

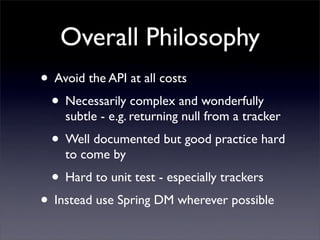

28. Overall Philosophy
• Avoid the API at all costs
• Necessarily complex and wonderfully
subtle - e.g. returning null from a tracker
• Well documented but good practice hard
to come by
• Hard to unit test - especially trackers
• Instead use Spring DM wherever possible

29. Using the OSGi API
• Only 1 activator across 150 production
bundles
• BundleContext injected via Spring DM
BundleContextAware
• Primarily used to track & register services
• Also used to track bundles e.g. update
property accessor when bundle installed,
signal OAM when bundle fails to install

30. Idiomatic OSGi
• What is good practice? A catalog of idioms/
patterns would be useful, very useful
/**
* Property accessor tracker that creates describer's associated
* policy description based on properties extracted from exported
* policy accessor service. Once created the service is immediately
* 'untracked'.
*/
private class PropertyAccessorTracker implements ServiceTrackerCustomizer {
public Object addingService(final ServiceReference serviceReference) {
final IPropertyAccessor propertyAccessor = (IPropertyAccessor) bundleContext.getService(serviceReference);
policyDescription = createPolicyDescription(propertyAccessor);
bundleContext.ungetService(serviceReference);
debug("Created policy description ", policyDescription);
return null;
}
public void modifiedService(final ServiceReference serviceReference, final Object service) {
// Do nothing
}
public void removedService(final ServiceReference serviceReference, final Object service) {
// Do nothing - no need for unget
}
}

31. Fragments
• Used extensively to configure bundles in
customer specific ways
• Used to house unit tests (10000+)
• One test fragment for every production
bundle
• Fragments containing code cannot be unit
tested. Therefore avoid.

32. Testing
• Focus mostly on behavioural & interaction-
based unit testing
• Unit tests live in fragments
• Dedicated team for end-to-end testing
• Many parts of API mockable, except for
trackers. Grumble.

33. Features
• Eclipse features describe pre-canned
applications/features
• Parsed into config.ini files at build time
• Deployed under <install-dir>/conf/
apps/<feature>/config.ini
• Each feature in conf/apps presented as a
deployable application on front-end

34. OSGi Services
• Modules (mostly) communicate through
services
• Services enable ALL extension points
• Lower layers define and export interfaces;
consumed by higher layers
• Lower layers define and track interfaces;
implemented & exported by higher layers

35. Dynamic Method
Interception
Exported OSGi service
With service properties:
order=1
targetMethods=sendSms
IMethodInterceptor IMethodInterceptor IMethodInterceptor
Method
web service Interceptor service
proxy Invoker

36. IMethodInterceptor
import org.aopalliance.intercept.MethodInterceptor;
/**
* Method interceptor that enables any bundle to intercept
* a service invocation. Implementations of this interface
* are expected to be exported as an OSGi, along with 2
* properties:
* <ul>
* <li>an 'order' property used to determine the order in which
* exported interceptors are invoked compared to each other</li>
* <li>an optional set of comma separated 'targetMethods' method
* names defining the method(s) that the interceptor should be
* applied to</li>
* </ul>
*
* Typically implementations will extend {@link AbstractMethodInterceptor}
* rather than implement this interface directly.
*
* @see AbstractMethodInterceptor
*/
public interface IMethodInterceptor extends MethodInterceptor {
}

37. Canned Method
Interceptors
• Address Normalisation: Enables white &
black listing
• Group Address Resolution: Send to
‘group:abc’ => send to many
• Reporting: On every system transaction

38. Policy Enforcement
Created using IPolicyDescriber
(an OSGi service)
EnforceablePolicy EnforceablePolicy EnforceablePolicy
web service Policy
Enforcer service
proxy

39. Tracking Lists
/**
* Provider of policy descriptions ({@link PolicyDescription}s), derived
* from their service policy description ({@link IPolicyDescriber})
* counterpart.
*/
public class PolicyProvider implements IPolicyProvider {
private List<IPolicyDescriber> describers;
/**
* Sets the list of policy describers being tracked.
* The supplied list is expected to be a Spring-backed
* list that automatically proxies and tracks the actual
* policy describers.
* @param describers a set of policy describers to be used
*/
@Required
public void setPolicyDescribers(final List<IPolicyDescriber> describers) {
this.describers = describers;
}
...
<bean id="policyProvider" class="com.aepona.tws.core.policy.support.PolicyProvider">
<property name="policyDescribers" ref="policyDescribers" />
</bean>
<osgi:list id="policyDescribers"
interface="com.aepona.tws.core.policy.IPolicyDescriber"
cardinality="0..N" />

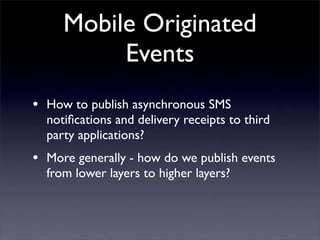

40. Mobile Originated
Events
• How to publish asynchronous SMS
notifications and delivery receipts to third
party applications?
• More generally - how do we publish events
from lower layers to higher layers?

41. Mobile Originated
Events
Third Party Service Network
Application
?

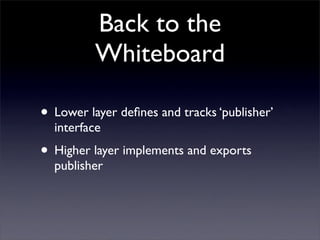

42. Back to the
Whiteboard
• Lower layer defines and tracks ‘publisher’
interface
• Higher layer implements and exports
publisher

43. Whiteboard
Exported as OSGi service
SmsNotificationPublisher to TPA
<<implements>>
from SmsNotificationHandler ISmsNotificationPublisher
network
Tracks ISmsNotificationPublisher

44. Lifecycle Events
• Web service endpoints come and go
• How do we inform interested parties of such
events?
• They may need to stop ongoing transactions
e.g. in the network layer

45. OSGi as an Event Bus
• Whiteboard pattern pervades system
• Core defines and tracks ‘listener’ services
• Bundles implement and export listener
implementations
• Layers are massively decoupled from one
another

46. Service Listener
/**
* Interface to be implemented classes interested in service events.
* Any instance of a type that implements this interface and that is
* exported as an OSGi service will be informed of service lifecycle
* events. Events are fired <i>asynchronously</i> but sequentially.
* <p>
* Implementations should not tie up the invoking thread. In other
* words the {@link #serviceChanged(ServiceEvent)} method should
* return as quickly as possible.
*/
public interface IServiceListener {
/**
* Receives notification that a service lifecycle event
* has occurred.
*
* @param serviceEvent the service event
*/
void serviceChanged(ServiceEvent serviceEvent);
}

47. Service Event
/**
* A service event describing a service lifecycle change.
* Service events are categorized as:
* <pre>
* create - signals that a service has been provisioned
* update - signals that a service has been updated
* dispose - signals that a service has been disposed
* destroy - signals that a service has been destroyed
* </pre>
* An 'update' event signals that a service has been updated
* without having to recreate the endpoint from scratch.
* If an update requires that a service is re-provisioned
* (because its service name has changed), then a 'destroy'
* followed by a 'create' event will be emitted.
*/
public final class ServiceEvent {
/**
* Returns a service create event.
* @param serviceName the newly created service name
* @return a create service event
*/
public static ServiceEvent createEvent(final ServiceName serviceName) {
return new ServiceEvent(CREATE, serviceName);
}
...

48. Handling Service Events
/**
* Purges expired location notification requests from the system.
* An expired notification is one that has sent the maximum number
* of notifications or has reached its duration limit - both limits
* are specified when the notification is created.
*/
public class LocationNotificationTerminator
implements ILocationNotificationTerminator, IServiceListener, InitializingBean, DisposableBean {
private ILocationNotificationCriteriaDao criteriaDao;
/**
* Deletes data associated with a destroyed service
*/
public void serviceChanged(final ServiceEvent serviceEvent) {
if (serviceEvent.isDestroyEvent()) {
logger.debug("Stopping all notifications for " + serviceEvent.getServiceName());
stopAll(criteriaDao.findByServiceName(serviceEvent.getServiceName()));
}
}
...

49. Service Adapters
• When deployed inside operator TWS talks
to single CORBA-based adapter
• When deployed outside operator TWS
proxies onto multiple operator APIs
• Goal is unified API - OneAPI
• Each operator has own service adapter
OSGi service

50. Service Adapters
• Need to support new operator, simply drop
new adapter bundle
Exported as OSGi Service
With ‘name’ property
name=orange
OneAPI Service IServiceAdapter
WebService orange
IServiceAdapter
vodafone
IServiceAdapter
sprint

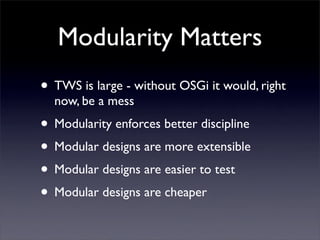

51. Modularity Matters
• TWS is large - without OSGi it would, right
now, be a mess
• Modularity enforces better discipline
• Modular designs are more extensible
• Modular designs are easier to test
• Modular designs are cheaper

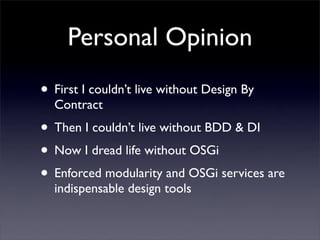

52. Personal Opinion
• First I couldn’t live without Design By
Contract
• Then I couldn’t live without BDD & DI
• Now I dread life without OSGi
• Enforced modularity and OSGi services are
indispensable design tools
