The document outlines the steps to create an Oracle database using the Database Configuration Assistant (DBCA). It describes launching DBCA, selecting the option to create a new database, providing configuration details like the database name, and completing the database creation process. Key steps include selecting the database type, specifying file locations, and finishing database setup.

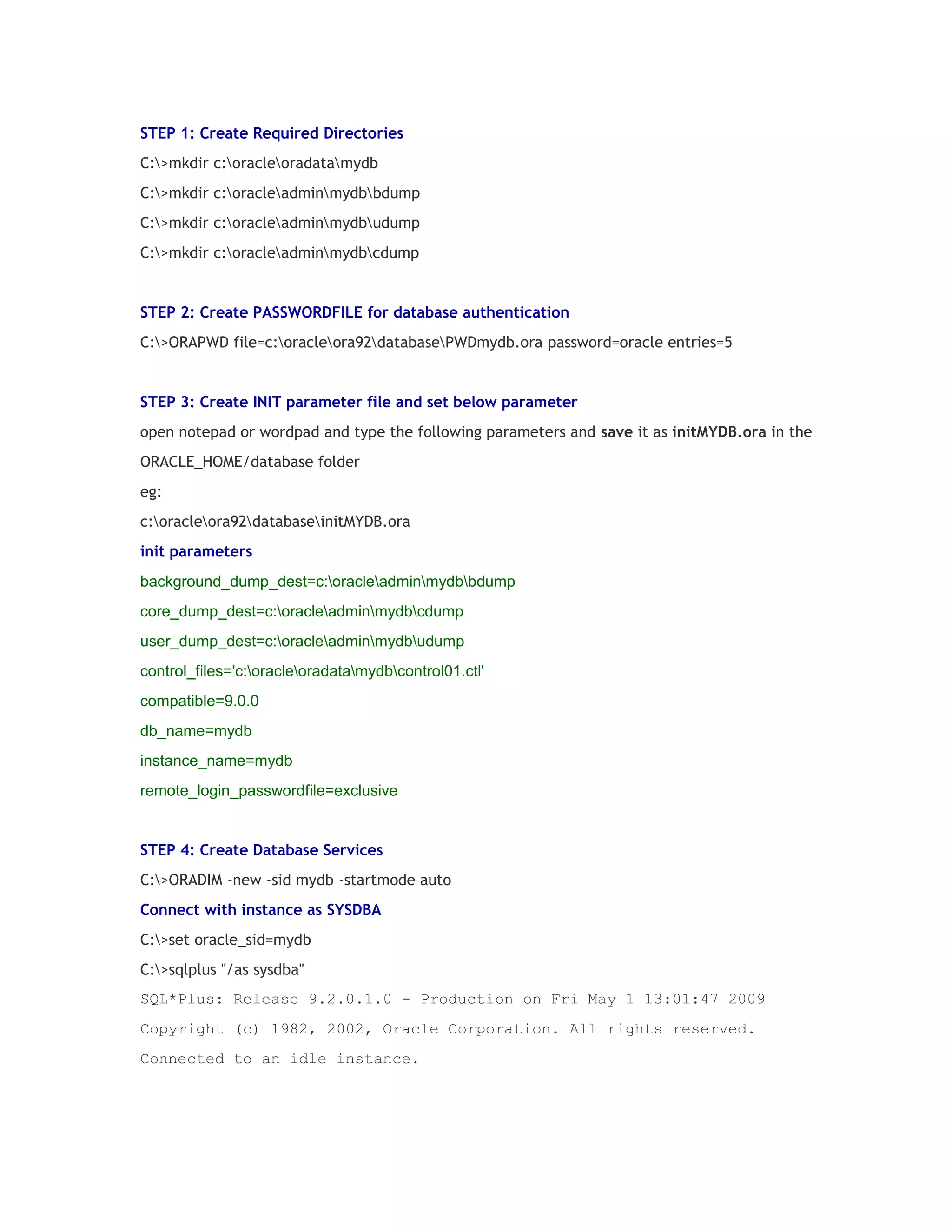

1. STEP 1: Create Required Directories
C:>mkdir c:oracleoradatamydb
C:>mkdir c:oracleadminmydbbdump
C:>mkdir c:oracleadminmydbudump
C:>mkdir c:oracleadminmydbcdump
STEP 2: Create PASSWORDFILE for database authentication
C:>ORAPWD file=c:oracleora92databasePWDmydb.ora password=oracle entries=5
STEP 3: Create INIT parameter file and set below parameter
open notepad or wordpad and type the following parameters and save it as initMYDB.ora in the
ORACLE_HOME/database folder
eg:
c:oracleora92databaseinitMYDB.ora
init parameters
background_dump_dest=c:oracleadminmydbbdump
core_dump_dest=c:oracleadminmydbcdump
user_dump_dest=c:oracleadminmydbudump
control_files='c:oracleoradatamydbcontrol01.ctl'
compatible=9.0.0
db_name=mydb
instance_name=mydb
remote_login_passwordfile=exclusive
STEP 4: Create Database Services
C:>ORADIM -new -sid mydb -startmode auto
Connect with instance as SYSDBA
C:>set oracle_sid=mydb
C:>sqlplus "/as sysdba"
SQL*Plus: Release 9.2.0.1.0 - Production on Fri May 1 13:01:47 2009
Copyright (c) 1982, 2002, Oracle Corporation. All rights reserved.
Connected to an idle instance.

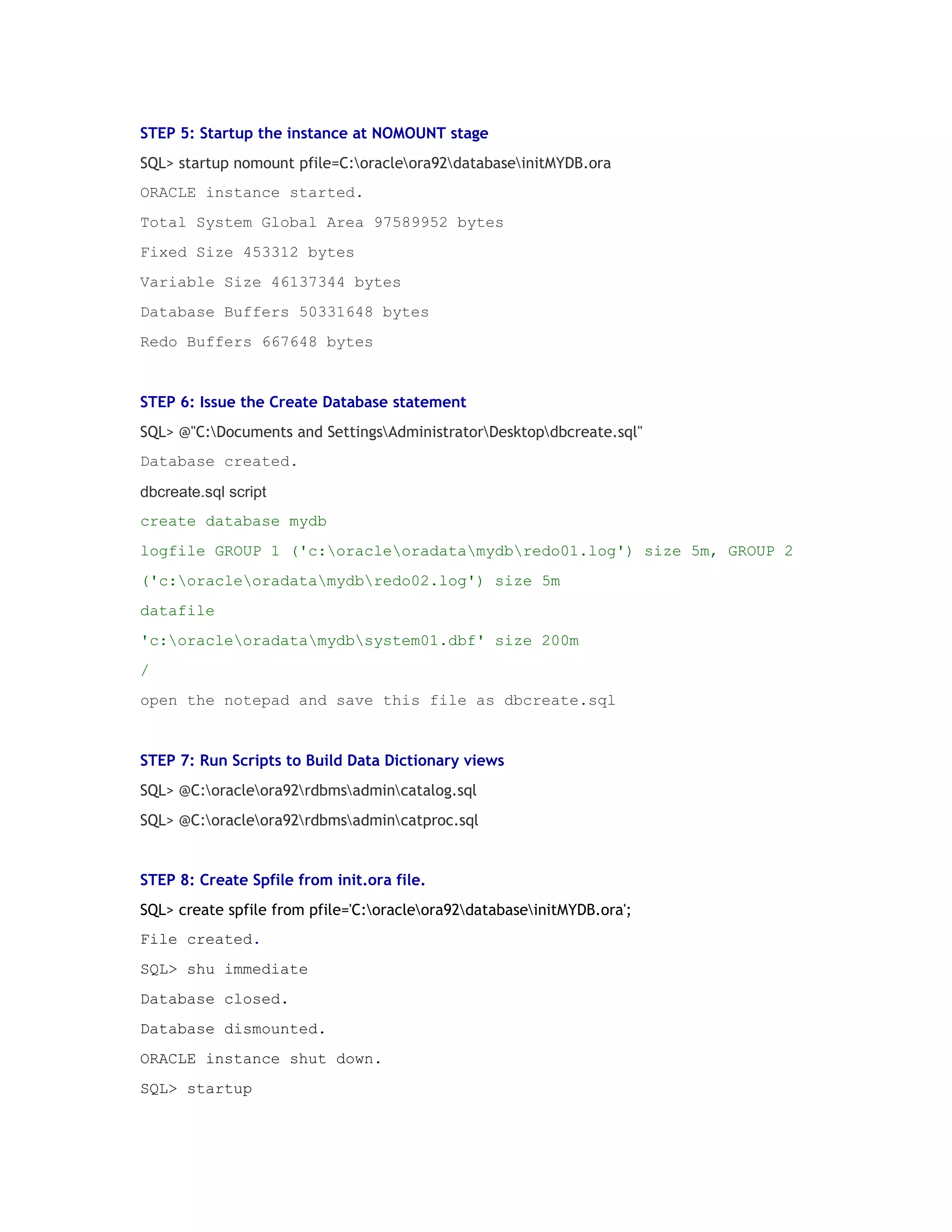

2. STEP 5: Startup the instance at NOMOUNT stage
SQL> startup nomount pfile=C:oracleora92databaseinitMYDB.ora
ORACLE instance started.
Total System Global Area 97589952 bytes
Fixed Size 453312 bytes
Variable Size 46137344 bytes
Database Buffers 50331648 bytes
Redo Buffers 667648 bytes
STEP 6: Issue the Create Database statement
SQL> @"C:Documents and SettingsAdministratorDesktopdbcreate.sql"
Database created.
dbcreate.sql script
create database mydb
logfile GROUP 1 ('c:oracleoradatamydbredo01.log') size 5m, GROUP 2
('c:oracleoradatamydbredo02.log') size 5m
datafile
'c:oracleoradatamydbsystem01.dbf' size 200m
/
open the notepad and save this file as dbcreate.sql
STEP 7: Run Scripts to Build Data Dictionary views
SQL> @C:oracleora92rdbmsadmincatalog.sql
SQL> @C:oracleora92rdbmsadmincatproc.sql
STEP 8: Create Spfile from init.ora file.
SQL> create spfile from pfile='C:oracleora92databaseinitMYDB.ora';
File created.
SQL> shu immediate
Database closed.
Database dismounted.
ORACLE instance shut down.
SQL> startup

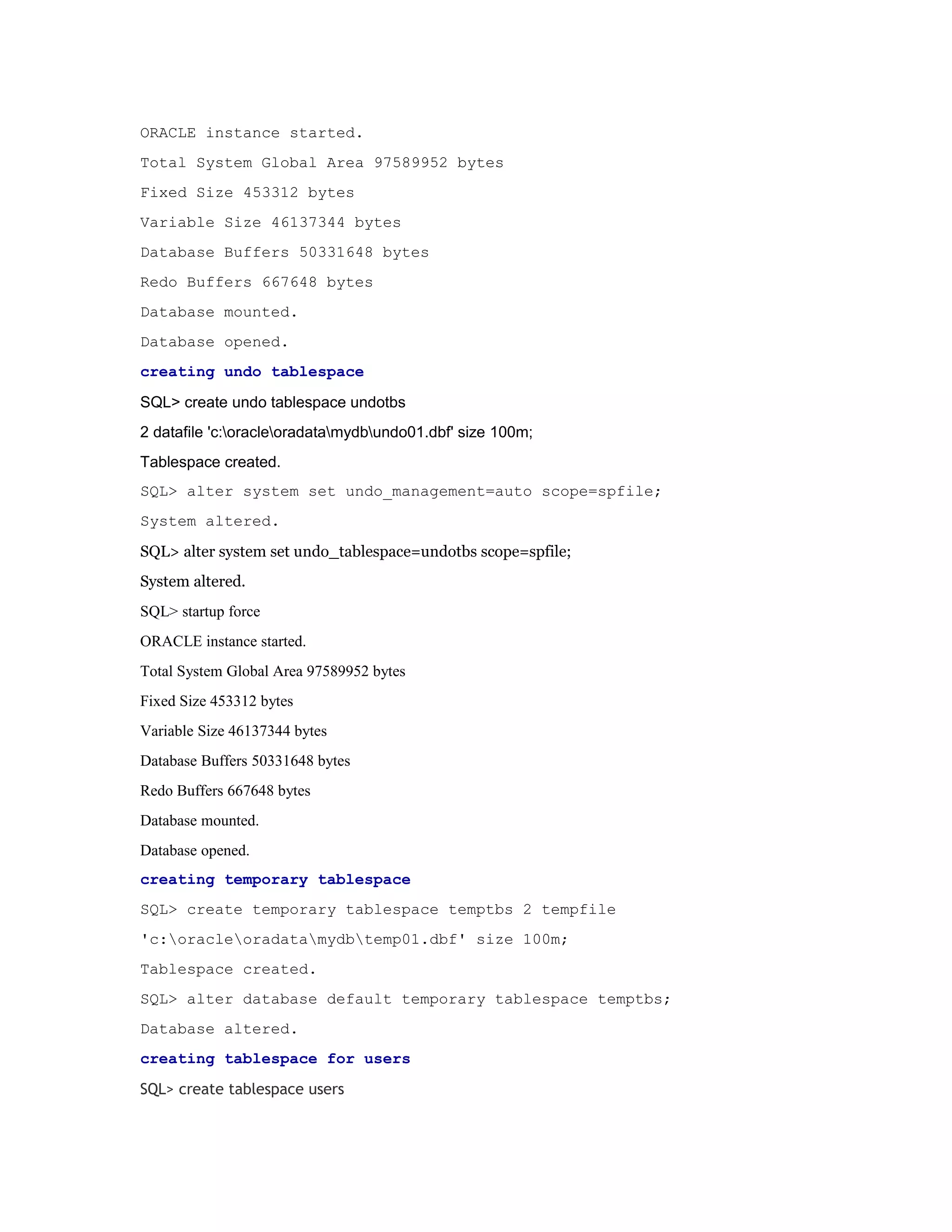

3. ORACLE instance started.
Total System Global Area 97589952 bytes
Fixed Size 453312 bytes
Variable Size 46137344 bytes
Database Buffers 50331648 bytes
Redo Buffers 667648 bytes
Database mounted.
Database opened.
creating undo tablespace
SQL> create undo tablespace undotbs
2 datafile 'c:oracleoradatamydbundo01.dbf' size 100m;
Tablespace created.
SQL> alter system set undo_management=auto scope=spfile;
System altered.
SQL> alter system set undo_tablespace=undotbs scope=spfile;
System altered.
SQL> startup force
ORACLE instance started.
Total System Global Area 97589952 bytes
Fixed Size 453312 bytes
Variable Size 46137344 bytes
Database Buffers 50331648 bytes
Redo Buffers 667648 bytes
Database mounted.
Database opened.
creating temporary tablespace
SQL> create temporary tablespace temptbs 2 tempfile
'c:oracleoradatamydbtemp01.dbf' size 100m;
Tablespace created.
SQL> alter database default temporary tablespace temptbs;
Database altered.
creating tablespace for users
SQL> create tablespace users

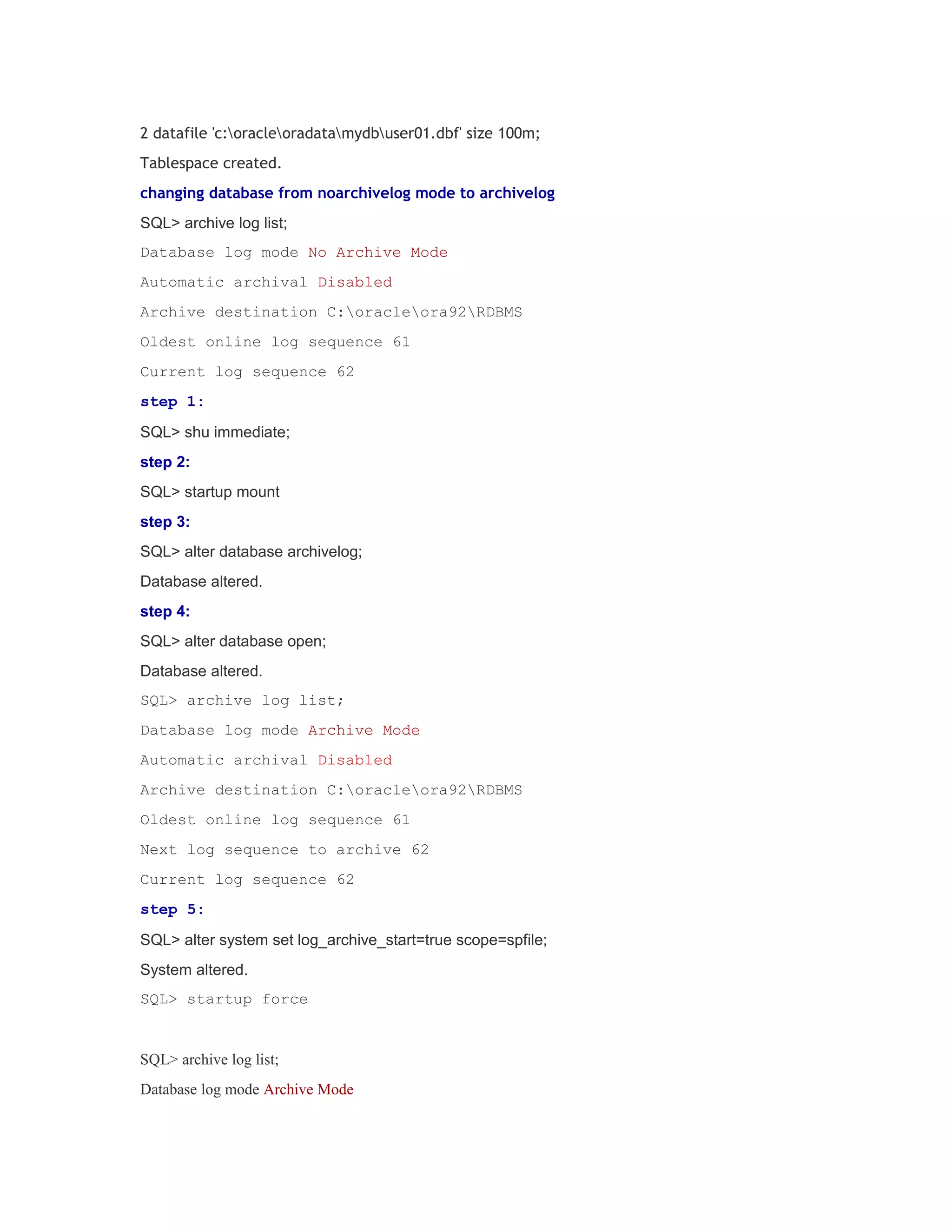

4. 2 datafile 'c:oracleoradatamydbuser01.dbf' size 100m;
Tablespace created.
changing database from noarchivelog mode to archivelog
SQL> archive log list;
Database log mode No Archive Mode
Automatic archival Disabled
Archive destination C:oracleora92RDBMS
Oldest online log sequence 61
Current log sequence 62
step 1:
SQL> shu immediate;
step 2:
SQL> startup mount
step 3:
SQL> alter database archivelog;
Database altered.
step 4:
SQL> alter database open;
Database altered.
SQL> archive log list;
Database log mode Archive Mode
Automatic archival Disabled
Archive destination C:oracleora92RDBMS
Oldest online log sequence 61
Next log sequence to archive 62
Current log sequence 62
step 5:
SQL> alter system set log_archive_start=true scope=spfile;
System altered.
SQL> startup force
SQL> archive log list;
Database log mode Archive Mode

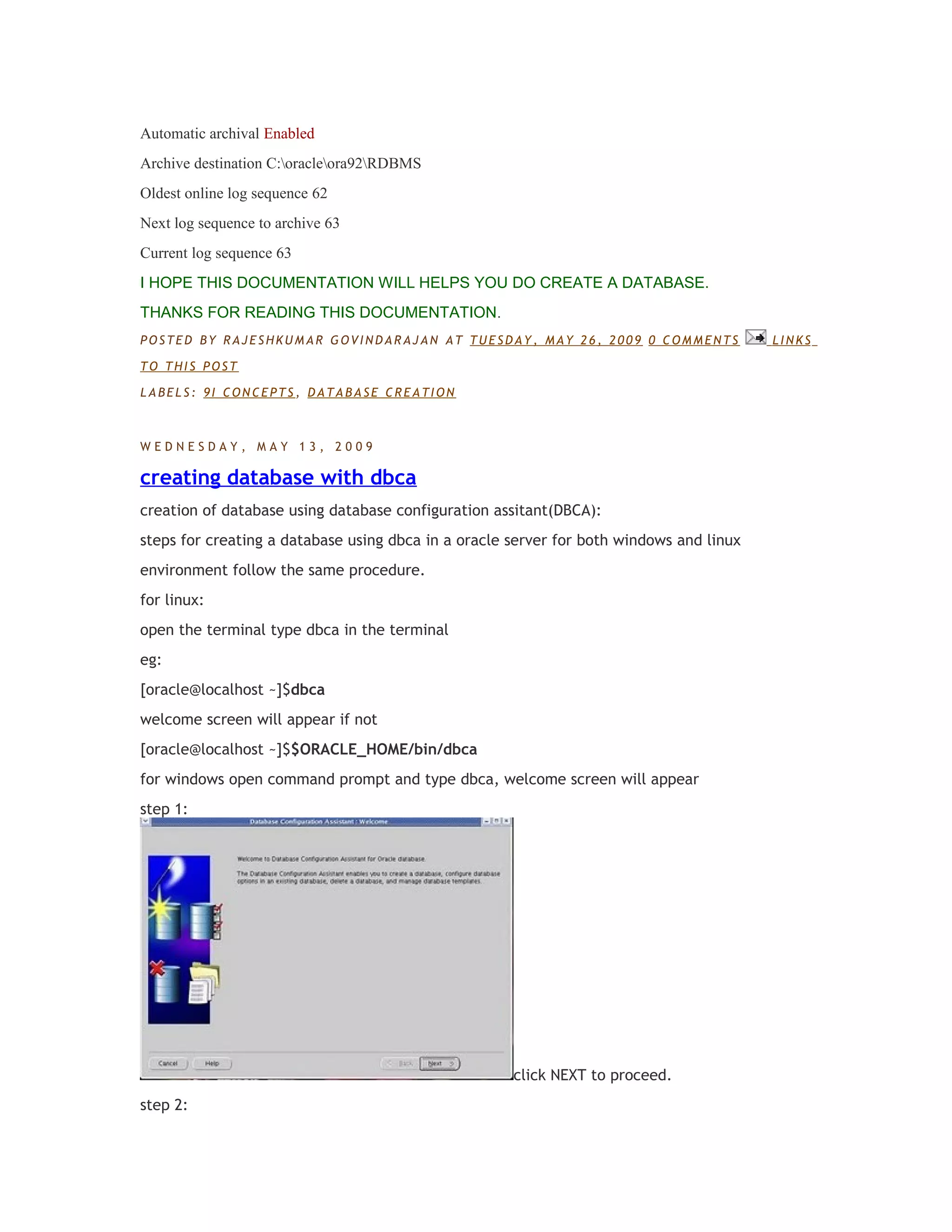

5. Automatic archival Enabled
Archive destination C:oracleora92RDBMS
Oldest online log sequence 62
Next log sequence to archive 63
Current log sequence 63
I HOPE THIS DOCUMENTATION WILL HELPS YOU DO CREATE A DATABASE.
THANKS FOR READING THIS DOCUMENTATION.
POSTED BY RAJESHKUMAR GOVINDARAJAN AT TUESDAY, MAY 26, 2009 0 COMMENTS
TO THIS POST
LABELS: 9I CONCEPTS, DATABASE CREATION
WEDNESDAY, MAY 13, 2009
creating database with dbca
creation of database using database configuration assitant(DBCA):
steps for creating a database using dbca in a oracle server for both windows and linux
environment follow the same procedure.
for linux:
open the terminal type dbca in the terminal
eg:
[oracle@localhost ~]$dbca
welcome screen will appear if not
[oracle@localhost ~]$$ORACLE_HOME/bin/dbca
for windows open command prompt and type dbca, welcome screen will appear
step 1:
click NEXT to proceed.
step 2:
LINKS

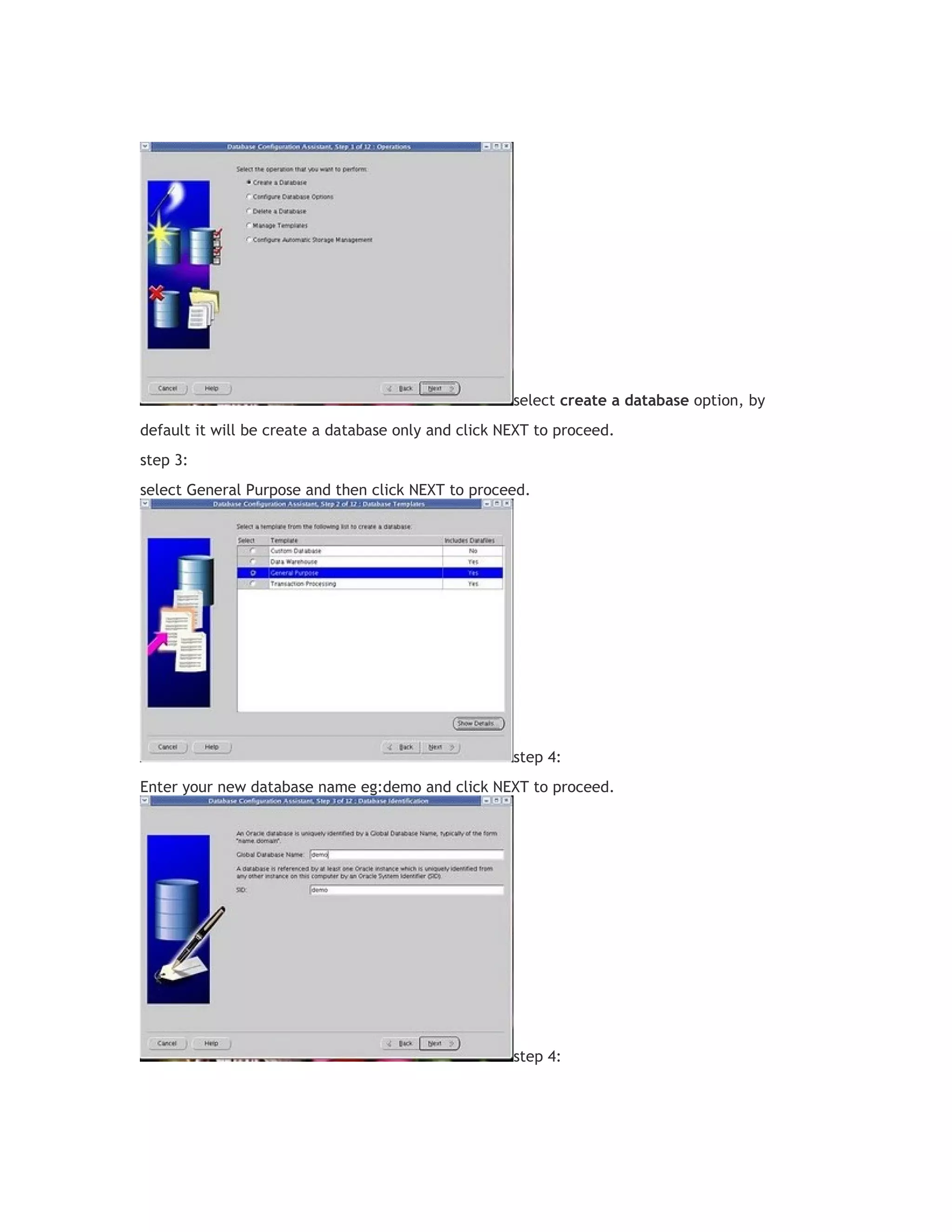

6. select create a database option, by
default it will be create a database only and click NEXT to proceed.
step 3:
select General Purpose and then click NEXT to proceed.
step 4:
Enter your new database name eg:demo and click NEXT to proceed.
step 4:

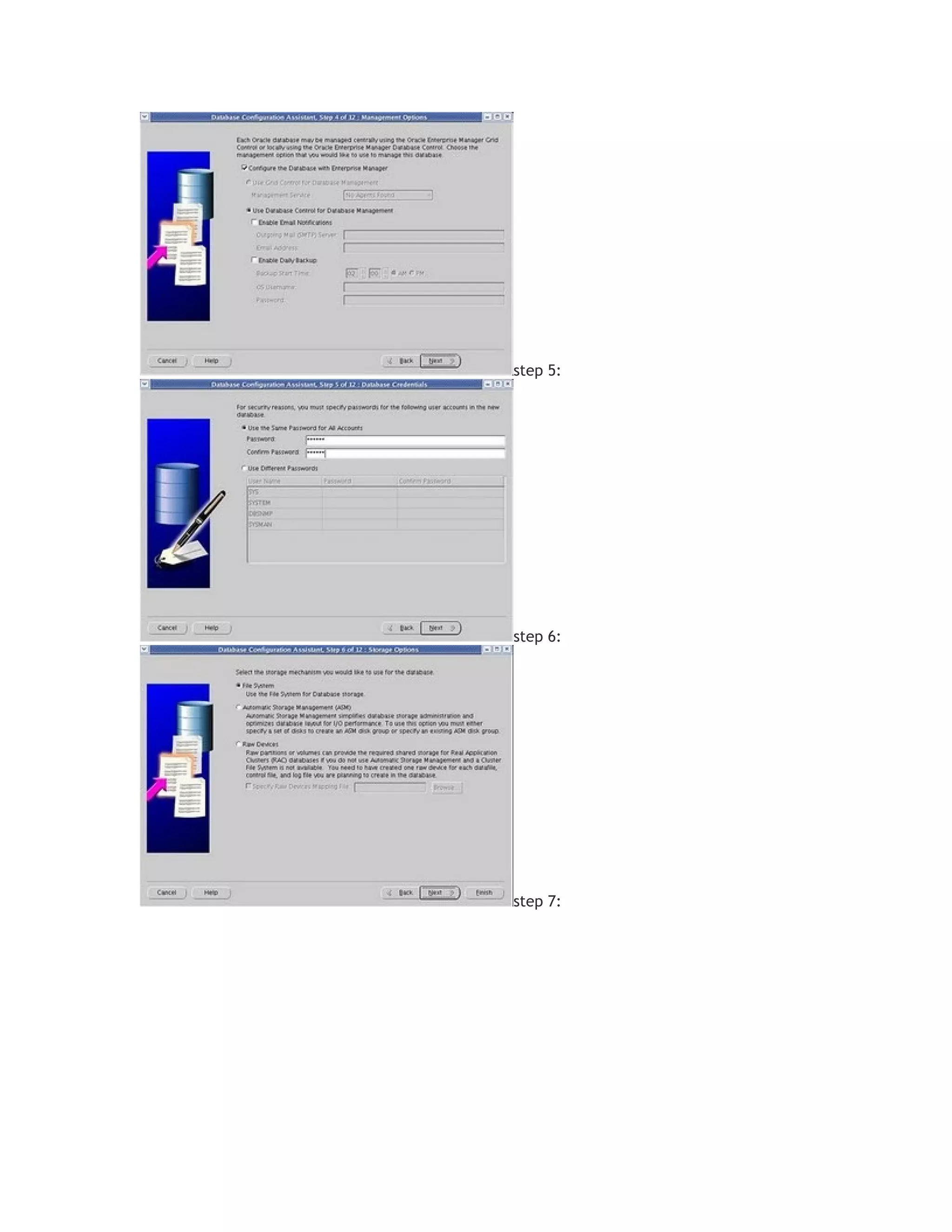

7. step 5:
step 6:
step 7:

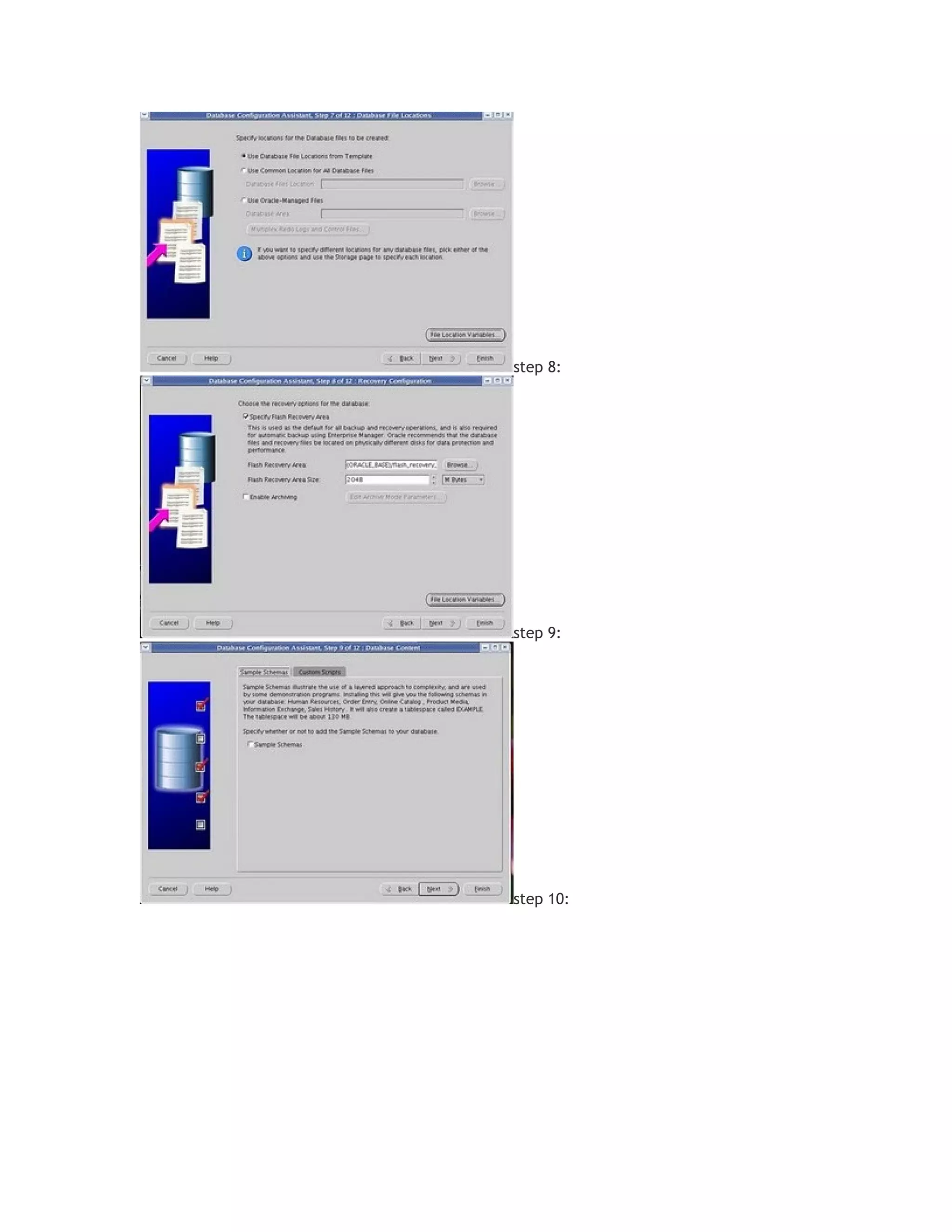

8. step 8:
step 9:
step 10:

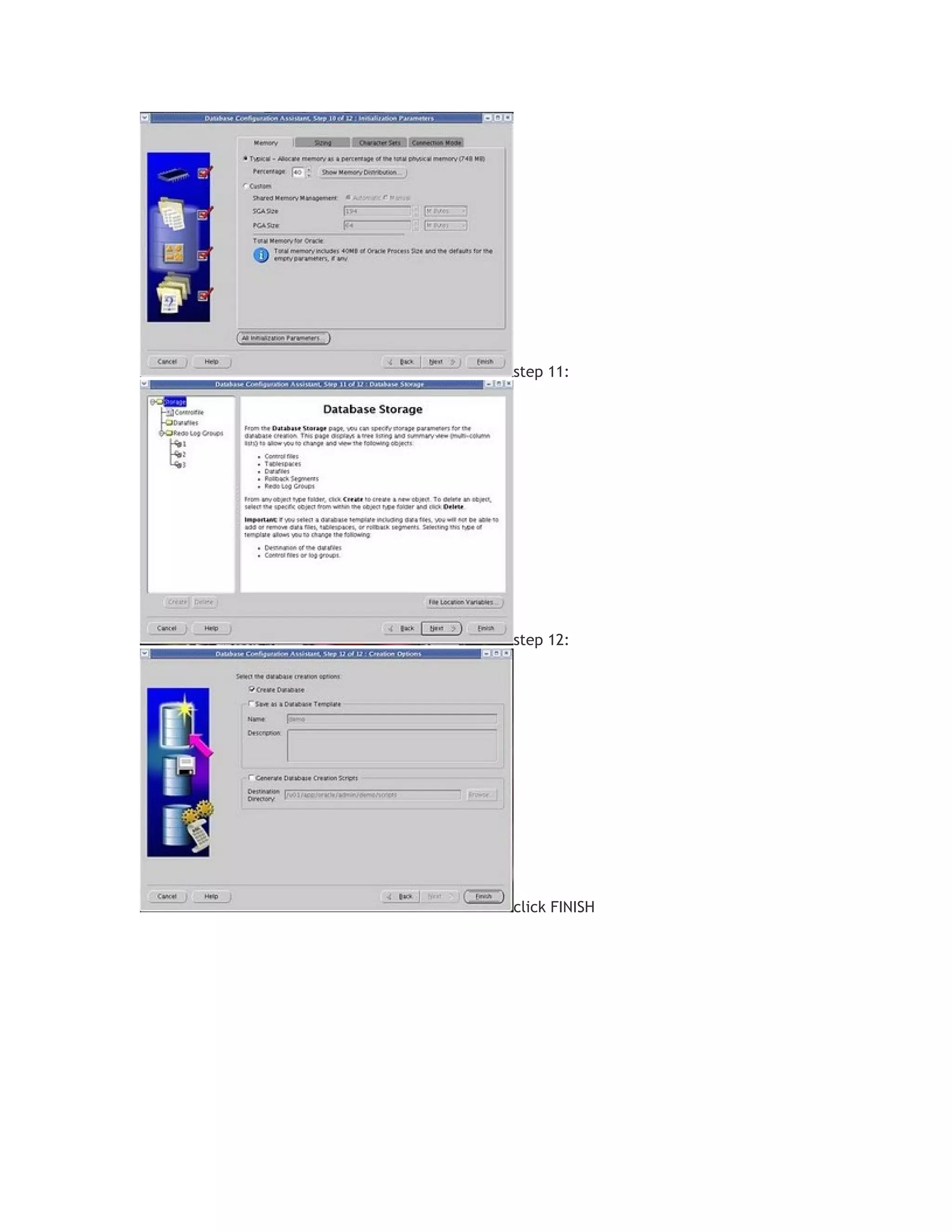

9. step 11:
step 12:
click FINISH

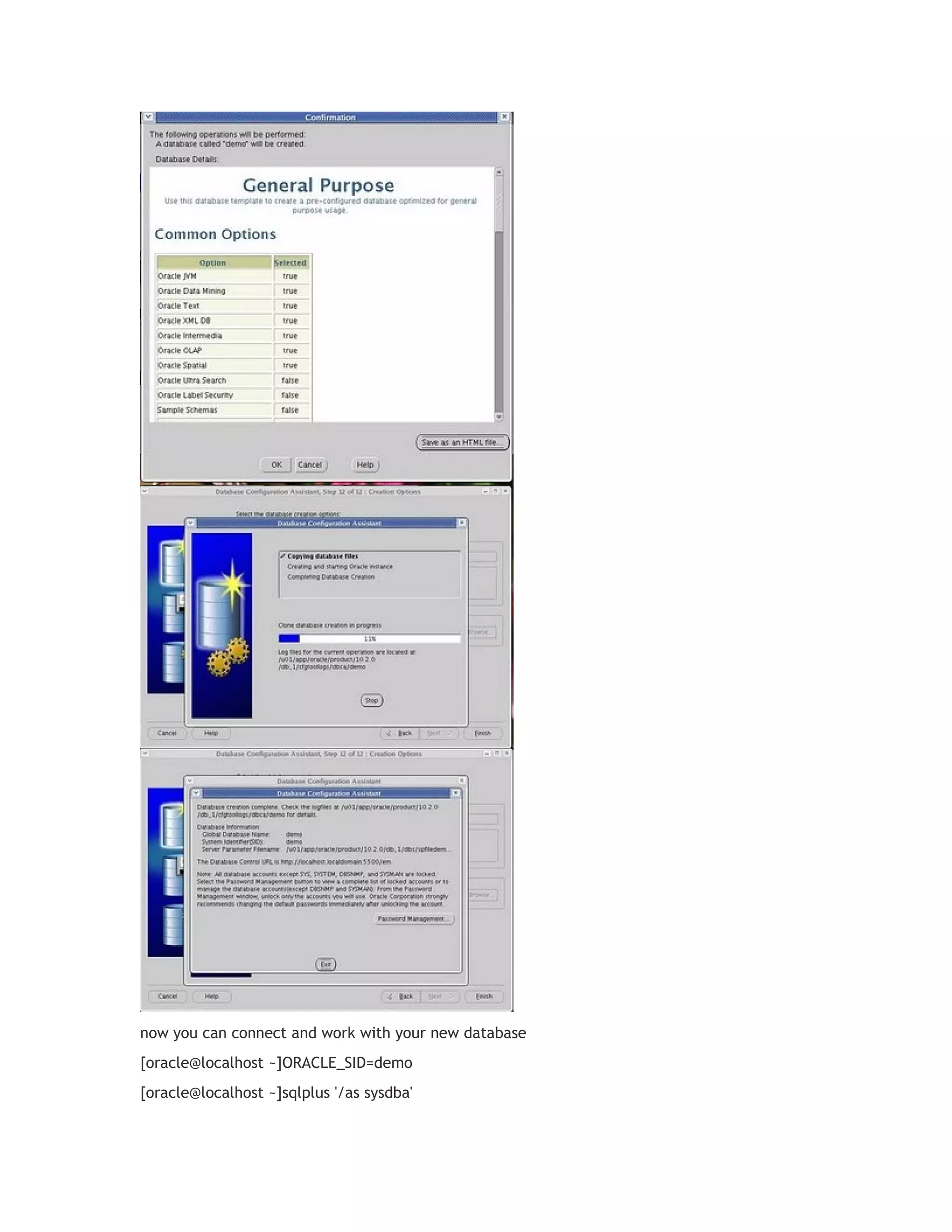

10. now you can connect and work with your new database
[oracle@localhost ~]ORACLE_SID=demo
[oracle@localhost ~]sqlplus '/as sysdba'

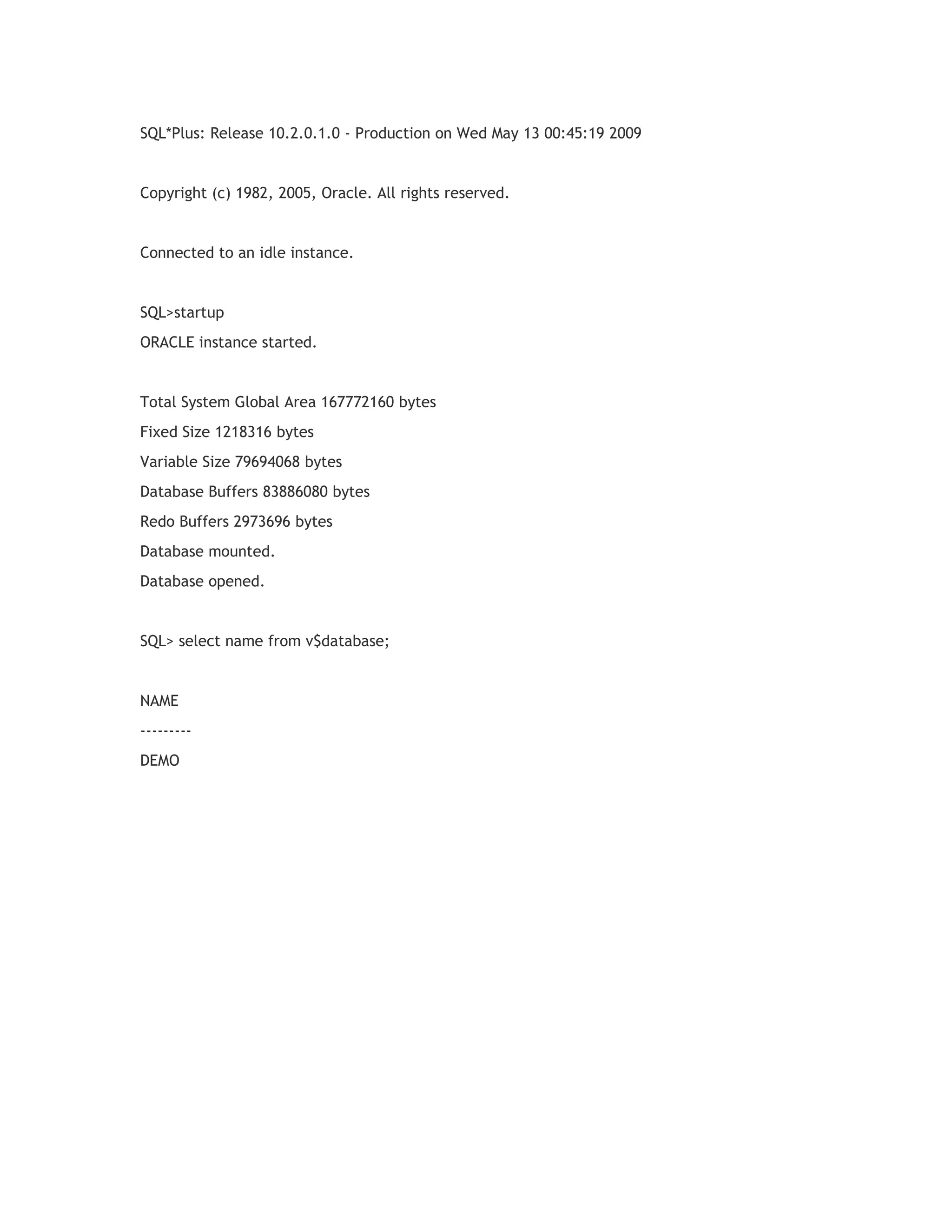

11. SQL*Plus: Release 10.2.0.1.0 - Production on Wed May 13 00:45:19 2009
Copyright (c) 1982, 2005, Oracle. All rights reserved.
Connected to an idle instance.
SQL>startup
ORACLE instance started.
Total System Global Area 167772160 bytes
Fixed Size 1218316 bytes
Variable Size 79694068 bytes
Database Buffers 83886080 bytes
Redo Buffers 2973696 bytes
Database mounted.
Database opened.
SQL> select name from v$database;
NAME
--------DEMO
