The document provides an overview of developing a 3-tier web application using MySQL, JavaServer Pages (JSP), and Apache Tomcat. It discusses the architecture of a 3-tier system with separate data, application, and presentation tiers. It also provides information on using MySQL for the database tier, JSP and servlets for the application tier, and HTML/JSP for the presentation tier. The document gives examples of using MySQL commands and JSP tags and objects.

1. MySQL & Project Technology Overview Questions… [email_address] Project Architecture (3-Tier)‏ MySQL Administration and Tools Apache-Tomcat Overview Introduction to JavaServer Pages Project Suggestions, Environment Setup Derek Doran CSE255 Project Fall07

2. n-Tier Architecture A Type of Abstraction for Developing large-scale Applications Define A T ier For Each Component Of A Project That Can Be Developed In Tandem Enables Rapid Application Development Focuses The Roles of Each Team Member Example: 2-Tier Client/Server Architecture Application (Client) Tier: Engineer Implements Desktop Application Database (Server) Tier: DBA Defines the Schema, Implements Database, Writes Stored Procedures, etc.

3. 3-Tier Architecture Project Architecture Requirement : A 3-Tier Web System Data Access Tier DB on a Secure Server Logic (Business Logic), Application Tier Servlets, Web Services - System Processing Code Presentation Tier HTML, JSP, ASP, ASPX Pages Served on Web Server http://www.patriotbrothers.com/images/3tier_2.png

4. Project You Will Implement And Host All 3-Tiers on One PC ! MySQL Database Server (Data Tier)‏ JSP Backend Code, Servlets, …Code That Handles Processing (Application Tier)‏ Dynamic HTML Pages via JSP/PHP (Presentation Tier)‏ Group Members Need To Fill Specific Roles Database Administrator Graphic Artist and Web Developer Software Engineer Requirements Analyst (All Team Members)‏

5. Database Tier Secure Storage of Databases Provide Authenticated Communication Only With Application Tier Objective: Keep Databases As Far Away From User Interface As Possible Hide DB Server Address Hide Login Information Make Database Transparent To User Let DBA, Req. Analyst Develop DB and Schema Separate From the Application

6. Application Tier A Collection of Shared Procedures and Applications Objective: Maximize Reusability Examples Common Processing Over Many Applications Single Point of Communication with DB Keep Processing Logic Separate From Form (GUI)‏ Prevents Mixing Of Form Logic…. When and How to Display Information With Processing Logic Cart Checkout CC Verification …etc.

7. Presentation Tier Contains HTML, JSP, ASP, PHP pages for Presentation Enables Graphic Designer, Web Developer to Develop Attractive Pages independently Of Business-Level Processing Graphic Designer Make The Static HTML Pages Develop Page Resources (Images, Flash, Video, etc.) Write Client-side Scripts (JavaScript/PHP) For Page Web Developer Modify HTML For JSP, ASP… Communicate With Application Tier Developer

8. Project Flexibility All Technologies At All Tiers Can Be Substituted For What You Are Most Familiar With Implementation in JSP, PHP, ASP, .NET... BUT Your Pages Must Run On a Free, Widely Supported Application Server Ex: If ASP.NET, VS 2005 or Web Express If you Deviate From JSP and Apache Tomcat… Alert Prof. Demurjian and I By E-Mail Direct Us To Free Downloads of All Required Technologies To Run Your System You MUST Implement Your Database With MySQL

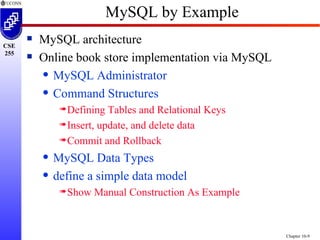

9. MySQL by Example MySQL architecture Online book store implementation via MySQL MySQL Administrator Command Structures Defining Tables and Relational Keys Insert, update, and delete data Commit and Rollback MySQL Data Types define a simple data model Show Manual Construction As Example

10. MySQL Architecture http://dev.mysql.com/doc/refman/5.1/en/images/PSEArch.png

11. Schema Setup via MySQL Administrator Implement Tables With InnoDB Engine, for Foreign Key Support and Improved Logging, Compared To MyISAM

12. MySQL Command Line Client Interface for Executing Manual Queries And Issuing Commands to MySQL Note Commands: show databases; use <dbName>; show tables;

13. Executing Manual Queries

14. Executing Manual Queries MySQL Command Line Resource http://dev.mysql.com/doc/refman/5.0/en/mysql.html

15. Browsing the catalog view table structure DESCRIBE <table>; view your tables: SHOW tables;

16. Schema Administration MySQL Schema Permissions are Based on Username You Must Assign Permissions On a Per Schema Basis using other schema’s requires permission ( GRANT ’s)‏ Syntax: http://dev.mysql.com/doc/refman/5.0/en/grant.html -OR- Use the MySQL Administrator GUI!

17. MySQL Administrator Tool To Prepare Your Database For Access User Administration

18. Delete Delete table with drop table DROP TABLE customer; Delete rows with delete from DELETE FROM customer WHERE name = “Smith”; DELETE FROM customer;

19. Commit and Rollback Modifications of tuples are temporarily stored in the database They become permanent after commit; statement has been issued You can undo all modifications since last commit using rollback Any data definition command like create results in implicit commit Termination of MySQL session also executes implicit commit Essential For Exception Handling!! Try{ SQL(“insert…”); … SQL(“commit”); } Catch(Exception){ SQL(“rollback”); }

20. Things to remember Always terminate your command with a Semicolon (;)‏ Exit MySQL Prompt by entering quit or exit at the mysql> prompt Commands can be in lower or upper case

21. MySQL Useful Data types… character data types : varchar(x), Variable Length String, where x is size in bytes For ASCII, UTF-8 formats, 1 character = 1 byte numerical data: INT – implicit size of 32-bits DECIMAL[( M [, D ])] [UNSIGNED] [ZEROFILL] Date century year month day hour min sec BLOB (Binary Large Object)‏ Data stored as a string of Binary Data Max Size: 2^16 bytes

22. Book Customer Order LineItem Relational Model ISBN Author Title Publisher Date Price Cust # Name Email Street City State Zip Order # Cust# Card Exp. Auth Order# Book# Date

23. Create Table

24. Constraints Column constraints: primary key foreign key NULL values create table CUSTOMER (id NUMBER CONSTRAINT pk_cust PRIMARY KEY, name VARCHAR2(250), email VARCHAR2(60) CONSTRAINT nn_email NOT NULL, addr NUMBER CONSTRAINT fk_addr REFERENCES address(id));

25. Table Constraint Clause

26. Column Constraint Clause

27. Schema Creation - book Examples From SQL*Plus, the Oracle DB Command Line Tool But Syntax is the same!

28. Schema Creation - customer

29. Schema Creation - order

30. Schema Creation - line_item

31. View Create a new view of data CREATE VIEW clerk (id_number, person, department, position) AS SELECT empno, ename, deptno, job FROM emp WHERE job = 'CLERK’; Why?

32. View Command

33. Alter Table Add a column, or integrity constraint Remove an integrity constraint Cannot rename or drop a column Keep a copy of the SQL statements you use to create and alter tables ALTER TABLE book MODIFY (price NUMBER(7,2)); ALTER TABLE customer DROP PRIMARY KEY CASCADE;

34. Alter Table command

35. Apache Tomcat An Open-Source Application Server Platform for JSP Widely Used Mac OSX Uses Tomcat for Web Sharing Provides environment for Java Code To Run In Cooperation With The Web Server Includes HTTP Content Server JSP Pages Are Compiled Via Tomcat As The Page is Requested Rich Log-File, Error Handling Output

36. Tomcat - JSP Connection Tomcat Must Be Installed On PC That Runs Project To Deliver Dynamic HTML JSP Page With Embedded Java Tomcat Compiles JSP, Then Executes Code Embedded Java May Output Additional HTML Tomcat Inserts Dynamically Generated HTML Into The Page HTML Page Delivered To Requesting Entity Important Resource: http://www.coreservlets.com/Apache-Tomcat-Tutorial/index.html#Java-Home Recommendation: Download Pre-Configured Package And Follow Directions

37. Java Server Pages + Servlets Servlets A Java Object That Receives an HTTP Request and Generates an HTTP Response Usually, an HTML Document Like A Standalone Application That Is Always On, Living On The Application Or Web Server JSP A Definition Of A Java Servlet Program! Tomcat Compiles the JSP Page Into a Servlet The Servlet Executes On the Server Sends An HTTP Reponse At End Of Computation Compilation is Invisible To User URL May Be http://localhost/Query.jsp Displayed Resource: An HTML Document!

38. JSP In a nutshell… Enables the Embedding of Java Statements In your HTML In JSP page, The stdout Is Now The HTML Document To Return Ex: <HTML> <BODY> Hello! The time is now <%= new java.util.Date() %> </BODY> </HTML> <!-- <%= //java expression %> : Embedding a Java expression In HTML --> Cannot Do Much With An Expression…

39. Scriptlets A Block Of Java Code Executed Everytime The JSP Page Is Invoked Scriptlets Placed In <% … %> brackets <HTML> <BODY> <% System.out.println( &quot;Evaluating date now&quot; ); java.util.Date date = new java.util.Date(); %> Hello! The time is now <%= date %> </BODY> </HTML> Variable date is Available In Entire HTML Form! System.out.println outputs to Server Log

40. Useful JSP Objects “ out ” out.println(“HTML”) prints content to HTML document “out” is of type javax.servlet.jsp.JspWriter “ request ” Object Referring to Transaction Between Browser And Server <HTML> <BODY> <% java.util.Date date = new java.util.Date(); %> Hello! The time is now <% out.println( date ); out.println( &quot;<BR>Your machine's address is &quot; ); out.println( request.getRemoteHost()); %> </BODY> </HTML>

41. Useful JSP Objects “ response ” Used To Alter HTTP Response Sent To Client Browser response.sendRedirect(newURL); When the HTTP Response For This Page Is Sent, The Browser Will Instantly Send a Request For newURL! <HTML> <% if (!validateUser(userID)){ response.sendRedirect(“loginFailure.jsp”); }%> <BODY> Thanks for Logging In! </BODY> </HTML>

42. Example Generating an HTML table With Dynamic Number Of Rows JSP Fragment: <TABLE BORDER=2> <% for ( int i = 0; i < n; i++ ) { %> <TR> <TD>Number</TD> <TD><%= i+1 %></TD> </TR> <% } %> </TABLE>

43. Conditional HTML Given Static HTML, Decide To Use It As Output Or Not In JSP… <% if ( hello ) { %> <P>Hello, world <% } else { %> <P>Goodbye, world <%}%>

44. JSP Directives Package Importing <%@ page import=“java.util.*, java.text.*” %> Good Form: Place Imports Above <HTML> Tag Directives Are Placed In <%@ … %> Tags Including Other Files <%@ include file=“other.jsp” %> Useful for Keeping JSP Pages Clean

45. JSP Method Declarations Can Define Methods To Call In Your JSP <%! Date theDate = newDate(); Date getDate(){ return theDate; } %> *Declarations are loaded Once , When The Page Is First Loaded. On Refresh, theDate Will Not Change! Suggestion: Declare MySQL Connection, So You Do Not Restablish Connections On Page Refresh

46. Attacking The Project JSP Requires Combination Of HTML Development Java Development First Develop Static HTML Pages And Supporting Scripts Presentation Tier Development Use a Strong IDE If Unfamiliar With HTML Dreamweaver Visual Studio Express You Will Get Familiar With HTML As You Create Pages Via Drag-And-Drop Then Modify By Hand Static HTML To Include JSP Code Application Tier Development Eclipse EE Editor Offers Decent Support For JSP Editing In Parallel Develop Your Data Tier Data Model Development (Phase I and II)‏ MySQL Implementation And Population (Phase III)‏

47. Environment Setup 1. Install Eclipse EE JDK5.0 for JSP editing 2. Install Your HTML Editor Of Choice 3. Install And Configure Tomcat 4. Install And Configure MySQL 5. Install MySQL Administrator 6. Install Connector/J 5.0 JDBC Connection Driver For MySQL Test! Static HTML Simple DHTML DHTML That Calls MySQL DHTML With JavaScript Usually…Configuration is Very Unique For A PC Research Solutions On Internet To Guide You
