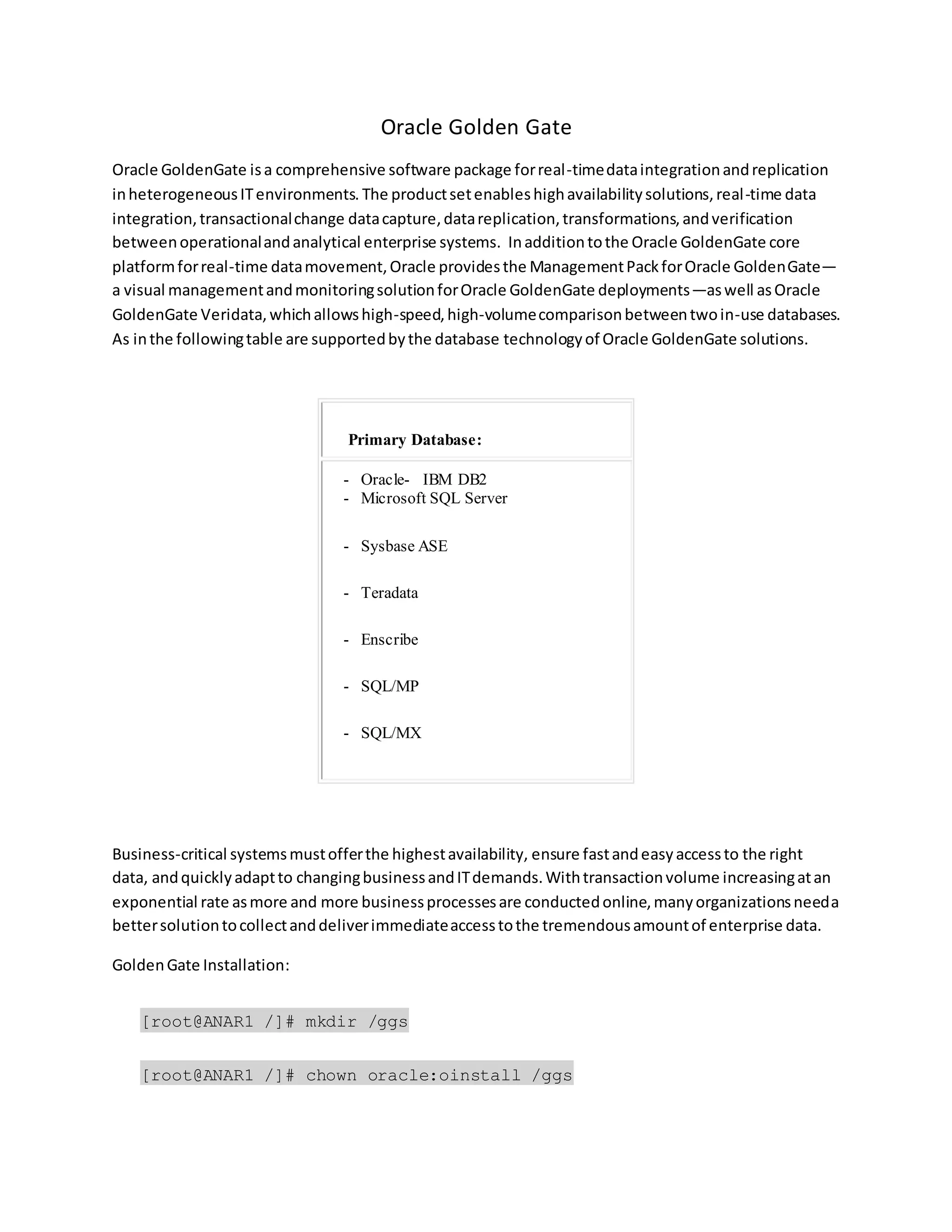

1. Oracle Golden Gate
Oracle GoldenGate isa comprehensive software package forreal-timedataintegrationandreplication
inheterogeneousITenvironments. The productsetenableshighavailabilitysolutions,real-time data
integration,transactionalchange datacapture,datareplication,transformations,andverification
betweenoperationalandanalytical enterprise systems. Inadditiontothe Oracle GoldenGate core
platformforreal-time datamovement,Oracle providesthe ManagementPackforOracle GoldenGate—
a visual managementandmonitoringsolutionforOracle GoldenGate deployments—aswell asOracle
GoldenGate Veridata,whichallowshigh-speed,high-volumecomparisonbetweentwoin-use databases.
As inthe followingtable are supportedbythe database technologyof Oracle GoldenGate solutions.
Business-critical systemsmustofferthe highestavailability, ensure fastandeasyaccessto the right
data, andquicklyadaptto changingbusinessandITdemands.Withtransactionvolume increasingatan
exponential rate asmore and more businessprocessesare conductedonline,manyorganizationsneeda
bettersolutiontocollectanddeliverimmediateaccesstothe tremendousamountof enterprise data.
GoldenGate Installation:
[root@ANAR1 /]# mkdir /ggs
[root@ANAR1 /]# chown oracle:oinstall /ggs
Primary Database:
- Oracle- IBM DB2
- Microsoft SQL Server
- Sysbase ASE
- Teradata
- Enscribe
- SQL/MP
- SQL/MX

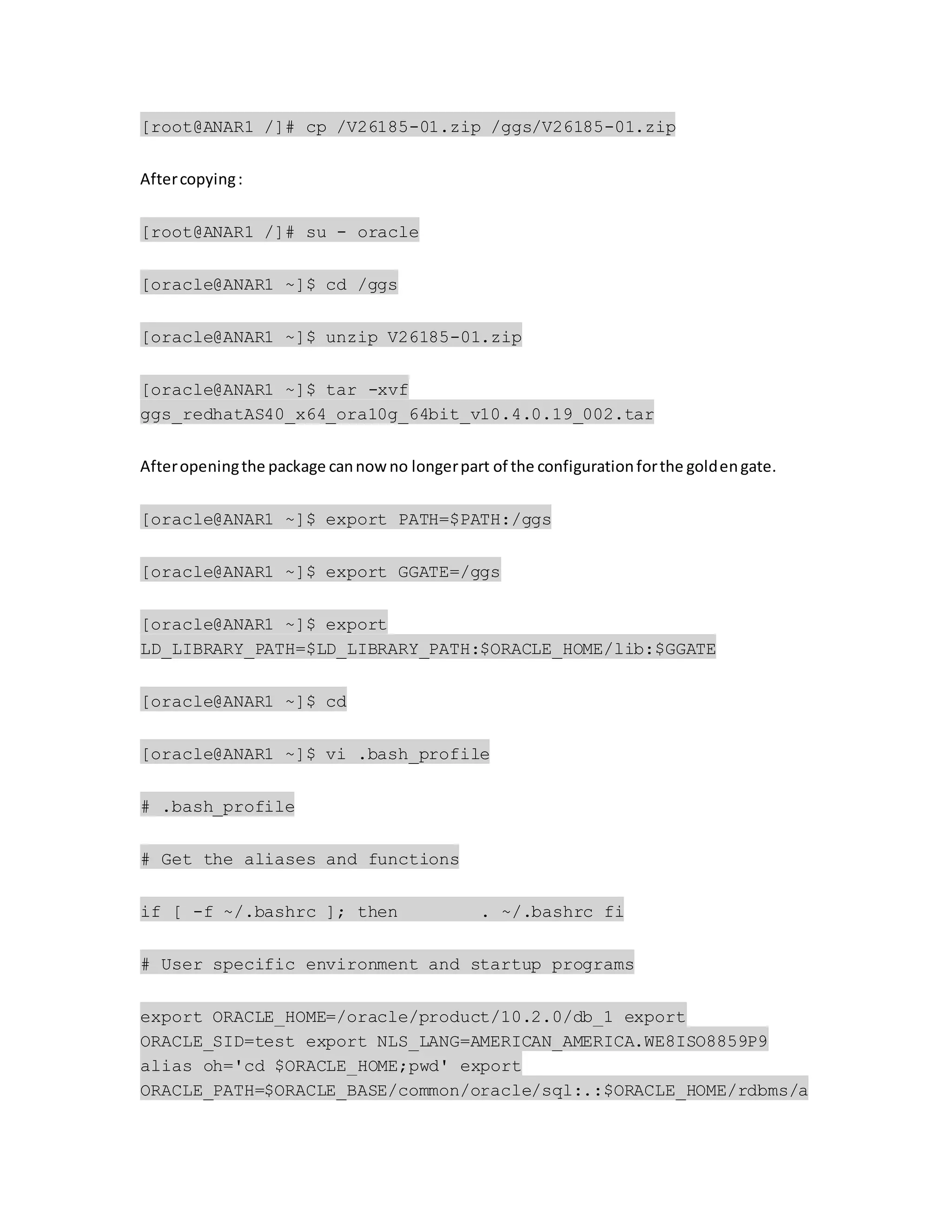

2. [root@ANAR1 /]# cp /V26185-01.zip /ggs/V26185-01.zip
Aftercopying:
[root@ANAR1 /]# su - oracle
[oracle@ANAR1 ~]$ cd /ggs
[oracle@ANAR1 ~]$ unzip V26185-01.zip
[oracle@ANAR1 ~]$ tar -xvf
ggs_redhatAS40_x64_ora10g_64bit_v10.4.0.19_002.tar
Afteropeningthe package cannowno longerpart of the configurationforthe goldengate.
[oracle@ANAR1 ~]$ export PATH=$PATH:/ggs
[oracle@ANAR1 ~]$ export GGATE=/ggs
[oracle@ANAR1 ~]$ export
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$ORACLE_HOME/lib:$GGATE
[oracle@ANAR1 ~]$ cd
[oracle@ANAR1 ~]$ vi .bash_profile
# .bash_profile
# Get the aliases and functions
if [ -f ~/.bashrc ]; then . ~/.bashrc fi
# User specific environment and startup programs
export ORACLE_HOME=/oracle/product/10.2.0/db_1 export
ORACLE_SID=test export NLS_LANG=AMERICAN_AMERICA.WE8ISO8859P9
alias oh='cd $ORACLE_HOME;pwd' export
ORACLE_PATH=$ORACLE_BASE/common/oracle/sql:.:$ORACLE_HOME/rdbms/a

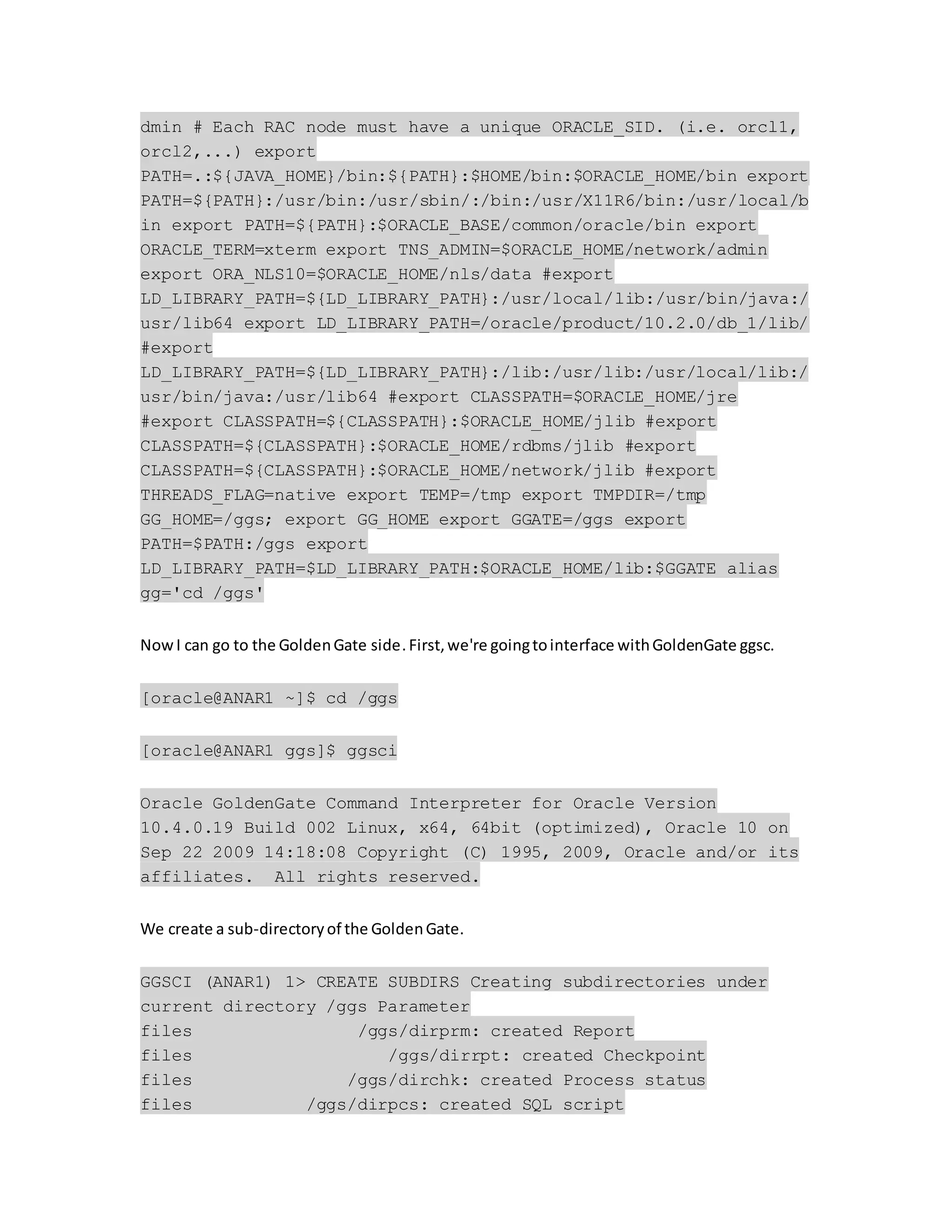

3. dmin # Each RAC node must have a unique ORACLE_SID. (i.e. orcl1,
orcl2,...) export
PATH=.:${JAVA_HOME}/bin:${PATH}:$HOME/bin:$ORACLE_HOME/bin export
PATH=${PATH}:/usr/bin:/usr/sbin/:/bin:/usr/X11R6/bin:/usr/local/b
in export PATH=${PATH}:$ORACLE_BASE/common/oracle/bin export
ORACLE_TERM=xterm export TNS_ADMIN=$ORACLE_HOME/network/admin
export ORA_NLS10=$ORACLE_HOME/nls/data #export
LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:/usr/local/lib:/usr/bin/java:/
usr/lib64 export LD_LIBRARY_PATH=/oracle/product/10.2.0/db_1/lib/
#export
LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:/lib:/usr/lib:/usr/local/lib:/
usr/bin/java:/usr/lib64 #export CLASSPATH=$ORACLE_HOME/jre
#export CLASSPATH=${CLASSPATH}:$ORACLE_HOME/jlib #export
CLASSPATH=${CLASSPATH}:$ORACLE_HOME/rdbms/jlib #export
CLASSPATH=${CLASSPATH}:$ORACLE_HOME/network/jlib #export
THREADS_FLAG=native export TEMP=/tmp export TMPDIR=/tmp
GG_HOME=/ggs; export GG_HOME export GGATE=/ggs export
PATH=$PATH:/ggs export
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$ORACLE_HOME/lib:$GGATE alias
gg='cd /ggs'
NowI can go to the GoldenGate side.First,we're goingtointerface withGoldenGate ggsc.
[oracle@ANAR1 ~]$ cd /ggs
[oracle@ANAR1 ggs]$ ggsci
Oracle GoldenGate Command Interpreter for Oracle Version
10.4.0.19 Build 002 Linux, x64, 64bit (optimized), Oracle 10 on
Sep 22 2009 14:18:08 Copyright (C) 1995, 2009, Oracle and/or its
affiliates. All rights reserved.
We create a sub-directoryof the GoldenGate.
GGSCI (ANAR1) 1> CREATE SUBDIRS Creating subdirectories under
current directory /ggs Parameter
files /ggs/dirprm: created Report
files /ggs/dirrpt: created Checkpoint
files /ggs/dirchk: created Process status
files /ggs/dirpcs: created SQL script

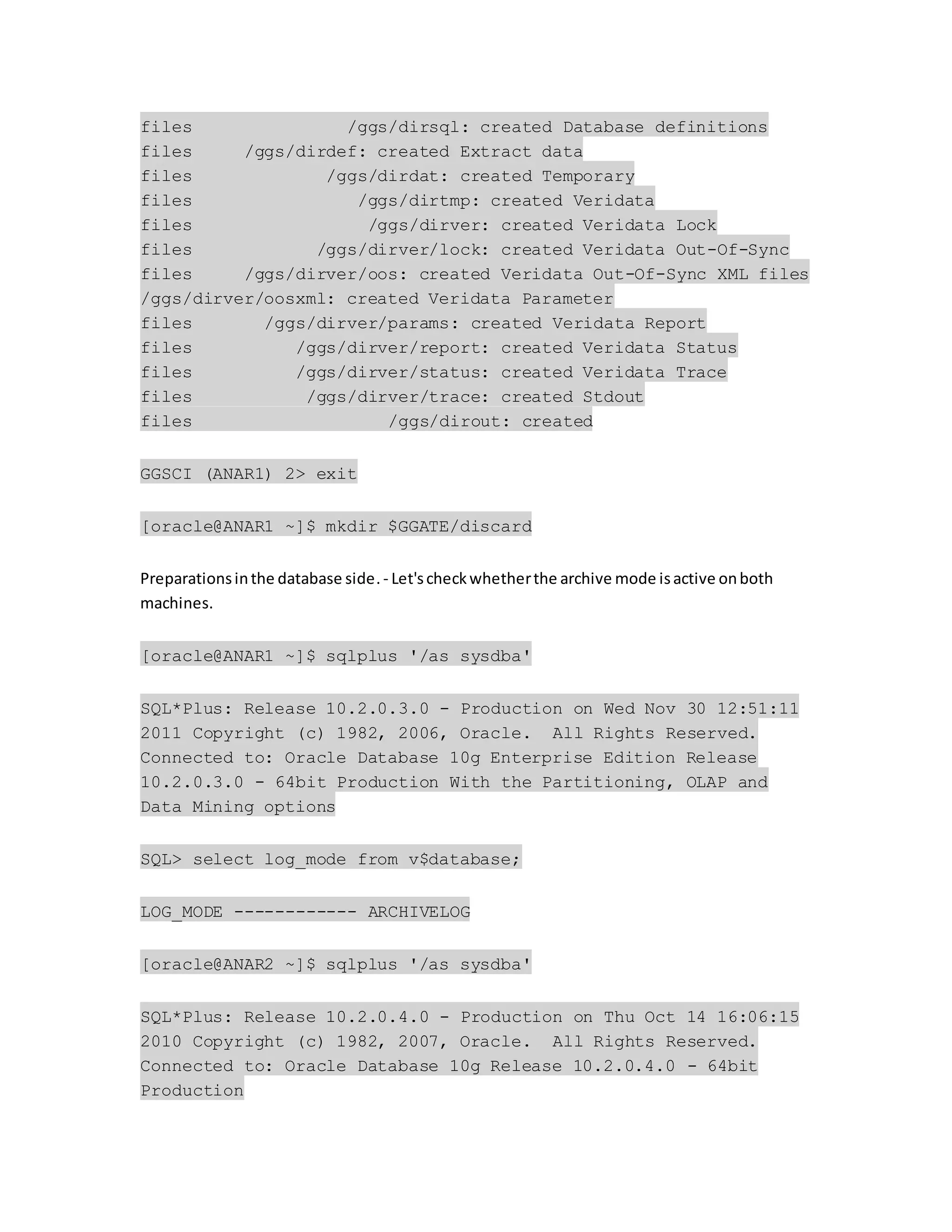

4. files /ggs/dirsql: created Database definitions
files /ggs/dirdef: created Extract data
files /ggs/dirdat: created Temporary
files /ggs/dirtmp: created Veridata
files /ggs/dirver: created Veridata Lock
files /ggs/dirver/lock: created Veridata Out-Of-Sync
files /ggs/dirver/oos: created Veridata Out-Of-Sync XML files
/ggs/dirver/oosxml: created Veridata Parameter
files /ggs/dirver/params: created Veridata Report
files /ggs/dirver/report: created Veridata Status
files /ggs/dirver/status: created Veridata Trace
files /ggs/dirver/trace: created Stdout
files /ggs/dirout: created
GGSCI (ANAR1) 2> exit
[oracle@ANAR1 ~]$ mkdir $GGATE/discard
Preparationsinthe database side.- Let'scheckwhetherthe archive mode isactive onboth
machines.
[oracle@ANAR1 ~]$ sqlplus '/as sysdba'
SQL*Plus: Release 10.2.0.3.0 - Production on Wed Nov 30 12:51:11
2011 Copyright (c) 1982, 2006, Oracle. All Rights Reserved.
Connected to: Oracle Database 10g Enterprise Edition Release
10.2.0.3.0 - 64bit Production With the Partitioning, OLAP and
Data Mining options
SQL> select log_mode from v$database;
LOG_MODE ------------ ARCHIVELOG
[oracle@ANAR2 ~]$ sqlplus '/as sysdba'
SQL*Plus: Release 10.2.0.4.0 - Production on Thu Oct 14 16:06:15
2010 Copyright (c) 1982, 2007, Oracle. All Rights Reserved.
Connected to: Oracle Database 10g Release 10.2.0.4.0 - 64bit
Production

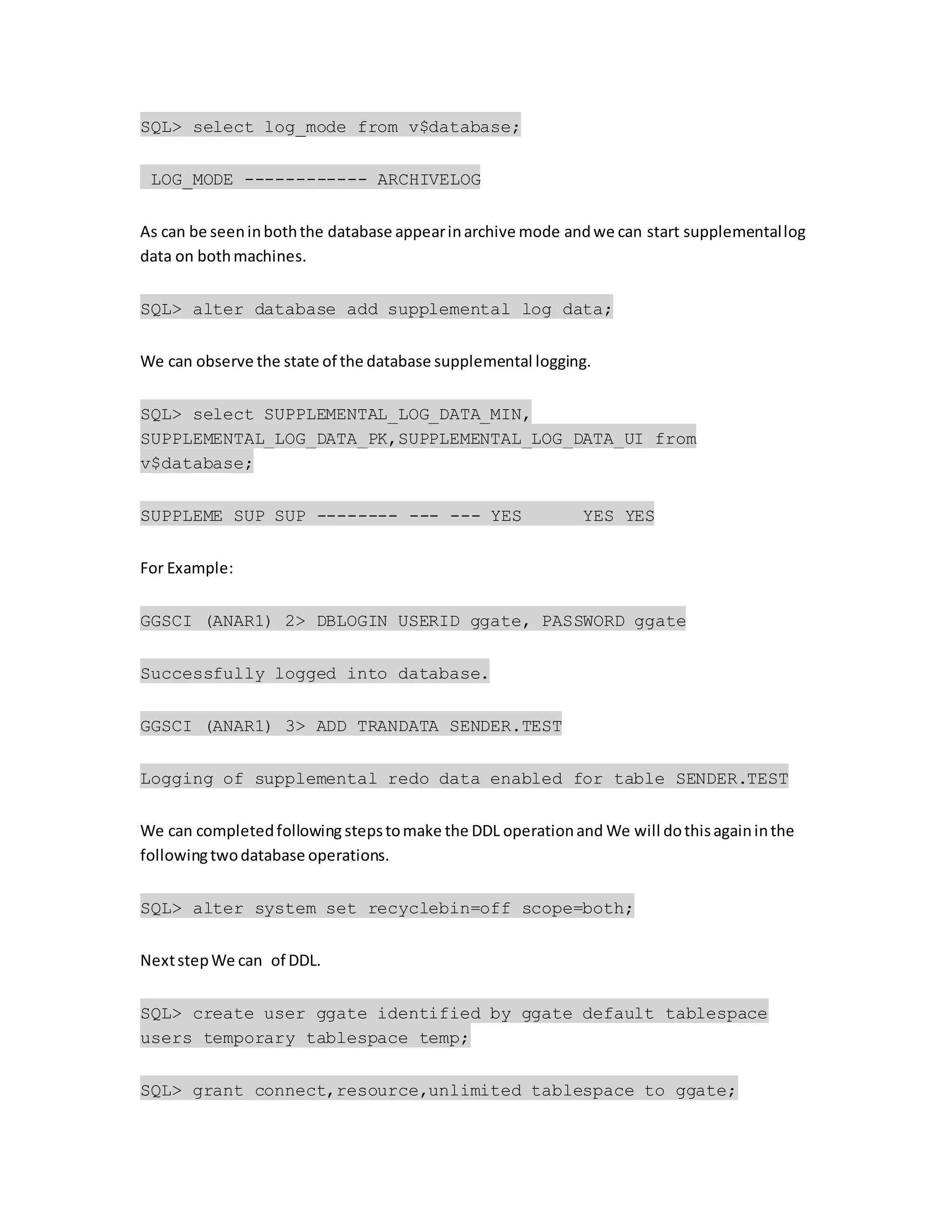

5. SQL> select log_mode from v$database;
LOG_MODE ------------ ARCHIVELOG
As can be seeninboththe database appearinarchive mode andwe can start supplementallog
data on bothmachines.
SQL> alter database add supplemental log data;
We can observe the state of the database supplemental logging.
SQL> select SUPPLEMENTAL_LOG_DATA_MIN,
SUPPLEMENTAL_LOG_DATA_PK,SUPPLEMENTAL_LOG_DATA_UI from
v$database;
SUPPLEME SUP SUP -------- --- --- YES YES YES
For Example:
GGSCI (ANAR1) 2> DBLOGIN USERID ggate, PASSWORD ggate
Successfully logged into database.
GGSCI (ANAR1) 3> ADD TRANDATA SENDER.TEST
Logging of supplemental redo data enabled for table SENDER.TEST
We can completedfollowing stepstomake the DDL operationand We will dothisagaininthe
followingtwodatabase operations.
SQL> alter system set recyclebin=off scope=both;
NextstepWe can of DDL.
SQL> create user ggate identified by ggate default tablespace
users temporary tablespace temp;
SQL> grant connect,resource,unlimited tablespace to ggate;

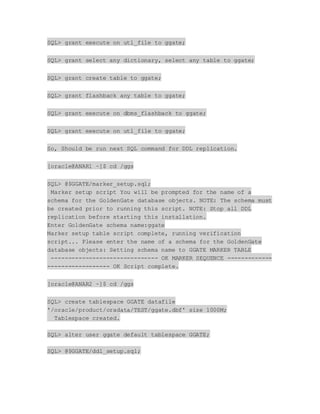

6. SQL> grant execute on utl_file to ggate;
SQL> grant select any dictionary, select any table to ggate;
SQL> grant create table to ggate;
SQL> grant flashback any table to ggate;
SQL> grant execute on dbms_flashback to ggate;
SQL> grant execute on utl_file to ggate;
So, Should be run next SQL command for DDL replication.
[oracle@ANAR1 ~]$ cd /ggs
SQL> @$GGATE/marker_setup.sql;
Marker setup script You will be prompted for the name of a
schema for the GoldenGate database objects. NOTE: The schema must
be created prior to running this script. NOTE: Stop all DDL
replication before starting this installation.
Enter GoldenGate schema name:ggate
Marker setup table script complete, running verification
script... Please enter the name of a schema for the GoldenGate
database objects: Setting schema name to GGATE MARKER TABLE
------------------------------- OK MARKER SEQUENCE -------------
------------------ OK Script complete.
[oracle@ANAR2 ~]$ cd /ggs
SQL> create tablespace GGATE datafile
'/oracle/product/oradata/TEST/ggate.dbf' size 1000M;
Tablespace created.
SQL> alter user ggate default tablespace GGATE;
SQL> @$GGATE/ddl_setup.sql;

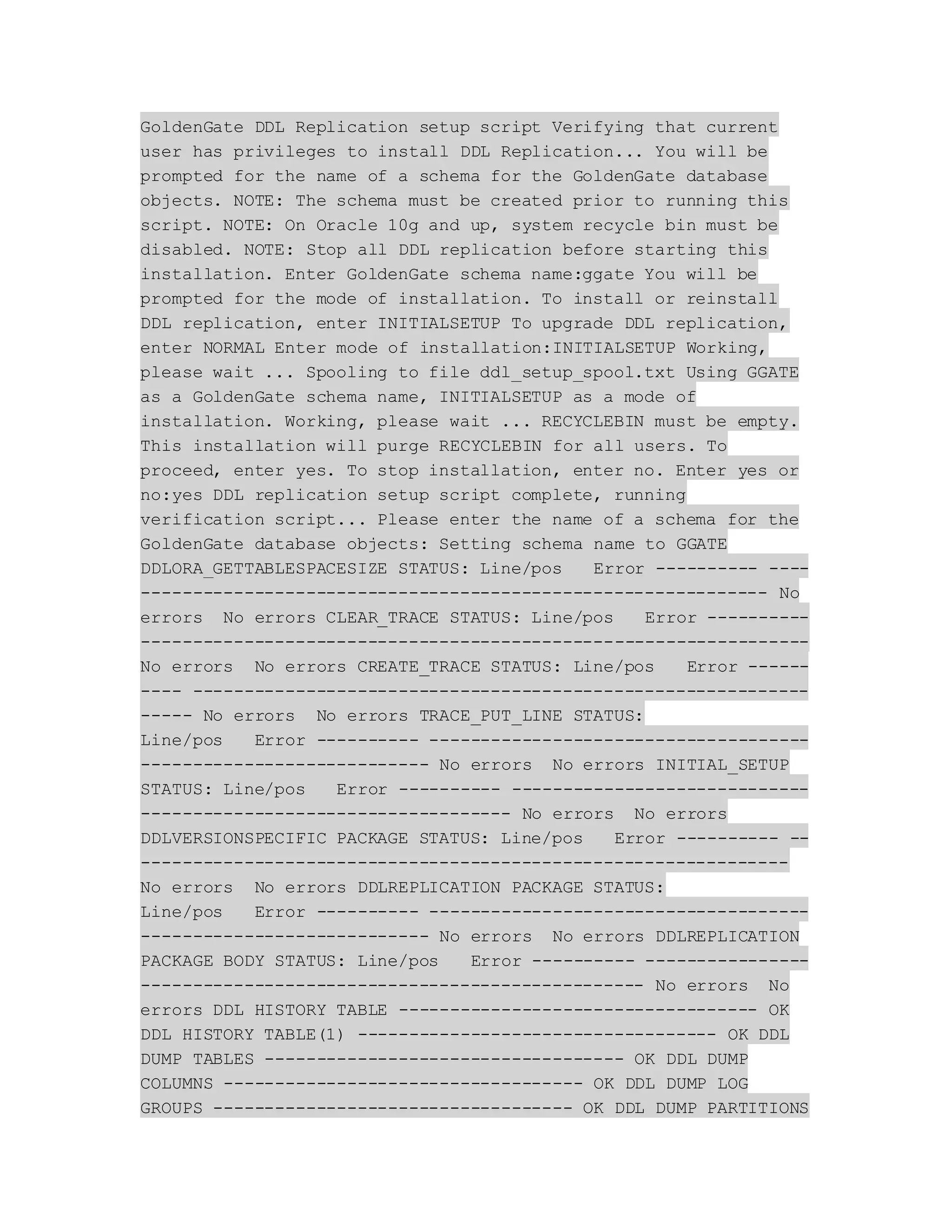

7. GoldenGate DDL Replication setup script Verifying that current
user has privileges to install DDL Replication... You will be
prompted for the name of a schema for the GoldenGate database
objects. NOTE: The schema must be created prior to running this
script. NOTE: On Oracle 10g and up, system recycle bin must be
disabled. NOTE: Stop all DDL replication before starting this
installation. Enter GoldenGate schema name:ggate You will be
prompted for the mode of installation. To install or reinstall
DDL replication, enter INITIALSETUP To upgrade DDL replication,
enter NORMAL Enter mode of installation:INITIALSETUP Working,
please wait ... Spooling to file ddl_setup_spool.txt Using GGATE
as a GoldenGate schema name, INITIALSETUP as a mode of
installation. Working, please wait ... RECYCLEBIN must be empty.
This installation will purge RECYCLEBIN for all users. To
proceed, enter yes. To stop installation, enter no. Enter yes or
no:yes DDL replication setup script complete, running
verification script... Please enter the name of a schema for the
GoldenGate database objects: Setting schema name to GGATE
DDLORA_GETTABLESPACESIZE STATUS: Line/pos Error ---------- ----
------------------------------------------------------------- No
errors No errors CLEAR_TRACE STATUS: Line/pos Error ----------
-----------------------------------------------------------------
No errors No errors CREATE_TRACE STATUS: Line/pos Error ------
---- ------------------------------------------------------------
----- No errors No errors TRACE_PUT_LINE STATUS:
Line/pos Error ---------- -------------------------------------
---------------------------- No errors No errors INITIAL_SETUP
STATUS: Line/pos Error ---------- -----------------------------
------------------------------------ No errors No errors
DDLVERSIONSPECIFIC PACKAGE STATUS: Line/pos Error ---------- --
---------------------------------------------------------------
No errors No errors DDLREPLICATION PACKAGE STATUS:
Line/pos Error ---------- -------------------------------------
---------------------------- No errors No errors DDLREPLICATION
PACKAGE BODY STATUS: Line/pos Error ---------- ----------------
------------------------------------------------- No errors No
errors DDL HISTORY TABLE ----------------------------------- OK
DDL HISTORY TABLE(1) ----------------------------------- OK DDL
DUMP TABLES ----------------------------------- OK DDL DUMP
COLUMNS ----------------------------------- OK DDL DUMP LOG
GROUPS ----------------------------------- OK DDL DUMP PARTITIONS

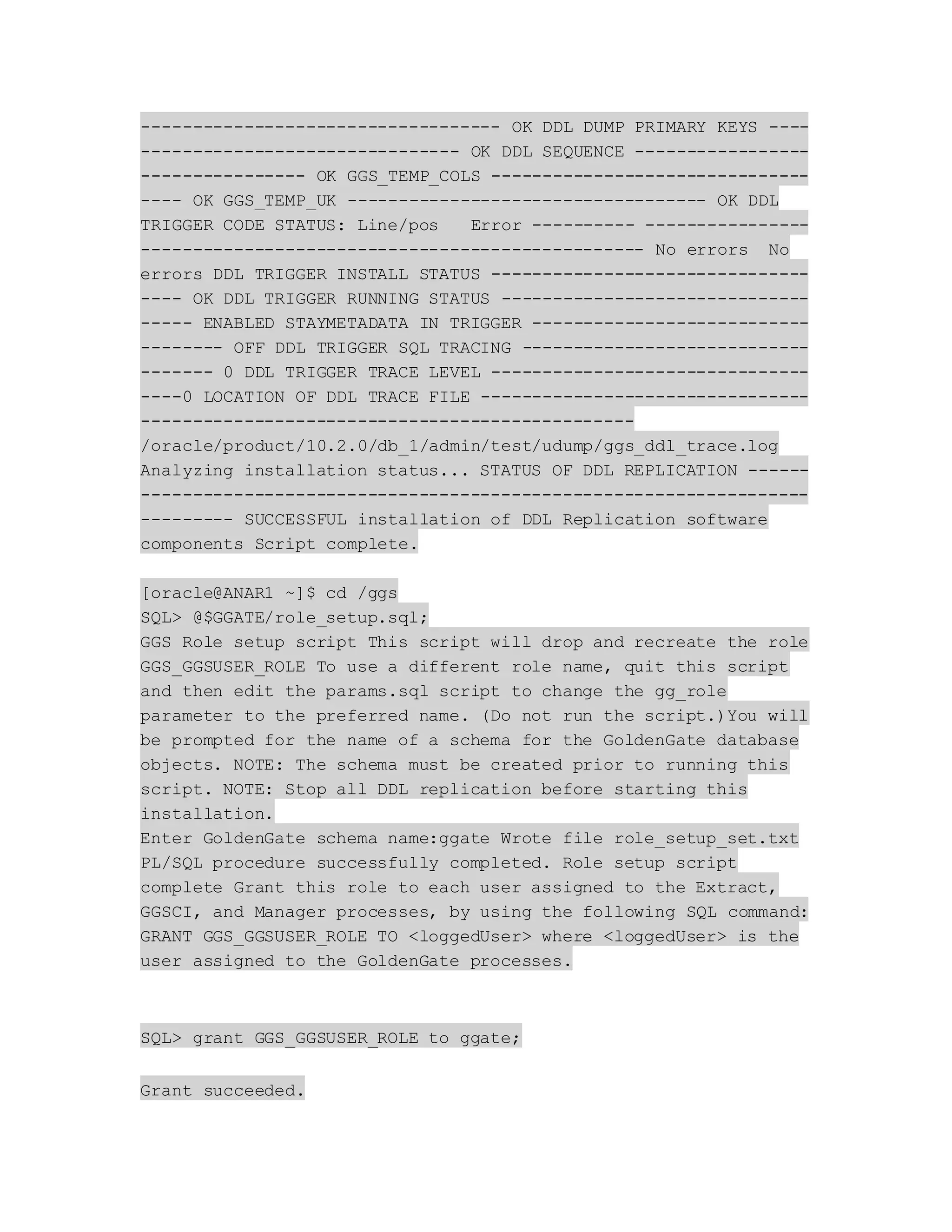

8. ----------------------------------- OK DDL DUMP PRIMARY KEYS ----
------------------------------- OK DDL SEQUENCE -----------------
---------------- OK GGS_TEMP_COLS -------------------------------
---- OK GGS_TEMP_UK ----------------------------------- OK DDL
TRIGGER CODE STATUS: Line/pos Error ---------- ----------------
------------------------------------------------- No errors No
errors DDL TRIGGER INSTALL STATUS -------------------------------
---- OK DDL TRIGGER RUNNING STATUS ------------------------------
----- ENABLED STAYMETADATA IN TRIGGER ---------------------------
-------- OFF DDL TRIGGER SQL TRACING ----------------------------
------- 0 DDL TRIGGER TRACE LEVEL -------------------------------
----0 LOCATION OF DDL TRACE FILE --------------------------------
------------------------------------------------
/oracle/product/10.2.0/db_1/admin/test/udump/ggs_ddl_trace.log
Analyzing installation status... STATUS OF DDL REPLICATION ------
-----------------------------------------------------------------
--------- SUCCESSFUL installation of DDL Replication software
components Script complete.
[oracle@ANAR1 ~]$ cd /ggs
SQL> @$GGATE/role_setup.sql;
GGS Role setup script This script will drop and recreate the role
GGS_GGSUSER_ROLE To use a different role name, quit this script
and then edit the params.sql script to change the gg_role
parameter to the preferred name. (Do not run the script.)You will
be prompted for the name of a schema for the GoldenGate database
objects. NOTE: The schema must be created prior to running this
script. NOTE: Stop all DDL replication before starting this
installation.
Enter GoldenGate schema name:ggate Wrote file role_setup_set.txt
PL/SQL procedure successfully completed. Role setup script
complete Grant this role to each user assigned to the Extract,
GGSCI, and Manager processes, by using the following SQL command:
GRANT GGS_GGSUSER_ROLE TO <loggedUser> where <loggedUser> is the
user assigned to the GoldenGate processes.
SQL> grant GGS_GGSUSER_ROLE to ggate;
Grant succeeded.

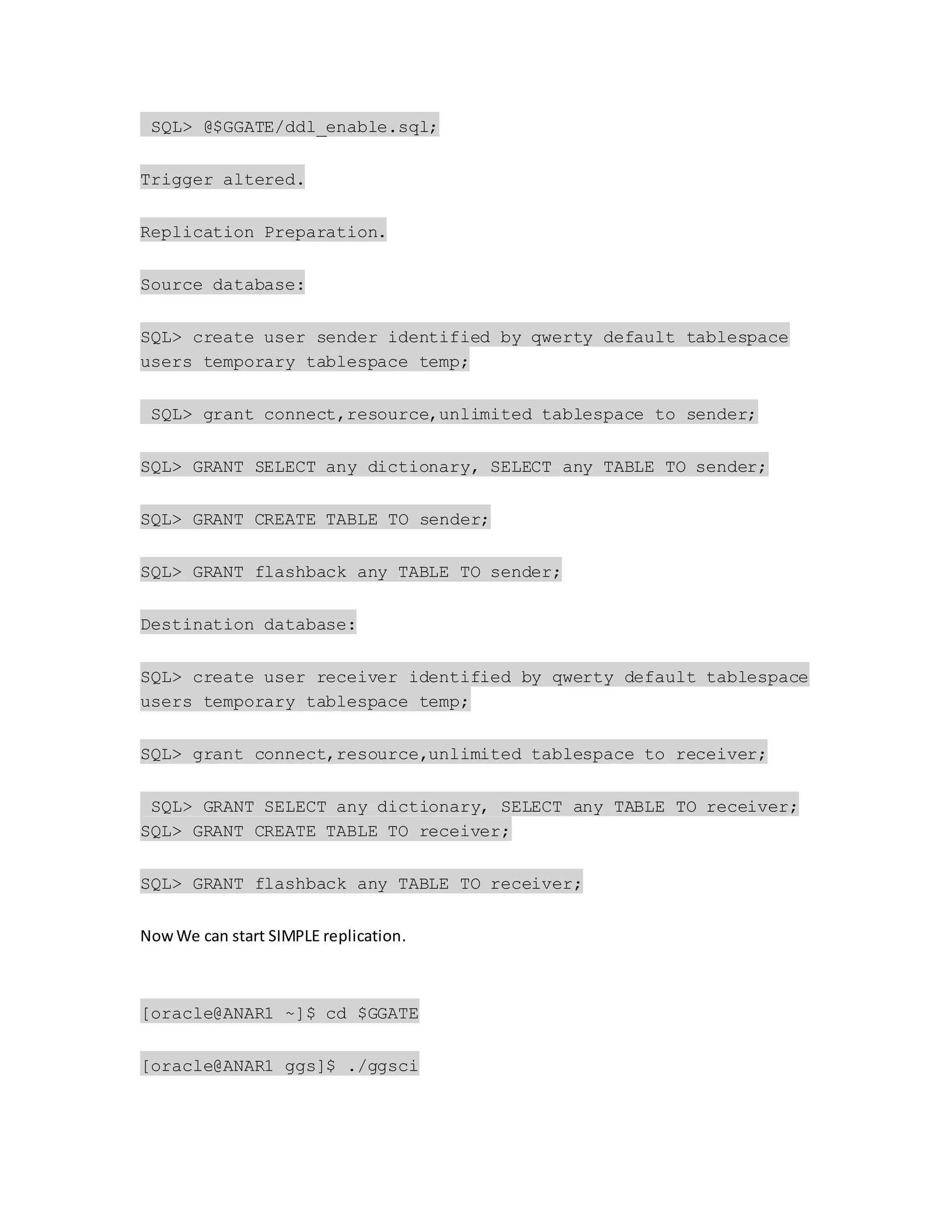

9. SQL> @$GGATE/ddl_enable.sql;
Trigger altered.
Replication Preparation.
Source database:
SQL> create user sender identified by qwerty default tablespace
users temporary tablespace temp;
SQL> grant connect,resource,unlimited tablespace to sender;
SQL> GRANT SELECT any dictionary, SELECT any TABLE TO sender;
SQL> GRANT CREATE TABLE TO sender;
SQL> GRANT flashback any TABLE TO sender;
Destination database:
SQL> create user receiver identified by qwerty default tablespace
users temporary tablespace temp;
SQL> grant connect,resource,unlimited tablespace to receiver;
SQL> GRANT SELECT any dictionary, SELECT any TABLE TO receiver;
SQL> GRANT CREATE TABLE TO receiver;
SQL> GRANT flashback any TABLE TO receiver;
NowWe can start SIMPLE replication.
[oracle@ANAR1 ~]$ cd $GGATE
[oracle@ANAR1 ggs]$ ./ggsci

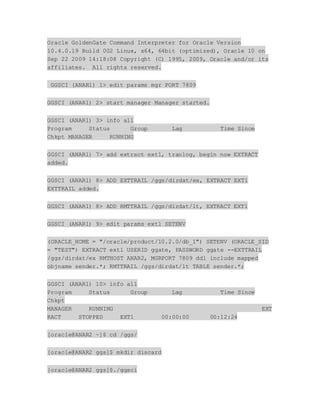

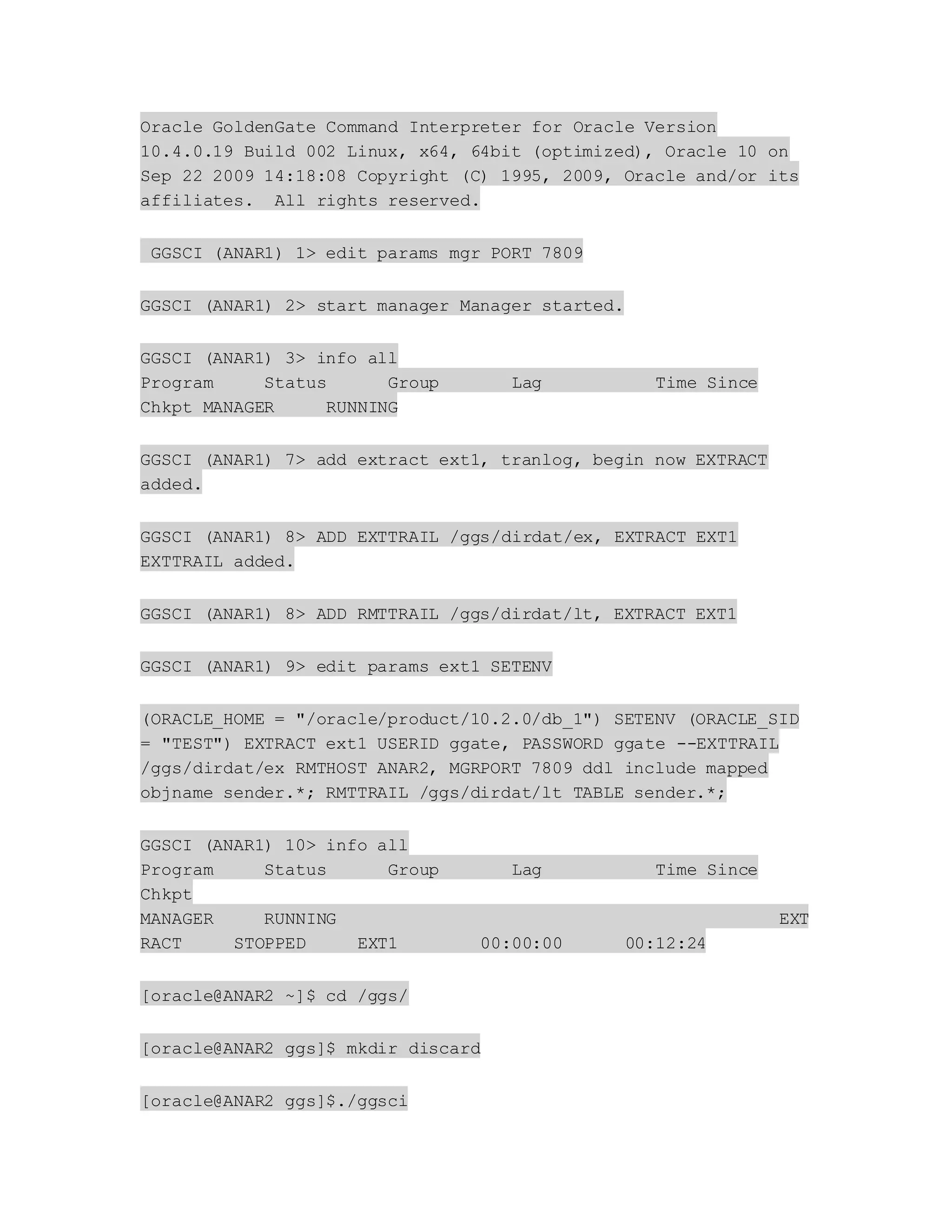

10. Oracle GoldenGate Command Interpreter for Oracle Version
10.4.0.19 Build 002 Linux, x64, 64bit (optimized), Oracle 10 on
Sep 22 2009 14:18:08 Copyright (C) 1995, 2009, Oracle and/or its
affiliates. All rights reserved.
GGSCI (ANAR1) 1> edit params mgr PORT 7809
GGSCI (ANAR1) 2> start manager Manager started.
GGSCI (ANAR1) 3> info all
Program Status Group Lag Time Since
Chkpt MANAGER RUNNING
GGSCI (ANAR1) 7> add extract ext1, tranlog, begin now EXTRACT
added.
GGSCI (ANAR1) 8> ADD EXTTRAIL /ggs/dirdat/ex, EXTRACT EXT1
EXTTRAIL added.
GGSCI (ANAR1) 8> ADD RMTTRAIL /ggs/dirdat/lt, EXTRACT EXT1
GGSCI (ANAR1) 9> edit params ext1 SETENV
(ORACLE_HOME = "/oracle/product/10.2.0/db_1") SETENV (ORACLE_SID
= "TEST") EXTRACT ext1 USERID ggate, PASSWORD ggate --EXTTRAIL
/ggs/dirdat/ex RMTHOST ANAR2, MGRPORT 7809 ddl include mapped
objname sender.*; RMTTRAIL /ggs/dirdat/lt TABLE sender.*;
GGSCI (ANAR1) 10> info all
Program Status Group Lag Time Since
Chkpt
MANAGER RUNNING EXT
RACT STOPPED EXT1 00:00:00 00:12:24
[oracle@ANAR2 ~]$ cd /ggs/
[oracle@ANAR2 ggs]$ mkdir discard
[oracle@ANAR2 ggs]$./ggsci

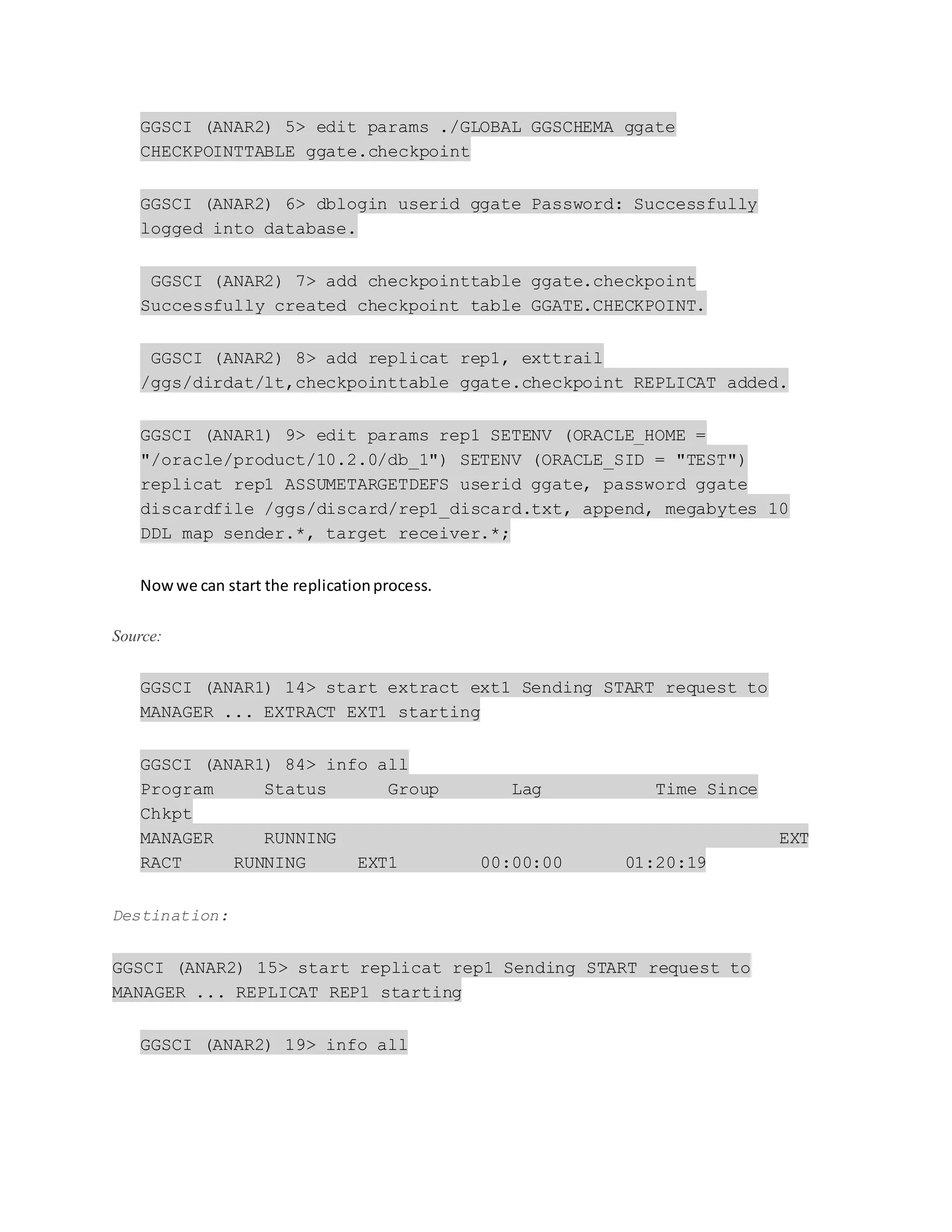

11. GGSCI (ANAR2) 5> edit params ./GLOBAL GGSCHEMA ggate
CHECKPOINTTABLE ggate.checkpoint
GGSCI (ANAR2) 6> dblogin userid ggate Password: Successfully
logged into database.
GGSCI (ANAR2) 7> add checkpointtable ggate.checkpoint
Successfully created checkpoint table GGATE.CHECKPOINT.
GGSCI (ANAR2) 8> add replicat rep1, exttrail
/ggs/dirdat/lt,checkpointtable ggate.checkpoint REPLICAT added.
GGSCI (ANAR1) 9> edit params rep1 SETENV (ORACLE_HOME =
"/oracle/product/10.2.0/db_1") SETENV (ORACLE_SID = "TEST")
replicat rep1 ASSUMETARGETDEFS userid ggate, password ggate
discardfile /ggs/discard/rep1_discard.txt, append, megabytes 10
DDL map sender.*, target receiver.*;
Nowwe can start the replicationprocess.
Source:
GGSCI (ANAR1) 14> start extract ext1 Sending START request to
MANAGER ... EXTRACT EXT1 starting
GGSCI (ANAR1) 84> info all
Program Status Group Lag Time Since
Chkpt
MANAGER RUNNING EXT
RACT RUNNING EXT1 00:00:00 01:20:19
Destination:
GGSCI (ANAR2) 15> start replicat rep1 Sending START request to
MANAGER ... REPLICAT REP1 starting
GGSCI (ANAR2) 19> info all

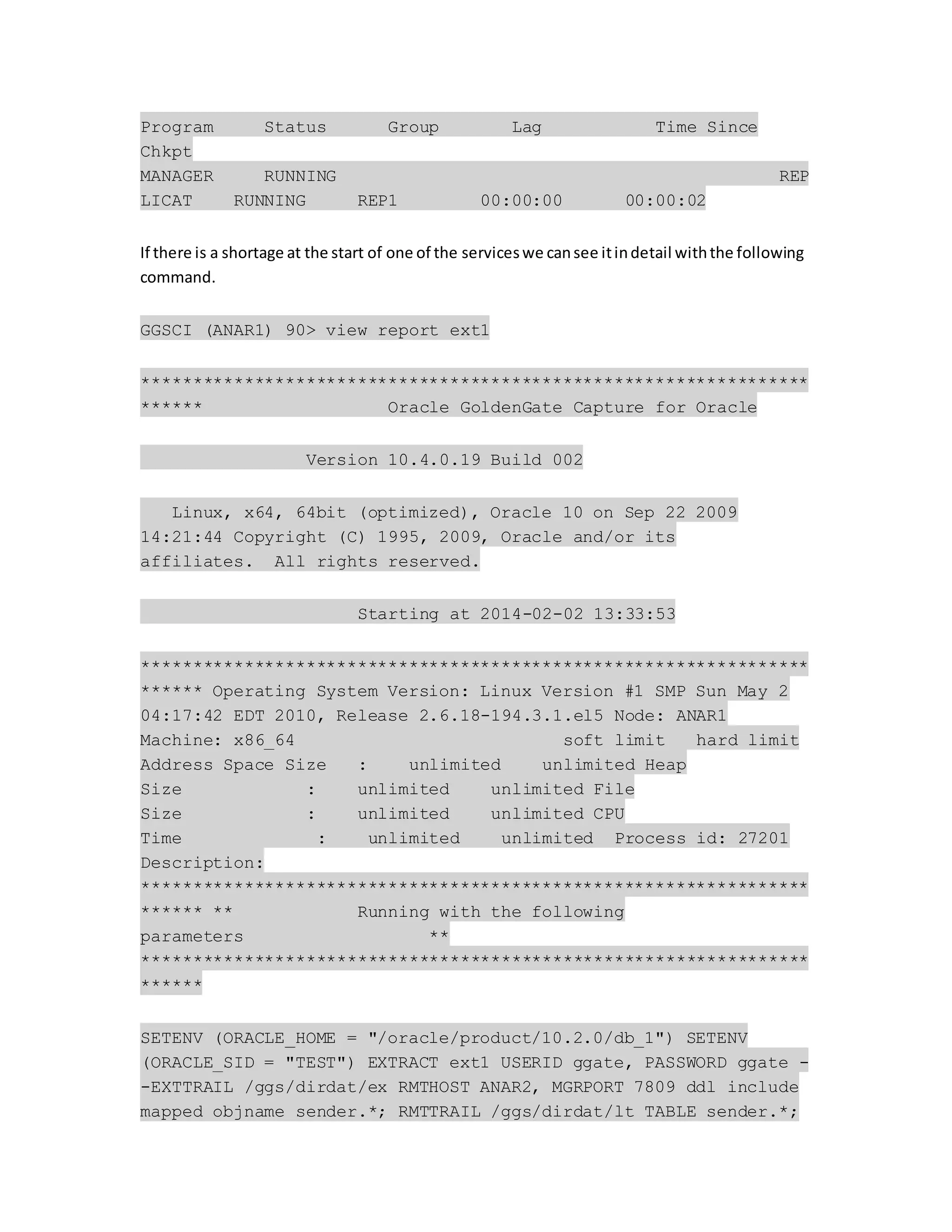

12. Program Status Group Lag Time Since
Chkpt
MANAGER RUNNING REP
LICAT RUNNING REP1 00:00:00 00:00:02
If there is a shortage at the start of one of the serviceswe cansee itindetail withthe following
command.
GGSCI (ANAR1) 90> view report ext1
*****************************************************************
****** Oracle GoldenGate Capture for Oracle
Version 10.4.0.19 Build 002
Linux, x64, 64bit (optimized), Oracle 10 on Sep 22 2009
14:21:44 Copyright (C) 1995, 2009, Oracle and/or its
affiliates. All rights reserved.
Starting at 2014-02-02 13:33:53
*****************************************************************
****** Operating System Version: Linux Version #1 SMP Sun May 2
04:17:42 EDT 2010, Release 2.6.18-194.3.1.el5 Node: ANAR1
Machine: x86_64 soft limit hard limit
Address Space Size : unlimited unlimited Heap
Size : unlimited unlimited File
Size : unlimited unlimited CPU
Time : unlimited unlimited Process id: 27201
Description:
*****************************************************************
****** ** Running with the following
parameters **
*****************************************************************
******
SETENV (ORACLE_HOME = "/oracle/product/10.2.0/db_1") SETENV
(ORACLE_SID = "TEST") EXTRACT ext1 USERID ggate, PASSWORD ggate -
-EXTTRAIL /ggs/dirdat/ex RMTHOST ANAR2, MGRPORT 7809 ddl include
mapped objname sender.*; RMTTRAIL /ggs/dirdat/lt TABLE sender.*;

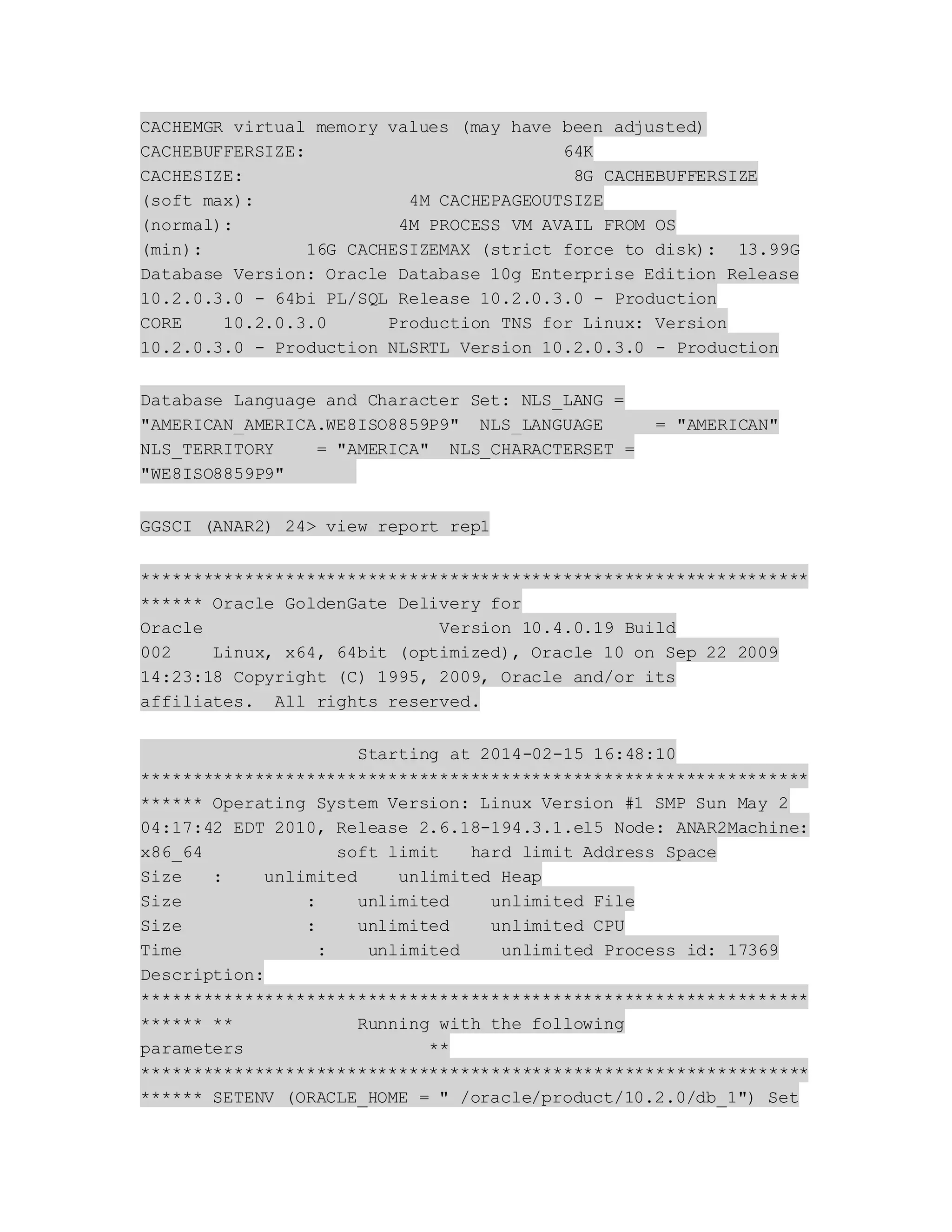

13. CACHEMGR virtual memory values (may have been adjusted)
CACHEBUFFERSIZE: 64K
CACHESIZE: 8G CACHEBUFFERSIZE
(soft max): 4M CACHEPAGEOUTSIZE
(normal): 4M PROCESS VM AVAIL FROM OS
(min): 16G CACHESIZEMAX (strict force to disk): 13.99G
Database Version: Oracle Database 10g Enterprise Edition Release
10.2.0.3.0 - 64bi PL/SQL Release 10.2.0.3.0 - Production
CORE 10.2.0.3.0 Production TNS for Linux: Version
10.2.0.3.0 - Production NLSRTL Version 10.2.0.3.0 - Production
Database Language and Character Set: NLS_LANG =
"AMERICAN_AMERICA.WE8ISO8859P9" NLS_LANGUAGE = "AMERICAN"
NLS_TERRITORY = "AMERICA" NLS_CHARACTERSET =
"WE8ISO8859P9"
GGSCI (ANAR2) 24> view report rep1
*****************************************************************
****** Oracle GoldenGate Delivery for
Oracle Version 10.4.0.19 Build
002 Linux, x64, 64bit (optimized), Oracle 10 on Sep 22 2009
14:23:18 Copyright (C) 1995, 2009, Oracle and/or its
affiliates. All rights reserved.
Starting at 2014-02-15 16:48:10
*****************************************************************
****** Operating System Version: Linux Version #1 SMP Sun May 2
04:17:42 EDT 2010, Release 2.6.18-194.3.1.el5 Node: ANAR2Machine:
x86_64 soft limit hard limit Address Space
Size : unlimited unlimited Heap
Size : unlimited unlimited File
Size : unlimited unlimited CPU
Time : unlimited unlimited Process id: 17369
Description:
*****************************************************************
****** ** Running with the following
parameters **
*****************************************************************
****** SETENV (ORACLE_HOME = " /oracle/product/10.2.0/db_1") Set

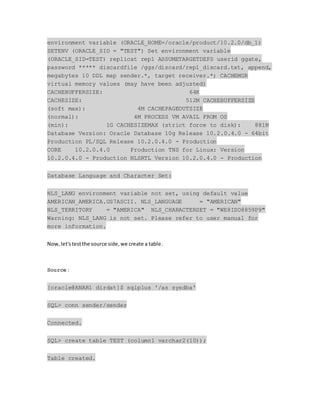

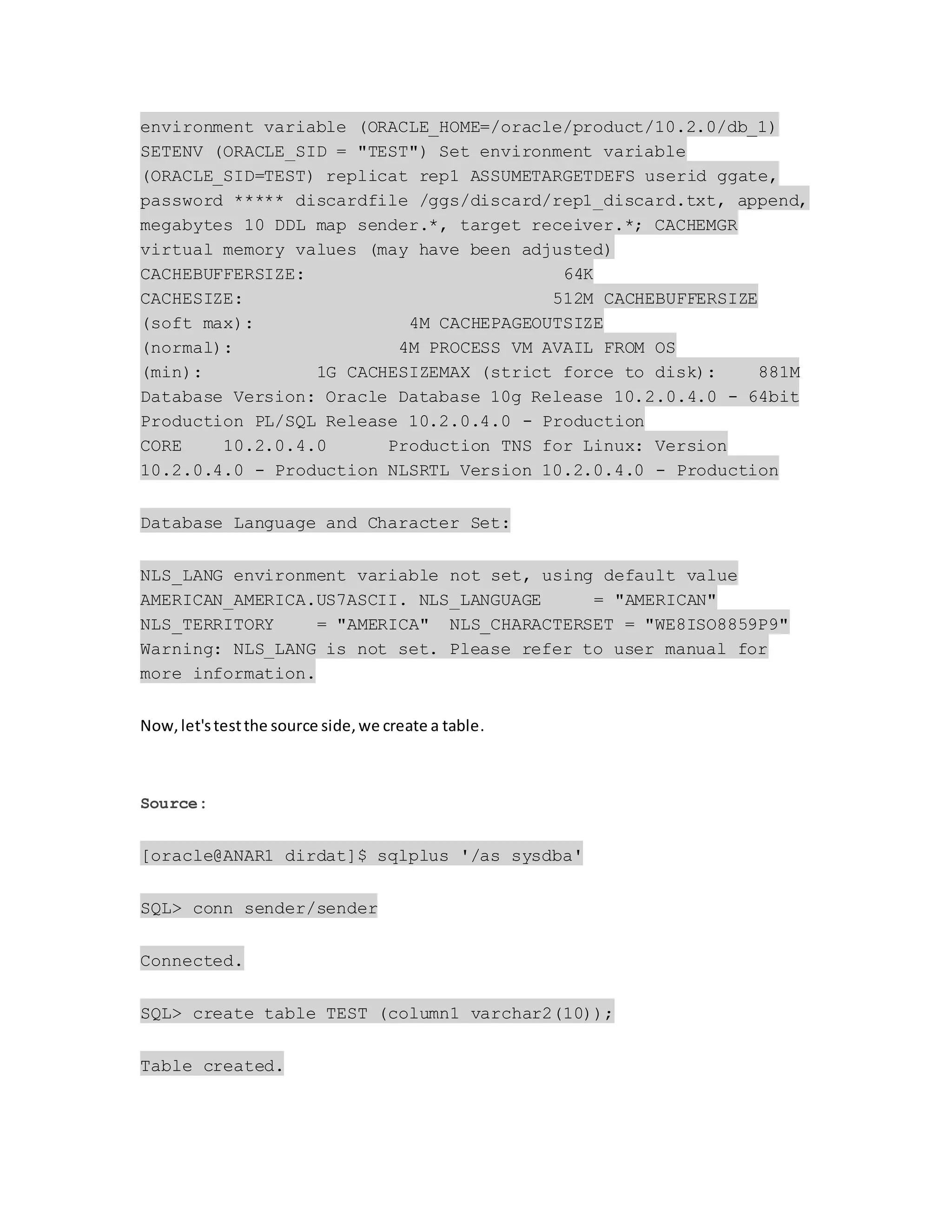

14. environment variable (ORACLE_HOME=/oracle/product/10.2.0/db_1)
SETENV (ORACLE_SID = "TEST") Set environment variable
(ORACLE_SID=TEST) replicat rep1 ASSUMETARGETDEFS userid ggate,
password ***** discardfile /ggs/discard/rep1_discard.txt, append,
megabytes 10 DDL map sender.*, target receiver.*; CACHEMGR
virtual memory values (may have been adjusted)
CACHEBUFFERSIZE: 64K
CACHESIZE: 512M CACHEBUFFERSIZE
(soft max): 4M CACHEPAGEOUTSIZE
(normal): 4M PROCESS VM AVAIL FROM OS
(min): 1G CACHESIZEMAX (strict force to disk): 881M
Database Version: Oracle Database 10g Release 10.2.0.4.0 - 64bit
Production PL/SQL Release 10.2.0.4.0 - Production
CORE 10.2.0.4.0 Production TNS for Linux: Version
10.2.0.4.0 - Production NLSRTL Version 10.2.0.4.0 - Production
Database Language and Character Set:
NLS_LANG environment variable not set, using default value
AMERICAN_AMERICA.US7ASCII. NLS_LANGUAGE = "AMERICAN"
NLS_TERRITORY = "AMERICA" NLS_CHARACTERSET = "WE8ISO8859P9"
Warning: NLS_LANG is not set. Please refer to user manual for
more information.
Now,let'stestthe source side,we create a table.
Source:
[oracle@ANAR1 dirdat]$ sqlplus '/as sysdba'
SQL> conn sender/sender
Connected.
SQL> create table TEST (column1 varchar2(10));
Table created.

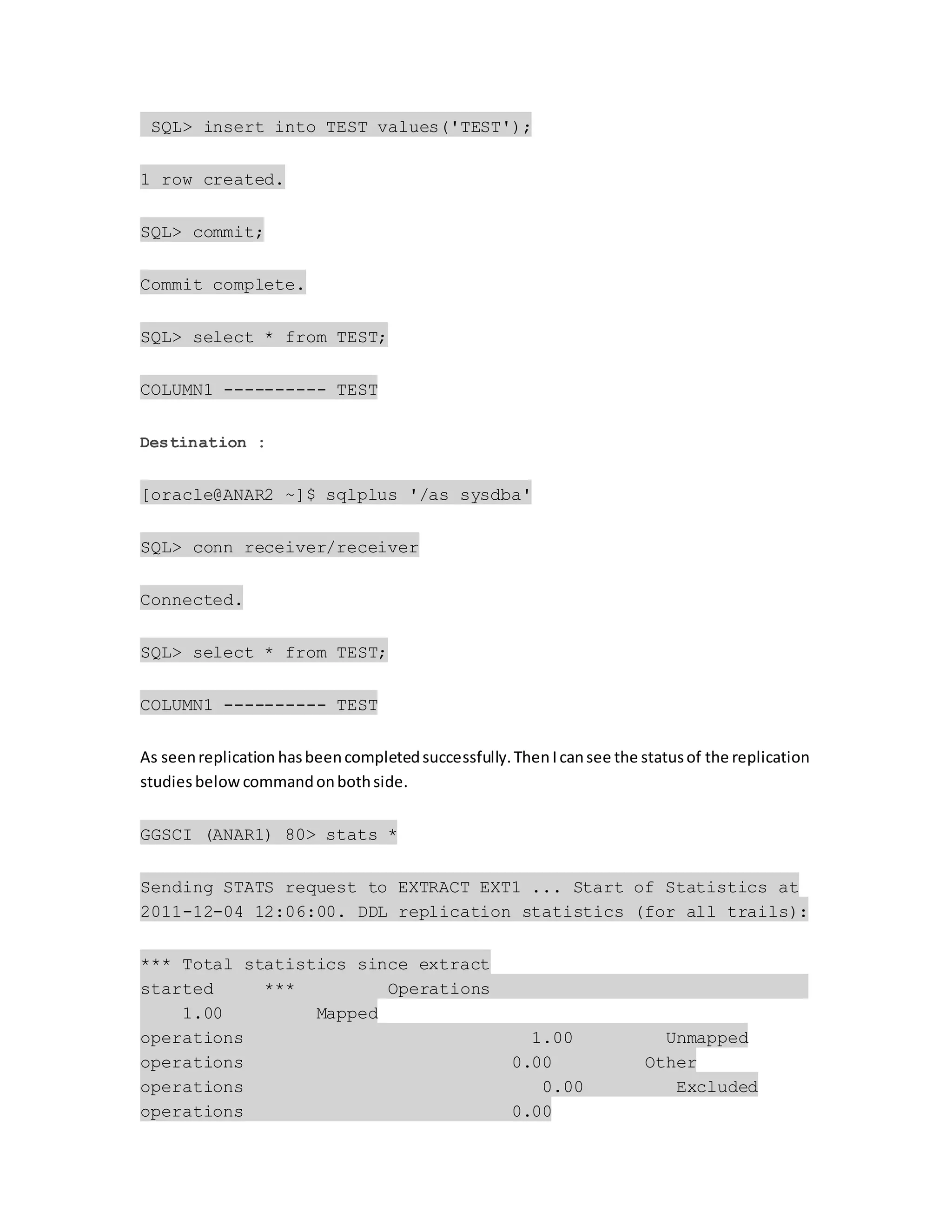

15. SQL> insert into TEST values('TEST');
1 row created.
SQL> commit;
Commit complete.
SQL> select * from TEST;
COLUMN1 ---------- TEST
Destination :
[oracle@ANAR2 ~]$ sqlplus '/as sysdba'
SQL> conn receiver/receiver
Connected.
SQL> select * from TEST;
COLUMN1 ---------- TEST
As seenreplication hasbeencompletedsuccessfully.Then Icansee the statusof the replication
studies below commandonbothside.
GGSCI (ANAR1) 80> stats *
Sending STATS request to EXTRACT EXT1 ... Start of Statistics at
2011-12-04 12:06:00. DDL replication statistics (for all trails):
*** Total statistics since extract
started *** Operations
1.00 Mapped
operations 1.00 Unmapped
operations 0.00 Other
operations 0.00 Excluded
operations 0.00

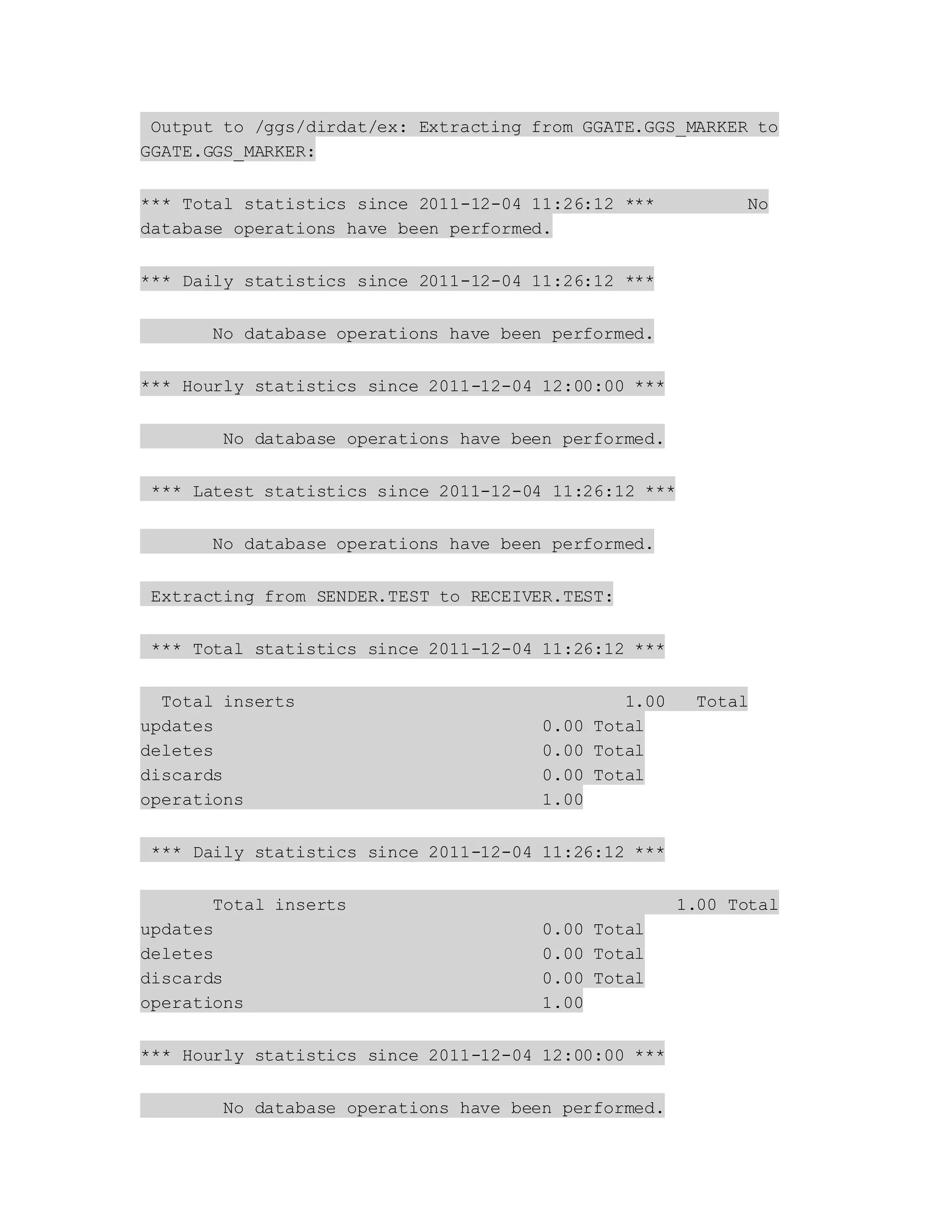

16. Output to /ggs/dirdat/ex: Extracting from GGATE.GGS_MARKER to
GGATE.GGS_MARKER:
*** Total statistics since 2011-12-04 11:26:12 *** No
database operations have been performed.
*** Daily statistics since 2011-12-04 11:26:12 ***
No database operations have been performed.
*** Hourly statistics since 2011-12-04 12:00:00 ***
No database operations have been performed.
*** Latest statistics since 2011-12-04 11:26:12 ***
No database operations have been performed.
Extracting from SENDER.TEST to RECEIVER.TEST:
*** Total statistics since 2011-12-04 11:26:12 ***
Total inserts 1.00 Total
updates 0.00 Total
deletes 0.00 Total
discards 0.00 Total
operations 1.00
*** Daily statistics since 2011-12-04 11:26:12 ***
Total inserts 1.00 Total
updates 0.00 Total
deletes 0.00 Total
discards 0.00 Total
operations 1.00
*** Hourly statistics since 2011-12-04 12:00:00 ***
No database operations have been performed.

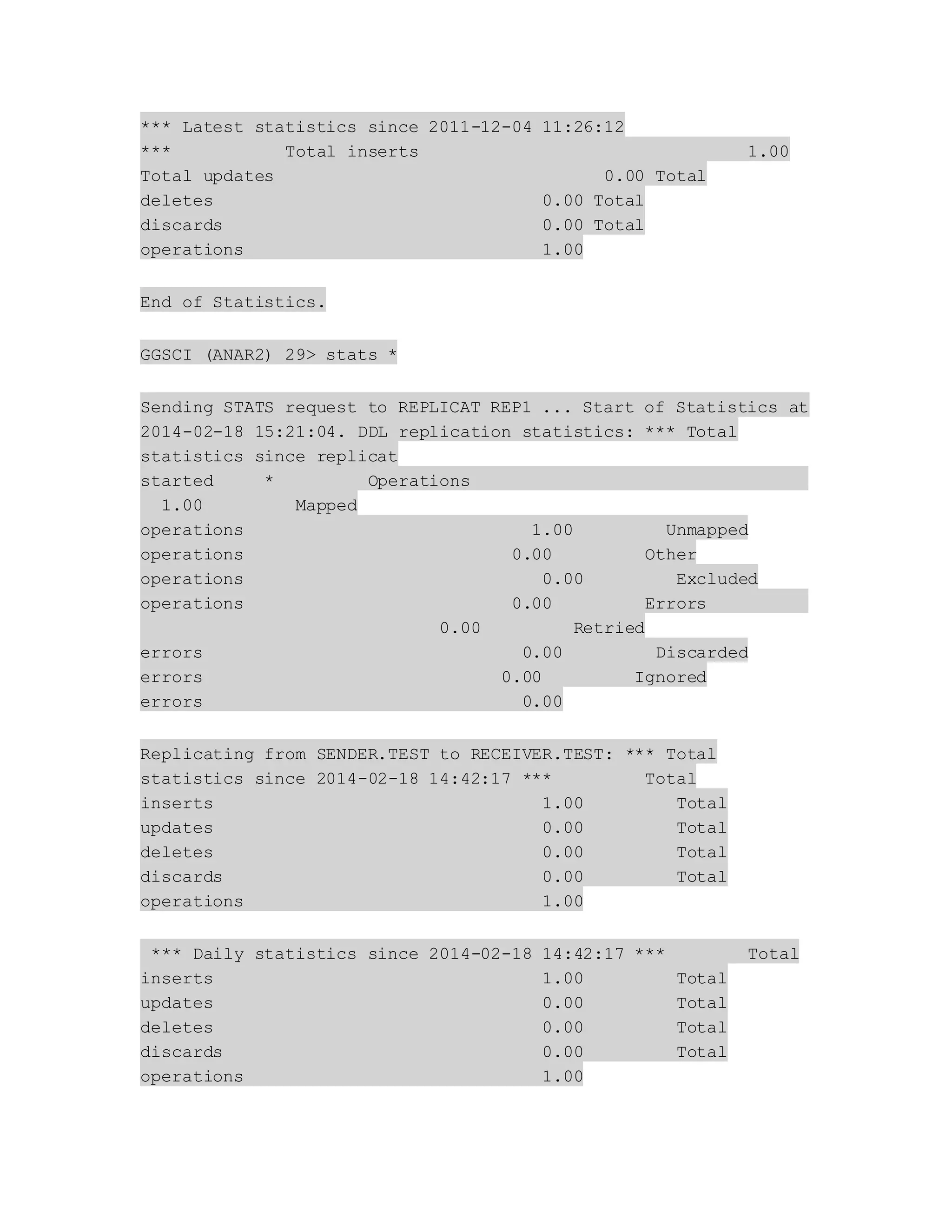

17. *** Latest statistics since 2011-12-04 11:26:12
*** Total inserts 1.00
Total updates 0.00 Total
deletes 0.00 Total
discards 0.00 Total
operations 1.00
End of Statistics.
GGSCI (ANAR2) 29> stats *
Sending STATS request to REPLICAT REP1 ... Start of Statistics at
2014-02-18 15:21:04. DDL replication statistics: *** Total
statistics since replicat
started * Operations
1.00 Mapped
operations 1.00 Unmapped
operations 0.00 Other
operations 0.00 Excluded
operations 0.00 Errors
0.00 Retried
errors 0.00 Discarded
errors 0.00 Ignored
errors 0.00
Replicating from SENDER.TEST to RECEIVER.TEST: *** Total
statistics since 2014-02-18 14:42:17 *** Total
inserts 1.00 Total
updates 0.00 Total
deletes 0.00 Total
discards 0.00 Total
operations 1.00
*** Daily statistics since 2014-02-18 14:42:17 *** Total
inserts 1.00 Total
updates 0.00 Total
deletes 0.00 Total
discards 0.00 Total
operations 1.00

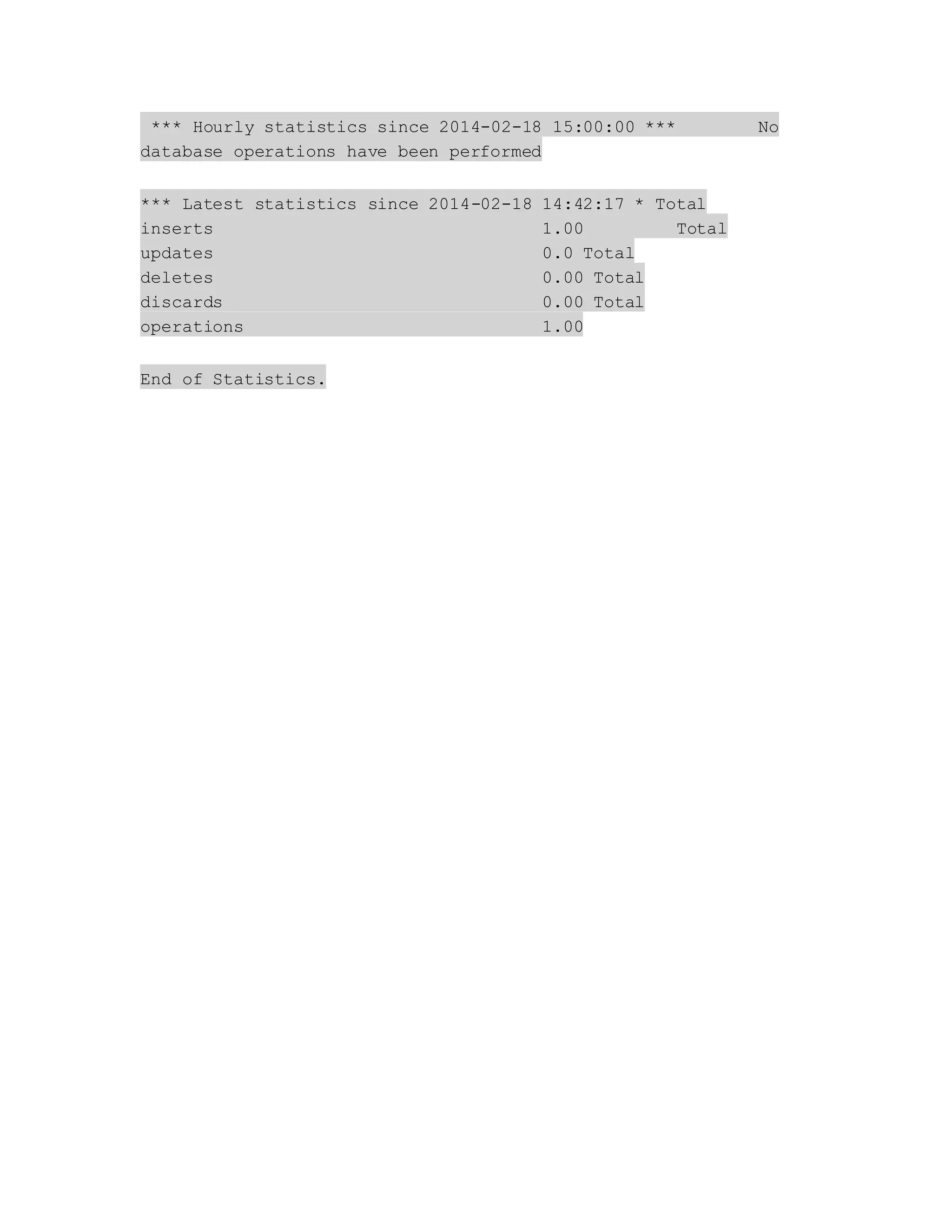

18. *** Hourly statistics since 2014-02-18 15:00:00 *** No
database operations have been performed
*** Latest statistics since 2014-02-18 14:42:17 * Total
inserts 1.00 Total
updates 0.0 Total
deletes 0.00 Total
discards 0.00 Total
operations 1.00
End of Statistics.
