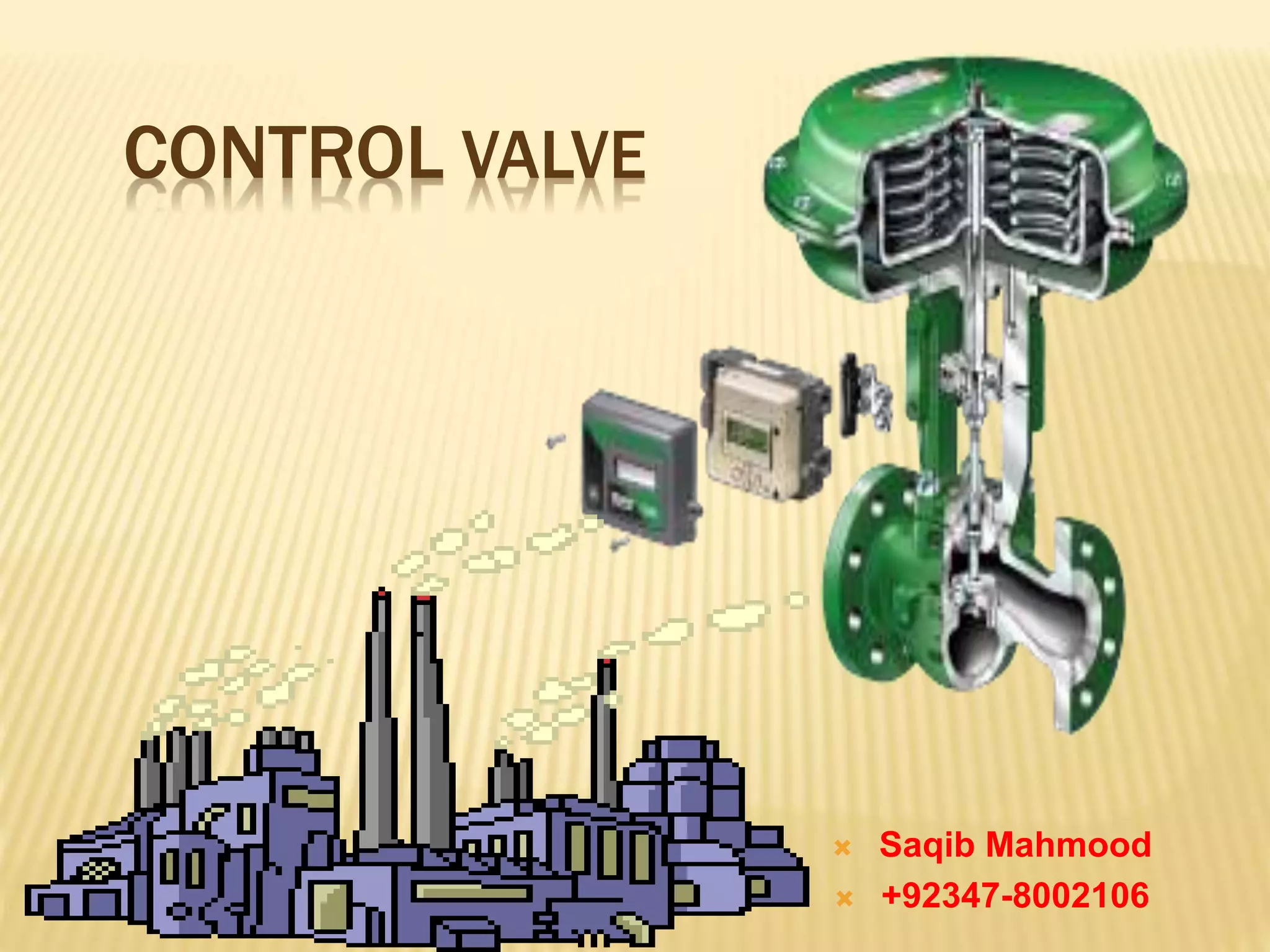

- 1. CONTROL VALVE SaqibMahmood +92347-8002106

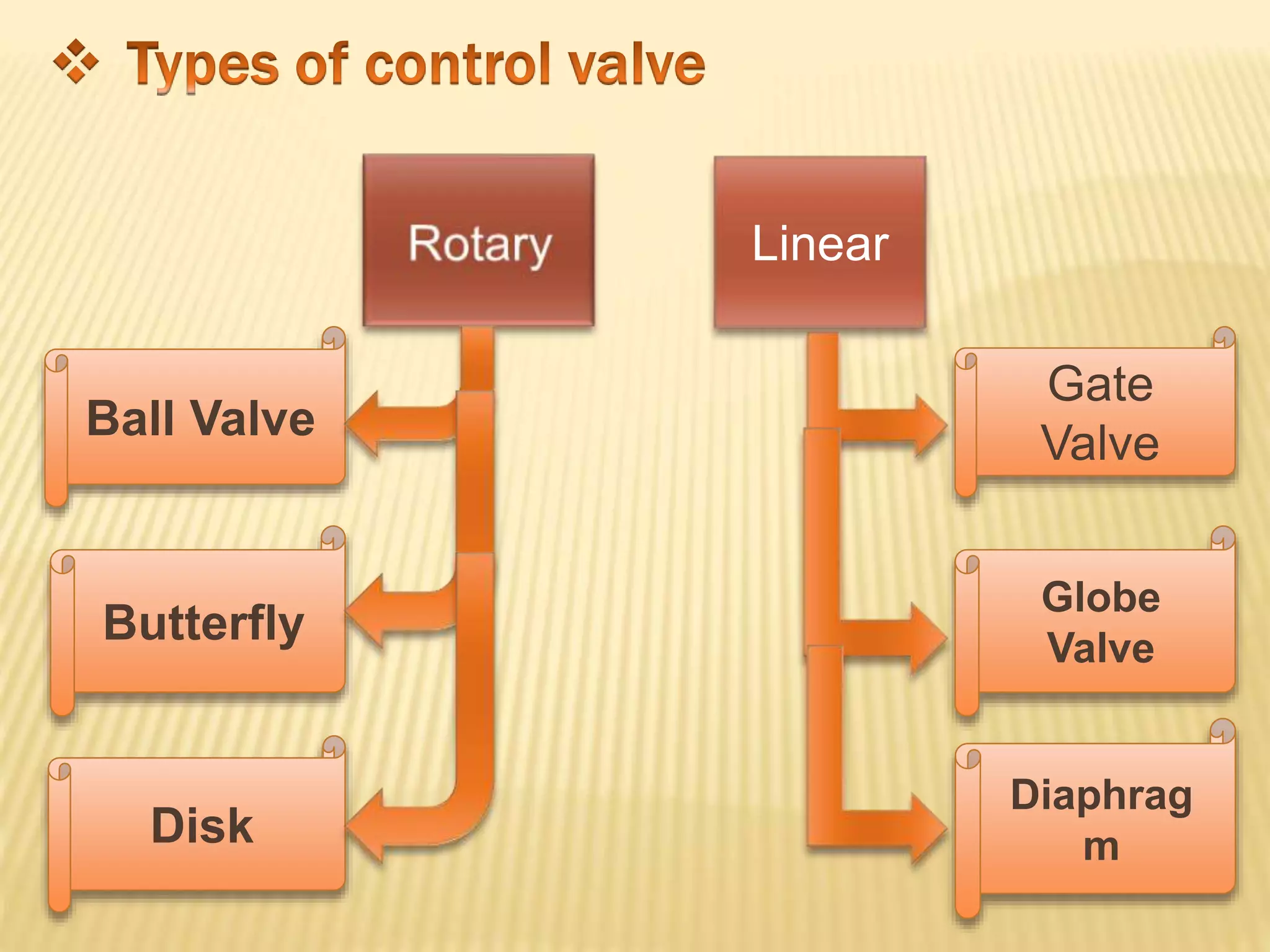

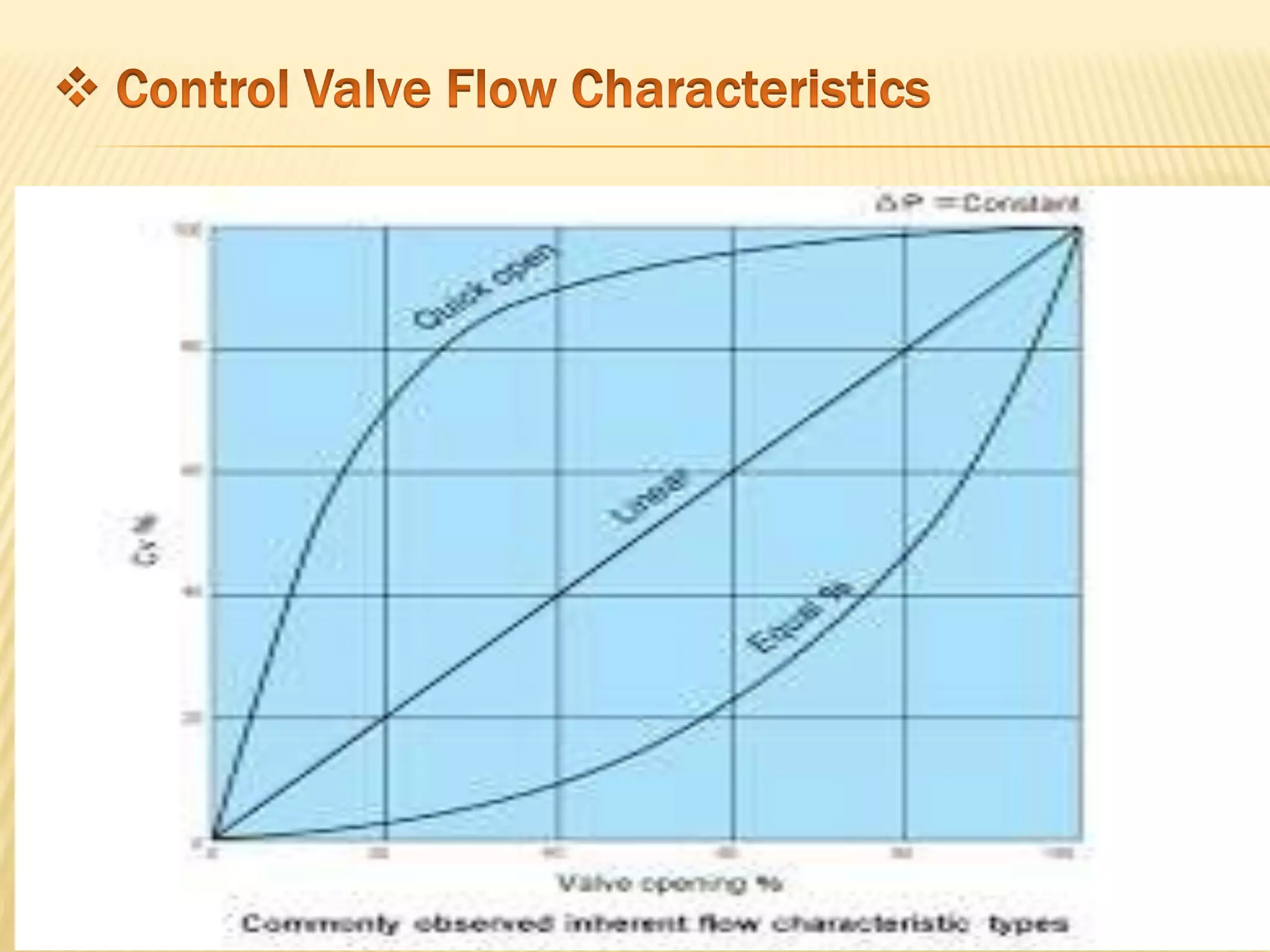

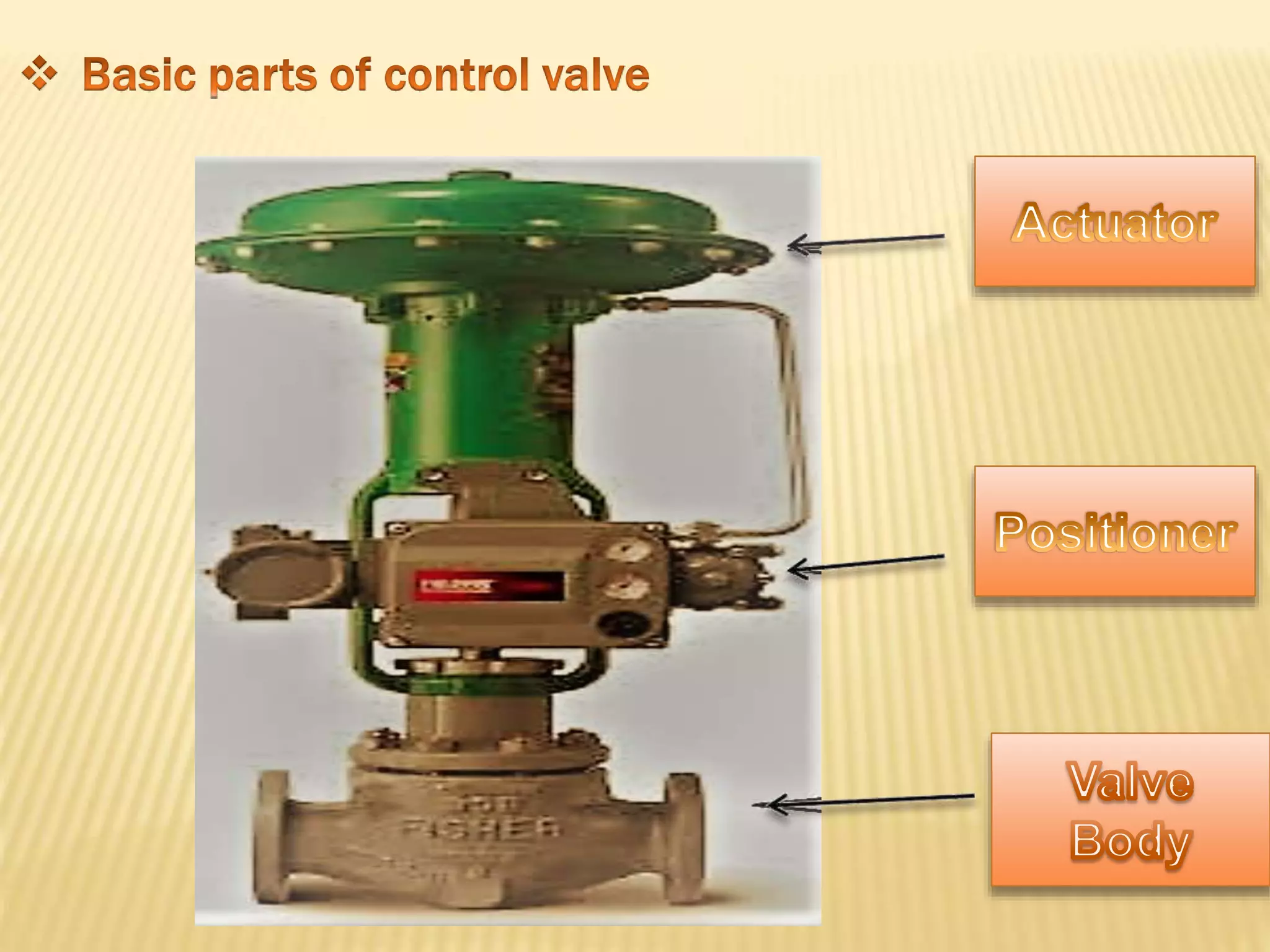

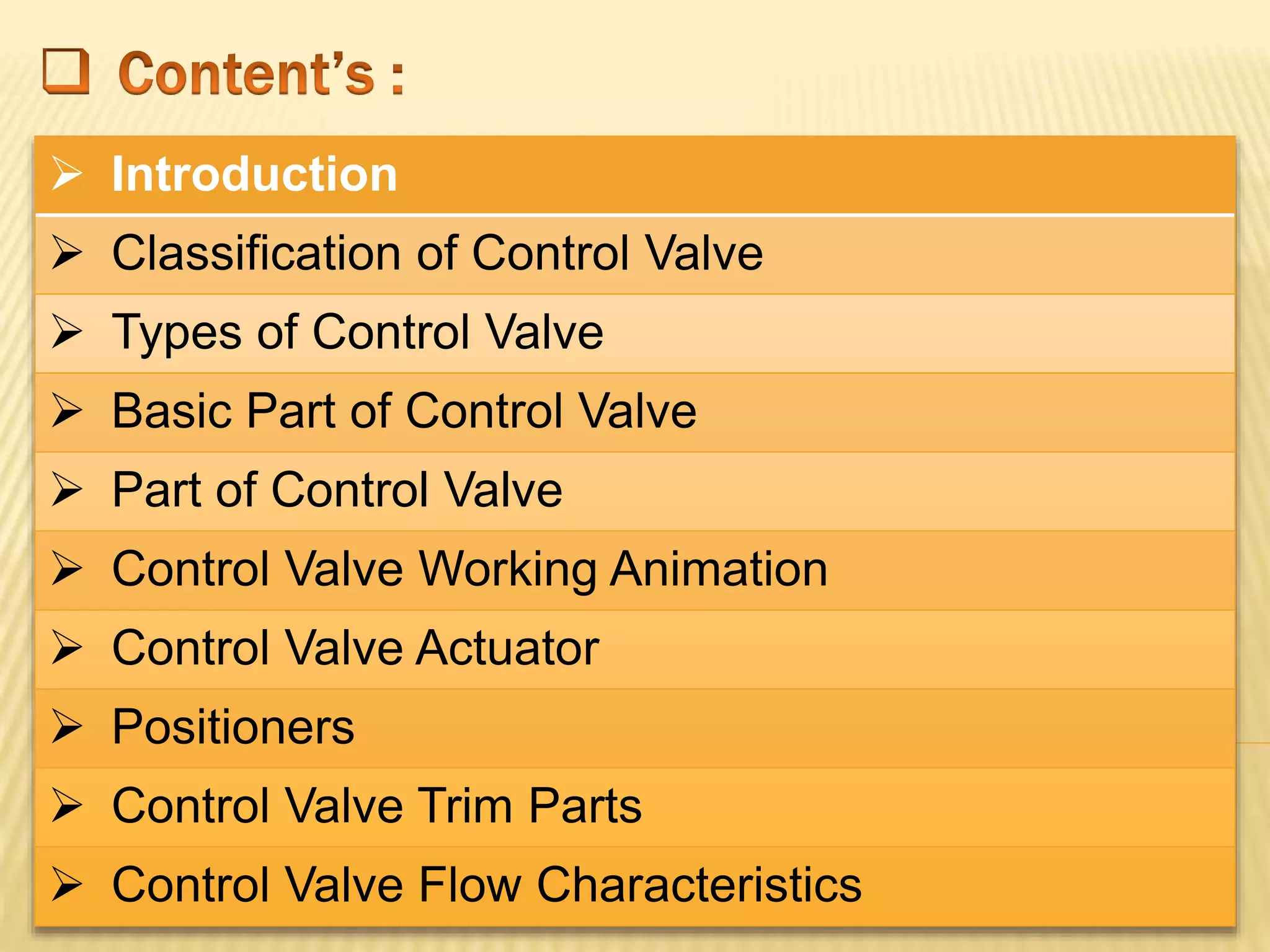

- 2. Introduction Classificationof Control Valve Types of Control Valve Basic Part of Control Valve Part of Control Valve Control Valve Working Animation Control Valve Actuator Positioners Control Valve Trim Parts Control Valve Flow Characteristics
- 3. Control Valveis a Final Element of a Process Control Loop. Control Valve can Control and Regulate Fluid Flow and also Control Process Variable under the signal Command from Controller .

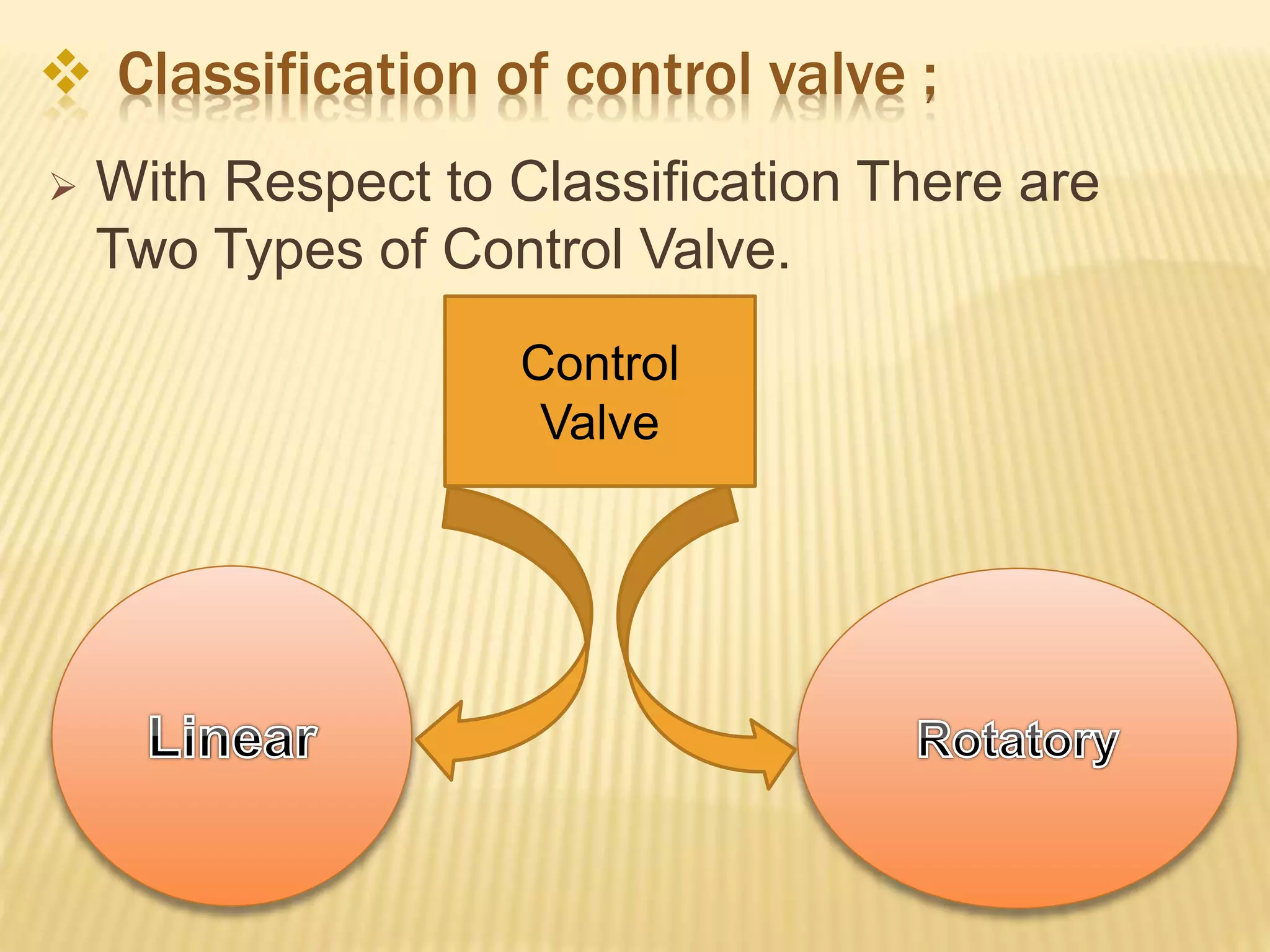

- 4. Classification ofcontrol valve ; With Respect to Classification There are Two Types of Control Valve. Control Valve
- 5.

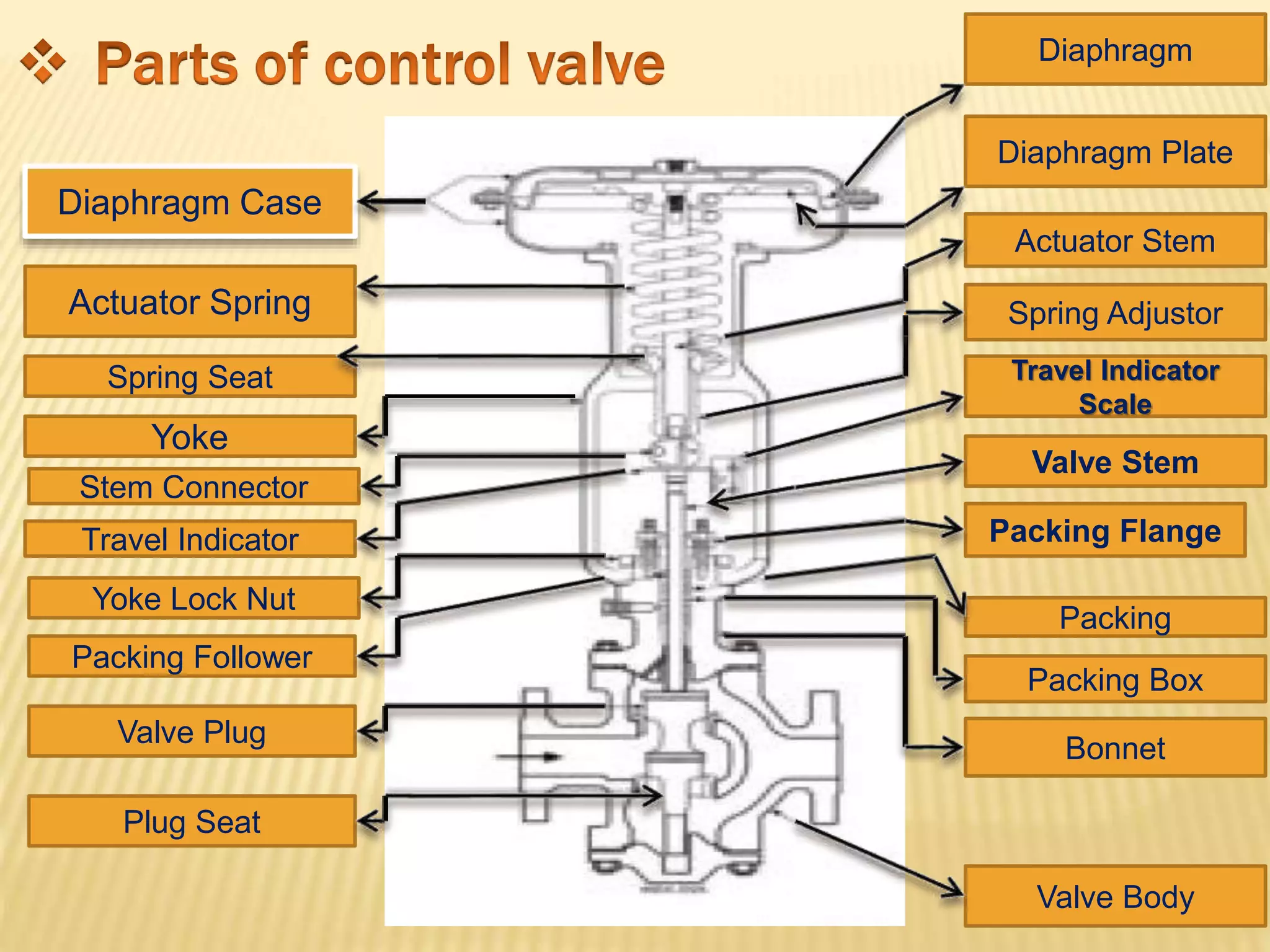

- 7. Diaphragm Case Diaphragm Diaphragm Plate ActuatorSpring Spring Seat Yoke Stem Connector Travel Indicator Yoke Lock Nut Packing Follower Valve Plug Plug Seat Valve Body Bonnet Packing Box Packing Actuator Stem Spring Adjustor Travel Indicator Scale Valve Stem Packing Flange

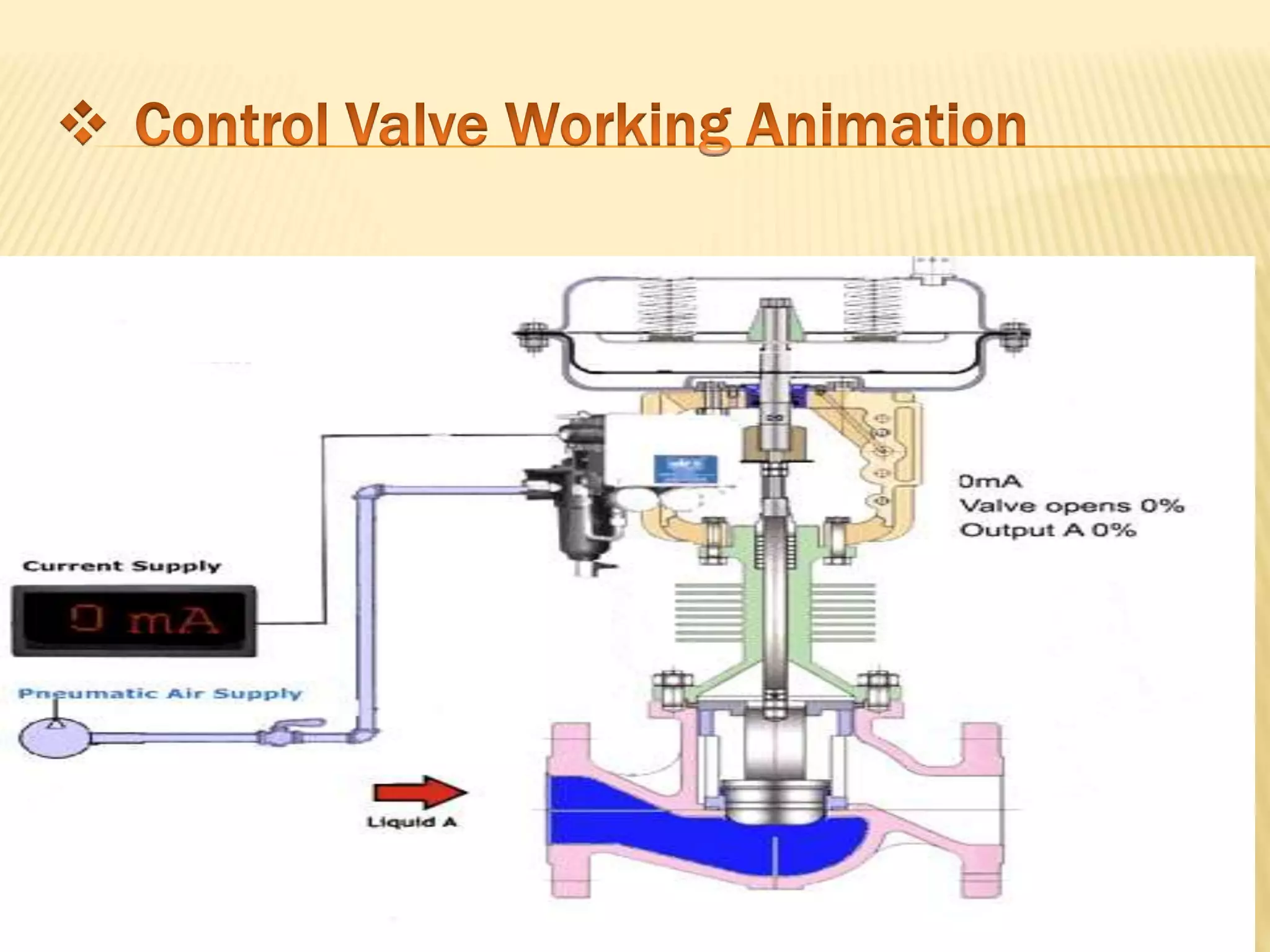

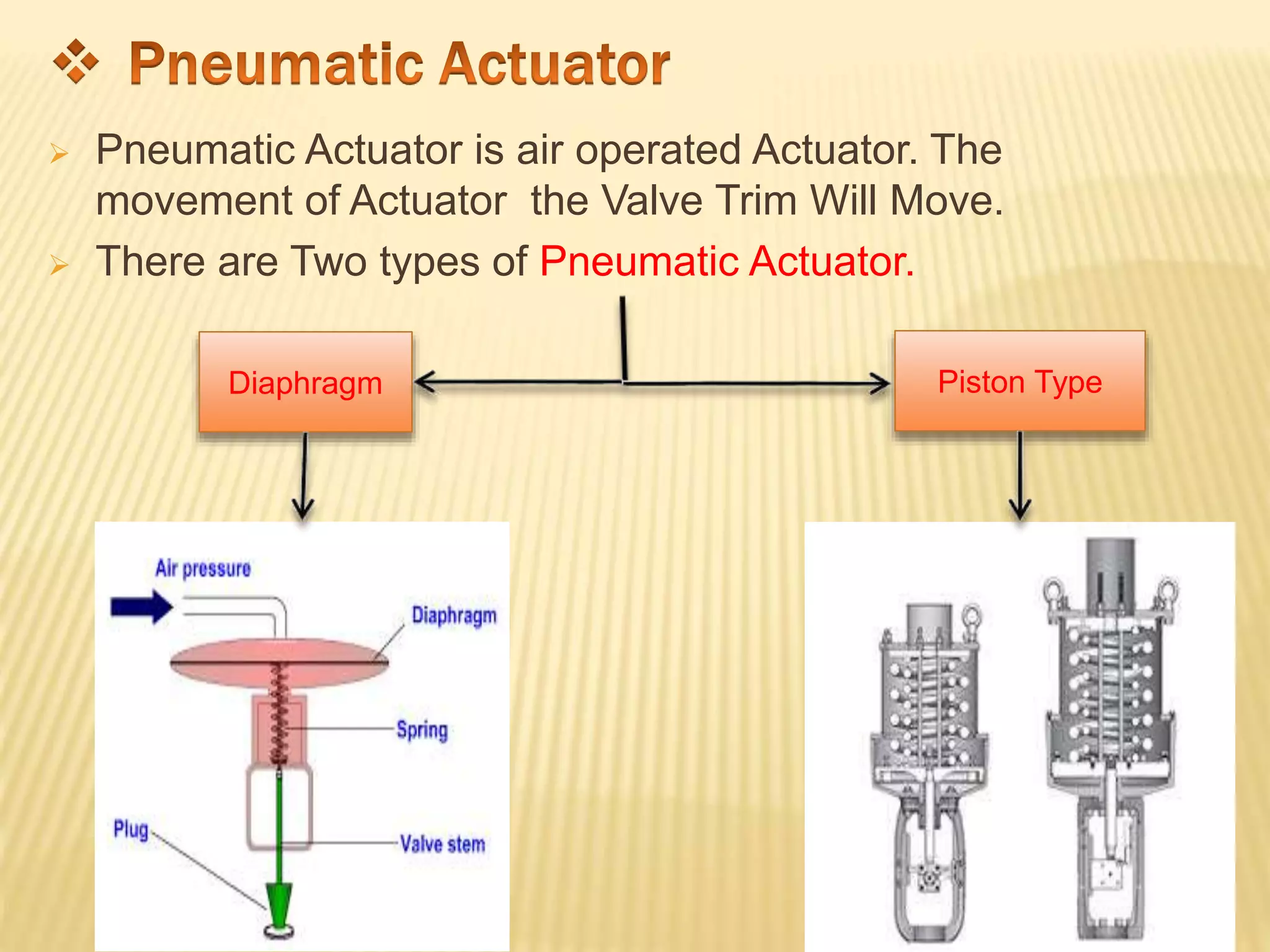

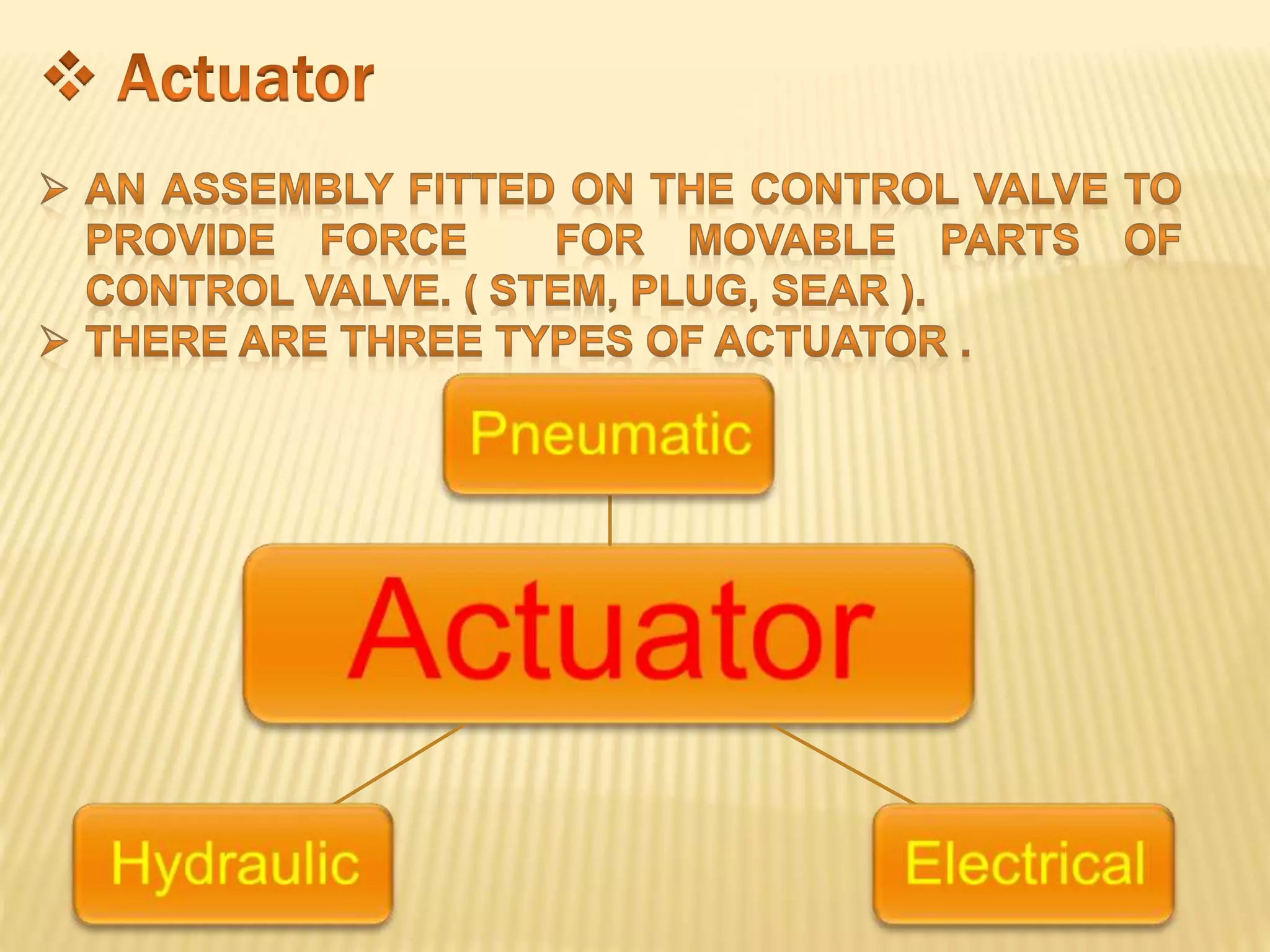

- 10. Pneumatic Actuatoris air operated Actuator. The movement of Actuator the Valve Trim Will Move. There are Two types of Pneumatic Actuator. Diaphragm Piston Type

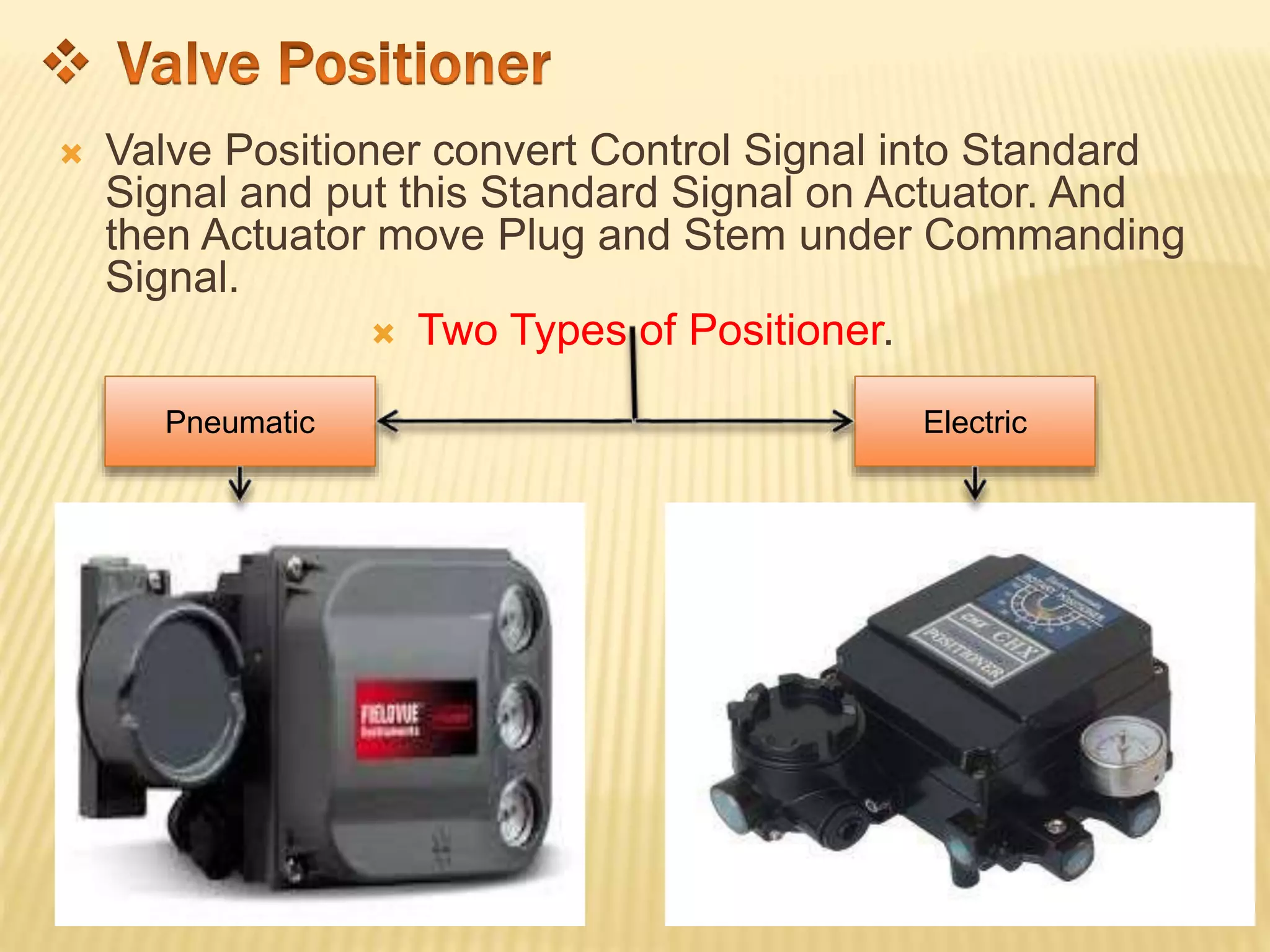

- 11. Valve Positionerconvert Control Signal into Standard Signal and put this Standard Signal on Actuator. And then Actuator move Plug and Stem under Commanding Signal. Two Types of Positioner. Pneumatic Electric

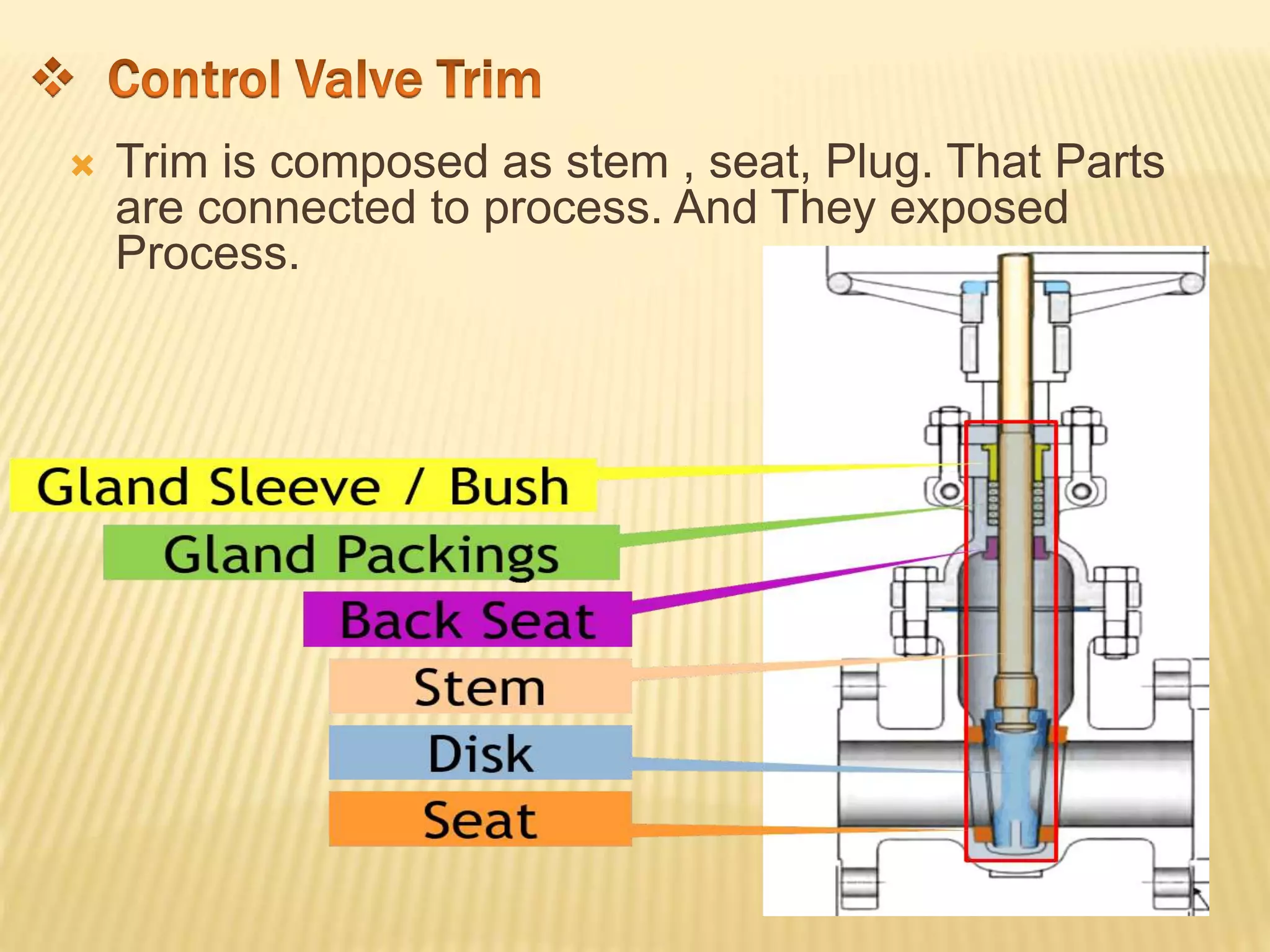

- 12. Trim iscomposed as stem , seat, Plug. That Parts are connected to process. And They exposed Process.

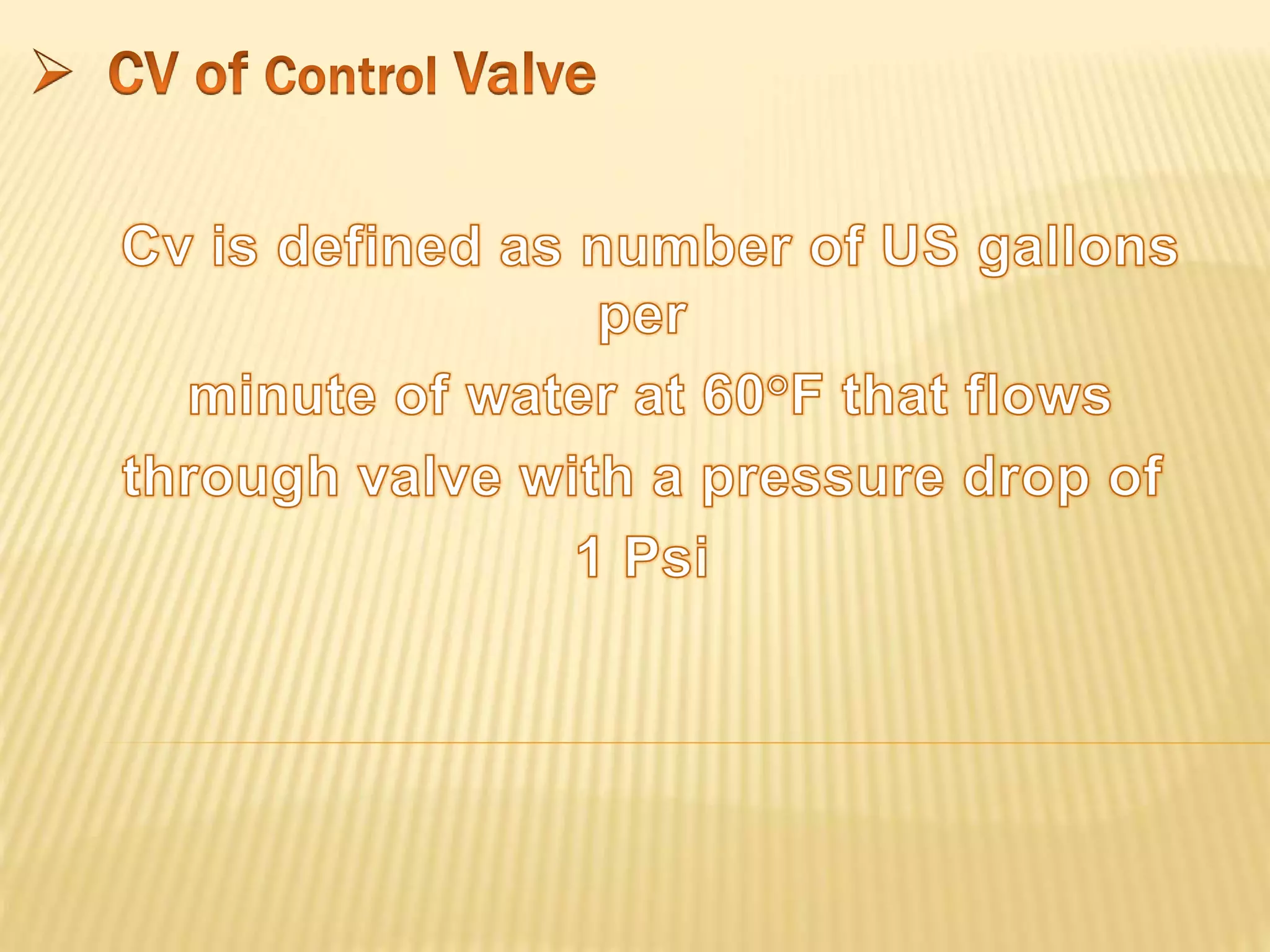

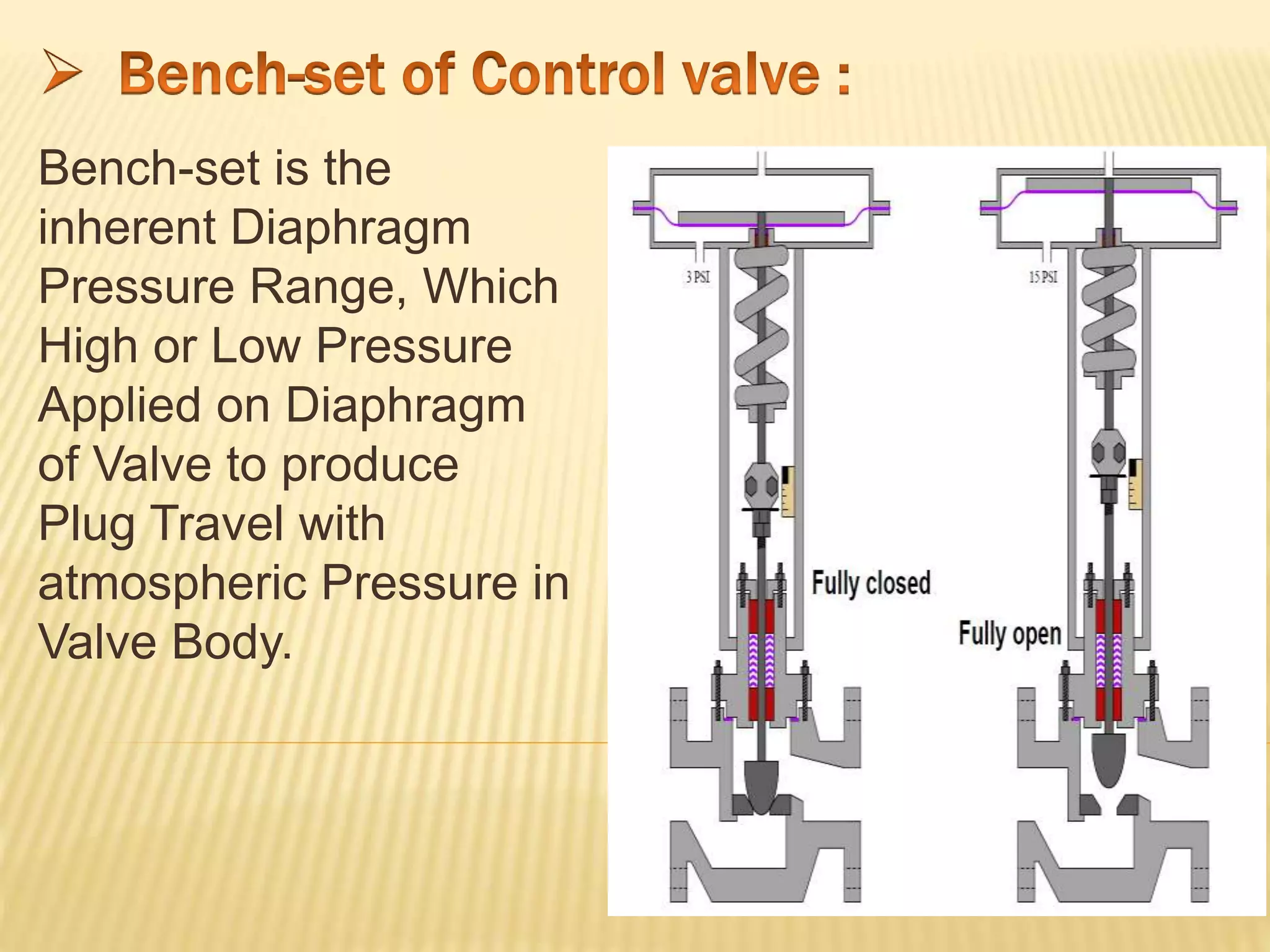

- 14. Bench-set is the inherentDiaphragm Pressure Range, Which High or Low Pressure Applied on Diaphragm of Valve to produce Plug Travel with atmospheric Pressure in Valve Body.
