Computer forensics is used to discover evidence of computer crimes by collecting, preserving, and analyzing digital evidence from computers and storage media. It helps criminal and civil legal cases involving issues like espionage, intellectual property theft, employee misuse of computers, and medical billing fraud. The computer forensics process includes securing evidence, making copies or images of storage devices, examining files and locations where deleted or hidden data may be stored, and documenting the investigation. Maintaining control of intellectual property and trade secrets is challenging as organizations increasingly process data overseas where there is greater risk of information leakage.

1. Computer Forensics Neil Greenberg

2. Forensics Page Specializing in or having to do with the application of scientific knowledge to legal matters, as in the investigation of a crime.

3. Computer Forensics Page Computer forensics is the process of collecting, preserving, and analyzing computers and computer media for the purpose of determining the presence of evidence.

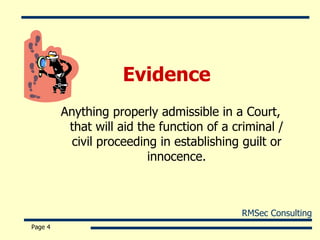

4. Evidence Page Anything properly admissible in a Court, that will aid the function of a criminal / civil proceeding in establishing guilt or innocence.

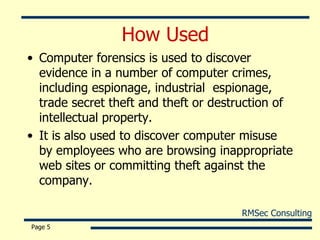

5. How Used Computer forensics is used to discover evidence in a number of computer crimes, including espionage, industrial espionage, trade secret theft and theft or destruction of intellectual property. It is also used to discover computer misuse by employees who are browsing inappropriate web sites or committing theft against the company. Page

6. Who Uses Criminal prosecutors – incriminating documents of homicide, fraud, child pornography and drug related activities Civil Litigators – uses personal and business records from computer records in divorce, fraud, intellectual property, discrimination and harassment cases Page Focus of practice

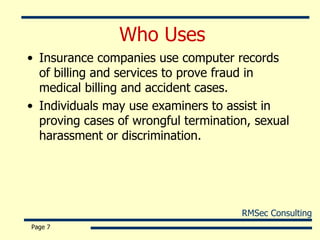

7. Who Uses Insurance companies use computer records of billing and services to prove fraud in medical billing and accident cases. Individuals may use examiners to assist in proving cases of wrongful termination, sexual harassment or discrimination. Page

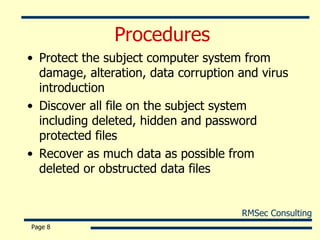

8. Procedures Protect the subject computer system from damage, alteration, data corruption and virus introduction Discover all file on the subject system including deleted, hidden and password protected files Recover as much data as possible from deleted or obstructed data files Page

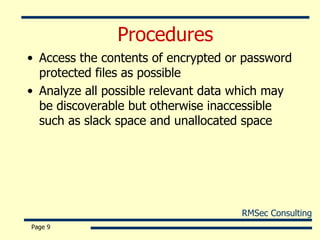

9. Procedures Access the contents of encrypted or password protected files as possible Analyze all possible relevant data which may be discoverable but otherwise inaccessible such as slack space and unallocated space Page

10. Special Considerations

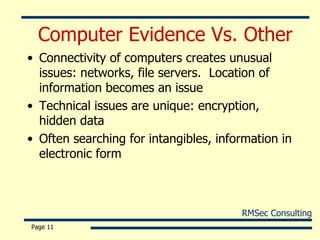

11. Computer Evidence Vs. Other Connectivity of computers creates unusual issues: networks, file servers. Location of information becomes an issue Technical issues are unique: encryption, hidden data Often searching for intangibles, information in electronic form Page

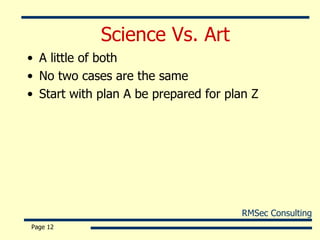

12. Science Vs. Art A little of both No two cases are the same Start with plan A be prepared for plan Z Page

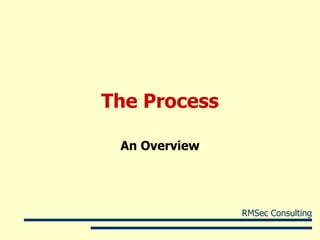

13. The Process An Overview

14. Protecting the Evidence Safeguarding the evidence is as important as any other step in the forensic process Improperly handled evidence can be discarded in court Those involved must be prepared to testify to how the evidence was handled Page

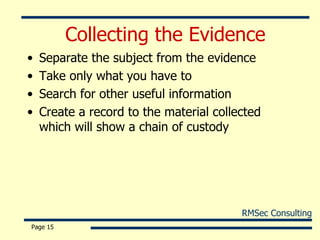

15. Collecting the Evidence Separate the subject from the evidence Take only what you have to Search for other useful information Create a record to the material collected which will show a chain of custody Page

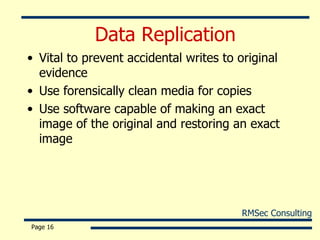

16. Data Replication Vital to prevent accidental writes to original evidence Use forensically clean media for copies Use software capable of making an exact image of the original and restoring an exact image Page

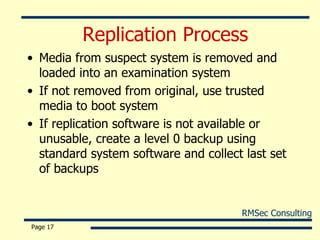

17. Replication Process Media from suspect system is removed and loaded into an examination system If not removed from original, use trusted media to boot system If replication software is not available or unusable, create a level 0 backup using standard system software and collect last set of backups Page

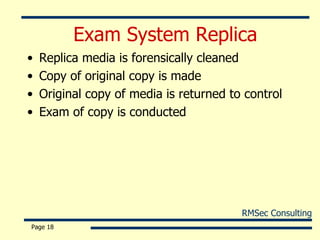

18. Exam System Replica Replica media is forensically cleaned Copy of original copy is made Original copy of media is returned to control Exam of copy is conducted Page

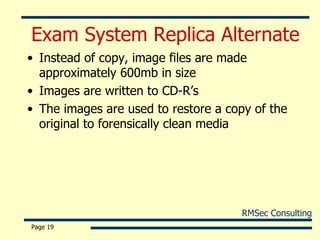

19. Exam System Replica Alternate Instead of copy, image files are made approximately 600mb in size Images are written to CD-R’s The images are used to restore a copy of the original to forensically clean media Page

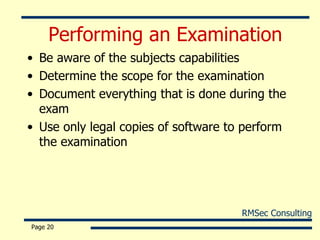

20. Performing an Examination Be aware of the subjects capabilities Determine the scope for the examination Document everything that is done during the exam Use only legal copies of software to perform the examination Page

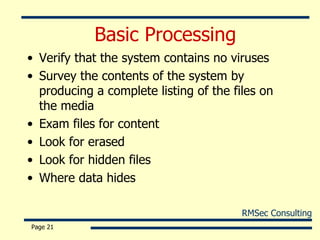

21. Basic Processing Verify that the system contains no viruses Survey the contents of the system by producing a complete listing of the files on the media Exam files for content Look for erased Look for hidden files Where data hides Page

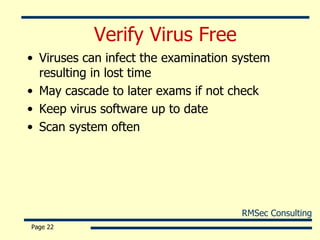

22. Verify Virus Free Viruses can infect the examination system resulting in lost time May cascade to later exams if not check Keep virus software up to date Scan system often Page

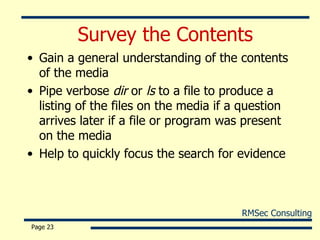

23. Survey the Contents Gain a general understanding of the contents of the media Pipe verbose dir or ls to a file to produce a listing of the files on the media if a question arrives later if a file or program was present on the media Help to quickly focus the search for evidence Page

24. Examining File Content In most cases, relevant files are identified during the survey phase File viewer software such as quick view plus will quickly view contents of files without the need to load applications Relevant files are copied off for reference Care must be taken if executing application software, typically done last Page

25. Erased Files Often found using unerase utilities Disk editors will show erased files, more difficult to examine Page

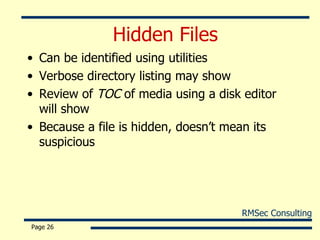

26. Hidden Files Can be identified using utilities Verbose directory listing may show Review of TOC of media using a disk editor will show Because a file is hidden, doesn’t mean its suspicious Page

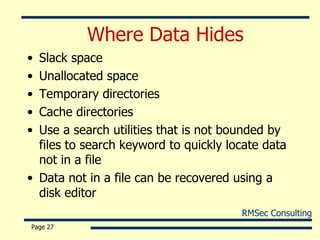

27. Where Data Hides Slack space Unallocated space Temporary directories Cache directories Use a search utilities that is not bounded by files to search keyword to quickly locate data not in a file Data not in a file can be recovered using a disk editor Page

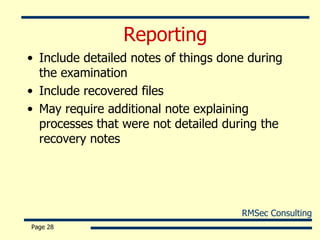

28. Reporting Include detailed notes of things done during the examination Include recovered files May require additional note explaining processes that were not detailed during the recovery notes Page

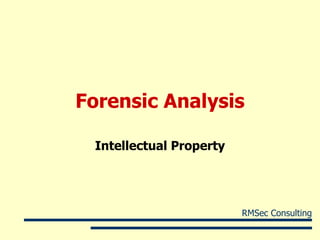

29. Forensic Analysis Intellectual Property

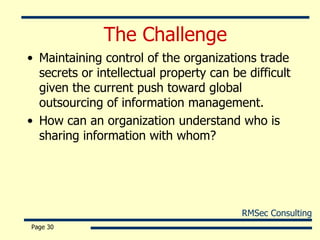

30. The Challenge Maintaining control of the organizations trade secrets or intellectual property can be difficult given the current push toward global outsourcing of information management. How can an organization understand who is sharing information with whom? Page

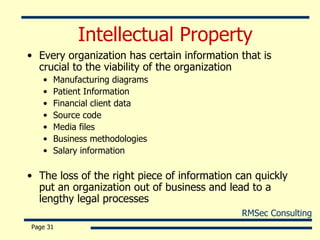

31. Intellectual Property Every organization has certain information that is crucial to the viability of the organization Manufacturing diagrams Patient Information Financial client data Source code Media files Business methodologies Salary information The loss of the right piece of information can quickly put an organization out of business and lead to a lengthy legal processes Page

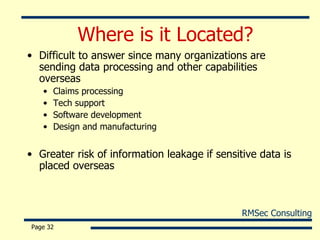

32. Where is it Located? Difficult to answer since many organizations are sending data processing and other capabilities overseas Claims processing Tech support Software development Design and manufacturing Greater risk of information leakage if sensitive data is placed overseas Page

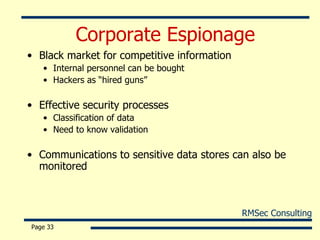

33. Corporate Espionage Black market for competitive information Internal personnel can be bought Hackers as “hired guns” Effective security processes Classification of data Need to know validation Communications to sensitive data stores can also be monitored Page
