Cloud Big Data Architectures
- 1. Cloud Big Data Architectures LynnLangit QCon Sao Paulo, Brazil 2016
- 2. About this Workshop Real-worldCloud Scenarios w/AWS, Azure and GCP 1. Big Data Solution Types 2. Data Pipelines 3. ETL and Visualization 4. Bonus…(if time allows)
- 3.

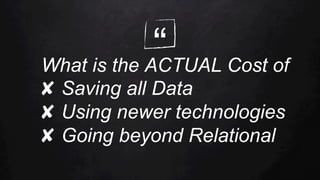

- 4. “What is theACTUAL Cost of ✘ Saving all Data ✘ Using newer technologies ✘ Going beyond Relational

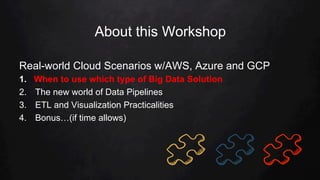

- 5. About this Workshop Real-worldCloud Scenarios w/AWS, Azure and GCP 1. When to use which type of Big Data Solution 2. The new world of Data Pipelines 3. ETL and Visualization Practicalities 4. Bonus…(if time allows)
- 6. 1. Big Data –Yes! But what kind?

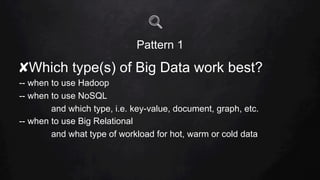

- 7. Pattern 1 ✘ Which type(s)of Big Data work best? -- when to use Hadoop -- when to use NoSQL and which type, i.e. key-value, document, graph, etc. -- when to use Big Relational and what type of workload for hot, warm or cold data
- 8.
- 9. “When do Iuse…? ✘ Hadoop ✘ NoSQL ✘ Big Relational
- 10.
- 12. One Vendor’s View Idon’t Want Text here

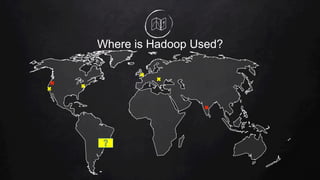

- 14. Where is HadoopUsed?

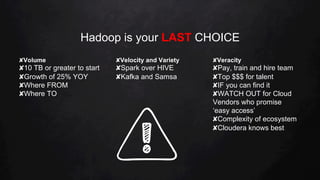

- 15. Hadoop is yourLAST CHOICE ✘ Volume ✘ 10 TB or greater to start ✘ Growth of 25% YOY ✘ Where FROM ✘ Where TO ✘ Velocity and Variety ✘ Spark over HIVE ✘ Kafka and Samsa ✘ Veracity ✘ Pay, train and hire team ✘ Top $$$ for talent ✘ IF you can find it ✘ WATCH OUT for Cloud Vendors who promise ‘easy access’ ✘ Complexity of ecosystem ✘ Cloudera knows best
- 16. “When do Iuse…? ✘ Hadoop ✘ NoSQL ✘ Big Relational
- 17. 225NoSQL Database Typesto Choose From

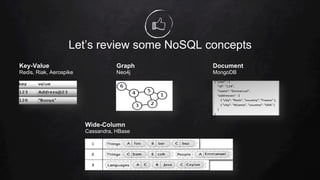

- 18. Let’s review someNoSQL concepts Key-Value Redis, Riak, Aerospike Graph Neo4j Document MongoDB Wide-Column Cassandra, HBase
- 19.

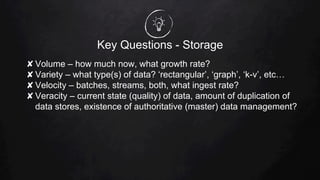

- 20. Key Questions -Storage ✘ Volume – how much now, what growth rate? ✘ Variety – what type(s) of data? ‘rectangular’, ‘graph’, ‘k-v’, etc… ✘ Velocity – batches, streams, both, what ingest rate? ✘ Veracity – current state (quality) of data, amount of duplication of data stores, existence of authoritative (master) data management?

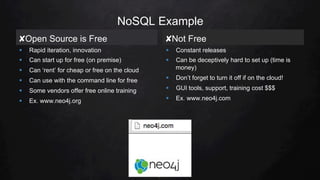

- 21. 21 ✘ Open Source isFree ✘ Not Free § Rapid iteration, innovation § Can start up for free (on premise) § Can ‘rent’ for cheap or free on the cloud § Can use with the command line for free § Some vendors offer free online training § Ex. www.neo4j.org § Constant releases § Can be deceptively hard to set up (time is money) § Don’t forget to turn it off if on the cloud! § GUI tools, support, training cost $$$ § Ex. www.neo4j.com NoSQL Example
- 22.
- 23. NoSQL Applied Log Files • ??? Product Catalogs • ??? Social Games • ??? Social aggregators • ??? Line-of- Business • ???

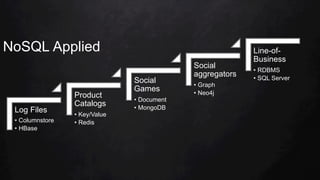

- 24. NoSQL Applied Log Files • Columnstore • HBase Product Catalogs • Key/Value • Redis Social Games • Document • MongoDB Social aggregators • Graph • Neo4j Line-of- Business • RDBMS • SQL Server

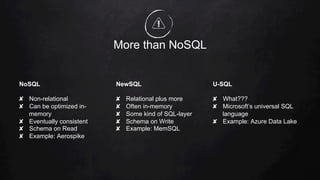

- 25. More than NoSQL NoSQL ✘ Non-relational ✘ Can be optimized in- memory ✘ Eventually consistent ✘ Schema on Read ✘ Example: Aerospike NewSQL ✘ Relational plus more ✘ Often in-memory ✘ Some kind of SQL-layer ✘ Schema on Write ✘ Example: MemSQL U-SQL ✘ What??? ✘ Microsoft’s universal SQL language ✘ Example: Azure Data Lake
- 26.

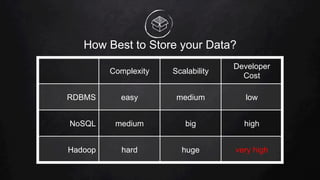

- 27. How Best toStore your Data? Complexity Scalability Developer Cost RDBMS easy medium low NoSQL medium big high Hadoop hard huge very high

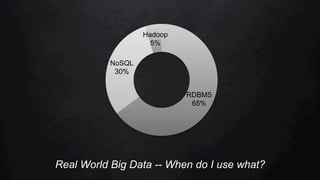

- 28. Real World BigData -- When do I use what? RDBMS 65% NoSQL 30% Hadoop 5%
- 29. “Do the CloudVendors Understand Big Data Realities?

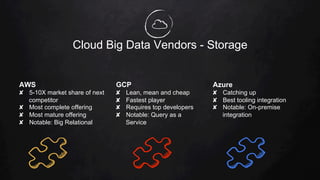

- 30. Cloud Big DataVendors - Storage AWS ✘ 5-10X market share of next competitor ✘ Most complete offering ✘ Most mature offering ✘ Notable: Big Relational GCP ✘ Lean, mean and cheap ✘ Fastest player ✘ Requires top developers ✘ Notable: Query as a Service Azure ✘ Catching up ✘ Best tooling integration ✘ Notable: On-premise integration

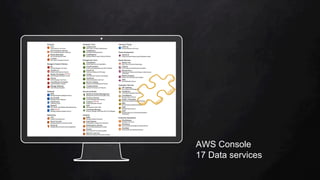

- 31. Place your screenshothere AWS Console 17 Data services
- 32. Place your screenshothere GCP Console 8 Data Services
- 33. Place your screenshothere Azure Console 15 Data Services

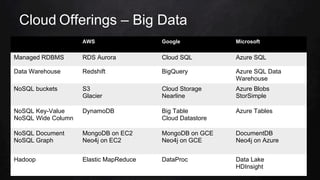

- 34. Cloud Offerings –Big Data AWS Google Microsoft Managed RDBMS RDS Aurora Cloud SQL Azure SQL Data Warehouse Redshift BigQuery Azure SQL Data Warehouse NoSQL buckets S3 Glacier Cloud Storage Nearline Azure Blobs StorSimple NoSQL Key-Value NoSQL Wide Column DynamoDB Big Table Cloud Datastore Azure Tables NoSQL Document NoSQL Graph MongoDB on EC2 Neo4j on EC2 MongoDB on GCE Neo4j on GCE DocumentDB Neo4j on Azure Hadoop Elastic MapReduce DataProc Data Lake HDInsight
- 35. Practice Applying Concepts –Real Cost of Storage Types

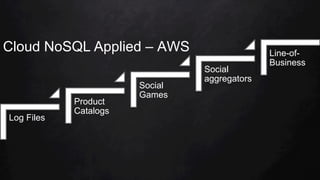

- 36. Cloud NoSQL Applied– AWS Log Files Product Catalogs Social Games Social aggregators Line-of- Business

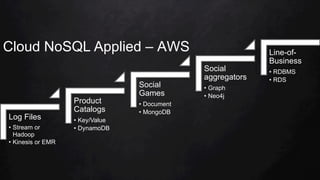

- 37. Cloud NoSQL Applied– AWS Log Files • Stream or Hadoop • Kinesis or EMR Product Catalogs • Key/Value • DynamoDB Social Games • Document • MongoDB Social aggregators • Graph • Neo4j Line-of- Business • RDBMS • RDS
- 38. ???The fastest growingcloud-based Big Data products are…
- 39. RelationalThe fastest growingcloud-based Big Data products are…
- 40. “When do Iuse…? ✘ Hadoop ✘ NoSQL ✘ Big Relational
- 41. Practice Applying Concepts –Real Cost of Storage Types

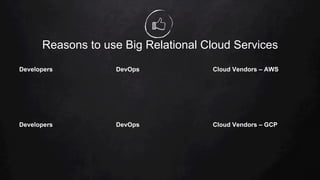

- 42. Reasons to useBig Relational Cloud Services Developers DevOps Cloud Vendors – AWS Developers DevOps Cloud Vendors – GCP

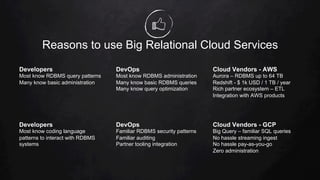

- 43. Reasons to useBig Relational Cloud Services Developers Most know RDBMS query patterns Many know basic administration DevOps Most know RDBMS administration Many know basic RDBMS queries Many know query optimization Cloud Vendors - AWS Aurora – RDBMS up to 64 TB Redshift - $ 1k USD / 1 TB / year Rich partner ecosystem – ETL Integration with AWS products Developers Most know coding language patterns to interact with RDBMS systems DevOps Familiar RDBMS security patterns Familiar auditing Partner tooling integration Cloud Vendors - GCP Big Query – familiar SQL queries No hassle streaming ingest No hassle pay-as-you-go Zero administration

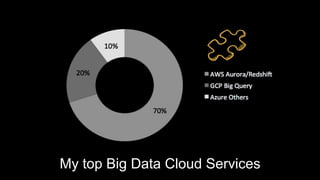

- 44. My top BigData Cloud Services
- 45. ETL is 75%of all Big Data Projects Surveying, cleaning and loading data is the majority of the billable time for new Big Data projects.

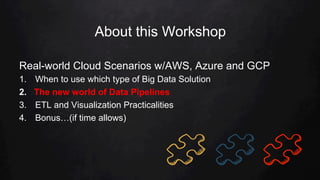

- 46. About this Workshop Real-worldCloud Scenarios w/AWS, Azure and GCP 1. When to use which type of Big Data Solution 2. The new world of Data Pipelines 3. ETL and Visualization Practicalities 4. Bonus…(if time allows)
- 47.

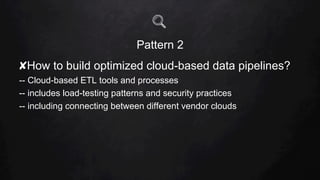

- 48. Pattern 2 ✘ How tobuild optimized cloud-based data pipelines? -- Cloud-based ETL tools and processes -- includes load-testing patterns and security practices -- including connecting between different vendor clouds

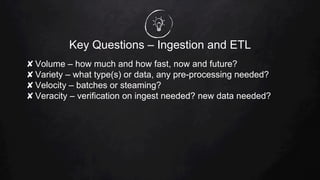

- 49. Key Questions –Ingestion and ETL ✘ Volume – how much and how fast, now and future? ✘ Variety – what type(s) or data, any pre-processing needed? ✘ Velocity – batches or steaming? ✘ Veracity – verification on ingest needed? new data needed?
- 50. Together How does yourdata pipeline flow?
- 51. “Considering… ✘ Initial Load/Transform ✘ Data Quality ✘ Batch vs. Stream

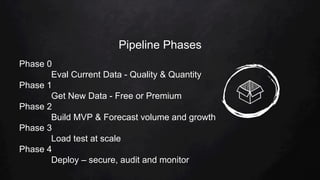

- 52. Pipeline Phases Phase 0 EvalCurrent Data - Quality & Quantity Phase 1 Get New Data - Free or Premium Phase 2 Build MVP & Forecast volume and growth Phase 3 Load test at scale Phase 4 Deploy – secure, audit and monitor

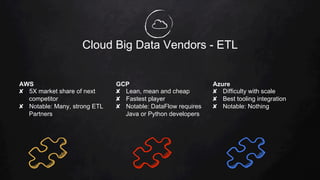

- 53. Cloud Big DataVendors - ETL AWS ✘ 5X market share of next competitor ✘ Notable: Many, strong ETL Partners GCP ✘ Lean, mean and cheap ✘ Fastest player ✘ Notable: DataFlow requires Java or Python developers Azure ✘ Difficulty with scale ✘ Best tooling integration ✘ Notable: Nothing

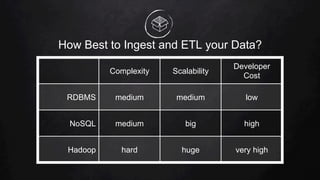

- 54. How Best toIngest and ETL your Data? Complexity Scalability Developer Cost RDBMS medium medium low NoSQL medium big high Hadoop hard huge very high
- 55. “Considering… ✘ Initial Load/Transform ✘ Data Quality ✘ Batch vs. Stream

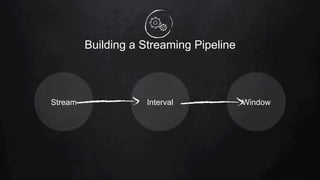

- 56. Building a StreamingPipeline Stream Interval Window
- 58. “Near Real-time Streams LoadTest All The Things

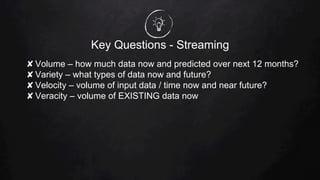

- 59. Key Questions -Streaming ✘ Volume – how much data now and predicted over next 12 months? ✘ Variety – what types of data now and future? ✘ Velocity – volume of input data / time now and near future? ✘ Veracity – volume of EXISTING data now

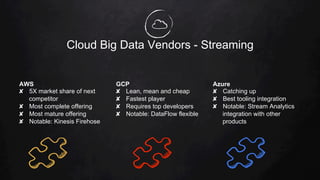

- 60. Cloud Big DataVendors - Streaming AWS ✘ 5X market share of next competitor ✘ Most complete offering ✘ Most mature offering ✘ Notable: Kinesis Firehose GCP ✘ Lean, mean and cheap ✘ Fastest player ✘ Requires top developers ✘ Notable: DataFlow flexible Azure ✘ Catching up ✘ Best tooling integration ✘ Notable: Stream Analytics integration with other products
- 61. Place your screenshothere AWS Console 17 Data services

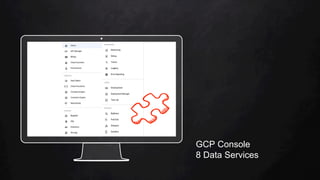

- 62. Place your screenshothere GCP Console 8 Data Services

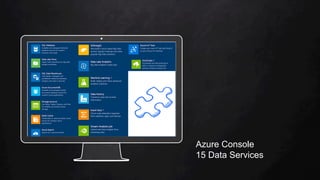

- 63. Place your screenshothere Azure Console 15 Data Services

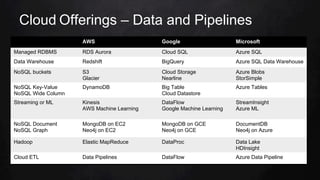

- 64. Cloud Offerings –Data and Pipelines AWS Google Microsoft Managed RDBMS RDS Aurora Cloud SQL Azure SQL Data Warehouse Redshift BigQuery Azure SQL Data Warehouse NoSQL buckets S3 Glacier Cloud Storage Nearline Azure Blobs StorSimple NoSQL Key-Value NoSQL Wide Column DynamoDB Big Table Cloud Datastore Azure Tables Streaming or ML Kinesis AWS Machine Learning DataFlow Google Machine Learning StreamInsight Azure ML NoSQL Document NoSQL Graph MongoDB on EC2 Neo4j on EC2 MongoDB on GCE Neo4j on GCE DocumentDB Neo4j on Azure Hadoop Elastic MapReduce DataProc Data Lake HDInsight Cloud ETL Data Pipelines DataFlow Azure Data Pipeline
- 65. How Best toStream your Data? Complexity Scalability Developer Cost Batches easy medium low Windows difficult big high Real-time very difficult huge high
- 66.
- 67. Designing Cloud DataPipelines Log Files Product Catalogs Social Games Social aggregators Line-of- Business

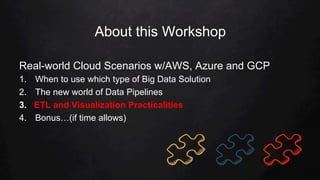

- 68. About this Workshop Real-worldCloud Scenarios w/AWS, Azure and GCP 1. When to use which type of Big Data Solution 2. The new world of Data Pipelines 3. ETL and Visualization Practicalities 4. Bonus…(if time allows)
- 69. 3. Making Sense ofData Analytics and Presentation

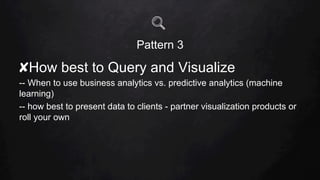

- 70. Pattern 3 ✘ How bestto Query and Visualize -- When to use business analytics vs. predictive analytics (machine learning) -- how best to present data to clients - partner visualization products or roll your own

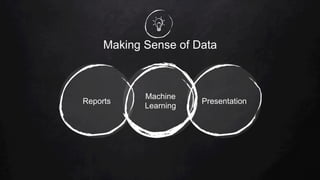

- 71. Making Sense ofData Machine Learning Reports Presentation
- 72. Key Questions -Query ✘ Volume ✘ Variety ✘ Velocity ✘ Veracity
- 73. Graphs What is natureof your questions?

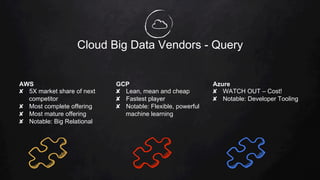

- 75. Cloud Big DataVendors - Query AWS ✘ 5X market share of next competitor ✘ Most complete offering ✘ Most mature offering ✘ Notable: Big Relational GCP ✘ Lean, mean and cheap ✘ Fastest player ✘ Notable: Flexible, powerful machine learning Azure ✘ WATCH OUT – Cost! ✘ Notable: Developer Tooling

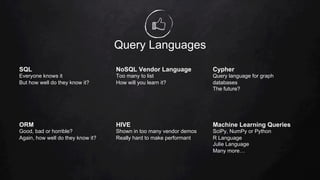

- 76. Query Languages SQL Everyone knowsit But how well do they know it? NoSQL Vendor Language Too many to list How will you learn it? Cypher Query language for graph databases The future? ORM Good, bad or horrible? Again, how well do they know it? HIVE Shown in too many vendor demos Really hard to make performant Machine Learning Queries SciPy, NumPy or Python R Language Julie Language Many more…
- 77. Practice Applying Concepts –Understanding D3

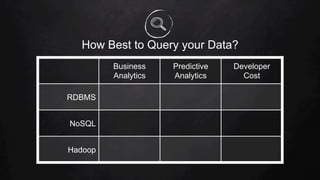

- 78. How Best toQuery your Data? Business Analytics Predictive Analytics Developer Cost RDBMS NoSQL Hadoop

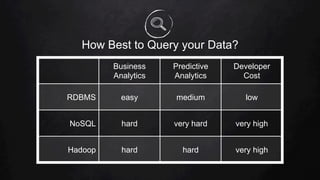

- 79. How Best toQuery your Data? Business Analytics Predictive Analytics Developer Cost RDBMS easy medium low NoSQL hard very hard very high Hadoop hard hard very high

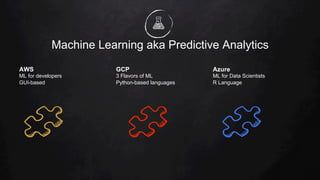

- 80. Machine Learning akaPredictive Analytics AWS ML for developers GUI-based GCP 3 Flavors of ML Python-based languages Azure ML for Data Scientists R Language
- 81. Presentation If you can’tsee it, it’s not worth it.

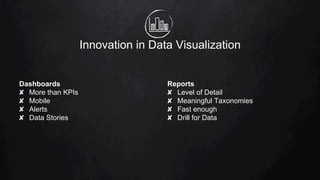

- 82. Dashboards ✘ More thanKPIs ✘ Mobile ✘ Alerts ✘ Data Stories Innovation in Data Visualization Reports ✘ Level of Detail ✘ Meaningful Taxonomies ✘ Fast enough ✘ Drill for Data
- 83. D3 The language ofData Visualization
- 85. Cloud Big DataVendors - Visualization AWS ✘ Most complete offering ✘ Notable: Partners & QuickSight GCP ✘ Big Query Partners ✘ Notable: New Dashboards Azure ✘ Integrated ✘ Notable: PowerBI
- 86. About this Workshop Real-worldCloud Scenarios w/AWS, Azure and GCP 1. When to use which type of Big Data Solution 2. The new world of Data Pipelines 3. ETL and Visualization Practicalities 4. Bonus…(if time allows)
- 87.
- 88. Place your screenshot here DataGeneration Device
- 89.
- 90. 235,000,000,000 $The IoTMarket 2017By the year 20 Billion devicesAnd a lot of users

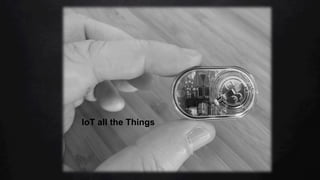

- 91. IoT all theThings

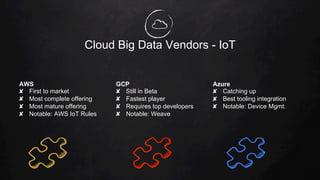

- 92. Cloud Big DataVendors - IoT AWS ✘ First to market ✘ Most complete offering ✘ Most mature offering ✘ Notable: AWS IoT Rules GCP ✘ Still in Beta ✘ Fastest player ✘ Requires top developers ✘ Notable: Weave Azure ✘ Catching up ✘ Best tooling integration ✘ Notable: Device Mgmt.
- 93.
- 94.
- 95. ‘brigada! Any questions? You canfind me at @lynnlangit
