- 1. Cleaning Up theDirt of the Nineties How New Protocols are Modernizing the Web Steffen Gebert (with help from Thomas Zinner and Benedikt Pfaff) Photos:
- 2. Thanks to ourSponsors
- 3. Agenda What happened… and isstill happening HTTP/2 A small step for the Web QUIC Getting rid of TCP Multipath TCP One path is not enough Siri: “Sometimes, we talk via MPTCP”
- 4. About Me PhD StudentComm. Networks since 2011 Contributor 2008 – 2010 Core Team 2010 - 2013 Server Admin Team since 2011 Visiting Researcher 10/2011 – 01/2012
- 8.

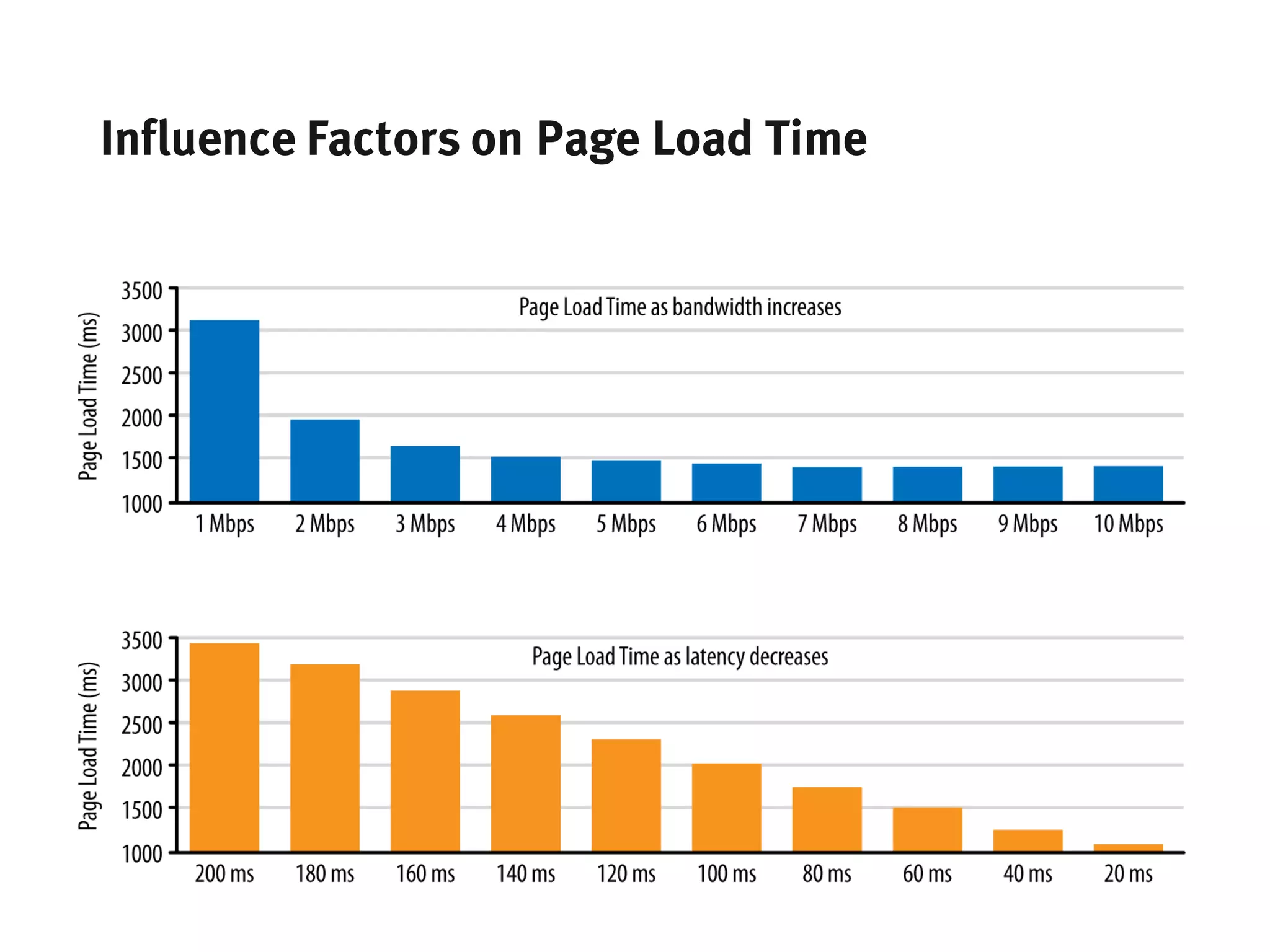

- 9. Influence Factors onPage Load Time

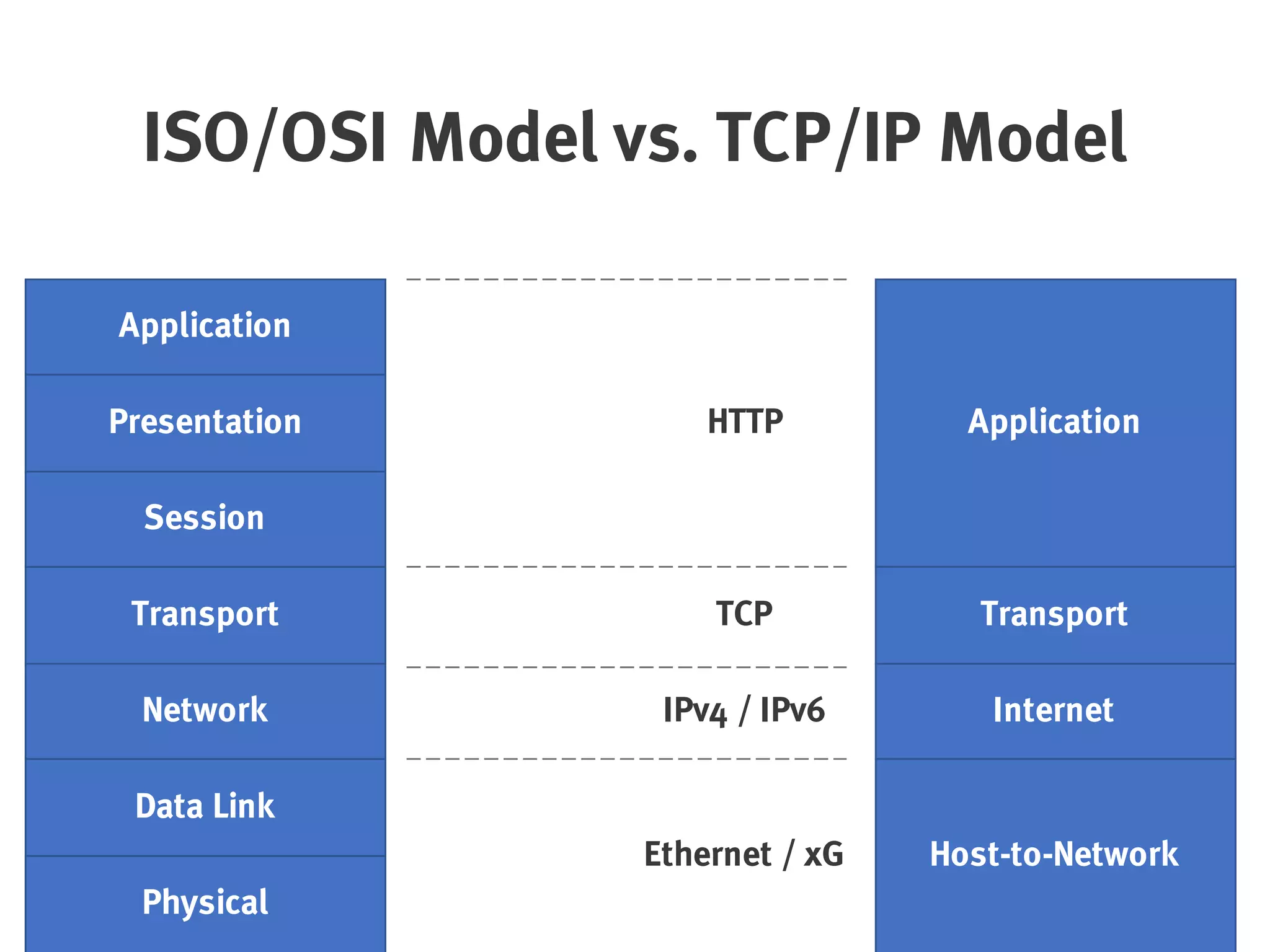

- 10. ISO/OSI Model vs.TCP/IP Model Physical Data Link Network Transport Session Presentation Application Host-to-Network Internet Transport Application Ethernet / xG IPv4 / IPv6 TCP HTTP

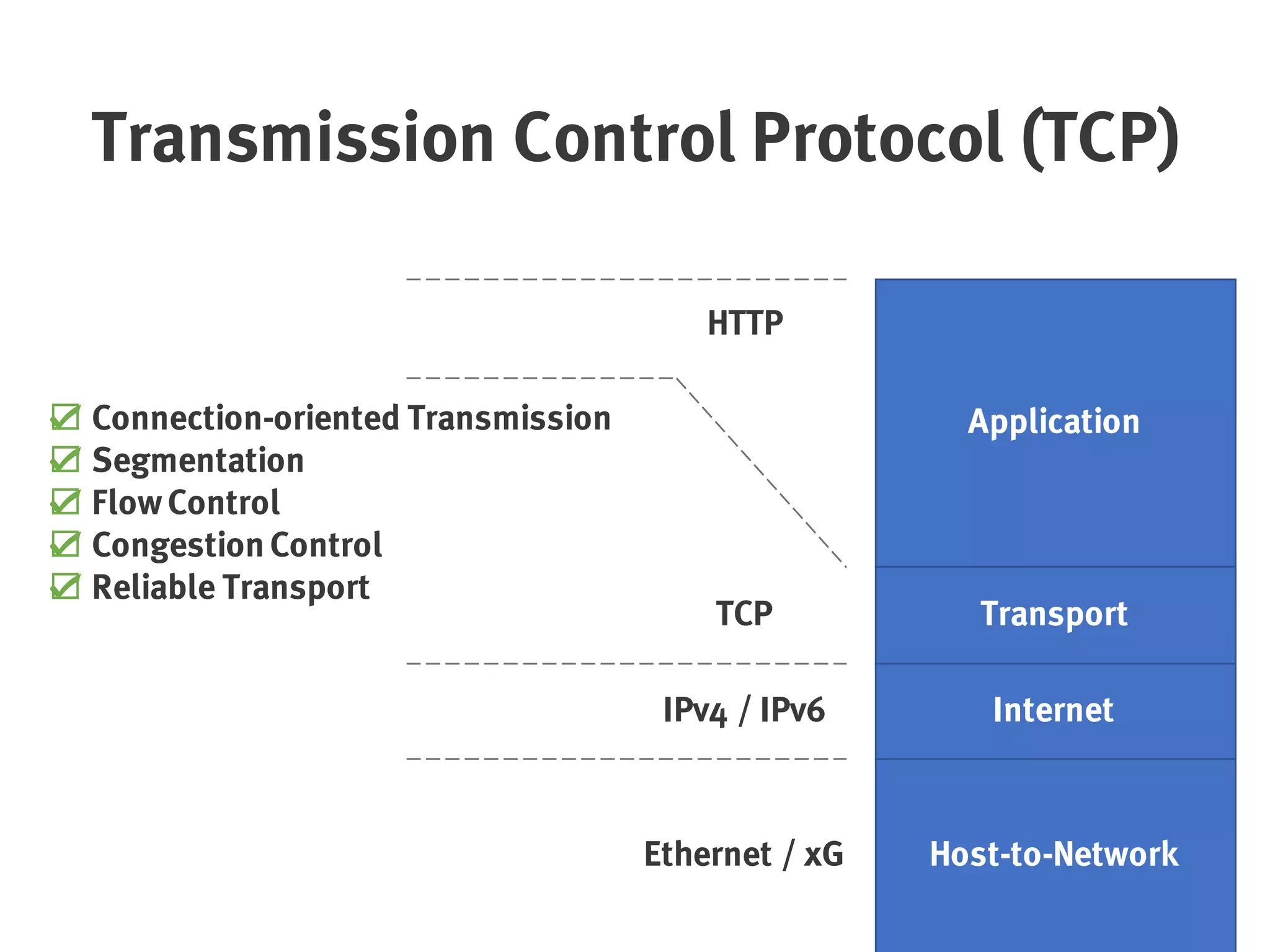

- 11. Transmission Control Protocol(TCP) Host-to-Network Internet Transport Application Ethernet / xG IPv4 / IPv6 TCP HTTP ☑ Connection-oriented Transmission ☑ Segmentation ☑ Flow Control ☑ Congestion Control ☑ Reliable Transport

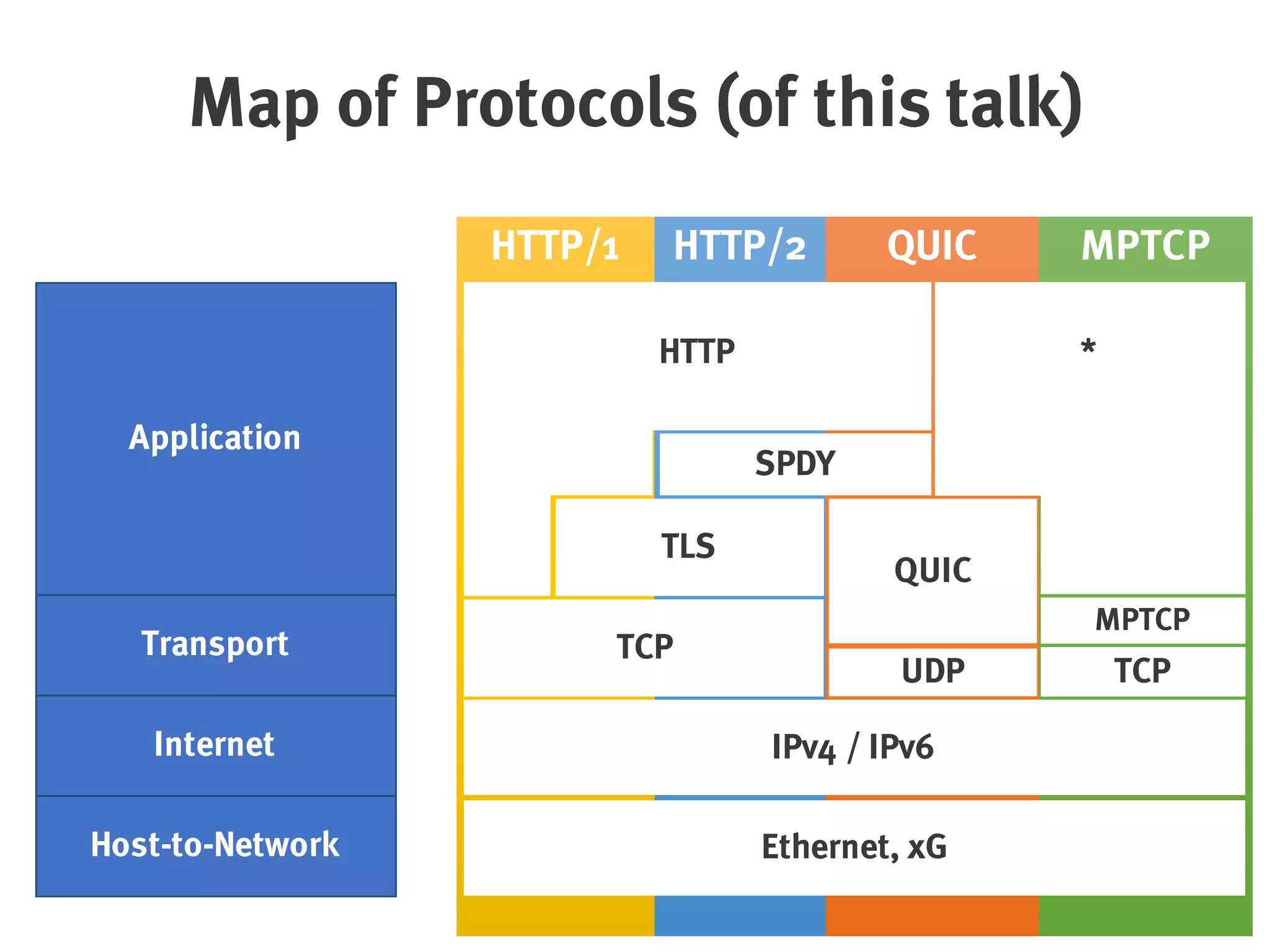

- 12. HTTP/2 QUIC MPTCPHTTP/1 *HTTP Mapof Protocols (of this talk) Host-to-Network Internet Transport Application IPv4 / IPv6 Ethernet, xG TCP TLS UDP TCP MPTCP QUIC SPDY
- 13.

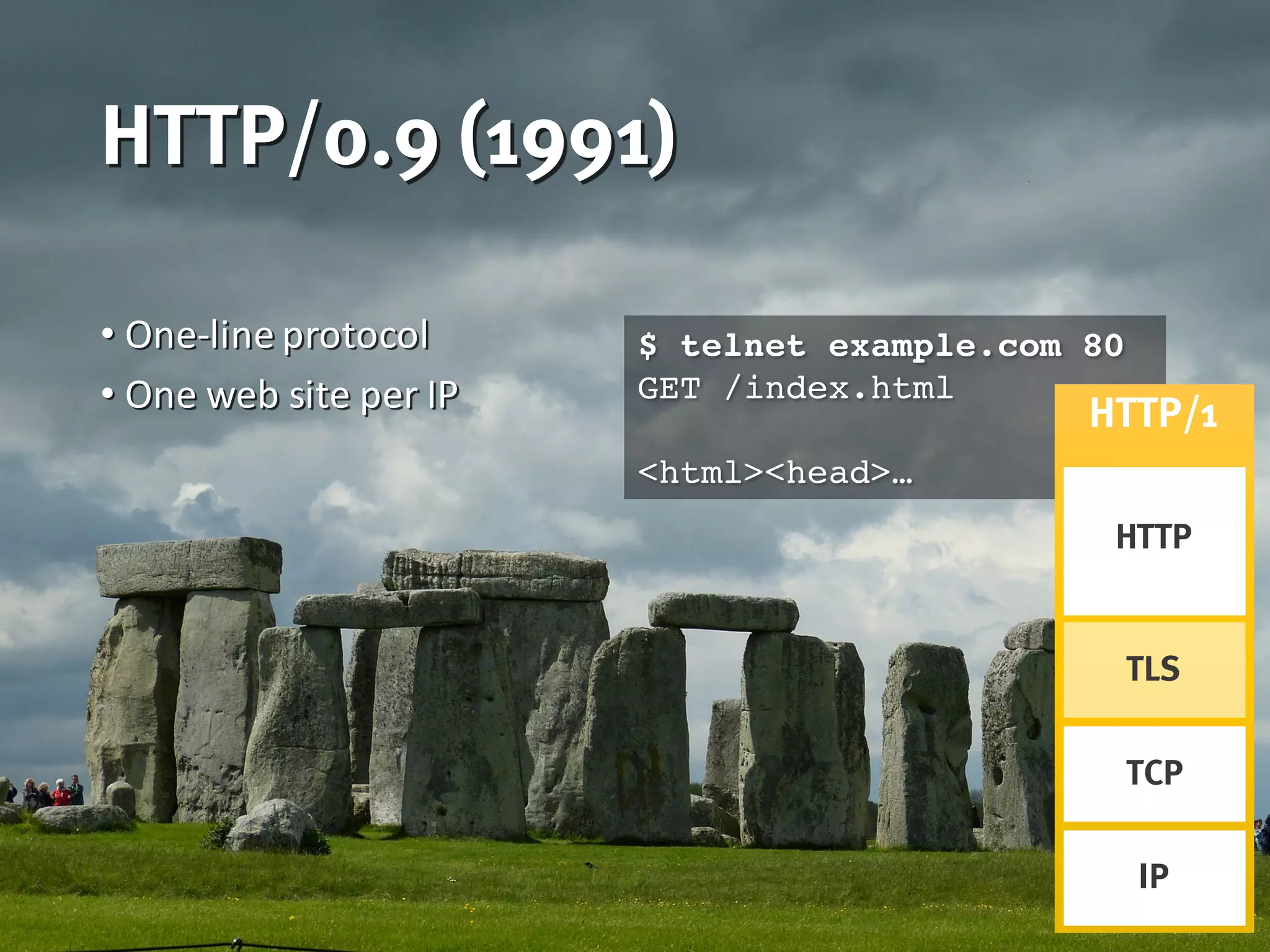

- 14. HTTP/0.9 (1991) • One-line protocol •One web site per IP $ telnet example.com 80 GET /index.html <html><head>… HTTP/1 HTTP IP TCP TLS

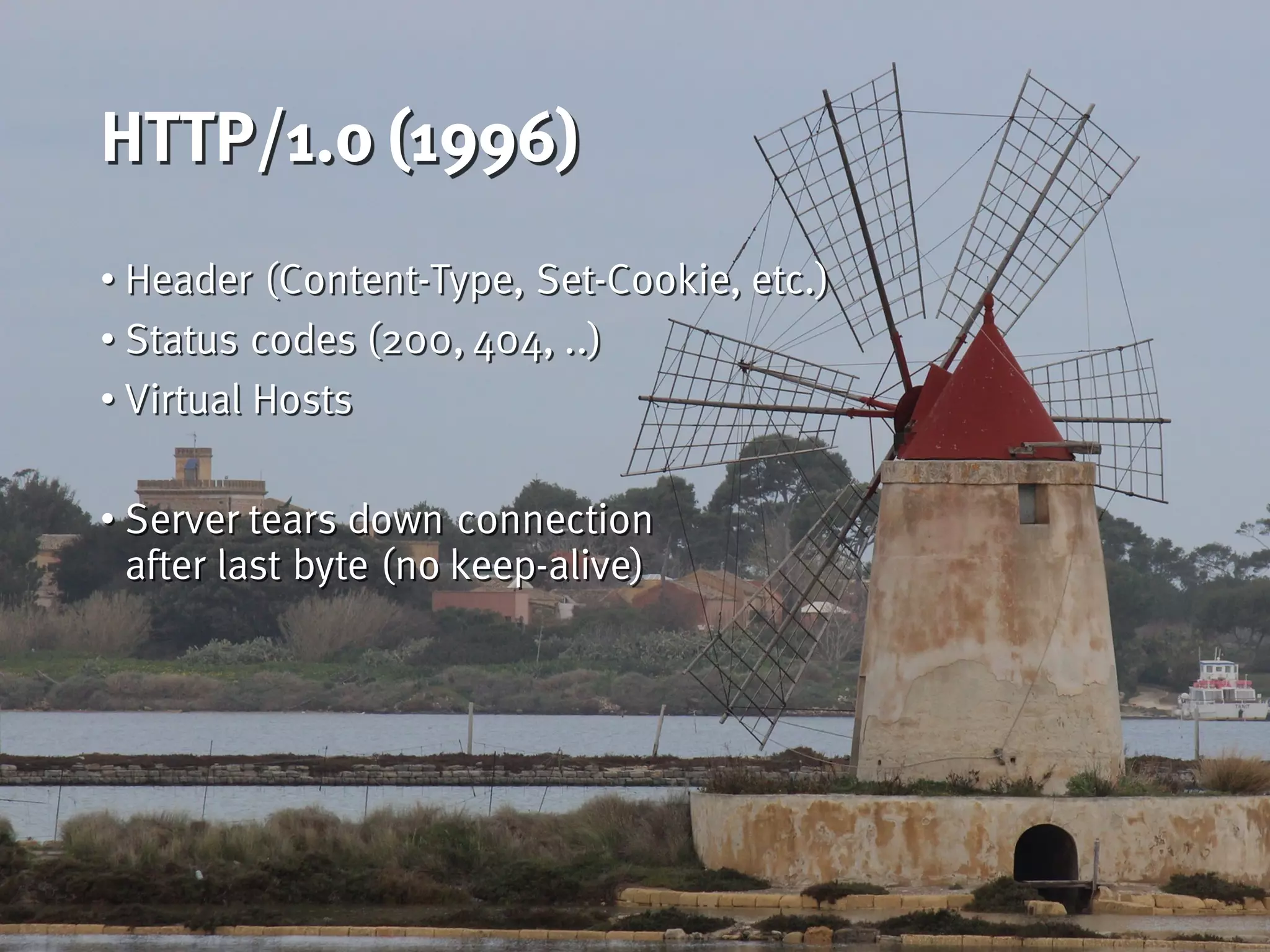

- 15. HTTP/1.0 (1996) • Header(Content-Type, Set-Cookie, etc.) • Status codes (200, 404, ..) • Virtual Hosts • Server tears down connection after last byte (no keep-alive)
- 16.
- 17.
- 18. HTTP/1.1 (1997) • Keep-alive:persistent TCP connection • Chunked Transfer: Response size doesn’t need be known a priori • Byte Range Requests: Requesting partsof a file • Content-Encoding: Gzip compression • Cache-Handling
- 19.
- 20. HTTP/1.1 (1997) • Keep-alive:persistent TCP connection • Chunked Transfer: Response size doesn’t need be known a priori • Byte Range Requests: Requesting partsof a file • Content-Encoding: Gzip compression • Cache-Handling • Pipelining
- 21.

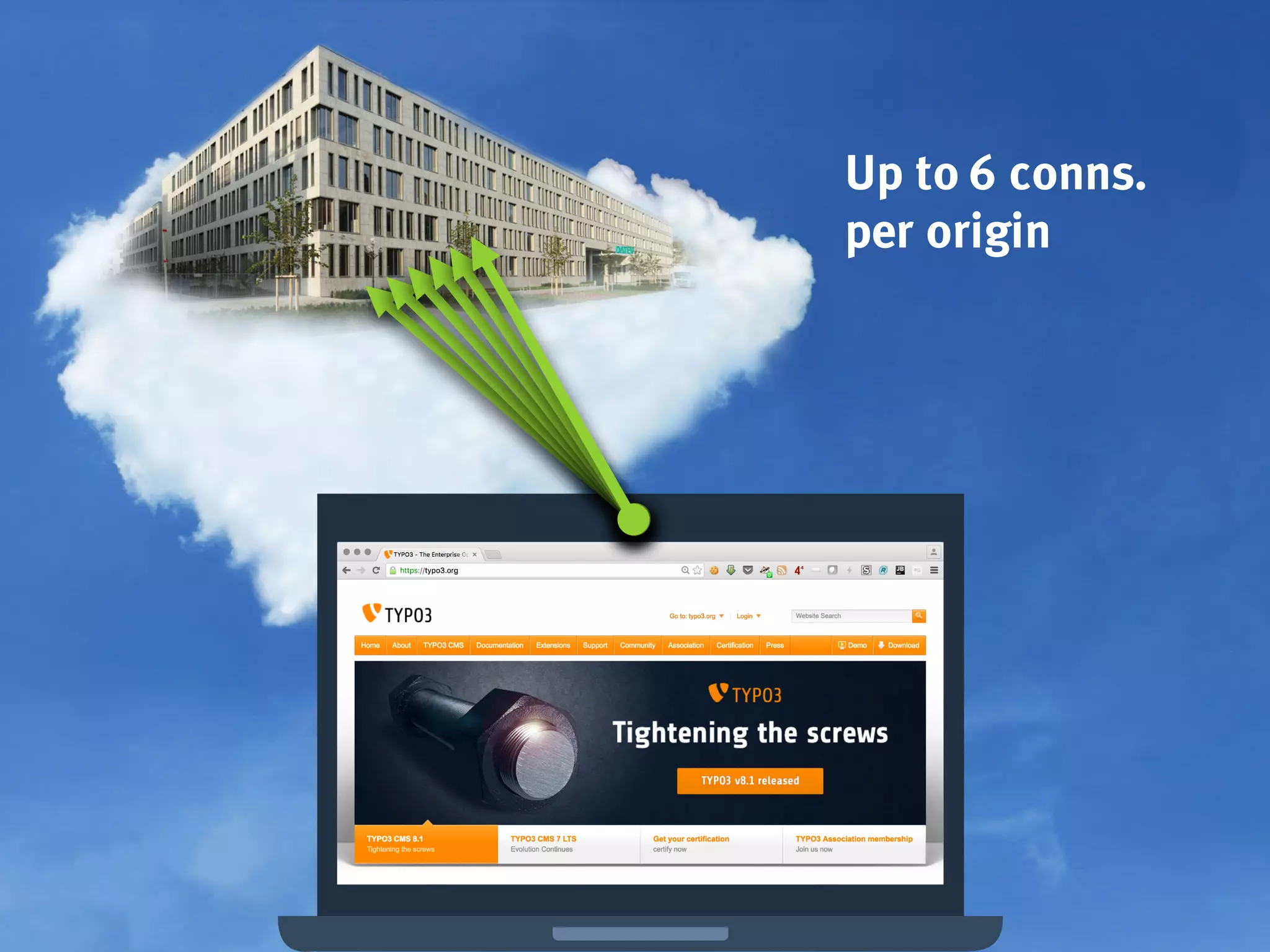

- 22. Up to 6conns. per origin

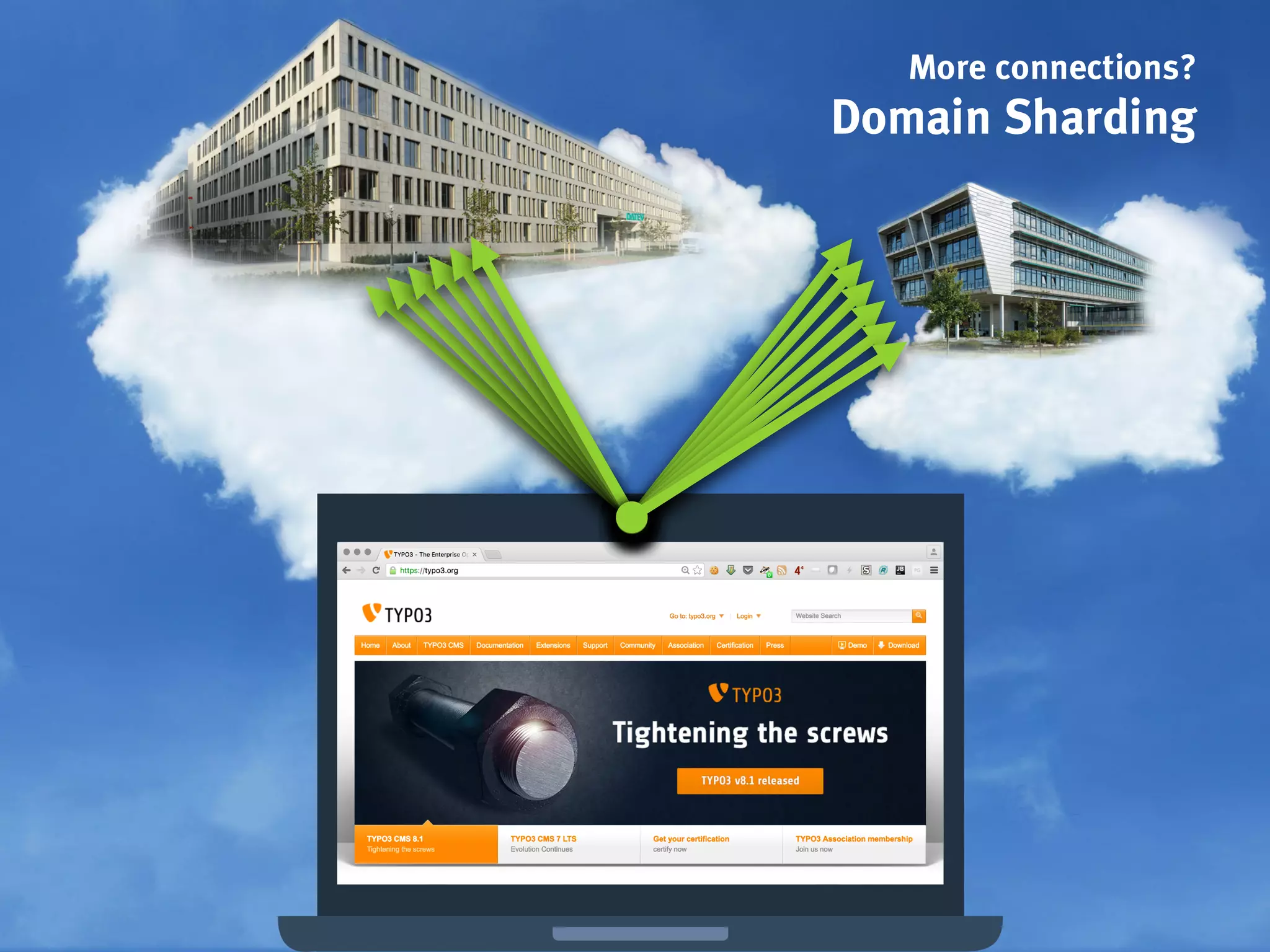

- 23.
- 24.

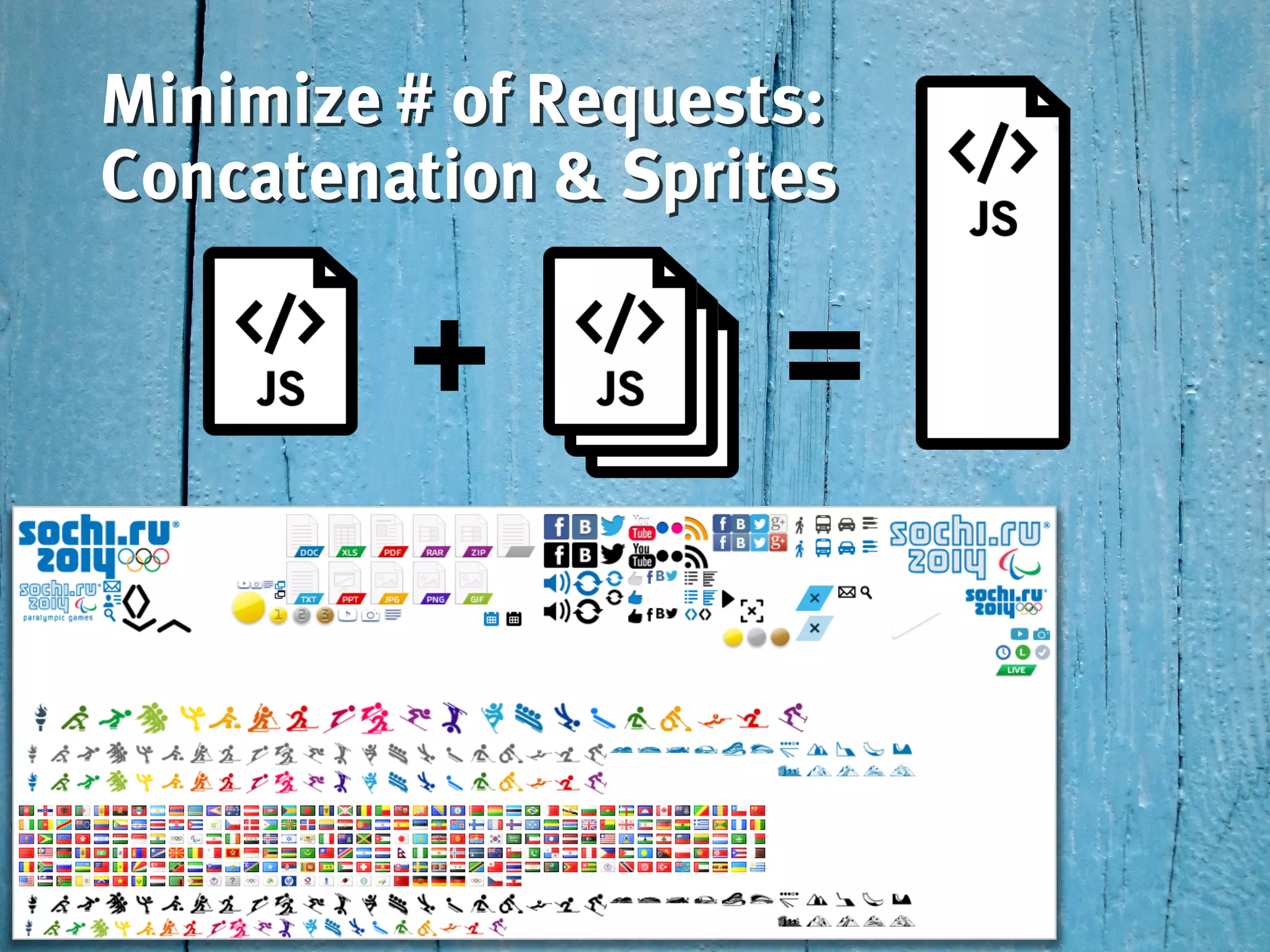

- 25. Minimize # ofRequests: Concatenation & Sprites + =
- 26.
- 28.
- 29. 11/2009 Google SPDY 03/2012 Call forProposals 05/2015 RFCs 7540/7541
- 30.
- 31. Clean Up all thehacks
- 32.

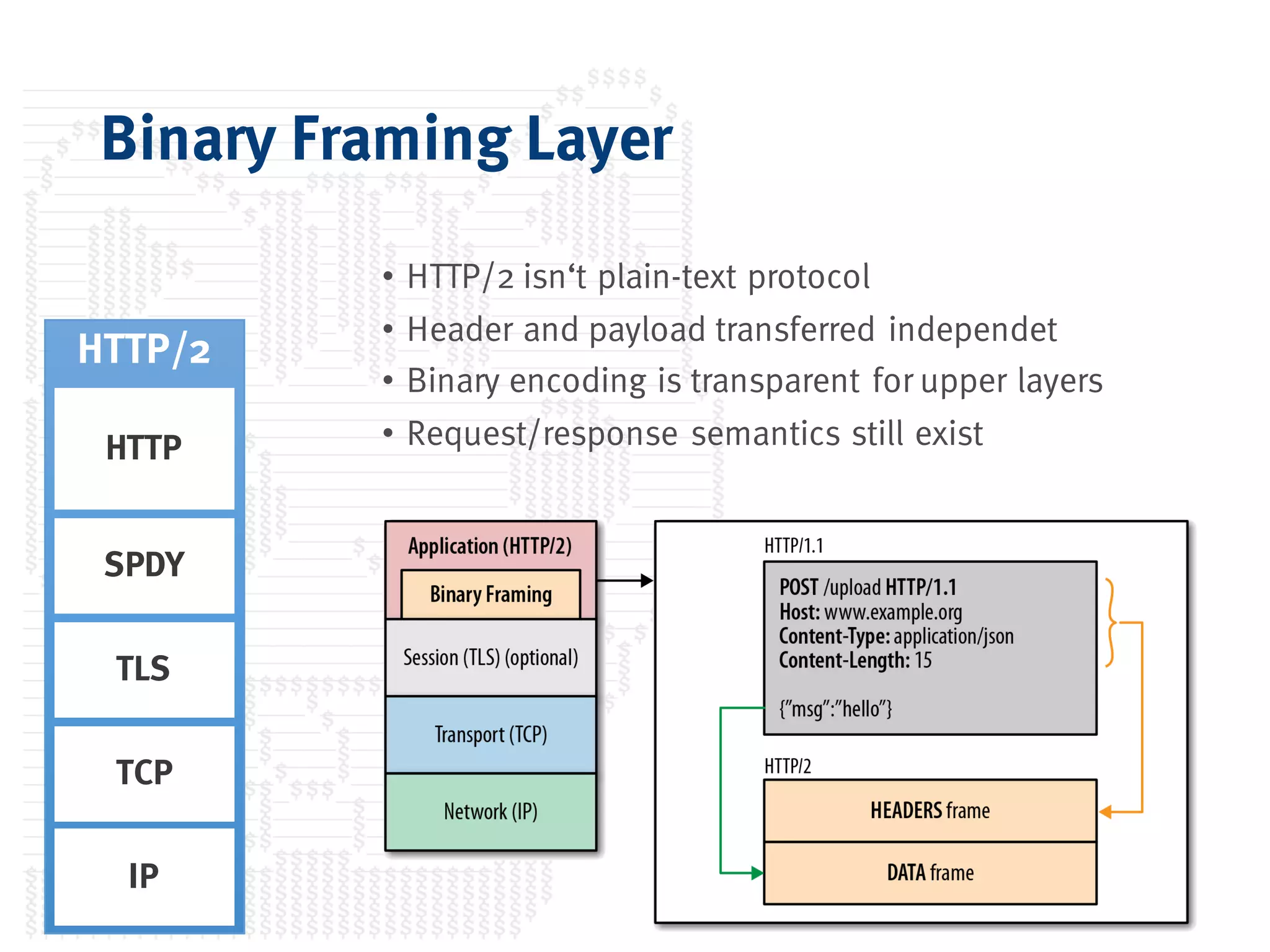

- 33. Binary Framing Layer •HTTP/2 isn‘t plain-text protocol • Header and payload transferred independet • Binary encoding is transparent for upper layers • Request/response semantics still exist 39 HTTP/2 TLS IP TCP SPDY HTTP
- 34.

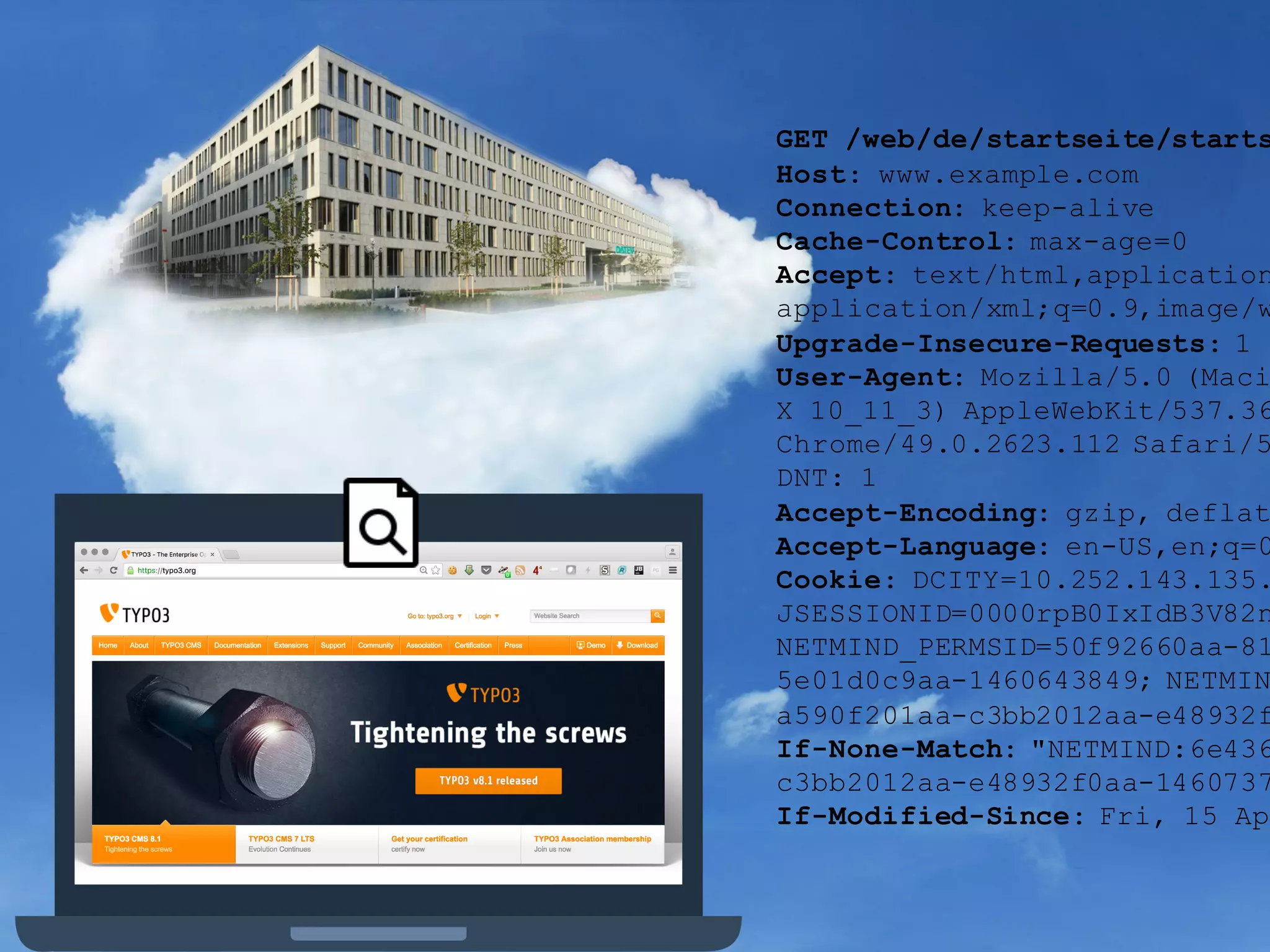

- 35. GET /web/de/startseite/starts Host: www.example.com Connection:keep-alive Cache-Control: max-age=0 Accept: text/html,application application/xml;q=0.9,image/w Upgrade-Insecure-Requests: 1 User-Agent: Mozilla/5.0 (Maci X 10_11_3) AppleWebKit/537.36 Chrome/49.0.2623.112 Safari/5 DNT: 1 Accept-Encoding: gzip, deflat Accept-Language: en-US,en;q=0 Cookie: DCITY=10.252.143.135. JSESSIONID=0000rpB0IxIdB3V82n NETMIND_PERMSID=50f92660aa-81 5e01d0c9aa-1460643849; NETMIN a590f201aa-c3bb2012aa-e48932f If-None-Match: "NETMIND:6e436 c3bb2012aa-e48932f0aa-1460737 If-Modified-Since: Fri, 15 Ap
- 36. HTTP/1.1 200 OK Date:Fri, 15 Apr 2016 16:24: Server: Apache X-Powered-By: Servlet/3.0 Vary: Accept-Encoding Content-Type: text/html Content-Language: en-US Expires: Fri, 15 Apr 2016 16: Last-Modified: Fri, 15 Apr 20 NetMindSessionID: 6e43607baa- c3bb2012aa-e48932f0aa ETag: "NETMIND:6e43607baa-a59 e48932f0aa-1460737491” Set-cookie: NETMIND_PERMSID=5 81644881aa-a898c907aa-5e01d0c Domain=.datev.de; Path=/ ; Ex 2016 16:24:51 GMT Set-cookie: NETMIND_SID=6e436 c3bb2012aa-e48932f0aa-1460737 Domain=.datev.de; Path=/ Content-Length: 19485 Keep-Alive: timeout=5, max=10 Connection: Keep-Alive

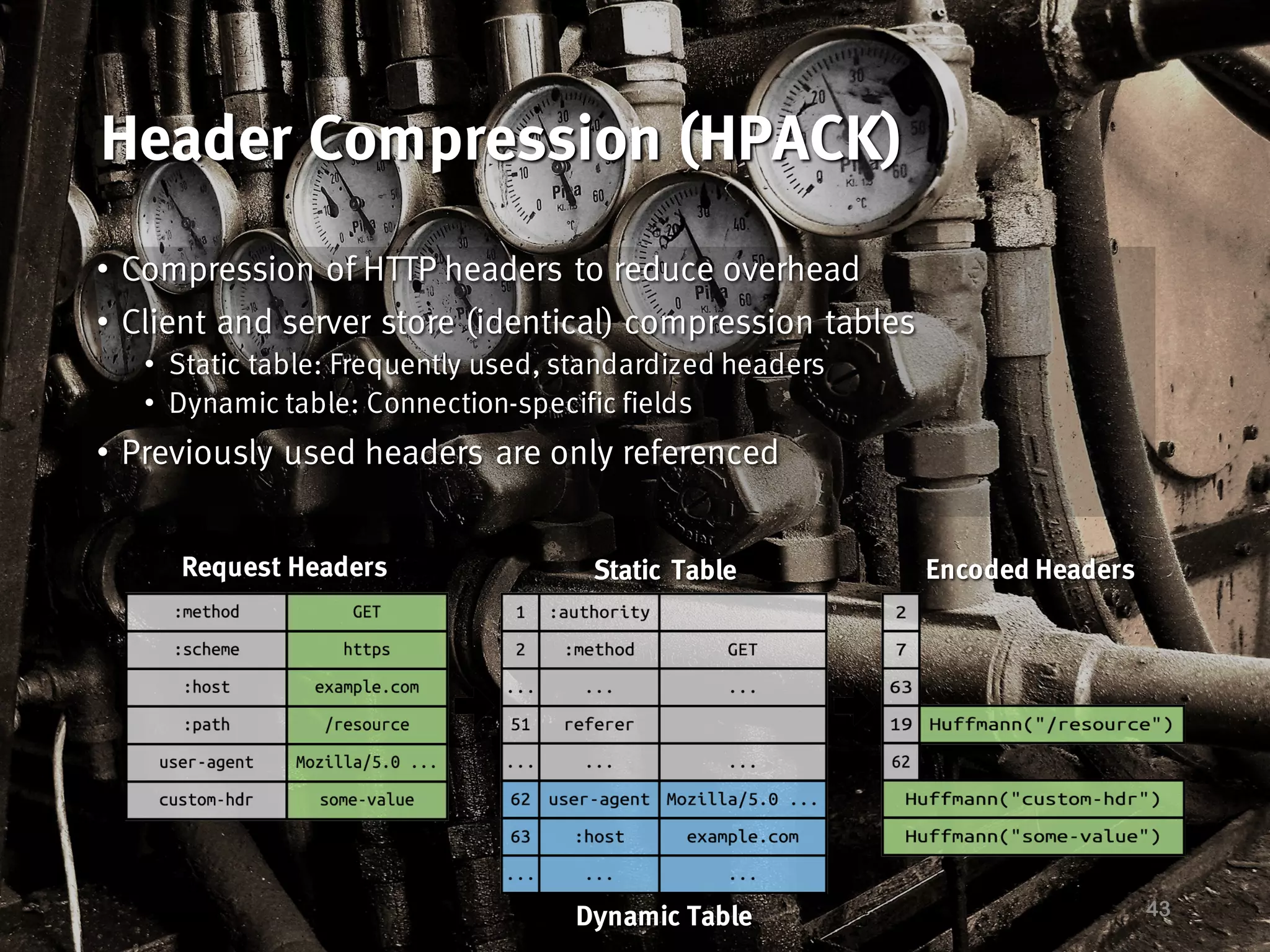

- 37. Header Compression (HPACK) 43 •Compression of HTTP headers to reduce overhead • Client and server store (identical) compression tables • Static table: Frequently used, standardized headers • Dynamic table: Connection-specific fields • Previously used headers are only referenced Request Headers Static Table Encoded Headers Dynamic Table
- 38. Let’s go! •HTTP/2 isfully backwards compatible •No changes needed in web application

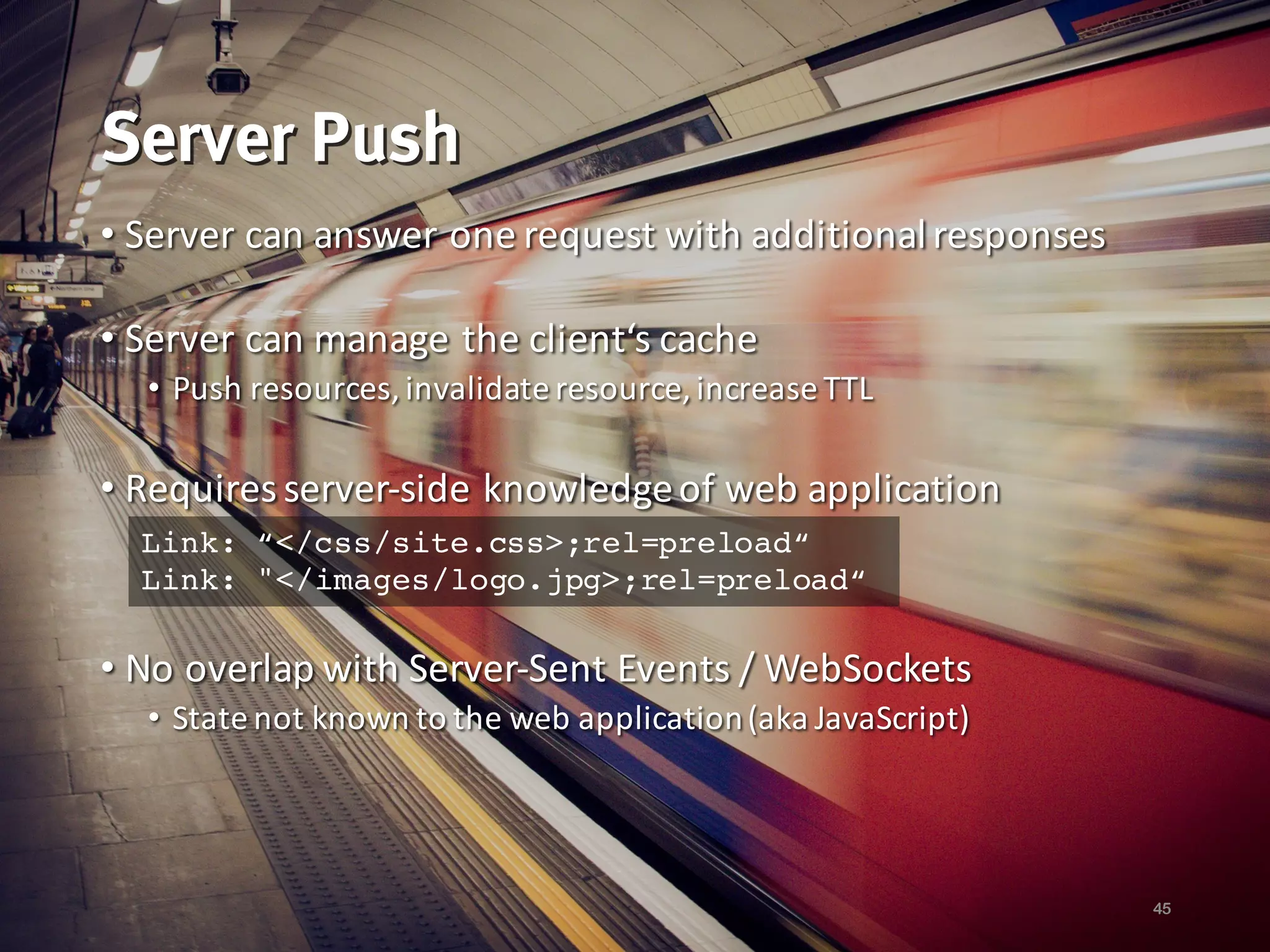

- 39. Server Push • Server cananswer one request with additional responses • Server can manage the client‘s cache • Push resources, invalidate resource, increase TTL • Requires server-side knowledgeof web application • No overlap with Server-Sent Events / WebSockets • State not known to the web application(aka JavaScript) 45 Link: “</css/site.css>;rel=preload“ Link: "</images/logo.jpg>;rel=preload“
- 40. QUIC Getting rid ofTCP using Quick UDP Internet Connections

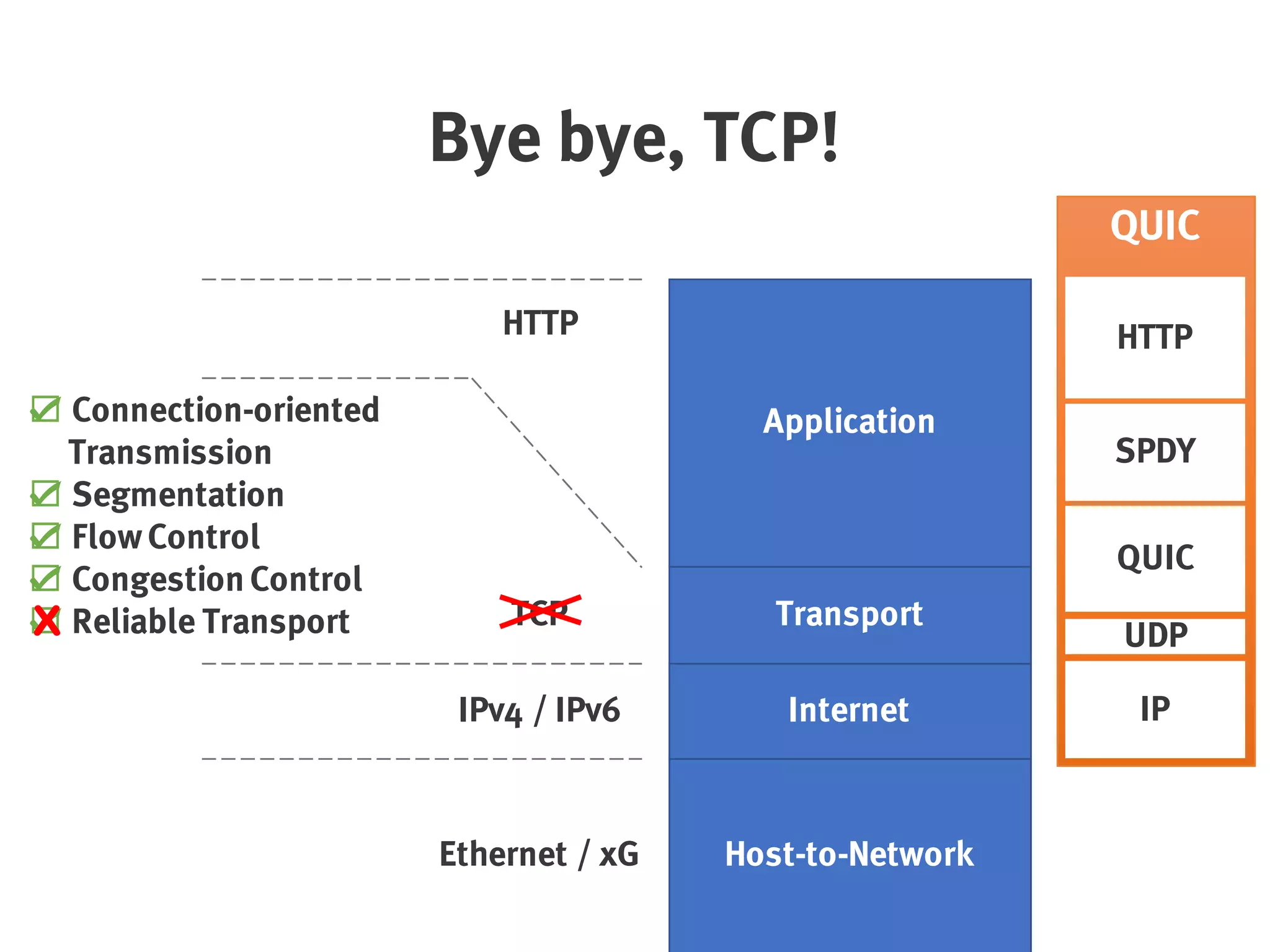

- 41. Bye bye, TCP! Host-to-Network Internet Transport Application Ethernet/ xG IPv4 / IPv6 TCP HTTP ☑ Connection-oriented Transmission ☑ Segmentation ☑ Flow Control ☑ Congestion Control ☑ Reliable Transportx QUIC QUIC IP UDP SPDY HTTP
- 42.
- 43.
- 44.
- 45.

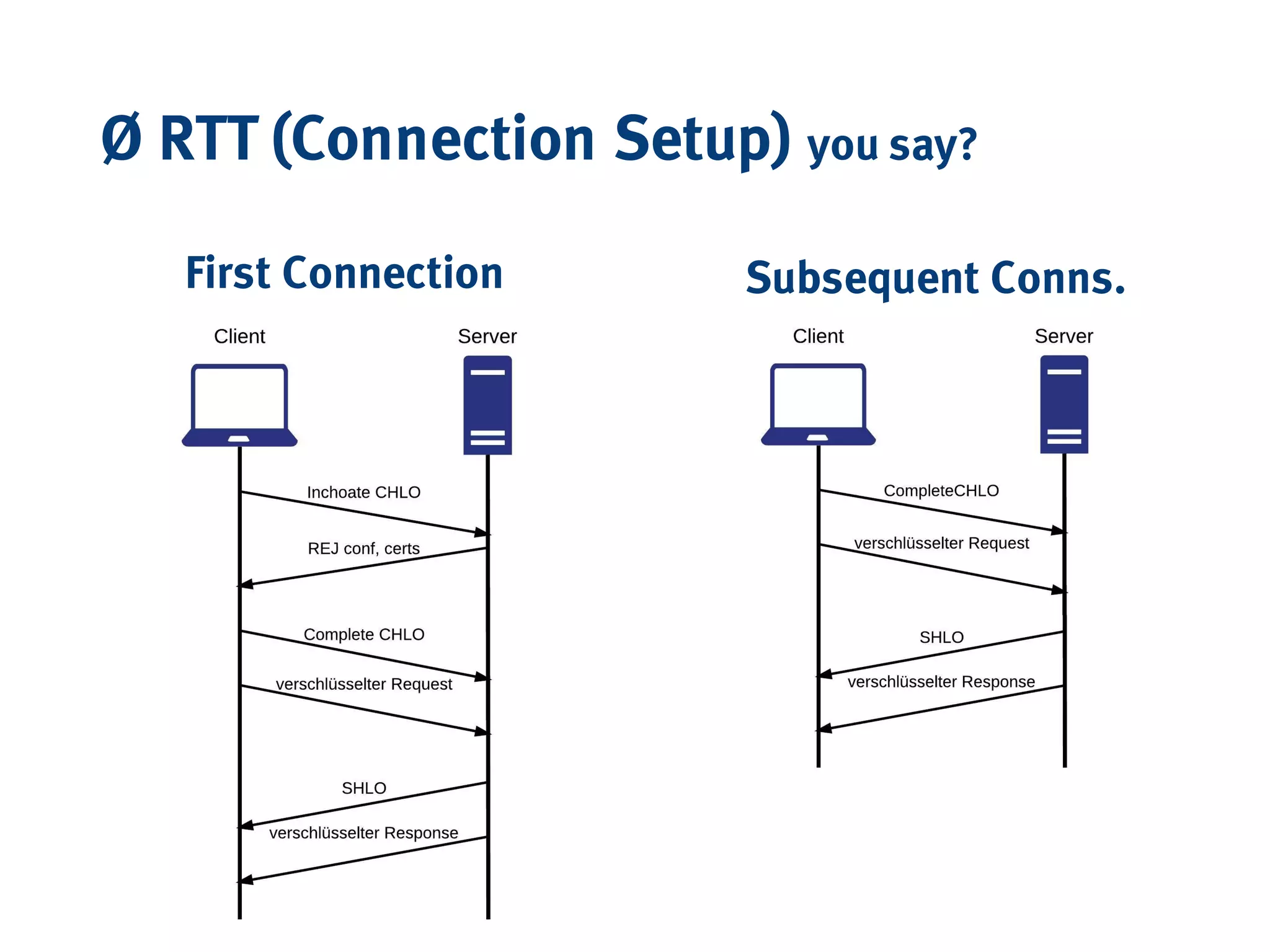

- 46. Ø RTT (ConnectionSetup) you say? First Connection Subsequent Conns.
- 47.
- 48. Congestion Control 58 • Similarto TCP Cubic • ACK includes NACK • Retransmissions have sequence numbers • More precise RTT estimation

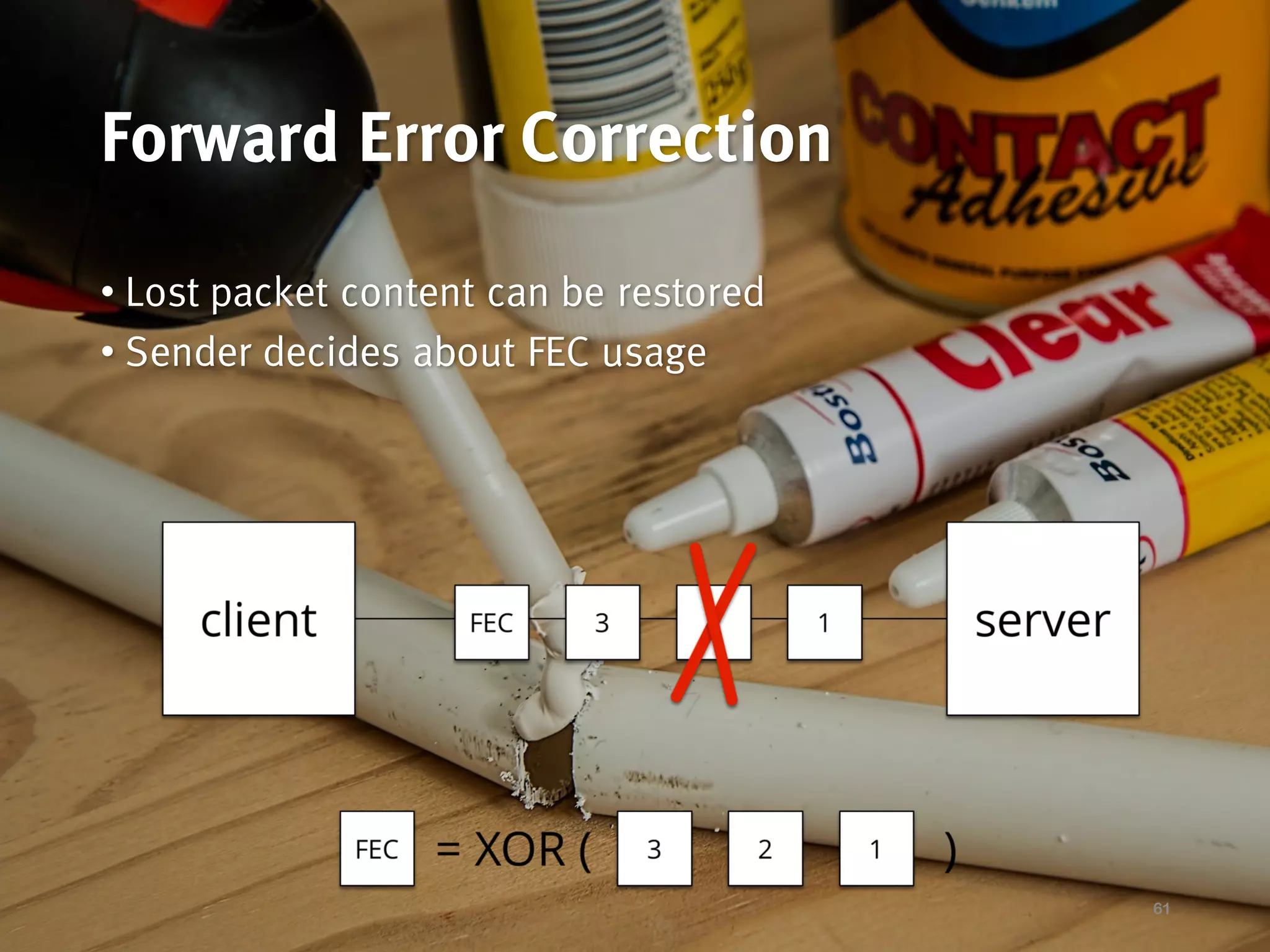

- 49. Forward Error Correction 61 •Lost packet content can be restored • Sender decides about FEC usage

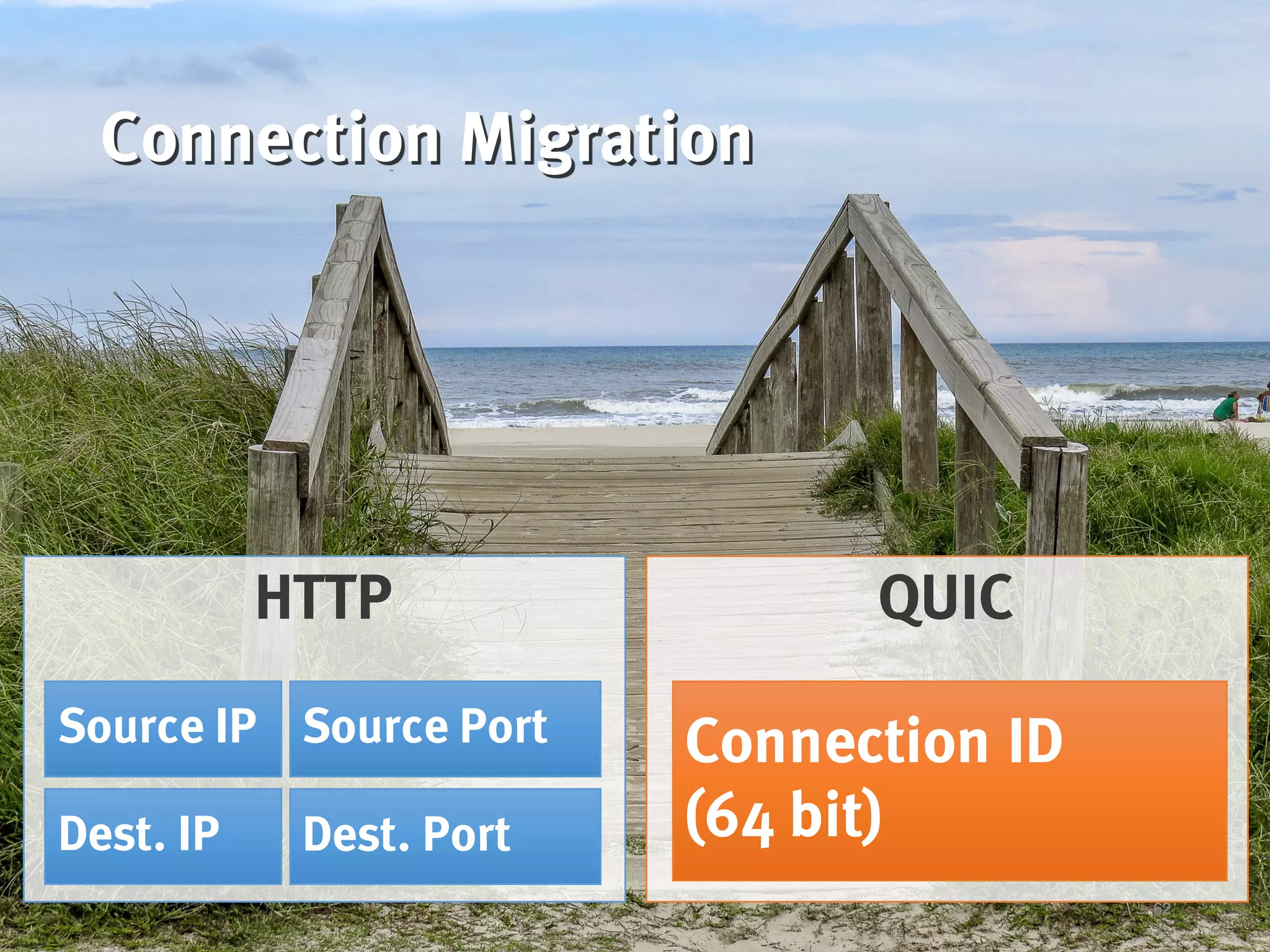

- 50. Connection Migration 62 QUIC Connection ID (64bit) HTTP Source IP Source Port Dest. IP Dest. Port

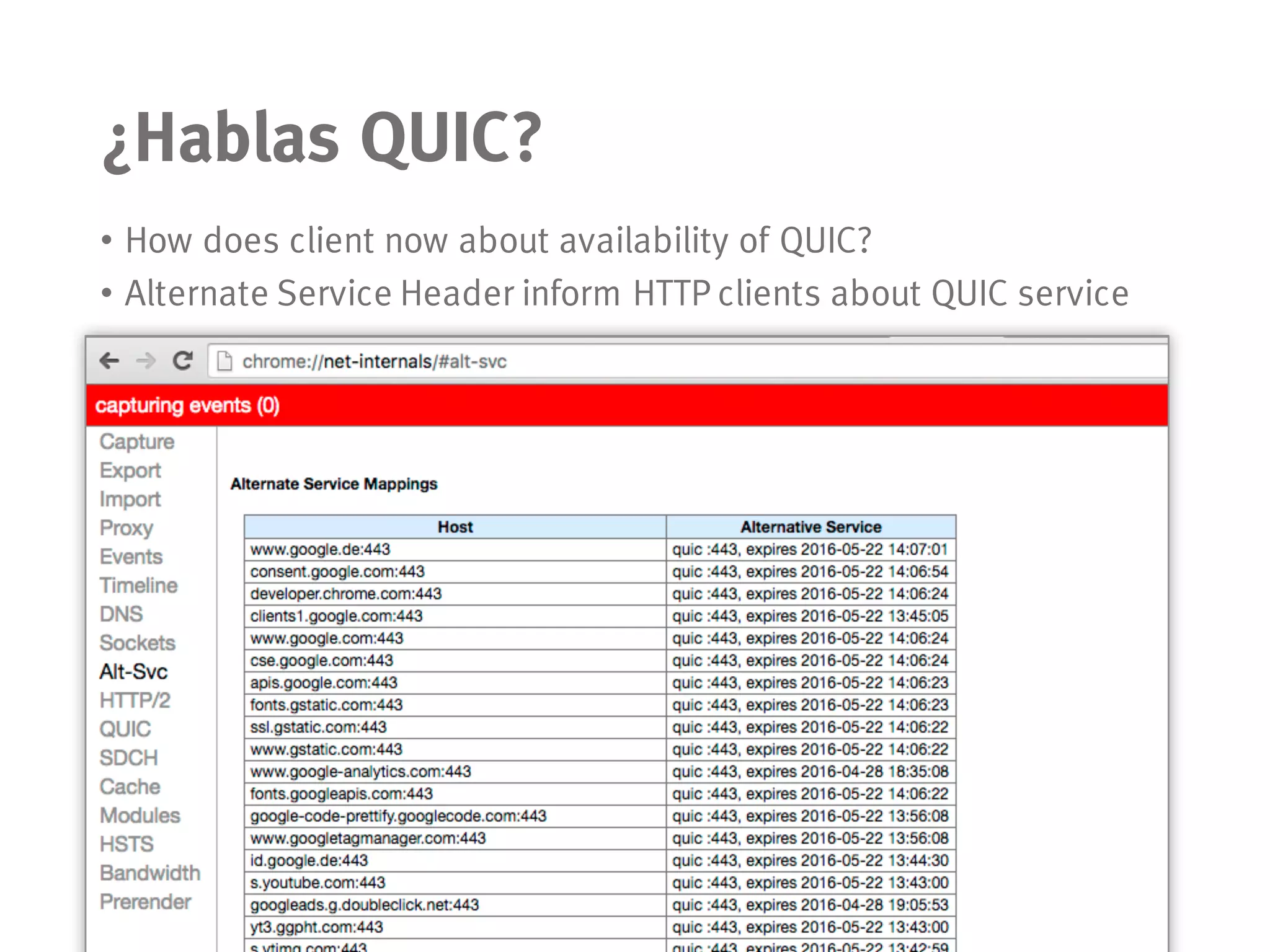

- 51. ¿Hablas QUIC? • Howdoes client now about availability of QUIC? • Alternate Service Header inform HTTP clients about QUIC service
- 52. QUIC Status • Currently,only Google knows • Currently, only Google uses it • Open Source QUIC server (Chromium) outdated • No reliable information about efficiency

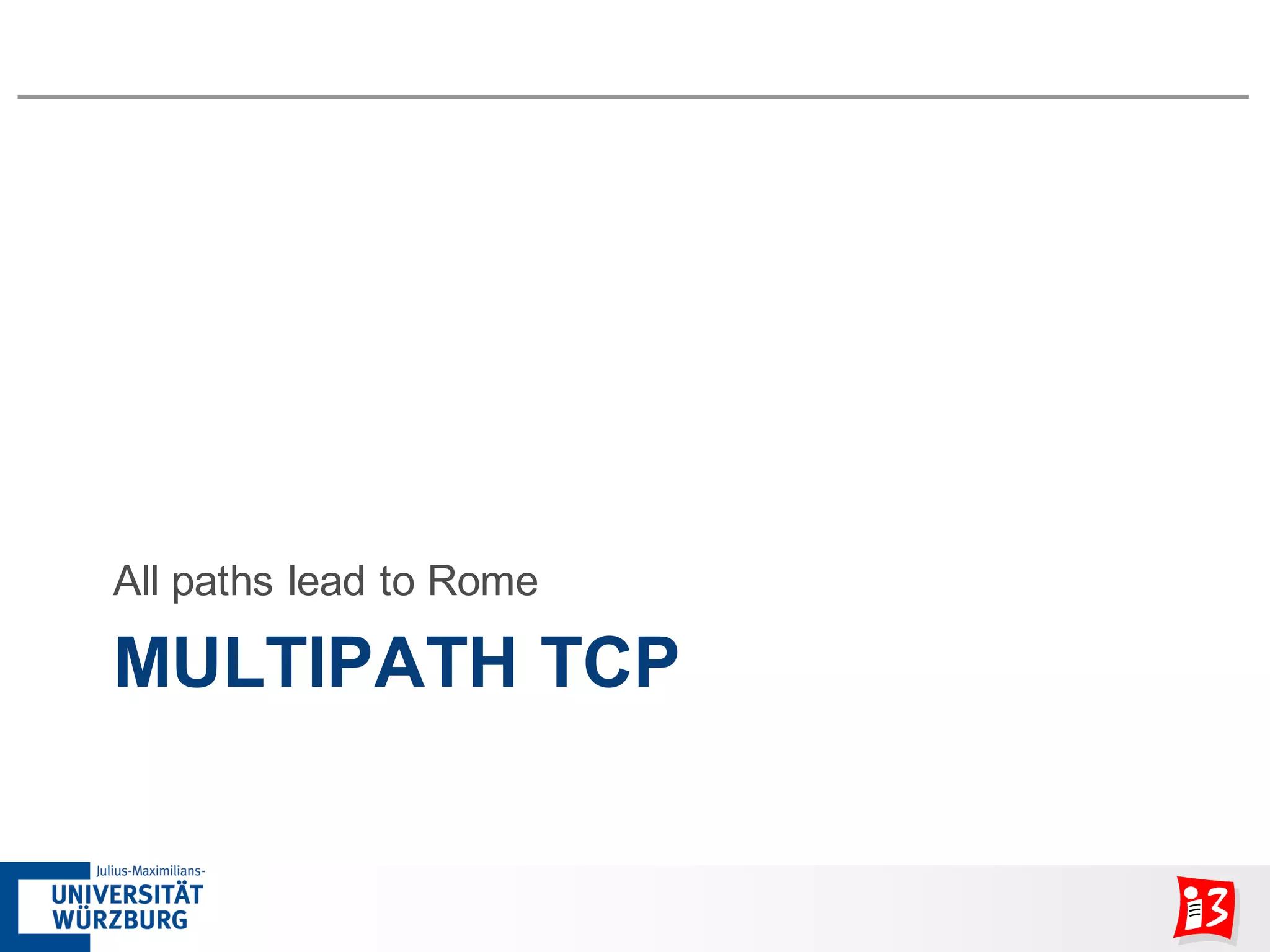

- 53. MULTIPATH TCP All pathslead to Rome

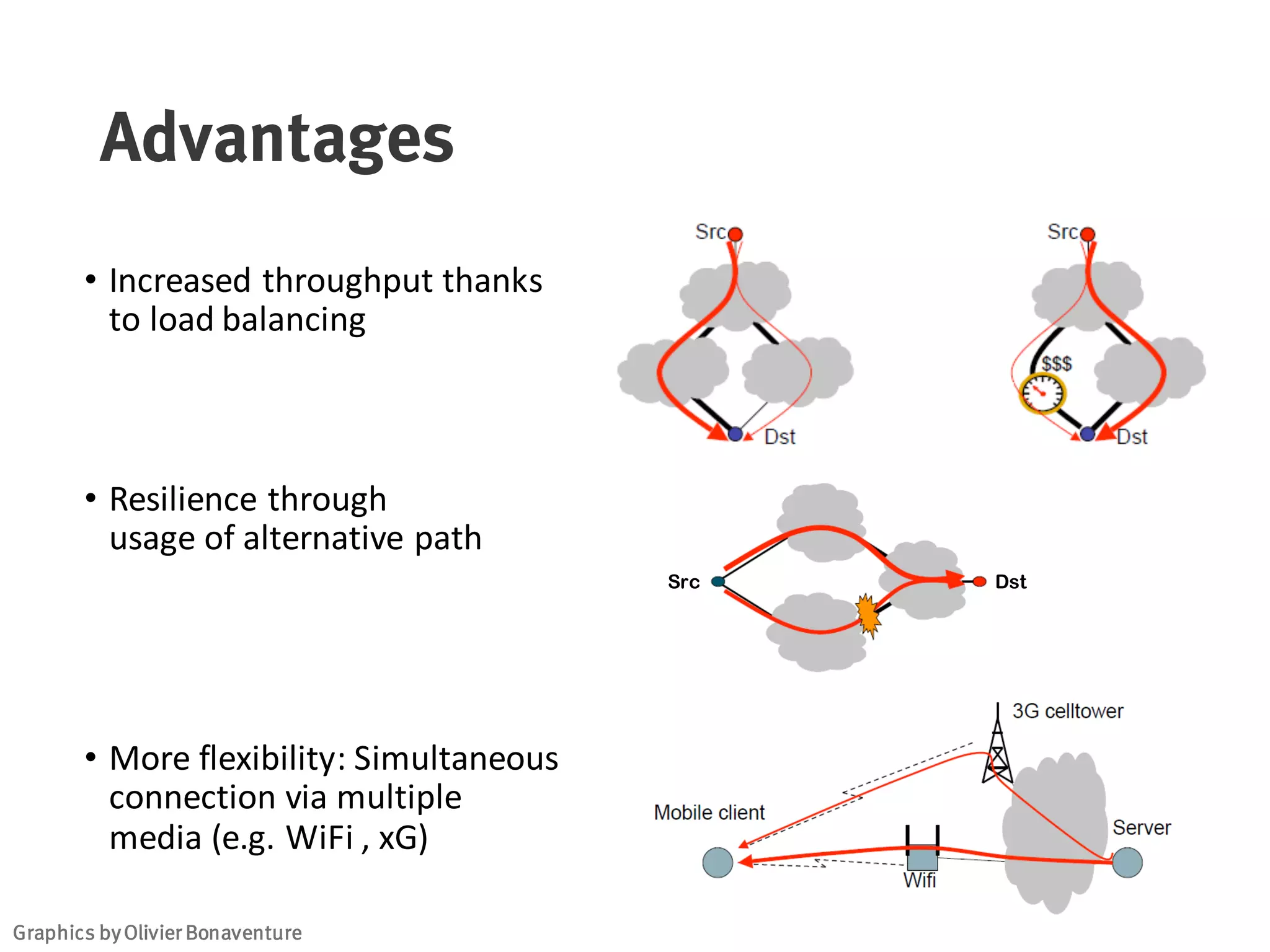

- 55. Advantages • Increased throughputthanks to load balancing • Resilience through usage of alternative path • More flexibility: Simultaneous connection via multiple media (e.g. WiFi , xG) Src Dst Graphics byOlivier Bonaventure

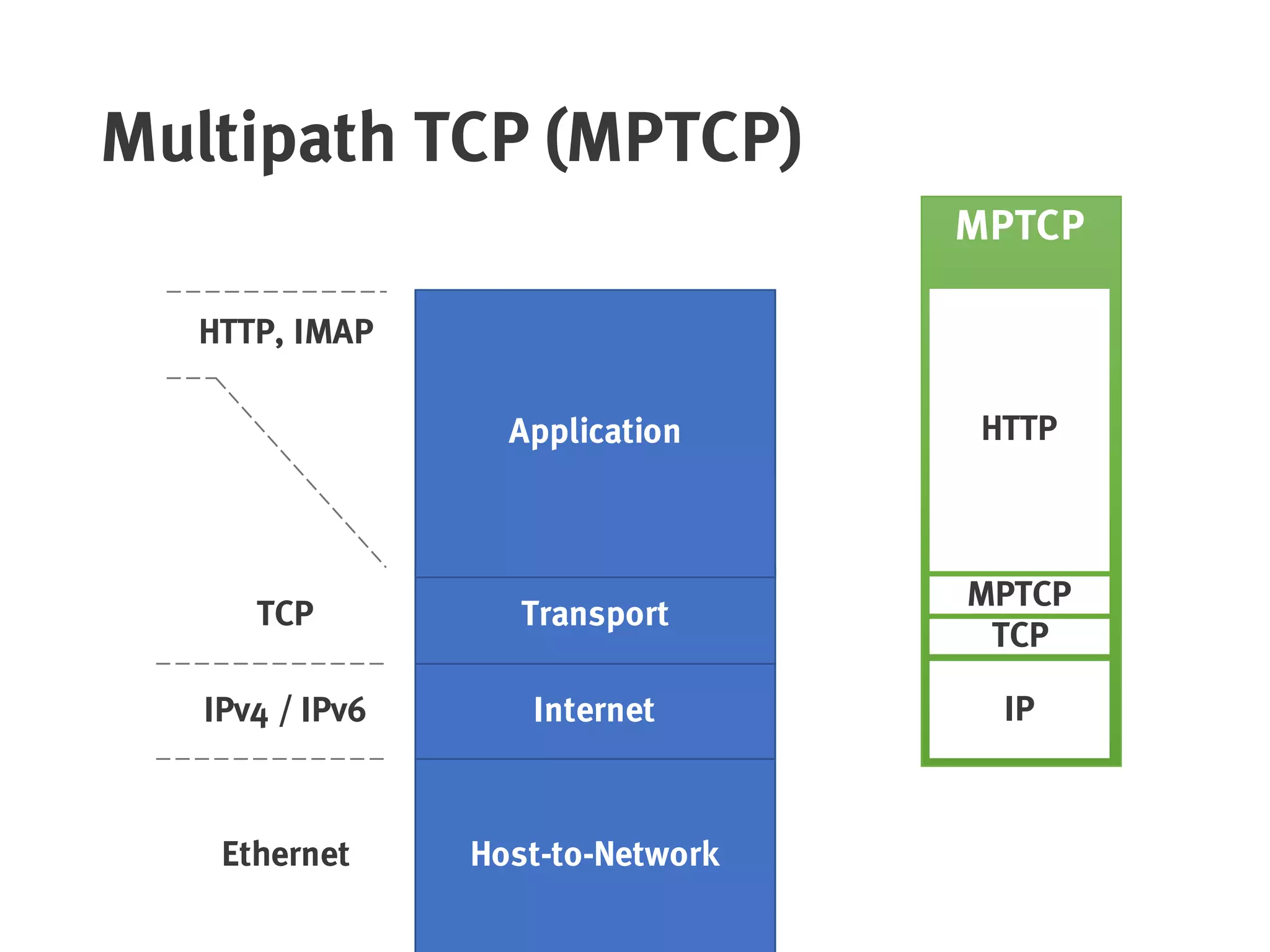

- 56. Multipath TCP (MPTCP) Host-to-Network Internet Transport Application Ethernet IPv4/ IPv6 TCP HTTP, IMAP MPTCP IP TCP MPTCP HTTP

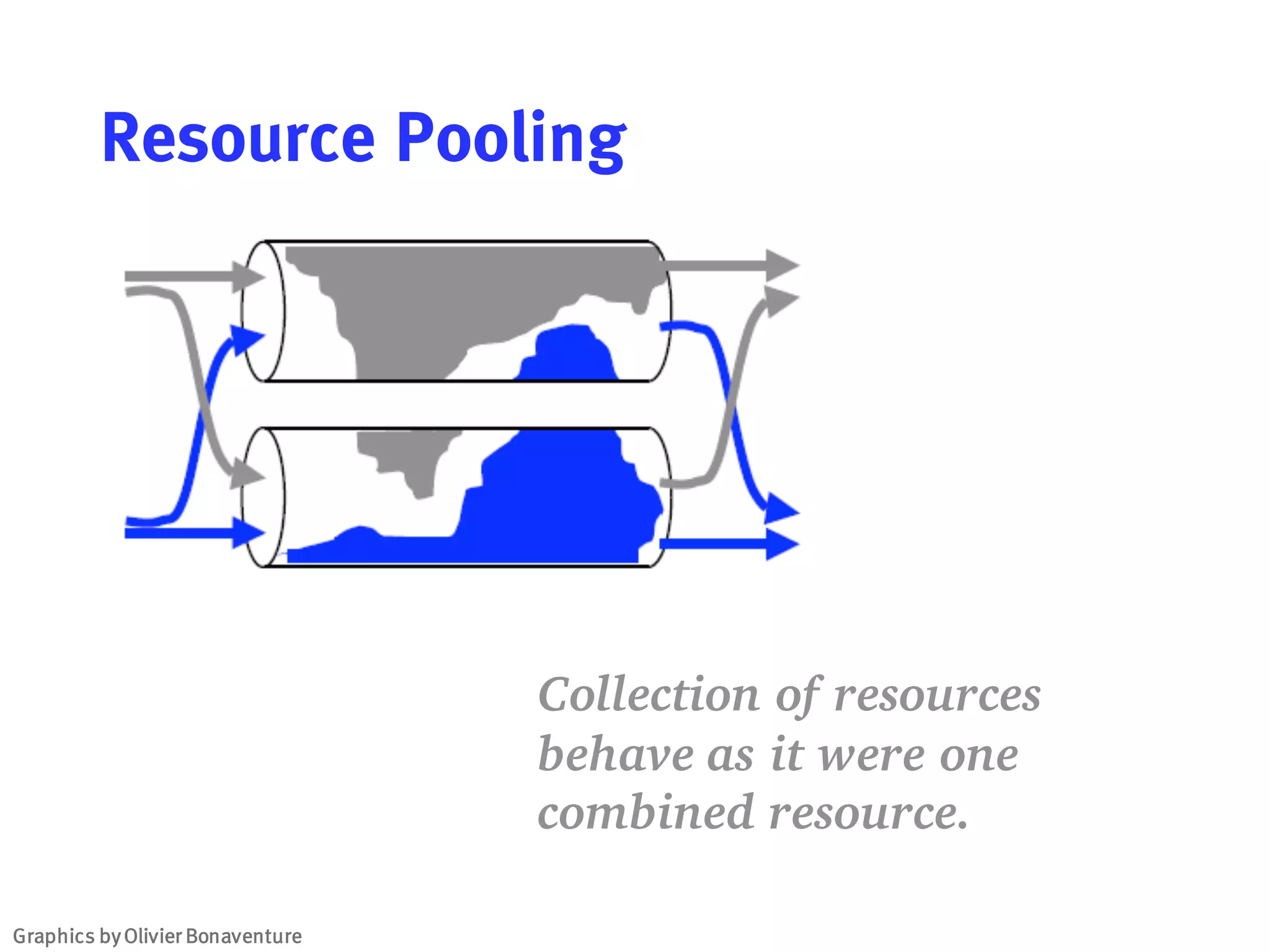

- 57. Resource Pooling Collection ofresources behave as it were one combined resource. Graphics byOlivier Bonaventure

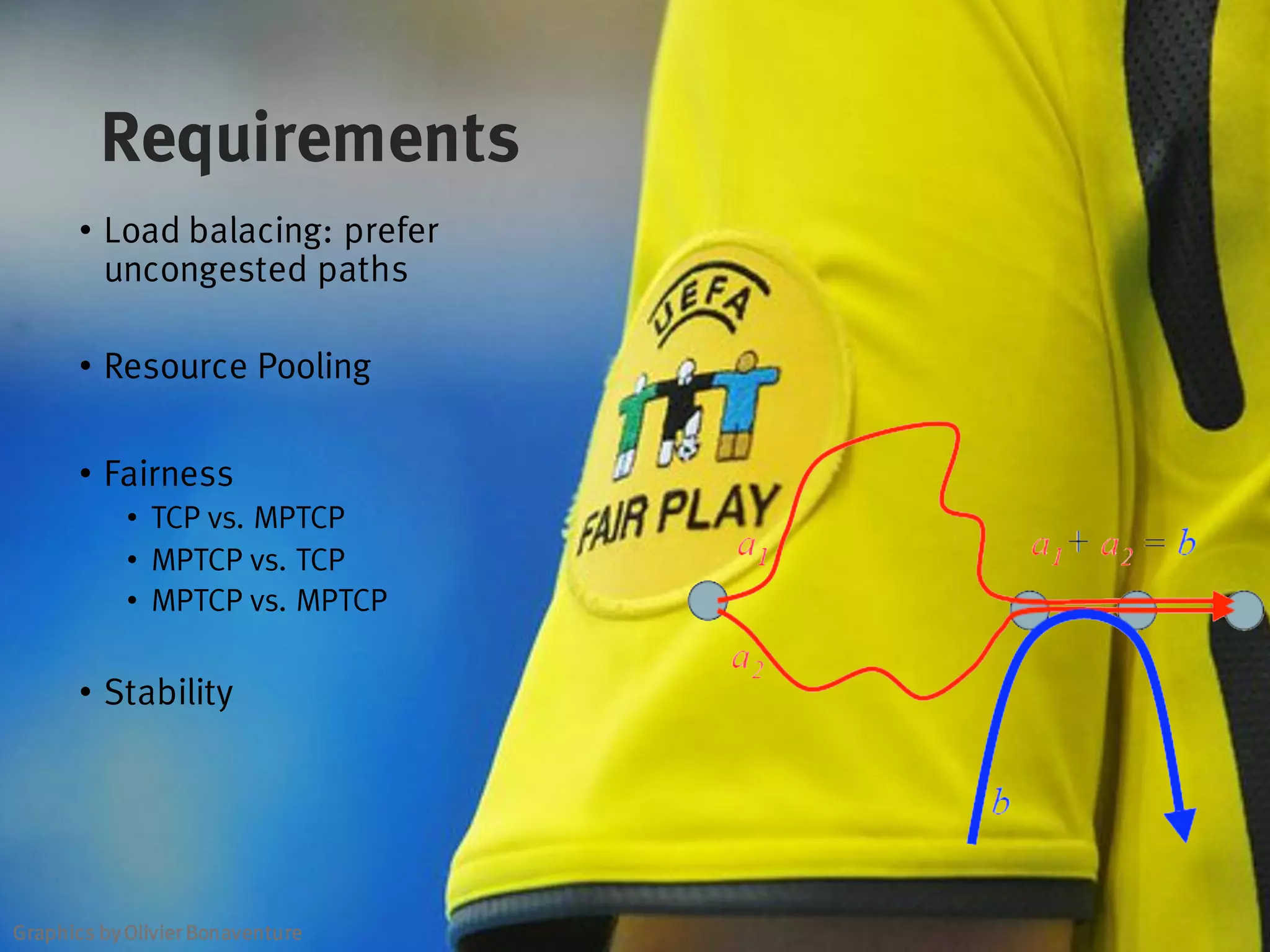

- 58. Requirements • Load balacing:prefer uncongested paths • Resource Pooling • Fairness • TCP vs. MPTCP • MPTCP vs. TCP • MPTCP vs. MPTCP • Stability Graphics byOlivier Bonaventure

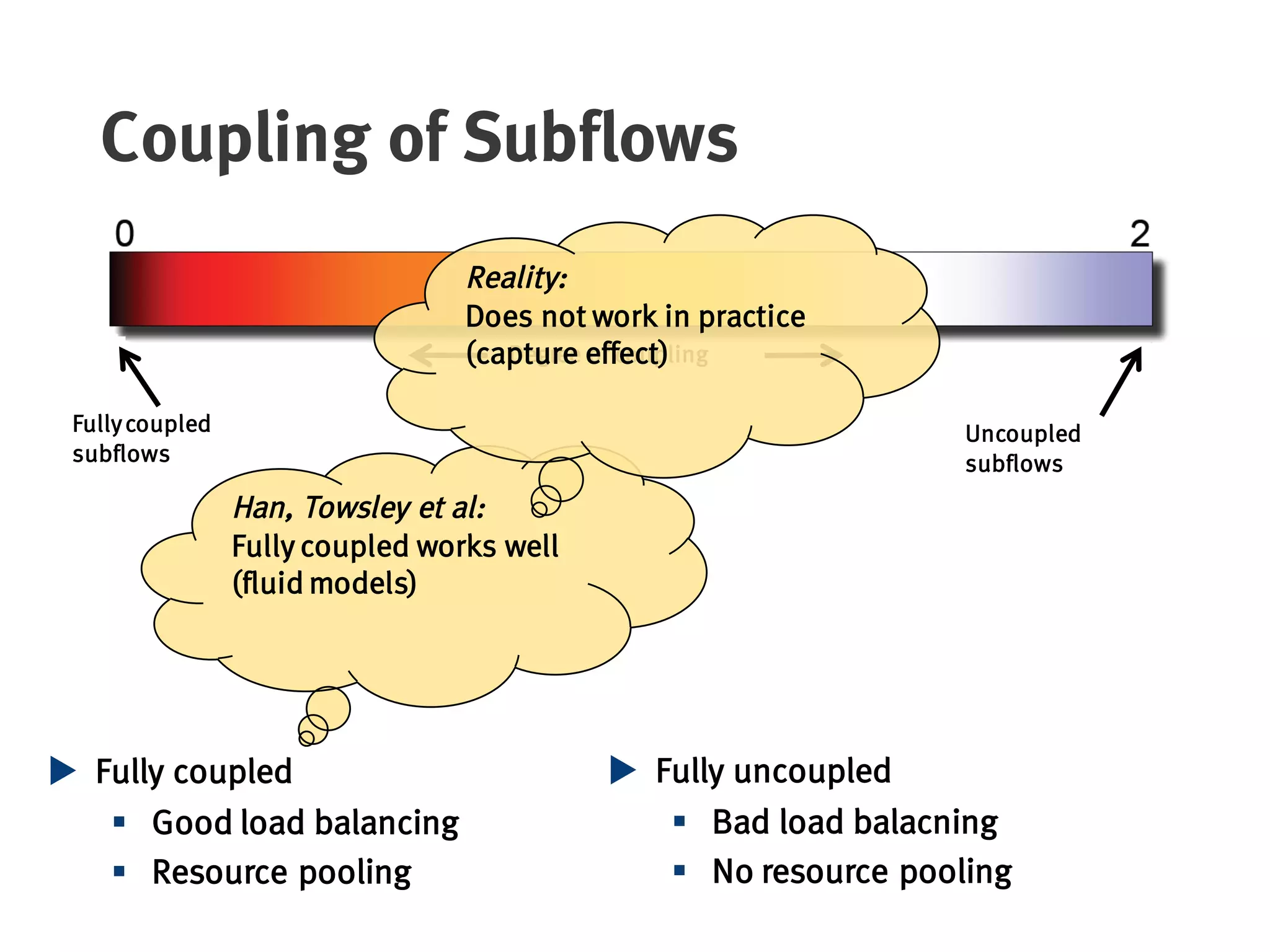

- 59. Coupling of Subflows uFully uncoupled § Bad load balacning § No resource pooling u Fully coupled § Good load balancing § Resource pooling Han, Towsley et al: Fully coupled works well (fluid models) Fullycoupled subflows Uncoupled subflows Degree of coupling Reality: Does not work in practice (capture effect)

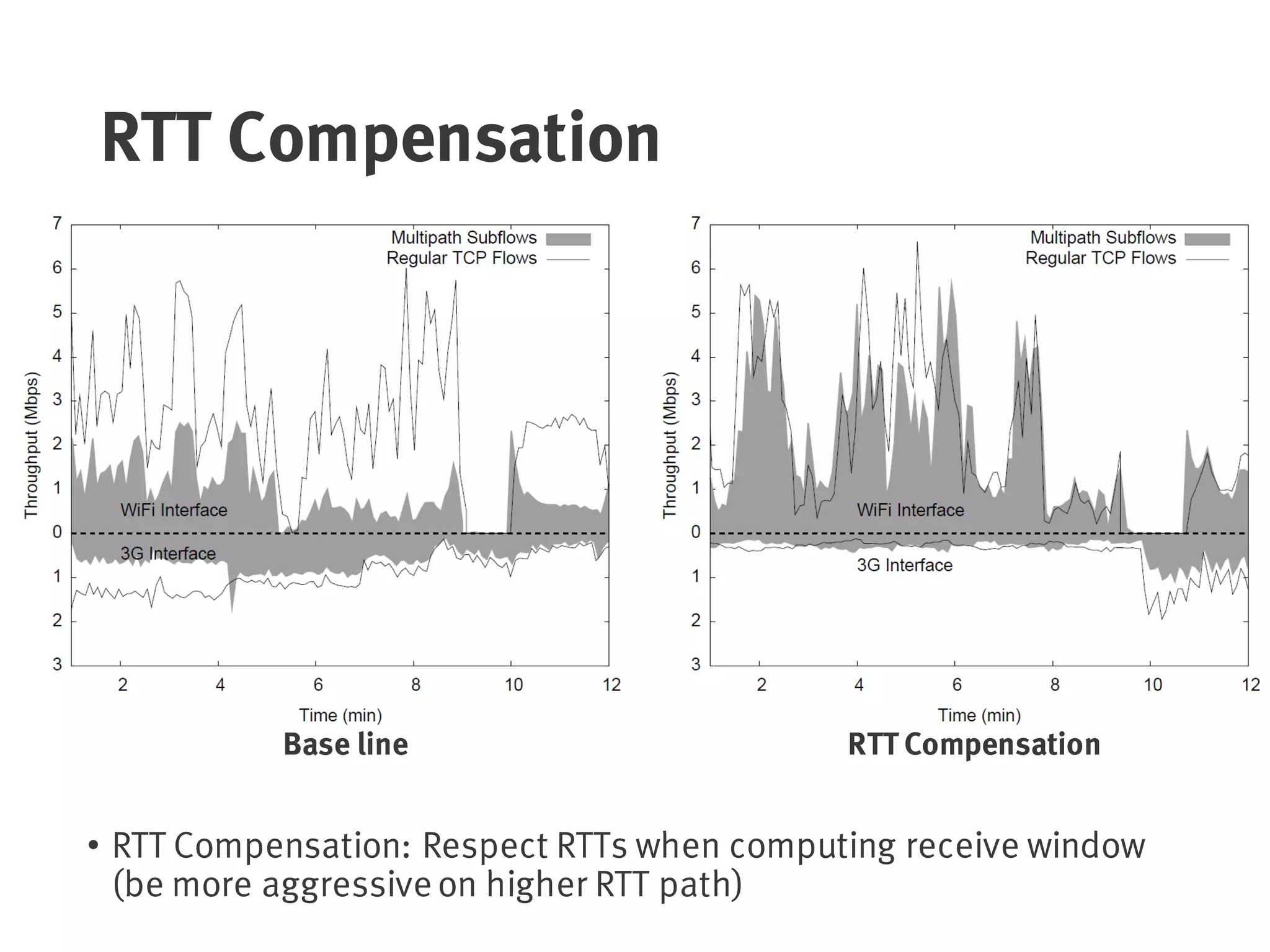

- 60. RTT Compensation • RTTCompensation: Respect RTTs when computing receive window (be more aggressive on higher RTT path) RTT CompensationBase line
- 61. “One” “But.. why?” “Siri, onhow many paths did my packets travel?”

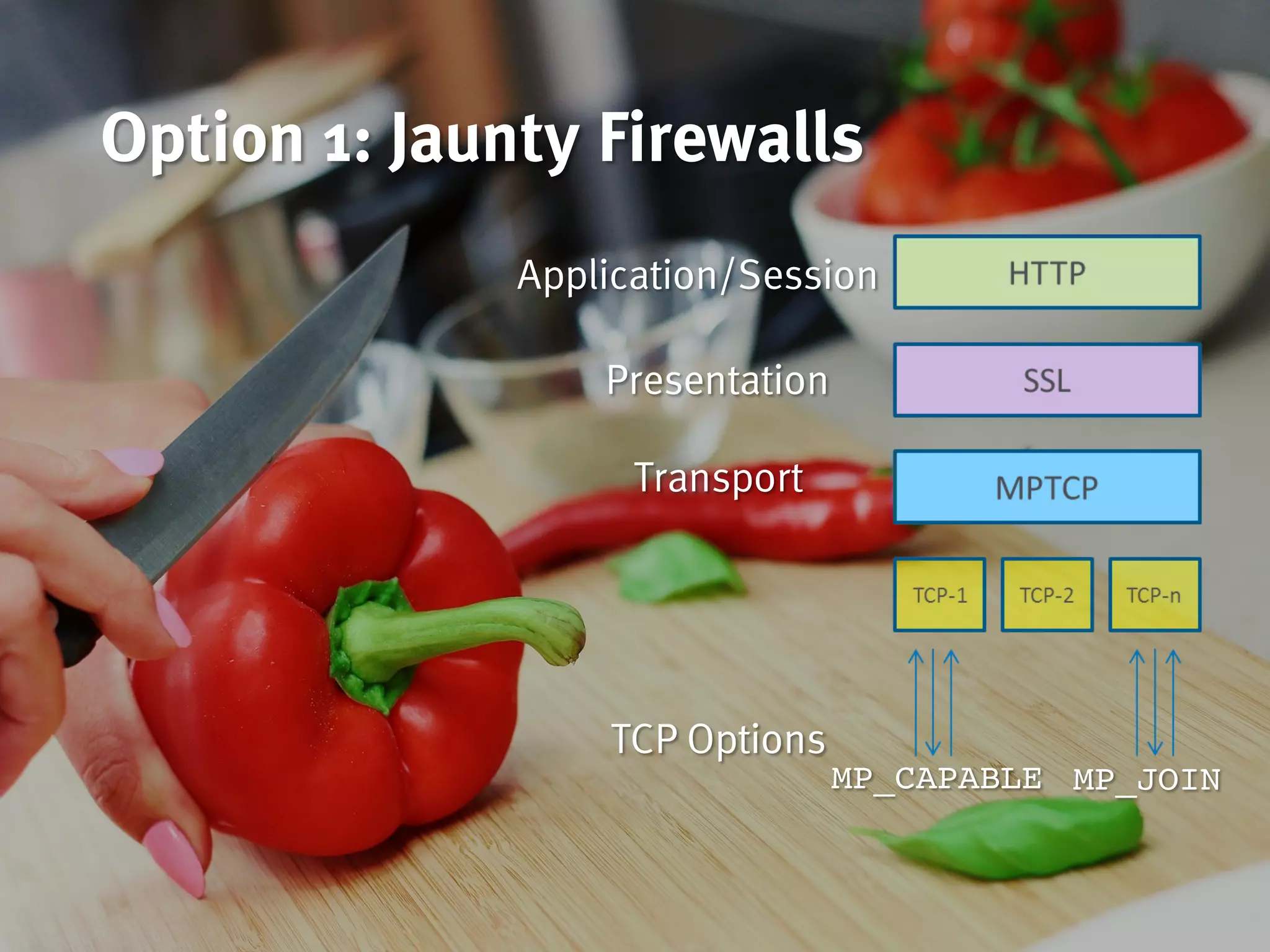

- 62. Option 1: JauntyFirewalls Application/Session Presentation Transport TCP Options MP_CAPABLE MP_JOIN

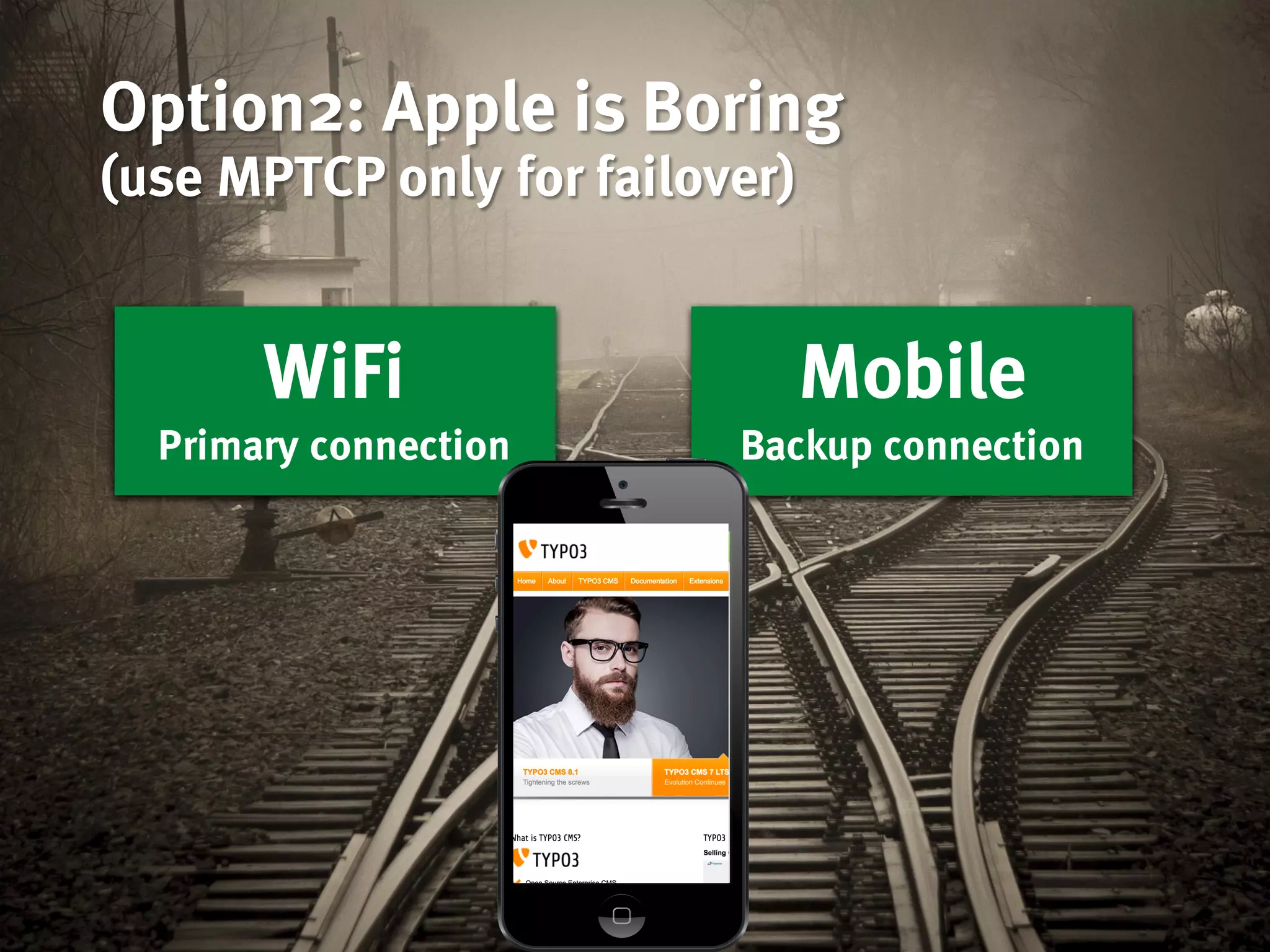

- 63. Option2: Apple isBoring (use MPTCP only for failover) Mobile Backup connection Mobile Backup connection WiFi Primary connection WiFi Primary connection
